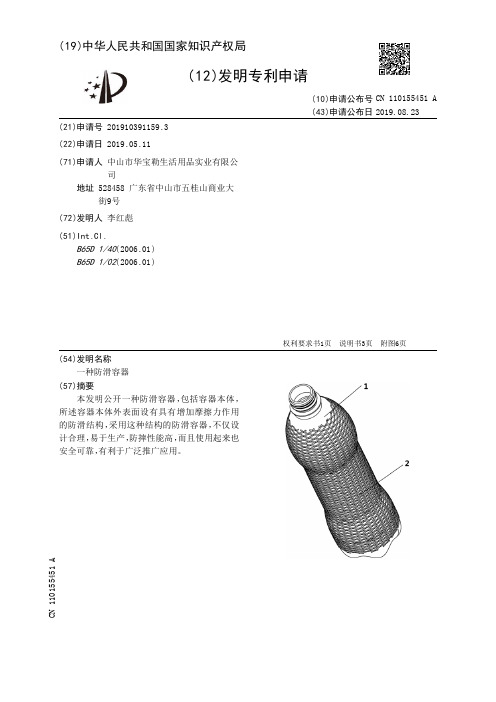

(19)中华人民共和国国家知识产权局(12)发明专利申请(10)申请公布号 (43)申请公布日 (21)申请号 201910391159.3(22)申请日 2019.05.11(71)申请人 中山市华宝勒生活用品实业有限公司地址 528458 广东省中山市五桂山商业大街9号(72)发明人 李红彪　(51)Int.Cl.B65D 1/40(2006.01)B65D 1/02(2006.01)(54)发明名称一种防滑容器(57)摘要本发明公开一种防滑容器，包括容器本体，所述容器本体外表面设有具有增加摩擦力作用的防滑结构，采用这种结构的防滑容器，不仅设计合理，易于生产，防摔性能高，而且使用起来也安全可靠，有利于广泛推广应用。

权利要求书1页 说明书3页 附图6页CN 110155451 A 2019.08.23C N 110155451A权　利　要　求　书1/1页CN 110155451 A1.一种防滑容器，其特征在于包括容器本体（1），所述容器本体（1）外表面设有具有增加摩擦力作用的防滑结构（2）。

2.根据权利要求1所述一种防滑容器，其特征在于所述防滑结构（2）全面或局部覆盖于容器本体（1）的外表面上。

3.根据权利要求2所述一种防滑容器，其特征在于所述防滑结构（2）由至少一条防滑条组合而成。

4.根据权利要求3所述一种防滑容器，其特征在于所述防滑结构（2）由防滑条交叉和/或平行连接而成。

5.根据权利要求3所述一种防滑容器，其特征在于所述防滑结构（2）由防滑条呈圆形和/或菱形连接而成。

6.根据权利要求4或5所述一种防滑容器，其特征在于相邻所述防滑条之间为粗条结合和/或细条结合方式设置。

7.根据权利要求6所述一种防滑容器，其特征在于所述防滑结构（2）表面呈凹形状和/或凸形状设置。

8.根据权利要求1所述一种防滑容器，其特征在于所述防滑结构（2）采用弹性材料或软质材料制成。

9.根据权利要求1所述一种防滑容器，其特征在于所述防滑结构（2）为一体成型设置。
