标准件国标对照表

DIN、EN、ISO、GB标准件对照表DIN 和 ISO、国内标准参考对照表－紧固件序号 DIN DIN 1 DIN 1052 DIN 11024 DIN 1151 DIN 125－1 DIN 125－2 DIN 126 DIN 127－1 DIN 127－2 DIN 128 DIN 13257 DIN 137 DIN 1440 DIN 1441 DIN 1444 DIN 1471 DIN 1472 DIN 1473 DIN 1474 DIN 1475 DIN 1476 DIN 1477 DIN 1479 DIN 1480 DIN 1481 DIN 1587 taper pins washers for timber connectors spring cotters round plain head nails plain washers without chamfer plain washers with chamfer plain washers spring lock washers with tang ends spring lock washers with square ends curved spring lock washers belting bolts (elevator bolts) wave spring washers plain washers for clevis pins Washers, Type Coarse for Bolts clevis pins with head grooved pins, taper grooved grooved pins, taper grooved half length grooved pins, parallel grooved full length grooved pins, reserve grooved half length grooved pins, centre grooved grooved pins with round head grooved pins with countersunk head turnuckles(centre parts), made out of hexagon bar turnuckles with eye bolt and hook bolt spring pins, heavy type hexagon domed cap nuts ISO 8752 GB/T 879.1 GB/T 802 EN 22341 ISO 2341 ISO 8744 ISO 8745 ISO 8740 ISO 8741 ISO 8742 ISO 8746 ISO 8747 GB/T 882 GB/T 13829.2 GB/T 13829.2 GB/T 13829.1 GB/T 13829.2 GB/T 13829.1 GB/T 13829.3 GB/T 13829.3 EN 28738 ISO 8738 GB/T 955 GB/T 97.3 ISO 7089 ISO 7090 ISO 7091 GB/T 97.1 GB/T 97.2 GB/T 95 GB/T 7244 GB/T 93 GB/T 7245 英文名称 EN EN 22339 ISO ISO 2339 GB GB/T 117 圆锥销木材连接用垫圈弹簧卡子沉头钢钉平垫圈平垫圈平垫圈 A级倒角型 C级 A级中文名称1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26重型弹簧垫圈标准弹簧垫圈鞍形弹簧垫圈平板螺栓波形弹性垫圈销轴用平垫圈螺栓用粗制垫圈销轴槽销槽销槽销槽销槽销槽销槽销锥槽（A 型）锥槽（B 型）平行沟槽（B 型）锥槽（C 型）平行沟槽（C 型）圆头、沉头（A 型）圆头、沉头（B 型）六角螺母棒花篮螺栓弹性圆柱销直槽组合式盖形螺母 page 1 of 10 重型E:\lee\技术文档\DIN 和 ISO、国内标准参考对照表－紧固件.docDIN 和 ISO、国内标准参考对照表－紧固件序号 DIN DIN 1804 DIN 1816 DIN 18182 DIN 186 DIN 188 DIN 2093 DIN 258 DIN 261 DIN 28129 DIN 3017 DIN 315 DIN 316 DIN 317 DIN 319 DIN 3404 DIN 3567 DIN 3570 DIN 404 DIN 417 DIN 427 DIN 431 DIN 432 DIN 433 DIN 434 DIN 435 DIN 436 英文名称 slotted round nuts for hook spanner round nuts with set holes dry wall screws T－head bolts with square neck T－head bolts with double nip disc springs taper pins with threaded end T－head bolts Clamp nuts for covers hose clamps wing nuts with rounded wings wing screws Amercia form wing screws Germany form ball knobs lubricating nipples, button head shackles for conduilts stirrup bolts (U－bolts) slotted capstan screws slotted set srews with full dog point slotted set srews with chamfered end pipe nuts with thread as in ISO 228－1 external tab washers (locking tab washers) washers for cheese head screws square taper washers for U－section square taper washers for I－sections square washers ISO 7092 GB/T 856 GB/T 848 GB/T 853 GB/T 852 外舌止动垫圈小垫圈 A级 EN 27435 ISO 7435 ISO 2342 GB/T 832 GB/T 75 JB/T 7490.1 GB/T 62 喉箍蝶型螺母蝶型螺钉(美制) 蝶型螺钉(德制) 圆球型盖型螺母直通式压注油杯管夹 U 型螺栓开槽带孔球面圆柱头螺钉开槽长圆柱端紧定螺钉ISO 8737 GB/T 881 GB/T 37 EN ISO GB 中文名称开槽圆螺母（配合沟头扳手）圆螺母（带插销孔）干壁钉（墙板钉） T 型槽用螺栓 T 型双接头螺栓盘型弹簧垫圈螺尾锥销 T 型头螺栓27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52槽钢用方斜垫圈工字钢用方斜垫圈方垫圈 page 2 of 10E:\lee\技术文档\DIN 和 ISO、国内标准参考对照表－紧固件.docDIN 和 ISO、国内标准参考对照表－紧固件序号 DIN DIN 438 DIN 439－1 DIN 439－2 英文名称 slotted set screws with cup point Hexagon thin nuts (unchamfered) －Product grade B Hexagon thin nuts (chamfered) －Product grades A and B rounds washers for wood constructions sealing caps, push－in type eyebolts internal tab washers tab washers with short and long tab at right angles knurled thumb screws with collar slotted knurled thumb screws with collar knurled nuts with collar knurled nuts sealing washers retaining rings for shafts (external), circlips retaining rings for bores (internal), circlips square head bolts with collar square head bolts with half dog point square head bolts with collar, half dog point and rounded end T－slot nuts single end studs masonry bolts slotted round nuts round nuts with drilled holes in one face GB/T 799 GB/T 817 GB/T 815 ISO 299 GB/T 894.1 GB/T 893.1 GB/T 806 GB/T 807 GB/T 855 GB/T 834 GB/T 798 EN EN 27436 ISO ISO 7436 ISO 4036 ISO 4035 ISO 8675 ISO 7094 GB GB/T 74 GB/T 6174 GB/T 6172.1 中文名称开槽凹端紧定螺钉六角薄螺母六角薄螺母无倒角53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75DIN 440 DIN 443 DIN 444 DIN 462 DIN 463 DIN 464 DIN 465 DIN 466 DIN 467 DIN 470 DIN 471 DIN 472 DIN 478 DIN 479 DIN 480 DIN 508 DIN 525 DIN 529 DIN 546 DIN 547木螺钉专用垫圈密封帽活节螺栓内舌止动垫圈双耳止动垫圈滚花高头螺钉开槽滚花高头螺钉滚花高螺母滚花薄螺母锁紧垫圈轴用弹性挡圈－A 型孔用弹性挡圈－A 型方头带垫螺栓方头圆柱底端螺栓方头带垫半圆底端螺栓 T 型槽螺母单头螺柱地脚螺栓带槽圆螺母端面带孔圆螺母 page 3 of 10E:\lee\技术文档\DIN 和 ISO、国内标准参考对照表－紧固件.docDIN 和 ISO、国内标准参考对照表－紧固件序号 DIN DIN 551 DIN 553 DIN 555 DIN 557 DIN 558 DIN 561 DIN 562 DIN 571 DIN 580 DIN 582 DIN 601 DIN 603 DIN 604 DIN 605 DIN 607 DIN 608 DIN 609 DIN 610 DIN 6303 DIN 6319 DIN 6325 DIN 6330 DIN 6331 DIN 6334 DIN 653 DIN 660 英文名称 slotted set screws with flat point slotted set screws with cone point hexagon nuts Product grade C square nuts hexagon screws hexagon set screws with full dog point square thin nuts －Product grade B hexagon head wood screws (coach screws) lifting eye bolts lifting eye nuts hexagon bolts mushroom head square neck bolts (carriage bolts) flat countersunk nib bolts flat countersunk long square neck bolts cup head nib bolts flat countersunk short square neck bolts hexagon fitted bolts, long thread hexagon fitted bolts, short thread Knurled nuts spherical washers, conical seats parallel pins hexagon nuts, 1.5d hexagon nuts, 1.5d with collar hexagon nuts, 3d knurled thumb screws thin type round head rivets ISO 1051 GB/T 835 GB/T 867 ISO 8734 GB/T 119.2 GB/T 56 圆柱销淬硬钢和马氏体不锈钢厚六角螺母厚六角法兰面螺母长六角螺母滚花平头螺钉半圆头铆钉 page 4 of 10 ISO 4016 ISO 8677 GB/T 5780 GB/T 14 ISO 3266 GB/T 102 GB/T 825 ISO 4018 EN EN 24766 EN 27434 ISO ISO 4766 ISO 7434 ISO 4034 GB GB/T 73 GB/T 71 GB/T 41 GB/T 39 GB/T 5781 中文名称开槽平端紧定螺钉开槽锥端紧定螺钉六角螺母方螺母 C级 C级 C级76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101六角头螺栓全螺纹六角头圆柱端紧定螺钉方型薄螺母六角头木螺钉吊环螺钉吊环螺母六角头螺栓 C级 B级大半圆头方颈螺栓沉头带插销马车螺栓沉头长方颈马车螺栓半圆头带插销马车螺栓沉头短方颈马车螺栓六角头精配螺栓（长螺纹）六角头精配螺栓（短螺纹）E:\lee\技术文档\DIN 和 ISO、国内标准参考对照表－紧固件.docDIN 和 ISO、国内标准参考对照表－紧固件序号 DIN DIN 661 DIN 662 DIN 674 DIN 6797 (A) DIN 6797 (J) DIN 6798 (A) DIN 6798 (J) DIN 6799 DIN 6885 DIN 6888 DIN 6899 DIN 6900－1 DIN 6901 DIN 6912 英文名称countersunk head rivets raised contersunk head rivets mushroom head rivets toothed lock washers (with external teeth) toothed lock washers (with internal teeth) serrated lock washers (with external teeth) serrated lock washers (with internal teeth) retaining rings for shafts (E－rings), circlips parallel keys(form A ) woodruff keys thimbles screws and washers assemblies tapping screws and washers assemblies hexagon socket thin head cap screws with pilot recess for wrench key GB/T 18230.1 ISO 10644 ISO 10510 GB/T 9074.1 GB/T 9074.18 ISO 773/2491 ISO 3912 GB/T 1099 EN ISO ISO 1051 ISO 1051 ISO 1051 GB/T 862.1 GB/T 861.1 GB/T 862.2 GB/T 861.2 GB/T 896 GB GB/T 869 GB/T 870 沉头铆钉半沉头铆钉大扁头铆钉外齿锁紧垫圈内齿锁紧垫圈外锯齿锁紧垫圈内锯齿锁紧垫圈开口挡圈平键（A 型）半圆键嵌环（支撑环）螺栓或螺钉和平垫圈组合件自攻螺钉和平垫圈组合件矮头内六角圆柱头螺钉栓接结构用大六角头螺栓 GB/T 3106 C 级螺纹长度按中文名称102 103 104 105 106 107 108 109 110 111 112 113 114 115 116DIN 6914High－strength hexagon head bolts with large widths across flats for structural steel bolting8.8 和 10.9 级短螺纹长度GB/T 18230.2栓接结构用大六角头螺栓 C级 8.8 和 10.9 级117 118 119 120 121DIN 6915 DIN 6916 DIN 6917 DIN 6921 DIN 6922Steel hexagon nuts with large widths across flats for high－strength structural bolting round washers for friction grip bolts spuare taper washers for friction grip bolts on T－sections Hexagon flange bolt EN 1665 EN 1665GB/T 18230.4 GB/T 18230.5栓接结构用 1 型大六角螺母栓接结构用平垫圈B级10 级淬火并回火E:\lee\技术文档\DIN 和 ISO、国内标准参考对照表－紧固件.doc page 5 of 10DIN 和 ISO、国内标准参考对照表－紧固件序号 DIN DIN 6923 DIN 6924 DIN 6925 DIN 6926 hexagon flange nuts Prevailing torque type hexagon nuts with nylon insert prevailing torque type hexagon nuts, all metallic nuts Prevailing torque type hexagon nuts with flange (with nylon insert) Prevailing torque type all metal hexagon nuts with flange parallel pins adjusting rings, heavy range (shafting collars) adjusting rings, light range (shafting collars) tab washers for slotted round nuts blind rivets rivets for brake and clutch lining spiral pins Spiral pin, heavy duty spring pins, light type washers for bolts withheavy type spring pins wire rope clips threadforming screws for ISO －metric thread ISO 8750 ISO 8748 ISO 13337 GB/T 858 GB/T 12617/12618 GB/T 875/975 GB/T 879.4 GB/T 879.3 GB/T 879.2 圆螺母用止退垫圈开口型抽芯铆钉（沉头、扁圆头）扁平头半空心/全空心铆钉弹性圆柱销弹性圆柱销弹性圆柱销卷制卷制直槽标准型重型轻型EN 1663 EN 1666 EN 1664 EN 1667 英文名称EN EN 1661 ISO ISO 4161 ISO 7040 ISO 10512 ISO 7042 ISO 7043 ISO 12125 ISO 7044 ISO 12126 ISO 2338 GB GB/T 6177.1 GB/T 889.1 GB/T 889.2 GB/T 6185.1 GB/T 6183.1 GB/T 6183.2 GB/T 6187.1 GB/T 6187.2 GB/T 119.1 六角法兰面螺母 1 型非金属嵌件六角锁紧螺母 1 型非金属嵌件六角锁紧螺母 2 型全金属六角锁紧螺母非金属嵌件六角法兰面锁紧螺母非金属嵌件六角法兰面锁紧螺母全金属六角法兰面锁紧螺母全金属六角法兰面锁紧螺母圆柱销细牙细牙细牙中文名称122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138DIN 6927 DIN 7 DIN 703 DIN 705 DIN 70952 DIN 7337 DIN 7338 DIN 7343 DIN 7344 DIN 7346 DIN 7349 DIN 741 DIN 7500 不淬硬钢和奥氏体不锈钢重型弹性圆柱销用垫圈卡头 ISO 公制螺纹螺钉(多种头型)E:\lee\技术文档\DIN 和 ISO、国内标准参考对照表－紧固件.doc page 6 of 10DIN 和 ISO、国内标准参考对照表－紧固件序号DIN 英文名称EN ISO ISO 10666 ISO 15480 GB GB/T 3098.11 GB/T 15856.5 GB/T 15856.1 GB/T 15856.2 GB/T 15856.3 紧固件机械性能中文名称自钻自攻螺钉六角凸缘自钻自攻螺钉十字槽盘头自钻自攻螺钉十字槽沉头自钻自攻螺钉十字槽半沉头自钻自攻螺钉开槽切削螺纹螺钉(多种头型) 十字槽切削螺纹螺钉(多种头型)139DIN 7504self－drilling tapping screwsISO 15481 ISO 15482 ISO 15483140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155DIN 7513 DIN 7516 DIN 787 DIN 7965 DIN 7968 DIN 7971 DIN 7972 DIN 7973 DIN 7976 DIN 7980 DIN 7981 DIN 7982 thread cutting screws thread cutting screws cross recess T－slot screws tee nuts with pronge hexagon head fitted bolts for steel structures pan head tapping screws with slot countersunk flat head tapping screws with slot raised countersunk oval head tapping screws with slot hexagon tapping screws spring lock washers for screws with cylindrical heads pan head tapping screws with cross recessed countersunk flat head tapping screws with cross recessed raised countersunk oval head tapping screws with cross recessed hexagon socket head cap screws with, reduced head pan head screws with cross recessed washers for steel structures ISO 7045 GB/T 818 ISO 7049 ISO 7050 GB/T 845 GB/T 846 ISO 1481 ISO 1482 ISO 1483 ISO 1479 GB/T 5282 GB/T 5283 GB/T 5284 GB/T 5285 ISO 299T 型槽螺钉 T 型四爪螺母开槽盘头自攻螺钉开槽沉头自攻螺钉开槽半沉头自攻螺钉六角头自攻螺钉圆柱头螺钉用弹簧垫圈十字槽盘头自攻螺钉十字槽沉头自攻螺钉DIN 7983 DIN 7984 DIN 7985 DIN 7989ISO 7051GB/T 847十字槽半沉头自攻螺钉薄型内六角圆柱头螺钉十字槽盘头螺钉E:\lee\技术文档\DIN 和 ISO、国内标准参考对照表－紧固件.docpage 7 of 10。

GB1228 钢结构用高强度大六角头螺栓GB12 半圆头方颈螺栓GB13 半圆头带榫螺栓GB14 方颈螺栓GB15389 全牙丝杆GB27 六角绞制孔用螺栓GB29.2 凹穴六角螺栓GB3632 钢结构用扭剪型高强度螺栓连接副GB37 T型槽用螺丝GB801 马车螺栓(方颈螺栓)GB825 吊环螺栓GB5780 外六角螺栓（半牙）4.8级GB5781 外六角螺栓（全牙）4.8级GB5782 外六角螺栓（半牙）8.8级、10.9级GB5783 外六角螺栓（全牙）8.8级、10.9级GB5787 六角法兰螺栓GB897 双头螺丝DIN939GB901 等长双头螺栓U型螺栓、花兰螺栓、化学螺栓、蝶形螺栓材质：Q235碳钢、35#钢、45#钢、35CrMo、40Cr、SUS304不锈钢常用规格：直径M4-56mm，长度10-3000mm表面处理：本色、发黑、兰锌、环保彩锌、普通彩锌、热镀锌、达克罗GB/T 5780-2000 六角头螺栓C级ISO4016：1999 GB/T 5781-2000 六角头螺栓全螺纹C级ISO4018：1999 GB/T 5782-2000 六角头螺栓ISO4014：1999 GB/T 5783-2000 六角头螺栓全螺纹ISO4017：1999 GB/T 5785-2000 六角头螺栓细牙ISO8765：1999 GB/T 5786-2000 六角头螺栓细牙全螺纹ISO8676：1999 GB/T 6170-2000 1 型六角螺母ISO4032：1999GB/T 6171-2000 1 型六角螺母细牙ISO8673：1999GB/T 6172.1-2000 六角薄螺母ISO4035：1999GB/T 6172.2-2000 非金属嵌件六角锁紧薄螺母ISO10511：1997GB/T 6173-2000 六角薄螺母细牙ISO8675：1999GB/T 6174-2000 六角薄螺母无倒角ISO4036：1999GB/T 6175-2000 2 型六角螺母ISO4033：1999GB/T 6176-2000 2 型六角螺母细牙ISO8674：1999GB/T 6177.1-2000 六角法兰面螺母ISO4161：1999GB/T 6177.2-2000 六角法兰面螺母细牙ISO10663：1999GB/T 6182-2000 2型非金属嵌件六角锁紧螺母ISO7041：1997GB/T 6183.1-2000 非金属嵌件六角法兰面锁紧螺母ISO7043：1997GB/T 6183.2-2000 非金属嵌件六角法兰面锁紧螺母细牙ISO12125：1997GB/T 6184-2000 1型全金属六角锁紧螺母ISO7719：1997GB/T 6185.1-2000 2型全金属六角锁紧螺母ISO7042：1997GB/T 6185.2-2000 2型全金属六角锁紧螺母细牙ISO10513：1997GB/T 6186-2000 2型全金属六角锁紧螺母9级ISO7720：1997GB/T 6187.1-2000 全金属六角法兰面锁紧螺母ISO7044：1997GB/T 6187.2-2000 全金属六角法兰面锁紧螺母细牙ISO12126：1997螺栓一般常用的有六角头螺栓、圆柱头内六角螺栓、方头螺栓、T型螺栓、活节螺栓、地脚螺栓。

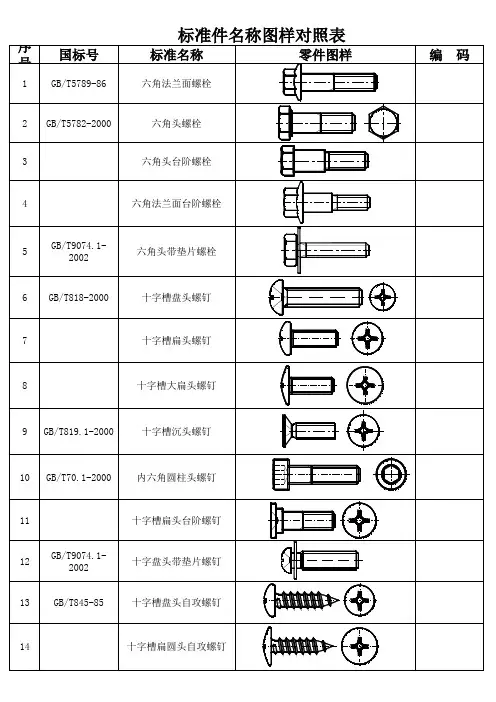

标准件（紧固件）对照表
国标全称实物国标全称实物
GB/T70.1 内六角圆柱头螺钉GB/T6170 粗牙I型六角螺母
GB/T70.2 内六角平圆头螺钉GB/T6171细牙I型六角螺母
GB/T818 十字槽盘头螺钉DIN985 尼龙防松螺母
GB/T819.1 十字槽沉头螺钉GB/T 802.1组合式盖形螺母
GB/T77
内六角平端紧定
螺钉
GB/T93 弹簧垫圈
GB/T78
内六角锥端紧定
螺钉
GB/T97.1 平垫圈
GB/T5782 粗牙六角头螺栓GB/T119.1 圆柱销
GB/T5785细牙六角头螺栓GB/T120.1 内螺纹圆柱销
GB/T5783
粗牙全螺纹六角头
螺栓
GB/T879.1 弹性圆柱销
GB/T5784
细牙全螺纹六角头
螺栓
GB/T118 内螺纹圆锥销
GB/T5789六角法兰面螺栓GB/T893.1 孔用弹性挡圈-A型
GB/T845
十字槽盘头自攻
螺钉
GB/T894.1 轴用弹性挡圈-A型
GB/T68开槽沉头螺钉GB/T896开口挡圈
ISO7379轴肩螺钉GB/T 1096圆头普通平键。

德标、欧标、国际、国标对照表—— DIN EN ISO GB 对照表新德标旧德标 英文名 中文名 国标 DIN EN ISO 4014 DIN 931-1 Hexagon head bolts - Product grades A and B(ISO 4014:1999) 六角头螺栓 GB/T 5782-2000 DIN EN ISO 4016DIN 601 Hexagon head bolts - Product grade C(ISO 4016:1999) 六角头螺栓 C 级 GB/T 5780-2000 DIN EN ISO 4017DIN 933 Hexagon head screws - Product grade A and B (ISO 4017:1999) 六角头螺栓 全螺纹 GB/T 5783-2000 DIN EN ISO 4018DIN 558 Hexagon head screws - Product grade C (ISO 4018:1999) 六角头螺栓 全螺纹 C 级 GB/T 5781-2000 DIN EN ISO 8676DIN 961 Hexagon head screws with metric fine pitch thread - Product grade A and B(ISO 8676:1999) 六角头螺栓 细牙 全螺纹 GB/T 5786-2000 DIN EN ISO 8765DIN 960 Hexagon head bolts with fine pitch thread - Product grades A and B(ISO 8765:1999) 六角头螺栓 细牙 GB/T 5785-2000 DIN EN ISO 4032DIN 934 Hexagon nuts,style 1-Product grades A and B(ISO: 4032:1999) 1型六角螺母 GB/T 6170-2000 DIN EN ISO 4033Hexagon nuts,style 2-Product grades A and B(ISO: 4033:1999) 2型六角螺母 GB/T 6175-2000 DIN EN ISO 4034DIN 555 Hexagon nuts - Product grade C (ISO 4034:1999) 六角螺母 C 级 GB/T 41-2000 DIN EN ISO 4035DIN 439-2 Hexagon thin nuts(chamfered)-Product grade A and B (ISO 4035:1999) 六角薄螺母 GB/T 6172.1-2000 DIN EN ISO 4036DIN 439-1 Hexagon thin nuts - Product grade B(unchamfered)(ISO 4036:1999) 六角薄螺母 无倒角 GB/T 6174-2000 DIN EN ISO 8673DIN 934| DIN 971-1 Hexagon nuts,style 1,with metric fine pitch thread - Product grades A and B (ISO 8673:1999) 1型六角螺母 细牙 GB/T 6171-2000 DIN EN ISO 8674DIN 971-2 Hexagon nuts,style 2,with metric fine pitch thread - Product grades A and B (ISO 8674:1999) 2型六角螺母 细牙 GB/T 6176-2000 DIN EN ISO 8675DIN 439-2 Hexagon thin nuts with metric fine pitch thread - Product grades A and B (ISO 8675:1999) 六角薄螺母 细牙 GB/T 6173-2000 DIN EN ISO 4762DIN 912 Hexagon socket head cap screws(ISO 4762:1997) 内六角圆柱头螺钉 GB/T 70.1-2000 DIN EN ISO 7380Hexagon socket button head sxrews (ISO 7380:1997) 内六角平圆头螺钉 GB/T 70.2-2000 DIN EN ISO 10642DIN 7991 Hexagon socket countersunk head screws (ISO 10642:1997) 内六角沉头螺钉 GB/T 70.3-2000 DIN EN ISO 1207DIN 84 Slotted cheese head screws-Product grade A(ISO 1207:1992) 开槽圆柱头螺钉 GB/T 65-2000 DIN EN ISO 1580 DIN 85 Slotted pan head screws-Product grade A(ISO 1580:1994) 开槽盘头螺钉GB/T 67-2000DIN EN ISO 2009 DIN 963 Slotted countersunk flat head screws(common head style)(ISO 2009:1994)开槽沉头螺钉GB/T 68-2000DIN EN ISO 2010 DIN 964 Countersunk slotted raised head screws(common head style)-Produce grade A(ISO 2010:1994)开槽半沉头螺钉GB/T 69-2000DIN EN ISO 7045 DIN 7985 Pan head screws with type H or type Z cross recess-Product grade A(ISO 7054:1994)十字槽盘头螺钉GB/T 818-2000DIN EN ISO 7046-1 DIN 965Countersunk flat head screws (common head style)with type H or type Z cross recess,product grade A-Part 1:Steel of property class 4.8(ISO 7046-1:1994) 十字槽盘头螺钉 第1部分：钢4.8级 GB/T 819.1-2000 DIN EN ISO 7046-2DIN 965 Cross recessed countersunk flat head screws (common head style),product grade A-Part2:Steel of property class 8.8,stainless steel and nonferous metals(ISO 7046-2:1990) 十字槽沉头螺钉 第2部分：钢8.8、不锈钢A2-70和有色金属CU2或CU3 GB/T 819.2-1997 DIN EN ISO 7047DIN 966 Countersunk raised head screws (common head style) with type H or type Z cross recess-Product grade A(ISO 7047:1994) 十字槽半沉头螺钉 GB/T 820-2000 DIN EN ISO 7048Cross recessed cheese head screws (ISO 7048:1998) 十字槽圆柱头螺钉 GB/T 822-2000 DIN EN ISO 10644Screw and washer assemblies with plain washers-Washer hardness classes 200HV and 300HV(ISO 10644:1998) 螺栓或螺钉和平垫圈组合件 GB/T 9074.1-2002 DIN EN ISO 10510Tapping screw and washer assemblies with plain washers(ISO 10510l:1999) 自攻螺钉和平垫圈组合件 GB/T 9074.18-2002 IDN EN ISO 15480Hexagon washer head drilling screws with tapping screws thread (ISO 15480:1999) 六角凸缘自钻自攻螺钉 GB/T 15856.5-2002 IDN EN ISO 15481Cross recessed pan head drilling screws with tapping screw thread(ISO 15481:1999) 十字槽盘头自钻自攻螺钉 GB/T 15856.1-2002 IDN EN ISO 15482Cross recessed countersunk head drilling screws with tapping screw thread (ISO 15482:1999) 十字槽沉头自钻自攻螺钉 GB/T 15856.2-2002 IDN EN ISO 15483Cross recessed raised countersunk head drilling screws with tapping screw thread(ISO 15483:1999) 十字槽半沉头自钻自攻螺钉 GB/T 15856.3-2002 DIN EN ISO 10669 Plain washers for tapping screw and washer assemblies - Normal and large series - Product grade A （ISO 10669:1999) 平垫圈 用于自攻螺钉和垫圈组合件GB/T 97.5-2002DIN EN ISO 10673Plain washers for screw and washer assemblies - Small,normal and large series - Product grade A (ISO 10673:1998) 平垫圈 用于螺钉和垫圈组合件 GB/T 97.4-2002 DIN EN ISO 2338DIN 7 Parallel pins,of unhardened steel and austenitic stainless steel(ISO 2338:1997) 圆柱销 不淬硬钢和奥氏体不锈钢 GB/T 119.1-2000 DIN EN ISO 8733DIN 7979 Parallel pins whit internal thread,of unhardened steel and austenitic stainless steel(ISO 8733:1997) 内螺纹圆柱销 不淬硬钢和奥氏体不锈钢 GB/T 120.1-2000 DIN EN ISO 8734DIN 6325 Parallel pins,of hardened steel or martensitic stainless steel(Dowel pins)(ISO 8734:1997) 圆柱销 淬硬钢和马氏体不锈钢 GB/T 119.2-2000 DIN EN ISO 8735DIN 7979 Parallel pins with internal thread,of hardened steel and martensitic stainless steel(ISO 8735:1997) 内螺纹圆柱销 淬硬钢和马氏体不锈钢 GB/T 120.2-2000 DIN EN ISO 8748DIN 7344 Spring-type straight pins,coiled,heavy duty (ISO 8748:1997) 弹性圆柱销 卷制 重型 GB/T 879.3-2000 DIN EN ISO 8750DIN 7343 Spring-type straight pins,coiled,standard duty (ISO 8750:1997) 弹性圆柱销 卷制 标准型 GB/T 879.4-2000 DIN EN ISO 8751Spring-type straight pins,coiled,light duty （ISO 8751:1997) 弹性圆柱销 卷制 轻型 GB/T 879.5-2000 DIN EN ISO 8752DIN 1481 Spring-type straight pins,slotted,heavy duty (ISO 8752:1997) 弹性圆柱销 直槽 重型 GB/T 879.1-2000 DIN EN ISO 13337DIN 7346 Spring-type straight pins,slotted,light duty (ISO 13337:1997) 弹性圆柱销 直槽 轻型 GB/T 879.2-2000 DIN EN ISO 1234DIN 94 Split pins （ISO1234:1997) 开口销 GB/T 91-2000 DIN EN ISO 7089Plain washers-Normal series-Product grade A 平垫圈 A 级 GB/T 97.1-2002 DIN EN ISO 7090Plain washers,chamfered-Normal series-Product grade A(ISO 7090:2000) 平垫圈 倒角型 A 级 GB/T 97.2-2002 DIN EN ISO 7091Plain washers-Normal series-Product grade C(ISO 7091:2000) 平垫圈 C 级 GB/T 95-2002 DIN EN ISO 7092Plain washers-Small series-Product grade A(ISO 7092:2000) 小垫圈 A 级 GB/T 848-2002 DIN EN ISO 7093-1Plain washers-Large series-Part 1: Product grade A(ISO 70931-1:2000) 大垫圈 A 级 GB/T 96.1-2002 DIN EN ISO 7093-2Plain washers-Normal series-Part 3: Product grade C(ISO 70936-2:2000) 大垫圈 C 级 GB/T 96.2-2002 DIN EN ISO 7094 Plain washers-Extra large series -Product grade C(ISO 7094:2000) 特大垫圈 C 级GB/T 5287-2002DIN EN ISO 7040 DIN 982|DIN 6924 Prevailing torque type hexagon nuts (with non-metallic insert),style 1 - Property classes 5,8 and 10(ISO 7040:1997)1型非金属嵌件六角锁紧螺母GB/T 889.1-2000 DIN EN ISO 7042 DIN 980| DIN 6925 Prevailing torque type all-metalhexagon nuts,style 2 - Propertyclasses 5,8, 10 and 12(ISO7042:1997)2型全金属六角锁紧螺母 GB/T 6185.1-2000 DIN EN ISO 7719 Prevailing torque type all-metalhexagon nuts,style 1- Propertyclasses 5,8 and 10(ISO 7719:1997) 1型全金属六角锁紧螺母GB/T 6184-2000 DIN EN ISO 10511 DIN 985 Prevailing torque type hexagon thin nuts (with non-metallic insert )(ISO 10511:1997) 非金属嵌件六角锁紧薄螺母 GB/T 6072.2-2000DIN EN ISO 10512 DIN 982|DIN 6924Prevailing torque type hexagon nuts (with non-metallic insert),style 1,with metric fine pitch thread-Property classes 6,8 and 10(ISO 10512:1997) 1型非金属嵌件六角锁紧螺母 细牙 GB/T 889.2-2000 DIN EN ISO 10513 DIN 980|DIN 6925 Prevailing torque type all-metal hexagon nuts,style 2,with metric fine pitch thread - Property classes 8,10 and 12(ISO 10513:1997) 2型全金属六角锁紧螺母 细牙GB/T 6185.2-2000（注：文件素材和资料部分来自网络，供参考。

德标、欧标、国际、国标对照表—— DIN EN ISO GB 对照表新德标旧德标 英文名 中文名 国标 DIN EN ISO 4014 DIN 931-1 Hexagon head bolts -Product grades A and B(ISO 4014:1999) 六角头螺栓 GB/T 5782-2000 DIN EN ISO 4016DIN 601 Hexagon head bolts - Product grade C(ISO 4016:1999) 六角头螺栓 C 级 GB/T 5780-2000 DIN EN ISO 4017DIN 933 Hexagon head screws -Product grade A and B (ISO 4017:1999) 六角头螺栓 全螺纹 GB/T 5783-2000 DIN EN ISO 4018DIN 558 Hexagon head screws -Product grade C (ISO 4018:1999) 六角头螺栓 全螺纹 C 级 GB/T 5781-2000 DIN EN ISO 8676DIN 961 Hexagon head screws with metric fine pitch thread -Product grade A and B(ISO 8676:1999) 六角头螺栓 细牙 全螺纹 GB/T 5786-2000 DIN EN ISO 8765DIN 960 Hexagon head bolts with fine pitch thread -Product grades A and B(ISO 8765:1999) 六角头螺栓 细牙 GB/T 5785-2000 DIN EN ISO 4032DIN 934 Hexagon nuts,style 1-Product grades A and B(ISO: 4032:1999) 1型六角螺母 GB/T 6170-2000 DIN EN ISO 4033Hexagon nuts,style 2-Product grades A and B(ISO: 4033:1999) 2型六角螺母 GB/T 6175-2000 DIN EN ISO 4034DIN 555 Hexagon nuts -Product grade C (ISO 4034:1999) 六角螺母 C 级 GB/T 41-2000 DIN EN ISO 4035DIN 439-2 Hexagon thin nuts(chamfered)-Product grade A and B (ISO 4035:1999) 六角薄螺母 GB/T 6172.1-2000 DIN EN ISO 4036DIN 439-1 Hexagon thin nuts - Product grade B(unchamfered)(ISO 4036:1999) 六角薄螺母 无倒角 GB/T 6174-2000 DIN EN ISO 8673DIN 934| DIN 971-1 Hexagon nuts,style 1,with metric fine pitch thread - Product grades A and B (ISO 8673:1999) 1型六角螺母 细牙 GB/T 6171-2000 DIN EN ISO 8674DIN 971-2 Hexagon nuts,style 2,with metric fine pitch thread - Product grades A and B (ISO 8674:1999) 2型六角螺母 细牙 GB/T 6176-2000 DIN EN ISO 8675DIN 439-2 Hexagon thin nuts with metric fine pitch thread -Product grades A and B (ISO 8675:1999) 六角薄螺母 细牙 GB/T 6173-2000 DIN EN ISO 4762DIN 912 Hexagon socket head cap screws(ISO 4762:1997) 内六角圆柱头螺钉 GB/T 70.1-2000 DIN EN ISO 7380Hexagon socket button head sxrews (ISO 7380:1997) 内六角平圆头螺钉 GB/T 70.2-2000 DIN EN ISO 10642DIN 7991 Hexagon socket countersunk head screws (ISO 10642:1997) 内六角沉头螺钉 GB/T 70.3-2000 DIN EN ISO 1207 DIN 84 Slotted cheese head screws-Product grade A(ISO 1207:1992) 开槽圆柱头螺钉GB/T 65-2000DIN EN ISO 1580DIN 85 Slotted pan head screws-Product grade A(ISO 1580:1994) 开槽盘头螺钉 GB/T 67-2000 DIN EN ISO 2009DIN 963 Slotted countersunk flat head screws(common head style)(ISO 2009:1994) 开槽沉头螺钉 GB/T 68-2000 DIN EN ISO 2010DIN 964 Countersunk slotted raised head screws(common head style)-Produce grade A(ISO 2010:1994) 开槽半沉头螺钉 GB/T 69-2000 DIN EN ISO 7045DIN 7985 Pan head screws with type H or type Z cross recess-Product grade A(ISO 7054:1994) 十字槽盘头螺钉 GB/T 818-2000 DIN EN ISO 7046-1DIN 965 Countersunk flat head screws (common head style)with type H or type Z cross recess,product grade A-Part 1:Steel of property class 4.8(ISO 7046-1:1994) 十字槽盘头螺钉 第1部分：钢4.8级 GB/T 819.1-2000DIN EN ISO 7046-2DIN 965 Cross recessed countersunk flat head screws (common head style),product grade A-Part2:Steel of property class 8.8,stainless steel and nonferous metals(ISO 7046-2:1990) 十字槽沉头螺钉 第2部分：钢8.8、不锈钢A2-70和有色金属CU2或CU3 GB/T 819.2-1997DIN EN ISO 7047DIN 966 Countersunk raised head screws (common head style) with type H or type Z cross recess-Product grade A(ISO 7047:1994) 十字槽半沉头螺钉 GB/T 820-2000 DIN EN ISO 7048Cross recessed cheese head screws (ISO 7048:1998) 十字槽圆柱头螺钉 GB/T 822-2000 DIN EN ISO 10644Screw and washer assemblies with plain washers-Washer hardness classes 200HV and 300HV(ISO 10644:1998) 螺栓或螺钉和平垫圈组合件 GB/T 9074.1-2002 DIN EN ISO 10510Tapping screw and washer assemblies with plain washers(ISO 10510l:1999)自攻螺钉和平垫圈组合件 GB/T 9074.18-2002 IDN EN ISO 15480Hexagon washer head drilling screws with tapping screws thread (ISO 15480:1999) 六角凸缘自钻自攻螺钉 GB/T 15856.5-2002 IDN EN ISO 15481Cross recessed pan head drilling screws with tapping screw thread(ISO 15481:1999) 十字槽盘头自钻自攻螺钉 GB/T 15856.1-2002 IDN EN ISO 15482 Cross recessed countersunk head drilling screws with tapping screw thread (ISO 15482:1999) 十字槽沉头自钻自攻螺钉GB/T 15856.2-2002IDN EN ISO 15483Cross recessed raised countersunk head drilling screws with tapping screw thread(ISO 15483:1999) 十字槽半沉头自钻自攻螺钉 GB/T 15856.3-2002 DIN EN ISO 10669Plain washers for tapping screw and washer assemblies - Normal and large series - Product grade A （ISO 10669:1999) 平垫圈 用于自攻螺钉和垫圈组合件 GB/T 97.5-2002 DIN EN ISO 10673Plain washers for screw and washer assemblies -Small,normal and large series - Product grade A (ISO 10673:1998) 平垫圈 用于螺钉和垫圈组合件 GB/T 97.4-2002 DIN EN ISO 2338DIN 7 Parallel pins,of unhardened steel and austenitic stainless steel(ISO 2338:1997) 圆柱销 不淬硬钢和奥氏体不锈钢 GB/T 119.1-2000DIN EN ISO 8733DIN 7979 Parallel pins whit internal thread,of unhardened steel and austenitic stainless steel(ISO 8733:1997) 内螺纹圆柱销 不淬硬钢和奥氏体不锈钢 GB/T 120.1-2000DIN EN ISO 8734DIN 6325 Parallel pins,of hardened steel or martensitic stainless steel(Dowel pins)(ISO 8734:1997) 圆柱销 淬硬钢和马氏体不锈钢 GB/T 119.2-2000DIN EN ISO 8735DIN 7979 Parallel pins with internal thread,of hardened steel and martensitic stainless steel(ISO 8735:1997) 内螺纹圆柱销 淬硬钢和马氏体不锈钢 GB/T 120.2-2000DIN EN ISO 8748DIN 7344 Spring-type straight pins,coiled,heavy duty (ISO 8748:1997) 弹性圆柱销 卷制 重型 GB/T 879.3-2000DIN EN ISO 8750DIN 7343 Spring-type straight pins,coiled,standard duty (ISO 8750:1997) 弹性圆柱销 卷制 标准型 GB/T 879.4-2000DIN EN ISO 8751Spring-type straight pins,coiled,light duty （ISO 8751:1997) 弹性圆柱销 卷制 轻型 GB/T 879.5-2000DIN EN ISO 8752DIN 1481 Spring-type straight pins,slotted,heavy duty (ISO 8752:1997) 弹性圆柱销 直槽 重型 GB/T 879.1-2000DIN EN ISO 13337DIN 7346 Spring-type straight pins,slotted,light duty (ISO 13337:1997) 弹性圆柱销 直槽 轻型 GB/T 879.2-2000DIN EN ISO 1234DIN 94 Split pins （ISO1234:1997) 开口销 GB/T 91-2000 DIN EN ISO 7089Plain washers-Normal series-Product grade A 平垫圈 A 级 GB/T 97.1-2002 DIN EN ISO 7090 Plain washers,chamfered-Normal series-Product grade A(ISO 7090:2000)平垫圈 倒角型 A 级GB/T 97.2-2002DIN EN ISO 7091Plain washers-Normal series-Product grade C(ISO 7091:2000) 平垫圈 C 级 GB/T 95-2002 DIN EN ISO 7092Plain washers-Small series-Product grade A(ISO 7092:2000) 小垫圈 A 级 GB/T 848-2002 DIN EN ISO 7093-1 Plain washers-Large series-Part 1: Product grade A(ISO 70931-1:2000)大垫圈 A 级 GB/T 96.1-2002DIN EN ISO 7093-2Plain washers-Normal series-Part 3: Product grade C(ISO 70936-2:2000) 大垫圈 C 级 GB/T 96.2-2002 DIN EN ISO 7094Plain washers-Extra large series -Product grade C(ISO 7094:2000) 特大垫圈 C 级 GB/T 5287-2002 DIN EN ISO 7040DIN 982| DIN 6924 Prevailing torque type hexagon nuts (with non-metallic insert),style 1 - Property classes 5,8 and 10(ISO 7040:1997) 1型非金属嵌件六角锁紧螺母 GB/T 889.1-2000DIN EN ISO 7042DIN 980| DIN 6925 Prevailing torque type all-metal hexagon nuts,style 2 - Property classes 5,8, 10 and 12(ISO 7042:1997) 2型全金属六角锁紧螺母 GB/T 6185.1-2000 DIN EN ISO 7719Prevailing torque type all-metal hexagon nuts,style 1- Property classes 5,8 and 10(ISO 7719:1997) 1型全金属六角锁紧螺母 GB/T 6184-2000 DIN EN ISO 10511DIN 985 Prevailing torque type hexagon thin nuts (with non-metallic insert )(ISO 10511:1997) 非金属嵌件六角锁紧薄螺母 GB/T 6072.2-2000 DIN EN ISO 10512DIN 982| DIN 6924 Prevailing torque type hexagon nuts (with non-metallic insert),style 1,with metric fine pitch thread-Property classes 6,8 and 10(ISO 10512:1997) 1型非金属嵌件六角锁紧螺母 细牙 GB/T 889.2-2000DIN EN ISO 10513 DIN 980|DIN 6925 Prevailing torque type all-metal hexagon nuts,style 2,with metric fine pitch thread - Property classes 8,10 and 12(ISO 10513:1997)2型全金属六角锁紧螺母 细牙GB/T 6185.2-2000。
