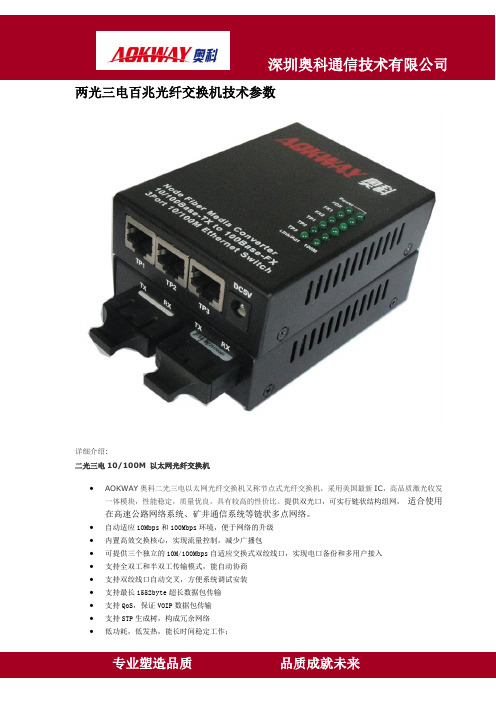

两光三电百兆光纤交换机技术参数详细介绍:二光三电10/100M 以太网光纤交换机•AOKWAY奥科二光三电以太网光纤交换机又称节点式光纤交换机，采用美国最新IC，高品质激光收发一体模块，性能稳定，质量优良，具有较高的性价比。

提供双光口，可实行链状结构组网，适合使用在高速公路网络系统、矿井通信系统等链状多点网络。

•自动适应10Mbps和100Mbps环境，便于网络的升级•内置高效交换核心，实现流量控制，减少广播包•可提供三个独立的10M/100Mbps自适应交换式双绞线口，实现电口备份和多用户接入•支持全双工和半双工传输模式，能自动协商•支持双绞线口自动交叉，方便系统调试安装•支持最长1552byte超长数据包传输•支持QoS，保证VOIP数据包传输•支持STP生成树，构成冗余网络•低功耗，低发热，能长时间稳定工作；•支持双纤多模、双纤单模和单纤单模多种光纤口选择，扩展了用户的需求。

主要特点◆3 个RJ45 电口和1 个或2个光口，实现双绞线和光纤之间，及光纤和光纤之间的光电信号转换◆电口能自适应10/100M、全/半双工模式、直通线/交叉线连接方式◆支持流量控制，能防止广播风暴◆支持最大1916 bytes的超长信息包◆采用美国最新防雷IC，有效减少了雷电感应造成的损坏。

技术规范◆适合标准：IEEE802.3u 100Base-TX 和100Base-FX◆接口标准：电口：RJ-45，10/100Mbps（自适应）光口：ST/SC/FC，100Mbps（全双工）◆缆线：双绞线：5类线（最长距离至100m）光纤（多模）：50/125，62.5/125μm（最长距离至2Km）光纤（单模）：8/125，8.7/125，9/125，10/125μm（最长距离至100Km）◆流量控制：全双工IEEE802.3x流量控制半双工背压流量控制◆LED指示灯：PWR, TP1 Link /Act, TP2 Link /Act, TP3 Link /Act, FX1 Link /Act, FX1 Link /Ac◆电源: AC100 ～240V，DC5V 2A◆环境温度:：0 ～+50℃◆存储温度:：-20 ～+70℃◆湿度:：5% ～90%◆体积：26mm(H)*71mm(W)*98mm(D) /高*宽*深（外置电源）型号光纤类型接口发射波长发射功率接收灵敏度传输距离允许损耗AOK-2F3TMM 多模SC/ST 850/1310nm -20～-12dBm -30dBm 2km 10dBmAOK-2F3TMS 多模SC/ST 850/1310nm -20～-12dBm -30dBm 2km 10dBm 单模SC 1310nm -14～-8dBm -32dBm 25km 18dBmAOK-2F3TSS 单模SC 1310nm -14～-8dBm -32dBm 25km 18dBm产品型号 产 品 描 述AOK-2F3TMM10/100M 自适应以太网多模光纤交换机，3个电口和 2个多模光口，光波长850/1310nm 。

HR-AFM-2422GS-40028口百千兆管理型PoE交换机【产品概述】HR-AFGM-2422SGS-400是28口百千兆管理型PoE交换机，提供24个百兆下联网口+2个千兆上联网口+2个千兆上联SFP光口（光电复用）；整机功率400W；交换容量64Gbps；二层网络管理功能，支持路由、DHCP、VLAN、MAC地址、ACL访问控制、QoS、组播、风暴抑制、IPV4/IPV6等业务功能；支持环网，极速检测及自愈功能；支持802.1X认证、ARP入侵检测、IP源防护、DoS防护等安全控制策略；支持STP/RSTP/MSTP生成树协议、动/静态链路汇聚等网络保护功能；支持Web/Telnet/CLI/SSH等多种管理维护方式；端口防雷、防静电双重防护；面板上有LED指示灯，可以动态显示设备连接和运行，提供简单的故障检测方法，轻巧简便；主要应用于工业园区、楼宇、厂矿、政府机关、社区等用户网络的以太网接入/汇聚层。

【主要特点】支持24个百兆PoE口+2个千兆网口+2个千兆SFP光口（光电复用）存储转发交换机制，整机交换容量高达64Gbps二层网络管理，支持路由/DHCP/VLAN/MAC地址/ACL/QoS等业务功能支持环网功能，极速检测及自愈功能，环网自愈≤12ms支持802.1X认证、ARP入侵检测、IP源防护、DoS防护等安全控制策略支持STP/RSTP/MSTP生成树协议、动/静态链路汇聚等网络保护功能支持WEB、TELNET、CLI、SSH、SNMP网络维护管理方式端口防雷Surge：共模6KV，差模2KV；静电ESD：空气15KV，接触8KV【应用环境】城域光纤宽带网：电信、有线电视、网络系统集成等数，据网络运营商宽带专网：适用于金融、政府、石油、铁路、电力、公安、交通、教育等行业专网多媒体传输：图像、话音、数据综合传输、适用于远程教学、会议电视、可视电话等应用 实时监控：实时控制信号、图像及数据同时传输【产品参数】【产品效果图】【产品拓扑图】。

云南电网公司玉溪供电局配电网自动化试点建设工程工业以太网交换机及综合网管系统招标技术标准书云南电网公司2021年04月目录1 总那么 (3)适用范围 (3)投标须知 (3)投标要求 (4)2 标准性引用文件 (5)3 使用条件 (6)环境条件 (6)电气条件 (6)4 一般要求 (7)产品要求 (7)网管系统要求 (7)5 技术要求 (7)根本功能要求 (7)二层工业以太网交换机 (9)三层工业以太网交换机 (10)物理接口 (10)硬件要求 (11)软件要求 (11)时间同步要求 (11)6 以太网功能要求 (11)根本要求 (11)VLAN功能 (13)VLAN堆叠功能 (14)三层设备性能要求 (15)二层设备性能要求 (15)IP业务组网方案 (16)7 电源要求 (16)三层工业以太网交换机 (16)7.2 二层工业以太网交换机 (16)防雷要求 (17)其他 (17)8 综合网管系统 (17)概况 (17)系统功能要求 (18)接口及要求 (25)9 光纤配线箱 (26)概述 (26)根本要求 (26)综合要求 (27)设备配置 (27)设备安装要求 (27)电磁兼容和抗电磁干扰 (27)接地方式 (27)10 质量保证 (28)根本要求 (28)质量保证体系要求 (28)附加质量保证要求 (28)达不到保证性能的处理 (28)11 试验 (28)根本要求 (28)试验工程 (29)12 测试和验收 (29)根本要求 (29)术语限定 (30)型式检验 (30)出厂检验 (31)现场检验 (32)竣工验收 (32)判定规那么 (32)13 包装、运输和存储 (33)产品交货标准 (33)铭牌交货标准 (33)测试报告要求 (33)14 技术文件要求 (34)根本要求 (34)交付要求 (34)其他 (34)15 效劳要求 (35)检验和验收要求 (35)质量保证及管理要求 (35)技术效劳要求 (36)16 供货要求 (38)根本要求 (38)供货清单 (38)交货时间 (40)交货地点 (40)17 其他事项 (40)18 附件 (40)1总那么1.1适用范围本标准规定了云南电网公司玉溪供电局配电网自动化试点通信建设工程工业以太网交换机和综合网管系统的招标技术标准和要求。

P/N: 1802058000011 *1802058000011*TN-5816A/5818A Quick Installation GuideMoxa ToughNet SwitchEdition 2.0, February 2017Technical Support Contact Information/supportMoxa Americas:Toll-free: 1-888-669-2872 Tel: 1-714-528-6777 Fax: 1-714-528-6778 Moxa China (Shanghai office): Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-21-5258-5505 Moxa Europe:Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa Asia-Pacific:Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Moxa India:Tel: +91-80-4172-9088 Fax: +91-80-4132-10452017 Moxa Inc. All rights reserved.OverviewThe ToughNet TN-5816A/5818A switches are high performance M12 Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks.TN-5816A/5818A switches use M12 and other circular connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances, such as vibration and shock.TN-5816A/5818A switches support isolated power in the 24 to 110 VDC power input range, allowing the same model to be used at different sites around the globe. TN-5816A/5818A switches provide up to 16 Fast Ethernet M12 ports with 2 bypass relay ports, and 2 Ethernet interface Gigabit ports with bypass relay functionality. Furthermore, with a -40 to 75°C operating temperature and IP54-rated waterproof enclosure, the switches can be deployed in harsh environments. The TN-5816A/5818A series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications. Package ChecklistYour ToughNet TN-5816A/5818A switch is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance.• 1 Moxa ToughNet switch•M12 to DB9 console port cable• 2 protective caps for console and relay output ports•Panel mounting kit•CD-ROM with user’s manual, Windows utility, and SNMP MIB file •Quick installation guide (printed)•Warranty cardFeaturesAnti-Vibration Circular Connectors for Robust Links•M12 D-coding 4-pin female connectors for Fast Ethernet 10/100BaseT(X) ports.•M12 X-coded 8-pin connector for Gigabit Ethernet10/100/1000BaseT(X) ports•M12 A-coding 5-pin male connectors for console and relay output. •M23 6-pin male connector for power input.Dual Isolated Power Inputs•24 to 110 VDC (16.8 to 137.5 VDC), isolated.Designed for Industry-specific Applications•Two Gigabit Ethernet ports to meet high bandwidth requirements. •Bypass relay ensures non-stop data communication in the event the switch stops working due to a power failure.•Complies with all EN 50155 mandatory test items*.•-40 to 75°C operating temperature range.•IP54, rugged high-strength case.•Panel mounting or DIN-rail mounting installation capability.*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: /doc/specs/EN_50155_Compliance.pdfRecommended Optional Accessories•CBL-M23(FF6P)Open-BK-100-IP67: 1-meter M23 to 6-pin power cable with IP67-rated female 6-pin M23 connector•CBL-M12D(MM4P)/RJ45-100 IP67: 1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with IP67-rated male 4-pin M12 D-coded connector •CBL-M12(FF5P)/OPEN-100 IP67: 1-meter M12-to-5-pin power cable with IP67-rated female 5-pin M12 A-coded connector•M12D-4P-IP68: Field-installable M12 D-coded screw-in connector, male 4-pin, IP68-rated•M12A-5P-IP68: Field-installable M12 A-coded screw-in connector, female 5-pin, IP68-rated•CAP-M12F-M: Metal cap for M12 female connector•DK-DC50131: DIN-rail mounting kit, 50 x 131 mm1.Model name2.Screw holes for panel mounting kit3.Console port4.Grounding screw5.Relay output port6.Power input voltage range indicator7.Power input port (male 6-pin shielded M23 connector)8.PWR1 LED: for power input 19.PWR2 LED: for power input 210.FAULT LED11.MSTR/HEAD LED: for ring master or chain head12.CPLR/TAIL LED: for ring coupler or chain tail13.TP port’s 10/100 Mbps LED14.10/100BaseT(X) port (female 4-pin shielded M12 connector with Dcoding)15.Waterproof vent16.Product label17.12 screw holes for DIN-rail mounting kit18.E2 LED: Not used by the TN-5816 series19.E1 LED: Not used by the TN-5816 series20.Ports 9-10, 13-14 with relay bypass function1.Model name2.Screw holes for panel mounting kit3.Console port4.Grounding screw5.Relay output port6.Power input voltage range indicator7.Power input port (male 5-pin shielded M23 connector)8.PWR1 LED: for power input 19.PWR2 LED: for power input 210.FAULT LED11.MSTR/HEAD LED: for ring master or chain head12.CPLR/TAIL LED: for ring coupler or chain tail13.TP port’s 10/100 Mbps LED14.10/100BaseT(X) port (female 4-pin shielded M12 connector with Dcoding)15.Waterproof vent16.Product label17.12 screw holes for DIN-rail mounting kit18.E2 LED: Down-side E2 Gigabit port’s 10/100/1000 Mbps LED19.E1 LED: Down-side E1 Gigabit port’s 10/100/1000 Mbps LED20.Gigabit Ethernet port E1 (corresponding to port 17 in the TN-5818AUser's Manual; ports 17-18 support relay bypass function)21.Gigabit Ethernet port E2 (corresponding to port 18 in the TN-5818AUser’s Manual; ports 17-18 support relay bypass function)22.Ports 9-10, 13-14 with relay bypass functionMounting Dimensions (unit = mm)TN-5816A SeriesTN-5818A SeriesPanel/Wall MountingSTEP 1:Mounting the TN-5816A/5818A to a wall requires 4 screws. Use the ToughNet switch as a guide to mark the correct positions of the 4 screws. STEP 2:Use the 4 screws in the panel mounting kit. If youwould like to use your own screws, make sure thescrew head is between 6.0 mm and 7.0 mm indiameter and the shaft is less than 4.0 mm indiameter, as shown at the right.Do not screw the screws in all the way—leave a space of about 2 mm to allow room for sliding the ToughNet switch between the wall and the screws.NOTE Before tightening the screws into the wall, make sure the screw head and shaft size are suitable by inserting the screw through one of the keyhole-shaped apertures of the ToughNet switch.STEP 3:Once the screws are fixed in the wall, hang the ToughNet switch on the 4 screws through the large opening of the keyhole-shaped apertures, and then slide the switch downwards. Tighten the four screws for added stability.NOTE To provide greater protection from vibrations and shocks, use screws with shaft diameter between 6.0 mm and 7.0 mm, and fix the ToughNet switch onto the wall directly through the large opening of the keyhole-shaped apertures.DIN-Rail Mounting (optional)Use the optional DIN-rail mounting kit (DK-DC50131, must bepurchased separately) to mount the TN-5816A/5818A on a 35 mm DIN-rail.STEP 1: Use 12 screws (6 screws per plate) to attach the two DIN-rail attachment plates to the rear panelof the switch.STEP 2: If the spring-loaded bracket is locked in place, push the recessed button to release it. Once released, you should feel some resistance from the spring as you slide the bracket up and down a few millimeters in each direction.STEP 3: Position the ToughNet switch on the DIN-rail, tilted so the clamps hook over the top edge of the rail.STEP 4: Swing the switch down fully onto the DIN-rail, until both clamps completely latch.To remove the Moxa ToughNet Switch from Array the DIN-rail, use a screwdriver to pull out thetwo spring-loaded brackets from the bottomuntil they are fixed in a “locked” position.Then, reverse Steps 3 and 4 above.Wiring RequirementsPlease Read and Follow These Guidelines:•Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point.NOTE: Do not run signal or communications wiring and power wiring through the same wire conduit. To avoid interference, wires withdifferent signal characteristics should be routed separately.•You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can bebundled together.•Keep input wiring and output wiring separated.•It is strongly advised that you label wiring for all devices in the system when necessary.Grounding the ToughNet SwitchGrounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the grounding screw to the grounding surface prior to connecting devices.Connecting the Power SuppliesThe ToughNet TN-5816A/5818A series switches support two sets of power supplies—power input 1 and power input 2. The M23 6-pin male connector on the TN-5816A/5818A’s front panel is used for the dual power inputs.Pinouts for the power input port on the TN-5816A/5818ASTEP 1: Plug the power cord connector into the TN-5816A/5818A’s power input port.STEP 2: Screw in the nut on the power cord connector to the power input connector (on the switch) to ensure a tight connection.Connecting the Relay OutputsEach TN-5816A/5818A switch has two sets of relay outputs—relay output 1 and relay output 2.The M12 A-coded 5-pin male connector on the TN-5816A/5818A front panel is used for the two relay outputs. Use a power cord with an M12 A-coded 5-pin female connector to connect the relay contacts. You can purchase an M12 power cable from Moxa; the model number is CBL-M12 (FF5P)/OPEN-100 IP67.Pinouts for the TN-5816A/5818A’s relay output portN.C.: Not connectedFAULT:The two sets of relay contacts of the M12 A-coded 5-pin male connector are used to detect user-configured events. The two wires attached to the fault contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the fault circuit remains closed.Connecting the Data Lines10/100BaseT(X) Ethernet Port ConnectionAll TN-5816A/5818A models have 16 10/100BaseT(X) Ethernet ports (4-pin shielded M12 connector with D coding). The 10/100TX ports located on the TN-5816A/5818A front panel are used to connect to Ethernet-enabled devices. Most users configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on the type of Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or HUB/Switch-type) connected to the port.In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports. We also give cable wiring diagrams for straight-through and cross-over Ethernet cables.10/100BaseT(X) Port PinoutsHousing: shield10/100/1000BaseT(X) M12 (8-pin) Port PinoutsM12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable WiringM12 (4-pin, M) to M12 (4-pin, M) Straight-Through Cable WiringM12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable WiringM12 (4-pin, M) to RJ45 (8-pin) Straight-Through Cable WiringBypass Relay FunctionThe TN-5816A/5818A is equipped with a bypass relay function. When the switch is operating normally, these bypass ports work in the same way as the other ports. That is, frame ingressions are processed and thenforwarded. If the switch stops working due to a power failure, the bypass relay function will be triggered to ensure non-stop data communication. The figure below illustrates the bypass relay function. For example, if Switch B loses power, then the two Gigabit ports will be bypassed through the relay circuit and the transmission line from Switch A to B and the transmission line from Switch B to C will interconnect automatically, ensuring that power continues to be supplied.The bypass relay function helps the network recover from single-node failures in a linear topology.Since the maximum segment length of category 5 twisted-pair cable is 100 meters, cable length must be considered when designing a network that utilizes this function. For example, the total length of the cables from Switch A to B and from B to C must be no more than 100 meters. This way, if the two adjacent nodes (switch B and C for example) encounter a power failure, there will be no stoppage, provided that the total length of the cables A-to-B, B-to-C, and C-to-D are no more than 100 meters.The bypass relay function works best for networks with linear topologies. ToughNet™ switches with bypass relay function are not recommended to be used in networks that employ ring topologies because network loops may occur when redundancy protocols such as RSTP or TurboRing™ are applied.Bypassing Switch A Switch B Switch C Switch DLED IndicatorsSeveral LED indicators are located on the ToughNet switch’s front panel. The function of each LED is described in the table below.Specifications。

赫思曼hirschmann、赫斯曼RS20系列交换机：·可提供4个、8个、9个、16个和24个10/100Mbps端口..·多种软件版本可供选择：非网管型U、网管基础版B、网管增强版E以及网管专业版P..·光纤端口为多模或单模形式..·双电源输入和故障信号触点..·用于备份/恢复配置以及故障设备快速更换的USB端口..·0℃至+60℃的标志温度范围另外提供-40℃至+70℃的扩展温度范围和保护涂层·完全网管型支持web、SNMP和通过串口连接的CLI-VLAN、IGMPSnooping组播过滤、端口镜像、端口控制、端口安全性、链路报警、广播限制器、数据流量诊断、环冗余等..如需了解产品具体价格或技术参数;请联系我们..常用型号：全电口RS20-0400T1T1SDAEHC 4×RJ45;0℃至+60℃标准温度;网管增强型RS20-0400T1T1SDAPHC 4×RJ45;0℃至+60℃标准温度;网管专业版RS20-0800T1T1SDAEHC 8×RJ45;0℃至+60℃标准温度;网管增强型RS20-0800T1T1SDAPHC 8×RJ45;0℃至+60℃标准温度;网管专业版RS20-1600T1T1SDAEHC 16×RJ45;0℃至+60℃标准温度;网管增强型RS20-1600T1T1SDAPHC 16×RJ45;0℃至+60℃标准温度;网管专业版RS20-2400T1T1SDAEHC 24×RJ45;0℃至+60℃标准温度;网管增强型RS20-2400T1T1SDAPHC 24×RJ45;0℃至+60℃标准温度;网管专业版多模光纤RS20-0400M2T1SDAEHC 3×RJ451×SC;0℃至+60℃标准温度;网管增强型RS20-0400M2T1SDAPHC 3×RJ451×SC;0℃至+60℃标准温度;网管专业版RS20-0400M2M2SDAPHC 2×RJ452×SC;0℃至+60℃标准温度;网管专业版RS20-0800M2M2SDAEHC 6×RJ452×SC;0℃至+60℃标准温度;网管增强型RS20-0800M2M2SDAPHC 6×RJ452×SC;0℃至+60℃标准温度;网管专业版RS20-0800M4M4SDAEHC 6×RJ452×ST;0℃至+60℃标准温度;网管增强型RS20-0800M4M4SDAPHC 6×RJ452×ST;0℃至+60℃标准温度;网管专业版RS20-1600M2T1SDAEHC 15×RJ451×SC;0℃至+60℃标准温度;网管增强型RS20-1600M2T1SDAPHC 15×RJ451×SC;0℃至+60℃标准温度;网管专业版RS20-1600M2M2SDAEHC 14×RJ452×SC;0℃至+60℃标准温度;网管增强型RS20-1600M2M2SDAPHC 14×RJ452×SC;0℃至+60℃标准温度;网管专业版RS20-2400M2M2SDAPHC 22×RJ452×SC;0℃至+60℃标准温度;网管专业版单模光纤RS20-0400S2T1SDAEHC 3×RJ451×SC;0℃至+60℃标准温度;网管增强型RS20-0400S2T1SDAPHC 3×RJ451×SC;0℃至+60℃标准温度;网管专业版RS20-0400S2S2SDAEHC 2×RJ452×SC;0℃至+60℃标准温度;网管增强型RS20-0400S2S2SDAPHC 2×RJ452×SC;0℃至+60℃标准温度;网管专业版RS20-0800S2S2SDAEHC 6×RJ452×SC;0℃至+60℃标准温度;网管增强型RS20-0800S2S2SDAPHC 6×RJ452×SC;0℃至+60℃标准温度;网管专业版RS20-1600S2S2SDAEHC 14×RJ452×SC;0℃至+60℃标准温度;网管增强型管专业版RS20-2400S2S2SDAEHC 22×RJ452×SC;0℃至+60℃标准温度;网管增强型RS20-2400S2S2SDAPHC 22×RJ452×SC;0℃至+60℃标准温度;网管专业版赫思曼hirschmann、赫斯曼MS4128-L2P系列交换机：·4个100Mbps插槽形式..使用MB-2T可扩展到6插槽..另外配置有一个1000Mbps插槽.. ·可通过双绞线或光纤进行上联;上联的1000Mbps或100Mbps的SFP端口支持多模或单模光纤..·端口最多有16个10/100Mbps和4个1000Mbps..使用MB-2T端口最多可达24个10/100Mbps..·模块化设计;所有端口的都通过介质模块来实现;灵活组合..·软件版本为2层网管专业版L2P..·双电源输入和故障信号触点..·用于备份/恢复配置以及故障设备快速更换的USB端口..·0℃至+60℃的标志温度范围·完全网管型支持web、SNMP和通过串口连接的CLI-VLAN、IGMPSnooping组播过滤、端口镜像、端口控制、端口安全性、链路报警、广播限制器、数据流量诊断、环冗余等..如需了解产品具体价格或技术参数;请联系我们..常用模块：MB-2T 用于MS20-16;MS30-16和MS4128的扩展底板;可为交换机增加2个模块插槽..MM2-4TX1 4×10/100MbpsRJ45MM2-4TX1-EEC 4×10/100MbpsRJ45;宽温MM2-4FXM3 4×100MbpsMMMTRJMM2-2FXM2 2×100MbpsMMSCMM3-4FXM2 4×100MbpsMMSCMM3-4FXM4 4×100MbpsMMSTMM3-1FXM2/3TX1 1×100MbpsMMSC;3×10/100MbpsRJ45MM3-2FXM4/2TX1 2×100MbpsMMST;2×10/100MbpsRJ45MM3-2FXM3/2TX1 2×100MbpsMMMTRJ;2×10/100MbpsRJ45MM3-4FLM4 4×10Mbps MMSTMM3-2FXM2/2TX1 2×100MbpsMMSC;2×10/100MbpsRJ45MM3-2FXM2/2TX1-EEC 2×100MbpsMMSC;2×10/100MbpsRJ45;宽温MM3-1FXM2/1FXS2/2TX1 2×100MbpsMMSC;2×10/100MbpsRJ45MM2-2FXS2 2×100MbpsSMSCMM3-2FXS2/2TX1 2×100MbpsSMSC;2×10/100MbpsRJ45MM3-2FXS2/2TX1-EEC 2×100MbpsSMSC;2×10/100MbpsRJ45;宽温MM3-1FXS2/3TX1 1×100MbpsSMSC;3×10/100MbpsRJ45MM3-4FXS2 4×100MbpsSMSCMM3-1FXL2/3TX1 1×100MbpsSMSCLongHaul;3×10/100MbpsRJ45 MM3-1FXS2/3TX1-EEC 1×100MbpsSMSC;3×10/100MbpsRJ45;宽温MM3-1FXM2/1FXS2/2TX11×100MbpsSMSC;1×100MbpsMMSC;3×10/100MbpsRJ45MM4-2TX/SFP 2×1000MbpsRJ45/SFP用于MS30-16和MS4128 MM4-4TX/SFP 2×1000MbpsRJ45/SFP仅用于MS4128赫思曼hirschmann、赫斯曼MAR1120系列交换机：·快速以太网上联端口;最多提供20个百兆端口..·背插线式;以适应某些行业要求..·传输介质双绞线;光纤以及端口类型RJ45;M12;SC;ST;LC;MTRJ可灵活组合..·19机架式安装;无风扇设计..·-40℃至+85℃的标准工作温度范围提供保护涂层·超越变电站通信设备IEC61850-3和IEEE1613标准..·超越流量控制设备NEMATS-2标准·冗余24/36/48VDC或120/250VDC和110/230VAC·极高效的组件;最大程度地降低热量产生和延长平均无故障时间..·快速超级冗余环自愈时间<10ms如需了解产品具体价格或技术参数;请联系我们..MAR1120系列交换机常用型号：MAR1120-99TTTTTTTTTTTTTTTTTTTT9999SCCHPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999UCCHPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999SGGHPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999UGGHPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999SLLHPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999ULLHPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999SMMHPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999UMMHPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999SC9HPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999UC9HPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999SG9HPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999UG9HPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999SL9HPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999UL9HPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999SM9HPHCMAR1120-99TTTTTTTTTTTTTTTTTTTT9999UM9HPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999SCCHPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999UCCHPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999SGGHPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999UGGHPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999SLLHPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999ULLHPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999SMMHPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999UMMHPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999SC9HPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999UC9HPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999SG9HPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999UG9HPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999SL9HPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999UL9HPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999SM9HPHCMAR1120-99MMMMMMMMMMMMMMMMMMMM9999UM9HPHC赫思曼hirschmann、赫斯曼MACH102-8TP-R交换机：·8个百兆双绞线端口;2个千兆COMBO端口·2×8端口介质模块插槽·冗余230VAC电源·无风扇设计·热插拔模块·ACA21USB备份·HirschmannCLI和WEB接口·与L2P固件的类似的功能范围·完全整合至IndustrialHiVision·温度范围：0℃-+50℃如需了解产品具体价格或技术参数;请联系我们..MACH100系列常用交换机型号：MACH102-8TP 8×10/100TX端口;RJ45;2×GEcombo端口;2×8端口介质模块插槽MACH102-8TP-R 8×10/100TX端口;RJ45;2×GEcombo端口;2×8端口介质模块插槽;冗余230VAC电源MACH102-8TP-F 8×10/100TX端口;RJ45;2×GEcombo端口MACH102-8TP-FR 8×10/100TX端口;RJ45;2×GEcombo端口;冗余230VAC电源MACH102-24TP-F 24×10/100TX端口;RJ45;2×GEcombo端口MACH102-24TP-FR 24×10/100TX端口;RJ45;2×GEcombo端口;冗余230VAC电源MACH100系列常用交换机模块：M1-8TP-RJ45 8×10/100TX端口;RJ45介质模块M1-8MM-SC 8×100FXMM;SC介质模块M1-8SM-SC 8×100FXSM;SC介质模块M1-8SFP 8×100FXSFP介质模块赫思曼hirschmann、赫斯曼MACH4002-24G-L3P核心交换机：·最多支持24个千兆以太网端口·硬件版本为：3层专业版·19’’机架式安装·2个用户自定义故障信号触点·支持热插拔的介质模块适用于不间断的运行·HIPER-Ring超级冗余环;具有冗余耦合和链路聚合功能·灵活的供电方式组合：100-240VAC、24VDC、48VDC ·0℃-+60℃的运行温度范围如需了解产品具体价格或技术参数;请联系我们..MACH4000系列交换机型号：MACH4002-24G-L3PMACH4002-24G-L3EMACH4002-24G-L2PMACH4002-24G+3X-L3PMACH4002-24G+3X-L3EMACH4002-24G+3X-L2PMACH4002-48G-L3PMACH4002-48G-L3EMACH4002-48G-L2PMACH4002-48G+3X-L3PMACH4002-48G+3X-L3EMACH4002-48G+3X-L2PMACH4002-48+4G-L3PMACH4002-48+4G-L3EMACH4002-48+4G-L2PMACH4000系列交换机模块及配件：M4-GIGA8-SFPM4-FAST8-SFPM4-FAST8TP-RJ45-PoEM4-8TP-RJ45M4-AIRM4-POWERM4-POWERCABLEM4-P-48VDC300WM4-P-24VDC300WM4-P-AC/DC300WM4-S-48VDC300WM4-S-24VDC300WM4-S-AC/DC300W赫思曼hirschmann、赫斯曼OCTOPUS8MTrain交换机：网管型IP67交换机8×10/100MbpsM12端口符合EN50155标准;可用于铁路车辆全封闭设计符合ODVA标准的4-芯D型IP67以太网连接器通过SNMPv1、v2、v3;webGUI或TELNET进行管理通过HIPER-Ring超级冗余环和快速生成树进行冗余冗余电源达到高可靠性工作温度范围为-40℃至+70℃通过信号触点或网络通信发送外部报警信号如需了解产品具体价格或技术参数;请联系我们.. OCTOPUSIP67系列交换机型号：OCTOPUS8MOCTOPUS8MTrainOCTOPUS8M-6PoEOCTOPUS8M-8PoEOCTOPUS16MOCTOPUS16MTrainOCTOPUS16M-2FXOCTOPUS16M-8PoEOCTOPUS16M-8PoE-2FXOCTOPUS24MOCTOPUS24MTrainOCTOPUS24M-2FXOCTOPUS5TXEEC赫思曼hirschmann、赫斯曼RS20系列非网管型交换机：8、9、16、17和25个端口;最大仅占15立方厘米的面积最多可配置3个光纤端口通过可插拔接线端子提供双24VDC电源输入;提供冗余电源输入故障信号触点由电源输入或某链路故障而触发10/100/1000Mbps自动协商和自动交叉SPIDER系列为交换机用户提供了经济实惠但却高度可靠的选择所有电口都支持多种多模MM和单模SM光纤接口可供选择如需了解产品具体价格或技术参数;请联系我们..SPIDER系列非网管一体化交换机常用型号：SPIDER1TX/1FXSPIDER1TX/1FX-SMSPIDER1TX/1FXEECSPIDER1TX/1FX-SMEECSPIDER3TX-TAPSPIDER4TX/1FX-STEECSPIDER4TX/1FXSPIDER4TX/1FX-SMEECSPIDER4TX/1FXEECSPIDER5TXSPIDER5TXEECSPIDER8TXSPIDER8TXEECSPIDERIIGiga5TEECSPIDERIIGiga5T/2SEECSPIDERII8TX/1FX-STEECSPIDERII8TX/2FX-SMEECSPIDERII8TX/2FX-STEECSPIDERII8TX/1FX-SMEECSPIDERII8TX/1FXEECSPIDERII8TX/2FXEECSPIDERII8TXSPIDERII8TXEECSPIDERII8TXPoERS2系列非网管一体化交换机常用型号：RS2-TXRS2-3TX/2FXEECRS2-3TX/2FX-SMEECRS2-4TXEECRS2-4TX/1FXEECRS2-4TX/1FX-SMEECRS2-4TX/1FX-STEECRS2-5TXRS2-5TX/FX工业级卡规式集线器和收发器：RT2-TX/FX-SMRT2-TX/FXRH1-CX+NAVYRH1-TPRS20系列非网管型交换机RS30系列非网管型交换机赫思曼hirschmann、赫斯曼BAT300-Rail工业无线路由器：内置无线模块;分别使用2.4GHz和5GHz频段符合IEEE802.11a/b/g的传输标准;最大支持传输速率108Mbit/s3个RP-SMA天线接口;配置3个3dBi偶极天线-双频段天线最大传输距离可达20KM使用外部天线;取决于天线的型号、频率范围2*24/12VDC外部电源供电;2*PoE符合IEEE802.3af1个WLAN接口;支持8个SSID..2个10/100兆电口-30℃至+50℃的工作温度范围;防护等级IP40;导轨安装可作为无线接入点、无线网桥、无线路由器和客户端模式使用提供完全的IEEE802.11i的安全性机制、授权和数据加密功能如需了解产品具体价格或技术参数;请联系我们..工业无线路由器：BAT54-RailBAT54-Rail-FCCBAT54-RailClientBAT54-RailClient-FCCBAT300-RailBAT54-FBAT54-FFCCBAT54-FX2BAT54-FX2FCC配套天线产品:BAT-ANT-N-6ABGBAT-ANT-N-14G赫思曼hirschmann、赫斯曼OZDProfi12MG12EEC介质转换器：用于Profibus传输介质转换1个电口;2个光口;多模接口支持冗余环网;宽温针对最常用的现场总线协议;hirschmann开发了系列的铜缆-光纤转换器使用户可以逾越铜缆的限制;延伸现场总线信号的传输范围用于可能存在电磁干扰的关键应用场合中如需了解产品具体价格或技术参数;请联系我们..适用于RS232的介质转换器：OZDV2471G-1300OZDV2471GOZDV2471POZDV2451GOZDV2451P适用于RS485的介质转换器：OZD485G12-1300PROOZD485G12PRO适用于Geniusbus的介质转换器：OZDGeniusG12OZDGeniusG12-1300适用于ModbusPlus的介质转换器: OZDModbusPlusG12OZDModbusPlusG121300适用于WorldFIP的介质转换器:OZDFIPG3OZDFIPG3T适用于Profibus的介质转换器:OZDProfi12MG12EECOZDProfi12MG11-1300OZDProfi12MG12-1300OZDProfi12MG12OZDProfi12MP11OZDProfi12MP12OZDProfi12MG11OZDProfi12MG12-1300EECOZDProfi12MP11PROOZDProfi12MP12PROOZDProfi12MG11PROOZDProfi12MG12PROOZDProfi12MG12EECPROOZDProfi12MG11-1300PROOZDProfi12MG12-1300PROOZDProfi12MG12-1300EECPROOZDProfiG12DKATEX1OZDProfiG12DEATEX1OZDProfiG12DUATEX1OZDProfiPlugP21OZDProfiPlugP11赫思曼hirschmann、赫斯曼RPS120EEC卡轨型电源：输入参数：100~240VAC输出参数：24VDC;4.5A.卡柜式安装;适应工业现场的需求..电源可并联适应;组成冗余..如需了解产品具体价格或技术参数;请联系我们..卡轨电源：RPS30RPS80EECRPS120EECRPS60/48VEEC赫思曼专用交换机自动设置适配器：ACA11ACA21-M12ACA21-USB19’’机柜导轨安装架：19InchDINRailAdapter万兆SFP模块:M-XFP-SR/LCM-XFP-LR/LCM-XFP-ER/LCM-XFP-ZR/LC千兆SFP模块:M-SFP-LH+/LCM-SFP-LH/LCEECM-SFP-LH/LCM-SFP-LX/LCEECM-SFP-LX/LCM-SFP-SX/LCEECM-SFP-SX/LC百兆SFP模块:M-FASTSFP-LH/LCEECM-FASTSFP-LH/LCM-FASTSFP-SM+/LCEECM-FASTSFP-SM+/LCM-FASTSFP-SM/LCEECM-FASTSFP-SM/LCM-FASTSFP-MM/LCEECM-FASTSFP-MM/LC赫思曼hirschmann、赫斯曼HiVisionHPUXIndustrialLine：HPUX版本;适应于hirschmann的PowerMICE;MICE20/30;RS20/30;MICE;RS2;Octopus8M;EAGLE 等系列产品hirschmann网络管理软件;非常适应于对较大型网络的调试和维护可随时在应用程序的GUI上查看故障和网络状态信息提供网络数据统计;包括带宽适应如需了解产品具体价格或技术参数;请联系我们..赫思曼工业网络管理和监控专业软件：IndustrialHiVision4.0HiVisionPCBasedEnterpriseHiVisionPCBasedEnterprise-UpdateHiVisionPCBasedIndustrialLineHiVisionPCBasedIndustrialLine-UpdateHiVisionHPUXEnterpriseHiVisionHPUXEnterprise-UpdateHiVisionHPUXIndustrialLineHiVisionHPUXIndustrialLine-Update。
