74HC541 8路缓冲器/线路驱动器具备74HC240所有的功能，并且把输入引脚和输出引脚分布在封装的两边，这就极大方便了印刷电路板的布线。
1.74hc541中文资料
74HC541 8路缓冲器/线路驱动器具备74HC240所有的功能，并且把输入引脚和输出引脚分布在封装的两边，这就极大方便了印刷电路板的布线。
74HC541的三态输出由一个两输入或非门控制。
当任一个输出使能端（OE1或OE2）为高时，八个输出端将进入高阻态。
74HC541器件的输出为原码数据。
该7HC/HCT54是八进制非反相缓冲器/线路，具有三态输出的驱动器。
三态输出是由输出使能输入OE1和OE2控制。
OEN高导致输出呈现高电平。
阻抗呈关闭状态，“541”与“540”相同，但具有非反相输出。

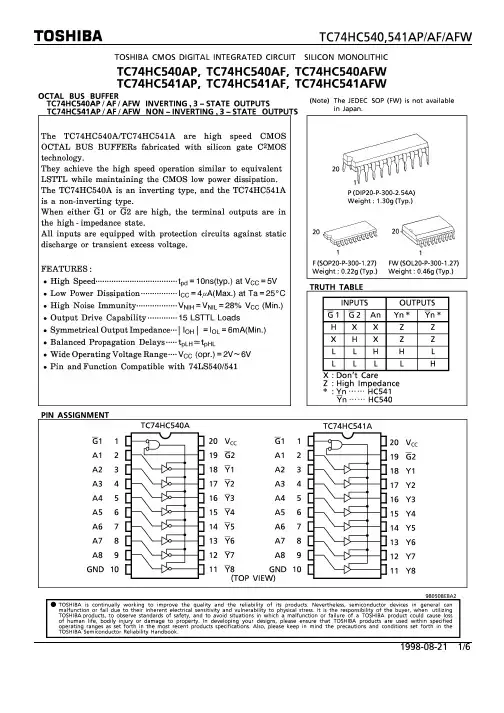

2.74hc541引脚图及功能
SN74HC541能够完成两侧输入的封装和输引脚的排列与输出的功能，通俗的说，就是可以完成三态输出的八线路缓冲器和线路驱动器。
SN54HC541引脚配置和功能
OE1 ：输出使能（低电平有效）两个OE必须为低电平才能使能输出
A1：通道1输入，A2 ：通道2输入，A3：通道3输入，A4：通道4输入，A5：通道5输入，A6：通道6输入，A7：通道7输入，A8：通道8输入。
GND：【地】
Y8 ：通道8输出，Y7 ：通道7输出，Y6 ：通道6输出，Y5 ：通道5输出，Y4 ：通道4输出，Y3 ：通道3输出，Y2 ：通道2输出，Y1 ：通道1输出。
OE2 ：输出使能（低电平有效）OE必须为低电平才能使能输出。
VCC ：电源引脚。
