S参数测量是射频设计过程中的基本手段之一。

S参数将元件描述成一个黑盒子，并被用来模拟电子元件在不同频率下的行为。

在有源和无源电路设计和分析中经常会用到S参数。

S参数是RF工程师/SI工程师必须掌握的内容，业界已有多位大师写过关于S参数的文章，即便如此，在相关领域打滚多年的人，可能还是会被一些问题困扰着。

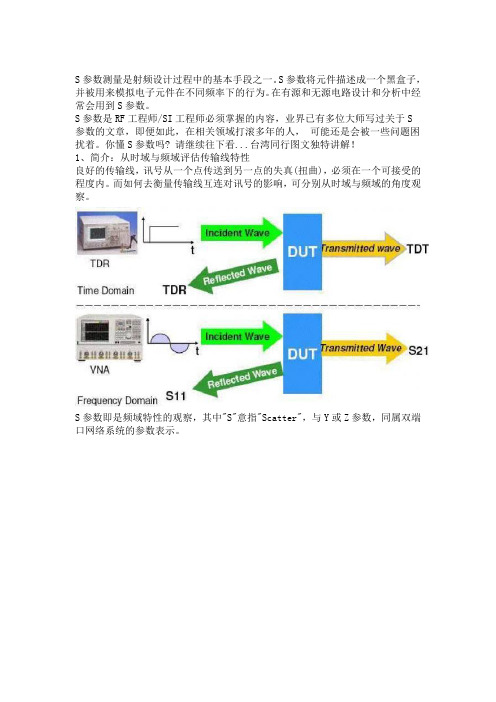

你懂S参数吗? 请继续往下看...台湾同行图文独特讲解！1、简介：从时域与频域评估传输线特性良好的传输线，讯号从一个点传送到另一点的失真(扭曲)，必须在一个可接受的程度内。

而如何去衡量传输线互连对讯号的影响，可分别从时域与频域的角度观察。

S参数即是频域特性的观察，其中"S"意指"Scatter"，与Y或Z参数，同属双端口网络系统的参数表示。

S参数是在传输线两端有终端的条件下定义出来的，一般这Zo=50奥姆，因为V NA port也是50奥姆终端。

所以，reference impedance of port的定义不同时，S参数值也不同，即S参数是基于一指定的port Zo条件下所得到的。

2. 看一条线的特性：S11、S21看一条线的特性：S11、S21如下图所示，假设port1是讯号输入端，port2是讯号输出端S11表示在port 1量反射损失(return loss)，主要是观测发送端看到多大的的讯号反射成份；值越接近0越好(越低越好，一般-25~-40dB)，表示传递过程反射(reflection)越小，也称为输入反射系数(Input Reflection Coefficient)。

S21表示讯号从port 1传递到port 2过程的馈入损失(insertion loss)，主要是观测接收端的讯号剩多少；值越接近1越好(0dB)，表示传递过程损失(loss)越小，也称为顺向穿透系数(Forward Transmission Coefficient)。

3、看两条线的相互关系：S31、S41虽然没有硬性规定1、2、3、4分别要标示在线哪一端，但[Eric Bogatin大师]建议奇数端放左边，且一般表示两条线以上cross-talk交互影响时，才会用到S31。
