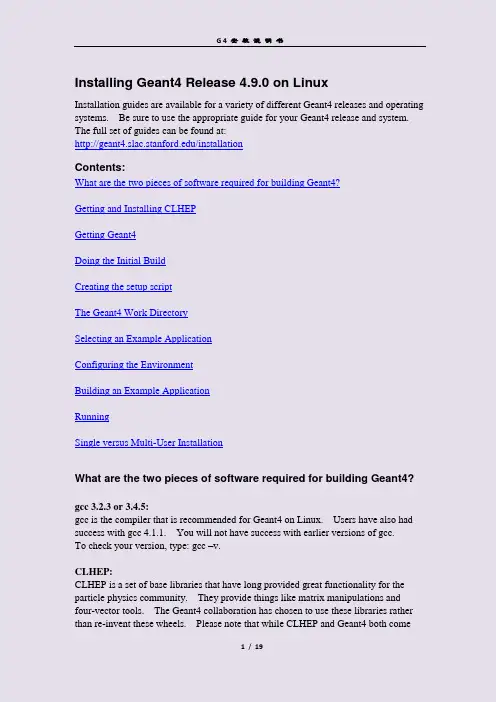

Installing Geant4 Release 4.9.0 on LinuxInstallation guides are available for a variety of different Geant4 releases and operating systems. Be sure to use the appropriate guide for your Geant4 release and system. The full set of guides can be found at:/installationContents:What are the two pieces of software required for building Geant4?Getting and Installing CLHEPGetting Geant4Doing the Initial BuildCreating the setup scriptThe Geant4 Work DirectorySelecting an Example ApplicationConfiguring the EnvironmentBuilding an Example ApplicationRunningSingle versus Multi-User InstallationWhat are the two pieces of software required for building Geant4? gcc 3.2.3 or 3.4.5:gcc is the compiler that is recommended for Geant4 on Linux. Users have also had success with gcc 4.1.1. You will not have success with earlier versions of gcc.To check your version, type: gcc –v.CLHEP:CLHEP is a set of base libraries that have long provided great functionality for the particle physics community. They provide things like matrix manipulations andfour-vector tools. The Geant4 collaboration has chosen to use these libraries rather than re-invent these wheels. Please note that while CLHEP and Geant4 both comeout of the particle physics communities, they are separate products - the Geant4 collaboration is not responsible for maintenance, distribution or documentation of CLHEP.Getting and Installing CLHEPGo to the CLHEP source download page:http://proj-clhep.web.cern.ch/proj-clhep/DISTRIBUTION/clhep.htmlFrom the "Source" section near the bottom of the page, select "clhep-2.0.3.1.tgz" which corresponds to:http://proj-clhep.web.cern.ch/proj-clhep/DISTRIBUTION/distributions/clhep-2.0.3.1.t gzThe file is about 5MB.Put it into your directory of choice, such as:~/CLHEPNavigate to this directory and unpack the file:cd ~/CLHEPtar -zxvf clhep-2.0.3.1.tgzThe unpacking process will begin, starting with:2.0.3.1/2.0.3.1/CLHEP/2.0.3.1/CLHEP/CVS/2.0.3.1/CLHEP/CVS/Root2.0.3.1/CLHEP/CVS/RepositoryAnd ending with:2.0.3.1/CLHEP/install-sh2.0.3.1/CLHEP/config.guess2.0.3.1/CLHEP/config.sub2.0.3.1/CLHEP/Makefile.in2.0.3.1/CLHEP/configureFor the following step, note that there are two dashes in a row before the word "prefix". Also note that for this command you should use the absolute path for your CLHEP, such as:/u/ey/perl/CLHEPrather than a relative path, such as:~/CLHEPAnd be sure to point to your top level CLHEP directory, NOT:/u/ey/perl/CLHEP/2.0.3.1/CLHEPNow navigate into the unpacked directory and begin the configuration process.Of course, substitute your actual CLHEP path here:cd 2.0.3.1/CLHEP./configure --prefix /u/ey/perl/CLHEPYou should get a response that starts with:checking build system type... i686-pc-linux-gnuchecking host system type... i686-pc-linux-gnuchecking target system type... i686-pc-linux-gnuchecking for a BSD-compatible install... /usr/bin/install -c checking whether build environment is sane... yesAnd ends with:config.status: creating test/exctest4.shconfig.status: creating test/exctestNothrow.shconfig.status: creating test/excDblThrow.shconfig.status: creating Exceptions/defs.hconfig.status: executing depfiles commandsThe complete output from the above command can be found in this same web directory as:CLHEPConfigure.txtRun the build process:makeYou should get a response that starts with:Making all in Unitsmake[1]: Entering directory`/afs//u/ey/perl/CLHEP/2.0.3.1/CLHEP/Units' Making all in Unitsmake[2]: Entering directory`/afs//u/ey/perl/CLHEP/2.0.3.1/CLHEP/Units/Uni ts'make all-amAnd ends with:make[1]: Entering directory`/afs//u/ey/perl/CLHEP/2.0.3.1/CLHEP'./build-clheplib Units Vector Evaluator GenericFunctions Geometry Random Matrix RandomObjects RefCount Cast Exceptionsrm -f libCLHEP-2.0.3.1.aliblist=`./getObjectList -static Units Vector Evaluator GenericFunctions Geometry Random Matrix RandomObjects RefCount Cast Exceptions`; \ar cru libCLHEP-2.0.3.1.a $liblist; ranlib libCLHEP-2.0.3.1.arm -f libCLHEP-2.0.3.1.soliblist=`./getObjectList -shared Units Vector Evaluator GenericFunctions Geometry Random Matrix RandomObjects RefCount Cast Exceptions`; \g++ -O -ansi -pedantic -Wall -D_GNU_SOURCE -g -O2 -olibCLHEP-2.0.3.1.so -shared -Wl,-soname,libCLHEP-2.0.3.1.so $liblist -o libCLHEP-2.0.3.1.somake[1]: Leaving directory`/afs//u/ey/perl/CLHEP/2.0.3.1/CLHEP'The complete output from the above command can be found in this same web directory as:CLHEPMake.txtFinally, move the build products to their installation area:make installYou should get a response that starts with:Making install in Unitsmake[1]: Entering directory`/afs//u/ey/perl/CLHEP/2.0.3.1/CLHEP/Units' Making install in Unitsmake[2]: Entering directory`/afs//u/ey/perl/CLHEP/2.0.3.1/CLHEP/Units/Uni ts'And ends with:test -z "/afs//u/ey/perl/CLHEP/lib" || mkdir -p -- "/afs//u/ey/perl/CLHEP/lib"/usr/bin/install -c -m 644 'libCLHEP-2.0.3.1.a''/afs//u/ey/perl/CLHEP/lib/libCLHEP-2.0.3.1.a' ranlib'/afs//u/ey/perl/CLHEP/lib/libCLHEP-2.0.3.1.a' /usr/bin/install -c 'libCLHEP-2.0.3.1.so''/afs//u/ey/perl/CLHEP/lib/libCLHEP-2.0.3.1.so 'make[2]: Nothing to be done for `install-data-am'.make[2]: Leaving directory`/afs//u/ey/perl/CLHEP/2.0.3.1/CLHEP'make[1]: Leaving directory`/afs//u/ey/perl/CLHEP/2.0.3.1/CLHEP'The complete output from the above command can be found in this same web directory as:CLHEPInstall.txtYou will now have directories such as:~/CLHEP/includeand~/CLHEP/libYou're done setting up CLHEP.Much more detailed instructions on installation of CLHEP are available from the CLHEP web site:http://proj-clhep.web.cern.ch/proj-clhep/INSTALLATION/newCLHEP-install.html Getting Geant4From the top of the Geant4 home page:http://geant4.web.cern.ch/geant4/Select "Download" from near the top right corner of the page.Select "Unix tar format, compressed using gzip"which corresponds to:http://geant4.web.cern.ch/geant4/support/source/geant4.9.0.tar.gzThe file is about 16M.Put it into your directory of choice, such as:~/geant4Navigate to this directory and unpack the file:cd ~/geant4tar -zxvf geant4.9.0.tar.gzThe unpacking process will begin, starting with:geant4.9.0/geant4.9.0/ReleaseNotes/geant4.9.0/ReleaseNotes/Patch4.4.0-1.txtgeant4.9.0/ReleaseNotes/Patch4.4.0-2.txtgeant4.9.0/ReleaseNotes/Patch4.4.1-1.txtAnd ending with:geant4.9.0/source/visualization/modeling/src/G4TrajectoryOrigin geant4.9.0/source/visualization/modeling/src/G4TrajectoryPartic geant4.9.0/source/visualization/modeling/src/geant4.9.0/source/visualization/modeling/src/G4VTrajectoryModel .ccgeant4.9.0/source/visualization/modeling/src/G4VisTrajContext.c cDepending on the physics of your particular application, you may need to install additional data files. These data files can be downloaded separately from the Geant4 source distribution page (the same place where you got Geant4 itself).Create a new folder within ~/geant4/geant4.9.0 to hold any of these required data files.~/geant4/geant4.9.0/dataFor now, pick up the "data files for low energy electromagnetic processes":http://geant4.web.cern.ch/geant4/support/source/G4EMLOW.4.3.tar.gzThe file is about 7.6M.Put the file into your new data directory.Navigate to this directory and unpack the file:cd ~/geant4/geant4.9.0/datatar -zxvf G4EMLOW.4.3.tar.gzThe unpacking process will begin, starting with:G4EMLOW4.3/G4EMLOW4.3/READMEG4EMLOW4.3/auger/G4EMLOW4.3/auger/au-tr-pr-10.datG4EMLOW4.3/auger/au-tr-pr-11.datAnd ending with:G4EMLOW4.3/tripdata/pp-trip-cs-9.datG4EMLOW4.3/photoelectric_angular/G4EMLOW4.3/photoelectric_angular/ftab0.datG4EMLOW4.3/photoelectric_angular/ftab1.datG4EMLOW4.3/HistoryDoing the Initial BuildTAKE YOUR TIME AT THIS STAGE, DON'T RUSH IT.Mistakes made at this stage can be very time-consuming to correct. Slow down. Maybe get a cup of coffee (or a glass of wine) before you proceed. Breathe. Finally, unless you're absolutely sure you are starting from a nice clean system, make sure you don't have any pre-existing Geant4 environment variables. You can use the "printenv" command to show all variables, and filter this with a "grep" for the stringG4 as follows:From a Terminal or xterm window:printenv | grep G4If any variables show up, find out what is setting them and remove them. They might be coming from your .login or .cshrc file or from some other script that you invoke upon login for some other project. Take the time now to find the cause and resolve it. From a Terminal or xterm window:cd ~/geant4/geant4.9.0./Configure -buildYou will be asked a series of questions.In most cases, you can just take the default response (by hitting carriage return).But pay close attention so that you do not accept the default for the following questions:When it says:Could not find CLHEP installed on this system!Please, specify where CLHEP is installed:First, confirm that you have installed your CLHEP to/u/ey/perl/CLHEPOr wherever you've decided to keep CLHEP.Make sure you have lib, bin and include subdirectories in that directory.If not, recheck your CLHEP installation. If so, proceed.Note that for this command you should use the absolute path for your CLHEP, such as: /u/ey/perl/CLHEPrather than a relative path, such as:~/CLHEPOf course, substitute your actual CLHEP path here.Enter: /u/ey/perl/CLHEPTake the default for everything else except:When it asks about:G4VIS_BUILD_OPENGLX_DRIVERG4VIS_USE_OPENGLXEnter: yThis tells Geant4 that you want to include the optional OpenGL Visualization driver. When it asks about:G4VIS_BUILD_RAYTRACERX_DRIVERG4VIS_USE_RAYTRACERXEnter: yThis tells Geant4 that you want to include the optional RayTracerX Visualization driver.Take the default for everything else.Once all of the questions have been answered, you will be told:WARNING: the generated configuration filecan be edited if necessary!You can introduce any change to the configuration file/u/ey/perl/geant4/geant4.9.0/.config/bin/Linux-g++/config.sh before the final installation.To do so, use a shell escape now (e.g. !vi/u/ey/perl/geant4/geant4.9.0/.config/bin/Linux-g++/config.sh).Press [Enter] to start installation or use a shell escape to edit config.sh:At this point, what you have seen in this question and answer session should match what you find in this web directory as:Geant4Build.txtYou are ready to proceed with the build.Hit Enter.You will then see:Now starting Geant4 libraries build...On this machine the G4SYSTEM=Linux-g++On this machine the G4INSTALL=/u/ey/perl/geant4.9.0On this machine the G4TMP=/u/ey/perl/geant4.9.0/tmpOn this machine the G4LIB=/u/ey/perl/geant4.9.0/libOn this machine theG4LEVELGAMMADATA=/u/ey/perl/geant4.9.0/data/PhotonEvaporation2.On this machine theG4RADIOACTIVEDATA=/u/ey/perl/geant4.9.0/data/RadioactiveDecay3.2On this machine the G4LEDATA=/u/ey/perl/geant4.9.0/data/G4EMLOW4.3On this machine theG4NEUTRONHPDATA=/u/ey/perl/geant4.9.0/data/G4NDL3.11On this machine the CLHEP_BASE_DIR=/u/ey/perl/CLHEPOn this machine the CLHEP_INCLUDE_DIR=/u/ey/perl/CLHEP/includeOn this machine the CLHEP_LIB_DIR=/u/ey/perl/CLHEP/libOn this machine the CLHEP_LIB=CLHEPOn this machine the G4VIS_BUILD_OPENGLX_DRIVER=1On this machine the G4VIS_BUILD_RAYTRACERX_DRIVER=1On this machine the G4VIS_USE_OPENGLX=1On this machine the G4VIS_USE_RAYTRACERX=1On this machine the XMFLAGS=On this machine the XMLIBS=On this machine the XMFLAGS=On this machine the XAWFLAGS=On this machine the XAWLIBS=On this machine the G4LIB_BUILD_STATIC=1On this machine the G4LIB_USE_GRANULAR=1Starting build...*************************************************************Installation Geant4 version : geant4-09-00Copyright (C) 1994-2007 Geant4 Collaboration *************************************************************Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ... Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ... Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ... Making dependency for file src/ ...Making dependency for file src/ ...Making dependency for file src/ ... Making dependency for file src/ ...Making dependency for file src/ ...Compiling ...Compiling ...Compiling ...Compiling ...Once you see any lines like:Compiling ...with no errors,the compilation is successfully under way.If you get a lot of warnings of the form/usr/include/c++/3.2.3/i386-redhat-linux/bits/codecvt_specializ ations.h:84: warning: unused parameter `int __ibom'just ignore them. These result from a bug in certain versions of gcc. The bug is harmless.Adjust your machine's power management properties so that it doesn't go to sleep, and then walk away for a long long time. Wait, and wait, and wait, for the initial compilation to run.The same information that is showing on the console is also being written to a log file so that you can review it later if necessary. The information will appear in:~/geant4/geant4.9.0/.config/bin/Linux-g++/g4make.logAn example of how this log file should look can be found in this same web directory as:Geant4Make.txtEventually, you will see messages stating that libname.map has been built, then youwill see messages about successful completion:Libmap stage. Searching for GNUmakefiles and sorting ...Weeding out paths and files ...Making libname.map starter file ...Making libname.map ...Reading library name map file...Reading dependency files...Checking for circular dependencies...Reordering according to dependencies...Writing new library map file...Libraries installation completed !##################################################### Your Geant4 installation seems to be successful!# To be sure please have a look into the log file:# /u/ey/perl/geant4/geant4.9.0/.config/bin/Linux-g++/g4make.log ####################################################While the Geant4 collaboration works hard to support a large variety of different Linux systems, there may be special things you need to do to make it work for your particular Linux. If you have a problem in the above build procedure, such as if your build failsto find some of the OpenGL libraries (error messages about this may include references to libXmu), look for hints in the Geant4 Installation and Configuration User Forum::5090/Geant4-HyperNews/indexLinux users are generally very helpful about documenting such issues for each other. Your question has very likely already been documented in that forum. If you don'tfind your answer there, post it as a question.Creating the setup scriptThe configure process has set up some environment variables that you will want tohave in future sessions. Have configure make you an environment setup script by typing:./Configure(that was with no options, as opposed to ./Configure –build that you typed earlier).You will see the following:--- Geant4 Toolkit Installation ---(setting environments for USER )---------------------------------------------------The Geant4 toolkit installation was found.The files env.[c]sh will be copied to your current directory.For setting Geant4 environments you should make:source env.cshor. env.shIt will also check G4WORKDIR setting and set it toyour HOME if needed.You can use these files also for further modifications(adding your own environments).---------------------------------------------------Your directory ~/geant4/geant4.9.0 will now contain two scripts:env.shandenv.cshThe Geant4 Work DirectoryYou have now built the Geant4 toolkit. If you have learned a little about Geant4, you will know that Geant4 is not an application but rather a toolkit from which you can build any number of applications. So before you can test Geant4, you need an example application.You should create a new directory, outside of your Geant4 installation area, where you will keep your example applications. This separation of spaces will help you avoid accidentally messing up your main Geant4 installation, and will insure that if you eventually update your main Geant4 installation (for example when a newer Geant4 release is available), your personal application work will not be disturbed.Create a new directory for your work, and designate it as your G4WORKDIR.For example, if you want your work to be in ~/g4work and you are using C Shell or TC Shell:setenv G4WORKDIR ~/g4workIf you are using Bourne Shell or Korn Shell:export G4WORKDIR=~/g4workSelecting an Example ApplicationYou can try any of the Geant4 examples. Some suggested starting points are any of the Novice examples~/geant4/geant4.9.0/examples/noviceor the analysis example~/geant4/geant4.9.0/examples/extended/analysis/A01Each example is described in a detailed README it the example's top level directory. Whichever example you choose, copy it to your Geant4 work directory.For example:cp -r ~/geant4/geant4.9.0/examples/extended/analysis/A01$G4WORKDIR/A01Configuring the EnvironmentNote that this step needs to be redone any time you start a fresh Terminal or xterm window.If you are using C Shell or TC Shell:setenv G4WORKDIR ~/g4worksetenv LD_LIBRARY_PATH ~/CLHEP/lib/:$LD_LIBRARY_PATHsource ~/geant4/geant4.9.0/env.cshIf you are using Bourne Shell or Korn Shell:export G4WORKDIR=~/g4workexport LD_LIBRARY_PATH=~/CLHEP/lib/:$LD_LIBRARY_PATHsource ~/geant4/geant4.9.0/env.shIt will respond:On this machine the G4SYSTEM=Linux-g++On this machine the G4INSTALL=/u/ey/perl/geant4.9.0On this machine the G4TMP=/u/ey/perl/geant4.9.0/tmpOn this machine the G4LIB=/u/ey/perl/geant4.9.0/libOn this machine theG4LEVELGAMMADATA=/u/ey/perl/geant4.9.0/data/PhotonEvaporation2. 0On this machine theG4RADIOACTIVEDATA=/u/ey/perl/geant4.9.0/data/RadioactiveDecay3. 2On this machine the G4LEDATA=/u/ey/perl/geant4.9.0/data/G4EMLOW4.3 On this machine theG4NEUTRONHPDATA=/u/ey/perl/geant4.9.0/data/G4NDL3.11On this machine the CLHEP_BASE_DIR=/u/ey/perl/CLHEPOn this machine the CLHEP_INCLUDE_DIR=/u/ey/perl/CLHEP/include On this machine the CLHEP_LIB_DIR=/u/ey/perl/CLHEP/libOn this machine the CLHEP_LIB=CLHEPOn this machine the G4VIS_BUILD_OPENGLX_DRIVER=1On this machine the G4VIS_BUILD_RAYTRACERX_DRIVER=1On this machine the G4VIS_USE_OPENGLX=1On this machine the G4VIS_USE_RAYTRACERX=1On this machine the XMFLAGS=On this machine the XMLIBS=On this machine the XMFLAGS=On this machine the XAWFLAGS=On this machine the XAWLIBS=On this machine the G4LIB_BUILD_STATIC=1On this machine the G4LIB_USE_GRANULAR=1A further note about the environment setup scripts:The env scripts do not set every environment variable that could be used by Geant4. They only set those variables that you had declared to non-default values in the configure process. This works fine because any variable that Geant4 does not find is assumed to be default. But if you are also setting some of your Geant4 environment variables elsewhere, such as in your .login or .cshrc file, you can end up with inconsistent results. That is why you were strongly advised to make sure you had no pre-existing Geant4 variables set before you began the Geant4 build.Building an Example ApplicationDid you "Configure the Environment" as described above? Remember that you need to do this every time you start a new Cygwin window.Build your example by typing:cd $G4WORKDIR/A01makeYou will see output beginning with:Making dependency for file ...Making dependency for file src/ ...Making dependency for file src/ ... Making dependency for file src/ ... Making dependency for file src/ ...And ending with:Compiling ...Creating/replacing object files in/u/ey/perl/g4work/tmp/Linux-g++/A01app/libA01app.a ...Compiling ...Using granular libraries ...Linking A01app ...The complete output from the above command can be found in this same web directory as:A01Make.txtIf the build is successful, you will see the completed application file in your$G4WORKDIR directory such as:$G4WORKDIR/bin/Linux-g++/A01appRunningAs always for a new xterm or Terminal window, configure the environment:If you are using C Shell or TC Shell:setenv G4WORKDIR ~/g4worksetenv LD_LIBRARY_PATH ~/CLHEP/lib/:$LD_LIBRARY_PATHsource ~/geant4/geant4.9.0/env.cshIf you are using Bourne Shell or Korn Shell:export G4WORKDIR=~/g4workexport LD_LIBRARY_PATH=~/CLHEP/lib/:$LD_LIBRARY_PATHsource ~/geant4/geant4.9.0/env.shThis might be good time to check that your XWindows setup is correct for our purposes.If you are running Geant4 on a remote machine (using the machine in front of you just as a terminal), make sure you have your XWindows client running.Make sure your terminal is correctly set to accept connections from the machine where you are running Geant4.You might need to explicitly set display from the machine on which you are running Geant4 to make it display to you terminal.It is beyond the scope if this tutorial to advise on all XWindows problems, but it is always helpful to try a test with a simple application such as xclock.Then, to run your example, cd to the example's top level directory, such as:cd $G4WORKDIR/A01And from there, run the newly created executable:$G4WORKDIR/bin/Linux-g++/A01appYou will see a response that starts with:*************************************************************Geant4 version Name: geant4-09-00 (29-June-2007)Copyright : Geant4 CollaborationReference : NIM A 506 (2003), 250-303WWW : http://cern.ch/geant4*************************************************************Visualization Manager instantiating...Visualization Manager initialising...Registering graphics systems...You have successfully registered the following graphics systems. Current available graphics systems are:ASCIITree (ATree)DAWNFILE (DAWNFILE)GAGTree (GAGTree)G4HepRep (HepRepXML)G4HepRepFile (HepRepFile)RayTracer (RayTracer)VRML1FILE (VRML1FILE)VRML2FILE (VRML2FILE)OpenGLImmediateX (OGLIX)OpenGLStoredX (OGLSX)RayTracerX (RayTracerX)And ends with:EMcalorimeterPhysical[0] EMcalorimeterLogical 1 CsIcellPhysical[-1] cellLogical 0 CsI /EMcalorimeterHadCalorimeterPhysical[0] HadCalorimeterLogical 1 LeadHadCalColumnPhysical[-1] HadCalColumnLogical 1 LeadHadCalCellPhysical[-1] HadCalCellLogical 1 LeadHadCalLayerPhysical[-1] HadCalLayerLogical 1 LeadHadCalScintiPhysical[0] HadCalScintiLogical 0 Scintillator /HadCalorimeterIdle>The complete output from the above command can be found in this same web directory as:A01Run.txtIf it fails to run, claiming it can't find CLHEP.so, you probably missed thesetenv LD_LIBRARY_PATH ~/CLHEP/lib/:$LD_LIBRARY_PATHFix that and try to run again.Make sure your output included a mention of the graphics systems:OpenGLImmediateX (OGLIX)OpenGLStoredX (OGLSX)If those didn't show up, you have missed something in the above instructions.Did you correctly answered the questions about OpenGL in the ./Configure-build procedure?Did you get error messages during that procedure?Did you follow the instructions in the above section, "Creating the setup script"?Did you follow the instructions above about "As always for a new xterm or Terminal window, configure the environment…."?If you still can't figure out why you don't have OpenGL, you can still proceed, but you will have to use some other graphics driver. See some notes a little later in this document about how to use the HepRepFile driver.From here, we'll assume you have OpenGL successfully loaded.From the idle prompt, visualize the example by typing the following:/vis/open OGLIX/vis/drawVolumeYou will get the following response:Got standard cmapWindow name: viewer-0 (OpenGLImmediateX)And an OpenGL window will appear and the example geometry will be drawn, as in:To add trajectories and hits to the visualization, and then run an event:/vis/scene/add/trajectories/vis/scene/add/hits/run/beamOn 1You will then see something like:When you are finished with your Geant4 session, just type:exitFor more details on using OpenGL for Geant4, see:/Presentations/vis/G4OpenGLTutorial/G4OpenGLTutori al.htmlHere's another example. This one makes output go to a HepRep file, suitable for viewing in the HepRApp HepRep Browser:$G4WORKDIR/bin/Linux-g++/A01app/vis/open HepRepFile/vis/drawVolume/vis/viewer/flush/vis/scene/add/trajectories/vis/scene/add/hits/run/beamOn 1For more details on using HepRApp for Geant4, see:/Presentations/vis/G4HepRAppTutorial/G4HepRAppTut orial.htmlNote: HepRApp and Geant4 do not have to run on the same machine. You can copy the .heprep file from the Geant4 machine to the machine with HepRApp, or you can simply make the .heprep file visible from the web, and let HepRApp pick it up via the url.Also note that the .heprep file can be zipped to about 5 percent of original size and HepRApp can then read in the zipped version (you don't need to unzip the file).You now have Geant4 installed and have demonstrated a few examples using two different visualization systems.Single versus Multi-User InstallationThe above instructions assumed you were doing a single-user installation. They had you keep all of the build products in the same area as your CLHEP and Geant4 source. Note however that both of these packages support standard multi-user installation processes.For CLHEP, just specify a different value for "--prefix".For Geant4, when ./Configure -build asks you to "Specify the path where Geant4 libraries and source files should be installed", specify whatever area you want instead of taking the default. When you are asked about the CLHEP library, be sure to specify the same location that you specified during the CLHEP installation. Then, after you've installed Geant4 as described below, issue an additional command (as root user), ./Configure -install.I hope these instructions have been helpful.If you find any problems or can suggest corrections, please let me know.Joseph PerlStanford Linear Accelerator Center15 July 2007。
