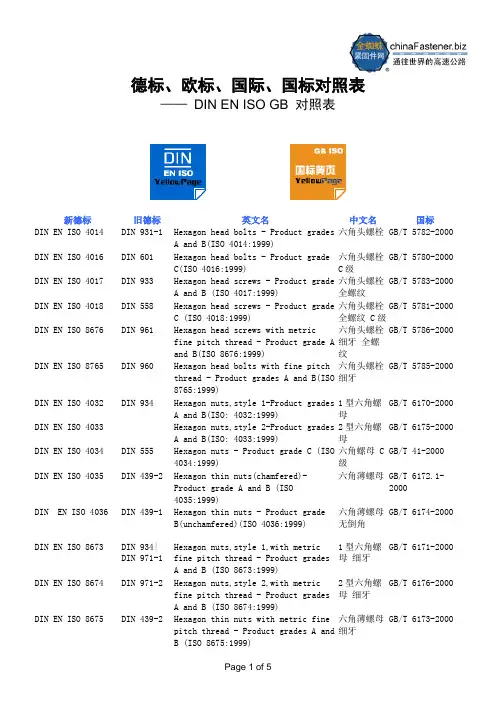

德标、欧标、国际、国标对照表 —— DIN EN ISO GB 对照表新德标旧德标 英文名 中文名 国标 DIN EN ISO 4014DIN 931-1 Hexagon head bolts - Product grades A and B(ISO 4014:1999) 六角头螺栓 GB/T 5782-2000 DIN EN ISO 4016DIN 601 Hexagon head bolts - Product grade C(ISO 4016:1999) 六角头螺栓 C 级 GB/T 5780-2000 DIN EN ISO 4017DIN 933 Hexagon head screws - Product grade A and B (ISO 4017:1999) 六角头螺栓 全螺纹 GB/T 5783-2000 DIN EN ISO 4018DIN 558 Hexagon head screws - Product grade C (ISO 4018:1999) 六角头螺栓 全螺纹 C 级 GB/T 5781-2000 DIN EN ISO 8676DIN 961 Hexagon head screws with metric fine pitch thread - Product grade A and B(ISO 8676:1999) 六角头螺栓 细牙 全螺纹 GB/T 5786-2000 DIN EN ISO 8765DIN 960 Hexagon head bolts with fine pitch thread - Product grades A and B(ISO 8765:1999) 六角头螺栓 细牙 GB/T 5785-2000 DIN EN ISO 4032DIN 934 Hexagon nuts,style 1-Product grades A and B(ISO: 4032:1999) 1型六角螺母 GB/T 6170-2000 DIN EN ISO 4033Hexagon nuts,style 2-Product grades A and B(ISO: 4033:1999) 2型六角螺母 GB/T 6175-2000 DIN EN ISO 4034DIN 555 Hexagon nuts - Product grade C (ISO 4034:1999) 六角螺母 C 级 GB/T 41-2000 DIN EN ISO 4035DIN 439-2 Hexagon thin nuts(chamfered)-Product grade A and B (ISO 4035:1999) 六角薄螺母 GB/T 6172.1-2000 DIN EN ISO 4036DIN 439-1 Hexagon thin nuts - Product grade B(unchamfered)(ISO 4036:1999) 六角薄螺母 无倒角 GB/T 6174-2000 DIN EN ISO 8673DIN 934| DIN 971-1 Hexagon nuts,style 1,with metric fine pitch thread - Product grades A and B (ISO 8673:1999) 1型六角螺母 细牙 GB/T 6171-2000 DIN EN ISO 8674DIN 971-2 Hexagon nuts,style 2,with metric fine pitch thread - Product grades A and B (ISO 8674:1999) 2型六角螺母 细牙 GB/T 6176-2000 DIN EN ISO 8675 DIN 439-2 Hexagon thin nuts with metric fine pitch thread - Product grades A and B (ISO 8675:1999)六角薄螺母 细牙GB/T 6173-2000DIN EN ISO 4762DIN 912 Hexagon socket head cap screws(ISO 4762:1997) 内六角圆柱头螺钉 GB/T 70.1-2000 DIN EN ISO 7380Hexagon socket button head sxrews (ISO 7380:1997) 内六角平圆头螺钉 GB/T 70.2-2000 DIN EN ISO 10642DIN 7991 Hexagon socket countersunk head screws (ISO 10642:1997) 内六角沉头螺钉 GB/T 70.3-2000 DIN EN ISO 1207DIN 84 Slotted cheese head screws-Product grade A(ISO 1207:1992) 开槽圆柱头螺钉 GB/T 65-2000 DIN EN ISO 1580DIN 85 Slotted pan head screws-Product grade A(ISO 1580:1994) 开槽盘头螺钉 GB/T 67-2000 DIN EN ISO 2009DIN 963 Slotted countersunk flat head screws(common head style)(ISO 2009:1994) 开槽沉头螺钉 GB/T 68-2000 DIN EN ISO 2010DIN 964 Countersunk slotted raised head screws(common head style)-Produce grade A(ISO 2010:1994) 开槽半沉头螺钉 GB/T 69-2000 DIN EN ISO 7045DIN 7985 Pan head screws with type H or type Z cross recess-Product grade A(ISO 7054:1994) 十字槽盘头螺钉 GB/T 818-2000 DIN EN ISO 7046-1DIN 965 Countersunk flat head screws (common head style)with type H or type Z cross recess,product grade A-Part 1:Steel of property class 4.8(ISO 7046-1:1994) 十字槽盘头螺钉 第1部分：钢4.8级 GB/T 819.1-2000 DIN EN ISO 7046-2DIN 965 Cross recessed countersunk flat head screws (common head style),product grade A-Part2:Steel of property class 8.8,stainless steel and nonferous metals(ISO 7046-2:1990) 十字槽沉头螺钉 第2部分：钢8.8、不锈钢A2-70和有色金属CU2或CU3 GB/T 819.2-1997 DIN EN ISO 7047DIN 966 Countersunk raised head screws (common head style) with type H or type Z cross recess-Product grade A(ISO 7047:1994) 十字槽半沉头螺钉 GB/T 820-2000 DIN EN ISO 7048Cross recessed cheese head screws (ISO 7048:1998) 十字槽圆柱头螺钉 GB/T 822-2000 DIN EN ISO 10644Screw and washer assemblies with plain washers-Washer hardness classes 200HV and 300HV(ISO 10644:1998) 螺栓或螺钉和平垫圈组合件 GB/T 9074.1-2002 DIN EN ISO 10510Tapping screw and washer assemblies with plain washers(ISO 10510l:1999) 自攻螺钉和平垫圈组合件 GB/T 9074.18-2002 IDN EN ISO 15480 Hexagon washer head drilling screws with tapping screws thread (ISO 15480:1999)六角凸缘自钻自攻螺钉 GB/T 15856.5-2002IDN EN ISO 15481Cross recessed pan head drilling screws with tapping screw thread(ISO 15481:1999) 十字槽盘头自钻自攻螺钉 GB/T 15856.1-2002 IDN EN ISO 15482Cross recessed countersunk head drilling screws with tapping screw thread (ISO 15482:1999) 十字槽沉头自钻自攻螺钉 GB/T 15856.2-2002 IDN EN ISO 15483Cross recessed raised countersunk head drilling screws with tapping screw thread(ISO 15483:1999) 十字槽半沉头自钻自攻螺钉 GB/T 15856.3-2002 DIN EN ISO 10669Plain washers for tapping screw and washer assemblies - Normal and large series - Product grade A （ISO 10669:1999) 平垫圈 用于自攻螺钉和垫圈组合件 GB/T 97.5-2002 DIN EN ISO 10673Plain washers for screw and washer assemblies - Small,normal and large series - Product grade A (ISO 10673:1998) 平垫圈 用于螺钉和垫圈组合件 GB/T 97.4-2002 DIN EN ISO 2338DIN 7 Parallel pins,of unhardened steel and austenitic stainless steel(ISO 2338:1997) 圆柱销 不淬硬钢和奥氏体不锈钢 GB/T 119.1-2000 DIN EN ISO 8733DIN 7979 Parallel pins whit internal thread,of unhardened steel and austenitic stainless steel(ISO 8733:1997) 内螺纹圆柱销 不淬硬钢和奥氏体不锈钢 GB/T 120.1-2000 DIN EN ISO 8734DIN 6325 Parallel pins,of hardened steel or martensitic stainless steel(Dowel pins)(ISO 8734:1997) 圆柱销 淬硬钢和马氏体不锈钢 GB/T 119.2-2000 DIN EN ISO 8735DIN 7979 Parallel pins with internal thread,of hardened steel and martensitic stainless steel(ISO 8735:1997) 内螺纹圆柱销 淬硬钢和马氏体不锈钢 GB/T 120.2-2000 DIN EN ISO 8748DIN 7344 Spring-type straight pins,coiled,heavy duty (ISO 8748:1997) 弹性圆柱销 卷制 重型 GB/T 879.3-2000 DIN EN ISO 8750DIN 7343 Spring-type straight pins,coiled,standard duty (ISO 8750:1997) 弹性圆柱销 卷制 标准型 GB/T 879.4-2000 DIN EN ISO 8751Spring-type straight pins,coiled,light duty （ISO 8751:1997) 弹性圆柱销 卷制 轻型 GB/T 879.5-2000 DIN EN ISO 8752DIN 1481 Spring-type straight pins,slotted,heavy duty (ISO 8752:1997) 弹性圆柱销 直槽 重型 GB/T 879.1-2000 DIN EN ISO 13337DIN 7346 Spring-type straight pins,slotted,light duty (ISO 13337:1997) 弹性圆柱销 直槽 轻型 GB/T 879.2-2000 DIN EN ISO 1234 DIN 94 Split pins （ISO1234:1997) 开口销 GB/T 91-2000DIN EN ISO 7089Plain washers-Normal series-Product grade A 平垫圈 A 级 GB/T 97.1-2002 DIN EN ISO 7090Plain washers,chamfered-Normal series-Product grade A(ISO 7090:2000) 平垫圈 倒角型 A 级 GB/T 97.2-2002 DIN EN ISO 7091Plain washers-Normal series-Product grade C(ISO 7091:2000) 平垫圈 C 级 GB/T 95-2002 DIN EN ISO 7092Plain washers-Small series-Product grade A(ISO 7092:2000) 小垫圈 A 级 GB/T 848-2002 DIN EN ISO 7093-1Plain washers-Large series-Part 1: Product grade A(ISO 70931-1:2000) 大垫圈 A 级 GB/T 96.1-2002 DIN EN ISO 7093-2Plain washers-Normal series-Part 3: Product grade C(ISO 70936-2:2000) 大垫圈 C 级 GB/T 96.2-2002 DIN EN ISO 7094Plain washers-Extra large series -Product grade C(ISO 7094:2000) 特大垫圈 C 级 GB/T 5287-2002 DIN EN ISO 7040DIN 982| DIN 6924 Prevailing torque type hexagon nuts (with non-metallic insert),style 1 - Property classes 5,8 and 10(ISO 7040:1997) 1型非金属嵌件六角锁紧螺母 GB/T 889.1-2000 DIN EN ISO 7042DIN 980| DIN 6925 Prevailing torque type all-metal hexagon nuts,style 2 - Property classes 5,8, 10 and 12(ISO 7042:1997) 2型全金属六角锁紧螺母 GB/T 6185.1-2000 DIN EN ISO 7719Prevailing torque type all-metal hexagon nuts,style 1- Property classes 5,8 and 10(ISO 7719:1997) 1型全金属六角锁紧螺母 GB/T 6184-2000 DIN EN ISO 10511DIN 985 Prevailing torque type hexagon thin nuts (with non-metallic insert )(ISO 10511:1997) 非金属嵌件六角锁紧薄螺母 GB/T 6072.2-2000 DIN EN ISO 10512DIN 982| DIN 6924 Prevailing torque type hexagon nuts (with non-metallic insert),style 1,with metric fine pitch thread-Property classes 6,8 and 10(ISO 10512:1997) 1型非金属嵌件六角锁紧螺母 细牙 GB/T 889.2-2000 DIN EN ISO 10513 DIN 980|DIN 6925 Prevailing torque type all-metal hexagon nuts,style 2,with metric fine pitch thread - Property classes 8,10 and 12(ISO 10513:1997)2型全金属六角锁紧螺母 细牙GB/T 6185.2-2000原汁原味的德标 DIN (ISO、EN)、美标 IFI (ANSI, ASME, SAE)、公制美标、日标 JIS 资料！。
序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard 1DIN1圆锥销taper pins ISO2339GB/T117-2000 2DIN7圆柱销parallel pins ISO2338GB/T119-2000 3DIN84开槽圆柱头螺钉slotted cheese head screws ISO1207GB/T65-2000 4DIN85开槽盘头螺钉slotted pan head screws ISO1580GB/T67-2000 5DIN93单耳止动垫圈tab washers ISO1580GB/T854-1998 6DIN94开口销split cotter pins ISO1234GB/T91-20007DIN95开槽半沉头木螺钉slotted raised csk head woodscrewsGB/T101-19868DIN96开槽半圆头木螺钉slotted round head wood screws GB/T99-19869DIN97开槽沉头木螺钉slotted countersunk head woodscrewsGB/T100-198610DIN125-A平垫plain washers ISO7089GB/T97.1-1985 11DIN125-B平垫(带倒角)mediun washers ISO7090GB/T97.2-1985 12DIN126平垫plain washers ISO709113DIN127-A重型弹垫spring lock washers,tang ends GB/T7244-1987 14DIN127-B标准弹垫spring lock washers,square ends GB/T93-1987 15DIN128-A鞍形弹垫single coil spring lock washers GB/T7245-1987 16DIN137-A弹簧止动垫圈curved spring washers17DIN137-B波形弹垫wave spring washers GB/T955-1987 18DIN186T型方颈螺栓T-head bolts with square neck GB/T37-1988 19DIN188T型双接头螺栓T-head bolts with double nip20DIN258螺纹圆锥销taper pins with threaded end ISO873721DIN261T型头螺栓T-head bolts22DIN315AF蝶型螺母(美制)wing nuts amercia form23DIN315DF蝶型螺母(德制)wing nuts germany form GB/T62-1988 24DIN316AF蝶型螺钉(美制)wing screws amercia form25DIN317DF蝶型螺钉(德制)wing screws germany form26DIN319圆球型盖型螺母ball knobs27DIN404开槽带孔球面圆柱头螺钉slotted capstan screws GB/T832-198828DIN417开槽长圆柱端紧定螺钉slotted set srews with full dogpointISO7435GB/T75-198529DIN427开槽平端紧定螺钉(半牙)slotted set srews with chamferedendISO2342GB/T73-198530DIN431小六角特薄细牙螺母pipe nuts with thread GB/T808-1988 31DIN432外舌止动垫圈external tap GB/T856-1988 32DIN433小垫圈(用于圆柱头螺钉)washers for cheese head screws ISO7092GB/T848-198533DIN434方斜垫圈(U型)square taper washers for U-sectionGB/T852-198834DIN435方斜垫圈(I型)square taper washers for I-sectionsGB/T852-198835DIN436方垫圈square washers序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard 36DIN438开槽凹端紧定螺钉slotted set with cup point ISO7436GB/T74-1985 37DIN439六角薄螺母hexagon thin nuts ISO4035GB/T6172-2000 38DIN439细牙六角薄螺母hexagon thin nuts ISO8675GB/T6173-200039DIN440木螺钉专用垫圈rounds washers for woodconstructionsISO709440DIN443密封帽sealing caps,push-in type41DIN444活节螺栓B 型eye bolts form B GB/T798-1988 42DIN462内舌止动垫圈internal tab washers43DIN463双耳止动垫圈washers with two taps GB/T855-1988 44DIN464滚花高头螺钉knurled thumb screws with collar GB/T834-198845DIN465开槽滚花高头螺钉slotted knurled thumb screws with collar46DIN466滚花高螺母knurled thumb nuts with collar GB/T806-1988 47DIN467滚花薄螺母knurled thumb thin nuts GB/T807-1988 48DIN470锁紧垫圈sealing washers49DIN471轴用弹性挡圈retaining rings forshafts(external),circlipsGB/T894.1-198650DIN472孔用弹性挡圈retaining rings forbores(internal),circlipsGB/T893.1-198651DIN478方头带垫螺栓square head bolts with collar52DIN479方头圆柱底端螺栓square head bolts with half dog point53DIN480方头带垫半圆底端螺栓square head bolts withcollar,half dog point and rounded54DIN508T型槽螺母T-slot nuts ISO29955DIN525单头螺柱single end studs56DIN529地脚螺栓masonry bolts GB/T799-1988 57DIN546带槽圆螺母slotted round nuts GB/T817-198858DIN547端面带孔圆螺母round nuts with drilled holes inone faceGB/T815-198859DIN551开槽平端紧定螺钉slotted sit screws with flatpointISO4776GB/T73-198560DIN553开槽锥端紧定螺钉slotted set screws with conepointISO7434GB/T71-198561DIN555六角螺母hexagon nuts ISO403462DIN557方螺母-C square nuts GB/T39-1988 63DIN558六角头螺钉hexagon screws ISO401864DIN561六角头圆柱端紧定螺钉hexagon set screws with full dog point65DIN562薄型方螺母-B square nuts without bevel(pressed nuts)66DIN571六角头木螺钉hexagon head wood screws (coachscrews)GB/T102-198667DIN580吊环螺钉lifting eye bolts ISO3266GB/T825-1988 68DIN582吊环螺母lifting eye nuts69DIN601六角头螺栓hexagon bolts ISO4016序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard70DIN603大半圆头方颈螺栓(马车螺栓)mushroom head square neck bolts(carriage bolts)ISO8677GB/T14-198871DIN604沉头带插销马车螺栓flat countersunk nib bolts72DIN605沉头长方颈马车螺栓flat countersunk long square neck bolts73DIN607半圆头带插销马车螺栓cup head nib bolts74DIN608沉头短方颈马车螺栓flat countersunk short square neck bolts75DIN609六角头精配螺栓（长螺纹）hexagon fitted bolts,long thread76DIN610六角头精配螺栓（短螺纹）hexagon fitted bolts,short thread77DIN653滚花平头螺钉knurled thumb screws thin type GB/T835-1988 78DIN660半圆头铆钉round head rivets ISO1051GB/T867-1986 79DIN661沉头铆钉contersunk head rivets ISO1051GB/T869-1986 80DIN662半沉头铆钉raised contersunk head rivets ISO105181DIN674大扁头铆钉mushroom head rivets ISO105182DIN703重型侧面带孔圆螺母adjusting rings,heavy range (shafting collars)83DIN705侧面带孔圆螺母adjusting rings,light range(shafting collars)GB/T816-198884DIN741卡头wire rope clips85DIN787T型槽螺钉T-slot screws ISO29986DIN835双头螺柱（牙长=2D）studs-metal (end=2d)GB/T900-198887DIN906内六角锥型闭锁螺钉hexagon socket pipe plugs,conical thread88DIN908内六角直型闭锁螺钉hexagon socket screw plugs,cyl. thread89DIN909外六角锥型闭锁螺钉hexagon head pipe plugs,conical thread90DIN910外六角直型闭锁螺钉hexagon head screw plugs,cyl.thread91DIN911内六角扳手socket wrenches ISO293692DIN912内六角圆柱头螺钉hexagon socket cap screws ISO4762GB/T70-200093DIN913内六角平端紧定螺钉hexagon socket set screws withflat pointISO4026GB/T77-200094DIN914内六角尖端紧定螺钉hexagon socket set screws withcone pointISO4027GB/T78-200095DIN915内六角圆柱端紧定螺钉hexagon socket set screws withdog pointISO4028GB/T79-200096DIN916内六角凹端紧定螺钉hexagon socket set screws withcup pointISO4029GB/T80-200097DIN917薄型盲螺母hexagon cap nuts98DIN920开槽小圆柱头螺钉slotted short cheese head screws99DIN921开槽大圆柱头螺钉slotted large cheese head screws GB/T838-1988100DIN923开槽圆柱头轴肩螺钉slotted pan head screws withshoulderGB/T830-1988101DIN927开槽无头轴肩螺钉slotted shoulder screws102DIN928焊接方螺母square weld nuts GB/T13680-1992 103DIN929焊接六角螺母hexagon weld nuts GB/T13681-1992序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard 104DIN931六角头螺栓（半牙）hexagon head screws ISO4014GB/T5782-2000 105DIN933六角头螺栓（全牙）hexagon head screws ISO4017GB/T5783-2000 106DIN934六角头螺母(1型)hexagon full nuts ISO4032GB/T6170-2000 107DIN934细牙六角头螺母(1型)hexagon full nuts ISO8673GB/T6171-2000 108DIN935开槽六角螺母hexagon slotted and castle nuts ISO7035GB/T6178-1986 109DIN936六角头薄螺母hexagon thin nuts ISO4035GB/T6172.1-2000110DIN937六角头开槽薄螺母hexagon thin slotted and castlenutsISO7038GB/T6181-1986111DIN938双头螺柱（牙长=1D）studs metal (end=1d)GB/T897-1988 112DIN939双头螺柱（牙长=1.25D）studs metal (end=1.25d)GB/T898-1988 113DIN940双头螺柱（牙长=1.5D）studs metal (end=1.5d)114DIN960六角头细牙螺栓（半牙）hexagon head bolts,metric finepitch threadISO8765GB/T5785-2000115DIN961六角头细牙螺栓（全牙）hexagon head bolts,metric finepitch threadISO8676GB/T5786-2000116DIN962头部穿孔六角头螺栓additional shapes and versions for bolts117DIN963开槽沉头螺钉slotted countersund head screws ISO 2009GB/T68-2000118DIN964开槽半沉头螺钉slotted raised countersunk ovalhead screwsISO 2010GB/T69-2000119DIN965十字槽沉头螺钉cross recessed countersunk headscrewsISO7046GB/T819.1-2000GB/T819.2-1997120DIN966十字槽半沉头螺钉cross recessed raised countersunkhead screwsISO7047GB/T820-2000121DIN970六角头螺母hexagon nuts type-1122DIN971六角头螺母hexagon nuts type-2123DIN972细牙六角头螺母(2型)hexagon nuts with fine thread ISO8674GB/T6176-2000 124DIN975牙条(全螺纹)threaded rods(studdings)GB/T15389-94 125DIN976螺纹销threaded pins(stud bolts)126DIN979六角头开槽薄螺母（2型）hexagon thin slotted and castle nuts127DIN980全金属六角锁紧螺母（1型）prevailling torque type hexagonnuts,all metall nutsISO7199GB/T6184-2000128DIN981圆螺母locknuts ISO2982GB/T812-1988129DIN982六角头尼龙锁紧螺母prevailling torque type hexagonnuts,heavy type ,with nylonISO7040GB/T889.1-2000130DIN985六角头薄型尼龙锁紧螺母prevailling torque type hexagonnuts,heavy type ,with nylonISO10511GB/T6172.2-2000131DIN986六角盖型尼龙锁紧螺母prevailling torque typedomed capnuts with nylon insert132DIN988配合垫片shim rings133DIN1052木材连接用垫片washers for timber connectors 134DIN1151沉头钢钉round plain head nails135DIN1440销钉专用垫片A型plain washers for clevis pins(A型)ISO8738136DIN1441销钉专用垫片plain washers for clevis pins137DIN1444带头销钉clevis pins with head ISO2341序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard 138DIN1471圆锥型槽销grooved pins,taper grooved ISO8744GB/T13829.2-92139DIN1472圆锥型槽销(半槽)grooved pins,taper grooved halflengthISO8745GB/T13829.2-92140DIN1473平行槽销(带倒角)grooved pins,parallel groovedfull lengthISO8740141DIN1474前端凹槽槽销grooved pins,reserve grooved halflengthISO8741142DIN1475中部凹槽槽销grooved pins,centre grooved ISO8742143DIN1476圆头槽销grooved pins with round head ISO8746GB/T13829.3-92144DIN1477沉头槽销grooved pins with countersunkheadISO8747145DIN1479六角螺母棒turnuckles(centre parts),made out of hexagon bar146DIN1480花篮螺栓turnuckles with eye bolt and hook bolt147DIN1481弹性圆柱销spring pins,heavy type ISO8752GB/T879-1986 148DIN1587组合式盖型螺母hexagon domed cap nuts GB/T802-1988149DIN1804开槽圆螺母（配合沟头扳手）slotted round nuts for hook spanner150DIN1816圆螺母（带插销孔）round nuts with set holes151DIN2093盘型弹簧垫圈disc springs152DIN3017喉箍hose clamps153DIN3404润滑油嘴（旋扭头）lubricating nipples,button head154DIN3567管夹shackles for conduilts155DIN3570U型螺栓stirrup bolts(U-bolts)156DIN6319球面垫圈spherical washers,conical seats GB/T849-1988 157DIN6325圆柱销parallel pins ISO8734158DIN6330厚六角螺母hexagon nuts ,1.5d GB/T56-1988 159DIN6331厚六角法兰面螺母hexagon nuts ,1.5d with collar GB/T6177-1986 160DIN6334长六角螺母hexagon nuts ,3d161DIN6797-A外齿锁紧垫圈external teeth lock washers GB/T862.1-1987 162DIN6797-I内齿锁紧垫圈internal teeth lock washers GB/T861.1-1987163DIN6798-A外锯齿锁紧垫圈external teeth serrated lockwashersGB/T862.2-1987164DIN6798-I内锯齿锁紧垫圈internal teeth serrated lockwashersGB/T861.2-1987165DIN6799 开口挡圈retaining rings for shafts(E-rings),circlipsGB/T896-1986166DIN6885平键（A型）parallel keys(form A )ISO773/2491167DIN6888半圆键woodruff keys ISO3912168DIN6899嵌环（支撑环）thimbles169DIN6900机器螺钉和垫圈组合件screws and washers assemblies GB/T9074.1-2002170DIN6901自攻螺钉和垫圈组合件tapping screws and washersassembliesGB/T9074.18-1998171DIN6912薄型带孔内六角圆柱头螺钉hexagon socket head cap screws with hole,low head序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard172DIN6914大六角头螺栓hexagon head bolts with large head(friction grip bolts)173DIN6915大六角螺母hexagon nuts with large wideth across flat(friction grip nuts)174DIN6916大垫圈round washers for friction grip bolts175DIN6917楔型方垫圈spuare taper washers forfriction grip bolts on T-sections176DIN6923六角法兰面螺母hexagon flange nuts ISO4161GB/T6177-2000177DIN6925全金属六角锁紧螺母(2型）prevailing torque type hexagonnuts,all metallic nutsISO7042GB/T6185.1-2000178DIN7337开口型抽芯铆钉（沉头、扁圆头）blind rivets GB/T12617/12618-1990179DIN7338扁平头半空心/全空心铆钉rivets for brake and clutchliningGB/T875/975-1986180DIN7343螺旋夹紧销spiral pins ISO8750 181DIN7346轻型弹性圆柱销spring pins,light type ISO13337182DIN7349重型弹性圆柱销用垫圈washers for bolts with heavy type spring pinss183DIN7500ISO公制螺纹螺钉(多种头型)threadforming screws for ISO-metric thread184DIN7504自攻自钻螺钉(多种头型)self-drilling tapping screws 185DIN7513开槽切削螺纹螺钉(多种头型)thread cutting screws186DIN7516十字槽切削螺纹螺钉(多种头型)thread cutting screws cross recess187DIN7965T型四爪螺母tee nuts with pronge188DIN7968钢结构用六角头螺栓连接副hexagon head fitted bolts forsteel structuresGB/T1228/1229/1230-2006189DIN7971开槽盘头自攻螺钉pan head tapping screws with slot ISO1481GB/T5282-1985190DIN7972开槽沉头自攻螺钉countersunk flat head tappingscrews with slotISO1482GB/T5283-1985191DIN7973开槽半沉头自攻螺钉raised countersunk oval headtapping screws with slotISO1483GB/T5284-1985192DIN7976六角头自攻螺钉hexagon tapping screws ISO1479GB/T5285-1985193DIN7980圆柱头螺钉用弹簧垫圈spring lock washers for screwswith cylindrical headsISO8738194DIN7981十字槽盘头自攻螺钉pan head tapping screws withcross recessedISO 7049GB/T845-1985195DIN7982十字槽沉头自攻螺钉countersunk flat head tappingscrews with cross recessedISO7050GB/T846-1985196DIN7983十字槽半沉头自攻螺钉raised countersunk oval headtapping screws with crossISO7051GB/T847-1986197DIN7984薄型内六角圆柱头螺钉hexagon socket head cap screws with，reduced head198DIN7985十字槽盘头螺钉pan head screws with crossrecessedISO7045GB/T818-2000199DIN7989钢结构用垫圈washers for steel structures GB/T1230-2006200DIN7990钢结构用六角头螺栓hexagon head bolts for steelstructuresGB/T1229-2006201DIN7991内六角沉头螺钉hexagon socket countersunk headscrewsISO10642202DIN7993轴用钢丝挡圈roundwire snap rings for shafts GB/T895.2-1986203DIN7995十字槽半沉头木螺钉cross recessed raised countersunkhead wood screwsGB/T952-1986204DIN7996十字槽圆头木螺钉cross recessed round head woodscrewsGB/T950-1986205DIN7997十字槽沉头木螺钉cross recessed countersunk headwood screwsGB/T951-1986序号德国标准中文品名英文品名国际标准中国标准Item DIN-Standard Description in Chinese Description in English ISO-Standard GB-Standard206DIN8140螺纹护套（普通\自锁等）ciol inserts,coarse,fine thread,silf locking207DIN9021大外径垫圈washers,outside diameter appro.3d ISO7093GB/T96-1985 208DIN11024弹簧卡子spring cotter for a bolt209DIN13257平板螺栓belting bolts (elevator bolts)210DIN18182干壁钉（墙板钉）dry wall screws211DIN28129环型螺母lifting nuts(eye nuts)GB/T63-1988212DIN70952圆螺母用止退垫圈tab washers for slotted roundnutsGB/T858-1988。
