常用型材规格及单位重量表

  • 格式：pdf
  • 大小：346.58 KB
  • 文档页数：11

热轧扁钢理论重量一览表

宽度(mm) 厚 度(mm)

3 4 5 6 7 8 9 10 11

理 论 重 量(kg/m)

10 0.24 0.31 0.39 0.47 0.55 0.63

12 0.28 0.38 0.47 0.57 0.66 0.75

14 0.33 0.44 0.55 0.66 0.77 0.88

16 0.38 0.50 0.63 0.75 0.88 1.00 1.15 1.26

18 0.42 0.57 0.71 0.85 0.99 1.13 1.27 1.41

20 0.47 0.63 0.78 0.94 1.10 1.26 1.41 1.57 1.73

22 0.52 0.69 0.86 1.04 1.21 1.38 2.12 2.36 2.59

25 0.59 0.78 0.98 1.18 1.37 1.57 1.77 1.96 2.16

28 0.66 0.88 1.10 1.32 1.54 1.76 1.98 2.20 2.42

30 0.71 0.94 1.18 1.41 1.65 1.88 2.12 2.36 2.59

32 0.75 1.00 1.26 1.51 1.76 2.01 2.26 2.55 2.76

35 0.82 1.10 1.37 1.65 1.92 2.20 2.47 2.75 3.02

40 0.94 1.26 1.57 1.88 2.20 2.51 2.83 3.14 3.45

45 1.06 1.41 1.77 2.12 2.47 2.83 3.18 3.53 3.89

50 1.18 1.57 1.96 2.36 2.75 3.14 3.53 3.93 4.32

55 1.73 2.16 2.59 3.02 3.45 3.89 4.32 4.75

60 1.88 2.36 2.83 3.30 3.77 4.24 4.71 5.18

65 2.04 2.55 3.06 3.57 4.08 4.59 5.10 5.61

70 2.20 2.75 3.30 3.85 4.40 4.95 5.50 6.04

75 2.36 2.94 3.53 4.12 4.71 5.30 5.89 6.18

80 2.51 3.14 3.77 4.40 5.02 5.65 6.28 6.94

85 3.34 4.00 4.67 5.34 6.01 6.67 7.34

90 3.53 4.24 4.95 5.65 6.36 7.07 7.77

95 3.73 4.47 5.22 5.97 6.71 7.46 8.20

100 3.92 4.71 5.50 6.28 7.07 7.85 8.61

105 4.12 4.95 5.77 6.59 7.42 8.24 9.07

110 4.32 5.18 6.04 6.91 7.77 8.64 9.50

120 4.71 5.65 6.59 7.54 8.48 9.42 10.34

125 5.89 6.37 7.54 8.48 9.42 10.36

130 6.12 7.14 8.16 9.18 10.20 11.28

140 7.69 8.79 9.89 10.99 12.09

150 8.24 9.42 10.60 11.78 12.96

钢板每平方面积理论重量 厚度(mm) 理论重量(kg) 厚度(mm) 理论重量(kg) 厚度(mm) 理论重量(kg)

0.2 1.570 1.50 11.78 10 78.50

0.25 1.963 1.60 12.56 11 86.35

0.27 2.120 1.80 14.13 12 94.20

0.30 2.355 2.0 15.70 13 102.05

0.35 2.748 2.2 17.27 14 109.90

0.40 3.140 2.5 19.63 15 117.75

0.45 3.533 2.8 21.98 16 125.60

0.50 3.925 3.0 23.55 17 133.45

0.55 4.318 3.2 24.12 18 141.30

0.60 4.710 3.5 27.48 19 149.15

0.70 5.405 3.8 29.83 20 157.00

0.75 5.888 4.0 31.40 21 164.85

0.80 6.280 4.5 35.33 22 172.70

0.90 7.065 5.0 39.25 23 180.55

1.00 7.850 5.5 43.18 24 188.40

1.10 8.035 6.0 47.10 25 196.25

1.20 9.420 7.0 54.95 26 201.10

1.25 9.813 8.0 62.80 27 211.95

1.40 10.99 9.0 70.05 28 219.80

结构用冷弯方形空心型钢（GB6728—86）

边长（mm） 壁厚（mm） 理论重量(kg/m) 边长（mm） 壁 厚（mm） 理论重量(kg/m) A t A t

25 1.2 0.867

90 3.0 8.013

1.5 1.061 4.0 10.478

1.75 1.215 5.0 12.839

2.0 1.363 6.0 15.097

30 2.5 2.032

100 4.0 11.734

3.0 2.361 5.0 14.409

40 2.5 2.817 6.0 16.981

3.0 3.303

120 4.0 14.246

4.0 4.198 5.0 17.549

50 2.5 3.602 6.0 20.749

3.0 4.245 8.0 26.840

4.0 5.454

140 4.0 16.758

60 2.5 4.387 5.0 20.749

3.0 5.187 6.0 24.517

4.0 6.710 8.0 31.864

5.0 8.129

160 4.0 19.270

70 3.0 6.129 5.0 23.829

4.0 7.968 6.0 28.285

5.0 9.699 8.0 36.888

80 3.0 7.071

4.0 9.222

5.0 11.269

结构用冷弯矩形空心型钢（GB6728—86）

边长(mm) 壁厚(mm) 理论重量(kg/m) 边长(mm) 壁 厚 (mm) 理论重量(kg/m) A B A B

50 25 1.2 1.338 90 60 4.0 8.594

1.5 1.650 5.0 10.484

30 2.5 2.817

100 50 3.0 6.600

3.0 3.303 4.0 8.594

4.0 4.198 5.0 10.484

50 2.5 3.209

120 60 3.0 8.013

3.0 3.774 4.0 10.478

4.0 4.826 5.0 12.839

40 2.5 3.602 6.0 15.097

3.0 4.245

80 3.0 8.955

4.0 5.454 4.0 11.734

70 50 3.0 5.187 5.0 14.409

4.0 6.710 6.0 16.981

5.0 8.129

140 4.0 12.990

80 40 2.5 4.387 5.0 15.979

3.0 5.187 6.0 18.865

4.0 6.710

150 100 4.0 14.874

5.0 8.129 5.0 18.334

60 3.0 6.129 6.0 21.691

4.0 7.966 8.0 28.096

5.0 9.699

160 80 4.0 14.246

90 40 3.0 5.653 5.0 17.549

4.0 7.338 6.0 20.749

5.0 8.914 8.0 26.840

50 3.0 6.129

180 100 4.0 16.758

4.0 7.966 5.0 20.089

5.0 9.699 6.0 24.517

60 3.0 6.600 8.0 31.864

热 轧 槽 钢

h:高度 b:腿宽 d：腰厚 型号 尺 寸 理论重量 h b d

5 50 37 4.5 5.438

6.3 63 40 4.8 6.634

6.5# 65 40 4.8 6.709

8 80 43 5.0 8.045

10 100 48 5.3 10.007

12# 120 53 5.5 12.059

12.6 126 53 5.5 12.318

14a 140 58 6.0 14.535

14b 140 60 8.0 16.733

16a 160 63 6.5 17.240

16 160 65 8.5 19.752

18a 180 68 7.0 20.174

18 180 70 9.0 23.000

20a 200 73 7.0 22.637

20 200 75 9.0 25.777

22a 220 77 7.0 24.999

22 220 79 9.0 28.453

24a# 240 78 7.0 26.860

24b# 240 80 9.0 30.628

24c# 240 82 11.0 34.396

25a 250 78 7.0 27.410

25b 250 80 9.0 31.335

25c 250 82 11.0 35.260

27a# 270 82 7.5 30.838

27b# 270 84 9.5 35.077

27c# 270 86 11.5 39.316

28a 280 82 7.5 31.427

28b 280 84 9.5 35.823

28c 280 86 11.5 40.219

合集下载

常用H型材理论重量表

常用H型材理论重量表

.

. 常用H型钢理论重量表（一）

型号 截面尺寸 （mm） 截面面积 理论重量

（高度*宽度） H*B t1 t2 r cm2 kg/m

175*90 175*90 5 8 10 23.21 18.2

200*100 198*99 4.5 7 13 23.59 18.5

200*100 200*100 5.5 8 13 27.57 21.7

250*125 248*124 5 8 13 32.89 25.8

250*125 250*125 6 9 13 37.87 29.7

300*150 298*149 5.5 8 16 41.55 32.6

300*150 300*150 6.5 9 16 47.53 37.3

350*175 346*174 6 9 16 53.19 41.8

350*175 350*175 7 11 16 63.66 50

400*150 400*150 8 13 16 71.12 55.8

400*200 396*199 7 10 14 72.16 51.9

400*200 400*200 8 13 16 84.12 66

450*150 450*150 9 14 20 83.41 65.5

450*200 446*119 8 12 20 84.95 66.7

450*200 450*200 9 14 20 97.41 76.5

500*150 500*150 10 16 20 98.23 77.1

500*200 496*199 9 14 20 101.3 79.5

500*200 500*200 10 16 20 114.2 89.6

500*200 506*201 11 19 20 131.3 103

600*200 596*199 10 15 24 121.2 95.1

600*200 600*200 11 17 24 135.2 106

600*200 606*201 12 20 24 153.3 120

常用型材规格表10.28

常用型材规格表10.28

型号壁厚重量Kg/m型号壁厚重量Kg/m型号理论重量型号理论重量型号理论重量

8#2±0.52.6712#2.5±0.54.325#5.43820#A22.6430#B39.17

6.3#6.63420#B25.7830#C43.88

8#8.04622#A2532#A38.08

高腿宽腹厚重量Kg/m高腿宽腹厚10#10.00722#B28.4532#B43.11

10100684.511.222B2201129.536.412#12.05925#A27.4132#C48.13

12.61207451424A240116837.414#A14.53525#B31.3436#A47.81

14140805.516.924B2401181041.214#B16.73325#C35.2636#B53.47

1616088620.527A2701228.542.816#A17.2428#A31.4336#C59.12

18180946.524.127B27012410.547.116#B19.75228#B35.8240#A58.93

20A200100727.930A30012694818#A20.17428#C40.2240#B65.21

20B200102931.130B3001281152.718#B2330#A34.4640#C71.49

22A2201107.53312#

高腿宽腹厚高腿宽腹厚

10100554.59.4622a2001205.425.85#4.8416a#15.324a#25.8

12120644.811.5242401155.627.36.3#5.918#16.327#27.7

14140734.913.724a2401255.629.48#7.0518a#17.430#31.8

161608151527270125631.510#8.5920#18.433#36.5

18180905.118.427a270135633.912#10.420a#19.836#41.9

常用H型材理论重量表 2

常用H型材理论重量表 2

.

. 常用H型钢理论重量表（一）

型号 截面尺寸 （mm） 截面面积 理论重量

（高度*宽度） H*B t1 t2 r cm2 kg/m

175*90 175*90 5 8 10 23.21 18.2

200*100 198*99 4.5 7 13 23.59 18.5

200*100 200*100 5.5 8 13 27.57 21.7

250*125 248*124 5 8 13 32.89 25.8

250*125 250*125 6 9 13 37.87 29.7

300*150 298*149 5.5 8 16 41.55 32.6

300*150 300*150 6.5 9 16 47.53 37.3

350*175 346*174 6 9 16 53.19 41.8

350*175 350*175 7 11 16 63.66 50

400*150 400*150 8 13 16 71.12 55.8

400*200 396*199 7 10 14 72.16 51.9

400*200 400*200 8 13 16 84.12 66

450*150 450*150 9 14 20 83.41 65.5

450*200 446*119 8 12 20 84.95 66.7

450*200 450*200 9 14 20 97.41 76.5

500*150 500*150 10 16 20 98.23 77.1

500*200 496*199 9 14 20 101.3 79.5

500*200 500*200 10 16 20 114.2 89.6 .

. 常用H型钢理论重量表（二）

型号 截面尺寸（mm） 截面面积 理论重量

（高度*宽度） H*B t1 t2 r cm2 kg/m

100*100 100*100 6 8 10 21.9 17.2

175*175 175*175 7.5 11 13 51.43 40.3

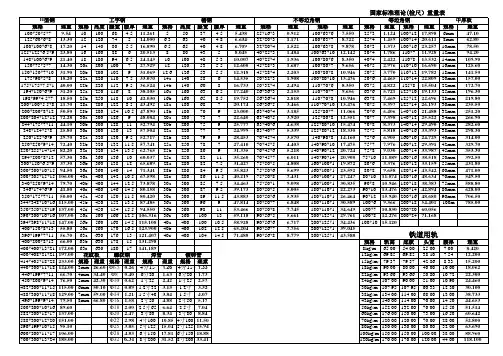

型材理论重量表-

型材理论重量表-

规格理重规格高度腿宽腰厚理重规格高度腿宽腰厚理重规格理重规格理重规格理重规格理重规格理重100*50*5*79.5410100684.511.261550374.55.43825*16*30.912100*63*67.55025*31.124100*1217.8986mm47.10125*60*6*813.301212074514.0006.363404.86.63432*20*31.171100*63*78.72225*41.459100*1420.6118mm62.80100*100*6*817.2014140805.516.8906.565404.86.70932*20*41.522100*63*89.87830*31.373100*1623.25710mm78.50125*125*6.5*923.801616088620.5138804358.04540*25*31.484100*63*1012.14230*41.786110*711.92812mm94.20148*100*6*921.4018180946.524.14310100485.310.00740*25*41.936100*80*68.35040*42.422110*813.53214mm109.90150*75*5*714.3020a200100727.92912120535.512.60045*28*31.687100*80*79.65640*52.976110*1016.69016mm125.60150*150*7*1031.9020b200102931.06912.6126535.512.31845*28*42.203100*80*810.94650*53.770110*1219.78218mm141.50175*90*5*818.2022a2201107.533.07014a14058614.53550*32*31.908100*80*1013.47650*64.465110*1422.80920mm157.00175*175*7.5*140.0022b2201129.536.52414b14060816.73350*32*42.494110*70*68.35063*54.822125*815.50422mm172.70194*150*6*931.2025a250116838.10516a160636.517.24056*36*32.153110*70*79.65663*65.721125*1019.13325mm196.30198*99*4.5*718.5025b2501181042.03016b160658.519.75256*36*42.818110*70*810.94663*87.469125*1222.69628mm219.80200*100*5.5*821.7028a2801228.543.49218a18068720.17456*36*53.466110*70*1013.47670*55.397125*1426.19330mm235.50200*200*8*1250.5028b28012410.547.89018b18070923.00063*40*43.185125*80*711.06670*66.406140*1021.48832mm251.20200*204*12*1272.2830a300126948.08420a20073722.64063*40*53.920125*80*812.55170*77.398140*1225.52234mm266.90244*175*7*1144.1030b3001281152.79420b20075925.77763*40*64.638125*80*1015.47470*88.373140*1429.49036mm282.60248*124*5*825.8030c3001301357.50422a22077724.99963*40*75.339125*80*1218.33075*55.818140*1633.39338mm298.30250*125*6*929.7032a3201309.552.71722b22079928.45370*45*43.570140*90*814.16075*66.905160*1024.72940mm314.00250*250*9*1472.4032b32013211.557.74125a25078727.41070*45*54.403140*90*1017.47575*77.976160*1229.39142mm329.70250*255*14*1482.2032c32013413.562.76525b25080931.33570*45*65.218140*90*1220.72475*89.030160*1433.98745mm353.30294*200*8*1257.3036a3601361060.03725c250821135.26070*45*76.011140*90*1420.90875*1011.089160*1638.51850mm392.50300*150*6.5*937.3036b3601381265.68928a280827.531.42775*50*54.808160*100*119.87280*63.376180*1233.15955mm431.80300*300*10*1594.5036c3601401471.34128b280849.535.82375*50*65.699160*100*123.59280*89.658180*1443.54260mm471.00300*305*15*15106.0040a40014210.567.59828c2808611.540.21975*50*87.431160*100*127.24780*1011.874180*1648.63470mm549.50340*250*9*1479.7040b40014412.573.87830a300857.534.46375*50*19.098160*100*130.83590*810.946180*1838.38375mm588.80346*174*6*941.8040c40014614.580.15830b300879.539.17380*50*55.005180*110*122.27390*1013.476200*1442.89480mm628.00350*175*7*1150.0045a45015011.580.42030c3008911.543.88380*50*65.935180*110*126.46490*1215.940200*1648.68090mm706.50344*348*10*16115.0045b45015213.587.48536a36096947.81480*50*76.848180*110*130.589100*69.366200*1854.401100m785.00350*350*12*19137.0045c45015415.594.55036b360981153.46680*50*87.745180*110*134.649100*710.830200*2060.056390*300*10*16107.0056a56016612.5106.31636c3601001359.11890*56*55.661200*125*129.761100*812.276200*2471.168394*398*11*18147.0056b56016814.5115.10840a40010010.558.92890*56*66.717200*125*134.436100*1015.120400*150*8*1355.8056c56017016.5123.90040b40010212.565.20490*56*77.756200*125*139.045396*199*7*1156.7063a63017613121.40740c40010414.571.48890*56*88.779200*125*143.588400*200*8*1366.0063b63017815131.298规格轨高底款头宽腰厚理重400*400*13*21172.0063c63018017141.1898kg/m65.0054.0025.007.008.420400*408*21*21197.0012kg/m69.8569.8538.107.5412.200414*405*18*28233.00规格理重规格理重规格理重规格理重15kg/m79.3779.3742.868.3315.200440*300*11*18124.003mm26.60Φ6.50.264分151.264分151.3318kg/m90.0080.0040.0010.0018.062446*199*7*1166.704mm34.40Φ80.406分201.636分201.7322kg/m93.6693.6650.8010.7222.300450*200*9*1476.505mm42.30Φ100.621寸252.421寸252.5724kg/m107.0090.0051.0010.9024.460482*300*11*15115.006mm50.10Φ120.891.2寸323.131.2寸3.3230kg/m107.95107.9560.3312.3030.100488*300*11*18129.007mm59.00Φ141.211.5寸403.841.5寸4.0738kg/m134.00114.0068.0013.0038.733496*199*9*1479.508mm66.80Φ161.582寸504.882寸505.1743kg/m140.00114.0070.0014.5044.653500*200*10*1689.60Φ182.002.5寸656.642.5寸7.0450kg/m152.00132.0070.0015.5051.514582*300*12*17137.00Φ202.473寸808.343寸808.8460kg/m176.00150.0073.0016.5060.642588*300*12*20151.00Φ222.984寸10010.854寸10011.5070kg/m120.00120.0070.0028.0052.800596*199*10*1595.10Φ253.855寸12515.045寸12515.9480kg/m130.00130.0080.0032.0063.690600*200*11*17106.00Φ284.836寸15017.816寸15018.88100kg/m150.00150.00100.0038.0088.960700*300*13*24185.00Φ326.318寸20031.528寸20033.41120kg/m170.00170.00120.0044.00118.100 国家标准理论(检尺）重量表H型钢工字钢槽钢不等边角钢等边角钢中厚板
