景观图纸平面图常用英文缩写

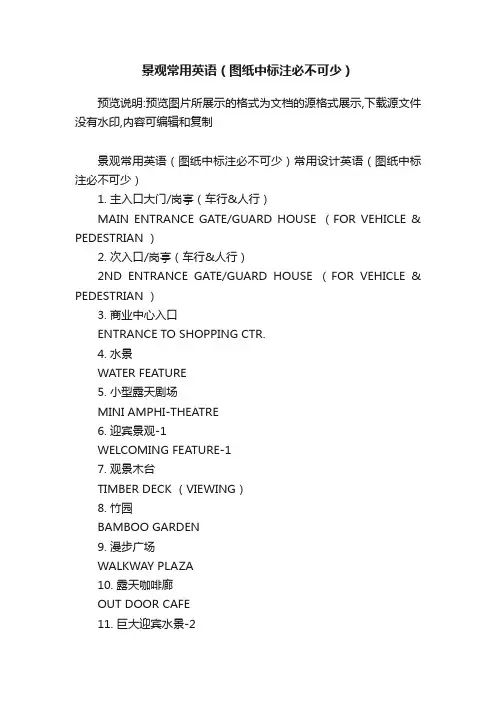

景观常用英语（图纸中标注必不可少）常用设计英语（图纸中标注必不可少）1.主入口大门/岗亭(车行 & 人行) MAIN ENTRANCE GATE/GUARD HOUSE (FOR VEHICLE& PEDESTRIAN )2.次入口/岗亭(车行 & 人行 )2ND ENTRANCE GATE/GUARD HOUSE (FOR VEHICLE& PEDESTRIAN )3.商业中心入口ENTRANCE TO SHOPPING CTR.4.水景WATER FEATURE5.小型露天剧场MINI AMPHI-THEATRE6.迎宾景观-1WELCOMING FEATURE-17.观景木台TIMBER DECK (VIEWING)8.竹园BAMBOO GARDEN9.漫步广场WALKWAY PLAZA10.露天咖啡廊OUT DOOR CAFE11.巨大迎宾水景-2GRAND WELCOMING FEATURE-212.木桥TIMBER BRIDGE13.石景、水瀑、洞穴、观景台ROCK'SCAPE WATERFALL'SGROTTO/ VIEWING TERRACE14.吊桥HANGING BRIDGE15.休憩台地(低处)LOUNGING TERRACE (LOWER )16.休憩台地(高处)LOUNGING TERRACE (UPPER )17.特色踏步FEATURE STEPPING STONE18.野趣小溪RIVER WILD19.儿童乐园CHILDREN'S PLAYGROUND20.旱冰道SLIDE21.羽毛球场BADMINTON COURT22.旱景DRY LANDSCAPE23.日艺园JAPANESE GARDEN24.旱喷泉DRY FOUNTAIN25.观景台VIEWING DECK26.游泳池SWIMMING POOL27.极可意JACUZZI28.嬉水池WADING POOL29.儿童泳池CHILDREN'S POOL30.蜿蜒水墙WINDING WALL31.石景雕塑ROCK SCULPTURE32.中心广场CENTRAL PLAZA33.健身广场EXERCISE PLAZA34.桥BRIDGE35.交流广场MEDITATING PLAZA36.趣味树阵TREE BATTLE FORMATION 37.停车场PARING AREA38.特色花架TRELLIS39.雕塑小道SCULPTURE TRAIL40.(高尔夫)轻击区PUTTING GREEN41.高尔夫球会所GOLF CLUBHOUSE42.每栋建筑入口ENTRANCE PAVING TO UNIT43.篮球场BASKETBALL COURT44.网球场TENNIS COURT45.阶梯坐台/种植槽TERRACING SEATWALL/PLANTER46.广场MAIN PLAZA47.森林、瀑布FOREST GARDEN WATERFALL48.石景园ROCKERY GARDEN49.旱溪DRY STREAM50.凉亭PAVILION51.户外淋浴OUTDOOR SHOWER52.拉膜结构TENSILE STRUCTURE53.台阶STAIR54.高尔夫球车停车场PARKING ( GOLF CAR )55.健身站EXERCISE STATION56.晨跑小路JOGGING FOOTPATH57.车道/人行道DRIVEWAY /SIDEWALK58.人行漫步道PROMENADE59.瀑布及跳舞喷泉(入口广场)WATER FALL AND DANCINGFOUNTAIN ( ENTRY PLAZA )60.特色入口ENTRY FEATURE61.石景广场ROCKERY PLAZA喜阴植物: Shade-requiring plant喜阳植物：Heliophile或Light Plant形容词：Shade-requiring, light-requiringheliophobe, 嫌阳植物helioplant, 太阳能装置heliosphere, 日光层xerophilous plant, 适旱植物；喜旱植物xerophyte, 旱生植物xerothermal index, 干热指数PARTIAL PLAN 局部平面KEY PLAN 索引图IMAGE 意向图SECTION 剖面图ELEVATION 立面图ISOMETRIC VIEW 轴测图PERSPECTIVE 效果图MASTER LANDSCAPE PLAN 景观概念设计平面图MASTER LANDSCAPE CONCEPT PLAN 总体景观设计概念图CIRCULATION DIAGRAM 交通分析LANDSCAPE DESIGN DEVELOPMENT PACKAGE (DD1) 景观设计扩初一阶段图册（DD1）DRAWING SCHEDULE 图纸目录DESCRIPTION 图纸说明SKETCHES OF KEY FEATURES 特色景点描绘FOUNTAIN 01 水景详图-01PAVILION 01 景亭详图-01TRELLIS 01 棚架详图-01FEATURE PLANTER POT 01 特色花盆详图-01TYPICAL TREE COLLAR DETAIL 标准树池详图FEATURE URN DETAIL 特色景瓮详图FEATURE WALL DETAIL 01 特色景墙详图-01FEATURE SNAIL SCULPTURE 特色蜗牛详图FEATURE BRIDGE DETAIL 特色景桥详图FEATURE SCULPTURE 01 DETAIL 特色雕塑详图-01FEATURE ARBOR DETAIL 特色藤架详图FEATURE COLUMN LIGHT DETAIL 特色灯柱详图PAVING 01 DETAIL 特色铺地详图-01GATE 01 DETAIL 大门详图-01NOTE:THIS PACKAGE IS TO BE READ IN CONJUNCTION WITH THE A0-SIZE DRAWINGS BOUND SEPARATELY.注:此图册需与分开钉装之A0大小平面图结合使用SKYLIGHT/VENT TREATMENT DETAIL 通风井/采光井详图FEATURE PLANTER POT 01 DETAIL 特色景盆详图-01FEATURE WALL 水景墙FOUNTAIN 03 (TYPICAL) 水景详图-03(标准)REFER TO LIGHTING PLAN AND DETAIL 参照灯具平面图与详图FROM WATER SOURCE 进水DRAIN TO WASTE 排水COMPACTED SUBGRADE 地基压实PEFER 参照PA/LAWN 种植/草坪SEE IMAGE 见示意图REFER TO 参照CUT TO SIZE 按尺寸分割NATURAL GRANITE CLADDING 天然花岗岩面层NATURAL CLEFT FINISH 自然面COLOUR: GREY 灰色GMS COLUMN 钢结构REFER TO BASE PLAN 参照平面图VARIES 均分PART OF POND 水池部分20MM THK NATURAL 20mm厚自然面GRANITE CLADDING 天然花岗岩贴面POLISHED FINISH 光面COLOUR: RUSTIC YELLOW 黄锈石METAL BASE 金属座架PAINTED FINISHCOLOUR: BLACK 黑色喷涂RIVEN FINISH 撕裂面MURAL WALL 浮雕墙。

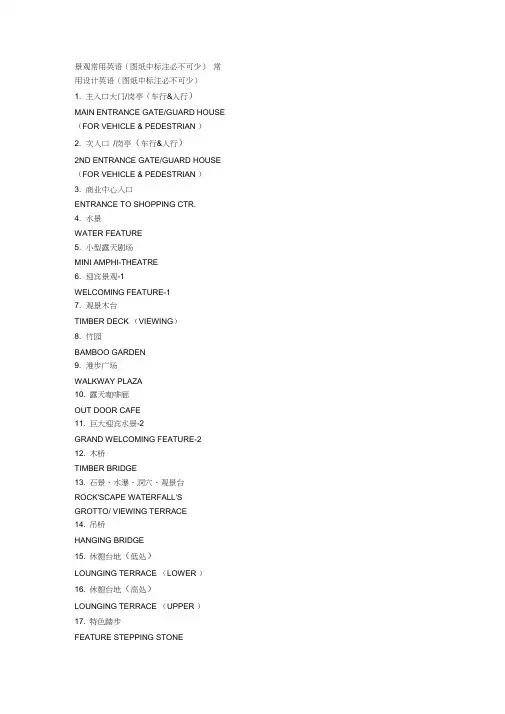

景观常用英语（图纸中标注必不可少）常用设计英语（图纸中标注必不可少）1. 主入口大门/岗亭（车行&人行）MAIN ENTRANCE GATE/GUARD HOUSE （FOR VEHICLE & PEDESTRIAN ）2. 次入口/岗亭（车行&人行）2ND ENTRANCE GATE/GUARD HOUSE （FOR VEHICLE & PEDESTRIAN ）3. 商业中心入口ENTRANCE TO SHOPPING CTR.4. 水景WATER FEATURE5. 小型露天剧场MINI AMPHI-THEATRE6. 迎宾景观-1WELCOMING FEATURE-17. 观景木台TIMBER DECK （VIEWING）8. 竹园BAMBOO GARDEN9. 漫步广场WALKWAY PLAZA10. 露天咖啡廊OUT DOOR CAFE11. 巨大迎宾水景-2GRAND WELCOMING FEATURE-212. 木桥TIMBER BRIDGE13. 石景、水瀑、洞穴、观景台ROCK'SCAPE WATERFALL'SGROTTO/ VIEWING TERRACE14. 吊桥HANGING BRIDGE15. 休憩台地（低处）LOUNGING TERRACE （LOWER ）16. 休憩台地（高处）LOUNGING TERRACE （UPPER ）17. 特色踏步FEATURE STEPPING STONE18. 野趣小溪RIVER WILD19. 儿童乐园CHILDREN'S PLAYGROUND 20. 旱冰道SLIDE21. 羽毛球场BADMINTON COURT22. 旱景DRY LANDSCAPE23. 日艺园JAPANESE GARDEN24. 旱喷泉DRY FOUNTAIN25. 观景台VIEWING DECK26. 游泳池SWIMMING POOL27. 极可意JACUZZI28. 嬉水池WADING POOL29•儿童泳池CHILDREN'S POOL30. 蜿蜒水墙WINDING WALL31. 石景雕塑ROCK SCULPTURE32. 中心广场CENTRAL PLAZA33. 健身广场EXERCISE PLAZA34. 桥BRIDGE35. 交流广场MEDITATING PLAZA36. 趣味树阵TREE BATTLE FORMATION 37. 停车场PARING AREA38. 特色花架TRELLIS39. 雕塑小道SCULPTURE TRAIL40. （高尔夫）轻击区PUTTING GREEN 41. 高尔夫球会所GOLF CLUBHOUSE 42. 每栋建筑入口ENTRANCE PAVING TO UNIT43. 篮球场BASKETBALL COURT44. 网球场TENNIS COURT45. 阶梯坐台/种植槽TERRACING SEATWALL/PLANTER 46. 广场MAIN PLAZA47. 森林、瀑布FOREST GARDEN WATERFALL 48. 石景园ROCKERY GARDEN49. 旱溪DRY STREAM50. 凉亭PAVILION51. 户外淋浴OUTDOOR SHOWER52. 拉膜结构TENSILE STRUCTURE53. 台阶STAIR54. 高尔夫球车停车场PARKING ( GOLF CAR )55. 健身站EXERCISE STATION56. 晨跑小路JOGGING FOOTPATH57. 车道/人行道DRIVEWAY /SIDEWALK58. 人行漫步道PROMENADE59. 瀑布及跳舞喷泉(入口广场) WATER FALL AND DANCING FOUNTAIN ( ENTRY PLAZA )60. 特色入口ENTRY FEATURE61. 石景广场ROCKERY PLAZA喜阴植物:Shade-requiring plant 喜阳植物：Heliophile 或Light Plant 形容词：Shade-requiri ng, light-requiri ngheliophobe, 嫌阳植物heliopla nt,heliosphere,FEATURE COLUMN LIGHT DETA I 特色灯柱详图PAVING 01 DETAIL特色铺地详图-01大门详图-01 NOTE:THIS PACKAGE IS TO BE READ IN CONJUNCTION WITH THE A0-SIZE DRAWINGS BOUND SEPARATELY.此图册需与分开钉装之 A0大小平面图结合使用 SKYLIGHT/VENT TREATMENT DETAI 通风井 / 采光井详图FEATURE PLANTER POT 01 DETAIL 特色景盆详图-01FEATURE WALL 水景墙FOUNTAIN 03 （TYPICAL ） 水景详图-03（标准）REFER TO LIGHTING PLAN AND DETAIL 参照灯具平面图与详图FROM WATER SOURCE进水 DRAIN TO WASTE 排水太阳能装置 日光层xerophilous pla nt,适旱植物；喜旱植物 xerophyte, 旱生植物xerothermal in dex, 干热指数PARTIAL PLAN 局部平面 KEY PLAN IMAGESECTIONELEVATION索引图意向图 剖面图 立面图 轴测图ISOMETRIC VIEWPERSPECTIVE 效 果图MASTER LANDSCAPE PLAN 观概念设计平面图MASTER LANDSCAPE CONCEPT PLA N 总体景观设计概念图CIRCULATION DIAGRAM 交通分析 LANDSCAPE DESIGN DEVELOPMENT PACKAGE （D 景观设计扩初一阶段图册（ DD1）DRAWING SCHEDULE 图纸目录 DESCRIPTION SKETCHES OF KEY FEATURES FOUNTAIN 01 水景详图 PAVILION 01 景亭详图 图纸说明特色景点描绘-01-01TRELLIS 01 -01FEATURE PLANTER POT 01 TYPICAL TREE COLLAR DETAILFEATURE URN DETAILFEATURE WALL DETAIL 01FEATURE SNAIL SCULPTUREFEATURE BRIDGE DETAILFEATURE SCULPTURE 01 DETAILFEATURE ARBOR DETAIL 特色花盆详图-01标准树池详图 特色景瓮详图 特色景墙详图-01 特色蜗牛详图 特色景桥详图 特色雕塑详图-01 特色藤架详图GATE 01 DETAILCOMPACTED SUBGRADE 地基压实COLOUR: GREY 灰色GMS COLUMN 钢结构 REFER TO BASE PLAN 参 照平面图 均分 PART OF POND 水 池部分METAL BASE 金属座架PAINTED FINISH参照 种植/草坪 SEE IMAGE 见示意图 PEFERPA/LAWNREFER TO 参照按尺寸分割 NATURAL GRANITE CLADDING 天然花岗岩面层 CUT TO SIZE NATURAL CLEFT FINISH自然面COLOUR: BLACK RIVEN FINISH MURAL WALL 黑色喷涂 撕裂面 浮雕墙 VARIES 20MM THK NATURAL 20m m 厚自然面 GRANITE CLADDINGPOLISHED FINISHCOLOUR: RUSTIC YELLOW 天然花岗岩贴面 光面 黄锈石。

装施图纸常见缩写表-中英文对照装施图纸常见缩写表-中英文对照 I图纸缩写表AR- Architecture Information Plan 建筑信息图EM- Electrical Mechanical Plan 机电设备图FC- Floor Covering Plan 地坪布置图FF- Fixture/Furning Plan 家具布置图RC- Reflected Ceiling Plan 天顶布置图EL- Elevation 立面图 DT- Detail 节点详图WF- Wall Finish Plan 墙身饰面图IL- Interior Landscaping Plan 室内景观设计图MR- Mockup Room 样板房IR- Interior Rendering 室内效果图PA- Public Area 公共区域空间缩写表客房空间ST-Standard Twin 标准双人房SK-Superior King 标准大床房SS-Superior Suite 标准套房HS-Hospitality Suite 标准残疾人套房DS-Deluxe Suite 豪华套房PS-Presidential Suite 总统套房ES-Executive Suite 行政套房EDS-Executive Deluxe Suite 行政豪华套房餐饮空间PDR-Privant （private ） Dinning Room 包厢 VIP-Very Important Person 贵宾SR-Specialty Restaurant 风味餐厅JC-Japanese Cooking 日本料理KC-Korean Cooking 韩国料理Chinese Restaurant 中餐厅Lobby Lounge 大堂吧Bar 酒吧Coffee Shop 咖啡厅Tea House 茶馆Ball Hall 宴会厅All-day Dinning 全日制餐厅Canteen 员工餐厅Pantry 备餐厅公共空间Concierge 礼宾Entrance 入口Reception Exterior 下客区（雨棚）Lobby 大堂Service Station 服务台Foyer 过厅Elevator Hall 电梯厅Rest Room 卫生间Corridor 走廊Cloister 回廊Lounge 休息厅Billiard 台球室GYM 健身室商务办公空间Business Center 商务中心第 1 页Meeting Room 会议室Multi-function Room 多功能厅商业空间Travel Agency 旅行社Book Store 书店Boutique Store 精品店（专卖店）Flower Shop 花店Retail 零售店办公空间Manager Room 经理办公室室内设计中英对照词汇翻译 Iblow-upart work by othersection planTV feature TVwall detailsselected artworktimber conpartment12mm thk tempered glass top finish 12mmpolished cu bronze table leg timber skirtingstudy desktimber backingsocket outletsingle switch socket outlet AFFLFFLpaint finishwall coveringmild steel L-angle support plan sectiondoor pullwallcoveringpivot hinge up to load 200kg up toelevationelevation @ corridorshower door hingesglass door sealdoor panelheavy-dutytrackvanitydoor framedoor closer concealenddoor viewershaftcorridordoor codeQTY=quantitylocationkitchendescriptioncloser 放大图艺术品有其他单位负责剖面图局部（TV 放大图）墙部细节（墙体大样）艺术品选定（艺术品自购）木格（隔断）厚钢化玻璃台面磨光铜桌脚木踢脚线书桌木材背衬（木衬板）电器插座（outlet 出口通风）单开关插座天花完成面地面完成面涂料完成面墙体完成面（壁纸）软钢L 角支撑（L 型软角钢支撑）平面大样门拉手墙面涂料（壁纸）枢轴合页，可负载200kg 胜任，直达立面图走廊立面图淋浴门合页（铰链状）玻璃门封条（封缝条，缓冲条）门板重型的，耐用的导轨梳妆台（小型卫生间）门框隐蔽式闭门器门镜管井，烟道走廊门编号数量，大量地点厨房描述闭门器第 2 页lockset 锁具stopper 软木塞（缓冲条，密封）hinge 铰链push 推，挤，按pull 拉，拨kick plate 刮板door bottom 门铃item 项目，条款，一条，一则brand 商标，牌子model size 型号尺寸cat no. cat=category 种类，类别refer to specification bookironmongery schedulefoyerstone floorebonished （matt ） timbercard key locking systemplan viewstone walldoor handledoor jambdoor buffervelvet surface wropfood/snackschampagne bottlekettle by othersice bucket12mm thick clear glass panel 12mm coated aluminium A/C air supply grille to match wallcoveringretractable timber bunds8mm thk mirror 8mmstone deckbath tubstone vanityremoveable timber shelvingbronze inlaylevel 8 guestroom plan 8scale 1:100hotelfor presention 03/28/1958keyplanstandaro king roomfurnishfixture & furnishing plan图）project NO. 3333sheet NO. 3333drawnapprovedrevisiondouble double bed roomconnection king roomsuitedesign consultants 参照规范用书五金店详单（报表）门厅石材地面亚光面人造黑檀木门卡系统平面图，俯视图石材墙门拉手（门侧柱）门顶缓冲器天鹅绒表面包装食物/零食香槟酒瓶水壶由其他单位负责冰桶厚清玻板备有饰面的铝制空调送风栏配合墙壁饰面（配合墙面的铝制空调格栅）可拉回的木帘（木制百叶帘）厚镜子石材层面浴缸梳妆台石材可移动的木饰面架板（放毛巾）嵌入式铜板层客房平面图比例1:100酒店提交于***索引平面图标准大床客房布置，陈列 vt固定，陈设平面图，家具布置图（平面布置工程号3333表格号3333制图批准修改，修订双人客房（双人双床客房）连接双人客房套房设计顾问第 3 页hirsch/bedner and associates HBAexecutive suite 行政套房internet station 上网站lounge area 休息室reception 接待处restroom 卫生间reading area 阅读区dining area 用餐区buffet counter 自助吧台 pantry area 配餐厅VIP entry foyer VIP 入口前厅bathroom 浴室，卫生间safe 保险箱luggage 行李bedroom 卧室living room 客厅mini bar 迷你吧台powder room 化妆室panty 配菜，备菜wine display 酒品展示区bar counter 柜台study room 研究室master bedroom 主人房master bahroom 主卫jacuzzi 按摩浴缸room matrix 房间矩阵图（索引，概述）individual plan 独立平面图（分类平面图）typical 典型的bathtub 浴缸presidential suite plan 总统套房平面图executive lounge plan 高级休息区平面图royal suite plan 高贵套房平面图satin bronze frame 缎子铜框（数量+观点+形状+国籍+材料绸子一样的青铜框） upholstered seat 软席upholstered panel fin 布饰面板（布面块软包）concealed light by lighting consultant 隐藏灯饰由照明顾问负责timber finish 木材饰面室内设计中英对照词汇翻译 IIetched glass finish 蚀刻玻璃完成面（绣蚀玻璃）headboard 床头板exhaust 排气timber sliding door 木饰面推拉门ceiling 天花concealed track 隐藏导轨（百叶）onyx veneer pendant 悬挂的玛瑙饰面（pendant 悬挂的，吊下的。

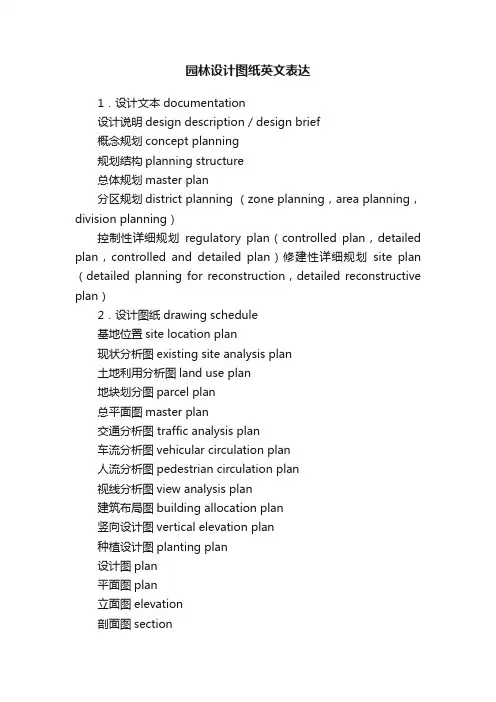

园林设计图纸英文表达1．设计文本documentation设计说明design description / design brief概念规划concept planning规划结构planning structure总体规划master plan分区规划district planning （zone planning，area planning，division planning）控制性详细规划regulatory plan（controlled plan，detailed plan，controlled and detailed plan）修建性详细规划site plan （detailed planning for reconstruction，detailed reconstructive plan）2．设计图纸drawing schedule基地位置site location plan现状分析图existing site analysis plan土地利用分析图land use plan地块划分图parcel plan总平面图master plan交通分析图 traffic analysis plan车流分析图vehicular circulation plan人流分析图pedestrian circulation plan视线分析图view analysis plan建筑布局图building allocation plan竖向设计图vertical elevation plan种植设计图planting plan设计图plan平面图plan立面图elevation剖面图section透视图perspective / view鸟瞰图bird’s eye意向图image详图detail草图draft模型model比例scale局部…图part…3．技术经济指标technological and economic index 用地面积development Std / parcel area容积率floor area ratio绿地率open space ratio停车率parking ratio(stall per unit)水体面积water area道路面积road area建筑面积building area铺地面积paving area4．景观设施分类硬质铺地paving户外家具site furniture景观小品和构筑物landscape feature and structure休闲娱乐设施recreational amenities照明灯具landscape lighting休憩区bench / sitting area儿童游乐区children’s play area绿化系统 afforested system5．常用词图例legend附录appendix地块parcel入口entrance主入口main entrance次入口secondary entrance 停车场parking lot节点node标志landmark视线sight景亭pavilion跌水water cascade喷泉water fountain木平台timber deck观景平台viewing deck钓鱼平台fishing deck观景点view point / lookout 荷花池lotus pond围墙fence wall护栏fence档土墙retaining wall栏杆 railing栏杆的支柱baluster庭院courtyard楼梯stair台阶step儿童戏水池kid’s play pool幼儿园 kindergarten篮球场basketball courtyard警卫室/门卫gatehouse路面标高RL road level水面标高WL water level池底标高BOP bottom of pool主干道primary street / backbone street 次干道secondary street大道 thoroughfare滨水路waterway林荫道greenway / boulevard漫步道trail / pedestrian trail慢跑道jogging trail人行道pedestrian sidewalk森林小径forest walk木板道boardwalk 木板铺成的散步道退让绿化带green setback …景view to景观视线view line别墅villa联排别墅townhouse遮荫乔木canopy tree常绿乔木evergreen tree落叶乔木d eciduous tree开花乔木flowering tree灌木 shrub草坪lawn地被植物 ground cover plant运河canal半岛peninsular海湾gulf/bay海港 harbor船库 boathouse6．句式被作为.. / 定位为be envisioned to be。

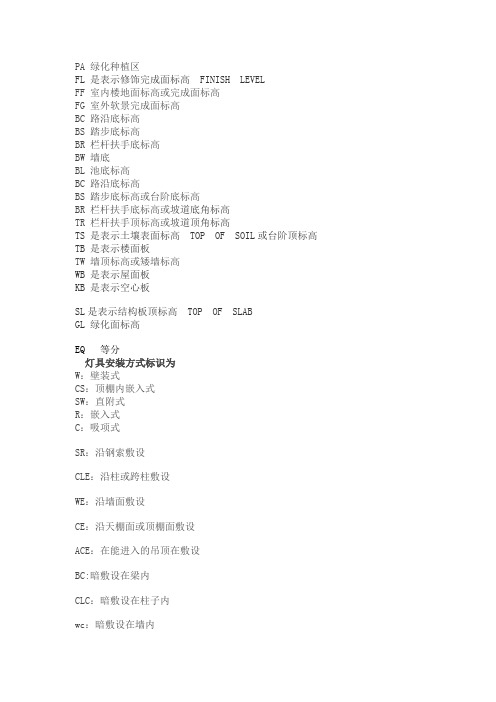

PA 绿化种植区
FL 是表示修饰完成面标高 FINISH LEVEL
FF 室内楼地面标高或完成面标高
FG 室外软景完成面标高
BC 路沿底标高
BS 踏步底标高
BR 栏杆扶手底标高
BW 墙底
BL 池底标高
BC 路沿底标高
BS 踏步底标高或台阶底标高
BR 栏杆扶手底标高或坡道底角标高
TR 栏杆扶手顶标高或坡道顶角标高
TS 是表示土壤表面标高 TOP OF SOIL或台阶顶标高TB 是表示楼面板
TW 墙顶标高或矮墙标高
WB 是表示屋面板
KB 是表示空心板
SL是表示结构板顶标高 TOP OF SLAB
GL 绿化面标高
EQ 等分
灯具安装方式标识为
W：壁装式
CS：顶棚内嵌入式
SW：直附式
R：嵌入式
C：吸项式
SR：沿钢索敷设
CLE：沿柱或跨柱敷设
WE：沿墙面敷设
CE：沿天棚面或顶棚面敷设
ACE：在能进入的吊顶在敷设
BC:暗敷设在梁内
CLC：暗敷设在柱子内
wc：暗敷设在墙内
FC：预埋在地面内cc：暗敷设在顶板内。

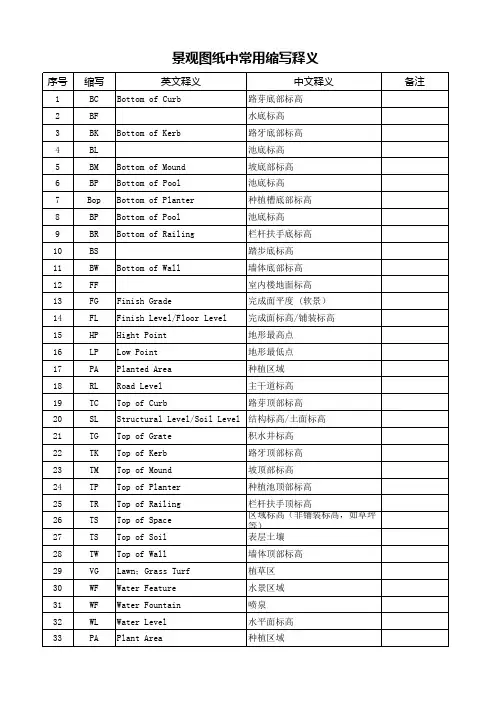

序号缩写英文释义中文释义备注1BC Bottom of Curb路芽底部标高2BF水底标高3BK Bottom of Kerb路牙底部标高4BL池底标高5BM Bottom of Mound坡底部标高6BP Bottom of Pool池底标高7Bop Bottom of Planter种植槽底部标高8BP Bottom of Pool池底标高9BR Bottom of Railing栏杆扶手底标高10BS踏步底标高11BW Bottom of Wall墙体底部标高12FF室内楼地面标高13FG Finish Grade完成面平度 (软景）14FL Finish Level/Floor Level完成面标高/铺装标高15HP Hight Point地形最高点16LP Low Point地形最低点17PA Planted Area种植区域18RL Road Level主干道标高19TC Top of Curb路芽顶部标高20SL Structural Level/Soil Level结构标高/土面标高21TG Top of Grate积水井标高22TK Top of Kerb路牙顶部标高23TM Top of Mound坡顶部标高24TP Top of Planter种植池顶部标高25TR Top of Railing栏杆扶手顶标高26TS Top of Space 区域标高（非铺装标高，如草坪等）27TS Top of Soil表层土壤28TW Top of Wall墙体顶部标高29VG Lawn；Grass Turf植草区30WF Water Feature水景区域31WF Water Fountain喷泉32WL Water Level水平面标高33PA Plant Area种植区域景观图纸中常用缩写释义。

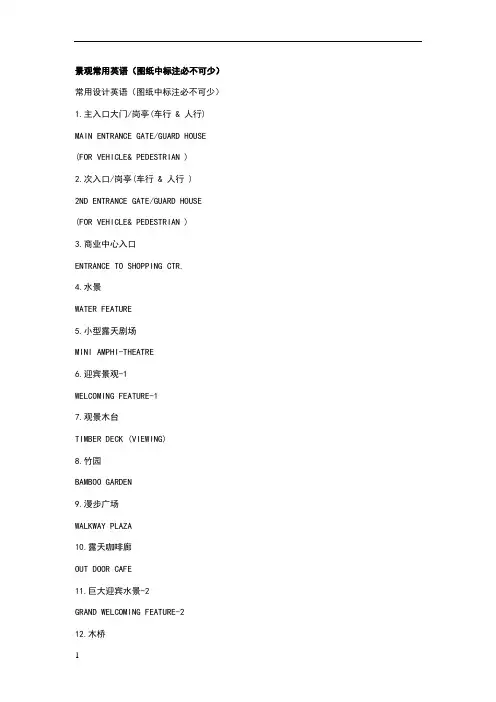

景观常用英语（图纸中标注必不可少）常用设计英语（图纸中标注必不可少）1.主入口大门/岗亭(车行 & 人行) MAIN ENTRANCE GATE/GUARD HOUSE (FOR VEHICLE& PEDESTRIAN )2.次入口/岗亭(车行 & 人行 )2ND ENTRANCE GATE/GUARD HOUSE (FOR VEHICLE& PEDESTRIAN )3.商业中心入口ENTRANCE TO SHOPPING CTR.4.水景WATER FEATURE5.小型露天剧场MINI AMPHI-THEATRE6.迎宾景观-1WELCOMING FEATURE-17.观景木台TIMBER DECK (VIEWING)8.竹园BAMBOO GARDEN9.漫步广场WALKWAY PLAZA10.露天咖啡廊OUT DOOR CAFE11.巨大迎宾水景-2GRAND WELCOMING FEATURE-212.木桥TIMBER BRIDGE13.石景、水瀑、洞穴、观景台ROCK'SCAPE WATERFALL'S GROTTO/ VIEWING TERRACE 14.吊桥HANGING BRIDGE15.休憩台地(低处) LOUNGING TERRACE (LOWER ) 16.休憩台地(高处) LOUNGING TERRACE (UPPER ) 17.特色踏步FEATURE STEPPING STONE 18.野趣小溪RIVER WILD19.儿童乐园CHILDREN'S PLAYGROUND 20.旱冰道SLIDE21.羽毛球场BADMINTON COURT22.旱景DRY LANDSCAPE23.日艺园JAPANESE GARDEN24.旱喷泉DRY FOUNTAIN25.观景台VIEWING DECK26.游泳池SWIMMING POOL27.极可意JACUZZI28.嬉水池WADING POOL29.儿童泳池CHILDREN'S POOL30.蜿蜒水墙WINDING WALL31.石景雕塑ROCK SCULPTURE32.中心广场CENTRAL PLAZA33.健身广场EXERCISE PLAZA34.桥BRIDGE35.交流广场MEDITATING PLAZA36.趣味树阵TREE BATTLE FORMATION 37.停车场PARING AREA38.特色花架TRELLIS39.雕塑小道SCULPTURE TRAIL40.(高尔夫)轻击区PUTTING GREEN41.高尔夫球会所GOLF CLUBHOUSE42.每栋建筑入口ENTRANCE PAVING TO UNIT 43.篮球场BASKETBALL COURT44.网球场TENNIS COURT45.阶梯坐台/种植槽TERRACING SEATWALL/PLANTER 46.广场MAIN PLAZA47.森林、瀑布FOREST GARDEN WATERFALL 48.石景园ROCKERY GARDEN49.旱溪DRY STREAM50.凉亭PAVILION51.户外淋浴OUTDOOR SHOWER52.拉膜结构TENSILE STRUCTURE53.台阶STAIR54.高尔夫球车停车场PARKING ( GOLF CAR )55.健身站EXERCISE STATION56.晨跑小路JOGGING FOOTPATH57.车道/人行道DRIVEWAY /SIDEWALK58.人行漫步道PROMENADE59.瀑布及跳舞喷泉(入口广场)WATER FALL AND DANCINGFOUNTAIN ( ENTRY PLAZA )60.特色入口ENTRY FEATURE61.石景广场ROCKERY PLAZA喜阴植物: Shade-requiring plant喜阳植物：Heliophile或Light Plant形容词：Shade-requiring, light-requiring heliophobe, 嫌阳植物helioplant, 太阳能装置heliosphere, 日光层xerophilous plant, 适旱植物；喜旱植物xerophyte, 旱生植物xerothermal index, 干热指数PARTIAL PLAN 局部平面KEY PLAN 索引图IMAGE 意向图SECTION 剖面图ELEVATION 立面图ISOMETRIC VIEW 轴测图PERSPECTIVE 效果图MASTER LANDSCAPE PLAN 景观概念设计平面图MASTER LANDSCAPE CONCEPT PLAN 总体景观设计概念图CIRCULATION DIAGRAM 交通分析LANDSCAPE DESIGN DEVELOPMENT PACKAGE (DD1) 景观设计扩初一阶段图册（DD1）DRAWING SCHEDULE 图纸目录DESCRIPTION 图纸说明SKETCHES OF KEY FEATURES 特色景点描绘FOUNTAIN 01 水景详图-01PAVILION 01 景亭详图-01TRELLIS 01 棚架详图-01FEATURE PLANTER POT 01 特色花盆详图-01TYPICAL TREE COLLAR DETAIL 标准树池详图FEATURE URN DETAIL 特色景瓮详图FEATURE WALL DETAIL 01 特色景墙详图-01FEATURE SNAIL SCULPTURE 特色蜗牛详图FEATURE BRIDGE DETAIL 特色景桥详图FEATURE SCULPTURE 01 DETAIL 特色雕塑详图-01FEATURE ARBOR DETAIL 特色藤架详图FEATURE COLUMN LIGHT DETAIL 特色灯柱详图PAVING 01 DETAIL 特色铺地详图-01GATE 01 DETAIL 大门详图-01NOTE:THIS PACKAGE IS TO BE READ IN CONJUNCTION WITH THE A0-SIZE DRAWINGS BOUND SEPARATELY.注:此图册需与分开钉装之A0大小平面图结合使用SKYLIGHT/VENT TREATMENT DETAIL 通风井/采光井详图FEATURE PLANTER POT 01 DETAIL 特色景盆详图-01FEATURE WALL 水景墙FOUNTAIN 03 (TYPICAL) 水景详图-03(标准)REFER TO LIGHTING PLAN AND DETAIL 参照灯具平面图与详图FROM WATER SOURCE 进水DRAIN TO WASTE 排水COMPACTED SUBGRADE 地基压实PEFER 参照PA/LAWN 种植/草坪SEE IMAGE 见示意图REFER TO 参照CUT TO SIZE 按尺寸分割NATURAL GRANITE CLADDING 天然花岗岩面层NATURAL CLEFT FINISH 自然面COLOUR: GREY 灰色GMS COLUMN 钢结构REFER TO BASE PLAN 参照平面图VARIES 均分PART OF POND 水池部分20MM THK NATURAL 20mm厚自然面GRANITE CLADDING 天然花岗岩贴面POLISHED FINISH 光面COLOUR: RUSTIC YELLOW 黄锈石METAL BASE 金属座架PAINTED FINISHCOLOUR: BLACK 黑色喷涂RIVEN FINISH 撕裂面MURAL WALL 浮雕墙。

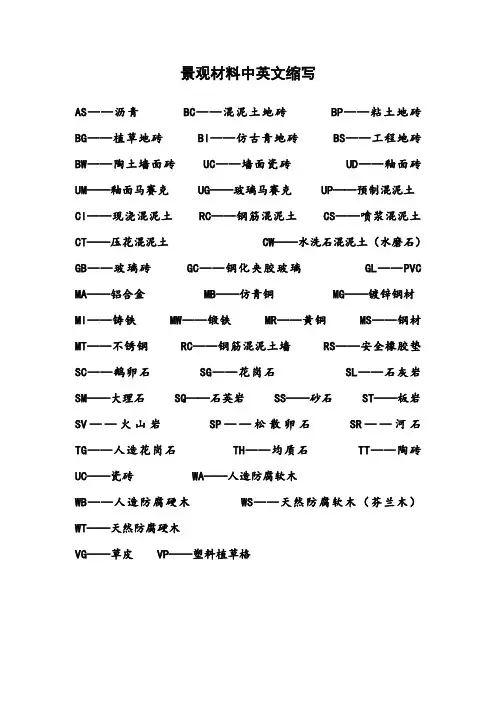

景观材料中英文缩写
AS——沥青BC——混泥土地砖BP——粘土地砖BG——植草地砖BI——仿古青地砖BS——工程地砖BW——陶土墙面砖UC——墙面瓷砖UD——釉面砖UM——釉面马赛克UG——玻璃马赛克UP——预制混泥土
CI——现浇混泥土RC——钢筋混泥土CS——喷浆混泥土CT——压花混泥土CW——水洗石混泥土（水磨石）GB——玻璃砖GC——钢化夹胶玻璃GL——PVC MA——铝合金MB——仿青铜MG——镀锌钢材
MI——铸铁MW——锻铁MR——黄铜MS——钢材MT——不锈钢RC——钢筋混泥土墙RS——安全橡胶垫SC——鹅卵石SG——花岗石SL——石灰岩SM——大理石SQ——石英岩SS——砂石ST——板岩
SV——火山岩SP——松散卵石SR——河石TG——人造花岗石TH——均质石TT——陶砖UC——瓷砖WA——人造防腐软木
WB——人造防腐硬木WS——天然防腐软木（芬兰木）WT——天然防腐硬木
VG——草皮VP——塑料植草格。
