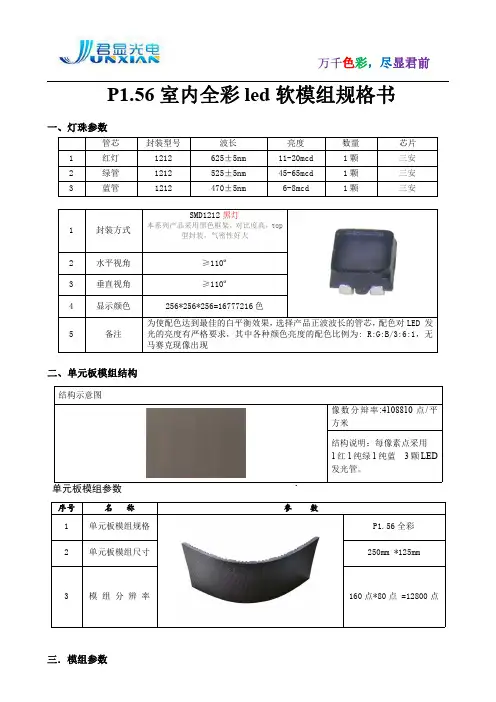

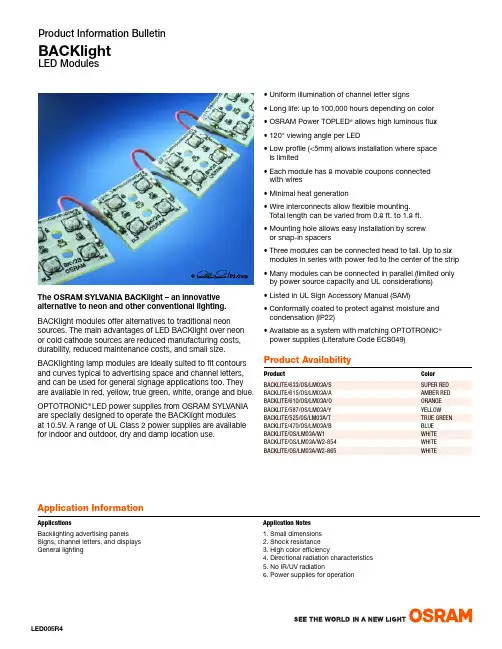

LED005R4Product Information BulletinBACKlightLED Modules• Uniform illumination of channel letter signs • Long life: up to 100,000 hours depending on color • OSRAM Power TOPLED ®allows high luminous flux • 120°viewing angle per LED• Low profile (<5mm) allows installation where space is limited• Each module has 8 movable coupons connected with wires• Minimal heat generation• Wire interconnects allow flexible mounting. Total length can be varied from 0.8 ft. to 1.8 ft.• Mounting hole allows easy installation by screw or snap-in spacers• Three modules can be connected head to tail. Up to six modules in series with power fed to the center of the strip • Many modules can be connected in parallel (limited only by power source capacity and UL considerations)• Listed in UL Sign Accessory Manual (SAM)• Conformally coated to protect against moisture and condensation (IP22)• Available as a system with matching OPTOTRONIC ®power supplies (Literature Code ECS049)The OSRAM SYLVANIA BACKlight – an innovative alternative to neon and other conventional lighting.BACKlight modules offer alternatives to traditional neonsources. The main advantages of LED BACKlight over neon or cold cathode sources are reduced manufacturing costs,durability, reduced maintenance costs, and small size. BACKlighting lamp modules are ideally suited to fit contours and curves typical to advertising space and channel letters,and can be used for general signage applications too. They are available in red, yellow, true green, white, orange and blue.OPTOTRONIC ® LED power supplies from OSRAM SYLVANIA are specially designed to operate the BACKlight modules at 10.5V . A range of UL Class 2 power supplies are available for indoor and outdoor, dry and damp location use.Product AvailabilityProductColor BACKLITE/633/OS/LM03A/S SUPER RED BACKLITE/615/OS/LM03A/A AMBER RED BACKLITE/610/OS/LM03A/O ORANGE BACKLITE/587/OS/LM03A/Y YELLOW BACKLITE/525/0S/LM03A/T TRUE GREEN BACKLITE/470/OS/LM03A/B BLUE BACKLITE/OS/LM03A/W1WHITE BACKLITE/OS/LM03A/W2-854WHITE BACKLITE/OS/LM03A/W2-865WHITEApplication InformationApplicationsBacklighting advertising panels Signs, channel letters, and displays General lightingApplication Notes1. Small dimensions2. Shock resistance3. High color efficiency4. Directional radiation characteristics5. No IR/UV radiation6. Power supplies for operationMaximum RatingsParameter Symbol Values Units Operating Temperature*T op-30… +75°C Storage Temperature Range T stg-40… +85°C Maximum Voltage V max11V dc Reverse Voltage V R11V dc* Temperature should be measured at the T c point on the module.(Operating temperature for red,amber,orange and yellow modules is -40°C to +85°C) DimensionsCable (50mm)Smallest UnitLED GridCableDimensions on diagrams in mm, unless stated otherwise.Opto SemiconductorsOSRAM8 Boards electrically connected0.8 ft. to 1.8 ft.Safety Information1. The LED module and its components should not be mechanically stressed.2. Assembly must not damage or destroy conducting paths on the circuit board.3. T o avoid mechanical damage to the connecting cables, the boards should be attached securely to the intended substrate.Heavy vibration should be avoided.4. Detach each circuit board unit of the module only be severing the connecting cables (with power disconnected).The LED Module incorporates no protection against short circuits, overload or overheating. Therefore it is necessary to operate the modules with an electronically stabilized power supply offering protection against the above mentioned safety risks.OSRAM OPTOTRONIC power supplies are specifically designed with protection features for safe operation.When using power supplies other than OPTOTRONIC the following basic safety features should be verified in addition to anyother application specific concerns and local safety codes:• Short circuit protection• Overload protection• Overheat protection• Correct output voltage, including consideration for ripple and spikes.5. Installation of LED modules (with power supplies) needs to be made with regard to all applicable electrical and safety standards.Only qualified personnel should be allowed to perform installations.6. Correct electrical polarity needs to be observed. Wrong polarity may destroy the module!7. Parallel connection is highly recommended for safe electrical operation mode. Serial connection of more than 3 modulesis not recommended. Unbalanced voltage drop can cause hazardous overload and damage the LED module.8. Electrical contact is achieved with the contact cables. A maximum of 3 modules can be installed consecutively from one power feed.Operation with more than 3 consecutive BACKlight modules will reduce photometric performance and exceed the current carrying capacity of the module. If more than 3 modules are connected in series (maximum 6), power feed should be to the center of the string.9. The module itself is protected against condensation water with a polymeric conformal coating. Supplementary soldering on any solderpad will destroy the conformal coating and with it protection against condensation water.10. Operation in or under water is not allowed.Assembly Information1. Mounting of the LED module may be performed with screws or Snap-In spacer (e.g. from Richco )by using 4 mm holes in the circuit board. See the “BACKlight Intallation Guide” for more details.2. The mounting of the module is carried out by attaching it at the mounting holes. Mounting screws should be used withsynthetic washers to prevent circuit board damage and possible short circuiting.3. A maximum of 3 modules can be installed consecutively from any power feed. Installation with more than 3 BACKlight Modulesmay take the form of, for example, either 6 modules installed consecutively with a power feed to the center or with a splitting of the power feed to contact groups of 3 modules.4. T o connect the LED modules with each other or with OPTOTRONIC Power Supply we recommend standard connectors(e.g. WAGO 243-214 or 224-201).5. Derate maximum LED load for remote mounting or exterior applications. Contact OSRAM SYLVANIA for details.© 2004 O S R A M S Y L V A N I A P r i n t e d o n r e c y c l e d p a p e r. 11/04TOPLED is a registered trademark of Siemens Aktiengesellschaft Corporation.OPTOTRONIC is a registered trademark of OSRAM GmbH used under license.OSRAM is a registered trademark of OSRAM GmbH.Specifications subject to change without notice.OSRAM SYLVANIA National CustomerService and Sales Center 18725 N. Union Street Westfield, IN 46074Industrial & Commercial Phone:1-800-255-5042Fax:1-800-255-5043National Accounts Phone:1-800-562-4671Fax:1-800-562-4674OEM/Specialty Markets Phone:1-800-762-7191Fax:1-800-762-7192Photo-OpticPhone:1-888-677-2627Fax:1-800-762-7192In CanadaOSRAM SYLVANIA LTD. Headquarters 2001 Drew RoadMississauga, ON L5S 1S4Industrial & Commercial Phone:1-800-263-2852Fax:1-800-667-6772Special Markets Phone:1-800-265-2852Fax:1-800-667-6772Visit our website: Power Supply Ordering InformationOPTOTRONIC ®6W (51500)OPTOTRONIC 25W (51505)OPTOTRONIC 50W (51508,51509)LED Item No.of Max.No.of Max.No.of Max.Number Color Modules*Length (ft)Modules*Length (ft)Modules*Length (ft)70081Super Red 11.8610.81221.670011Amber red 1 1.8610.81221.670071Orange 1 1.8610.81221.670012Yellow 1 1.8610.81221.670013True Green 1 1.8610.81221.670014Blue 1 1.8610.81221.670045White 1 1.8712.61425.270102White (W2)1 1.847.2916.270103White (W2)11.847.2916.2* Each module can be sub-divided into 8 coupons.Ordering and Specification Information*Wave LengthItem Ordering Volts Current Viewing Number (nm) or Luminous Number AbbreviationColor Watts (V DC)(Amps)Angle of LEDs Color temp.(K)Flux (lm)70081BACKLITE/633/OS/LM03A/S Super Red 4.210.50.4012032633 nm 5470011BACKLITE/615/OS/LM03A/A Amber Red 4.210.50.4012032617 nm 5470071BACKLITE/610/OS/LM03A/O Orange 4.210.50.4012032606 nm 8670012BACKLITE/587/OS/LM03A/Y Y ellow 4.210.50.4012032587 nm 6970013BACKLITE/525/OS/LM03A/T T rue Green 4.210.50.4012032525 nm 5770014BACKLITE/470/OS/LM03A/B Blue 4.210.50.4012032470 nm 970045BACKLITE/OS/LM03A/W1White 3.410.50.3212032x = 0.32; y =0.312970102**BACKLITE/OS/LM03A/W2-854White 5.310.50.50120325400K 6970103**BACKLITE/OS/LM03A/W2-865White 5.310.50.50120326500K69* All Information relates to entire module with 32 LEDs. Modules may be sub-divided into 8 coupons of 4 LEDs each.Data reflects statistical mean values. Actual data may differ depending on variances in the manufacturing process. ** New product. Contact OSRAM SYLVANIA for availability.。

产品规格书Product Specification客户名称：产品型号：HCX-M75133WW-57产品名称：注塑防水模组产品描述：3灯5730冷白色外壳带PC罩防水注塑模组客户确认核准审核制作张历运卢干民张远一、产品特点：➢线路板采用高导热玻钎板，光衰小，稳定，LED寿命长高达3万小时以上；➢LED采用优质5730芯片，亮度高，确保高光效、低耗；➢采用防火级PVC优质材料注塑，生产工艺及防水性能好；➢采用外置恒压12V电源，电源转换效率高；➢多种安装方式，螺丝固定或者背面贴胶，安装，维修方便；二、应用范围：1．招牌，广告，灯箱；大型卖场、连锁便利店； 2．办公室、会议室等办公楼内照明；3．展览馆、图书馆、学校、工厂、机场、停车场等公共照明。

三、光参数：`光电参数型号LED光源发光颜色色温(K) 电压( V )功率( W )光通量( LM )光效(LM/W)发光角度( °)HCX-M75133 WW-57 SMD5730正白6000-700012 1.35 130 105 1307000-8000冷白9000~12000其它参数标准级联数（PCS）外壳材料驱动方式重量（20pcs/g）使用寿命工作环境（℃）储存温度（℃）防护等级20 PVC 恒压12V 230 5年-25-+60 -25-+70 IP66 备注：①测试环境温度为25±2℃；②以上数据为典型值，产品的实际参数可能会不同于典型数据。

四、光斑图及配光曲线图：光斑图配光曲线五、外形尺寸图（单位：mm）：六、连接示意图：七、安装说明：➢安装产品之前，确保安装表面清洁干净；➢采用连接示意图中方案（单端供电）时：模组标准联级数量20pcs，不可超量串接。

用户也可以根据实际需求单个剪断；➢模组安装时先将模组底部背胶的离型纸撕下，贴到灯箱或广告标识内初步固定，然后可以采用模组两边打玻璃胶的方式固定；➢当模组与模组需要连接时，先用斜口钳居中剪断两模组间的电源线，剥皮10mm左右，并将对应颜色（红白相间线接电源正极，白色线接电源负极）线剥皮部分的导线拧成一股，然后拧入接线头进行绝缘防护，最后检验电源线拧入接线头后的导通性和牢靠性，以徒手不能将电源线从接线头拔出为宜；➢当尾端模组有线材导体裸露时，先用斜口钳将两根电源线剥皮约10mm，并拧入接线头进行绝缘防护；➢为保证防水和防腐，电源线拧入接线头后，建议用单组份硅胶（或者用中性玻璃胶，或者用防水脂）注入接线头，覆盖电源线的裸露铜线进行防护；➢模组不可完全裸露在户外使用，请勿带电触摸、带电作业；➢建议使用通过了相关安规认证的开关电源（带短路保护，过压保护，过流保护）。

竭诚为您提供优质文档/双击可除led规格书模板篇一：led规格书华阳电子产品型号：5b4Vc-wd02（φ5mm蓝光长脚超高亮）外形图（packagedimensions）单位：（unit）：mm篇二：led灯技术规格书*****工程招标物资技术规格书物资名称：led灯包件号：zm-01招标人（盖章）：********************二零一五年五月目录第一节总则................................................. .......................................11.基本要求................................................. ..........................................12.技术规格一般规定................................................. ..........................23.技术文件及清单................................................. ..............................34.设备的备品备件及专用工具、仪表 (4)5.技术服务与培训................................................. ..............................56.试验、检验、验收................................................. ..........................77.质量保证................................................. ..........................................88.标志、铭牌、包装、运输、储存................................................. ...99.供货保证................................................. ........................................1110.附则................................................. (11)第二节共同条款................................................. . (12)1.工程概况................................................. .........................................122.隧道照明子系统工程概况................................................. .............123.使用环境条件................................................. ................................124.接口................................................. ................................................165.其它................................................. (17)第三节技术条件................................................. ...............................191.总则................................................. ................................................192.概述................................................. ................................................193.采用标准................................................. ........................................204.主要技术参数................................................. ................................215.铭牌及标识................................................. ....................................256.供货范围................................................. ........................................257.试验................................................. ................................................268.包装................................................. ................................................279.联络及技术服务（含培训及现场服务）......................................2710.工厂试验................................................. (28)11.标准及质量管理................................................. ..........................2812.其它要求................................................. .. (28)第四节需求一览表及报价要求................................................. .........291.需求一览表................................................. ....................................292.技术服务................................................. ........................................293.备品备件、专用工具...(led规格书模板)................................................ ..................294.报价要求................................................. . (29)第一节总则1.基本要求1.1投标人应仔细阅读招标人发出的招标书中所规定的各项条款，包括各项技术规格。

TXM12-0304-XX

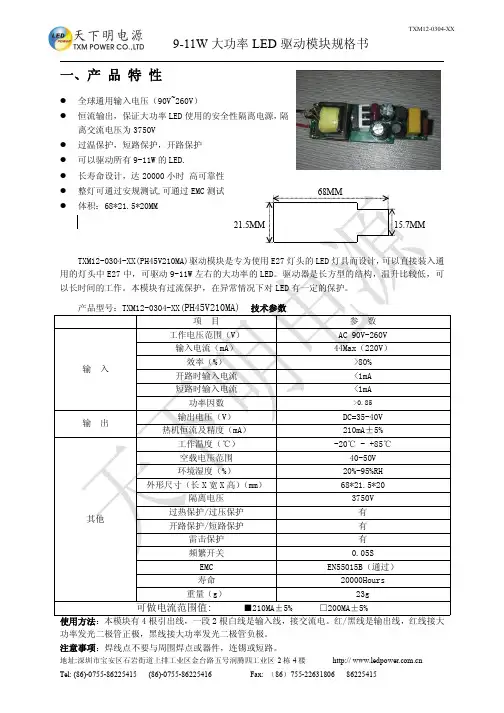

9-11W大功率LED驱动模块规格书
一、产品特性
●全球通用输入电压（90V~260V）
●恒流输出，保证大功率LED使用的安全性隔离电源，隔
离交流电压为3750V
●过温保护，短路保护，开路保护
●可以驱动所有9-11W的LED.
●长寿命设计，达20000小时高可靠性
使用方法：本模块有4根引出线，一段2根白线是输入线，接交流电。

红/黑线是输出线，红线接大
功率发光二极管正极，黑线接大功率发光二极管负极。

注意事项：焊线点不要与周围焊点或器件，连锡或短路。

地址:深圳市宝安区石岩街道上排工业区金台路五号润腾四工业区2栋4楼
Tel:(86)-0755-********(86)-0755-********Fax:（86）755-2263180686225415。

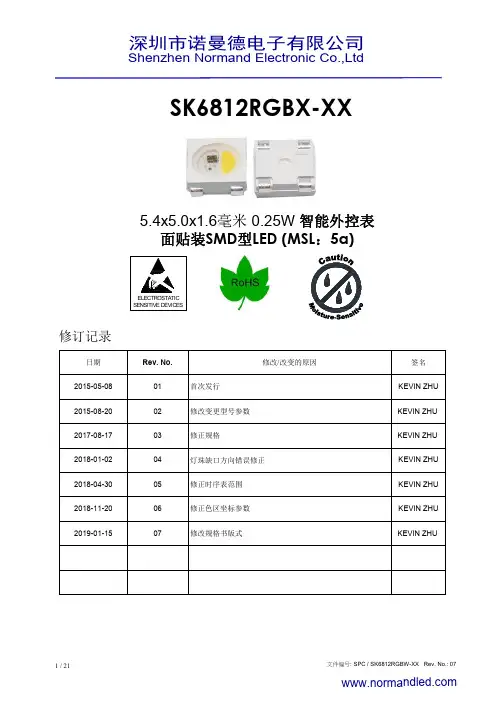

SK6812RGBX-XX5.4x5.0x1.6毫米0.25W 智能外控表面贴装SMD型LED (MSL：5a)修订记录目录1、产品概述 (3)2、主要应用 (3)3、特征说明 (3)4、机械尺寸 (3)5、引脚功能说明 (4)6、PCB 建议焊盘尺寸 (4)7、产品命名一般说明 (4)8、电气参数 (5)9、RGB芯片光电参数 (5)10、IC电气参数 (5)11、开关特性 (6)12、数据传输时间 (6)13、时序波形图 (7)14、数据传输方式 (7)15、24bit数据结构 (8)16、典型应用电路 (8)17、红、绿、蓝、黄光分级规格 (9)18、白光色温等级....................................................................................10~1319、光电特性 (14)20、包装标准 (15)21、可靠性测试 (16)附录1.表面贴装型LED使用注意事项....................................................17~211.产品概述:SK6812RGBW是一个集控制电路与发光电路于一体的智能外控LED光源。

其外型与一个5050LED灯珠相同，每个元件即为一个像素点。

像素点内部包含了智能数字接口数据锁存信号整形放大驱动电路，电源稳压电路，内置恒流电路，高精度RC振荡器，输出驱动采用专利PWM技术，有效保证了像素点内光的颜色高一致性。

数据协议采用单极性归零码的通讯方式，像素点在上电复位以后，DIN端接受从控制器传输过来的数据，首先送过来的32bit数据被第一个像素点提取后，送到像素点内部的数据锁存器，剩余的数据经过内部整形处理电路整形放大后通过DO端口开始转发输出给下一个级联的像素点，每经过一个像素点的传输，信号减少32bit。

像素点采用自动整形转发技术，使得该像素点的级联个数不受信号传送的限制，仅仅受限信号传输速度要求。

客户:产品型号:JT.CB328ZA-R8适用于 :顺向电流 IF=20mA目录1. 特性2. 应用范围3. 成品外观尺寸4. 最大绝对标称值5. 光电特性参数6. 典型光电参数曲线7. 编带规格8. 包装方式9. 标签描述10. BIN 级范围11. 可靠度实验项目及条件12. 使用注意事项客户确认批准审核拟制深圳市聚飞光电股份有限公司深圳市宝安区大浪街道高峰社区创艺路 65号Tel:+86-755-29646360Fax:+86-755-296322851、特性:1.1封装尺寸:3.5x2.8x1.9mm1.2发光颜色:白色 (高显色 1.3发光类型:单色型 1.4焊接方式:回流焊 1.5符合RoHS 标准2、应用范围:2.1闪光灯 2.2LCD背光 2.3室内照明 2.4灯饰照明3、成品外观尺寸:备注:1.所有尺寸均以 mm 为单位2.在没有明确标注的情况下,公差均为 ±0.10mm4、最大绝对标称值 (环境温度 =25℃ :参数缩写标称值单位消耗功率 Pd 100mW 顺向电流 I F 30mA 顺向峰值电流*1I FP 100mA 反向电压 VR 5.0V焊接温度 Tsol 回流焊:245℃,10sec. 手工焊:300℃,3sec.使用温度 Topr -35℃~+85℃储存温度 Tstg -40℃~+85℃*I FP 条件:脉宽≤0.1msec, 周期≤1/105、光电特性参数 (环境温度 =25℃ :参数缩写最小值典型值最大值单位条件顺向电压 Vf 2.9-3.5V I F =20mA 亮度 Iv -2200mcd发光角度2θ1/2-120-deg显色指数 Ra 78-90-反向电流IR 0.5μAVR=5V 备注 :1. 亮度偏差:±5%2. 电压偏差:±0.03V6、典型光电参数曲线:7、编带规格:(单位:mm 包装数量:2000pcs/卷8、包装方式:(单位:mm标签防静电、防潮铝箔袋深圳市聚飞光电股份有限公司 01.JT.CB328ZA-R8 9、标签描述：产品型号产品 BIN 生产日期生产批次 RoHS 标签数量生产批次检验盖章 BIN 级描述： x / x / x-x 正向电压 BI N 级色区 BI N 级亮度 BI N 级如 BI N : 11 /E / 7- 1 ： 11 代表亮度 BIN 级，E 代表色区 BIN 级，7-1 代表正向电压 BIN 级 BI 10、BI N 级范围： ( 测试设备：CAMMA 标准机与远方 PMS-80 亮度 IV 与光通量 (公差：±5% @If=20mA: BI N 代码 IV 最小值 (m c d IV 最大值 (m c d 光通量 ( lm 10 1900 2000 6.0~6.4 11 2000 2140 6.4~6.8 11B 2140 2300 6.8~7.4 12 2300 2500 7.4~8.0 13 2500 2800 8.0~9.0 正向电压 VF (公差：±0.03V @ If=20mA: BI N 代码最小值 (v 6- 1 2.9 6- 2 3. 0 7- 1 3. 1 7- 2 3. 2 8- 1 3. 3 8- 2 3. 4 色度坐标(公差：±0.005 @ If=20mA 正白光色区 V 色温 5300K~ 5650K x 坐标 0.3378 0.33 0.33 0.337 y 坐标 0.3589 0.3513 0.3219 0.3278 色区 T 色温 5650K~ 6000K x 坐标 0.33 0.3215 0.3238 0.33 y 坐标0.3513 0.343 0.3165 0.3219 Ver. A5 Page 6 of 10 最大值 (v 3. 0 3. 1 3. 2 3. 3 3. 4 3. 5深圳市聚飞光电股份有限公司 01.JT.CB328ZA-R8 X 6500K~ 7000K 0.3130.3045 0.3092 0.3159 x 坐标 0.3848 0.3723 0.3645 0.3718 偏黄 x 坐标 0.4711 0.4538 0.438 0.4533 0.4538 0.4342 0.4208 0.438 0.4342 0.4189 0.4074 0.4208 0.3347 0.3265 0.304 0.3098 y 坐标 0.3979 0.3879 0.3461 0.3501 W 6000K~ 6500K 0.3215 0.3130.3159 0.3238 x 坐标 0.3723 0.3593 0.355 0.3645 偏红 x 坐标 0.4533 0.438 0.42130.434 0.438 0.4208 0.4071 0.4213 0.4208 0.4074 0.3959 0.4071 0.343 0.3347 0.3098 0.3165 y 坐标 0.3879 0.3775 0.3407 0.3461 自然光色区 L X/Y 参数设定色温4000K~ 4250K 色区 M 色温 4250K~ 4600K 暖白光色区 X/Y 参数设定色温 2850~ 3000k y 坐标 0.4424 0.4371 0.4045 0.4095 0.4371 0.4295 0.3974 0.4045 0.4295 0.4206 0.3907 0.3974 色区 D1 色温 2850K~ 3000k y 坐标 0.4095 0.4045 0.37 0.3747 0.40450.3974 0.3648 0.37 0.3974 0.3907 0.3607 0.3648 C1 C2 3000~ 3250k D2 3000K~ 3250kE 3250K~ 3500kF 3250K~ 3500k CIE 1931: 0.48 0.46 0.44 0.42 0.40 4250K 4000K 4500K 5300K 5650K 6000K 6500K 7000K 3500K CIE 1931 (x,y diagram 3000K 3250K 2850K E D2 C2 D1 C1 BBL 0.38 0.36 0.34 0.32 0.30 0.28 0.26 0.28 0.30 0.32 0.34 L M F T X W V 0.36 0.38 0.40 0.42 0.44 0.46 0.48 0.50 0.52 Ver. A5 Page 7 of 10深圳市聚飞光电股份有限公司 01.JT.CB328ZA-R8 11、可靠度实验项目及条件: 序号 1 测试项目寿命实验高温高湿 (静态实验冷热冲击高温储存低温储存温度循环回流焊测试条件测试电流：20mA 温度：25℃测试时间：1000 小时温度：=+65℃湿度：90% RH 测试时间：240 小时 -40℃~+100℃ 20min 10s 20min 测试时间：100 个循环高温：100℃测试时间：1000 小时低温：-40℃测试时间：1000小时 -40℃ ~ +100℃ 60min 20min 60min 测试时间：20 个循环 245℃(Max.，最大不超过 10 秒钟样品数量 20 允收/拒收 0/1 2 20 0/1 3 4 5 6 7 20 20 20 20 20 0/1 0/1 0/1 0/1 0/1 可靠度实验不合格判定标准： ·Iv：衰减超过 30% ·Vf：变化超过 20% 备注：1、同一项实验结果的测试需在 2 个小时之内完成； 2、测试必须在每项实验完成后、材料恢复正常环境条件下才能进行. 12、使用注意事项: 请参照《聚飞光电--LED 使用说明书》 Ver. A5 Page 8 of 10。

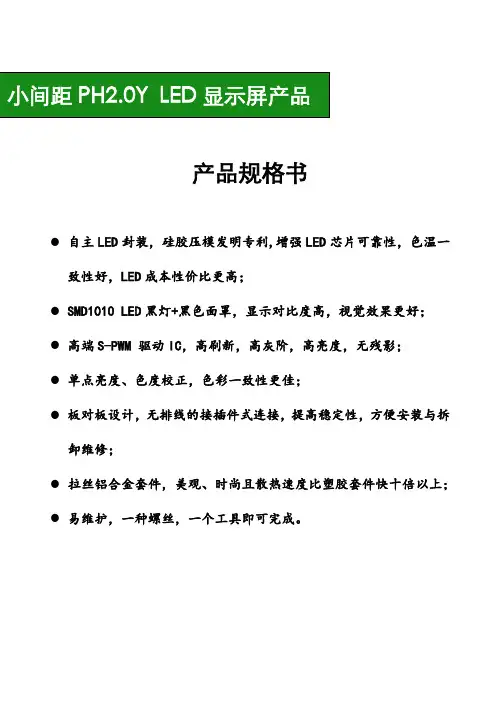

产品规格书
