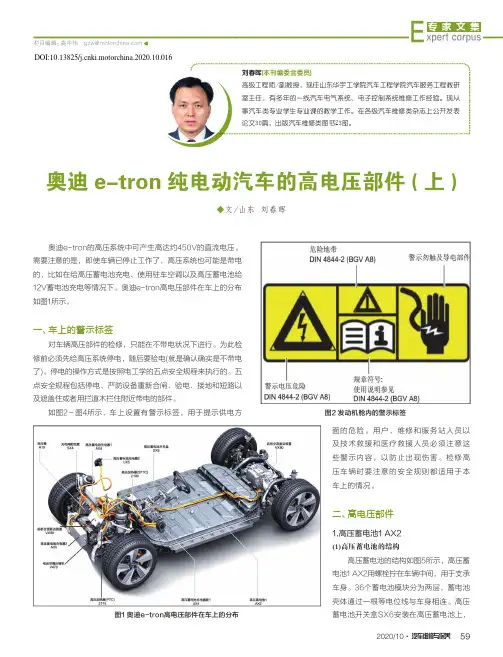

栏目编辑：高中伟 ******************2020/10·汽车维修与保养59Expert corpus◆文/山东 刘春晖奥迪e-tron 纯电动汽车的高电压部件(上)奥迪e-tron的高压系统中可产生高达约450V的直流电压。

需要注意的是，即使车辆已停止工作了，高压系统也可能是带电的，比如在给高压蓄电池充电、使用驻车空调以及高压蓄电池给12V蓄电池充电等情况下。

奥迪e-tron高电压部件在车上的分布如图1所示。

一、车上的警示标签对车辆高压部件的检修，只能在不带电状况下进行。

为此检修前必须先给高压系统停电，随后要验电(就是确认确实是不带电了)。

停电的操作方式是按照电工学的五点安全规程来执行的。

五点安全规程包括停电、严防设备重新合闸、验电、接地和短路以及遮盖住或者用拦道木拦住附近带电的部件。

如图2～图4所示，车上设置有警示标签，用于提示供电方刘春晖(本刊编委会委员)高级工程师/副教授，现任山东华宇工学院汽车工程学院汽车服务工程教研室主任，有多年的一线汽车电气系统、电子控制系统维修工作经验。

现从事汽车类专业学生专业课的教学工作。

在各级汽车维修类杂志上公开发表论文30篇，出版汽车维修类图书23部。

面的危险。

用户、维修和服务站人员以及技术救援和医疗救援人员必须注意这些警示内容，以防止出现伤害。

检修高压车辆时要注意的安全规则都适用于本车上的情况。

二、高电压部件1.高压蓄电池1 AX2(1)高压蓄电池的结构高压蓄电池的结构如图5所示，高压蓄电池1 AX2用螺栓拧在车辆中间，用于支承车身。

36个蓄电池模块分为两层，蓄电池壳体通过一根等电位线与车身相连。

高压蓄电池开关盒SX6安装在高压蓄电池上，图1 奥迪e-tron高电压部件在车上的分布图2 发动机舱内的警示标签DOI:10.13825/ki.motorchina.2020.10.016New Energy Vehicles新能源汽车栏目编辑：高中伟 ****************** 60-CHINA·October高压蓄电池的相关技术数据见表1。
