M o l d f l o w用户界面及基本操作(总41页)-CAL-FENGHAI.-(YICAI)-Company One1-CAL-本页仅作为文档封面，使用请直接删除第二章 Moldflow用户界面及基本操作2.1 Moldflow用户界面Moldflow 4.1中文版和其他CAE软件类似，有着非常人性化的操作界面。
现做以下简介。
2.1.1 窗口分布及简要说明Moldflow 4.1中文版的操作界面主要由标题栏、菜单栏、工具栏、项目视窗、任务视窗、层视窗、工作视窗和状态栏等几部分组成，如图4-1所示。
图2-1 Moldflow 4.1（1）标题栏标题栏位于软件整体视窗的最顶端，用于显示软件名称和版本号Moldflow Plastics Insight 4.1（例如：（2）菜单栏和其他软件一样，通过Moldflow 4.1(4)项目视窗项目视窗显示当前所打开的项目及其包括的所有任务（如果任务众多，可以通过视窗右侧的滚动条查看），大大方便了用户在同一项目的不同任务之间进行切换和管理。
通过项目视窗我们既可以查看当前打开的项目，还可以组织该项目下属的所有子项目以及每个子项目下属的所有任务，类似于Windows环境下的文件夹查看。
（5）任务视窗任务视窗集中了产品名称、网格类型、分析序列、材料选择、浇注位置选择、成型条件设置等选项。
对于一个初学者来讲，一旦把这些选项都走完（即所有选项前面都打勾），就基本完成分析任务的准备工作，软件加亮显示“立即分析！”，就基本可以进行模拟分析了。
而且这些任务选项基本不存在顺序，既可以先确定“分析序列”又可以先进行“材料选择”、“浇注位置选择”或“成型条件设置”。
（6）层视窗层视窗会显示默认层和操作者为方便操作而创建的所有层，类似于Auto CAD的图层操作，操作者既可以随意创建和删除默认层以外的所有层，也可以打开和关闭上述显示层。
层视窗便于管理窗口的元素对象和操作对象。
The standard for plastic mold analysisAutodesk ® Moldflow ® plastic injection molding simulation software, part of the Autodesk ® solution for Digital Prototyping, provides tools that help manufacturers predict, optimize, and validate the design of plastic parts, injection molds, and molding processes. Companiesworldwide use Autodesk ® Moldflow ® Adviser and Autodesk ® Moldflow ® Insight software to help reduce the need for costly physical prototypes, reduce potential manufacturing defects, and get innovative products to market faster.Autodesk Moldflow product lineAutodesk is dedicated to providing a wide range of injection molding simulation tools to help CAE analysts, designers, engineers, mold makers, and molding professionals create more accurate digital prototypes and bring better products to market at less cost.Validation and optimization of plastic partsInnovative plastic resins and functional plastic part designs are on the rise in almost every industry. Plastics and fiber-filled composites answer growing pressures to reduce costs and cut time to market. The need for simulation tools that provide deep insight into the plastic injection molding process has never been greater.ContentsValidation and optimization ofplastic parts .................................................2Part layout simulation..................................3Injection molding process simulation ..........4CAD interoperability and meshing...............6Results evaluation andproductivity tools ........................................7Feature comparison . (8)Autodesk Moldflow FlexThe extended solving options of Autodesk ®Moldflow ® Flex software allows you to simulate locally or in the cloud, depending on your needs. If you are testing the setup of an analysis, use your local machine to iterate and optimize. When you are ready to initiate a longer, more computationally intensive simulation, use the power of the cloud, saving local resources for/moldflowBalancing runnersBalance runner systems of single-cavity,multicavity, and family mold layouts so parts fill simultaneously, reducing stress levels and volume of material.Hot runner systemsModel hot runner system components and set up sequential valve gates to help eliminate weld linesand control the packing phase.Plastic flow simulationSimulate the flow of melted plastic to helpoptimize plastic part and injection mold designs, reduce potential part defects, and improve the molding process.Part defectsDetermine potential part defects such as weld lines, air traps, and sink marks, then rework designs to help avoid these problems.Thermoplastic fillingSimulate the filling phase of the thermoplastic injection molding process to help predict the flow of melted plastic and fill mold cavities uniformly; avoid short shots; and eliminate, minimize, or reposition weld lines and air traps.Thermoplastic packingOptimize packing profiles and visualize magnitude and distribution of volumetric shrinkage to help minimize plastic part warpage and reduce defects such as sink marks.Feed system simulationModel and optimize hot and cold runner systems and gating configurations. Improve part surfaces, minimize part warpage, and reduce cycle times.Gate locationIdentify up to 10 gate locations simultaneously. Minimize injection pressure and exclude specific areas when determining gate location.Runner design wizardCreate feed systems based on inputs for layout, size, and type of components, such as sprues, runners, and gates.Part layout simulationValidate and optimize plastic parts, injection molds, resinselection, and the injection molding process/moldflowMold cooling simulationImprove cooling system efficiency, minimize part warpage, achieve smooth surfaces, and reduce cycle times.Cooling component modelingAnalyze a mold’s cooling system efficiency. Model cooling circuits, baffles, bubblers, heating elements, and mold inserts and bases.Cooling system analysisOptimize mold and cooling circuit designs to help achieve uniform part cooling, minimize cycle times, reduce part warpage, and decrease manufacturing costs. Capture advanced cooling techniques and layouts, such as conformal cooling, induction heating, as well as transient heat calculations.WarpagePredict warpage resulting from process-inducedstresses. Identify where warpage might occurand optimize part mold design, materialchoice, and processing parameters to help controlpart deformation.Core shift controlMinimize the movement of mold cores bydeter-mining ideal processing conditions forinjection pressure, packing profile, and gatelocations.Fiber orientation and breakageControl fiber orientation within plastics to helpreduce part shrinkage and warpage across themolded part.CAE data exchangeValidate and optimize plastic part designs usingtools to exchange data with mechanical simulationsoftware. CAE data exchange is available withAutodesk® Simulation Mechanical and Autodesk®Nastran® software, as well as ANSYS®, andAbaqus® software to predict the real-life behaviorof plastic parts by using as-manufactured materialproperties.Rapid heat cycle moldingSet up variable mold surface temperature profilesto maintain warmer temperatures during fillingto achieve smooth surfaces; reduce temperaturesin the packing and cooling phases to help freezeparts and decrease cycle times.Shrinkage and warpage simulationEvaluate plastic part and injection mold designs tohelp control shrinkage and warpage.ShrinkageMeet part tolerances by predicting part shrinkagebased on processing parameters and grade-specific material data.Thermoset flow simulationSimulate thermoset injection molding, RIM/SRIM, resin transfer molding, and rubber compound injection molding.Reactive injection moldingPredict how molds will fill with or without fiber-reinforced preforms. Help avoid short shots due to pregelation of resin, and identify air traps and problematic weld lines. Balance runner systems, select molding machine size, and evaluate thermoset materials.Microchip encapsulationSimulate encapsulation of semiconductor chips with reactive resins and the interconnectivity of electrical chips. Predict bonding wire deformation within the cavity and shifting of the lead frame due to pressure imbalances.Underfill encapsulationSimulate flip-chip encapsulation to predictmaterial flow in the cavity between the chip andthe substrate.Specialized simulation toolsSolve design challenges with simulation.Insert overmoldingRun an insert overmolding simulation to helpdetermine the impact of mold inserts on melt flow, cooling rate, and part warpage.Two-shot sequential overmoldingSimulate the two-shot sequential overmolding process: one part is filled; the tool opens and indexes to a new position; and a second part is molded over the first.BirefringencePredict optical performance of an injection-molded plastic part by evaluating refractive index changes that result from process-induced stresses. Evaluate multiple materials, processing conditions, and gate and runner designs to help control birefringence in the part.MuCell ®MuCell ® (from Trexel, Inc.) simulation resultsinclude filling pattern, injection pressure, and cell size. These are all critical factors in optimizing a given part for the process, as well as theprocess itself.Specialized molding processesSimulate a wide range of plastic injection molding processes and specialized process applications.Gas-assisted injection moldingDetermine where to position polymer and gas entrances, how much plastic to inject prior to gas injection, and how to optimize size and placement of gas channels.Co-injection moldingVisualize the advancement of skin and core materials in the cavity and view the dynamic relationship between the two materials as filling progresses. Optimize material combinations while maximizing the product's cost-performance ratio.Injection-compression moldingSimulate simultaneous or sequential polymer injection and mold compression. Evaluate material candidates, part and mold design,and processing conditions.CAD interoperability and meshingUse tools for native CAD model translation and optimization. Autodesk Moldflow provides geometry support for thin-walled parts and thick and solid applications. Select mesh type based on desired simulation accuracy and solution time.CAD solid modelsImport and mesh solid geometry from Parasolid®-based CAD systems, Autodesk® Inventor® and Autodesk® Alias® software, CATIA® V5, Creo®Parametric, Pro/ENGINEER®, Siemens® NX®, Rhino®, and SolidWorks® software, as well as ACIS®, IGES, and STEP universal files.Autodesk SimStudio ToolsQuickly simplify and edit your geometry for simulation in Moldflow. SimStudio Tools readsin multiple CAD file formats and enables you to quickly simplify models, eliminate unnecessary detail, perform basic repair, or easily make design changes so you can explore various design ideas faster.Error checking and repairScan imported geometry and automatically fixdefects that can occur when translating a modelfrom CAD software.Centerline import/exportImport and export feed system and coolingchannel centerlines from and to CAD software, tohelp decrease modeling time and avoid runnerand cooling channel modeling errors.CADdoctor for Autodesk SimulationCheck, correct, heal, and simplify solid modelsimported from 3D CAD systems to preparefor simulation.3D simulationsPerform 3D simulations on complex geometryusing a solid, tetrahedral, finite element meshtechnique. This approach is ideal for electricalconnectors, thick structural components, andgeometries with thickness variations.Dual domain technologySimulate solid models of thin-walled parts usingDual Domain™ technology. Work directly from 3Dsolid CAD models, leading to easier simulation ofdesign iterations.Midplane meshesGenerate 2D planar surface meshes with assignedthicknesses for thin-walled parts./moldflowResults interpretation and presentation Use a wide range of tools for model visualization, results evaluation, and presentation.Results adviserQuery regions of a model to identify primary causes of short shots and poor part or cooling quality. Get suggestions on how to correct the part, mold, or process.Photorealistic defect visualization Integration with Autodesk® Showcase® software enhances quality assessments of plastic parts by examining near-photorealistic renderings of digital prototypes.Automatic reporting toolsUse the Report Generation wizard to create web-based reports. Prepare and share simulation results more quickly and easily with customers, vendors, and team members.Microsoft Office export capabilityExport results and images for use in Microsoft®Word reports and PowerPoint® presentations. Autodesk Moldflow Communicator Collaborate with manufacturing personnel, procurement engineers, suppliers, and external customers using Autodesk® Moldflow®Communicator software. Use the Moldflow Communicator results viewer to export results from Autodesk Moldflow software so stakeholders can more easily visualize, quantify, and compare simulation results.Material dataImprove simulation accuracy with precise material data.Material databaseUse the built-in material database of grade- specific information on more than 8,500 plastic materials characterized for use in plastic injectionmolding simulation.Autodesk Moldflow Plastics LabsGet plastic material testing services, expert data-fitting services, and extensive material databases with Autodesk® Moldflow® Plastics Labs. Productivity toolsUse advisers and extensive help to boost productivity.Cost adviserLearn what drives part costs to help minimize those costs. Estimate product costs basedon material choice, cycle time, post-molding operations, and fixed costs.Design adviserQuickly identify areas of plastic parts thatviolate design guidelines related to the injection molding process.Results evaluation and productivity toolsVisualize and evaluate simulation results, and use automatic reporting tools to share the results with stakeholders. Take advantage of features such as a material database and advisers to further boost productivity.HelpGet help on a results plot, including informationon what to look for and how to correct typicalproblems. Learn more about solver theory,interpreting simulation results, and designingbetter plastic parts and injection molds.Automation and customizationAutomate common tasks and customize AutodeskMoldflow software for your organization.API toolsApplication programming interface (API) toolsenable you to automate common tasks, customizethe user interface, work with third-partyapplications, and help implement corporatestandards and best practices./moldflowFeature comparison/moldflow Compare the features of Autodesk Moldflow products to learn how Autodesk Moldflow Adviser and Autodesk Moldflow Insight software can help meet theneeds of your organization.Learn more or purchaseAccess specialists worldwide who can provide product expertise, a deepunderstanding of your industry, and value that extends beyond your softwarepurchase. To purchase Autodesk Moldflow software, contact an Autodesk Premier Solutions Provider or Autodesk Authorized Reseller. Locate a reseller near you at /reseller.Autodesk EducationAutodesk offers students and educators a variety of resources to help ensure students are prepared for successful design careers, including access to free* software,curricula, training materials, and other resources. Anyone can get expert guidance at an Autodesk Authorized Training Center (ATC ®) site, and validate skills with Autodesk Certification. Learn more at /education.Autodesk SubscriptionAutodesk ® Subscription for Autodesk Moldflow gives you a greater advantage with powerful cloud-based services, access to the latest software, online technical support, and flexible licensing privileges.** Learn more at /subscription.Autodesk 360The Autodesk ® 360 cloud-based framework provides tools and services to extend design beyond the desktop. Streamline your workflows, effectively collaborate, and quickly access and share your work anytime, from anywhere. Learn more at /autodesk360.*Free products are subject to the terms and conditions of the end-user license agreement that accompanies download of this software.**All Subscription benefits are not available for all products in all languages and/or regions. Flexible licensing terms, including previous version rights and home use, are subject to certain conditions.Autodesk, the Autodesk logo, Alias, ATC, Autodesk Inventor, Inventor, Moldflow, Showcase, VRED, and 3ds Max are registered trademarks or trademarks of Autodesk, Inc., and/or its subsidiaries and/or affiliates in the USA and/or other countries. Nastran is a registered trademark of the National Aeronautics and Space Administration. SolidWorks is a registered trademark of Dassault Systèmes SolidWorks Corporation. All other brand names, product names, ortrademarks belong to their respective holders. Autodesk reserves the right to alter product offerings and specifications at any time without notice, and is not responsible for typographical or graphical errors that may appear in this document. © 2015 Autodesk, Inc. All rights reserved.Autodesk Digital Prototyping is an innovative way for you to explore your ideas before they’re even built. It’s a way for team members to collaborate across disciplines. And it’s a way for individuals and companies of all sizes to get great products into market faster than ever before. From concept through design, manufacturing, marketing, and beyond, Autodesk Digital Prototyping streamlines the product development process from start to finish.。
流道平衡分析平衡单型腔模具、多型腔模具和家族模具中的流道系统并优化流道尺寸，以保证所有零件能够同时充填完成，降低零件的内应力并减少塑胶材料的耗费。
热流道系统分析评估简化或详细的热流道系统设计，可详细的构建热流道系统中各部件的模型（需要各部件详细的三维几何模型）并设置顺序阀浇口，以便消除熔接线和控制保压。
塑料流动分析对塑料熔体的流动情况进行仿真分析，从而优化塑料零件和注塑模具设计、减少潜在的零件缺陷，并改善注塑成型工艺。
零件成型缺陷分析确定潜在的零件缺陷，如熔接线、困气和缩痕，然后进行设计优化以避免这些问题。
热塑性填充分析对热塑性塑料注塑成型工艺中的填充阶段进行仿真分析，以预测塑料熔体的流动模式，确保塑料熔体均匀地填充型腔，避免短射，消除或尽量避免熔接线和困气，或者改变其位置。
热塑性保压分析优化注塑成型工艺中的保压曲线，实现体积收缩量及其分布情况的可视化，从而有助于最大程度地减少塑料零件的翘曲并消除缩痕等成型缺陷。
浇注系统分析对冷、热流道系统和浇口设计进行建模和优化。
改善零件外观质量，最大限度地减少零件翘曲并缩短成型周期。
浇口位置分析可同时确定多达 10 个浇口的位置。
在确定浇口位置时，最大限度地降低注塑压力并排除特定的限制区域（如外观面）。
流道设计向导根据所输入或选择的浇注系统的排布方式、尺寸和截面类型快速创建浇注系统。
零件及模具排布分析验证和优化塑料零件、注塑模具、树脂选择和注塑成型工艺模具冷却分析评估冷却系统所确定的模具温度分布，改进冷却系统的效率，改善零件外观质量，提高零件的表面光泽度，并缩短注塑成型周期。
冷却部件的建模精确分析模具冷却系统的效率。
构建冷却水路（常规或异形水路）、隔水板、喷水管、加热元器件、蒸汽管道、感应线圈、模具镶件及模架的模型。
冷却系统分析优化模具和冷却水路设计，实现零件的均匀冷却，最大限度地缩短成型周期，减少零件翘曲，并降低制造成本。
验证高级冷却技术的应用效果及其水路的排布，如随形冷却、感应加热和瞬态冷却的计算。

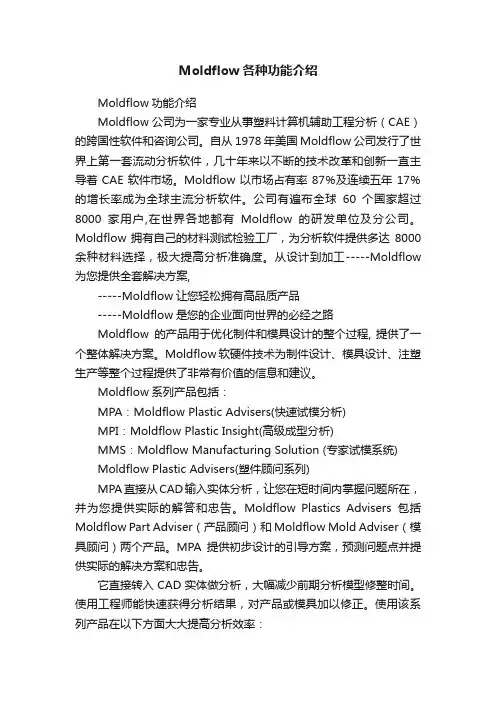

Moldflow各种功能介绍Moldflow功能介绍Moldflow 公司为一家专业从事塑料计算机辅助工程分析（CAE）的跨国性软件和咨询公司。
自从1978年美国Moldflow公司发行了世界上第一套流动分析软件，几十年来以不断的技术改革和创新一直主导着CAE软件市场。
Moldflow以市场占有率87％及连续五年17％的增长率成为全球主流分析软件。
公司有遍布全球60个国家超过8000家用户,在世界各地都有Moldflow的研发单位及分公司。
Moldflow拥有自己的材料测试检验工厂，为分析软件提供多达8000余种材料选择，极大提高分析准确度。
从设计到加工-----Moldflow 为您提供全套解决方案,-----Moldflow让您轻松拥有高品质产品-----Moldflow是您的企业面向世界的必经之路Moldflow的产品用于优化制件和模具设计的整个过程, 提供了一个整体解决方案。
Moldflow软硬件技术为制件设计、模具设计、注塑生产等整个过程提供了非常有价值的信息和建议。
Moldflow系列产品包括：MPA：Moldflow Plastic Advisers(快速试模分析)MPI：Moldflow Plastic Insight(高级成型分析)MMS：Moldflow Manufacturing Solution (专家试模系统)Moldflow Plastic Advisers(塑件顾问系列)MPA直接从CAD输入实体分析，让您在短时间内掌握问题所在，并为您提供实际的解答和忠告。
Moldflow Plastics Advisers包括Moldflow Part Adviser（产品顾问）和Moldflow Mold Adviser（模具顾问）两个产品。
MPA提供初步设计的引导方案，预测问题点并提供实际的解决方案和忠告。
它直接转入CAD实体做分析，大幅减少前期分析模型修整时间。
使用工程师能快速获得分析结果，对产品或模具加以修正。
SolidWorks软件的各类插件用途很多初学者搞不清SolidWorks软件的各类插件的真实用途，这里做一些简要介绍，并不断更新中。
如果插件中有“与SolidWorks完全集成”则表明该插件已集合在SolidWorks软件中，一般用OFFICE PRO模式安装即可正常使用!PhotoWorks 高级渲染软件与SolidWorks完全集成PhotoWorks软件用于产品真实效果的渲染，可产生高级的渲染效果图，该软件使用非常方便，设计人员可以利用渲染向导一步步完成零件或装配真实效果的渲染。
利用PhotoWorks可以进行以下几种渲染：1. 设置模型或表面的材质和纹理2. 为零件表面贴图3. 定义光源、反射度、透明度以及背景景象4. 利用现有的材质和纹理定义新材质或纹理5. 图像可以输出到屏幕或文件6. 可以进行实时渲染FeatureWorks 特征识别软件与SolidWorks完全集成大部分三维设计软件都提供了数据接口，利用数据接口可以读入标准格式的数据文件，如IGES、EAT 等。
但输入到设计环境中的模型只是一种实体的模型，无法区分输入模型的特征，对模型的修改很不方便。
利用FeatureWorks可以在SolidWorks的零件文件中对输入的实体特征进行识别。
实体模型被识别为特征以后，在SolidWorks中以特征的形式存在，并和用SolidWorks软件生成的特征相同。
FeatureWorks 对静态的转换文件进行智能化处理，获取有用的信息，减少了重建模型所花费的时间。
FeatureWorks最适合识别规则的机加工轮廓和钣金特征，其中包括拉伸、旋转、孔和拔模等特征。
1. 拉伸特征，特征的轮廓是由直线、圆或圆弧构成2. 圆柱或圆锥形状的旋转特征3. 所有孔特征，包括简单孔、螺纹孔和台阶孔4. 筋和拔模特征5. 等半径圆角Animator 与SolidWorks完全集成的、易学易用的动画制作软件产品的交互动画将SolidWorks的三维模型实现动态的可视化，摄制产品设计的模拟装配过程、模拟拆卸过程和产品的模拟运行过程，从而实现动态设计。
Autodesk® Moldflow® Communicator 2016 Moldflow Installation Supplement01-20-2015Autodesk® Moldflow® Communicator© 2015 Autodesk, Inc. All Rights Reserved. Except where otherwise noted, this work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported License. Please see the Autodesk Creative Commons FAQ for more information.Certain materials included in this publication are reprinted with the permission of the copyright holder.TrademarksThe following are registered trademarks or trademarks of Autodesk, Inc., and/or its subsidiaries and/or affiliates in the USA and other countries: 123D, 3ds Max, Alias, ATC, AutoCAD LT, AutoCAD, Autodesk, the Autodesk logo, Autodesk 123D, Autodesk Homestyler, Autodesk Inventor, Autodesk MapGuide, Autodesk Streamline, AutoLISP, AutoSketch, AutoSnap, AutoTrack, Backburner, Backdraft, Beast, BIM 360, Burn, Buzzsaw, CADmep, CAiCE, CAMduct, Civil 3D, Combustion, Communication Specification, Configurator 360™, Constructware, Content Explorer, Creative Bridge, Dancing Baby (image), DesignCenter, DesignKids, DesignStudio, Discreet, DWF, DWG, DWG (design/logo), DWG Extreme, DWG TrueConvert, DWG TrueView, DWGX, DXF, Ecotect, ESTmep, Evolver, FABmep, Face Robot, FBX, Fempro, Fire, Flame, Flare, Flint, ForceEffect, FormIt, Freewheel, Fusion 360, Glue, Green Building Studio, Heidi, Homestyler, HumanIK, i-drop, ImageModeler, Incinerator, Inferno, InfraWorks, InfraWorks 360, Instructables, Instructables (stylized robot design/logo), Inventor, Inventor HSM, Inventor LT, Lustre, Maya, Maya LT, MIMI, Mockup 360, Moldflow Plastics Advisers, Moldflow Plastics Insight, Moldflow, Moondust, MotionBuilder, Movimento, MPA (design/logo), MPA, MPI (design/logo), MPX (design/logo), MPX, Mudbox, Navisworks, ObjectARX, ObjectDBX, Opticore, Pixlr, Pixlr-o-matic, Productstream, Publisher 360, RasterDWG, RealDWG, ReCap, ReCap 360, Remote, Revit LT, Revit, RiverCAD, Robot, Scaleform, Showcase, Showcase 360, SketchBook, Smoke, Socialcam, Softimage, Sparks, SteeringWheels, Stitcher, Stone, StormNET, TinkerBox, ToolClip, Topobase, Toxik, TrustedDWG, T-Splines, ViewCube, Visual LISP, Visual, VRED, Wire, Wiretap, WiretapCentral, XSI.All other brand names, product names or trademarks belong to their respective holders.DisclaimerTHIS PUBLICATION AND THE INFORMATION CONTAINED HEREIN IS MADE AVAILABLE BY AUTODESK, INC. "AS IS." AUTODESK, INC. DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE REGARDING THESE MATERIALS.ContentsChapter 1Introduction to Product Installation . . . . . . . . . . . . . . . . 1 About Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . 1About Product Language Selection . . . . . . . . . . . . . . . . . . . . . 3About the Installation Path and Product Configuration . . . . . . . . . . 3Chapter 2Windows Installation . . . . . . . . . . . . . . . . . . . . . . . . 5 To Install this Product . . . . . . . . . . . . . . . . . . . . . . . . . . . 5User Interface Language . . . . . . . . . . . . . . . . . . . . . . . . . . 6Uninstall the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Chapter 3Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . 9 What if I want to install to a different location? . . . . . . . . . . . . . . 9Do I have to install all configuration options at once? . . . . . . . . . . 9Can I install different products to different locations? . . . . . . . . . . 9iiiivIntroduction to Product Installation This Install Guide is divided into different sections:■An overview of the installation process using the Autodesk installer, how to prepare for the process, and some useful background information.■Steps to follow for installing on a Windows operating system ■Frequently asked questions about product installation Further details are provided in the following sections.IMPORTANT This overview describes the various pages of the installer to help you navigate the installation. For Autodesk ® Moldflow ® Communicator which does not require licensing, many of the items described are not options, despite being part of the installer. Please disregard all references to licensing in this Install Guide.About Preparing for InstallationA checklist of prerequisites.Before starting to install, check the following details:■Confirm that your computer meets the minimum system requirements. If in doubt, click System Requirements at the bottom of the installer screen.■Review product documentation to clarify details such as the type of installation to do, and which products to install. Documentation is accessiblefrom links on the lower left corner of the installer:11■Ensure that your user name has Administrator permissions to installapplications on the computer or network.■Obtain serial numbers and product keys for all products you want to install.These are on the product package or email provided at the time youdownload the software.■When you are ready to run the installer, close all running applications.Windows 8/8.1 and the .NET 3.5 RequirementSome Autodesk products require Microsoft DirectX, which, in turn, requiresthe Microsoft .NET Framework. But Windows 8/8.1 has enforced restrictionson installing .NET 3.5 and earlier versions from local media. Therefore,Autodesk products require Internet access so that Windows Update can installor enable the .NET Framework.If the Autodesk installer is unable to install .NET 3.5 or an earlier version onWindows 8/8.1, the following message appears:An Internet connection is required to install a Windows component.Please connect and re-launch the installer.The .NET installation is prevented by any of the following conditions:■An Internet connection is not available during installation.■The computer is configured to use Windows Server Update Services (WSUS) instead of Windows Update.■The Windows 8/8.1 update for Microsoft Security Advisory ( 2749655) is not installed.If any of these conditions cannot be resolved, then the System Administratoror user must manually enable .NET 3.5 on each Windows 8/8.1 computerbefore running the Autodesk installer.To manually enable .NET 3.5 on a Windows 8/8.1 computer1Right-click Start screen ➤ All Apps ➤ Control Panel ➤ Programs ➤Turn Windows Features On or Off.2In the feature list, select Microsoft .NET Framework 3.5, ensuring that a check mark is visible for this feature.3Click OK.For more information, see the following MSDN article.2 | Chapter 1 Introduction to Product InstallationAbout Product Language SelectionYou can select the language you want to use during installation, using thisdrop-down menu on the installer:Language Selection MenuYou can also select the language for the installed product on the ProductInformation page, when you enter the serial number and other productinformation. If you install the product with one language, and then find youwant to use a different language, you can run the installer again and selectthe different language on the Product Information page, by clicking onthe Information button and following the instructions.These conditions apply to product language selection:■All deployments must be in a single language. One administrative image can support deployments for different languages, but each deployment isfor one language.■If you are installing multiple products and select a language that is not supported by some products, these products use a default language. About the Installation Path and Product Configur-ationInstallation PathThis path specifies where the product folder will be installed. If you changethe location, use only valid ASCII characters in the install path.Product ConfigurationOn the Configure Installation page, for every product listed there is atriangular control which you can click for access to a configuration panel.Click anywhere in the product box to open the configuration panel. For manyproducts, you can select an installation type, either Typical to accept theAbout Product Language Selection | 3default configuration settings, or Custom to review the settings and decidewhether to modify them.4 | Chapter 1 Introduction to Product Installation2 Windows InstallationAutodesk Moldflow Communicator uses an installation Wizard to guide you through the installation process.To Install this ProductThe Installation Wizard guides you through several steps. See the InstallationOverview for additional information.1Uninstall (page 6) any pre-release versions you may have.2If installing from a downloaded executable file, navigate to the■file, right click on it, and double-click on the installationexecutable to start the installation.3In the Welcome page, click Install to begin the installation process.4In the License Agreement page,■Select the appropriate entry in the Country or Region list.■Review the agreement.■Select the option to accept the agreement, then click Next.NOTE If you reject the license agreement, you cannot install thesoftware.5In the Product Information page,■Select the Product Language.■Click Next.56In the Configure Installation page, all the available software isselected by default. If you don't want to install everything now,deselect the options you don't want.■Accept the default Installation Path, or click Browse to selecta different folder.■Click Install to start the process.7The Wizard begins installing the software. In the InstallationProgress page a progress indicator shows how much of theinstallation has been completed. Once the installation is complete,the Installation Complete page appears. The successfully installedproducts are listed, as are any products that failed to install.8Click Finish to close the Setup Wizard.User Interface LanguageThe User Interface is available in the following languages:■Chinese (Simplified)■Chinese (Traditional)■English■French■German■Italian■Japanese■Korean■Portuguese■SpanishUninstall the productThe Uninstall feature enables you to remove this product from yourWindows-based computer. You should remove this product from yourcomputer if you plan to upgrade it to a newer version, or if you would like tochange the configuration settings.■Open the Windows Start menu and navigate to the Autodesk Folder.■Click the Uninstall tool and select the product you want to uninstall.6 | Chapter 2 Windows Installation■Click Uninstall then click Exit when the process is complete.Uninstall the product | 783 Frequently Asked Ques-tionsWhat if I want to install to a different location?During installation, you can install to a different location by changing theinstallation path to another valid drive or folder on your computer. Autodesktools, utilities, and service packs will be able to find the installed location. Do I have to install all configuration options at once?For many installers, the Configure Installation page provides a list of productsthat can be installed. You can choose to install as many or as few of these asyou want. If you have already installed other Autodesk products, some of theseoptions may already be installed.If you do not want to install all these options, you can install them at a latertime by relaunching the installer.NOTE You will need your license information to relaunch the installer.Can I install different products to different loca-tions?All products installed at the same time will be installed to the Installation pathindicated at the bottom of the Configure Installation page.9If you would like to install products to different locations, install each productseparately, changing the installation path for each installation.NOTE Some products must be installed to the same path as related products. Inthis case, a warning will be provided, indicating that the Installation path hasalready been set by a previous installation.10 | Chapter 3 Frequently Asked Questions。
Moldflow 操作培训做成：温作翰一, Doctor CAD 的使用.使用目的：在解析中对结果没有影响，却会增加网格（Mesh）数量，增大纵横比，增加计算时间的一些结构进行修改，删除，使得网格的效果更好，纵横比更合理，缩短计算时间，提高计算结果的精确性。
1，打开Doctor CAD—〉导入文件。
注意在没有购买专门的插件的时候，只可以导入（import）iges，igs文件。
按import键2．选择要使用的文件。
3．按打开2，导入文件后如下图所示:我们先对软件的工具栏里的项目进行了解。
①新建窗口，每次在导入文件的时候都需要一个窗口。
②打开文件，doctor CAD文件保存后的文件。
③保存，在对导入文件或打开的文件进行修改后，保存，可在下次继续进行修改④文件导入。
没有购买其他插件的情况下，只能够导入iges，igs格式文件。
⑤文件导出。
形成moldflow解析专用文件.⑥重新生成(regen).⑦重新作图(redraw).⑧线条显示.⑨实体显示⑩半透明实体显示.⑦⑧⑨三项内容可以同时存在.⑪改变视图形式.在⑧方式的基础上,扩展面,全部用虚线表示.⑫⑬使用默认的显示属性.⑭自动调整视图大小.将产品全部显示在窗口的范围内.⑮显示局部.可以拖动鼠标进行调整,使其显示自己想要的范围.⑯框选和拖动变化大小比例显示命令工具.⑰移动 (shift + 鼠标左键)⑱回转 (shift + ctrl + 鼠标左键)⑲绕垂直平面的轴旋转.⑳绕水平方向轴旋转.21绕竖直方向轴旋转.22连续视图操作.23终止视图操作.24选定旋转中心.25选定旋转轴.26点可否被选.27线可否被选.28表面可否被选.29面可否被选.30三位体可否被选.31普通的单个选择. 32 相连接位置扩展选择. 33 ( ). 34～37框选形式. 38仅选择当前被视部位. 39 显示与否的开关,可以选择使哪些内容不显示. 39;40～42 选择显示内容命令. 43 帮助. 44 具体的帮助, 对各各命令的使用方式等有相关的说明.3，Translation : 对3D形状的不良内容进行自行修正的选择窗口. 在此命令下,我们就可以利用相应的命令行对破的,有自由边的等等存在问题点的产品3D进行修正.Simplification: 对3D上存在的一些结构进行删除,更改. 3D上存在一些对解析的结果没有影响,或影响不大,或起反面影响的结构,如刻字,小的R角或者倒角或者小柱子等等,但是却会增加解析时间,影响解析精度.故此要对这些结构进行修改.4，实际操作①Translation的条件下Check table(检查板块)使用check table来检查(check)产品上的自由边等问题内容,并进行修补(stitch).最后使用”痊愈”(heal)命令后,就可以输出文件,用于解析使用.使用check table时,只需要针对NG项目,不断地点击左下角的命令执行按钮,基本上就可以修补不良内容.最终得到如图小横线部全部是零.②Simplification的条件下Check table(检查板块)使用check table 可以用来删除一些我们不希望的结构。
