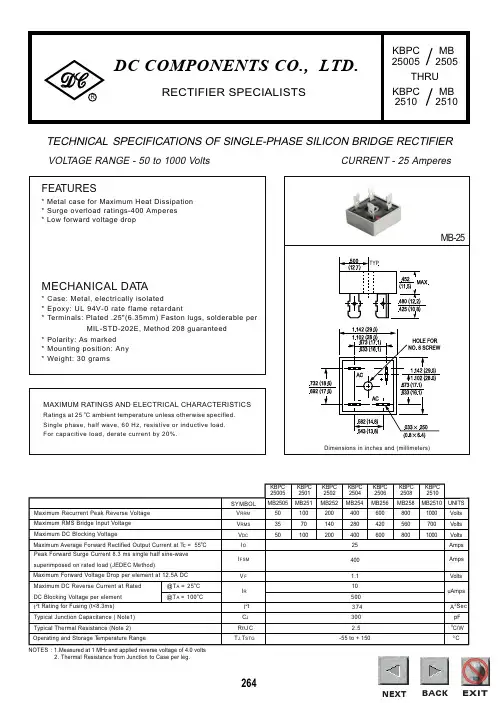

Features• Glass Passivated Die Construction• High Case Dielectric Strength of 2500V RMS • Low Reverse Leakage Current• Surge Overload Rating to 350A Peak• Ideal for Printed Circuit Board Applications • UL Listed Under Recognized Component Index, File Number E94661•Lead Free Finish; RoHS Compliant (Notes 1 & 2)Mechanical Data• Case: GBJ• Case Material: Molded Plastic.UL Flammability Classification 94V-0•Moisture Sensitivity: Level 1 per J-STD-020• Terminals: Plated Leads, Solderable per MIL-STD-202, Method 208• Lead Free Plating (Tin Finish). • Polarity: Molded on Body• Mounting: Through Hole for #6 Screw • Mounting Torque: 5.0 in-lbs Maximum • Marking: Type Number• Weight: 6.6 grams (Approximate)Marking InformationNotes:1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3).compliant. All applicable RoHS exemptions applied.2. See https:///quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.PbGBJ25005 - GBJ2510Maximum Ratings(@T A = 25°C, unless otherwise specified.)Single phase, half wave, 60Hz, resistive or inductive load.For capacitance load, derate current by 20%.Characteristic Symbol GBJ25005 GBJ2501GBJ2502GBJ2504GBJ2506GBJ2508GBJ2510 UnitPeak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage V RRMV RWMV R50 100 200 400 600 800 1000 VRMS Reverse Voltage V R(RMS)35 70 140 280 420 560 700 V Average Forward Rectified Output Current(Note 3) @ T C = 100°C I O25 A Non-Repetitive Peak Forward Surge Current 8.3 msSingle Half Sine-Wave Superimposed on rated Load I FSM350 A Thermal CharacteristicsElectrical Characteristics(@T A = 25°C, unless otherwise specified.)Notes: 3. Non-repetitive, for t > 1ms and < 8.3 ms.4. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.5. Thermal resistance from junction to case per element. Unit mounted on 250 x 250 x 20mm aluminum plate heat sink.GBJ25005 - GBJ251051015202530255075100125150I , A V E R A G E R E C T I F I E D C U R R E N T (A )O T , CASE TEMPERATURE (°C)C0.010.11.01000.8I , I N S T A N T A N E O U S F O R W A R D C U R R E N T (A )F100V , INSTANTANEOUS FORWARD VOLTAGE (V)Fig. 2 Typical Forward Characteristics (per element)F 0.4110100I , P E A K F O R W A R D S U R G E C U R R E N T (A )F S M NUMBER OF CYCLES AT 60 Hz010020030040011001,0001.010100C , T O T A L C A P A C I T A N C E (p F )T V , REVERSE VOLTAGE (V)Fig. 4 Typical T otal Capacitance, Per ElementR 100.11.0101001,000020406080100120140PERCENT OF RATED PEAK REVERSE VOLTAGE (%)Fig. 5 Typical Reverse CharacteristicsGBJ25005 - GBJ2510Ordering Information (Note 6)Part Number Case Packaging GBJ25005-F GBJ 15/Tube GBJ2501-F GBJ 15/Tube GBJ2502-F GBJ 15/Tube GBJ2504-F GBJ 15/Tube GBJ2506-F GBJ 15/Tube GBJ2508-F GBJ 15/Tube GBJ2510-FGBJ 15/TubeNote: 6. For packaging details, go to our website at /datasheets/ap02007.pdf.Package Outline DimensionsPlease see /package-outlines.html for the latest version.GBJNote:For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance.E EG KGBJ25005 - GBJ2510。
肖特基整流二极管介绍一、引言肖特基势垒二极管（Schottky barrier diode简称SBD）是一种金属（或金属硅化物）/ 半导体接触的器件，它是多子器件，主要用其非线性电阻的特性。
SBD是最古老的半导体器件，1904年开始，矿石检波器就得到了应用。
SBD在超高频及微波电路中用于检波和混频，都是用其正向非线性电阻的特性。
SBD长期用金属与半导体接触进行制作，稳定性差，是可靠性最差的半导体器件之一。
八十年代开始对金属硅化物深入研究，用金属硅化物代替金属，获得了可靠而又重复的肖特基势垒，为大规模生产奠定了基础。
各种家用电器、微电脑、汽车电子、通讯设备、仪器、国防军工都要求电子设备轻量化、小型化，特别是要求采用小型化和高效率的电源。
高频开关电源随着工作频率的提高，其体积和重量都会明显减小，同时效率显著提高，高频开关电源越来越受到人们的重视。
SBD 有三大特点：（1）速度快（多子器件，无少子储存效应）；(2)正向压降低；（3）散热性能好。
SBD与通常的PN结整流器件相比，SBD具有开关速度快（高频）、导通电压低（高效）、抗电流浪涌冲击能力强（大电流）。
低输出电压（V0≤±24V）的高频开关电源多采用肖特基整流二极管。
世界高频开关电源年销售额约为500亿美圆，这是一个巨大的市场!对肖特基整流二极管的规模生产有巨大的拉动力。
SBD制作简单、工艺流程短、成本低、有利于大规模生产。
肖特基整流二极管在高频开关电源电路中起开关作用，是用其正、反向非线性电阻的特性（不再只是用正向非线性电阻的特性）。
肖特基整流二极管的名称较多，有功率肖特基二极管、肖特基续流二极管、大电流肖特基二极管、肖特基开关二极管等等。
肖特基势垒与p-n结的比较肖特基二极管的势垒可以比做在同一种半导体上的p-n结低许多，例如硅，p-n结的内建势V bi≥0.8V；而肖特基结势垒电势为0.5V～0.6V很容易做到。
在同一电流密度下，p-n结上的正向压降比肖特基二极管上的电压降至少高0.3V。

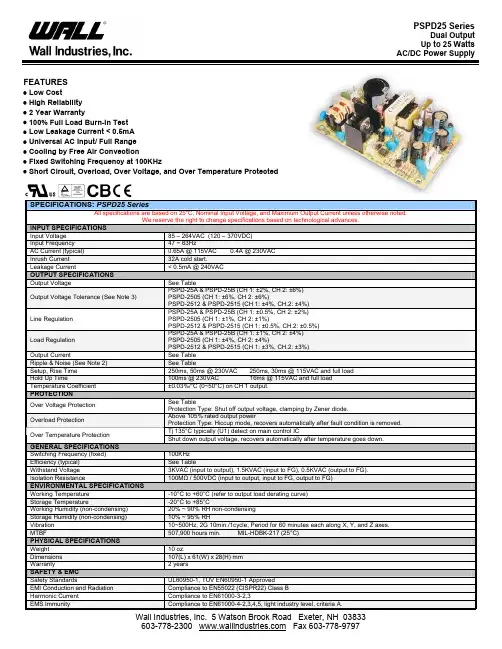

AC/DC Power SupplyFEATURES• Low Cost• High Reliability• 2 Year Warranty• 100% Full Load Burn-In Test• Low Leakage Current < 0.5mA• Universal AC Input/ Full Range• Cooling by Free Air Convection• Fixed Switching Frequency at 100KHz• Short Circuit, Overload, Over Voltage, and Over Temperature ProtectedSPECIFICATIONS: PSPD25 SeriesAll specifications are based on 25o C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.We reserve the right to change specifications based on technological advances.INPUT SPECIFICATIONSInput Voltage 85 – 264VAC (120 – 370VDC)Input Frequency 47 ~ 63HzAC Current (typical) 0.65A @ 115VAC 0.4A @ 230VACInrush Current 32A cold start.Leakage Current < 0.5mA @ 240VACOUTPUT SPECIFICATIONSOutput Voltage See TableOutput Voltage Tolerance (See Note 3) PSPD-25A & PSPD-25B (CH 1: ±2%, CH 2: ±6%) PSPD-2505 (CH 1: ±6%, CH 2: ±6%)PSPD-2512 & PSPD-2515 (CH 1: ±4%, CH.2: ±4%)Line Regulation PSPD-25A & PSPD-25B (CH 1: ±0.5%, CH 2: ±2%) PSPD-2505 (CH 1: ±1%, CH 2: ±1%)PSPD-2512 & PSPD-2515 (CH 1: ±0.5%, CH.2: ±0.5%)Load Regulation PSPD-25A & PSPD-25B (CH 1: ±1%, CH 2: ±4%) PSPD-2505 (CH 1: ±4%, CH 2: ±4%)PSPD-2512 & PSPD-2515 (CH 1: ±3%, CH.2: ±3%)Output Current See TableRipple & Noise (See Note 2) See TableSetup, Rise Time 250ms, 50ms @ 230VAC 250ms, 30ms @ 115VAC and full load Hold Up Time 100ms @ 230VAC 16ms @ 115VAC and full load Temperature Coefficient ±0.03%/°C (0~50°C) on CH 1 output.PROTECTIONOver Voltage Protection See TableProtection Type: Shut off output voltage, clamping by Zener diode.Overload Protection Above 105% rated output powerProtection Type: Hiccup mode, recovers automatically after fault condition is removed. Tj 135°C typically (U1) detect on main control ICOver Temperature ProtectionShut down output voltage, recovers automatically after temperature goes down. GENERAL SPECIFICATIONSSwitching Frequency (fixed) 100KHzEfficiency (typical) See TableWithstand Voltage 3KVAC (input to output), 1.5KVAC (input to FG), 0.5KVAC (output to FG). Isolation Resistance 100MΩ / 500VDC (input to output, input to FG, output to FG) ENVIRONMENTAL SPECIFICATIONSWorking Temperature -10°C to +60°C (refer to output load derating curve)Storage Temperature -20°C to +85°CWorking Humidity (non-condensing) 20% ~ 90% RH non-condensingStorage Humidity (non-condensing) 10% ~ 95% RHVibration 10~500Hz, 2G 10min./1cycle, Period for 60 minutes each along X, Y, and Z axes. MTBF 507,900 hours min. MIL-HDBK-217 (25°C)PHYSICAL SPECIFICATIONSWeight 10 oz.Dimensions 107(L) x 61(W) x 28(H) mmWarranty 2 yearsSAFETY & EMCSafety Standards UL60950-1, TUV EN60950-1 ApprovedEMI Conduction and Radiation Compliance to EN55022 (CISPR22) Class BHarmonic Current Compliance to EN61000-3-2,3EMS Immunity Compliance to EN61000-4-2,3,4,5, light industry level, criteria A.AC/DC Power SupplyOUTPUT VOLTAGE / CURRENT RATING CHARTModelInput VoltageOutput Voltage Over VoltageProtection Current RangeRated Current Ripple & Noise Output PowerEfficiencyChannel 1 5 VDC 5.75 ~ 6.75V 0.2 ~ 2.5A 2.1A 50mVp-p PSPD-25AChannel 2 12 VDC 13.8 ~ 16.2V 0.1 ~ 1.5A 1.2A 150mVp-p 25W 71%Channel 1 5 VDC 5.75 ~ 6.75V 0.2 ~ 2A 1.2A 50mVp-p PSPD-25B Channel 2 24 VDC 27.6 ~ 32.4V 0.1 ~ 1A 0.8A 200mVp-p 25.2W 77%Channel 1 5 VDC 5.75 ~ 6.75V 0.1 ~ 3A 2.5A 50mVp-p PSPD-2505 Channel 2 -5 VDC -5.75 ~ -6.75V 0.1 ~ 2.5A 2.5A 50mVp-p 25W 73%Channel 1 12VDC 13.8 ~ 16.2V 0.1 ~ 1.2A 1A 50mVp-p PSPD-2512 Channel 2 -12VDC -13.8 ~ -16.2V 0.1 ~ 1.2A 1A 50mVp-p 24W 74%Channel 1 15VDC 17.3 ~ 20.3V 0.1 ~ 1A 0.8A 50mVp-p PSPD-2515 Channel 285~264 VAC(120~370 VDC) -15VDC-17.3 ~ -20.3V0.1 ~ 1A0.8A50mVp-p24W 75%NOTES1. All parameters not specially mentioned are measured at 230VAC input, rated load, and 25°C ambient temperature.2. Ripple & noise are measured at 20MHz using a 12" twisted pair-wire terminated with 0.1uF & 47uF capacitors in parallel .3. Tolerance: includes set up tolerance, line regulation, and load regulation.4. The power supply is considered a component, which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.BLOCK DIAGRAMDERATING CURVESTATIC CHARACTERISTICS (A)fosc: 100KHzAC/DC Power Supply MECHANICAL DRAWINGUnit: mmAC INPUT CONNECTOR (CN1)Pin. No Assignment1 AC/L2 NoPin3 AC/NDC OUTPUT CONNECTOR (CN2)Pin No. Assignment1 V1 2,3 COM4 V2。
