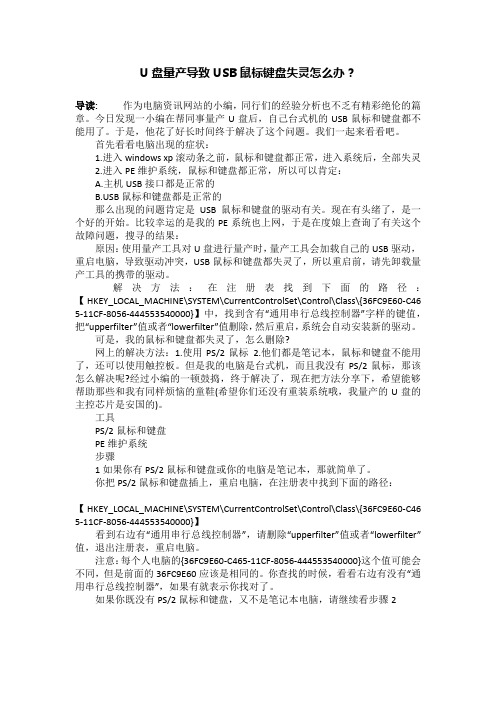

U盘量产导致USB鼠标键盘失灵怎么办？导读:作为电脑资讯网站的小编，同行们的经验分析也不乏有精彩绝伦的篇章。
今日发现一小编在帮同事量产U盘后，自己台式机的USB鼠标和键盘都不能用了。
于是，他花了好长时间终于解决了这个问题。
我们一起来看看吧。
首先看看电脑出现的症状：1.进入windows xp滚动条之前，鼠标和键盘都正常，进入系统后，全部失灵2.进入PE维护系统，鼠标和键盘都正常，所以可以肯定：A.主机USB接口都是正常的B鼠标和键盘都是正常的那么出现的问题肯定是USB鼠标和键盘的驱动有关。
现在有头绪了，是一个好的开始。
比较幸运的是我的PE系统也上网，于是在度娘上查询了有关这个故障问题，搜寻的结果：原因：使用量产工具对U盘进行量产时，量产工具会加载自己的USB驱动，重启电脑，导致驱动冲突，USB鼠标和键盘都失灵了，所以重启前，请先卸载量产工具的携带的驱动。
解决方法：在注册表找到下面的路径：【HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{36FC9E60-C46 5-11CF-8056-444553540000}】中，找到含有“通用串行总线控制器”字样的键值，把“upperfilter”值或者“lowerfilter”值删除，然后重启，系统会自动安装新的驱动。
可是，我的鼠标和键盘都失灵了，怎么删除?网上的解决方法：1.使用PS/2鼠标 2.他们都是笔记本，鼠标和键盘不能用了，还可以使用触控板。
但是我的电脑是台式机，而且我没有PS/2鼠标，那该怎么解决呢?经过小编的一顿鼓捣，终于解决了，现在把方法分享下，希望能够帮助那些和我有同样烦恼的童鞋(希望你们还没有重装系统哦，我量产的U盘的主控芯片是安国的)。
工具PS/2鼠标和键盘PE维护系统步骤1如果你有PS/2鼠标和键盘或你的电脑是笔记本，那就简单了。
你把PS/2鼠标和键盘插上，重启电脑，在注册表中找到下面的路径：【HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{36FC9E60-C46 5-11CF-8056-444553540000}】看到右边有“通用串行总线控制器”，请删除“upperfilter”值或者“lowerfilter”值，退出注册表，重启电脑。
PhilipsLCD monitor with USB-CB Line24 (23.8"/60.5 cm diag.)2560 x 1440 (QHD)246B1Simplify your connectionswith USB-C dockingThe Philips USB-C monitor replaces cable clutter. View QHD image, re-charge a laptop,all at the same time with a single USB-C cable. Features like Daisy chain for multi-displaysetup, Eye comfort with TUV certification to reduce eye fatigue.Single cable USB-C connection•USB-C enables laptop power charging directly from a monitor•Built-in RJ-45 Ethernet gives data securityDesigned for the way you work•TUV Eye Comfort certified to reduce eye fatigue•Less eye fatigue with Flicker-Free technology•LowBlue Mode for easy-on-the-eyes productivity•EasyRead mode for a paper-like reading experience•SmartErgoBase enables user-friendly ergonomic adjustmentsDesigned for sustainability•Designed to meet environmental standards•PowerSensor saves up to 80% energy costs•LightSensor for the perfect brightness with minimal powerHighlightsUSB Type-C connectionThis Philips display features a built-in USB type-C docking station with power delivery. With intelligent and flexible power management, you can power charge your compatible* laptop directly. Its slim, reversible USB-C connector allows for easy, one-cable docking. Simplify by connecting all your peripherals like keyboard, mouse and your RJ-45 Ethernet cable to the monitor's docking station. You can watch high-resolution video and transfer data at super-speed, while powering up and re-charging your notebook at the same time.TUV Rheinland Eye ComfortPhilips displays meet TUV Rheinland EyeComfort standard to prevent eye strain caused by prolonged computer use. With TUV Eye Comfort certification, Philips displays ensure flicker-free, low-blue mode, no disturbing reflections, a wide viewing angle, less reduction of image quality from different angles and ergonomic stand designs for an ideal viewing experience. Keep your eyes healthy and boost work productivity.Flicker-Free technology Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eyefatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.LowBlue ModeStudies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.EasyRead modeEasyRead mode for a paper-like reading experienceSmartErgoBaseThe SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base can swivel, tilt and rotate to various angles to ensure maximum comfort. The height-adjustable stand guarantees the optimalviewing level, reducing the physical strains of a long workday, while cable managementreduces cable clutter and keeps the workspace neat and professional.Designed for sustainabilityDesigned for sustainability and reduced operating costs, this monitor meetsenvironmental standards. Such as: ENERGY STAR, EPEAT, TCO Certified. For more information on certification, please visit:ENERGY STAR: https:/// EPEAT: https:/// TCO Certified: https:///PowerSensorPowerSensor is a built-in 'people sensor' that transmits and receives harmless infraredsignals to determine if the user is present and then automatically reduces monitor brightness when then user steps away from the desk, cutting energy costs by up to 80 percent andprolonging monitor lifeIssue date 2023-03-22 Version: 1.0.112 NC: 8670 001 74583 EAN: 87 12581 77619 0© 2023 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•LCD panel type: IPS technology•Backlight type: W-LED system•Panel Size: 23.8 inch/60.5 cm•Display Screen Coating: Anti-Glare, 3H, Haze 25%•Effective viewing area: 526.848 (H) x 296.352 (V)•Aspect ratio: 16:9•Maximum resolution: 2560 x 1440 @ 75 Hz*•Pixel Density: 123 PPI•Response time (typical): 4 ms (Grey to Grey)*•Brightness: 250 cd/m²•Contrast ratio (typical): 1000:1•SmartContrast: 50,000,000:1•Pixel pitch: 0.2058 x 0.2058 mm•Viewing angle: 178º (H) / 178º (V), @ C/R > 10•Picture enhancement: SmartImage•Display colours: 16.7 M•Colour gamut (typical): NTSC 99%*, sRGB 116%*•Scanning Frequency: 30–114 kHz (H)/48–75 Hz (V)•sRGB•Flicker-free•EasyRead•LowBlue ModeConnectivity•Signal Input: DisplayPort 1.4 x 1, HDMI 1.4 x 2, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to 90 W)•HDCP: HDCP 2.2 (DP/HDMI/USB-C)•HBR3: HBR3 (USB-C)•Signal Output: DP out x 1•USB:: USB-C x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)•Audio (In/Out): Audio out•RJ45: Ethernet LAN up to 1 G*, Wake on LAN •Sync Input: Separate SyncUSB•USB-C: Reversible plug connector•Super speed: Data and Video transfer•DP: Built-in Display Port Alt mode•Power delivery: USB PD version 3.0•USB-C max. power delivery: Up to 90 W (5 V/3 A, 7 V/3 A, 9 V/3 A, 10 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/4.5 A)Convenience•Built-in Speakers: 2 W x 2•User convenience: SmartImage, Input, PowerSensor, Menu, Power On/Off•Control software: SmartControl•OSD Languages: Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian •Other convenience: Kensington lock, VESA mount (100 x 100 mm)•Plug and Play Compatibility: DDC/CI, Mac OS X, sRGB, Windows 10 / 8.1 / 8 / 7Stand•Height adjustment: 150 mm•Pivot: -/+ 90 degree•Swivel:-/+180 degree•Tilt: -5 ~ 35 degreePower•ECO mode: 15.2 W (typ.)•On mode: 17 W (typ.) (EnergyStar test method)•Standby mode: 0.3 W (typ.)•Off mode: Zero watts with Zero switch•Energy Label Class: E•Power LED indicator: Operation - White, Standbymode - White (flashing)•Power supply: Built-in, 100–240 VAC, 50–60 HzDimensions•Product with stand (max height): 540 x 500 x205 mm•Product without stand (mm): 540 x 323 x 51 mm•Packaging in mm (W x H x D): 600 x 406 x 198 mmWeight•Product with stand (kg): 5.56 kg•Product without stand (kg): 3.96 kg•Product with packaging (kg): 8.23 kgOperating conditions•Temperature range (operation): 0°C to 40°C °C•Temperature range (storage): -20°C to 60°C °C•Relative humidity: 20%-80 %•Altitude: Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)•MTBF (demonstrated): 70,000 hrs (excludedbacklight)Sustainability•Environmental and energy: PowerSensor,LightSensor, EnergyStar 8.0, EPEAT*, TCOCertified Edge, RoHS•Recyclable packaging material: 100 %•Post-consumer recycled plastic: 85%•Specific Substances: PVC/BFR free housing,Mercury freeCompliance and standards•Regulatory Approvals: CB, TUV/GS, TUV Ergo,SEMKO, CU-EAC, EAEU RoHS, CE Mark, FCCClass B, ICES-003, TUV Eye Comfort certifiedCabinet•Front bezel: Black•Rear cover: Black•Foot:Black•Finish: TextureWhat's in the box?•Monitor with stand•Cables: HDMI cable, DP cable, USB-C to C/A Ycable, Power cable•User Documentation*"IPS" word mark / trademark and related patents on technologiesbelong to their respective owners.*The maximum resolution works for either USB-C, DP or HDMIinput.*Response time value equal to SmartResponse*NTSC Area based on CIE 1976*sRGB Area based on CIE1931*Activities such as screen sharing and online streaming over theInternet can impact your network performance. Your hardware andnetwork bandwidth will determine the overall audio and videoquality.*For USB-C power and charging function, your Notebook/devicemust support USB-C standard Power Delivery specifications. Pleasecheck with your Notebook user manual or manufacturer for moredetails.*For Video transmission via USB-C, your Notebook/device mustsupport USB-C DP Alt mode*If your Ethernet connection seems slow, please enter the OSD menuand select USB 3.0 or a higher version that can support the LANspeed up to 1G.*EPEAT rating is valid only where Philips registers the product. Pleasevisit https:/// for registration status in your country.*The monitor may look different from feature images.。

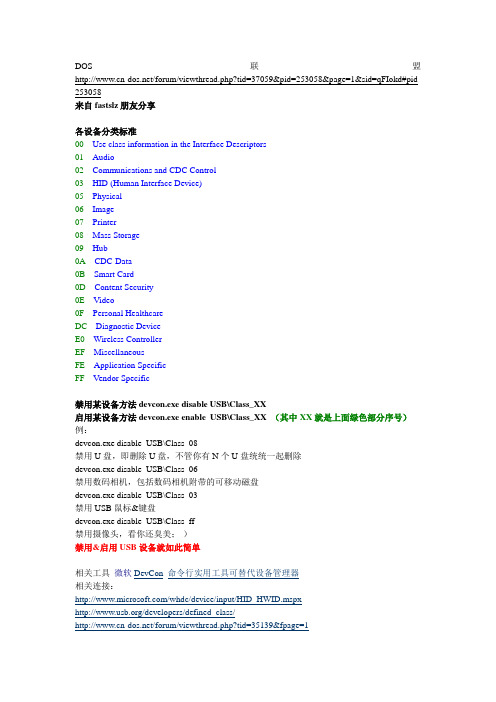

DOS联盟/forum/viewthread.php?tid=37059&pid=253058&page=1&sid=qFIokd#pid 253058来自fastslz朋友分享各设备分类标准00Use class information in the Interface Descriptors01Audio02Communications and CDC Control03HID (Human Interface Device)05Physical06Image07Printer08Mass Storage09Hub0A CDC-Data0B Smart Card0D Content Security0E Video0F Personal HealthcareDC Diagnostic DeviceE0Wireless ControllerEF MiscellaneousFE Application SpecificFF Vendor Specific禁用某设备方法devcon.exe disable USB\Class_XX启用某设备方法devcon.exe enable USB\Class_XX （其中XX就是上面绿色部分序号）例：devcon.exe disable USB\Class_08禁用U盘，即删除U盘，不管你有N个U盘统统一起删除devcon.exe disable USB\Class_06禁用数码相机，包括数码相机附带的可移动磁盘devcon.exe disable USB\Class_03禁用USB鼠标&键盘devcon.exe disable USB\Class_ff禁用摄像头，看你还臭美；-）禁用&启用USB设备就如此简单相关工具微软DevCon命令行实用工具可替代设备管理器相关连接：/whdc/device/input/HID_HWID.mspx/developers/defined_class//forum/viewthread.php?tid=35139&fpage=1最后也希望大家一起收集其他USB\Class_XX 序号（跟贴）查询已知或曾安装USB过的USB\Class_XX 序号批处理代码见下：@echo offfor /f "delims=*" %%a in ('reg query "HKLM\SYSTEM\CurrentControlSet\Enum\USB"^|find /i "Vid_"') do (for /f "delims=*" %%b in ('reg query "%%a"^|find /i "Vid_"') do (for /f "tokens=3" %%c in ('reg query "%%b"^|find /i "CompatibleIDs"') do (for /f "tokens=1,* delims=REG_SZ " %%d in ('reg query "%%b"^|find /i "DeviceDesc"') do (for /f "delims=&" %%i in ('echo."%%c"^|find /i "Class"') do echo "%%~i" 设备名称:%%e))))echo.echo 若要查询USB\Class_XX以下分类，请将第5个for的"delims=&"改成"delims=" pause。
