爱普生打印机维修手册全集（三）3...爱普生打印机维修手册全集（三）3DLQ-3500K:一、前面进单页纸后又退出解决方法：将Firmware 内容重新写入主板，正常。

操作步骤：1、从网上下载Firmware 文件并解压缩2、按字体 + 高速 + 切纸 + 纸张来源 + 开机3、在DOS 下执行下面语句COPY IPL4600.MOT PRNCOPY K03125.MOT PRN传输完毕后关机。

注意：更换主板后除写Firmware 外，还必须进行调整。

将α（头值）和β（机架）值输入，否则有可能出现打印空白。

LQ-1600K3+：一、打印文档或表格时发生错位。

故障分析：⑴ 按常规清洁字车组件，之后进行BI-D 调整，BI-D 调整的打印样张均正常后，联机打印WORD 文档，发现故障并未排除；⑵ 接下来就试着更换字车电机，故障依旧；⑶ 更换字车组件（字车导轴，字车托架）后，故障依旧；⑷ 用排除法，肯定是机械的问题，发现跟字车移动有关的只剩下色带驱动组件（含字车同步带）了，试更换之，问题终于排除了。

维修总结：该故障是由于字车同步带的松紧度不佳造成的，使得打印头左右移动时的定位不准，引起打印错位了。

二、打印错位，但WIN98 / DOS 状态下屏幕打印正常。

故障分析：⑴ 首先更换主板，故障依旧；⑵ 更换打印机端口，但使用SPP、EPP 端口，不能联机打印，只有ECP 可以打印；⑶ 把打印机换到另一电脑打印正常，看来是软件故障；首先杀毒，无病毒，再重装WIN98，联机打印正常。

三、工作一段时间后，面板灯全闪；并且有时一开机（打印头刚向左移动几公分）面板灯即开始闪烁。

故障分析：⑴ 首先检查头缆是否接触不良，有无变形，或是某一脚变成**线了，发现均正常；⑵ 检查打印头热敏电阻端的有无虚焊，接触不良，正常；⑶ 依次更换机械、主板后，故障依旧；⑷ 从另一台好的LQ-1600K3+机子上拆主板试打，正常，故障排除了；⑸ 主板上只有监控芯片没换了，试换后，OK。

●蜂鸣器
● 1.现象：遥控无效，
测试：按＃＃＃至触发遥控界面，触发任意遥控后，无声音提示。

维修办法：使用示波器测量如下管脚图1，同时触发遥控器，看波形是否如下图2，若不是则更换模块U21，更换是先用烙铁加热一段，拔起一点，在加热另一端拔起，直至拆下！

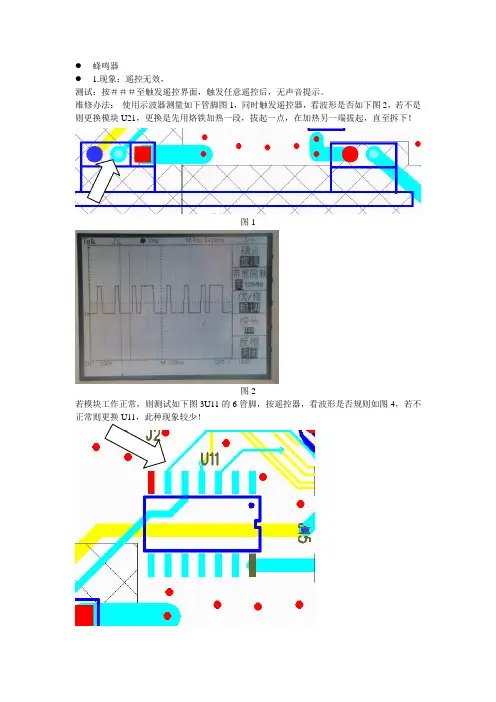

图1
图2
若模块工作正常，则测试如下图3U11的6管脚，按遥控器，看波形是否规则如图4，若不正常则更换U11，此种现象较少！
●2现象：遥控管脚断裂
维修办法：将管脚对正焊盘，在断裂处补锡，直接将模块进行2次焊接
● 3.现象：HOOK键不良
维修办法：直接拆除，更换，注意拆除过程中焊盘掉落！
● 4.现象：按键有声音而报警器警笛声音不响
测试：＃＃＃后出现的声音，或通电打开外壳触发防拆开关的声音！
维修办法：首先看U13是否插反，若没有则通电打开防拆开关，测试示波器测9100芯片6管脚图5，看是否输出如下波形图6
图5
图6
若无此波形，测试8管脚是否有电压，若没有电压则直接加电压3.6V，看是否有图6输出，若没有更换U13，若有图6输出则更换T12
5.现象：无任何声音, 或免提无回音
测试：按键等都没有声音
维修：此种维修模拟开关U8。

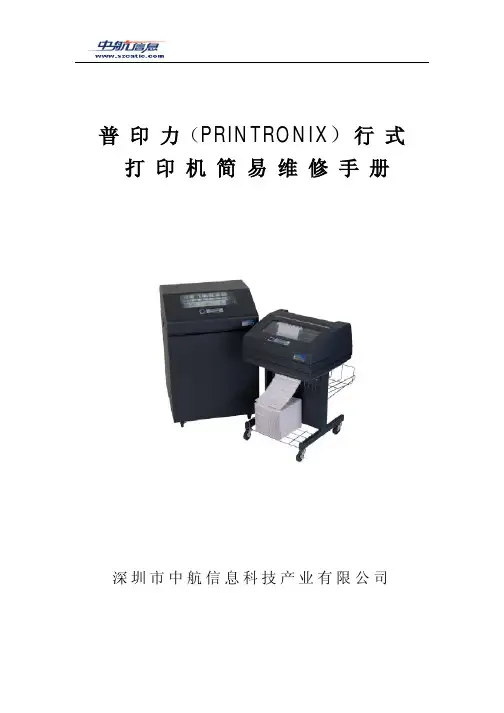

普印力（PRINTRONIX）行式打印机简易维修手册深圳市中航信息科技产业有限公司目录1、清洁维护----------------------------------------------32、调整间隙----------------------------------------------43、主要配件的区分--------------------------------------54、主板和对应程序--------------------------------------75、L C D报错-----------------------------------------------86、常见报错---------------------------------------------147、I M B操作方法----------------------------------------158、数据采集---------------------------------------------169、行打W I N D O W S下速度调整-----------------------1710、P7色带寿命终结点的更改-------------------------1811、控制面板的其他功能-------------------------------1912、P7参数表--------------------------------------------20注意：内部资料不得外传2 / 24深圳市中航信息科技产业有限公司 王殿志3 / 241、清洁部分色带导向轴：掩膜和打印针：主板的清洁：有吸尘器的话就用吸尘器清理干净，如没有最好把主板拆下来清理。

机器内部纸屑定期清除、色带传感器走纸传感器都要定期清洁。

4 / 242、调整部分压纸杆间隙调整梭头相位调整调整的条件：1、 维修时移动或重新安装梭头2、 长时间打印3、 长时间打印窄行纸P7000 V6的新梭头要调紧一点深圳市中航信息科技产业有限公司 王殿志5 / 243、主要配件的区分PSA3内存 PSA 闪存PSA 内存PSA3闪存PSA3安全保护器PSA 安全保护多了个给梭头供电的插座、网卡集成6 / 24深圳市中航信息科技产业有限公司 王殿志7 / 244、主板和对应程序根据机器的具体情况选择正确的主板K A 的机器要选用C M X 或C F X 主板；P S A 的机器只能选用C F X 主板，注意P 5X 03H 和P 5X 06H 的机器有两种型号主板；P S A 3的机器要选用P P C 主板，要注意原主板是单插槽还是双插槽主板，否则闪存容量可能不够。

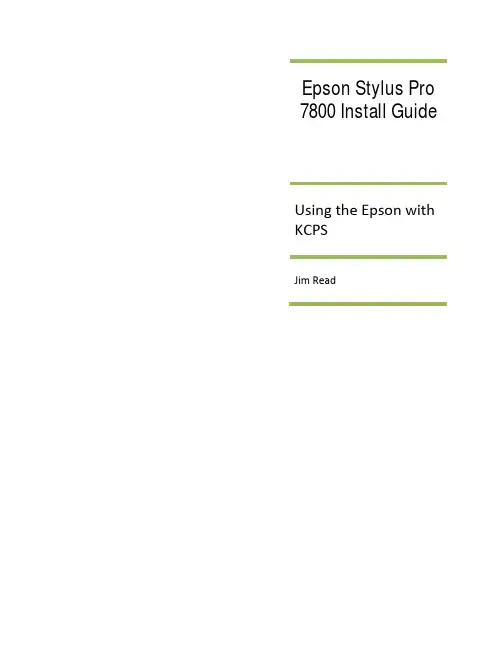

Epson Stylus Pro 7800 Install GuideUsing the Epson with KCPSJim ReadInstalling the Epson Stylus Pro Printer DriverDownload the latest driver from Epson’s website () and install according to their instructions. Verify that the Windows printer driver is working by printing from Photoshop or Paint. Setting Up a Printer in KCPS for the Epson Stylus Pro PrinterThe Epson Stylus Pro 7800 is supported as a Windows printer using Epson’s print driver.Log in to the KCPS Administration functions and go to Printing-Setup.Setting up the KCPS PrinterSet up a Windows printer for each print size that will be printed by the Epson 7880 printer.1.Open the Printer Setup window and click the “Windows printer” option from the list.2.Next, you’ll need to assign a printer name that is appropriate such as “Epson 16x20”.3.Click Next.4.Assign a Config File for this printer and give it a matching name such as “Epson 16x20”.5.Click Page Setup. Do not make changes here. Changes made in the printer’s page setup will bereflected here.6.From Page Setup, click Properties. Choose the media settings that are right for the paper.Key SettingsMode Settings - Mode (Color Management)Good results can be obtained if you do not use a color profile in KCPS thus delivering an sRGB image to the Epson driver and enabling Automatic color correction using Epson Standard (sRGB) correction in the driver. To use an ICC profile in KCPS for color correction, click Custom Mode and select No Color Adjustment from the drop-down menu.Size and ExpansionBelow are recommended settings to print a 16x24 on 24” roll paper:User Defined Paper SizePaper Size Name24x16Fix Aspect Ratio Not SpecifyPaper Width24.00Paper Height16.1 (this is 16 + 0.1”)Unit inchExpansionAuto Expand selectedAmount of Enlargement Standard (applies ~1.5% overspill on a 16x24)Configure the custom size and save it. Standard Auto Expansion provides adequate overspill.Set up KCPS to deliver a 16x24 image to the driver with this configuration and it will scale the image up about 1.5% to ensure there are no slivers of white along the edges of the roll and provide about 0.05“ at top and bottom so that the trim process will not leave any white slivers. This is similar to how minilabs ensure that the full print area is covered by the image.To set up other size prints, make the paper width exactly the desired size and the height 0.1” larger than the size desired. If 0.1” does not give enough tolerance for the trimming process, this can be increased to as much as 0.25” by adding more to the height of the print. The Epson print driver applies a sliding scale to the overspill percentage based on the size of the image. If the image width is less than the roll width the driver will place the image to one side of the roll and print the overspill on the opposite side to allow for the trim on that side.Setting Auto Expand to Retain Size turns the overspill feature off. This is useful when printing a grid of smaller images or a print with graphic elements near the edges of the image. Without the scaling each image within a grid will be the exact size intended and will not be cropped at the edges of the print.Setting the Amount of Expansion to Min will decrease the amount of scaling applied. A couple of sample 8x10’s showed 3% scaling on the Standard setting and 1.5% scaling on the Min setting.Auto ExpandThe Auto Expand feature is intended to cover any white slivers on the edges of the print by applying an overspill. Select Retain Size to turn this feature off. When printing on a roll of paper Auto Expand will fill in any sliver of white between the edge of the print and the edge of the roll and this cannot be achieved without the use of this feature. However, Auto Expand may not do exactly what you would expect. Consider a 16x24 poster printed on a 24” roll of paper; if this is printed using Retain Size there will probably be a sliver of white along one side or the other of the roll. Print it again with Auto Expand set to the Standard amount of enlargement and the Epson software will first scale the image up by 1.5% then crop the short dimension to exactly 16” and then print. The overspill in the long dimension will cover the white sliver but there will be no extra image in the short dimension to make trimming the image easier. This overspill in the short dimension can be added by changing the user defined paper size height by an amount up to 1.5% of the height or 0.24” on the 16x24 example. (Note: adding this amount to the Page Height will not trigger the Epson software to scale the image to fill a 16.24x24 before adding the 1.5% for overspill.) Adding less to the height has no effect other than to decrease the amount of overspill printed. Knowing that the Epson driver applies different percentages of overspill to different size prints lends understanding to Epson’s recommendation to add 0.1” to the height of any print size.When making prints that do not use the full width of the roll, the Epson software prints the image to one side of the roll (presumably to eliminate a cut when trimming the print). Without the use of Auto Expand there may be a sliver of white between the edge of the print and the edge of the paper. Turn Auto Expand on and the sliver will be taken care of plus the overspill is printed on the opposite side of the print.The white dashed lines represent the overspill. The height of the image is 16” without the overspill.Epson recommends printing the image 0.1” higher than the finished size but up to 0.24” can be used.The size of the finishedprint is 16”x20” after the overspill has been trimmed.Click the Page Layout tab.Choose Landscape.Leave all other settings at their defaults.Queue NameSet up a Queue for this printer and give it a matching name like “Epson 16x20”. Paper WidthUse the maximum paper width of 24 inches.ICC ProfileSelect the appropriate color space for your workflow.。

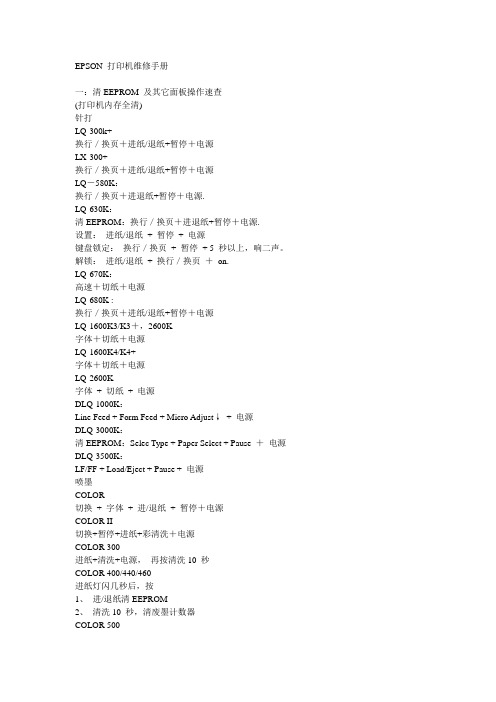

EPSON 打印机维修手册一：清EEPROM 及其它面板操作速查(打印机内存全清)针打LQ-300k+换行／换页＋进纸/退纸+暂停＋电源LX-300+换行／换页＋进纸/退纸+暂停＋电源LQ－580K：换行／换页＋进退纸+暂停＋电源.LQ-630K：清EEPROM：换行／换页＋进退纸+暂停＋电源.设置：进纸/退纸+ 暂停+ 电源键盘锁定：换行／换页+ 暂停+ 5 秒以上，响二声。
