签名：年月日附件1：外文资料翻译译文液压缸3.1 液压缸的分类及基本计算液压缸是液压传动系统中应用最多的执行元件,它将油液的压力能转换为机械能,实现往复直线运动或摆动,输出力或扭矩；其作用方式可分为单作用式和双作用式两种,单作用式液压缸只能实现单用运动,即压力油只是通向液压缸的一腔,而反方向运动则必须依靠外力来实现,如复位弹簧力,自重或其它外部作用；双作用式液压缸在两个方向上的运动都由油压力推动来实现,可实现双向运动。

液压缸可以看作是直线马达(或摆动马达),其单位位移排量即为液压缸的有效面积A ,当液压缸的回油压力为零且不计损失时,输出速度v 等于输入注量q 除以排量A,输出推力F 等于输入压力p 乘以排量A,即输入液压功率pq 等于输入机械功率Fv 。

液压缸有多种结构,但根据其具体结构特点可分为活塞式、柱塞式和摆动式三类基本形式,除此以外,还有在基本形式上发展起来各种特殊用途的组合液压缸,下面分别予以介绍。

3.1.1 活塞式液压缸活塞式液压缸可分为双杆式和单杆式两种结构形式,其安装方式有缸筒固定和活塞杆固定两种形式。

3.1.1.1 双杆活塞式液压缸图3.1所示为双杆活塞式液压缸的工作原理图,活塞两侧都有活塞杆伸出。

当两活塞杆直径相同,供油压力和流量不变时,活塞式液压缸在两个方向上的运动速度和推力都相等,即 )(422d D q A q v v -==πηην (3.1) ηπm p p d D F ))((42122--= (3.2)图3.1 双杆活塞式液压缸式中 v----液压缸的运动速度)/(s m ；F ----液压缸的推力)(N ；νη----液压缸的容积效率；m η----液压缸的机械效率；q ----液压缸的流量)/(3s m ；A ----液压缸的有效工作面积)(2m ；p 1----进油压力)(Pa ；2p ----回油压力)(Pa ； D ----活塞直径)(m ；d ----活塞杆直径)(m 。

外文原文：The Analysis of Cavitation Problems in the Axial Piston Pumpshu WangEaton Corporation，14615 Lone Oak Road,Eden Prairie，MN 55344This paper discusses and analyzes the control volume of a piston bore constrained by the valve plate in axial piston pumps。

The vacuum within the piston bore caused by the rise volume needs to be compensated by the flow; otherwise, the low pressure may cause the cavitations and aerations。

In the research, the valve plate geometry can be optimized by some analytical limitations to prevent the piston pressure below the vapor pressure。

The limitations provide the design guide of the timings and overlap areas between valve plate ports and barrel kidneys to consider the cavitations and aerations。

_DOI: 10。

1115/1.4002058_ Keywords: cavitation ，optimization, valve plate，pressure undershoots 1 IntroductionIn hydrostatic machines，cavitations mean that cavities or bubbles form in the hydraulic liquid at the low pressure and collapse at the high pressure region, which causes noise，vibration，and less efficiency.Cavitations are undesirable in the pump since the shock waves formed by collapsed may be strong enough to damage components. The hydraulic fluid will vaporize when its pressure becomes too low or when the temperature is too high. In practice，a number of approaches are mostly used to deal with the problems：（1) raise the liquid level in the tank，(2）pressurize the tank, （3）booster the inlet pressure of the pump，（4) lower the pumping fluid temperature，and （5) design deliberately the pump itself.Many research efforts have been made on cavitation phenomena in hydraulic machine designs。

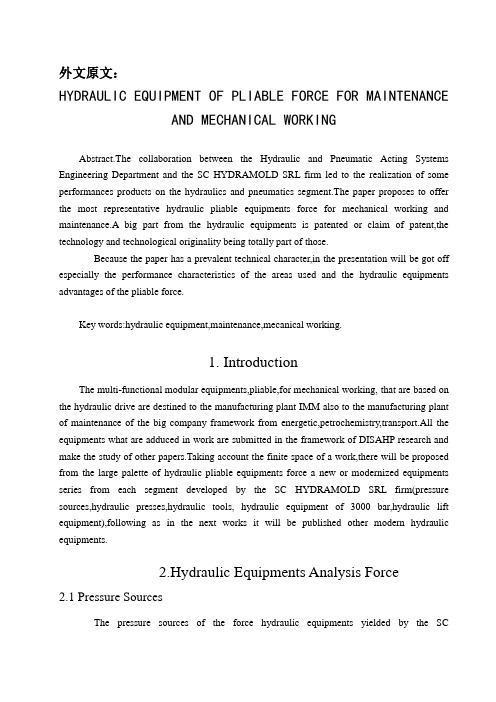

外文原文：HYDRAULIC EQUIPMENT OF PLIABLE FORCE FOR MAINTENANCEAND MECHANICAL WORKINGAbstract.The collaboration between the Hydraulic and Pneumatic Acting Systems Engineering Department and the SC HYDRAMOLD SRL firm led to the realization of some performances products on the hydraulics and pneumatics segment.The paper proposes to offer the most representative hydraulic pliable equipments force for mechanical working and maintenance.A big part from the hydraulic equipments is patented or claim of patent,the technology and technological originality being totally part of those.Because the paper has a prevalent technical character,in the presentation will be got off especially the performance characteristics of the areas used and the hydraulic equipments advantages of the pliable force.Key words:hydraulic equipment,maintenance,mecanical working.1.IntroductionThe multi-functional modular equipments,pliable,for mechanical working, that are based on the hydraulic drive are destined to the manufacturing plant IMM also to the manufacturing plant of maintenance of the big company framework from energetic,petrochemistry,transport.All the equipments what are adduced in work are submitted in the framework of DISAHP research and make the study of other papers.Taking account the finite space of a work,there will be proposed from the large palette of hydraulic pliable equipments force a new or modernized equipments series from each segment developed by the SC HYDRAMOLD SRL firm(pressure sources,hydraulic presses,hydraulic tools, hydraulic equipment of 3000 bar,hydraulic lift equipment),following as in the next works it will be published other modern hydraulic equipments.2.Hydraulic Equipments Analysis Force2.1 Pressure SourcesThe pressure sources of the force hydraulic equipments yielded by the SCHYDRAMOLD SRL are:the hydraulic acting units that have electric or thermal engine and the hydraulic manual or pedal pumps.·Hydraulic drive unit description with electric engineThe electro-hydraulic drive units HUEH are high pressure sources for the hydraulic cylinder supplying with simple or double action from some equipments structure,hydraulic installations or appliances,and they work with relative small rate flow and pressures of until 700 bars,(Fig.1).The working developed pressure can be adjusted depending on task:30-700 bar.Fig.1–The electro-hydraulic drive unit[1]1-electric engine;2-multiplier;3-oil receiver;4-operator’s desk.Table 1·AdvantagesThe electro-hydraulic drive unit advantages(HUEH)are:they offer the possibility to maintain into the pressure,respectively the hydraulic obstruct of the task and dispose of a precise setting of the pressure depending on the task until 700 bar;it allows the permanent control of the cylinder stroke and also the automatic commutation from the first step to the second pressure step respectively from the fast start to the technological breakthrough;it allows electric remote command,while the charging voltage is of 24 Vcc,having the oil temperature monitoring possibility and the automatic disconnect to the value of 55°C;it has the hydraulic components of the hydraulic panel(pump,valve, slide valve)and it functions in optimal behavior to maximumfrom the half nominal pressure,providing for advanced reliability;it has a low level noise (under70 db);it confers the simultaneous supplying possibility of 2,3 or 4 cylinders-through to an attached branch[2,3].·The hydraulic drive unit description with heat engineThe hydraulic drive units with heat engine(HUMUTH)proceed from the new products scale with a distinguished resilience into the field,and they function with small flow rate and pressures of until 700 bar,(fig.2).Fig.2–The hydraulic drive unit with heat engine[4]1-heat engine;2-multiplier;3-operator’s de sk;4-oil receiver.Table 2The hydraulic drive unit characteristics with heat engine[1].The hydraulic drive unit with heat engine has a manual command for thestart and thechanging of the pressure steps from the 1st step to the 2nd step itmakes manual too[4].·AdvantagesThe hydraulic drive unit offers similar advantages with those presented at the hydraulic drive unit with electric engine.The additional advantage consists of the mobility into the field as the result of a low weight and it doesn’t depe nd of a fixed power source(for example the connected of the unit to the line system).2.2.Hydraulic PressesThe hydraulic press workshop HPH-075 is composed from a stand shut framework(fixed top traverse columns,adjustable bottom traverse,basic plate) removable,a hydraulic cylinder with double action HCHD-075.150 installed on a transversal carriage,a plates set,pressing bolts and nuts,(Fig.3).Fig.3.–The hydraulic press 75[tf]1-Basic plate;2-Columns;3-Bottom traverse;4-Hydraulic cylinder HCHD-075.125;5-Top traverse;6-Pressing bolts;7-Pressing plates.Table 3The hydraulic press characteristics[1].Among the direct applications of this hydraulic presses deserve reminded: pressing and gear puller off of the transmission shafts from the gear boxes; pressing and puller ball bearings from the attack pinions from the tapering groups;pressing and extraction from jammed subsets;cold deformation for various proof sample.·AdvantagesThe hydraulic press has a modular construction,removable,having an indexed settlement system of the inferior traverse,at the various determinate heights of range of 75[mm].The transverse carriage of press represents an easy settlement system of the hydraulic cylinder position allowing thus the pressing axle regulation;The hydraulic press has plates set,bolts and pressing nuts for the realization of all technological operations;From the press project result an optimal report between its weight and achieved force owing to the acting to maximum pressures 700 bar,as effect of a reduced weight it is easy of carried.2.3.Hydraulic toolsThe hydraulic tool scale used in the mechanical processing and maintenance is various,with many applications in the mechanical engineering.There are reminded among these hydraulic tools:the device of the bending pipes and the hydraulic device of cutting.·The Device Description of Bending PipesThe bending template,fixed on acting rod of the hydraulic cylinder and having the suitableskewers profile so pipe dimension as well as inflexion beam,it will act over pipe that follows to be distorted;the pipe guides on the two ferries of the rest,fixed between the device plates.The superior plate of the appliance it can bate to allow the introduction of the template and of the ferries of the rest(Fig.5).The device of bending pipes type HDIT.M-020.300 is an equipment, hydraulic driven and it is destined to the bending at cold of the installations pipes in the maintenance and repairs sectors.Table 4The device characteristics of bending pipes[1]Fig.5.–The device of bending pipes[1]1- Tripod;2-Fixed plate;3-Turnover plate;4-Bolt;5-Hydraulic cylinder HCHD-020.300,6-Form.Table 5The working characteristics of device of bending pipes HDIT.M-020.300[1]·The Hydraulic Device Description of Cutting 20[tf]The device is formed from a metallic body,realized through welded construction,a hydraulic cylinder with simple action HCHS-020.028,a movable knife jointly mounted with the cylinder rod and a fixed knife body, (Fig.6).The hydraulic cylinder acting it realizes through the connection to a highpressure source(manual pump HPHM-700 or hydraulic pedal pump HPHP-700),through a fast coupling and hydraulic flexible pipe.The semi-finished product it installs between the two knives,while the cutting knife and the counter-knife establish the debiting of the semi-finished product from the steel.The retirement of the cutting knife it realizes by a spring incorporated into a cylinder.The hydraulic device of cutting HFMO-020.028 is a hydraulic drive device,used in the producing processes and maintenance with the view of cuttings at cold of the circular,square,hexagonal and flat bars steel.The movable knife run is of 28[mm]and the maximum pressure 700[bar],[1].Fig.6.–The hydraulic device of cutting 20[tf]1--2-Movable knife;3-Fixed knife;4-Feed nipple with oil under pressure.Table 6The working characteristics of hydraulic device of cutting type HFMO-020.028,[1].·AdvantagesThere are important to notice,among the hydraulic device advantages of cutting:the compact structure and modern design;the easy drivability and the reduced weight;it eliminates the useless physicals work of the operator;it lowers the appropriated time procedure.Scaling Behaviour of Pressure-Driven Micro-Hydraulic SystemsABSTRACTThis paper presents a lumped network approach for the modelling and design of micro-hydraulic systems.A hydraulic oscillator has been built consisting of hydraulic resistors,capacitors and transistors(pressure controlled valves).The scaling of micro-hydraulic networks consisting of linear resistors,capacitors and inertances has been studied.An important result is that to make smaller networks faster,driving pressures should increase with reducing size.1 INTRODUCTIONMicro-hydraulic systems can be modeled and designed using a generalized physical system description[1,2].This approach is based on the assumption that it is possible to separate and concentrate properties of a system into interconnected subsystems.It has proven its great value in the design of electronic circuits.The lumped network approach also offers a powerful design tool for microfluidic systems[3-5].To illustrate the far-reaching analogy between different physical domains,we have rebuilt an electronic astable multivibrator network in the hydraulic domain[4].The system consists of hydraulic capacitors, resistors,transistors and(parasitic)coils.Based on this micro-hydraulic system the scaling behaviour of low Re (Reynolds number)hydraulic systems has been analyzed.2 HYDRAULIC FUNDAMENTALSIn every physical domain a conserved quantity q can be distinguished[1].The flow is the rate of exchange of this conserved quantity between subsystems.In the hydraulic domain the flow variable is the volume flow.The effort is the tension that governs the exchange of the conserved quantity between subsystems.In the hydraulicdomain the effort variable is the pressure p[Pa].2.1 Hydraulic ResistorsThe hydraulic resistor physically is a liquid flow restriction,symbolically represented as in fig.1a.For a linear flow resistor,the resistance R is defined by:Where p12=p1–p2 is the pressure drop across the resistor, and the volume flow through the resistor.At sufficient low Re the flow in a duct is laminar and fully developed (Poisseuille flow),and the pressure drop p across the duct is proportional to the volume flow rate.For aduct of arbitrary cross section the resistance is given by[6]:Where f is the Fanning friction factor,L is the length of the channel,μis the viscosity of the liquid,Dh the hydrodynamic diameter,and A the cross sectional area.For a laminar fully developed flow the product f*Re=k,a dimensionless constant only depending on the shape of the cross section.The hydraulic resistors we have tested,were realized by anisotropic KOH-etching into a<100>silicon wafer and closing of the channel by anodic bonding of a glass wafer onto the silicon.Fig.1b-d show a side view,a cross section and a top view of the implemented restrictionsrespectively.Figure 1:Hydraulic resistor.a)Symbolic representationb)Side-view of realized restrictions c)Cross section ofealized restrictions d)Top view of a realized restriction.For these triangular channels with a top width of 2w the resistance is given by:The limits of the linear regime have been determined analytically and verified experimentally for liquids[7]. Entrance and exit effects result in a non-linear relation between p12 and.They can be neglected if the channel is long compared to the hydrodynamic entrance length.At low Re the entrance length Lhy increases linearly with Re.For circular channels with a diameter d this is expressed by [6]:2.2 Hydraulic CapacitorsThe hydraulic capacitor physically is an elastic membrane across which a pressure difference can be maintained.It is symbolically represented in fig.2a.The capacitor establishes a relation between the pressure drop across the membrane and the displaced volume.For a linear capacitor the capacitance C is defined by:Where V is the volume of the displaced liquid by bending of the membrane.Because the volume V is created by accumulation of the volume flow,(5)can be rewritten tofind a relation between effort and flow:Figure 2:Hydraulic capacitor a)Symbolic representation b)Cross section of a capacitor realized in glass-silicon-glass technology,showing the deflection of the membrane under influence of a pressure difference.Fig.2b shows a cross section of a capacitor realized in a glass-silicon-glass sandwich.For deflections smaller than the thickness of the membrane there is a linear relation between the applied pressure difference and the membrane deflection.In this case a simple expression for the capacitance can be derived:Where a is the radius of the membrane,and D is the flexural rigidity of the membrane,defined by ,in which E [Pa] is the Young's modulus,ν[-] the Poission's ratio,and h[m] the thickness of the membrane.中文译文：柔韧力液压设备维修和机械加工摘要：液压和气动代理系统工程部门和SC HYDRAMOLD SRL公司的合作实现了一些表演上的液压与气动领域的产品. 文章提出了提供最具代表性的为机械加工和维护液压圆滑设备力量。

DOC-机械专业毕业设计外文翻译--什么是液压-液压系统What is Hydraulic?A complete hydraulic system consists of five parts, namely, power components, the implementation of components, control components, no parts and hydraulic oil. The role of dynamic components of the original motive fluid into mechanical energy to the pressure that the hydraulic system of pumps, it is to power the entire hydraulic system. The structure of the form of hydraulic pump gears are generally pump, vane pump and piston pump. Implementation of components (such as hydraulic cylinders and hydraulic motors) which is the pressure of the liquid can be converted to mechanical energy to drive the load for a straight line reciprocating movement or rotational movement. Control components (that is, the various hydraulic valves) in the hydraulic system to control and regulate the pressure of liquid, flow rate and direction. According to the different control functions, hydraulic valves can be divided into the village of force control valve, flow control valves and directional control valve. Pressure control valves are divided into benefits flow valve (safety valve), pressure relief valve, sequence valve, pressure relays, etc.; flow control valves including throttle, adjusting the valves, flow diversion valve sets, etc.; directional control valve includes a one-way valve , one-way fluid control valve, shuttle valve, valve and so on. Under the control of different ways, can be dividedinto the hydraulic valve control switch valve, control valve and set thevalue of the ratio control valve. Auxiliary components, including fuel tanks, oil filters, tubing and pipe joints, seals, pressure gauge, oil level, such as oildollars. Hydraulic oil in the hydraulic system is the work of the energy transfer medium, there are a variety of mineral oil, emulsion oil hydraulic molding Hop categories.Hydraulic principleIt consists of two cylinders of different sizes and composition of fluid in the fluid full of water or oil. Water is called "hydraulic press"; the said oil-filled "hydraulic machine." Each of the two liquida sliding piston, if the increase in the small piston on the pressure of a certain value, according to Pascal's law, small piston to the pressure of the pressure through the liquid passed to the large piston, pistontop will go a long way to go. Based cross-sectional area of the small piston is S1, plus a small piston in the downward pressure on the F1. Thus, a small piston on the liquid pressure to P = F1/SI, Can be the same size in all directions to the transmission of liquid. "By the large piston is also equivalent to the inevitable pressure P. If the large piston is the cross-sectional area S2, the pressure P on the piston in the upward pressure generated F2 = PxS2Cross-sectional area is a small multiple of the piston cross-sectional area. From the type known to add in a small piston of asmaller force, the piston will be in great force, for which thehydraulic machine used to suppress plywood, oil, extract heavy objects, such as forging steel.History of the development of hydraulicAnd air pressure drive hydraulic fluid as the transmission is made according to the 17th century, Pascal's principle of hydrostatic pressure to drive the development of an emerging technology, the United Kingdom in 1795 Joseph (Joseph Braman ,1749-1814), in London water as a medium to form hydraulic press used in industry, the birth of theworld's first hydraulic press. Media work in 1905 will be replaced byoil-water and further improved.World War I (1914-1918) after the extensive application of hydraulic transmission, especially after 1920, more rapid development. Hydraulic components in the late 19th century about the early 20th century, 20 years, only started to enter the formal phase of industrial production. 1925 Vickers (F. Vikers) the invention of the pressure balanced vane pump, hydraulic components for the modern industrial or hydraulic transmission of the gradual establishment of the foundation. The early 20th century Constantine (G • Constantimsco) fluctuations of the ener gy carried out by passing theoretical and practical research; in 1910 on the hydraulic transmission (hydraulic coupling, hydraulic torque converter, etc.) contributions, so that these two areas of development.The Second World War (1941-1945) period, in the United States 30% of machine tool applications in the hydraulic transmission. It should be noted that the development of hydraulic transmission in Japan thanEurope and the United States and other countries for nearly 20 years later. Before and after in1955, the rapid development of Japan's hydraulic drive, set up in 1956, "Hydraulic Industry." Nearly 20 to 30 years, the development of Japan's fast hydraulic transmission, a world leader.Hydraulic transmission There are many outstanding advantages, it is widely used, such as general workers. Plastic processing industry, machinery, pressure machinery, machine tools, etc.; operating machinery engineering machinery, construction machinery, agricultural machinery, automobiles, etc.; iron and steel industry metallurgical machinery, lifting equipment, such as roller adjustment device; civil waterprojects with flood control the dam gates and devices, bed lifts installations, bridges and other manipulation of institutions; speed turbine power plant installations, nuclear power plants, etc.; ship deck crane (winch), the bow doors, bulkhead valves, such as the sternthruster ; special antenna technology giant with control devices, measurement buoys, movements such as rotating stage; military-industrial control devices used in artillery, ship anti-rolling devices, aircraft simulation, aircraft retractable landing gear and rudder control devices and other devices.什么是液压,一个完整的液压系统由五个部分组成，即动力元件、执行元件、控制元件、无件和液压油。

液压专业英语词汇流体传动 hydraulic power液压技术 hydraulics液力技术 hydrodynamics气液技术 hydropneumatics运行工况 operating conditions额定工况 rated conditions极限工况 limited conditions瞬态工况 instantaneous conditions稳态工况 steady-state conditions许用工况 acceptable conditions连续工况 continuous working conditions实际工况 actual conditions效率 efficiency旋转方向 direction of rotation公称压力 nominal pressure工作压力 working pressure进口压力 inlet pressure出口压力 outlet pressure压降 pressure drop；differential pressure 背压 back pressure启动压力 breakout pressure充油压力 charge pressure开启压力 cracking pressure峰值压力 peak pressure运行压力 operating pressure耐压试验压力 proof pressure冲击压力 surge pressure静压力 static pressure系统压力 system pressure控制压力 pilot pressure充气压力 pre-charge pressure吸入压力 suction pressure调压偏差 override pressure额定压力 rated pressure耗气量 air consumption泄漏 leakage内泄漏 internal leakage外泄漏 external leakage层流 laminar flow紊流 turbulent flow气穴 cavitation流量 flow rate排量 displacement额定流量 rated flow供给流量 supply flow流量系数 flower factor滞环 hysteresis图形符号 graphical symbol液压气动元件图形符号 symbols for hydraulic and pneumatic components流体逻辑元件图形符号 symbols for fluid logic devices逻辑功能图形符号 symbols for logic functions回路图 circuit diagram压力－时间图 pressure time diagram功能图 function diagram循环 circle自动循环 automatic cycle工作循环 working cycle循环速度 cycling speed工步 phase停止工步 dwell phase工作工步 working phase快进工步 rapid advance phase快退工步 rapid return phase频率响应 frequency response重复性 repeat ability复现性 reproducibility漂移 drift波动 ripple线性度 linearity线性区 linear region液压锁紧 hydraulic lock液压卡紧 sticking变量泵 variable displacement pump泵的控制 control of pump齿轮泵 gear pump叶片泵 vane pump柱塞泵 piston pump轴向柱塞泵 axial piston pump法兰安装 flange mounting底座安装 foot mounting液压马达 hydraulic motor刚度 stiffness中位 neutral position零位 zero position自由位 free position缸 cylinder有杆端 rod end无杆端 rear end外伸行程 extend stroke内缩行程 retract stroke缓冲 cushioning工作行程 working stroke负载压力 induced pressure输出力 force实际输出力 actual force单作用缸 single-acting cylinder双作用缸 double-acting cylinder差动缸 differential cylinder伸缩缸 telescopic cylinder阀 valve底板 sub-plate油路块 manifold block板式阀 sub-plate valve叠加阀 sandwich valve插装阀 cartridge valve滑阀 slide valve锥阀 poppet valve阀芯 valve element阀芯位置 valve element position单向阀 check valve液控单向阀 pilot-controlled check valve 梭阀 shuttle valve压力控制阀 pressure relief valve溢流阀 pressure relief valve顺序阀 sequence valve减压阀 pressure reducing valve平衡阀 counterbalance valve卸荷阀 unloading valve直动式 directly operated type先导式 pilot-operated type机械控制式 mechanically controlled type 手动式 manually operated type液控式 hydraulic controlled type流量控制阀 flow control valve固定节流阀 fixed restrictive valve可调节流阀 adjustable restrictive valve 单向节流阀 one-way restrictive valve调速阀 speed regulator valve分流阀 flow divider valve集流阀 flow-combining valve截止阀 shut-off valve球阀 global(ball) valve针阀 needle valve闸阀 gate valve膜片阀 diaphragm valve蝶阀 butterfly valve噪声等级noise level放大器 amplifier模拟放大器 analogue amplifier数字放大器 digital amplifier传感器 sensor阈值 threshold伺服阀 servo-valve四通阀 four-way valve喷嘴挡板 nozzle flapper液压放大器 hydraulic amplifier颤振 dither阀极性 valve polarity流量增益 flow gain对称度 symmetry流量极限 flow limit零位内泄漏 null(quiescent) leakage 遮盖 lap零遮盖 zero lap正遮盖 over lap负遮盖 under lap开口 opening零偏 null bias零漂 null drift阀压降 valve pressure drop分辨率 resolution频率响应 frequency response幅值比 amplitude ratio相位移 phase lag传递函数 transfer function管路 flow line硬管 rigid tube软管 flexible hose工作管路 working line回油管路 return line补液管路 replenishing line控制管路 pilot line泄油管路 drain line放气管路 bleed line接头 fitting；connection焊接式接头 welded fitting扩口式接头 flared fitting快换接头 quick release coupling法兰接头 flange connection弯头 elbow异径接头 reducer fitting流道 flow pass油口 port闭式油箱 sealed reservoir油箱容量 reservoir fluid capacity气囊式蓄能器bladder accumulator空气污染 air contamination固体颗粒污染 solid contamination液体污染 liquid contamination空气过滤器 air filter油雾气 lubricator热交换器 heat exchanger冷却器 cooler加热器 heater温度控制器 thermostat消声器 silencer双筒过滤器 duplex filter过滤器压降 filter pressure drop有效过滤面积 effective filtration area公称过滤精度 nominal filtration rating压溃压力 collapse pressure填料密封 packing seal机械密封 mechanical seal径向密封 radial seal旋转密封 rotary seal活塞密封 piston seal活塞杆密封 rod seal防尘圈密封 wiper seal；scraper组合垫圈 bonded washer复合密封件 composite seal弹性密封件 elastomer seal丁腈橡胶 nitrile butadiene rubber；NBR聚四氟乙烯 polytetrafluoroethene；PTFE优先控制 override control压力表 pressure gauge压力传感器 electrical pressure transducer 压差计 differential pressure instrument液位计 liquid level measuring instrument 流量计 flow meter压力开关 pressure switch脉冲发生器 pulse generator液压泵站 power station空气处理单元 air conditioner unit压力控制回路 pressure control circuit安全回路 safety circuit差动回路 differential circuit调速回路 flow control circuit进口节流回路 meter-in circuit出口节流回路 meter-out circuit同步回路 synchronizing circuit开式回路 open circuit闭式回路 closed circuit管路布置 pipe-work管卡 clamper联轴器 drive shaft coupling操作台 control console控制屏 control panel避震喉 compensator粘度 viscosity运动粘度 kinematic viscosity密度 density含水量 water content闪点 flash point防锈性 rust protection抗腐蚀性 anti-corrosive quality便携式颗粒检测仪 portable particle counter Solenoid valve 电磁阀Check valve 单向阀Cartridge valve 插装阀Sandwich plate valve 叠加阀Pilot valve 先导阀Pilot operated check valve 液控单向阀Sub-plate mount 板式安装Manifold block 集成块Pressure relief valve 压力溢流阀Flow valve 流量阀Throttle valve 节流阀Double throttle check valve 双单向节流阀Rotary knob 旋钮Rectifier plate 节流板Servo valve 伺服阀Proportional valve 比例阀Position feedback 位置反馈Progressive flow 渐增流量De-energizing of solenoid 电磁铁释放二、介质类Phosphate ester (HFD-R) 磷酸甘油酯Water-glycol (HFC) 水-乙二醇Emulsion 乳化液Inhibitor缓蚀剂Synthetic lubricating oil 合成油三、液压安装工程Contamination 污染Grout 灌浆Failure 失效Jog 点动Creep爬行Abrasion 摩擦Retract（活塞杆）伸出Extension （活塞杆）缩回Malfunction 误动作Pickling 酸洗Flushing 冲洗Dipping process 槽式酸洗Re-circulation 循环Passivity 钝化Nitric acid 柠檬酸Argon 氩气Butt welding 对接焊Socket welding 套管焊Inert gas welding 惰性气体焊四、管接头Bite type fittings 卡套式管接头Tube to tube fittings 接管接头union 直通接管接头union elbow 直角管接头union tee 三通管接头union cross 四通管接头Mal stud fittings 端直通管接头Bulkhead fittings 长直通管接头Weld fittings 焊接式管接头Female connector fittings 接头螺母Reducers extenders 变径管接头Banjo fittings 铰接式管接头Adjustable fittings/swivel nut 旋转接头五、伺服阀及伺服系统性能参数Dynamic response 动态频响DDV-direct drive valve 直动式伺服阀NFPA-National Fluid Power Association 美国流体控制学会Phase lag 相位滞后Nozzle flapper valve 喷嘴挡板阀Servo-jet pilot valve 射流管阀Dither 颤振电流Coil impedance 线圈阻抗Flow saturation 流量饱和Linearity 线形度Symmetry 对称性Hysterics 滞环Threshold 灵敏度Lap 滞后Pressure gain 压力增益Null 零位Null bias 零偏Null shift 零飘Frequency response 频率响应Slope 曲线斜坡液压系统（hydraulic system）执行元件（actuator）液压缸（cylinder）液压马达（motor）液压回路（circuit）压力控制回路（pressure control）流量（速度）控制回路（speed control）方向控制回路（directional valve control）安全回路（security control）定位回路（position control）同步回路（synchronise circuit）顺序动作回路（sequeunt circuit）液压泵（pump）阀（valve）压力控制阀（pressure valve）、流量控制阀（flow valve）方向控制阀（directional valve）液压辅件（accessory）普通阀（common valve）插装阀（cartridge valve）叠加阀（superimposed valve液压英文资料流体传动hydraulic power液压技术hydraulics液力技术hydrodynamics气液技术hydropneumatics运行工况operatingconditions额定工况ratedconditions极限工况limitedconditions瞬态工况instantaneous conditions稳态工况steady-state conditions许用工况acceptableconditions连续工况continuousworking conditions实际工况actualconditions效率 efficiency旋转方向directionof rotation公称压力nominalpressure工作压力workingpressure进口压力inletpressure出口压力outletpressure压降 pressure drop；differentialpressure 背压 back pressure启动压力breakoutpressure充油压力chargepressure开启压力crackingpressure峰值压力peakpressure运行压力operatingpressure耐压试验压力proofpressure冲击压力surgepressure静压力staticpressure系统压力systempressure控制压力pilotpressure充气压力pre-chargepressure吸入压力suctionpressure调压偏差overridepressure额定压力ratedpressure耗气量 air consumption泄漏 leakage内泄漏 internal leakage外泄漏 external leakage层流 laminar flow紊流 turbulent flow气穴 cavitation流量 flow rate排量 displacement额定流量rated flow供给流量supply flow流量系数flower factor滞环 hysteresis图形符号graphical symbol液压气动元件图形符号symbols for hydraulic and pneumaticcomponents流体逻辑元件图形符号symbols for fluid logic devices 逻辑功能图形符号 symbols for logic functions回路图 circuit diagram压力－时间图pressure time diagram功能图 function diagram循环 circle自动循环automatic cycle工作循环working cycle循环速度cycling speed工步 phase停止工步dwell phase工作工步working phase快进工步rapid advance phase快退工步rapid return phase 频率响应frequency responseHysterics 滞环Threshold 灵敏度Lap 滞后Pressure gain 压力增益Null 零位Null bias 零偏Null shift 零飘Frequency response 频率响应Slope 曲线斜坡液压系统（hydraulic system）执行元件（actuator）液压缸（cylinder）液压马达（motor）液压回路（circuit）压力控制回路（pressurecontrol）流量（速度）控制回路（speedcontrol）方向控制回路（directionalvalve control）安全回路（securitycontrol）定位回路（positioncontrol）同步回路（synchronisecircuit）顺序动作回路（sequeuntcircuit）液压泵（pump）阀（valve）压力控制阀（pressurevalve）、流量控制阀（flow valve）方向控制阀（directionalvalve）液压辅件（accessory）普通阀（commonvalve）插装阀（cartridge valve）叠加阀（superimposedvalve四、管接头Bite type fittings 卡套式管接头Tube to tube fittings 接管接头union 直通接管接头union elbow 直角管接头union tee 三通管接头union cross 四通管接头Mal stud fittings 端直通管接头Bulkhead fittings 长直通管接头Weld fittings 焊接式管接头Female connector fittings 接头螺母Reducers extenders 变径管接头Banjo fittings 铰接式管接头Adjustable fittings/swivel nut 旋转接头五、伺服阀及伺服系统性能参数Dynamic response 动态频响DDV-direct drive valve 直动式伺服阀NFPA-National Fluid Power Association 美国流体控制学会Phase lag 相位滞后Nozzle flapper valve 喷嘴挡板阀Servo-jet pilot valve 射流管阀Dither 颤振电流Coil impedance 线圈阻抗Flow saturation 流量饱和Linearity 线形度Symmetry 对称性Throttle valve 节流阀Double throttle check valve 双单向节流阀Rotary knob 旋钮Rectifier plate 节流板Servo valve 伺服阀Proportional valve 比例阀Position feedback 位置反馈Progressive flow 渐增流量De-energizing of solenoid 电磁铁释放二、介质类Phosphate ester (HFD-R) 磷酸甘油酯Water-glycol (HFC) 水-乙二醇Emulsion 乳化液Inhibitor缓蚀剂Synthetic lubricating oil 合成油三、液压安装工程Contamination 污染Grout 灌浆Failure 失效Jog 点动Creep爬行Abrasion 摩擦Retract（活塞杆）伸出Extension （活塞杆）缩回Malfunction 误动作Pickling 酸洗Flushing 冲洗Dipping process 槽式酸洗Re-circulation 循环Passivity 钝化Nitric acid 柠檬酸Argon 氩气Butt welding 对接焊Socket welding 套管焊Inert gas welding 惰性气体焊空气处理单元 air conditioner unit压力控制回路 pressurecontrol circuit 安全回路 safety circuit差动回路differential circuit调速回路 flowcontrol circuit进口节流回路 meter-incircuit出口节流回路 meter-outcircuit同步回路synchronizing circuit开式回路 opencircuit闭式回路 closedcircuit管路布置 pipe-work管卡clamper联轴器drive shaft coupling 操作台control console控制屏control panel避震喉compensator粘度viscosity运动粘度 kinematicviscosity密度density含水量water content闪点flash point防锈性rust protection 抗腐蚀性anti-corrosive quality便携式颗粒检测仪 portableparticle counter Solenoid valve 电磁阀Check valve 单向阀Cartridge valve 插装阀Sandwich plate valve 叠加阀Pilot valve 先导阀Pilot operated check valve 液控单向阀Sub-plate mount 板式安装Manifold block 集成块Pressure relief valve 压力溢流阀Flow valve 流量阀冷却器cooler加热器heater温度控制器 thermostat消声器silencer双筒过滤器 duplexfilter过滤器压降 filterpressure drop有效过滤面积 effectivefiltration area公称过滤精度 nominalfiltration rating压溃压力 collapsepressure填料密封 packingseal机械密封 mechanicalseal径向密封 radialseal旋转密封 rotaryseal活塞密封 pistonseal活塞杆密封 rod seal防尘圈密封 wiper seal；scraper组合垫圈 bondedwasher复合密封件 compositeseal弹性密封件 elastomerseal丁腈橡胶 nitrilebutadiene rubber；NBR聚四氟乙烯polytetrafluoroethene；PTFE优先控制 overridecontrol压力表pressure gauge压力传感器 electricalpressure transducer压差计differential pressure instrument 液位计liquid level measuring instrument 流量计flow meter压力开关 pressure switch脉冲发生器 pulse generator液压泵站 power station遮盖lap零遮盖zero lap正遮盖over lap负遮盖under lap开口opening零偏null bias零漂null drift阀压降valve pressure drop 分辨率resolution频率响应 frequencyresponse 幅值比amplitude ratio 相位移phase lag传递函数 transferfunction管路flow line硬管rigid tube软管flexible hose工作管路 workingline回油管路 returnline补液管路replenishing line 控制管路 pilot line泄油管路 drain line放气管路 bleed line接头fitting；connection 焊接式接头 welded fitting扩口式接头 flared fitting快换接头 quick release coupling 法兰接头 flange connection弯头elbow异径接头 reducer fitting流道flow pass油口port闭式油箱 sealed reservoir油箱容量 reservoir fluid capacity 气囊式蓄能器bladder accumulator 空气污染 air contamination固体颗粒污染 solid contamination 液体污染 liquid contamination 空气过滤器 air filter油雾气lubricator热交换器 heat exchanger分流阀flow divider valve 集流阀flow-combining valve截止阀shut-off valve球阀global(ball) valve针阀needle valve闸阀gate valve膜片阀 diaphragm valve蝶阀butterfly valve噪声等级noise level放大器amplifier模拟放大器 analogue amplifier数字放大器 digital amplifier传感器sensor阈值threshold伺服阀servo-valve四通阀four-way valve喷嘴挡板 nozzle flapper 液压放大器 hydraulic amplifier颤振dither阀极性valve polarity流量增益 flow gain对称度symmetry流量极限 flow limit零位内泄漏 null(quiescent) leakage重复性repeat ability复现性reproducibility漂移drift波动ripple线性度linearity线性区linear region液压锁紧 hydrauliclock液压卡紧 sticking变量泵variable displacement pump 泵的控制 control ofpump齿轮泵gear pump叶片泵vane pump柱塞泵piston pump轴向柱塞泵 axialpiston pump法兰安装 flangemounting底座安装 footmounting液压马达 hydraulicmotor刚度stiffness中位neutral position零位zero position自由位free position缸 cylinder有杆端rod end无杆端rear end外伸行程 extend stroke内缩行程 retract stroke缓冲cushioning工作行程 working stroke负载压力 induced pressure输出力force实际输出力 actual force单作用缸 single-acting cylinder 双作用缸 double-acting cylinder 差动缸differential cylinder 伸缩缸telescopic cylinder阀valve底板sub-plate油路块manifold block板式阀sub-plate valve叠加阀sandwich valve插装阀cartridge valve滑阀slide valve锥阀poppet valve阀芯valve element阀芯位置 valve element position单向阀check valve液控单向阀 pilot-controlled check valve 梭阀shuttle valve压力控制阀 pressure relief valve溢流阀pressure relief valve顺序阀sequence valve 减压阀pressure reducing valve平衡阀counterbalance valve卸荷阀unloading valve 直动式directly operated type先导式pilot-operated type机械控制式 mechanically controlled type 手动式manually operated type液控式hydraulic controlled type 流量控制阀 flow control valve 固定节流阀 fixed restrictive valve可调节流阀 adjustable restrictive valve 单向节流阀 one-way restrictive valve调速阀speed regulator valveSolenoid valve电磁阀Check valve单向阀Cartridge valve插装阀Sandwich plate valve叠加阀Pilot valve先导阀Pilot operated check valve液控单向阀Sub-plate mount板式安装Manifold block集成块Pressure relief valve压力溢流阀Flow valve流量阀Throttle valve节流阀Double throttle check valve双单向节流阀Rotary knob旋钮Rectifier plate节流板Servo valve伺服阀Proportional valve比例阀Position feedback位置反馈Progressive flow渐增流量De-energizing of solenoid电磁铁释放Phosphate ester(HFD-R)磷酸甘油酯Water-glycol(HFC)水-乙二醇Emulsion乳化液Inhibitor缓蚀剂Synthetic lubricating oil合成油Contamination污染Grout灌浆Failure失效Jog点动Creep爬行Abrasion摩擦Retract（活塞杆）伸出Extension（活塞杆）缩回Malfunction误动作Pickling酸洗Flushing冲洗Dipping process槽式酸洗Re-circulation循环Passivity钝化Nitric acid柠檬酸 Argon氩气Butt welding对接焊Socket welding套管焊Inert gas welding惰性气体焊四、管接头Bite type fittings卡套式管接头Tube to tube fittings接管接头union直通接管接头union elbow直角管接头union tee三通管接头union cross四通管接头Mal stud fittings端直通管接头Bulk head fittings长直通管接头Weld fittings焊接式管接头Female connector fittings接头螺母Reducers extenders变径管接头Banjo fittings铰接式管接头Adjustable fittings/swivel nut旋转接头五、伺服阀及伺服系统性能参数Dynamic response动态频响DDV-direct drive valve直动式伺服阀NFPA-National Fluid Power Association美国流体控制学会Phase lag相位滞后Nozzle flapper valve喷嘴挡板阀Servo-jet pilot valve射流管阀Dither颤振电流Coil impedance线圈阻抗Flow saturation流量饱和Linearity线形度Symmetry对称性Hysterics滞环Threshold灵敏度Lap滞后Pressure gain压力增益Null零位Null bias零偏Null shift零飘Frequency response频率响应Slope曲线斜坡Aability 性能；能力load-carrying ability 承载能力absorber 吸收器；吸收剂；过滤器；减震器accessories 辅件，附件，配件hydraulic accessories 液压辅件accumulate 储存；蓄能；累积accumulator 蓄能器；蓄电池；累加器accuracy 准确性；精度action 作用；动作；作用力；行程actuated 操纵，控制directly actuated 直接操纵的，直接控制的pilot actuated 先导控制的，液控的actuator 执行元件；液压缸；马达adapter 接头；衬套；压环；连接件pipe adapter 管接头admission 供给，供油，供气alignment 找正，定心，对中amplifier 放大器differential pressure amplifier 压差放大器flow amplifier 流量放大器assembly 组合，组件，机组axis 轴Bback-flow 回流back-up 支撑hydrostatic back-up 静压支撑barrel 桶，缸体base 底座；支座bearing 支承；轴承；方位radial ball bearing 径向球轴承rolling bearing 滚动轴承sliding bearing 滑动轴承thrust bearing 止推轴承bed 台pump test bed 泵试验台behavior 性能；工况bend 弯头；弯管blade 叶片flat blade 平面叶片forward inclined blade 前倾叶片guide blade 导叶radial blade 径向叶片bleed 排气air bleed 排气阀bleeder 排气孔block 块；封闭；块体cartridge valve block 插装阀块体choke block 节流板directional control block 多路阀，方向控制阀组panel block 阀板组body 体；缸筒；阀体，壳体pump body 泵体tank body 箱体valve body 阀体bolt 螺栓；插销；螺杆boss 轮毂bottom 底；底部cylinder bottom 缸底；缸后盖bracket 支架pump bracket 泵架bubble-tight 气密的buffer 缓冲器，阻尼器bush(ing) 套，导向套；衬套Ccap 帽,盖,罩,塞cylinder end cap 缸端盖cylinder head cap 缸前盖capacity 容量;功率;排量;流量effective capacity 有效排量,实际排量geometric capacity 几何排量,理论排量casing 套,壳,罩gear casing 齿轮箱，变速箱pump casing 泵体cavitation 气蚀cavity 腔centering 中心调整，定心chamber 腔，室；容积；油腔；气腔chamfer 槽；倒角changement 换向机构characteristic 特性曲线；特征线charger 加载装置charging 充液；充压choke 节流；节流口chord 弦circlip 弹性挡圈circuit 回路clearance 间隙clog 阻塞；堵塞cock 龙头collar 圈；法兰盘cushion collar 缓冲套locating collar 定位凸缘套loose collar 轴肩挡圈thrust collar 止推环connection 连接；连接管路；接头consumption 消耗量cylinder 缸；液压缸Ddebugging 排除故障；调试deflation 排气delivery 流量differential 差动的；微分的displacement 压出；排出；排量；位移dowel 定位销drained 泄油的duty 负载，功率；工况Eeffect 作用;效应cavitate effect 气蚀效应choking effect 节流作用elbow 弯头electro-hydraulic 电液的entrap 困油escape 泄漏,逸出,排出etching 蚀刻;腐蚀gas etching 气蚀exhaust 排泄;回油;Ffailure 故障;事故;损坏,失效fastener 紧固件fatigue 疲劳feedback 反馈filler 加油口,注油口;填料;垫片filter 滤油器flow 流;液流;流程;流束;流量;流动nominal flow 公称流量rated flow 额定流量stationary flow 定常流,定常流动streamline flow 层流turbulent flow 紊流volume flow 体积流量flowline 管路;流线flow-regulator 流量调节阀fluctuation 脉动fluid 流体,液体;射流hydraulic operating fluid 液压油incompressible fluid 不可压缩流体frame 座,架Ggain 增益flow gain 流量增益feedback gain 反馈增益gap 间隙,缝隙gear 齿轮,装置,机构governing 调节,控制Hhead 缸头,头部;盖;水头;扬程cylinder head 缸头static head 静压头theoretic head 理论能头total head 总能头water head 水头hole 孔,洞air hole 气孔blind hole 盲孔bolt hole 螺栓孔bose 胶管,软管housing 壳体;槽hub 毂;衬套hydrostatics 液压技术,液体静力学Iidling 空转impact 冲击,撞击impeller 叶轮closed impeller 闭式叶轮open impeller 开式叶轮pump impeller 泵叶轮incidence 入射;入射角blade incidence 叶片安装角incompressible 不可压缩的inlet 进口;吸入intensifier 增压器intensity 强度Jjack (柱塞)缸;千斤顶joint 接头;关节cross joint 十字接头flange joint 法兰式接头screwed joint 螺纹接头journal 轴颈jump 跳动;振动pressure jump 压力突变Kkeyway 键槽Llag 滞后;延迟servovalve phase lag 伺服阀相位滞后laminar 层流的latch 插销;锁紧装置;锁定leak 漏;漏油;渗漏处;漏出物line 管路;线路liner 衬套;导向套;内层胶liquid 液体(的);液力的load 负载;载荷location 位置;定位;安装lock 锁;闭锁;液压卡紧loop 环;环路;回路;循环control loop 控制回路,调节回路main loop 主回路servo loop 伺服回路loss 损失bend loss 弯头损失blade loss 叶片损失line loss 管路损失local pressure loss 局部压力损失partial loss 局部损失lubricate 润滑lug 耳轴lifting lug 吊环Mmandrel 心轴;芯棒manometer 压力机,压力表meter 米;仪表;计量;节制;控制(流量);流量计meter-in 进口节流meter-out 出口节流motion 动作alternative motion 往复运动lost motion 空转synchronized motion 同步运动motor 发动机,液压马达axial piston motor 轴向柱塞马达bent axis piston motor 斜轴式轴向柱塞马达cam plate type axial piston motor 斜盘式轴向柱塞马达constant displacement motor 定量马达radial motor 径向马达sliding vane motor 叶片马达swing motor 摆动马达Nnominal 额定的,公称的notch 凹槽relief notch 卸荷槽null 零位Ooff-load 卸荷oil 油oiler 注油器olive 球面卡套grooved olive 迷宫密封环operation 运行;操作;运算orifice 小孔;节流孔O-ring O型密封圈output 输出;排量;流量overload 过载Ppack 包,捆;组合件,部件,单元power pack 液压泵站package包,捆;组件,单元hydraulic package 液压泵站power package 泵站packing 密封;密封装置;填料密封pad 衬垫;底座asbestos pad 石棉垫valve pad 阀垫parameter 参数part 部分;零件;部件partition 隔板passage 流道;通道;通过pedestal 支座,底座motor pedestal 电动机座phenomenon 现象stick-alip phenomenon 爬行现象trapping phenomenon 困油现象piece 零件,部件pilot(-actuate,-operate) 先导控制;液控piloted 先导控制的pin 销;插头alignment pin 定位销cottar pin 开口销locking pin 锁紧销piston pin 活塞销straight pin 圆柱销pipe 管子,管道(尤指铸铁管和钢管) piston 活塞;柱塞;阀芯double acting piston 双作用活塞double rod piston 双杆活塞hollow piston 空心活塞single-rod piston 单杆活塞pit 坑;槽pitch 节距pitting 凹痕;锈斑;点蚀plug 堵塞;阻塞;堵头air release plug 排气塞plug-in 插入式的,组合式的poppet 提动阀芯,座阀芯,锥阀芯,碟形阀芯pore 孔;孔隙port 油口;连接口position 位置;状态;定位center valve position 阀的中间位置neutral position 中位;零位three position 三位two position 二位pressure 压力,压强;气压pulsation 脉动,波动pump 泵bent axis axial piston pump 斜轴式轴向柱塞泵booster pump 辅助泵,充液泵cam plate type axial piston pump 斜盘式轴向柱塞泵centrifugal pump 离心泵constant delivery pump 定量泵cycloid rotor pump 摆线转子泵double action vane pump 双作用叶片泵gear pump 齿轮泵multi-stage pump 多级泵single action vane pump 单作用叶片泵vane pump 叶片泵variable capacity pump 变量泵Rrabbet 球铰rack 齿条;机架racing 空转radian 弧度radius 半径range 范围,量程rated 额定的regulation 调节,调整regulator 调节器,调压阀differential pressure regulator 定差减压阀proportional pressure regulator 定比减压阀relay 继电器relief 释压;溢流;卸荷reset 复位restriction 节流;阻尼,节流口,阻尼孔restrictor 节流阀;节流口;阻尼孔reversal 反转,倒转revolution 旋转;转数rider 导向套ring 环,圈anti-extrusion ring 密封挡圈,挡圈back support ring 后支承环back-up ring 挡圈bearing ring 导向套dust ring 防尘圈retainer ring 卡环seal ring 密封圈;密封环rod 杆;活塞杆Sscrew 螺杆,螺钉,丝杆,螺旋seal 密封;封口;密封件;密封装置seat 阀座,座seizure 卡死,咬住,擦伤selector 换向阀servo 伺服;伺服机构,伺服系统servomotor 伺服马达servopump 伺服泵servovalve 伺服阀set 组件;定位;集合shaft 轴pump shaft 泵轴sleeve 套;套管;卡套;阀套slot 缝,隙,槽spring 弹簧stroke 行程symbol 符号functional symbol 职能符号Ttank 箱,缸;油箱;容器tee 三通接头,三通throttle 节流;节流阀trapping 困油travel 位移;行程tube 管子(尤指有色金属和无缝钢管) tubeline 管路Uunion 中间接头;直通接头Vvalve 阀back pressure valve 背压阀bypass valve 旁通阀;溢流阀change valve 换向阀check valve 单向阀direct operated solenoid valve 电磁阀flow regulating valve 调速阀four port valve 四通阀four position valve 四位阀hand operated valve 手动阀hydraulic operated check valve 液控单向阀overflow valve 溢流阀overload relief valve 安全阀;过载溢流阀piloted valve 先导式阀vane 叶片diffusion vane 导叶vent 放气;排气孔volume 容积,体积displacement volume 排量Wwasher 垫圈;衬垫wiper 防尘圈Zzone 地带;区(域)dead zone 死区high pressure zone 高压区low pressure zone 低压区一、阀类Solenoid valve 电磁阀Check valve 单向阀Cartridge valve 插装阀Sandwich plate valve 叠加阀Pilot valve 先导阀Pilot operated check valve 液控单向阀Sub-plate mount 板式安装Manifold block 集成块Pressure relief valve 压力溢流阀Flow valve 流量阀Throttle valve 节流阀Double throttle check valve 双单向节流阀 Rotary knob 旋钮Rectifier plate 节流板Servo valve 伺服阀Proportional valve 比例阀Position feedback 位置反馈Progressive flow 渐增流量De-energizing of solenoid 电磁铁释放二、介质类Phosphate ester (HFD-R) 磷酸甘油酯Water-glycol (HFC) 水-乙二醇Emulsion 乳化液Inhibitor缓蚀剂Synthetic lubricating oil 合成油三、液压安装工程Contamination 污染Grout 灌浆Failure 失效Jog 点动Creep爬行Abrasion 摩擦Retract（活塞杆）伸出Extension （活塞杆）缩回Malfunction 误动作Pickling 酸洗Flushing 冲洗Dipping process 槽式酸洗Re-circulation 循环Passivity 钝化Nitric acid 柠檬酸Argon 氩气Butt welding 对接焊Socket welding 套管焊Inert gas welding 惰性气体焊四、管接头Bite type fittings 卡套式管接头 Tube to tube fittings 接管接头 union 直通接管接头union elbow 直角管接头union tee 三通管接头union cross 四通管接头Mal stud fittings 端直通管接头Bulkhead fittings 长直通管接头Weld fittings 焊接式管接头Female connector fittings 接头螺母Reducers extenders 变径管接头Banjo fittings 铰接式管接头Adjustable fittings/swivel nut 旋转接头五、伺服阀及伺服系统性能参数Dynamic response 动态频响DDV-direct drive valve 直动式伺服阀NFPA-National Fluid Power Association 美国流体控制学会 Phase lag 相位滞后Nozzle flapper valve 喷嘴挡板阀Servo-jet pilot valve 射流管阀Dither 颤振电流Coil impedance 线圈阻抗Flow saturation 流量饱和Linearity 线形度Symmetry 对称性Hysterics 滞环Threshold 灵敏度Lap 滞后Pressure gain 压力增益Null 零位Null bias 零偏Null shift 零飘Frequency response 频率响应 Slope 曲线斜坡。

外文原文：Theory of fluid propertiesWe will concentrate mainly on three fluid properties in this chapter:• The density which leads to mass and hence to hydraulic inertia effects.• The viscosity which leads to the hydraulic friction effects.• The compressi bility and thus the bulk modulus which leads to the hydraulic system stiffness. Notice that the compressibility effect can be modified by air release, cavitation phenomena and by expansion of a pipe, hose or chamber containing the hydraulic fluid.1 Density and compressibility coefficientThe density is the mass of a substance per unit volume:Density has dimensions of [M/L3] and is expressed in kilograms per cubic meter [kg/m3]. As mentioned previously the density is a function of the pressure and the temperature:This function can be approximated by the first three terms of a Taylor series:This can also be expressed as:WithAndThis equation is the linearized state equation for a liquid. Using the definition of thedensity, the two coefficients α and B can also be expressed as:B is known as the isothermal bulk modulus or for simplicity the bulk modulus and α is known as the cubical expansion coefficient. Since fluid density varies with the applied pressure, this implies that a given mass of fluid submitted to a pressure change changes its volume. This phenomenon leads to the definition of the compressibility coefficient β:where β is expressed in units Pa 1 (or m2/N). Considering the relation for a closed hydraulic circuit the mass is constant, and hence:it follows thatUsing the definition of the compressibility coefficient β we obtain:More usually we use the bulk modulus B also known as the volumetric elasticity modulus:The relation between ρ and B implies mass conservation. This relation must be RIGOROUSLY RESPECTED in the calculations. In the modeling and simulation context of fluid energy systems, disregarding the relation between ρ and B leads to abnormal evolutions of pressure in the closed circuit submitted to compression and expansion cycles. This phenomenon is strongly accentuated if aeration occurs in the circuit (when dissolved air in the fluid reappears in the form of bubbles). We shall approach this point by examining the phenomena of aeration and cavitation. The aircan also have adverse consequences on a fluid compressibility. In liquid air can be present in two forms: entrapped and dissolved.Entrapped airWhen the return pipe is not submersed in the tank the liquid jet can entrain some air bubbles in the tank. Another phenomenon that affects the quantity of air in liquid is the leakage.Figure 1: Liquid leakageFigure 2: Air is entrainedThis air stays in the liquid as cavities and can modify the fluid compressibility. In this context we talk about effective bulk modulus. Figure 3 shows the bulk modulus of a diesel fuel at 40 °C with 0, 0.01, 0.1, 1, 10% air. The plot is obtained using the system shown. The model of the diesel fuel properties is based on accurate ex-perimental measurements and are designed for use with injection system which are very fast acting. For this reason air is assumed to be entrained rather than dissolved.Figure 3Dissolved airAir can also be dissolved in a liquid. A certain amount of air molecule can be part of the liquid. In this case the dissolved air does not significantly change the fluid properties.2 Air release and cavitationAir can be dissolved or entrained in liquids and it is possible for air to change from one of these two forms to the other depending on the conditions to which the fluid is subjected.Suppose the fluid is in equilibrium with a certain percentage of dissolved gas (usually air: nitrogen and oxygen). Lowering the pressure above a critical value called the saturation pressure induces aeration. This is the process where the dissolved gas forms air bubbles in the liquid until all the dissolved gases or air are free.The exact point where all the dissolved gas has come out of solution is difficult to pin-point because it depends on the chemical composition and behavior of the gas. This is a non-symmetrical dynamic process: the growing process does not have the same dynamics as when air bubbles disappear. In consequence the total amount of bubbles created when the pressure drops may or may not be redissolved in the liquid when it rises again.If the pressure is dropped further and above another critical value called the vapor pres s ure, the fluid itself starts to vaporize. It corresponds to a liquid phase change. At some point only fluid vapor and gas exist. In liquid systems the term cavitation usually refers to the formation and collapse of cavities in the liquid even if cavities contain air or liquid vapor.To summarize with a sketch what we have introduced see above:Figure 4: Air release and cavitationThe development of a cavity is now recognized as being associated with a nucleation center such as microscopic gas particles, wear or wall asperities. When the liquid is subjected to a tensile stress, cavities do not form as a result of liquid rupture but are caused by the rapid growth of these nuclei.To understand this, think of beer (or champagne if you prefer) in a bottle, when it is closed you see no air bubbles and the liquid does not look fizzy. The pressure in the bottle is above the saturation pressure of the gas in the liquid. When you open the bottle suddenly bubbles appear and so the dissolved gas (molecules of gas held in the liquid) starts to appear as gas.In fact the liquid is gas saturated and the atmospheric pressure is less than the saturation pressure of the liquid. This phenomenon is clearly not cavitation but air release (aeration). Considering nuclei effects, bubbles form only at particular places in your glass: around the glass (due to small asperities) and round any particles present in the liquid. Theoretically, if your liquid was perfectly pure and the wall of the system perfectly regular, air release or cavitation would occur with great difficulty! The key point about cavitation is that it is a phase change: the liquid changes to vapor.A comparison can be made between cavitation and boiling. If we look at the phasediagram below:Figure 5: Cavitation and boilingBoiling is a phase change at constant pressure and variable temperature and cavitation is a phase change at constant temperature and variable pressure.In any system air release starts first and if the pressure decreases further, cavitation may occur. This means that, sometimes, people talk about cavitation when the real phenomenon is air release. Both phenomena can lead to destruction of the material or component.In both cases it is entrained gas that causes the troubles. When cavities encounter high pressure in the downstream circuit, these bubbles or cavities can be unstable and can collapse implosively. The pressure developed at collapse can be large enough to cause severe mechanical damage in the containing vessel. It is well-known that hydraulic pumps and pipework can be badly damaged by cavitaton and air release.In all classical hydraulic systems air release and cavitation must be avoided to prevent material destruction but sometimes it is required like for injection systems to prepare the spray formation.3 ViscosityViscosity is a measure of the resistance of the fluid to flow. This characteristic has both positive and negative effects on fluid power systems. A low viscosity leads to oil leaks in the dead zone formed between the mechanical parts in movement, and a high viscosity will lead to loss of pressure in hydraulic ducts.Viscosity is a characteristic of liquids and gases and is manifested in motion throughinternal damping. Viscosity results from an exchange of momentum by molecular diffusion between two layers of fluid with different velocities. In this sense, the viscosity is a fluid property and not a flow property.Figure 6: ViscosityFigure 6 shows the relation between shearing constraint and difference of flow velocity between two layers .The definition of viscosity was first given by Newton. Between two layers of distance dy, the exerted force between these two layers is given by:where U(y) is the velocity depending on the radial position y and dU/dy the velocity gradient. This proportionality expresses the notion of Newtonian fluid and allows the introduction of μ defined as the dynamic viscosity or the absolute viscosity.The dimension of μ is [ML1-T 1-] and the SI unit is kg/m/s or Pa s. The older unit is the Poise, P, which is 0.1 kg/m/s. However, this is very small and hence the milli Poise, mP, is the common unit which is 10-4 kg/m/s.The dynamic viscosity is the constant of proportionality between a stress and the intensity of shearing between two neighboring layers:However the absolute viscosity is not very often used in fundamental equations. For example the dynamics of the elementary volume between the two layers is expressedas:and thus using the shear stress calculation:In other formulas (e.g. Navier Stokes) the ratio between the absolute viscosity and the density occurs so often that a new parameter called the kinematic viscosity ν is introduced .of dimension [L2T 1-] and so the SI unit is the m2/s. The older unit of kinematic viscosity is the Stoke, St, which is 104-m2/s. However, even this is a very small unit and hence the centistoke cSt is the common unit with 1 cSt = 106-m2/s. This parameter is easily measured with viscometers.Note that the viscosity varies significantly with the fluid temperature.Figure 7: Viscosity against temperatureNormally in absence of air release and cavitation the variation with pressure is not great unless the pressure is very extreme.Figure 8: Variation with pressureViscosity influence on the flowAnother important aspect of the viscosity is its influence on the flow conditions of the fluid. We can distinguish two types of flow conditions:• Laminar flow for which the flow lines are parallel and shearing forces create a pressure drop.• Turbulent flow for which the fluid particles have a disordered, random movement leading to a loss of pressure.These two conditions can be distinguished using the Reynolds number which is defined as follows:WithU: average fluid velocityd: diameter of the duct (hydraulic diameter for others geometries)ρ: densityμ: dynamic viscosityν: kinematic viscosityThe transition between laminar to turbulent flow occurs at the critical Reynolds number. This is not well defined, there exists always a transition region. In a hydraulic line, the critical Reynolds number is generally between 1500 to 2000. For uneven geometries (thin-walled orifices), the critical Reynolds number can be lower than 100. For non-circular cross sections, the hydraulic diameter can be used to determine the Reynolds number. Hydraulic diameter is defined as follows:We now give one example:• Circular orifice of diameter:Flow through orificesOrifices (also called restrictions) can be fixed or variable and occur in huge numbers in fluid systems. Not surprisingly in Engineering courses a mathematical description is presented. This is usually based on Bernoulli’s equation and leads to the formwhere Cq is the flow coefficient. This is variously described as typically 0.7 or varying with orifice geometry and Reynolds number.The second alternative is obviously more correct. If we do take a constant value, we are forced to have the gradient of Q against infinity at the origin! This cannot be and if you try to implement it is a numerical disaster! Clearly the flow is laminar for sufficiently small pressure drops which means that Cq is certainly not constant. One solution is to perform detailed e xperiments and compute Cq against Reynold’s number. In the context of the orifice (not necessarily circular) the Reynold’s number iswhere U is a mean velocity and dh the hydraulic diameter. If we take U=Q/A, we end up with the form Cq =f(Q) and ultimately withIt is possible to work with an implicit relationship like this but we would prefer an explicit formula.This is provided by introducing another dimensionless number known as the flow number and denoted by λ. This is defined asFrom a modelin g point of view λ contains quantities we know. Using λ we haveand provided we have,we have an explicit relationship which is easy to evaluate. There are no more problems to obtain measurements forthan forand so the flow number form has many advantages.References ：[1] McCloy D, Discharge Characteristics of Servo Valve Orifices, 1968 Fluid International Conference.[2] R.C. Binder, “Fluid Mechanics”. 3rd Edition, 3rd Printing. Prentice-Hall, Inc., Englewood Cliffs,NJ. 1956.译文：液压油理论我们将在本章主要讨论液压油的三个特性：•密度（使油液具有质量和液感效应）；•粘性（使油液具有液阻效应）；•可压缩性和体积弹性模量（使油液具有容性效应），值得提醒的是容性效应会受油液中析出的空气、气穴现象和装有油液的的管道、软管或油腔的影响。

┊┊┊┊┊┊┊┊┊┊┊┊┊装┊┊┊┊┊订┊┊┊┊┊线┊┊┊┊┊┊┊┊┊┊┊┊┊Multi-Domain Simulation:Mechanics and Hydraulics of an Excavator Abstract It is demonstrated how to model and simulate an excavator with Modelica and Dymola by using Modelica libraries for multi-body and for hydraulic systems. The hydraulic system is controlled by a “load sensing” controller. Usually, models containing3-dimensional mechanical and hydraulic components are difficult to simulate. At hand of the excavator it is shown that Modelica is well suited for such kinds of system simulations.1. IntroductionThe design of a new product requires a number of decisions in the initial phase that severely affect the success of the finished machine. Today, digital simulation is therefore used in early stages to look at different concepts. The view of this paper is that a new excavator is to be designed and several candidates of hydraulic control systems have to be evaluated.Systems that consist of 3-dimensional mechanical and of hydraulic components – like excavators – are difficult to simulate. Usually, two different simulation environments have to be coupled. This is often inconvenient, leads to unnecessary numerical problems and has fragile interfaces. In this article it is demonstrated at hand of the model of an excavator that Modelica is well suited for these types of systems.The 3-dimensional components of the excavator are modeled with the new, free Modelica MultiBody library. This allows especially to use an analytic solution of the kinematic loop at the bucket and to take the masses of the hydraulic cylinders, i.e., the “force elements”, directly into account. The hydraulic part is modeled in a detailed way, utilizing pump, valves and cylinders from HyLib, a hydraulics library for Modelica. For the control part a generic “load sensing” control system is used, modeled by a set of simple equations. This approach gives the required results and keeps the time needed for analyzing the problem on a reasonable level.2. Modeling ChoicesThere are several approaches when simulating a system. Depending on the task it may be necessary to build a very precise model, containing every detail of the system and needing a lot of information, e.g., model parameters. This kind of models is expensive to build up but on the other hand very useful if parameters of a well defined system have to be modified. A typical example is the optimization of parameters of a counterbalance valve in an excavator (Kraft 1996).The other kind of model is needed for a first study of a system. In this case some properties of the pump, cylinders and loads are specified. Required is information about the performance of that system, e.g., the speed of the pistons or the necessary input power at the pump shaft, to make a decision whether this design can be used in principle for the task at hand. This model has therefore to be “cheap”, i.e., it must be possible to build it in a short time without detailed knowledge of particular components.The authors intended to build up a model of the second type, run it and have first results with a minimum amount of time spent. To achieve this goal the modeling language Modelica (Modelica 2002), the Modelica simulation environment Dymola (Dymola 2003), the new Modelica library for 3-dimensional mechanical systems “MultiBody”(Otter et al. 2003) and the Modelica library of hydraulic components HyLib (Beater 2000) was used. The model consists of the 3-dimensional mechanical construction of the excavator, a detailed description of the power hydraulics and a generic “load sensing” controller. This model will be available as a demo in the next version of HyLib.3. Construction of ExcavatorsIn Figure 1 a schematic drawing of a typical excavator under consideration is shown. It consists of a chain track and the hydraulic propel drive which is used to manoeuvre the machine but usually not during a work cycle. On top of that is a carriage where the operator is sitting. It can rotate around a vertical axis with respect to the chain track. It also holds the Diesel engine, the hydraulic pumps and control system. Furthermore, there is a boom, an arm and at the end a bucket which is attached via a planar kinematic loop to the arm. Boom, arm and bucket can be rotated by the appropriate cylinders.┊┊┊┊┊┊┊┊┊┊┊┊┊装┊┊┊┊┊订┊┊┊┊┊线┊┊┊┊┊┊┊┊┊┊┊┊┊Figure 2 shows that the required pressures in the cylinders depend on the position. For the “stretched” situation the pressure in the boom cylinder is 60 % higher than in the retracted position. Not only the position but also the movements have to be taken into account. Figure 3 shows a situation where the arm hangs down. If the carriage does not rotate there is a pulling force required in the cylinder. When rotating –excavators can typically rotate with up to 12 revolutions per minute –the force in the arm cylinder changes its sign and now a pushing force is needed. This change is very significant because now the “active” chamber of the cylinder switches and that must be taken into account by the control system. Both figures demonstrate that a simulation model must take into account the couplings between the four degrees of freedom this excavator has. A simpler model that uses a constant load for each cylinder and the swivel drive leads to erroneous results4. Load Sensing SystemExcavators have typically one Diesel engine, two hydraulic motors and three cylinders. There exist different hydraulic circuits to provide the consumers with the required hydraulic energy. A typical design is a Load Sensing circuit that is energy efficient and user friendly. The idea is to have a flow rate control system for the pump such that it delivers exactly the needed flow rate. As a sensor the pressure drop across an orifice is used. The reference value is the resistance of the orifice. A schematic drawing is shown in figure 4, a good introduction to that topic is given in (anon. 1992).The pump control valve maintains a pressure at the pump port that is typically 15 bar higher than the pressure in the LS line (= Load Sensing line). If the directional valve is closed the pump has therefore a stand-by pressure of 15 bar. If it is open the pump delivers a flow rate that leads to a pressure drop of 15 bar across that directional valve. Note: The directional valve is not used to throttle the pump flow but as a flow meter (pressure drop that is fed back) and as a reference (resistance). The circuit is energy efficient because the pump delivers only the needed flow rate, the throttling losses are small compared to other circuits.If more than one cylinder is used the circuit becomes more complicated, see figure 5. E.g. if the boom requires a pressure of 100 bar and the bucket a pressure of 300 bar the pump pressure must be above 300 bar which would cause an unwanted movement of the boom cylinder. Therefore compensators are used that throttle the oil flow and thus achieve a pressure drop of 15 bar across the particular directional valve. These compensators can be installed upstream or downstream of the directional valves. An additional valve reduces the nominal pressure differential if the maximum pump flow rate or the maximum pressure is reached (see e.g. Nikolaus 1994).5. Model of Mechanical PartIn Figure 6, a Modelica schematic of the mechanical part is shown. The chain track is not modeled, i.e., it is assumed that the chain track does not move. Components “rev1”, ..., “rev4” are the 4 revolute joints to move the parts relative to each other. The icons with the long black line are “virtual”rods that are used to mark specific points on a part, especially the mounting points of the hydraulic cylinders. The light blue spheres (b2, b3, b4, b5) are bodies that have mass and an inertia tensor and are used to model the corresponding properties of the excavator parts.The three components “cyl1f”, “cyl2f”,and “cyl3f” are line force components that describe a force interaction along a line between two attachment points. The small green squares at these components represent 1-dimensional translational connectors from theModelica.Mechanics. Translational library. They are used to define the 1- dimensional force law acting between the two attachment points. Here, the hydraulic cylinders described in the next section are directly attached. The small two spheres in the icons of the “cyl1f,cyl2f, cyl3f” components indicate that optionally two point masses are taken into account that are attached at defined distances from the attachment points along the connecting line. This allows to easily model the essential mass properties (mass and center of mass) of the hydraulic cylinders with only a very small computational overhead.The jointRRR component (see right part of Figure 6) is an assembly element consisting of 3 revolute joints that form together a planar loop when connected to the arm. A picture of this part of an excavator, a zoom in the corresponding Modelica schematic and the animation view is shown in Figure 7. When moving revolute joint “rev4” (= the large red cylinder in the lower part of Figure 7; the small┊┊┊┊┊┊┊┊┊┊┊┊┊装┊┊┊┊┊订┊┊┊┊┊线┊┊┊┊┊┊┊┊┊┊┊┊┊red cylinders characterize the 3 revolute joints of the jointRRR assembly component) the position and orientation of the attachment points of the “left”and “right” revolute joints of the jointRRR component are known. There is a non-linear algebraic loop in the jointRRR component to compute the angles of its three revolute joints given the movement of these attachment points. This non-linear system of equations is solved analytically in the jointRRR object, i.e., in a robust and efficient way. For details see In a first step, the mechanical part of the excavator is simulated without the hydraulic system to test this part separatly. This is performed by attaching translational springs with appropriate spring constants instead of the hydraulic cylinders. After the animation looks fine and the forces and torques in the joints have the expected size, the springs are replaced by the hydraulic system described in the next sections.All components of the new MultiBody library have “built-in” animation definitions, i.e., animation properties are mostly deduced by default from the given definition of the multi-body system. For example, a rod connecting two revolute joints is by default visualized as cylinder where the diameter d is a fraction of the cylinder length L (d = L/40) which is in turn given by the distance of the two revolute joints. A revolute joint is by default visualized by a red cylinder directed along the axis of rotation of the joint. The default animation (with only a few minor adaptations) of the excavator is shown if Figure 8. The light blue spheres characterize the center of mass of bodies. The line force elements that visualize the hydraulic cylinders are defined by two cylinders (yellow and grey color) that are moving in each other. As can be seen, the default animation is useful to get, without extra work from the user side, a rough picture of the model that allows to check the most important properties visually, e.g., whether the center of masses or attachment points are at the expected places.For every component the default animation can be switched off via a Boolean flag. Removing appropriate default animations, such as the “centerof- mass s pheres”, and adding some components that have pure visual information (all visXXX components in the schematic of Figure 6) gives quickly a nicer animation, as is demonstrated in Figure 9. Also CAD data could be utilized for the animation, but this was not available for the examination of this excavator.6. The Hydraulics Library HyLibThe (commercial) Modelica library HyLib (Beater 2000, HyLib 2003) is used to model the pump, metering orifice, load compensator and cylinder of the hydraulic circuit. All these components are standard components for hydraulic circuits and can be obtained from many manufacturers. Models of all of them are contained in HyLib. These mathematical models include both standard textbook models (e. g. Dransfield 1981, Merrit 1967, Viersma 1980) and the most advanced published models that take the behavior of real components into account (Schulz 1979, Will 1968). An example is the general pump model where the output flow is reduced if pressure at the inlet port falls below atmospheric pressure. Numerical properties were also considered when selecting a model (Beater 1999). One point worth mentioning is the fact that all models can be viewed at source code level and are documented by approx. 100 references from easily available literature.After opening the library, the main window is displayed (Figure 10). A double click on the “pumps” icon opens the selection for all components that are needed to originate or end an oil flow (Figure 11). For the problem at hand, a hydraulic flow source with internal leakage and externally commanded flow rate is used. Similarly the needed models for the valves, cylinders and other components are chosen.All components are modeled hierarchically. Starting with a definition of a connector –a port were the oil enters or leaves the component – a template for components with two ports is written. This can be inherited for ideal models, e.g., a laminar resistance or a pressure relief valve. While it usually makes sense to use textual input for these basic models most of the main library models were programmed graphically, i.e., composed from basic library models using the graphical user interface. Figure12 gives an example of graphical programming. All mentioned components were chosen from the library and then graphically connected.7. Library Components in Hydraulics CircuitThe composition diagram in Figure 12 shows the graphically composed hydraulics part of the excavator model. The sub models are chosen from the appropriate libraries, connected and the┊┊┊┊┊┊┊┊┊┊┊┊┊装┊┊┊┊┊订┊┊┊┊┊线┊┊┊┊┊┊┊┊┊┊┊┊┊parameters input. Note that the cylinders and the motor from HyLib can be simply connected to the also shown components of the MultiBody library. The input signals, i.e., the reference signals of the driver of the excavator, are given by tables, specifying the diameter of the metering orifice, i.e. the reference value for the flow rate. From the mechanical part of the excavator only the components are shown in Figure 12 that are directly coupled with hydraulic elements, such as line force elements to which the hydraulic cylinders are attached.8. Model of LS ControlFor this study the following approach is chosen: Model the mechanics of the excavator, the cylinders and to a certain extent the pump and metering valves in detail because only the parameters of the components will be changed, the general structure is fixed. This means that the diameter of the bucket cylinder may be changed but there will be exactly one cylinder working as shown in Figure 1. That is different for the rest of the hydraulic system. In this paper a Load Sensing system, or LS system for short, using one pump is shown but there are other concepts that have to be evaluated during an initial design phase. For instance the use of two pumps, or a separate pump for the swing.The hydraulic control system can be set up using meshed control loops. As there is (almost) no way to implement phase shifting behavior in purely hydraulic control systems the following generic LS system uses only proportional controllers.A detailed model based on actual components would be much bigger and is usually not available at the begin of an initial design phase. It could be built with the components from the hydraulics library but would require a considerable amount of time that is usually not available at the beginning of a project.In Tables 1 and 2, the implementation of the LS control in form of equations is shown. Usually, it is recommended for Modelica models to either use graphical model decomposition or to define the model by equations, but not to mix both descrip- tion forms on the same model level.For the LS system this is different because it has 17 input signals and 5 output signals. One might built one block with 17 inputs and 5 outputs and connect them to the hydraulic circuit. However, in this case it seems more understandable to provide the equations directly on the same level as the hydraulic circuit above and access the input and output signals directly. For example, ”metOri1.port_A.p” used in table 2 is the measured pressure at port_A of the metering orifice metOri1. The calculated values of the LS controller, e.g., the pump flow rate “pump.inPort.signal[1] = ...” is the signal at the filled blue rectangle of the “pump” component, see Figure 12).The strong point of Modelica is that a seamless integration of the 3-dimensional mechanical library, the hydraulics library and the non standard, and therefore in no library available, model of the control system is easily done. The library components can be graphically connected in the object diagram and the text based model can access all needed variables.9. Some Simulation ResultsThe complete model was built using the Modelica modeling and simulation environment Dymola (Dymola 2003), translated, compiled and simulated for 5 s. The simulation time was 17 s using the DASSL integrator with a relative tolerance of 10-6 on a 1.8 GHz notebook, i.e., about 3.4 times slower as real-time. The animation feature in Dymola makes it possible to view the movements in an almost realistic way which helps to explain the results also to non-experts, see Figure 9.Figure 13 gives the reference signals for the three cylinders and the swing, the pump flow rate and pressure. From t = 1.1 s until 1.7 s and from t = 3.6 s until 4.0 s the pump delivers the maximum flow rate. From t = 3.1 s until 3.6 s the maximum allowed pressure is reached. Figure 14 gives the position of the boom and the bucket cylinders and the swing angle. It can be seen that there is no significant change in the piston movement if another movement starts or ends. The control system reduces the couplings between the consumers which are very severe for simple throttling control.Figure 15 shows the operation of the bucket cylinder. The top figure shows the reference trajectory, i. e. the opening of the directional valve. The middle figure shows the conductance of the compensators. With the exception of two spikes it is open from t = 0 s until t = 1 s. This means that in┊┊┊┊┊┊┊┊┊┊┊┊┊装┊┊┊┊┊订┊┊┊┊┊线┊┊┊┊┊┊┊┊┊┊┊┊┊that interval the pump pressure is commanded by that bucket cylinder. After t = 1 s the boom cylinder requires a considerably higher pressure and the bucket compensator therefore increases the resistance (smaller conductance). The bottom figure shows that the flow rate control works fine. Even though there is a severe disturbance (high pump pressure after t = 1 s due to the boom) the commanded flow rate is fed with a small error to the bucket cylinder.10. ConclusionFor the evaluation of different hydraulic circuits a dynamic model of an excavator was built. It consists of a detailed model of the 3 dimensional mechanics of the carriage, including boom, arm and bucket and the standard hydraulic components like pump or cylinder. The control system was not modeled on a component basis but the system was described by a set of nonlinear equations.The system was modeled using the Modelica MultiBody library, the hydraulics library Hylib and a set of application specific equations. With the tool Dymola the system could be build and tested in a short time and it was possible to calculate the required trajectories for evaluation of the control system.The animation feature in Dymola makes it possible to view the movements in an almost realistic way which helps to explain the results also to多畴模拟：挖掘机的机械学和液压学概要：通过使用用于多体和液压系统的Modelica程序库，示范通过Modelica和Dymola如何模拟和仿真挖掘机。

液压系统一个完整的液压系统由五个部分组成，即动力元件、执行元件、控制元件、无件和液压油。

动力元件的作用是将原动机的机械能转换成液体的压力能，指液压系统中的油泵，它向整个液压系统提供动力。

液压泵的结构形式一般有齿轮泵、叶片泵和柱塞泵。

执行元件(如液压缸和液压马达)的作用是将液体的压力能转换为机械能，驱动负载作直线往复运动或回转运动。

控制元件(即各种液压阀)在液压系统中控制和调节液体的压力、流量和方向。

根据控制功能的不同，液压阀可分为村力控制阀、流量控制阀和方向控制阀。

压力控制阀又分为益流阀(安全阀)、减压阀、顺序阀、压力继电器等；流量控制阀包括节流阀、调整阀、分流集流阀等；方向控制阀包括单向阀、液控单向阀、梭阀、换向阀等。

根据控制方式不同，液压阀可分为开关式控制阀、定值控制阀和比例控制阀。

辅助元件包括油箱、滤油器、油管及管接头、密封圈、压力表、油位油温计等。

液压油是液压系统中传递能量的工作介质，有各种矿物油、乳化液和合成型液压油等几大类。

液压的原理它是由两个大小不同的液缸组成的，在液缸里充满水或油。

充水的叫“水压机”；充油的称“油压机”。

两个液缸里各有一个可以滑动的活塞，如果在小活塞上加一定值的压力，根据帕斯卡定律，小活塞将这一压力通过液体的压强传递给大活塞，将大活塞顶上去。

设小活塞的横截面积是S1，加在小活塞上的向下的压力是F1。

于是，小活塞对液体的压强为P=F1/SI, 能够大小不变地被液体向各个方向传递”。

大活塞所受到的压强必然也等于P。

若大活塞的横截面积是S2，压强P在大活塞上所产生的向上的压力F2=PxS2 ，截面积是小活塞横截面积的倍数。

从上式知，在小活塞上加一较小的力，则在大活塞上会得到很大的力，为此用液压机来压制胶合板、榨油、提取重物、锻压钢材等。

液压传动的发展史液压传动和气压传动称为流体传动，是根据17世纪帕斯卡提出的液体静压力传动原理而发展起来的一门新兴技术，1795年英国约瑟夫•布拉曼(Joseph Braman,1749-1814)，在伦敦用水作为工作介质,以水压机的形式将其应用于工业上,诞生了世界上第一台水压机。

中文1829字Hydraulic MachineFrom: The Columbia Encyclopedia, Sixth Edition Date: 2008Hydrulic machine that derives its power from the motion or pressure of water or some other liquid. Hydraulic equipment and technology is something that we are all at least passingly familiar with. If we think about it, we know that the principles of hydraulics are applied to make many common machines work. For example hydraulics are used in agricultural equipment, giant earth moving and mining machines, they are used to steer and stabilize giant ocean liners, help airplanes climb and turn, and make the brakes in our cars work. So hydraulics can provide great force, are obviously very adaptable and used in all kinds of applications, but how do they actually work?What is this hydraulics stuff?Hydraulics is based on a very simple fact of nature - you cannot compress a liquid. You can compress a gas (think about putting more and more air into a tire, the more you put in, the higher the pressure). If you're really strong you can compress a solid mass as well. But no matter how much pressure you apply onto a liquid, it isn't possible to compress it. Now if you put that liquid into a sealed system and push on it at one end, that pressure is transmitted through the liquid to the other end of the system. The pressure is not diminished.. Hydraulics is Old StuffThe basic concept of hydraulics is not new. The Greeks understood about using water to provide lift and force, and the name hydraulics come form the Latin word for water - "HYDRA". In the middle Ages, Leonardo da Vinci formulated the basic principle of hydraulics called continuity and Galileo experimented with hydraulics.Hydraulics were even used during the construction of the Eiffel Tower in Paris in the late 1880's. Hydraulic jacks were used to level the tower and align the metal girders to an accuracy of 1 millimeter。
