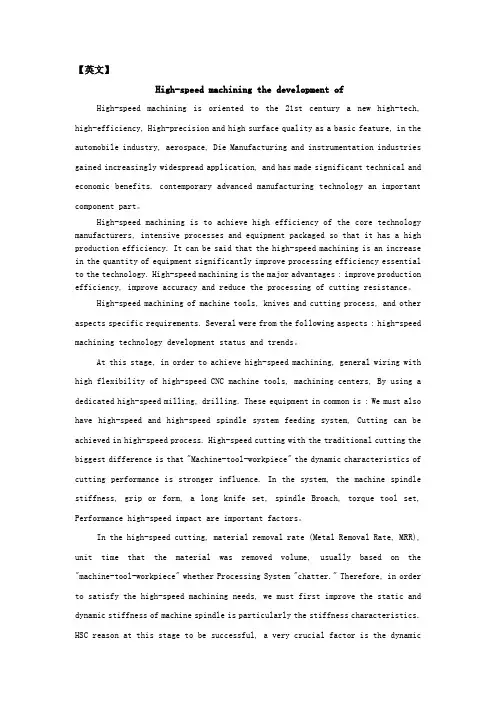

【英文】High-speed machining the development ofHigh-speed machining is oriented to the 21st century a new high-tech, high-efficiency, High-precision and high surface quality as a basic feature, in the automobile industry, aerospace, Die Manufacturing and instrumentation industries gained increasingly widespread application, and has made significant technical and economic benefits. contemporary advanced manufacturing technology an important component part。

High-speed machining is to achieve high efficiency of the core technology manufacturers, intensive processes and equipment packaged so that it has a high production efficiency. It can be said that the high-speed machining is an increase in the quantity of equipment significantly improve processing efficiency essential to the technology. High-speed machining is the major advantages : improve production efficiency, improve accuracy and reduce the processing of cutting resistance。

英文】High-speed machining the development ofHigh-speed machining is oriented to the 21st century a new high-tech, high-efficiency, High-precision and high surface quality as a basic feature, in theautomobile industry, aerospace, Die Manufacturing and instrumentation industries gained increasingly widespread application, and has made significant technical and economic benefits. contemporary advanced manufacturing technology an important component part 。

High-speed machining is to achieve high efficiency of the core technology manufacturers, intensive processes and equipment packaged so that it has a high production efficiency. It can be said that the high-speed machining is an increase in the quantity of equipment significantly improve processing efficiency essential to the technology. High-speed machining is the major advantages : improve production efficiency, improve accuracy and reduce the processing of cutting resistance。

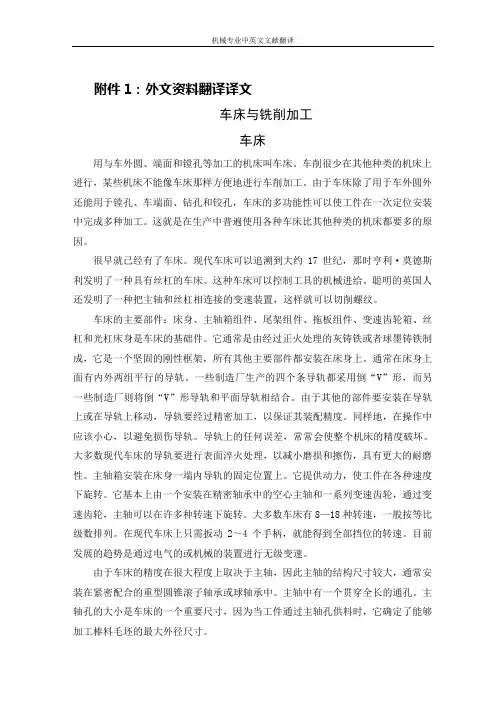

附件1：外文资料翻译译文车床与铣削加工车床用与车外圆、端面和镗孔等加工的机床叫车床。

车削很少在其他种类的机床上进行，某些机床不能像车床那样方便地进行车削加工。

由于车床除了用于车外圆外还能用于镗孔、车端面、钻孔和铰孔，车床的多功能性可以使工件在一次定位安装中完成多种加工。

这就是在生产中普遍使用各种车床比其他种类的机床都要多的原因。

很早就已经有了车床。

现代车床可以追溯到大约17世纪，那时亨利·莫德斯利发明了一种具有丝杠的车床。

这种车床可以控制工具的机械进给。

聪明的英国人还发明了一种把主轴和丝杠相连接的变速装置，这样就可以切削螺纹。

车床的主要部件：床身、主轴箱组件、尾架组件、拖板组件、变速齿轮箱、丝杠和光杠床身是车床的基础件。

它通常是由经过正火处理的灰铸铁或者球墨铸铁制成，它是一个坚固的刚性框架，所有其他主要部件都安装在床身上。

通常在床身上面有内外两组平行的导轨。

一些制造厂生产的四个条导轨都采用倒“V”形，而另一些制造厂则将倒“V”形导轨和平面导轨相结合。

由于其他的部件要安装在导轨上或在导轨上移动，导轨要经过精密加工，以保证其装配精度。

同样地，在操作中应该小心，以避免损伤导轨。

导轨上的任何误差，常常会使整个机床的精度破坏。

大多数现代车床的导轨要进行表面淬火处理，以减小磨损和擦伤，具有更大的耐磨性。

主轴箱安装在床身一端内导轨的固定位置上。

它提供动力，使工件在各种速度下旋转。

它基本上由一个安装在精密轴承中的空心主轴和一系列变速齿轮，通过变速齿轮，主轴可以在许多种转速下旋转。

大多数车床有8—18种转速，一般按等比级数排列。

在现代车床上只需扳动2～4个手柄，就能得到全部挡位的转速。

目前发展的趋势是通过电气的或机械的装置进行无级变速。

由于车床的精度在很大程度上取决于主轴，因此主轴的结构尺寸较大，通常安装在紧密配合的重型圆锥滚子轴承或球轴承中。

主轴中有一个贯穿全长的通孔。

主轴孔的大小是车床的一个重要尺寸，因为当工件通过主轴孔供料时，它确定了能够加工棒料毛坯的最大外径尺寸。

附录翻译部分Lathe and TurningThe Lathe and Its ConstructionA lathe is a machine tool used primarily for producing surfaces of revolution flat edges. Based on their purpose,construction,number of tools that can simultaneously be mounted,and degree of automation,lathes or,more accurately,lathe-type machine tools can be classified as follows:(1)Engine lathes(2)Toolroom lathes(3)Turret lathes(4)Vertical turning and boring mills(5)Automatic lathes(6)Special-purpose lathesIn spite of that diversity of lathe-type machine tools,they all have all have common features with respect to construction and principle of operation.These features can best be illustrated by considering the commonly used representative type,the engine lathe.Following is a description of each of the main elements of an engine lathe,which is shown in Fig.11.1.Lathe bed.The lathe bed is the main frame,involving a horizontal beam on two vertical supporis.It is usually made of grey or nodular cast iron to damp vibrations and is made by casting.It has guideways to allow the carriage to slide easily lengthwise.The height of the lathe bed should be appropriate to enable the technician to do his or her jib easily and comfortably.Headstock.The headstock is fixed at the left hand side of the lathe bed and includes the spindle whose axis is parallel to the guideways(the silde surface of the bed).The spindle is driven through the gearbox,which is housed within the headstock.The function of the gearbox is to provide a number of different spindle speeds(usually6up to18speeds).Some modern lathes have headstocks with infinitely variable spindle speeds,which employ frictional, electrical,or hydraulic drives.The spindle is always hollow,I.e,it has a through hole extending lengthwise.Bar stocks can be fed througth that hole if continous production is adopted.A lso,that hole has a taperedsurface to allow mounting a plain lathe center.The outer surface of the spindle is threaded to allow mounting of a chuck,a face plate,or the like.Tailstock.The tailstock assembly consists basically of three parts,its lower base,an intermediate part,and the quill.The lower base is a casting that can slide on the lathe bed along the guidewayes,and it has a clamping device to enable locking the entire tailstock at any desired location,depending upon the length of the workpiece.The intermediate parte is a casting that can be moved transversely to enable alignment of the axis of the the tailstock with that of the headstock.The third part,the quill,is a hardened steel tube,which can be moved longitudinally in and out of the intermediate part as required.This is achieved through the use of a handwheel and a screw,around which a nut fixed to the quill is can be locked at any point along its travel path by means of a clamping device.The carriage.The main function of the carriage is mounting of the cutting tools and generating longitudinal and/or cross feeds.It is actually an H-shaped block that slides on the lathe bed between the headstock and tailstock while being guided by the V-shaped guideways of the bed.The carriage can be moved either manually or mechanically by means of the apron and either the feed rod or the lead screw.When cutting screw threads,power is provided to the gearbox of the apron by the lead screw.In all other turning operations,it is the feed rod that drives the carriage.The lead screw goes through a pair o half nuts,which are fixed to the rear of the apron.When actuating a certain lever,the half nuts are clamped together and engage with the rotating lead screw as a single nut,which is fed,together with carriage,along the bed.when the lever is disengaged, the half nuts are released and the carriage stops.On the other hand,when the feed rod is used,it supplies power to the apron through a wrom gear.The latter is keyed to feed rod and travels with the apron along the feed rod,which has a keyway extending to cover its whole length.A modern lathe usually has a quick-change gearbox located under the headstock and driven from the spindle through a train of gears.It is connected to both the feed rod and the lead screw and enables selecting a variety of feeds easily and rapidly by simply shifting the appropriate levers, the quick-change gearbox is employed in plain turning,facing and thread cutting operations. Since that gearbox is linked to spindle,the distance that the apron(and the cutting tool)travels for each revolution of the spindle can be controlled and is referred to as the feed.Lathe Cutting ToolsThe shape and geometry of the lathe tools depend upon the purpose for which they are employed.Turning tools can be classified into tow main groups,namely,external cutting tools andinternal cutting tools,Each of these groups include the following types of tools: Turning tools.Turing tools can be either finishing or rough turning tools.Rough turning tools have small nose radii and are used for obtaining the final required dimensions with good surface finish by marking slight depth of cut.Rough turning tools can be right–hand or left-hand types,depending upon the direction of feed.They can have straight,bent,or offset shanks.Facing tools.Facing tools are employed in facing operations for machining plane side or end surfaces.There are tools for machining left-hand-side surfaces and tools for right-hand-side surfaces.Those side surfaces are generated through the use of the cross feed,contrary to turning operations,where the usual longitudinal feed is used.Cutoff tools.Cutoff tools,which are sometimes called parting tools,serve to separate the workpiece into parts and/or machine external annual grooves.Thread-cutting tools.Thread-cutting tools have either triangular,square,or tranpezoidal cutting edges,depending upon the cross section of the desired thread.Also,the plane angles of these tools must always be identical to those of the thread forms.Thread-cutting tools have straight shanks for external thread cutting and are of the bent-shank type when cutting internal threads.Form tools.Form tools have edges especially manufactured to take a certain form,which is opposite to the desired shape of the machined workpiece.An HSS tools is usually made in the form of a single piece,contrary to cemented carbides or ceramic,which are made in the form of tipes.The latter are brazed or mechanically fastened to steel shanks.Fig.1indicates an arrangement of this latter type,which includes the carbide tip,the chip breaker,the pad,the clamping screw(with a washer and a nut),and the shank..As the name suggests,the function of the chip breaker is to break long chips every now and then,thus preventing the formation of very long twisted ribbons that may cause problems during the machining operations.The carbide tips(or ceramic tips)can have different shapes,depending upon the machining operations for which they are to be employed.The tips can either be solid or with a central through hole,depending on whether brazing or mechanical clamping is employed for mounting the tip on the shank.Fig.1Lathe OperationsIn the following section,we discuss the various machining operations that can be performed on a conventional engine lathe.It must be borne in mind,however,that modern computerized numerically controlled lathes have more capabiblities and do other operations,such as contouring,for example.Following are conventional lathe operations.Cylindrical turning.Cylindrical turning is the the simplest and the most common of all lathe operations.A single full turn of the workpiece generate a circle whose center falls on the lathe axis;this motion is then reproduced numerous times as a result of the axial feed motion of the tool.The resulting machining marks are,therefore,a helix having a very small pitch,which is equal to the feed.Consequently,the machined surface is always cylindrical.The axial feed is provided by the carriage or the compound rest,either manually or automatically,whereas the depths of cuts is controlled by the cross slide.In roughing cuts,it is recommended that large depths of cuts(up to0.25in.or6mm,depending upon the workpiece material)and smaller feeds would be used.On the other hand,very fine feeds,smaller depth of cut(less than0.05in.,or0.4mm),and high cutting speeds are preferred for finishing cuts.Facing.The result of a facing operation is a flat surface that is either the whole end surface of the workpiece or an annular intermediate surface like a shoulder.During a facing operation,feed is provided by the cross slide,whereas the depth of cut is controlled by the carriage or compound rest.Facing can be carried out either from the periphery in ward or from the center of the workpiece outward.It is obvious that the machining marks in both cases tack the form of a ually,it is preferred to clamp the carriage during a facing operation,since the cutting force tends to push the tool(and,of course,the whole carriage)away from the workpiece.In most facing operations,the workpiece is held in a chuck or on a face plate.Groove cutting.In cut-off and groove-cutting operations,only cross feed of the tool isemployed.The cut-off and grooving tools,which were previously discussed,are employed.Boring and internal turning.Boring and internal are performed on the internal surfaces by a boring bar or suitable internal workpiece is solid,a drilling operation must be performed first.The drilling tool is held in the tailstock,and latter is then fed against the workpiece.Taper turning.Taper turning is achieved by driving the tool in a direction that is not paralled to the lathe axis but inclined to it with an angle that is equal to the desired angle of the taper.Following are the different methods used in taper-turning practice:（1）Rotating the disc of the compound rest with an angle to half the apex angle of the cone. Feed is manually provided by cranking the handle of the compound rest.This method is recommended for taper turning of external and internal surfaces when the taper angle is relatively large.（2）Employing special form tools for external,very short,conical surfaces.The width of the workpiece must be slightly smaller than that of the tool,and the workpiece is usually held in a chuck or clamped on a face plate.I n this case,only the cross feed is used during the machining process and the carriage is clamped to the machine bed.（3）Offsetting the tailstock center.This method is employed for esternal tamper turning of long workpiece that are required to have small tamper angles(less than8).The workpiece is mounted between the two centers;then the tailstock center is shifted a distance S in the direction normal to the lathe axis.（4）Using the taper-turning attachment.This method is used for turning very long workpoece, when the length is larger than the whole stroke of the compound rest.The procedure followed in such cases involves complete disengagement of the cross slide from the carriage,which is then guided by the taper-turning attachment.During this process,the automatic axial feed can be used as usual.This method is recommend for very long workpiece with a small cone angle,i.e., 8through10.Thread cutting.When performing thread cutting,the axial feed must be kept at a constant rate,which is dependent upon the rotational speed(rpm)of the workpiece.The relationship between both is determined primarily by the desired pitch of the thread to be cut.As previously mentioned,the axial feed is automatically generated when cutting a thread by means of the lead screw,which drives the carriage.When the lead screw rotates a single revolution,the carriage travels a distance equal to the pitch of the lead screw rotates a single revolutional speed of the lead screw is equal to that of the spindle(i.e.,that of the workpiece),the pitch of the resulting cut thread is exactly to that of the lead screw .The pitch of the resulting thread being cut therefore always depends upon the ratio of the rotational speeds of the lead scew and the spindle :workpiece of pitch screwlead the of Pitch Desired =screw lead of workpiece the of rpm rpm =spindle-to-carriage gearing ratioThis equation is usefully in determining the kinematic linkage between the lathe spindle and the lead screw and enables proper selection of the gear train between them .In thread cutting operations ,the workpiece can either be held in the chuck or mounted between the two lathe centers for relatively long workpiece .The form of the tool used must exactly coincide with the profile the thread to be cut ,I .e .,triangular tools must be used for triangular threads ,and so on .Knurling .knurling is mainly a forming operation in which no chips are prodyced .Tt involves pressing two hardened rolls with rough filelike surfaces against the rotating workpiece to cause plastic deformation of the workpiece metal.Knurling is carried out to produce rough ,cylindrical (or concile )surfaces ,which are usually used as handles .Sometimes ,surfaces are knurled just for the sake of decoration ;there are different types of patterns of knurls from which to choose .Cutting Speeds and FeedsThe cutting speed ,which is usually given in surface feet per minute (SFM),is the number of feet traveled in circumferential direction by a given point on the surface (being cut )of the workpiece in one minute .The relationship between the surface speed and rpm can be given by the following equation :SMF=πDNWhereD=the diameter of the workpiece in feetN=the rpmThe surface cutting speed is dependent primarily upon the machined as well as the material of the cutting and can be obtained from handbooks ,information provided by cutting tool manufacturera ,and the like .generally ,the SFM is taken as 100when machining cold-rolled or mild steel ,as 50when machining tougher metals ,and as 200when machining sofer materials .For aluminum ,the SFMis usually taken as 400or above .There are also other variables that affect the optimal value of the surface cutting speed .These include the tool geometry,the typeof lubricant or coolant ,the feed ,and the depth of cut .As soon as the cutting sped is decided upon ,the rotational speed (rpm)of the spindle can be obtained as follows :N =DSFWπThe selection of a suitable feed depends upon many factors ,such as the required surface finish ,the depth of cut ,and the geometry of the tool used .Finer feeds produce better surface finish ,whereas higher feeds reduce the machining time during which the tool is in direct contact with the workpiece .Therefore ,it is generally recommended to use high feeds for roughing operations and finer feeds for finishing operations.Again,recommend values for feeds ,which can be taken as guidelines ,are found in handbooks and information booklets provided by cutting tool manufacturers.Here I want to introduce the drilling:Drilling involves producing through or blind holes in a workpiece by forcing a tool ,which rotates around its axis ,against the workpiece .Consequently ,the range of cutting from that axis of rotation is equal to the radius of the required hole .In practice ,two symmetrical cutting edges that rotate about the same axis are employed .Drilling operations can be carried out by using either hand drills or drilling machines .The latter differ in size and construction .nevertheless ,the tool always rotates around its axis while the workpiece is kept firmly fixed .this is contrary to drilling on a lathe .Cutting Tool for Drilling OperationsIn drilling operations ,a cylindrical rotary-end cutting ,called a drill ,is employed .The drill can have either one or more cutting edges and corresponding flutes ,which can be straight or helical .the function of the flutes is to provide outlet passages for the chips generated during the drilling operation and to allow lubricants and coolants to reach the cutting edges and the surface being machined .Following is a survey of the commonly used drills.Twist drill .The twist drill is the most common type of drill .It has two cutting edges and two helical flutes that continue over the length of the drill body ,The drill also consist of a neck and a shake that can be either straight or tapered .In the latter case ,the shank is fitted by the wedge action into the tapered socket of the spindle and has a tang ,which goes into a slot in the spindle socket ,thus acting as a solid means for transmitting rotation .On the other hand ,straight –shank drills are held in a drill chuck that is ,in turn ,fitted into the spindle socket in the same way as tapered shank drills.The two cutting edges are referred to as the lips,and are connected together by a wedge, which is a chisel-like edge.The twist drill also has two margins,which enable proper guidance and locating of the drill while it is in operation.The tool point angle(TPA)is formed by the lips and is chosen based on the properties of the material to be cut.The usual TAP for commercial drills is118,which is appropriate for drilling low-carbon steels and cast irons.For harder and tougher metals,such as hardened steel,brasss and bronze,larger TPAs(130OR140)give better performance.The helix angle of the flutes of the commonly used twist drills ranges between24and30.When drilling copper or soft plastics,higher values for the helix angle are recommended(between35and45).Twist drills are usually made of high speed steel,although carbide tipped drills are also available.The size of twist drills used in industrial range from0.01up to3.25in.(i.e.0.25up to 80mm).Core drills.A core drill consists of the chamfer,body,neck,and shank.This type of drill may be have either three or four flutes and an equal number of margins,which ensure superior guidance,thus resulting in high machining accuracy.It can also be seen in Fig12.2 that a core drill has flat end.The chamfer can have three or four cutting edges or lips,and the lip angle may vary between90and120.Core drills are employed for enlarging previously made holes and not for originating holes.This type of drill is characterized by greater productivity, high machining accuracy,and superior quality of the drilled surfaces.Gun drills.Gun drills are used for drilling deep holes.All gun drills are straight fluted, and each has a single cutting edge.A hole in the body acts as a conduit to transmit coolant under considerable pressure to the tip of the drill.There are two kinds of gun drills,namely,the center cut gun drill used for drilling blind holes and the trepanning drill.The latter has a cylindrical groove at its center,thus generating a solid core,which guides the tool as it proceeds during the drilling operation.Spade drills.Spade drills are used for drilling large holes of3.5in.(90mm)or more. Their design results in a marked saving in cost of the tool as well as a tangible reduction in its weight,which facilitates its handling.moreover,this type of drill is easy to be ground.[13]车床和车削车床及它的结构车床是一个主要用来生产旋转表面和端面的机床。

机械专业英语词汇陶瓷ceramics合成纤维synthetic fibre电化学腐蚀electrochemical corrosion车架automotive chassis悬架suspension转向器redirector变速器speed changer板料冲压sheet metal parts孔加工spot facing machining车间workshop工程技术人员engineer气动夹紧pneuma lock数学模型mathematical model画法几何descriptive geometry机械制图Mechanical drawing投影projection视图view剖视图profile chart标准件standard component零件图part drawing装配图assembly drawing尺寸标注size marking技术要求technical requirements刚度rigidity内力internal force位移displacement截面section疲劳极限fatigue limit断裂fracture塑性变形plastic distortion脆性材料brittleness material刚度准则rigidity criterion垫圈washer垫片spacer直齿圆柱齿轮straight toothed spur gear 斜齿圆柱齿轮helical-spur gear直齿锥齿轮straight bevel gear运动简图kinematic sketch齿轮齿条pinion and rack蜗杆蜗轮worm and worm gear虚约束passive constraint曲柄crank摇杆racker凸轮cams共轭曲线conjugate curve范成法generation method定义域definitional domain值域range导数\\微分differential coefficient求导derivation定积分definite integral不定积分indefinite integral曲率curvature偏微分partial differential毛坯rough游标卡尺slide caliper千分尺micrometer calipers攻丝tap二阶行列式second order determinant逆矩阵inverse matrix线性方程组linear equations概率probability随机变量random variable排列组合permutation and combination气体状态方程equation of state of gas动能kinetic energy势能potential energy机械能守恒conservation of mechanical energy 动量momentum桁架truss轴线axes余子式cofactor逻辑电路logic circuit触发器flip-flop脉冲波形pulse shape数模digital analogy液压传动机构fluid drive mechanism机械零件mechanical parts淬火冷却quench淬火hardening回火tempering调质hardening and tempering磨粒abrasive grain结合剂bonding agent砂轮grinding wheel后角clearance angle龙门刨削planing主轴spindle主轴箱headstock卡盘chuck加工中心machining center车刀lathe tool车床lathe钻削镗削bore车削turning磨床grinder基准benchmark钳工locksmith锻forge压模stamping焊weld拉床broaching machine拉孔broaching装配assembling铸造found流体动力学fluid dynamics流体力学fluid mechanics加工machining液压hydraulic pressure切线tangent机电一体化mechanotronics mechanical-electrical integration 气压air pressure pneumatic pressure稳定性stability介质medium液压驱动泵fluid clutch液压泵hydraulic pump阀门valve失效invalidation强度intensity载荷load应力stress安全系数safty factor可靠性reliability螺纹thread螺旋helix键spline销pin滚动轴承rolling bearing滑动轴承sliding bearing弹簧spring制动器arrester brake十字结联轴节crosshead联轴器coupling链chain皮带strap精加工finish machining粗加工rough machining变速箱体gearbox casing腐蚀rust氧化oxidation磨损wear耐用度durability随机信号random signal离散信号discrete signal超声传感器ultrasonic sensor集成电路integrate circuit挡板orifice plate残余应力residual stress套筒sleeve扭力torsion冷加工cold machining电动机electromotor汽缸cylinder过盈配合interference fit热加工hotwork摄像头CCD camera倒角rounding chamfer优化设计optimal design工业造型设计industrial moulding design有限元finite element滚齿hobbing插齿gear shaping伺服电机actuating motor铣床milling machine钻床drill machine镗床boring machine步进电机stepper motor丝杠screw rod导轨lead rail组件subassembly可编程序逻辑控制器Programmable Logic Controller PLC 电火花加工electric spark machining电火花线切割加工electrical discharge wire - cutting相图phase diagram热处理heat treatment固态相变solid state phase changes有色金属nonferrous metal陶瓷ceramics合成纤维synthetic fibre电化学腐蚀electrochemical corrosion车架automotive chassis悬架suspension转向器redirector变速器speed changer板料冲压sheet metal parts孔加工spot facing machining车间workshop工程技术人员engineer气动夹紧pneuma lock数学模型mathematical model画法几何descriptive geometry机械制图Mechanical drawing投影projection视图view剖视图profile chart标准件standard component零件图part drawing装配图assembly drawing尺寸标注size marking技术要求technical requirements刚度rigidity内力internal force位移displacement截面section疲劳极限fatigue limit断裂fracture塑性变形plastic distortion脆性材料brittleness material刚度准则rigidity criterion垫圈washer垫片spacer直齿圆柱齿轮straight toothed spur gear 斜齿圆柱齿轮helical-spur gear直齿锥齿轮straight bevel gear运动简图kinematic sketch齿轮齿条pinion and rack蜗杆蜗轮worm and worm gear虚约束passive constraint曲柄crank摇杆racker凸轮cams共轭曲线conjugate curve范成法generation method定义域definitional domain值域range导数\\微分differential coefficient求导derivation定积分definite integral不定积分indefinite integral曲率curvature偏微分partial differential毛坯rough游标卡尺slide caliper千分尺micrometer calipers攻丝tap二阶行列式second order determinant逆矩阵inverse matrix线性方程组linear equations概率probability随机变量random variable排列组合permutation and combination气体状态方程equation of state of gas动能kinetic energy势能potential energy机械能守恒conservation of mechanical energy 动量momentum桁架truss轴线axes余子式cofactor逻辑电路logic circuit触发器flip-flop脉冲波形pulse shape数模digital analogy液压传动机构fluid drive mechanism机械零件mechanical parts淬火冷却quench淬火hardening回火tempering调质hardening and tempering磨粒abrasive grain结合剂bonding agent砂轮grinding wheelAssembly line 组装线Layout 布置图Conveyer 流水线物料板Rivet table 拉钉机Rivet gun 拉钉枪Screw driver 起子Pneumatic screw driver 气动起子worktable 工作桌OOBA 开箱检查fit together 组装在一起fasten 锁紧(螺丝)fixture 夹具(治具)pallet 栈板barcode 条码barcode scanner 条码扫描器fuse together 熔合fuse machine热熔机repair修理operator作业员QC品管supervisor 课长ME 制造工程师MT 制造生技cosmetic inspect 外观检查inner parts inspect 内部检查thumb screw 大头螺丝lbs. inch 镑、英寸EMI gasket 导电条front plate 前板rear plate 后板chassis 基座bezel panel 面板power button 电源按键reset button 重置键Hi-pot test of SPS 高源高压测试Voltage switch of SPS 电源电压接拉键sheet metal parts 冲件plastic parts 塑胶件SOP 制造作业程序material check list 物料检查表work cell 工作间trolley 台车carton 纸箱sub-line 支线left fork 叉车personnel resource department 人力资源部production department生产部门planning department企划部QC Section品管科stamping factory冲压厂painting factory烤漆厂molding factory成型厂common equipment常用设备uncoiler and straightener整平机punching machine 冲床robot机械手hydraulic machine油压机lathe车床planer |plein|刨床miller铣床grinder磨床linear cutting线切割electrical sparkle电火花welder电焊机staker=reviting machine铆合机position职务president董事长general manager总经理special assistant manager特助factory director厂长department director部长deputy manager | =vice manager副理section supervisor课长deputy section supervisor =vice section superisor副课长group leader/supervisor组长line supervisor线长assistant manager助理to move, to carry, to handle搬运be put in storage入库pack packing包装to apply oil擦油to file burr 锉毛刺final inspection终检to connect material接料to reverse material 翻料wet station沾湿台Tiana天那水cleaning cloth抹布to load material上料to unload material卸料to return material/stock to退料scraped |\\'skr?pid|报废scrape ..v.刮;削deficient purchase来料不良manufacture procedure制程deficient manufacturing procedure制程不良oxidation |\\' ksi\\'dei?n|氧化scratch刮伤dents压痕defective upsiding down抽芽不良defective to staking铆合不良embedded lump镶块feeding is not in place送料不到位stamping-missing漏冲production capacity生产力education and training教育与训练proposal improvement提案改善spare parts=buffer备件forklift叉车trailer=long vehicle拖板车compound die合模die locker锁模器pressure plate=plate pinch压板bolt螺栓administration/general affairs dept总务部automatic screwdriver电动启子thickness gauge厚薄规gauge(or jig)治具power wire电源线buzzle蜂鸣器defective product label不良标签identifying sheet list标示单location地点present members出席人员subject主题conclusion结论decision items决议事项responsible department负责单位pre-fixed finishing date预定完成日approved by / checked by / prepared by核准/审核/承办PCE assembly production schedule sheet PCE组装厂生产排配表model机锺work order工令revision版次remark备注production control confirmation生产确认checked by初审approved by核准department部门stock age analysis sheet 库存货龄分析表on-hand inventory现有库存available material良品可使用obsolete material良品已呆滞to be inspected or reworked 待验或重工total合计cause description原因说明part number/ P/N 料号type形态item/group/class类别quality品质prepared by制表notes说明year-end physical inventory difference analysis sheet 年终盘点差异分析表physical inventory盘点数量physical count quantity帐面数量difference quantity差异量cause analysis原因分析raw materials原料materials物料finished product成品semi-finished product半成品packing materials包材good product/accepted goods/ accepted parts/good parts良品defective product/non-good parts不良品disposed goods处理品warehouse/hub仓库on way location在途仓oversea location海外仓spare parts physical inventory list备品盘点清单spare molds location模具备品仓skid/pallet栈板tox machine自铆机wire EDM线割EDM放电机coil stock卷料sheet stock片料tolerance工差score=groove压线cam block滑块pilot导正筒trim剪外边pierce剪内边drag form压锻差pocket for the punch head挂钩槽slug hole废料孔feature die公母模expansion dwg展开图radius半径shim(wedge)楔子torch-flame cut火焰切割set screw止付螺丝form block折刀stop pin定位销round pierce punch=die button圆冲子shape punch=die insert异形子stock locater block定位块under cut=scrap chopper清角active plate活动板baffle plate挡块cover plate盖板male die公模female die母模groove punch压线冲子air-cushion eject-rod气垫顶杆spring-box eject-plate弹簧箱顶板bushing block衬套insert 入块club car高尔夫球车capability能力parameter参数factor系数phosphate皮膜化成viscosity涂料粘度alkalidipping脱脂main manifold主集流脉bezel斜视规blanking穿落模dejecting顶固模demagnetization去磁;消磁high-speed transmission高速传递heat dissipation热传rack上料degrease脱脂rinse水洗alkaline etch龄咬desmut剥黑膜D.I. rinse纯水次Chromate铬酸处理Anodize阳性处理seal封孔revision版次part number/P/N料号good products良品scraped products报放心品defective products不良品finished products成品disposed products处理品barcode条码flow chart流程表单assembly组装stamping冲压molding成型spare parts=buffer备品coordinate座标dismantle the die折模auxiliary fuction辅助功能poly-line多义线heater band 加热片thermocouple热电偶sand blasting喷沙grit 砂砾derusting machine除锈机degate打浇口dryer烘干机induction感应induction light感应光response=reaction=interaction感应ram连杆edge finder巡边器concave凸convex凹short射料不足nick缺口speck瑕??shine亮班splay 银纹gas mark焦痕delamination起鳞cold slug冷块blush 导色gouge沟槽;凿槽satin texture段面咬花witness line证示线patent专利grit沙砾granule=peuet=grain细粒grit maker抽粒机cushion缓冲magnalium镁铝合金magnesium镁金metal plate钣金lathe车mill锉plane刨grind磨drill铝boring镗blinster气泡fillet镶;嵌边through-hole form通孔形式voller pin formality滚针形式cam driver铡楔shank摸柄crank shaft曲柄轴augular offset角度偏差velocity速度production tempo生产进度现状torque扭矩spline=the multiple keys花键quenching淬火tempering回火annealing退火carbonization碳化tungsten high speed steel钨高速的moly high speed steel钼高速的organic solvent有机溶剂bracket小磁导liaison联络单volatile挥发性resistance电阻ion离子titrator滴定仪beacon警示灯coolant冷却液crusher破碎机阿基米德蜗杆Archimedes worm安全系数safety factor; factor of safety安全载荷safe load凹面、凹度concavity扳手wrench板簧flat leaf spring半圆键woodruff key变形deformation摆杆oscillating bar摆动从动件oscillating follower摆动从动件凸轮机构cam with oscillating follower 摆动导杆机构oscillating guide-bar mechanism 摆线齿轮cycloidal gear摆线齿形cycloidal tooth profile摆线运动规律cycloidal motion摆线针轮cycloidal-pin wheel包角angle of contact保持架cage背对背安装back-to-back arrangement背锥back cone ；normal cone背锥角back angle背锥距back cone distance比例尺scale比热容specific heat capacity闭式链closed kinematic chain闭链机构closed chain mechanism臂部arm变频器frequency converters变频调速frequency control of motor speed变速speed change变速齿轮change gear change wheel变位齿轮modified gear变位系数modification coefficient标准齿轮standard gear标准直齿轮standard spur gear表面质量系数superficial mass factor表面传热系数surface coefficient of heat transfer表面粗糙度surface roughness并联式组合combination in parallel并联机构parallel mechanism并联组合机构parallel combined mechanism并行工程concurrent engineering并行设计concurred design, CD不平衡相位phase angle of unbalance不平衡imbalance (or unbalance)不平衡量amount of unbalance不完全齿轮机构intermittent gearing波发生器wave generator波数number of waves补偿compensation参数化设计parameterization design, PD残余应力residual stress操纵及控制装置operation control device槽轮Geneva wheel槽轮机构Geneva mechanism ；Maltese cross槽数Geneva numerate槽凸轮groove cam侧隙backlash差动轮系differential gear train差动螺旋机构differential screw mechanism差速器differential常用机构conventional mechanism; mechanism in common use 车床lathe承载量系数bearing capacity factor承载能力bearing capacity成对安装paired mounting尺寸系列dimension series齿槽tooth space齿槽宽spacewidth齿侧间隙backlash齿顶高addendum齿顶圆addendum circle齿根高dedendum齿根圆dedendum circle齿厚tooth thickness齿距circular pitch齿宽face width齿廓tooth profile齿廓曲线tooth curve齿轮gear齿轮变速箱speed-changing gear boxes齿轮齿条机构pinion and rack齿轮插刀pinion cutter; pinion-shaped shaper cutter 齿轮滚刀hob ,hobbing cutter齿轮机构gear齿轮轮坯blank齿轮传动系pinion unit齿轮联轴器gear coupling齿条传动rack gear齿数tooth number齿数比gear ratio齿条rack齿条插刀rack cutter; rack-shaped shaper cutter齿形链、无声链silent chain齿形系数form factor齿式棘轮机构tooth ratchet mechanism插齿机gear shaper重合点coincident points重合度contact ratio冲床punch传动比transmission ratio, speed ratio传动装置gearing; transmission gear传动系统driven system传动角transmission angle传动轴transmission shaft串联式组合combination in series串联式组合机构series combined mechanism串级调速cascade speed control创新innovation creation创新设计creation design垂直载荷、法向载荷normal load唇形橡胶密封lip rubber seal磁流体轴承magnetic fluid bearing从动带轮driven pulley从动件driven link, follower从动件平底宽度width of flat-face从动件停歇follower dwell从动件运动规律follower motion从动轮driven gear粗线bold line粗牙螺纹coarse thread大齿轮gear wheel打包机packer打滑slipping带传动belt driving带轮belt pulley带式制动器band brake单列轴承single row bearing单向推力轴承single-direction thrust bearing单万向联轴节single universal joint单位矢量unit vector当量齿轮equivalent spur gear; virtual gear当量齿数equivalent teeth number; virtual number of teeth当量摩擦系数equivalent coefficient of friction当量载荷equivalent load刀具cutter导数derivative倒角chamfer导热性conduction of heat导程lead导程角lead angle等加等减速运动规律parabolic motion; constant acceleration and deceleration motion等速运动规律uniform motion; constant velocity motion等径凸轮conjugate yoke radial cam等宽凸轮constant-breadth cam等效构件equivalent link等效力equivalent force等效力矩equivalent moment of force等效量equivalent等效质量equivalent mass等效转动惯量equivalent moment of inertia等效动力学模型dynamically equivalent model底座chassis低副lower pair点划线chain dotted line（疲劳）点蚀pitting垫圈gasket垫片密封gasket seal碟形弹簧belleville spring顶隙bottom clearance定轴轮系ordinary gear train; gear train with fixed axes动力学dynamics动密封kinematical seal动能dynamic energy动力粘度dynamic viscosity动力润滑dynamic lubrication动平衡dynamic balance动平衡机dynamic balancing machine动态特性dynamic characteristics动态分析设计dynamic analysis design动压力dynamic reaction动载荷dynamic load端面transverse plane端面参数transverse parameters端面齿距transverse circular pitch端面齿廓transverse tooth profile端面重合度transverse contact ratio端面模数transverse module端面压力角transverse pressure angle锻造forge对称循环应力symmetry circulating stress对心滚子从动件radial (or in-line ) roller follower对心直动从动件radial (or in-line ) translating follower对心移动从动件radial reciprocating follower对心曲柄滑块机构in-line slider-crank (or crank-slider) mechanism 多列轴承multi-row bearing多楔带poly V-belt多项式运动规律polynomial motion多质量转子rotor with several masses惰轮idle gear额定寿命rating life额定载荷load ratingII 级杆组dyad发生线generating line发生面generating plane法面normal plane法面参数normal parameters法面齿距normal circular pitch法面模数normal module法面压力角normal pressure angle法向齿距normal pitch法向齿廓normal tooth profile法向直廓蜗杆straight sided normal worm法向力normal force反馈式组合feedback combining反向运动学inverse ( or backward) kinematics反转法kinematic inversion反正切Arctan范成法generating cutting仿形法form cutting方案设计、概念设计concept design, CD防振装置shockproof device飞轮flywheel飞轮矩moment of flywheel非标准齿轮nonstandard gear非接触式密封non-contact seal非周期性速度波动aperiodic speed fluctuation非圆齿轮non-circular gear粉末合金powder metallurgy分度线reference line; standard pitch line分度圆reference circle; standard (cutting) pitch circle 分度圆柱导程角lead angle at reference cylinder分度圆柱螺旋角helix angle at reference cylinder分母denominator分子numerator分度圆锥reference cone; standard pitch cone分析法analytical method封闭差动轮系planetary differential复合铰链compound hinge复合式组合compound combining复合轮系compound (or combined) gear train复合平带compound flat belt复合应力combined stress复式螺旋机构Compound screw mechanism复杂机构complex mechanism杆组Assur group干涉interference刚度系数stiffness coefficient刚轮rigid circular spline钢丝软轴wire soft shaft刚体导引机构body guidance mechanism刚性冲击rigid impulse (shock)刚性转子rigid rotor刚性轴承rigid bearing刚性联轴器rigid coupling高度系列height series高速带high speed belt高副higher pair格拉晓夫定理Grashoff`s law根切undercutting公称直径nominal diameter高度系列height series功work工况系数application factor工艺设计technological design工作循环图working cycle diagram工作机构operation mechanism工作载荷external loads工作空间working space工作应力working stress工作阻力effective resistance工作阻力矩effective resistance moment公法线common normal line公共约束general constraint公制齿轮metric gears功率power功能分析设计function analyses design共轭齿廓conjugate profiles共轭凸轮conjugate cam构件link鼓风机blower固定构件fixed link; frame固体润滑剂solid lubricant关节型操作器jointed manipulator惯性力inertia force惯性力矩moment of inertia ,shaking moment 惯性力平衡balance of shaking force惯性力完全平衡full balance of shaking force惯性力部分平衡partial balance of shaking force 惯性主矩resultant moment of inertia惯性主失resultant vector of inertia冠轮crown gear广义机构generation mechanism广义坐标generalized coordinate轨迹生成path generation轨迹发生器path generator滚刀hob滚道raceway滚动体rolling element滚动轴承rolling bearing滚动轴承代号rolling bearing identification code 滚针needle roller滚针轴承needle roller bearing滚子roller滚子轴承roller bearing滚子半径radius of roller滚子从动件roller follower滚子链roller chain滚子链联轴器double roller chain coupling滚珠丝杆ball screw滚柱式单向超越离合器roller clutch过度切割undercutting函数发生器function generator函数生成function generation含油轴承oil bearing耗油量oil consumption耗油量系数oil consumption factor赫兹公式H. Hertz equation合成弯矩resultant bending moment合力resultant force合力矩resultant moment of force黑箱black box横坐标abscissa互换性齿轮interchangeable gears花键spline滑键、导键feather key滑动轴承sliding bearing滑动率sliding ratio滑块slider环面蜗杆toroid helicoids worm环形弹簧annular spring缓冲装置shocks; shock-absorber灰铸铁grey cast iron回程return回转体平衡balance of rotors混合轮系compound gear train积分integrate机电一体化系统设计mechanical-electrical integration system design 机构mechanism机构分析analysis of mechanism机构平衡balance of mechanism机构学mechanism机构运动设计kinematic design of mechanism机构运动简图kinematic sketch of mechanism机构综合synthesis of mechanism机构组成constitution of mechanism机架frame, fixed link机架变换kinematic inversion机器machine机器人robot机器人操作器manipulator机器人学robotics技术过程technique process技术经济评价technical and economic evaluation技术系统technique system机械machinery机械创新设计mechanical creation design, MCD机械系统设计mechanical system design, MSD机械动力分析dynamic analysis of machinery机械动力设计dynamic design of machinery机械动力学dynamics of machinery机械的现代设计modern machine design机械系统mechanical system机械利益mechanical advantage机械平衡balance of machinery机械手manipulator机械设计machine design; mechanical design机械特性mechanical behavior机械调速mechanical speed governors机械效率mechanical efficiency机械原理theory of machines and mechanisms机械运转不均匀系数coefficient of speed fluctuation机械无级变速mechanical stepless speed changes基础机构fundamental mechanism基本额定寿命basic rating life基于实例设计case-based design,CBD基圆base circle基圆半径radius of base circle基圆齿距base pitch基圆压力角pressure angle of base circle基圆柱base cylinder基圆锥base cone急回机构quick-return mechanism急回特性quick-return characteristics急回系数advance-to return-time ratio急回运动quick-return motion棘轮ratchet棘轮机构ratchet mechanism棘爪pawl极限位置extreme (or limiting) position极位夹角crank angle between extreme (or limiting) positions计算机辅助设计computer aided design, CAD计算机辅助制造computer aided manufacturing, CAM计算机集成制造系统computer integrated manufacturing system, CIMS 计算力矩factored moment; calculation moment计算弯矩calculated bending moment加权系数weighting efficient加速度acceleration加速度分析acceleration analysis加速度曲线acceleration diagram尖点pointing; cusp尖底从动件knife-edge follower间隙backlash间歇运动机构intermittent motion mechanism 减速比reduction ratio减速齿轮、减速装置reduction gear减速器speed reducer减摩性anti-friction quality渐开螺旋面involute helicoid渐开线involute渐开线齿廓involute profile渐开线齿轮involute gear渐开线发生线generating line of involute渐开线方程involute equation渐开线函数involute function渐开线蜗杆involute worm渐开线压力角pressure angle of involute渐开线花键involute spline简谐运动simple harmonic motion键key键槽keyway交变应力repeated stress交变载荷repeated fluctuating load交叉带传动cross-belt drive交错轴斜齿轮crossed helical gears胶合scoring角加速度angular acceleration角速度angular velocity角速比angular velocity ratio角接触球轴承angular contact ball bearing角接触推力轴承angular contact thrust bearing 角接触向心轴承angular contact radial bearing 角接触轴承angular contact bearing铰链、枢纽hinge校正平面correcting plane接触应力contact stress接触式密封contact seal阶梯轴multi-diameter shaft结构structure结构设计structural design截面section节点pitch point节距circular pitch; pitch of teeth节线pitch line节圆pitch circle节圆齿厚thickness on pitch circle节圆直径pitch diameter节圆锥pitch cone节圆锥角pitch cone angle解析设计analytical design紧边tight-side紧固件fastener径节diametral pitch径向radial direction径向当量动载荷dynamic equivalent radial load径向当量静载荷static equivalent radial load径向基本额定动载荷basic dynamic radial load rating 径向基本额定静载荷basic static radial load tating径向接触轴承radial contact bearing径向平面radial plane径向游隙radial internal clearance径向载荷radial load径向载荷系数radial load factor径向间隙clearance静力static force静平衡static balance静载荷static load静密封static seal局部自由度passive degree of freedom矩阵matrix矩形螺纹square threaded form锯齿形螺纹buttress thread form矩形牙嵌式离合器square-jaw positive-contact clutch 绝对尺寸系数absolute dimensional factor绝对运动absolute motion绝对速度absolute velocity均衡装置load balancing mechanism抗压强度compression strength开口传动open-belt drive开式链open kinematic chain开链机构open chain mechanism可靠度degree of reliability可靠性reliability可靠性设计reliability design, RD空气弹簧air spring空间机构spatial mechanism空间连杆机构spatial linkage空间凸轮机构spatial cam空间运动副spatial kinematic pair空间运动链spatial kinematic chain空转idle宽度系列width series框图block diagram雷诺方程Reynolds‘s equation离心力centrifugal force离心应力centrifugal stress离合器clutch离心密封centrifugal seal理论廓线pitch curve理论啮合线theoretical line of action隶属度membership力force力多边形force polygon力封闭型凸轮机构force-drive (or force-closed) cam mechanism 力矩moment力平衡equilibrium力偶couple力偶矩moment of couple连杆connecting rod, coupler连杆机构linkage连杆曲线coupler-curve连心线line of centers链chain链传动装置chain gearing链轮sprocket sprocket-wheel sprocket gear chain wheel联组V 带tight-up V belt联轴器coupling shaft coupling两维凸轮two-dimensional cam临界转速critical speed六杆机构six-bar linkage龙门刨床double Haas planer轮坯blank轮系gear train螺杆screw螺距thread pitch螺母screw nut螺旋锥齿轮helical bevel gear螺钉screws螺栓bolts螺纹导程lead螺纹效率screw efficiency螺旋传动power screw螺旋密封spiral seal螺纹thread (of a screw)螺旋副helical pair螺旋机构screw mechanism螺旋角helix angle螺旋线helix ,helical line绿色设计green design design for environment马耳他机构Geneva wheel Geneva gear马耳他十字Maltese cross脉动无级变速pulsating stepless speed changes脉动循环应力fluctuating circulating stress脉动载荷fluctuating load铆钉rivet迷宫密封labyrinth seal密封seal密封带seal belt密封胶seal gum密封元件potted component密封装置sealing arrangement面对面安装face-to-face arrangement面向产品生命周期设计design for product`s life cycle, DPLC 名义应力、公称应力nominal stress模块化设计modular design, MD模块式传动系统modular system模幅箱morphology box模糊集fuzzy set模糊评价fuzzy evaluation模数module摩擦friction摩擦角friction angle摩擦力friction force摩擦学设计tribology design, TD摩擦阻力frictional resistance摩擦力矩friction moment摩擦系数coefficient of friction摩擦圆friction circle磨损abrasion wear; scratching末端执行器end-effector目标函数objective function耐腐蚀性corrosion resistance耐磨性wear resistance挠性机构mechanism with flexible elements挠性转子flexible rotor内齿轮internal gear内齿圈ring gear内力internal force内圈inner ring能量energy能量指示图viscosity逆时针counterclockwise (or anticlockwise)啮出engaging-out啮合engagement, mesh, gearing啮合点contact points啮合角working pressure angle啮合线line of action啮合线长度length of line of action啮入engaging-in牛头刨床shaper凝固点freezing point; solidifying point扭转应力torsion stress扭矩moment of torque扭簧helical torsion spring诺模图NomogramO 形密封圈密封O ring seal盘形凸轮disk cam盘形转子disk-like rotor抛物线运动parabolic motion疲劳极限fatigue limit疲劳强度fatigue strength偏置式offset偏( 心) 距offset distance偏心率eccentricity ratio偏心质量eccentric mass偏距圆offset circle偏心盘eccentric偏置滚子从动件offset roller follower偏置尖底从动件offset knife-edge follower偏置曲柄滑块机构offset slider-crank mechanism 拼接matching评价与决策evaluation and decision频率frequency平带flat belt平带传动flat belt driving平底从动件flat-face follower平底宽度face width平分线bisector平均应力average stress平均中径mean screw diameter平均速度average velocity平衡balance平衡机balancing machine平衡品质balancing quality平衡平面correcting plane平衡质量balancing mass平衡重counterweight平衡转速balancing speed平面副planar pair, flat pair平面机构planar mechanism平面运动副planar kinematic pair平面连杆机构planar linkage平面凸轮planar cam平面凸轮机构planar cam mechanism平面轴斜齿轮parallel helical gears普通平键parallel key其他常用机构other mechanism in common use起动阶段starting period启动力矩starting torque气动机构pneumatic mechanism奇异位置singular position起始啮合点initial contact , beginning of contact气体轴承gas bearing千斤顶jack嵌入键sunk key强迫振动forced vibration切齿深度depth of cut曲柄crank曲柄存在条件Grashoff`s law曲柄导杆机构crank shaper (guide-bar) mechanism曲柄滑块机构slider-crank (or crank-slider) mechanism 曲柄摇杆机构crank-rocker mechanism曲齿锥齿轮spiral bevel gear曲率curvature曲率半径radius of curvature曲面从动件curved-shoe follower曲线拼接curve matching曲线运动curvilinear motion曲轴crank shaft驱动力driving force驱动力矩driving moment (torque)全齿高whole depth。

机械专业英语词汇很全机械专业英语词汇很全，涵盖了机械工程的各个方面，包括机械设计、制造、加工、控制等。

以下是机械专业英语词汇的一些示例：1. 机械设计 Mechanical design2. 机械制造 Mechanical manufacturing3. 机械加工 Mechanical machining4. 机械控制 Mechanical control5. 自动化 Automation6. 数控机床 CNC machine tools7. 机器人 Robots8. 机床数控化 CNC of machine tools9. 工具机机床 Machine tool machines10. 机械加工工艺 Mechanical processing technology11. 精密制造 Precision manufacturing12. 物料加工 Material processing13. 金属材料 Metal materials14. 金属加工 Metal processing15. 材料力学 Material mechanics16. 工程力学 Engineering mechanics17. 流体力学 Fluid mechanics18. 热力学 Thermodynamics19. 机械结构 Mechanical structure20. 机械传动 Mechanical transmission21. 机械制动 Mechanical brake22. 机械力学 Mechanical mechanics23. 工程制图 Engineering drawing24. 机械工程师 Mechanical engineer25. 机械工厂 Mechanical factory26. 机械设备 Mechanical equipment27. 机械零件 Mechanical parts28. 机械元件 Mechanical components29. 机械系统 Mechanical system30. 机械工艺 Mechanical technology31. 机械原理 Mechanical principle32. 机械参数 Mechanical parameters33. 机械性能 Mechanical properties34. 机械加工设备 Mechanical processing equipment35. 机械加工工具 Mechanical processing tools36. 机械制造设备 Mechanical manufacturing equipment37. 机械零件加工 Mechanical parts processing38. 机械零件设计 Mechanical parts design39. 锻造工艺 Forging technology40. 冲压工艺 Stamping process41. 铸造工艺 Casting process42. 加工精度 Machining accuracy43. 材料成型 Material forming44. 液压传动 Hydrodynamic transmission45. 自动控制 Automatic control46. 机械加工质量 Mechanical processing quality47. 工艺创新 Technological innovation48. 机械设计师 Mechanical designer49. 机械制造商 Mechanical manufacturer50. 机械公司 Mechanical company以上仅是机械专业英语词汇中的一部分，还有很多更加专业的术语和技术语言，仅仅掌握这些词汇远远不够。

机床行业中英文对照下面是机床行业中常见的英文对照：- 机床行业：Machine tool industry- 机床：Machine tool- 数控机床：Computer Numerical Control (CNC) machine tool - 金属切削机床：Metal cutting machine tool- 金属加工机床：Metal processing machine tool- 金属成型机床：Metal forming machine tool- 车床：Lathe- 铣床：Milling machine- 钻床：Drilling machine- 磨床：Grinding machine- 塑料加工机床：Plastic processing machine tool- 精密机床：Precision machine tool- 自动化机床：Automated machine tool- 机床控制系统：Machine tool control system- 数控系统：Numerical control system- 机床加工能力：Machine tool processing capacity- 加工精度：Processing accuracy- 切削速度：Cutting speed- 进给速度：Feed rate- 主轴转速：Spindle speed- 工件夹紧：Workpiece clamping- 工件定位：Workpiece positioning- 刀具选择：Tool selection- 刀具更换：Tool change- 冷却液：Coolant- 刀柄：Tool holder- 加工中心：Machining center- 排屑：Chip removal- 刀具磨损：Tool wear- 折弯机：Bending machine- 冲床：Punching machine- 压力机：Press machine- 剪板机：Shearing machine- 抛光机：Polishing machine- 螺纹机床：Thread cutting machine tool - 铸造机床：Casting machine tool- 灰铁：Gray iron- 球墨铸铁：Ductile iron- 铝合金：Aluminum alloy- 不锈钢：Stainless steel- 最大加工尺寸：Maximum processing size - 机床设计：Machine tool design- 机床制造：Machine tool manufacturing - 机床市场：Machine tool market- 机床出口：Machine tool export- 机床进口：Machine tool import- 机床行业协会：Machine tool industry association。

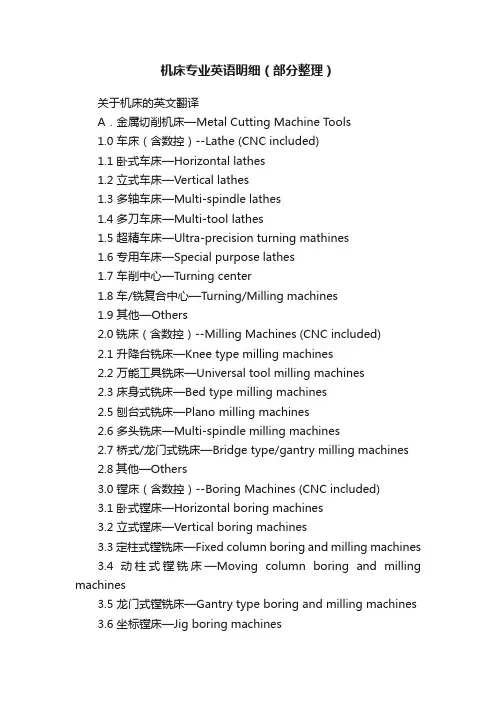

机床专业英语明细（部分整理）关于机床的英文翻译A．金属切削机床—Metal Cutting Machine Tools1.0 车床（含数控）--Lathe (CNC included)1.1 卧式车床—Horizontal lathes1.2 立式车床—Vertical lathes1.3 多轴车床—Multi-spindle lathes1.4 多刀车床—Multi-tool lathes1.5 超精车床—Ultra-precision turning mathines1.6 专用车床—Special purpose lathes1.7 车削中心—Turning center1.8 车/铣复合中心—Turning/Milling machines1.9 其他—Others2.0铣床（含数控）--Milling Machines (CNC included)2.1 升降台铣床—Knee type milling machines2.2 万能工具铣床—Universal tool milling machines2.3 床身式铣床—Bed type milling machines2.5 刨台式铣床—Plano milling machines2.6 多头铣床—Multi-spindle milling machines2.7 桥式/龙门式铣床—Bridge type/gantry milling machines2.8其他—Others3.0 镗床（含数控）--Boring Machines (CNC included)3.1 卧式镗床—Horizontal boring machines3.2 立式镗床—Vertical boring machines3.3 定柱式镗铣床—Fixed column boring and milling machines3.4 动柱式镗铣床—Moving column boring and milling machines3.5 龙门式镗铣床—Gantry type boring and milling machines3.6 坐标镗床—Jig boring machines3.7其他—Others4.0 钻削和攻丝机床（含数控）--Drilling and Tapping Machines(CNC ncluded) 4.1 立式钻床—Vertical drilling machines4.2 摇臂钻床—Redial drilling machines4.3 深孔钻床—Deep hole drilling machines4.4 多轴钻床—Multi-spindle drilling machines4.5 钻削中心—Drilling center4.6 攻丝机—Tapping machines4.7其他—Others5.0 磨床（含数控）--Grinding Machines(CNC included)5.1 砂带磨床—Abrasive belt grinding machines5.2 外圆磨床—Cylindrical grinding machines5.3 内圆磨床—Internal grinding machines5.4 无心磨床—Centerless grinding machines5.5 平面磨床—Surface grinding machines5.6 工具磨床—T ool grinding machines5.7 成型磨床—Form grinding machines5.8 凸轮轴和曲轴磨床—Camshaft and crankshaft grinding machines5.9 轴承专用磨床—Bearing grinding machines5.10 导轨磨床—Guideway grinding machines5.11 轧辊磨床—Roller grinding machines5.12 坐标磨床—Jig grinding machines5.13 超精磨床—Super-finishing grinding machines5.14 缓进给磨床—Creep feed grinding machines5.15 万能磨床—Universal grinding machines5.16 单盘/双盘盘端面磨床—Single/double-disk grinding machines5.17 珩磨机—Honing machines5.18 研磨/抛光/超精加工机—Lapping/polishing/super-finishing machines5.19 专用磨床—Special purpose grinding machines5.20其他—Others6.0 齿轮加工机床（含数控）--Gear Cutting Machines (CNC included)6.1 滚齿机床—Gear hobbing machines6.2 插齿机床—Gear shaping machines6.3 铣齿、切齿机床—Gear cutting machines6.4 剃齿机床—Gear shaving machines6.5 磨齿机床—Gear grinding machines6.6 王行齿机床—Gear honing and gear polishing machines6.7 齿轮倒圆机床—Gear chamfering machines6.8 齿轮去毛刺机床—Gear deburring machines6.9其他—Others7.1 圆锯机床—Circular sawing machines7.2 带锯机床—Band sawing machines7.3 弓锯机床—Hack sawing machines7.4 插床—Shaping machines7.5 拉床—Broaching machines7.6 刨床—Planning machines7.7 专用机床—Special purpose machines7.8其他—Others8.0 组合机床及组合部件（含数控）--Transfer Line &Modular Units (CNC included) 8.1 组合机床—Modular machine tools8.2 组合机床生产线—Transfer lines8.3 组合机床通用部件—Modular units8.4 旋转分度台部件—Rotary indexing table units8.5 装配机及装配自动线—Assembling machines & assembling systems8.6 专用机床及部件—Special purpose machines andcomponents8.7其他—Others9.0 加工中心及并联机床—Machining Centres and Parallel Kinematical Machines (PK M)9.1 卧式加工中心—Horizontal machining centres9.2 立式加工中心—Vertical machining centres9.3 龙门式加工中心—Gantry machining centres9.4 并联机床—Parallel kinematical machines (PKM)9.5其他—Others10.1 光饰机—Finishing machines10.2 抛光机—Polishing machines10.3 倒角机—Chamfering machines10.4 螺钉、螺母、螺纹和铆钉生产设备—Machines for production of bolts,nuts,screws and rivets10.5 平衡机—Banlancing machines。

毕业设计（论文）——外文翻译（原文）Lathe来源：/wiki/LatheA lathe is a machine tool which spins a block of material to perform various operations such as cutting, sanding, knurling, drilling, or deformation with tools that are applied to the workpiece to create an object which has symmetry about an axis of rotation.Lathes are used in woodturning, metalworking, and glassworking. Lathes can be used to shape pottery, the best-known design being the potter's wheel. Most suitably equipped metalworking lathes can also be used to produce most solids of revolution, plane surfaces and screw threads or helices. Ornamental lathes can produce three-dimensional solids of incredible complexity. The material is held in place by either one or two centers, at least one of which can be moved horizontally to accommodate varying material lengths. Examples of objects that can be produced on a lathe include cue sticks, table legs, bowls, baseball bats, crankshafts and camshafts.HistoryThe lathe is an ancient tool, dating at least to the Egyptians ，and known and used in Greece, the Roman and Byzantine Empires.The origin of turning dates to around 1300BC when the Egyptians first developed a two-person lathe. One person would turn the wood workpiece with a rope while the other used a sharp tool to cut shapes in the wood. The Romans improved the Egyptian design with the addition of a turning bow. Early bow lathes were also developed and used in Germany, France and Britain. In the Middle Ages a pedal replaced hand-operated turning, freeing both the craftsman's hands to hold the woodturning tools. The pedal was usually connected to a pole, often a straight-grained sapling. The system today is called the "spring pole" lathe. Spring pole lathes were in common use into the early 20th Century. A two-person lathe, called a "great lathe", allowed a piece to turn continuously (like today's power lathes). A master would cut the wood while an apprentice turned the crank。

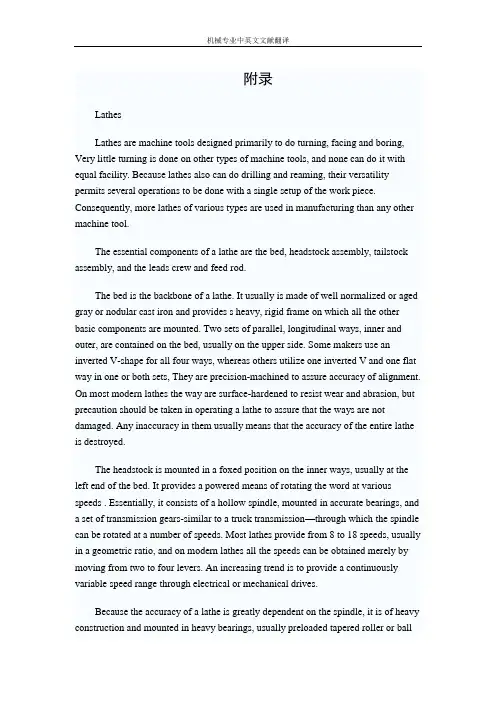

附录LathesLathes are machine tools designed primarily to do turning, facing and boring, Very little turning is done on other types of machine tools, and none can do it with equal facility. Because lathes also can do drilling and reaming, their versatility permits several operations to be done with a single setup of the work piece. Consequently, more lathes of various types are used in manufacturing than any other machine tool.The essential components of a lathe are the bed, headstock assembly, tailstock assembly, and the leads crew and feed rod.The bed is the backbone of a lathe. It usually is made of well normalized or aged gray or nodular cast iron and provides s heavy, rigid frame on which all the other basic components are mounted. Two sets of parallel, longitudinal ways, inner and outer, are contained on the bed, usually on the upper side. Some makers use an inverted V-shape for all four ways, whereas others utilize one inverted V and one flat way in one or both sets, They are precision-machined to assure accuracy of alignment. On most modern lathes the way are surface-hardened to resist wear and abrasion, but precaution should be taken in operating a lathe to assure that the ways are not damaged. Any inaccuracy in them usually means that the accuracy of the entire lathe is destroyed.The headstock is mounted in a foxed position on the inner ways, usually at the left end of the bed. It provides a powered means of rotating the word at various speeds . Essentially, it consists of a hollow spindle, mounted in accurate bearings, and a set of transmission gears-similar to a truck transmission—through which the spindle can be rotated at a number of speeds. Most lathes provide from 8 to 18 speeds, usually in a geometric ratio, and on modern lathes all the speeds can be obtained merely by moving from two to four levers. An increasing trend is to provide a continuously variable speed range through electrical or mechanical drives.Because the accuracy of a lathe is greatly dependent on the spindle, it is of heavy construction and mounted in heavy bearings, usually preloaded tapered roller or balltypes. The spindle has a hole extending through its length, through which long bar stock can be fed. The size of maximum size of bar stock that can be machined when the material must be fed through spindle.The tailsticd assembly consists, essentially, of three parts. A lower casting fits on the inner ways of the bed and can slide longitudinally thereon, with a means for clamping the entire assembly in any desired location, An upper casting fits on the lower one and can be moved transversely upon it, on some type of keyed ways, to permit aligning the assembly is the tailstock quill. This is a hollow steel cylinder, usually about 51 to 76mm(2to 3 inches) in diameter, that can be moved several inches longitudinally in and out of the upper casting by means of a hand wheel and screw.The size of a lathe is designated by two dimensions. The first is known as the swing. This is the maximum diameter of work that can be rotated on a lathe. It is approximately twice the distance between the line connecting the lathe centers and the nearest point on the ways, The second size dimension is the maximum distance between centers. The swing thus indicates the maximum work piece diameter that can be turned in the lathe, while the distance between centers indicates the maximum length of work piece that can be mounted between centers.Engine lathes are the type most frequently used in manufacturing. They are heavy-duty machine tools with all the components described previously and have power drive for all tool movements except on the compound rest. They commonly range in size from 305 to 610 mm(12 to 24 inches)swing and from 610 to 1219mm(24 to 48 inches) center distances, but swings up to 1270 mm(50 inches) and center distances up to 3658mm(12 feet) are not uncommon. Most have chip pans and a built-in coolant circulating system. Smaller engine lathes-with swings usually not over 330 mm (13 inches ) –also are available in bench type, designed for the bed to be mounted on a bench on a bench or cabinet.Although engine lathes are versatile and very useful, because of the time required for changing and setting tools and for making measurements on the work piece, thy are not suitable for quantity production. Often the actual chip-production tine is less than 30% of the total cycle time. In addition, a skilled machinist is required for all the operations, and such persons are costly and often in short supply. However, much of the operator’s time is consum ed by simple, repetitious adjustments and inwatching chips being made. Consequently, to reduce or eliminate the amount of skilled labor that is required, turret lathes, screw machines, and other types of semiautomatic and automatic lathes have been highly developed and are widely used in manufacturing.2 Numerical ControlOne of the most fundamental concepts in the area of advanced manufacturing technologies is numerical control (NC). Prior to the advent of NC, all machine tools ere manually operated and controlled. Among the many limitations associated with manual control machine tools, perhaps none is more prominent than the limitation of operator skills. With manual control, the quality of the product is directly related to and limited to the skills of the operator. Numerical control represents the first major step away from human control of machine tools.Numerical control means the control of machine tools and other manufacturing systems through the use of prerecorded, written symbolic instructions. Rather than operating a machine tool, an NC technician writes a program that issues operational instructions to the machine tool. For a machine tool to be numerically controlled, it must be interfaced with a device for accepting and decoding the programmed instructions, known as a reader.Numerical control was developed to overcome the limitation of human operators, and it has done so. Numerical control machines are more accurate than manually operated machines, they can produce parts more uniformly, they are faster, and the long-run tooling costs are lower. The development of NC led to the development of several other innovations in manufacturing technology:Electrical discharge machining,Laser cutting,Electron beam welding.Numerical control has also made machine tools more versatile than their manually operated predecessors. An NC machine tool can automatically produce a wide of parts, each involving an assortment of widely varied and complex machining processes. Numerical control has allowed manufacturers to undertake the production of products that would not have been feasible from an economic perspective using manually controlled machine tolls and processes.Like so many advanced technologies, NC was born in the laboratories of the Massachusetts Institute of Technology. The concept of NC was developed in the early 1950s with funding provided by the U.S. Air Force. In its earliest stages, NC machines were able to made straight cuts efficiently and effectively.However, curved paths were a problem because the machine tool had to be programmed to undertake a series of horizontal and vertical steps to produce a curve. The shorter the straight lines making up the steps, the smoother is the curve, Each line segment in the steps had to be calculated.This problem led to the development in 1959 of the Automatically Programmed Tools (APT) language. This is a special programming language for NC that uses statements similar to English language to define the part geometry, describe the cutting tool configuration, and specify the necessary motions. The development of the APT language was a major step forward in the fur ther development from those used today. The machines had hardwired logic circuits. The instructional programs were written on punched paper, which was later to be replaced by magnetic plastic tape. A tape reader was used to interpret the instructions written on the tape for the machine. Together, all of this represented a giant step forward in the control of machine tools. However, there were a number of problems with NC at this point in its development.A major problem was the fragility of the punched paper tape medium. It was common for the paper tape containing the programmed instructions to break or tear during a machining process. This problem was exacerbated by the fact that each successive time a part was produced on a machine tool, the paper tape carrying the programmed instructions had to be rerun through the reader. If it was necessary to produce 100 copies of a given part, it was also necessary to run the paper tape through the reader 100 separate tines. Fragile paper tapes simply could not withstand the rigors of a shop floor environment and this kind of repeated use.This led to the development of a special magnetic plastic tape. Whereas the paper carried the programmed instructions as a series of holes punched in the tape, the plastic tape carried the instructions as a series of magnetic dots. The plastic tape was much stronger than the paper tape, which solved the problem of frequent tearing and breakage. However, it still left two other problems.The most important of these was that it was difficult or impossible to change the instructions entered on the tape. To made even the most minor adjustments in a program of instructions, it was necessary to interrupt machining operations and make a new tape. It was also still necessary to run the tape through the reader as many times as there were parts to be produced. Fortunately, computer technology became a reality and soon solved the problems of NC associated with punched paper and plastic tape.The development of a concept known as direct numerical control (DNC) solved the paper and plastic tape problems associated with numerical control by simply eliminating tape as the medium for carrying the programmed instructions. In direct numerical control, machine tools are tied, via a data transmission link, to a host computer. Programs for operating the machine tools are stored in the host computer and fed to the machine tool an needed via the data transmission linkage. Direct numerical control represented a major step forward over punched tape and plastic tape. However, it is subject to the same limitations as all technologies that depend on a host computer. When the host computer goes down, the machine tools also experience downtime. This problem led to the development of computer numerical control.3 TurningThe engine lathe, one of the oldest metal removal machines, has a number of useful and highly desirable attributes. Today these lathes are used primarily in small shops where smaller quantities rather than large production runs are encountered.The engine lathe has been replaced in today’s production shops by a wide variety of automatic lathes such as automatic of single-point tooling for maximum metal removal, and the use of form tools for finish on a par with the fastest processing equipment on the scene today.Tolerances for the engine lathe depend primarily on the skill of the operator. The design engineer must be careful in using tolerances of an experimental part that has been produced on the engine lathe by a skilled operator. In redesigning an experimental part for production, economical tolerances should be used.Turret Lathes Production machining equipment must be evaluated now, more than ever before, this criterion for establishing the production qualification of a specific method, the turret lathe merits a high rating.In designing for low quantities such as 100 or 200 parts, it is most economical to use the turret lathe. In achieving the optimum tolerances possible on the turrets lathe, the designer should strive for a minimum of operations.Automatic Screw Machines Generally, automatic screw machines fall into several categories; single-spindle automatics, multiple-spindle automatics and automatic chucking machines. Originally designed for rapid, automatic production of screws and similar threaded parts, the automatic screw machine has long since exceeded the confines of this narrow field, and today plays a vital role in the mass production of a variety of precision parts. Quantities play an important part in the economy of the parts machined on the automatic screw machine. Quantities less than on the automatic screw machine. The cost of the parts machined can be reduced if the minimum economical lot size is calculated and the proper machine is selected for these quantities.Automatic Tracer Lathes Since surface roughness depends greatly on material turned, tooling , and feeds and speeds employed, minimum tolerances that can be held on automatic tracer lathes are not necessarily the most economical tolerances.In some cases, tolerances of 0.05mm are held in continuous production using but one cut . groove width can be held to 0.125mm on some parts. Bores and single-point finishes can be held to 0.0125mm. On high-production runs where maximum output is desirable, a minimum tolerance of 0.125mm is economical on both diameter and length of turn.1.车床车床主要是为了进行车外圆、车端面和镗孔等项工作而设计的机床。
