USB产品规格书

广电云-IP智能机顶盒配件USB摄像头需求规格书
1.产品规格
2.应用场景
2.1USB摄像头配件通过USB口与机顶盒连接：
机顶盒正常开机后，配件通过USB口与机顶盒连接，机顶盒通过USB口与配件通信并进行供电，要求即插即用，能够自动连接，提供视频和语音服务，见图2.1，具体实现方式请配件厂商提供一份概要设计方案以供讨论。

此方案中，机顶盒安装apk后，显示对端手机（或机顶盒）的语音和图像,USB摄像头采集本地语音和图像输入，和对端的手机（或机顶盒）进行视频通话。

图1组合模式
2.2 USB摄像头通过WIFI与机顶盒连接：
机顶盒正常开机后，配件距离机顶盒较远位置时，则配件自行配置电源适配器供电运行，USB摄像头作为一个WIFI终端设备，与机顶盒连接，提供视频和语音服务，见图具体实现
方式请配件厂商提供一份概要设计方案以供讨论。

此方案中，
监控模式：机顶盒安装apk后，显示usb摄像头采集的语音和图像，对摄像头区域进行监控。

图2监控模式
独立模式：独立使用USB 摄像头和远程手机（或机顶盒）进行通话或监控，机顶盒只提供网络接入功能。

图3独立模式。

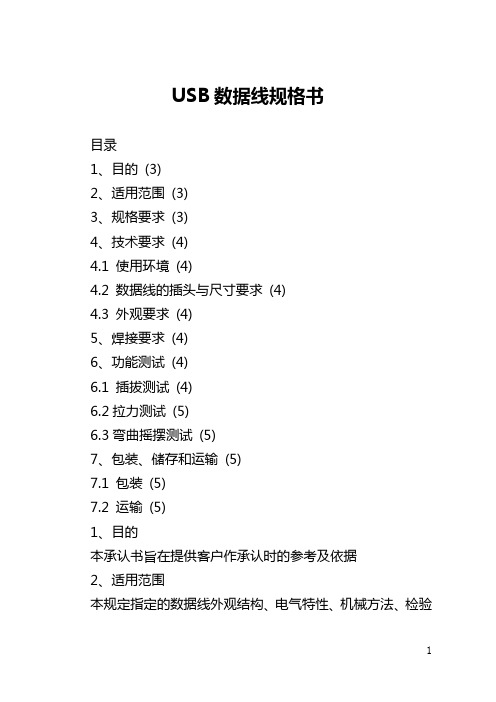

USB数据线规格书目录1、目的(3)2、适用范围(3)3、规格要求(3)4、技术要求(4)4.1 使用环境(4)4.2 数据线的插头与尺寸要求(4)4.3 外观要求(4)5、焊接要求(4)6、功能测试(4)6.1 插拔测试(4)6.2拉力测试(5)6.3弯曲摇摆测试(5)7、包装、储存和运输(5)7.1 包装(5)7.2 运输(5)1、目的本承认书旨在提供客户作承认时的参考及依据2、适用范围本规定指定的数据线外观结构、电气特性、机械方法、检验规格与质量要求，适用与为研发设计开发、认证测试以及品质来检验做参考依据。

3、规格要求3.1、使用的连接器：13.2、线材示意图3.3使用环境：Operrtion temp：—0℃~40℃Store Temp：—0℃~40℃Humidity：≤93%[（40±2）℃Brometric pressure：70—106Kp4.1 数据线的插头与尺寸要求XX端插头：XX插头采纳迈克5P插头，确保其可靠性。

尺寸要求：线材OD=3.0。

数据线总线长要求1000mm。

4.2 外观要求3.5.1 数据线不能有划伤，起泡、烫伤、露铜丝、缩水、异色等、输入输出插口正常，不可翘pin.5、焊接要求针焊接要求：焊接不可短路6、功能测试6.1插拔测试测试条件: 插拔频率每分钟15-30次，要求XX放在开机状态下测试。

每1000次全面检查一次功能。

测试要求：1000次测试后功能无异常，XX插头端拔力至少0.1kgF,pin针不能有变形、脱针等不良、插头与母座不能有断裂和变形、塑胶插头不能严峻磨损、起毛,母座功能不能损坏.6.2拉力测试测试条件：电线拉力要求至少要承受0.5 kgF拉力,时间一分钟。

6.3弯曲摇摆测试测试条件：数据线两头0.25KgF的砝码，以-60度与+60度的角度每分钟来回摇摆30次一直做完1000次。

测试要求：测试后要求线材不能断或裂，不能有明显磨损、通话中用手摇晃两处接头不能有任何接触不良和功能异常。

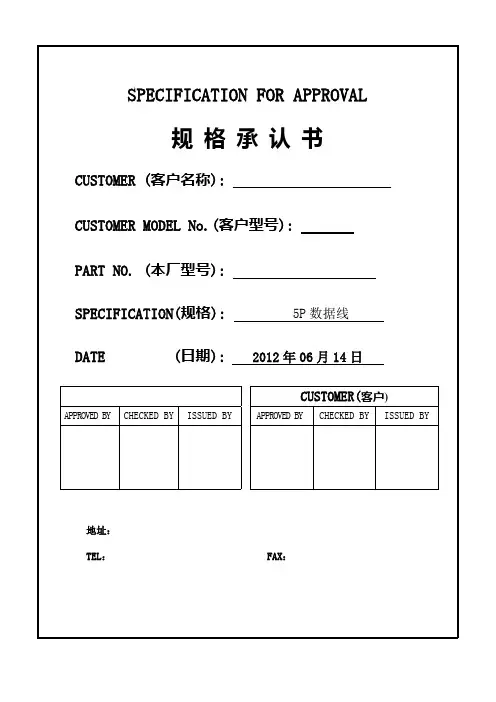

深圳市东鑫海科技有限公司产品规格承认书页码 2目录1.封面 (1)2.目录 (2)3.BOM (3)4.外观尺寸图焊接方式 (4)5.线材规格 (5)深圳市东鑫海科技有限公司产品规格承认书页码 3B O M序号材料名称材料规格用量备注1 手机插头micro 5pin 15针2 线材OD：3.0 MM L：1000 MM 13 胶料45帕黑色ＰＶＣ 24 扎线Φ1.2mm*100mm 黑色5 胶袋245*175mm6 纸箱41.5*37*19cm标准纸箱1/207 USB USB 外壳１/400深圳市东鑫海科技有限公司产 品 规 格 承 认 书焊接方式及尺寸页码 4投影角：颜色处理文件编号：日期：比例用量材料客户名称：单位审核批准A.0发行版本：绘图深圳市东鑫海科技有限公司产品名称：V8 USB数据线接点图10工程说明:1>P1外剥10MM，P2外剥10MM。

2>全部经过导通测试。

3>注意外观良好,不能有压痕和划伤。

12.2±0.51000±50mm连接串连电阻深圳市东鑫海科技有限公司产 品 规 格 承 认 书线材规格页 码5铜丝： 0.09m m X 12股投影角：颜色比例处理用量单位材料零件编号：日期：图号：发行版本：产品名称：线材规格审核绘图批准红线黑线OD:3.0mm深圳东鑫海科技有限公司1000mm线皮：黑色P V C。

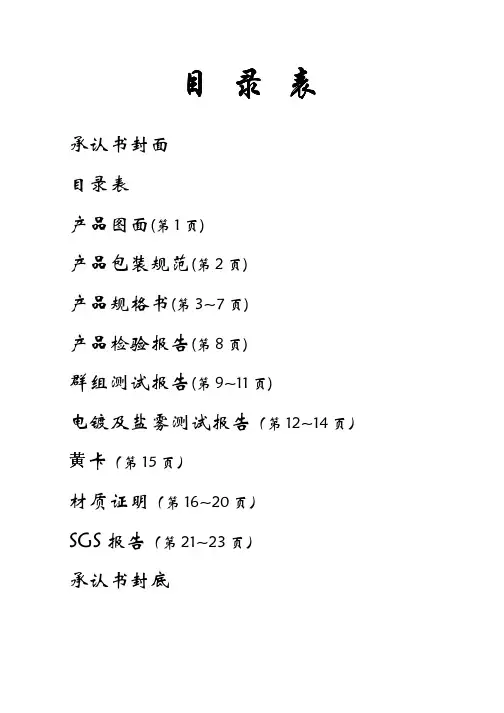

目录表承认书封面目录表产品图面(第1页)产品包装规范(第2页)产品规格书(第3~7页)产品检验报告(第8页)群组测试报告(第9~11页)电镀及盐雾测试报告（第12~14页） 黃卡（第15页）材质证明（第16~20页）SGS报告（第21~23页）承认书封底科宇塑胶五金有限公司ѻ ẔFIRST ARTICLE INSPECTION REPORT科宇塑胶五金有限公司PAGE 1/3Ｋｅｙｕ　Ｐｌａｓｔｉｃ　Ｈａｒｄｗａｒｅ　ＣＯ．，ＬＴＤFILE NAME: QUALIFICATION TEST REPORTPART NAME:MICRO USB CONNECTORPART NOMBER:C-1105-2100-21272/C-1105-2101-21272DATE:2007-06-041. INTRODUCTION1.1. PurposeTesting was performed on the MICRO USB connector to determine its conformance tothe requirements of Product Specification SPEC-0001 Rev A01.2. ScopeThis report covers the electrical, mechanical, and environmental performance ofMICRO USB manufactured by the Assembly Division.1.3. ConclusionMICRO USB connector meets the electrical, mechanical, and environmentalperformance requirements of Product Specification SPEC-0001 Rev A0.1.4. Product Description see specification1.5. Test SamplesThe test samples were randomly selected from normal current production lots, and thefollowing part numbers were used for test:Test Group Quantity Description1, 2,3,4,5, 5 pcs MICRO USB1.6 QUALIFICATION TEST SEQUENCE SEE SPECIFICATION SPEC-0001PAGE 2/3 1.7 TEST DATADATA NO.TEST SPEC. UNIT Mean Ӻ Max. Min. AppearanceNo Damage 5 conn OK OK OK Contact ResistanceMax 30m Ө 25 cont. 24.52 5.20 26.20 21.00 Connector Mating ForceMax 35N 5 conn 13.04 1.30 13.90 12.60 Connector Unmating Force8̚20N 5 conn. 18.80 2.30 19.00 16.70 Durability10000 Cycles 5 conn OK OK OK Connector Mating ForceMax 35N 5 conn 9.34 1.5 10.00 8.50 Connector Unmating Force8̚20N 5 conn 10.56 0.8 11.20 10.60 Contact ResistanceMax: 40m Ө 25 cont. 27.34 7.06 32.06 25.00 1 AppearanceNo Damage 5 conn. OK - OK OK AppearanceNo Damage 5 conn OK OK OK Contact ResistanceMax 30m Ө 25 cont. 24.23 4.52 26.82 22.30 Connector Mating ForceMax 35N 5 conn 12.82 0.70 13.20 12.50 Connector Unmating Force8̚20N 5 conn. 16.64 0.6 17.00 16.40 Random Vibration1 µ s Max 5 conn OK - OK OK Physical Shock1 µ s Max 5 conn OK OK OK Connector Mating ForceMax 35N 5 conn 12.76 0.36 13.00 12.64 Connector Unmating Force8̚20N 5 conn 16.52 0.27 16.90 16.36 Contact ResistanceMax: 40m Ө 25 cont. 27.84 6.90 31.50 24.60 2 AppearanceNo Damage 5 conn. OK - OK OK AppearanceNo Damage 25 cont.. OK - OK OK Insulation ResistanceMin:100Ө 25 cont. OK - OK OK Dielectric Withstanding Voltage100 VAC 1 minute 25 cont. OK - OK OK Thermal Shock-55к~85к 5cycles 5 conn. OK - OK OK Humidity25к~65к95%RH 7cycles(168Hour) 5 conn. OK - OK OK Insulation ResistanceMin:100Ө 25 cont. OK - OK OK 3 Dielectric Withstanding Voltage 100 VAC 1 minute 25 cont. OK - OK OK科宇塑胶五金有限公司Ｋｅｙｕ　Ｐｌａｓｔｉｃ　Ｈａｒｄｗａｒｅ　ＣＯ．，ＬＴＤPAGE 3/31.8. TEST RESULTPASS科宇塑胶五金有限公司Ｋｅｙｕ　Ｐｌａｓｔｉｃ　Ｈａｒｄｗａｒｅ　ＣＯ．，ＬＴＤ˖1L &X )H 0,&5286%%7<(5(&(3$&/(6+(//⏅ ⡍㊒ Ϯ 䰤 ␀䞣䤡 1L &X )HⳈ ˖ ;㎮䔌 ˖ℷ 䭧 ⾦ ␀䞣 䭧 ⾦ 㿜ㅫ ⊩ 䴲 ԡ㛑䞣㆘ 1L &X㍅㿜䞣 䊛1L>0,@ &X>0,@㿜5῭⑪³³12 1L 0, &X 0,12 1L 0, &X 0,12 1L 0, &X 0,12 1L 0, &X 0,12 1L 0, &X 0,⊼˖ XP 0,Ḍ ˖䰜⼹ҩ ⌟䆩 ˖ 䴭㒘㓪 ˖ ˖ ˖Q $X ­ͳ 1L ­ͳQ $X ­ͳ 1L ­ͳQ $X ­ͳ 1L ­ͳQ $X ­ͳ 1L ­ͳQ $X ­ͳ 1L ­ͳ;5$< ;8/0㒘㓪 ˖ 㒘㒧 ˖ ˖ ѻ ˖ $X 1L &X=Q䴦䪰˄ ­ͳ˅䅶䋻 ˖$X 1L;ˊ ˖ ­ͳ ­ͳ ⌟䞣 䯈 V6 ­ͳ ­ͳ& 2 9 > @ 9䇏 䞣 '㣗 5 ­ͳ ­ͳԢ䇏 ­ͳ ­ͳ催䇏 ­ͳ ­ͳ㒘㓪 ˖ ˖ ˖Q 6Q ­ͳQ 6Q ­ͳQ 6Q ­ͳQ 6Q ­ͳQ 6Q ­ͳ;5$< ;8/0㒘㓪 ˖ 㒘㒧 ˖ ˖ ѻ ˖ 6Q 1L &X=Q䴦䪰䫵 ℷ˖≵ Փ⫼ ⠛6Q;ˊ ˖ ­ͳ⌟䞣 䯈 ˖ V6 ˖ ­ͳ& 2 9 > @ 9 ˖䇏 䞣 Q ˖㣗 5 ˖ ­ͳԢ䇏 ˖ ­ͳ催䇏 ˖ ­ͳⲤ ∈ 䳒 䆩 偠 䆄 㸼 ˖2007.05.27 䖯 ˖ 䆩偠 ⷕ: 䆩偠 䯈 25 16 㟇 26 16 䅵 241ˊ∃ 䩴 䋼㒃 䞣99.9% 2ˊ㪌佣∈ 䋼㒃 ∈ 1-2 MI/80F ΃ K 5±1% 3ˊ 䳒䞛 ˖3.1 䳒䞣3.2 䲚⒊⎆ ⏽ⱘ↨䞡 ⌧3.3PH6.7~7.2 䆺㾕 ⿟ 4ˊ䆩ḋ˖4.1 ⾡㉏4.2 ⢊4.34.4 Ⳃḋ5set 5ˊ 㓽ぎ⇨1Kgf/c ΃ 6ˊ䆩偠 Ⳍ ⑓7ˊ䆩偠 ⏽3 ćf ć 8ˊ Ṋ⏽47ćf ć 9ˊⲤ∈Ṋ⏽3 ćf ć10ˊ˖1.ձ ˖8H12H 16H 24H 48HĜ2ˊձ ⊩ ˖8H12H 16H 24H 48H 㒜 ˖ ҹ 䌋 䆩偠 ˖ 㢅科宇塑胶五金有限公司Ｋｅｙｕ　Ｐｌａｓｔｉｃ　Ｈａｒｄｗａｒｅ　ＣＯ．，ＬＴＤCONTENS1. General physical properties of VECTRA® E130i NOTES TO USERS• All property values shown in this brochure are the typical values obtained under varying conditions prescribed by applicable standards and test method.• This brochure has been prepared based on our own experiences and laboratry test data, and therefore all data shown here are not always applicable to parts used under different conditions. We do not guarantee that these data are directly applicable to the application conditions of users and we ask each user to make his own decision on the application.• It is the users' responsibility to investigate patent rights, service life and potentiality of applications introduced in this brochure. Materials we supply are not intended for the implant applications in the medical and dental fields, and therefore are not recommended for such uses.• For all works done properly, it is advised to refer to the appropriate “Technical Catalog” for specific material processing.• For safe handling of materials we supply, it is advised to refer to the Material Safety Data Sheet “MSDS” of the proper material.• This brochure is edited based on reference literatures, information and data currently available to us. So the contents of this brochure are subject to change without notice due to new data.• Please contact our office for any questions about products we supply, descriptive literatures or any description in this brochure.*“VECTRA®”is a registered trademark of Polyplastics in Japan.“Vectra®”,“Celcon®”,“Celanex®”and“Celanese®”are registered trademarks of U.S. company Ticona LLC in the U.S. and other countriesDensity Tensile strength*Tensile elongation*Flexural strength Flexural modulus Flexural strain Charpy impact strength DTUL@1.8MPa Mold shrinkage ratio 80 mm sq ×1mmt Volume resistivity Surface resistivity Dielectric constant 1KHz 1MHz 10GHz Dielectric dissipation factor 1KHz 1MHz 10GHz Dielectric breakdown strength (1mm) (3mm)Tracking resistance Arc resistance Item Testing method E130ig/cm 3MPa %MPa MPa %kJ/m 2˚C %%Injection Pressure Ω • cm Ω(1Mhz)10×-3(1Mhz)MV/m (1Mhz)v s ISO1183ASTM D638ASTM D638ISO178ISO178ISO178ISO179/1eA ISO75-1,2Flow TD MPa IEC60093IEC60093IEC60250IEC60250IEC243-1IEC60112– 1.611752.022015,0002.3352800.020.54591.0×10161.0×10164.33.83.60.0170.0320.0074424125144Unit •All figures in this table are typical values and not minimum values of the material specifications.Note: Refer to the Y ellow Card (File No.E106764)published by UL(Underwriters Laboratories Inc.)for certified values.* The ISO 527-1, 2 test method for tensile properties is not suitable for liquid crystal polymers, so the ASTM method is adopted instead.Table General physical properties of VECTRA ® E130i1. General physical properties of VECTRA ® E130i。

手机USB充电器产品规格书手机USB充电器产品规格书一、前言本规格书描述手机USB充电器的电气特性及使用环境要求等方面的规格说明。

二、产品特点1、本USB充电器连接手机后可对手机电池进行充电；2、恒压小电流充电模式，电池电压充满自动关断，将提高电池的使用寿命；3、全电压输入，全球适用。

三、电气参数1、输入:90-250V AC, 50/60Hz 80mA;2、输出：5VDC 500MA,最大2A;3、空载功耗:0. 2W MAX;4、充电满载功耗:5W MAX;5、电池充饱率:?90%。

四、环境条件1、使用环境:温度：0-40?湿度:?95,:2、存储环境:温度：-25, +60?湿度:?85,;3、匸作时本体温度:充电时壳体表面温度?50?,电池表面温度?45?o五、安全规格符合安全标准。

六、可靠性能参数1.输入特性 ........................................................................ ..31.1额定输入电压 ........................................................................ ......................................... 3 1.2输入电压范围 ........................................................................ ......................................... 3 1.3输入频率 ........................................................................ ........................................................ 3 1. 4输入频率范围 ........................................................................ ......................................... 3 1. AC输入电流 ........................................................................ .................................................. 3 1.6峰值输入电流 ........................................................................ ......................................... 3 1.7 效率 ........................................................................ ........................................................................................................... 32.输出特性 ........................................................................ .32.1输出额定电压 ........................................................................ ......................................... 3 2.2输出电压 ........................................................................ ........................................................ 3 2. 3额定输出电流 ................................................................................................................. 4 2. 4额定功率 ........................................................................ ........................................................ 4 2.5 LED指示功能） ...................................................................... ................................... 4 2.6充电器输出电压/电流特性图 ..........................2.7输出纹波、噪 (4)........... 4 2. 8输出电流纹波、噪音.2. 9启动延时 ........................................................................ ........................................................ 4 2. 10关断时延 ........................................................................ ......................................................4 2. 11 id冲 ........................................................................ ....................................................................... 4 2. 12电流倒灌 ........................................................................ ......................................................4 2. 13 保护 ........................................................................ ....................................................................... 4 2. 13. 1过压保护 ........................................................................................................................ 4 2. 13.2过流保护 ........................................................................ ................................................ 4 2.13.3短路保护 ........................................................................ ................................................ 4 3.信赖性项目 (4)3.1静电 ........................................................................ .......................................................................... 4 3.2高压测试 ........................................................................ ........................................................... 4 3. 3绝缘电阻 ........................................................................ ........................................................... 4 3. 4泄漏电流 ........................................................................ ........................................................... 4 3. 5 温升 ........................................................................ .......................................................................... 4 3.6连续工作时间 ........................................................................ ........................................ 5 3.7平均无故障时间 ........................................................................ .................................. 5 3. 8 EMI 标准 ........................................................................ ....................................................... 5. 4.环境要求 (5)4.1工作温度 ........................................................................ .......................................................... 5 4.2储藏温度 ........................................................................ .......................................................... 5 4.3工作湿度 ........................................................................ .......................................................... 5 4.4储藏湿度 ........................................................................ .......................................................... 5 5.机械要求 (5)5.1尺寸 ........................................................................ ........................................................................... 5 5. 2 重量 ........................................................................ ........................................................................... 5 5. 3USB 接口类型 ........................................................................ ...................................... 5 5.4跌落试验 ........................................................................ .......................................................... 5 5. 5振动试验 ........................................................................ .......................................................... 5 5. 6插拔实验 .................................................................................................................................. 5 6.机械性能 (6)6.1外观 ........................................................................ ......................................................................... 5 6. 2夕卜壳材质 ........................................................................ . (6)7.环境性能 (5)7. 1低温工作实验 ........................................................................ ........................................ 5 7.2高温工作实验 ........................................................................ ........................................ 6 7. 3低温存储 ........................................................................ ......................................................... 67.4高温存储 ........................................................................ ......................................................... 67.5恒温恒湿工作） ...................................................................... .. (6)1.输入特性1.1额定输入电压额定输入交流100厂240V。

4. 运输和储存
产品的包装要求按照设计规格进行，在运输的过程中防止剧烈的振动，冲击和挤压，防止日晒雨淋和有腐蚀性的空气环境。

产品储存环境-20℃~65℃，相对湿度不大于75%的清洁，干燥，通风的室内，避免与腐蚀物质接触，应远离火源和热源。

5. 外观要求
5.1 产品色泽统一,无透底,剥落,变色及各部件色彩不一致等现象.
5.2 塑壳不允许有注塑不足、气泡、沉陷、划伤、毛刺、和擦白等现象,金属件不得有锈蚀,表面镀层光亮.
5.3 产品的表面标识无剥落、变形、变色、褪色、气泡、字体不清晰等现象,标识应清楚,符合相关要求的规
定.
5.4 插头与母座之间接触良好.
6. 外形及接线图示
A端：B端：
B
mm
7. 传输线结构图。

Product Specification---------------------xu dong bin11-08-124.2Electrical Performance:Item Test Description Test Methods Requirement4.2.1Low Level ContactResistance EIA364-23B(or MIL-STD-1344A,Method3002.1,Test Condition B)Subject mated contacts assembled inhousing to20mV maximum open circuitat100mA maximumThe object of this test is to detail astandard method to measure theelectrical resistance across a pair ofmated contacts such that the insulatingfilms,if present will not be broken orasperity melting will not occur.1)30mӨMaximum.Initial for VBUSand GND contacts.50mӨMaximum.Initial for all other contacts2)..After test:10mӨMaximumChange4.2.2Insulation Resistance EIA364-21(or MIL-STD-202F,Method302,Test Condition B)Test between adjacent contacts ofmated and unmated connectorassemblies.The object of this test procedure is todetail a standard method to assessthe insulation resistance of USB AF3.0connectors.This test procedure isused to determine the resistanceoffered by insulation connector to a DCpotential current through or on thesurface of the members.1).Initial:1000MӨMinimum2).Aftertest:1000MӨMinimumProduct Specification---------------------xu dong bin11-08-12 4.2Electrical Performance:(Continued)Item Test Description Test Methods Requirement4.2.3DielectricWithstanding Voltage EIA364-20(or MIL-STD-202F,Method301,Test Condition B)Test between adjacent contacts of matedand unmated connector assemblies.The object of this test procedure is to detaila test method to prove that a USB AF3.0connector can operate safely at its ratedvoltage and withstand momentary overpotentials due to switching,surges and/orother similar phenomena.500VACforoneminuteatsealevel1).No flashover or insulationbreakdown2).Leakage current:0.5mA Maximum.4.3Mechanical Performance:(Continued)Item Test Description Test Methods Requirement4.3.1Durability EIA364-09Mate and unmate Connectorassemblies for1500-5000cycles atmaximum rated of200cycles per hour.(standard Durability Class1500cyclesmini,High Durability Class5000cyclesmini)The object of this test procedure isto detail a uniform test method fordetermining the effects caused bysubjecting a USB AF3.0connector tothe conditioning action of inserting andextraction,simulating the expected lifeof the connectors.Durability cycling witha gauge is intended only to producemechanical stress.Durability performedwith mating components is intended toproduce both mechanical and wearstress.1).Shall meet visual requirement,show no physical damage.2).Shall meet requirements of additional tests as specified in TEST SEQUENCE in Section5Product Specification---------------------xu dong bin11-08-124.3.2Mechanical Shock EIA-364-27BSubject mated connector to30G’shalf-sine shock pulses of11msecduration.Three shocks in each directionapplied along three mutuallperpendicular planed for a total of18shocks No discontinuities of1microsecond or long duration.See note4.3.3Vibration EIA-364-28DSubject mated connectors to10~55~10Hz traversed in1minute at1.52mm amplitude2hours each of3mutually perpendicular planes.No discontinuities of1microsecond or long duration.See note4.3.4Connector MatingForceEIA364-13Shall be measured with TENSIONGAUGE or TENSION TESTER.Measure force necessary to mateassemblies at maximum rate of12.5mm(or0.492”)per minute.The object of this test is to detail astandard method for determining themechanical forces required for insertinga USB AF3.0connector.1).Initial:35Newtons(or3.57Kgf)Maximum2).After test:35Newtons(or3.57Kgf)MaximumProduct Specification---------------------xu dong bin11-08-124.3.5Connector UnmatingForce EIA364-13Shall be measured with TENSIONGAUGE or TENSION TESTER.Measure force necessary to mateassemblies at maximum rate of12.5mm(or0.492”)per minute.The object of this test is to detail astandard method for determining themechanical forces required forextracting a USB AF3.0connector.1).Initial:10Newtons(or1.02Kgf)Minimum2).After test:8Newtons(or0.82Kgf)Minimum4.3.6Contact RetentionForce EIA364-35Shall be measured with TENSIONGAUGE or TENSION TESTER in samedirection.1).Initial:0.4Kgf minimum2).After test:0.4Kgf minimumProduct Specification---------------------xu dong bin11-08-12 4.4Environmental Performance:Item Test Description Test Methods Requirement4.4.1Thermal Shock EIA364-32,Test Condition I,(orMIL-202F,Method107G Condition A.)Subject mated connectors to tencycles between–55кto+85к.The object of this test is to determinethe resistance of a USB AF3.0connector to exposure at extremes ofhigh and low temperatures and to theshock of alternate exposures to theseextremes,simulating the wrost caseconditions for storage,transportationand application.1).Shall meet visual requirement,show no physical damage.2).Shall meet requirements of additional tests as specified in TEST SEQUENCE in Section54.4.2Humidity EIA364-31,Test Condition A MethodIII,(or MIL-202F,Method103B TestCondition B.)Subject mated connectors to168Hours(seven complete cycles)The object of this test procedure is todetail a standard method for theevaluation of the properties of materialsused in USB AF3.0connectors asthese influenced by the effects of highhumidity and heat.1).Shall meet visual requirement,show no physical damage.2).Shall meet requirements of additional tests as specified in TEST SEQUENCE in Section54.4.3Salt Spray MIL-STD-202F,Method101D,TestCondition BSubject mated connectors to8hours at35кwith5%-Salt-solutionconcentration.1).Shall meet visual requirement,show no physical damage.2).Shall meet requirements of additional tests as specified in TEST SEQUENCE in Section54.4.4Temperature Life EIA364-17Test Condition3MethodA,Subject mated connectors totemperature life at105кfor120hours 1).Shall meet visual requirement,show no physical damage.2).Shall meet requirements of additional tests as specified in TEST SEQUENCE in Section5xu dong binProduct Specification---------------------11-08-12 5.0Test Sequence:Test Group(a)Sample GroupsTest Item Test Description A B C D E F G H I J K L 4.1.1Examination of product1,131,51,81,3131,513164.2.1Low Level Contact Resistance ,102,42,4254.2.2Insulation Resistance , 2,64.2.3Dielectric Withstanding Voltage4,123,74.3.1Durability74.32Mechanical Shock34.33Vibration44.3.4Connector Mating Force ,84.3.5Contact Unmating Force6,94.3.6Catact Retention Force24.4.1Thermal Shock54.4.2Humidity44.4.3Salt Spray34.4.4Temperature Life(see note c)34.4.5Solderability24.4.6Resistance to Soldering Heat2Number of Test Samples(Minimum)55555555。

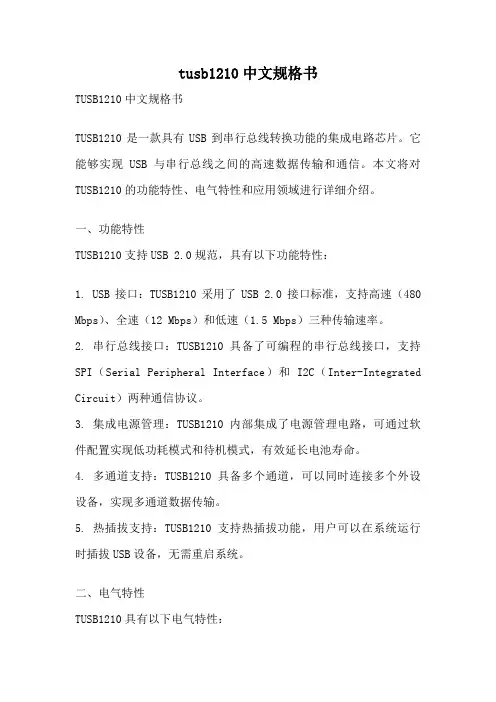

tusb1210中文规格书TUSB1210中文规格书TUSB1210是一款具有USB到串行总线转换功能的集成电路芯片。

它能够实现USB与串行总线之间的高速数据传输和通信。

本文将对TUSB1210的功能特性、电气特性和应用领域进行详细介绍。

一、功能特性TUSB1210支持USB 2.0规范，具有以下功能特性：1. USB接口：TUSB1210采用了USB2.0接口标准，支持高速（480 Mbps）、全速（12 Mbps）和低速（1.5 Mbps）三种传输速率。

2. 串行总线接口：TUSB1210具备了可编程的串行总线接口，支持SPI（Serial Peripheral Interface）和I2C（Inter-Integrated Circuit）两种通信协议。

3. 集成电源管理：TUSB1210内部集成了电源管理电路，可通过软件配置实现低功耗模式和待机模式，有效延长电池寿命。

4. 多通道支持：TUSB1210具备多个通道，可以同时连接多个外设设备，实现多通道数据传输。

5. 热插拔支持：TUSB1210支持热插拔功能，用户可以在系统运行时插拔USB设备，无需重启系统。

二、电气特性TUSB1210具有以下电气特性：1. 工作电压：TUSB1210的工作电压范围为3.3V至5.5V，适用于各种电源供应系统。

2. 工作温度：TUSB1210的工作温度范围为-40℃至85℃，适用于工业级应用。

3. ESD保护：TUSB1210内部集成了ESD（Electrostatic Discharge）保护电路，能够有效抵御静电击穿，提高芯片的可靠性和稳定性。

4. 引脚配置：TUSB1210的引脚配置灵活多样，可根据不同的应用需求进行定制。

5. 低功耗设计：TUSB1210采用了低功耗设计，工作时的功耗较低，适合于移动设备和便携式电子产品。

三、应用领域TUSB1210广泛应用于各种USB接口和串行总线接口的设备和系统中，包括但不限于以下领域：1. 个人电脑：TUSB1210可用于连接USB设备，如USB鼠标、USB键盘、USB摄像头等，实现与计算机的数据交互。

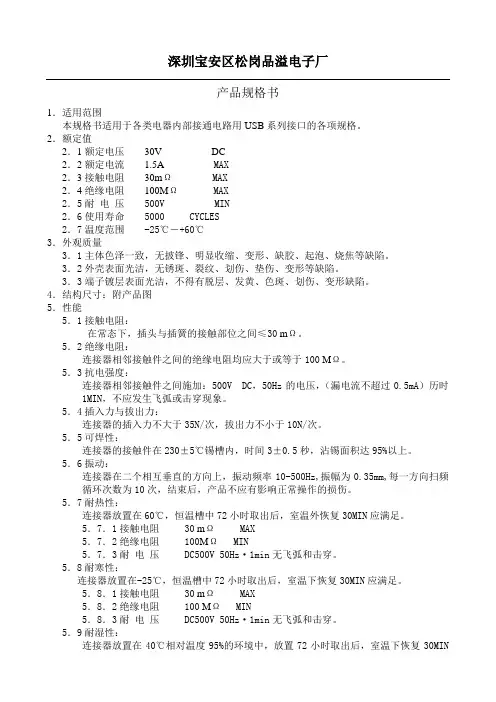

产品规格书1．适用范围本规格书适用于各类电器内部接通电路用USB系列接口的各项规格。
