微格分析报告1. 引言微格（Microgrid）是一种小规模的独立电力系统，由分布式能源资源、储能设备和能量管理系统组成。

相比于传统的大型电网，微格可以更加灵活地应对能源需求和应急情况，提供更可靠、经济和可持续的电力资源。

本文旨在对微格系统进行详细的分析，包括其概念、特点、应用场景等方面，以便更好地理解和应用微格技术。

2. 微格概述微格系统是一种独立运行的小型电力系统，通常包括多种能源资源，如太阳能、风能、燃料电池等，以及能量存储设备，如蓄电池、超级电容器等。

微格系统可以独立运行，也可以与主电网进行互联，达到能源的共享和优化利用。

3. 微格特点微格系统具有以下几个显著的特点：3.1 独立运行微格系统可以独立运行，不依赖于主电网的供电。

这使得微格系统可以应对突发情况，如自然灾害、电网故障等，提供可靠的电力支持。

3.2 多能源混合微格系统可以利用多种能源资源进行发电，如太阳能、风能、生物能等。

通过对能源的优化配置和管理，微格系统可以提供持续稳定的电力供应。

3.3 能量存储微格系统通常配备能量存储设备，如蓄电池、超级电容器等。

这些能量存储设备可以储存过剩的能量，以便在需求高峰时释放，实现能源的平衡和优化利用。

3.4 可再生能源的利用微格系统广泛应用可再生能源，如太阳能、风能等，减少对传统燃煤、石油等能源的依赖，实现对环境的友好和可持续发展。

3.5 灵活性和可扩展性微格系统具有较强的灵活性和可扩展性，可以根据用户需求进行自由配置和扩展。

用户可以根据自身情况选择合适的能源资源和能量存储设备，满足不同的电力需求。

4. 微格应用场景微格系统在以下几个应用场景中具有较大的潜力和优势：4.1 偏远地区电力供应在一些偏远地区，传统电网的供电不稳定，微格系统可以提供可靠的电力支持，满足居民和企业的基本用电需求。

4.2 灾难应急响应在自然灾害等紧急情况下，传统电网可能受到破坏，微格系统可以在短时间内建立起独立的电力供应，为救援和灾民提供必要的电力支持。

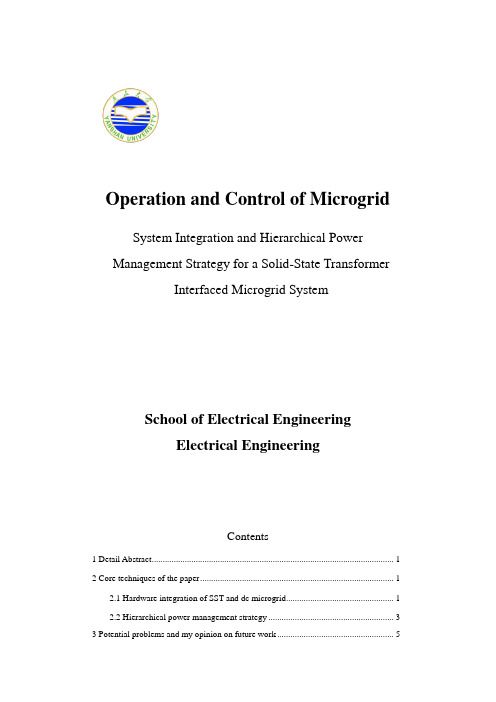

Operation and Control of Microgrid System Integration and Hierarchical Power Management Strategy for a Solid-State TransformerInterfaced Microgrid SystemSchool of Electrical EngineeringElectrical EngineeringContents1 Detail Abstract (1)2 Core techniques of the paper (1)2.1 Hardware integration of SST and dc microgrid (1)2.2 Hierarchical power management strategy (3)3 Potential problems and my opinion on future work (5)1 Detail AbstractThe existing dc microgrid can only interface with the distribution system by using a heavy and bulky line frequency transformer plus rectifier, and the passive transformer cannot provide functions such as Var compensation or harmonic filtering. Therefore, developing a more compact and active grid interface to enable a more intelligent dc microgrid system is a research focus.Under the situation, this paper investigates, and for the first time presents, the system integration of a novel solid-state transformer (SST) interfaced microgrid system. Accordingly, a hierarchical power management strategy is proposed for this system to enable islanding mode operation, SST enabled operation, and the seamless transfer between two modes.To begin with, the paper review the past achievements in the microgrid field and introduce the different types of microgrid from the architecture and the power management point of view. Then the author presents the detailed structure of the proposed system, as is shown in Fig. 1.Fig 1. SST-enabled dc microgrid diagram.Furthermore, the researcher depicts the hierarchical control frame and analyzes the hierarchical control for dc microgrid in islanding mode and SST-enabled mode. The hierarchical power management strategy includes three control levels: primary control for the local controller; secondary control for the dc microgrid bus voltage recovery; and tertiary control to manage the battery state of charge.Finally, a lab test bed is constructed to verify the system performance, and several typical case studies are carried out. The experimental results verify the proposed system and distributed power management strategy.Keywords: DC microgrid, hierarchical power management, islanding mode, solid-state transformer (SST)-enabled mode.2 Core techniques of the paper2.1 Hardware integration of SST and dc microgridAs previously mentioned, the conventional transformer interfaced with the dc microgrid is heavy and bulky, which takes too much space. The core technique of thispaper is, for the first time, presenting the hardware integration of SST and dc microgrid to demonstrate the feasibility of this novel concept. Compared to the conventional microgrid architecture, the presented microgrid system interfaces with the distribution system by an active grid interface with smaller size and less weight. The SST interfaced microgrid is, therefore, a more compact system.The SST is a power electronic device that replaces the traditional 50/60 Hz power transformer by means of high-frequency transformer isolated ac–ac conversion technique, and its topology is represented in Fig. 2, where a cascaded seven level rectifier is adopted as the font-end. Three dual active bridge (DAB) converters are connected to the floating dc links of the rectifier with the secondary side connected in parallelFig. 2. Topology of presented SST.The basic operation of the SST is first to change the 50/60 Hz ac voltage to a high-frequency voltage, then this high-frequency voltage is stepped up or down by a high frequency transformer, and finally shaped back into the desired 50/60 Hz voltage to feed the load. For a high-frequency transformer has significantly decreased volume and weight, the first advantage that the SST may offer is reduced volume and weight compared with traditional transformers. A laboratory prototype of a single-phase, three-stage SST was built, as shown in Fig. 3.Fig.3. Cascaded type three-stage SST prototype.It is further seen from the topology and the configuration of the SST that some other potential functionalities that are not available to traditional transformer may be obtained. A functional diagram of SST is illustrated in Fig. 4. The SST acts as a smart plug-and play interface for transforming and distributing electric energy from these various different subsystems, some via the ac port and others via the dc port. The use of SST separates the grid side parameters (voltage, frequency) from the DRER (Distributed renewable electric resource) and DESD (Distributed energy storage device) side. This is a very important capability of the proposed system that strengthens the system stability because the low-voltage side is strongly decoupled from the grid side by the SST.Fig. 4. Solid state transformer functional configuration.2.2 Hierarchical power management strategyFrom the power management point of view, the presented microgrid system need to ensure proper and optimal operation under different conditions. Some major challenges for SST-enabled dc microgrid include:1) how to make the dc microgrid more reliable in islanding mode;2) how to achieve seamless transfer between islanding mode andSST-enabled mode for the dc microgrid;3) how to manage individual modules in the dc microgrid considering thecharacter differences when system is in SST-enabled mode.To address these challenges, another core technique of this paper is a corresponding hierarchical power management strategy, which combines the advantages of centralized control and distributed control.Its basic structure is shown in Fig. 5.Fig 5. Hierarchical control frame.The primary control is the distributed control which ensures that the microgrid system can operate without communication. Therefore, the primary control usually takes effect at the microsecond level, which is basically the same level as the converter control. All the local information, including the voltage, current, SOC (State of charge), etc., are sent to the upper controller, which implements the tertiary control and secondary control through a bidirectional communication link. Here, the dc microgrid is enabled by the SST, and therefore the SST controller is used as the upper controller. The objective of secondary control is to recovery the microgrid bus voltage to achieve seamless transfer as the system switches from islanding mode to SST-enabled mode. The time scale for the secondary control is on the order of milliseconds to seconds. The objective of tertiary control is to ensure that battery operates in a reliable SOC range. Thus, the tertiary control is used to charge and discharge the battery in the dc microgrid based on battery’s SOC instead of controlling the point of common coupling power flow. Detailed structure of the hierarchical control strategy is depicted in Fig. 6.Fig. 6. DC microgrid operation diagram.In summary, the proposed SST-enabled dc microgrid can:1)interface with distribution system via SST;2)operate in islanding mode with distributed control;3)seamlessly transfer between islanding mode and SST enabled mode;4)enable battery management in SST-enabled mode.3 Potential problems and my opinion on future workAs is shown in Fig. 6, the SOC monitoring is implemented in the tertiary control, in which battery management is achieved by suitable charging and discharging, but the monitoring method and its hardware design are not mentioned in this paper.In my opinion, accurate monitoring of the energy storage system performance is the fundamental basis to achieve the hierarchical control. However, the current monitoring technology is still not mature enough, of which SOC cannot be directly measured. A pressing matter of the moment, therefore, is to establish an accurate estimation model of the SOC monitoring.In addition, the experimental results in this paper only demonstrate the feasibility of the SST interfaced microgrid system in island operation. But when it is parallel with Power Grid, the power electronic devices of SST may be so sensitive (usually take effects at the microsecond level) that the traditional grid devices as circuit breaker and isolating switch can’t respond synchronously. This may impact the stability of Power System.My opinion is to solve the problem from the following aspects:1) Taking the interaction between the SST and the distributed system intoconsideration to guide the design of the proposed microgrid system;2) Constructing the architecture of multi-layer-cross distributed renewable energymanagement based on the advantages of agent technology;3) Using artificial intelligence technology to control several nodes in themicrogrid and cooperatively;4) Connecting more PV and battery modules to the dc bus to verify the robustoperation of the system.[文档可能无法思考全面，请浏览后下载，另外祝您生活愉快，工作顺利，万事如意!]。

mcu最小化系统的基本原理MCU英文全称是Microcontroller Unit，是指微控制单元又称单片微型计算机或者单片机，其实MCU就是单片机。

MCU其实也可以理解为简单版本的CPU，就是把中央处理器的频率与规格做适当缩减，并将内存、计数器、USB、A/D转换、UART、PLC、DMA等周边接口，甚至LCD驱动电路都整合在单一芯片上，形成芯片级的计算机，为不同的应用场合做不同组合控制。

MCU(单片机)的体积比较小，结构也较为简单，但是功能十分完善，不仅用起来方便，模块化应用也很到位，所以有人将MCU称为单片微型计算机，是因为它具备基本的处理器、储存器，最主要的是还是因为它能写一些简单的控制程序。

MCU同温度传感器之间通过I2C 总线连接。

I2C总线占用2条MCU输入输出口线，二者之间的通信完全依靠软件完成。

温度传感器的地址可以通过2根地址引脚设定，这使得一根I2C总线上可以同时连接8个这样的传感器。

本方案中，传感器的7位地址已经设定为1001000。

MCU需要访问传感器时，先要发出一个8位的寄存器指针，然后再发出传感器的地址（7位地址，低位是WR信号）。

传感器中有3个寄存器可供MCU使用，8位寄存器指针就是用来确定MCU究竟要使用哪个寄存器的。

本方案中，主程序会不断更新传感器的配置寄存器，这会使传感器工作于单步模式，每更新一次就会测量一次温度。

MCU读取传感器的测量值后，接下来就要进行换算并将结果显示在LCD上。

整个处理过程包括：判断显示结果的正负号，进行二进制码到BCD 码的转换，将数据传到LCD的相关寄存器中。

数据处理完毕并显示结果之后，MCU会向传感器发出一个单步指令。

单步指令会让传感器启动一次温度测试，然后自动进入等待模式，直到模数转换完毕。

MCU发出单步指令后，就进入LPM3模式，这时MCU系统时钟继续工作，产生定时中断唤醒CPU。

定时的长短可以通过编程调整，以便适应具体应用的需要。
