造纸机械专业术语简要

备浆、供浆系统造纸专业部分词汇Accepts 合格品,良浆Accepts nozzle 良浆出口Accepts screen 良浆筛选机acidoumenter 酸度计,PH计Adjusting color 调色adjusting controls 调节控制器Adsorption 吸附作用air dried 风干Air washer 净化器alcohol 乙醇酒精Analytical filrer paper 分析化学用滤纸ash content 灰分含量Aquolization 水合作用allrition mill 磨浆机磨碎机Approach flow sysren 流送系统aqueous solution 水溶液Automatic valve 自动阀beck flow 回流Baffle board 挡水板挡将板挡板base fiber 半浆Baffle perforated roll 导流匀浆辊base material 原材料Bester 打浆机bestability 打浆性能Beating degree 打浆度besting pressure 打浆压力Beating time 打浆时间beating rate 打浆速度Blade agitator 浆叶搅拌器blank test 空白实验Blade type consistency transmitter 刀式纸浆浓度变送器Blend 混合配浆配料blending chest 混合浆池Broken 废品不合格品损纸cell 细胞Cell cavity 细胞腔cell wall 细胞壁Centrifugal dehyrator 离心脱水机centrifugal pump 离心泵Centriscreen 离心筛centrisorter 旋翼筛Calcium carbonate 碳酸钙chest 槽池箱Circulating pump 循环泵circulating system 循环系统Circulating stock chamber 溢流箱clappet valve 逆止阀止回阀Clarify 澄清classfication 筛分Cleaning 清洗净化洗净cleanpac 锥形除渣器Clear way valve 安全阀closed recylle system 封闭循环系统Closed type flow box 封闭式流浆箱clockwise rotation 顺时针旋转Cloudy water 浓白水clump 浆块Coarse fiber 粗纤维coarse fiber bundle 粗纤维束Composition 混合物composition of furnish 配浆比例Conical mill 锥形磨浆机consistency 浓度Consistency regulator 浓度调节器consumption 消耗量Conveying 运输输送Dampening 润湿dickering 浓缩Decker thickener 园网浓缩机degassing 脱气Degree of hybration 水化度dilute 稀释Dise mil 盘魔distributing pipe 配浆管Eddy 涡流electric converter 变频器Electric valve 电动阀门electric moton 电动机Extreme consistency of stock flow 浆流极限浓度Fam pump 混合浆泵冲浆泵fast beating 游离打浆Fast stuff 游离浆feed inlet 进料口Fiber 纤维fiber alignment 纤维排列Fiber bonding 纤维结合强度fiber content 纤维含量Fiber fines 细小纤维fiber network 纤维网络Fiber weight length 纤维重量长度filler loading 填料用量Filltor cloth 滤布网filter screen 滤网Flow meter 流量计High consistency pulper 高浓碎浆机high consistency refining 高浓打浆High consistency pump 高浓将泵high frequency deftaker 高频疏解机High consistency stuff cleaner 高浓除渣器holey board 整流板匀浆辊Hopper 加料斗hydrogen bond 氢键Hydrolysis 水解hydrophobic 疏水的Hydrophilic 亲水的Impulse 脉冲冲击冲量instrument 仪表In-line freeness recorder 在线游离度检测计Intensity of current 电流强度kneader pulper 碎浆机Leaf wood 阔叶木lean white water 稀白水Liquid lever gauge 液位计lip screen 分级筛Lip 唇板long fiber 长纤维Medium consistency screen 中浓筛选mesh 网目Metering pump 计量泵moisture content 水分含量Oriented 定向over 绝干烘箱Outturn flow rotary screen 外流式圆筛over dry stock 绝干浆Overflow pipe 溢流管packer screen 平筛Paper formulation 纤维配比配浆比例paper pulp 纸浆Percentage cireulating 回流率percentage overflow 溢流率Percentage composition 百分比浓度pipe bundles 管束Pipe filler 管式过滤器pipe line 管道Plug steels 转子pressure meter 压力表Pulp shest 浆池pulp piping 浆管Pressure headbox 压力式流浆箱pulp thickent 浓缩机脱水机Pulp washing 洗浆pulper 碎浆机Rate of flow 浆速raw material 原料Rabbet 槽口regulating 调节Reciprocating pump 往复泵recycle stock 循环浆料Refiner 精磨机磨浆机rejeet 筛渣废料Rejeet nozzle 排渣口repulper 碎浆机Reservoir 蓄水池retention of filler 填料留着率Riffler 沉砂盘rotary strainer 回转筛Rotor 转子Screen cut 筛缝screen eylinden 筛鼓Screen slot 筛孔screening reject 筛渣Sediment concentration 沉降物浓度seleotifier 旋翼筛Sedimentation pond 沉降池shear cut 剪切Shear rate 剪切速率short fiber 短纤维Shower 喷水管sieve mesh 筛目筛孔Single pass retention 单程留着率slice 堰板Slice coefficient 堰板开口系数slice jet 喷浆唇Slice roll 匀浆闸辊slit 孔隙缝Slip 速差soft wood 软木Solution tank 溶解槽specific gravity 比重Specific water usage 单位水耗spiral pump 螺旋泵Steam pump 蒸汽泵stock slurry 浆料悬浮液Stock losses 浆料损失storage chest 贮料槽Strand 纤维束stuff gate 定量阀Swell up 润涨Taitings 尾桨tapered duct distribufor 锥管布浆器Tapered flow header 锥管进浆管upper lip 上唇板Washing 洗涤water consumption 耗水量Wet end chemistry 湿部化学梁志伟杨彰武网部和压榨部的专业词汇Head 压头Web 纸幅Wet end 湿部Open draw 开式引领Nip 压头Couch roll 伏辊Deflector 导流片Breast roll 胸辊Approach system 流送部Dimensional stability 尺寸稳定性Headbox 流浆箱Fan pump 冲浆泵Deflocculate 絮聚Distributing roll 分配辊Headbox slice 堰板Opening 开度Dragged 脱浆Rushed 冲浆Drainage element 滤水元件Forming strip 成型板Wet suction box 湿吸箱Hydrofoil 案板Suction flat box 真空吸水箱Dry line 水线Dandy roll 饰面辊Trim squirt 冲边水针Nozzle 喷嘴The forming fabric 成型布Dryness 干度Air permeability 透气度Mesh count 网目数Weave pattern 编制式样Yarn diameter 纱直径Elongation stability 延伸性FSI-fiber support index 纤维支撑指数DI-drainage index 滤水指数Warp 经线Weft 纬线Liquid ring vacuum pump 水环真空泵Uhle box 真空吸水箱Vacuum pump 真空泵Suction couch roll 真空伏辊Bowed roll 弧形辊Squeeze roll 挤水辊Apron board 下唇辊Tone roll 石辊Forming 成型Dewatering 脱水Drying 干燥Fourdrinier 长网机Cylinder vat machine 圆网纸机Twin wire former 双网成型器Endless wire screen 无端滤网Plastic fabric 塑料编织物Table roll 案辊Foil 刮水板Mat 浆层Shear force 剪切作用Dilution 稀释Turbulence 湍动Oriented shear 定向剪切Vacuum augmented device 真空增强装置Runability 运行性能Dryer section 干燥部Press nip 压区Reabsorption 再吸收Rewetting 回湿Capillary absorption 毛细管吸收Mechanical absorption 物理吸收Air cushion 气垫Anionoid reagent 阴离子试剂Cation surfactant 表面活性剂Anti-corrosive 防腐剂Anti-foaming system 消泡剂Automatic felt stretcher 毛毯自动张紧器Automatic control system 自动控制系统Atomizer 喷雾器Automatic wire roll 自动较网辊Automatic valve 自动阀Automatic pressure controller 压力自动控制器Baffler 消声器Ball valve 球形阀Basis weight valve 定量阀Bearing 轴承Bearing housing 轴承座Belt speeder 无级变速器Blade loading 刮刀负荷Blade clamp 刀夹Blade holder 刀架Blind press 盲孔压榨Blistering 起泡Block up 堵住Blocking 粘合Bottom couch roll 下伏辊Bottom felt 下毛布Bottom press roll 下压榨辊Bottom squeeze 下挤水辊Carriage roll 导网辊Charging value 加料辊Cistern 蓄水池Clappet value 止回阀Cloudy water 浓白水Clump 浆块Conditioning 毛毯洗涤器Conducting roll 校正辊Couch pit 伏辊坑Crown 中高Diagonal grain 直纹Dimpled grain 凹纹Double twisted 双捻Drainage aid 助滤剂Drainage table 脱水网案Draping 换网Driven section 传动部Driven roll 传动辊Driver roll 主动辊Drop leg 空气水腿Edge guide 低幅校正器Efflux ratio 浆网速比Electric value 电动阀门Embossing roll 印花辊Engraving roll 雕刻辊Expender shaft 舒展辊Filter aid 助滤剂Flocculating aid 絮凝剂Floc 絮凝物Flow agent 主流剂Foundation 基础板Four-way value 四通阀Glazing felt 上毛毯Globe value 球阀Graft 接技Gutter 地沟Holey roll 匀浆辊Hose 软管Humidity 湿度Hydrotropic flow 湍流Hydrotropic agent 水溶助剂Inlet 入口Long elephant 纵向Lump 浆田Machine water 网下白水Overfelt 压榨毛毯Paper additive 造纸助剂Dring 干燥Huge hood 大汽罩Rope carrier 引纸绳Paper rope 引纸绳Slow-speed machine 低速纸机The dryer head 烘缸边缘The moisture-laden air 湿空气The tending side 操作侧Dry felt 干燥毛布Steamfit/steam joint 烘缸进气口Dryer 烘缸Dryness 干度Air cylinder 气缸Air exhauster fan 排风机Automatic temperature controller 温度自动控制器Automatic tension control 张力自动控制Bowed roll 弧形辊Break 断纸Calendar 压光机Air-fiber interface 纤维-空气界面Driven roll 驱动辊Lineal pressure 线压Open draw 开式引纸Stack calendar 双辊压光机Surface friction 表面摩擦力Grain 纹理Smoothness 平滑度Transparency 透明度Viscous 粘稠的；粘性的Compressed air 压缩空气Condensate system 冷凝水系统Conducting roll 校正辊Cooling drum 冷缸Crawl speed 爬行速度Drier section 干燥部Dryer screen 干网Steam 蒸汽Fabric tissue 纸绳用纸Gauge pressure 表压Heated 加热Heating steam 加热蒸汽Lead roll 导纸辊Operating speed 运行速度Paper drum 卷纸辊Pick up 引纸Ppneumatic valve 气动阀Predrying 预干燥Pressure area 压力区Reel 纸卷、卷纸Reel drums 卷纸缸Revolving reel 轴式卷纸机Spool 纸芯Reel core 卷纸芯Slitter 纵切机Trim 切边Upright reel 直立轴式卷纸机Reel cylinder 卷纸缸Reel spool 卷纸轴Reel stand 卷纸架Reeling machine 卷纸机Reeling-off stand 退纸架Size machine 施胶机Size fastness 施胶度Size roll 施胶辊Sizing 胶料Skinning doctor 烘缸刮刀Steam pressure 蒸汽压力Steam pump 蒸汽泵Steam temperature 蒸汽温度Stretch roll 张紧辊Strips 纸条Suction blower 抽风机Surface sizing 表面施胶Surface sizing agent 表面施胶剂Take-up reel 卷纸纸卷Temperature condintioning 温度调节Temperature –time 温度-时间曲线Tension-control 张力控制Threading speed 引纸速度复卷、分切、打包、贮存专业词汇wrapping machine 包装机wrapper 包装机wound roll 卷筒wound rotor motor 绕线式电机wire tying machine 包线机winding 复卷winder trim 复卷机切边winder 复卷机underfeed rewinder 下引纸复卷机twin rotor cutter 双刀辊切纸机take-up spool 卷轴square cutter 直角截切机slitter 纵切机；纵切刀slitter bord 纵切机底刀slitter blade 纵切机上刀slitter crack 纵切裂痕纸病slitter disc 碗状下刀slitter dust 纵切机纸尘slitter edge 截切纸边slitter jump 纵切机上刀跳动slitter knife 齿状上刀slitter operator 纵切工slitter rewinder 纵切复卷机slitter roll 纵切辊slitter runout 纵切机底刀摇摆slitter scorer 纵切机划线器slitting 纵切slitting and re-reeling machine 纵切复卷机slitting roll 纵切辊single cutter 单刀切纸机sheeter 平板纸切纸机；数纸器sheeting 平板纸截切sheeting equipment 平板纸截切机clearance 刀距clipped cut 切边不整齐clear cutting 净切边knife 刀knife blade 刀片knife block 刀架子knife disk 刀盘longitudinal section 纵切面measuring tape 卷尺packaging 打包packaging machine 打包机paper cutter 切纸机paper drum 卷纸辊paper reel 原纸卷paper roll density 卷筒纸紧度paper scissors 剪纸刀paper trimming 切纸边press knife 冲刀reel core 卷纸芯reel cylinder 卷纸缸reel drum 卷纸缸reel label 卷纸用标签reel-off stand 退卷架reel slitter 卷筒分切机reel spool 卷纸辊轴reel stand 卷纸架rereeler 复卷机reel 卷曲winding 复卷brake 制动器crane 吊车hoist 吊升spool 纸芯trim 切边unwind 退卷winder 复卷机stack 卷纸辊bale 捆、包bale press 打包机bale room 打包工段baler 打包机baling line 包装生产线bar 棒、刀barometer 气压计benchboard 操纵台blasting nozzle 鼓风口、风嘴bobbin 盘纸bobbin cutter 盘纸分切机bobbin slitter 分切机boom 吊杆boom crane 吊杆起重机bottom cutter shaft 切纸机底刀轴bracket 托架、座架bulk storage 散装贮存carriage drum 复卷机底辊chopper-fan 复卷机抽纸边风机circular slitting knife 盘刀；复卷机固定刀converting department 纸加工车间in position 在适当位置revolving reel 轴式卷纸机shear cut winder 剪切型复卷机stack reel 轴式复卷机surface drive reel 辊式卷纸机the unwinding stand 退纸架upright reel 直立轴式卷纸机automatic manipulation device 自动操纵装置automatic roll 自动辊automatic tension control 张力自动控制bed roll 支持辊；底辊bed roll-type winder 底辊式复卷机苏建明陈健半成品/成品各项物理指标Absolute density 绝对密度Absolute dry 绝对干度Absolute viscosity 绝对黏度Absorbance 吸收率,吸收度Absorption coefficient 吸收系数Acceptability 合格率Acidity in paper 纸张酸度Acoustical absorption coefficient 吸声系数Adhcsion strength 粘附强度Ageing resistance 抗老化能力Air permeability 透气性,透气度Alkali staining resistance 抗碱染性Apparent density 表面密度,表面紧度Ash 灰分Basic weight 定量Beating degree 打浆度Bend strength 弯曲强度Surface roughness 表面粗糙度Blue reflectance factor 蓝光反射系数亮度Bonding index 黏度指数Breakdown strength 击穿强度Breaking length 裂断长Brightness 白度Blue reflectance 抗破裂度Bulk index 松厚指数Bulk softness 抗弯柔软度Burning rate 燃烧速率Burst 破裂度Cellulose crystality 纤维结晶度,纤维素微晶Cloud 均匀度Coating steength 涂布强度Coefficient of hydration 水化系数Collapse index 压溃指数Color fastness 颜色牢固性Color retention 色料留着率Column strength 裂断强度纸板Combined strength parameter 纸浆综合强度指数Combustion efficiency 燃烧效率Compactness 紧密度Compression resistance 抗压性能Contrast gloss 对比光泽度,反差光泽Corrosion allowance 腐蚀允度Cracking resistance 抗破裂性能Crease retention 耐皱性能Curl 卷曲度Dampening stretch 润湿变形,润湿伸长率Freedom 自由度Hardness 硬度Ionization 电离度Orientation 定向度,去向度Pressing 压榨程度Refining 打浆度,精磨度Sizing 施胶度Yellowing 黄化度Diffuse blue reflectance factor 蓝光扩散反射系数ISO白度Drainability 滤水性能Dry strength 干强度Edge tear 边缘撕裂度Electrical conductivity 电导率Elongation at rupture 裂断时的伸长率Erasibility 耐摩擦性能Fastness 坚牢性,坚牢度,不退色性Feeling 手感Fiber length index 纤维长度指数Filler retention 填料留着率Filter factor 滤色系数Filterability 滤过性能Finish points 成品厚度Flexural property 屈曲性能Folding endurance 耐折度Formation of sheet 纸页组织,纸张匀度,纸页成型Francture length 裂断长Free acidity 游离酸度Free alkalinity 游离碱度Friction factor 摩擦因数Fungus resistance 抗菌性能Fuzziness 起毛性Grease resistance 抗油性Homogeneity 均一性Humidity 湿度Impermeable 不渗透性Index of dispersion 分散指数Index of refraction 折光指数Like-sidedness 纸张表面性能相似性Longevity 耐久性Moisturn capacity 湿度,潮度Nominal grammage 公称定量Opacity 不透明度Optical brighness 光学白度Paper texture 纸张纹理,纸张指数Pellucidness 透明度Permanence 永久性,耐久性Pick strength 表面强度,表面结合强度Pop strength 耐破强度Porosity 透气度,气孔度Printability 适印性Profile basis weight 全幅横向定量Puncture strength 戳穿强度Rupture resistance 抗裂性能Scoreability 折曲性能Sheet shrinkage 纸页收缩率Sheetage 纸张比重,纸张表面积比率Smoothness 平滑度Show-through resistance 不透明度Size press pickup 表面施胶黏附量Slip resistance 抗滑性能Speckiness 尘埃度Stretch at breaking point 裂断时的伸长率Substance weight 纸张定量Surface wettability 表面润湿性能Tear 撕裂度Tensile breaking strength 抗张强度,抗张拉力Tension burst 横向耐破度Torsion tearing resistance 扭曲撕裂度Transmittance 透光度Unevenness 不均匀性,不平坦性Viscosity 黏度V oid ratio 空隙比率。

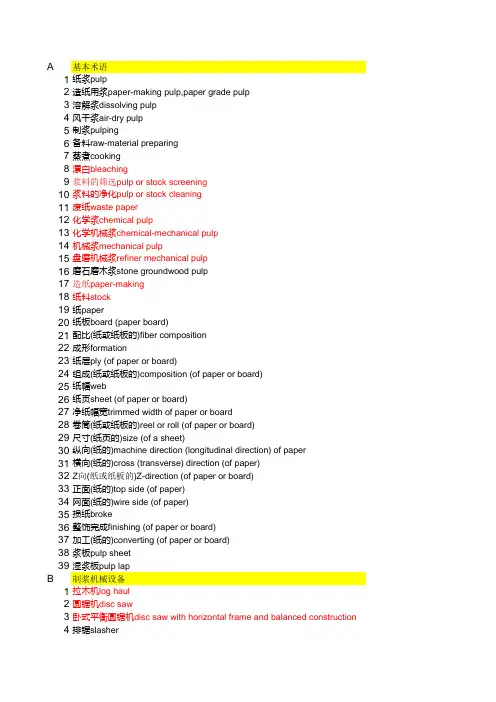

A基本术语1纸浆pulp2造纸用浆paper-making pulp,paper grade pulp3溶解浆dissolving pulp4风干浆air-dry pulp5制浆pulping6备料raw-material preparing7蒸煮cooking8漂白bleaching9浆料的筛选pulp or stock screening10浆料的净化pulp or stock cleaning11废纸waste paper12化学浆chemical pulp13化学机械浆chemical-mechanical pulp14机械浆mechanical pulp15盘磨机械浆refiner mechanical pulp16磨石磨木浆stone groundwood pulp17造纸paper-making18纸料stock19纸paper20纸板board (paper board)21配比(纸或纸板的)fiber composition22成形formation23纸层ply (of paper or board)24组成(纸或纸板的)composition (of paper or board)25纸幅web26纸页sheet (of paper or board)27净纸幅宽trimmed width of paper or board28卷筒(纸或纸板的)reel or roll (of paper or board)29尺寸(纸页的)size (of a sheet)30纵向(纸的)machine direction (longitudinal direction) of paper31横向(纸的)cross (transverse) direction (of paper)32Z向(纸或纸板的)Z-direction (of paper or board)33正面(纸的)top side (of paper)34网面(纸的)wire side (of paper)35损纸broke36整饰完成finishing (of paper or board)37加工(纸的)converting (of paper or board)38浆板pulp sheet39湿浆板pulp lapB制浆机械设备1拉木机log haul2圆锯机disc saw3卧式平衡圆锯机disc saw with horizontal frame and balanced construction 4排锯slasher5移动式圆锯机slashmobile6原木池log pond7劈木机log splitter8卧式劈木机horizontal splitter9去节机knot boring machine10去皮debarking11圆筒剥皮机drum barker12枝枉材圆筒剥皮机drum barker for branch wood13环式剥皮机ring barker14摆臂刺辊进料型环式剥皮机ring barker with swing arms and thorny rollers feeding mechanism15链刀型环式剥皮机ring barker with chain type barking knives16卡盘型环式剥皮机ring barker with chuck type barking ring17刀式剥机皮knife barker18刀盘knife dise19刀辊knife roll (drum)20飞刀fly (revolving) knives21水力剥皮机hydrabarker22削片chipping23削片机chipper24盘式削片机disc chipper25辊式削片机drum chipper26双锥盘削片机double conical disc chipper27螺旋型双锥盘削片机screw chipper28板皮削片机slab chipper29料片筛chip screen30料片再碎机chip crusher31鼠笼式再碎机squirrel-cage chip crusher32锤式再碎机chip shredder hog machine33料片的筛分析sieve analysis of chips34辊式切草机knife drum straw cutter35盘式切苇机disc reed cutter36切布机rag cutter37辊式蔗渣开包机roil type bagasse bale breaker38蔗渣松散机bagasse bale loosening machine39锤式除髓机 hammer depither40鼠笼式除姗机squirrel-cage depither41辊式除尘机railroad duster42水膜除尘器water film duster43风选机fan duster44振动筛vibrating screen45半振动筛semi-vibrating screen46摇振筛shaking screen47摇摆筛swinging screen48料片仓chip bin49锥底木片仓conical-bottomed chip bin50活底料片仓live bottom chip bin51间歇蒸煮batch cooking52连续蒸煮continuous cooking53间接加热蒸煮indirect cooking54多级蒸煮multistage cooking process55蒸球rotary spherical digester56燕球喷放轴头blowing journal of spherical digester57立式蒸煮锅vertical digester58蒸煮锅衬里digester lining59装锅器feed packer60喷放锅blow tank61喷放池blow pit62立式连续蒸煮器vertical continuous digester63横管式连续蒸煮器horizontal tubular continuous digester64斜管式连续蒸煮器inclined tubular continuous digester65汽蒸室steam chamber66低压给料器low pressure feeder67高压给料器high pressure feeder68格仓转子给料器pocket type feeder69螺旋给料器screw feeder70料塞(横管式连续蒸煮器的)chip plug or feed plug(for horizontal tubular continuous digester)71排料器discharger of continuous digester72喷放阀blow valve73冷喷放cold blow off74磨木机grinder75连续磨木机continuous grinder76间歇磨木机intermittent grinder77水压磨木机hydraulic grinder78袋式磨木机pocket grinder79双袋式水压磨木机dual-pocket type hydraulic grinder80套缸型袋式磨木机grinder with sliding pocket81压力磨木机pressure grinder82库式磨木机magazine grinder83链式磨木机chain grinder84单链C磨木机single-chain grinder85双链式磨木机dual-chain grinder86杠杆式磨木机lever grinder87环式磨木机ring type grinder88磨石grind-stone89陶瓷磨石 ceramic grind-stone90磨石锐度sharpness of grind-stone91磨木机浆坑grinder pit92刻石装置burring device of grind-stone93刻石锉轮burr (grindstone dresser)94盘磨机disc refiner95木片洗涤机chip washer96磨盘(盘磨机的)refiner disc97动盘(盘磨机的)rotating plate of disc refiner98定盘(盘磨机的)stationary plate of disc refiner99磨片(盘磨机的)disc refiner plate100磨纹(盘磨机磨盘的)grooved pattern of disc refiner plate101单动盘磨机single rotating disc refiner102双动盘磨机double rotating disc refiner103三盘单动盘磨机triple disc refiner104洗浆机pulp washer105浓缩机thickener (decker)106挤浆机washing press (for pulp)107稀释因子dilution factor108洗浆的置换比displacement ratio of pulp washing109洗浆池drainer110鼓式真空洗浆机drum type vacuum washer111水平带式真空洗浆机horizontal belt type vacuum washer112鼓式压力洗浆机drum type pressure washer113鼓式重力自吸洗浆机drum type gravity suction washer114筛环式扩散洗涤机ring screen diffusion washer115多段逆流洗涤系统multi-stage counter-current washing system 116多盘式真空过滤机disc type vacuum filter117螺旋挤浆机screw press washer118双辊挤浆机twin-roll press washer119双鼓挤浆机Eccentric drum press washer120圆网浓缩机cylinder decker121侧压浓缩机open vat type pressure thickener122双圆浓缩机double mould thickener123夹网浓缩机twin(double) wire thickener/washer124筛浆机screen125筛板screen plate126合格浆料accepted pulp127粗渣reject128筛孔screen hole129筛缝screen cut, screen slot130筛板开孔率percentage perforation of screen plate131离心筛centrifugal screen132A型离心筛centrifugal screen model A133B型离心筛centrifugal screen model B134C型离心筛centrifugal screen model C135CX型离心筛centrifugal screen model CX136压力筛pressure screen137旋翼筛pressure screen with rotary foils or vanes138内（外）流式旋翼筛inward (outward)-flow pressure screen139双鼓旋翼筛double drum pressure screen with rotary foils140级（纸浆净化的）screening or cleaning stage of accepted stock141段（纸浆筛选净化的）screening or cleaning stage of reject stock142增压型两级串联单鼓压力筛pressure-gain type singe-drum pressure screen for screening in series143旋鼓式压力筛rotary drum type pressure screen144卧式压力筛pressure screen with horizontal shaft145螺旋除节机worm knotter146内(外)流振动筛inward (outward)-flow vibrating screen147低频振槽式圆筛rotary screen with low frequency vibrating trough148低频振鼓式圆筛rotary screen with low frequency vibrating drum149高频振槽式圆筛rotary screen with high frequency vibrating trough150高频振鼓式圆筛high frequency rotary screen151低频振膜式平筛diaphragm screen152高频振框式平筛high frequency vibrating screen153低频框式除节机vibrating knotter154沉砂盘sandtable, sandtrap, riffler155涡流除渣器vortex cleaner156锥形除渣器conical vortex cleaner157逆向除渣器reverse vortex cleaner158高浓除渣器high consistency stuff cleaner159立式离心除渣机vertical centrifugal cleaner160漂白段bleaching stage161漂浆机tub bleacher162洗鼓wash drum163漂白塔bleaching tower164混合器mixer165双辊混合机double shaft mixer166盘式浆绷混合器disc type chlorine mixer167静态混合器static mixer168喷射式氯水混合器chlorine water injector169石灰乳氯化器chlorinator170收缩管式二氧化氯混合器converging tube mixer for chlorine dioxide171氯化塔chlorination tower172升降流式二氧化氯漂白塔up-flow down-flow chlorine dioxide bleaching tower173碱处理塔alkali extraction tower174酸处理塔acid souring tower175置换漂白displacement bleaching176置换漂白塔displacement bleaching tower177碎解slushing178碎浆机pulp slusher, pulp shredder, pulper179刀辊式碎浆机bealing pulper, pulping beater180水力碎浆机hydrapulper181连续式水力碎浆机continuous hydrapulper182捻绳除杂装置ragger183间歇式水力碎浆机batch type hydrapulper184高浓水力碎浆机high consistency hydrapulper185打浆beating, refining186打浆机beater187磨浆机refiner188细纤维化fibrillation189润胀swelling190槽式打浆机tub beater, hollander beater191调压式打浆机adjustable pressure beater192连续式打浆机Continuous beater193半浆机breaker beater194圆柱磨浆机cylindrical drum refiner195锥形磨浆机conical refiner196大锥度磨浆机wide angle refiner197内循环锥形磨浆机refiner with internal recirculation198疏解机deflaker, fiberizer, defiberizer199高频硫解机 high frequency deflaker200转鼓式纤维分离机drum fiberizer201复式纤维分离筛选机combined deflaker-screen202废纸的洗涤脱墨displacement washing-deinking of waste paper 203废纸的浮选脱墨floatation deinking of waste paper204浮选槽floatation deinking cell205双锥除渣器vortex cleaner with cones in series206浆泵stock pump207低浓浆泵low consistency stock pump208中浓浆泵medium consistency stock pump209高浓浆泵high consistency stock pump210贮浆池pulp (stock) chest211卧式贮浆池horizontal stock chest212立式贮浆池vertical stock chest213方浆池square or rectangular channel-less stock chest214涡轮式推进器turbo-impeller215螺旋浆式循环搅拌器propeller-agitator216湿抄机wet machine217浆板机pulp machine218成形机forming machine219湿抄机成形辊forming roll of wet machine or forming machine 220湿抄机成形压榨forming press of wet machine or forming machine 221闪急干燥flash drying222纸浆的闪急干燥器flash dryer for pulp223绒化干燥fluff drying224绒化处理fluffing of pulp225卧式多程转筒干燥器horizontal multipass rotary dryer226蒸煮废液spent liquor227黑液提取率extraction efficiency of black liquor228碱回收率efficiency of alkali recovery229红液red liquor,spent sulfite liquor230红液回收chemicals and heat recovery from red liquor231绿液green liquor232绿泥green mud233白液white liguor234白泥lime mud,white mud235苛化causticization236石灰的消化lime slaking237间歇苛化batch causticization238连续苛化continuous causticization239短管蒸发器short tube evaporator240长管液膜蒸发器long tube film type evaporator241多程蒸发器multipass evaporator242板式降膜燕发器plate type falling film evaporator243强制循环蒸发器forced circulation evaporator244多效蒸发站multi-effect evaporation station245回转式碱回收炉rotary furnace for alkali recovery246喷射式碱回收炉spray type recovery furnace247黑液喷枪black liquor spray gun248流化床化学品回收系统fluosolid system for chemical recovery249流化床燃烧炉fluidized-bed reactor250化学品回收炉的垫层cher bed in chemical recovery furnace251喷雾式二氧化硫冷却系统spray type cooling system for sulfur dioxide 252二氧化硫洗涤塔sulfur dioxide scrubber253圆盘蒸发器cascade evaporator254文丘里蒸发洗涤器venturiscrubber255静电除尘器electrostatic precipitator256苛化器causticizer257连续苛化器Continuous causticizer258鼓式消化器drum type lime slaker259石灰消化分离器continuous lime slaker260绿(白)液澄清器green (white) liquor clarifier261白液压力过滤器white liguor pressure filter262沉渣洗涤器mud thickener263白泥真空洗涤机lime (white) mud vacuum washer264带式白液过滤机belt filter for white liquor265石灰转窑rotary lime kilnC造纸机械设备1成浆perfect stuff2供浆系统stock supply system3成浆池machine chest4配浆stock prbportioning5配浆箱stock proportioning box, stock proportioner6鼓式配浆箱rotor type stock proportioner:7孔板式配浆箱orifice type stock proportioner8纸浆浓度控制器stock consistency controller9刀式浓度控制器blade type stock consistency controller10斜槽式浓度控制器flow channel type stock consistency controller11旋杯式浓度控制器rotary cup type stock consistency controller12转子式浓度控制器rotor type stock consistency -controller13浮动弯管式浓度控制器counter-balanced resistance tube type stock consistency controler14光学浓度控制器Cptical stock consistency controller15游离度控制器stock freeness controller16除气器deculator17旋涡真空分离器vortex separator18除渣器汇集筒radially arranged cleaner battery19松香锅rosin cooking tank, size cooker20脉冲衰减器attenuator21浆量调节阀stoke control valve22葱头阀onion valve23造纸机冲浆泵fan pump of paper machine24造纸机高位浆箱stablizing head tank of paper machine, stuff box25造纸机流送系统approach flow system of papar machine26絮聚(纤维的)flocculation (of fibres)27解絮deflocculation28絮团floc29纤维网络fibre network30浆流的临界浓度critical consistency of stock flow31浆流的临界流速critical velocity of stock flow32浆流的极限浓度extreme consistency of stock flow33高强度微湍动high intensity micro-turbulence34造纸机paper machine35纸板机board machine36流浆箱flow box, head box37成形器former38成形网forming wire ,forming fabric39造纸机的成形部forming (wire) section (part) of paper machine40造纸机的压榨部press section (part) of machine41造纸机的湿段wet end of paper machine42造纸机的干燥部dryer section (part) of paper machine43造纸机的传动部driving part of paper machine44造纸机的电气驱动部electical transmission section of paper machine45造纸机的干段dry end of paper machine46长网造纸机fourdrinier machine47圆网造纸机cylinder machine, vat machine48夹网造纸机twin-wire former papeeer machine49多长网造纸机multiple fourdrinier paper machine50多圆网纸板机multi-cylinder board machine51开式引纸造纸机open-draw paper machine52闭式引纸造纸机paper machine with pick-up transfer53自接纸造纸机lick-up machine54大直径单缸长网造纸机fourdrinier machine with Yankee dryer55混合式造纸机combination machine56干法造纸机air-laid paper machine57左、右手机left-or right-handed machine58单烘缸圆网造纸机cylinder machine with yankee dryer59毛纸幅宽untrimmed web width60横缩率cross directional wet shrinkage61网宽wire width, machine width62轨距centre distance of sole plates of machine63造纸机用织物paper machine clothing64造纸机车速paper machine speed65造纸机工作车速working speed of paper machine66造纸机设计车速design speed of paper machine67造纸机的结构车速structural limiting speed of paper machine68爬行车速creeping or crawling speed69辊筒平衡车速dalacing speed of roll70引纸threading71纸幅移送paper web transfer72开式移送open transfer73开式牵引open draw74闭式移送no-draw transfer75舔移lick up76吹移blowing (pneumatic) pick-up77吸移suction pick-up78毛毯felt79纸的临界水分critical moisture content of paper80面层top liner81里层back liner82次面层under liner83中间层middle (of board),medium84层间结合plybond (of paper)85开敞式流浆箱open type flowbox86淌浆箱open flowbox with apron87密闭式流浆箱closed type flowbox88气垫式流浆箱air-cushion type flowbox89逞流式流浆箱direct delivered flow headbox, tydraulic flowbox90二级流浆箱secondary headbox91布浆器flow spreader, flow distributor92扩展流道布浆器tapered duct distributor93中间进浆多支管布浆器multiple-branching manifold with centralfeed94多重对分布浆器multiple coupled-branching flow distributor95错流布浆器cross flow distributor96锥形总管布浆器tapered flow header97传动侧driving side98操作侧tending side99匀浆元件rectfying device100节扩流道converging-thro-ttling and diverging flow channel101流浆箱挡板flowbox baffle102排栅guiding fence103导流棒guiding bar104导流片组battery of guiding vanes105孔板perforated plate106台阶扩散器step diffusor107管束tube bank108流浆箱溢流率percentage overflow of paper machine flowbox109流浆箱浆池flowbox pond110匀浆辊rectifier roll111孔辊perforated rectifier roll, holey roll112喉辊throat roll113闸辊slice roll114波迹效应(匀浆辊的)wake effect (of holey roll)115挠性导流板flexible guide plate116流浆箱锥形布浆器回流率percentage circulating flow of lapered flow header 117裙布apron118流浆箱驼蜂hump bottom of flowbox119上浆装里slice120直立闸板上浆装置straight slice121唇板slice lip122唇缘slice lip strip123喷浆缝开度slice opening124斜闸板inclined slice125敛唇式上浆装置converging slice, projection slice,nozzle slice126突唇式上浆装置nozzle slice for pressure formation127浆网速比speed ratio of stock jetrelatedto wire128流浆箱喷射角sliec jet angle129着网角angle of projection130速度成形velocity formation131压力成形pressure formation132层上成形formation on the formed ply133泄水drainage134积层(纤维的)fibre mat135纤维沉积fibre deposition136纤维定向fibre orientation137细微物质fines138细小纤维debris139纤维比体积specific volume of fibre140纤维比表面积specific surface area of fibre141纤维留着率fibre retention142细料留着率fine retention143长网成形器fourdrinie former, fourdrinier144网案wire table145脱水dewatering146网目mesh147平织(网或毯的)plain weave (of wire or felt)148三丝网triple wire149斜纹织法(网或毯的)longerimp weave,twill weavue (of wire or felt)150捻织网twist weave wire151网案长度length of wire table152成形网的工作行程段working run of forming wire (fabric)153成形网的回程段return run of forming wire (fabric)154成形区(成形器上的)forming zone (on the former)155脱水区(成形器上的)dewatering zone (on the former)156水线dry line157自由表面(网上纸料的)free surface of the stock on the forming wire (fabric) 158跳浆spouting159水印watermark160黑水印cameo161纤维的比例沉积proportional deposition of fibre162纤维的选择性沉积selective deposition of fibre163冲刷作用wash-off action164网案的摇振shaking of wire table165摇振强度wire shaking intensity166两段同步摇振synchronous duplex shaking of wire-able167圆网成形器cylinder former168夹网成形器twin-wire former169短网成形器short-wire former170网槽成形器vat former171真空圆网成形器suction (vacuum) cylinder former172压力圆网成形器pressure cylinder former173抽气式圆网成形器vat former with extracting mould174网辊成形器roll former175水平夹网成形器horizontal twin-wire former176直立夹网成形器vertical twin-wire former177曲面夹网成形器convex twin-wire former178上成形器on-top former179夹网薄纸成形器twin-wire tissue former180网膜wire moutd181胸辊breast roll182成形板forming board183成形箱forming box184案辊table roll185脱水板foil186挡水板deflector on the fourdrinier187案辊效应table roll effect188导向板deflector on the vertical twinwire former189湿吸箱wet suction box190吸水箱suction box on the former, flat box191摆动吸水箱oscillating flat box192履带式吸水箱belt type flat box193摇振箱wire shake194饰面辊dandy roll195帘纹水印辊taid dandy roll196网笼cylinder mould197网鼓wire drum (roll)198伏辊Couch or couch roll199真空伏辊suction couch roll200沟纹伏辊grooved couch roll201伏辊压榨couch press202伏辊压榨一辊upper couch roll of the couch press (jacketed top couch roll) 203上伏辊lump-breaker roll, lump roll, top couch roll204驱网辊wire-turning (-driving) roll205回头辊return roll206回头辊压榨drum roll press207挤水辊压榨extraction press208导网(毯)辊wire (felt) roll209引纸辊paper (leading) roll210舒展辊spreader roll211弧形辊curved roll212动力衬网power fabric213定幅装置deckle214定幅带deckle strap215定幅板deckle board216定幅喷水管deckle shower217定边带deckle band218切边水针trimming squirt219引纸水针cut-off squirt220第一导网辊wash roll, doctor roll221上导网辊break back roll, end roll222冲纸喷水管knock-off shower223刮刀doctor224摆动刮刀oscillating doctor225蜂巢式真空辊cell type suction roll226箱式真空辊box type suction roll227白水white water228白水盘white water tray229网槽vat230活动弧形板式网槽vat with adjustable curved flow channel231顺流式网槽uniflow vat, direct flow vat232逆流式网槽counter flow vat233吸水刮刀suction slice, auto slice234换网装置wire-changing device235移出式换网装置roll-out type wire-changing device236套网式换网装置rapi-drape type wire-changing device237悬臂式换网装置cantilever type wire changing deviec238C形机架(成形器的)C-frame (of former)239网架wire carriage-hanger240网车wire dolly241展网横杆wire pole242换网托杆porter bar243网下白水坑wire pit244网外白水坑white water pit245伏辊损纸池couch pit246白水井white water well (silo)247成形辊(夹网成形器的)forming roll (on the twin-wire former)248成形喷水管forming shower249管辊tubular roll250张紧器stretcher251张力控制器、张力装置tension controller, tension device252校正器guide, guiding device253纸边校正器edge position controller254压榨press255夹区nip256压区nip (of press rolls)257压区宽度nip width258压榨道(组)数(造纸机压榨部的)number of presses in the press section of paper machine259双辊压榨two-roll press260多压区压榨multiple-nip press, compound press261压区压强nip pressure262作辊面宽working width of roll face263线压linear pressure264普通压榨plain press265普通压辊plain press roll266石辊stone roll267花岗石辊granite roll268人造石辊artificial stone roll269压区进侧incoming side of nip270压区中心midnip271压区出侧outgoing side of nip272压区的侧向lateral direction of press nip273压区的垂直向vertical direction of press nip274侧向流压榨lateral flow press275垂直流压榨vertical flow press276正压榨straight through press277反压榨reverse press278倒压榨inverse press279真空压辊suction press roll280真空压区suction press nip281吸风压榨air bleed press282衬网压榨fabric press283网套压榨shrink fabric press284沟纹压辊grooved press roll,vented press roll285沟纹压区grooved press nip286盲孔压辊blind drilled press roll287盲孔压区blind drilled press nip288双毛毯压榨double-felt press289热压榨hot press290蒸汽箱(加热纸幅的)steam box (for web heating)291托辊压榨pressure roll press292托辊pressure roll293电热压榨electrical hot press294分压榨divided press295延时压榨long dwelling time press, widened nip press 296高冲量压榨high impuse press297宽压区压榨wide (extended) nip press298压溃crushing299蹭皮(纸幅的)skinning of the web300剥离角take off ankle301剥离功work of take off302粘点picking point303自愈效应self-recovering effect304舔移装置lick-up transfer apparatus305吹移管blow pipe for pick-up transfer306吹移箱blow box for pick-up transfer307压纸辊(造纸机压榨部的)holding roll, air roll308舔移双毛毯压榨装置lick-up doubie press apparatus 309舔移双毛毯反压榨装置lick-up double-felt reverse press 310尾辊tail roll311吸移装置suction transfer apparatus312吸移辊suction pick-up roll, suction transfer roll313吸移箱suction box for pick-up transfer314预压榨primary press, baby press315递纸压榨transfer press316毛毯洗涤felt conditioning317毛毯压榨wringer press318毛毯冲洗喷管felt shower319打毯器felt whipper320毛毯吸水箱felt suction box321喷吸盒式洗毯器moving shoe type conditioner322毛毯洗涤喷头ocsillating felt conditioning jet323刮板槽型毛毯洗涤装置scraper board for felt washing324针辊压榨needle press325平滑压榨smoothing press326压纹压榨marking press327施胶压榨sizing press328牵引压榨draw press329湿压水印machine imprinted watermsrk330中高camber, crown, crowning331中高辊crowned roll332中固辊roll with shell shrink-fitted at middle333心轴辊roll with shell supported at ends334中凹辊concave roll335可控抗挠辊 Controllable anti-deflection roll336浮动辊swimming roll337可控中高辊controllable crown roll338静压轴承辊press roll with shell supported on static bearings339剥纸喷管(嘴)take-off air jet340托纸器paper-carrying roll341软套式弧形辊curved roll with flexible sleeve342水润软套式弧形辊curved roll with water lubricated sleeve343分节式弧形辊curved roll with segmental sleeves344变弧度弧形辊variable bow roll345弧形杆curved bar, spreader, spreader bar346压纹装置marking device347压纹辊marking roll348加压升降机构(压辊的)loading and lifting mechanism (of press roll)349湿损纸输送器wet broke conveyer350接触干燥(纸的)contact drying of paper351烘缸干燥(纸的)cylinder drying of paper352气流干燥(纸的)air drying of paper353热风干燥(纸的)hot air stream drying of paper354穿透干燥(纸的)air through drying of paper355辐射干燥(纸的)radiant drying of paper356微波干燥(纸的)microwave drying of paper357红外干燥(纸的)infrared drying of paper358悬挂干燥(纸的)festoon drying (loft drying) of paper359干燥率(纸的)drying rate of paper360蒸发干燥率(造纸机干燥部的)evaporation drying rate of paper machine dryer section361产纸量千燥率(造纸机的)production drying rate of paper machine362前干燥部pre-dryer section363后干燥部after-dryer section364烘缸cylinder dryer365光泽烘缸glazing dryer366烘纸缸paper dryer367引纸烘缸lead dryer, bady dryer368夹层供缸jacket dryer, double shell dryer369沟槽供缸cylinder dryer with condensate collecting channel370冷缸sweat dryer, cooling dryer371烘毯缸felt dryer372沟槽大烘缸grooved yankee dryer373起皱烘缸creping dryer374汽头steam joint, rotary joint (for pulp and paper machinery)375冷缸水头water joint of the cooling dryer376序斗dipper377虹吸管(烘缸的)siphon of cylinder dryer378固定虹吸管(烘缸的)stationary siphon of cylinder dryer379回转虹吸管(烘缸的)rotary or revolving siphon of cylinder dryer380凝水扰动片spoiler bar for dryer condensate381吹过汽blow-through steam382烘缸温度曲线dryer temperature curve383烘缸排列方式arrangement of cylinder dryers384烘缸供汽分组steam supply groupings of cylinder dryers385烘缸传动分组drive groupings of cylinder dryers386烘缸有效面积effective dryer surface area387烘缸供汽排水系统steam-condensate system of cylinder dryers388单毯配置single felting arrangement of cylinder dryer section, snake felting 389并联供汽排水系统parallel type steam-condensate system390分组串联供汽排水系统cascade type steam-condensate system391循环供汽系统recirculation type steam supply system392单缸循环供汽系统injector-circulation steam supply system393水气分离器steam separator394闪蒸箱flash tank395热风烘毯缸air dryer for felt396中间烘毯缸intervenient felt dryer397真空烘缸干毯部induced draft dryer section398袋区(烘缸干燥部的)pocket zone of clinder dryer section399袋区通风装置pocket ventilation device400袋区通风管pecket ventilation duct401热风横吹系统pocket injection ventilation system402热风烘毯辊felt drying roll403真空热风烘毯缸hot air suction dryer for felt404清扫刮J cleaning doctor405引纸刮刀cut-off doctor406起皱刮刀creping doctor407弹性刮刀flexible doctor408汽罩hood409全封闭汽罩totally enclosed hood410开式汽罩open hood411弹簧引纸辊spring roll412跳动导辊dancing fell or paper roll413湿润引纸辊sweat roll414热风干燥器air dryer415悬挂干燥器festoon dryer416穿透干燥器air through dryer417外压式穿透干燥器air through dryer with outside plenum418高速冲击热风干燥器high velocity impingement air dryer419气浮式热风干燥器air floating dryer420自平衡式热风干燥器self-balanced air floating dryer421互平衡式热风干燥器mutual-balanced air floating dryer422多程水平烘房multipass horizontal air dryer423热风吹毯系统felt air system424汽罩通风系统hood ventilation system425纸条割刀web tail cutting knife426引纸绳系统threading rope carrier system427引纸带threading tape428烘缸开式齿轮传动系统open gear drive of cylinder dryers429烘缸齿箱系统closed gear drive of cylinder dryers430传动分部driving section431造纸机的分部车速sectional speeds of paper machine driving sections432造纸机传动分部相对车速比relative sectional speeds of paper machine driving sections433造纸机的传动速比范围operating speed ratio of paper machine434正常运转负荷常数(NRI常数)normal running load constant435推荐传动能力常数(RDC常数)recommended driving capacity constant436横轴传动counter shaft drive437纵轴传动line shaft drive438纵轴机组传动line shaft drive with M-G set439天轴纵轴传动overhead line shaft drive440地轴纵轴传动ground drive441底层纵轴传动basement line shaft drive442纵轴汽轮机传动line shaft drive with steam turbine443调速槽轮vari-pitch sheave for sectional speed adjustment444三角带调速装置v-belt drive for sectional speed adjustment445锥轮调速装置cone-pulley drive for sectional speed adjustment446差动齿箱调速装置differential gear drive for sectional speed adjustment 447纵轴可控硅传动line shaft drive with thyristor speed control448分部传动sectional drive with multiple motors449可控硅分部传动sectional drive with thyrister speed regulation450单(双)闭环可控硅分部传动single(double) loop thyristor sectional drive 451电气驱动系统动态精度kinetic accuracy of electrical transmission system 452电气驱动系统静态精度static accuracy of electrical transmission system 453白水回收设备saveall454沉淀式白水回收设备sedimentation saveall455锥形沉淀塔conical saveall456飘浮式白水回收设备floatation saveall457真空飘浮式白水回收设备vacuum type floatation saveall458斜网白水回收机inclined wire saveall459圆网白水回收机wire drum saveall460双鼓型白水回收机double drum saveall461间歇转动式圆网白水回收机intermittent revolving drum saveall462真空过滤式白水回收机vacuum filtration saveallD整饰完成机械设备1表面施胶surface sizing2压光calendering3卷取reeling,winding4湿润dampening5选纸sorting6施光glazing, polishing7毛刷施光brush polishing8摩擦施光friction glazing9隧石磨光flint glazing10表面卷取surface winding11心轴卷取centre winding12热光泽hot rolling13蒸汽光泽加工steam finish14纵切slitting15横切cross cutting16剪切shear cut17割切slitting cut18压切score cut19水切jet cut20翻选overhauling, slip sorting21扇选fanning22卷纸机reeler23圆筒卷纸机drum reeler, pope reeler24卷纸缸reel cylinder, reeling drum25卷纸辊reel spool26原纸卷parent roll, jumbo roll, mill roll27卷心core28卷心轴core shaft29复卷机winder30重卷机rewinder31下引纸复卷机underfeed winder32上引纸复卷机overfeed winder33无轴型复卷机shaftless winder34复(重)卷机底辊winder (rewinder) drum,supporting roll35双辊复卷机double drum winder36单辊复卷机single drum winder37双侧复卷机duplex winder38纵切机slitter39砧辊anvil roll,platen roll40压纸辊(复卷机的)rider roll of drum winder41退纸unwinding42退纸架backstand, unwind stand43无轴退纸架，haftless unwind44移动退纸架movable backstand45恒张力装置constant tension device46张力辊tension roll47轴式卷纸机upright reeler48电动卷纸机motor driven centre winding reeler49回转臂式卷纸机revolving-arm centre winding reeler50回转臂式退纸架revolving-arm unwinding stand51纸幅(边)定位装置web edge position control device52压光机calender53纸机压光机machine calender54超级压光机supercalender55超级压光(纸的)supercalendering of paper56压纸辊(压光机的)catch roll of calender57纸粕辊bowl (of supercalender)> fiber roll58纸粕辊填料filling of bowl59飞辊flying roll60顶辊(压光机的)top roll of calender61底辊(压光机的)bottom roll or king roll of calender62压光机第二下辊second bottom roll or queen roll of calender 63压光辊calender roll64冷铸辊chilled iron roll65平滑压光机breaker calender66双辊平滑压光机smoothing calender67平张纸压光机sheet calender68半干压光机breaker stack69光泽压光机glazing calender, gloss calender70平板光泽压光机plate glazing calender71摩擦压光机friction glazing calender72隧石磨光机flint glazer73校厚压光机thickness calender, calibrating calender74压花(纹)压光机Cmbossing calender75释压装置pressure release device76中高补偿装置crown compensator。

造纸机械外贸行业专业术语总结造纸常用英语paper：纸sheet：纸页paper web：纸幅base paper for corrugated board：瓦楞纸板原纸untrimmed web width：抄宽，毛纸宽trimmed web width：切边后纸幅宽度trim strip width：切边宽度（复卷机，切纸机）operating speed（of machine）：（纸机）抄速machine width：机宽paperboard，cardboard，board：纸板pulp，stock，stuff：浆，浆料pulp preparing，stock preparation：备浆chest：浆池（stock）tank：（浆）池，槽vat：槽，浆槽sump，storage：贮（油、液）槽，集（油）池dump chest：卸料池clogging：堵塞，堵浆coarse screenings，rejects：浆渣reject，rejects，rejected stock，rejections，ejects：筛渣，浆渣junk:垃圾，废料tailings：尾浆，浆渣operation：工作原理，操作，运行maintenance：维护tearing（breaking）strength：撕裂度（橡胶）tensile properties，tensile breaking strength：抗张强度（stock，pulp，stuff）consistency：浆浓filler retention：填料的留着率filler，fillings，loading material：填料ash content：灰分wet strength：湿强度air permeability：透气度，透气性burst，bursting strength，pop strength：耐破度burst factor：耐破因子fold：折叠folding endurance，folding strength：耐折度bending stiffness：弯曲挺度smoothness：平滑度whiteness：白度ring crush compression resistance：环压强度（箱板纸和瓦楞纸的重要指标）ring stiffness：环压挺度flat crush resistance：平压强度（瓦楞芯纸）beater：打浆机refiner:精浆机、打浆机beating degree：打浆度.SR：肖氏打浆度Canadian freeness standard(CFS,cfs)：加拿大标准游离度basis weight，grammage：定量，克重（specific）gravity：比重bend strength：弯曲强度bending chip：耐折叠纸板Wind [waind] ，winding：卷纸winder，rewinder：卷纸机，复卷机fluting paper，corrugated paper：瓦楞纸papermaking：抄纸，造纸pulp and paper technology：制浆造纸工艺AOCC：美国旧瓦楞纸，美国进口废纸（American old corrugated case）abietene acid ：松香酸absolute dry，bone dry(B.D.,b.d.)，oven dry(O.D.,o.d.)：绝对干度（绝干）air dry(A.D.,a.d.)：风干（含水量20%）absolute humidity：绝对湿度accepted stock：合格浆料，良浆accept：合格品，良浆bearing：轴承additive：添加剂approach flow （of stock）：（浆料）上网approach flow system（纸机上的）流浆系统pulper，aquapulper，hydrapulper：水力碎浆机ash，ash content：灰分，灰分含量back liner：纸板芯层，纸板衬层back side，drive side：：传动侧，传动面fore side，service side，tending side，tender side：操作侧，操作面weak white liquor：稀白液strong（thickened）white water：浓白水baffle：挡板，挡水板，挡浆板blotting capacity：吸墨性能cellular board，corrugated board：瓦楞纸板board，paperboard：纸板liner board：挂面纸板lining board：衬里纸板couch roll：伏辊breaking length：裂断长breast box：网前箱breast roll：胸辊brightness：亮度broke：损纸waste：废（纸），废（水）brooming：帚化bulk：松厚（度）burst：破裂（度），耐破度calender：压光机calender bowl：压光辊calender section：压光部Caliper卡尺，卡钳，thickness：厚度cambered roll，crownedroll：中高辊crown controlled roll：可控中高辊maintenance:维护,维修carrier roll：导网辊coating：涂布coater：涂布机coatings：涂料centriclone，centrifugal cleaner，centricleaner，cyclean：锥形除渣器chain conveyer：链式运输机，链板机check plate：止动板，挡板check valve止回阀，clack valve，non-return valve：单向阀，止逆阀chute：溜槽，斜槽，送料槽clear cutting：净切边side cut clearance：刀距，间隙coarse screen：粗筛slot/hole ：筛缝/筛孔coarse screenings，ejects：浆渣consistency transmitter：浓度传感器cooling cylinder，cooling drum：冷缸spacing:间隔，空隙core：纸芯couch break：伏辊断头couch press，couch roll：伏辊squirt：水针couch vacuun tranfer：伏辊真空引纸装置cutter：切纸机cylinder：缸，圆网dry cylinder：烘缸threading：领纸，引纸guide roll：校正辊，导辊decker：浓缩机deckle：定边装置，定幅装置deflake：碎解，分层（片），剥片knead：揉搓defoam：消泡dehydrate，dewater：脱水distributor roll：（涂料）分配辊，匀浆辊evener（roll）：匀浆辊perforator：匀浆辊holey roll，holy roll：整流辊，匀浆辊dry line：水线dry end，drying nest，dryer section，dryer part：干燥部dumping valve，emptying valve：放料阀，放浆阀eject valve：排渣阀enriched water：浓白水foil：案板face wire，facing wire：外网，面网inner wire：里网，衬网felt stretcher：毛毯张紧器，毛毯张紧辊pick：粘辊，掉毛，掉粉filler：填料filler retention：填料留着率finished roll：成品纸卷finished weight：净重，纸卷重量flow approach：流浆系统，浆料流送系统flow chart，flow diagram，flow sheet：流程图flow distributer，flow evener：整流器，匀浆器，匀浆辊pressure gauge，pressure meter：压力表flow sensor：流量传感器form，forming：（纸页）成形forming box：成形箱forming section，forming sector：成形区，成形部forming table，fourdrinier table：网案Fourdrinier：长网造纸机+++++++++++++++++++++++++++++++ fourdrinier part，fourdrinier section：网部Fourdrinier wet end：湿部fractionation：分级，筛分run-in，test run：对…试车，试运转grooved roll：沟纹辊head tank：高位槽in-line basis weight controller：机上定量控制装置in-line moisture controller：机上水分含量控制装置ink absorbency：吸墨性能Kraft：牛皮纸，硫酸盐浆，牛皮浆bleach：漂白unbleached pulp（stock）：未漂浆leading roll：导纸辊leading strips，leading through tape，tail ：引（领）纸纸条lick up，licking，tail threading：引纸tail shooter：切纸水针lifting，hoist，elevation：提升，起吊long direction，longitudinal ，machine direction：纵向（的）cross direction：横向machine direction：纸机纵向lubrication：润滑machine pit，wire pit：（纸机）白水坑ventilation：通风procedure：过程，工艺过程，方法，程序，步骤profile：外形，轮廓，全幅profile caliper（thickness）：全幅横向厚度reel：纸轴，纸卷，卷筒纸，卷纸refine：精磨，精制，磨浆refiner：磨浆，精磨机，精浆机guard（s）：安全罩，防护装置 protection regulate，adjust：调节right（left）hand machine：右（左）手机rotor：转子stator：定子，底刀ripper：纵切机slitter：纵切机，纵切刀saveall：白水回收器，白水回收装置shower：喷水，喷水管（器）size，sizing：胶料，涂胶，施胶size resistance，sizing degree：施胶度spare parts：备件spray cutter，squirt，squirt cut，tail cutter：水针trim shower，trim squirt：水针nozzle cutter：切边水针stainless steel：不锈钢stretcher：张紧辊suction couch （roll），vacuum couch：真空伏辊upright，vertical：立式的horizontal:水平的,卧式的water shed：（网上）纸幅水线，分水界线yield：得率suction box：（真空）吸水箱SymBelt TM roll：靴压辊（二压的上辊）shoe：靴套，belt皮套Sym-ZL roll：（二压下辊）talc powder：滑石粉rig of “port-a-bar”type：手动葫芦lubrication shower：润滑喷水管设备词汇辊筒式卷纸机Friction reel/winder送风机Blowing machine排风机Exhaust blower排风扇Exhaust fan鼓风炉Blast furnance鼓风口Blasting nozzle鼓风机Blower喷气嘴Air nozzle排气管Air outlet flue气压洗浆机Air pressure washer气压表/气压计Barometer带式给料器Belt feeder无极调速机Belt speeder双卷复卷机Biwinder刮板成型器Blad former刮板夹网成形器Blad gap former刮刀/刀口Blade刀架Blade holder喷方阀Blow off valve喷放管Blow pipe锅炉房Boiler room抛光机（磨光机）PolisherC型夹网辊筒成型器 C gap roll former配电盘Cabinet panel离心机Centrifugal machine旋翼筛Centrisorter盘刀/复卷机固定刀Circular slitting knife设备结构词汇回头辊Return roll压榨辊Press roll卷纸架Roll stand卷纸杠Reel lever卷取缸Reel-up drum压纸辊Dancer roll/ catch roll舒展辊，毛毯展毯辊Spreader roll弓形辊/ 弧形辊/舒展辊Bowed roll/cheese roll 石辊Stone roll导辊Guide roll吸水毛毯Absorbent felt施胶辊/涂料辊Applicator roll毛毯自动校正器Automatic felt guide毛毯自动张紧器Automatic felt stretcher自动磨刀机Automatic knife grinder自动校网器(辊) Automatic wire guide (roll) 送纸器Sheet feeder引纸烘缸Lead dryer/Baby dryer预压榨辊Primary press / Baby press roll 小挤水辊/背辊/支撑辊Back roll/ backup roll轴承Bearing弯曲辊Bending roll下伏辊Bottom couch roll下压榨辊Bottom press roll底辊Bottom roll胸辊Breast roll压光辊Calendar roll导网辊Wire leading roll引纸辊Leading paper roll传递辊Carrying roll铸铁辊Cast iron roll纸机基础板Soleplate/ baseplate驱网辊Wire-drive roll复合辊Compound roll真空伏辊Vacuum couch吸移辊Suction roll导毯辊Felt-guiding roll造纸行业专业术语打浆Pulp beating烘缸组排列方式Arrangement of dryer cylinders 自动操纵装置Automatic manipulation device 张力控制Tension control 回流Back flow蔗渣浆Bagasse pulp原纸Base paper/ body paper无极调速系统Stepless speed regulation system 黑液Black liquor/ lye漂白浆Bleached pulp混合浆池Blending chest混合槽Blending tank纸板加工Board converting盘纸Bobbin paper纸板厂Board mill涡流Bow wave增白剂Brightening agent光泽压榨Brilliance press损纸Broke损纸处理Broke disposal催化剂Catalyst白水回收槽/捕集槽Catchall tank操作走台Catwalk辊筒跳动Chattering of rolls化学药品回收Chemical recovery外径Outer diameter内径Inner diameter缸体Cylinder block/shell时效处理Aging treatment浇铸Casting熔炼Smelting水压试验Water pressure testing预压榨Primary press抄造克重Basis weight数控机床Numerical control machine 地磅Weight bridge地秤Floor scale手拉葫芦Chain block遥控Remote control变压器Transformer打包机Baling machine/baler圆盘式纵切机Slitting machine机械行业专业术语叉车Forklift车床,机床Lathe刨床Planer铣床Miller镗床Borer/boring machine钻床Driller磨床Grinder冲床Punching machine铆合机Riveting machine/staker油压机hydraulic machine/hydraulic press 回火Tempering 接待客户及饭桌词汇馒头Steamed bread/buns粥/糊Porridge包子Stuffed steamed bun主食Staple food/main food饮料Beverage白酒White spirit红酒Red wine葡萄汁Grape juice桃汁Peach juice橙汁Orange juice苹果汁Apple juice苹果醋Apple vinegar豆浆Soybean milk绿豆Mung bean绿豆汤Mung bean soup烧饼Chinese cake/Chinese baked roll 烙饼Baked pancake 煎饼Pancake黑木耳Black fungus白木耳/银Tremella/white fungus耳茄子Eggplant芹菜Celery青菜Green vegetable蒜台Young garlic shoot蒜苗Garlic shoot蒜头/大蒜Garlic洋葱Onion丝瓜Loofah豆角Long bean/kidney bean 豆芽Bean sprout腰果Cashew nut辣的Hot酸的Acerbic黄瓜Cucumber番茄Tomato河鱼River fish海参Holothurian龙虾Lobster河虾Shrimp鲤鱼Cyprinoid/ crap菠萝Ananas / pineapple榴莲Jackfruit橘子Tangerine桔子Orange山药Chinese yam化妆品Makeup/cosmetic陶瓷Ceramics您辛苦了You are laborious!业务与贸易关连用语accept order 接受订货amendment修正annual sales 年销售额at sight 见票即付balance 余额bank draft 汇票bargain goods 廉价品batch 批次bid 出价bid sales 投标买卖bill of landing 提单bills receivable应收票据bulk cargo 散装货business transaction 商业交易carbon copy 打字副本cargo collection 揽货carton 纸箱cash in advance 预付现金catalogue 型录cheque 支票claim 索赔clearance goods 清仓品correspondence bank往来银行custom broker 报关行D/A 承兑交单D/P 付款交单deferred payment 分期付款deferred shipment 分期装运delivery on spot 当场交货delivery time 交期delivery order 交货单discount on draft 贴现documentary draft跟单汇票down payment 订金enclosure 附件endorsement 背书enquete 调查favorable price 合宜价格foreign exchange 外汇free on board船上交货价idea price 希望价格Japanese Industrial 日本工业规格invoice 发票margin 利润net weight 净重no payment 拒绝付款odd item 零头open account 交互计算over looked 疏漏pamphlet 小册子partial shipment 分批装船patent 专利paying price 合算价格payment method 付款方式port of destination 目地港port of trans-shipment 转口港price decending 减价quotation 报价单price rising 涨价procurement 采办prompt delivery 即时交货purchasing agent 采购代理商rebate 回扣reference 查询remittance 汇款repeat order 追加订货request letter 请求函rumor 风评second hand goods 二手货shipper货主shipping 装船shipping mark 唛头shipment 出货sold out 卖完sole agent 总代理商special discount特别折扣sample order 指样订货standing 信用情形storage charge 仓租subcontract 外包subject to finalconfirmation 有待确认之报价supplier 供应商tie-in sale 搭售trade fair 商展会trans-shipment 转运transferred 已转运wharf 码头组装、冲压、喷漆等专业词汇Assembly line 组装线Layout 布置图Conveyer 流水线物料板Rivet table 拉钉机Rivet gun 拉钉枪 Screw driver 起子Electric screw driver/ automatic screwdriver 电动起子Pneumatic screw driver 气动起子worktable 工作桌 OOBA 开箱检查fit together 组装在一起fasten 锁紧(螺丝) fixture 夹具(治具) pallet 栈板barcode 条码 barcode scanner 条码扫描器fuse together 熔合 fuse machine 热熔机repair 修理 operator 作业员QC 品管 supervisor 课长ME 制造工程师 MT 制造生技cosmetic inspect 外观检查inner parts inspect 内部检查thumb screw 大头螺丝 lbs. inch 镑、英寸EMI gasket 导电条 front plate 前板rear plate 后板 chassis 基座bezel panel 面板 power button 电源按键reset button 重置键 Hi-pot test of SPS 高源高压测试Voltage switch of SPS 电源电压接拉键sheet metal parts 冲件plastic parts 塑胶件 SOP 制造作业程序material check list 物料检查表 work cell 工作间trolley 台车 carton 纸箱sub-line 支线left fork/ forklift 叉车stamping factory 冲压厂painting factory 烤漆厂molding factory 成型厂common equipment 常用设备uncoiler and straightener 整平机punching machine 冲床robot 机械手 hydraulic machine 油压机lathe 车床 planer ('plein);|刨床miller 铣床grinder 磨床driller 钻床linear cutting 线切割staker=reviting machine 铆合机to move, to carry, to handle 搬运 be put in storage 入库pack packing 包装 to apply oil 擦油to file burr 锉毛刺 final inspection 终检to connect material 接料 to reverse material 翻料wet station 沾湿台cleaning cloth 抹布to load material 上料to unload material 卸料to return material/stock to 退料scraped |'skræpid 报废scrape ..v.刮;削deficient purchase 来料不良manufacture procedure 制程deficient manufacturing procedure 制程不良oxidation |' ksi'dei 氧化scratch 刮伤dents 压痕 defective upsiding down 抽芽不良defective to staking 铆合不良 embedded lump 镶块feeding is not in place 送料不到位stamping-missing 漏冲trailer=long vehicle 拖板车compound die 合模die locker 锁模器pressure plate=plate pinch 压板 bolt 螺栓thickness gauge 厚薄规 gauge(or jig)治具power wire 电源线 buzzle 蜂鸣器defective product label 不良标签 identifying sheet list 标示单screwdriver holder 起子插座 pedal 踩踏板stopper 阻挡器 flow board 流水板hydraulic handjack 油压板车pallet 栈板 glove(s)手套glove(s) with exposed fingers 割手套 thumb 大拇指forefinger 食指 midfinger 中指ring finger 无名指 little finger 小指band-aid 创可贴 iudustrial alcohol 工业酒精alcohol container 沾湿台 head of screwdriver 起子头sweeper 扫把 mop 拖把 vaccum cleaner 吸尘器rag 抹布 garbage container 灰箕/dustpangarbage can 垃圾箱 garbage bag 垃圾袋chain 链条 jack 升降机production line 流水线 chain 链条槽magnetizer 加磁器 lamp holder 灯架to mop the floor 拖地 to clean the floor 扫地to clean a table 擦桌子 air pipe 气管packaging tool 打包机 packaging 打包missing part 漏件 wrong part 错件excessive defects 过多的缺陷 critical defect 极严重缺陷major defect 主要缺陷 minor defect 次要缺陷not up to standard 不合规格dimension/size is a little bigger 尺寸偏大(小)cosmetic defect 外观不良slipped screwhead/slippery screw head螺丝滑头thread 滑手 speckle 斑点 mildewed=moldy=mouldy 发霉rust 生锈 deformation 变形 burr(金属) flash(塑件)毛边poor staking 铆合不良 excesssive gap 间隙过大grease/oil stains 油污 inclusion 杂质painting peel off 脏污 shrinking/shrinkage 缩水mixed color 杂色 scratch 划伤poor processing 制程不良 poor incoming part 事件不良fold of pakaging belt 打包带折皱painting make-up 补漆discoloration 羿色 water spots 水渍polishing/surface processing 表面处理exposed metal/bare metal 金属裸露 lack of painting 烤漆不到位delivery deadline 交货期 die repair 模修enterprise plan = enterprise expansion projects 企划die worker 模工 to start a press 开机stop/switch off a press 关机 classification 整理regulation 整顿cleanness 清扫 conservation 清洁 culture 教养qualified products, up-to-grade products 良品defective products, not up-to-grade products 不良品board 看板 feeder 送料机 sliding rack 滑料架die change 换模 to fix a die 装模to take apart a die 拆模 to repair a die 修模packing material 包材 basket 蝴蝶竺plastic basket 胶筐 isolating plate baffle plate; barricade 隔板carton box 纸箱 to pull and stretch 拉深to put material in place, to cut material,to input 落料to impose lines 压线 character die 字模 transportation 运输not up to grade, not qualified 不合格material change, stock change 材料变化 feature change 特性变更evaluation 评估prepare for, make preparations for 准备parameters 参数 rotating speed, revolution 转速manufacture management 制造管理abnormal handling 异常处理steel plate 钢板roll material 卷料manufacture procedure 制程 operation procedure 作业流程to switch over to, switch---tothrow--over switching over 切换engineering, project difficulty工程瓶颈 stage die 工程模to stake, staking, reviting 铆合add lubricating oil 加润滑油 shut die 架模shut height of a die 架模高度 analog-mode device 类模器die lifter 举模器 argon welding 氩焊vocabulary for stamping冲压常词汇stamping, press 冲压punch press, dieing out press 冲床approval examine and verify 审核to return delivenry to./to send delinery back/to retrn of goods 退货to put forward and hand in 提报 acceptance = receive 验收abrasion 磨损reverse angle = chamfer 倒角to take apart a die 卸下模具to load a die 装上模具to tight a bolt 拧紧螺栓to looser a bolt 拧松螺栓easily damaged parts 易损件breaking.(be)broken,(be)cracked 断cushion 缓冲magnalium 镁铝合金magnesium 镁金metal plate 钣金lathe 车mill 锉plane 刨grind 磨drill 钻boring 镗blinster 气泡fillet 镶;嵌边through-hole form 通孔形式lower plate 下模板die pad 下垫板 pin gate 针点浇口long nozzle 延长喷嘴方式 sprue 浇口;溶渣OEM Original Equipment Manufacture 原设备制造NHK North of Hongkong 中国大陆PRC People's Republic of China中国大陆N/A Not Applicable 不适用 REV Revision 版本JIT Just In Time 零库存 C=0 Critical=0 极严重不允许AM Ante Meridian 上午 PM Post Meridian 下午REF Reference 仅供参考 CONN Connector 连接器CAV Cavity 模穴 CAD Computer Aid Design 计算机辅助设计ASS'Y Assembly 装配,组装 IC Integrated Circuit 集成电路T/P True Position 真位度 WDR Weekly Delivery Requitement 周出货需求C/T Cycle Time 制程周期 L/T Lead Time 前置时间(生产前准备时间)3C Computer,Commumcation,Consumer electronic 消费性电子4MIH Man,Materia,Money,Method,Time 人力,物力,财务,技术,时间LED Light-Emitting Diode 发光二级管检验量测工具用语autocollimator 自动准直机benchcomparator 比长仪block gauge 块规bore check 精密小测定器calibration 校准caliper gauge 卡规check gauge 校对规clearance gauge间隙规clinoretee 测斜仪comparator 比测仪cylinder square 圆筒直尺depth gauge 测深规dial indicator 针盘指示表dial snap gauge 卡规digital micrometer 数位式测微计 feeler gauge 测隙规gauge plate 量规定位板height gauge测高规inside calipers 内卡钳inside micrometer 内分卡interferometer 干涉仪leveling block平台limit gauge 限规micrometer 测微计mil 千分之一寸monometer 压力计morse taper gauge 莫氏锥度量规 nonius 游标卡尺optical flat 光学平晶optical parallel光学平行passimeter 内径仪position scale 位置刻度profile projector 轮廓光学投影仪protractor 分角器radius 半径ring gauge 环规sine bar 正弦量规snap gauge 卡模square master 直角尺stylus 触针telescopic gauge 伸缩性量规 working gauge 工作量规表面处理关连用语age hardening 时效硬化ageing 老化处理air hardening 气体硬化air patenting空气韧化annealing 退火anode effect 阳极效应carbide 炭化物carburized case depth浸碳硬化深层carburizing 渗碳cementite 炭化铁chemical plating 化学电镀chemical成形不良用语aberration 色差bite 咬入blacking hole 涂料孔(铸疵) blacking scab 涂料疤blister 起泡blooming 起霜blow hole 破孔blushing 泛白body wrinkle 侧壁皱纹breaking-in冒口带肉bubble 膜泡burn mark 糊斑burr 毛边camber 翘曲cell 气泡center buckle 表面中部波皱check 细裂痕checking 龟裂chipping 修整表面缺陷clamp-off 铸件凹痕collapse 塌陷color mottle 色斑corrosion 腐蚀crack 裂痕crazing 碎裂crazing 龟裂deformation 变形edge 切边碎片edge crack 裂边fading 退色filler speak 填充料斑fissure 裂纹flange wrinkle 凸缘起皱flaw 刮伤flow mark 流痕galling 毛边glazing 光滑gloss 光泽grease pits 污斑grinding defect 磨痕haircrack 发裂haze 雾度incrustation 水锈indentation 压痕internalporosity 内部气孔mismatch偏模mottle 斑点necking 缩颈nick 割痕orange peel 橘皮状表面。

造纸机械设备名词中英文对照纸张是人们日常生活和工作中不可或缺的一部分，掌握造纸机械设备名词的中英文对照，不仅可以增加知识储备，还有助于日常交流和跨国合作。

下面，就让我们来详细了解一下造纸机械设备名词中英文对照。

1. 纸浆制备设备（1）竹浆制浆机- Bamboo Pulp Machine（2）磨浆机- Beater（3）碎浆机- Breaker（4）蒸煮器- Digester（5）漂白塔- Bleacher2. 造纸机（1）浆缸- Pulp Chest（2）平网机- Fourdrinier Machine（3）搓丝式造纸机- Cylinder Mould Machine（4）圆网机- Round Net Machine（5）方框网机- Square Net Machine3. 纸张后处理设备（1）压光机- Calender（2）复卷机- Rewinder（3）卷筒机- Winder（4）干燥缸- Dryer Cylinder（5）分切机- Slitter Rewinder以上仅是造纸机械设备名词的部分中英文对照，下面我们来详细了解一下各个设备的作用和特点。

1. 纸浆制备设备（1）竹浆制浆机-Bamboo Pulp Machine。

竹浆制浆机主要用于竹材的粉碎、煮解和制浆，对于纸品质的影响极大。

竹浆制浆机分为明圆筒式和蒸汽加压式两种，其中蒸汽加压式加快了浆料的煮解时间，同时也提高了浆料的质量。

（2）磨浆机-Beater。

磨浆机是将纸浆和纤维进行混合、分散、制浆的一种重要设备。

磨浆机根据磨浆方式不同，可分为单面磨浆机和双面磨浆机。

（3）碎浆机-Breaker。

碎浆机主要用于废纸板、纸张的碎浆，进行再生利用。

相较于其他浆料，碎浆机的浆料含杂质较多，因此在收集、过滤过程中会产生更多的废水废气等环境污染。

（4）蒸煮器-Digester。

蒸煮器是纸浆制备中对纤维进行蒸煮、分解的设备。

常用于制浆工艺需要精细处理的情况，如酸性机械浆等。
