HBM数字传感器C16iC330T

使用说明书特性I2C接口超低功耗Array内置图 1 VC31B功能框图1修订历史表 1 修订历史2表 2 VC31B引脚说明3 推荐应用电路a、bc、d LDOe、VC31B模拟电源典型供电电压为3.3V，要求LDO 输出电源纹波峰峰值应小于40mV; 另外要求LDO 的负载瞬态响应:电流从1mA 瞬变为100mA 时，LDO 的输出稳定时间应小于50μs，稳定压降应小于10mV。

注:给心率模组供电的LDO 输出不能有大于 3.6V 的持续电压以及脉冲电压。

单位图5 推荐回流焊温度曲线7图10 硅胶框隔光辅料尺寸图布局说明及注意事项：1、此布局针对运动版方案，因此对漏光处理较为严格： a 、 要求VC31B 与镜片的距离不超过0.1mm （最好为零配）；b 、图6、8中VC31B 周围的黑色虚线框为我司开模设计的硅胶框隔光辅料，隔光辅料尺寸如上图10所示，硅胶框应轻度挤压，以保证隔光的效果； 2、图7、9丝印外部为不界定边框，要求内部开窗与上图一致；3、除VC31B 与LED 的布局固定外，其余阻容元器件在布局时需注意不能放置在隔光辅料区域内，以免影响硅胶安装效果（VC31B 周围0.6mm 以内不放置任何元器件）；；4、丝印镜片要求如下：a 、 推荐镜片窗口透光率：90%以上；b 、推荐镜片窗口透射波长：400至 1000nm ；c 、 镜片厚度不超过0.5mm ，推荐质硬、不易形变的玻璃或者亚克力；5、以上图示外如需任何结构变动，需与维客沟通，经由维客评估之后方可保证性能；6、 手环设计要求：a 、 心率、血氧凸台建议 1.0mm ;b 、 如对手环运动心率准确性要求较高，那么手环整体重量要求不超过 36g （不含表带）；6、结构设计要点VC31B说明书8LED性能参数及辅料说明VC31B心率芯片对Green、IR的光效及压降要求如下表所示，可根据下表LED参数成都维客昕微电子有限公司[11]。

Lenovo ThinkSystem DB610S 32Gb FC SAN Switch Product GuideThe Lenovo ThinkSystem DB610S FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality to meet the demands of growing flash-based storage environments. Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S is a compact, 1U rack-mount FC switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing “pay-as-you-grow” scalability to meet the needs of an evolving storage environment.The DB610S FC SAN Switch offers 24x SFP+ ports that support 4/8/16/32 Gbps speeds. The DB610S FC SAN switch provides easy integration into the existing SAN environments while realizing the benefits of Gen 6 Fibre Channel connectivity, and the switch offers a rich set of standard software features with the options to expand its capabilities as needed.The DB610S FC SAN Switch features the EZSwitch Setup wizard and can be configured in Access Gateway Mode to simplify deployment. The switch provides full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection.The following figure shows the Lenovo ThinkSystem DB610S 32Gb FC SAN Switch.Figure 1. Lenovo ThinkSystem DB610S 32Gb FC SAN SwitchDid you know?The DB610S FC SAN Switch leverages storage connectivity technologies from Brocade, a leader in Fibre Channel networking.The DB610S FC SAN Switch offers dual functionality as either a full-fabric SAN switch or as an N_Port ID Virtualization (NPIV)-enabled Access Gateway that simplifies server connectivity.Fabric Vision technology, an extension of Gen 6 Fibre Channel, provides unprecedented insight and visibility across the SAN with powerful built-in monitoring, management, and diagnostic tools.With Lenovo FC SAN Switch offerings, Lenovo can be your trusted partner that offers "one stop shop" and single point of contact for delivery of leading edge technologies and innovations from Lenovo and other leading IT vendors. These offerings can satisfy the wide range of your end-to-end IT infrastructure needs, including end-user devices, servers, storage, networking, services, management software, and financing.Click here to check for updatesFigure 2. DB610S FC SAN Switch port-side viewFigure 3. DB610S FC SAN Switch non-port-side viewSystem specificationsThe following table lists the ThinkSystem DB610S system specifications.Power supplies and cablesThe DB610S FC SAN Switch ships with one fixed 150 W AC power supply that has an IEC 309-C14 connector.The switch comes standard without a power cord; two rack power cables or country-specific line cords must be ordered together with the switch (see the following table).Table 9. Power cord optionsDescription PartnumberFeaturecodeRack power cables1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable39Y793762011.8m, 10A/100-250V, 2xC13PM to IEC 320-C14 Rack Power Cable None*65682.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable4L67A083666311 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable39Y79386204 4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable39Y79326263 Country-specific line cords10A/125V C13 to NEMA 5-15P 4.3m line cord39Y79316207 10A/250V C13 to NEMA 6-15P 2.8m line cord46M2592A1RF Argentina 10A/250V C13 to IRAM 2073 2.8m line cord39Y79306222 Australia/NZ 10A/250V C13 to AS/NZ 3112 2.8m line cord39Y79246211 Brazil 10A/125V C13 to NBR 6147 2.8m line cord39Y79296223 China 10A/250V C13 to GB 2099.1 2.8m line cord39Y79286210 Denmark 10A/250V C13 to DK2-5a 2.8m line cord39Y79186213 European 10A/230V C13 to CEE7-VII 2.8m line cord39Y79176212 India 10A/250V C13 to IS 6538 2.8m line cord39Y79276269 Israel 10A/250V C13 to SI 32 2.8m line cord39Y79206218 Italy 10A/250V C13 to CEI 23-16 2.8m line cord39Y79216217 Japan 12A/125V C13 to JIS C-8303 2.8m line cord46M2593A1RE Korea 12A/250V C13 to KETI 2.8m line cord39Y79256219 South Africa 10A/250V C13 to SABS 164 2.8m line cord39Y79226214 Switzerland 10A/250V C13 to SEV 1011-S24507 2.8m line cord39Y79196216 Taiwan 10A/250V C13 to CNS 10917-3 2.8m line cord00CG265A53E Taiwan 15A/125V C13 to CNS 10917-3 2.8m line cord00CG267A53F United Kingdom 10A/250V C13 to BS 1363/A 2.8m line cord39Y79236215 * Available for factory-built custom configurations and solutions only.Rack installationFigure 4. Lenovo DB610S Mid-mount (Telco) Rack KitPhysical specificationsThe DB610S FC SAN Switch has the following dimensions and weight (approximate): Height: 43 mm (1.7 in.)Width: 429 mm (16.9 in.)Description number Lenovo ThinkSystem DS2200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4599A1C^ Lenovo ThinkSystem DS2200 SFF FC/iSCSI Dual Controller Unit (Japanese documentation)4599A1J** Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (US English documentation)4617A31* Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4617A3C^ Lenovo ThinkSystem DS4200 LFF FC/iSCSI Dual Controller Unit (Japanese documentation)4617A3J** Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (US English documentation)4617A11* Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4617A1C^ Lenovo ThinkSystem DS4200 SFF FC/iSCSI Dual Controller Unit (Japanese documentation)4617A1J** Lenovo ThinkSystem DS6200 SFF FC/iSCSI Dual Controller Unit (US English documentation)4619A11* Lenovo ThinkSystem DS6200 SFF FC/iSCSI Dual Controller Unit (Simplified Chinese documentation)4619A1C^ Lenovo ThinkSystem DS6200 SFF FC/iSCSI Dual Controller Unit (Japanese documentation)4619A1J** Lenovo Storage DX8200 Series (FC connectivity requires an optional FC HBA and a software license)Lenovo Storage DX8200D ServerSAN Entry, 8TB, 3yr SW S&S5135D2x# Lenovo Storage DX8200D ServerSAN Entry, 8TB, 4yr SW S&S5135N2x# Lenovo Storage DX8200D ServerSAN Entry, 8TB, 5yr SW S&S51354Vx# Lenovo Storage DX8200D ServerSAN Mid, 16TB, 3yr SW S&S5135F2x# Lenovo Storage DX8200D ServerSAN Mid, 16TB, 4yr SW S&S5135P2x# Lenovo Storage DX8200D ServerSAN Mid, 16TB, 5yr SW S&S51355Vx# Lenovo Storage DX8200D ServerSAN High, 32TB, 3yr SW S&S5135G2x# Lenovo Storage DX8200D ServerSAN High, 32TB, 4yr SW S&S5135Q2x# Lenovo Storage DX8200D ServerSAN High, 32TB, 5yr SW S&S51356Vx# Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 3yr SW S&S5135A2x# Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 4yr SW S&S5135J2x# Lenovo Storage DX8200D Storage Virtualization Entry, 4TB, 5yr SW S&S51351Vx# Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 3yr SW S&S5135B2x# Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 5yr SW S&S51352Vx# Lenovo Storage DX8200D Storage Virtualization Mid, 16TB, 4yr SW S&S5135L2x# Lenovo Storage DX8200D Storage Virtualization High, 64TB, 3yr SW S&S5135C2x# Lenovo Storage DX8200D Storage Virtualization High, 64TB, 4yr SW S&S5135M2x# Lenovo Storage DX8200D Storage Virtualization High, 64TB, 5yr SW S&S51353Vx# Lenovo Storage DX8200N with 1x N2226 HBA (Requires a supported external drive enclosure)5128A1x# Lenovo Storage DX8200N with 2x N2226 HBAs (Requires a supported external drive enclosure)5128A2x# Lenovo Storage S SeriesLenovo Storage S2200 LFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD64114B1 Lenovo Storage S2200 LFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD64114B2 Lenovo Storage S2200 SFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD64114B3 Lenovo Storage S2200 SFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD64114B4 Lenovo Storage S3200 LFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD64116B1 Lenovo Storage S3200 LFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD64116B2 Lenovo Storage S3200 SFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD64116B3External backup unitsThe following table lists the external backup options that are offered by Lenovo that can be used in Lenovo FC SAN solutions.Table 14. External backup optionsDescription Part numberExternal tape backup librariesIBM TS3100 Tape Library Model L2U61732UL IBM TS3200 Tape Library Model L4U61734UL Fibre Channel backup drives for TS3100 and TS3200 Tape Libraries6173 LTO Ultrium 5 Fibre Channel Drive00NA107 6173 LTO Ultrium 5 Half High Fibre Drive Sled00NA113 6173 LTO Ultrium 6 Fibre Channel Drive00NA115 6173 LTO Ultrium 6 Half High Fibre Drive Sled00NA119 6173 LTO Ultrium 7 Fibre Channel Drive00WF765 6173 LTO Ultrium 7 Half High Fibre Drive Sled00WF769For more information, see the list of Product Guides in the Backup Units category:/servers/options/backupRack cabinetsThe following table lists the rack cabinets that are offered by Lenovo that can be used in Lenovo FC SAN solutions.Table 15. Rack cabinetsDescription Part number25U S2 Standard Rack (1000 mm deep; 2 sidewall compartments)93072RX 25U Static S2 Standard Rack (1000 mm deep; 2 sidewall compartments)93072PX 42U S2 Standard Rack (1000 mm deep; 6 sidewall compartments)93074RX 42U 1100mm Enterprise V2 Dynamic Rack (6 sidewall compartments)93634PX 42U 1100mm Enterprise V2 Dynamic Expansion Rack (6 sidewall compartments)93634EX 42U 1200mm Deep Dynamic Rack (6 sidewall compartments)93604PX 42U 1200mm Deep Static Rack (6 sidewall compartments)93614PX 42U Enterprise Rack (1105 mm deep; 4 sidewall compartments)93084PX 42U Enterprise Expansion Rack (1105 mm deep; 4 sidewall compartments)93084EXFor more information, see the list of Product Guides in the Rack cabinets category:https:///servers/options/racksPower distribution unitsThe following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in Lenovo FC SAN solutions.Table 16. Power distribution unitsDescription Part number0U Basic PDUs0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord00YJ776 0U 36 C13/6 C19 32A/200-240V 1 Phase PDU with IEC60309 332P6 line cord00YJ777 0U 21 C13/12 C19 32A/200-240V/346-415V 3 Phase PDU with IEC60309 532P6 line cord00YJ778 0U 21 C13/12 C19 48A/200-240V 3 Phase PDU with IEC60309 460P9 line cord00YJ779 Switched and Monitored PDUs0U 20 C13/4 C19 Switched and Monitored 24A/200-240V/1Ph PDU w/ NEMA L6-30P line cord00YJ781 0U 20 C13/4 C19 Switched and Monitored 32A/200-240V/1Ph PDU w/ IEC60309 332P6 line cord00YJ780 0U 18 C13/6 C19 Switched / Monitored 32A/200-240V/346-415V/3Ph PDU w/ IEC60309 532P6 cord00YJ782 0U 12 C13/12 C19 Switched and Monitored 48A/200-240V/3Ph PDU w/ IEC60309 460P9 line cord00YJ783 1U 9 C19/3 C13 Switched and Monitored DPI PDU (without line cord)46M4002 1U 9 C19/3 C13 Switched and Monitored 60A 3Ph PDU with IEC 309 3P+Gnd cord46M4003 1U 12 C13 Switched and Monitored DPI PDU (without line cord)46M4004 1U 12 C13 Switched and Monitored 60A 3 Phase PDU with IEC 309 3P+Gnd line cord46M4005 Ultra Density Enterprise PDUs (9x IEC 320 C13 + 3x IEC 320 C19 outlets)Ultra Density Enterprise C19/C13 PDU Module (without line cord)71762NX Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph with IEC 309 3P+Gnd line cord71763NU C13 Enterprise PDUs (12x IEC 320 C13 outlets)DPI C13 Enterprise PDU+ (without line cord)39M2816 DPI Single Phase C13 Enterprise PDU (without line cord)39Y8941 C19 Enterprise PDUs (6x IEC 320 C19 outlets)DPI Single Phase C19 Enterprise PDU (without line cord)39Y8948 DPI 60A 3 Phase C19 Enterprise PDU with IEC 309 3P+G (208 V) fixed line cord39Y8923 Front-end PDUs (3x IEC 320 C19 outlets)DPI 30amp/125V Front-end PDU with NEMA L5-30P line cord39Y8938 DPI 30amp/250V Front-end PDU with NEMA L6-30P line cord39Y8939 DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd line cord39Y8934 DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd line cord39Y8940 DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd line cord39Y8935 Universal PDUs (7x IEC 320 C13 outlets)DPI Universal 7 C13 PDU (with 2 m IEC 320-C19 to C20 rack power cord)00YE443 NEMA PDUs (6x NEMA 5-15R outlets)DPI 100-127V PDU with fixed NEMA L5-15P line cord39Y8905 Line cords for PDUs that ship without a line cordDPI 30a Line Cord (NEMA L6-30P)40K9614 DPI 32a Line Cord (IEC 309 P+N+G)40K9612DPI 32a Line Cord (IEC 309 3P+N+G)40K9611DPI 60a Cord (IEC 309 2P+G)40K9615DPI 63a Cord (IEC 309 P+N+G)40K9613DPI Australian/NZ 3112 Line Cord (32A)40K9617DPI Korean 8305 Line Cord (30A)40K9618DescriptionPart number For more information, see the list of Product Guides in the PDU category:https:///servers/options/pduUninterruptible power supply unitsThe following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in Lenovo FC SAN solutions.Table 17. Uninterruptible power supply unitsDescriptionPartnumber RT1.5kVA 2U Rack or Tower UPS (100-125VAC) (8x NEMA 5-15R 12A outlets)55941AX RT1.5kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A outlets)55941KX RT2.2kVA 2U Rack or Tower UPS (100-125VAC) (8x NEMA 5-20R 16A outlets)55942AX RT2.2kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 1x IEC 320 C19 16A outlets)55942KX RT3kVA 2U Rack or Tower UPS (100-125VAC) (6x NEMA 5-20R 16A, 1x NEMA L5-30R 24A outlets)55943AX RT3kVA 2U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 1x IEC 320 C19 16A outlets)55943KX RT5kVA 3U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 2x IEC 320 C19 16A outlets)55945KX RT6kVA 3U Rack or Tower UPS (200-240VAC) (8x IEC 320 C13 10A, 2x IEC 320 C19 16A outlets)55946KX RT8kVA 6U Rack or Tower UPS (200-240VAC) (4x IEC 320-C19 16A outlets)55948KX RT11kVA 6U Rack or Tower UPS (200-240VAC) (4x IEC 320-C19 16A outlets)55949KX RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) (4x IEC 320-C19 16A outlets)55948PX RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) (4x IEC 320-C19 16A outlets)55949PXFor more information, see the list of Product Guides in the Uninterruptible Power Supply Units category:/servers/options/ups?rt=product-guideLenovo Financial ServicesTrademarksLenovo, the Lenovo logo, and For Those Who Do are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at /legal/copytrade.html.The following terms are trademarks of Lenovo in the United States, other countries, or both:Lenovo®Lenovo Services™Flex System™ThinkSystem™Other company, product, or service names may be trademarks or service marks of others.。

DelemDAC-360T高端剪板机用集成式全功能触摸屏控制系统DAC-360T 控制装置为剪板机提供了方便操作和功能多样的解决方案。

基于最新的电子技术，依照客户需求可以提供多个后挡料轴，剪切角度，剪切长度和刀片间隙的控制。

除了后挡料的控制，DAC-360T 可以自动 依据材料属性及厚度来计算所需要的剪切角度和间隙值。

基于剪切板材的长度剪切行程可以自动优化，以提高生产效率。

后挡料的控制可以支持伺服控制，变频控制单双速交流电机。

依据实际应用可以选择双边定位或者单边定位，使用可选的丝杠校正表功能。

DAC-362T 支持两个和三个挡料轴控制，提供额外挡料和相关功能的控制。

夹紧和剪切的所有压力都可以在DAC-360T 上实现有效控制。

高亮的LCD 显示配合易于操作的触摸屏，使得用户操作非常方便轻松。

操作者依靠清晰的图标指示可以方便的完成数据编程的全部功能。

DAC-360T 特征:∙ 面板式安装 ∙ 高亮LCD 显示屏 ∙ 后/前挡料控制 ∙ 退让功能∙ 剪切角度和间隙控制 ∙ 剪切行程限制∙ 全部轴都可以手动移动 ∙ 压力控制 ∙ 板材厚度检测 ∙ 返回到送料位置功能∙ 第二和第三个伺服轴控制 (DAC-362T) ∙板料支撑功能集成式解决方案DAC-300T 系列提供集成式的触摸屏剪板机控制解决方案，可为高端的剪板机提供多样性的功能。

系统配置标准配置- 彩色LCD 显示屏 - 7" TFT 宽屏 - LED 背光- 可存储100道程序 - 每个程序最大25个工步选项- 离线编程 Profile-360T订货信息- DAC-360T, 集成式剪板机触摸屏控制系统- DAC-362T,多轴的 集成式剪板机触摸屏控制系统技术规格常规参数- 产品程序库- 公制/英制可选择 - 断电记忆功能- 机床工作时间记录 - 剪切次数记录轴参数- 后/前挡料控制 - 剪切行程控制- 剪切间隙控制 (双间隙) - 剪切角度控制- 双轴 / 三轴挡料控制 (DAC-362T) - 行程0 - 9,999.99 mm - 退让 0 - 9,999.99 mm - 校正 -99.99 - 99.99 mm - 退让可编程 - 多轴同时移动 - 手动移动轴数字量输入 / 输出- 柔性的 I/O 端口配置 - 12 路输入 / 20 路输出编程功能- 数据编程设置 - 后挡料位置 - 退让功能 - 剪切角度编程 - 刀口间隙编程 - 剪切行程 - 工步重复- 材料类型/属性 - 厚度 - 工件计数 - 板材位置 - 轴速度 - 板料支撑- 返回送料位置功能 - 板材厚度检测 - 后挡料预停位置计算功能- 角度，间隙和剪程长度计算 - 压力 (夹紧 / 剪切) - 后挡料安全区域压力控制- 夹紧压力 - 剪切压力集成功能- 诊断模式 - 服务模式- 通过USB 口备份和升级电气 / 接口说明- 电源: 24V- 光电隔离 I/O 端口 - 编码器输入 (5V/12V) - 编码器最大计数频率 1 MHz - USB 端口轴控制- 伺服控制+/- 10V 输出 - 单或 双速交流电机控制 - 变频器输出方式控制安装说明- 面板式安装- 尺寸 186 x 252 x 45 mm其它功能- 多语言供操作者选择 - 可选离线编程软件DAC -360T 技术规格说明8095-916/ALuchthavenweg 42, 5657 EB Eindhoven T he Netherlands T: +31(0)40 2552969, F: +31(0)40 2551923埃斯顿自动化股份有限公司地址(Add.): 南京江宁经济开发区燕湖路178号 邮编(Post): 211100电话(Tel) : 0086 25 52785866 传真(Fax) : 0086 25 52785966 网页(Web) : 邮件(E-mail):**************。

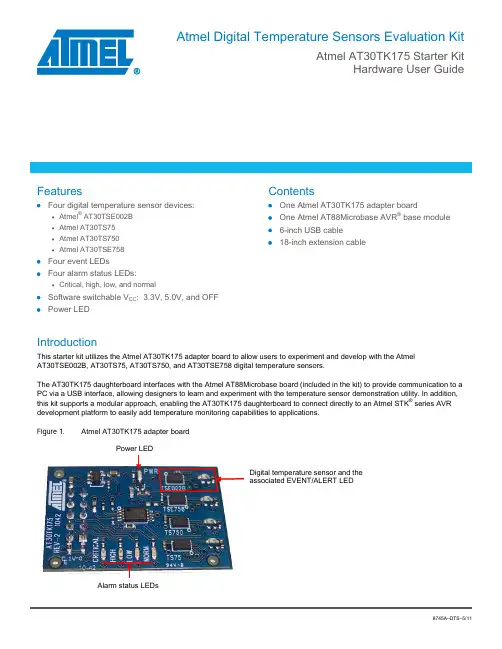

Atmel Digital Temperature Sensors Evaluation KitAtmel AT30TK175 Starter KitHardware User GuideFeatures•Four digital temperature sensor devices: •Atmel® AT30TSE002B•Atmel AT30TS75•Atmel AT30TS750•Atmel AT30TSE758•Four event LEDs•Four alarm status LEDs:•Critical, high, low, and normal•Software switchable V CC: 3.3V, 5.0V, and OFF •Power LED Contents•One Atmel AT30TK175 adapter board•One Atmel AT88Microbase AVR® base module •6-inch USB cable•18-inch extension cableIntroductionThis starter kit utilizes the Atmel AT30TK175 adapter board to allow users to experiment and develop with the AtmelAT30TSE002B, AT30TS75, AT30TS750, and AT30TSE758 digital temperature sensors.The AT30TK175 daughterboard interfaces with the Atmel AT88Microbase board (included in the kit) to provide communication to a PC via a USB interface, allowing designers to learn and experiment with the temperature sensor demonstration utility. In addition, this kit supports a modular approach, enabling the AT30TK175 daughterboard to connect directly to an Atmel STK® series AVR development platform to easily add temperature monitoring capabilities to applications.Figure 1.Atmel AT30TK175 adapter boardAlarm status LEDs1.Atmel AT30TK175STK Starter KitThe AT30TK175 is sold with the AT88Microbase to form the Atmel AT30TK175STK starter kit. For additional information on the AT88Microbase, see the “Atmel AT88Microbase Hardware User Guide.”The Atmel AT30TK175 daughterboard with the Atmel AT88Microbase moduleFigure 1-1.2.Board ConfigurationTable 2-1. Seven-bit device address2.2.10-pin Interface HeaderTable 2-1.I2C pins: SCL, SD2 Atmel AT30TK175 Starter Kit Hardware User GuideFigure 2-2.10-pin interface header orientationNote:VCC_SEL and VCC_EN are board-level options that allow users to set the board V CC to 3.3V or 5.0V and disable V CC with VCC_EN. These options are provided to allow the temperature sensor to be evaluated withboth V CC operating voltages and to evaluate the nonvolatile registers (see Section 2.3).2.3.Alarm Status LEDsTable 2-1.Alarm status LEDs2.4.V CC Enable and Select PinsTable 2-1.V CC enable and select pinsControl High Low StateVCC_EN X ON (Default)VCC_EN X OFFVCC_SEL X 3.3V (Default)VCC_SEL X 5.0VAtmel AT30TK175 Starter Kit Hardware User Guide 33.References and Further InformationSchematics, Gerber files, bill of materials (BOM), and development and demonstration software are conveniently downloadable from the Atmel website.4.EVALUATION BOARD/KIT IMPORTANT NOTICE4 Atmel AT30TK175 Starter Kit Hardware User GuideAtmel Corporation 2325 Orchard Parkway San Jose, CA 95131 USATel: (+1)(408) 441-0311 Fax:(+1)(408) 487-2600 Atmel Asia LimitedUnit 01-5 & 16, 19FBEA Tower, Millennium City 5418 Kwun Tong RoadKwun Tong, KowloonHONG KONGTel:(+852) 2245-6100Fax:(+852) 2722-1369Atmel Munich GmbHBusiness CampusParkring 4D-85748 Garching b. MunichGERMANYTel:(+49) 89-31970-0Fax:(+49) 89-3194621Atmel Japan9F, Tonetsu Shinkawa Bldg.1-24-8 ShinkawaChuo-ku, Tokyo 104-0033JAPANTel:(+81)(3) 3523-3551Fax: (+81)(3) 3523-7581© 2011 Atmel Corporation. All rights reserved. / Rev.: 8745A–DTS–5/11Atmel®, logo and combinations thereof, and others are registered trademarks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.。

hbm称重传感器南创电子科技技术部内部使用资料德国HBM称重传感器HBM称重传感器HBM变送器仪表AD101B AD103C AD104C AD105CRM4220SC232/422B WE2108S WE2110WE2108C2系列1-C2/50KG1-C2/100KG1-C2/200KG1-C2/500KG1-C2/1T1-C2/2T1-C2/5T1-C2/10T1-C2/20T1-C2/50T C8-20KGC16系列1-C16AD1/20T1-C16AD1/30T1-C16AD1/40T1-C16AD1/60T1-C16AD1/100T1-C16A/200T1-C16AC3/15T1-C16AC3/20T1-C16AC3/30T1-C16AC3/40T1-C16AC3/60T1-C16AC3/100T德国HBM称重传感器数字式传感器C16iC3/20T C16iC3/30T C16iC3/40T C16iC3/60TRS422接头RTNilC3/33T RTNilC3/47T RTNilC3/68THLC系列HLCA(B)D1/220KG HLCA(B)D1/550KG HLCA(B)D1/1100KG HLCA(B)D1/1760KGHLCA(B)D1/2200KG HLCA(B)D1/4400KG HLCA(B)C3/220KG HLCA(B)C3/550KGHLCA(B)C3/1100KG HLCA(B)C3/1760KG HLCA(B)C3/2200KG HLCA(B)C3/4400KG德国HBM称重传感器RSC系列1-RSCAC1/50KG1-RSCAC1/100KG1-RSCAC1/200KG1-RSCAC1/500KG1-RSCAC1/1T1-RSCAC1/2T1-RSCAC1/5T1-RSCAC3/500KG1-RSCAC3/1T1-RSCAC3/2T1-RSCAC3/5T1-RSCBC1/200KG1-RSCBC1/500KG1-RSCBC1/1T1-RSCBC1/2T1-RSCBC1/5T1-RSCBC3/200KG1-RSCBC3/500KG1-RSCBC3/1T1-RSCBC3/2T1-RSCBC3/5T德国HBM称重传感器Z6系列Z6FC3/20KG Z6FC3/50KG Z6FC3/100KG Z6FC3/200KG Z6FC3/500KG Z6GC3/500KG Z6FC3/1T Z6FD1/5KG Z6FD1/10KG Z6FD1/20KG Z6FD1/50KG Z6FD1/100KGZ6FD1/200KG Z6FD1/500KG Z6FD1/1T Z6FC3/10KG Z6FC4/20KG Z6FC4/50KG Z6FC4/100KG Z6FC4/200KG Z6FC4/500G K-Exi-Test Z63AC3/50KG Z63AC3/100KG Z63AC3/200KG德国HBM称重传感器C2系列hbm称重传感器C2/50KG C2/100KG C2/200KG C2/500KG C2/1T C2/2T C2/5T C2/10T C2/20T C2/50T C2AC3/EexdC2AC3/1T/EExd2AC3/2T/EExd C2AC3/5T/EExd C2AC3/10T/EExd德国HBM称重传感器C16系列C16AD1/20T C16AD1/30T C16AD1/40T C16AD1/60T C16AD1/100T C16A/200T C16AC3/15T C16AC3/20T C16AC3/30T C16AC3/40T C16AC3/60T C16AC3/100TK-Exi-Test Lightning Protection20m cable with metal braiding德国HBM称重传感器数字式传感器C16iC3/20T C16iC3/30T C16iC3/40T C16iC3/60T软件TRADE RTNi1C3/33T RTNi1C3/47T RTNi1C3/68T德国HBM称重传感器HLC系列HLCA(B)D1/220KG HLCA(B)D1/550KG HLCA(B)D1/1100KG HLCA(B)D1/1760KG HLCA(B)D1/2200KG HLCA(B)D1/4400KG HLCA(B)C3/220KGHLCA(B)C3/550KG HLCA(B)C3/1100KG HLCA(B)C3/1760KG HLCA(B)C3/2200KG HLCA(B)C3/4400KG HLCBD1/10T HLC_（1）D1-220KG HLC_（1）D1-550KG HLC_（1）D1-1.1t HLC_（1）D1-1.76t HLC_（1）D1-2t HLC_（1）D1-2.2t HLC_（1）D1-4.4t HLC_(1)C3-220KG HLC_(1)C3-550kg HLC_(1)C3-1.1t HLC_(1)C3-1.76t HLC_(1)C3-2.2t HLC_(1)C3-4.4t德国HBM称重传感器RTN系列RTN0,05/1t RTN0,05/2.2t RTN0,05/4.7t RTN0,05/10t RTN0,05/15t RTN0,05/22t RTN 0,05/33t RTN0,05/47t RTN0,05/68t RTN0,05/100t RTN0,05/150t RTN0,05/220t RTN 0,05/330t RTN0,05/470tRTN C3/1t RTN C3/2.2t RTN C3/4.7t RTN C3/10t RTN C3/15t RTN C3/22t RTN C3/33t RTN C3/47t RTN C3/68t RTN C3/100t RTN C3/150t RTN C3/220t RTN C3/330t RTN C3/470tC16A称重传感器C16系列C16AD1/20T C16AD1/30T C16AD1/40T C16AD1/60T C16AD1/100TC16A/200T C16AC3/15T C16AC3/20T C16AC3/30T C16AC3/40TC16AC3/60T C16AC3/100Thbm称重传感器称重传感器技术参数以《OIML60号国际建议》92年版为基础，最新具体变化可查看《JJG669—12HBM传感器事业部检定规程》称重传感器、压力传感器、扭矩传感器称、霍尔传感器、流量传感器、位移传感器、速度传感器、加速度传感器以及变送器、模块、放大器、仪器仪表及相关配套附件属于hbm称重传感器。

升腾c13参数
升腾C13是一款金融POS终端机，具体参数如下：
1. 显示屏：24位真彩高清LED显示屏，支持汉字、字母、数字等多种字符显示。

2. 打印速度：每秒高达100mm，可打印清晰、高分辨率的收据和交易详情。

3. 接口：提供USB、串口、网口等多种通讯接口，支持无线、有线等多种
通讯方式。

4. 加密技术：采用国密标准SM1/SM2/SM3加密算法，确保数据传输和存储的安全性。

5. 扩展性：可外接多种设备，如磁条卡识别器、IC卡读写器、密码键盘等，满足不同业务需求。

6. 操作系统：采用Windows CE或Android操作系统，具有良好的稳定性和易用性。

7. 电池续航：内置大容量电池，可保证长时间连续工作。

8. 其他功能：支持电子签名、电子发票、扫码支付等多种功能。

总体来说，升腾C13是一款功能强大、性能稳定的金融POS终端机，适用于各种金融支付场景。

如需更多信息，建议前往升腾官网获取。

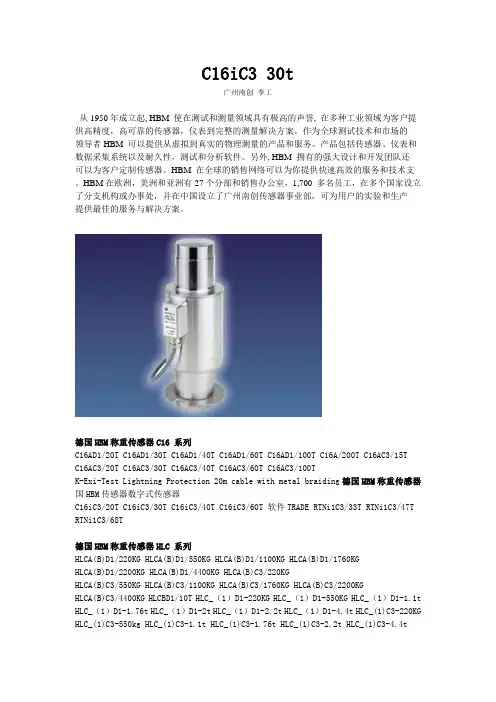

C16iC3 30t广州南创李工从1950年成立起, HBM 便在测试和测量领域具有极高的声誉, 在多种工业领域为客户提供高精度，高可靠的传感器，仪表到完整的测量解决方案。

作为全球测试技术和市场的领导者HBM 可以提供从虚拟到真实的物理测量的产品和服务。

产品包括传感器、仪表和数据采集系统以及耐久性，测试和分析软件。

另外, HBM 拥有的强大设计和开发团队还可以为客户定制传感器。

HBM 在全球的销售网络可以为你提供快速高效的服务和技术支。

HBM在欧洲，美洲和亚洲有27个分部和销售办公室，1,700 多名员工，在多个国家设立了分支机构或办事处，并在中国设立了广州南创传感器事业部，可为用户的实验和生产提供最佳的服务与解决方案。

德国HBM称重传感器C16 系列C16AD1/20T C16AD1/30T C16AD1/40T C16AD1/60T C16AD1/100T C16A/200T C16AC3/15TC16AC3/20T C16AC3/30T C16AC3/40T C16AC3/60T C16AC3/100TK-Exi-Test Lightning Protection 20m cable with metal braiding德国HBM称重传感器国HBM传感器数字式传感器C16iC3/20T C16iC3/30T C16iC3/40T C16iC3/60T 软件TRADE RTNi1C3/33T RTNi1C3/47T RTNi1C3/68T德国HBM称重传感器HLC 系列HLCA(B)D1/220KG HLCA(B)D1/550KG HLCA(B)D1/1100KG HLCA(B)D1/1760KGHLCA(B)D1/2200KG HLCA(B)D1/4400KG HLCA(B)C3/220KGHLCA(B)C3/550KG HLCA(B)C3/1100KG HLCA(B)C3/1760KG HLCA(B)C3/2200KGHLCA(B)C3/4400KG HLCBD1/10T HLC_（1）D1-220KG HLC_（1）D1-550KG HLC_（1）D1-1.1t HLC_（1）D1-1.76t HLC_（1）D1-2t HLC_（1）D1-2.2t HLC_（1）D1-4.4t HLC_(1)C3-220KG HLC_(1)C3-550kg HLC_(1)C3-1.1t HLC_(1)C3-1.76t HLC_(1)C3-2.2t HLC_(1)C3-4.4t德国HBM称重传感器RTN系列RTN 0,05/1t RTN 0,05/2.2t RTN 0,05/4.7t RTN 0,05/10t RTN 0,05/15t RTN 0,05/22t RTN 0,05/33t RTN 0,05/47t RTN 0,05/68t RTN 0,05/100t RTN 0,05/150t RTN 0,05/220t RTN 0,05/330t RTN 0,05/470tRTN C3/1t RTN C3/2.2t RTN C3/4.7t RTN C3/10t RTN C3/15t RTN C3/22t RTN C3/33t RTN C3/47t RTN C3/68t RTN C3/100t RTN C3/150t RTN C3/220t RTN C3/330t RTN C3/470t德国HBM称重传感器HBM称重传感器 HBM变送器HBM S型称重传感器21899: RSC-50 50 lb 25ft HBM 2mV/V 350 OHM EW21900: RSC-100, 100 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III S21901: RSC-200, 200 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III S21902: RSC-300, 300 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III SHBM S型称重传感器21903: RSC-500, 500 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III S21904: RSC-750, 750 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III S21905: RSC-1k, 1,000 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III S21906: RSC-2k 2,000 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III SHBM S型称重传感器21907: RSC-3k 3,000 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III S21908: RSC-5k, 5,000 lb 25ft HBM 2mV/V 350 OHM EW NTEP 3 III S64859: S35-100, 20555 100lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64860: S35-200, 20555 200lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10SHBM S型称重传感器64861: S35-300, 20555 300lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64862: S35-500, 20555 500lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64863: S35-750, 20555 750lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64864: S35-1k, 20555 1000lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64865: S35-2k, 20555 2000lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10SHBM S型称重传感器64866: S35-2.5k, 20555 2500lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64867: S35-3k, 20555 3000lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64868: S35-5k, 20555 5000lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10SHBM S型称重传感器64869: S35-10k, 20555 10,000lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64870: S35-15k, 20555 15,000lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S 64871: S35-20k, 20555 20,000lb 20ft HBM 3mv/v 350 OHM NTEP III 3S IIIL 10S仪表AD101B AD103C AD104C AD105CRM4220 SC232/422B WE 2108S WE 2110 WE2108C2系列1-C2/50KG 1-C2/100KG 1-C2/200KG 1-C2/500KG1-C2/1T 1-C2/2T 1-C2/5T 1-C2/10T 1-C2/20T 1-C2/50T C8-20KGC16系列1-C16AD1/20T 1-C16AD1/30T 1-C16AD1/40T 1-C16AD1/60T1-C16AD1/100T 1-C16A/200T 1-C16AC3/15T 1-C16AC3/20T1-C16AC3/30T 1-C16AC3/40T 1-C16AC3/60T 1-C16AC3/100T德国HBM称重传感器数字式传感器C16iC3/20T C16iC3/30T C16iC3/40T C16iC3/60TRS422接头RTNilC3/33T RTNilC3/47T RTNilC3/68THLC系列HLCA(B)D1/220KG HLCA(B)D1/550KG HLCA(B)D1/1100KG HLCA(B)D1/1760KG HLCA(B)D1/2200KG HLCA(B)D1/4400KG HLCA(B)C3/220KG HLCA(B)C3/550KG HLCA(B)C3/1100KG HLCA(B)C3/1760KG HLCA(B)C3/2200KG HLCA(B)C3/4400KG 德国HBM称重传感器RSC系列1-RSCAC1/50KG1-RSCAC1/100KG 1-RSCAC1/200KG 1-RSCAC1/500KG 1-RSCAC1/1T 1-RSCAC1/2T 1-RSCAC1/5T 1-RSCAC3/500KG 1-RSCAC3/1T 1-RSCAC3/2T 1-RSCAC3/5T1-RSCBC1/200KG 1-RSCBC1/500KG 1-RSCBC1/1T 1-RSCBC1/2T 1-RSCBC1/5T。

I16D53IS1633IS1600I16D33-DCU Universal Inputs U H igh Accuracy: 0.5°C (±0.9°F), 0.03% Reading U Totally Programmable Color Displays (Visual Alarms)U User-Friendly,Simple to Configure U Free SoftwareU Full Autotune PID Control U Embedded Ethernet Connectivity Optional U RS232 and RS485 Serial Communications Optional U Built-In Excitation U 2 Control or Alarm Outputs Optional: DC Pulse, Solid State Relays, Mechanical Relays, Analog Voltage and CurrentU Output 3: Isolated Analog Voltage and Current OptionalU NEMA 4 (IP65) Front Bezel U Temperature Stability ±0.04°C/°C RTD and±0.05°C/°C Thermocouple @ 25°C (77°F)U Front Removable and Plug ConnectorsU AC or DC Powered Units U Ratiometric Mode for Strain Gages U Programmable Digital FilterThe NEWPORT ® i16 is the popular 1⁄16 DIN size (48 mm 2) controller. It is available with a single (model i16) or dual display (model i16D) that displays a setpoint along with the process value. The i16 display can be programmed to change color between GREEN, AMBER , and RED at any setpoint or alarm point. The i16 is the first 1⁄16 DIN controller with the option of both RS232 and RS485 in 1 instrument with both MODBUS ® serial protocoland the straightforward Newport ® ASCII protocol. And of course the i16 is the first 1⁄16 DIN controller that can connect directly to an Ethernet network and features an embedded Web server. Newport ® provides free configuration and data acquisition software downloaded off of the Web.The i16 enclosure has aNEMA 4 (IP65) rated front bezel. The electronics are removable from the front panel.i16D33 shown largerthan actual size.i1633 shown larger than actual size.1⁄16 DIN Temperature, Process andStrain PID Controllersi16 SeriesAccess Vital information Anytime,Anywhere, on the Internet!1⁄16 DIN controller withembedded Web server, dual control outputs, dual display.Ordering Examples: i1633, temperature/process controller,output 1 relay, output 2 relay single display, 90 to 240 Vac power.iS1643, strain/process controller, output 1 DC pulse, output 2relay, single display, 90 to 240 Vac power.*1 Ethernet options are available for the i16D and iS16D controllers only.*2 “-DC”, “-C24”, and “-C4EIT ” not available with excitation.*3 Analog output (option 5) is not available with “-AL ” units or i16A models.*4 20 to 36 Vdc for i16D , i16D-C4EIT , i16D-EIT and i16A *5 “-SM ” option not available on iS16 or i16A models.*6 Ethernet options are not available for i16A models.*7 For i16Axx-AL: One alarm and one analog retransmission.Universal Temperature and Process Input ("i" Models)Accuracy: ±0.5°C temp; 0.03% rdg Resolution: 1°/0.1°; 10 μV process Temperature Stability: RTD: 0.04°C/°CTC @ 25°C (77°F): 0.05°C/°C Cold Junction Compensation Process: 50 ppm/°C NMRR: 60 dB CMRR: 120 dBA/D Conversion: Dual slope Reading Rate: 3 samples/s Digital Filter: Programmable Display: 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED , GREEN , and AMBER programmable colors for process variable, setpoint and temperature unitsInput Types: Thermocouple, RTD, analog voltage, analog currentThermocouple Lead Resistance: 100 Ω maxThermocouple Types (ITS 90): J, K, T, E, R, S, B, C, N, L (J DIN)RTD Input (ITS 68): 100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire; 0.00385 or 0.00392 curveVoltage Input: 0 to 100 mV, 0 to 1V, 0 to 10 VdcInput Impedance: 10 M Ω for 100 mV 1 M Ω for 1 or 10 VdcCurrent Input: 0 to 20 mA (5 Ω load)Configuration: Single-ended Polarity: UnipolarStep Response: 0.7 sec for 99.9%Decimal Selection: Temperature: None, 0.1 Process: None, 0.1, 0.01 or 0.001Setpoint Adjustment: -1999 to 9999 counts Span Adjustment: 0.001 to 9999 countsOffset Adjustment: -1999 to 9999Excitation (Not Included withCommunication): 24 Vdc @ 25 mA (not available for low-power option)Universal Strain and Process Input ("iS" Models)Accuracy: 0.03% reading Resolution: 10/1μVTemperature Stability: 50 ppm/°C NMRR: 60 dB CMRR: 120 dBA/D Conversion: Dual slope Reading Rate: 3 samples/s Digital Filter: ProgrammableInput Types: Analog voltage and current Voltage Input: 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 VdcInput Impedance: 10 M Ω for 100 mV; 1 M Ω for 1V or 10 VdcCurrent Input: 0 to 20 mA (5 Ω load)Linearization Points: Up to 10Configuration: Single-ended Polarity: UnipolarStep Response: 0.7 sec for 99.9%Decimal Selection: None, 0.1, 0.01 or 0.001Setpoint Adjustment: -1999 to 9999 countsSpan Adjustment: 0.001 to 9999 counts Offset Adjustment: -1999 to 9999Excitation (Optional In Place Of Communication): 5 Vdc @ 40 mA; 10 Vdc @ 60 mAControlAction: Reverse (heat) or direct (cool)Modes: Time and amplitude proportional control; selectable manual or auto PID, proportional, proportional with integral, proportional with derivative and anti-reset Windup, and on/off Rate: 0 to 399.9 s Reset: 0 to 3999 sCycle Time: 1 to 199 s; set to 0 for on/off Gain: 0.5 to 100% of span; setpoints 1 or 2Damping: 0000 to 0008Soak: 00.00 to 99.59 (HH:MM), or OFF Ramp to Setpoint:00.00 to 99.59 (HH:MM), or OFF Auto Tune: Operator initiated from front panelControl Output 1 and 2Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soakOutput 1: SPDT, can be configured as alarm 1 outputOutput 2: SPDT, can be configured as alarm 2 outputSSR: ******************.5A (resistive load); continuousDC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only):Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 Ω maxOutput 3 Retransmission:Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output Network and CommunicationsEthernet: Standards compliance IEEE 802.3 10 Base-T Supported Protocols: TCP/IP, ARP, HTTPGETRS232/RS422/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and statusCommon Specifications(All i/8, i/16, i/32 DIN)RS485: Addressable from 0 to 199 Connection: Screw terminalsAlarm 1 and 2 (Programmable)Type: Same as output 1 and 2Operation: High/low, above/below, band, latch/unlatch, normally open/ normally closed and process/deviation; front panel configurationsAnalog Output (Programmable):Non-isolated, retransmission 0 to 10 Vdc or 0 to 20 mA, 500 Ω max (output 1 only); accuracy is ±1% of FS when following conditions are satisfied: input is not scaled below 1% of input FS, analog output is not scaled below 3% of output FSGeneralPower: 90 to 240 Vac ±10%, 50 to 400Hz*, 110 to 375 Vdc, equivalent voltageLow Voltage Power Option: 24 Vac**, 12 to 36 Vdc for i/iS; 20 to 36 Vdc for dual display, ethernet, and isolated analog output from qualified safety approved source IsolationPower to Input/Output: 2300 Vac per 1 minute testFor Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute testRelay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test Environmental Conditions:All Models: 0 to 55°C (32 to 131°F) 90% RH non-condensing Dual Display Models:0 to 50°C (32 to 122°F), 90% RH non-condensing (for UL only)Protection:i/iS32, 16, 16D, 8C:NEMA 4X/Type 4 (IP65) front bezel i/iS8, 8DH, 8DV:NEMA 1/Type 1 front bezel Approvals: UL, C-UL, CE perEN61010- 1:2001, FM (temperature units only)Dimensionsi/8 Series: 48 H x 96 W x 127 mm D (1.89 x 3.78 x 5")i/16 Series: 48 H x 48 W x 127 mm D (1.89 x 1.89 x 5")i/32 Series: 25.4 H x 48 W x 127 mm D (1.0 x 1.89 x 5")Panel Cutouti/8 Series: 45 H x 92 mm W (1.772 x 3.622"), 1⁄8 DINi/16 Series: 45 mm (1.772") square, 1⁄16 DINi/32 Series: 22.5 H x 45 mm W (0.886 x 1.772"), 1⁄32 DIN Weighti/8 Series: 295 g (0.65 lb) i/16 Series: 159 g (0.35 lb) i/32 Series: 127 g (0.28 lb)* No CE compliance above 60 Hz.** Units can be powered safely with 24 Vacpower, but no certification for CE/UL are claimed.I16D53IS1633IS1600I16D33-DC。
