完整高效可靠 派克滤清器全系产品介绍

■ﾠ高技术应用的控制器■ﾠ基于工业以太网的运动控制系统■ﾠ集成多轴运动控制器■ﾠ智能伺服驱动器■ﾠ工业以太网多轴伺服驱动器■ﾠ通用伺服驱动器■ﾠ智能直流调速器■ﾠ通用直流调速器派克机电产品纵览运动控制驱动技术直流调速器■ﾠ智能交流变频器■ﾠ通用交流变频器交流变频器2■ﾠ滚珠丝杠驱动工作台■ﾠ直线电机驱动工作台■ﾠ高精度微型工作台■ﾠ经济型■ﾠ高精度高精度执行器与工作台行星齿轮减速机■ﾠ伺服电机■ﾠ防爆伺服电机■ﾠ高速大功率伺服电机■ﾠ高性能车载电机■ﾠ直线电机组件■ﾠ直驱电机■ﾠ高性能伺服电机■ﾠ电动缸■ﾠ线性执行器电机执行器3ACR 系列是派克主要的独立封装的运动控制器，能够实现多达八轴的运动控制。

简单易用的项目开发组件，使应用系统构建及维护快速，高效。

ACR74C/78C 是4轴/8轴运动控制器；ACR74T 是集成4轴步进电机驱动器的驱控一体机；ACR74V/78V 是集成4轴/8轴低压伺服驱动器的驱控一体机。

强大、集成化和为机械市场设计的派克自动化运动控制器(PAC)为OEM 提供了基于标准的自动化解决方案，能够满足严苛的应用要求。

PAC 将先进逻辑、多轴运动、信号处理和网络发布的可视化整合到一个以性能为导向的解决方案中，进而消除不必要的硬件和通信链接，并提高开发者的效率。

PAC网络架构派克自动化运动控制器 - PACACR 控制器系列•ﾠ K eywords: PAC CPU 运算能力更强•ﾠP AC: EtherCAT, 多轴插补•ﾠA CR:模拟量模式，简单易用ACR7C/7V ACR7000PAC3404智能伺服驱动器 - Compax3Compax3是派克汉尼汾不同国家和地区推出的伺服驱动器产品。

驱动器系列包括单轴，多轴驱动器，还有液压控制器。

这一系列驱动的功率从1到110kVA。

这一伺服驱动器的整个研发及制造过程全部在德国完成。

另外的生产基地也在美国建成。

作为一款销往不同国家和地区的伺服驱动控制器，Compax3在世界各地都有销售。

TTF最大：500 L/min, 10 bar特点&好处典型应用• 垃圾车• 移动式起重机• 动力站• 轮式装载机• 钻井设备TTF 系列回油管路过滤器TTF 油箱顶置回油管路过滤器内设有磁铁和低阻滞的全流量旁通阀，具有预过滤功能。

由于采用了由里向外的过滤原理，受污染的油液因此不可能倒流回系统。

TTF 系列过滤器可处理的流量最大可达500l/min ，最大压力可达10bar ，用户可选过滤器端盖上的注油口，第二个回油口和用户自定义的扩散器。

也可提供集成式的(TSR 系列)带有4个回油口的过滤器滤头。

TTFTSR1345678101112131415169a9b类型 1-125/2-170/2-230/2-3002-400/2-500类型1-60/1-90/1-120滤芯安装间隙F8136最低油位安装孔B 137LHØ50Ø102±1Ø410.33.2BAAØ1656481814x ISO228G 1/8”(BSP)4x Ø1112工作压力:最大. 10 bar .安装方式:油箱顶置安装.接口:螺纹 BSP 接口.法兰接口可按要求提供集成式滤头TSR 可按要求提供流量可达 250 l/min.过滤器外壳:铝质滤头和端盖.密封材料:丁腈橡胶, 氟橡胶, 氯丁橡胶.工作温度范围:-40 - +120°C.旁通阀设定:开启压力 0.8 / 1.5 或 2 bar .其它要求请咨询过滤效果:决定于多次通过实验符合ISO 16889.液流疲劳特性:过滤材质可确保获得最佳的疲劳寿命过滤材质:Microglass III & Ecoglass III LEIF ®滤芯.也可提供10μm 纸质纤维和40μm 不锈钢金属网滤芯的爆破压力:10 bar (ISO 2941)压力指示器选项:设定值 0.7 或 1.2 bar .其他的设定值请咨询.目视压力表.电讯式压力继电器.选项:扩散器列类型 P (直管,无开孔板区域)扩散器 T (带有封闭的扩散器端帽和开孔板区域，当进入油箱的油液接近油箱底部或为了确保进入的油液处于油箱液位之下时推荐使用)磁铁组件:标准的 TTF400 和 500 作为标准供货不包括磁铁端盖上注油口(可选)堵塞.过滤器滤芯:LEIF ®滤芯带有可多次使用的金属滤芯护套 可选传统的带有碳钢端帽的滤芯.LEIF ®滤芯专利产品可保证使用真正原装产品。

Drains and Options Blank Manual Twist DrainQ External Heavy Duty Auto Drain R Internal Auto Drain USemi-Auto DrainHi-Flow F602 SeriesBOLD ITEMS ARE MOST POPULAR.Ordering InformationF 602 — 06 W J — /**BowlE 32 oz. Large Capacity Metal without Sight GaugeW 16 oz. Metal withSight GaugeElement G 5 Micron J 40 MicronPort Size 06 3/4 Inch 08 1 InchPort Threads — NPT G BSPPF602-06W, F602-08W Filter DimensionsA 4.90(124)B 7.88(200)C 8.72(221)D 4.06(103)E 0.84(21)F 2.45(62)F602-06E, F602-08E Filter DimensionsA 4.90(124)B 11.10(282)C 11.94(303)D 4.06(103)E 0.84(21)F 2.45(62)inches (mm)Features• Excellent water removal efficiency• For heavy duty applications with minimum pressure drop requirement.• Unique deflector plate that creates swirling of the air stream ensuring maximum water and dirt separation.• Large filter element surfaceguarantees low pressure drop and increased element life.• 40 micron filter element standard, 5 micron available.• Metal bowl with sight gauge standard.• Twist drain as standard, optional auto drain.• Large bowl capacity.• Optional high capacity bowl(s) available.• High Flow: 3/4" – 270 SCFM § 1" – 300 SCFM §3/4 & 1 Inch PortsStandard part numbers shown bold.For other models refer to ordering information below.§ SCFM = Standard cubic feet per minute at 90 psig inlet and 5 psig pressure drop.Port Size NPTTwist DrainInternal Auto DrainMetal Bowl / Sight Gauge - 16 oz.3/4"F602-06WJ F602-06WJR 1"F602-08WJ F602-08WJR Metal Bowl without Sight Gauge - 32 oz.3/4"F602-06EJ F602-06EJR 1"F602-08EJF602-08EJREngineeringLevel * Will be Entered at Factory.AutomaticDrainManual Drain102345Flow - SCFM P r e s s u r e D r o p - P S I GP r e s s u r e D r o p - b a r.1.2.3Primary Pressure - PSIG 2510050751501.73.4 5.2 6.910.3Primary Pressure - bar 040608010012014020Flow - dm /s3nFlow - SCFMP r e s s u r e D r o p - P S I GP r e s s u r e D r o p - b a r.1.2.3040608010012014016020Primary Pressure - PSIG 1.7 3.4 5.26.910.3Primary Pressure - barFlow - dm /s3nTechnical Specifications – F602Technical InformationF602 Filter Kits & AccessoriesBowl Kits –Aluminum (E) 32 oz. ...........................................................BK603B Zinc with Sight Gauge (W) 16 oz. ...................................BK605WB Drain Kits –External Auto (E) 32 oz. .....................................................SA603D External Auto (W) 16 oz. ....................................................SA602D Internal Auto (All) ............................................................SA602MD Manual (All) ..................................................................SA600Y7-1 Semi-Automatic “Overnight” Drain ....................................SA602A7 (Drains automatically under zero pressure)Filter Element Kits –40 Micron (All) ...................................................................EK602B 5 Micron (All) ...................................................................EK602VB Mounting Bracket Kit(Pair or 2 Kits Pipe Mounted Brackets needed) –(3/4" Unit) ...................................................................SA200AW57 (1" Unit) ......................................................................SA200CW57Repair Kits –Deflector, Baffle Assembly, and Retaining Rod (E,W) .......RK602B External Auto Drain (All) ....................................................RK602D Internal Auto Drain (All) ..................................................RK602MD Metal Bowl with Sight Gauge (W) 16 oz. .....................RKB605WBSpecificationsBowl Capacity –Aluminum Bowl (E) 32 oz. ..............................................32 Ounces Zinc Bowl (W) 16 oz. ......................................................16 Ounces Port Threads ...................................................................3/4, 1 InchPressure & Temperature Ratings – Aluminum Bowl (E) 32 oz. – 0 to 300 psig (0 to 20.4 bar) 40°F to 150°F (4.4°C to 65.6°C) Zinc (W) 16 oz. – 0 to 250 psig (0 to 17.2 bar)40°F to 150°F (4.4°C to 65.6°C)With Internal Auto Drain (R) – 20 to 175 psig (1.4 to 11.9 bar)40°F to 125°F (4.4°C to 52°C) With External Auto Drain (Q) – 0 to 250 psig (0 to 17.2 bar)40°F to 150°F (4.4°C to 65.6°C)Weight –Aluminum Bowl (E) 32 oz. ............................... 7 lb. (3.18 kg) / Unit 28 lb. (12.70 kg) / 4-Unit Master Pack Zinc Bowl (W) 16 oz. ..................................... 6.3 lb. (2.86 kg) / Unit 25 lb. (11.34 kg) / 4-Unit Master PackMaterials of ConstructionBody .............................................................................................Zinc Bowls –(E) 32 oz. ........................................Aluminum without Sight Gauge (W) 16 oz. ......................................................Zinc with Sight Gauge Drain –Manual T wist & Overnight .......................................................Brass Housing “R” ............................................................................Acetal Housing “Q” ..........................................................................Bronze Filter Elements –40 Micron (Standard) ................................................Polypropylene 5 Micron (Optional) ...................................................Polypropylene Seals ...........................................................................................Nitrile Sight Gauge ...............................................................................Nylon( ) = Bowl TypeFloat (Inside Bowl) Manual Push ButtonDrain(Outside Bowl)Drain (1/4" NPTF)Connection Through Bowl (1/8" NPSM)“Q” Option External Heavy Duty Auto Drain SA602D / SA603DFor heavy duty applications where the filter is being used to remove large volumes of liquid and/or particulate matter from the airstream, the external automatic drain (“Q” option) should be used.Air Line Filters。

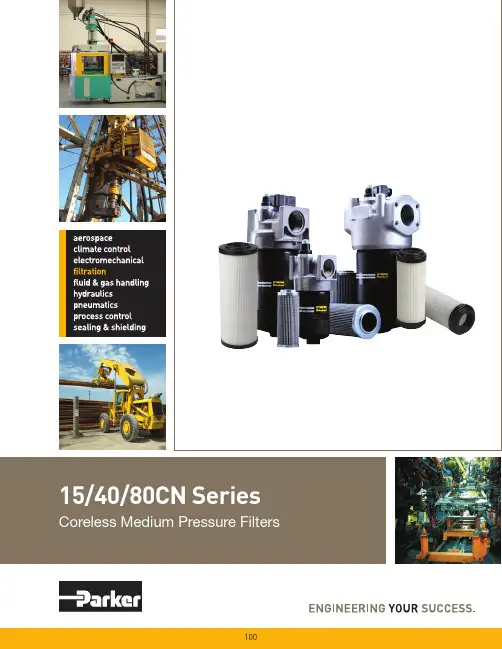

Applications• Compressor Lube Oil• Off-line Filter Loops• Machine Tools(Automotive Standard)• Hydrostatic DriveCharge Pumps• Mobile Equipment• Pilot Lines For Servo Controls • Oil Patch Drilling Equipment • Injection MoldingThis partial list of applications for Parker “CN” series filters has a common factor, the need for an economical, medium pressure range filter with excellent fatigue pressure ratings. Prior to the availability of the “CN” filter, applications such as those listed were restricted by limitationsof a spin-on can, or forced into the higher cost range of high pressure filters.The “CN” series fills thisgap, and now with the newly increased fatigue rating from 550 to 800 psi, the applications are expanded.Ecoglass IIIReplacement Elements Ecoglass III represents the merging of high performance filtration technology with environmentally conscious engineering. The Ecoglass III line of replacement elements feature 100% non-metallic construction. The design reduces solid waste and minimizes disposal costs for industry. The non-metallic construction means lightweight elements (60% less weight) for easier servicing.The Ecoglass III elements utilize the same proprietary media design as our Microglass III line of replacement elements.With Ecoglass III, a reusable core is installed into the filter housing and remains in service throughout the life of the assembly.FeaturesPortsSAE, NPT or flange face (80CN) provides mounting flexibility.Diametral (side) SealDust SealProtects head and bowl threads from external contamination buildup.Element AssemblyHigh efficiency (B x >200), high capacity Ecoglass III media with it’s multi-layered design is unequalled in performance.Element Condition IndicatorsAvailable in visual or electrical, with a choice of several power connections (E3 shown).HeadCast aluminum is rugged with small profile for easy mounting.BypassCartridge style bypass has good sealing characteristics and low hysteresis. Choice of two settings to match application needs.BowlAluminum is lightweight and corrosion resistant.Drain Port (optional)Optional drain port allows15CN-1 Element PerformanceFlow vs. Pressure LossResults typical from Multi-pass tests run per test standard ISO 16889 @ 10 gpm to 100 psid terminal - 10 mg/L BUGLRefer to Appendix on pages 264-265 for relationship to test standard ISO 4572.Ef ciency %Ef ciencyBeta Rating 10001000099.999.599.010020020250.095.0Micron Size (c)PSID Capacity123456204060801000 1 2 3 4 5 6 7Capacity (grams)BARP S I D 25201510501.51.00.50.0BARLPM0 10 20 30 40 50 60 70P S I D25201510501.51.00.50.0BARLPM0 10 20 30 40 50 60 7015CN-2 Element PerformanceResults typical from Multi-pass tests run per test standard ISO 16889 @ 15 gpm to 100 psid terminal - 10 mg/L BUGL Refer to Appendix on pages 264-265 for relationship to test standard ISO 4572.Flow vs. Pressure LossEf ciency %Ef ciencyBeta Rating100099.999.599.010020020250.095.0Micron Size (c)PSIDCapacity12345620406080100Capacity (grams)BAR40CN-1 Element PerformanceResults typical from Multi-pass tests run per test standard ISO 16889 @ 15 gpm to 100 psid terminal - 10 mg/L BUGLRefer to Appendix on pages 264-265 for relationship to test standard ISO 4572.Flow vs. Pressure LossPSID Capacity1234560204060801001020 3040Capacity gramsBARPS I D252015105BARLPM1.51.00.50.00 50 100 150 200 250 300 350P S I D2520151050BARLPM1.51.00.50.00 50 100 150 200 250 300 35040CN-2 Element PerformanceResults typical from Multi-pass tests run per test standard ISO 16889 @ 30 gpm to 100 psid terminal - 10 mg/L BUGLRefer to Appendix on pages 264-265 for relationship to test standard ISO 4572.Flow vs. Pressure Loss40CN-3 Element PerformanceResults typical from Multi-pass tests run per test standard ISO 16889 @ 45 gpm to 100 psid terminal - 10 mg/L BUGLRefer to Appendix on pages 264-265 for relationship to test standard ISO 4572.Flow vs. Pressure LossPSID BARCapacity1234562040608020406080100120Capacity (grams)80CN-1 Element PerformanceP S I D2520151050BARLPM1.51.00.50.00 50 100 150 200 250 300 350LPMP S I D 1086420BAR0 50 100 150 200 250 300 350Results typical from Multi-pass tests run per test standard ISO 16889 @ 45 gpm to 100 psid terminal - 10 mg/L BUGLRefer to Appendix on pages 264-265 for relationship to test standard ISO 4572.Flow vs. Pressure LossPSID Capacity123456020406080100Capacity grams020406080100BAREf ciency %Ef ciencyBeta Rating 10001000099.5100200202Micron Size (c)80CN-2 Element PerformanceFlow vs. Pressure LossResults typical from Multi-pass tests run per test standard ISO 16889 @ 70 gpm to 100 psid terminal - 10 mg/L BUGLRefer to Appendix on pages 264-265 for relationship to test standard ISO 4572.PSID Capacity12345602040608010020406080 100 120 140Capacity gramsBARSpecificationsMaximum Allowable OperatingPressure (MAOP):1000 psi (69 bar)Rated Fatigue Pressure:800 psi (55.2 bar)Design Safety Factor: 2.5:1Operating T emperatures:Nitrile: -40°F (-40°C) to 225°F(107°C)Fluorocarbon: -15°F (-26°C) to225°F (107°C)Element Collapse Rating:Standard: 150 psi (10.3 bar)Materials:Head and Bowl: AluminumIndicators: Alum. body, plastic connec-torsBypass: NylonWeights (approximate):Model Single length Double length15CN 2.5 lb. (1.13 kg) 3.5 lb. (1.6 kg)40CN 4.5 lb. (2.00 kg) 5.5 lb. (2.49 kg)80CN 12.4 lb. (5.62 kg) 15.2 lb. (6.89 kg)Element Condition Indicators:Visual 360° green/red auto resetElectrical/Visual5A @ 240VAC, 3A @ 28VDCElectrical-Heavy Duty.25A(resistive) MAX 5 watts12 to 28 VDC & 110 to 175 VACColor code:White (common)Black (normally open)Blue (normally closed)Drawings are for reference only.Contact factory for current version.A. Stop the system’s power unit.B. Relieve any system pressure in the filter line.C. Drain the filter bowl if drain port option is provided.D. Loosen and remove bowl.E. Remove element by pulling downward with a slight twisting motion and discard.F . Check bowl o-ring for damage and replace if necessary.G. Lubricate element o-ring with system fluid andplace on post in filter head.H. Install bowl and tighten to specified torque. 15CN - 15-20 ft. lbs 40CN - 42-50 ft. lbs80CN - 60-70 ft. lbsI. Confirm there are no leaks after powering thesystem.Element Service InstructionsParts ListSelect the desired symbol (in the correct position) to construct a model code.Please note the bolded options reflect standard options with a reduced lead-time. Consult factory on all other lead-time options.How to OrderReplacement Elements (Ecoglass)Global products as identified are offeredworldwide through all Parker locations and utilize a common ordering code.。

/gsfUnique filter elementSpecially constructed for reducedair flow velocity, reduced pressureloss, increased dirt holding capacity,and improved efficiency. Includes a12-month air quality guarantee.Flow management systemSpecially engineered ‘bell mouth’,with 90-degree elbow, flow distributorand conical flow diffuser, to promote aconsistent, optimum air flow.Filter housingDesigned to allow easy maintenanceand element replacement, and coveredby a 10-year guarantee.Flexible connectionsA wide range of port sizes and filterconnections, for added flexibility.Epoxy coatingFinished with alocrom corrosionprotection and a tough, dry powderepoxy coating for a high quality feel.Parker domnick hunter OIL-X; a new series ofcompressed air filters, taking efficiency to adifferent level.Built on Parker’s worldwide expertise in filtration, the OIL-X rangehas been developed to ensure consistent outstanding air quality,guaranteed for 12 months - and third-party validated to meetISO 8573-1.Combining the unique filterelement with a speciallydesigned advanced air flowmanagement system, the Parkerdomnick hunter OIL-X range isengineered to not only deliver airquality in accordance withISO 8573-1 classifications, butit does so with a extremely lowdifferential pressure - ensuringmaximum efficiency andproductivity.MARKETLEADING LOWDIFFERENTIALPRESSURECOMPRESSED AIR FILTERSOIL-X RedefinedGrades AOP and AAP for Coalescing Liquids and Particle Removal in Compressed Air or Gaseous Nitrogen Grade ACSP for Oil Vapour RemovalFilter coding examplesBulk liquid removal in Compressed Air or Gaseous Nitrogen Systems Delivering Filtration Efficiency > 92% based on ISO8573.9Product SelectionStated flows are for operation at 100 psi g (7 bar g) with reference to 68°F (20°C), 14.5 psi g (1 bar g), 0% relative water vapor pressure.171819202482632772901. Obtain the minimum operating pressure and maximum compressed air flow rate at the inlet of the filter.2. Select the correction factor for minimum operating pressure from the CFP table (always round down e.g. for 5.3 bar, use 5 bar correction factor)3. Calculate the minimum filtration capacity: Minimum Filtration Capacity = Compressed Air Flow Rate x CFP4. Using the minimum filtration capacity, select a WS model from the flow rate tables above (WS selected must have a flow rate equal to or greater than the minimum filtration capacity)5. WS models are supplied with a float drain as standard. For pressures of 232 to 290 psi g (16 to 20 bar g ), a manual drain must be used.Benefits:• For the removal of bulk condensed water and liquid oil• Used to protect coalescing filters from bulk liquid contamination • High liquid removal efficiencies at all flow conditions• Helps provide air quality in accordance with ISO 8573-1:2001.• Suitable for all compressed air applications.• Suitable for all compressor types, including variable flow. • Low pressure losses for low operational costs.• Low lifetime costs.• Helps reduce the release of CO2 into the environment.• Lloyds & CRN registeredMUST HAVE Manual DrainOrder "MX" OptionOIL-X Bulk Water Separators"Oil-X Redefined, the unique low energy solution with independently validated performance."Particle Removal down to 1 micron Max Remaining Oil Content 0.5mg/m3 delivering Filtration of 99.925%Initial Dry Differential Pressure <70mbar (1.0 psi) Initial Saturated Pressure drop <125mbar (1.8psi)Technical DataAOP010-055 MODELS COME WITH FLOAT DRAIN & DPI AS STANDARDStated flows are for operation at 100 psi g (7 bar g) with reference to 68°F (20°C), 14.5 psi g (1 bar g), 0% relative water vapor pressure.17181920248263277290Accessory Kits (unless stated otherwise all Differential Pressure Monitors, Gauges and Drains have MAX Operating Pressure 232 psig)1. Obtain the minimum operating pressure and maximum compressed air flow rate at the inlet of the filter.2. Select the correction factor for minimum operating pressure from the CFP table (always round down e.g. for 5.3 bar, use 5 bar correction factor)3. Calculate the minimum filtration capacity: Minimum Filtration Capacity = Compressed Air Flow Rate x CFP4. Using the minimum filtration capacity, select a filter model from the flow rate tables above (filter selected must have a flow rate equal to or greater than the minimum filtration capacity)5. AO models are supplied with a float drain as standard. For pressures of 232 to 290 psi g (16 to 20 bar g ), a manual drain must be used.MUST HAVE Manual Drain -Order "MX" OptionOIL-X Redefined GRADE AOPGrade AO Coalescing Liquids and Particle Removal in Compressed Air or Gaseous Nitrogen"Oil-X Redefined, the unique low energy solution with independently validated performance."Particle Removal down to 0.01 micron Max Remaining Oil Content 0.01mg/m3 delivering Filtration of 99.9999%Initial Dry Differential Pressure <70mbar (1.0 psi) Initial Saturated Pressure drop <125mbar (1.8psi)Technical DataAAP010-055 MODELS COME WITH FLOAT DRAIN & DPI AS STANDARDStated flows are for operation at 100 psi g (7 bar g) with reference to 68°F (20°C), 14.5 psi g (1 bar g), 0% relative water vapor pressure.17181920248263277290Accessory Kits (unless stated otherwise all Differential Pressure Monitors, Gauges and Drains have MAX Operating Pressure 232 psig)1. Obtain the minimum operating pressure and maximum compressed air flow rate at the inlet of the filter.2. Select the correction factor for minimum operating pressure from the CFP table (always round down e.g. for 5.3 bar, use 5 bar correction factor)3. Calculate the minimum filtration capacity: Minimum Filtration Capacity = Compressed Air Flow Rate x CFP4. Using the minimum filtration capacity, select a filter model from the flow rate tables above (filter selected must have a flow rate equal to or greater than the minimum filtration capacity)5. AA models are supplied with a float drain as standard. For pressures of 232 to 290 psi g (16 to 20 bar g ), a manual drain must be used.MUST HAVE Manual Drain -Order "MX" OptionOIL-X Redefined GRADE AAPGrade AA Coalescing Liquids and Particle Removal in Compressed Air or Gaseous Nitrogen"Oil-X Redefined, the unique low energy solution with independently validated performance."Oil Vapour removal down to 0.003 mg/m3Initial Dry Differential Pressure <140mbar (2.0 psi)Technical DataStated flows are for operation at 100 psi g (7 bar g) with reference to 68°F (20°C), 14.5 psi g (1 bar g), 0% relative water vapor pressure.17181920248263277290Accessory Kits (unless stated otherwise all Differential Pressure Monitors, Gauges and Drains have MAX Operating Pressure 232 psig)1. Obtain the minimum operating pressure and maximum compressed air flow rate at the inlet of the filter.2. Select the correction factor for minimum operating pressure from the CFP table (always round down e.g. for 5.3 bar, use 5 bar correction factor)3. Calculate the minimum filtration capacity: Minimum Filtration Capacity = Compressed Air Flow Rate x CFP4. Using the minimum filtration capacity, select a filter model from the flow rate tables above (filter selected must have a flow rate equal to or greater than the minimum filtration capacity)MUST HAVE Manual Drain -Order "MX" OptionOIL-X Redefined GRADE ACSPGrades ACSP Oil Vapor Removal Removal FilterGrades AOP, AAP & ACSP Weights and DimensionsWSP010-055 Water Separator AOP/AAP010-035Filter060 G4"FilterOIL-X RedefinedPage 12 Filter DimensionsFor more information please contact your l oc al sales office or visit www.park e r.c om/gsfParker has a continuous policy of product development and although the company r eserv es the right to changes specifications, it attempts to keep customers informed of any alt er ations.© 2017 Parker Hannifin Corporation. All rights reserved.Catalogue: PISOILX-04-ENParker Hannifin CorporationIndustrial Gas Filtration and G eneration Division4087 Walden AvenueLancaster, NY 14086 phone716 686 6400/gsfYour local authorized Parker distributor。

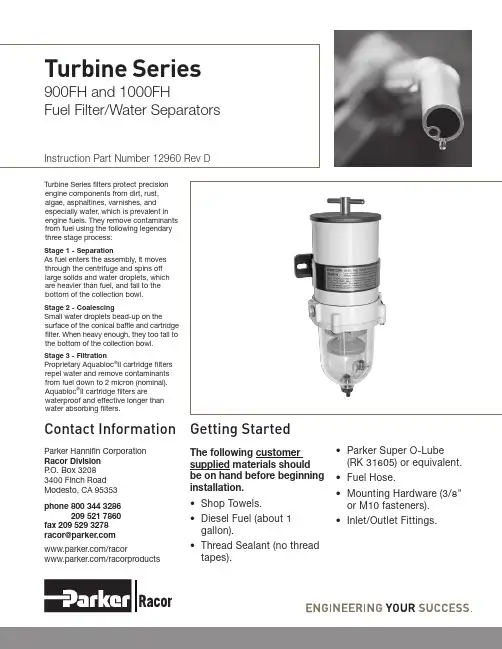

Turbine Series900FH and 1000FHFuel Filter/Water SeparatorsTurbine Series filters protect precision engine components from dirt, rust, algae, asphaltines, varnishes, and especially water, which is prevalent in engine fuels. They remove contaminants from fuel using the following legendary three stage process:Stage 1 - SeparationAs fuel enters the assembly, it moves through the centrifuge and spins off large solids and water droplets, which are heavier than fuel, and fall to the bottom of the collection bowl.Stage 2 - CoalescingSmall water droplets bead-up on thesurface of the conical baffle and cartridge filter. When heavy enough, they too fall to the bottom of the collection bowl.Stage 3 - FiltrationProprietary Aquabloc ®II cartridge filters repel water and remove contaminants from fuel down to 2 micron (nominal). Aquabloc ®II cartridge filters arewaterproof and effective longer than water absorbing filters.Instruction Part Number 12960 Rev DContact Information Parker Hannifin Corporation Racor Division P .O. Box 32083400 Finch Road Modesto, CA 95353phone 800 344 3286209 521 7860fax 209 529 3278****************/racor/racorproductsGetting StartedThe following customersupplied materials shouldbe on hand before beginning installation.Shop Towels.• Diesel Fuel (about 1 • gallon).Thread Sealant (no thread • tapes).Parker Super O-Lube • (RK 31605) or equivalent.Fuel Hose.• Mounting Hardware (3/8"• or M10 fasteners).Inlet/Outlet Fittings.•2Mounting Information90°10°10°VNote: Mount the filter assembly as close to vertical (V) as possible.Do not exceed 10° from vertical or the assembly may not function properly.Note: Fastener size 3/8" (M10) for Mounting brackets.1000FH(27.7 cm)Adjustableby ±2.1 in.5.8 in.900FH13.5 in5.8 in.Installation DiagramValve 1Valve 23Installation InstructionsAdjustable, one-piece clamp-type mounting brackets (with grade 5 fasteners) are included for ensured durability. The 900FH uses one mounting bracket and 1000FH uses two mounting brackets, both can be adjusted for a secure fit.Positioning Filter• I nstall Turbine Series filter on vacuum side of fuel transfer pump for optimum water separating efficiency. Note: See installation diagram.• K eep fuel line restrictions to a minimum. Locate filter assembly between horizontal planes of bottom of fuel tank and inlet of fuel pump, if possible. If filter is installed in an application where the fuel tank is higher than the filter, a shut-off valve must be installed between tank and filter assembly INLET. This will be used when servicing replacement filter.Before Installation• O btain good ventilation and lighting.• M aintain a safe working environment.• T he engine must be off for installation.• D O NOT smoke or allow open flames near the installation.Installing Filter• C ompletely remove any vacuum side filters in fuel line between fuel tank and fuel pump. This is where filter assembly will be mounted. Leaving these filters in place will add to the fuel linerestriction. Filter heads cast into engine, or that are non-removable, or hard pipedshould be serviced with a new filter and left in place.• K eep fuel flow restriction values to a minimum. Always use maximum size fuel hose possible. Do not make sharp bends with flexible fuel hose as kinks may occur. Avoid useof two 45° elbow fittings where one 90° elbow will work.• W hen routing hose, avoidsurfaces that move, have sharp edges, or get hot (such as exhaust piping).Priming Instructions1. R emove T-handle and lid from top of filter.2. F ill filter with clean fuel.3. L ubricate lid gasket andT-handle O-ring with clean fuel or motor oil.4. R eplace lid and T-handle and tighten snugly by hand only - do not use tools .5. I f applicable, refer toequipment Operator’s Service Manual to complete fuel priming procedure.6. S tart engine and check for fuel system leaks. Correct as necessary with engine off and pressure relieved from filter assembly.Draining WaterFrequency of water draining is determined by the contamination level of fuel. Inspect or draincollection bowl of water daily or as necessary. Collection bowl must be drained before contaminants reach the top of the turbine or when Water Detection Module (optional) indicates a drain is required.Vacuum Side Applications1. C lose inlet valve (or valve #1) and open self-venting drain on bottom of bowl.2. C lose drain after all water and contaminants have been evacuated - DO NOT leave drain open too long as it will eventually completely drain entire filter of water AND fuel.3. Follow Priming Instructions .Pressure Side Applications1. O pen self-venting drain on bottom of bowl. Head pressure will push any water and contaminants out of drain while keeping filter primed.2. C lose drain after all water and contaminants have been evacuated - DO NOT leave drain open too long as it will eventually completely drain entire filter of water AND fuel, and possibly drain entire tank.Service Instructions4Frequency of filter replacement is determined by contamination level of fuel. Replace filter every 10,000 miles, every 500 hours, every other oil change, when vacuum gauge (optional) reads between 6 to 10 inches of mercury (inHg), if power loss is noticed, or annually, which ever occurs first. Note - always carry extrareplacement filters as one tankful of excessively dirty fuel can plug a filter.1. B ypass filter assembly with bypass valves, if applicable.2. Remove T-handle and lid.3. R emove filter by holding bailhandles and slowly pullingupward with a twisting motion. Dispose of properly.4. R eplace old lid gasket and T-handle O-ring with newseals (suppled with new filter). Lubricate both seals with clean motor oil or diesel fuel before installation.5. R efer to Priming Instructions otherwise, fill filter with clean fuel, then replace lid andT-handle and tighten snugly by hand only - do not use tools . Note - above ground tanks or transfer pump applications may use head pressure to prime filter.Element ReplacementHeater InformationNote: Heater options are for use with diesel applications only.In-filter heaters are a cold weather starting aid with an internal, non-adjustable automatic thermostat that turns heater ON when fuel temperature drops below 50°F (10°C) and turns OFF when fuel reaches 80°F (27°C). Heat issupplied in the filter assembly just below replacement filter to melt wax crystals and allow fuel to pass through the filter for quick, easy starting.Follow directions to hook up heater wire and leads to your engine.Optional Items1. H eater power demand is 25 amps for 12 vdc and 13 amps for 24 vdc. Due to powerdemands, Racor recommends our relay kit for safest method of installation. Racor offers two relay kits available from your Racor distributor. Part numbers are RK 11861 (for 12 vdc) and RK 11862 (for 24 vdc). These kits include an in-line fuse holder(and fuse). Use a 25 amp fuse with a 12 vdc system and a 15 amp fuse with a 24 vdc system.2. A customer supplied ON-OFFtoggle switch is recommended tocontrol power to the heater relay. (Cuts power to heater for summer use or servicing procedures.) 3. A ll wires should be 14 AWG min.Installation1. E ither heater wire may be used for Hot (+) or Ground (-).2. W ire/terminal connectionsshould be soldered and crimped.3. R un wires in protected locations. Avoid hot surfaces and places that could pinch or rub on wires.RK 11861 and RK 11862 Heater Relay Installation1. E nsure wiring diagram is closelyfollowed and proper safety fuseis used. If fuse should fail, ensure cause is found and correctedprior to using heater again.2. P rime filter assembly with fuelbefore applying power to heater. Note: Never power heater on until fuel is fully primed within filter.3. D uring vehicle or equipmentservicing always ensure powerto heater is shut off to avoidinadvertent heating of fuel in astatic condition.4. A nnualy, or every 12,000 miles,inspect all wiring for wear orunsafe conditions. Inspectheater for proper operation (attemperatures above 85o F, checkCAUTIONcontinuity (with power off)across power and ground wires- current should be open - nocontinuity).5. F or questions or assistance,please call Racor TechnicalSupport at (800) 344-3286 or(209) 521-7860 ext 7555.black 14Inlet Portthe relay 'White 18'wire simply goes to56B AB E FReplacement Parts900FHSpecifications900FH78Replacement Parts1000FHE FSpecifications1000FH910Troubleshootingpower loss, whichever occurs first.For Construction and Agriculturaluse, change filter every 300 hours. Do not over tighten self-tappingcapscrews to avoid stripping outbody threads. After disassembly,start threads by hand prior to usingtools. Tighten to 55-65 in. lbs.back. If unit looses prime, inspectupstream hose connections first,disassemble unit to inspect seal andball. (It is normal to hear a "rattling"sound at any time).Air bubbles or fuel leakageappearing from drain may indicatedrain is not closed completelyor seal has been clogged withcontaminants. Tighten or30-35 in. lbs.drained for any reason, reprimeassembly. Fill to just above topof filter before replacing lid. It isnormal for the fuel level to dropduring use. This is especiallyapparent at filter element change-out.use tools for leverage.SAE O-ring ports should have asmooth angled seat for sealing.Do not scratch this surface. CheckO-ring for damage. Damaged, worn, or dirty seals will allow air ingestion. Inspect and replace all seals as needed. Clean the sealingsurfaces of dirt or debris every time the filter is replaced.If carriage bolt is loose, do notovertighten it as this may distort thebracket position.Heater feed-thru O-ring must notbe damaged or swollen.A plug is installed if the watersensor option is not selected.Tighten to 15-20 in. lbs.The water sensor (if equipped)should activate when watercontacts tips. Air bubbles or fuelleakage appearing from sensormay indicate it is loose or O-ring isdamaged. Tighten to 15-20 in. lbs.Filter Safety ValveDrain water (if present) before itgets to this level. At some time, thecontaminant collection bowl maybecome dirty on the inside. Removethe four bowl ring capscrews anddrop the bowl. Clean the insidewith hot soapy water, dry off andre-install. Ensure bowl gasket iscleaned, and lubricate with siliconegrease prior to reuse.If self-venting drain will notwork when opened, it may beclogged. Cycle the drain (open-close) or attach a hose and brieflyapply air (<2-3 PSI) to dislodgecontaminants.Replace T-handle o-ring and lidgasket with each filter elementreplacement.TroubleshootingNote - Correct external fuel leaks immediately! These conditionswill result in reduced engine performance such as: hard starting, stalling, reduced power, and other associated problems.New filter installations must be filled with fuel and fuel system must be adequately primed followingthe engine manufacturer’s recommendations, if applicable. Existing installation difficulties are usually associated with improper priming procedures or damage to the unit or fuel system. The result is either internal air suction or external fuel leakage. Diagnosis should be in these following steps: 1. C heck fuel tank level and makesure any fuel delivery valves arein open position, as applicable.2. E nsure T-handle, bowl fasteners,and fuel fittings are tight. Alsoverify that bowl drain is closed.3. I f filter is new, check potentialrestriction at fuel tank drawtube. An in-tank strainer may be plugged.Correct Application - It is very important that filter is not ‘under specified’ for the application. The maximum fuel flow rating of filter must not be exceeded and engine manufactures maximum fuel inlet restriction, must not be exceeded. Doing so will reduce efficiency and de-gas (pull air from) fuel.Filter - Replacement filtersare available in 2, 10, and 30 micron ratings. Filtration needs are based on application, fuel quality, maintenance schedules, and operating climates. A simple rule to remember is - the finerthe filtration, the more frequent the filter change. Always carry extra replacement filters withyour equipment as one tankful of excessively contaminated fuel can plug a filter. When clogged to themaximum capacity, filters willhave a brown to black color or tarlike contaminants may be present- this is normal. An appearance ofa multi-colored slime (which mayhave a foul odor) is an indicationof microbiological contamination.This condition must be treatedimmediately.Severe conditions must becorrected by a repair facility.Note - Never operate Racor unitwithout the filter in place - the'filter safety valve' will not exposeoutlet hole on fuel return tube iffilter is removed and fuel will notflow to engine. Instead, punchemergency tab on the top of filterand leave in place. Puncturingemergency tab will bypass allfiltration and send unfiltered fuelto your engine. Service filter assoon as possible to avoid harmfulcontaminants flowing downstreamto engine.Water Sensors - This feature alertsoperator of a high-water condition.The bowl is then drained of waterat earliest convenience. Note - aRacor water detection module isneeded to work with the in-bowlsensor. The unit should activatewhen water reaches sensor tips(and when they measure between47,000 and 100,000 ohms ofresistance, depending on detectionmodule used.) If not, tips may befouled with a coating. Removewater sensor and clean tips with acloth. Run a jumper wire betweentips with ignition ON to test system.Difficulties usually lie in the wireconnections, power source, or anindependent ground.Heaters - In-filter heaters arestarting aids, but may be left onduring cold operations to continueto supply heat. The 300 watt heateris an extremely reliable option,but MUST be powered via a relayswitch due to initial amperagesurge at start-up: 25 amps at 12 vdcand 12.5 amps at 24 vdc. They donot activate unless the fuel is below50°F (10°C) and automaticallydeactivate at 80°F (28°C).Heater Testing - Heaters can onlybe tested when the thermostat isclosed (fuel temperature is below50°F or 10°C). With a ampmeterattached to external wiring, andengine off, amperage shouldincrease when heater is switchedon. (Option - remove heaterand place it in a freezer until thetemperature is under 50°F (10°C).Remove heater and repeat theabove test).All Racor FH filter assembliesare 100% tested to ensure aleak-proof, quality product.Note - Correct external fuelleaks immediately! In the eventdifficulties are experienced withyour filter assembly or a problemappears to prevent the enginefrom running smoothly, refer tothe procedures on the previouspage. Note - Apply Parker SuperO-lube (part number RK 31605)or equivalent to all seals at majorattachment points to maintainintegrity, seal elasticity, to fill smallvoids, and to provide protectionfrom degradation.Perform all checks with engineOFF (and applicable valvesclosed). For replacement parts,refer to the Replacement Partssection of this manual.1112February 2010© Parker Hannifin Corporation All products manufactured or distributed by Racor are subject to the following, and only the following, LIMITED EXPRESS WARRANTIES, and no others: For a period of one (1) year from and after the date of purchase of a new Racor product, Racor warrants and guarantees only to the original purchaser-user that such a product shall be free from defects of materials and workmanship in the manufacturing process. The warranty period for pumps and motors is specifically limited to ninety (90) days from date of purchase. A product claimed to be defective must be returned to the place of purchase. Racor, at its sole option, shall replace the defective product with a comparable new product or repair the defective product. This express warranty shall be inapplicable to any product not properly installed and properly used by the purchaser-user or to any product damaged or impaired by external forces. THIS IS THE EXTENT OF WARRANTIES AVAILABLE ON THIS PRODUCT. RACOR SHALL HAVE NO LIABILITY WHATSOEVER FORCONSEQUENTIAL DAMAGESFLOWING FROM THE USE OF ANY DEFECTIVE PRODUCT OR BY REASON OF THEFAILURE OF ANY PRODUCT. RACOR SPECIFICALLY DISAVOWS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED INCLUDING, WITHOUT LIMITATION, ALL WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE (EXCEPT FOR THOSE WHICH APPLY TO PRODUCT OR PART THEREOF THAT IS USED OR BOUGHT FOR USE PRIMARILY FOR PERSONAL, FAMILY, OR HOUSEHOLDPURPOSES), WARRANTIES OF DESCRIPTION, WARRANTIES OF MERCHANTABILITY, TRADE USAGE ORWARRANTIES OR TRADE USAGE.WarningFailure or improper selectionor improper use of the products and/or systems described herein or related items can cause death,personal injury and property damage. This document and other information from Parker Hannifin Corporation, its subsidiaries and authorized distributors provide productand/or system options for further investigation by users having technical expertise. It is important that you analyze all aspects of your application and review the information concerning the product or system in thecurrent product catalog. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning requirements of the applications are met. The products described herein, including withlimitation, product features, specifications, designs,availability and pricing, are subject to change by Parker Hannifin Corporation and its subsidiaries at any time without notice.The following statement is required pursuant to proposition 65, applicable in the State of California: ‘This product may contain a chemical known to the State of California to cause cancer or reproductive toxicity’.Limited Warranties Statement。

|series of compressed air filters, taking efficiency to a different level.Built on Parker’s worldwide expertise in filtration, the OIL-X range has been developed to ensure consistent outstanding air quality, guaranteed for 12 months, and third-party validated to meet ISO 8573-1.The Parker domnick hunter OIL-X range of die-castcompressed air filters has been designed from the outset to meet the air quality requirements of all editions of ISO8573-1, when validated in accordance with the stringent requirements of ISO12500-1.An efficient and cost effective manufacturingprocess is a major factor in maintaining the profitability and growth of your business. All Parker domnick hunter products are designed to not only minimize the use of compressed air and electrical energy in their operation, but also tosignificantly reduce the operational costs of the compressor by minimizing pressure losses.OIL-X filters incorporate a number of unique and patenteddesign features to minimize differential pressure and provide a filter and element combination where the differential pressure starts low and stays low to maximize energy savings and provide the lowest lifetime costs without compromising air quality.FOCUSED ON EFFIC I ENCYParker domnick hunter OIL-X a new The Parker domnick hunter OIL-X has been developed with a design philosophy of simplicity, compatibility and usability, but above all validated air quality. OIL-X is available in four different variants: water separation, coalescing, dry particulate and oil vapor removal.Features• For the removal of water and oil aerosols,atmospheric dirt and solid particles, rust,pipescale and micro-organisms• Coalescing filter performance tested tothe stringent requirements of ISO12500-1and ISO8573-2• Dry particulate filter performance testedin accordance with the requirements ofISO8573-4• Unique filter elementWith a specialist construction and unique design forreduced air flow velocity, reduced pressure loss,increased dirt holding capacity, and improved efficiencyincluding a 12-month air quality guarantee. Energy efficientmedia - 1.8 psig saturated pressure drop.• Flow management systemSpecially engineered ‘bell mouth’, with 90-degree elbow, flowdistributor and conical flow diffuser, to promote a consistent,optimum air flow, contributing towards maximum efficiency,reduced differential pressure and lower energy consumption. • Differential pressure indicatorIndication of required change out of element.• Filter housingDesigned to allow easy maintenance and elementreplacement, and covered by a 2-year guarantee, for reduceddowntime, service cost and peace of mind.• Flexible connectionsA wide range of port sizes and filter connections, foradded flexibility and time saving.• Epoxy coatingFinished with alocrom corrosion protection and a tough, drypowder epoxy coating for a high quality feel with the reassurance of durability.Your air quality has been guaranteed for 1 year and will be renewed at every annual filter element change.Annual filter element changes ensure:1.8 psig operational differential pressure Validated performance you can rely onBuilt on Parker’s worldwide expertise in filtration, the Parker domnick hunter OIL-X range has been developed to ensure consistent outstanding air quality, guaranteed for 12 months - and third-party validated to meet ISO 8573-1 (the international standard of compressed air quality).Combining the unique filter element with a specially designed advanced air flow management system, the Parker domnick hunter OIL-X range is engineered to not only deliver air quality in accordance with ISO 8573-1 classifications, but it does so with an extremely low differential pressure – ensuring maximum efficiency Combining the unique filter element with a specially designed advanced air flow management system, the Parker domnick hunter OIL-X range is engineered to not only deliver air quality in accordance with ISO 8573-1 classifications, but it does so with the lowest differential pressure on the market-ensuring maximum efficiency One Year Air Quality GuaranteeOIL-X Water Separators Technical DataProduct Selection Stated flows are for operation at 102 psi g (7 bar g) with reference to 68°F (2014.5 psi (1 bar), 0% relative water vapor pressure.WSP010ANFX-US WSP010BNFX WSP010CNFX WSP015CNFX WSP020DNFX WSP025DNFX WSP025ENFX WSP030GNFX WSP035GNFX WSP040HNFX WSP045INFX WSP050INFX WSP055JNFX WSP060KNFX Applying Correction FactorsTo correctly select a filter model, the flow rate of the filter must be adjusted for the minimum operating pressure of the system.• To correctly select a filter model, the flow rate of the filter must be adjusted for the minimum operatingpressure of the system.• Obtain the minimum operating pressure and maximum compressed air flow rate at the inlet of the filter.• Select the correction factor for minimum operating pressure from the CFP table (always round down e.g. for 73.2 psi, use 73 psi correction factor).• Calculate the minimum filtration capacity : Minimum Filtration Capacity = Compressed Air Flow Rate x CFP.• Using the minimum filtration capacity, select a filter model from the flow rate tables above (filter selected must have a flow rate equal to or greater than the minimum filtration capacity.Filtration Grade WSP010-WSP050WSP060Product SelectionAA P 030G N F IWS AO AA ACSGradeFiltration Grade Filter Type Drain Type Min Operating Pressure Max Operating Pressure Min Operating Temperature Max Operating Temperature psi g bar g psi g bar g °F °C °F °C AO/AA Coalescing Float 1512321635217680AO/AA Dry Particulate Manual 15129020352212100ACSOil Vapor RemovalManual1512902035212250Filtration Grade WSAOAAACSFilter TypeBulk Liquid RemovalCoalescing &Dry Particulate Coalescing & Dry ParticulateOil Vapor RemovalParticle Removal (inc water & oil aerosols)N/A Down to 1 micron Down to 0.01 micronN/A Max Remaining Oil Content at 21°C (70°F)N/A 0.5mg/m³0.5 ppm(w)0.01mg/m³0.01 ppm(w)0.003 mg/m³0.003 ppm(w)Filtration Efficiency >92%99.925%99.9999%N/A Test Methods UsedISO8573.9ISO8573.2ISO8573.4ISO12500-1ISO8573.2ISO8573.4ISO12500-1ISO8573.5ISO12500-1 Inlet Challenge ConcentrationN/A 40mg/m³10mg/m³N/AInitial Dry Differential Pressure N/A <1.0psi (70 mbar)<1.0psi (70 mbar)<2.0psi (140 mbar)Initial Saturated Differential PressureN/A <1.8psi (125 mbar)<1.8psi (125 mbar)N/AChange Element Every N/A 12 months 12 monthsWhen Oil Vapor is DetectedPrecede with Filtration GradeN/AWS (for bulk liquid)AOAALine Pressure Correction Factor Pressure (CFP)psi g bar g 151 2.65292 1.87443 1.53584 1.32735 1.18876 1.081007 1.0011680.9413190.88145100.84160110.80174120.76189130.73203140.71218150.68232160.66Manual drain filters only 248170.64263180.62277190.61290200.59Product SelectionStated flows are for operation at 102 psi g (7 bar g) with reference to 68°F (20ºC), 14.5 psi (1 bar), 0% relative water vapor pressure.Applying Corrective Factors• To correctly select a filter model, the flow rate of the filter must be adjusted for the minimum operating pressure of the system.• Obtain the minimum operating pressure and maximum compressed air flow rate at the inlet of the filter .• Select the correction factor for minimum operating pressure from the CFP table (always round down e.g. for 73.2 psi, use 73 psi correction factor).• Calculate the minimum filtration capacity : Minimum Filtration Capacity = Compressed Air Flow Rate x CFP .• Using the minimum filtration capacity, select a filter model from the flow rate tables above (filter selected must have a flow rate equal to or greater than the minimum filtration capacity.ModelPort Conn.Flow RatesReplacementElements scfm L/s m 3/min m 3/hr GRADE P010AN(*)1/4”21100.636P010 GRADE GRADEP010BN(*) 3/8”21100.636P010 GRADE GRADE P010CN(*) 1/2”21100.636P010 GRADE GRADE P015CN(*) 1/2”4220 1.272P015 GRADE GRADE P020CN(*)1/2”6430 1.8108P020 GRADE GRADE P020DN(*) 3/4”6430 1.8108P020 GRADE GRADEP025DN(*) 3/4”12760 3.6216P025 GRADE GRADE P025EN(*)1”12760 3.6216P025 GRADE GRADE P030GN(*) 1-1/2”233110 6.6396P030 GRADE GRADE P035GN(*)1-1/2”3391609.6576P035 GRADE GRADEP040HN(*) 2”46622013.2792P040 GRADE GRADE P045IN(*) 2-1/2”69933019.11188P045 GRADE GRADE P050IN(*) 2-1/2”91143025.91548P050 GRADE GRADE P055IN(*)2-1/2”131462037.32232P055 GRADE GRADE P055JN(*)3”131462037.32232P055 GRADE GRADEP060KN(*)4”2119100060.03600060 GRADE(*) = Replace with (F) when ordering AO/AA coalescing filters, (M) when ordering AO/AA dry particulate filters or (M) when ordering ACS oil vapor removal filters.= Replace with (I) for differential Pressure Indicator . Replace with (X) for no differential pressure indicator.*AO/AA only available with differential pressure indicator (I). WS/ACS only available without differential pressure indicator (X).OIL-X FiltersTechnical DataModel Pipe Size Height (H)Width (W)Depth (D)(a)(b)(c)(d)Weight mm ins mm ins mm ins mm ins mm ins mm ins mm ins kg lbs WS / P010A 1/4”1807.0976 2.9966 2.60154 6.150 1.9732 1.338 1.50.61 1.34WS / P010B 3/8”1807.0976 2.9966 2.60154 6.150 1.9732 1.338 1.50.61 1.34WS / P010C 1/2”1807.0976 2.9966 2.60154 6.150 1.9732 1.338 1.50.61 1.34WS / P015C 1/2”238.59.3689 3.583.5 3.292028.050 1.9732 1.338 1.5 1.16 2.55P020C 1/2”238.59.3689 3.583.5 3.292028.050 1.9732 1.338 1.5 1.12 2.58WS / P020D 3/4”238.59.3689 3.583.5 3.292028.050 1.9732 1.338 1.5 1.12 2.58WS / P020D 3/4”22710.9120 4.72114.5 4.52329.170 2.7632 1.338 1.5 2.21 4.86WS / P025E 1”22710.9120 4.72114.5 4.52329.170 2.7632 1.338 1.5 2.21 4.86WS / P030G 1-1/2”36714.45120 4.72114.5 4.532312.770 2.7632 1.338 1.5 2.68 5.91WS / P035G 1-1/2”53120.9164 6.46156 6.1038415.1100 3.9468 2.6838 1.5 6.9015.20WS / P040G 2”62324.5164 6.46156 6.1047618.7100 3.9468 2.6838 1.57.3016.10WS / P045H 2-1/2”62324.5164 6.46156 6.1047618.7100 3.9468 2.6838 1.57.1015.65WS / P050I 2-1/2”74529.31927.561837.2058723.1120 4.7268 2.6838 1.510.3022.71P055I 2-1/2”93536.81927.561837.2077230.4120 4.7268 2.6838 1.515.3033.73WS / P055J3”93536.81927.561837.2077230.41204.72682.68381.515.3033.73Diagram offilter dimensionsParker Hannifin CorporationIndustrial Gas Filtration and Generation Division 4087 Walden Avenue Lancaster, NY 14086phone 800 343 /igfg© 2018 Parker Hannifin Corporation. Product names are trademarks or registered trademarks of their respective companies BRO_OIL-X_102018North AmericaCompressed Air TreatmentIndustrial Gas Filtration and Generation DivisionLancaster, NY 716 686 6400/igfg Haverhill, MA 978 858 0505/igfgEngine FiltrationRacorModesto, CA 209 521 7860/racor Holly Springs, MS 662 252 2656/racorHydraulic FiltrationHydraulic & Fuel FiltrationMetamora, OH 419 644 4311/hydraulicfilter Laval, QC Canada 450 629 9594 VelconColorado Springs, CO 719 531 5855 Process Filtrationdomnick hunter Process Filtration SciLogOxnard, CA 805 604 3400/processfiltrationWater PurificationVillage Marine, Sea Recovery, Horizon Reverse OsmosisCarson, CA 310 637 3400/watermakersEuropeCompressed Air Treatmentdomnick hunter Filtration & SeparationGateshead, England +44 (0) 191 402 9000 /dhfnsParker Gas SeparationsEtten-Leur, Netherlands +31 76 508 5300/dhfnsHiross AirtekEssen, Germany +49 2054 9340/hzfd Padova, Italy+39 049 9712 111 /hzfdEngine Filtration & Water PurificationRacorDewsbury, England +44 (0) 1924 487 000 /rfdeRacor Research & DevelopmentStuttgart, Germany +49 (0)711 7071 290-10Hydraulic FiltrationHydraulic FilterArnhem, Holland +31 26 3760376/hfde Urjala, Finland +358 20 753 2500Condition Monitoring Parker KittiwakeWest Sussex, England +44 (0) 1903 731 470 Process Filtrationdomnick hunter Process Filtration Parker Twin Filter BVBirtley, England+44 (0) 191 410 5121/processfiltrationAsia PacificAustraliaCastle Hill, Australia +61 2 9634 7777/australiaChinaShanghai, China +86 21 5031 2525 /chinaIndiaChennai, India +91 22 4391 0700 /indiaParker FowlerBangalore, India +91 80 2783 6794JapanTokyo, Japan +81 45 870 1522/japanKoreaHwaseon-City +82 31 359 0852/koreaSingaporeJurong Town, Singapore +65 6887 6300/singaporeThailandBangkok, Thailand +66 2186 7000/thailandLatin AmericaParker Comercio Ltda. Filtration DivisionSao Paulo, Brazil +55 12 4009 3500 /brPan American DivisionMiami, FL 305 470 8800/panamAfricaAeroport Kempton Park, South Africa +27 11 9610700/africaWorldwide Filtration Manufacturing Locations。

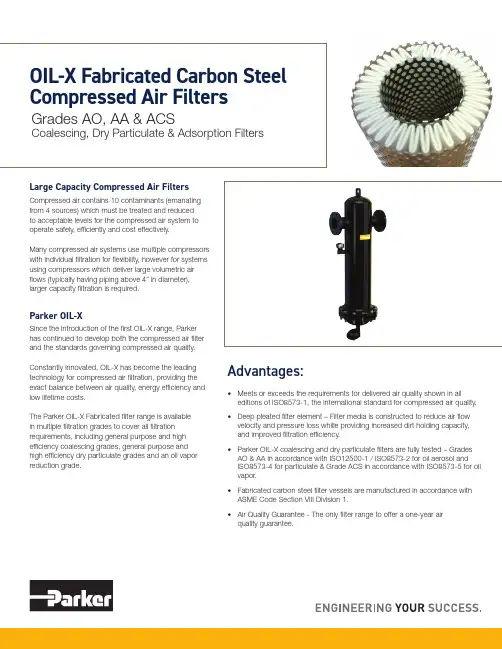

Compressed air contains 10 contaminants (emanating from 4 sources) which must be treated and reduced to acceptable levels for the compressed air system to operate safely, efficiently and cost effectively.Many compressed air systems use multiple compressors with individual filtration for flexibility, however for systems using compressors which deliver large volumetric air flows (typically having piping above 4” in diameter), larger capacity filtration is required.Since the introduction of the first OIL-X range, Parker has continued to develop both the compressed air filter and the standards governing compressed air quality.Constantly innovated, OIL-X has become the leading technology for compressed air filtration, providing the exact balance between air quality, energy efficiency and low lifetime costs.The Parker OIL-X Fabricated filter range is available in multiple filtration grades to cover all filtration requirements, including general purpose and high efficiency coalescing grades, general purpose and high efficiency dry particulate grades and an oil vapor reduction grade.Advantages:• Meets or exceeds the requirements for delivered air quality shown in all editions of ISO8573-1, the international standard for compressed air quality.• Deep pleated filter element – Filter media is constructed to reduce air flow velocity and pressure loss whille providing increased dirt holding capacity, and improved filtration efficiency.• Parker OIL-X coalescing and dry particulate filters are fully tested – Grades AO & AA in accordance with ISO12500-1 / ISO8573-2 for oil aerosol and ISO8573-4 for particulate & Grade ACS in accordance with ISO8573-5 for oil vapor.• Fabricated carbon steel filter vessels are manufactured in accordance with ASME Code Section VIII Division 1.• Air Quality Guarantee - The only filter range to offer a one-year air quality guarantee.OIL-X Fabricated Carbon Steel Compressed Air FiltersGrades AO, AA & ACSCoalescing, Dry Particulate & Adsorption FiltersLarge Capacity Compressed Air FiltersParker OIL-XPKR_PIS_NA_DHASME150-500AO-AA-ACS_082022© 2022 Parker Hannifin CorporationParker Hannifin Corporation Industrial Gas Filtration and Generation Division 4087 Walden Avenue Lancaster, NY 14086phone 800 343 /igfg2. Grade AA tested in accordance with ISO8573-2, ISO8573-4, and ISO12500-1. ISO12500-1 Inlet Challenge Concentration for Grade AA was 10 mg of oil aerosol per cubic meter of compressed air .3. Grades ACS tested in accordance with ISO8573-5. ISO12500-1 Inlet Challenge Concentration for Grade ACS was 40.018 mg of oil vapor per cubic meter of compressed air .4. Grade ACS in-line filter elements utilize a deep wrapped bed of carbon cloth to adsorb oil vapor and require more frequent changeouts than in-line coalescing and particulate elements. Should a 12-month service period be required, Parker OIL-X Grade OVR oil vapor reduction filters are recommended.Product Selection2. Replace [X] with “M” for filter to be fitted with manual drain OR “F” for filter to be fitted with float drain.3. Replace [Y] “X” for no differential pressure gauge OR “I” for filter to be fitted with differential pressure gauge.To correctly select a filter model, the flow rate of the filter must be adjusted for the minimum operating (inlet) pressure at the point of installation.1. Obtain the minimum operating (inlet) pressure and maximum compressed air flow rate at the inlet of the filter.2. Select the correction factor for minimum inlet pressure from the CFMIP table (always round down e.g., for 77 psi g (5.3 bar g), use 73 psi g (5 bar g) correction factor .3. Calculate the minimum filtration capacity. Minimum Filtration Capacity = Compressed Air Flow Rate x CFMIP4. Using the minimum filtration capacity, select a filter model from the flow rate tables above (filter selected must have a flow rate equal to or greater than the minimum filtration capacity).Weights and Dimensions1. Weights and dimensions shown for all models are approximate. Parker reserves the right to make changes without notification. Consult factory for general arrangement drawings.2. Weight and dimensions are for the vessels only. Height stated in table above does not consider the height of the drain fitted to the drain port.。

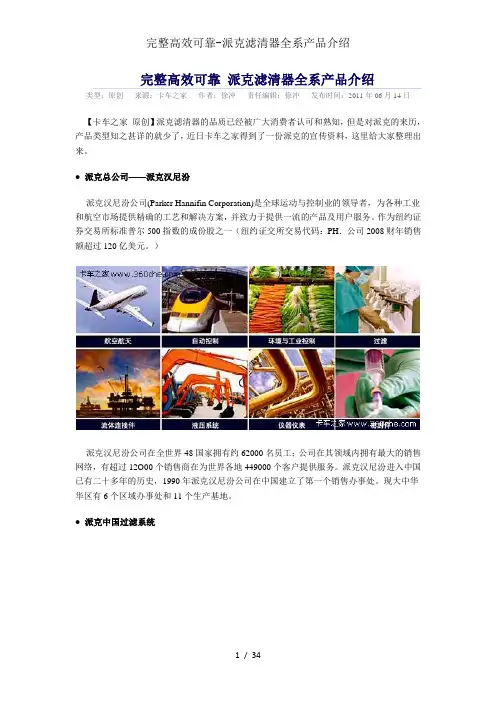

完整高效可靠派克滤清器全系产品介绍类型：原创来源：卡车之家作者：徐冲责任编辑：徐冲发布时间：2011年06月14日【卡车之家原创】派克滤清器的品质已经被广大消费者认可和熟知，但是对派克的来历，产品类型知之甚详的就少了，近日卡车之家得到了一份派克的宣传资料，这里给大家整理出来。

●派克总公司——派克汉尼汾派克汉尼汾公司(Parker Hannifin Corporation)是全球运动与控制业的领导者，为各种工业和航空市场提供精确的工艺和解决方案，并致力于提供一流的产品及用户服务。

作为纽约证券交易所标准普尔500指数的成份股之一（纽约证交所交易代码：PH．公司2008财年销售额超过120亿美元。

）派克汉尼汾公司在全世界48国家拥有约62000名员工；公司在其领域内拥有最大的销售网络，有超过12O00个销售商在为世界各地449000个客户提供服务。

派克汉尼汾进入中国已有二十多年的历史，1990年派克汉尼汾公司在中国建立了第一个销售办事处。

现大中华华区有6个区域办事处和11个生产基地。

●派克中国过滤系统为适应派克中国过滤系统业务的快速发展，派克公司于2008年9月在上海浦东金桥南加工区新建过滤系统基地．派克中国过滤系统占地18OOO平方米，主要生产Rocor晶牌柴油过滤器，domnick hunter品牌压缩空气过滤器和冷干机及液压系统过滤。

派克过滤生产基地组织分布图●选择派克的理由为什么选派克？派克过滤器衡量自己的成功是基于为客户做了什么。

我们持之以恒地致力于提高您的产品和工艺，不论您的产品用于何种场合，我们为您产品的应用提供我们的专业知识。

是什么在驱动我们这样做呢？让我们简单点表达：我们希望为您的过滤需求设计和提供最好的解决方案．这会使悠的产品更好，工艺更完美，给您带来更多的商机。

我们通过更干净，更迅捷，更巧妙，更安全，更精致的新颖和有效的方式为社会产生价值，在每一个行业，每一个地方，我们都是严格以此为目标。

派克滤芯参数简介派克滤芯是一种用于过滤液体或气体的设备，常用于工业生产、实验室和家用应用中。

滤芯的参数是评估其性能和适用范围的重要指标。

本文将介绍派克滤芯的常见参数及其意义，帮助读者更好地了解和选择适合自己需求的滤芯。

1. 滤芯材质滤芯材质是滤芯的基本组成部分，直接影响滤芯的过滤效果和耐久性。

常见的滤芯材质包括聚丙烯、聚酯、玻璃纤维等。

不同材质适用于不同的过滤介质和工作环境，选择合适的材质可以提高滤芯的效率和寿命。

2. 过滤精度过滤精度是指滤芯能够有效过滤的颗粒或微生物的大小范围。

常见的过滤精度单位有微米（μm）和纳米（nm）。

过滤精度越小，滤芯能够过滤的颗粒或微生物越小，过滤效果越好。

选择合适的过滤精度可以满足不同应用场景的需求。

3. 最大工作温度和压力滤芯的最大工作温度和压力是指滤芯能够安全工作的最高温度和压力。

超过最大工作温度和压力可能导致滤芯失效或损坏。

在选择滤芯时，需要根据实际工作条件确保滤芯的最大工作温度和压力能够满足要求。

4. 流量滤芯的流量是指单位时间内通过滤芯的液体或气体的体积。

流量与滤芯的尺寸、结构和材质等因素有关。

选择合适的流量可以确保滤芯的过滤效果和工作效率。

5. 使用寿命滤芯的使用寿命是指滤芯能够持续有效工作的时间。

使用寿命与滤芯的材质、过滤介质和工作环境等因素有关。

滤芯的使用寿命一般通过实验或经验确定，选择具有较长使用寿命的滤芯可以减少更换频率和成本。

6. 应用领域派克滤芯适用于多种领域，如工业生产、实验室、医疗等。

不同的应用领域对滤芯的要求不同，需要根据具体应用场景选择合适的滤芯。

常见的应用领域包括水处理、食品加工、药品制造等。

7. 其他参数除了上述常见参数外，派克滤芯还有一些其他参数需要考虑，如耐化学腐蚀性、阻力损失、易清洗性等。

这些参数根据具体需求可能会有所不同，需要根据实际情况进行选择和权衡。

选择滤芯的注意事项在选择派克滤芯时，需要根据实际需求和使用环境综合考虑各项参数。

OIL-X IP5050 bar Compressed Air FiltersGrade WS Water SeparatorsGrade AO General Purpose & Grade AA High Effi ciency Coalescing & Dry Particulate FiltersGrade ACS Oil Vapour Reduction Filters (1/4” ~ 2”)Intermediate Pressure Compressed Air FiltersCompressed air contains 10contaminants (eminating from 4 sources) which must be treated and reduced to acceptable levels for the compressed air system to operate safely, effi ciently and cost effectively.Most industrial compressed air applications operate at pressures around 7, 10 or 13 bar g and purifi cation equipment is typically designed around these operating pressures. There are however, applications that require higher operating pressures (which also leads to increased concentration of many contaminants).Parker domnick hunter OIL-X IP50 Intermediate Pressure FiltersSince the introduction of the fi rst OIL-X range, Parker domnick hunter has continued to develop both the compressed air fi lter and the standards governing compressed air quality.Constantly innovated, OIL-X has become the leading technology for compressed air fi ltration, providing the exact balance between air quality, energy effi ciency and low lifetime costs.The Parker domnick hunter OIL-X IP50 Intermediate Pressure fi lter range is available in multiple fi ltration grades to cover all fi ltration requirements, including water separators, general purpose and high effi ciency coalescing grades, general purpose and high effi ciency dry particulate grades and an oil vapourreduction grade.Advantages• Meets or exceeds the requirements for delivered air quality shown in all editions of ISO8573-1, the international standard for compressed air quality•Pleated fi lter element – Coalescing & Dry Particulate fi lter media is constructed to reduce air fl ow velocity and pressure loss whilst providing increased dirt holding capacity, and improved fi ltration effi ciency •Parker OIL-X coalescing and dry particulate fi lters are fully tested – Grades AO & AA in accordance with ISO12500-1 / ISO8573-2 for oil aerosol and ISO8573-4 for particulate & Grade ACS in ccordance with ISO8573-5 for oil vapour •Ideally suited for Food / Beverage / Pharmaceutical / P .E.T. applications - FDA Title 21 compliance - EC1935/2004 Exempt• Air Quality Guarantee - The only fi lter range to offer a one year air quality guarantee•Housing Guarantee - 10 year guarantee on fi lter housingsTo correctly select a filter model, the flow rate of the filter must be adjusted for the minimum operating (inlet) pressure at the point of installation.1. Obtain the minimum operating (inlet) pressure and maximum compressed air flow rate at the inlet of the filter .2. Select the correction factor for minimum inlet pressure from the CFMIP table (always round down e.g. for 33 bar , use 30 bar correction factor)3. Calculate the minimum filtration capacity. Minimum Filtration Capacity = Compressed Air Flow Rate x CFMIP4. Using the minimum filtration capacity, select a filter model from the flow rate tables above (filter selected must have a flow rate equal to or greater than the minimum filtration capacity).Stated flows are for operation at 50 bar (g) (725 psi g) with reference to 20°C, 1 bar (a), 0% relative water vapour pressure. For flows at other pressures, apply the correction factors shown below.Product Selection & Correction Factors= Replace with drain type - F (Automatic) for WS water separator and AO & AA coalescing filters or M (manual) for AO & AA dry particulate and ACS oil vapour reduction filters.100 mm(4")©2019 Parker Hannifin Corporation. All rights reserved.PISOILXIP50AOAAACS-01-ENEMEA Product Information Centre Free phone: 00 800 27 27 5374(from AT , BE, CH, CZ, DE, DK, EE, ES, FI, FR, IE, IL, IS, IT , LU, MT , NL, NO, PL, PT , RU, SE, SK, UK, ZA) US Product Information Centre Toll-free number: 1-800-27 27 537/gsfeEurope, Middle East, AfricaAE – United Arab Emirates, DubaiTel: +971 4 8127100 ********************AT – Austria, St. Florian Tel: +43 (0)7224 66201 *************************AZ – Azerbaijan, Baku Tel: +994 50 2233 458****************************BE/NL/LU – Benelux, Hendrik Ido Ambacht Tel: +31 (0)541 585 000 ********************BG – Bulgaria, Sofia Tel: +359 2 980 1344**************************BY – Belarus, Minsk Tel: +48 (0)22 573 24 00 ************************CH – Switzerland, Etoy Tel: +41 (0)21 821 87 00*****************************CZ – Czech Republic, Klecany Tel: +420 284 083 111*******************************DE – Germany, Kaarst Tel: +49 (0)2131 4016 0*************************DK – Denmark, Ballerup Tel: +45 43 56 04 00*************************ES – Spain, Madrid Tel: +34 902 330 001 ***********************FI – Finland, Vantaa Tel: +358 (0)20 753 2500 *************************FR – France, Contamine s/Arve Tel: +33 (0)4 50 25 80 25 ************************GR – Greece, Piraeus Tel: +30 210 933 6450 ************************HU – Hungary, Budaörs Tel: +36 23 885 470*************************IE – Ireland, Dublin Tel: +353 (0)1 466 6370 *************************IL – IsraelTel: +39 02 45 19 21************************IT – Italy, Corsico (MI) Tel: +39 02 45 19 21 ***********************KZ – Kazakhstan, Almaty Tel: +7 7273 561 000****************************NO – Norway, Asker Tel: +47 66 75 34 00************************PL – Poland, Warsaw Tel: +48 (0)22 573 24 00 ************************PT – PortugalTel: +351 22 999 7360**************************RO – Romania, Bucharest Tel: +40 21 252 1382*************************RU – Russia, Moscow Tel: +7 495 645-2156************************SE – Sweden, Spånga Tel: +46 (0)8 59 79 50 00 ************************SK – Slovakia, Banská Bystrica Tel: +421 484 162 252**************************SL – Slovenia, Novo Mesto Tel: +386 7 337 6650**************************TR – Turkey, Istanbul Tel: +90 216 4997081 ************************UA – Ukraine, Kiev Tel: +48 (0)22 573 24 00 ************************UK – United Kingdom, Warwick Tel: +44 (0)1926 317 878 ********************ZA – South Africa, Kempton Park Tel: +27 (0)11 961 0700*****************************Parker WorldwideNorth AmericaCA – Canada, Milton, Ontario Tel: +1 905 693 3000US – USA, Cleveland Tel: +1 216 896 3000Asia PacificAU – Australia, Castle Hill Tel: +61 (0)2-9634 7777CN – China, Shanghai Tel: +86 21 2899 5000HK – Hong Kong Tel: +852 2428 8008IN – India, MumbaiTel: +91 22 6513 7081-85JP – Japan, Tokyo Tel: +81 (0)3 6408 3901KR – South Korea, Seoul Tel: +82 2 559 0400MY – Malaysia, Shah Alam Tel: +60 3 7849 0800NZ – New Zealand, Mt Wellington Tel: +64 9 574 1744SG – Singapore Tel: +65 6887 6300TH – Thailand, Bangkok Tel: +662 186 7000TW – Taiwan, Taipei Tel: +886 2 2298 8987South AmericaAR – Argentina, Buenos Aires Tel: +54 3327 44 4129BR – Brazil, Sao Jose dos Campos Tel: +55 800 727 5374 CL – Chile, Santiago Tel: +56 2 623 1216MX – Mexico, Toluca Tel: +52 72 2275 4200。

ParkerEPF系列过滤器万星耀科技（深圳）有限公司成立于2009年3月，是世界500强企业Parker Hannifin的国内重要分销商，主要代理Parker 的液压元件、液压成套、流体连接件、密封件以及过滤设备等自动化和过程控制产品，且拥有丰富的液压系统测试、调试和加工能力。

我们提供的服务∙性能可靠、种类齐全的parker流体传动产品∙完善、安心的售后与现场服务∙优质、专业的技术咨询服务派克EPF iprotect® 系列（生态高压过滤器）是一种紧凑、经济高效的高压过滤器，旨在为液压系统提供高质量的过滤，通过提高生产率和盈利能力，为客户降低拥有成本提供了新的可能性。

EPF iprotect® 系列产品的设计中采用了激进的创新方法，适用于在工作压力450 bar时流量最高700 l/min 的场合。

滤芯的新型专利设计采用集成的旁通阀以及安装在滤杯内的可重复使用的滤芯芯核。

由于没有遗忘安装可重复使用部件的风险，这使该产品的操作非常简单。

该系列过滤器需要更少的空间，使派克能为客户提供更加紧凑的解决方案。

其独有的特征是在更换滤芯时，滤芯留在滤杯的内部。

这与传统的高压过滤器相比，能够节省超过500 mm的空间典型应用• 行走机械液压系统• 移动驱动系统• 先导过滤• 伺服控制• 逆流阀应用• 工业液压系统• 控制系统技术规格:流动效率（LPM)：0-250 lpm安装形式：管路压力等级(BAR)：>207 bar壳体材料：铁/钢温度范围（C)：-40 / +100, -20 / +120公司秉承“以人为本，以德治业，诚信守用，互惠双赢”的经营理念，坚持“以客户为中心，以市场为向导，以质量求发展，以服务求市场”的经营方针，用性能可靠的优质产品，专业的工程技术，优秀的销售团队，完善的售后服务，坚持实施品牌战略和客户满意工程，在行业内外树立了良好的信誉。

详情可查：。

Parker’s continued focus on process optimization and control has led to the development of a new range of prefilters for the clarification and pre-stabilization stages of wine processing and packaging.The control of particulate and microbial loading is important to provide stability to wine during storage and transport and to ensure that the finished product maintains and develops its desirable characteristics after packaging.Parker’s next generation of PREPOR NG filters have been developed to remove yeast and reduce bacterial loading to improve short-term stability and to increase theservice life of downstream membrane filters. The robust componentry allows for caustic and backwash regeneration, making the filter stage a reliable and cost-effective solution to intermediate stabilization.FeaturesPerformance CharacteristicsBenefitsFiltration StageFully validated yeast removal and bacterial reduction Truly optimized graded density using unique Optimized Depth Construction (ODC) TechnologyMechanically strong and chemically resistant polypropylene construction designed for chemical CIP and backwashEffective control of clarity and microbial stability Increased filtration capacityIncreased service life when combined with regular CIP regenerationD i f f e r e n t i a l P r e s s u r e (m b a r )D i f f e r e n t i a l P r e s s u r e (p s i )PREPOR NG WineFilter Cartridges30025020015010050Flow (L / min) for liquid @ 20 °C and 1 cp 10¨moduleSpecificationsMaterials of Construction■Filtration Media: Polypropylene■Upstream Support: Polypropylene■Downstream Support: Polypropylene■Inner Support Core: Polypropylene■Outer Protection Cage: Polypropylene■End Caps: Polypropylene■End Cap Insert: 316L Stainless Steel ■O-rings: Silicone / EPDMFood Contact ComplianceMaterials conform to the relevant requirements of FDA 21 CFR Part177, current EC1935 / 2004 and current USP Plastics Class VI - 121 °C.Recommended Operating Conditions Up to 70 °C (158 °F) continuous operating temperature and higher short-term temperatures during CIP to the following limits:Effective Filtration Area (EFA)10¨ (250 mm) Up to 0.5 m2 (5.38 ft2)Cleaning and SterilizationPREPOR NG cartridges can be repeatedly steam sterilized in-situ or autoclaved up to 135 °C (275 °F). They can be sanitized with hot water up to 90 °C (194 °F), are compatible with a wide range of chemicals and can be backwashed. Please refer to our Clean-in-Place Support Guide or contact your local Parker representative for more information.Retention CharacteristicsThe absolute retention characteristics of PREPOR NG filters have been validated by challenges performed with the following organisms.Each filter cartridge displays the productname, product code and lot number.Additionally, each module displays a uniqueserial number providing full manufacturingtraceability.Performance BenefitsODC technology combines fine particleretention with increased strength andstability to enhance the performanceoffered by the PREPOR range.Temperature Max Forward dP°C °F (bar) (psi)20 68 5.0 72.540 104 4.0 58.060 140 3.0 43.580 176 2.0 29.090 194 1.0 14.5>100 (steam) >212 (steam) 0.3 4.0PNG AN--Code | Length (Nominal)Code | Micron Code | End Cap (10 inch)Code | O-ringsDS_W_01_01/23 Rev. 1C/foodandbeverage%VolumeThroughputOrganism LRV when challenged with aminimum of 107 cfu per cm2A B DSaccharomyces cerevisiae FR FR FRBrettanomyces bruxellensis FR FR FROenococcus oenos 4.0 3.0 1.0Acetobacter oeni 2.0 2.0 1.7Serratia marcescens 3.9 3.4 1.9*FR - Fully retentive during challengeWhen expressed as titre reduction “FR” equates to>107 per 10¨module.Ordering informationPREPOR NGWinePHP & PHLHOUSING RANGEAVAILABLEParker has a continuous policy of product development and although the Company reserves the right to change specifications, it attempts to keep customers informed of any alterations.This publication is for general information only and customers are requested to contact our Sales Department for detailed information and advice on a products suitability for specific applications.All products are sold subject to the company’s standard conditions of sale.。

Background:Original equipment manufacturers are very concerned with ensuring efficient removal of undesirable contaminates and producing consistent trouble free operation of their equipment. In addi-tion, there is a growing trend towards developing and producing smaller, more portable devices that perform similarly to larger predecessor de-signs.Features and benefits:• C ompletely disposable,constructed of recyclable plasticsDisposable Filter Units for Critical Medical DevicesMarket Application PublicationContact Information:Parker Hannifin Corporation Industrial Gas Filtration and Generation Division 4087 Walden ncaster, NY 14086phone 716 646 6400 or 800 343 4048 fax 877 857 /igfg• P revent cross-contamination of samples • P ressure ratings up to 125 psig • Temperature to 275°F (135°C)Application:One very popular application for miniature filtration is in oxygen concentrators used to produce high purity oxygen for respiratory patients. These devices can be large units with castors however the growing trend in this industry is to provide more mobility for the patient and therefore smaller more portable designs are being developed. All of these de-vices require a pump mechanism (small com-pressor or diaphragm pump) to pull ambient air into the oxygen separation modules. High efficiency filtration is required to protect the pump from damaging contamination and in some systems filtration is required to protect the patient from contaminates.Requirements for filtration range so widely that specifying a filter is best done on a case by case basis.Parker Balston has a wide range of standard catalog products that have been developed over time to accommodate most typical appli-cations. In the event standard catalog product is not adaptable to the specific instrument, Parker Balston has the ability to develop prod-uct that meets exactly the requirements forfit, form and function. With over 3000 product models and a team of highly experienceddesign engineers, Parker Balston can provide a solution to the most demanding concentrator applications.Case Study:A major medical device manufacturer offers a wide array of oxygen concentrators. This par-ticular concentrator is designed specifically for offering respiratory patients daily mobility. This concentrator is designed to offer a com-plete self-contained system that produces a consistent supply of high purity oxygen to patient. It contains a small pump, oxygen scrubber module and battery power pack. In addition, two miniature, high efficiency filters are included in the design to protect the pump from damaging contamination. This filtration ensures long term, trouble free operation. This enables the manufacturer to market this device as a high end, top quality concentrator offering reliable and consistent output of criti-cal oxygen supply.Parker Balston worked closely with this manufacturer in developing a specializeddisposable filter unit to protect the internal pump from ambient contamination. Critical design features included quick disconnec-tions, specific length and diameter param-eters and high filtration efficiency coupled with long filter life.In a very short period of time prototypes were produced, samples from production runs were tested and approved and now every monitor is shipped with two of these custom disposable filter units.The manufacturer has not only realized trouble free operation (reduced service calls and warranty claims) but also enjoys significant aftermarket revenue and profits on the resale of the filter units.Models 9922-05, 9933-05, 4433-05 and 9900-05The 99XX-05 models are the smallest Disposable Filter Units with 11.7 ml internal volume. These models are used in low flow gas or liquid sam-pling applications, such as liquids to specific-ion analyzers or gases to personal samplers. The model 9900-05-BK has a color indicating feature, which turns the cartridge red when saturated with oil. The model 4433-05 has 1/4” and 3/8” Barb Connections molded into the inlet/outlet ports.Models 9922-11, 9933-11, and 8800-12Models 9922-11, 9933-11, and 8800-12 are used for applications similar to the smaller DFUs (Models 9922-05 and 9933-05) which require greater solids holding capacity and can tolerate the increased retention time.Model 8833-11These Disposable Filter Units are used as continuous coalescing filters with a third port serving as the drain, slip-stream, or by-pass port.Model 9953-11This model snaps together for easy filter cartridge changeouts. It is designed primarily for low pressure or mild vacuum applications. It is ideal for capturing samples and perform analysis or record weights over time. If used with a X-tube, it is a very effective silencer to compress inlets.Parker Hannifin offers a manual drain valve for removal of coalesced liquids from the Type 8833-11-DX. Drain Valve: 1/8” NPT (male) x 1/8” ID Tubing. (Requires elbow part No. 11972). Part No. 20-125Invacare O2Portable DeviceModel 99XX-051” 3.28”Model 4433-051”3.43”Model 9953-111.22” 3.57”Model 9922-11 1.4” 4.6”Model 8833-111.4” 4.6”Model 8800-122.24”6.24”Chemical Compatibility Models 9922-05, 9922-11, 8833-11, and 8800-12Suitable: Water or steam to 200°F (135°C); concentrated nitric, sulfuric, and hydrochloric acids; chlorine (gas or liquid); sodium hypochlorite,ethylene oxide (gas or liquid); Freons; ammonia (gas, liquid, or aqueous solutions); hydrogen peroxide (all concentrations); bromine (dry and aqueous solutions); all chlorinated solvents except methylene chloride; all aromatic and aliphatic solvents; all alcohols and glycols; aniline; phenol.Limited Use: Acetone, MEK, dioxane, furfural, methylene chloride.Unsuitable: Water above 200°F (135°C), THF, DMF, ethylene diamine, chlorosulfonic acid, ethanolamine, pyridine, sulfur trioxideChemical Compatibility Model 9933-11Suitable: Water to 158°F (70°C); benzene, toluene, other aromatic hydrocarbons; hydrocarbon solvents and fuels, perchloroethylene; trichloroethyl-ene, nitric acid (to 10%); sulfuric acid (to 40%); hydrochloric acid (to 10%); most salt solutions; sodium and potassium hydroxide (to 50%).Limited Use: Water at 176°F (80°C); acetone; MEK, acetaldehyde; ammonia (to 25%).Unsuitable: Water above 158°F (70°C); alcohols; glycols, phenol; aniline; DMF; concentrated acids; chlorine.Model9922-05 9900-05 4433-05 9933-05 9922-11 9933-11 8833-11 8800-129953-11Inlet and Outlet Ports 1/4” Tubing 1/4” Tubing 1st Tier/Barb 1/4”Tube 1/4” Tubing 1/4” Tubing 1/4” Tubing 1/4” Tubing 1/2” Tubing0.32” OD2nd Tier/Barb 3/8”Tube DrainNone None None None None None 1/4” Tubing None None Material of Construction PVDF Nylon Nylon Nylon PVDF Nylon Nylon Nylon Polypropylene Filter Cartridge Length1.25” (3.2 cm)1.25” (3.2 cm)1.25” (3.2cm) 1.25” (3.2 cm)2.25” (5.7 cm) 2.25” (5.7 cm) 2.25” (5.7 cm) 2.25” (5.7 cm) 2.28” (6.35 cm)Maximum Temperature (2) 275°F (135°C) 230°F (110°C) 230°F (110°C) 230°F (110°C) 275°F (135°C) 230°F (110°C) 230°F (110°C) 150°F (66°C) 125°F (52°C)Maximum Pressure (3) 125 psig125 psig125 psig125 psig 125 psig125 psig125 psig50 psi (5)2 psiDimensions 1.0”D X 3.25”L 1.0”D X 3.25”L 1.0”D X 3.43”L 1.0”D X 3.25”L 1.4”D X 4.6”L 1.4”D X 4.6”L 1.4”D X 4.6”L 2.24”D X 6.24”L 1.22”D X 3.57”L(2.5 cm X 8 cm) (2.5 cm X 8 cm) (2.5 cm X 8.72 cm) (2.5 cm X 8 cm)(3.6 cm X 12 cm) (3.6 cm X 12 cm) (3.6 cm X 12 cm) (5.69 cm X 15.85 cm) (3.1 cm X 9.07 cm)Principal SpecificationsDFU Model Volume of Housing Initial Pressure Grade Grade Grade Grade GradeGallons LitersDrop DQ, DX CQ, CX BQ, BX AQ AAQ 9922-05 0.003 0.011 psi 12 103 1.5 0.4 4433-055 psi 30 25 15 7.3 1.9 9933-05 9922-11 0.0005 0.02 1 psi 18 15 5 2.5 0.6 9933-11 5 psi 45 37 26 12 3.18800-12 1 psi 54 44 13 6 1.45 psi12910656266.5Model2 psig 20 psig 40 psig 60 psig 80 psig 100 psig 125 psig 9953-11-DX, 8833-11-DX (1) 1.8 3.6 5.8 8.0 10.0 12.0 14.69953-11-BX, 8833-11-BX (1)0.91.82.94.05.06.07.39900-05-B K , 4433-05-BX 0.4 0.8 1.3 1.8 2.2 2.7 3.3Flow Rates2 At 0 psig3 At 110°F (43°C)Notes:1 Maximum Pressure2 psiWater Flow Rate, Gallons per HourAir Flow at 2 psi drop, standard, cu. ft. per min. (SCFM) at indicated line pressure.MAP DFU for Medical Devices-A March 2018© 2010, 2018 Parker Hannifin Corporation Parker Hannifin CorporationIndustrial Gas Filtration and Generation Division 4087 Walden ncaster, NY 14086phone 716 686 6400 or 800 343 4048fax 877 857 /igfgModel9922-05 9900-05 4433-05 9933-05 9922-11 9933-11 8833-11 8800-129953-11Box of 10 DFUs 9922-05- (4) 9900-05- (4) 4433-05- (4) 9933-05- (4) 9922-11- (5) 9933-11- (5) 8833-11- (6) 8800-12- box of 1 (5) 9953-11- (5) Available only in Q-grades Box 10 DAU’S (3)9922-05-N/A4433-05-9933-05-9922-11-9933-11-N/AN/AN/AOrdering InformationFor assistance, call 1-800-343-4048, 8AM to 5PM ESTNotes:3 To designate adsorbent in the DAU, insert adsorbent numbers after DAU designation.For example, to obtain a miniature clear nylon DAU with carbon adsorbent, order 9933-05-000.4 Available only in Q grades. 5 Available in Q or X media.6 Available only in X media.7 9953-11 is designed for maximum pressure of 2 psig.8 Pressure rating in liquid service is 70 PSIG maximum.Installation InformationTo pressure pipe or tubing: Compression fittings for 1/4” O.D. tubing may be obtained from the following manufacturers.Hoke, Inc. (“Gyrolok”); Crawford Fitting Co. (“Swagelok”); Parker-Hannifin Corp. (“CPI”); Legris, Inc. (push-on fittings); Jaco Mfg. Co. (plastic fittings). The following brass fittings which seal by O-ring compression and which may be completely recovered and reused when changing filters may be purchased from Parker/Balston:Connector: 1/4” tubing to 1/4” NPT female - Part No. 11970 (1 per pkg.) Connector: 1/4” tubing to 1/4” tubing -Part No. 11971 (1 per pkg.)To low pressure plastic tubing: Tubing with 1/4” ID may be slipped over the DFU and fittings and held with tubing clamps.Parker Hannifin supplies plastic barbs to connect the DFU to smaller diameter plastic tubing. The connection is suitable for pres-sures to 50 psig.DFU to 1/16” ID tubing: Part No. 14000 (bag of 20 barbs)DFU to 1/8” ID tubing:Part No. 14001 (bag of 20 barbs)。

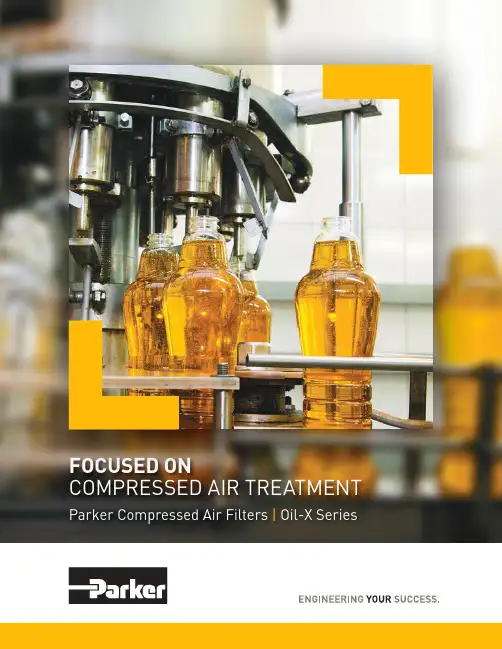

OIL-X Filter RangeCompressed Air Purity Guarantee & Die-Cast Filter Housing GuaranteeThe Parker OIL-X filter range has been designed to provide compressed air purity that meets or exceeds airpurity classifications shown in all revisions of ISO8573-1, the international air quality standard/gsfeENGINEERING YOUR SUCCESS.Water Separators – Grade WSOIL-X Grade WS water separators provide reduction of bulk condensed water and liquid oil and their performance has been tested in accordance with ISO 12500-4:2009 &ISO8573-9:2004. Separation performance has been independently verified by Lloyds Register. When operated between 25 & 100% of rated flow, OIL-X Grade WS water separators will provide liquid separation efficiency between 92 & 100%, equivalent to ISO 8573-1 Class 8 for water. When liquids are present in the compressed air stream, OIL-X Grade WS water separators must be installed prior to coalescing filters to protect them from bulk liquid contamination.Coalescing Filters – Grades AO & AA / Dry Particulate Filters - Grades AO (with manual drain) & AA (with manual drain)OIL-X Grades AO & AA coalescing filters provide reduction of oil and water aerosols, and solid particulates. OIL-X Grades AO & AA dry particulate filters provide reduction of solid particulates only. Their performance has been tested in accordance with ISO 12500-1:2007 & ISO 8573-4:2019. Filtration performance has been independently verified by Lloyds Register. Coalescing and dry particulate filter performance is guaranteed for 12 months when sized, installed and operated in accordance with Parker recommendations. The filter performance guarantee can be extended by replacing the filter element and consumable parts annually.Oil Vapour Reduction Filters – Grades OVR & ACSOIL-X Grade OVR & OIL-X Grade ACS provide reduction of oil vapours and their performance has been tested in accordance with ISO 8573-5:2001 and independently verified by Lloyds Register. The lifetime of ACS filter elements is affected by the inlet oil vapour concentration, bulk oil, temperature, relative humidity or dewpoint of the compressed air and compressor oil changes and will vary from system to system. For plant scale protection, critical applications or systems where frequent element changes are not possible, Parker OIL-X Grade OVR oil vapour reduction systems should be installed.OIL-X Filtration ISO8573-1 Air Purity ClassificationsFilter Combination ISO8573-1:2010 Classification Filter Combination ISO8573-1:2010 ClassificationA O Class 2.-.3 A O (M) Class 2.-.-AO + AA Class 1.-.2 AO (M) + AA (M) Class 1.-.-AO + AA + ACS Class 1.-.1AO + AA + OVR Class 3.-.0AO + AA + OVR + AO (M) Class 2.-.0AO + AA + OVR + AO (M) + AA (M) Class 1.-.0Die-Cast Aluminium Filter HousingsOIL-X filter housings are protected by an anti corrosion coating and a tough external epoxy coating. All housings are guaranteed for 10 years under normal recommended use.Catalogue: OPXCAQG 06/21 Rev. 000©2021 Parker Hannifin Corporation. All rights reserved.Conditions1. OIL-X Filters are depth filters and are not absolute rated. AO Grade Efficiency is 99.925%.AA Grade Efficiency is 99.9999%* (* the limit of accurate measurement).2. Filtration performance has been tested and Independently validated in accordance withthe requirements shown in the standards for oil aerosol (ISO 12500-1:2007), particulate (ISO 8573-4:2019) and oil vapour (ISO 8573-5:2001) and at a temperature of 21°C. 3. The system pressure and operating temperature of the compressed air systemwill affect the oil carryover performance of a coalescing filter, and siteconditions /test method must be accounted for during on site air quality testing.4. The lifetime of ACS oil vapour removal filter elements is affected by the pressure, oilconcentration, relative humidity and temperature of the compressed air and will vary from system to system.5. Combinations of filters will be required to achieve the highest qualityclassifications required by ISO 8573-1:2010.6. AO filters should be protected from bulk liquid contamination using a grade WSwater separator (installation dependant)7. AA filters must be preceded by an AO filter.8. ACS / OVR filters must be preceded by coalescing pre-filtration foroil / water aerosol treatment.9. AO Performance based upon a maximum inlet concentration of 40mg/m 3of oil aerosol at 21°C.10. AA Performance based upon a maximum inlet concentration of 10mg/m 3of oil aerosol at 21°C.11. ACS Performance based upon a maximum inlet concentration of 0.018mg/m 3of oil vapour at 21°C.12. OVR Performance based upon a maximum inlet concentration of 0.05mg/m 3of oil vapour at 21°C.13. Installation and operation must be in accordance with Parkerrecommendations.14. Only genuine Parker replacement parts may be used in anyservice/repair or all guarantees will be deemed invalid.15. Installation & service data must be supplied with any guarantee claim.16. Housing guarantee does not cover consumable parts, normal wear and tearnor any deterioration or defect due to improper use, negligence, accidental or malicious damage. Performance guarantee restricted to replacement of filterelements only and does not cover consequential losses.。
