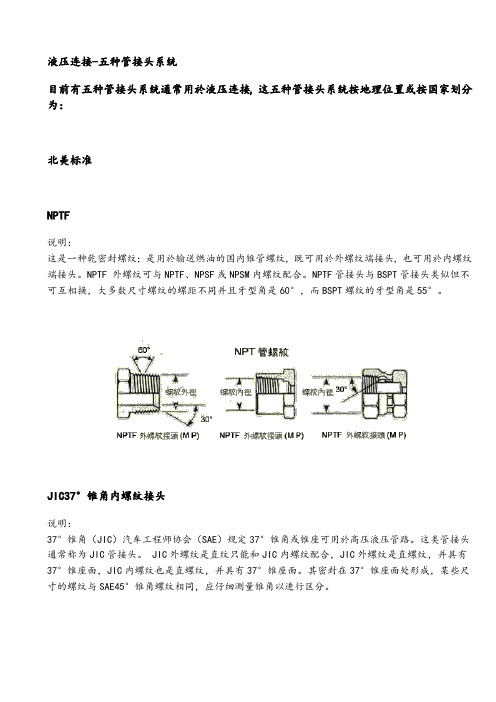

液压连接-五种管接头系统目前有五种管接头系统通常用於液压连接，这五种管接头系统按地理位置或按国家划分为：北美标准NPTF说明：这是一种乾密封螺纹；是用於输送燃油的国内锥管螺纹，既可用於外螺纹端接头，也可用於内螺纹端接头。

NPTF 外螺纹可与NPTF、NPSF或NPSM内螺纹配合。

NPTF管接头与BSPT管接头类似但不可互相换，大多数尺寸螺纹的螺距不同并且牙型角是60°，而BSPT螺纹的牙型角是55°。

JIC37°锥角内螺纹接头说明：37°锥角（JIC）汽车工程师协会（SAE）规定37°锥角或锥座可用於高压液压管路。

这类管接头通常称为JIC管接头。

JIC外螺纹是直纹只能和JIC内螺纹配合，JIC外螺纹是直螺纹，并具有37°锥座面，JIC内螺纹也是直螺纹，并具有37°锥座面。

其密封在37°锥座面处形成，某些尺寸的螺纹与SAE45°锥角螺纹相同，应仔细测量锥角以进行区分。

SAE 45°锥角外螺纹接头说明：SAE（45°锥角）这是用於具有45°锥角或锥座的管接头的术语。

软铜管通常采用这种接头，因为该材料易於加工成45°角。

这种管接头适用於低压应用场合-例如用於燃油管路和制冷管路。

SAE 45°锥角外螺纹只能和SAE 45°锥角内螺纹配合。

SAE外螺纹是直螺纹并具有45°锥座面。

而SAE内螺纹也是直螺纹，并具有45°锥座面。

其密封在45°锥座面处形成。

某些尺寸的螺纹与SEA 37°锥角螺纹相同。

应仔细测量锥角以进行区行。

O形圈端面密封外螺纹接头说明： O形圈端密封外螺纹只能和O形圈端面密封内螺纹配合，外螺纹是直螺纹带O形圈；内螺纹是直螺纹带密封端面，外螺纹在O形圈处密封，而内螺纹在密封端面处密封。

O形圏法兰－SAE J518说明：SAE J518SAE 61型和62型四螺栓分离式法兰通常在世界范围内广泛应用於连接泵与马达。

法兰转换接头 87卡套管接头法兰转换接头■ 从法兰连接管路系统到卡套管系统的无螺纹, 无焊接过渡 ■ 法兰类型符合 ASME , DIN , EN 和 JIS 标准■ 一体式整体机加工锻造阀体■ 可配最大尺寸 50 mm 和 2 in. 的世伟洛克® (Swagelok ®)卡套管接头端接88 卡套管接头卡套管接头扳手平面密封面法兰材料特征■ 法兰类型符合 ASME , DIN , EN 和 JIS 标准■ 法兰尺寸范围和压力等级■ 包括平面, 凸面, RTJ 和舌-槽在内的类型齐全的密封面■ 标准配置为 316 不锈钢材料；可选材料有 20 合金,400 合金, 600 合金和 C-276 合金■ 扳手平面, 易于卡套管接头安装■ 初始安装时可使用世伟洛克间隙检测规检测端接■ 公制和英制分数世伟洛克卡套管接头, 尺寸范围为3 到 50 mm 和 1/16 到 2 in.■ 公制和英制分数世伟洛克卡套管转换接头, 尺寸范围为6 到 50 mm 和 1/4 到 2 in.法兰连接■ ASME B16.5■ 公称法兰尺寸范围 NPS 1/2 到 2 in. ■ 压力等级 150 到 2500■ DIN 2526 / DIN 2501■ 公称法兰尺寸范围 DN 15 到 50 ■ 压力等级 PN 40 到 320■ EN 1092-1■ 公称法兰尺寸范围 DN 15 到 50 ■ 压力等级 PN 40 到 100■ JIS B2220■ 公称法兰尺寸范围 DN 15 到 50 ■ 压力等级 10 到 63K■ 要求时可提供法兰转换接头以满足更多标准,如 API , ISO 等。

规范符合性EN , DIN (最大 PN 160) 和 ANSI 法兰的不锈钢法兰转换接头已经获得 TÜ/TÜV A/AR 278-03 型式试验认可, 符合欧洲压力设备指令 (PED) 和 TA-LUFT 2002 的泄漏要求。
