lifting lug calculation

格式：xls
大小：298.00 KB
文档页数：6

下载文档原格式

lifting lug for horizontal vessel for hgbbs

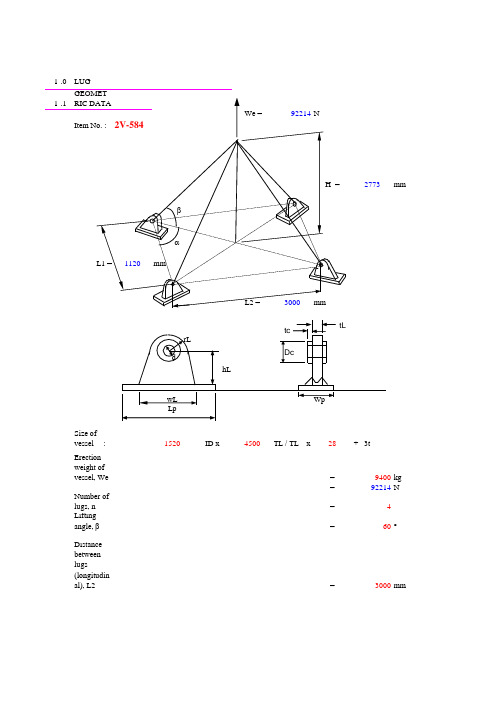

1.0LIFTING LUG DESIGN CALCULATION2773mmSize of vessel :1520ID x4500TL / TL x 28+ 3tErection weight of vessel, We=9400kg=92214N Number of lugs, n=4Lifting angle, b=60°Distance between lugs (longitudinal), L2=3000mm Distance between lugs (transverse), L1=1120mm Height of lifting, H=2773mmLug radius, rL=60mm Lug base width, wL=150mm Thickness of lug, tL=31mm Diameter of hole, d=41mm Packer plate thickness, tc=0mm Diameter of packer plate, Dc=0mm Distance between lug base to hole center, hL=100mm Pad thickness, tp=31mm Pad width, Wp=131mm Pad length, Lp=250mmShackle:12 tonsType of shackle:Forged Shackles G 210 Pin size, Dp=35mm1.2MATERIAL & MECHANICAL PROPERTIESMaterial used=SA 516 Gr. 70NSpecified yield stress, Sy=262.00N/mm2 Specified tensile stress, Sm=482.63N/mm2 Impact factor, =2Skew factor,= 1.25Loading factor= 2.51.3ALLOWABLE STRESSESAllowable bearing stress, Sbr.all ( = 0.9 Sy )=235.80N/mm2 Allowable tensile stress, St.all ( = 0.6 Sy )=157.20N/mm2 Allowable shear stress, Ss.all ( = 0.4 Sy )=104.80N/mm2 Allowable bending stress, Sbn.all ( = 0.66 Sy )=172.92N/mm22.0LIFTING LUG DESIGN2.1FORCE DIAGRAM (ON LIFTING LUG AXIS)Fc FyConsider 5% out of planeSide swing angle, b=5°Design load, Wt (=f.We)=230535NDesign load per lug, Fy (= Wt/n)=57634NVertical component force, Fy=57634NResultance force, Fc ( = Fy / sin b° )=66550NComponent force, Fx ( = Fc.cos b︒ )=33275NComponent force, Fz ( = Fc.tan b° )=5822N2.2STRESS CHECK AT LUG EYEFc(a)Tensile stressResultant force, Fc=66550NCross-sectional area , Ae = (2.(rL-d/2).tL +(( Dc-d) . 2tc)=2449mm2Tensile stress, S t (=Fc/Ae)=27N/mm2Since S t<157.20N/mm² (S t.all), therefore the lifting lug size is satisfactory. (b)Bearing stressResultant force, Fc=66550NDiameter pin, Dp=35mm Cross-sectional area , Ae = Dp x (tL + 2tc)=1085mm2 Bearing Stress, Sb (=Fc/Ae)=61N/mm2Since Sb<235.80N/mm² (Sbr.all), therefore the lifting lug size is satisfactory.(c)Shear StressResultant force, Fc=66550NCross-sectional area , Ae = ((rL - d/2) x tL)+ ((Dc - d) x tc)=1224.5mm2 Shear stress, S s (=Fc/Ae)=54N/mm2Since St<104.80N/mm² (S s.all), therefore the lifting lug size is satisfactory.2.3STRESS CHECK AT LUG BASEFzBending in X-direction Bending in Z-direction(a)Tensile Stress in Y-DirectionVertical force, Fy=57634NCross sectional area of lug, At ( = wL x tL ) =4650mm2 Tensile stress, St ( = Fy / At )=12N/mm2 Since St<157.20N/mm², therefore the lifting lug size is satisfactory.(b)Bending stress in X-DirectionComponent force, Fx=33275NBending moment along Z-axis, Mx=Fx x hL=3327486Nmm Section modulus, Zz-z = wL² x tL/ 6=116250mm3 Bending stress, Sx = Mx / Zz-z=28.62N/mm2 Since Sx<172.92N/mm², therefore the lifting lug size is satisfactory.3.0DESIGN OF WELD SIZE AT LUG TO PAD JOINTX3.1GENERALLug thickness, tL=31mm Lug width, wL=150mm Total weld length, L=362mm Butt weld thickness, tb=mm Weld leg, w=12mm Weld throat thickness, tr=8.4mm Fillet weld joint efficiency, E=0.6Welding stress for steel grade 43( E-43)=125.00N/mm23.2CRITICAL WELD CROSS-SECTIONAL PROPERTIESArea of weld, Aw (=tr x L )=3041mm2 Sectional modulus at Z axis, Zz-z (=tr.wL2/3)+(tL.tr.wL)=102060mm3 Sectional modulus at X axis, Zx-x (=tr.tL2/3)+(tL.tr.wL)=41751mm33.3STRESS DUE TO FORCE, FxComponent force, Fx=33275NShear stress, Ssx (=Fx/Aw)=10.94N/mm2 Bending stress, Sbx (=Fx x hL /Zz-z)=32.60N/mm23.4STRESS DUE TO FORCE, FyComponent force, Fy=57634NTensile stress, Sty (=Fy/Aw)=18.95N/mm2 3.5STRESS DUE TO FORCE FzComponent force, Fz=0NShear stress, Ssz (=Fz/Aw) =0.00N/mm2 Bending stress, Sbz (=Fz x hL /Zx-x)=0.00N/mm24.0DESIGN OF WELD SIZE AT PAD TO SHELL JOINTWeld leg, w=10mm Weld throat thickness, tr=7mm Fillet weld joint efficiency, E=0.6Welding stress for steel grade 43( E-43)=125.00N/mm24.1CRITICAL WELD CROSS-SECTIONAL PROPERTIESArea of weld, Aw =5334mm2 Sectional modulus at Z axis, Zz-z (=tr.Lp2/3+Wp.tr.Lp)=375083mm3 Sectional modulus at X axis, Zx-x (=tr.Wp2/3+Wp.tr.Lp)=269292.33mm34.2STRESS DUE TO FORCE, FxComponent force, Fx=33275NShear stress, Ssx (=Fx/Aw)= 6.24N/mm2 Bending stress, Sbx (=Fx x hL / Zz-z)=8.87N/mm24.3STRESS DUE TO FORCE, FyComponent force, Fy=57634NTensile stress, Sty (=Fy/Aw)=10.80N/mm2 4.4STRESS DUE TO FORCE, FzComponent force , Fz=0NShear stress, Ssz (=Fz/Aw)=0.00N/mm2 Bending stress, Sbz (=Fz x hL / Zx-x)=0.00N/mm24.5COMBINED STRESSESSm = ((Sbx + Sty + Sbz)² + Ssx² +Ssz² ) ^0.5=20.64N/mm2 Allowable welding stress (=E.Sa)=75N/mm2 since Sm<75N/mm², the selected weld size is satisfactory。
