品牌电芯型号对应表

常见电池型号及尺⼨介绍本⽂介绍常见电池型号规格及尺⼨等基础知识。

在电池体上看到的AAA、AA、C、D、N、F、SC等标识都是美国型号标识，在我国除了⼏种按号称呼之外，其它还是采⽤美国的命名⽅式。

此外，针对⼆次锂电池的型号表⽰⽅法是采⽤五位数(圆柱型)或六位数(⽅型)，如14500、103450...⼀、常见电池型号、尺⼨对照表平头，指的是电池正极是平的，没有突起，使⽤做电池组点焊使⽤的电池芯，⼀般同等型号尖头的（可以⽤作单体电池供电的），在⾼度上就多了0.5mm。

以此类推，我不逐⼀解释。

还有，电池很多的时候并不是规规矩矩的＂AAA，AA，A，SC，C，D，N，F＂这些主型号，前⾯还时常有分数＂1/3，2/3，1/2，2/3，4/5，5/4，7/5＂，这些分数表⽰的是池体相应的⾼度，例如＂2/3AA＂就是表⽰⾼是⼀般AA电池的2/3的充电电池；再如＂4/5A＂就是表⽰⾼是⼀般A电池的4/5的充电电池。

⼆、锂离⼦电池芯型号、尺⼨(1) 圆柱型锂离⼦电池芯：通常⽤五位数字表⽰，前两位数字是指池体直径，后三位数字是指池体⾼，例如14500就是指AA电池，即⼤约14mm直径，50mm ⾼。

常见的型号：14500，14650, 17490，18500, 18650，26500。

常见⽐克、三洋圆柱电芯规格型号：⽐克18650 2200mAh 3.7V ，⽐克18650 2600mAh 3.7V ，⽐克18650 2000mAh 3.6V 三元长寿命三洋18650 2100mAh 3.7V ，三洋18650 2500mAh 3.7V ，三洋18650 1500 mAh 3.7V18650(2) ⽅型锂离⼦电池芯：通常⽤六位数字表⽰，分别表⽰电池的厚度、宽度和⾼度，单位毫⽶，例如103450 即10(厚度) ×34(宽度) ×50(⾼度)mm。

若厚度数值⼤于宽度数值，则厚度要*0.1，例如433861 即4.3（43*0.1）×38×61mm。

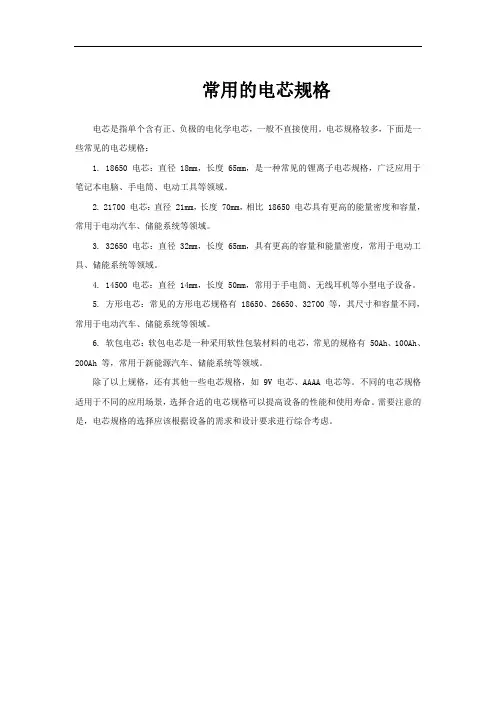

常用的电芯规格
电芯是指单个含有正、负极的电化学电芯，一般不直接使用。

电芯规格较多，下面是一些常见的电芯规格：
1. 18650 电芯：直径 18mm，长度 65mm，是一种常见的锂离子电芯规格，广泛应用于笔记本电脑、手电筒、电动工具等领域。

2. 21700 电芯：直径 21mm，长度 70mm，相比 18650 电芯具有更高的能量密度和容量，常用于电动汽车、储能系统等领域。

3. 32650 电芯：直径 32mm，长度 65mm，具有更高的容量和能量密度，常用于电动工具、储能系统等领域。

4. 14500 电芯：直径 14mm，长度 50mm，常用于手电筒、无线耳机等小型电子设备。

5. 方形电芯：常见的方形电芯规格有 18650、26650、32700 等，其尺寸和容量不同，常用于电动汽车、储能系统等领域。

6. 软包电芯：软包电芯是一种采用软性包装材料的电芯，常见的规格有 50Ah、100Ah、200Ah 等，常用于新能源汽车、储能系统等领域。

除了以上规格，还有其他一些电芯规格，如 9V 电芯、AAAA 电芯等。

不同的电芯规格适用于不同的应用场景，选择合适的电芯规格可以提高设备的性能和使用寿命。

需要注意的是，电芯规格的选择应该根据设备的需求和设计要求进行综合考虑。

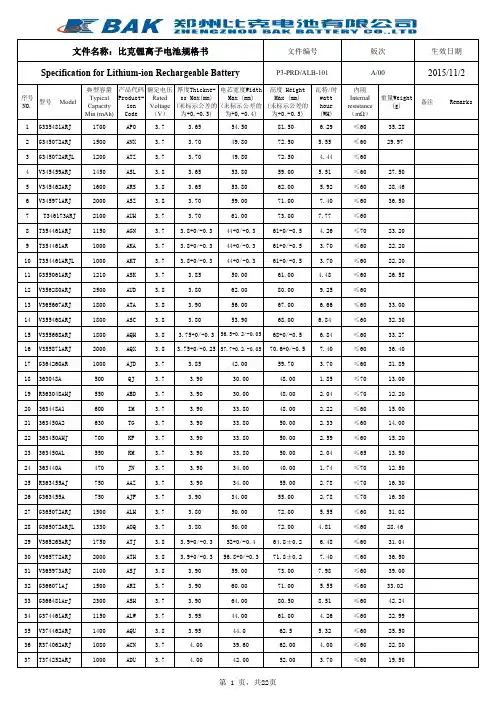

1T354461ARJ 1150 3.7 3.8044.0061.00 4.26≤702363048A 500 3.7 3.9030.0048.00 1.85≤703R363048AHJ 550 3.7 3.9030.0048.00 2.04≤704363448A1600 3.7 3.9033.8048.00 2.22≤605363450A2630 3.7 3.9033.8050.00 2.33≤606363450AHJ 700 3.7 3.9033.8050.00 2.59≤607363450AL 550 3.7 3.9033.8050.00 2.04≤658363440A 470 3.7 3.9034.0040.00 1.74≤709R363455AJ 750 3.7 3.9034.0055.00 2.78≤7010R374062ARJ 1080 3.7 4.0039.6062.00 4.00≤6011T374252ARJ 1000 3.7 4.0042.0052.00 3.70≤6012G375061AR 1300 3.7 4.0543.0050.00 4.81≤6513373645AH 640 3.7 4.0536.0045.50 2.37≤6014T375061ARJ 1300 3.7 4.0550.0061.00 4.81≤6515383450A 600 3.7 4.1033.9050.00 2.22≤6016383450A2650 3.7 4.1033.9050.00 2.41≤6017383450AHJ 750 3.7 4.1033.9050.00 2.78≤6018383450AM 700 3.7 4.1033.9050.00 2.59≤6019M383450A 300 3.7 4.1033.9050.00 1.11≤7020R383448AJ 700 3.7 4.1034.0048.00 2.59≤6021B383450A 600 3.7 4.1034.0050.00 2.22≤6022M383450A1390 3.7 4.1034.0050.00 1.44≤7023R383450ARJ 700 3.7 4.1034.0050.00 2.59≤7024383762A9003.74.1037.0062.003.33≤60厚度Thickne-ss Max(mm)宽度Width Max (mm)高度 Height Max (mm)瓦特/时watt hour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量Typical Capacity Min (mAh)额定电压Rated Voltage （V ）内阻Internal resistance （m Ω)厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)25G384251ARJ1000 3.7 4.1042.0051.00 3.70≤65 26R384251AR890 3.7 4.1042.0051.00 3.29≤65 27384455A1000 3.7 4.1044.0055.00 3.70≤60 28G385264AR1450 3.7 4.1052.0064.00 5.37≤70 29393048AH630 3.7 4.2029.7048.00 2.33≤60 30393048AJM500 3.7 4.2029.7048.00 1.85≤70 31393048AL550 3.7 4.2029.7048.00 2.04≤70 32393048ALM500 3.7 4.2029.7048.00 1.85≤70 33393048AM600 3.7 4.2029.7048.00 2.22≤60 34393442A550 3.7 4.2034.0042.00 2.04≤70 35393442A1600 3.7 4.2034.0042.00 2.22≤70 36393442AL500 3.7 4.2034.0042.00 1.85≤70 37R394060ARJ1000 3.7 4.2039.8060.00 3.70≤60 38T394060AR1000 3.7 4.2039.8060.00 3.70≤60 39R394054ARJ1000 3.7 4.2040.0054.00 3.70≤60 40T394054ARJ950 3.7 4.2040.0054.00 3.52≤60 41394060A1000 3.7 4.2040.0060.00 3.70≤60 42R394063AJ1100 3.7 4.2040.0063.00 4.07≤60 43G394461AJ1200 3.7 4.2044.0061.00 4.44≤65 44G394461ARJ1200 3.7 4.2044.0061.00 4.44≤65 45G394562A1250 3.7 4.2044.9062.00 4.63≤65 46043046A550 3.7 4.3030.0046.00 2.04≤60 47043855A950 3.7 4.3038.0055.00 3.52≤60 48R043855AJ950 3.7 4.3038.0055.00 3.52≤60 49044152A900 3.7 4.3041.0052.00 3.33≤70厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)50R044455AR1080 3.7 4.3044.0055.00 4.00≤65 51413440AH600 3.7 4.4033.8040.00 2.22≤70 52413447A680 3.7 4.4033.8047.00 2.52≤60 53413450A1700 3.7 4.4033.8050.00 2.59≤60 54413450AJ750 3.7 4.4033.8050.00 2.78≤60 55413450AJ1800 3.7 4.4033.8050.00 2.96≤60 56413450AJL700 3.7 4.4033.8050.00 2.59≤60 57413450AL550 3.7 4.4033.8050.00 2.04≤60 58N413450A650 3.7 4.4033.8050.00 2.41≤60 59T413450AJ1700 3.7 4.4033.8050.00 2.59≤60 60413446AR650 3.7 4.4033.9046.00 2.41≤65 61413450AR700 3.7 4.4033.9050.00 2.59≤60 62R414457A1140 3.7 4.4043.2057.00 4.22≤60 63R414457AJ1140 3.7 4.4043.2057.00 4.22≤60 64423040AH550 3.7 4.5030.0040.00 2.04≤70 65423040AL450 3.7 4.5030.0040.00 1.67≤75 66423040ALM400 3.7 4.5030.0040.00 1.48≤75 67R423040A500 3.7 4.5030.0040.00 1.85≤70 68R423040AHJ550 3.7 4.5030.0040.00 2.04≤70 69423048A1600 3.7 4.5030.0048.00 2.22≤60 70423048A2650 3.7 4.5030.0048.00 2.41≤60 71423048AHJ700 3.7 4.5030.0048.00 2.59≤60 72423048AJL650 3.7 4.5030.0048.00 2.41≤60 73423048AJM550 3.7 4.5030.0048.00 2.04≤70 74423048AL550 3.7 4.5030.0048.00 2.04≤70厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)75423048AL1400 3.7 4.5030.0048.00 1.48≤70 76H423048AJ500 3.7 4.5030.0048.00 1.85≤60 77423440A600 3.7 4.5033.9040.00 2.22≤70 78423443AE730 3.7 4.5033.9043.00 2.70≤60 79423443AHJ700 3.7 4.5033.9043.00 2.59≤60 80423443AHJL500 3.7 4.5033.9043.00 1.85≤60 81423443AHL500 3.7 4.5033.9043.00 1.85≤70 82423443AJ650 3.7 4.5033.9043.00 2.41≤60 83C423443AJ730 3.7 4.5033.9043.00 2.70≤60 84R423443AHJ700 3.7 4.5033.9043.00 2.59≤60 85R423443AHL500 3.7 4.5033.9043.00 1.85≤60 86R423443AJ3600 3.7 4.5033.9043.00 2.22≤60 87R423443ARJ700 3.7 4.5033.9043.00 2.59≤70 88T423443AJ1650 3.7 4.5033.9043.00 2.41≤60 89T423443ARJ520 3.7 4.5033.9043.00 1.92≤60 90T423443ARJ1670 3.7 4.5033.9043.00 2.48≤60 91423448A1700 3.7 4.5033.9048.00 2.59≤60 92423448A2770 3.7 4.5033.9048.00 2.85≤60 93423448AL550 3.7 4.5033.9048.00 2.04≤60 94423450A1900 3.7 4.5033.9050.00 3.33≤60 95423450AHJ850 3.7 4.5033.9050.00 3.15≤60 96423450AJ1900 3.7 4.5033.9050.00 3.33≤60 97423450AJL800 3.7 4.5033.9050.00 2.96≤60 98423450AKL800 3.7 4.5033.9050.00 2.96≤60 99423450AR800 3.7 4.5033.9050.00 2.96≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)100423450ARJ800 3.7 4.5033.9050.00 2.96≤60 101G423450AJ2920 3.7 4.5033.9050.00 3.40≤60 102G423450ARJ900 3.7 4.5033.9050.00 3.33≤60 103G423450ARJ1920 3.7 4.5033.9050.00 3.40≤60 104R423450AJ1870 3.7 4.5033.9050.00 3.22≤60 105T423450AHJ850 3.7 4.5033.9050.00 3.15≤60 106T423450ARJ1700 3.7 4.5033.9050.00 2.59≤60 107T423450ARJ2800 3.7 4.5033.9050.00 2.96≤60 108423440AR600 3.7 4.5034.0040.00 2.22≤70 109423440ARJ600 3.7 4.5034.0040.00 2.22≤70 110B423450AJ800 3.7 4.5034.0050.00 2.96≤60 111B423450AJ1850 3.7 4.5034.0050.00 3.15≤60 112B423450ARJ800 3.7 4.5034.0050.00 2.96≤60 113423455A880 3.7 4.5034.0055.00 3.26≤70 114R423462A1000 3.7 4.5034.0062.00 3.70≤60 115T423462A1000 3.7 4.5034.0062.00 3.70≤60 116423856A1000 3.7 4.5037.8056.00 3.70≤60 117R423856AJ1000 3.7 4.5037.8056.00 3.70≤60 118423862A1100 3.7 4.5037.8062.00 4.07≤60 119R423862AJ1100 3.7 4.5037.8062.00 4.07≤60 120R423855AR930 3.7 4.5038.0055.00 3.44≤60 121423857AR1000 3.7 4.5038.0057.00 3.70≤60 122B423857AR1000 3.7 4.5038.0057.00 3.70≤60 123R423857ARJ1000 3.7 4.5038.0057.00 3.70≤60 124423858A1050 3.7 4.5038.0058.80 3.89≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)125R424055A1000 3.7 4.5040.0055.00 3.70≤60 126424350A1030 3.7 4.5043.0050.00 3.81≤60 127R424451ARJ1100 3.7 4.5044.0051.00 4.07≤60 128G424455ARJ1000 3.7 4.5044.0055.00 3.70≤60 129433048AHJ750 3.7 4.6030.0048.00 2.78≤60 130443347A710 3.7 4.6032.6046.80 2.63≤60 131R433443AHJ750 3.7 4.6033.9043.00 2.78≤60 132433434A500 3.7 4.6034.0034.00 1.85≤70 133C433446AJ800 3.7 4.6034.0046.00 2.96≤60 134G433446ARJ800 3.7 4.6034.0046.00 2.96≤60 135R433446AJ800 3.7 4.6034.0046.00 2.96≤60 136R433446ARJ770 3.7 4.6034.0046.00 2.85≤60 137T433446ARJ780 3.7 4.6034.0046.00 2.89≤60 138R433545AR730 3.7 4.6035.0045.00 2.70≤65 139R433858ARJ1100 3.7 4.6038.0058.00 4.07≤65 140G434046AR1900 3.7 4.6039.8046.00 3.33≤75 141R434046AR860 3.7 4.6039.8046.00 3.18≤75 142G434350AR1050 3.7 4.6042.8050.00 3.89≤60 143G434350ARJ1050 3.7 4.6042.8050.00 3.89≤60 144R434451A1100 3.7 4.6044.0051.00 4.07≤60 145G434456AJ1200 3.7 4.6044.0056.00 4.44≤60 146R443034AR450 3.7 4.7030.0034.00 1.67≤70 147453436A550 3.7 4.7034.0036.00 2.04≤70 148443442AR660 3.7 4.7034.0042.00 2.44≤70 149R443750A900 3.7 4.7037.0050.00 3.33≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)150443845AR800 3.7 4.7038.0045.00 2.96≤60 151444146A900 3.7 4.7041.0046.00 3.33≤60 152444344A900 3.7 4.7043.0044.00 3.33≤60 153G444350ARJ1200 3.7 4.7043.0050.00 4.44≤70 154R444350AR1050 3.7 4.7043.0050.00 3.89≤70 155453042A590 3.7 4.8029.8041.50 2.18≤70 156453042A1620 3.7 4.8030.0042.00 2.29≤70 157R453447ARJ850 3.7 4.8034.0047.00 3.15≤65 158R453737AR650 3.7 4.8036.8037.00 2.41≤70 159453738A700 3.7 4.8037.0038.00 2.59≤75 160G454354ARJ1350 3.7 4.8043.0054.00 5.00≤60 161R454460AR1320 3.7 4.8043.8059.80 4.88≤60 162T464461ARJ1600 3.7 4.9044.0061.00 5.92≤60 163463436A1580 3.7 4.9034.0036.00 2.15≤70 164463436A2620 3.7 4.9034.0036.00 2.29≤70 165463443A730 3.7 4.9034.0043.00 2.70≤70 166463460A1050 3.7 4.9034.0060.00 3.89≤60 167R464047ARJ1000 3.7 4.9040.0047.00 3.70≤70 168R464050AR1030 3.7 4.9040.0050.00 3.81≤70 169G464254A1200 3.7 4.9042.0054.00 4.44≤60 170G464461ARJ1450 3.7 4.9044.0061.00 5.37≤60 171G464461ARJ11500 3.7 4.9044.0061.00 5.55≤60 172R464461AR1400 3.7 4.9044.0061.00 5.18≤60 173R464461ARJ1400 3.7 4.9044.0061.00 5.18≤60 174G464655ARJ1510 3.7 4.9045.6555 5.59≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)175473335A500 3.7 5.0033.5035.00 1.85≤75 176G474447AJ1150 3.7 5.0044.0047.00 4.26≤60 177474470A1700 3.7 5.0044.0070.00 6.29≤60 178483040A510 3.7 5.1029.8040.00 1.89≤70 179483040A1600 3.7 5.1029.8040.00 2.22≤70 180483048A2750 3.7 5.1029.8048.00 2.78≤60 181483436A2600 3.7 5.1034.0036.20 2.22≤70 182483440A650 3.7 5.1034.0040.00 2.41≤70 183R483443AJ800 3.7 5.1034.0043.00 2.96≤70 184R483445AR800 3.7 5.1034.0045.00 2.96≤65 185G483640AR750 3.7 5.1036.0040.00 2.78≤70 186R483640AR 720 3.7 5.1036.0040.00 2.66≤70 187R483951AR1050 3.7 5.1039.0051.00 3.89≤70 188474451A1220 3.7 5.1044.0051.00 4.51≤60 189474451A11270 3.7 5.1044.0051.00 4.70≤60 190G474451AJ1270 3.7 5.1044.0051.00 4.70≤60 191R474451AJ1300 3.7 5.1044.0051.00 4.81≤60 192484461A1500 3.7 5.1044.0061.00 5.55≤60 193484461AR1450 3.7 5.1044.0061.00 5.37≤60 194B484461ARJ1100 3.7 5.1044.0061.00 4.07≤60 195R484461AJ1500 3.7 5.1044.0061.00 5.55≤60 196R484461ARJ1500 3.7 5.1044.0061.00 5.55≤60 197493446ARJ880 3.7 5.2034.0046.00 3.26≤60 198G493446ARJ1900 3.7 5.2034.0046.00 3.33≤60 199G495149AR1500 3.7 5.2051.0049.00 5.55≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)200B053048A700 3.7 5.3030.0048.00 2.59≤60 201B053048AL650 3.7 5.3030.0048.00 2.41≤60 202M053048A400 3.7 5.3030.0048.00 1.48≤70 203053037A550 3.7 5.3030.2037.00 2.04≤70 204053048A700 3.7 5.3030.2048.00 2.59≤60 205053048A1750 3.7 5.3030.2048.00 2.78≤60 206053048A2800 3.7 5.3030.2048.00 2.96≤60 207053048AJ800 3.7 5.3030.2048.00 2.96≤60 208053048AJL750 3.7 5.3030.2048.00 2.78≤60 209053048AJM650 3.7 5.3030.2048.00 2.41≤60 210053048AL650 3.7 5.3030.2048.00 2.41≤60 211H053048A600 3.7 5.3030.2048.00 2.22≤60 212H053048AJ600 3.7 5.3030.2048.00 2.22≤60 213B053450AR900 3.7 5.3033.9050.00 3.33≤60 214053450AR850 3.7 5.3033.9050.20 3.15≤60 215053450AR1900 3.7 5.3033.9050.20 3.33≤60 216053450ARJ900 3.7 5.3033.9050.20 3.33≤60 217053450ARJ11000 3.7 5.3033.9050.20 3.70≤60 218R053450ARJ800 3.7 5.3033.9050.20 2.96≤60 219053440A700 3.7 5.3034.0040.00 2.59≤70 220053445A850 3.7 5.3034.0045.00 3.15≤60 221053448AL800 3.7 5.3034.0048.00 2.96≤60 222G053448AJ11000 3.7 5.3034.0048.00 3.70≤60 223053450A850 3.7 5.3034.0050.00 3.15≤60 224053450A1900 3.7 5.3034.0050.00 3.33≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)225053450AHJ1000 3.7 5.3034.0050.00 3.70≤60 226053450AJ900 3.7 5.3034.0050.00 3.33≤60 227053450AJ1950 3.7 5.3034.0050.00 3.52≤60 228053450AL700 3.7 5.3034.0050.00 2.59≤60 229B053450ARJ900 3.7 5.3034.0050.00 3.33≤60 230N053450A800 3.7 5.3034.0050.00 2.96≤60 231R053455A930 3.7 5.3034.0055.00 3.44≤60 232G053840A850 3.7 5.3038.0040.00 3.15≤70 233054040A900 3.7 5.3039.8040.00 3.33≤70 234054041AR910 3.7 5.3040.0041.00 3.37≤70 235G054041AR1000 3.7 5.3040.0041.00 3.70≤70 236G054045AR1000 3.7 5.3040.0045.00 3.70≤70 237054050A1150 3.7 5.3040.0050.00 4.26≤60 238R054260AR1500 3.7 5.3042.0060.00 5.55≤60 239054648A1200 3.7 5.3046.0048.00 4.44≤60 240G054655ARJ1650 3.7 5.3046.0055.00 6.11≤60 241053040A650 3.7 5.4030.2040.00 2.41≤70 242053040AL550 3.7 5.4030.2040.00 2.04≤70 243053040ALM500 3.7 5.4030.2040.00 1.85≤70 244053048AL1500 3.7 5.4030.2048.00 1.85≤60 245513048AH850 3.7 5.4030.2048.00 3.15≤60 246053442AR700 3.7 5.4033.9042.00 2.59≤60 247053442AR1730 3.7 5.4033.9042.00 2.70≤60 248053442AR2800 3.7 5.4033.9042.00 2.96≤60 249R053442ARJ800 3.7 5.4033.9042.00 2.96≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)250R513442ARJ850 3.7 5.4033.9042.00 3.15≤70 251054034AR730 3.7 5.4040.0034.00 2.70≤70 252054037AR780 3.7 5.4040.0037.00 2.89≤70 253G514137AR900 3.7 5.4041.0037.00 3.33≤70 254R514453AJ1400 3.7 5.4044.0053.00 5.18≤60 255523035AR1550 3.7 5.5030.0035.10 2.04≤70 256523046A750 3.7 5.5030.0045.30 2.78≤70 257523436A1650 3.7 5.5034.0036.00 2.41≤70 258523436A2700 3.7 5.5034.0036.00 2.59≤70 259523436AH700 3.7 5.5034.0036.00 2.59≤70 260523436AJ700 3.7 5.5034.0036.00 2.59≤70 261M523436AJ400 3.7 5.5034.0036.00 1.48≤70 262523443AJ880 3.7 5.5034.0043.00 3.26≤60 263523446AH900 3.7 5.5034.0046.00 3.33≤60 264523446AR900 3.7 5.5034.0046.00 3.33≤60 265B523436AJ700 3.7 5.5034.0046.00 2.59≤70 266G523446AJ980 3.7 5.5034.0046.00 3.63≤60 267R523446AJ950 3.7 5.5034.0046.00 3.52≤60 268523450A1000 3.7 5.5034.0050.00 3.70≤60 269523450AHL900 3.7 5.5034.0050.00 3.33≤60 270523450AHR1050 3.7 5.5034.0050.00 3.89≤60 271523450AR1000 3.7 5.5034.0050.00 3.70≤60 272523450ARJ1050 3.7 5.5034.0050.00 3.89≤60 273B523450AR11050 3.7 5.5034.0050.00 3.89≤60 274F523450ARJ1000 3.7 5.5034.0050.00 3.70≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)275G523450ARJ11100 3.7 5.5034.0050.00 4.07≤60 276T523450ARJ1050 3.7 5.5034.0050.00 3.89≤60 277R523460A1200 3.7 5.5034.0060.00 4.44≤60 278R523460AJ1200 3.7 5.5034.0060.00 4.44≤60 279R523640AR850 3.7 5.5036.0040.00 3.15≤70 280523850A1150 3.7 5.5038.0050.00 4.26≤60 281523850AR1150 3.7 5.5038.0050.00 4.26≤60 282R523850ARJ1180 3.7 5.5038.0050.00 4.37≤60 283R523850ARJ11200 3.7 5.5038.0050.00 4.44≤60 284523855AR1250 3.7 5.5038.0055.00 4.63≤70 285B523855AR1000 3.7 5.5038.0055.00 3.70≤70 286R524243A1000 3.7 5.5042.0043.00 3.70≤70287G524437ARJ1000 3.7 5.5044.0036.50 3.70≤60288G524442ARJ1200 3.7 5.5044.0042.00 4.44≤60 289524443AR1100 3.7 5.5044.0043.00 4.07≤70 290G524443ARJ11100 3.7 5.5044.0043.00 4.07≤70 291G524448AJ1270 3.7 5.5044.0048.00 4.70≤60 292524450A1300 3.7 5.5044.0050.00 4.81≤60 293524450AR1300 3.7 5.5044.0050.00 4.81≤60 294G524646ARJ1280 3.7 5.5045.7045.70 4.74≤65 295524871A2020 3.7 5.5048.0071.007.47≤60 296R533443ARJ900 3.7 5.6034.0043.00 3.33≤65 297G533446ARJ11000 3.7 5.6034.0046.00 3.70≤60 298R533446ARJ1000 3.7 5.6034.0046.00 3.70≤60 299R533446ARJ1970 3.7 5.6034.0046.00 3.59≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)300G533450AR11200 3.7 5.6034.0050.00 4.44≤60 301523450AHJ1100 3.7 5.6034.0050.00 4.07≤60 302523450AJL1050 3.7 5.6034.0050.00 3.89≤60 303G533450ARJ1100 3.7 5.6034.0050.00 4.07≤60 304G533450AR1100 3.7 5.6034.0050.00 4.07≤60 305R533450ARJ11080 3.7 5.6034.0050.00 4.00≤60 306R533840AR900 3.7 5.6038.0040.00 3.33≤70 307534038AR860 3.7 5.6040.0038.00 3.18≤70 308R534136AR850 3.7 5.6040.6035.60 3.15≤70 309R534633AR870 3.7 5.6046.0033.00 3.22≤70 310543057A1020 3.7 5.7030.0057.00 3.77≤60 311543069A1200 3.7 5.7030.0069.00 4.44≤60 312543136AR600 3.7 5.7030.9036.10 2.22≤70 313543136AR1670 3.7 5.7030.9036.10 2.48≤70 314543136ARJ1670 3.7 5.7030.9036.10 2.48≤70 315G543136AR2740 3.7 5.7030.9036.10 2.74≤70 316G543136ARJ1700 3.7 5.7030.9036.10 2.59≤70 317R543136ARJ670 3.7 5.7030.9036.10 2.48≤70 318543755A1250 3.7 5.7037.0055.00 4.63≤60 319543760A1350 3.7 5.7037.0060.00 5.00≤60 320543760AL1150 3.7 5.7037.0060.00 4.26≤60 321R543760AJ1350 3.7 5.7037.0060.00 5.00≤60 322R543833AR700 3.7 5.7038.0033.00 2.59≤80 323R543850ARJ1200 3.7 5.7038.0050.00 4.44≤60 324R543855ARJ1350 3.7 5.7038.0055.00 5.00≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)325R544461AR1680 3.7 5.7044.0061.00 6.22≤60 326R563446AR1030 3.7 5.9034.0046.00 3.81≤60 327R563637A820 3.7 5.9036.0037.00 3.03≤75 328564469A1900 3.7 5.9044.0069.007.03≤60 329R573855AR1400 3.7 6.0038.0055.00 5.18≤60 330574041A1070 3.7 6.0040.0041.00 3.96≤70 331574057A1450 3.7 6.0040.0057.00 5.37≤60 332R574443AR1200 3.7 6.0044.0043.00 4.44≤70 333583034A600 3.7 6.1029.9034.00 2.22≤70 334G584135ARJ900 3.7 6.1041.0035.00 3.33≤65 335592644A700 3.7 6.2026.0044.00 2.59≤70 336593236A720 3.7 6.2032.0036.00 2.66≤70 337063040A750 3.7 6.3029.8040.00 2.78≤70 338063436A700 3.7 6.3033.9036.00 2.59≤70 339063435A720 3.7 6.3034.0034.60 2.66≤80 340G063450AR1250 3.7 6.3034.0050.00 4.63≤60 341T063450ARJ1200 3.7 6.3034.0050.00 4.44≤60 342R063640A900 3.7 6.3036.0040.00 3.33≤70 343R063749A1200 3.7 6.3037.0049.00 4.44≤65 344063855A1450 3.7 6.3038.5055.00 5.37≤60 345063855A11500 3.7 6.3038.5055.00 5.55≤60 346063860A1500 3.7 6.3038.5060.00 5.55≤60 347063862A1500 3.7 6.3038.5062.00 5.55≤60 348064042AR1100 3.7 6.3040.0042.00 4.07≤65 349064450AR1500 3.7 6.3044.0050.00 5.55≤60厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)350613048A850 3.7 6.4029.7048.00 3.15≤60 351613048A1900 3.7 6.4029.7048.00 3.33≤60 352613048A2950 3.7 6.4029.7048.00 3.52≤60 353613048AL800 3.7 6.4029.7048.00 2.96≤60 354613048AM1000 3.7 6.4029.7048.00 3.70≤60 355T063450ARJ1030 3.7 6.4033.8050.00 3.81≤60 356063450A1200 3.7 6.4034.0050.00 4.44≤60 357063450AL1000 3.7 6.4034.0050.00 3.70≤60 358063455A1300 3.7 6.4034.0055.00 4.81≤60 359063443AR950 3.7 6.4034.1043.00 3.52≤60 360063443AR11020 3.7 6.4034.1043.00 3.77≤60 361063443ARJ950 3.7 6.4034.1043.00 3.52≤60 362063448AR950 3.7 6.4034.1048.10 3.52≤60 363063450AR11000 3.7 6.4034.1050.10 3.70≤60 364063450AR21150 3.7 6.4034.1050.10 4.26≤60 365063450AR31200 3.7 6.4034.1050.10 4.44≤60 366063450ARJ1150 3.7 6.4034.1050.10 4.26≤60 367063436A1770 3.7 6.4034.2036.00 2.85≤80 368063436AR770 3.7 6.4034.2036.00 2.85≤70 369063436AR1850 3.7 6.4034.2036.00 3.15≤70 370613659A1400 3.7 6.4036.2059.00 5.18≤60 371613659A11500 3.7 6.4036.2059.00 5.55≤60 372064036AR900 3.7 6.4040.0036.00 3.33≤70 373623039AR780 3.7 6.5030.0039.00 2.89≤70 374G063536ArJ940 3.7 6.5035.0036.00 3.48≤70厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)375623835AR890 3.7 6.5038.0035.00 3.29≤70 376623850AR1350 3.7 6.5038.0049.40 5.00≤70 377R624042AR1180 3.7 6.5040.0042.00 4.37≤70 378624136AR1000 3.7 6.5040.7036.00 3.70≤75 379633040A820 3.7 6.6030.0040.00 3.03≤70 380G633436AR890 3.7 6.6034.0036.00 3.29≤70 381R633950A1400 3.7 6.6039.0050.00 5.18≤60 382G633960AJ1800 3.7 6.6039.0060.00 6.66≤60 383H633960AL1200 3.7 6.6039.0060.00 4.44≤60 384R633960A1800 3.7 6.6039.0060.00 6.66≤60 385R634474AR2400 3.7 6.6044.0074.008.88≤60 386G635148AR2000 3.7 6.6051.0048.007.40≤60 387633752A1400 3.7 6.7037.0052.00 5.18≤60 388633765A1700 3.7 6.7037.0065.00 6.29≤60 389633770A2020 3.7 6.7037.0070.007.47≤60 390633770AL1800 3.7 6.7037.0070.00 6.66≤60 391G654050A1500 3.7 6.8039.8050.00 5.55≤60 392R654058A1780 3.7 6.8040.0058.00 6.59≤60 393R654136AR1070 3.7 6.8041.0036.00 3.96≤70 394654460A2000 3.7 6.8044.0060.007.40≤60 395654460AL1800 3.7 6.8044.0060.00 6.66≤60 396673855A1600 3.77.0038.0055.00 5.92≤60 397683448A1200 3.77.1034.0048.00 4.44≤60 398R683448A11250 3.77.1034.0048.00 4.63≤60 399R684544A1500 3.77.1045.0044.00 5.55≤65厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)400693470A1900 3.77.2034.0070.007.03≤60 401R694054AR1750 3.77.2040.0054.00 6.48≤60 402074348A1600 3.77.4043.5048.00 5.92≤60 403714750A1800 3.77.4047.0050.00 6.66≤60 404R733640AR1180 3.77.6036.0040.00 4.37≤70 405753048A1050 3.77.8029.8048.00 3.89≤60 406753436A910 3.77.8034.0036.00 3.37≤70 407083042A910 3.77.9030.0041.00 3.37≤70 408763448A1300 3.77.9033.9047.90 4.81≤60 409763448AJ1300 3.77.9033.9047.90 4.81≤60 410783440A11050 3.78.1033.9040.20 3.89≤70 411R783440A21100 3.78.1033.9040.20 4.07≤70 412783851AR1700 3.78.1038.0051.00 6.29≤60 413083450A1400 3.78.3034.0050.00 5.18≤60 414083450A11500 3.78.3034.0050.00 5.55≤60 415083456A1700 3.78.3034.0056.00 6.29≤60 416083462A2000 3.78.3034.0062.007.40≤60 417083462AT1800 3.78.3034.0062.00 6.66≤60 418083854A1800 3.78.3538.0054.00 6.66≤60 419083436A1050 3.78.4034.0036.10 3.89≤70 420824850A2100 3.78.5048.0050.007.77≤60 421832536A800 3.78.6025.0036.00 2.96≤70 422884050A1680 3.79.1040.0050.00 6.22≤60 423884050A11800 3.79.1040.0050.00 6.66≤60 424093834AR1100 3.79.2037.8034.20 4.07≤75厚度Thickne-ss Max(mm)宽度WidthMax (mm)高度 HeightMax (mm)瓦特/时watthour (WH)比克方型锂离子电池规格表SpecificationforLithium-ion Rechargeable Battery序号NO.型号 Model典型容量TypicalCapacity Min(mAh)额定电压RatedVoltage（V）内阻Internalresistance（mΩ)425R093834ARJ1100 3.79.2037.8034.20 4.07≤75 426923437A1250 3.79.5034.0037.00 4.63≤70 427933443A1350 3.79.6034.0043.00 5.00≤60 428933739A1450 3.79.6037.0039.00 5.37≤80 429103450AR11700 3.710.4033.7049.30 6.29≤60 430103450AR21800 3.710.4033.7049.30 6.66≤60 431103450ARJ1700 3.710.4033.7049.30 6.29≤60 432R103450ARJ11800 3.710.4033.7049.30 6.66≤60 433103456A2050 3.710.6034.0056.007.59≤60注：Notes:1、以上电池标称容量均为23±2℃条件下0.2C5mA充电至4.2V，再恒压充电至0.01C5mA，之后以0.2C5mA放电至3.00V时的容量。

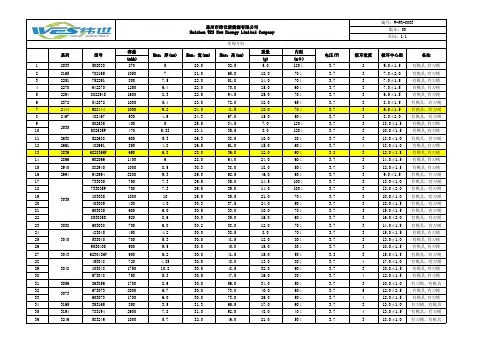

容量重量内阻(mAh)(g)(m Ω)12033502033270520.032.5 5.0120↓ 3.729.0±1.5有模具,有刀模221657021651050721.065.018.070↓ 3.737.0±2.0有模具,有刀模322517522518007.522.051.014.070↓ 3.737.0±1.5有模具,有刀模422706422701250 6.422.070.015.060↓ 3.737.0±1.5有模具,有刀模52294802294S 16008.322.594.525.070↓ 3.73 6.5±1.5有模具,有刀模623725423721000 5.423.072.018.065↓ 3.738.0±1.5有模具，有刀模7244492244410009.224.041.518.070↓ 3.73 6.5±1.5有模具，有刀模82467482467930 4.924.367.015.060↓ 3.738.0±2.0有模具，有刀模9502535400525.534.57.0120↓ 3.7313.0±1.5有模具,有刀模10582535P 470 5.8323.135.58.0120↓ 3.7310.0±1.5有模具,有刀模112638522638600 5.326.338.510.080↓ 3.7313.0±1.0有模具，有刀模122661482661850 4.826.561.015.060↓ 3.7413.0±1.0有模具,有刀模132836682836HV 690 6.828.036.012.060↓ 3.8312.0±1.5有模具,有刀模1428666028661400628.064.024.060↓ 3.7314.0±1.5有模具,有刀模15294088294010008.530.338.018.050↓ 3.7312.0±1.5有模具,有刀模16299494299428009.329.092.546.060↓ 3.739.0±1.5有模具，有刀模177330357507.329.535.014.5100↓ 3.7313.0±1.0有模具，有刀模18733035P 7007.329.535.014.0100↓ 3.7313.0±2.0有模具，有刀模1910303510001029.535.521.070↓ 3.7310.0±1.0有模具，有刀模20403035430 4.030.337.524.090↓ 3.7318.0±1.5有模具，有刀模21603035600 6.030.533.010.070↓ 3.7315.0±1.5有模具，有刀模22853035S 9208.630.035.016.060↓ 3.7316.0±2.0有模具，有刀模233038603038700 6.030.238.012.070↓ 3.7314.0±1.5有模具，有刀模24423040450 4.230.038.58.070↓ 3.7315.0±1.5有模具,有刀模25533040700 5.330.041.512.080↓ 3.7313.0±1.0有模具,有刀模26953040S 9009.530.040.019.080↓ 3.7310.0±1.5有模具,有刀模273043623043HV 900 6.230.041.519.050↓ 3.8315.0±1.5有模具，有刀模28453048720 4.3530.048.013.080↓ 3.7417.0±1.0有模具，有刀模29103048175010.230.548.532.060↓ 3.7310.0±1.5有模具,有刀模30673048750 5.330.547.516.080↓ 3.7412.0±1.5有模具,有刀模31305686305617008.630.056.034.050↓ 3.7310.0±1.0有刀模、有模具326730732000 6.730.073.040.060↓ 3.7512.0±2.5有模具,有刀模336030731700 6.030.073.026.050↓ 3.7412.0±1.5有模具,有刀模343165353165850 3.531.365.517.060↓ 3.7313.0±1.0有刀模、有模具35319478319426007.831.092.048.040↓ 3.7413.0±1.5有模具，有刀模36324658324610005.732.046.021.050↓3.7318.0±1.0有刀模、有模具系列25353035304030483073极耳中心距备注型号Max：厚(mm)惠州市纬世新能源有限公司Huizhou WES New Energy Limited CompanyMax：宽(mm)Max：高(mm)电压(V)极耳宽度编号：W-PR-0003版本：00页码：1/1常规方形备注：HV为4.35V高电压，P为高倍率,重量为估算，与实际电芯存在偏差。

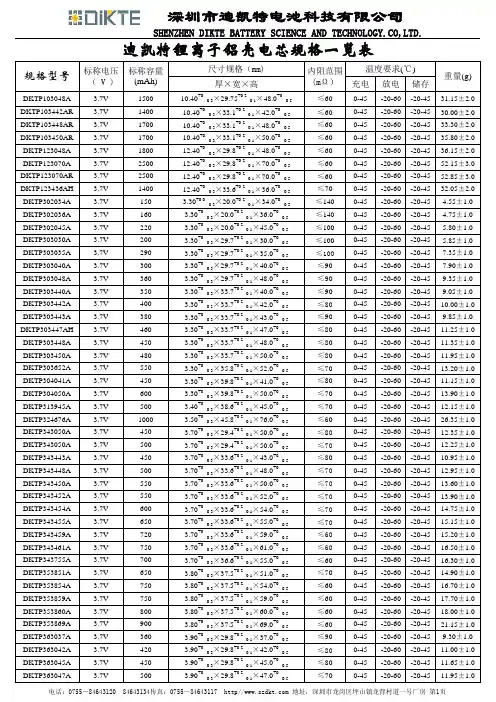

尺寸规格（mm)厚×宽×高充电放电储存DKTP103048A 3.7V 150010.40+0 -0.3×29.75+0.2 -0.1×48.0+0-0.5≤600-45-20-60-20-4531.15±2.0DKTP103442AR 3.7V 140010.40+0 -0.3×33.1+0.2 -0.1×42.0+0-0.5≤600-45-20-60-20-4530.00±2.0DKTP103448AR 3.7V 170010.40+0 -0.3×33.1+0.2 -0.1×48.0+0-0.5≤600-45-20-60-20-4533.30±2.0DKTP103450AR 3.7V 170010.40+0-0.3×33.1+0.2 -0.1×50.0+0-0.5≤600-45-20-60-20-4535.80±2.0DKTP123048A 3.7V 180012.40+0 -0.3×29.8+0.2 -0.1×48.0+0 -0.5≤600-45-20-60-20-4536.15±2.0DKTP123070A 3.7V 250012.40+0-0.3×29.8+0.2 -0.1×70.0+0-0.5≤600-45-20-60-20-4552.15±3.0DKTP123070AR 3.7V 250012.40+0 -0.3×29.8+0.2 -0.1×70.0+0 -0.5≤600-45-20-60-20-4552.85±3.0DKTP123436AH 3.7V 140012.40+0 -0.3×33.6+0.2 -0.1×36.0+0 -0.5≤700-45-20-60-20-4532.05±2.0DKTP302034A 3.7V 150 3.30+0.0-0.3×20.0+0.2 -0.1×34.0+0-0.5≤1400-45-20-60-20-45 4.55±1.0DKTP302036A 3.7V 160 3.30+0 -0.3×20.0+0.2 -0.1×36.0+0 -0.5≤1400-45-20-60-20-45 4.75±1.0DKTP302045A 3.7V 220 3.30+0-0.3×20.0+0.2 -0.1×45.0+0-0.5≤1000-45-20-60-20-45 5.80±1.0DKTP303030A 3.7V 200 3.30+0 -0.3×29.7+0.2 -0.1×30.0+0 -0.5≤1000-45-20-60-20-45 5.85±1.0DKTP303035A 3.7V 290 3.30+0 -0.3×29.7+0.2 -0.1×35.0+0 -0.5≤1000-45-20-60-20-457.35±1.0DKTP303040A 3.7V 300 3.30+0 -0.3×29.7+0.2 -0.1×40.0+0 -0.5≤900-45-20-60-20-457.90±1.0DKTP303048A 3.7V 360 3.30+0 -0.3×29.7+0.2 -0.1×48.0+0 -0.5≤900-45-20-60-20-459.35±1.0DKTP303440A 3.7V 350 3.30+0 -0.3×33.7+0.2 -0.1×40.0+0 -0.5≤900-45-20-60-20-459.05±1.0DKTP303442A 3.7V 400 3.30+0 -0.3×33.7+0.2 -0.1×42.0+0 -0.5≤800-45-20-60-20-4510.00±1.0DKTP303443A 3.7V 380 3.30+0 -0.3×33.7+0.2 -0.1×43.0+0 -0.5≤900-45-20-60-20-459.85±1.0DKTP303447AH 3.7V 460 3.30+0 -0.3×33.7+0.2 -0.1×47.0+0 -0.5≤800-45-20-60-20-4511.25±1.0DKTP303448A 3.7V 450 3.30+0 -0.3×33.7+0.2 -0.1×48.0+0 -0.5≤800-45-20-60-20-4511.35±1.0DKTP303450A 3.7V 480 3.30+0 -0.3×33.7+0.2 -0.1×50.0+0 -0.5≤800-45-20-60-20-4511.95±1.0DKTP303652A 3.7V 550 3.30+0 -0.3×35.8+0.2 -0.1×52.0+0 -0.5≤700-45-20-60-20-4513.20±1.0DKTP304041A 3.7V 450 3.30+0 -0.3×39.8+0.2 -0.1×41.0+0 -0.5≤800-45-20-60-20-4511.15±1.0DKTP304050A 3.7V 600 3.30+0 -0.3×39.8+0.2 -0.1×50.0+0 -0.5≤700-45-20-60-20-4513.90±1.0DKTP313945A 3.7V 500 3.40+0-0.3×38.6+0.2 -0.1×45.0+0-0.5≤700-45-20-60-20-4512.15±1.0DKTP324676A 3.7V 1000 3.50+0 -0.3×45.8+0.2 -0.1×76.0+0 -0.5≤600-45-20-60-20-4526.35±1.0DKTP343050A 3.7V 450 3.70+0 -0.3×29.4+0.2 -0.1×50.0+0 -0.5≤800-45-20-60-20-4512.35±1.0DKTP343050A 3.7V 500 3.70+0 -0.3×29.4+0.2 -0.1×50.0+0 -0.5≤700-45-20-60-20-4512.25±1.0DKTP343443A 3.7V 450 3.70+0 -0.3×33.6+0.2 -0.1×43.0+0 -0.5≤800-45-20-60-20-4510.95±1.0DKTP343448A 3.7V 500 3.70+0 -0.3×33.6+0.2 -0.1×48.0+0 -0.5≤700-45-20-60-20-4512.95±1.0DKTP343450A 3.7V 550 3.70+0-0.3×33.6+0.2 -0.1×50.0+0-0.5≤700-45-20-60-20-4513.60±1.0DKTP343452A 3.7V 550 3.70+0 -0.3×33.6+0.2 -0.1×52.0+0 -0.5≤700-45-20-60-20-4513.90±1.0DKTP343454A 3.7V 600 3.70+0 -0.3×33.6+0.2 -0.1×54.0+0 -0.5≤700-45-20-60-20-4514.75±1.0DKTP343455A 3.7V 650 3.70+0 -0.3×33.6+0.2 -0.1×55.0+0 -0.5≤700-45-20-60-20-4515.15±1.0DKTP343459A 3.7V 720 3.70+0 -0.3×33.6+0.2 -0.1×59.0+0 -0.5≤600-45-20-60-20-4515.20±1.0DKTP343461A 3.7V 750 3.70+0 -0.3×33.6+0.2 -0.1×61.0+0 -0.5≤600-45-20-60-20-4516.50±1.0DKTP343755A 3.7V 700 3.70+0 -0.3×36.6+0.2 -0.1×55.0+0 -0.5≤600-45-20-60-20-4516.30±1.0DKTP353851A 3.7V 650 3.80+0-0.3×37.5+0.2 -0.1×51.0+0-0.5≤700-45-20-60-20-4514.90±1.0DKTP353854A 3.7V 750 3.80+0 -0.3×37.5+0.2 -0.1×54.0+0 -0.5≤600-45-20-60-20-4516.70±1.0DKTP353859A 3.7V 750 3.80+0 -0.3×37.5+0.2 -0.1×59.0+0 -0.5≤600-45-20-60-20-4517.70±1.0DKTP353860A 3.7V 800 3.80+0 -0.3×37.5+0.2 -0.1×60.0+0 -0.5≤600-45-20-60-20-4518.00±1.0DKTP353869A 3.7V 900 3.80+0-0.3×37.5+0.2 -0.1×69.0+0-0.5≤600-45-20-60-20-4521.15±1.0DKTP363037A 3.7V 360 3.90+0 -0.3×29.8+0.2 -0.1×37.0+0-0.5≤900-45-20-60-20-459.30±1.0标称电压（ V )标称容量(mAh)内阻范围(m Ω）深圳市迪凯特电池科技有限公司SHENZHEN DIKTE BATTERY SCIENCE AND TECHNOLOGY.CO,LTD.温度要求(℃)重量(g)迪凯特锂离子铝壳电芯规格一览表规格型号尺寸规格（mm)厚×宽×高充电放电储存标称电压（ V )标称容量(mAh)内阻范围(m Ω）深圳市迪凯特电池科技有限公司SHENZHEN DIKTE BATTERY SCIENCE AND TECHNOLOGY.CO,LTD.温度要求(℃)重量(g)迪凯特锂离子铝壳电芯规格一览表规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号厚×宽×高充电放电储存（ V )(mAh)(m Ω）重量(g)规格型号尺寸规格（mm)厚×宽×高充电放电储存标称电压（ V )标称容量(mAh)内阻范围(m Ω）深圳市迪凯特电池科技有限公司SHENZHEN DIKTE BATTERY SCIENCE AND TECHNOLOGY.CO,LTD.温度要求(℃)重量(g)迪凯特锂离子铝壳电芯规格一览表规格型号更新日期：2009-11-23。
