基于MSP430G2553的按键测试程序

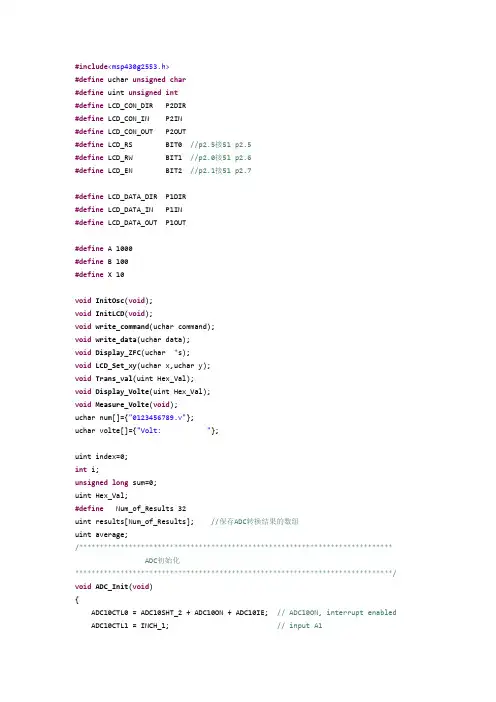

#include<msp430g2553.h>#define uchar unsigned char#define uint unsigned int#define LCD_CON_DIR P2DIR#define LCD_CON_IN P2IN#define LCD_CON_OUT P2OUT#define LCD_RS BIT0 //p2.5接51 p2.5#define LCD_RW BIT1 //p2.0接51 p2.6#define LCD_EN BIT2 //p2.1接51 p2.7#define LCD_DATA_DIR P1DIR#define LCD_DATA_IN P1IN#define LCD_DATA_OUT P1OUT#define A 1000#define B 100#define X 10void InitOsc(void);void InitLCD(void);void write_command(uchar command);void write_data(uchar data);void Display_ZFC(uchar *s);void LCD_Set_xy(uchar x,uchar y);void Trans_val(uint Hex_Val);void Display_Volte(uint Hex_Val);void Measure_Volte(void);uchar num[]={"0123456789.v"};uchar volte[]={"Volt: "};uint index=0;int i;unsigned long sum=0;uint Hex_Val;#define Num_of_Results 32uint results[Num_of_Results]; //保存ADC转换结果的数组uint average;/**************************************************************************** ADC初始化*****************************************************************************/ void ADC_Init(void){ADC10CTL0 = ADC10SHT_2 + ADC10ON + ADC10IE; // ADC10ON, interrupt enabled ADC10CTL1 = INCH_1; // input A1ADC10AE0 |= 0x02; //二次采集}/**************************************************************************** DCO时钟初始化设为1MHz*****************************************************************************/ void DCO_Init(void){if(CALBC1_1MHZ==0xFF||CALDCO_1MHZ==0xFF){while(1);}BCSCTL1 = CALBC1_1MHZ;DCOCTL = CALDCO_1MHZ;BCSCTL2 = SELM_0 +DIVM_0;}/****************************************************************************向12864发送字节*****************************************************************************/ void SendByte(uchar Zdata){uint i;for(i=0; i<8; i++){if((Zdata << i) & 0x80){LCD_CON_OUT |= LCD_RW; //clk始终信号为高}else{LCD_CON_OUT &=~LCD_RW; //clk始终信号为低}LCD_CON_OUT &= ~LCD_EN;LCD_CON_OUT |= LCD_EN;}}/****************************************************************************向12864写命令*****************************************************************************/ void write_command(uchar command){LCD_CON_OUT |= LCD_RS;SendByte(0xF8);SendByte(command & 0xF0);SendByte((command<<4)&0xF0);_delay_cycles(200);}/****************************************************************************向12864写数据*****************************************************************************/ void write_data(uchar data){LCD_CON_OUT |= LCD_RS;SendByte(0xFA);SendByte(data & 0xF0);SendByte((data << 4) & 0xF0);_delay_cycles(200);}void Display_ZFC(uchar *s){while(*s > 0){write_data(*s);s++;_delay_cycles(5000);}}/****************************************************************************确定12864屏幕显示的坐标位置（x,y）*****************************************************************************/ void LCD_Set_xy( uchar x, uchar y ){uchar address;switch(x){case 0: address = 0x80 + y; break;case 1: address = 0x80 + y; break;case 2: address = 0x90 + y; break;case 3: address = 0x88 + y; break;case 4: address = 0x98 + y; break;default:address = 0x80 + y; break;}write_command(address); //写入地址命令}/**************************************************************************** lcd初始化*****************************************************************************/ void InitLCD(void){LCD_CON_DIR |= 0xFF; //p2口定义为输出write_command(0x01); //清屏write_command(0x30);_delay_cycles(5000);write_command(0x0c);_delay_cycles(5000);}/****************************************************************************采集到的数据转化成电压形式*****************************************************************************/ void Trans_val(uint Hex_Val){unsigned long caltmp;uint Curr_Volt,volt,max;uint a[50];caltmp = Hex_Val;caltmp = caltmp*34600; //caltmp = Hex_Val * 34600Curr_Volt = caltmp >> 10 ; //Curr_Volt = caltmp / 2^nvolt = Curr_Volt;for(i=0;i<50;i++){a[i]=volt;}for(max=a[0],i=0;i<50;i++){if(a[i]>max)max=a[i];}Curr_Volt = max;Display_Volte(Curr_Volt);}/****************************************************************************主函数*****************************************************************************/ void main(void){WDTCTL = WDTPW + WDTHOLD;ADC_Init(); //ADC初始化DCO_Init(); //DCO初始化InitLCD(); //12864液晶初始化while(1){Measure_Volte(); //测量直流电压值并且显示}}/****************************************************************************测量电压*****************************************************************************/ void Measure_Volte(void){ADC10CTL0 |= ENC + ADC10SC; // Sampling and conversion start __bis_SR_register(CPUOFF + GIE);results[index++] = ADC10MEM; // Move resultsif(index == Num_of_Results){index = 0;for(i = 0; i < Num_of_Results; i++){sum += results[i];}sum >>= 5; //除以32Trans_val(sum);sum=0;}}/****************************************************************************显示电压值*****************************************************************************/ void Display_Volte(uint Hex_Val){uint Curr_Volt;Curr_Volt = Hex_Val;write_command(0x90);for(i=0;i<16;i++){write_data(volte[i]);}write_command(0x93);write_data(num[Curr_Volt / 10000]);write_data(num[10]);write_data(num[Curr_Volt % 10000/1000]);write_data(num[Curr_Volt % 10000 % 1000 / 100]);write_data(num[Curr_Volt % 10000 % 1000 % 100 / 10]);write_data(' ');write_data(num[11]);}/****************************************************************************ADC中断，进入低功耗模式关闭CPU*****************************************************************************/ #pragma vector=ADC10_VECTOR__interrupt void ADC10_ISR(void){__bic_SR_register_on_exit(CPUOFF); // Clear CPUOFF bit from 0(SR)}。

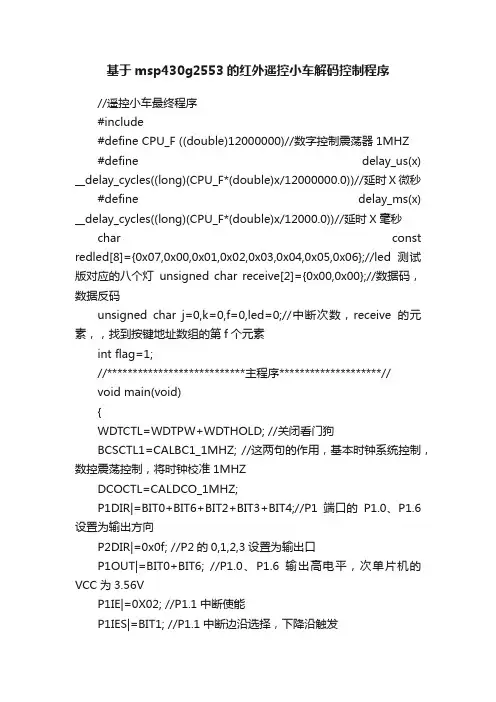

基于msp430g2553的红外遥控小车解码控制程序//遥控小车最终程序#include#define CPU_F ((double)12000000)//数字控制震荡器1MHZ#define delay_us(x) __delay_cycles((long)(CPU_F*(double)x/12000000.0))//延时X微秒#define delay_ms(x) __delay_cycles((long)(CPU_F*(double)x/12000.0))//延时X毫秒char const redled[8]={0x07,0x00,0x01,0x02,0x03,0x04,0x05,0x06};//led测试版对应的八个灯unsigned char receive[2]={0x00,0x00};//数据码，数据反码unsigned char j=0,k=0,f=0,led=0;//中断次数，receive的元素，，找到按键地址数组的第f个元素int flag=1;//***************************主程序********************//void main(void){WDTCTL=WDTPW+WDTHOLD; //关闭看门狗BCSCTL1=CALBC1_1MHZ; //这两句的作用，基本时钟系统控制，数控震荡控制，将时钟校准1MHZDCOCTL=CALDCO_1MHZ;P1DIR|=BIT0+BIT6+BIT2+BIT3+BIT4;//P1端口的P1.0、P1.6设置为输出方向P2DIR|=0x0f; //P2的0,1,2,3设置为输出口P1OUT|=BIT0+BIT6; //P1.0、P1.6输出高电平，次单片机的VCC为3.56VP1IE|=0X02; //P1.1中断使能P1IES|=BIT1; //P1.1中断边沿选择，下降沿触发P1IFG=0; //清P1.1中断标志_BIS_SR(GIE); //开总中断while(1) //{if(receive[0]==0xa2){flag=1;}if(receive[0]==0xe2){flag=-1;}if(flag==1) //正转P1.0{P1OUT&=~BIT3;P1OUT&=~BIT4;switch(receive[0]){case 0x68:{P1OUT&=~BIT0;P1OUT&=~BIT2;break;} //0键case0x30:{{P1OUT|=BIT0;P1OUT|=BIT2;delay_ms(1);P1OUT&=~B IT0;P1OUT&=~BIT2;delay_m s(9);}break;}//1键case0x18:{{P1OUT|=BIT0;P1OUT|=BIT2;delay_ms(2);P1OUT&=~B IT0;P1OUT&=~BIT2;delay_m s(8);}break;}//2键case0x7a:{{P1OUT|=BIT0;P1OUT|=BIT2;delay_ms(3);P1OUT&=~B IT0;P1OUT&=~BIT2;delay_m s(7);}break;}//3键case0x10:{{P1OUT|=BIT0;P1OUT|=BIT2;delay_ms(4);P1OUT&=~BIT0;P1OUT&=~BIT2;delay_m s(6);}break;}//4键case0x38:{{P1OUT|=BIT0;P1OUT|=BIT2;delay_ms(5);P1OUT&=~B IT0;P1OUT&=~BIT2;delay_m s(5);}break;}//5键case0x5a:{{P1OUT|=BIT0;P1OUT|=BIT2;delay_ms(6);P1OUT&=~B IT0;P1OUT&=~BIT2;delay_m s(4);}break;}//6键case0x42:{{P1OUT|=BIT0;P1OUT|=BIT2;delay_ms(7);P1OUT&=~B IT0;P1OUT&=~BIT2;delay_m s(3);}break;}//7键case0x4a:{{P1OUT|=BIT0;P1OUT|=BIT2;delay_ms(8);P1OUT&=~B IT0;P1OUT&=~BIT2;delay_m s(2);}break;}//8键case 0x52:{P1OUT|=BIT0;P1OUT|=BIT2;break;} //9键}}else if(flag==-1) //反转P1.2{P1OUT&=~BIT0;P1OUT&=~BIT2;switch(receive[0]){case 0x68:{P1OUT&=~BIT3;P1OUT&=~BIT4;break;} //0键case0x30:{{P1OUT|=BIT3;P1OUT|=BIT4;delay_ms(1);P1OUT&=~B IT3;P1OUT&=~BIT4;delay_m s(9);}break;}//1键case0x18:{{P1OUT|=BIT3;P1OUT|=BIT4;delay_ms(2);P1OUT&=~B IT3;P1OUT&=~BIT4;delay_m s(8);}break;}//2键case0x7a:{{P1OUT|=BIT3;P1OUT|=BIT4;delay_ms(3);P1OUT&=~B IT3;P1OUT&=~BIT4;delay_m s(7);}break;}//3键case0x10:{{P1OUT|=BIT3;P1OUT|=BIT4;delay_ms(4);P1OUT&=~B IT3;P1OUT&=~BIT4;delay_m s(6);}break;}//4键case0x38:{{P1OUT|=BIT3;P1OUT|=BIT4;delay_ms(5);P1OUT&=~B IT3;P1OUT&=~BIT4;delay_m s(5);}break;}//5键case0x5a:{{P1OUT|=BIT3;P1OUT|=BIT4;delay_ms(6);P1OUT&=~B IT3;P1OUT&=~BIT4;delay_m s(4);}break;}//6键case0x42:{{P1OUT|=BIT3;P1OUT|=BIT4;delay_ms(7);P1OUT&=~B IT3;P1OUT&=~BIT4;delay_m s(3);}break;}//7键case0x4a:{{P1OUT|=BIT3;P1OUT|=BIT4;delay_ms(8);P1OUT&=~B IT3;P1OUT&=~BIT4;delay_m s(2);}break;}//8键case 0x52:{P1OUT|=BIT3;P1OUT|=BIT4;break;} //9键}}}}//*********************红外遥控器中断程序*******************//#pragma vector=PORT1_VECTOR //中断程序的格式：#pragma vector=中断矢量__interrupt void port1(void)//格式：__interrupt void 函数名(void){P1IFG=0X00; //清P1中断标志int count=0; //高电平持续时间计数值while(!(P1IN&BIT1)); //等电平变为高电平while(P1IN&BIT1) //计算高电平持续时间{count++;if(count>8000)return;//如果高电平持续时间过长则推出中断程序}if(j>16) //一体化红外接收头一接收遥控器信号，就会输出32位的脉冲序列波，其中后16位{ //决定遥控器的按键地址，16位由8位数据码和数据反码组成，我们需要将其解码//time[j-17]=count; //将记得的高电平持续时间放入时间数组中if(j==25)k++; //到数据反码的起始位的时候，我让receive数组元素下标+1receive[k]<<=1; //接收数据码左移一位，比如：xxxx xxxx 左移一位后xxxx xxx0if(count>80)receive[k]|=0x01;//高电平持续时间超过80，则将左移一位后的最低位变1，} //结果变为，xxxx xxx1，如果没超过80则保持不变，xxxx xxx0 j++;if(j>32){j=0;k=0; //解码结束，j,k值清零delay_ms(150);}}。

msp430g2553测频率以及测峰值电子设计综合实验项目报告项目名称：MCU交流电压参数测量小组成员：林伊、武正浩学号：20111112、20111201项目要求题目：交流电压参数的测量 要求：用给定的MCU:msp430g2553,制作交流电压参数测试设备图表 1基本要求：一、 用给定运放LM324制作一放大器 a) 增益大于：20dBb) 带宽大于：100KHz二、 用指定MCU 和已制作的放大器制作频率计a) 测量范围：10Hz~100KHzb) 显示：3位以上信号放大 A/D比较器 指定MCUMSP430发挥部分：一、用A/D测量已给电压的幅度，信号由已制作的放大器输入a)测量范围：输入信号越小越好实现思路放大：首先分析题目要求，要实现放大20dB，频率1~100KHz的信号，通过公式20lg（Ad）得出Ad=10，即放大10倍必须使用运放lm324实现，则需要知道该芯片的器件参数，即增益带宽积。

通过数据手册得知其增益带宽积为6.4MHz，除去放大倍数得知能够实现该信号的放大，通过设计放大电路并焊接即可，放大电路为反向比例放大电路，见Figure 1Figure 1频率：实现频率的测量，这一块需使用到MCU，测量频率的方法有很多种，通过捕捉上升沿下降沿产生中断，也可以不产生中断，还可通过时钟计数。

其中通过捕捉上升沿下降沿的思路又分两种，1、检测上升沿后再检测下一个上升沿（检测下降沿后再检测下一个下降沿）2、检测上升沿后再检测下降沿（检测下降沿后再检测上升沿）。

这些思路对应不同的采集方法又可以细分，其中方案1对于测量高频信号有着较好的效果，方案2对于测低频的信号较好，前提是占空比为50%，若不为则变为测脉宽。

这次的题目我采用的是用时钟计数的方式，msp430g2553中含有2个时钟，timer0和timer1，每个时钟都有如下功能，选择时钟来源：1、外部时钟（即外部输入的方波信号）2、ACLK 3、smclk等。

基于MSP430G2553的简易信号发生器浙江工业大学摘要：本作品基于TI的LaunchPad设计了一款简易信号发生器，选用TI的MSP430G2553单片机。

通过单片机加外围LCD12864、DAC0832及TL082放大电路，实现了可产生正弦波、锯齿波、三角波、方波的简易信号发生器，且频率可调。

关键词：MSP430G2553 DAC0832 正弦波锯齿波三角波一、作品基本功能介绍表1.1 技术参数2 在信号产生和处理方面。

通过MSP430G2553内部的TA 定时器，外加DAC0832产生四种波形，在DA 输出后，通过一个由运算放大器TL082和精密可调电位器组成的运算放大电路，以实现信号的增益控制。

最后在 50负载电阻上输出电压。

系统总体框图如图1.1所示。

图1.1系统总体框图表1.2 按键功能说明二、系统硬件和软件说明1 硬件构成本作品使用LCD12864作为人机交互模块，由于MSP430G2553的I/O 口很少，所以通过对LCD 的进行串行数据输入，以节约I/O 口。

其连接如图1.2所示。

+5V图1.2 LCD12864硬件连接由于是通过MSP430G2553输出数字量的信号来产生波形，因此需要用到DA 将数字量转换为模拟量。

考虑到单片机的I/O 口数量，选用8位的DA 来进行数模转换。

硬件如图1.3所示，DAC0832采用直通工作方式，节省I/O 口控制引脚。

+5V+5VI OUTP1.0-P1.3P1.4-P1.7图1.3 DAC0832 直通方式硬件连接由DAC 输出模拟量后，由于波形的幅值太小，因此还需要进行幅值的放大。

其中R3是精密可调电位器，方便用户对信号的幅度进行调节。

50Ω的电阻可以保证整个信号发生器的输出阻抗为50Ω。

信号幅度调节和输出部分电路如图1.4所示。

图1.4 幅值放大的硬件电路2 软件系统整个系统的软件主要有主函数、定时器TA 中断函数、按键中断函数三个大的模块组成。

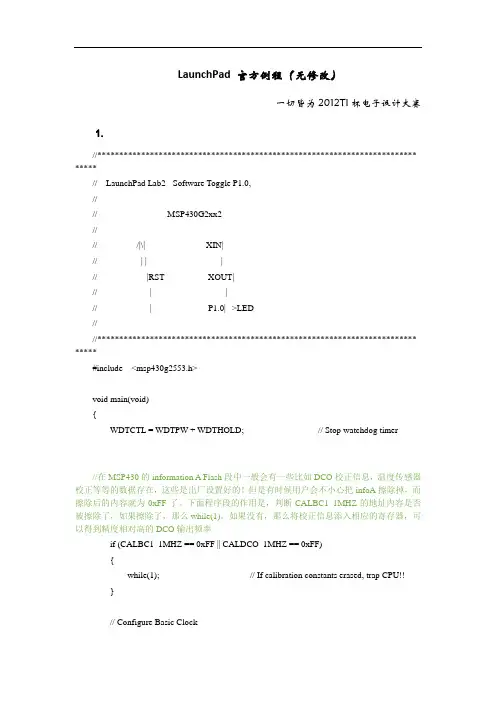

MSPG2553 例程1.//************************************************************************* *****// LaunchPad Lab2 - Software Toggle P1.0,//// MSP430G2xx2// -----------------// /|\| XIN|-// | | |// --|RST XOUT|-// | |// | P1.0|-->LED////************************************************************************* *****#include <msp430g2553.h>void main(void){WDTCTL = WDTPW + WDTHOLD; // Stop watchdog timerif (CALBC1_1MHZ == 0xFF || CALDCO_1MHZ == 0xFF){while(1); // If calibration constants erased, trap CPU!!}// Configure Basic ClockBCSCTL1 = CALBC1_1MHZ; // Set rangeDCOCTL = CALDCO_1MHZ; // Set DCO step + modulationBCSCTL3 |= LFXT1S_2; // Set LFXT1P1DIR = BIT6; // P1.6 output (green LED)P1OUT = 0; // LED offIFG1 &= ~OFIFG; // Clear OSCFault flagBCSCTL2 |=SELM_1 + DIVM_0; // Set MCLKfor(;;){P1OUT = BIT6; // P1.6 on (green LED)_delay_cycles(100);P1OUT = 0; // green LED off_delay_cycles(5000);}}2.//************************************************************************* *****// LaunchPad Lab3 - Software Port Interrupt Service//// MSP430G2xx2// -----------------// /|\| XIN|-// | | |// --|RST XOUT|-// /|\ | |// --o--|P1.3 P1.0|-->LED// \|/////************************************************************************* *****#include <msp430g2553.h>void main(void){WDTCTL = WDTPW + WDTHOLD; // Stop watchdog timerP1DIR |= BIT0; // Set P1.0 to output directionP1IES |= BIT3; // P1.3 Hi/lo edgeP1IFG &= ~BIT3; // P1.3 IFG clearedP1IE |= BIT3; // P1.3 interrupt enabled_BIS_SR(LPM4_bits + GIE); // Enter LPM4 w/interrupt }// Port 1 interrupt service routine#pragma vector=PORT1_VECTOR__interrupt void Port_1(void){if (P1IFG & BIT3){P1OUT ^= BIT0; // P1.0 = toggleP1IFG &= ~BIT3; // P1.3 IFG cleared }}3.//************************************************************************* *****// LaunchPad Lab5 - ADC10, Sample A10 Temp and Convert to oC and oF//// MSP430G2452// -----------------// /|\| XIN|-// | | |// --|RST XOUT|-// | |// |A10 |////************************************************************************* *****#include "msp430g2553.h"long temp;long IntDegF;long IntDegC;void main(void){WDTCTL = WDTPW + WDTHOLD; // Stop WDT//Configure ADC10ADC10CTL1 = INCH_10 + ADC10DIV_3; // Choose ADC Channel as Temp SensorADC10CTL0 = SREF_1 + ADC10SHT_3 + REFON + ADC10ON + ADC10IE;//Choose ADC Ref source__enable_interrupt(); // Enable interrupts.TACCR0 = 30; // Delay to allow Ref to settleTACCTL0 |= CCIE; // Compare-mode interrupt.TACTL = TASSEL_2 | MC_1; // TACLK = SMCLK, Up mode.LPM0; // Wait for delay.TACCTL0 &= ~CCIE; // Disable timer Interrupt__disable_interrupt();while(1){ADC10CTL0 |= ENC + ADC10SC; // Sampling and conversion start__bis_SR_register(LPM0_bits + GIE); // LPM0 with interrupts enabled// oF = ((A10/1024)*1500mV)-923mV)*1/1.97mV = A10*761/1024 - 468temp = ADC10MEM;IntDegF = ((temp - 630) * 761) / 1024;// oC = ((A10/1024)*1500mV)-986mV)*1/3.55mV = A10*423/1024 - 278temp = ADC10MEM;IntDegC = ((temp - 673) * 423) / 1024;__no_operation(); // SET BREAKPOINT HERE}}// ADC10 interrupt service routine#pragma vector=ADC10_VECTOR__interrupt void ADC10_ISR (void){__bic_SR_register_on_exit(LPM0_bits); // Clear CPUOFF bit from 0(SR)}#pragma vector=TIMER0_A0_VECTOR__interrupt void ta0_isr(void){TACTL = 0;__bic_SR_register_on_exit(LPM0_bits); // Clear CPUOFF bit from 0(SR)}4.//************************************************************************* *****// MSP430F20xx Demo - Basic Clock, Output Buffered SMCLK, ACLK and MCLK/10 //// Description: Buffer ACLK on P2.0, default SMCLK(DCO) on P1.4 and MCLK/10 on // P1.5.// ACLK = LFXT1 = VLO, MCLK = SMCLK = default DCO// //* External watch crystal installed on XIN XOUT is required for ACLK *////// MSP430F20xx// -----------------// /|\| XIN|-// | | |// --|RST XOUT|-// | |// | P1.4/SMCLK|-->SMCLK = Default DCO// | P1.5|-->MCLK/10 = DCO/10// | P1.0/ACLK|-->ACLK = VLO//// M. Buccini / L. Westlund// Texas Instruments Inc.// October 2005// Built with IAR Embedded Workbench Version: 3.40A//************************************************************************* *****#include <msp430x20x3.h>unsigned char s;void main(void){WDTCTL = WDTPW +WDTHOLD; // Stop Watchdog TimerBCSCTL3 |= LFXT1S_2; // LFXT1 = VLO//DCOCTL = 0;//BCSCTL1 = CALBC1_16MHZ;//DCOCTL = CALBC1_16MHZ;P1DIR |= 0x31; // P1.0,5 and P1.4 outputsP1SEL |= 0x11; // P1.0,4 ACLK/VLO, SMCLK/DCO output//SMCLK Sub-System Main Clk，ACLK和SMCLK可以通过复用引脚输出，MCLK 不能直接输出体现, MCLK可以配置为VLO或者DCOwhile(1){P1OUT |= 0x20; // P1.5 = 1, 通过开关P1.5来体现MCLK，这两条指令的周期大概为SMCLK的1/10P1OUT &= ~0x20;//20;}}5.//************************************************************************* *****// MSP430xG46x Demo - FLL+, Runs Internal DCO at 8MHz// Description: This program demonstrates setting the internal DCO to run at// 8MHz with auto-calibration by the FLL+.// ACLK = LFXT1 = 32768Hz, MCLK = SMCLK = DCO = (121+1) x 2 x ACLK = 7995392Hz// //* An external watch crystal between XIN & XOUT is required for ACLK *////// MSP430xG461x// -----------------// /|\| XIN|-// | | | 32kHz// --|RST XOUT|-// | |// | P1.1|--> MCLK = 8MHz// | |// | P1.5|--> ACLK = 32kHz// | |//// K. Quiring/ M. Mitchell// Texas Instruments Inc.// October 2006// Built with IAR Embedded Workbench Version: 3.41A//************************************************************************* ****#include <msp430xG46x.h>void main(void){WDTCTL = WDTPW + WDTHOLD; // Stop watchdog timerFLL_CTL0 |= DCOPLUS + XCAP18PF; // DCO+ set, freq = xtal x D x N+1 SCFI0 |= FN_4; // x2 DCO freq, 8MHz nominal DCOSCFQCTL = 121; // (121+1) x 32768 x 2 = 7.99 MHzP1DIR = 0x22; // P1.1 & P1.5 to output directionP1SEL = 0x22; // P1.1 & P1.5 to output MCLK & ACLKwhile(1); // Loop in place}6.//************************************************************************* ***// MSP430xG46x Demo - Flash In-System Programming, Copy SegA to SegB//// Description: This program first erases flash seg A, then it increments all// values in seg A, then it erases seg B, then copies seg A to seg B.// Assumed MCLK 550kHz - 900kHz.// //* Set Breakpoint on NOP in the Mainloop to avoid Stressing Flash *////// MSP430xG461x// -----------------// /|\| XIN|-// | | |// --|RST XOUT|-// | |//// M. Mitchell// Texas Instruments Inc.// Feb 2005// Built with IAR Embedded Workbench Version: 3.21A//************************************************************************* *****#include <msp430xG46x.h>char value; // 8-bit value to write to segment A// Function prototypesvoid write_SegA (char value);void copy_A2B (void);void main(void){WDTCTL = WDTPW + WDTHOLD; // Stop watchdog timerFCTL2 = FWKEY + FSSEL0 + FN0; // MCLK/2 for Flash Timing Generatorvalue = 0; // Initialize valuewhile(1) // Repeat forever{write_SegA(value++); // Write segment A, increment valuecopy_A2B(); // Copy segment A to B_NOP(); // SET BREAKPOINT HERE}}void write_SegA (char value){char *Flash_ptr; // Flash pointerunsigned int i;Flash_ptr = (char *) 0x1080; // Initialize Flash pointerFCTL1 = FWKEY + ERASE; // Set Erase bitFCTL3 = FWKEY; // Clear Lock bit*Flash_ptr = 0; // Dummy write to erase Flash segmentFCTL1 = FWKEY + WRT; // Set WRT bit for write operationfor (i=0; i<128; i++){*Flash_ptr++ = value; // Write value to flash}FCTL1 = FWKEY; // Clear WRT bitFCTL3 = FWKEY + LOCK; // Set LOCK bit}void copy_A2B (void){char *Flash_ptrA; // Segment A pointerchar *Flash_ptrB; // Segment B pointerunsigned int i;Flash_ptrA = (char *) 0x1080; // Initialize Flash segment A pointerFlash_ptrB = (char *) 0x1000; // Initialize Flash segment B pointerFCTL1 = FWKEY + ERASE; // Set Erase bitFCTL3 = FWKEY; // Clear Lock bit*Flash_ptrB = 0; // Dummy write to erase Flash segment B FCTL1 = FWKEY + WRT; // Set WRT bit for write operationfor (i=0; i<128; i++){*Flash_ptrB++ = *Flash_ptrA++; // Copy value segment A to segment B}FCTL1 = FWKEY; // Clear WRT bitFCTL3 = FWKEY + LOCK; // Set LOCK bit}7.//************************************************************************* *****// MSP430xG46x Demo - Software Port Interrupt on P1.0 from LPM4//// Description: A hi/low transition on P1.0 will trigger P1_ISR which,// toggles P2.1. Normal mode is LPM4 ~ 0.1uA. LPM4 current can be measured// with the LED removed, all unused P1.x/P2.x configured as output or inputs// pulled high or low, and ensure the P2.0 interrupt input does not float.// ACLK = 32.768kHz, MCLK = SMCLK = default DCO//// MSP430xG461x// -----------------// /|\| |// | | |// --|RST |// /|\ | |// --o--|P1.0 P2.1|-->LED// \|///// K. Quiring/ M. Mitchell// Texas Instruments Inc.// October 2006// Built with IAR Embedded Workbench Version: 3.41A//************************************************************************* *****#include <msp430xG46x.h>void main(void){WDTCTL = WDTPW + WDTHOLD; // Stop WDTFLL_CTL0 |= XCAP14PF; // Configure load capsP2DIR = BIT1; // Set P2.1 to output directionP1IES = BIT0; // H-L transitionP1IE = BIT0; // Enable interrupt_BIS_SR(LPM4_bits + GIE); // LPM4, enable interrupts}// Port 1 interrupt service routine#pragma vector=PORT1_VECTOR__interrupt void Port1_ISR (void){unsigned volatile int i;for (i=10000; i>0; i--); // Debounce delayP1IFG &= ~BIT0; // Clear P1IFGif ((P1IN & 0x01) == 0)P2OUT ^= 0x02; // Toggle P2.1 using exclusive-OR}8.//************************************************************************* *****// MSP430xG46x Demo - Software Port Interrupt on P1.0 from LPM4//// Description: A hi/low transition on P1.0 will trigger P1_ISR which,// toggles P2.1. Normal mode is LPM4 ~ 0.1uA. LPM4 current can be measured// with the LED removed, all unused P1.x/P2.x configured as output or inputs// pulled high or low, and ensure the P2.0 interrupt input does not float.// ACLK = 32.768kHz, MCLK = SMCLK = default DCO//// MSP430xG461x// -----------------// /|\| |// | | |// --|RST |// /|\ | |// --o--|P1.0 P2.1|-->LED// \|///// K. Quiring/ M. Mitchell// Texas Instruments Inc.// October 2006// Built with IAR Embedded Workbench Version: 3.41A//************************************************************************* *****#include <msp430xG46x.h>void main(void){WDTCTL = WDTPW + WDTHOLD; // Stop WDTFLL_CTL0 |= XCAP14PF; // Configure load capsP2DIR = BIT1; // Set P2.1 to output directionP1IES = BIT0; // H-L transitionP1IE = BIT0; // Enable interrupt_BIS_SR(LPM4_bits + GIE); // LPM4, enable interrupts}// Port 1 interrupt service routine#pragma vector=PORT1_VECTOR__interrupt void Port1_ISR (void){unsigned volatile int i;for (i=10000; i>0; i--); // Debounce delayP1IFG &= ~BIT0; // Clear P1IFGif ((P1IN & 0x01) == 0)P2OUT ^= 0x02; // Toggle P2.1 using exclusive-OR}9.//************************************************************************* *****// MSP430xG46x Demo - USCI_A0, 115200 UART Echo ISR, DCO SMCLK// (modified code example "msp430xG46x_uscia0_uart_01_115k.c")//// Description: Echo a received character, RX ISR used. Normal mode is LPM0.// USCI_A0 RX interrupt triggers TX Echo.// Baud rate divider with 1048576hz = 1048576/115200 = ~9.1 (009h|01h)// ACLK = LFXT1 = 32768Hz, MCLK = SMCLK = default DCO = 32 x ACLK = 1048576Hz// //* An external watch crystal between XIN & XOUT is required for ACLK *////// MSP430FG4619// -----------------// /|\| XIN|-// | | | 32kHz// --|RST XOUT|-// | |// | P2.5/UCA0RXD|<------------// | | 115200 - 8N1// | P2.4/UCA0TXD|------------>//// Texas Instruments Inc.// October 2006// Built with IAR Embedded Workbench Version: 3.41A//************************************************************************* *****#include "msp430xG46x.h"void main(void){volatile unsigned int i;WDTCTL = WDTPW+WDTHOLD; // Stop WDTFLL_CTL0 |= XCAP14PF; // Configure load capsdo{IFG1 &= ~OFIFG; // Clear OSCFault flagfor (i = 0x47FF; i > 0; i--); // Time for flag to set}while ((IFG1 & OFIFG)); // OSCFault flag still set?P2SEL |= 0x030; // P2.4,5 = USCI_A0 RXD/TXDUCA0CTL1 |= UCSSEL_2; // SMCLKUCA0BR0 = 18;0x09; // 1MHz 115200UCA0BR1 = 0;0x00; // 1MHz 115200UCA0MCTL = 0;0x02; // ModulationUCA0CTL1 &= ~UCSWRST; // **Initialize USCI state machine**IE2 |= UCA0RXIE; // Enable USCI_A0 RX interrupt_BIS_SR(LPM0_bits + GIE); // Enter LPM0, interrupts enabled}// Echo back RXed character, confirm TX buffer is ready first#pragma vector=USCIAB0RX_VECTOR__interrupt void USCIA0RX_ISR (void){while(!(IFG2&UCA0TXIFG));UCA0TXBUF = UCA0RXBUF; // TX -> RXed character}10./************************************************************************** ***** MSP-EXP430G2-LaunchPad User Experience Application** 1. Device starts up in LPM3 + blinking LED to indicate device is alive* + Upon first button press, device transitions to application mode* 2. Application Mode* + Continuously sample ADC Temp Sensor channel, compare result against* initial value* + Set PWM based on measured ADC offset: Red LED for positive offset, Green* LED for negative offset* + Transmit temperature value via TimerA UART to PC* + Button Press --> Calibrate using current temperature* Send character '� via UART, notifying PC******************************************************************************/ #include "msp430g2553.h"#define LED0 BIT0#define LED1 BIT6#define LED_DIR P1DIR#define LED_OUT P1OUT#define BUTTON BIT3#define BUTTON_OUT P1OUT#define BUTTON_DIR P1DIR#define BUTTON_IN P1IN#define BUTTON_IE P1IE#define BUTTON_IES P1IES#define BUTTON_IFG P1IFG#define BUTTON_REN P1REN#define TXD BIT1 // TXD on P1.1 #define RXD BIT2 // RXD on P1.2#define APP_STANDBY_MODE 0#define APP_APPLICATION_MODE 1#define TIMER_PWM_MODE 0#define TIMER_UART_MODE 1#define TIMER_PWM_PERIOD 2000#define TIMER_PWM_OFFSET 20#define TEMP_SAME 0#define TEMP_HOT 1#define TEMP_COLD 2#define TEMP_THRESHOLD 5// Conditions for 9600/4=2400 Baud SW UART, SMCLK = 1MHz#define Bitime_5 0x05*4 // ~ 0.5 bit length + small adjustment#define Bitime 13*4//0x0D#define UART_UPDA TE_INTERV AL 1000unsigned char BitCnt;unsigned char applicationMode = APP_STANDBY_MODE;unsigned char timerMode = TIMER_PWM_MODE;unsigned char tempMode;unsigned char calibrateUpdate = 0;unsigned char tempPolarity = TEMP_SAME;unsigned int TXByte;/* Using an 8-value moving average filter on sampled ADC values */long tempMeasured[8];unsigned char tempMeasuredPosition=0;long tempAverage;long tempCalibrated, tempDifference;void InitializeLeds(void);void InitializeButton(void);void PreApplicationMode(void); // Blinks LED, waits for button pressvoid ConfigureAdcTempSensor(void);void ConfigureTimerPwm(void);void ConfigureTimerUart(void);void Transmit(void);void InitializeClocks(void);void main(void){unsigned int uartUpdateTimer = UART_UPDATE_INTERV AL;unsigned char i;WDTCTL = WDTPW + WDTHOLD; // Stop WDTInitializeClocks();InitializeButton();InitializeLeds();PreApplicationMode(); // Blinks LEDs, waits for button press/* Application Mode begins */applicationMode = APP_APPLICATION_MODE;ConfigureAdcTempSensor();ConfigureTimerPwm();__enable_interrupt(); // Enable interrupts./* Main Application Loop */while(1){ADC10CTL0 |= ENC + ADC10SC; // Sampling and conversion start__bis_SR_register(CPUOFF + GIE); // LPM0 with interrupts enabled/* Moving average filter out of 8 values to somewhat stabilize sampled ADC */tempMeasured[tempMeasuredPosition++] = ADC10MEM;if (tempMeasuredPosition == 8)tempMeasuredPosition = 0;tempAverage = 0;for (i = 0; i < 8; i++)tempAverage += tempMeasured[i];tempAverage >>= 3; // Divide by 8 to get averageif ((--uartUpdateTimer == 0) || calibrateUpdate ){ConfigureTimerUart();if (calibrateUpdate){TXByte = 248; // A character with high value, outside of temp rangeTransmit();calibrateUpdate = 0;TXByte = (unsigned char)( ((tempAverage - 630) * 761) / 1024 );Transmit();uartUpdateTimer = UART_UPDATE_INTERV AL;ConfigureTimerPwm();}tempDifference = tempAverage - tempCalibrated;if (tempDifference < -TEMP_THRESHOLD){tempDifference = -tempDifference;tempPolarity = TEMP_COLD;LED_OUT &= ~ LED1;}elseif (tempDifference > TEMP_THRESHOLD){tempPolarity = TEMP_HOT;LED_OUT &= ~ LED0;}else{tempPolarity = TEMP_SAME;TACCTL0 &= ~CCIE;TACCTL1 &= ~CCIE;LED_OUT &= ~(LED0 + LED1);}if (tempPolarity != TEMP_SAME){tempDifference <<= 3;tempDifference += TIMER_PWM_OFFSET;TACCR1 = ( (tempDifference) < (TIMER_PWM_PERIOD-1) ? (tempDifference) : (TIMER_PWM_PERIOD-1) );TACCTL0 |= CCIE;TACCTL1 |= CCIE;}}void PreApplicationMode(void){LED_DIR |= LED0 + LED1;LED_OUT |= LED0; // To enable the LED toggling effect LED_OUT &= ~LED1;BCSCTL1 |= DIV A_1; // ACLK/2BCSCTL3 |= LFXT1S_2; // ACLK = VLOTACCR0 = 1200; //TACTL = TASSEL_1 | MC_1; // TACLK = SMCLK, Up mode. TACCTL1 = CCIE + OUTMOD_3; // TACCTL1 Capture Compare TACCR1 = 600;__bis_SR_register(LPM3_bits + GIE); // LPM0 with interrupts enabled}void ConfigureAdcTempSensor(void){unsigned char i;/* Configure ADC Temp Sensor Channel */ADC10CTL1 = INCH_10 + ADC10DIV_3; // Temp Sensor ADC10CLK/4 ADC10CTL0 = SREF_1 + ADC10SHT_3 + REFON + ADC10ON + ADC10IE;__delay_cycles(1000); // Wait for ADC Ref to settleADC10CTL0 |= ENC + ADC10SC; // Sampling and conversion start __bis_SR_register(CPUOFF + GIE); // LPM0 with interrupts enabled tempCalibrated = ADC10MEM;for (i=0; i < 8; i++)tempMeasured[i] = tempCalibrated;tempAverage = tempCalibrated;}void ConfigureTimerPwm(void){timerMode = TIMER_PWM_MODE;TACCR0 = TIMER_PWM_PERIOD; //TACTL = TASSEL_2 | MC_1; // TACLK = SMCLK, Up mode. TACCTL0 = CCIE;TACCTL1 = CCIE + OUTMOD_3; // TACCTL1 Capture Compare TACCR1 = 1;}void ConfigureTimerUart(void){timerMode = TIMER_UART_MODE; // Configure TimerA0 UART TXCCTL0 = OUT; // TXD Idle as MarkTACTL = TASSEL_2 + MC_2 + ID_3; // SMCLK/8, continuous modeP1SEL |= TXD + RXD; //P1DIR |= TXD; //}// Function Transmits Character from TXBytevoid Transmit(){BitCnt = 0xA; // Load Bit counter, 8data + ST/SP while (CCR0 != TAR) // Prevent async captureCCR0 = TAR; // Current state of TA counterCCR0 += Bitime; // Some time till first bitTXByte |= 0x100; // Add mark stop bit to TXByteTXByte = TXByte << 1; // Add space start bitCCTL0 = CCIS0 + OUTMOD0 + CCIE; // TXD = mark = idlewhile ( CCTL0 & CCIE ); // Wait for TX completion}// Timer A0 interrupt service routine#pragma vector=TIMER0_A0_VECTOR__interrupt void Timer_A (void){if (timerMode == TIMER_UART_MODE){CCR0 += Bitime; // Add Offset to CCR0if (CCTL0 & CCIS0) // TX on CCI0B?{if ( BitCnt == 0)CCTL0 &= ~ CCIE; // All bits TXed, disable interrupt else{CCTL0 |= OUTMOD2; // TX Spaceif (TXByte & 0x01)CCTL0 &= ~ OUTMOD2; // TX MarkTXByte = TXByte >> 1;BitCnt --;}}}else{if (tempPolarity == TEMP_HOT)LED_OUT |= LED1;if (tempPolarity == TEMP_COLD)LED_OUT |= LED0;TACCTL0 &= ~CCIFG;}}#pragma vector=TIMER0_A1_VECTOR__interrupt void ta1_isr(void){TACCTL1 &= ~CCIFG;if (applicationMode == APP_APPLICATION_MODE)LED_OUT &= ~(LED0 + LED1);elseLED_OUT ^= (LED0 + LED1);}void InitializeClocks(void){BCSCTL1 = CALBC1_1MHZ; // Set rangeDCOCTL = CALDCO_1MHZ;BCSCTL2 &= ~(DIVS_3); // SMCLK = DCO / 8 = 1MHz }void InitializeButton(void) // Configure Push Button{BUTTON_DIR &= ~BUTTON;BUTTON_OUT |= BUTTON;BUTTON_REN |= BUTTON;BUTTON_IES |= BUTTON;BUTTON_IFG &= ~BUTTON;BUTTON_IE |= BUTTON;}void InitializeLeds(void){LED_DIR |= LED0 + LED1;LED_OUT &= ~(LED0 + LED1);}/* ************************************************************** Port Interrupt for Button Press* 1. During standby mode: to exit and enter application mode* 2. During application mode: to recalibrate temp sensor* *********************************************************** */#pragma vector=PORT1_VECTOR__interrupt void PORT1_ISR(void){BUTTON_IFG = 0;BUTTON_IE &= ~BUTTON; /* Debounce */WDTCTL = WDT_ADL Y_250;IFG1 &= ~WDTIFG; /* clear interrupt flag */IE1 |= WDTIE;if (applicationMode == APP_APPLICATION_MODE){tempCalibrated = tempAverage;calibrateUpdate = 1;}else{applicationMode = APP_APPLICATION_MODE; // Switch from STANDBY to APPLICATION MODE__bic_SR_register_on_exit(LPM3_bits);}}#pragma vector=WDT_VECTOR__interrupt void WDT_ISR(void){IE1 &= ~WDTIE; /* disable interrupt */IFG1 &= ~WDTIFG; /* clear interrupt flag */WDTCTL = WDTPW + WDTHOLD; /* put WDT back in hold state */BUTTON_IE |= BUTTON; /* Debouncing complete */ }// ADC10 interrupt service routine#pragma vector=ADC10_VECTOR__interrupt void ADC10_ISR (void){__bic_SR_register_on_exit(CPUOFF); // Return to active mode}。

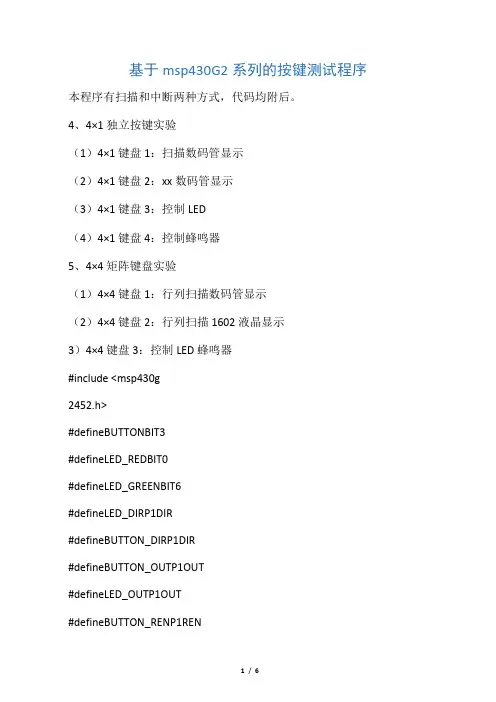

基于msp430G2系列的按键测试程序本程序有扫描和中断两种方式，代码均附后。

4、4×1独立按键实验（1）4×1键盘1：扫描数码管显示（2）4×1键盘2：xx数码管显示（3）4×1键盘3：控制LED（4）4×1键盘4：控制蜂鸣器5、4×4矩阵键盘实验（1）4×4键盘1：行列扫描数码管显示（2）4×4键盘2：行列扫描1602液晶显示3）4×4键盘3：控制LED蜂鸣器#include <msp430g2452.h>#defineBUTTONBIT3#defineLED_REDBIT0#defineLED_GREENBIT6#defineLED_DIRP1DIR#defineBUTTON_DIRP1DIR#defineBUTTON_OUTP1OUT#defineLED_OUTP1OUT#defineBUTTON_RENP1REN#defineBUTTON_ON(P1IN&BIT3)#defineBUTTON_OFF!(P1IN&BIT3)#defineLED_RED_ON()P1OUT|=BIT0#defineLED_RED_OFF()P1OUT&=~BIT0#defineLED_GREEN_ON()P1OUT|=BIT6#defineLED_GREEN_OFF()P1OUT&=~BIT6 volatile unsigned char i=0,flag=0;void main(void){WDTCTL = WDTPW + WDTHOLD; BUTTON_DIR &= ~BUTTON;LED_DIR|= LED_RED+LED_GREEN;BUTTON_REN |= BUTTON;BUTTON_OUT= BUTTON;while(1){/*通过按键改变选择标志位*/if(BUTTON_OFF){flag=!flag;while(BUTTON_OFF);}if(flag){LED_RED_ON();i=10;while(i--)_delay_cycles(500);LED_RED_OFF();LED_GREEN_ON();i=10;while(i--)_delay_cycles(500);LED_GREEN_OFF();}else{LED_OUT |= LED_RED+LED_GREEN;i=10;while(i--)_delay_cycles(500);LED_OUT ^= (LED_RED+LED_GREEN);i=10;while(i--)_delay_cycles(500);}}}/**************该版本编译后的代码与第一个版本是一致的，请看差别在哪儿************/#include <msp430g2452.h>#defineBUTTONBIT3#defineLED_REDBIT0#defineLED_GREENBIT6#defineLED_DIRP1DIR#defineBUTTON_DIRP1DIR#defineBUTTON_OUTP1OUT#defineLED_OUTP1OUT#defineBUTTON_RENP1REN#defineBUTTON_ON(P1IN&BIT3)#defineBUTTON_OFF!(P1IN&BIT3)#defineBIT_SET(x , y)x |= (y)#defineBIT_CLR(x , y)x &=~(y)volatile unsigned char i=0,flag=1;void main(void){WDTCTL = WDTPW + WDTHOLD;BIT_CLR(BUTTON_DIR , BUTTON);BIT_SET(LED_DIR , LED_RED+LED_GREEN);BIT_SET(BUTTON_REN , BUTTON);BIT_SET(BUTTON_OUT , BUTTON);/********************************************************/while(1){/*通过按键改变选择标志位*/if(BUTTON_OFF){flag=!flag;while(BUTTON_OFF);}/*********************************************** ******/if(flag){BIT_SET(LED_OUT , LED_RED);i=10;while(i--)_delay_cycles(500);BIT_CLR(LED_OUT , LED_RED);/*****************************************************/BIT_SET(LED_OUT , LED_GREEN);i=10;while(i--)_delay_cycles(500);BIT_CLR(LED_OUT ,LED_GREEN);}/*****************************************************/ else{BIT_SET(LED_OUT ,LED_RED+LED_GREEN);i=10;while(i--)_delay_cycles(500);/*****************************************************/BIT_CLR(LED_OUT , LED_RED+LED_GREEN);}}}i=10;while(i--)_delay_cycles(500);。

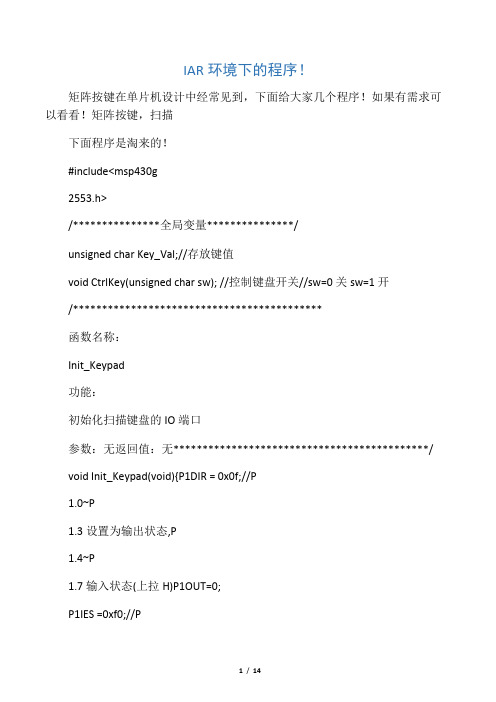

IAR环境下的程序！矩阵按键在单片机设计中经常见到，下面给大家几个程序！如果有需求可以看看！矩阵按键，扫描下面程序是淘来的！#include<msp430g2553.h>/***************全局变量***************/unsigned char Key_Val;//存放键值void CtrlKey(unsigned char sw); //控制键盘开关//sw=0关sw=1开/*******************************************函数名称：Init_Keypad功能：初始化扫描键盘的IO端口参数：无返回值：无********************************************/void Init_Keypad(void){P1DIR = 0x0f;//P1.0~P1.3设置为输出状态,P1.4~P1.7输入状态(上拉H)P1OUT=0;P1IES =0xf0;//P1.7允许中断P1IE=0xf0;//P1.4~P1.7下降沿触发中断P1IFG=0;//中断标志清0Key_Val = 0;}/*******************************************函数名称：Check_Key功能：扫描键盘的IO端口，获得键值参数：无返回值：无********************************************/ //p14\5\6\7接上拉电阻/***************************************key_Val对应键值列：[p14][p15][p16][p17]↓↓↓↓行：[p13]→1234[p12]→5678[p10]→***************************************/void Check_Key(void){unsigned char row ,col,tmp1,tmp2;unsigned char keymap[] = {1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16};//设置键盘逻辑键值tmp1 = 0x08;for(row = 0;row < 4;row++)//行扫描{P1OUT = 0x0f;//P1.0~P1.3输出全1P1OUT -= tmp1;//P1.0~p1.3输出四位中有一个为0tmp1 >>=1;if((P1IN & 0xf0)<0xf0)//是否P1IN的P1.4~P1.7中有一位为0{tmp2 = 0x10;// tmp2用于检测出哪一位为0for(col = 0;col < 4;col++)//列检测{if((P1IN & tmp2) == 0x00)//是否是该列,等于0为是{Key_Val = keymap[row*4 + col];//获取键值return;//退出循环}tmp2 <<= 1;// tmp2右移1位}}}}/*******************************************函数名称：delay延时约15ms，完成消抖功能参数：无返回值：t= tmp*5*clk根据使用时钟调整tmp值********************************************/void delay(void){unsigned int tmp;for(tmp = 12000;tmp > 0;tmp--);}/*******************************************函数名称：Key_Event功能：检测按键，并获取键值参数：无返回值：无********************************************/void Key_Event(void){unsigned char tmp;P1OUT =0;//设置P1OUT全为0，等待按键输入tmp = P1IN;//获取p1INif((tmp & 0xf0) < 0xf0)//如果有键按下{delay();//消除抖动Check_Key();//调用check_Key(),获取键值}}/***************************************************************** ****控制打开或者关闭键盘中断SW= 0：关闭；ELSE：打开***************************************************************** ****/void CtrlKey(unsigned char sw){if(sw==0)P1IE =0;//关闭端口中断elseP1IE =0xf0; //打开端口中断}/*端口1按键中断*/#pragma vector=PORT1_VECTOR__interrupt void Port(void){if((P1IFG&0xf0)!=0){Key_Event();if(Key_Val!=0)//键值！=0有键按下{CtrlKey(0);//关键盘中断}}P1IFG=0;P1OUT=0;//清中断标志}下面的程序是自己改了下，端口发生了变化！按键矩阵也发生了变化！/***************************************************************** ********************************************************************* *********************/#include<msp430g2553.h>/***************全局变量***************/unsigned char Key_Val;//存放键值void main(){WDTCTL=WDTPW+WDTHOLD;Init_Keypad();_BIS_SR(LPM3_bits + GIE); //最低功耗睡眠while(1);}/*******************************************函数名称：Init_Keypad功能：初始化扫描键盘的IO端口参数：无返回值：无********************************************/ void Init_Keypad(void){P1DIR = 0x38; //P1.0~P1.3设置为输出状态,P1.4~P1.7输入状态(上拉H)P1OUT=0;P1IES =0xC0;//P1.4~P1.7允许中断P1IE=0xC0;//P1.4~P1.7下降沿触发中断P1IFG=0;//中断标志清0Key_Val = 0;}/*******************************************函数名称：Check_Key功能：扫描键盘的IO端口，获得键值参数：无返回值：无********************************************/ //p13\14\15接上拉电阻/***************************************key_Val对应键值列：[p13][p14][p15]↓↓↓行：[p17]→123[p16]→456***************************************/void Check_Key(void){unsigned char row ,col,tmp1,tmp2;unsigned char keymap[] = {1,2,3,4,5,6};//设置键盘逻辑键值tmp1 = 0x08;//从（xx1xxx相左移）for(row = 0;row < 3;row++)//列扫描{P1OUT = 0x38;//P1.3~P1.5输出全1P1OUT -= tmp1;//P1.3~p1.5输出四位中有一个为0tmp1 <<=1;if((P1IN & 0xC0)<0xC0)//是否P1IN的P1.4~P1.7中有一位为0{tmp2 = 0x80;// tmp2用于检测出哪一位为0for(col = 0;col < 2;col++)//行检测{if((P1IN & tmp2) == 0x00)//是否是该列,等于0为是{Key_Val = keymap[row*4 + col];//获取键值return;//退出循环}tmp2 >>= 1;// tmp2右移1位}}}}/*******************************************函数名称：delay功能：延时约15ms，完成消抖功能参数：无返回值：t= tmp*5*clk根据使用时钟调整tmp值********************************************/void delay(void){unsigned int tmp;for(tmp = 12000;tmp > 0;tmp--);}/*******************************************函数名称：Key_Event功能：检测按键，并获取键值参数：无返回值：无********************************************/ void Key_Event(void){unsigned char tmp;P1OUT =0;//设置P1OUT全为0，等待按键输入tmp = P1IN;//获取p1INif((tmp & 0xf0) < 0xf0)//如果有键按下{delay();//消除抖动Check_Key();//调用check_Key(),获取键值}}#pragma vector=PORT1_VECTOR__interrupt void Port(void){delay();if((P1IN&0XC0)<0XC0){Check_Key();switch(Key_Val){case 1:{；自己接相应按键的功能break;}case 2:{；自己接相应按键的功能break;}case 3:{；自己接相应按键的功能break;}case 4:{；自己接相应按键的功能break;}case 5:{；自己接相应按键的功能break;}case 6:{；自己接相应按键的功能break;}default:break;}}P1IFG=0;//清中断标志}下面这个按键用了数组了，存放按键的值，可以应用于密码锁之类的应用！为网上淘来/********************************************************************* ********************************************************************* ******************///此示例程序为中断方式,得到键盘的键值,存放在队列keybuff[10]中//此示例程序没有显示,//键盘的按键按下引起P1口的中断服务程序,得到键盘的键值,保存到键值队列//在其他的中断服务程序中通过键值队列中的数据引导程序的流程#include <msp430x14x.h>unsigned char keybuff[10];unsigned char keypoint=0;void delay(int v){while(v!=0)v--;}unsigned char key(void){unsigned char x=0xff;P1DIR=0X0F;P1OUT=0X01;//扫描第一行if((P1IN&0X70)==0X10)x=0;elseif((P1IN&0X70)==0X20)elseif((P1IN&0X70)==0x40)x=2;else{P1OUT=0X2;//扫描第二行if((P1IN&0X70)==0X10)x=3;elseif((P1IN&0X70)==0X20)x=4;elseif((P1IN&0X70)==0x40)x=5;else{P1OUT=0X4;//扫描第三行if((P1IN&0X70)==0X10)x=6;elseif((P1IN&0X70)==0X20)x=7;elseif((P1IN&0X70)==0x40)else{P1OUT=8;//扫描第四行if((P1IN&0X70)==0X10)x=9;elseif((P1IN&0X70)==0X20)x=10;elseif((P1IN&0X70)==0x40)x=11;}}}return(x);}unsigned char keyj(void){unsigned char x;P1DIR=0x0f;P1OUT=0x0f;//键盘硬件：P10--P13为行线,最上面一根为P10x=(P1IN&0X70);//P14--P16为列线,最左边一根为P14,列线下拉return(x);//无按键,返回0?;有按键返回非0}interrupt[PORT1_VECTOR] voidport1key(void){if(keyj()!=0X00){delay(300);//消抖动if(keyj()!=0X0){keybuff[keypoint]=key();//按键见键值保存到队列keypoint++;//if(keypoint==10)keypoint=0;}}P1OUT=0X0F;P1IFG=0X0;//清除中断标志}void main(void){WDTCTL = WDTPW + WDTHOLD;/*// Stop WDT */P1DIR=0XF;P1OUT=0XF;P1IES=0X0;P1IE=0X70;//列线上升沿允许P1中断_EINT();/*/ Enable interrupts*/while(1){LPM0;_NOP();}}这个是单个按键是，输入端的P1REN要设为1。
