DIESEL ENGINE OIL CF 15W-40柴油发动机油产品安全数据表(MSDS)

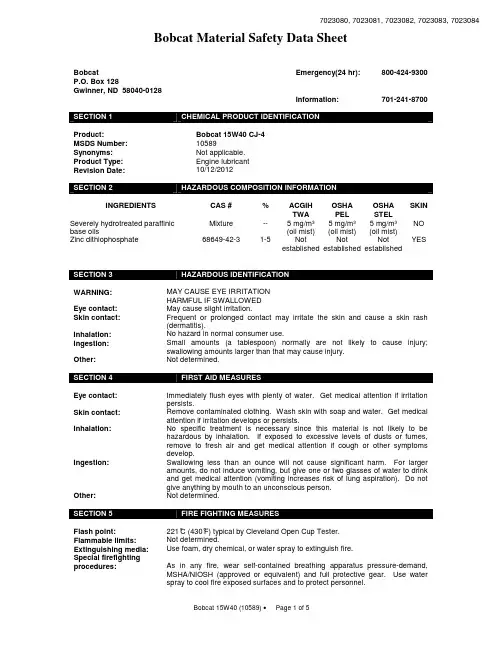

Bobcat Material Safety Data SheetBobcat Emergency(24 hr): 800-424-9300 P.O. Box 128Gwinner, ND 58040-0128Information: 701-241-8700 Product: Bobcat 15W40 CJ-4MSDS Number: 10589Synonyms: Not applicable.Product Type: Engine lubricantRevision Date: 10/12/2012INGREDIENTS CAS # % ACGIHTWA OSHAPELOSHASTELSKINSeverely hydrotreated paraffinic base oils Mixture -- 5 mg/m³(oil mist)5 mg/m³(oil mist)5 mg/m³(oil mist)NOZinc dithiophosphate 68649-42-3 1-5 NotestablishedNotestablishedNotestablishedYESWARNING: MAY CAUSE EYE IRRITATIONHARMFUL IF SWALLOWEDEye contact: May cause slight irritation.Skin contact: Frequent or prolonged contact may irritate the skin and cause a skin rash(dermatitis).Inhalation: No hazard in normal consumer use.Ingestion: Small amounts (a tablespoon) normally are not likely to cause injury;swallowing amounts larger than that may cause injury.Other: Not determined.Eye contact: Immediately flush eyes with plenty of water. Get medical attention if irritationpersists.Skin contact: Remove contaminated clothing. Wash skin with soap and water. Get medicalattention if irritation develops or persists.Inhalation: No specific treatment is necessary since this material is not likely to behazardous by inhalation. If exposed to excessive levels of dusts or fumes,remove to fresh air and get medical attention if cough or other symptomsdevelop.Ingestion: Swallowing less than an ounce will not cause significant harm. For largeramounts, do not induce vomiting, but give one or two glasses of water to drinkand get medical attention (vomiting increases risk of lung aspiration). Do notgive anything by mouth to an unconscious person.Other: Not determined.Flash point: 221°C (430°F) typical by Cleveland Open Cup Tester.Flammable limits: Not determined.Extinguishing media: Use foam, dry chemical, or water spray to extinguish fire.Special firefightingprocedures: As in any fire, wear self-contained breathing apparatus pressure-demand,MSHA/NIOSH (approved or equivalent) and full protective gear. Use waterspray to cool fire exposed surfaces and to protect personnel.7023080, 7023081, 7023082, 7023083, 7023084Unusual fire &explosion hazards: Dense smoke may be generated while burning. Toxic fumes, gases or vaporsmay evolve on burning. Heavy flammable vapors may settle along ground leveland low spots to create an invisible fire hazard. The vapors may extend tosources of ignition and flash back.Byproducts ofcombustion: Fumes, smoke, oxides of carbon, sulfur, phosphorus, and boron.Autoignitiontemperature: Not determined.Explosion data: Not determined. Care should always be exercised in dust/mist conditions. Other: Not determined.Spill controlprocedures (land): Eliminate sources of ignition. Prevent additional discharge of material, ifpossible to do so without hazard. For small spills implement cleanupprocedures; for large spills implement cleanup procedures and, if in publicarea, keep public away and advise authorities. Also, if this product is subject toCERCLA reporting (Section 15) notify the National Response Center.Prevent liquid from entering sewers, watercourses, or low areas. Containspilled liquid with sand or earth. Do not use combustible materials such assawdust. Recover by explosion proof pump, hand pump, or suitable absorbent,into appropriate containers. Dispose of in accordance to local ordinances.Spill controlprocedures (water): Eliminate sources of ignition. Warn occupants and shipping in surrounding anddownwind areas of fire and explosion hazard and request all to stay clear.Remove from surface by skimming or with suitable adsorbents. If allowed bylocal authorities and environmental agencies, sinking and/or suitabledispersants may be used in non-confined waters. Recover adsorbed materialinto suitable containers and dispose of in accord with local disposal codes. Waste disposalmethod: Most oil based products are incinerated, land-filled or reclaimed. All disposalsmust comply with federal, state and local regulations. The material, if spilled ordiscarded may be a regulated waste. Refer to state and local regulations.Department of Transportation (DOT) regulations may apply for transporting thismaterial when spilled. See Section 14.Other: CAUTION - If spilled material is cleaned up using a regulated solvent, theresulting waste mixture will be regulated.Handling procedures: Keep containers closed when not in use. Do not transfer to unmarkedcontainers. Fire extinguishers should be kept readily available. See NFPA 30and OSHA 1910.106 -- Flammable and Combustible Liquids. Emptycontainers retain product residue which may exhibit hazards of material,therefore do not pressurize, cut, glaze, weld, or use for any other purposes.Return drums to reclamation centers for proper cleaning and reuse.Storage procedures: Store containers such that they are protected from weather elements (rain,snow, direct sunlight). Containers may absorb water through containerclosures if stored improperly. Store containers away from heat, sparks, openflame, or oxidizing materials.Additional information: No additional information.Personal protection: Applicable mainly to persons in repeated contact situations such as packagingof product, service/maintenance, and cleanup/spill control personnel. Respiratory protection: None required if airborne concentrations are maintained below threshold limitslisted on page one. Otherwise a respiratory protection program meeting OSHA1910.134 and ANSI Z88.2 requirements must be followed. Where misting mayoccur, wear an MSHA/NIOSH approved (or equivalent) half-mask formdust/mist air purifying respirator.Eye protection: Eye protection is recommended. If material is handled such that it could besplashed into the eyes, wear safety glasses with side shields or vented/splashproof goggles (ANSI Z87.1 or approved equivalent).Hand protection: Impervious gloves such as neoprene or nitrile rubber to avoid skin sensitizationand absorption.Other protection: Use of an apron and overboots of chemically impervious materials such asneoprene or nitrile rubber is recommended to avoid skin sensitization andabsorption. If handling hot material use insulated protective equipment.Launder soiled clothes. Properly dispose of contaminated leather articles andother materials which cannot be decontaminated.Local controlmeasures: Use adequate ventilation when working with material in an enclosed area.Mechanical methods such as fume hoods or area fans may be used to reducelocalized vapor/mist areas. If vapor or mist is generated when the material isheated or handled, adequate ventilation in accordance with good engineeringpractice must be provided to maintain concentrations below the specifiedexposure. Eyewash stations and showers should be available in areas wherethis material is used and stored.Other: Consumption of food and drink should be avoided in work areas where productis present. Always wash hands and face with soap and water before eating,drinking or smoking.Vapor pressure: Negligible at ambient conditions.Relative density: 0.883 @ 15CSolubility: Negligible in water, soluble in most petroleum solvents.Percent volatile: Negligible.Vapor density (air=1): Greater than air.Evaporation rate(n-Butyl Acetate=1): Not determined.Odor: Mild, bland hydrocarbon odor.Appearance: Amber to brown fluid.Viscosity: 15 cSt at 100°C (212°F).Boiling point: Not determined.Pour point: -33°C .Other: Not determined.Stability: Stable.Conditions to avoid: Avoid high temperatures and product contamination.Incompatibility withother materials: Avoid contact with acids and oxidizing materials such as liquid chlorine orconcentrated oxygen.Decompositionproducts: Smoke, carbon monoxide and dioxide, and other aldehydes of incompletecombustion. Oxides of carbon, sulfur, phosphorus, and boron.Hazardouspolymerization: Will not occur.Other: Not determined.Oral toxicity: Not determined.Dermal toxicity: Not determined.Inhalation toxicity: On rare occasions, prolonged and repeated exposure to oil mist poses a risk ofpulmonary disease such as chronic lung inflammation. This condition isusually asymptotic as a result of repeated small aspirations. Shortness ofbreath and cough are the most common symptoms. Based on data fromsimilar materials.Dermal sensitization: Prolonged or repeated contact may make skin more sensitive to other skinsensitizers. Based on data from similar materials.Chronic toxicity: Not determined.Carcinogenicity: Not determined.Mutagenicity: Not determined.Reproductive toxicity: Not determined.Other: This product contains petroleum base oils which may be refined by variousprocesses including severe solvent extraction, severe hydrocracking, or severehydrotreating. None of the oils require a cancer warning under the OSHAHazard Communication Standard (29 CFR 1910.1200). These oils have notbeen listed in the National Toxicology Program (NTP) Annual Report nor havethey been classified by the International Agency for Research on Cancer(IARC) as; carcinogenic to humans (Group 1), probably carcinogenic tohumans (Group 2A), or possibly carcinogenic to humans (Group 2B). Environmental toxicity: This material has not been evaluated for its environmental impact. Thismaterial may be toxic to aquatic organisms and should be kept out of sewageand drainage systems and all bodies of water. Based on data from similarmaterials.Environmental fate: This product has not been evaluated for its environmental fate.Other: Not determined.Waste disposal: Under RCRA it is the responsibility of the user of the product to determine atthe time of disposal whether the product meets RCRA criteria for hazardouswaste. This product unadulterated by other materials may be classified as anon-regulated waste in some areas - but still needs to be disposed of atapproved facilities. Waste management should be in full compliance withfederal, staqte, and local laws.Disposal consideration: Most used oil and grease is reclaimed or incinerated (if unadulterated). Placeused, contaminated, or excess material into disposable containers and disposeof in a manner consistent with local and state regulations. Contact localenvironmental or health authorities for approved disposal of this material. Other: If material is contaminated with a regulated material, the whole of the materialbecomes a regulated waste. Try to segregate from regulated material wastestreams.LAND (DOT) : Not Regulated for Land TransportLAND (TDG) : Not Regulated for Land TransportSEA (IMDG) : Not Regulated for Sea Transport according to IMDG-CodeAIR (IATA) : Not Regulated for Air TransportOther: See 49 CFR for additional requirements for descriptions, allowed modes oftransport, and packaging. For more information concerning spills duringtransport, consult latest DOT Emergency Response Guidebook for HazardousMaterials Incidents, DOT 5800.3.Clean water act/oilpollution act: This product is classified as an oil under Section 311 of the Clean Water Act(40 CFR 110) and Oil Pollution Act of 1990. Discharge or spill which produce avisible sheen on either surface water, or in waterways/sewers which lead tosurface water, must be reported to the National Response Center at 800-424-8802.TSCA: All components of this material are listed in the U.S. TSCA Inventory.Other TSCA: Not applicable.SARA Title III: Section 302/304 extremely hazardous substances: None.Section 311, 312 hazard categorization:Acute (immediate health effects): YESChronic (delayed health effects): NOFire (hazard): NOReactivity (hazard): NOPressure (sudden release hazard): NOSection 313 toxic chemicals: Zinc compounds 1-5%maximum.CERCLA: For stationary sources – reportable quantity: Not regulated.Due to: Not applicable.For moving sources – reportable quantity: Not regulated.Due to: Not applicable.Other: Recommend contacting the local authorities in the event of any type of spill todetermine local reporting requirements and also to aid in the cleanup.NFPA 704 NPCA-HMIS KEY HEALTH: 0 0 0 = MinimalFIRE: 1 1 1 = Slight REACTIVITY: 0 0 2 = Moderate SPECIFIC HAZARD: NONE N/A 3 = Serious PROTECTION INDEX: N/A B 4 = SevereThis product may be formulated in part with components purchased from other companies. In many instances, especially when proprietary or trade secret materials are used. Bobcat must rely on information provided by those materials manufacturers or distributors.Creation date: 06/27/2011File: Bobcat 15W40 CJ-4Version: IIINFORMATION PROVIDED IN THIS MSDS IS CONSIDERED ACCURATE AND RELIABLE BASED ON INFORMATION ISSUED FROM INTERNAL AND OUTSIDE SOURCES TO THE BEST OF BOBCAT’S KNOWLEDGE. HOWEVER, BOBCAT MAKES NO REPRESENTATIONS, GUARANTEES OR WARRANTIES, EXPRESSED OR IMPLIED, OF MERCHANTABILITY OR FITNESS FOR THE PARTICULAR PURPOSE, REGARDING THE ACCURACY OF SUCH INFORMATION OR THE RESULT TO BE OBTAINED FROM THE USE THEREOF, OR AS TO THE SUFFICIENCY OF THE INFORMATION HEREIN PRESENTED. BOBCAT ASSUMES NO RESPONSIBILITY FOR INJURY TO RECIPIENT OR TO THIRD PERSONS OR FOR ANY DAMAGE TO ANY PROPERTY AND RECIPIENT ASSUMES ALL SUCH RISKS.Revisions:Reviewed MSDS updated section 14: 10/12/2012。

15w-40机油的使用范围
15w-40机油通常用于重型柴油发动机和一些汽油发动机，适用于以下用途：
1. 商用车辆：如卡车、大型客车和拖拉机等。

2. 工程机械：如挖掘机、推土机、装载机等。

3. 渔船和船舶：用于船舶柴油发动机的润滑。

4. 农机械：如农用拖拉机、农用收割机等。

5. 工业设备：如发电机组和压缩机等。

6. 高温和高负荷环境的汽车，如拖车、越野车等。

请注意，具体的使用范围可能因不同发动机和厂家的要求而有所不同。

在使用机油之前，建议查阅汽车或机器的使用手册或咨询相关的专业人士以确定最适合的机油类型。

40 (CI-4)最初编制日期: 2019.01.24版本1.1修订日期2019.06.26打印日期2019.06.27第1部分化学品及企业标识化学品中文名: 壳牌车队优质柴油机润滑油15W-40 (CI-4)产品代码: 001H3699制造商或供应商信息供应商: 100004壳牌(中国)有限公司中国北京北京市建国门外大街1号国贸大厦2座32层电话号码: (+86) 4000103288传真: (+86) 4000108097应急咨询电话:发送邮件索要安全技术说明书: 如果您有关于该SDS内容的任何质询，请发电邮联系推荐用途和限制用途推荐用途: 发动机油。

第2部分危险性概述紧急情况概述GHS危险性类别根据现有数据，该物质/混合物不符合分类标准。

GHS标签要素象形图: 无需象形图信号词: 无警示词危险性说明: 物理性危害：按照GHS标准，未被归类为有害物质。

健康危害：40 (CI-4)最初编制日期: 2019.01.24版本1.1修订日期2019.06.26打印日期2019.06.27根据GHS标准，未被列为健康危害物质。

环境危害：根据GHS标准，未被列为环境危害物质。

防范说明:预防措施:无预防用语。

事故响应:无预防用语。

储存:无预防用语。

废弃处置:无预防用语。

GHS未包括的其他危害长期或持续接触皮肤，而不适当清洗，可能会阻塞皮肤毛孔，导致油脂性粉刺／毛囊炎等疾病。

用过的油可能包含有害杂质。

未被评为易燃物，但会燃烧。

第3部分成分/组成信息化学性质: 高度精炼的矿物油及添加剂。

根据 IP346，高度精炼的矿物油含 <3% (w/w) 的 DMSO 提炼物。

: * 包含以下 CAS 编号中的一个或多个：64742-53-6、64742-54-7、64742-55-8 、64742-56-9、64742-65-0、68037-01-4、72623-86-0、72623-87-1、8042-47- 5、848301-69-9。

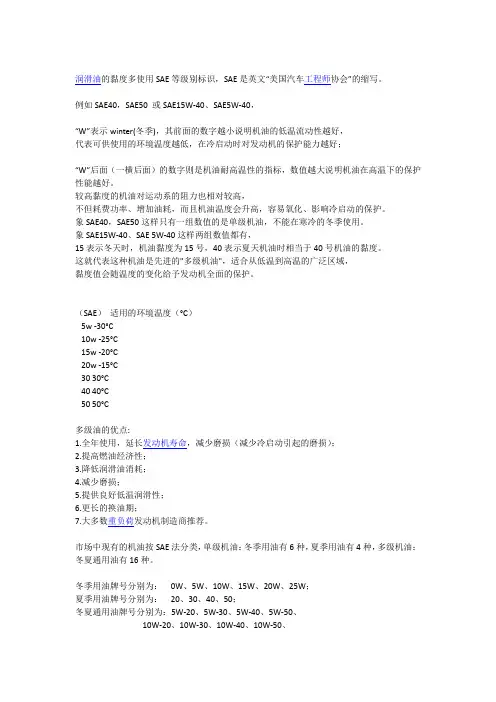

润滑油的黏度多使用SAE等级别标识，SAE是英文“美国汽车工程师协会”的缩写。

例如SAE40，SAE50 或SAE15W-40、SAE5W-40，“W”表示winter(冬季)，其前面的数字越小说明机油的低温流动性越好，代表可供使用的环境温度越低，在冷启动时对发动机的保护能力越好；“W”后面（一横后面）的数字则是机油耐高温性的指标，数值越大说明机油在高温下的保护性能越好。

较高黏度的机油对运动系的阻力也相对较高，不但耗费功率、增加油耗，而且机油温度会升高，容易氧化、影响冷启动的保护。

象SAE40，SAE50这样只有一组数值的是单级机油，不能在寒冷的冬季使用。

象SAE15W-40、SAE 5W-40这样两组数值都有，15表示冬天时，机油黏度为15号，40表示夏天机油时相当于40号机油的黏度。

这就代表这种机油是先进的"多级机油"，适合从低温到高温的广泛区域，黏度值会随温度的变化给予发动机全面的保护。

（SAE）适用的环境温度（°C）5w -30°C10w -25°C15w -20°C20w -15°C30 30°C40 40°C50 50°C多级油的优点:1.全年使用，延长发动机寿命，减少磨损（减少冷启动引起的磨损）；2.提高燃油经济性；3.降低润滑油消耗；4.减少磨损；5.提供良好低温润滑性；6.更长的换油期；7.大多数重负荷发动机制造商推荐。

市场中现有的机油按SAE法分类，单级机油：冬季用油有6种，夏季用油有4种，多级机油：冬夏通用油有16种。

冬季用油牌号分别为：0W、5W、10W、15W、20W、25W；夏季用油牌号分别为：20、30、40、50；冬夏通用油牌号分别为：5W-20、5W-30、5W-40、5W-50、10W-20、10W-30、10W-40、10W-50、15W-20、15W-30、15W-40、15W-50、20W-20、20W-30、20W-40、20W-50。

15w-40机油执行标准
15W-40机油是一种柴油机油，其命名中的“15W”和“40”分别表示油的低温流动性和高温粘度特性。

具体来说：
1. 15W：W代表冬季，前面的数字表示机油在低温下的流动性。

15W表示机油的倾点不高于-20℃。

数字越小，低温流动性越好，说明在寒冷天气下发动机启动更容易。

2. 40：表示机油在100℃时的运动粘度范围。

40代表运动粘度在12.5mm²/s至
16.3mm²/s之间。

运动粘度越高，密封性能越好，但可能会导致发动机更加耗油。

15W-40机油的主要执行标准为SAE标准和API标准。

具体来说：
1. SAE标准：SAE J300《发动机油》规定了机油的粘度等级和低温启动性能。

15W-40机油符合SAE J300中的CH-4级别以上要求。

2. API标准：API CJ-4规定了柴油机油的性能要求，包括抗氧化性、抗磨损性、清洁性等。

15W-40机油需要满足API CJ-4标准，以确保在高温、高压、重负荷等工况下的发动机保护。

综上所述，15W-40机油执行的标准主要包括SAE J300和API CJ-4。

这些标准规定了机油在低温流动性、高温粘度、抗氧化性、抗磨损性等方面的性能要求。

在选择15W-40机油时，请确保产品符合这些标准，以保证发动机的正常运行。

柴油机油质量等级分类一、柴油机油的分类：API（美国石油学会）将汽车发动机油分为S-汽油机油，C-柴油机油。

C的含义是Commercial，服务；Compression，压燃。

柴油机油规格从最初的CA发展到现在最高档的CI- 4。

分别是CA、CB、CC、CD、CD-Ⅱ、CE、CF、CF-Ⅱ、CF-4、CG-4、CH-4、CI-4，其中CD-Ⅱ、CF-Ⅱ是二冲程柴油机油。

二、柴油机油质量等级的简单介绍1.CA柴油机油：1945年制定。

用于使用优质（低含硫）燃料，轻到中负荷下运行的自然吸气柴油机，有时也用于运行条件温和的汽油机。

具有一定的高温清静性和抗氧抗腐性。

现已被废除。

2.CB 柴油机油：1949年制定。

用于使用较低质量（中含硫）燃料，轻到中负荷下运行的自然吸气柴油机，有时也用于运行条件温和的汽油机。

具有控制发动机高温沉积物和轴承腐蚀的性能。

现已被废除。

柴油机油：1961年制定。

用于中及重负荷下运行的非增压、低增压柴油机，及一些重负荷下工作的汽油机。

在低增压柴油机中使用，有控制高温沉积物和轴承腐蚀的性能，对于汽油机具有防止锈蚀、腐蚀和高、低温沉积物的性能，并可替代CA、CB级油。

4.CD 柴油机油：1965年制定。

用于重负荷下运行的增压柴油机，及使用包括高硫燃料非增压、低增压及增压式柴油机。

具有控制高温沉积物和轴承腐蚀的性能，并可替代CC级油。

5.CD-Ⅱ柴油机油：1988年制定.用于要求严格控制磨损和沉积物的重负荷二冲程柴油机。

油品符合API分类的CD级使用性能要求。

6.CE 柴油机油：1987年制定。

用于1983年后生产的低速、重负荷和高速、重负荷工况条件下的增压或高增压重负荷柴油机。

无论在高速、高负荷或高温状况下，使用何种燃料，均能够提供比CD极更佳的低油耗及磨损、腐蚀、沉淀保护性能。

7.CF 柴油机油：1994年制定。

从CD级直接开发的产品，可用于使用高含硫燃料（含硫量 0.5%）的重负荷非增压、低增压及增压式柴油机。

安全技术说明书（MSDS）昆仑天威CH-4柴油机油版本号：A1版发布日期：2012年12月19日产品名称：柴油机油 CH-4 15W-40/20W-50/10W-30产品分类：内燃机油商品名称：昆仑天威柴油机油CH-4 15W-40/20W-50/10W-30(Ⅰ类油)推荐用途：用于重负荷柴油发动机的润滑。

服务电话：400-810-3000 800-810-3001网址：制造企业名称：中国石油天然气股份有限公司润滑油分公司企业地址：北京市朝阳区太阳宫金星园8号楼A座17层传真号码：0086-10-63592290企业应急电话：0086-10-62095168本产品为精炼润滑油基础油与添加剂混合物，组成含量均为重量百分数。

成分含量（WT%） CAS No.精炼基础油 >80添加剂 <20需要披露的有害物质：二烷基二硫代磷酸锌 <1 68649-42-34-十二烷基苯酚 <0.1 104-43-8根据国家标准《石油化工企业设计防火规范》，本产品属于丙B类可燃液体。

查询GB 12268《危险货物品名表》不属于危险品。

在正常使用的情况下，本产品不存在不可预计的危险。

物理/化学危险性类别：不归为危险物质健康危险性类别：无明显危害健康危害：本产品在某些应用场合可能会产生油雾，过度暴露于液体和油雾时可能会引起皮肤及眼睛刺激，可能导致呼吸系统刺激与损伤,并加重原有的哮喘等呼吸道疾病。

不慎大量食入严重损害消化系统，应及时采取抢救措施。

环境危害：对环境有危害，应防止对土壤、水体的污染。

吸入时：迅速脱离现场至空气新鲜处，保持呼吸道通畅。

如果出现头昏、恶心、或者神志不清,请立刻就医。

食入时：饮足量温水，催吐，大量吞服者，应立即送医院诊治，在医师的指导下采取催吐或其它的救护措施。

眼睛接触：立即翻开上、下眼睑，用流动清水或生理盐水冲洗,若发生持续刺激，则需就医。

皮肤接触：脱去污染的衣着，用肥皂和大量流动清水洗净被污染的部分。

15w40粘度参数
摘要：
1.15w40 粘度参数介绍
2.粘度参数对润滑油性能的影响
3.15w40 粘度参数在实际应用中的优势
4.15w40 粘度参数在汽车保养中的重要性
正文：
润滑油是汽车发动机运行的重要保障，其性能直接影响到发动机的运行效率和寿命。

在润滑油的性能指标中，粘度是一个非常重要的参数。

15w40 是一种常见的润滑油粘度参数，具有优良的润滑性能。

粘度参数对润滑油的性能影响非常大。

粘度是润滑油的内摩擦阻力，直接关系到润滑油在发动机各部位的润滑效果。

15w40 粘度参数的润滑油，在低温时具有较好的流动性，可以迅速到达发动机各部位，形成有效的润滑保护；在高温时，粘度较大，能在发动机内部形成稳定的油膜，有效降低摩擦阻力，降低发动机的能耗。

15w40 粘度参数在实际应用中具有明显的优势。

由于其粘度适中，既能在低温时提供良好的流动性，又能在高温时保持稳定的润滑效果，因此广泛应用于各种汽车发动机。

无论是新车还是旧车，15w40 粘度参数的润滑油都能满足发动机的润滑需求，延长发动机的使用寿命。

在汽车保养中，选择合适的润滑油粘度参数至关重要。

如果粘度过大，会导致发动机在低温时启动困难，增加油耗；如果粘度过小，高温时润滑效果会
大大降低，加速发动机磨损。

因此，选择15w40 粘度参数的润滑油，可以在保证润滑效果的同时，降低油耗，提高发动机运行效率。

综上所述，15w40 粘度参数在润滑油性能、实际应用和汽车保养中都发挥着重要作用，是汽车发动机不可或缺的“保护神”。

Typical Characteristics*SAE Viscosity Grade15W-4010W-30**EMA Recommended Guideline LRG-1API Service ClassificationDiesel CH-4, CG-4, CF-4, CF-2, CFCG-4, CF-4, CF Gasoline SJ SHOEM SpecificationsMack EO-M Detroit Diesel 7SE270Cummins CES20071API Gravity at 16ºC (ASTM D287)27.9 28.9Flash Point, ºC (ASTM D92)218 210Pour Point, ºC (ASTM D97)-33-33Viscosity:cP @ - 15ºC 3000 –cP @ - 20ºC –2840 cP @ - 25ºC 25,000–cP @ - 30ºC–19,500cSt @ 40ºC (ASTM D445)120.773cSt @ 100ºC (ASTM D445)15.511.0HT/HS, CP @ 15ºC 4.4 3.4Viscosity Index (ASTM D567)134141Zinc % Wt. (Spectro or AA).142.142Nitrogen % Wt. .124.113Sulfate Ash (ASTM D567) 1.4 1.4TBN (ASTM D2896)12.211.8* The values shown are typical values and should not be used as quality control parameters to either accept or reject product. Specifications are subject to change without notice.**The 10W-30 version of Cat DEO is licensed as an API CG-4 oil. Cat DEO 10W-30 utilizes the same additive technology developed for the 15W-40 oil, however it is not licensed as API CH-4.Title Title P R E V E N T I V E M A I N T E N A N C E P R O D U C T SSAE 15W-40SAE 10W-30Developed, tested, and approved by Caterpillar, Cat Diesel Engine Oil (CH-4) ensures optimum life and performance in Cat ®on-highway truck, earthmoving, commercial, and marine diesel engines.Recommended useApplicationCat DEO is preferred factory fill oil for new Catmachines and engines, as well as Cat dealer service shops. It is recommended for:• Cat diesel engines (excluding 3600 and MaK), including 1999 low emission on-highway truck, earthmoving,commercial, and marine diesel engines.• automotive gasoline engines that require the latest API SH or SJ Service Classification oils.• OEM heavy-duty diesel engines, including 1999 low emission on-highway truck designs that recommended the use of API CH-4, CG-4/SJ Service Classification oils.Fuel compatibilityThe CH-4 performance of Cat DEO provides protection for Cat engines operating on a higher range of % Fuel Sulfur:Fuel Injection Method % Fuel Sulfur Direct Injection (DI)0.05% to 1.20%Precombustion (PC)0.05% to 0.60%Information sourcesWe can help you determine the right oil for your Cat machines and engines or you can refer to your “Operation and Maintenance Manual” or service publications SEBU6385(On-Highway Truck), SEBU6250 (Earthmoving Machine),and SEBU6251 (Commercial and Marine).Note:Cat Fluids recommendations are now available on the Internet at: /Products/PartServ/Fluids/FluProd/index.htmDirect fuel injection –if fuel sulfur exceeds 1.20%, shorten the oil change period based on S •O •S analysis results.Precombustion fuel injection –if fuel sulfur exceeds 0.60%, shorten the oil change period based on S •O •S analysis results or use Cat DEO single-grade oil API CF with 13.5 TBN.Diesel Engine Oil For Caterpillar ®on-highway truck, earthmoving, commercial, and marine diesel enginesDiesel Engine Oil••••••••19302000908070605040P E R F O R M A N C E L E V E LYEARCAT Engines and CAT Oil Performance HistorySince its introduction in the late 80’s, the Cat DEO formulation has changed many times to keep pace with new engine technology. You can be assured when you buy Cat DEO that the current formulation exceeds the latest engine oil requirements for Cat Engines.* Engine oil licensed as API CH-4, is automatically approved as API CG-4 and CF-4.Diesel Engine Oil© 2000 Caterpillar。
