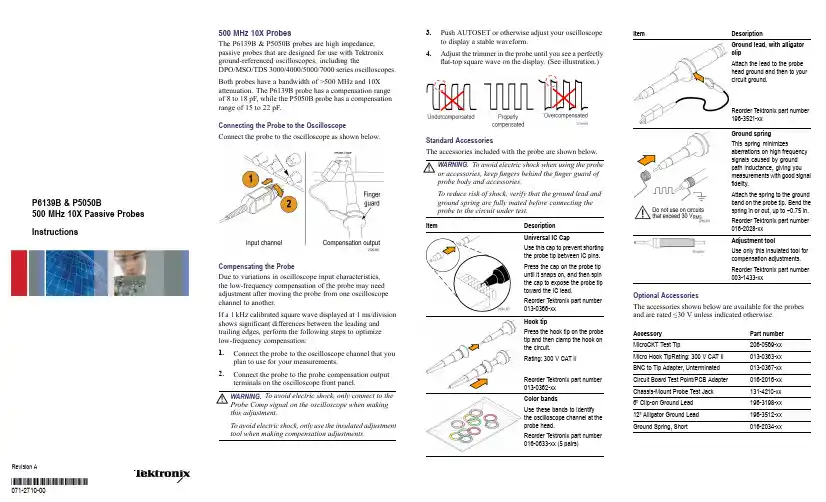

Revision A500MHz 10X ProbesThe P6139B &P5050B probes are high impedance,passive probes that are designed for use with Tektronix ground-referenced oscilloscopes,including theDPO/MSO/TDS 3000/4000/5000/7000series oscilloscopes.Both probes have a bandwidth of >500MHz and 10X attenuation.The P6139B probe has a compensation range of 8to 18pF,while the P5050B probe has a compensation range of 15to 22pF.Connecting the Probe to the OscilloscopeConnect the probe to the oscilloscope as shownbelow.Compensating the ProbeDue to variations in oscilloscope input characteristics,the low-frequency compensation of the probe may need adjustment after moving the probe from one oscilloscope channel to another.If a 1kHz calibrated square wave displayed at 1ms/division shows signi ficant differences between the leading and trailing edges,perform the following steps to optimize low-frequency compensation:1.Connect the probe to the oscilloscope channel that you plan to use for your measurements.2.Connect the probe to the probe compensation output terminals on the oscilloscope frontpanel.WARNING.To avoid electric shock,only connect to the Probe Comp signal on the oscilloscope when making this adjustment.To avoid electric shock,only use the insulated adjustment tool when making compensation adjustments.3.Push AUTOSET or otherwise adjust your oscilloscope to display a stable waveform.4.Adjust the trimmer in the probe until you see a perfectly flat-top square wave on the display.(Seeillustration.)Standard AccessoriesThe accessories included with the probe are shownbelow.WARNING.To avoid electric shock when using the probe or accessories,keep fingers behind the finger guard of probe body and accessories.To reduce risk of shock,verify that the ground lead and ground spring are fully mated before connecting the probe to the circuit under test.ItemDescriptionUniversal IC CapUse this cap to prevent shorting the probe tip between IC pins.Press the cap on the probe tip until it snaps on,and then spin the cap to expose the probe tip toward the IC lead.Reorder Tektronix part number013-0366-xxHook tipPress the hook tip on the probe tip and then clamp the hook on the circuit.Rating:300V CAT II Reorder Tektronix part number013-0362-xxColor bandsUse these bands to identify the oscilloscope channel at the probe head.Reorder Tektronix part number 016-0633-xx (5pairs)ItemDescriptionGround lead,with alligator clipAttach the lead to the probe head ground and then to your circuit ground.Reorder Tektronix part number196-3521-xxGround springThis spring minimizesaberrations on high frequency signals caused by ground path inductance,giving you measurements with good signal fidelity.Attach the spring to the ground band on the probe tip.Bend the spring in or out,up to ~0.75in.Reorder Tektronix part number016-2028-xxAdjustment toolUse only this insulated tool for compensation adjustments.Reorder Tektronix part number 003-1433-xxOptional AccessoriesThe accessories shown below are available for the probes and are rated ≤30V unless indicated otherwise.Accessory Part number MicroCKT Test Tip206-0569-xx Micro Hook TipRating:300V CAT II 013-0363-xx BNC to Tip Adapter,Unterminated 013-0367-xx Circuit Board Test Point/PCB Adapter 016-2016-xx Chassis-Mount Probe Test Jack 131-4210-xx 6”Clip-on Ground Lead 196-3198-xx 12”Alligator Ground Lead 196-3512-xx Ground Spring,Short016-2034-xxP6139B &P5050B500MHz 10X Passive Probes Instructions*P071271000*071-2710-00Revision AReplacing the Probe TipOrder Tektronix part number 206-0635-xx (P6139B)or 206-0636-xx (P5050B).The insulator sleeve,part number 204-1226-xx,is reorderable and is common to bothprobes.WARNING.Only quali fied service personnel should replace the probe tip.Disconnect the probe before servicing.After replacing the tip,securely tighten the insulator sleeve before using theprobe.Speci ficationsTable 1:Electrical and mechanical speci ficationsCharacteristic Speci fication BandwidthDC to 500MHz (–3dB)System attenuation accuracy 10:1±0.5%@DC Compensation range P6139B:8pF–18pF P5050B:15pF–22pF System input resistance 10M Ω±0.5%@DC System input capacitance P6139B:<8pF P5050B:<11pF Propagation delay ~6nsMaximum tip input voltage 300V RMS CAT II and DC Cable length1.3mTable 2:Environmental speci ficationsCharacteristic DescriptionTemperature Operating Nonoperating –15°C (+5°F)to +65°C (+149°F)–62°C to +85°C (–80°F to +185°F)Humidity Operating5%to 95%relative humidity (%RH)up to +30°C,5%to 75%RH above +30°C up to +65°C.NoncondensingNonoperating 5%to 45%RH above +65°C up to +85°C.NoncondensingAltitude Operating Nonoperating3.0km (10,000ft)maximum 15km (50,000ft)maximumTable 3:Certi fications and compliancesCharacteristic Description ECDeclaration ofConformityCompliance was demonstrated to the following speci fication as listed in the Of ficial Journal of the European Communities:Low Voltage Directive 2006/95/EC:EN61010-031:2008CAT III:Distribution-level mains,fixed installation CAT II:Local-level mains,portable equipmentMeasurement CategoryProductExamplesCAT I:Circuits not directly connected to mains Characteristic Description Pollution Degree 2Do not operate in environments where cond–uctive pollutants may be present (as de fined in IEC 61010-1).Rated for indoor use only.Additional Safety StandardsUL61010-031;2010CAN/CSA C22.2No.61010-031:07/A1:2010IEC61010-031;IEC61010-031/A1:2008Equipment Recycling.This product complies with the European Union’s requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE).For more information about recycling options,check the Support/Service section of the Tektronix Web site ().Safety SummaryReview the following safety precautions to avoid injury and prevent damage to this product or any products connected to it.To avoid potential hazards,use this product only as speci fiing the probe or accessories in a manner not speci fied could result in a shock or fire hazard.To Avoid Fire or Personal InjuryGround-Referenced oscilloscope use.Do not float the reference lead of this probe when using with ground referenced oscilloscopes (for example,DPO,MSO,and TDS series oscilloscopes).The reference lead must be connected to earth potential (0V).Connect and disconnect properly.Connect the probe output to the measurement instrument before connecting the probe to the circuit under test.Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe from the measurement instrument.Avoid electric shock.To avoid injury or loss of life,do not connect or disconnect probes or test leads while they are connected to a voltage source.Observe all terminal ratings.To avoid fire or shock hazard,observe all ratings and markings on the product.Consult the product manual for further ratings information before making connections to the product.Avoid electric shock.When using probe accessories,never exceed the lowest rating of the probe or its accessory,whichever is less,including the measurement category and voltage rating.Avoid electric overload.To avoid injury or fire hazard,do not apply potential to any input,including the reference inputs,that varies from ground by more than the maximum rating for that input.Avoid exposed circuitry and do not operate withoutcovers.Do not touch exposed connections and components when power is present.Inspect the probe and accessories.Before each use,inspect probe and accessories for damage (cuts,tears,defects in the probe body,accessories,cable jacket,etc.).Do not use if damaged.Do not operate in Wet/Damp conditions.Do not operate in an explosive atmosphere.Keep product surfaces clean and dry.Safety Terms and Symbols Terms in This Manual.These terms may appear in thismanual:WARNING.Warning statements identify conditions or practices that could result in injury or loss oflife.CAUTION.Caution statements identify conditions or practices that could result in damage to this product or other property.Symbols on the product.These symbols may appear on theproduct:Contacting TektronixWeb site: Phone:1-800-833-9200Address:Tektronix,Inc.Department or name (if known)14200SW Karl Braun Drive P.O.Box 500Beaverton,OR 97077USAEmail:*************************Warranty InformationFor warranty information,go to /warrantyCopyright ©Tektronix,Inc.All rights 。

Agilent 5000系列便携式示波器技术资料新一代便携式示波器2通用示波器的新标准• 带宽为100 MHz 、300 MHz 和 500 MHz • 2 个或 4 个通道• MegaZoom III 存储与显示技术 • 深达 1 Mpts 的采样存储器 (第4页)• 高达每秒 100,000 个波形的 实时捕获速率 (第5页) • 256 级亮度(辉度)高清晰 XGA (1024 x 768) 显示• 高达12位的垂直分辨率，即使 单次采样也能达到这一水平 (第 7 页)• 完备的标准接口 - 标配 (第 6 页) • USB (3 个端口) • LAN • GPIB • XGA 显示输出• 包括web 浏览器在内，全面实现 远端遥控功能 • 符合 LXI C 类仪器标准• 11种可选语言的用户手册 和示波器在线帮助• 安全环境选项传统台式示波器对于描述您已知的问题非常好。

Agilent 公司MegaZoom III 的深存储器和高捕获速率帮助您找出未知问题。

3适用于所有示波器使用者的前沿技术5000 系列示波器采用了与我们的高性能台式和实验室级示波器相同的第三代 MegaZoom III 技术模块 - 快速响应的深存储器、极小的“死区”时间、高捕获速率、类似模拟示波器的显示系统，我们把这些技术结合在一个紧凑的机箱内，但价格却与采用过去技术的示波器类似。

如果您最近还没有购买过Agilent 示波器，为什么不现在就考虑买一台呢?型号带宽 (MHz)通道数最高取样速度存储深度 捕获速率DSO5012A 100 2 2 GSa/s DSO5014A 100 4 2 GSa/s DSO5032A 300 2 2 GSa/s 最高达 1 Mpts 1 (第 4 页) 最高达每秒 100,000个波形（第 5 页）DSO5034A 300 4 2 GSa/s DSO5052A 500 2 4 GSa/s 2 DSO5054A50044 GSa/s 21 当交叉使用两个通道时获得的最深存储深度2当交叉使用两个通道时获得的最高采样率行业领先的客户支持作为全球领先的测试与测量厂商，Agilent 公司拥有最大的销售工程师、应用工程师、支持工程师与技术人员网络。

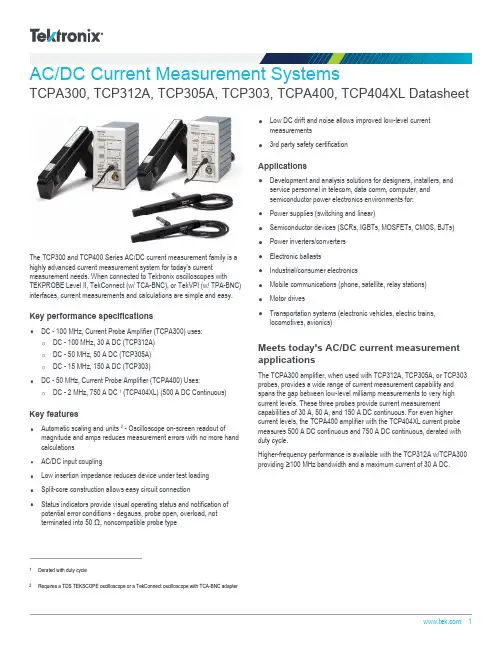

AC/DC Current Measurement SystemsTCPA300, TCP312A, TCP305A, TCP303, TCPA400, TCP404XL DatasheetThe TCP300 and TCP400 Series AC/DC current measurement family is a highly advanced current measurement system for today's current measurement needs. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (w/ TCA-BNC), or TekVPI (w/ TPA-BNC)interfaces, current measurements and calculations are simple and easy.Key performance specificationsDC - 100 MHz, Current Probe Amplifier (TCPA300) uses:DC - 100 MHz, 30 A DC (TCP312A)DC - 50 MHz, 50 A DC (TCP305A)DC - 15 MHz, 150 A DC (TCP303)DC - 50 MHz, Current Probe Amplifier (TCPA400) Uses:DC - 2 MHz, 750 A DC 1 (TCP404XL) (500 A DC Continuous)Key featuresAutomatic scaling and units 2 - Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more handcalculationsAC/DC input couplingLow insertion impedance reduces device under test loadingSplit-core construction allows easy circuit connectionStatus indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, notterminated into 50 Ω, noncompatible probe typeLow DC drift and noise allows improved low-level currentmeasurements3rd party safety certificationApplicationsDevelopment and analysis solutions for designers, installers, and service personnel in telecom, data comm, computer, andsemiconductor power electronics environments for:Power supplies (switching and linear)Semiconductor devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs)Power inverters/convertersElectronic ballastsIndustrial/consumer electronicsMobile communications (phone, satellite, relay stations)Motor drivesTransportation systems (electronic vehicles, electric trains,locomotives, avionics)Meets today's AC/DC current measurement applicationsThe TCPA300 amplifier, when used with TCP312A, TCP305A, or TCP303probes, provides a wide range of current measurement capability and spans the gap between low-level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30 A, 50 A, and 150 A DC continuous. For even higher current levels, the TCPA400 amplifier with the TCP404XL current probe measures 500 A DC continuous and 750 A DC continuous, derated with duty cycle.Higher-frequency performance is available with the TCP312A w/TCPA300providing ≥100 MHz bandwidth and a maximum current of 30 A DC.1Derated with duty cycle2Requires a TDS TEKSCOPE oscilloscope or a TekConnect oscilloscope with TCA-BNC adapterMeasurement errors and manual calculations are now a thing of the pastWith this new series of current measurement tools, automatic control and on-screen scaling and units is provided for users of Tektronix TDS3000, TDS500, TDS600, TDS700, TDS5000, TDS6000, and TDS7000B series oscilloscope systems (the DPO3000, MDO/MSO/DPO4000, MSO/DPO5000, and DPO7000 series oscilloscopes, the TPA-BNC adapter is required).The TCP300/TCP400 current measurement systems seamlessly integrate with your TDS series oscilloscope.Even non-TEKPROBE systems can use the TCPA300/400 series to make proper current measurements by simply multiplying the measured output voltage on the oscilloscope by the TCPA300/400 series range setting.SpecificationsAll specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise. Model overviewDatasheetCharacteristicsMaximum current ratingsHigh-current sensitivityLow-current sensitivityRange 1 A/V 5 A/V 5 A/V N/A DC (continuous) 5 A 25 A 25 A N/A RMS (sinusoidal) 3.5 A 17.7 A 17.7 A N/A Peak50 A50 A500 AN/APhysical characteristicsAmplifiersProbesMaximum conductor sizeCable length1.5 m (60 in)1.5 m (60 in)2 m (78.7 in)8 m (315 in)EMC environment and safetySafety complianceElectromagnetic compatibility,amplifiers onlyEC Council Directive 89/336/EEC, FCC Part 15, Subpart B Class A, AS/NZS 2064.1/2.AC/DC Current Measurement SystemsTemperatureOperating0 °C to +50 °C (32 °F to 122 °F)Nonoperating-40 °C to +75 °C (-40 °F to 167 °F)HumidityOperating5% to 95% R.H. to +30 °C (86 °F)5% to 85% R.H. +30 °C to +50 °C (86 °F to 122 °F)Nonoperating5% to 95% R.H. to +30 °C (86 °F)5% to 85% R.H. +30 °C to +75 °C (86 °F to 167 °F)AltitudeOperating2000 m (6800 ft.) maximumNonoperating12,192 m (40,000 ft.) maximumOrdering informationModelsProbesTCP312A Probe AC/DC current, DC to 100 MHz; 30 A DC (Requires TCPA300 amplifier)TCP305A Probe AC/DC current, DC to 50 MHz; 50 A DC (Requires TCPA300 amplifier)TCP303 Probe AC/DC current, DC to 15 MHz; 150 A DC (Requires TCPA300 amplifier)TCP404XL Probe AC/DC current, DC to 2 MHz; 500 A DC (750 A DC derated with duty cycle) (Requires TCPA400 amplifier)All TCP300/400 probes include: compliance and safety instructions, certificate of traceable calibration.AmplifiersTCPA300 Amplifier AC/DC current probe, DC to 100 MHz, (Requires TCP305A or TCP312A or TCP303 probes)TCPA400 Amplifier AC/DC current probe, DC to 50 MHz, (Requires TCP404XL probe)All TCPA300/TCPA400 Current Probe Amplifiers Include: AC/DC current probe amplifier, compliance and safety instructions, TEKPROBE interface cable, certificate of traceable calibration.Recommended accessoriesCover, large probe protective; (forTCP303, TCP404XL)016-1924-00Case, transit; currentmeasurement systems016-1922-0050 Ω feedthrough termination011-0049-0250 Ω BNC-to-BNC coaxial cable012-0117-00TEKPROBE interface cable,TCPA300 or TCPA400 amplifier toTDS series oscilloscopes012-1605-00Current loop, 1 turn, 50 Ω, BNCconnector (for TCP305A, TCP312A,TCP202A)067-2396-00Current loop, 1 turn, 50 Ω, BNC connector (for TCP303, TCP404XL)015-0601-50DatasheetEMC environment and safetyAC/DC Current Measurement Systems TCPA300/TCPA400 amplifier174-4765-00calibration adapter067-1478-00Power measurements deskewfixture for TCP202A, TCP305A,TCP312A, TCP303 probesWarrantyOne year parts and labor.Power requirementsAmplifiers90 V to 264 V, 47 to 440 Hz, 50 W; Maximum CAT II (auto switch)Probes TCP312A, TCP305A, TCP303 probes require a TCPA300 Amplifier; TCP404XL probe requires a TCPA400 Amplifier OptionsPower plug optionsOpt. A0North America power plug (115 V, 60 Hz)Opt. A1Universal Euro power plug (220 V, 50 Hz)Opt. A2United Kingdom power plug (240 V, 50 Hz)Opt. A3Australia power plug (240 V, 50 Hz)Opt. A5Switzerland power plug (220 V, 50 Hz)Opt. A6Japan power plug (100 V, 50/60 Hz)Opt. A10China power plug (50 Hz)Opt. A11India power plug (50 Hz)Opt. A12Brazil power plug (60 Hz)Opt. A99No power cordServiceOptionsOpt. C3Calibration Service 3 YearsOpt. C5Calibration Service 5 YearsOpt. D1Calibration Data ReportOpt. D3Calibration Data Report 3 Years (with Opt. C3)Opt. D5Calibration Data Report 5 Years (with Opt. C5)Opt. R3Repair Service 3 Years (including warranty)Opt. R3DW Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase Opt. R5Repair Service 5 Years (including warranty)Opt. R5DW Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase Opt. SILV400Standard warranty extended to 5 years (TCP305A, TCP312A, TCPA300, TCPA400 )Opt. SILV600Standard warranty extended to 5 years (TCP303, TCP404XL)Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar.DatasheetASEAN / Australasia (65) 6356 3900 Austria 00800 2255 4835*Balkans, Israel, South Africa and other ISE Countries +41 52 675 3777 Belgium 00800 2255 4835*Brazil +55 (11) 3759 7627 Canada180****9200Central East Europe and the Baltics +41 52 675 3777 Central Europe & Greece +41 52 675 3777 Denmark +45 80 88 1401Finland +41 52 675 3777 France 00800 2255 4835*Germany 00800 2255 4835*Hong Kong 400 820 5835 India 000 800 650 1835 Italy 00800 2255 4835*Japan 81 (3) 6714 3010 Luxembourg +41 52 675 3777 Mexico, Central/South America & Caribbean 52 (55) 56 04 50 90Middle East, Asia, and North Africa +41 52 675 3777 The Netherlands 00800 2255 4835*Norway 800 16098People's Republic of China 400 820 5835 Poland +41 52 675 3777 Portugal 80 08 12370Republic of Korea +822 6917 5084, 822 6917 5080 Russia & CIS +7 (495) 6647564 South Africa +41 52 675 3777Spain 00800 2255 4835*Sweden 00800 2255 4835*Switzerland 00800 2255 4835*Taiwan 886 (2) 2656 6688 United Kingdom & Ireland 00800 2255 4835*USA180****9200* European toll-free number. If not accessible, call: +41 52 675 3777For Further Information. Tektronix maintains a comprehensive, constantly expanding collection of application notes, technical briefs and other resources to help engineers working on the cutting edge of technology. Please visit . Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification andprice change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.23 May 2019 60W-16458-12。
