基于IOzone的性能测试方案

iozone常用测试方法【原创实用版3篇】目录（篇1）1.iozone 简介2.iozone 的常用测试方法3.测试方法的优缺点4.结论正文（篇1）1.iozone 简介iozone 是一个用于测试文件系统性能的工具，它可以测试文件系统的吞吐量和性能。

iozone 可以在本地文件系统、网络文件系统（NFS）以及分布式文件系统（如 HDFS）上运行。

它提供了一系列测试脚本，这些脚本可以测试不同类型的文件操作，如创建、删除、读取和写入文件等。

2.iozone 的常用测试方法iozone 提供了多种测试方法，以下是其中几种常用的测试方法：- 测试文件创建和删除：该测试方法用于测试文件系统的创建和删除文件性能。

- 测试文件读取：该测试方法用于测试文件系统的读取文件性能。

- 测试文件写入：该测试方法用于测试文件系统的写入文件性能。

- 测试目录操作：该测试方法用于测试文件系统的目录操作性能，如创建、删除和读取目录等。

3.测试方法的优缺点iozone 的测试方法具有以下优点：- 可以测试不同类型的文件操作，如创建、删除、读取和写入文件等。

- 可以在多种文件系统上运行，包括本地文件系统、网络文件系统（NFS）以及分布式文件系统（如 HDFS）。

然而，iozone 的测试方法也存在一些缺点：- 测试结果可能受到系统硬件和软件配置的影响，因此可能不具有通用性。

- 测试过程可能需要较长时间，尤其是在测试大型文件系统时。

4.结论iozone 是一个功能强大的文件系统性能测试工具，它可以测试文件系统的吞吐量和性能。

通过使用 iozone 的测试方法，用户可以评估文件系统的性能，并找出可能存在的性能瓶颈。

目录（篇2）1.iozone 简介2.iozone 的常用测试方法3.iozone 测试方法的优势和局限性正文（篇2）1.iozone 简介iozone 是一个用于测试文件系统性能的工具，它可以测试文件系统的读写速度、吞吐量和稳定性。

[转载]IOZONE和FIO的安装测试说明原⽂地址：IOZONE和FIO的安装测试说明作者：____MoIOZONE说明iozone是⼀个⽂件系统的benchmark⼯具，可以测试不同的操作系统中⽂件系统的读写性能。

可以测试 Read, write, re-read,re-write, read backwards, read strided, fread, fwrite, random read, pread, mmap, aio_read, aio_write 等等不同的模式下的硬盘的性能。

测试的时候请注意，设置的测试⽂件的⼤⼩⼀定要⼤过你的内存（最佳为内存的两倍⼤⼩），不然linux会给你的读写的内容进⾏缓存。

会使数值⾮常不真实。

IOZONE安装包iozone3_430.tarIOZONE安装步骤[root@linux156 bin]# tar -xvf iozone3_430.tar[root@linux156 bin]# cd /usr/linkapp/bin/iozone3_430/src/current/[root@linux156 current]# make linux查找：[root@linux156 iozone3_430]# find /-name iozoneIOZONE测试命令[root@linux156 current]# ./iozone -zx -b iozone-test.xls -g 8g -y 64k -i 0 -i 1说明：-az——执⾏不同粒度（record size）和测试⽂（file size）的⾃动化测试，默认情况下record size从4K—16M，filesize从64K—512M。

-b——指定测试后⽣成的excel⽂件。

-g——指定最⼤的file size⼤⼩。

（⼀般为内存的两倍）-y——指定最⼩的record size数值。

-i——指定测试的种类。

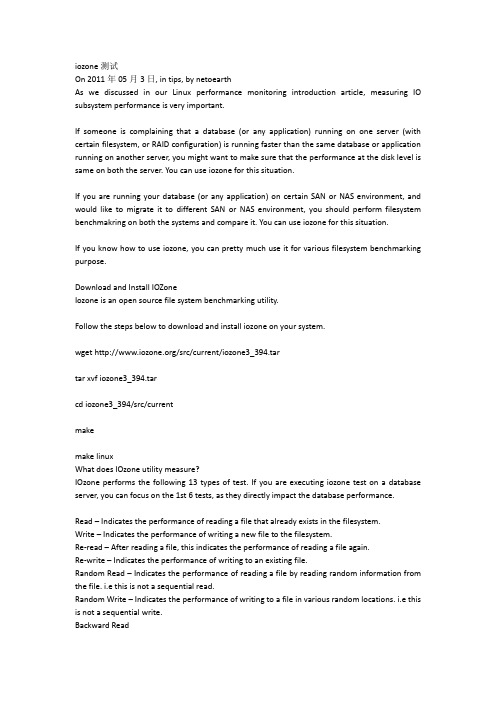

On 2011年05月3日, in tips, by netoearthAs we discussed in our Linux performance monitoring introduction article, measuring IO subsystem performance is very important.If someone is complaining that a database (or any application) running on one server (with certain filesystem, or RAID configuration) is running faster than the same database or application running on another server, you might want to make sure that the performance at the disk level is same on both the server. You can use iozone for this situation.If you are running your database (or any application) on certain SAN or NAS environment, and would like to migrate it to different SAN or NAS environment, you should perform filesystembenchmakring on both the systems and compare it. You can use iozone for this situation.If you know how to use iozone, you can pretty much use it for various filesystem benchmarking purpose.Download and Install IOZoneIozone is an open source file system benchmarking utility.Follow the steps below to download and install iozone on your system.wget /src/current/iozone3_394.tartarxvf iozone3_394.tarcd iozone3_394/src/currentmakemakelinuxWhat does IOzone utility measure?IOzone performs the following 13 types of test. If you are executing iozone test on a database server, you can focus on the 1st 6 tests, as they directly impact the database performance.Read – Indicates the performance of reading a file that already exists in the filesystem.Write – Indicates the performance of writing a new file to the filesystem.Re-read – After reading a file, this indicates the performance of reading a file again.Re-write – Indicates the performance of writing to an existing file.Random Read – Indicates the performance of reading a file by reading random information from the file. i.e this is not a sequential read.Random Write – Indicates the performance of writing to a file in various random locations. i.e this is not a sequential write.Record Re-WriteStride ReadFreadFwriteFrereadFrewrite10 IOZone Examples1. Run all IOZone tests using default values-a option stands for automatic mode. This creates temporary test files from sizes 64k to 512MB for performance testing. This mode also uses 4k to 16M of record sizes for read and write (more on this later) testing.-a option will also execute all the 13 types of tests.$ ./iozone -aThe first setion of the iozone output contains the header information, which displays information about the iozone utility, and all the iozone options that are used to generate this report, as shown below.Iozone: Performance Test of File I/OVersion $Revision: 3.394 $Compiled for 32 bit mode.Build: linuxContributors:WilliamNorcott, Don Capps, Isom Crawford, Kirby CollinsAl Slater, Scott Rhine, Mike Wisner, Ken GossRun began: Sat Apr 23 12:25:34 2011Auto ModeCommand line used: ./iozone -aOutput is in Kbytes/secTime Resolution = 0.000001 seconds.Processor cache size set to 1024 Kbytes.Processor cache line size set to 32 bytes.File stride size set to 17 * record size.The second section of the output contains the output values (in per second) of various tests.1st column KB: Indicates the file size that was used for the testing.2nd column reclen: Indicates the record length that was used for the testing.3rd column until the last column: Indicates the various tests that are performed and its output values in per second.random randombkwd record stride KB reclen write rewrite read reread read write read rewrite read fwritefrewritefreadfreread64 4 495678 152376 1824993 2065601 2204215 875739 582008 971435 667351 383106 363588 566583 88946564 8 507650 528611 1051124 1563289 2071399 1084570 1332702 1143842 2138827 1066172 1141145 1303442 200478364 16 587283 1526887 2560897 2778775 2366545 1122734 1254016 593214 1776132 463919 1783085 3214531 305778264 32 552203 402223 1121909 1388380 1162129 415722 666360 1163351 1637488 1876728 1685359 673798 246614564 64 551580 1122912 2895401 4911206 2782966 1734491 1825933 1206983 2901728 1207235 1781889 2133506 2780559128 4 587259 1525366 1801559 3366950 1600898 1391307 1348096 547193 666360 458907 1486461 1831301 1998737128 8 292218 1175381 1966197 3451829 2165599 1601619 1232122 1291619 3273329 1827104 1162858 1663987 1937151128 16 650008 510099 4120180 4003449 2508627 1727493 1560181 1307583 2203579 1229980 603804 1911004 2669183128 32 703200 1802599 2842966 2974289 2777020 1331977 3279734 1347551 1152291 684197 722704 907518 2466350128 64 848280 1294308 2288112 1377038 1345725 659686 1997031 1439349 2903100 1267322 1968355 2560063 1506623128 128 902120 551579 1305206 4727881 3046261 1405509 1802090 1085124 3649539 2066688 1423514 2609286 3039423...2. Save the output to a spreadsheet using iozone -bTo save the iozone output to a spreadsheet, use the -b option as shown below. -b stands for binary, and it instructs iozone to write the test output in binary format to a spreadsheet.$ ./iozone -a -b output.xlsNote: The -b option can be used with any of the examples mentioned below.From the data that is saved in the spreadsheet, you can use the create some pretty graphs using the graph functionality of the spreadsheet tool. The following is a sample graph that was created from iozone output.Fig: IOZone graph3. Run only a specific type of test using iozone -iIf you are interested in running only a specific type of test, use the -i option.Syntax:iozone -i [test-type]The test-type is a numeric value. The following are the various available test types and its numeric value.0=write/rewrite1=read/re-read2=random-read/write3=Read-backwards4=Re-write-record5=stride-read6=fwrite/re-fwrite7=fread/Re-fread,8=random mix9=pwrite/Re-pwrite10=pread/Re-pread11=pwritev/Re-pwritev12=preadv/Re-preadvThe following example will run only the write tests (i.e both write and rewrite). As you see from the output the other columns are empty.$ ./iozone -a -i 0random randombkwd record strideKB reclen write rewrite read reread read write read rewrite read fwritefrewritefreadfreread64 4 353666 68096964 8 477269 74476864 16 429574 32644264 32 557029 94214864 64 680844 633214128 4 187138 524591Combine multiple iozone test typesYou can also combine multiple test types by specifying multiple -i in the command line.For example, the following example will test both read and write test types.$ ./iozone -a -i 0 -i 1random randombkwd record strideKB reclen write rewrite read reread read write read rewrite read fwritefrewritefreadfreread64 4 372112 407456 1520085 88908664 8 385574 743960 3364024 255333364 16 496011 397459 3748273 133058664 32 499600 876631 2459558 42700784. Specify the file size using iozone -sBy default, iozone will automatically create temporary files of size from 64k to 512M, to perform various testing.The 1st column in the iozone output (with the column header KB) indicates the file size. As you saw from the previous output, it starts with 64KB file, and will keep increasing until 512M (by doubling the file size every time).Instead of running the test for all the file sizes, you can specific the file size using option -s.The following example will perform write test only for file size 1MB (i.e 1024KB).$ ./iozone -a -i 0 -s 1024random randombkwd record strideKB reclen write rewrite read reread read write read rewrite read fwritefrewritefreadfreread1024 4 469710 7858821024 8 593621 10555811024 16 745286 11105391024 32 610585 10301841024 64 929225 15901301024 128 1009859 16729301024 256 1042711 20396031024 512 941942 19318951024 1024 1039504 7061675. Specify the record size for testing using iozone -rWhen you run a test, for a specific file size, it tests with different record sizes ranging from 4k to 16M.If you like to do I/O performance testing of an I/O subsystem that hosts oracle database, you might want to set the record size in the iozone to the same value of the DB block size. The database reads and writes based on the DB block size.reclen stands for Record Length. In the previous example, the 2nd column (with the column header “reclen”) indicates the record length that should be used for testing IOzone. In the previous example outout, for the file size of 1024KB, the iozone testing used various record sizes ranging from 4k to 16M to perform the write test.Instead of using all these default record length sizes, you can also specify the record size you would like to test.The example below will run write test only for record length of 32k. In the output, the 2nd column will now only display 32.$ ./iozone -a -i 0 -r 32random randombkwd record strideKB reclen write rewrite read reread read write read rewrite read fwritefrewritefreadfreread64 32 566551 820553128 32 574098 1000000256 32 826044 948043512 32 801282 15606241024 32 859116 5289012048 32 881206 14230966. Combine file size with record sizeYou can also using both -s and -r option to specific a exact temporary file size, and exact record length that needs to be tested.For example, the following will run the write test using a 2M file with a record length of 1M$ ./iozone -a -i 0 -s 2048 -r 1024random randombkwd record strideKB reclen write rewrite read reread read write read rewrite read fwritefrewritefreadfreread2048 1024 1065570 18718417. Throughput test using iozone -tTo execute the iozone in throughput mode, use -t option. You should also specify the number of threads that needs to be active during this test.The following example will execute the iozone throughput test for writes using 2 threads. Please note that you cannot combine -a option with -t option.$ ./iozone -i 0 -t 2Children see throughput for 2 initial writers 1= 433194.53 KB/secParent sees throughput for 2 initial writers = 7372.12 KB/secMin throughput per process = 0.00 KB/secMax throughput per process = 433194.53 KB/secAvg throughput per process = 216597.27 KB/secMin xfer = 0.00 KBChildren see throughput for 2 rewriters = 459924.70 KB/secParent sees throughput for 2 rewriters = 13049.40 KB/secMin throughput per process = 225610.86 KB/secMax throughput per process = 234313.84 KB/secAvg throughput per process = 229962.35 KB/secMin xfer = 488.00 KBTo perform throughput for all the test types, remove the “-i 0″from the above example, as shown below.$ ./iozone -t 28. Include CPU Utilization using iozone -+uWhile performing the iozone testing, you can also instruct iozone to collect the CPU utilization using -+u option.The -+ in front of the option might look little strange. But, you have to give the whole -+u (not just -u, or +u) for this to work properly.The following example will execute all the test, and include the CPU utilization report as part of the excel spreadsheet output it generates.$ ./iozone -a -+u -b output.xlsNote: This will display separate CPU utilization for each and every test it performs.9. Increase the file size using iozone -gThis is important. If your system has more than 512MB of RAM, you should increase the temporary file size that iozone uses for testing. If you don’t, you might not get accurate results, as the system buffer cache will play a role in it.For accurate disk performance, it is recommended to have the temporary file size 3 times the size of your system buffer cache.The following example will run the iozone by increasing the maximum file size to 2GB, and run the automatic iozone testing for write tests.$ ./iozone -a -g 2G -i 0random randombkwd record strideKB reclen write rewrite read reread read write read rewrite read fwritefrewritefreadfreread64 4 556674 123067764 8 278340 44132064 16 608990 145405364 32 504125 108541164 64 571418 1279331128 4 526602 961764128 8 714730 518219...10. Test multiple mount points together using iozone -FBy combining several iozone options, you can perform disk I/O testing on multiple mount points as shown below.If you have 2 mounts points, you can start 2 different iozone threads to create temporary files on both these mount points for testing as shown below.$ ./iozone -l 2 -u 2 -r 16k -s 512M -F /u01/tmp1 /u02/tmp2-l indicates the minimum number of iozone processes that should be started-u indicates the maximum number of iozone processes that should be started-F should contain multiple values. i.e If we specify 2 in both -l and -u, we should have two filenames here. Please note that only the mount points need to exists. The file specified in the -F option doesn’t need to exists, as iozone will create this temporary file during the testing. In the above example, the mount points are /u01, and /u02. The file tmp1 and tmp2 will be automatically created by iozone for testing purpose.。

IO性能测试工具与方法一、IO性能测试工具1. Iometer：Iometer是一款免费的开源工具，主要用于测试磁盘和网络的性能。

它能模拟不同类型的IO负载，如随机读写、顺序读写等，支持多个客户端同时进行测试。

2. fio：fio是一款强大的IO性能测试工具，可以灵活配置各种IO 模式和负载。

它支持多种IO引擎（如sync、mmap等），可以模拟不同类型的IO负载。

fio也具有完善的报告和图表生成功能。

3. iozone：iozone是一款基于文件系统的IO性能测试工具，可以测试文件系统的读写性能。

它具有丰富的测试选项，支持测试顺序读写、随机读写、随机混合读写等。

4. Bonnie++：Bonnie++是一款常用的综合性IO性能测试工具，可以测试文件系统的顺序读写和随机读写性能。

它还可以测试文件系统对大文件和小文件的处理能力。

5. ioping：ioping是一款轻量级的IO性能测试工具，用于测试硬盘和网络的响应时间和吞吐量。

它支持测试随机读写、顺序读写等不同类型的IO负载。

二、IO性能测试方法1.顺序读写测试：顺序读写测试是测试计算机系统对连续存取数据的性能。

通过将大块数据连续读取或写入磁盘，评估计算机系统的顺序读写能力。

2.随机读写测试：随机读写测试是测试计算机系统对随机存取数据的性能。

通过将小块数据随机读取或写入磁盘，评估计算机系统的随机读写能力。

3.混合读写测试：混合读写测试是测试计算机系统对同时进行读写操作的性能。

通过模拟同时进行的读写操作，评估计算机系统的读写并发能力。

4.并发IO测试：并发IO测试是测试计算机系统在多个客户端同时进行IO操作时的性能。

通过在多个客户端上同时进行IO操作，评估计算机系统的并发处理能力。

5.文件系统测试：文件系统测试是测试计算机系统对文件的读写性能。

通过在不同类型的文件系统上进行读写测试，评估计算机系统的文件系统性能。

6.网络IO测试：网络IO测试是测试计算机系统在网络传输数据时的性能。

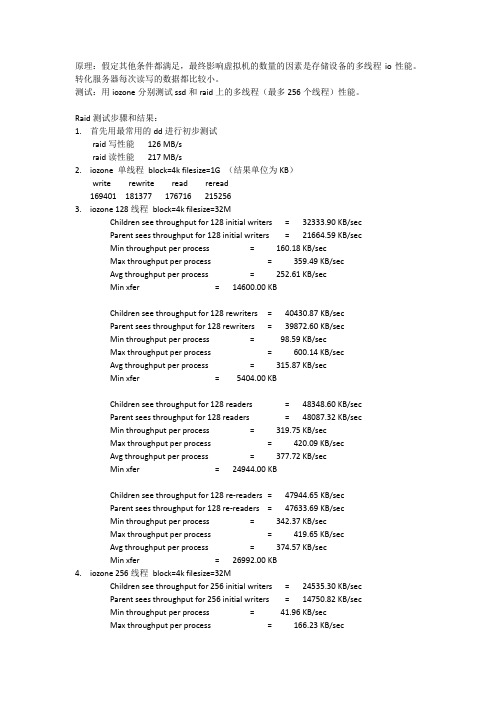

原理：假定其他条件都满足，最终影响虚拟机的数量的因素是存储设备的多线程io性能。

转化服务器每次读写的数据都比较小。

测试：用iozone分别测试ssd和raid上的多线程（最多256个线程）性能。

Raid测试步骤和结果：1.首先用最常用的dd进行初步测试raid写性能126 MB/sraid读性能217 MB/s2.iozone 单线程block=4k filesize=1G （结果单位为KB）write rewrite read reread169401 181377 176716 2152563.iozone 128线程block=4k filesize=32MChildren see throughput for 128 initial writers = 32333.90 KB/secParent sees throughput for 128 initial writers = 21664.59 KB/secMin throughput per process = 160.18 KB/secMax throughput per process = 359.49 KB/secAvg throughput per process = 252.61 KB/secMin xfer = 14600.00 KBChildren see throughput for 128 rewriters = 40430.87 KB/secParent sees throughput for 128 rewriters = 39872.60 KB/secMin throughput per process = 98.59 KB/secMax throughput per process = 600.14 KB/secAvg throughput per process = 315.87 KB/secMin xfer = 5404.00 KBChildren see throughput for 128 readers = 48348.60 KB/secParent sees throughput for 128 readers = 48087.32 KB/secMin throughput per process = 319.75 KB/secMax throughput per process = 420.09 KB/secAvg throughput per process = 377.72 KB/secMin xfer = 24944.00 KBChildren see throughput for 128 re-readers =47944.65 KB/secParent sees throughput for 128 re-readers = 47633.69 KB/secMin throughput per process = 342.37 KB/secMax throughput per process = 419.65 KB/secAvg throughput per process = 374.57 KB/secMin xfer = 26992.00 KB4.iozone 256线程block=4k filesize=32MChildren see throughput for 256 initial writers = 24535.30 KB/secParent sees throughput for 256 initial writers = 14750.82 KB/secMin throughput per process = 41.96 KB/secMax throughput per process = 166.23 KB/secAvg throughput per process = 95.84 KB/secMin xfer = 8276.00 KBChildren see throughput for 256 rewriters = 28527.67 KB/secParent sees throughput for 256 rewriters = 27356.49 KB/secMin throughput per process = 18.62 KB/secMax throughput per process = 297.63 KB/secAvg throughput per process = 111.44 KB/secMin xfer = 2052.00 KBChildren see throughput for 256 readers = 53807.49 KB/secParent sees throughput for 256 readers = 53489.86 KB/secMin throughput per process = 183.62 KB/secMax throughput per process = 232.03 KB/secAvg throughput per process = 210.19 KB/secMin xfer = 25984.00 KBChildren see throughput for 256 re-readers =57328.90 KB/secParent sees throughput for 256 re-readers = 56990.59 KB/secMin throughput per process = 195.81 KB/secMax throughput per process = 244.42 KB/secAvg throughput per process = 223.94 KB/secMin xfer = 26480.00 KBRaid测试结论：单线程下，dd和iozone的测试结果基本保持一致，iozone的测试结果偏低。

IOZONE测试⼯具使⽤⽅法（转载）IOZONE主要⽤来测试操作系统⽂件系统性能的测试⼯具，该⼯具所测试的范围主要有，write , Re-write, Read, Re-Read, Random Read, Random Write, Random Mix, Backwards Read, Record Rewrite, Strided Read, Fwrite, Frewrite, Fread, Freread, Mmap, Async I/O使⽤iozone可以在多线程、多cpu，并指定cpu cache空间⼤⼩以及同步或异步I/O读写模式的情况下进⾏测试⽂件操作性能；(0=write/rewrite, 1=read/re-read, 2=random-read/write3=Read-backwards, 4=Re-write-record, 5=stride-read, 6=fwrite/re-fwrite, 7=fread/Re-fread,8=random mix, 9=pwrite/Re-pwrite, 10=pread/Re-pread, 11=pwritev/Re-pwritev, 12=preadv/Re-preadv).-----------------------------------------------------------------------------------------------------------------------------测试的时候请注意，设置的测试⽂件的⼤⼩⼀定要⼤过你的内存(最佳为内存的两倍⼤⼩)，不然linux会给你的读写的内容进⾏缓存。

会使数值⾮常不真实.iozone常⽤的⼏个参数.-a 全⾯测试，⽐如块⼤⼩它会⾃动加-i N ⽤来选择测试项, ⽐如Read/Write/Random ⽐较常⽤的是0 1 2,可以指定成-i 0 -i 1 -i2.这些别的详细内容请查man0=write/rewrite1=read/re-read2=random-read/write3=Read-backwards4=Re-write-record5=stride-read6=fwrite/re-fwrite7=fread/Re-fread8=random mix9=pwrite/Re-pwrite10=pread/Re-pread11=pwritev/Re-pwritev12=preadv/Re-preadv-r block size 指定⼀次写⼊/读出的块⼤⼩-s file size 指定测试⽂件的⼤⼩-f filename 指定测试⽂件的名字,完成后会⾃动删除(这个⽂件必须指定你要测试的那个硬盘中)-F file1 file2... 指定多线程下测试的⽂件名批量测试项:-g -n 指定测试⽂件⼤⼩范围,最⼤测试⽂件为4G,可以这样写 -g 4G-y -q 指定测试块的⼤⼩范围输出:下⾯是⼏个⽇志记录的参数.好象要输出成图象进⾏分析，需要指定-a的测试才能输出-R 产⽣Excel到标准输出-b 指定输出到指定⽂件上. ⽐如 -Rb ttt.xls-----------------------------------------------------------------------------------------------------------------------------Iozone ⼯具的安装使⽤：Iozone⼯具以rpm包的形式安装，Iozone⼯具iozone-3-283.i386.rpm可以存放在/usr/src⽬录下⾯，然后调⽤rpm –ivh iozone-3-283.i386.rpm 进⾏安装，安装成功以后，进⼊/opt/iozone/bin/⽬录，即可以调⽤以下详细测试命令进⾏测试。

IOZone使用指南本文将通过三个方面介绍IOZone的使用：1、IOZone的相关介绍。

2、IOZone的测试方法。

3、IOZone几种测试的定义。

下面将从这三个方面来介绍IOZone。

一、IOZone的介绍IOZone是一个文件系统的benchmark工具，可以测试不同的操作系统中文件系统的读写性能。

可以测试Read, write, re-read,re-write, read backwards, read strided, fread, fwrite, random read, pread,mmap, aio_read, aio_write 等等不同的模式下的硬盘的性能。

测试的时候请注意，设置的测试文件的大小一定要大过你的内存(最佳为内存的两倍大小)，不然Linux会给你的读写的内容进行缓存，会使数值非常不真实。

二、IOZone的测试方法下面是一些在IOZone进行测试时的相关选项：Usage: iozone [-s filesize_Kb] [-r record_size_Kb ] [-f [path]filename][-i test] [-E] [-p] [-a] [-A] [-z] [-Z] [-m] [-M] [-t children] [-h] [-o][-l min_number_procs] [-u max_number_procs] [-v] [-R] [-x][-d microseconds] [-F path1 path2...] [-V pattern] [-j stride][-T] [-C] [-B] [-D] [-G] [-I] [-H depth] [-k depth] [-U mount_point][-S cache_size] [-O] [-K] [-L line_size] [-g max_filesize_Kb][-n min_filesize_Kb] [-N] [-Q] [-P start_cpu] [-c] [-e] [-b filename][-J milliseconds] [-X filename] [-Y filename] [-w] [-W][-y min_recordsize_Kb] [-q max_recordsize_Kb] [-+m filename][-+u ] [ -+d ] [-+p percent_read] [-+r] [-+t ] [-+A #]下面会介绍一些比较常用的选项参数，其他的一些选项参数可以在IOZone的主页（/）上进行下载IOZone的使用手册进行了解。

iozone常用测试方法 iozone是一款用于评估计算机存储子系统性能的基准测试工具。

它可以通过测试磁盘I/O吞吐量、文件访问模式、缓存行为等方面来评估计算机的磁盘性能，并帮助用户调优系统以提高磁盘的读写性能。

本文将详细介绍iozone的常用测试方法，帮助读者了解如何正确使用iozone进行磁盘性能测试。

随着计算机应用的不断发展，对于磁盘性能的要求也越来越高。

为了评估和优化计算机存储子系统的性能，我们需要一款可靠的测试工具。

iozone就是这么一款工具，它能够快速准确地测试出计算机磁盘性能的各个指标。

下面我们将一步步介绍iozone的常用测试方法。

一、安装iozone 首先，我们需要在测试机上安装iozone。

iozone是一个开源工具，可以从官方网站下载最新版本的源码并进行编译安装。

安装完成后，我们就可以使用iozone命令进行磁盘性能测试了。

二、测试磁盘I/O吞吐量要测试磁盘的I/O吞吐量，可以使用以下命令：iozone -i 0 -i 1 -+n -+m 这个命令会测试顺序读、随机读和随机写的性能，并输出吞吐量的统计结果。

在测试过程中，iozone会向磁盘写入和读取大量数据，并计算每秒钟能够写入或读取的数据量。

这个指标反映了磁盘的读写速度，越大表示磁盘性能越好。

三、测试文件访问模式 iozone还可以测试文件的访问模式，即对文件的读写操作进行统计。

使用以下命令可以测试随机读、随机写和随机混合读写模式的性能： iozone -i 2 -i 3 -i 4 -+n -+m 这个命令会模拟多个进程同时对磁盘上的文件进行读写操作，并输出每个操作的延迟和带宽。

通过这些数据可以判断磁盘在不同访问模式下的性能表现，以及磁盘是否存在性能瓶颈。

四、测试缓存行为 计算机系统通常会使用缓存来提高磁盘的读写性能。

iozone可以测试磁盘在有无缓存的情况下的性能差异。

使用以下命令可以测试顺序读、随机读和随机写对缓存的命中率： iozone -i 5 -i 6 -i 7 -+n -+m 这个命令会通过多次读写操作，观察每次操作时磁盘的缓存命中率，并输出命中率的统计结果。

专利名称：一种基于Iozone的文件系统性能自动测试方法专利类型：发明专利
发明人：王志华,吴丙涛,徐艳秋
申请号：CN201510764829.3
申请日：20151111
公开号：CN105302725A
公开日：
20160203
专利内容由知识产权出版社提供
摘要：本发明公开一种基于Iozone的文件系统性能自动测试方法，属于文件测试领域；本发明指定或默认线程数范围参数和文件块大小范围参数，利用Iozone工具根据递增规则分别解析所有需要测试的线程数和文件块大小，并使用两个数组分别保存所有测试数据，通过外层循环遍历线程数，内层循环遍历文件块大小，完成所有测试项，并输出结果到文件中，本发明允许文件块大小和线程数都在一定范围内递增，在一次测试过程中完成所有性能数据测试，提高了测试效率。

申请人：浪潮电子信息产业股份有限公司
地址：250101 山东省济南市高新区浪潮路1036号
国籍：CN
代理机构：济南信达专利事务所有限公司
代理人：姜明
更多信息请下载全文后查看。
