康明斯车用发动机ISM380发动机数据单

机组在一定的三相对称负载下，在其中一相上再加25％额定相功率的电阻性负载，但该相的总负载电流不超过额定值时，能正常工作；线电压的最大（或最小值与三相电压平均值差不超过三相电压平均值的5％）。

机组的空载电压整定范围不小于95％－105％额定电压。

机组电压和频率的电气指标不超过下表的规定值机组无故障运行间隔不小于1500h。

机组具有高强度公共底盘，底盘上有吊耳，机组重心在吊耳中间，便于起吊和汽车载运。

发动机技术参数康明斯NTA855-G2A电机技术参数上海双洋300KW电机性能简介短路特征；发电机突然短路时，发电机负励磁机固有特性使用发电机约3倍额定电流的持续短路电流，允许短路电流持续时间为3S。

强励特征：发电机由于结构上的特点，特别付励磁机的设置，在负载增加的瞬间会出现正反馈的复励过程。

工作方式：发电机在空载额定电压时，加上相当于25％额定功率的三相对称负载（功能因数conФ＝0.8滞后），然后在任相上再加25％额定功率的电阻负载，能够长期工作，此时，三相线电压中的最大值（最小值）与三相线电压平均值之差不超过三相线电压平均值的5％。

过载能力：发电机能在热态下过载10％，运行1h，而无过热损坏。

短时过电流：发电机能承受功率因数为0.5（滞后）、150％额定电流，历时2min，而不发生有害变形。

超速：发电机在空载状态下允许承受120％额定转速，历时2mni。

振动：发电机的振动符合国际GB10068.2的规定。

突然短路：发电机人工承受空载额定电压下的冲击短路电流，历时3S而不发生损坏及有害变形。

波形：发电机未额定电压和额定频率时的空载线电压踊形正弦性几率不超过5％。

其线电压的电话谐波因素（THF）不大于5％。

绝缘等级：发电机的定子、转子及励磁机采用H级绝缘。

配套附件1、启动蓄电池（两只）。

统一电瓶2、机组随机专用工具1套。

3、机组随机文件（资料）1套。

4、机组（免费）提供消声器1套。

5、配发动机、发电机、机组减振橡胶垫。

康明斯发动机技术数据康明斯C300型发动机部分金龙大巴系列豪华大客车装用美国康明斯公司生产的C300型柴油发动机。

该型发动机在C245型发动机基础上，进行了数项结构攻进，采用废气涡轮增压、空气对空气中冷技术，在没有改变发动机排量和基本结构的情况下，增大了进气量和喷油量、从而进一步提高了发动机动力。

C300型发动机排放已达欧洲二号标准。

为了使康明斯发动机在金龙客车上用的更好，使维修人员尽快地掌握维修技术、我们在原版维修手册的基础上部分进行了语言的修改和程序的调整，在保持了与康明斯发动机的技术的一致的前提下，使该手册通俗易懂，便于理解。

第一节发动机的主要结构特点发动机左侧视图发动机右侧视图发动机前视图发动机后视图C300型发动机主要性能参数项目参数缸径 (毫米) 114 行程 (毫米) 135 排量 ( 升 ) 8.27 额定功率 (千瓦) 221 额定功率转速 (转,分) 2200 最大扭矩 (牛顿.米) 1125 最大扭矩转速 (转,分) 1400 压缩比 18:1 点火顺序 1-5-3-6-2-4 吸气方式废气涡轮增压，空对空中冷旋转方向(从发动机前方看) 顺时针发动机净重 ( 公斤 ) 636 怠速 (转,分) 700 无负荷最大调速转速 (转,分) 2500 润滑系统机油压力:怠速时最小允许值 (千帕) 69额定转速最小允许值 (千帕) 207机油滤清旁通阀开启时压差 (千帕) 172额定转速时的机油流量 (升,分) 106.8额定转速时允许机油温度 (?) 98.9-126.6机油散热器节温器开启和关闭温度全开时 (?) 116关闭时 (?) 104油底壳容量高位(H) (升) 19.0低位(L) (升) 15.2润滑系统总容量 23.6冷却系统冷却系统总容量 (升) 12.3标准节温器温度调节范围 (?) 83-95冷却液最大压力(无压力盖及节温器关闭) (千帕) 280 冷却液最高温度(发动机出水口) (?) 100冷却液最低温度 (?) 70压力盖最小允许承压 (千帕) 50冷却液报警温度 (?) 98??2冷却液流量(节温器全开，发动机转速为2000转/分时) (升/分) 258 进排气系统空滤器干净时最大进气阻力中等负荷时 (千帕) 2.9全负荷时 (千帕) 3.7空滤器用脏时最大进气阻力 (千帕) 6.2额定转速下增压器进气流量 (方/分) 21.3额定转速下增压后进气压力 (千帕) 195排气流量 (方/分) 52.6排气温度 (?) 532由排气管道和消声器产生的最大背压 (千帕) 10.0可接受的排气管直径 (毫米) 75气门间隙(冷车)进气门 (毫米) 0.30排气门 (毫米) 0.61 燃料喷射系统用干净滤芯时供油泵入口最大进油阻力 (毫米.汞柱) 150最大回油阻力 (毫米.汞柱) 520燃油滤清器阻力 (千帕) 35 电气系统(24V负极搭铁)发动机空档时冷起动电流 (安培) 510起动马达容量 (KW) 5.5康明斯C系列发动机采用国际上流行的标准集成化模块式设计，结构简单紧凑，配件通用化程度高。

-;HA?DIBasic technical dataNumber of cylinders.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .12 Cylinder arrangement ... ... ... ... ... ... ... ... ... ... ... ... ... ... 60° Vee Cycle. ... ... ... ... ... ... ... ... ... ... ... ..4 stroke, compression ignition Induction system... ... ... ... ... ... ... ... ... ... ... ... ... ...Turbocharged Compression ratio. ... ... ... ... ... ... ... ... ... ... ... ... ..13,6:1 nominal Bore... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 160 mm Stroke ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 190 mm Cubic capacity... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..45.842 litres Direction of rotation... ... ... ... ...Anti-clockwise viewed on flywheel Firing order ... ... ... ... ... ... ...1A,6B,5A,2B,3A,4B,6A,1B,2A,5B.4A,3B Cylinder 1 furthest from flywheelCylinders designated ‘A’ are on the left side of the engine when viewed from the front (opposite end to flywheel)Total weight Electrounit (engine only)4012TAG1A/2A(dry).. ... ... ... ... ... ... ... ... ... ... ... ... ... ... 4400 kg 4012TAG1A/2A(wet) ... ... ... ... ... ... ... ... ... ... ... ... ... ... 4604 kg Overall dimensions ... ... ... ... ... ... ... ... ... ... ... ...Height 2118 mm .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..Length 2731 mm .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ....Width 1723 mm Moment of inertia.. ... ... ... ... ... ... ... ... ... ... ... .Engine 9.73 kgm2 .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..Flywheel 9.57 kgm2 Cyclic irregularity for engine/flywheel (Prime power):4012TAG1A ... 1500 rev/min ... ... ... ... ... ... ... ... ... ... ... ... 1,714 4012TAG2A ... 1500 rev/min ... ... ... ... ... ... ... ... ... ... ... ... 1,669RatingsSteady state speed stability at constant load. ... ... ... ... ...± 0,25% Electrical ratings are based on average alternator efficiency and are for guidance only (0,8 power factor being used). Operating pointEngine speed. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...1500 rev/min Static injection timing.. ... ... ... ... ... ... ... See engine number plate Cooling water exit temperature.. ... ... ... ... ... ... ... ... ... ... .<98 °C Fuel dataTo conform to BS2869 class A1, A2.PerformanceSound pressure level 1500 rev/min ... ... ... ... ... ... ...106/112 dBA Note:All data based on operation to ISO 3046/1, BS 5514 and DIN 6271 standard reference conditions.Test conditionsAir temperature... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...25 °C Barometric pressure... ... ... ... ... ... ... ... ... ... ... ... ... ... ...100 kPa Relative humidity ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... (30)Air inlet restriction at maximum power (nominal)... ... ... ... 2,5 kPa Exhaust back pressure (nominal)... ... ... ... ... ... ... ... ... ... 3,0 kPa4000 Series 4012TAG1A 4012TAG2AGeneral installation 4012TAG1ADesignation Units50Hz 1500 rev/min60Hz 1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumGross engine power kWb94211781292---Fan power kWm42---Net engine power kWm90011361250---BMEP gross bar1620,522,5---Combustion air flow m3/min7695105---Exhaust gas temperature max (after turbo)°C435460470---Exhaust gas flow max (after turbo)m3/min257---Boost pressure ratio-2,73,223,53---Mechanical efficiency%899192---Overall thermal efficiency%424342---Friction power and pumping losses kWm120---Mean piston speed m/s9,5---Engine coolant flow (min)l/s17---Typical Genset Electrical Output 0,8 pf 25 °C (100 kPa)kVA108013631500---kWe86410911200---Assumed alternator efficiency%96---Diesel Engine - ElectrounitGeneral installation 4012TAG2ANote:Not to be used for CHP design purposes. (Indicative figures only). Consult Perkins Engines Co. Ltd. Assumes complete combustion.Continuous Baseload rating Power available for continuous full load operation. Prime Power rating is available for unlimited hours per year with a variable load of which the average engine load factor is 80% of the published prime power rating, incorporation of a 10% overload for 1 hour in every 12 hours of operation which is permitted. Standby Power rating is for the supply of emergency power at variable load for the duration of the non-availability of the mains power supply. NO OVERLOAD capacity is available at this rating. Engines must not be allowed to have facilities for parallel operation with the mains supply. This rating should be applied only when reliable mains power is available. Should this not be the case then refer to Prime Power rating. A standby rated engine should be sized for an average load factor of 80% based on published standby rating for 500 operating hours per year. Standby ratings should never be applied except in true emergency power failure conditions.DesignationUnits 50Hz 1500 rev/min60Hz 1800 rev/minContinuous BaseloadPrime Power Standby Maximum Continuous BaseloadPrime Power Standby MaximumGross engine power kWb 103712961422---Fan power kWm 42---Net engine power kWm 99512541380---BMEP gross bar 18,122,624,8---Combustion air flowm 3/min 83,6106110---Exhaust gas temperature max (after turbo)°C 442472483---Exhaust gas flow max (after turbo)m 3/min 285---Boost pressure ratio -2,83,533,84---Mechanical efficiency %889292---Overall thermal efficiency%424241---Friction power and pumping losses kWm 120---Mean piston speed m/s 9,5---Engine coolant flowl/s 17---Typical Genset Electrical Output 0,8 pf 25 °C (100 kPa)kVA 119415051656---kWe 95512041325---Assumed alternator efficiency%96---Energy balanceNote:Not to be used for CHP design purposes. (Indicative figures only). Consult Perkins Engines Co Ltd. Assumes complete combustion. 4012TAG1A4012TAG2A Units1500 rev/min1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumEnergy in fuel kWt223827703117---Energy in power output (gross) kWb94211781292---Energy to cooling fan kWm424242---Energy in power output (net)kWm90011361250---Energy to exhaust kWt680760924---Energy to coolant and oil kWt353434465---Energy to radiation kWt4495100---Energy to charge coolers kWt219303336---Units1500 rev/min1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumEnergy in fuel kWt244430783477---Energy in power output (gross) kWb103712961422---Energy to cooling fan kWm424242---Energy in power output (net)kWm99512541380---Energy to exhaust kWt7508771013---Energy to coolant and oil kWt372464511---Energy to radiation kWt4995108---Energy to charge coolers kWt236346423---Cooling systemRecommended coolant: 50% inhibited ethylene glycol or 50% inhibited propylene glycol and 50% clean fresh water. For combined heat and power systems and where there is no likelihood of ambient temperatures below 10 °C then clean ‘soft’ water may be used, treated with 1% by volume of Perkins inhibitor in the cooling system. The inhibitor is available in bottles under Perkins Part No. 21825 735.Nominal jacket water pressure in crankcase. ... ... ... ... ... .1,7 bar The following is a guide based on ambient air conditions of 52 °C on a Perkins supplied radiator.Total coolant capacity:Electrounit (engine only) ... ... ... ... ... ... ... ... ... ... ... ... ... 73 litres ElectropaK (engine/radiator) . ... ... ... ... ... ... ... ... ... ... ..235 litres Pressure cap setting.. ... ... ... ... ... ... ... ... ... ... ... ... ... ...0,69 bar Fan. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...Incorporated in radiator Diameter ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 1524 mm pusher) Ambient cooling clearance (open ElectropaK Prime power) based on air temperature at fan 3 °C above ambient.4012TAG1A4012TAG2ACoolant pump speed andmethod of drive.. ... ... ... ... ... ... ... ... ... ... ... 1,4 x e rev/min gear Maximum static pressure head on pumpabove engine crank centre line.. ... ... ... ... ... ... ... ... ... ... ... ..7 m Maximum external permissible restrictionto coolant pump flow.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... .20 kPa Thermostat operating range... ... ... ... ... ... ... ... ... ... ... ..71-85 °C Shutdown switch setting ... ... ... ... ... ... ... ... ... ... ... 101 °C rising Coolant immersion heater capacity ... ... ... ... ... ... ... ... ..4 kW x 2 *4012TAG2A **4012TAG1A Lubrication systemRecommended lubricating oil to conform with the specification of API CG4 15W/40 .Lubricating oil capacity:Sump maximum.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 159 litres Sump minimum... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 136 litres Lubricating oil temperature maximum to bearings.. ... ... ... 105 °C Lubricating oil pressure:at 80 °C temperature to bearing gallery (minimum) ... ... 0,34 MPa 4012TAG1A4012TAG2A*Typical after 250 hoursSump drain plug tapping size.. ... ... ... ... ... ... ... ... ... ... ... ... ..G1 Oil pump speed and method of drive..1,4 x e rev/min, gear driven Oil pump flow 1500 rev/min. ... ... ... ... ... ... ... ... ... ...6,0 litres/sec Shutdown switch setting.. ... ... ... ... ... ... ... ... ... ...1,93 bar falling Normal operating anglesFore and aft. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...5°Side tilt ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... (10)Maximum additional restriction (duct allowance) to cooling airflow (Prime power) and resultant minimum airflowAmbient clearance 50% glycol Duct allowancemm H20Min airflowm3/minrev/min rev/min rev/min 150018001500180015001800 52 °C52 °20-1872-Maximum additional restriction (duct allowance) to cooling airflow (Prime power) and resultant minimum airflowAmbient clearance 50% glycol Duct allowancemm H20Min airflowm3/minrev/min rev/min rev/min 150018001500180015001800 52 °C52 °20-1872-Jacket cooling water data Units1500rev/min1800rev/minCoolant flow 4012TAG1A/2A l/s17,0-Coolant exit temperature (max)°C98-Coolant entry temperature (min)°C70-Coolant entry temperature (max) *°C85-Coolant entry temperature (max)**°C88-Oil consumptionPrime PowerUnits1500rev/min1800rev/min After running-in*g/kWhr0,50-Oil flow rate from pump I/s6,0-Oil consumptionPrime PowerUnits1500rev/min1800rev/min After running-in*g/kWhr0,51-Oil flow rate from pump I/s6,0-Fuel systemRecommended fuel... ..To conform to BS2869 1998 Class A1, A2 Type of injection system ... ... ... ... ... ... ... ... ... ... ..Direct injection Fuel injection pump... ... ... ... ... ... ... ... ... .Combined unit injector Fuel injector... ... ... ... ... ... ... ... ... ... ... ... .Combined unit injector Fuel injector opening pressure.. ... ... ... ... ... ... ... ... ... ... .234 bar Fuel lift pump. ... ... ... ... ... ... ... ... ... ... ... ... ... .Tuthill TCH 1-089 Delivery/hour at 1500 rev/min... ... ... ... ... ... ... ... ... ... .1020 litres Heat retained in fuel to tank . ... ... ... ... ... ... ... ... ... ... ... ..9,5 kW Temperature of fuel at lift pump to be less than ... ... ... ... ... 58 °C Fuel lift pump pressure.. ... ... ... ... ... ... ... ... ... ... ... ... ... ..3,0 bar Fuel lift pump maximum suction head... ... ... ... ... ... ... ... ... 2,5 m Fuel lift pump maximum pressure head (see Installation Manual) Fuel filter spacing.. ... ... ... ... ... ... ... ... ... ... ... ... ... ..10 microns) Governor type... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .Electronic Torque at the governor output shaft.. ... ... ... ... ... ... ... 1,631 kgm Static injection timing ... ... ... ... ... ... ... .See engine number plate Tolerance on fuel consumption. ... ... ... ... ... .To ISO 8528-1 1993 4012TAG1A4012TAG2A Induction systemMaximum air intake restriction of engine:Clean filter.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 127 mm H20 Dirty filter ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 380 mm H20 Air filter type... ... ... ... ... ... ... ... ... ... ... ... ... ...4998-00-00 MF&T Exhaust systemMaximum back pressure for total system.Exhaust outlet flange size.. ... ... ... ... ... ... .2 x 254 mm (table ‘D’) For recommended pipe sizes, refer to the Installation Manual. Electrical systemType... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...Insulated return Alternator ... ... ... ... ... ... ... ... ... ... 24 volts with integral regulator Alternator output. ... ... ...40 amps at a stabilised output 28 volts at20 °C ambient Starter motor.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .. 24 volts Starter motor power ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...16,4 kW Number of teeth on flywheel... ... ... ... ... ... ... ... ... ... ... ... ... ..156 Number of teeth on starter motor... ... ... ... ... ... ... ... ... ... ... (12)Minimum cranking speed at (0 °C). ... ... ... ... ... ... ... .120 rev/min Pull-in current of each starter motor solenoid... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .30 amps at 24 volts Hold-in current of each starter motor solenoid... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...9 amps at 24 volts Engine stop solenoid.. ... ... ... ... ... ... ... ... ... ... ... ... ... ...24 volts Pull-in current of stop solenoid... ... ... ... ... ... .60 amps at 24 volts Hold-in current of stop solenoid.. ... ... ... ... ... 1,1 amps at 24 voltsFuel consumption (gross)Designation g/kWh Litres/hr rev/min1500180015001800 At Standby Max power rating203-309-At Prime Power rating199-276-At Continuous Baseload rating197-218-At 75% of Prime Power rating195-203-At 50% of Prime Power rating194-134-At 25% of Prime power rating207-72-Fuel consumption (gross)Designation g/kWh Litres/hr rev/min1500180015001800 At Standby Max power rating206-345-At Prime Power rating201-306-At Continuous Baseload rating197-240-At 75% of Prime Power rating197-225-At 50% of Prime Power rating195-149-At 25% of Prime power rating207-79-Designation Units1500rev/min1800rev/min 4012TAG1A mmH20949-4012TAG2A mmH20612-Engine mountingPosition of centre of gravity (wet engine) forward from rearface of crankcase .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...771 mm Engine vertical centre line above crankshaft centre line ... .38 mm Maximum additional load applied to flywheel due to all rotating components ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .850 kgStarting requirementsNotes:l Battery capacity is defined by the 20 hour rate at 0 °C.lThe oil specification should be for the minimum ambient temperature as the oil will not be warmed by the immersion heater.lBreakaway current is dependent on battery capacity available. Cables should be capable of handling the transient current which may be up to double the steady cranking current.TemperaturerangeRange Down to 0 °C(32 °F)Oil:Starter:Battery:Max breakaway current:Cranking current:Aids:Starter cable size:Maximum length:API CG4 15W/402 x 24V4 x 12 volts x 286 Ah 1600 amps 810 ampsNot necessary 120 mm 26mGA DrawingLoad acceptance (cold)4012TAG1A1500 rev/min4012TAG2A1500 rev/minAbove complies with requirements of Classifications 3 & 4 of ISO 8528-12 and G2 operating limits stated in ISO 8528-5.The above figures were obtained under test conditions as follows:Engine block temperature.. ... ... ... ... ... ..45 °C Alternator efficiency ... ... ... ... ... ... ... ... ... 96%Minimum ambient temperature.. ... ... ... ..10 °C Isochronous GoverningUnder Frequency Roll Off (UFRO) set to 1 Hz below rated frequency Typical alternator inertia. ... ... ... ... ... .50 Kgm 2All tests were conducted using an engine which was installed and serviced to Perkins Engines Company Limited recommendations.Initial load applicationwhen engine reaches rated speed(15 seconds max after engine starts to crank)2nd Load applicationImmediately after engine has recovered to rated speed(5 seconds after initial load application)Prime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time secondsPrime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time seconds63715/686< -10537422/405< -105Initial load applicationwhen engine reaches rated speed(15 seconds max after engine starts to crank)2nd Load applicationImmediately after engine has recovered to rated speed(5 seconds after initial load application)Prime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time secondsPrime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time seconds57715/686< -10543539/518< -105Noise levelsThe figures for total noise levels are typical for an engine running at Prime Power rating in a semi-reverberant environment and measured at a distance of one metre from the periphery of the engine.Octave analysisThe following histograms show an octave band analysis at the position of the maximum noise level.Total noise levelSound pressure level re: -20 x 10-6 paSpeed 1500 rev/min......Ambient noise level 84 dBA.Octave analysis performed at the position of maximum noise.4012TAG1A4012TAG2APOSITION 11500 rev/min 106 - dBA1800 rev/min ------- dBA1500 rev/min 106 - dBA1800 rev/min ------- dBAPOSITION 21500 rev/min 108 - dBA 1800 rev/min ------- dBA 1500 rev/min 108 - dBA 1800 rev/min ------- dBA POSITION 3 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 1500 rev/min 111 - dBA 1800 rev/min ------- dBA POSITION 4 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 4012TAG1A 4012TAG2A 4012TAG1A 4012TAG2A 4012TAG1A 4012TAG2A4012TAG1A4012TAG2A POSITION 71500 rev/min 108 - dBA 1800 rev/min ------- dBA 1500 rev/min 108 - dBA 1800 rev/min ------- dBA POSITION 6 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 1500 rev/min 112 - dBA 1800 rev/min ------- dBA POSITION 5 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 4012TAG14012TAG24012TAG14012TAG24012TAG1A4012TAG2AFR4012TAG1A4012TAG2AThe information given on technical data sheets are for standard ratings only. For ratings other than shown contact Perkins Engines Company Limited, Stafford.Notes-;HA?DI All information in the document is substantially correct at the time of printing but may be subsequently altered by the company.Distributed by 4000 Series4012TAG1A 4012TAG2A P u bl i c a t i o n N o . T S L 4253, I s s u e 3, J a n u a r y 2003. P r i n t e d i n E n g l a n d . © P e r k i n s E n g i n e s C o m p a n y L i m i t e d .Perkins Engines Company Limited Stafford ST16 3UB United Kingdom Telephone +44 (0)1785 223141Fax +44 (0)1785 。

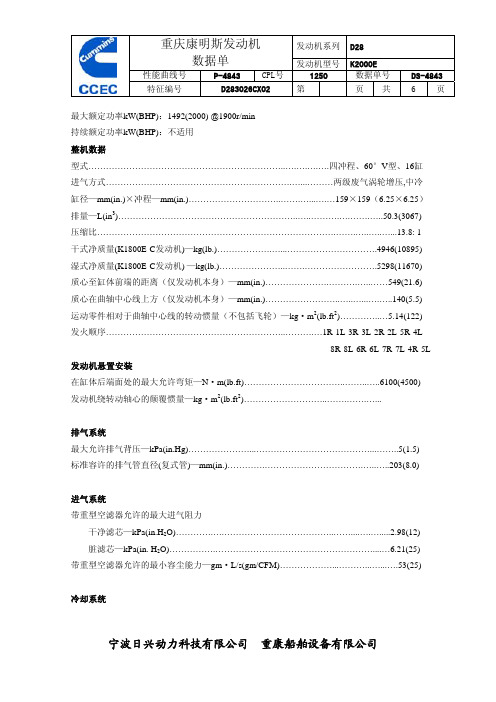

性能曲线号 C-3936-C CPL号 CQ001 数据单号 DS-3936-D特征编号 D093613DX02说明单号 D-102备载功率：265kW @1500r/min常载功率：240kW @1500r/min整机数据型式....................................................................................................四冲程、直列、六缸进气方式..........................................................................................................增压、中冷缸径×冲程-mm ×mm.............................................................................................140×152 排量-L(in3).............................................................................................................14(855) 压缩比...................................................................................................................14.0：1 发火顺序...........................................................................................................1-5-3-6-2-4 净质量（干式）-kg.. (1317)带散热器发动机质量-kg (1875)带热交换器发动机质量-kg (1752)净质量（湿式）-kg (1326)带散热器发动机质量-kg (1884)带热交换器发动机质量-kg (1762)转动惯量（除飞轮外）-kg.m2 ……………………………………………………………………..….…..1.39 发动机安装在缸体后端面处的最大允许弯矩-N.m (1356)排气系统最大允许排气背压-mm Hg (75)进气系统….带空滤器允许的最大进气阻力脏滤芯-mm H2O (635)干净滤芯重型空滤器-mm H2O (380)干净滤芯轻型空滤器-mm H2O (250)带空滤器允许的最大储尘量重型空滤器-g/l/s….…………………………………………………...……......………………..…53 (25) 轻型空滤器-g/l/s………………..……….…...……………………………………...…………..…...6.4(3) 冷却系统冷却液容量干式排气管性能曲线号 C-3936-C CPL号 CQ001 数据单号 DS-3936-D特征编号 D093613DX02说明单号 D-102单机-L (21)带散热器-L (63)带热交换器-L (40)湿式排气管单机-L (26)带散热器-L (72)带热交换器-L (45)海水泵——热交换器最小流量-L/min (204)热交换器进口最大压力-kPa (345)标准节温器温度调节范围-℃......................................................................................82-93发动机水泵出口最大压力-kPa (276)最大膨胀空间（冷却系统总量%）…………………………………………………………..…………….5% 润滑系统机油压力低怠速时-kPa (103)额定转速时-kPa................................................................................................. 241-345 允许的最高机油温度-℃ (132)最大机油消耗量-L/h…………………………..…………………………….…….…………………....…..0.24 机油旁通滤清器容量-L………………………………..…………..………………………………….….….2.8 机油盘容量.高位-L..................................................................................................................26.5 低位-L.................................................................................................................22.7 系统总容量（除旁通滤清器外）-L.. (31)燃油系统喷油泵型式………………………………………………………………………………...…康明斯PT直喷式进油管路允许最大阻力干净滤清器-mm Hg (100)脏滤清器-mm Hg (200)回油管路允许最大阻力 -mm Hg (100)燃油油泵最大流量-L/h (307)电气系统性能曲线号 C-3936-C CPL号 CQ001 数据单号 DS-3936-D特征编号 D093613DX02说明单号 D-102蓄电池充电系统（负极接地）……………………………………………………………………….24V/35A起动马达（重型、正极啮合）-V (24)起动线路允许最大电阻-Ω…………………………………………………………………………….….0.002起动电流-A10℃ (365)0℃ (565)性能数据稳态调速率-%…………………………………………………………………………………….…….±0.25最大超速能力 (2700)自由场声压级（1米处、不包括进排气、冷却系统及驱动件噪声）dBA (105)所有的数据均是基于发动机带燃油系统、水泵、机油泵、空滤器和消声器运转时获得的，但不包括交流发电机、空压机、风扇、选用设备和被驱动的部件。

型号FKS-C400备用功率（50HZ）420KW主用功率（50HZ）400KW标准配置总体描述:发动机型号：KTA19-G3A●满足环境温度40°C水箱散热器，皮带驱动冷却风扇，带风扇安全护罩●24V充电发电机●发电机：单轴承发电机，IP23防护等级，H级绝缘●减震器●干式空气过滤器、双燃油过滤器、机油过滤器、冷却液过滤器●发电输出断路器●标准控制屏●12V启动电瓶两只及电瓶连接电缆●启动电瓶及连接线一套；排烟弯管、波纹减震管、锥形接管、法兰、消声器一套●随机使用资料不同电压等级发电机电压（V）频率（HZ）相数功率因数（COS¢）备用电流（A）备用功率（KW/KV A）主用功率（KW/KV A）440/254 50 3 0.8 656 400/500 360/450 415/240 50 3 0.8 695 400/500 360/450 400/230 50 3 0.8 721 400/500 360/450 380/220 50 3 0.8 759 400/500 360/450主用功率：依据GB/T2820-97（eqvISO8528），在一定功率范围内可以无限制运行，每运行12小时可累计1小时10%的过载备用功率：备用功率为应急使用的最大功率限值，不能超负荷，即为断油功率销售承诺福康斯公司提供的产品均为全新的产品，每一台机组均经过严格的出厂检测。

福康斯公司产品均提供保修服务，保修期为机组调试验收合格后的12个月或累计运行1000小时；以先到期为准。

发动机参数生产商/型号：重庆康明斯KTA19-G3A进气系统：废气涡轮增压水空中冷燃油系统：PT燃油泵汽缸数：6排量：18.9缸径×行程：159×159额定转速：1500rpm发动机最大功率：448KW调速系统：电子调速发电机参数基本信息产品符合GB755,BS5000,VDE0530,NEMAMG1-22,CSA22.2和AS1359标准技术数据生产商：法拉第电机FD5M相数：3接线方式：三相四线，Y型绕接轴承数：1功率因数：0.8防护等级：IP23海拔要求：≤1000m励磁方式：无刷自励绝缘等级/温升等级：H/H发电机效率：93.8%机组参数电压整定范围：≥+ 5%稳态电压调整率：≤+ 1%瞬态电压偏差（100%突减功率）：≤+25瞬态电压偏差（突加功率）：≤-20%电压稳定时间（100%突减功率）：≤6S电压稳定时间（突加功率）：≤6S稳态平率调整率：≤5%频率波动率：≤0.5%瞬态频率偏差（100%突减功率）：≤+12%瞬态频率偏差（突加功率）：≤-10%频率恢复时间（100%突减功率）：≤5S频率恢复时间（突加功率）：≤5S尺寸和重量：3400×1250×1970mm 3500Kg可选控制屏◆标准控制屏标准型机组控制屏是满足机组正常操作、使用的最基本配置，具有操作简便、功能齐全、保护可靠等优点。

康明斯柴油发动机产品型号机型目录u 重庆康明斯发动机系列M11ISMNT855K19K38K50¨汽车应用重型汽车，越野汽车，自卸汽车，牵引车，汽车起重机，水泥搅拌车，公交客车，长途客车，旅游客车，军用汽车，专用汽车，特种汽车，及其底盘等等¨工业应用§工程机械推土机，装载机，挖掘机，路面施工机械，工业自卸车，特殊移动车辆§固定动力油气田设备，钻机，修井机，泥浆泵，压裂机，水泵，应急泵，消防泵，工业泵站，空气压缩机，特殊内燃设备§轨道车辆调度机车，机车，轨道车辆，动车组，铁路移动设备，铁路维修车辆，¨船舶应用§推进主机推舶，工作船，挖泥船，巡逻艇，消防船，交通艇，客船，气垫船，水翼船，货船，§工作辅机船用发电机组，船用消防泵动力，消防船，疏浚船§船检设备海上平台油气田固定设备动力，船用空压机，疏浚设备¨发电应用发电机组，内燃电站，应急电站，备用发电机组，根据实际应用选用汽车、工业、船舶或发电发动机作为动力u 汽车应用Ø M11系列发动机²符合“欧洲一号”的产品发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm(lb-ft)/转速r/minM11-C245183(245)/21001058(780)/1300M11-C270201(270)/21001200(885)/1300M11-C290216(290)/21001200(885)/1300M11-C310231(310)/21001265(993)/1300M11-C330246(330)/21001250(923)/1300M11-C350261(350)/21001560(1150)/1300注：M11-C245/290/310适用于高原海拔4500米²符合“欧洲二号”的产品发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm(lb-ft)/转速r/minISM305E 20224(301)/19001550(1143)/1200ISM305ESP 22224(301)19001450(1069)/1200ISM340E 20250(335)/19001670(1252)/1200ISM380E 20280(375)/19001825(1346)1200ISM405E 20298(399)/19002000(1475)/1200ISM410E 20300(402)/19002000(1475)/1200ISM440E 20324(426)/19002100(1549)/1200发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm(lb-ft)/转速r/minISMe335 30246(330)/19001410(1040)/1200ISMe345 30254(341)/19001710(1262)/1200ISMe385 30283(380)/19001835(1354)/1200ISMe420 30306(410)/19002010(1483)/1200²符合“欧洲三号”的产品Ø NT855系列发动机²符合“欧洲一号”的产品发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm(lb-ft)/转速r/minNTC-250187/21001017/1500NTC-290216/21001261/1500NTC-350261/21001593/1300NTC-400298/21001627/1400注：NTC-250/290/350适用于高原海拔4500米u 工业应用Ø M11系列发动机发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm(lb-ft)/转速r/minM11-C/P/L225168(225)/21001030(760)/1300M11-C/P/L250186(250)/21001146(845)/1300M11-C/P/L270201(270)/21001288(950)/1300M11-C/P/L290216(290)/21001330(980)/1300M11-C/P/L300224(300)/21001376(1015)/1300M11-C/P/L310231(310)/21001265(933)/1300M11-C/P/L330246(330)/21001458(1075)/1300M11-C/P/L350261(350)/21001560(1150)/1300注：M11-C/P/L225/250/270/290/310适用于高原海拔4500米C为工程机械,P为固定动力,L为轨道车辆,下同.Ø NT855系列发动机发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm(lb-ft)/转速r/minNT855-C/P/L250187/21001017/1500NT855-C/P/L280175/18001078/1250NT855-L290216/21001261/1300NTA855-C/P/L310231/21001261/1400NTA855-C/P/L335250/21001364/1500NTA855-C/P/L360268/21001464/1500NTA855-C/P/L400298/21001559/1500NTA855-C/P/L450336/21002100/1500注：NTC/P/L-280/310/335/360适用于高原海拔4500米C为工程机械,P为固定动力,L为轨道车辆,下同.Ø K19系列发动机发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm/转速r/minKT19-C/P/L450336（450）/21001907/1300KTA19-C/P/L525426（525）/21002237/1300KTA19-C/P/L600448（600）/21002237/1500KTTA19-C/P/L675504（675）/21002698/1400KTTA19-C/P/L700522（700）/21002731/1400注：KTA-C/P/L600适用于高原海拔4500米C为工程机械,P为固定动力,L为轨道车辆,下同.Ø K38系列发动机发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm/转速r/min KT38-C/P/L925690（925）/21004095/1300KTA38-C/P/L1050783（1050）/21004631/1300KTA38-C/P/L1200895（1200）/21004678/1300KTTA38-C/P/L13501007（1350）21005264/1300Ø K50系列发动机发动机型号额定功率kW(bhp)/转速r/min最大扭矩Nm/转速r/min KTA50-C/P/L13501007（1350）21005264/1300KTA50-C/P/L160011194（1600）21005966/1300KTTA50-C/P/L18001343（1800）21007020/1300K1800E1343（1800）19007085/1300K2000E1492（2000）19007865/1300u 船舶应用Ø 主机²NT855系列发动机发动机型号最大功率kW(bhp)/转速r/min功率标定NT855-M240179(240)/1800持续功率NT855-M270201(270)/1800持续功率NT855-M300224(300)/1800持续功率NT855-M340254(340)/1800重载功率NT855-M360269(360)/2100中等持续功率NTA855-M350261(350)/1800持续功率NTA855-M380283(380)/1800重载功率NTA855-M400298(400)/2100中等持续功率²K19系列发动机发动机型号最大功率kW(bhp)/转速r/min功率标定KT19-M365272(365)/1800持续功率KT19-M380283(380)/1800持续功率KT19-M425317(425)/1800持续功率KT19-M470351(470)/1800重载功率KT19-M510380(510)/2100中等持续功率KTA19-M470351(470)/1800持续功率KTA19-M500373(500)/1800持续功率KTA19-M530395(530)/1800重载功率KTA19-M550410(550)/2100中等持续功率KTA19-M600447(600)/1800持续功率KTA19-M640477(640)/1800重载功率KTA19-M700522(700)/2100中等持续功率²K38系列发动机发动机型号最大功率kW(bhp)/转速r/min功率标定KT38-M800597(800)/1800持续功率KT38-M850634(850)/1950中等持续功率KTA38-M940701(940)/1800持续功率KTA38-M1045780(1045)/1950中等持续功率KTA38-M750559(750)/1800持续功率KTA38-M850633(850)/1800持续功率KTA38-M900672(900)/1600持续功率KTA38-M1000745(1000)/1800持续功率KTA38-M1100820(1100)/1800中等持续功率KTA38-M1050783(1050)/1600持续功率KTA38-M1200895(1200)/1800持续功率KTA38-M1300970(1300)/1800重载功率²K50系列发动机发动机型号最大功率kW(bhp)/转速r/min功率标定KTA50-M1250932(1250)/1800持续功率KTA50-M13851033(1385)/1950中等持续功率KTA50-M14001045(1400)/1600持续功率KTA50-M16001194(1600)/1800持续功率KTA50-M17001268(1700)/1800重载功率KTA50-M18001343(1800)/1900重载功率Ø 辅机²NT855系列发动机发动机型号备载功率kW /转速r/min常载功率kW/转速r/minNTA855-G1(M)265/1500240/1500NTA855-G2(M)321/1500263/1500NTA855-G4(M)351/1500317/1500²K19系列发动机发动机型号备载功率kW /转速r/min常载功率kW/转速r/minKTA19-G2(M)369/1500336/1500Cummins diesel engine models model directoryu Chongqing Cummins Engine Series M11ISMNT855K19K38K50¨ automotive applicationsHeavy-duty trucks, off-road vehicle, dump truck, tractor, truck crane, cement mixer, bus, coach, tourist buses, military vehicles, special vehicles, special vehicles and their chassis, etc.¨ industrial applications§ Construction MachineryBulldozers, loaders, excavators, road construction machinery, industrial dump truck, a special mobile vehicles§ fixed powerOil and gas field equipment, drilling rig, workover rig, mud, fracturing machines, pumps, emergency pumps, fire pumps, industrial pump station, air compressor, a special internal combustion equipment§ rail vehiclesScheduling locomotives, locomotive, rail vehicles, EMU, railway and mobile equipment, railway maintenance vehicles,¨ marine applications§ promote the hostPush the ship, work boats, dredgers, patrol boats, fire boats, traffic boats, passenger ships, hovercraft, hydrofoil boats, cargo ships,§ work auxiliaryMarine generator sets, marine fire pump power, fire boats, dredgers§ ZC equipmentOffshore fixed platform oil and gas field equipment, power, marine, air compressor, dredging equipment¨ power generation applicationsGenerating units, internal combustion power plants, emergency power plant, standby generator sets, Selected according to the practical application of automotive, industrial, marine or power generation engine as a driving forceThe M11 series engines u automotive applications Ø ² meet the European No. 1 "productsEngine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm (lb.-ft) / speed r / min.M11-C245183 (245) / 21001058 (780) / 1300M11-C270201 (270) / 21001200 (885) / 1300M11-C290216 (290) / 21001200 (885) / 1300M11-C310231 (310) / 21001265 (993) / 1300M11-C330246 (330) / 21001250 (923) / 1300M11-C350261 (350) / 21001560 (1150) / 1300Note: M11-C245/290/310 applies plateau 4500 meters above sea level² meet the Europe II productsEngine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm (lb.-ft) / speed r / min.ISM305E 20224 (301) / 19001550 (1143) / 1200ISM305ESP 22224 (301) 19001450 (1069) / 1200ISM340E 20250 (335) / 19001670 (1252) / 1200ISM380E 20280 (375) / 19001825 (1346) 1200ISM405E 20298 (399) / 19002000 (1475) / 1200ISM410E 20300 (402) / 19002000 (1475) / 1200ISM440E 20324 (426) / 19002100 (1549) / 1200Engine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm (lb.-ft) / speed r / min.ISMe335 30246 (330) / 19001410 (1040) / 1200ISMe345 30254 (341) / 19001710 (1262) / 1200ISMe385 30283 (380) / 19001835 (1354) / 1200ISMe420 30306 (410) / 19002010 (1483) / 1200² meet the European III productsØ NT855 series engine ² meet the European No. 1 "productsEngine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm (lb.-ft) / speed r / min.NTC-250187/21001017/1500NTC-290216/21001261/1500NTC-350261/21001593/1300NTC-400298/21001627/1400Note: NTC-250/290/350 applies plateau 4500 meters above sea levelu Industrial applications Ø M11 Series Engine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm (lb.-ft) / speed r / min.M11-C/P/L225168 (225) / 21001030 (760) / 1300M11-C/P/L250186 (250) / 21001146 (845) / 1300M11-C/P/L270201 (270) / 21001288 (950) / 1300M11-C/P/L290216 (290) / 21001330 (980) / 1300M11-C/P/L300224 (300) / 21001376 (1015) / 1300M11-C/P/L310231 (310) / 21001265 (933) / 1300M11-C/P/L330246 (330) / 21001458 (1075) / 1300M11-C/P/L350261 (350) / 21001560 (1150) / 1300Note: M11-C/P/L225/250/270/290/310 in the plateau 4500 meters above sea level C for construction machinery, P is the fixed power for rail vehicles, the same below.Ø NT855 Series Engine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm (lb.-ft) / speed r / min.NT855-C/P/L250187/21001017/1500NT855-C/P/L280175/18001078/1250NT855-L290216/21001261/1300NTA855-C/P/L310231/21001261/1400NTA855-C/P/L335250/21001364/1500NTA855-C/P/L360268/21001464/1500NTA855-C/P/L400298/21001559/1500NTA855-C/P/L450336/21002100/1500Note: NTC/P/L-280/310/335/360 in the plateau 4500 meters above sea level C for construction machinery, P is the fixed power for rail vehicles, the same below.Ø K19 Series Engine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm / rpm r / min.KT19-C/P/L450336 (450) / 21001907/1300KTA19-C/P/L525426 (525) / 21002237/1300KTA19-C/P/L600448 (600) / 21002237/1500KTTA19-C/P/L675504 (675) / 21002698/1400KTTA19-C/P/L700522 (700) / 21002731/1400Note: KTA-C/P/L600 in the plateau 4500 meters above sea level C for construction machinery, P is the fixed power for rail vehicles, the same below.Ø K38 Series Engine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm / rpm r / min.KT38-C/P/L925690 (925) / 21004095/1300KTA38-C/P/L1050783 (1050) / 21004631/1300KTA38-C/P/L1200895 (1200) / 21004678/1300KTTA38-C/P/L13501007 (1350) 21005264/1300Ø K50 and Series Engine Model Rated Power kW (bhp) / speed r / min Maximum torque Nm / rpm r / min.KTA50-C/P/L13501007 (1350) 21005264/1300KTA50-C/P/L160011194 (1600) 21005966/1300KTTA50-C/P/L18001343 (1800) 21007020/1300K1800E1343 (1800) 19007085/1300K2000E1492 (2000) 19007865/1300host of u for marine applications Ø ² NT855 series engine Engine Model kW (bhp) / speed r / min Power CalibrationNT855-M240179 (240) / 1800 continuous powerNT855-M270201 (270) / 1800 continuous powerNT855-M300224 (300) / 1800 continuous powerNT855-M340254 (340) / 1800 overloaded powerNT855-M360269 (360) / 2100 secondary continuous power NTA855-M350261 (350) / 1800 continuous powerNTA855-M380283 (380) / 1800 overloaded powerNTA855-M400298 (400) / 2100 secondary continuous power ² K19 series engineEngine Model kW (bhp) / speed r / min Power CalibrationKT19-M365272 (365) / 1800 continuous powerKT19-M380283 (380) / 1800 continuous powerKT19-M425317 (425) / 1800 continuous powerKT19-M470351 (470) / 1800 overloaded powerMedium continuous power KT19-M510380 (510) / 2100KTA19-M470351 (470) / 1800 continuous powerKTA19-M500373 (500) / 1800 continuous powerKTA19-M530395 (530) / 1800 overloaded powerKTA19-M550410 (550) / 2100 secondary continuous power KTA19-M600447 (600) / 1800 continuous powerKTA19-M640477 (640) / 1800 overloaded powerKTA19-M700522 (700) / 2100 secondary continuous power ² K38 series engineEngine Model kW (bhp) / speed r / min Power CalibrationKT38-M800597 (800) / 1800 continuous powerKT38-M850634 (850) / 1950 Medium continuous powerKTA38-M940701 (940) / 1800 continuous powerKTA38-M1045780 (1045) / 1950 secondary continuous power KTA38-M750559 (750) / 1800 continuous powerKTA38-M850633 (850) / 1800 continuous powerKTA38-M900672 (900) / 1600 continuous powerKTA38-M1000745 (1000) / 1800 continuous powerKTA38-M1100820 (1100) / 1800 secondary continuous power KTA38-M1050783 (1050) / 1600 continuous powerKTA38-M1200895 (1200) / 1800 continuous powerKTA38-M1300970 (1300) / 1800 overloaded power² K50 and a series of engineEngine Model kW (bhp) / speed r / min Power CalibrationKTA50-M1250932 (1250) / 1800 continuous powerModerate continuous power KTA50-M13851033 (1385) / 1950KTA50-M14001045 (1400) / 1600 continuous powerKTA50-M16001194 (1600) / 1800 continuous powerKTA50-M17001268 (1700) / 1800 overloaded powerKTA50-M18001343 (1800) / 1900 overloaded powerØ auxiliary ² NT855 series engineThe engine model standby power kW / kW / speed r / min often contained speed r / min. NTA855-G1 (M) 265/1500240/1500NTA855-G2 (M) 321/1500263/1500NTA855-G4 (M) 351/1500317/1500² K19 series engineThe engine model standby power kW / kW / speed r / min is often contained speed r / min. KTA19-G2 (M) 369/1500336/1500。
