LTC具温度电压和电流测量功能的多节电池电量测量芯片

电量计芯片电量计芯片是一种用于测量电池电量的集成电路，用于监测和报告电池的剩余容量。

电量计芯片通常由一个ADC（模拟数字转换器）和一个微控制器组成。

ADC负责将电池的电压转换成数字信号，微控制器则对信号进行处理和计算，最终得出电池的剩余容量。

电量计芯片的工作原理是通过测量电池的电压来估计剩余容量。

电池的电压与剩余容量之间有一定的关系，通过电压的变化可以推测电池的剩余容量。

在芯片内部，ADC将电压转换成数字信号，微控制器则根据事先设定的电压与容量的对应关系进行计算。

电量计芯片的功能不仅限于测量电池的剩余容量，还可以提供其他与电池相关的信息。

例如，电池的充电状态、放电状态、充放电电流以及温度等参数都可以通过电量计芯片进行监测和报告。

这些信息对于电池的管理和保护非常重要，可以防止电池过充、过放、过温等问题，延长电池的使用寿命。

电量计芯片在电子设备中应用广泛。

在智能手机、平板电脑、笔记本电脑等移动设备中，电量计芯片是控制电池管理系统的核心部件。

它不仅可以提供对电池剩余容量的实时监测，还可以控制充放电过程，保证电池的稳定工作。

此外，电量计芯片还广泛应用于无线电、汽车电子、医疗器械等领域。

在无线电中，电量计芯片可以用于无线耳机、蓝牙音箱等设备的电池管理。

在汽车电子中，电量计芯片可以用于电动汽车的电池管理系统，确保电池的安全和稳定工作。

在医疗器械中，电量计芯片可以用于电子血压计、血糖仪等设备的电池管理，保证设备的正常运行。

总之，电量计芯片是一种非常重要的集成电路，用于测量电池的剩余容量和监测电池的状态。

它在电子设备中应用广泛，可以提供对电池的实时监测和控制，确保电池的安全和稳定工作。

随着电子设备的普及和发展，电量计芯片将会有更广泛的应用前景。

电量检测芯片电量检测芯片是一种用于检测电池电量的集成电路芯片。

随着电子设备的快速发展和广泛应用，电源管理变得越来越重要，尤其是对于电池供电的设备。

因此，电量检测芯片的应用也越来越广泛。

电量检测芯片可以通过测量电池的电流和电压等参数，来估算电池的剩余容量。

它可以实时监测电池的电量，并通过与电池管理系统或嵌入式设备的通讯接口进行数据交互，提供电池电量的实时反馈。

电量检测芯片主要有以下几个主要功能：1. 电流检测功能：电量检测芯片可以对电池的电流进行实时监测和测量。

通过检测电流的变化，可以判断电池的耗电情况，从而估计电池的剩余容量。

2. 电压检测功能：电量检测芯片可以对电池的电压进行实时测量。

通过检测电压的变化，可以判断电池的工作状态和剩余容量。

3. 温度检测功能：电量检测芯片可以对电池的温度进行实时测量。

电池的温度变化对电池的工作性能和寿命有很大影响，因此电量检测芯片还可以用于对电池的温度进行监测和管理。

4. 电池保护功能：电量检测芯片可以提供电池的过充电和过放电保护。

当电池电量过低或过高时，电量检测芯片会发出警告信号，以防止电池的过度损坏。

5. 数据通讯接口：电量检测芯片通常还可以与电池管理系统或嵌入式设备进行数据通讯，实现与其他系统的无线或有线联接。

电量检测芯片的应用非常广泛，可以在手机、平板电脑、笔记本电脑、便携式终端设备等各种电子设备中使用。

它可以帮助用户实时监测电池电量，避免意外断电，提供更好的用户体验。

同时，它也可以帮助设备制造商进行电池寿命管理，提高设备的可靠性和稳定性。

总的来说，电量检测芯片是电子设备中非常重要的一部分。

它能够实时监测电池的电量，提供准确的电池信息，并且可以提供多种保护措施，延长电池使用寿命。

随着无线通信和便携设备的快速发展，电量检测芯片的需求和应用场景也会越来越广泛。

电池电量检测芯片时间：2011-12-17 22:29:42来源：作者：电池电量监测计就是一种自动监控电池电量的IC，其向做出系统电源管理决定的处理器报告监控情况。

一个不错的电池电量监测计至少需要一些测量电池电压、电池组温度和电流的方法、一颗微处理器、以及一种业经验证的电池电量监测计算法。

bq2650x 和 bq27x00 均为完整的电池电量监测计，其拥有一个用于电压和温度测量的模数转换器(ADC) 以及一个电流和充电感应ADC。

这些电池电量监测计还拥有一颗运行TI 电池电量监测计算法的内部微处理器。

这些算法将对锂离子(Li-ion)电池的自放电、老化、温度和放电率进行补偿。

该微处理器可以使主机系统处理器不用进行没完没了的计算。

电池电量监测计提供了诸如¡电量剩余状态¡等信息，同时bq27x00 系统还提供了¡剩余运行时间¡信息。

主机在任何时候都可以询问到这种信息，并由主机来决定是通过LED 还是通过屏幕显示消息来通知最终用户有关电池的信息。

由于系统处理器只需要一个12C 或一个HDQ 通信驱动，因此使用电池电量监测计非常简单。

电池组电路描述图1 描述了电池组中的应用电路。

根据所使用电池电量监测计IC 的不同，电池组将至少具有三到四个可用外部终端。

图1 典型的应用电路VCC 和BAT 引脚将接入电池电压，用于IC 功率和电池电压的测量。

一只低阻值感应电阻被安装在电池的接地端，以使感应电阻两端的电压能够被电池电量监测计的高阻抗SRP 和SRN 输入监控到。

流经感应电阻的电流有助于我们确定电池的已充电量或已放电量。

在选择感应电阻值时，设计人员必须考虑到其两端的电压不应该超过100 mV。

太小的电阻值在低电流条件下可能会带来误差。

电路板布局必须确保SRP 和SRN 到感应电阻的连接尽可能地靠近感应电阻的各个端点；即Kelvin 连接测量。

HDQ/SDA 和SCL 引脚均为开漏器件，二者都要求有一个外部上拉电阻。

DC1496A-A1dc1496fD ESCRIPTION Battery Gas Gauge with I 2C Interface [and 14-Bit ADC(DC1496A-B)]Demonstration circuit 1496A-A (Figure 1) features the L TC ®2941. Demonstration circuit 1496A-B features the L TC2942. Both devices measure battery charge state in handheld PC and portable product applications. The operating range is perfectly suited for single cell Li-Ion batteries. A precision analog coulomb counter integrates current through a sense resistor between the battery’s positive terminal and the load or charger . The L TC2942 adds battery voltage and on-chip temperature measurement with an internal 14-bit No Latency ΔΣ™ ADC. The three measured quantities (charge, voltage and temperature) are stored in internal registers accessible via the onboard SMBus/I 2C interface.The L TC2941 has programmable high and low thresholds for accumulated charge. The L TC2942 has programmable high and low thresholds for all three measured quantities. If a programmed threshold is exceeded, the device reports an alert using either the SMBus alert protocol or by setting a fl ag in the internal status register .L , L T , L TC, L TM, Linear Technology and the Linear logo are registered trademarks and No Latency ΔΣ is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.The L TC2941 and L TC2942 require only a single low value sense resistor to set the measured current range. The default value assembled on the DC1496 is 100mΩ for a maximum current measurement of 500mA. Both parts have a software-confi gurable charge complete/alert pin. When the pin is set for charge complete, a jumper con-nects the pushbutton which simulates a logic high input to indicate a full battery. When the pin is confi gured for alert, the same jumper is used to connect a red LED that indicates an alert is present.The DC1496A-A/B is a part of the QuikEval system for quick evaluation with a host controller through a PC.Design fi les for this circuit board are available at http://www.linear.com/demo.Figure 1. DC1496A-A/B2dc1496fDEMO MANUAL DC1496A-A/B QUICK START PROCEDUREDemonstration circuit 1496A is easy to set up to evaluate the performance of the L TC2941/L TC2942. Refer to Figure 2 for proper measurement equipment setup and follow the procedure below.1. C onnect a 1-cell Li-I on battery across V_BAT and GND.2. Connect a load across V_CHRG/LD and GND for battery discharge measurement. Up to 500mA supplied from the battery can be measured with the board default 100mΩ sense resistor . Use SENSE + and SENSE – test points to read voltage across the sense resistor .3. Connect a 2.7V to 5.5V battery charger supply across V_CHRG/LD and GND. Up to 500mA supplied to the battery can be measured with the board default 100mΩ sense resistor . Use SENSE + and SENSE – test points to read voltage across the sense resistor .4. Connect a DC590 to 14-pin connector J1 for evaluation with QuikEval, or connect a host controller I 2C bus to the SDA, SCL and GND test turrets.5. Set JP1 to QuikEval if a DC590 is present. Otherwise set JP1 to Bat/Chrg for bus pull-up to the battery, or fl oat JP1 and supply a bus pull-up voltage to VP .6. Read and write to the L TC2941/L TC2942 through I 2C.7. Through I 2C, configure the AL /CC pin. Set JP2 accordingly.8 f AL /CC is set for charge complete, use pushbutton switch S1 to simulate a logic high from a controller to indicate a fully charged battery.Figure 2. DC1496A-A/B Basic Setup3dc1496fDEMO MANUAL DC1496A-A/BQuikEval INTERFACEThe DC1496A-A/B can be connected to a DC590 and used with the QuikEval software. The DC590 connects to a PC through USB. QuikEval automatically detects the demo board and brings up the L TC2941/L TC2942 evaluation software interface (Figure 3). Compact and Detailed FormWhen the interface is brought up, a compact form is fi rst shown with a display for the accumulated charge register (ACR), voltage ADC and temperature ADC. To expand the form for a more detailed display of the L TC2941/L TC2942 registers and board confi gurations, click on Detail. To go back to the compact form, click on Hide.Start/RefreshClick on Start to begin a polling routine that refreshes the interface every 1 second. Click on Stop to halt the poll-ing. For a single update, click on Refresh. Each refresh scans through the internal I 2C registers and updates the respective displays.L TC2941 and L TC2942 DisplayOn a refresh or poll, the software reads Status bit A[7] to determine communication with an L TC2941 or L TC2942. When an L TC2941 is detected, the voltage and temperature ADC and threshold displays are not shown. Control bits B[7:6] confi gure VBAT Alert for the L TC2941 and ADC Mode for the L TC2942.ACR DisplayThe data in the ACR (registers C and D) is displayed in one of three selected formats: Counter in coulombs, Counter in mA • hour , battery gas gauge in mA • hour , and battery gas gauge in charge percentage of battery. The two gas gauge displays correspond to the battery gas gauge full battery confi guration set in the detailed form.Voltage and Temperature ADC (L TC2942)Data from the Voltage ADC (registers I and J) and the Temperature ADC (registers M and N) is displayed here in Volts and Celsius.Figure 3. L TC2941/LTC2942 QuikEval InterfaceDEMO MANUAL DC1496A-A/B QuikEval INTERFACEAddress/I2C StatusThe write address for the L TC2941/L TC2942 is C8h and the read address is C9h. The alert response address (ARA) is 19h. If an error occurs while reading from the L TC2941/ L TC2942, the I2C status will read as an error. Otherwise, the status is good. If the L TC2941/L TC2942 AL/CC pin is set for alert mode and an alert has been latched, the device will pull down this pin. Click on ARA to send out an ARA on to the bus lines and the device will respond with its address. The Alert pin will then be cleared if the alert is no longer present.StatusThe individual status bits A[0:7] and their states are shown here. A red indicator next to bits A[0:5] indicates the re-spective alert is currently present and will latch the Alert pin if confi gured for alert. Bit A[7] shows if an L TC2941 or L TC2942 is detected.Sense ResistorEnter here the sense resistor value used in the application. The default for the DC1496A-A/B is a 100mΩ sense resis-tor. Check L TC2941-1/L TC2942-1 if one of these devices is used in place of the default IC. This sets the sense resistor value to 50mΩ, the value of the internal sense resistor in these devices. The sense resistor can only be changed when not polling. The software only accepts sense resis-tors between 0.1mΩ to 5Ω.Battery Gas GaugeThe battery capacity in the application is entered here. The ACR full scale (FFFFh) is set to this value and affects the two Gas Gauge ACR display options. Instead of counting up from 0 as in the Coulomb Counters, the Gas Gauge is used to count down from a full battery. The battery capacity can only be entered when not polling. The data in the ACR when a battery should be empty is calculated based off of R SENSE, and pre-scaler M, and displayed in hexadecimal below the ACR full scale.ControlConfi gurations done in the Control section write to the Control register (register B). For the L TC2941, the Control bits B[7:6] enables a battery monitor to one of three set voltage thresholds (2.8V, 2.9V, or 3V) or disables this battery voltage alert. The ADC mode with the L TC2942 is default to Sleep where both Voltage and Temperature ADCs (L TC2942) are disabled. Setting ADC Mode to Automatic Mode enables full-time the Voltage and Temperature ADC. Selecting Manual Voltage or Temperature mode enables the respective ADC once and returns the ADC to Sleep mode.Select a pre-scaler M value to scale the ACR according to battery capacity and maximum current. Changing the pre-scaler will halt the poll. A calculator tool is provided in the tool bar under Tools to assist in calculating a pre-scaler value and sense resistor (Figure 4).The AL#/CC pin can be confi gured for Alert mode, Charge Complete mode, or disabled. Select the corresponding settings on the DC1496A-A/B jumper J2.The Shutdown Analog Section is checked to disable the Analog portion of the L TC2941/42 and set the device in a low current state.Register Read/WriteData in the internal registers of the L TC2941/L TC2942 is displayed here in hexadecimal or appropriate units. Data can also be entered and written to the write registers. Enter data to be written in hexadecimal, or select Unit and enter data in decimal form. Data in decimal scale is auto corrected if the maximum or minimum full scale is exceeded. Select the ACR display in Counter (Coulombs) to be able to write to the ACR and charge thresholds in Coulombs, or select Counter (mAh) to be able to write to the ACR and charge thresholds in mA • hour. Voltage and Temperature High thresholds are rounded down in the calculations to the nearest lower count, while the low thresholds are rounded up to nearest higher count.4dc1496f5dc1496fDEMO MANUAL DC1496A-A/BSwitching back and forth between Hex and Unit can be used as a conversion tool.The LSB value for the 16-bit ACR and charge thresholds is displayed on the bottom. This value is adjusted with the sense resistor and pre-scaler M. The units are in mAh or mC depending on the selected ACR display. Shown for the L TC2942 is the LSB for the 14-bit voltage ADC, 10-bit temperature ADC, and 8-bit high and low thresholds for voltage and temperature.Calculator ToolA calculator tool is available in the tool bar options under Tools. In this calculator (Figure 4), enter the maximum cur-rent passed through the sense and the maximum battery capacity. Click on Calculate to calculate a recommended sense resistor and pre-scaler (M) value. The display shows the battery capacity in comparison to ACR full scale and provides an LSB value in mAh. Also shown is the recom-mended equation to use to determine an appropriate sense resistor as a function of the maximum battery charge and maximum current.Figure 4. L TC2941/L TC2942 Pre-Scaler and Sense Resistor CalculatorQuikEval INTERFACEDEMO MANUAL DC1496A-A/BPARTS LISTITEM QTY REFERENCE PART DESCRIPTION MANUFACTURE/PART NUMBER12C1, C2CAP., CHIP X7R, 0.1μF, 25V, 0603AVX, 06033C104KAT2A24E1-E4TURRET, Test Point 0.094"MILL-MAX, 2501-2-00-80-00-00-07-035E5-E9TURRET, Test Point 0.064"MILL-MAX, 2308-241E10, E11TURRET, Test Point 0.037"MILL-MAX, 2309-150TP1, TP2(SMT Pads Only)62JP1, JP2HEADER, 3Pin 1 Row 0.079CC SAMTEC, TMM-103-02-L-S72for (JP1, JP2)SHUNT, 0.079" Center SAMTEC, 2SN-BK-G81J1HEADERS, Vertical Dual 2X7 0.079CC MOLEX, 87831-142091D1LED, RED, LIGHT EMITTING DIODES PANASONIC, LN1251CTR101R1RES., CHIP, 0.1Ω, 1/8W, 1%, 1206IRC, LRC-LR1206LF-01-R100-F113R6, R7, R8RES., CHIP, 5.10k, 1%, 0603VISHAY, CRCW06035K10FKEA123R2, R3, R4RES., CHIP, 10k, 5%, 0603VISHAY, CRCW060310K0JNEA131R5RES., CHIP, 1k, 5%, 0603VISHAY, CRCW06031K00JNEA141R9RES., CHIP, 100k, 5%, 0603VISHAY, CRCW0603100KJNEA151S1SWITCH, SMT Pushbutton PANASONIC, EVQPE105K161U2I.C., Serial EEPROM TSSOP8MICROCHIP, 24LC025-I/ST171for (J1)CABLE ASSY., 8" STRIP LINEAR RIBBON CABLE CA-24406dc1496f7dc1496fDEMO MANUAL DC1496A-A/BSCHEMATIC DIAGRAM8dc1496fDEMO MANUAL DC1496A-A/B Silkscreen TopComponent SideInner Layer 2PCB LAYOUT AND FILM9dc1496fDEMO MANUAL DC1496A-A/BI nformation furnished by Linear Technology Corporation is believed to be accurate and reliable. However , no responsibility is assumed for its use. Linear Technology Corporation makes no representation that the interconnection of its circuits as described herein will not infringe on existing patent rights.PCB LAYOUT AND FILMInner Layer 3Solder SideSilkScreen Bottom10dc1496f DEMO MANUAL DC1496A-A/BLinear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA 95035-7417(408) 432-1900 ● FAX: (408) 434-0507 ● www.linear .com © LINEAR TECHNOLOGY CORPORA TION 2010LT 0510 • PRINTED IN USADEMONSTRATION BOARD IMPORTANT NOTICELinear Technology Corporation (L TC) provides the enclosed product(s) under the following AS IS conditions:This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONL Y and is not provided by L TC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods. As a prototype, this product does not fall within the scope of the European Union direc-tive on electromagnetic compatibility and therefore may or may not meet the technical requirements of the directive, or other regulations.If this evaluation kit does not meet the specifications recited in the DEMO BOARD manual the kit may be returned within 30 days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY THE SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THIS INDEMNITY, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT , SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.The user assumes all responsibility and liability for proper and safe handling of the goods. Further , the user releases L TC from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all appropriate precautions with regard to electrostatic discharge. Also be aware that the products herein may not be regulatory compliant or agency certified (FCC, UL, CE, etc.).No License is granted under any patent right or other intellectual property whatsoever. L TC assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or any other intellectual property rights of any kind.L TC currently services a variety of customers for products around the world, and therefore this transaction is not exclusive .Please read the DEMO BOARD manual prior to handling the product . Persons handling this product must have electronics training and observe good laboratory practice standards. Common sense is encouraged .This notice contains important safety information about temperatures and voltages. For further safety concerns, please contact a L TC applica-tion engineer .Mailing Address:Linear Technology1630 McCarthy Blvd.Milpitas, CA 95035Copyright © 2004, Linear Technology CorporationDC1496A-A。

多节锂电池充电管理芯片多节锂电池充电管理芯片（Multi-Cell Lithium Battery Charging Management Chip）随着电子设备的普及和移动应用的广泛应用，对电池的需求也愈发增加。

多节锂电池的设计因其高容量和高能量密度而被广泛应用于电动汽车、电动工具、无人机等领域。

多节锂电池的充电管理是提高电池性能和延长使用寿命的关键。

因此，多节锂电池充电管理芯片的研发和应用具有重要意义。

多节锂电池充电管理芯片是一种用于控制和管理电池充电过程的集成电路。

它通常由电路管理单元（Management Unit），放电保护单元（Discharge Protection Unit），充电控制单元（Charging Control Unit）和通信接口单元（Communication Interface Unit）等组件构成。

充电芯片的主要功能是实现对电池的合理充电和放电控制，同时保护电池免受过充、过放、过流和过温等问题的影响。

它还能够通过通信接口与外部设备进行数据交互，实现对电池充电和放电过程的监测和控制。

多节锂电池充电管理芯片的工作原理是通过对电池电压、电流和温度等参数的监测和控制，实现对电池充电和放电过程的控制和管理。

当电池电压低于一定阈值时，充电控制单元会启动充电，将电压升至设定的充电终止电压。

当电池电压超过一定阈值时，放电保护单元会切断电池的充电电源，防止过充。

同时，多节锂电池充电管理芯片还具备过放保护、过流保护和过温保护等功能，以保护电池免受异常工作条件的影响。

多节锂电池充电管理芯片具有许多优点。

首先，它能够实现对电池的智能化充电和放电管理，提高电池的性能和稳定性。

其次，多节锂电池充电管理芯片体积小、功耗低，便于集成到各种电子设备中。

最后，多节锂电池充电管理芯片具有良好的可靠性和安全性，可以有效延长电池的使用寿命，减少电池故障的发生。

然而，目前市面上多节锂电池充电管理芯片的种类繁多，功能各异。

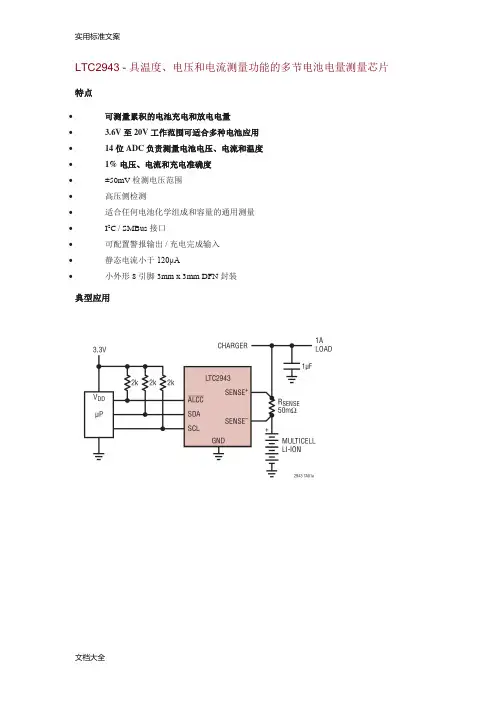

LTC2943 - 具温度、电压和电流测量功能的多节电池电量测量芯片特点∙可测量累积的电池充电和放电电量∙ 3.6V 至 20V 工作范围可适合多种电池应用∙14 位 ADC 负责测量电池电压、电流和温度∙1% 电压、电流和充电准确度∙±50mV 检测电压范围∙高压侧检测∙适合任何电池化学组成和容量的通用测量∙I2C / SMBus 接口∙可配置警报输出 / 充电完成输入∙静态电流小于120μA∙小外形 8 引脚 3mm x 3mm DFN 封装典型应用描述LTC®2943 可测量便携式产品应用中的电池充电状态、电池电压、电池电流及其自身温度。

其具有宽输入电压范围，因而可与高达 20V 的多节电池配合使用。

一个精准的库仑计量器负责对流经位于电池正端子和负载或充电器之间的一个检测电阻器电流进行积分运算。

电池电压、电流和温度利用一个内部 14位无延迟增量累加(No Latency ΔΣTM) ADC 来测量。

测量结果被存储于可通过内置 I2C / SMBus 接口进行存取的内部寄存器中。

LTC2943 具有针对所有 4 种测量物理量的可编程高门限和低门限。

如果超过了某个编程门限，则该器件将采用 SMBus 警报协议或通过在内部状态寄存器中设定一个标记来传送警报信号。

LTC2943 仅需采用单个低阻值检测电阻器以设定测量电流范围。

应用∙电动工具∙电动自行车∙便携式医疗设备∙视频摄像机程序：#include <Arduino.h>#include <stdint.h>#include "Linduino.h"#include "LT_I2C.h"#include "UserInterface.h"#include "QuikEval_EEPROM.h" #include "LTC2943.h"#include <Wire.h>// Function Declarationvoid print_title(); // Print the title blockvoid print_prompt(); // Print the Promptvoid store_alert_settings(); // Store the alert settings to the EEPROMint8_t restore_alert_settings(); // Read the alert settings from EEPROM#define AUTOMATIC_MODE_DISPLAY_DELAY 1000 //!< The delay between readings in automatic mode#define SCAN_MODE_DISPLAY_DELAY 10000 //!< The delay between readings in scan modeconst float resistor = .100; //!< resistor value on demo board// Error stringconst char ack_error[] = "Error: No Acknowledge. Check I2C Address."; //!< Error message// Global variablesstatic int8_t demo_board_connected; //!< Set to 1 if the board is connected static uint8_t alert_code = 0; //!< Value stored or read from ALERT register. Shared between loop() and restore_alert_settings()//! Initialize Linduinovoid setup(){char demo_name[] = "DC1812"; //! Demo Board Name stored in QuikEval EEPROMquikeval_I2C_init(); //! Configure the EEPROM I2C port for 100kHzquikeval_I2C_connect(); //! Connects to main I2C portSerial.begin(115200); //! Initialize the serial port to the PCprint_title();demo_board_connected = discover_demo_board(demo_name);if (demo_board_connected){print_prompt();}else{demo_board_connected = true;Serial.println("Did not read ID String, attempting to proceed anyway...\nPlease ensure I2C lines of Linduino are connected to the LTC device"); }}//! Repeats Linduino loopvoid loop(){int8_t ack = 0; //! I2C acknowledge indicatorstatic uint8_t user_command; //! The user input commandstatic uint8_t mAh_or_Coulombs = 0;static uint8_t celcius_or_kelvin = 0;static uint16_t prescalar_mode = LTC2943_PRESCALAR_M_4096;static uint16_t prescalarValue = 4096;static uint16_t alcc_mode = LTC2943_ALERT_MODE;if (demo_board_connected) //! Do nothing if the demo board is not connected{if (Serial.available()) //! Do nothing if serial is not available{user_command = read_int(); //! Read user input commandif (user_command != 'm')Serial.println(user_command);Serial.println();ack = 0;switch (user_command) //! Prints the appropriate submenu{case 1:ack |= menu_1_automatic_mode(mAh_or_Coulombs, celcius_or_kelvin,prescalar_mode, prescalarValue, alcc_mode); //! Automatic Modebreak;case 2:ack |= menu_2_scan_mode(mAh_or_Coulombs, celcius_or_kelvin,prescalar_mode, prescalarValue, alcc_mode); //! Scan Modebreak;case 3:ack |= menu_3_manual_mode(mAh_or_Coulombs, celcius_or_kelvin,prescalar_mode, prescalarValue, alcc_mode); //! Manual Modebreak;case 4:ack |= menu_4_sleep_mode(mAh_or_Coulombs, prescalar_mode,prescalarValue, alcc_mode); //! Sleep Modebreak;case 5:ack |= menu_5_shutdown_mode(); //! Shutdown Modebreak;case 6:ack |= menu_6_settings(&mAh_or_Coulombs, &celcius_or_kelvin,&prescalar_mode, &prescalarValue, &alcc_mode); //! Settings Modebreak;}if (ack != 0) //! If ack is not recieved print an error.Serial.println(ack_error);Serial.print(F("*************************"));print_prompt();}}}// Function Definitions//! Print the title blockvoid print_title(){Serial.println(F("\n****************************************************** ***********"));Serial.print(F("* DC1812A Demonstration Program *\n")); Serial.print(F("* *\n"));Serial.print(F("* This program communicates with the LTC2943 Multicell Coulomb *\n"));Serial.print(F("* Counter found on the DC1812A demo board. *\n")); Serial.print(F("* Set the baud rate to 115200 and select the newline terminator.*\n"));Serial.print(F("* *\n"));Serial.print(F("********************************************************* ********\n"));}//! Print the Promptvoid print_prompt()Serial.print(F("\n1-Automatic Mode\n"));Serial.print(F("2-Scan Mode\n"));Serial.print(F("3-Manual Mode\n"));Serial.print(F("4-Sleep Mode\n"));Serial.print(F("5-Shutdown Mode\n"));Serial.print(F("6-Settings\n"));Serial.print(F("Enter a command: "));}//! Automatic Mode.int8_t menu_1_automatic_mode(int8_t mAh_or_Coulombs, int8_tcelcius_or_kelvin ,uint16_t prescalar_mode, uint16_t prescalarValue, uint16_talcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge.{int8_t LTC2943_mode;int8_t ack = 0;LTC2943_mode = LTC2943_AUTOMATIC_MODE|prescalar_mode|alcc_mode ; //! Set the control register of the LTC2943 to automatic mode as well as setprescalar and AL#/CC# pin values.Serial.println();ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_mode); //! Writes the set mode to the LTC2943 control registerdo{Serial.print(F("*************************\n\n"));uint8_t status_code, hightemp_code, lowtemp_code;uint16_t charge_code, current_code, voltage_code, temperature_code;ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code); //! Read MSB and LSB Accumulated Charge Registers for 16 bit charge codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_MSB_REG, &voltage_code); //! Read MSB and LSB Voltage Registers for 16 bit voltage codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_MSB_REG, &current_code); //! Read MSB and LSB Current Registers for 16 bit current codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_MSB_REG, &temperature_code); //! Read MSB and LSB Temperature Registers for 16 bit temperature codeack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG,&status_code); //! Read Status Register for 8 bit status codefloat charge, current, voltage, temperature;if(mAh_or_Coulombs){charge = LTC2943_code_to_coulombs(charge_code, resistor, prescalarValue); //! Convert charge code to Coulombs if Coulomb units are desired.Serial.print("Coulombs: ");Serial.print(charge, 4);Serial.print(F(" C\n"));}else{charge = LTC2943_code_to_mAh(charge_code, resistor, prescalarValue); //! Convert charge code to mAh if mAh units are desired.Serial.print("mAh: ");Serial.print(charge, 4);Serial.print(F(" mAh\n"));}current = LTC2943_code_to_current(current_code, resistor); //! Convert current code to Amperesvoltage = LTC2943_code_to_voltage(voltage_code); //! Convert voltage code to VoltsSerial.print(F("Current "));Serial.print(current, 4);Serial.print(F(" A\n"));Serial.print(F("Voltage "));Serial.print(voltage, 4);Serial.print(F(" V\n"));if(celcius_or_kelvin){temperature = LTC2943_code_to_kelvin_temperature(temperature_code); //! Convert temperature code to kelvinSerial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" K\n"));}else{temperature = LTC2943_code_to_celcius_temperature(temperature_code); //! Convert temperature code to celciusSerial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" C\n"));}checkAlerts(status_code); //! Check statuscode for Alerts. If an Alert has been set, print out appropriate message in the Serial Prompt.Serial.print(F("m-Main Menu\n\n"));Serial.flush();delay(AUTOMATIC_MODE_DISPLAY_DELAY); //! Delayfor 1s before next polling}while (Serial.available() == false || (ack)); //! if Serial is not available and an NACK has not been recieved, keep polling the registers.read_int(); // clears the Serial.availablereturn(ack);}//! Scan Modeint8_t menu_2_scan_mode(int8_t mAh_or_Coulombs , int8_tcelcius_or_kelvin ,uint16_t prescalar_mode,uint16_t prescalarValue, uint16_talcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t LTC2943_mode;int8_t ack = 0;LTC2943_mode = LTC2943_SCAN_MODE|prescalar_mode|alcc_mode ; //! Set the control mode of the LTC2943 to scan mode as well as set prescalar andAL#/CC# pin values.Serial.println();ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_mode); //! Writes the set mode to the LTC2943 control registerdo{Serial.print(F("*************************\n\n"));uint8_t status_code;uint16_t charge_code, current_code, voltage_code, temperature_code;ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code); //! Read MSB and LSBAccumulated Charge Registers for 16 bit charge codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_MSB_REG, &voltage_code); //! Read MSB and LSBVoltage Registers for 16 bit voltage codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_MSB_REG, &current_code); //! Read MSB and LSBCurrent Registers for 16 bit current codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_MSB_REG, &temperature_code); //! Read MSB and LSBTemperature Registers for 16 bit temperature codeack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG,&status_code); //! Read Status Registers for 8 bit status codefloat charge, current, voltage, temperature;if(mAh_or_Coulombs){charge = LTC2943_code_to_coulombs(charge_code, resistor, prescalarValue); //! Convert charge code to Coulombs if Coulomb units are desired.Serial.print("Coulombs: ");Serial.print(charge, 4);Serial.print(F(" C\n"));}else{charge = LTC2943_code_to_mAh(charge_code, resistor, prescalarValue); //! Convert charge code to mAh if mAh units are desired.Serial.print("mAh: ");Serial.print(charge, 4);Serial.print(F(" mAh\n"));}current = LTC2943_code_to_current(current_code, resistor);//! Convert current code to Amperesvoltage = LTC2943_code_to_voltage(voltage_code);//! Convert voltage code to VoltsSerial.print(F("Current "));Serial.print(current, 4);Serial.print(F(" A\n"));Serial.print(F("Voltage "));Serial.print(voltage, 4);Serial.print(F(" V\n"));if(celcius_or_kelvin){temperature = LTC2943_code_to_kelvin_temperature(temperature_code); //! Convert temperature code to Kelvin if Kelvin units are desired.Serial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" K\n"));}else{temperature = LTC2943_code_to_celcius_temperature(temperature_code); //! Convert temperature code to Celcius if Celcius units are desired.Serial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" C\n"));}checkAlerts(status_code); //!Check status code for Alerts. If an Alert has been set, print out appropriate messagein the Serial PromptSerial.print(F("m-Main Menu\n\n"));Serial.flush();delay(SCAN_MODE_DISPLAY_DELAY);}while (Serial.available() == false || (ack));read_int(); // clears the Serial.availablereturn(ack);}//! Manual Modeint8_t menu_3_manual_mode(int8_t mAh_or_Coulombs ,int8_tcelcius_or_kelvin ,uint16_t prescalar_mode, uint16_t prescalarValue, uint16_talcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t LTC2943_mode;int8_t ack = 0;LTC2943_mode = LTC2943_MANUAL_MODE|prescalar_mode|alcc_mode ; //! Set the control mode of the LTC2943 to manual mode as well as set prescalar andAL#/CC# pin values.Serial.println();ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_mode); //! Writes the set mode to the LTC2943 control registerint staleData = 0; //! Stale Data Check variable. When set to 1 it indicates that stale data is being read from the voltage, current and temperature registers.do{Serial.print(F("*************************\n\n"));uint8_t status_code;uint16_t charge_code, current_code, voltage_code, temperature_code;ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code); //! Read MSB and LSB Accumulated Charge Registers for 16 bit charge codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_MSB_REG, &voltage_code); //! Read MSB and LSB Voltage Registers for 16 bit voltage codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_MSB_REG, &current_code); //! Read MSB and LSB Current Registers for 16 bit current codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_MSB_REG, &temperature_code); //! Read MSB and LSB Temperature Registers for 16 bit temperature codeack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG,&status_code); //! Read Status Registers for 8 bit status codefloat charge, current, voltage, temperature;if(mAh_or_Coulombs){charge = LTC2943_code_to_coulombs(charge_code, resistor, prescalarValue); //! Convert charge code to Coulombs if Coulomb units are desired.Serial.print("Coulombs: ");Serial.print(charge, 4);Serial.print(F(" C\n"));}else{charge = LTC2943_code_to_mAh(charge_code, resistor, prescalarValue); //! Convert charge code to mAh if mAh units are desired.Serial.print("mAh: ");Serial.print(charge, 4);Serial.print(F(" mAh\n"));}current = LTC2943_code_to_current(current_code, resistor);//! Convert current code to Amperesvoltage = LTC2943_code_to_voltage(voltage_code);//! Convert voltage code to VoltsSerial.print(F("Current "));Serial.print(current, 4);Serial.print(F(" A"));if(staleData) Serial.print(F(" ***** Stale Data ******\n"));//! If Stale data is inside the register after initial snapshot, Print Stale Data message.else Serial.println("");Serial.print(F("Voltage "));Serial.print(voltage, 4);Serial.print(F(" V"));if(staleData) Serial.print(F(" ***** Stale Data ******\n"));//! If Stale data is inside the register after initial snapshot, Print Stale Data message.else Serial.println("");if(celcius_or_kelvin){temperature = LTC2943_code_to_kelvin_temperature(temperature_code); //! Convert temperature code to Kelvin if Kelvin units are desired.Serial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" K"));}else{temperature = LTC2943_code_to_celcius_temperature(temperature_code); //! Convert temperature code to Celcius if Celcius units are desired.Serial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" C"));}if(staleData) Serial.print(F(" ***** Stale Data ******\n"));else Serial.println("");checkAlerts(status_code);//! Check status code for Alerts. If an Alert has been set, print out appropriatemessage in the Serial PromptSerial.print(F("m-Main Menu\n\n"));staleData = 1;Serial.flush();delay(AUTOMATIC_MODE_DISPLAY_DELAY);}while (Serial.available() == false || (ack));read_int(); // clears the Serial.availablereturn(ack);}//! Sleep Modeint8_t menu_4_sleep_mode(int8_t mAh_or_Coulombs ,uint16_t prescalar_mode,uint16_t prescalarValue, uint16_t alcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t LTC2943_mode;int8_t ack = 0;LTC2943_mode = LTC2943_SLEEP_MODE|prescalar_mode|alcc_mode ; //! Set the control mode of the LTC2943 to sleep mode as well as set prescalar andAL#/CC# pin values.Serial.println();ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_mode); //! Writes the set mode to the LTC2943 control registerdo{Serial.print(F("*************************\n\n"));delay(100);uint8_t status_code;uint16_t charge_code;ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code); //! Read MSB and LSBAccumulated Charge Registers for 16 bit charge codeack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG,&status_code); //! Read Status Registers for 8 bit status codefloat charge;if(mAh_or_Coulombs){charge = LTC2943_code_to_coulombs(charge_code, resistor, prescalarValue); //! Convert charge code to Coulombs if Coulomb units are desired.Serial.print("Coulombs: ");Serial.print(charge, 4);Serial.print(F(" C\n"));}else{charge = LTC2943_code_to_mAh(charge_code, resistor, prescalarValue); //! Convert charge code to mAh if mAh units are desired.Serial.print("mAh: ");Serial.print(charge, 4);Serial.print(F(" mAh\n"));}Serial.print(F("Current "));Serial.print(F(" ADC Sleep...\n"));Serial.print(F("Voltage "));Serial.print(F(" ADC Sleep...\n"));Serial.print(F("Temperature "));Serial.print(F(" ADC Sleep...\n"));Serial.print(F("m-Main Menu\n\n"));checkAlerts(status_code);Serial.flush();delay(AUTOMATIC_MODE_DISPLAY_DELAY);}while (Serial.available() == false || (ack));read_int(); // clears the Serial.availablereturn(ack);}//! Shutdown Modeint8_t menu_5_shutdown_mode()//! @return Returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge{int8_t ack = 0;ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_SHUTDOWN_MODE); //! Sets the LTC2943 into shutdown modeSerial.print("LTC2943 Has Been ShutDown\n");return(ack);}//! Settings Menuint8_t menu_6_settings(uint8_t *mAh_or_Coulombs, uint8_t *celcius_or_kelvin, uint16_t *prescalar_mode, uint16_t *prescalarValue, uint16_t *alcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge{int8_t ack = 0;int8_t user_command;do{Serial.print(F("*************************\n\n"));Serial.print(F("1-Set Alert Thresholds\n"));Serial.print(F("2-Set Prescalar Value\n"));Serial.print(F("3-Set AL#/CC# Pin State\n"));Serial.print(F("4-Set Units\n"));Serial.print(F("m-Main Menu\n\n"));Serial.print(F("Enter a command: "));user_command = read_int();if (user_command == 'm')Serial.println("m");elseSerial.println(user_command);Serial.println();switch (user_command){case 1:ack |= menu_6_settings_menu_1_set_alert_thresholds(); //! Settings Menu to set Alert Thresholdsbreak;case 2:ack |= menu_6_settings_menu_2_set_prescalar_values(prescalar_mode, prescalarValue); //! Settings Menu to set Prescalar Valuesbreak;case 3:ack |= menu_6_alert_menu_3_set_allcc_state(alcc_mode); //! Settings Menu to set AL#/CC# modebreak;case 4:ack |= menu_6_alert_menu_4_set_units(mAh_or_Coulombs,celcius_or_kelvin); //! Settings Menu to set Temperature and ChargeUnitsbreak;default:if (user_command != 'm')Serial.println("Incorrect Option");break;}}while (!((user_command == 'm') || (ack)));return(ack);}//! Alert Threshold Menuint8_t menu_6_settings_menu_1_set_alert_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;int8_t user_command;do{Serial.print(F("*************************\n\n"));Serial.print(F("1-Set Charge Thresholds\n"));Serial.print(F("2-Set Voltage Thresholds\n"));Serial.print(F("3-Set Current Thresholds\n"));Serial.print(F("4-Set Temperature Thresholds\n"));Serial.print(F("m-Main Menu\n\n"));Serial.print(F("Enter a command: "));user_command = read_int();if (user_command == 'm')Serial.println("m");elseSerial.println(user_command);Serial.println();switch (user_command){case 1:ack |= menu_6_alert_menu_1_set_charge_thresholds(); //! Set Max and Min Charge Thresholds. The ACR charge lsb size changes with respect to the prescalar and sense resistor value. Due to this variability, for the purpose of this demo enter values in hexadecimal.break;case 2:ack |= menu_6_alert_menu_2_set_voltage_thresholds(); //! Set Max and Min Voltage Thresholds. Enter Values in Voltsbreak;case 3:ack |= menu_6_alert_menu_3_set_current_thresholds(); //! Set Max and Min Current Thresholds. Enter Values in Amperes.break;case 4:ack |= menu_6_alert_menu_4_set_temperature_thresholds(); //! Set Max and Min Temperature Thresholds. Enter Values in Celcius.break;default:if (user_command != 'm')Serial.println("Incorrect Option");break;}}while (!((user_command == 'm') || (ack)));return(ack);}//! Set Charge Threshold Functionint8_t menu_6_alert_menu_1_set_charge_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;Serial.print(F("Enter RAW Max Charge Threshold:"));uint16_t max_charge_threshold;max_charge_threshold = read_int(); //! Read user entered valueSerial.println(max_charge_threshold);ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CHARGE_THRESH_HIGH_MSB_REG, max_charge_threshold); //! writeuser entered value to HIGH threshold registerSerial.print(F("Enter RAW Min Charge Threshold:"));float min_charge_threshold;min_charge_threshold = read_int();//! Read user entered valueSerial.println(min_charge_threshold);ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CHARGE_THRESH_LOW_MSB_REG, min_charge_threshold); //! writeuser entered value to HIGH threshold registerreturn(ack);}//! Set Voltage Thresholdsint8_t menu_6_alert_menu_2_set_voltage_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;Serial.print(F("Enter Max Voltage Threshold:"));float max_voltage_threshold;max_voltage_threshold = read_float(); //! Read user entered valueSerial.print(max_voltage_threshold, 3);Serial.println("V");uint16_t max_voltage_threshold_code =max_voltage_threshold*(0xFFFF)/(LTC2943_FULLSCALE_VOLTAGE);//! Convert user entered voltage into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_THRESH_HIGH_MSB_REG, max_voltage_threshold_code);//! Write adc code to HIGH threshold registerSerial.print(F("Enter Min Voltage Threshold:"));float min_voltage_threshold;min_voltage_threshold = read_float(); //! Read user entered valueSerial.println(min_voltage_threshold, 3);Serial.println("V");uint16_t min_voltage_threshold_code =min_voltage_threshold*(0xFFFF)/(LTC2943_FULLSCALE_VOLTAGE);//! Convert user entered voltage into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_THRESH_LOW_MSB_REG, min_voltage_threshold_code); //!Write adc code to LOW threshold registerreturn(ack);}//! Set Current Thresholdsint8_t menu_6_alert_menu_3_set_current_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;Serial.print(F("Enter Max Current Threshold:"));float max_current_threshold;max_current_threshold = read_float(); //! Read user entered valueSerial.print(max_current_threshold, 3);Serial.println("A");uint16_t max_current_threshold_code =resistor*max_current_threshold*(0x7FFF)/(LTC2943_FULLSCALE_CURRENT) +0x7FFF; //! Convert user entered current into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_THRESH_HIGH_MSB_REG, max_current_threshold_code); //!Write adc code to HIGH threshold registerSerial.print(F("Enter Min Current Threshold:"));float min_current_threshold;min_current_threshold = read_float();//! Read user entered valueSerial.print(min_current_threshold, 3);Serial.println("A");uint16_t min_current_threshold_code =resistor*min_current_threshold*(0x7FFF)/(LTC2943_FULLSCALE_CURRENT) +0x7FFF; //! Convert user entered current into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_THRESH_LOW_MSB_REG, min_current_threshold_code); //!Write adc code to LOW threshold registerreturn(ack);}//! Set Temperature Thresholdsint8_t menu_6_alert_menu_4_set_temperature_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;Serial.print(F("Enter Max Temperature Threshold in Celcius:"));float max_temperature_threshold;max_temperature_threshold = read_float(); //! Read user entered valueSerial.print(max_temperature_threshold, 2);Serial.println("C");uint16_t max_temperature_threshold_code = (max_temperature_threshold +273.15)*(0xFFFF)/(LTC2943_FULLSCALE_TEMPERATURE); //! Convert user entered temperature into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_THRESH_HIGH_REG, max_temperature_threshold_code);//! Write adc code to HIGH threshold registerSerial.print(F("Enter Min Temperature Threshold in Celcius:"));float min_temperature_threshold;min_temperature_threshold = read_float(); //! Read user entered valueSerial.print(min_temperature_threshold, 2);Serial.println("C");uint16_t min_temperature_threshold_code = (min_temperature_threshold +273.15)*(0xFFFF)/(LTC2943_FULLSCALE_TEMPERATURE); //! Convert user enteredtemperature into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_THRESH_LOW_REG, min_temperature_threshold_code);//! Write adc code to LOW threshold registerreturn(ack);}//! Prescalar Menuint8_t menu_6_settings_menu_2_set_prescalar_values(uint16_t *prescalar_mode,uint16_t *prescalarValue)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge。

锂电池电量检测芯片锂电池电量检测芯片简介锂电池电量检测芯片（Fuel Gauge）是一种用于检测锂电池充放电状态和估计电池电量的芯片。

它通过测量电池的电流、电压和温度等参数来实时计算电池的容量、剩余电量以及充电状态等信息，为设备提供准确的电池电量显示和保护功能。

锂电池电量检测芯片的工作原理锂电池电量检测芯片主要通过电流积分和电压比较等方式来实现电量检测。

当电池放电时，芯片会测量电池的放电电流，然后通过积分计算所消耗的电量。

同时，芯片还会检测电池的电压，并将其与预设的电压阈值进行比较，以确定电池的剩余容量和充放电状态。

锂电池电量检测芯片的特点和应用锂电池电量检测芯片具有以下特点：1. 高集成度：芯片内部集成了多种电流、电压和温度传感器，能够同时对这些参数进行测量和处理，从而实现全面的电量检测。

2. 高精度：芯片内置的精密传感器和算法能够实时准确地计算电池的容量和剩余电量，提供精确的电量显示和报警功能。

3. 低功耗：芯片采用低功耗设计，能够在工作时尽可能减少电池的耗电量，延长设备的续航时间。

锂电池电量检测芯片广泛应用于各种便携式电子设备中，如智能手机、平板电脑、笔记本电脑、无人机等。

它能够帮助用户准确了解电池的剩余容量，及时为设备充电，避免因电量不足造成的意外关机等问题。

锂电池电量检测芯片在电池管理中的作用锂电池电量检测芯片是电池管理系统中重要的组成部分，它能够监测电池的状态和健康程度，为电池管理提供准确的数据支持。

通过检测电池的充放电状态和剩余容量，芯片能够实时反馈电池的状态，帮助用户合理使用电池，延长电池的寿命。

同时，锂电池电量检测芯片还具备保护功能。

当电池电压过高或过低、温度异常等情况发生时，芯片能够通过电压比较、温度检测等方式实时发出警报，防止电池发生过充、过放、过热等危险情况。

总结锂电池电量检测芯片是一种用于检测锂电池充放电状态和估计电池电量的芯片。

它通过测量电池的电流、电压和温度等参数来实时计算电池的容量、剩余电量以及充放电状态等信息。

IC芯片的检测方法大全一、电性能测试：1. 直流参数测试：包括引脚电压、电流测试，通常使用ICT（In-Circuit Test）系统进行。

2. 交流参数测试：包括交流响应、输入输出频率响应等，通常使用LCT（Load Current Test）系统进行。

3.频率特性测试：包括正弦波响应、频率扫描等，通常使用频谱分析仪进行。

4.时序测试：包括时钟周期、数据传输速度、延迟测试等，通常使用时序分析仪进行。

5.功耗测试：通过检测芯片运行时的功耗情况，通常使用功率分析仪进行。

二、封装外观检查：1.尺寸检查：通过测量外部封装的尺寸参数，比如芯片的长、宽、高等。

2.引脚检查：通过观察封装外部引脚的数量、排列和构造是否符合标准规范。

3.焊盘检查：通过检查芯片与外部引脚之间的焊盘连接情况，是否焊接牢固。

4.封装类型检查：通过观察封装的类型，是否符合芯片技术要求。

三、功能测试：1.电源电压检测：通过测量芯片供电电压情况，是否正常工作。

2.信号输入输出测试：连通芯片输入与输出引脚，对信号进行测试，检查响应是否符合预期。

3.存储器测试：通过读写芯片内部存储器，检查存储读写的正确性和稳定性。

4.电路控制测试：检测芯片内部多个模块之间的控制是否正常，比如时钟控制、使能信号控制等。

5.温度测试：通过加热或冷却芯片，测试芯片在不同温度下的工作性能。

四、其它测试方法：1.X光检测：通过使用X光设备对芯片进行表面和内部结构的观察，检查是否存在焊接缺陷、结构问题等。

2.声发射检测：通过检测芯片在工作过程中发出的声音，判断是否存在故障或应力问题。

3.真空封装检测：对芯片进行真空环境下的测试，以检查芯片是否能在特殊环境下正常工作。

总结起来，IC芯片的检测方法涵盖了电性能测试、封装外观检查和功能测试等多个方面。

这些测试方法的目的是确保芯片的质量和性能达到预期要求，提高产品的可靠性和可用性。

对于芯片生产和应用来说，科学合理的检测方法是至关重要的。

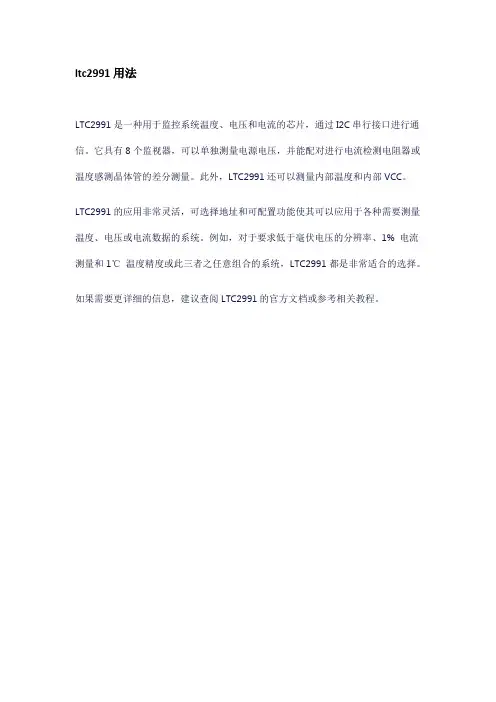

ltc2991用法
LTC2991是一种用于监控系统温度、电压和电流的芯片，通过I2C串行接口进行通信。

它具有8个监视器，可以单独测量电源电压，并能配对进行电流检测电阻器或温度感测晶体管的差分测量。

此外，LTC2991还可以测量内部温度和内部VCC。

LTC2991的应用非常灵活，可选择地址和可配置功能使其可以应用于各种需要测量温度、电压或电流数据的系统。

例如，对于要求低于毫伏电压的分辨率、1% 电流测量和1℃温度精度或此三者之任意组合的系统，LTC2991都是非常适合的选择。

如果需要更详细的信息，建议查阅LTC2991的官方文档或参考相关教程。

L T C2943-具温度、电压和电流测量功能的多节电池电量测量芯片LTC2943 - 具温度、电压和电流测量功能的多节电池电量测量芯片特点•可测量累积的电池充电和放电电量• 3.6V 至 20V 工作范围可适合多种电池应用•14 位 ADC 负责测量电池电压、电流和温度•1% 电压、电流和充电准确度•±50mV 检测电压范围•高压侧检测•适合任何电池化学组成和容量的通用测量•I2C / SMBus 接口•可配置警报输出 / 充电完成输入•静态电流小于120μA•小外形 8 引脚 3mm x 3mm DFN 封装典型应用描述LTC®2943 可测量便携式产品应用中的电池充电状态、电池电压、电池电流及其自身温度。

其具有宽输入电压范围，因而可与高达 20V 的多节电池配合使用。

一个精准的库仑计量器负责对流经位于电池正端子和负载或充电器之间的一个检测电阻器电流进行积分运算。

电池电压、电流和温度利用一个内部 14位无延迟增量累加(No Latency ΔΣTM) ADC 来测量。

测量结果被存储于可通过内置 I2C / SMBus 接口进行存取的内部寄存器中。

LTC2943 具有针对所有 4 种测量物理量的可编程高门限和低门限。

如果超过了某个编程门限，则该器件将采用 SMBus 警报协议或通过在内部状态寄存器中设定一个标记来传送警报信号。

LTC2943 仅需采用单个低阻值检测电阻器以设定测量电流范围。

应用•电动工具•电动自行车•便携式医疗设备•视频摄像机程序：#include <Arduino.h>#include <stdint.h>#include "Linduino.h"#include "LT_I2C.h"#include "UserInterface.h"#include "QuikEval_EEPROM.h"#include "LTC2943.h"#include <Wire.h>// Function Declarationvoid print_title(); // Print the title blockvoid print_prompt(); // Print the Promptvoid store_alert_settings(); // Store the alert settings to the EEPROMint8_t restore_alert_settings(); // Read the alert settings from EEPROM#define AUTOMATIC_MODE_DISPLAY_DELAY 1000 //!< The delay between readings in automatic mode#define SCAN_MODE_DISPLAY_DELAY 10000 //!< The delay between readings in scan modeconst float resistor = .100; //!< resistor value on demo board// Error stringconst char ack_error[] = "Error: No Acknowledge. Check I2C Address."; //!< Error message// Global variablesstatic int8_t demo_board_connected; //!< Set to 1 if the board is connected static uint8_t alert_code = 0; //!< Value stored or read from ALERT register. Shared between loop() and restore_alert_settings()//! Initialize Linduinovoid setup(){char demo_name[] = "DC1812"; //! Demo Board Name stored in QuikEval EEPROMquikeval_I2C_init(); //! Configure the EEPROM I2C port for 100kHzquikeval_I2C_connect(); //! Connects to main I2C portSerial.begin(115200); //! Initialize the serial port to the PCprint_title();demo_board_connected = discover_demo_board(demo_name);if (demo_board_connected){print_prompt();}else{demo_board_connected = true;Serial.println("Did not read ID String, attempting to proceed anyway...\nPlease ensure I2C lines of Linduino are connected to the LTC device"); }}//! Repeats Linduino loopvoid loop(){int8_t ack = 0; //! I2C acknowledge indicatorstatic uint8_t user_command; //! The user input commandstatic uint8_t mAh_or_Coulombs = 0;static uint8_t celcius_or_kelvin = 0;static uint16_t prescalar_mode = LTC2943_PRESCALAR_M_4096;static uint16_t prescalarValue = 4096;static uint16_t alcc_mode = LTC2943_ALERT_MODE;if (demo_board_connected) //! Do nothing if the demo board is not connected{if (Serial.available()) //! Do nothing if serial is not available{user_command = read_int(); //! Read user input commandif (user_command != 'm')Serial.println(user_command);Serial.println();ack = 0;switch (user_command) //! Prints the appropriate submenu{case 1:ack |= menu_1_automatic_mode(mAh_or_Coulombs, celcius_or_kelvin, prescalar_mode, prescalarValue, alcc_mode); //! Automatic Modebreak;case 2:ack |= menu_2_scan_mode(mAh_or_Coulombs, celcius_or_kelvin, prescalar_mode, prescalarValue, alcc_mode); //! Scan Modebreak;case 3:ack |= menu_3_manual_mode(mAh_or_Coulombs, celcius_or_kelvin, prescalar_mode, prescalarValue, alcc_mode); //! Manual Modebreak;case 4:ack |= menu_4_sleep_mode(mAh_or_Coulombs, prescalar_mode, prescalarValue, alcc_mode); //! Sleep Modebreak;case 5:ack |= menu_5_shutdown_mode(); //! Shutdown Modebreak;case 6:ack |= menu_6_settings(&mAh_or_Coulombs, &celcius_or_kelvin,&prescalar_mode, &prescalarValue, &alcc_mode); //! Settings Modebreak;}if (ack != 0) //! If ack is not recieved print an error.Serial.println(ack_error);Serial.print(F("*************************"));print_prompt();}}}// Function Definitions//! Print the title blockvoid print_title(){Serial.println(F("\n*****************************************************************"));Serial.print(F("* DC1812A Demonstration Program *\n"));Serial.print(F("* *\n"));Serial.print(F("* This program communicates with the LTC2943 Multicell Coulomb*\n"));Serial.print(F("* Counter found on the DC1812A demo board. *\n"));Serial.print(F("* Set the baud rate to 115200 and select the newline terminator.*\n"));Serial.print(F("* *\n"));Serial.print(F("*****************************************************************\n"));}//! Print the Promptvoid print_prompt(){Serial.print(F("\n1-Automatic Mode\n"));Serial.print(F("2-Scan Mode\n"));Serial.print(F("3-Manual Mode\n"));Serial.print(F("4-Sleep Mode\n"));Serial.print(F("5-Shutdown Mode\n"));Serial.print(F("6-Settings\n"));Serial.print(F("Enter a command: "));}//! Automatic Mode.int8_t menu_1_automatic_mode(int8_t mAh_or_Coulombs, int8_tcelcius_or_kelvin ,uint16_t prescalar_mode, uint16_t prescalarValue, uint16_talcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge.{int8_t LTC2943_mode;int8_t ack = 0;LTC2943_mode = LTC2943_AUTOMATIC_MODE|prescalar_mode|alcc_mode ; //! Set the control register of the LTC2943 to automatic mode as well as set prescalarand AL#/CC# pin values.Serial.println();ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_mode); //! Writes the set mode to the LTC2943 control registerdo{Serial.print(F("*************************\n\n"));uint8_t status_code, hightemp_code, lowtemp_code;uint16_t charge_code, current_code, voltage_code, temperature_code;ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code); //! Read MSB and LSB Accumulated Charge Registers for 16 bit charge codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_MSB_REG, &voltage_code); //! Read MSB and LSB Voltage Registers for 16 bit voltage codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_MSB_REG, &current_code); //! Read MSB and LSB Current Registers for 16 bit current codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_MSB_REG, &temperature_code); //! Read MSB and LSB Temperature Registers for 16 bit temperature codeack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG,&status_code); //! Read Status Register for 8 bit status codefloat charge, current, voltage, temperature;if(mAh_or_Coulombs){charge = LTC2943_code_to_coulombs(charge_code, resistor, prescalarValue); //! Convert charge code to Coulombs if Coulomb units are desired.Serial.print("Coulombs: ");Serial.print(charge, 4);Serial.print(F(" C\n"));}else{charge = LTC2943_code_to_mAh(charge_code, resistor, prescalarValue); //! Convert charge code to mAh if mAh units are desired.Serial.print("mAh: ");Serial.print(charge, 4);Serial.print(F(" mAh\n"));}current = LTC2943_code_to_current(current_code, resistor); //! Convert current code to Amperesvoltage = LTC2943_code_to_voltage(voltage_code); //! Convert voltage code to VoltsSerial.print(F("Current "));Serial.print(current, 4);Serial.print(F(" A\n"));Serial.print(F("Voltage "));Serial.print(voltage, 4);Serial.print(F(" V\n"));if(celcius_or_kelvin){temperature = LTC2943_code_to_kelvin_temperature(temperature_code); //! Convert temperature code to kelvinSerial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" K\n"));}else{temperature = LTC2943_code_to_celcius_temperature(temperature_code); //! Convert temperature code to celciusSerial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" C\n"));}checkAlerts(status_code); //! Check status code for Alerts. If an Alert has been set, print out appropriate message in the Serial Prompt.Serial.print(F("m-Main Menu\n\n"));Serial.flush();delay(AUTOMATIC_MODE_DISPLAY_DELAY); //!Delay for 1s before next polling}while (Serial.available() == false || (ack)); //! if Serial is not available and an NACK has not been recieved, keep polling the registers.read_int(); // clears the Serial.availablereturn(ack);}//! Scan Modeint8_t menu_2_scan_mode(int8_t mAh_or_Coulombs , int8_tcelcius_or_kelvin ,uint16_t prescalar_mode,uint16_t prescalarValue, uint16_talcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t LTC2943_mode;int8_t ack = 0;LTC2943_mode = LTC2943_SCAN_MODE|prescalar_mode|alcc_mode ; //! Set the control mode of the LTC2943 to scan mode as well as set prescalar andAL#/CC# pin values.Serial.println();ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_mode); //! Writes the set mode to the LTC2943 control registerdo{Serial.print(F("*************************\n\n"));uint8_t status_code;uint16_t charge_code, current_code, voltage_code, temperature_code;ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code); //! Read MSB andLSB Accumulated Charge Registers for 16 bit charge codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_MSB_REG, &voltage_code); //! Read MSB and LSB Voltage Registers for 16 bit voltage codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_MSB_REG, &current_code); //! Read MSB and LSBCurrent Registers for 16 bit current codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_MSB_REG, &temperature_code); //! Read MSB andLSB Temperature Registers for 16 bit temperature codeack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG,&status_code); //! Read Status Registers for 8 bit status codefloat charge, current, voltage, temperature;if(mAh_or_Coulombs){charge = LTC2943_code_to_coulombs(charge_code, resistor, prescalarValue); //! Convert charge code to Coulombs if Coulomb units are desired.Serial.print("Coulombs: ");Serial.print(charge, 4);Serial.print(F(" C\n"));}else{charge = LTC2943_code_to_mAh(charge_code, resistor, prescalarValue); //! Convert charge code to mAh if mAh units are desired.Serial.print("mAh: ");Serial.print(charge, 4);Serial.print(F(" mAh\n"));}current = LTC2943_code_to_current(current_code, resistor);//! Convert current code to Amperesvoltage = LTC2943_code_to_voltage(voltage_code);//! Convert voltage code to VoltsSerial.print(F("Current "));Serial.print(current, 4);Serial.print(F(" A\n"));Serial.print(F("Voltage "));Serial.print(voltage, 4);Serial.print(F(" V\n"));if(celcius_or_kelvin){temperature = LTC2943_code_to_kelvin_temperature(temperature_code); //! Convert temperature code to Kelvin if Kelvin units are desired.Serial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" K\n"));}else{temperature = LTC2943_code_to_celcius_temperature(temperature_code); //! Convert temperature code to Celcius if Celcius units are desired.Serial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" C\n"));}checkAlerts(status_code); //! Checkstatus code for Alerts. If an Alert has been set, print out appropriate message in theSerial PromptSerial.print(F("m-Main Menu\n\n"));Serial.flush();delay(SCAN_MODE_DISPLAY_DELAY);}while (Serial.available() == false || (ack));read_int(); // clears the Serial.availablereturn(ack);}//! Manual Modeint8_t menu_3_manual_mode(int8_t mAh_or_Coulombs ,int8_tcelcius_or_kelvin ,uint16_t prescalar_mode, uint16_t prescalarValue, uint16_talcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t LTC2943_mode;int8_t ack = 0;LTC2943_mode = LTC2943_MANUAL_MODE|prescalar_mode|alcc_mode ; //! Set the control mode of the LTC2943 to manual mode as well as set prescalar andAL#/CC# pin values.Serial.println();ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_mode); //! Writes the set mode to the LTC2943 control registerint staleData = 0; //! Stale DataCheck variable. When set to 1 it indicates that stale data is being read from thevoltage, current and temperature registers.do{Serial.print(F("*************************\n\n"));uint8_t status_code;uint16_t charge_code, current_code, voltage_code, temperature_code;ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code); //! Read MSB andLSB Accumulated Charge Registers for 16 bit charge codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_MSB_REG, &voltage_code); //! Read MSB and LSBVoltage Registers for 16 bit voltage codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_MSB_REG, &current_code); //! Read MSB and LSBCurrent Registers for 16 bit current codeack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_MSB_REG, &temperature_code); //! Read MSB andLSB Temperature Registers for 16 bit temperature codeack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG,&status_code); //! Read Status Registers for 8 bit status codefloat charge, current, voltage, temperature;if(mAh_or_Coulombs){charge = LTC2943_code_to_coulombs(charge_code, resistor, prescalarValue); //! Convert charge code to Coulombs if Coulomb units are desired.Serial.print("Coulombs: ");Serial.print(charge, 4);Serial.print(F(" C\n"));}else{charge = LTC2943_code_to_mAh(charge_code, resistor, prescalarValue); //! Convert charge code to mAh if mAh units are desired.Serial.print("mAh: ");Serial.print(charge, 4);Serial.print(F(" mAh\n"));}current = LTC2943_code_to_current(current_code, resistor);//! Convert current code to Amperesvoltage = LTC2943_code_to_voltage(voltage_code);//! Convert voltage code to VoltsSerial.print(F("Current "));Serial.print(current, 4);Serial.print(F(" A"));if(staleData) Serial.print(F(" ***** Stale Data ******\n"));//! If Stale data is inside the register after initial snapshot, Print Stale Data message.else Serial.println("");Serial.print(F("Voltage "));Serial.print(voltage, 4);Serial.print(F(" V"));if(staleData) Serial.print(F(" ***** Stale Data ******\n"));//! If Stale data is inside the register after initial snapshot, Print Stale Data message.else Serial.println("");if(celcius_or_kelvin){temperature = LTC2943_code_to_kelvin_temperature(temperature_code); //! Convert temperature code to Kelvin if Kelvin units are desired.Serial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" K"));}else{temperature = LTC2943_code_to_celcius_temperature(temperature_code); //! Convert temperature code to Celcius if Celcius units are desired.Serial.print(F("Temperature "));Serial.print(temperature, 4);Serial.print(F(" C"));}if(staleData) Serial.print(F(" ***** Stale Data ******\n"));else Serial.println("");checkAlerts(status_code); //!Check status code for Alerts. If an Alert has been set, print out appropriate message inthe Serial PromptSerial.print(F("m-Main Menu\n\n"));staleData = 1;Serial.flush();delay(AUTOMATIC_MODE_DISPLAY_DELAY);while (Serial.available() == false || (ack));read_int(); // clears the Serial.availablereturn(ack);}//! Sleep Modeint8_t menu_4_sleep_mode(int8_t mAh_or_Coulombs ,uint16_t prescalar_mode,uint16_t prescalarValue, uint16_t alcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t LTC2943_mode;int8_t ack = 0;LTC2943_mode = LTC2943_SLEEP_MODE|prescalar_mode|alcc_mode ; //! Set the control mode of the LTC2943 to sleep mode as well as set prescalar andAL#/CC# pin values.Serial.println();ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG,LTC2943_mode); //! Writes the set mode to the LTC2943 control registerdo{Serial.print(F("*************************\n\n"));delay(100);uint8_t status_code;uint16_t charge_code;ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS,LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code); //! Read MSB andLSB Accumulated Charge Registers for 16 bit charge codeack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG,&status_code); //! Read Status Registers for 8 bit status codefloat charge;if(mAh_or_Coulombs){charge = LTC2943_code_to_coulombs(charge_code, resistor, prescalarValue); //! Convert charge code to Coulombs if Coulomb units are desired.Serial.print("Coulombs: ");Serial.print(charge, 4);Serial.print(F(" C\n"));}else{charge = LTC2943_code_to_mAh(charge_code, resistor, prescalarValue); //! Convert charge code to mAh if mAh units are desired.Serial.print("mAh: ");Serial.print(charge, 4);Serial.print(F(" mAh\n"));}Serial.print(F("Current "));Serial.print(F(" ADC Sleep...\n"));Serial.print(F("Voltage "));Serial.print(F(" ADC Sleep...\n"));Serial.print(F("Temperature "));Serial.print(F(" ADC Sleep...\n"));Serial.print(F("m-Main Menu\n\n"));checkAlerts(status_code);Serial.flush();delay(AUTOMATIC_MODE_DISPLAY_DELAY);}while (Serial.available() == false || (ack));read_int(); // clears the Serial.availablereturn(ack);}//! Shutdown Modeint8_t menu_5_shutdown_mode()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG, LTC2943_SHUTDOWN_MODE); //! Sets the LTC2943 into shutdown modeSerial.print("LTC2943 Has Been ShutDown\n");return(ack);}//! Settings Menuint8_t menu_6_settings(uint8_t *mAh_or_Coulombs, uint8_t *celcius_or_kelvin, uint16_t *prescalar_mode, uint16_t *prescalarValue, uint16_t *alcc_mode)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;int8_t user_command;do{Serial.print(F("*************************\n\n"));Serial.print(F("1-Set Alert Thresholds\n"));Serial.print(F("2-Set Prescalar Value\n"));Serial.print(F("3-Set AL#/CC# Pin State\n"));Serial.print(F("4-Set Units\n"));Serial.print(F("m-Main Menu\n\n"));Serial.print(F("Enter a command: "));user_command = read_int();if (user_command == 'm')Serial.println("m");elseSerial.println(user_command);Serial.println();switch (user_command){case 1:ack |= menu_6_settings_menu_1_set_alert_thresholds();//! Settings Menu to set Alert Thresholdsbreak;case 2:ack |= menu_6_settings_menu_2_set_prescalar_values(prescalar_mode, prescalarValue); //! Settings Menu to set Prescalar Valuesbreak;case 3:ack |= menu_6_alert_menu_3_set_allcc_state(alcc_mode);//! Settings Menu to set AL#/CC# modebreak;case 4:ack |= menu_6_alert_menu_4_set_units(mAh_or_Coulombs, celcius_or_kelvin); //! Settings Menu to set Temperature and Charge Unitsbreak;default:if (user_command != 'm')Serial.println("Incorrect Option");break;}}while (!((user_command == 'm') || (ack)));return(ack);}//! Alert Threshold Menuint8_t menu_6_settings_menu_1_set_alert_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;int8_t user_command;do{Serial.print(F("*************************\n\n"));Serial.print(F("1-Set Charge Thresholds\n"));Serial.print(F("2-Set Voltage Thresholds\n"));Serial.print(F("3-Set Current Thresholds\n"));Serial.print(F("4-Set Temperature Thresholds\n"));Serial.print(F("m-Main Menu\n\n"));Serial.print(F("Enter a command: "));user_command = read_int();if (user_command == 'm')Serial.println("m");elseSerial.println(user_command);Serial.println();switch (user_command){case 1:ack |= menu_6_alert_menu_1_set_charge_thresholds(); //! Set Max and Min Charge Thresholds. The ACR charge lsb size changes with respect to the prescalar and sense resistor value. Due to this variability, for the purpose of this demo enter values in hexadecimal.break;case 2:ack |= menu_6_alert_menu_2_set_voltage_thresholds(); //! Set Max and Min Voltage Thresholds. Enter Values in Voltsbreak;case 3:ack |= menu_6_alert_menu_3_set_current_thresholds(); //! Set Max and Min Current Thresholds. Enter Values in Amperes.break;case 4:ack |= menu_6_alert_menu_4_set_temperature_thresholds(); //! Set Max and Min Temperature Thresholds. Enter Values in Celcius.break;default:if (user_command != 'm')Serial.println("Incorrect Option");break;}}while (!((user_command == 'm') || (ack)));return(ack);}//! Set Charge Threshold Functionint8_t menu_6_alert_menu_1_set_charge_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;Serial.print(F("Enter RAW Max Charge Threshold:"));uint16_t max_charge_threshold;max_charge_threshold = read_int(); //! Read user entered valueSerial.println(max_charge_threshold);ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CHARGE_THRESH_HIGH_MSB_REG, max_charge_threshold); //! write user entered value to HIGH threshold registerSerial.print(F("Enter RAW Min Charge Threshold:"));float min_charge_threshold;min_charge_threshold = read_int(); //! Read user entered valueSerial.println(min_charge_threshold);ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CHARGE_THRESH_LOW_MSB_REG, min_charge_threshold); //! write user entered value to HIGH threshold registerreturn(ack);}//! Set Voltage Thresholdsint8_t menu_6_alert_menu_2_set_voltage_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;Serial.print(F("Enter Max Voltage Threshold:"));float max_voltage_threshold;max_voltage_threshold = read_float(); //! Read user entered valueSerial.print(max_voltage_threshold, 3);Serial.println("V");uint16_t max_voltage_threshold_code =max_voltage_threshold*(0xFFFF)/(LTC2943_FULLSCALE_VOLTAGE); //! Convert user entered voltage into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_THRESH_HIGH_MSB_REG, max_voltage_threshold_code); //! Write adc code to HIGH threshold registerSerial.print(F("Enter Min Voltage Threshold:"));float min_voltage_threshold;min_voltage_threshold = read_float(); //! Read user entered valueSerial.println(min_voltage_threshold, 3);Serial.println("V");uint16_t min_voltage_threshold_code =min_voltage_threshold*(0xFFFF)/(LTC2943_FULLSCALE_VOLTAGE); //! Convert user entered voltage into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_VOLTAGE_THRESH_LOW_MSB_REG, min_voltage_threshold_code); //! Write adc code to LOW threshold registerreturn(ack);}//! Set Current Thresholdsint8_t menu_6_alert_menu_3_set_current_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;Serial.print(F("Enter Max Current Threshold:"));float max_current_threshold;max_current_threshold = read_float(); //! Read user entered valueSerial.print(max_current_threshold, 3);Serial.println("A");uint16_t max_current_threshold_code =resistor*max_current_threshold*(0x7FFF)/(LTC2943_FULLSCALE_CURRENT) +0x7FFF; //! Convert user entered current into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_THRESH_HIGH_MSB_REG, max_current_threshold_code); //! Write adc code to HIGH threshold registerSerial.print(F("Enter Min Current Threshold:"));float min_current_threshold;min_current_threshold = read_float(); //! Read user entered valueSerial.print(min_current_threshold, 3);Serial.println("A");uint16_t min_current_threshold_code =resistor*min_current_threshold*(0x7FFF)/(LTC2943_FULLSCALE_CURRENT) +0x7FFF; //! Convert user entered current into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_CURRENT_THRESH_LOW_MSB_REG, min_current_threshold_code);//! Write adc code to LOW threshold registerreturn(ack);}//! Set Temperature Thresholdsint8_t menu_6_alert_menu_4_set_temperature_thresholds()//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;Serial.print(F("Enter Max Temperature Threshold in Celcius:"));float max_temperature_threshold;max_temperature_threshold = read_float(); //! Read user entered valueSerial.print(max_temperature_threshold, 2);Serial.println("C");uint16_t max_temperature_threshold_code = (max_temperature_threshold +273.15)*(0xFFFF)/(LTC2943_FULLSCALE_TEMPERATURE); //! Convert userentered temperature into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_THRESH_HIGH_REG,max_temperature_threshold_code); //! Write adc code to HIGH threshold registerSerial.print(F("Enter Min Temperature Threshold in Celcius:"));float min_temperature_threshold;min_temperature_threshold = read_float(); //! Read user entered valueSerial.print(min_temperature_threshold, 2);Serial.println("C");uint16_t min_temperature_threshold_code = (min_temperature_threshold + 273.15)*(0xFFFF)/(LTC2943_FULLSCALE_TEMPERATURE); //! Convert user entered temperature into adc code.ack |= LTC2943_write_16_bits(LTC2943_I2C_ADDRESS,LTC2943_TEMPERATURE_THRESH_LOW_REG,min_temperature_threshold_code); //! Write adc code to LOW threshold register return(ack);}//! Prescalar Menuint8_t menu_6_settings_menu_2_set_prescalar_values(uint16_t *prescalar_mode, uint16_t *prescalarValue)//! @return Returns the state of the acknowledge bit after the I2C address write.0=acknowledge, 1=no acknowledge{int8_t ack = 0;int8_t user_command;do{Serial.print(F("*************************\n\n"));Serial.print(F("1-Set Prescalar M = 1\n"));Serial.print(F("2-Set Prescalar M = 4\n"));Serial.print(F("3-Set Prescalar M = 16\n"));Serial.print(F("4-Set Prescalar M = 64\n"));Serial.print(F("5-Set Prescalar M = 256\n"));Serial.print(F("6-Set Prescalar M = 1024\n"));Serial.print(F("7-Set Prescalar M = 4096\n"));Serial.print(F("m-Main Menu\n\n"));Serial.print(F("Enter a command: "));user_command = read_int();if (user_command == 'm')Serial.println("m");elseSerial.println(user_command);Serial.println();。
