常用三极管的标志对应的型号

三极管型号参数查询大全1.BC系列三极管：-BC547：NPN型三极管，最大集电极电流为100mA，最大集电极-基极电压为45V，最大功率耗散为500mW。

-BC557：PNP型三极管，最大集电极电流为100mA，最大集电极-基极电压为45V，最大功率耗散为500mW。

2.2N系列三极管：-2N2222：NPN型三极管，最大集电极电流为800mA，最大集电极-基极电压为60V，最大功率耗散为500mW。

-2N3906：PNP型三极管，最大集电极电流为200mA，最大集电极-基极电压为40V，最大功率耗散为625mW。

3.S901X系列三极管：-S9012：NPN型三极管，最大集电极电流为500mA，最大集电极-基极电压为40V，最大功率耗散为625mW。

-S9013：NPN型三极管，最大集电极电流为500mA，最大集电极-基极电压为40V，最大功率耗散为625mW。

4.JL系列三极管：-JL1117：NPN型三极管，最大集电极电流为500mA，最大集电极-基极电压为50V，最大功率耗散为625mW。

-JL2222：NPN型三极管，最大集电极电流为800mA，最大集电极-基极电压为60V，最大功率耗散为625mW。

以上仅列举了一些常用的三极管型号，每个型号具体参数可能根据不同的制造商而有所不同。

要查询具体的三极管型号参数，可以参考制造商的官方网站、数据手册或商家提供的技术资料。

一般来说，三极管的主要参数包括：- 最大集电极电流（ICmax）：三极管允许通过的最大电流。

-最大集电极-基极电压（VCEO）：三极管可承受的最大集电极-基极电压。

- 最大功率耗散（PDmax）：三极管可承受的最大功率。

-直流电流放大倍数（hFE）：三极管的放大倍数。

-开关频率（fT）：三极管可实现的最高工作频率。

同时，还需要关注三极管的引脚排列和包装形式，并根据具体的应用需求选择合适的三极管型号。

实际应用中，可以参考相关电路设计手册、电子元器件手册以及网络技术资料，以获取更详细的三极管型号参数和应用指导。

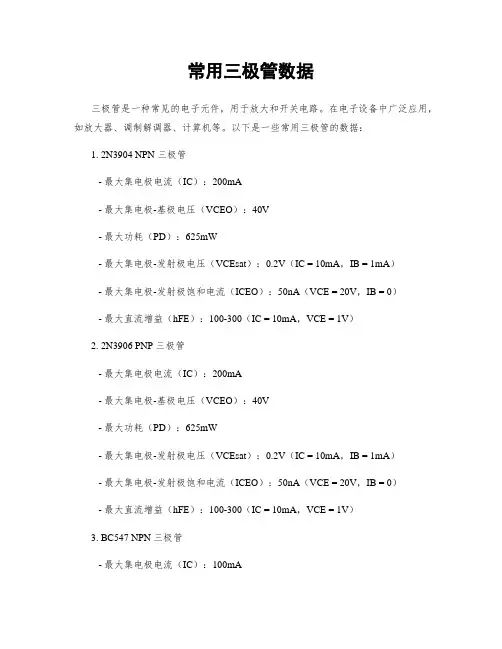

常用三极管数据三极管是一种常见的电子元件，用于放大和开关电路。

在电子设备中广泛应用，如放大器、调制解调器、计算机等。

以下是一些常用三极管的数据：1. 2N3904 NPN 三极管- 最大集电极电流（IC）：200mA- 最大集电极-基极电压（VCEO）：40V- 最大功耗（PD）：625mW- 最大集电极-发射极电压（VCEsat）：0.2V（IC = 10mA，IB = 1mA）- 最大集电极-发射极饱和电流（ICEO）：50nA（VCE = 20V，IB = 0）- 最大直流增益（hFE）：100-300（IC = 10mA，VCE = 1V）2. 2N3906 PNP 三极管- 最大集电极电流（IC）：200mA- 最大集电极-基极电压（VCEO）：40V- 最大功耗（PD）：625mW- 最大集电极-发射极电压（VCEsat）：0.2V（IC = 10mA，IB = 1mA）- 最大集电极-发射极饱和电流（ICEO）：50nA（VCE = 20V，IB = 0）- 最大直流增益（hFE）：100-300（IC = 10mA，VCE = 1V）3. BC547 NPN 三极管- 最大集电极电流（IC）：100mA- 最大集电极-基极电压（VCEO）：45V- 最大功耗（PD）：500mW- 最大集电极-发射极电压（VCEsat）：0.7V（IC = 10mA，IB = 1mA） - 最大集电极-发射极饱和电流（ICEO）：50nA（VCE = 20V，IB = 0） - 最大直流增益（hFE）：200-800（IC = 10mA，VCE = 1V）4. BC557 PNP 三极管- 最大集电极电流（IC）：100mA- 最大集电极-基极电压（VCEO）：45V- 最大功耗（PD）：500mW- 最大集电极-发射极电压（VCEsat）：0.7V（IC = 10mA，IB = 1mA） - 最大集电极-发射极饱和电流（ICEO）：50nA（VCE = 20V，IB = 0） - 最大直流增益（hFE）：200-800（IC = 10mA，VCE = 1V）5. 2SC945 NPN 三极管- 最大集电极电流（IC）：150mA- 最大集电极-基极电压（VCEO）：50V- 最大功耗（PD）：400mW- 最大集电极-发射极电压（VCEsat）：0.3V（IC = 10mA，IB = 1mA） - 最大集电极-发射极饱和电流（ICEO）：50nA（VCE = 20V，IB = 0） - 最大直流增益（hFE）：70-700（IC = 10mA，VCE = 1V）以上是一些常用的三极管数据，不同型号的三极管在不同应用中有不同的特点和性能。

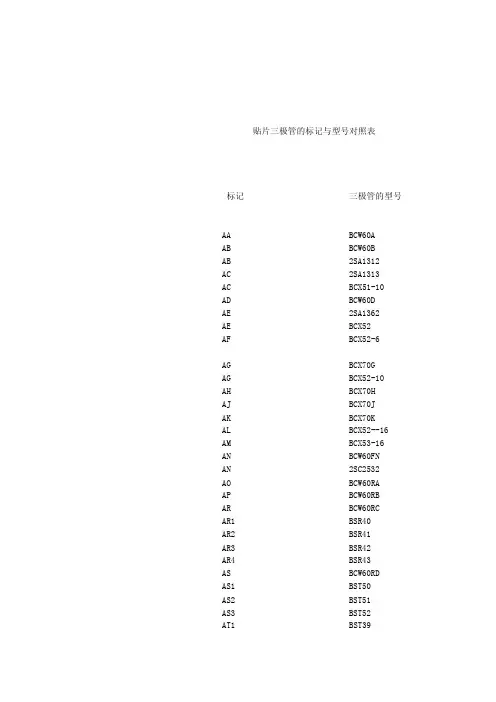

贴片三极管的标记与型号对照表标记三极管的型号AA BCW60AAB BCW60BAB 2SA1312AC 2SA1313AC BCX51-10AD BCW60DAE 2SA1362AE BCX52AF BCX52-6AG BCX70GAG BCX52-10AH BCX70HAJ BCX70JAK BCX70KAL BCX52--16 AM BCX53-16AN BCW60FNAN 2SC2532AO BCW60RAAP BCW60RBAR BCW60RCAR1 BSR40AR2 BSR41AR3 BSR42AR4 BSR43AS BCW60RDAS1 BST50AS2 BST51AS3 BST52AT1 BST39AU BCX70RGAW BCX70RHAX BCX70RJAY BCX70RKB 2SC2880BA BCW61ABB BCW61BBC BCW61CBD BCW61DBE BCX55BF BCW61FFBG BCX71GBH BCX71HBJ BCX71JBK BCX71KBL BCX56-16 BM BCX55-16 BN BCW61FNBN MMBT3638A BO BCW61RABP BCW61RBBR BCW61RCBR1 BSR30BR2 BSR31BR3 BSR32BR4 BSR33BS BCW61RDBS1 BST60BS2 BST61BS3 BST62BT1 BST15BT2 BST16BU BCX71RGBW BCX71RHBX BCX71RJBY BCX71RKB2 BSV52B3 MMBC1621B3 B4 BSV52RC 2SA1163CA BCW61RACA BCX68CB BCW61RBCB BCX68-10CC BF554CC BCW61RCCC 2SC3326CD BSS81BCD BCW61RDCE BSS79BCE 2SC3325CE BCX69CEC BC869CF BSS79CCF1 CF910CF2 CF911CF3 CF912CF4 CF913CF5 CF930CF6 CF940CG BSS81CCG BCX71RGCG 2SC3246注意，标号相同，三极管的型号不一定相同，要看图纸下面是赠送的几篇网络励志文章需要的便宜可以好好阅读下，不需要的朋友可以下载后编辑删除！！谢谢！！出路出路，走出去才有路"出路出路，走出去才有路。

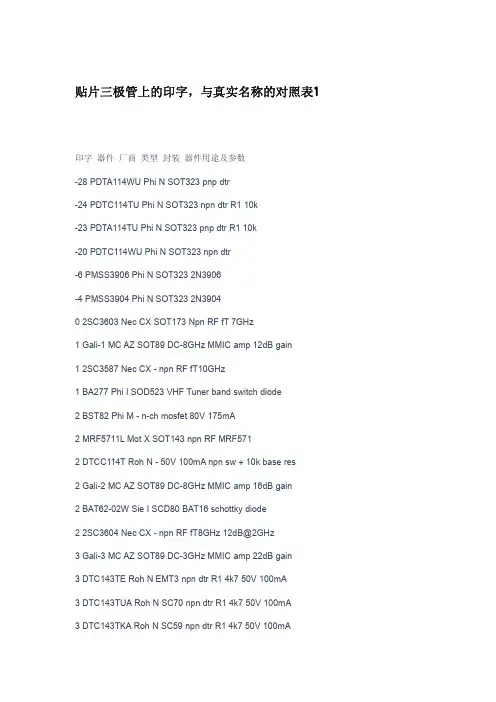

贴片三极管上的印字，与真实名称的对照表1印字器件厂商类型封装器件用途及参数-28PDTA114WU Phi N SOT323pnp dtr-24PDTC114TU Phi N SOT323npn dtr R110k-23PDTA114TU Phi N SOT323pnp dtr R110k-20PDTC114WU Phi N SOT323npn dtr-6PMSS3906Phi N SOT3232N3906-4PMSS3904Phi N SOT3232N390402SC3603Nec CX SOT173Npn RF fT7GHz1Gali-1MC AZ SOT89DC-8GHz MMIC amp12dB gain12SC3587Nec CX-npn RF fT10GHz1BA277Phi I SOD523VHF Tuner band switch diode2BST82Phi M-n-ch mosfet80V175mA2MRF5711L Mot X SOT143npn RF MRF5712DTCC114T Roh N-50V100mA npn sw+10k base res2Gali-2MC AZ SOT89DC-8GHz MMIC amp16dB gain2BAT62-02W Sie I SCD80BAT16schottky diode22SC3604Nec CX-npn RF fT8GHz12dB@2GHz3Gali-3MC AZ SOT89DC-3GHz MMIC amp22dB gain3DTC143TE Roh N EMT3npn dtr R14k750V100mA3DTC143TUA Roh N SC70npn dtr R14k750V100mA3DTC143TKA Roh N SC59npn dtr R14k750V100mA3BAT60A Sie I SOD32310V3A sw schottky3BAT62-02W Sie I SCD80-4DTC114TCA Roh N SOT23npn dtr R110k50V100mA 4DTC114TE Roh N EMT3npn dtr R110k50V100mA4DTC114TUA Roh N SC70npn dtr R110k50V100mA4DTC114TKA Roh N SC59npn dtr R110k50V100mA4MRF5211L Mot X SOT143pnp RF MRF5214Gali-4MC AZ SOT89DC-4GHz MMIC amp17.5dBm4BB664Sie I SCD80Varicap42-2.5pF5SSTPAD5Sil J-PAD-55pA leakage diode5Gali-4MC AZ SOT89DC-4GHz MMIC amp18dBm o/p 5DTC124TE Roh N EMT3npn dtr R122k50V100mA5DTC124TUA Roh N SC70npn dtr R122k50V100mA5DTC124TKA Roh N SC59npn dtr R122k50V100mA6Gali-6MC AZ SOT89DC-4GHz MMIC amp115dBm o/p 6DTC144TE Roh N EMT3npn dtr R147k50V100mA6DTC144TUA Roh N SC70npn dtr R147k50V100mA6DTC144TKA Roh N SC59npn dtr R147k50V100mA9DTC115TUA Roh N SC70npn dtr R2100k50V100mA 9DTC115TKA Roh N SC59npn dtr R2100k50V100mA 9BC849Mot N SOT23BC549B10SSTPAD10Sil J-PAD-1010pA leakage diode10MRF9411L Mot X SOT143npn Rf8GHz MRF94111SO2369R SGS R SOT23R2N236911MRF9511L Mot X SOT143npn RF8GHz MRF95111MUN5311DW1Mot DP SOT363npn/pnp dtr10k+10k11PDTA114EU Phi N SOT416pnp dtr12MUN5312DW1Mot DP SOT363npn/pnp dtr22k+22k12DTA123EUA Rho N SC70pnp dtr2k2+2k250V100ma12DTA123EKA Rho N SC59pnp dtr2k2+2k2res50V100ma 13DTA143EUA Rho N SC70pnp dtr4k7+4k750V100ma13DTA143EKA Rho N SC59pnp dtr4k7+4k750V100ma13DTA143ECA Rho N SOT23pnp dtr4k7+4k750V100ma 13MA4CS103A M/A C SOT23Schottky RF20V100mA13MUN5313DW1Mot DP SOT363npn/pnp dtr47k+47k14BAT114-099R Sie DQ-Quad Schottky crossover ring14DTA114EUA Roh N SC70pnp dtr10k+10k14DTA114EKA Roh N SC59pnp dtr10k+10k14MUN5314DW1Mot DP SOT363npn/pnp dtr10k R114DTA114ECA Roh N SOT23pnp dtr10k+10k15DTA124EUA Roh N SC70pnp dtr30V50mA22k+22k15DTA124EKA Roh N SC59pnp dtr30V50mA22k+22k15DTA124ECA Roh N SOT23pnp dtr30V50mA22k+22k15MUN5315DW1Mot DP SOT363npn/pnp dtr10k R115MMBT3960Mot N-2N396016MUN5316DW1Mot DP SOT363npn/pnp dtr4k7R116DTA144EUA Roh N SC70pnp dtr30V50mA47k+47k16DTA144EKA Roh N SC59pnp dtr30V50mA47k+47k18BFP181T Tfk X-npn Rf fT7.8GHz10V20mA18PDTC143ZK Phi N SOT346npn dtr4k7+47k19PDTA143ZK Phi N SOT346pnp dtr4k7+47k19DTA115EUA Rho N SC70pnp dtr100k+100k50V100ma 19DTA115EKA Rho N SC59pnp dtr100k+100k50V100ma 20SSTPAD20Sil J-PAD-2020pA leakage diode20MRF5811Mot X SOT143npn Rf fT5GHz0.2A21Gali-21MC AZ SOT89DC-8GHz MMIC amp14dB gain 22MMBT4209Nat N SOT23pnp sw850MHz2N420922DTC123EUA Rho N SC70npn dtr2k2+2k250V100ma 22DTC123EKA Rho N SC59npn dtr2k2+2k250V100ma 23MMBT3646Nat N SOT23npn sw350MHz2N364623DTC143EUA Roh N SC70pnp dtr50V100mA4k7+4k7 23DTC143EKA Roh N SC59pnp dtr50V100mA4k7+4k7 24MMBD2101Nat C SOT23Si diode100V200mA24DTC114ECA Roh N SOT23npn dtr50V100mA10k+10k 24DTC114EUA Roh N SC70npn dtr50V100mA10k+10k 24DTC114EKA Roh N SC59npn dtr50V100mA10k+10k 242SC5006Nec N-npn RF fT4.5GHz@3V7mA25MMBD2102Nat K SOT23Si diode100V200mA25DTC124ECA Roh N SOT23npn dtr50V100mA22k+22k 25DTC124EKA Roh N SC59npn dtr50V100mA22k+22k 25DTC124EUA Roh N SC70npn dtr50V100mA22k+22k 26MMBD2103Nat D SOT23dual MMBD120126DTC144EKA Roh N SC59npn dtr50V30mA47k+47k 26DTC144EUA Roh N SC70npn dtr50V30mA47k+47k 27MMBD2104Nat B SOT23dual cc MMBD120128BFP280T Tfk W-npn RF fT7GHz8V10mA28MMBD2105Nat A SOT23dual ca MMBD120129MMBD1401Nat C SOT23Si diode200V100mA29DTC115EE Roh N EMT3npn dtr100k+100k50V20mA29DTC115EUA Roh N SC70npn dtr100k+100k50V20mA29DTC115EKA Roh N SC59npn dtr100k+100k50V20mA30MUN5330DW1Mot DP SOT363npn/pnp dtr1k0+1k031MUN5331DW1Mot DP SOT363npn/pnp dtr2k2+2k231MMBD1402Nat K SOT23Si diode200V100mA32MUN5332DW1Mot DP SOT363npn/pnp dtr4k7+4k732MMBD1403Nat D SOT23dual Si diode200V100mA32BAT32Sie CS-18GHz zero-bias schottky33MUN5333DW1Mot DP SOT363npn/pnp dtr4k7+47k33DTA143XE Roh N EMT3pnp dtr4k7+10k50V100mA33DTA143XUA Roh N SC70pnp sw4k7+10k bias res50V100mA 33DTA143XKA Roh N SC59pnp sw4k7+10k bias res50V100mA 33MMBD1404Nat B SOT23dual cc Si diode200V100mA33Gali-33MC AZ SOT89DC-4GHz MMIC amp19dB gain34MUN5334DW1Mot DP SOT363npn/pnp dtr22k+47k34MMBD1405Nat A SOT23dual ca Si diode200V100mA342SC5007Nec N-npn RF fT7GHz@3V7mA35MUN5335DW1Mot DP SOT363npn/pnp dtr2k2+47k35DTA124XE Roh N EMT3pnp dtr22k+47k50V50mA35DTA124XUA Roh N SC70pnp dtr22k+47k50V50mA35DTA124XKA Roh N SC59pnp dtr22k+47k50V50mA41BAT14-115S Sie CS SOT17340GHz schottky diode41BAT14-115R Sie CZ SOT17340GHz schottky ring quad 42BAT14-025S Sie CS SOT1734GHz schottky diode42BAT14-025R Sie CZ SOT1734GHz schottky ring quad 43BAS40Sie C SOT23schottky diode40V100mA43DTA143EE Mot N SOT416pnp dtr4k7+4k743DTC143XE Roh N EMT3npn dtr4k7+10k50V100mA 43DTC143XUA Roh N SC70npn dtr4k7+10k50V100mA 43DTC143XKA Roh N SC59npn dtr4k7+10k50V100mA 44BAS40-04Sie D SOT23dual series BAS4044BAS40-04W Sie D SOT323dual series BAS40442SC5009Nec N-npn RF fT12GHz@3V5mA45BAS40-05Sie A SOT23dual ca BAS4045BAS40-05W Sie A SOT323dual ca BAS4045BAT14-055S Sie CS SOT1738GHz schottky diode45BAT14-055R Sie CZ SOT1738GHz schottky ring quad 45DTC124XE Roh N EMT3npn dtr22k+47k50V50mA 45DTC124XUA Roh N SC70npn dtr22k+47k50V50mA 45DTC124XKA Roh N SC59npn dtr22k+47k50V50mA 46BAS40-06Sie B SOT23dual cc BAS4046BAS40-06W Sie B SOT323dual cc BAS4046MBT3946DW Mot DP-2N3904/2N3906pair47BAS40-07Sie S SOT143dual BAS4047BAS40-07W Sie S SOT343dual BAS4049BAT14-095S Sie CS SOT17318GHz shottky diode49BAT14-095R Sie CZ SOT17318GHz schottky ring quad 50SSTPAD50Sil J-PAD-5050pA leakage diode51BAT15-115S Sie CS SOT17340GHz schottky diode51BAT15-115R Sie CZ SOT17340GHz schottky ring quad 52BAT15-025S Sie CS SOT1734GHz schottky diode52BAT15-025R Sie CZ SOT1734GHz schottky ring quad 52Gali-52MC AZ SOT89DC-2GHz MMIC amp23dB gain 52BAS52-02V Inf I SC79Schottky diode45V750mA52DTA123YE Roh N EMT3pnp dtr2k2+10k50V100mA 52DTA123YUA Roh N SC70pnp dtr2k2+10k50V100mA 52DTA123YKA Roh N SC59pnp dtr2k2+10k50V100mA 54DTA114YE Roh N EMT3pnp dtr10k+47k50V100mA 54DTA114YUA Roh N SC70pnp dtr10k+47k50V100mA 54DTA114YKA Roh N SC59pnp dtr10k+47k50V100mA 55BAT15-055S Sie CS SOT1738GHz schottky diode55BAT15-055R Sie CZ SOT1738GHz schottky ring quad 55Gali-55MC AZ SOT89DC-4GHz MMIC amp21dB gain 57BFQ57Sie CX SOT173npn6.5GHz16V/35mA58BFQ58Sie CX SOT173npn6.5GHz16V/30mA59BAT15-095S Sie CS SOT17318GHz schottky diode59BAT15-095R Sie CZ SOT17318GHz schottky ring quad 62DTC123YE Roh N EMT3npn dtr2k2+10k50V100mA 62DTC123YUA Roh N SC70npn dtr2k2+10k50V100mA 62DTC123YKA Roh N SC59npn dtr2k2+10k50V100mA 64DTC114YE Roh N EMT3npn dtr10k+47k50V100mA64DTC114YUA Roh N SC70npn dtr10k+47k50V100mA 64DTC114YKA Roh N SC59npn dtr10k+47k50V100mA 67BFP67Tfk X-npn Rf fT7.5GHz10V50mA69DTA114YE Mot N SOT416pnp dtr10k+47k69DTC115EE Roh N EMT3npn dtr100k+100k50V20mA 69DTC115EUA Roh N SC70npn dtr100k+100k50V20mA 69DTC115EKA Roh N SC59npn dtr100k+100k50V20mA 70BFQ70Sie CX SOT173npn fT5.2GHz15V35mA71BFQ71Sie CX SOT173npn fT5.2GHz15V30mA72BFQ72Sie CX SOT173npn fT5.1GHz15V50mA722N7002Sil M SOT23n-ch mosfet60V170mA73MA4CS101A M/A C SOT23schottky diode70V50mA73BFQ73Sie CX SOT173npn fT4.9GHz15V75mA732SC5004Nec N-npn RF5GHz@5V5mA74BFQ74Sie CX SOT173npn fT6GHz16V35mA74MA4CS101B M/A D SOT23dual series MA4CS101A(73) 74DTA114WE Rho N EMT3pnp dtr10k+4k750V100mA 74DTA114WUA Rho N SC70pnp dtr10k+4k750V100mA 74DTA114WKA Rho N SC59pnp dtr10k+4k750V100mA 742SC5005Nec N-npn RF5.5GHz@5V5mA75BFQ75Sie CX SOT173pnp fT5GHz12V50mA76BFQ76Sie CX SOT173pnp fT5GHz15V30mA76DTA144WE Rho N EMT3pnp dtr47k+22k50V30mA 76DTA144WUA Rho N SC70pnp dtr47k+22k50V30mA 76DTA144WKA Rho N SC59pnp dtr47k+22k50V30mA77MA4CS101E M/A S SOT143dual MA4CS101A(73)77BFQ77Sie CX SOT173npn fT7GHz15V20mA78MMBT4258Nat N SOT23pnp sw fT700MHz81SO2369AR SGS R SOT23R2N2369A81ZMV831BV2Zet I SOD52328V hyperabrupt varicap15pF@2V 822SC5009Nec N-npn RF fT12GHz@3V5mA82ZMV832BV2Zet I SOD52328V hyperabrupt varicap22pF@2V 83MMBT4400Nat N-npn2N4400832SC5010Nec N-npn RF fT12GHz3V10mA83MA4CS102A M/A C SOT23schottky diode8V30mA84MA4CS102B M/A D SOT23dual ser schottky diode8V30mA 84DTC114WE Rho N EMT3npn dtr10k+4k750V100mA84DTC114WUA Rho N SC70npn dtr10k+4k750V100mA84DTC114WKA Rho N SC59npn dtr10k+4k750V100mA85MMBD1701Nat C-Fast Si diode30V50mA85MA4CS102A M/A B SOT23dual cc schottky diode8V30mA86MMBD1702Nat K-Fast Si diode30V50mA86DTC144WE Rho N EMT3npn dtr47k+22k50V30mA86DTC144WUA Rho N SC70npn dtr47k+22k50V30mA86DTC144WKA Rho N SC59npn dtr47k+22k50V30mA87MMBD1703Nat D-dual ser MMBD170187MA4CS102A M/A S SOT143dual schottky diode8V30mA88MMBD1704Nat B-dual cc MMBD170189MMBD1705Nat A-dual ca MMBD170191ZV931V2Zet I SOD5234-13.5pF hyperabrupt varicap91DTA113TKA Roh N SC59pnp dtr R11k050V100mA92ZV932V2Zet I SOD5235.5-17pF hyperabrupt varicap93ZV933V2Zet I SOD52312-42pF hyperabrupt varicap93DTA143TE Roh N EMT3pnp dtr R14k750V100mA93DTA143TUA Roh N SC70pnp dtr R14k750V100mA93DTA143TKA Roh N SC59pnp dtr R14k750V100mA94DTA114TE Roh N EMT3pnp dtr R110k50V100mA94DTA114TUA Roh N SC70pnp dtr R110k50V100mA94DTA114TKA Roh N SC59pnp dtr R110k50V100mA95DTA124TE Roh N EMT3pnp dtr R122k50V100mA95DTA124TCA Roh N SOT23pnp dtr R122k50V100mA 95DTA124TKA Roh N SC59pnp dtr R122k50V100mA96DTA144TE Roh N EMT3pnp dtr R147k50V100mA96DTA144TUA Roh N SC70pnp dtr R147k50V100mA96DTA144TKA Roh N SC59pnp dtr R147k50V100mA99DTA115TE Roh N EMT3pnp dtr R1100k50V100mA99DTA115TUA Roh N SC70pnp dtr R1100k50V100mA 99DTA115TKA Roh N SC59pnp dtr R1100k50V100mA 100SSTPAD100Sil J SOT23PAD-100100pA leakage diode 101PZM10NB1Phi C SOT34610V0.3W zener102PZM10NB2Phi C SOT34610V0.3W zener103PZM10NB3Phi C SOT34610V0.3W zener111PZM11NB1Phi C SOT34611V0.3W zener111DTA113ZUA Roh N SC70pnp dtr1k+10k50V100mA112PZM11NB2Phi C SOT34611V0.3W zener113PZM11NB3Phi C SOT34611V0.3W zener113DTA143ZUA Roh N SC70pnp dtr4k7+47k50V100mA 121PZM12NB1Phi C SOT34612V0.3W zener121DTC113ZUA Roh N SC70npn dtr1k+10k50V100mA 122PZM12NB2Phi C SOT34612V0.3W zener123PZM12NB3Phi C SOT34612V0.3W zener123DTC143ZUA Roh N SC70npn dtr4k7+47k50V100mA 131PZM13NB1Phi C SOT34613V0.3W zener132PZM13NB2Phi C SOT34613V0.3W zener132DTA123JUA Roh N SC70pnp dtr2k2+47k50V100mA 133PZM13NB3Phi C SOT34613V0.3W zener142DTA123JUA Roh N SC70npn dtr2k2+47k50V100mA 151PZM15NB1Phi C SOT34615V0.3W zener152PZM15NB2Phi C SOT34615V0.3W zener153PZM15NB3Phi C SOT34615V0.3W zener156DTA144VUA Roh N SC70pnp dtr47k+10k50V100mA 161PZM16NB1Phi C SOT34616V0.3W zener162PZM16NB2Phi C SOT34616V0.3W zener163PZM16NB3Phi C SOT34616V0.3W zener166DTC144VUA Roh N SC70npn dtr47k+10k50V100mA 179FMMT5179Zet N-2N5179181PZM18NB1Phi C SOT34618V0.3W zener182PZM18NB2Phi C SOT34618V0.3W zener183PZM18NB3Phi C SOT34618V0.3W zener200SSTPAD200Sil J-PAD-200200pA leakage diode201PZM20NB1Phi C SOT34620V300mW Zener202PZM20NB2Phi C SOT34620V300mW Zener203PZM20NB3Phi C SOT34620V300mW Zener221PZM22NB1Phi C SOT34622V300mW Zener222PZM22NB2Phi C SOT34622V300mW Zener223PZM22NB3Phi C SOT34622V300mW Zener241PZM24NB Phi C SOT34624V300mW Zener242PZM24NB Phi C SOT34624V300mW Zener243PZM20NB Phi C SOT34624V300mW Zener271PZM2.7NB1Phi C SOT3462.7V300mW Zener272PZM2.7NB2Phi C SOT3462.7V300mW Zener301FDV301N Fch M SOT23n-ch'digital'fet25V0.22A302FDV302P Fch M SOT23p-ch'digital'fet25V0.13A303FDV303N Fch M SOT23n-ch'digital'fet25V0.68A304FDV304P Fch M SOT23p-ch'digital'fet25V0.46A331NDS331N Fch M SOT23n-ch mosfet1.3A20V331PZM3.3NB1Phi C SOT3463.3V300mW zener332PZM3.3NB2Phi C SOT3463.3V300mW zener332NDS332N Fch M SOT23"p-ch mosfet0.4A,1A pk,20V" 335NDS335N Fch M SOT23"n-ch mosfet70mA,1.7A pk,20V" 336NDS336N Fch M SOT23"p-ch mosfet0.27A,1.2A pk,20V" 337NDS337N Fch M SOT23"n-ch mosfet50mA,2.5A pk20V" 338NDS338N Fch M SOT23"p-ch mosfet0.13A,1.6Apk20V" 340FDV340P Fch M SOT23p-ch mosfet20V70mA351NDS351N Fch M SOT23n-ch mosfet1.1A30V352NDS352N Fch M SOT23p-ch mosfet0.5A20V355NDS355N Fch M SOT23"n-ch mosfet0.1A,1.6A pk30V" 356NDS356N Fch M SOT23"p-ch mosfet0.3A,1.1A pk20V" 357NDS357N Fch M SOT23n-ch mosfet2.5Apk30V358NDS358N Fch M SOT23"p-ch mosfet0.2A,1.6A pk30V" 358FDN358N Fch M SOT23p-ch mosfet0.2A1.6A pk30V 360FDN360P Fch M SOT23"p-ch mosfet80mA,2a PK,30V" 361PZM3.6NB1Phi C SOT3463.6V300mW Zener362PZM3.3NB2Phi C SOT3463.6V300mW Zener391PZM3.9NB1Phi C SOT3463.9V300mW Zener392PZM3.9NB2Phi C SOT3463.9V300mW Zener413FMMT413Zet N SOT23npn avalanche150v0.1A415FMMT415Zet N SOT23npn avalanche260v0.1A417FMMT417Zet N SOT23npn avalanche320v0.1A431PZM4.3NB1Phi C SOT3464.3V0.3W zener432PZM4.3NB2Phi C SOT3464.3V0.3W zener433PZM4.3NB3Phi C SOT3464.3V0.3W zener449FMMT449Zet N SOT23npn50V1A low Vce sat451FMMT451Zet N SOT23npn60V1A455FMMT455Zet N SOT23NPN140V1A458FMMT458Zet N SOT23npn400V0.4A471PZM4.7NB1Phi C SOT3464.7V0.3W zener472PZM4.7NB2Phi C SOT3464.7V0.3W zener473PZM4.7NB3Phi C SOT3464.7V0.3W zener491FMMT491Zet N SOT23ZTX450/451493FMMT493Zet N SOT23ZTX453494FMMT494Zet N SOT23npn120V1A495FMMT495Zet N SOT23npn170V1A497FMMT497Zet N SOT23npn300V0.5A500SSTPAD500Sil J PAD-500500pA leakage diode 511PZM5.1NB1Phi C SOT3465.1V0.3W zener512PZM5.1NB2Phi C SOT3465.1V0.3W zener 513PZM5.1NB3Phi C SOT3465.1V0.3W zener 558FMMT558Zet N SOT23pnp400V0.15A561PZM5.1NB1Phi C SOT3465.6V0.3W zener 562PZM5.1NB2Phi C SOT3465.6V0.3W zener 563PZM5.1NB3Phi C SOT3465.6V0.3W zener 589FMMT589Zet N SOT23pnp30V1A593FMMT593Zet N SOT23ZTX553605NDS0605Fch M SOT23P-ch mosfet60V180mA 605NDS0605Fch M-p-ch sw mosfet60V610NDS0610Fch M-p-ch sw mosfet60V614FMMT614Zet N SOT23sw617FMMT617Zet N SOT23npn sw15V3A618FMMT618Zet N SOT23npn sw20V2.5A619FMMT619Zet N SOT23npn sw50V2A621PZM6.2NB1Phi C SOT3466.2V0.3W zener 622PZM6.2NB2Phi C SOT3466.2V0.3W zener 623PZM6.2NB3Phi C SOT3466.2V0.3W zener624FMMT624Zet N SOT23-625FMMT625Zet N SOT23-634FMMT634Zet N SOT23100V0.9A darlington npn 651PZT651Mot N SOT223npn60V1A681PZM6.8NB1Phi C SOT3466.8V0.3W zener682PZM6.8NB2Phi C SOT3466.8V0.3W zener683PZM6.8NB1Phi C SOT3466.8V0.3W zener 7012N7001Mot M SOT23n-ch mosfet7022N7002Mot M SOT23n-ch mosfet60V0.11A 7032N7003Mot M SOT23n-ch mosfet712NDS7002A Nat M SOT23n-ch mosfet60V0.28A 717FMMT717Zet N SOT23pnp sw0.625W2.5A12V 718FMMT718Zet N SOT23pnp sw0.625W1.5A20V 720FMMT720Zet N SOT23pnp sw0.625W1.5A 722FMMT722Zet N SOT23pnp sw723FMMT723Zet N SOT23pnp sw730FMMT730Zet N SOT23ZTX550/551751PZM7.5NB1Phi C SOT3467.5V0.3W zener752PZM7.5NB2Phi C SOT3467.5V0.3W zener753PZM7.5NB3Phi C SOT3467.5V0.3W zener821PZM8.2NB1Phi C SOT238.2V0.3W zener822PZM8.2NB2Phi C SOT238.2V0.3W zener822S822T Tfk X-npn RF fT5.2GHz6V8mA823PZM8.2NB3Phi C SOT238.2V0.3W zener852S852T Tfk N SOT23npn RF fT5.2GHz6V8mA887S887T Tfk W SOT143n-ch dg uhf mosfet888S888T Tfk W SOT142n-ch dg uhf mosfet911PZM9.1NB1Phi C SOT3469.1V0.3W zener912PZM9.1NB2Phi C SOT3469.1V0.3W zener913PZM9.1NB3Phi C SOT3469.1V0.3W zener05F TSDF1205R Tfk WQ-fT12GHz npn4V5mA0A MUN5111DW1Mot DO SOT363dual pnp dtr10k+10k 0A DTC125TUA Roh N SC70npn dtr R2100k50V100mA 0A DTC125TKA Roh N SC59npn dtr R2100k50V100mA 0B MUN5112DW1Mot DO SOT363dual pnp dtr22k+22k 0C MUN5113DW1Mot DO SOT363dual pnp dtr47k+47k 0D MUN5114DW1Mot DO SOT363dual pnp dtr10k+47k 0E MUN5115DW1Mot DO SOT363dual pnp dtr R110k 0F MUN5116DW1Mot DO SOT363dual pnp dtr R14k70G MUN5130DW1Mot DO SOT363dual pnp dtr1k0+1k0 0H MUN5131DW1Mot DO SOT363dual pnp dtr2k2+2k2 0J MUN5132DW1Mot DO SOT363dual pnp dtr4k7+4k7 0K MUN5133DW1Mot DO SOT363dual pnp dtr4k7+47k 0L MUN5134DW1Mot DO SOT363dual pnp dtr22k+47k 0M MUN5135DW1Mot DO SOT363dual pnp dtr2k2+47k 1(red)BB669Sie I SOD32356-2.7pF varicap10A PZM10NB2A Phi A SOT346dual ca10V0.3W zener 10V PZM10NB Phi C SOT34610V0.3W zener10Y BZV49-C10Phi O SOT8910V1W zener11A PZM11NB2A Phi A SOT346dual ca11V0.3W zener11A MMBD1501A Nat C SOT23Si diode200V100mA11V PZM11NB Phi C SOT34611V0.3W zener11Y BZV49-C11Phi O SOT8911V1W zener12A MMBD1502A Nat K SOT23Si diode200V100mA12A PZM12NB2A Phi A SOT346dual ca12V0.3W zener12E ZC2812E Zet D SOT23dual series RF schottky15V20mA12V PZM12NB Phi C SOT34612V0.3W zener12Y BZV49-C12Phi O SOT8912V1W zener13A MMBD1503A Nat D SOT23dual Si diode200V100mA13A PZM13NB2A Phi A SOT346dual ca13V0.3W zener13E ZC2813E Zet A SOT23dual ca RF schottky15V20mA13s BAS125Sie C SOT23Schottky sw24V100mA13s BAS125W Sie C SOT323Schottky sw24V100mA13t BC846BPN Phi N SOT363BC546B13V PZM13NB Phi C SOT34613V0.3W zener13Y BZV49-C13Phi O SOT8913V1W zener14A MMBD1504A Nat B-dual cc Si diode200V100mA14s BAS125-04Sie D SOT23Dual series Schottky25V100mA14s BAS125-04W Sie D SOT323Dual series Schottky25V100mA 15A MMBD1505A Nat A-dual ca Si diode200V100mA15A PZM15NB2A Phi A SOT346dual ca15V0.3W zener15s BAS125-05Sie B SOT23dual cc Schottky25V100mA15s BAS125-05W Sie B SOT323dual cc Schottky25V100mA15V PZM15NB Phi C SOT34615V0.3W zener15Y BZV49-C15Phi O SOT8915V1W zener16s BAS125-06Sie A SOT23dual ca Schottky25V100mA16s BAS125-06W Sie A SOT323dual ca Schottky25V100mA 16V PZM16NB Phi C SOT34616V0.3W zener16Y BZV49-C16Phi O SOT8916V1W zener17s BAS125-07Sie S SOT143dual Schottky25V100mA17s BAS125-07W Sie S SOT343dual Schottky25V100mA 18V PZM18NB Phi C SOT34618V0.3W zener18Y BZV49-C18Phi O SOT8918V1W zener1A BC846A Phi N SOT23BC546A1A BC846AT Phi N SOT416BC546A1A FMMT3904Zet N SOT232N39041A MMBT3904Mot N SOT232N39041A IRLML2402IR F SOT23n-ch mosfet20V0.9A-1A PMST3904Phi N SOT3232N39041A-BC846AW Phi N SOT323BC546A1AM MMBT3904L Mot N SOT232N39041Ap BC846A Phi N SOT23BC546A1At BC846A Phi N SOT23BC546A1At BC846AW Phi N SOT323BC546A1B BC846B Phi N SOT23BC546B1B BC846BT Phi N SOT416BC546B1B FMMT2222Zet N SOT232N22221B MMBT2222Mot N SOT232N22221B IRLML2803IR F SOT23n-ch mosfet30V0.9A-1B PMST2222Phi N SOT3232N22221B-BC846BW Phi N SOT323BC546B1Bp BC846B Phi N SOT23BC546B1Bs BC817UPN Sie N SC74-1Bt BC846B Phi N SOT23BC546B1Bt BC846BW Phi N SOT323BC546B1C FMMT-A20Zet N SOT23MPSA201C MMBTA20L Mot N SOT23MPS39041C IRLML6302IR F SOT23p-ch mosfet20V0.6A1Cp BAP50-05Phi B SOT23dual cc GP RF pin diode 1Cs BC847S Sie-SOT363BC4571D MMBTA42Mot N SOT23MPSA42300V npn1D IRLML5103IR F SOT23p-ch mosfet30V0.6A1D-BC846W Phi N SOT323BC4561DN2SC4083Roh N-npn11V3.2GHz TV tuners1Dp BC846Phi N SOT23BC4561DR MSD1328R Mot N SOT346npn gp25V500mA 1Ds BC846U Sie N SC74BC4561Ds BC846U Sie-SOT363BC4561Dt BC846Phi N SOT23BC4561Dt BC846W Phi N SOT323BC4561E BC847A Phi N SOT23BC547A1E BC847AT Phi N SOT416BC547A1E FMMT-A43Zet N-MPSA431E MMBTA43Mot N SOT23MPSA43200V npn1E-BC847A Phi N SOT323BC547A1EN2SC4084Roh N-npn20V2.0GHz TV tuners 1Ep BC847A Phi N SOT23BC547A1ER BC847AR Phi R SOT23R BC547A1Es BC847A Sie N SOT23BC4571Es BC847AW Sie N SOT323BC4571Et BC847A Phi N SOT23BC547A1Et BC847A Phi N SOT323BC547A1F BC847B Phi N SOT23BC547B1F BC847BT Phi N SOT416BC547B1F MMBT5550Mot N SOT232N5550140V npn 1F-BC847BW Phi N SOT323BC547B1Fp BC847B Phi N SOT23BC547B1FR BC847BR Phi R SOT23R BC547B1Fs BC847B Sie N SOT23BC547B1Fs BC847BT Sie N SC75BC547B1Fs BC847BW Sie N SOT323BC547B1Ft BC847B Phi N SOT23BC547B1Ft BC847BW Phi N SOT323BC547B1FZ FMBT5550Zet N SOT232N5550140V npn 1G BC847C Phi N SOT23BC547C1G BC847CT Phi N SOT416BC547C1G FMMT-A06Zet N SOT23MPSA061G MMBTA06Mot N SOT23MPSA061G-BC847CW Phi N SOT323BC547C1GM MMBTA06Mot N SOT23MPSA061Gp BC847C Phi N SOT23BC547C1GR BC847CR Phi R SOT23R BC547C1Gs BC847C Sie N SOT23BC547C1Gs BC847CW Sie N SOT323BC547C1Gt BC847CW Phi N SOT323BC547C1GT SOA06SGS N SOT23MPSA061H FMMT-A05Zet N-MPSA051H MMBTA05Mot N SOT23MPSA051H-BC847W Phi N SOT323BC5471Hp BC847Phi N SOT23BC5471Ht BC847Phi N SOT23BC5471Ht BC847W Phi N SOT323BC5471HT SOA05SGS N SOT23MPSA051J BC848A Phi N SOT23BC548A1J FMMT2369Zet N SOT232N23691J MMBT2369Mot N SOT23MPS23691JA MMBT2369A Mot N SOT23MPS2369A1Jp BCV61A Phi VQ SOT143npn current mirror hFe180 1JR BC848AR Phi R SOT23R BC548A1Js BC848A Sie N SOT23BC548A1Js BC848AW Sie N SOT323BC548A1Js BCV61A Sie VQ SOT143npn current mirror hFe180 1JZ BC848A Zet N SOT23BC548A1K BC848B ITT N SOT23BC548B1K MMBT6428Mot N SOT23MPSA1850V1K FMMT4400Zet N SOT232N44001KM MMBT6428L Mot N SOT23MPSA1850V1Kp BC848B Phi N SOT23BC548B1Kp BCV61B Phi VQ SOT143B npn current mirror hFe290 1KR BC848BR Phi R SOT23R BC548B1Ks BC848B Sie N SOT23BC548B1Ks BC848BW Sie N SOT323BC548B1Ks BCV61B Sie VQ SOT143B npn current mirror hFe2901KZ FMMT4400Zet N SOT232N44001L BC848C ITT N SOT23BC548C1L MMBT6429Mot N-MPSA1845V1L FMMT4401Zet N-2N44011L BCV61C Sie VQ SOT143B npn current mirror hFe5201Lp BC848C Phi N SOT23BC548C1Lp BCV61C Phi VQ SOT143B npn current mirror hFe5201LR BC848CR Phi R SOT23R BC548C1Ls BC848C Sie N SOT23BC548C1Ls BC848CW Sie N SOT323BC548C1M MMBTA13Mot N SOT23MPSA13darlington1M FMMT-A13Zet N SOT23MPSA131Mp BC848Phi N SOT23BC5481Mp BCV61Phi VQ SOT143B npn current mirror1N FMMT-A14Zet N SOT23MPSA141N MMBTA14Mot N SOT23MPSA14darlington1N5ZTX11N15DF Zet N SOT23npn15V3A low saturation V1P FMMT2222A Zet N-2N2222A1P MMBT2222A Mot N SOT232N2222A1P BC847PN Sie DI-pnp/npn separate pair gp AF1Q MMBT5088Mot N SOT23MPSA18Vce30V1R MMBT5089Mot N SOT23MPSA18Vce25V1S MMBT2369A Nat N SOT232N2369A500MHz sw npn 1S MSC3130Mot H SOT346npn RF fT1.4GHz10V1T MMBT3960A Mot N-2N3960A1U MMBT2484L Mot N SOT23MPSA181V MMBT6427Mot H SOT232N6426/7darlington npn1V-BF820W Phi N SOT323npn300V50mA BF4201Vp BF820Phi N SOT23npn300V50mA BF4201Vt BF820Phi N SOT23npn300V50mA BF4201Vt BF820W Phi N SOT323npn300V50mA BF4201W FMMT3903Zet N SOT232N39031W-BF822W Phi N SOT323pnp300V50mA BF4211W t BF822W Phi N SOT323pnp300V50mA BF4211Wp BF821Phi N SOT23pnp300V50mA BF4211Wt BF821Phi N SOT23pnp300V50mA BF4211X MMBT930L Mot N SOT23MPS39041Xp BF822Phi N SOT23npn250V50mA BF4221Xt BF822Phi N SOT23npn250V50mA BF4221Y MMBT3903Mot N SOT232N39031Yp BF823Phi N SOT23pnp250V50mA BF4231Yt BF823Phi N SOT23pnp250V50mA BF4231Z BAS70-06Zet A SOT23dual RF CA schottky diode 1Z MMBT6517Mot N SOT232N6517npn Vce350V 2(blue)BAR64-03W Sie I SOD323pin diode2(white)BB439Sie I SOD32329-5pF varicap20F TSDF1220Tfk X SOT143fT12GHz npn6V20mA 20V PZM20NB Phi C SOT34620V300mW zener20Y BZV49-C20Phi O SOT8920V1W zener22V PZM22NB Phi C SOT34622V300mW zener22Y BZV49-C22Phi O SOT8922V1W zener24V PZM24NB Phi C SOT34624V300mW Zener24Y BZV49-C24Phi O SOT8924V1W zener27V PZM27NB Phi C SOT34627V300mW Zener27Y BZV49-C27Phi O SOT8927V1W zener2A MMBT3906L Mot N SOT232N39062A MMBT3906W Mot N SOT3232N39062A FMMT3906Zet N SOT232N39062A4PZM2.4NB2A Phi A SOT346dual2.4V cc Zener 2A7PZM2.7NB2A Phi A SOT346dual2.7V cc Zener 2B BC849B ITT N SOT23BC549B2B FMMT2907Zet N SOT232N29072B MMBT2907Mot N SOT23MPS29072B-BC849BW Phi N SOT323BC549B2Bp BC849B Phi N SOT23BC549B2BR BC849BR Phi R SOT23R BC549B2Bs BC849B Sie N SOT23BC549B2Bs BC849BW Sie N SOT323BC549B2Bt BC849BW Phi N SOT323BC549B2BZ FMMT2907Zet N SOT232N29072C BC849C ITT N SOT23BC549C2C MMBTA70Mot N SOT23MPSA702C-BC849CW Phi N SOT323BC549C2Cp BC849C Phi N SOT23BC549C2CR BC849CR Phi R SOT23R BC549C2Cs BC849C Sie N SOT23BC549C2Cs BC849CW Sie N SOT323BC549C2Ct BC849C Phi N SOT23BC549C2Ct BC849CW Phi N SOT323BC549C2CZ FMMTA70Zet N SOT23MPSA702D MMBTA92Mot N SOT23MPSA92pnp Vce300V 2E MMBTA93Mot N SOT23MPSA93pnp Vce200V 2E FMMT-A93Zet N SOT23MPSA932F BC850B ITT N SOT23BC550B2F FMMT2907A Zet N SOT232N2907A2F MMBT2907A Mot N SOT23MPS2907A2F MMBT2907AW Mot N SOT323MPS2907A2F-BC850BW Phi N SOT323BC550B2Fp BC850B Phi N SOT23BC550B2FR BC850BR Phi R SOT23R BC550B2Fs BC850B Sie N SOT23BC550B2Fs BC850BW Sie N SOT323BC550B2Ft BC850B Phi N SOT23BC550B2Ft BC850BW Phi N SOT323BC550B2G BC850C ITT N SOT23BC550C2G FMMT-A56Zet N SOT23MPSA562G MMBTA56Mot N SOT23MPSA562G-BC850CW Phi N SOT323BC550C2GM MMBTA56Mot N SOT23MPSA562Gp BC850C Phi N SOT23BC550C2GR BC850CR Phi R SOT23R BC550C2Gs BC850C Sie N SOT23BC550C2Gt BC850C Phi N SOT323BC550C2Gt BC850CW Phi N SOT323BC550C2GT SOA56SGS N SOT23MPSA562H FMMT-A55Zet N SOT23MPSA552H MMBTA55Mot N SOT23MPSA552HT SOA55SGS N SOT23MPSA552J MMBT3640Mot N SOT23MPS3640pnp sw2K FMMT4402Zet N SOT232N44022K MMBT8598Mot N-2N4125pnp60V2L MMBT5401Mot N SOT232N5401pnp150V2L FMMT4403Zet N SOT232N44032M FMMT5087Zet N SOT232N50872M MMBT404Mot N SOT23pnp-chopper24V150mA2N MMBT404A Mot N SOT23pnp-chopper35V150mA2N0ZXT11N20DF Zet N SOT23npn20V2.5A low sat switch2P FMMT2222R Zet R SOT23R2N22222P MMBT5086Mot N SOT232N50862Q MMBT5087Mot N SOT232N50872R HSMS-8102HP Z SOT2310-14GHz schottky mixer pair2T SO4403SGS N SOT232N44032T MMBT4403Mot N SOT232N44032T HT2Zet N SOT23pnp80V100mA2U MMBTA63Mot N SOT23MPSA63darlington2V MMBTA64Mot N SOT23MPSA64darlington2V4PZM2.4NB Phi C SOT3462.4V300mW Zener2V7PZM2.7NB Phi C SOT3462.7V300mW Zener2W FMMT3905Zet N SOT232N39052W MMBT8599Mot N-2N4125Vce80V pnp2X SO4401SGS N SOT232N44012X MMBT4401Mot N SOT232N44012Y4BZV49-C2V4Phi O SOT892.4V1W zener2Y7BZV49-C2V7Phi O SOT892.7V1W zener2Z MMBT6520Mot N SOT232N6520pnp Vce350V2Z BAS70-04Zet D SOT23dual series RF schottky70V15mA 2Z5BAS70-05Zet B SOT23dual cc RF Schottky70V15mA 30V PZM30NB1Phi C SOT34630V300mW zener30Y BZV49-C30Phi O SOT8930V1W zener33V PZM33NB1Phi C SOT34633300mW zener33Y BZV49-C33Phi O SOT8933V1W zener36V PZM36NB1Phi C SOT34636V300mW Zener36Y BZV49-C36Phi O SOT8936V1W zener39V PZM39NB1Phi C SOT34639V300mW Zener39Y BZV49-C39Phi O SOT8939V1W zener3A BC856A ITT N SOT23BC556A3A BC856AT Phi N SOT416BC556A3A MMBTH24Mot N SOT23VHF mixer npn fT600MHz 3A-BC856AW Phi N SOT323BC556A3A0PZM3.0NB2A Phi C SOT346dual3.0V Zener3A3PZM3.3NB2A Phi C SOT346dual3.3V Zener3A6PZM3.6NB2A Phi C SOT346dual3.6V Zener3A9PZM3.9NB2A Phi C SOT346dual3.9V Zener3Ap BC856A Phi N SOT23BC556A3AR BC856AR Phi R SOT23R BC556A3As BC856A Sie N SOT23BC556A3At BC856A Phi N SOT23BC556A3At BC856AW Phi N SOT323BC556A3B BC856B ITT N SOT23BC556B3B BC856BT Phi N SOT416BC556B3B FMMT918Zet N SOT232N9183B MMBT918Mot N SOT232N9183B-BC856BW Phi N SOT323BC556B3Bp BC856B Phi N SOT23BC556B3BR BC856BR Phi R SOT23BC556B3Bs BC856B Sie N SOT23BC556B3Bt BC856B Phi N SOT23BC556B。

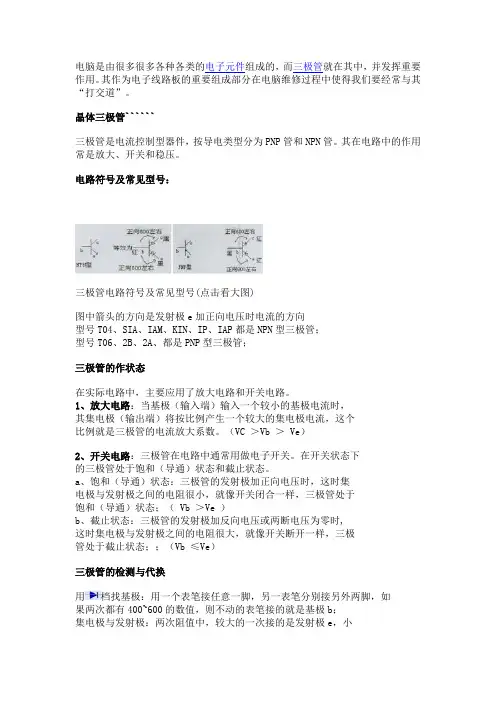

电脑是由很多很多各种各类的电子元件组成的，而三极管就在其中，并发挥重要作用。

其作为电子线路板的重要组成部分在电脑维修过程中使得我们要经常与其“打交道”。

晶体三极管``````三极管是电流控制型器件，按导电类型分为PNP管和NPN管。

其在电路中的作用常是放大、开关和稳压。

电路符号及常见型号：三极管电路符号及常见型号(点击看大图)图中箭头的方向是发射极e加正向电压时电流的方向型号T04、SIA、IAM、KIN、IP、IAP都是NPN型三极管；型号T06、2B、2A、都是PNP型三极管；三极管的作状态在实际电路中，主要应用了放大电路和开关电路。

1、放大电路：当基极（输入端）输入一个较小的基极电流时，其集电极（输出端）将按比例产生一个较大的集电极电流，这个比例就是三极管的电流放大系数。

（VC ＞Vb ＞ Ve）2、开关电路：三极管在电路中通常用做电子开关。

在开关状态下的三极管处于饱和（导通）状态和截止状态。

a、饱和（导通）状态：三极管的发射极加正向电压时，这时集电极与发射极之间的电阻很小，就像开关闭合一样，三极管处于饱和（导通）状态；（ Vb ＞Ve ）b、截止状态：三极管的发射极加反向电压或两断电压为零时,这时集电极与发射极之间的电阻很大，就像开关断开一样，三极管处于截止状态；；（Vb ≤Ve）三极管的检测与代换用档找基极：用一个表笔接任意一脚，另一表笔分别接另外两脚，如果两次都有400~600的数值，则不动的表笔接的就是基极b；集电极与发射极：两次阻值中，较大的一次接的是发射极e，小的一次是集电极c；红表笔接基极b，能测出两组数值的是NPN管；黑表笔接基极b，能测出两组数值的是PNP管；注意：在路测量时，无论表笔怎么接，所测阻值不能为0或1（∞）。

贴片三极管上的印字，与真实名称的对照表2印字器件厂商类型封装器件用途及参数A MRF947Mot N SOT323npn RF8GHzA BA892Sie I SCD8035V100mA pinA1SS355Roh I USM100V50mA swA0HSMS-2800HP C SOT23HP2800schottkyA0HSMS-280B HP C SOT323HP2800schottkyA03VAM-03MC AQ-modamp MAR3SimilarA06VAM-06MC AQ-modamp MAR6SimilarA07VAM-07MC AQ-modamp MAR7SimilarA1HSMS-2801HP K-HP2800schottkyA1BAW56W Phi A SOT323dual ca BAW62(1N4148)A1BAW56Phi A SOT23dual ca BAW62(1N4148)A1BAW56Phi A SOT23dual ca BAW62(1N4148)A11MMBD1501A Fch C SOT23180V200mA diodeA13MMBD1503A Fch D SOT23180V200mA dual diode series A14MMBD1504A Fch B SOT23180V200mA dual diode ccA15MMBD1505A Fch A SOT23180V200mA dual diode caA16ZC934A Zet C SOT2325-95pF hyperabrupt varicapA17ZC933A Zet C SOT2312-42pF hyperabrupt varicapA1p BAW56Phi A SOT23dual ca BAW62(1N4148)A1s BAW56W Sie A SOT323dual ca BAW62(1N4148)A1s BAW56Sie A SOT23dual ca BAW62(1N4148)A1s BAW56U Sie A SC74dual ca BAW62(1N4148)A1t BAW56T Phi A SOT416dual ca BAW62(1N4148)A1t BAW56S Phi SOT363dual ca BAW62(1N4148)A1X MBAW56Mot A-dittoA2HSMS-2802HP D SOT23dual HP2800A2HSMS-280C HP D SOT323dual HP2800A2BAT18Phi C SOT23BA482A2MMBD2836Mot A SOT23dual ca sw diode75VA2CFY30Sie CQ SOT143n-ch GaAsfet6GHzA2MBT3906DW1Mot DO SOT363dual2N3906A22BAS21Phi C SOD27BAV21A2s BAT18Sie C SOT23BA482A2X MMBD2836Mot A SOT23dual ca sw75V100mA15ns A3BAP64-03Phi I SOD3233GHz pin diodeA3HSMS-2803HP D SOT23HP2800ser pairA3MMBD1005Mot A SOT23dual ca Si diode low leakage A3BAS16Zet C-Si sw75V100mAA3BAT17Phi C SOT23BA481A3MBT3906DW Mot N SOT363dual2N3906A3p BAT17Phi C SOT23BA481A3t BAT17Phi C SOT23BA481A3X MMBD2835Mot A SOT23dual ca sw35V100mA15nS A4HSMS-2804HP B SOT23dual cc HP2800schottkyA4BAV70W Phi B SOT323dual cc BAW62A4p BAV70Phi B SOT23dual cc BAW62A4s BAV70W Sie B SOT323dual cc BAW62A4s BAV70Sie B SOT23dual cc BAW62A4s BAV70T Sie B SOT416dual cc BAW62A4s BAV70U Sie B SC74dual cc BAW62A4t BAV70Phi B SOT23dual cc BAW62A4t BAV70Phi B SOT363dual cc BAW62A4X MBAV70Mot B-dittoA5BAP51-03Phi I SOD323GP RF pin diodeA5HSMS-2805HP S SOT143dual HP2800schottkyA5MMBD1010Mot B SOT23dual cc Si diodesA5MMBD2837Mot B SOT23dual cc diodes30V150mA A51BRY62Phi-SOT143-A5p BRY61Phi-SOT143-A5t BRY61Phi-SOT143-A6BAS16W Phi C SOT323BAW62(1N4148)A6BAS16T Phi C SOT416BAW62(1N4148)A6BAS216Phi I SOD110BAW62(1N4148)A6MMBD2836Mot B SOT23dual sw diode cc75VA6A MMUN2111Mot N SOT23pnp dtr10k+10kA6B MMUN2112Mot N SOT23pnp dtr22k+22kA6C MMUN2113Mot N SOT23pnp dtr47k+47kA6D MMUN2114Mot N SOT23pnp dtr100k+100kA6E MMUN2115Mot N SOT23pnp dtr R110kA6F MMUN2116Mot N SOT23pnp dtr R14k7A6G MMUN2130Mot N SOT23pnp dtr1k0+1k0A6J MMUN2132Mot N SOT23pnp dtr4k7+4k7A6K MMUN2133Mot N SOT23pnp dtr4k7+47kA6L MMUN2134Mot N SOT23pnp dtr22k+47kA6p BAS16Phi C SOT23BAW62(1N4148)A6p BAS316Phi I SOD323BAW62(1N4148)A6s BAS16W Sie C SOT323BAW62(1N4148)A6s BAS16Sie C SOT23BAW62(1N4148)A6s BAS16U Sie C SC74BAW62(1N4148)A6t BAS16Phi C SOT23BAW62(1N4148)A6X MMBD2838Mot B SOT23dual sw50V100mA A7BAV99W Phi D SOT323dual ser BAW92A7BAV99Phi D SOT23dual ser BAW92A7HSMS-2807HP RQ SOT143HP2800ring quad A7s BAV99Sie D SOT23dual ser BAW92A7s BAV99W Sie D SOT323dual ser BAW92A7s BAV99T Sie D SC75dual ser BAW92A7s BAV99U Sie D SC74dual ser BAW92A8HSMS-2808HP BQ SOT143HP2800bridge quad A8BAP50-03Phi I SOD323GP RF pin diodeA8BAS19Phi C SOT23BAV19A8SI2308DS Sil M SOT23"N-ch mosfet,60V0.1A" A81BAS20Phi C SOT23BAV20A82BAS21Phi C SOT23BAV21A8A MMUN2211Mot N SOT23npn dtr10k+10kA8C MMUN2213Mot N SOT23npn dtr47k+47kA8D MMUN2214Mot N SOT23npn dtr100k+100kA8E MMUN2215Mot N SOT23npn dtr R110kA8F MMUN2216Mot N SOT23npn dtr R14k7A8G MMUN2230Mot N SOT23npn dtr1k0+1k0A8H MMUN2231Mot N SOT23npn dtr2k2+2k2A8J MMUN2232Mot N SOT23npn dtr4k7+4k7A8K MMUN2233Mot N SOT23npn dtr4k7+47kA8L MMUN2234Mot N SOT23npn dtr22k+47kA9SI2309DS Sil M SOT23"P-ch mosfet,60V0.1A"A91BAS17Phi C SOT23BA314AA BCX51Sie P SOT89pnp45V audio comp BCX54AA BCW60A TT N SOT23BCY58-viiAA ZMV829A Zet I SOD323varicap hyperabrupt28V8.2pF@2VAAA MMBF4856Mot F SOT232N4856n-ch chopper jfetAAAA MAX809LXR MAX ZB SOT23microproc-ve reset gen5.0VAAAX MAX2470MAX DT SOT23-6VCO Buffer AmplifiersAAAY MAX2471MAX DT SOT23-6VCO Buffer AmplifiersAAG MMBR951AL Mot N SOT23npn RF8GHzAAH MAX6326_R22-T Max ZB SC70microproc-ve reset gen2.200VAAI MAX6327_R22-T Max ZB SC70microproc+ve reset gen2.200VAAJ MAX6328_R22-T Max ZB SC70microproc-ve reset gen2.200VAAK MAX6410BS33-T Max UC4UCSP-4"Volt.Detect.(3.300V/Push-Pull,Active-High)"AAL MAX6410BS34-T Max UC4UCSP-4"Volt.Detect.(3.400V/Push-Pull,Active-High)"AAM MAX6410BS35-T Max UC4UCSP-4"Volt.Detect.(3.500V/Push-Pull,Active-High)"AAN MAX6410BS36-T Max UC4UCSP-4"Volt.Detect.(3.600V/Push-Pull,Active-High)"AAN MAX809LXR Max ZB SC70microproc-ve reset gen5.0VAAO MAX6410BS37-T Max UC4UCSP-4"Volt.Detect.(3.700V/Push-Pull,Active-High)"AAO MAX809MXR Max ZB SC70microproc-ve reset gen5.0VAAP MAX6410BS38-T Max UC4UCSP-4"Volt.Detect.(3.800V/Push-Pull,Active-High)"AAP MAX809TXR Max ZB SC70microproc-ve reset gen3.3VAAQ MAX6410BS39-T Max UC4UCSP-4"Volt.Detect.(3.900V/Push-Pull,Active-High)"AAQ MAX809SXR Max ZB SC70microproc-ve reset gen3.3VAAR MAX6410BS40-T Max UC4UCSP-4"Volt.Detect.(4.000V/Push-Pull,Active-High)"AAR MAX809RXR Max ZB SC70microproc-ve reset gen3.0VAAs BCW60A Sie N SOT23BCY58-viiAAS MAX6410BS41-T Max UC4UCSP-4"Volt.Detect.(4.100V/Push-Pull,Active-High)"AAS MAX803ZXR Max ZB SC70microproc-ve reset gen2.5VAAT MAX6410BS42-T Max UC4UCSP-4"Volt.Detect.(4.200V/Push-Pull,Active-High)"AAT MAX810LXR Max ZB SC70microproc+ve reset gen5.0VAAU MAX6410BS43-T Max UC4UCSP-4"Volt.Detect.(4.300V/Push-Pull,Active-High)"AAU MAX810MXR Max ZB SC70microproc+-ve reset gen5.0VAAV MAX6410BS44-T Max UC4UCSP-4"Volt.Detect.(4.380V/Push-Pull,Active-High)"AAV MAX810TXR Max ZB SC70microproc+ve reset gen3.3VAAW MAX6410BS45-T Max UC4UCSP-4"Volt.Detect.(4.500V/Push-Pull,Active-High)"AAW MAX810RXR Max ZB SC70microproc+ve reset gen3.0VAAX MAX6410BS46-T Max UC4UCSP-4"Volt.Detect.(4.630V/Push-Pull,Active-High)"AAX MAX810SXR Max ZB SC70microproc+ve reset gen3.3VAAY MAX6411BS33-T Max UC4UCSP-4"Volt.Detect.(3.300V/Open Drain,Active-Low)"AAY MAX810ZXR Max ZB SC70microproc+ve reset gen2.5VAAZ MAX6411BS34-T Max UC4UCSP-4"Volt.Detect.(3.400V/Open Drain,Active-Low)"AAZ MAX803LXR Max ZB SC70microproc-ve reset gen5.0VAB BCW60B ITT N SOT23BCY58-viiiAB ZMV830A Zet I SOD323varicap hyperabrupt28V10pF@2VABA MAX6411BS35-T Max UC4UCSP-4"Volt.Detect.(3.500V/Open Drain,Active-Low)"ABA MAX803TXR Max ZB SC70microproc-ve reset gen5.0VABAA MAX809MXR Max ZB SOT23microproc-ve reset gen5.0VABB MAX803MXR Max ZB SC70microproc-ve reset gen3.3VABC MAX6411BS37-T Max UC4UCSP-4"Volt.Detect.(3.700V/Open Drain,Active-Low)"ABC MAX803SXR Max ZB SC70microproc-ve reset gen3.3VABD MAX6411BS38-T Max UC4UCSP-4"Volt.Detect.(3.800V/Open Drain,Active-Low)"ABD MAX803RXR Max ZB SC70microproc-ve reset gen3.0VABE MAX6411BS39-T Max UC4UCSP-4"Volt.Detect.(3.900V/Open Drain,Active-Low)"ABE MAX803ZXR Max ZB SC70microproc-ve reset gen2.5VABF MAX6411BS40-T Max UC4UCSP-4"Volt.Detect.(4.000V/Open Drain,Active-Low)"ABF LM4041AIX3-1.2Max L SC701.225V0.1%shunt V refABG MAX6411BS41-T Max UC4UCSP-4"Volt.Detect.(4.100V/Open Drain,Active-Low)"ABG LM4041BIX3-1.2Max L SC701.225V0.2%shunt V refABH MAX6411BS42-T Max UC4UCSP-4"Volt.Detect.(4.200V/Open Drain,Active-Low)"ABH LM4041DIX3-1.2Max L SC701.225V0.5%shunt V refABI MAX6411BS43-T Max UC4UCSP-4"Volt.Detect.(4.300V/Open Drain,Active-Low)" ABI LM4041DIX3-1.2Max L SC701.225V1.5%shunt V refABJ MAX6411BS44-T Max UC4UCSP-4"Volt.Detect.(4.380V/Open Drain,Active-Low)" ABJ LM4040AIX3-2.1Max L SC702.048V0.1%shunt V refABK LM4040BIX3-2.1Max L SC702.048V0.2%shunt V refABL MAX6411BS46-T Max UC4UCSP-4"Volt.Detect.(4.640V/Open Drain,Active-Low)" ABL LM4040CIX3-2.1Max L SC702.048V0.5%shunt V refABM LM4040DIX3-2.1Max L SC702.048V1%shunt V refABN LM4040AIX3-2.5Max L SC702.5001%shunt V refABO LM4040BIX3-2.5Max L SC702.500V0.2%shunt V refABp BCW60B Phi N SOT23BCY58-viiiABP LM4040CIX3-2.5Max L SC702.500V0.5%shunt V refABQ LM4040DIX3-2.5Max L SC702.500V1%shunt V refABR LM4040AIX3-3.0Max L SC703.000V0.1%shunt V refABs BCW60B Sie N SOT23BCY58-viiiABS LM4040BIX3-3.0Max L SC703.000V0.2%shunt V refABt BCW60B Phi N SOT23BCY58-viiiABT LM4040CIX3-3.0Max L SC703.000V0.5%shunt V refABU LM4040DIX3-3.0Max L SC703.000V1%shunt V refABV LM4040AIX3-4.1Max L SC704.096V0.1%shunt V refABW LM4040BIX3-4.1Max L SC704.096V0.2%shunt V refABX LM4040CIX3-4.1Max L SC704.096V0.5%shunt V refABY LM4040DIX3-4.1Max L SC704.096V1%shunt V refABZ LM4040AIX3-5.0Max L SC705.000V0.1%shunt V refAC BCX51-100Sie P SOT8945V pnp audio hfe100AC BCX51-10Phi P SOT8945V pnp audio hfe100AC BCW60C Phi N SOT23BCY58-ixAC ZMV831A Zet I SOD323varicap hyperabrupt28V15pF@2VACA LM4040BIX3-5.0Max L SC705.000V0.2%shunt V refACAA MAX809TXR Max ZB SOT23microproc-ve reset gen3.3V ACB LM4040CIX3-5.0Max L SC705.000V0.5%shunt V refACC LM4040DIX3-5.0Max L SC705.000V1%shunt V refACE MAX6326_R31-T Max ZB SC70microproc-ve reset gen3.080V ACF MAX6347_R46-T Max ZB SC70microproc+ve reset gen4.630V ACH MAX6326_R23-T Max ZB SC70microproc-ve reset gen2.320V ACI MAX6326_R26-T Max ZB SC70microproc-ve reset gen2.630V ACJ MAX6328_R26-T Max ZB SC70microproc-ve reset gen2.630V ACK MAX6346_R44-T Max ZB SC70microproc-ve reset gen4.380V ACL MAX6347_R44-T Max ZB SC70microproc+ve reset gen4.380V ACM MAX6348_R46-T Max ZB SC70microproc-ve reset gen4.630V ACN MAX6348_R44-T Max ZB SC70microproc-ve reset gen4.380V ACO MAX6346_R46-T Max ZB SC70microproc-ve reset gen4.630V ACp BCW60C Phi N SOT23BCY58-ixACP MAX6326_R29-T Max ZB SC70microproc-ve reset gen2.930V ACQ MAX6327_R23-T Max ZB SC70microproc+ve reset gen2.320V ACR MAX6327_R26-T Max ZB SC70microproc+ve reset gen2.630V ACs BCW60C Sie N SOT23BCY58-ixACS MAX6327_R29-T Max ZB SC70microproc+ve reset gen2.930V ACt BCW60C Phi N SOT23BCY58-ixACT MAX6327_R31-T Max ZB SC70microproc+ve reset gen3.080V ACU MAX6328_R23-T Max ZB SC70microproc-ve reset gen2.320V ACV MAX6328_R29-T Max ZB SC70microproc-ve reset gen2.930VACW MAX6326_R31-T Max ZB SC70microproc-ve reset gen3.080VAD BCX51-160Sie P SOT8945V pnp audio hfe160AD BCX51-16Phi P SOT8945V pnp audio hfe160AD BCW60D Phi N SOT23BCY58-xAD ZMV832A Zet I SOD323varicap hyperabrupt28V22pF@2VADAA MAX809SXR Max ZB SOT23microproc-ve reset gen3.3VADN2SC3838K Roh N-npn11V3.2GHz TV tunersADp BCW60D Phi N SOT23BCY58-xADs BCW60D Sie N SOT23BCY58-xADt BCW60D Ph N SOT23BCY58-xADW MAX6406BS22-T Max UC4UCSP-4"Volt.Detect.(2.200V/Push-Pull,Active-Low)"ADX MAX6406BS23-T Max UC4UCSP-4"Volt.Detect.(2.320V/Push-Pull,Active-Low)"ADY MAX6406BS24-T Max UC4UCSP-4"Volt.Detect.(2.400V/Push-Pull,Active-Low)" ADZ MAX6406BS25-T Max UC4UCSP-4"Volt.Detect.(2.500V/Push-Pull,Active-Low)"AE BCX52Sie P SOT89pnp60V audio comp BCX55AE ZMV833A Zet I SOD323varicap hyperabrupt28V33pF@2VAEA MAX6406BS26-T MAX UC4UCSP-4"Volt.Detect.(2.630V/Push-Pull,Active-Low)"AEB MAX6406BS27-T MAX UC4UCSP-4"Volt.Detect.(2.700V/Push-Pull,Active-Low)"AEC MAX6406BS28-T MAX UC4UCSP-4"Volt.Detect.(2.800V/Push-Pull,Active-Low)"AED MAX6406BS29-T MAX UC4UCSP-4"Volt.Detect.(2.930V/Push-Pull,Active-Low)"AEE MAX6406BS30-T MAX UC4UCSP-4"Volt.Detect.(3.000V/Push-Pull,Active-Low)"AEF MAX6406BS31-T MAX UC4UCSP-4"Volt.Detect.(3.080V/Push-Pull,Active-Low)"AEG MAX6407BS22-T MAX UC4UCSP-4"Volt.Detect.(2.200V/Push-Pull,Active-High)"AEH MAX6407BS23-T MAX UC4UCSP-4"Volt.Detect.(2.300V/Push-Pull,Active-High)"AEI MAX6407BS24-T MAX UC4UCSP-4"Volt.Detect.(2.400V/Push-Pull,Active-High)"AEJ MAX6407BS25-T MAX UC4UCSP-4"Volt.Detect.(2.500V/Push-Pull,Active-High)"AEK MAX6407BS26-T MAX UC4UCSP-4"Volt.Detect.(2.630V/Push-Pull,Active-High)"AEL MAX6407BS27-T MAX UC4UCSP-4"Volt.Detect.(2.700V/Push-Pull,Active-High)"AEM MAX6407BS28-T MAX UC4UCSP-4"Volt.Detect.(2.800V/Push-Pull,Active-High)"AEN MAX6407BS29-T MAX UC4UCSP-4"Volt.Detect.(2.930V/Push-Pull,Active-High)"AEN2SC3839K Roh N-npn20V2.0GHz TV tunersAEO MAX6407BS30-T Max UC4UCSP-4"Volt.Detect.(3.000V/Push-Pull,Active-High)"AEP MAX6407BS31-T Max UC4UCSP-4"Volt.Detect.(3.000V/Push-Pull,Active-High)"AEQ MAX6408BS22-T Max UC4UCSP-4"Volt.Detect.(2.200V/OpenDrain,Active-Low)"AER MAX6408BS23-T Max UC4UCSP-4"Volt.Detect.(2.320V/OpenDrain,Active-Low)"AES MAX6408BS24-T Max UC4UCSP-4"Volt.Detect.(2.400V/Open Drain,Active-Low)" AET MAX6408BS25-T Max UC4UCSP-4"Volt.Detect.(2.500V/Open Drain,Active-Low)"AEU MAX6408BS26-T Max UC4UCSP-4"Volt.Detect.(2.630V/OpenDrain,Active-Low)"AEV MAX6408BS27-T Max UC4UCSP-4"Volt.Detect.(2.700V/Open Drain,Active-Low)"AEW MAX6138AEXR12-T Max L SC70-3Shunt Voltage Ref.(output1.2205V/0.1%) AEW MAX6408BS28-T Max UC4SC70-3"Volt.Detect.(2.800V/Open Drain,Active-Low)"AEX MAX6138BEXR12-T Max L SC70-3Shunt Voltage Ref.(output1.2205V/0.2%) AEX MAX6408BS29-T Max UC4UCSP-4"Volt.Detect.(2.930V/Open Drain,Active-Low)"AEY MAX6138CEXR12-T Max L SC70-3Shunt Voltage Ref.(output1.2205V/0.5%) AEY MAX6408BS30-T Max UC4UCSP-4"Volt.Detect.(3.000V/Open Drain,Active-Low)"AEZ MAX6408BS31-T Max UC4UCSP-4"Volt.Detect.(3.080V/Open Drain,Active-Low)"AF ZMV834A Zet I SOD323varicap hyperabrupt28V47pF@2VAFA MAX6138AEXR21-T Max L SC70-3Shunt Voltage Ref.(output2.0480V/0.1%) AFA MAX6409BS33-T Max-UCSP-4"Volt.Detect.(3.300V/Push-Pull,Active-Low)" AFAA MAX809RXR Max ZB SOT23microproc-ve reset gen3.0VAFB MAX6138BEXR21-T Max L SC70-3Shunt Voltage Ref.(output2.0480V/0.2%) AFB MAX6409BS34-T Max UC4UCSP-4"Volt.Detect.(3.400V/Push-Pull,Active-Low)"AFC MAX6138CEXR21-T Max L SC70-3Shunt Voltage Ref.(output2.0480V/0.5%) AFC MAX6409BS35-T Max UC4UCSP-4"Volt.Detect.(3.500V/Push-Pull,Active-Low)"AFD MAX6409BS36-T Max UC4UCSP-4"Volt.Detect.(3.600V/Push-Pull,Active-Low)"AFE MAX6138AEXR25-T Max L SC70-3Shunt Voltage Ref.(output2.5000V/0.1%) AFE MAX6409BS37-T Max UC4UCSP-4"Volt.Detect.(3.700V/Push-Pull,Active-Low)"AFF MAX6138BEXR25-T Max L SC70-3Shunt Voltage Ref.(output2.5000V/0.2%) AFF MAX6409BS38-T Max UC4UCSP-4"Volt.Detect.(3.800V/Push-Pull,Active-Low)"AFG MAX6138CEXR25-T Max L SC70-3Shunt Voltage Ref.(output2.5000V/0.5%) AFG MAX6409BS39-T Max UC4UCSP-4"Volt.Detect.(3.900V/Push-Pull,Active-Low)"AFH MAX6409BS40-T Max UC4UCSP-4"Volt.Detect.(4.000V/Push-Pull,Active-Low)"AFI MAX6138AEXR30-T Max L SC70-3Shunt Voltage Ref.(output3.0000V/0.1%)AFI MAX6409BS41-T Max UC4UCSP-4"Volt.Detect.(4.100V/Push-Pull,Active-Low)" AFJ MAX6138BEXR30-T Max L SC70-3Shunt Voltage Ref.(output3.0000V/0.2%) AFJ MAX6409BS42-T Max UC4UCSP-4"Volt.Detect.(4.200V/Push-Pull,Active-Low)" AFK MAX6138CEXR30-T Max L SC70-3Shunt Voltage Ref.(output3.0000V/0.5%) AFK MAX6409BS43-T Max UC4UCSP-4"Volt.Detect.(4.300V/Push-Pull,Active-Low)"AFL MAX6409BS44-T Max UC4UCSP-4"Volt.Detect.(4.380V/Push-Pull,Active-Low)" AFM MAX6138AEXR41-T Max L SC70-3Shunt Voltage Ref.(output4.0960V/0.1%) AFM MAX6409BS45-T Max UC4UCSP-4"Volt.Detect.(4.500V/Push-Pull,Active-Low)"AFN MAX6138BEXR41-T Max L SC70-3Shunt Voltage Ref.(output4.0960V/0.2%) AFN MAX6409BS46-T Max UC4UCSP-4"Volt.Detect.(4.630V/Push-Pull,Active-Low)"AFO MAX6138CEXR41-T Max L SC70-3Shunt Voltage Ref.(output4.0960V/0.5%) AFQ MAX6138AEXR50-T Max L SC70-3Shunt Voltage Ref.(output5.0000V/0.1%) AFR MAX6138BEXR50-T Max L SC70-3Shunt Voltage Ref.(output5.0000V/0.2%) AFs BCW60FF Sie N SOT23BCY58AFS MAX6138CEXR50-T Max L SC70-3Shunt Voltage Ref.(output5.0000V/0.5%) AG ZMV835A Zet I SOD323varicap hyperabrupt28V68pF@2VAG BCX70G Phi N SOT23BCY59-vii BC107AG BCX52-10Sie P SOT8960V pnp BCX52hfe100AGAA MAX810LXR Max ZB SOT23microproc+ve reset gen5.0VAGp BCX70G Phi N SOT23BCY59-vii BC107AGs BCX70G Sie N SOT23BCY59-vii BC107AGt BCX70G Phi N SOT23BCY59-vii BC107AH BCX70H Phi N SOT23BCY59-viii BC107BAH BCP53Mot P SOT223pnp amp80V150mAAH BCX53Sie P SOT89pnp80V audio comp BCX56AH ZMV930Zet I SOD3232.9-8.3pF hyperabrupt varicapAHAA MAX810MXR Max ZB SOT23microproc+-ve reset gen5.0V AHp BCX70H Phi N SOT23BCY59-viii BC107BAHs BCX70H Sie N SOT23BCY59-viii BC107BAHt BCX70H Phi N SOT23BCY59-viii BC107BAJ BCX70J Phi N SOT23BCY59-ix BC107AJ ZMV931Zet I SOD3234-13.5pF hyperabrupt varicapAJ s BCX70J Sie N SOT23BCY59-ix BC107AJAA MAX810TXR MAX ZB SOT23microproc+ve reset gen3.3V AJp BCX70J Phi N SOT23BCY59-ix BC107AJt BCX70J Phi N SOT23BCY59-ix BC107AK BCX70K Phi N SOT23BCY59-x BC107AK ZMV932Zet I SOD3235.5-17pF hyperabrupt varicapAK BCX53-10Sie P SOT89pnp80V BCX53hfe100AKAA MAX810SXR MAX ZB SOT23microproc+ve reset gen3.3V AKp BCX70K Phi N SOT23BCY59-x BC107AKp BCX70K Phi N SOT23BCY59-x BC107AKs BCX70K Sie N SOT23BCY59-x BC107AL BCX53-16Sie P SOT8980V pnp BCX53hfe100AL MMBTA55L Mot N SOT23pnp25V(MPSA55)AL ZMV933Zet I SOD32312-42pF hyperabrupt varicapALAA MAX810SXR MAX ZB SOT23microproc+ve reset gen3.0VALs BFP405Sie MQ SOT343-AM MMBT3904W Mot N SOT3232N3904AM BCX52-16Sie P SOT89pnp60V BCX52hfe160AM BSS64Mot N SOT23npn80V0.1A fT60MHzAM ZMV933A Zet I SOD32312-42pF hyperabrupt varicapAMp BSS64Phi N SOT23npn80V0.1A fT60MHzAMs BFP420Sie MQ SOT343npn fT25GHz4.5V35mAAMs BSS64Sie N SOT23npn80V0.1A fT60MHzAMt BSS64Phi N SOT23npn80V0.1A fT60MHzAN BCW60FN Sie N SOT23gp npn35V0.2AAN ZMV934Zet I SOD32325-95pF hyperabrupt varicapANs BFP450Sie MQ SOT343npn fT25GHz4.5V100mAAO BCW60AR ITT R SOT23R BCY58-viiAO ZMV934A Zet I SOD32325-95pF hyperabrupt varicapAP BCW60BR ITT R SOT23R BCY58-viiiAPs BFP520Sie MQ SOT343npn fT40GHz2.5V40mAA-Q2PD1820AQ Phi N SOT323gp sw amp50V npn hfe85-170 A-Q2PD1820AR Phi N SOT323gp sw amp50V npn hfe120-240 AR BCW60CR ITT R SOT23R BCY58-ixAR MSD709R Mot N-pnp gp25VAR1BSR40Phi P SOT89npn70V1A1.35W hfe40-120AR2BSR41Phi P SOT89npn70V1A1.35W hfe100-300AR3BSR42Phi P SOT89npn90V1A1.35W hfe40-120AR4BSR43Phi P SOT89npn90V1A1.35W hfe100-300AS BCW60DR ITT R SOT23R BCY58-xAS MSD709S Mot N-pnp gp25VA-S2PD1820AS Phi N SOT323gp sw amp50V npn hfe170-340 AS1BST50Mot P SOT89npn darlington0.5A60VAS2BST51Mot P SOT89npn darlington0.5A80VAS3BST52Mot P SOT89npn darlington0.5A90VAS3BSP52Mot P SOT223npn darlington0.5A hfe2000ASs BAT18-05Sie B SOT23dual BAT18RF pinAtQ2PD1820AQ Phi N SOT323gp sw amp50V npn hfe85-170 AtQ2PD1820AR Phi N SOT323gp sw amp50V npn hfe120-240 AtS2PD1820AS Phi N SOT323gp sw amp50V npn hfe170-340 ATs BAT18-06Sie A SOT23dual ca BAT18RF pinATs BFP540Sie MQ SOT343npn microwaveAU BCW60GR ITT R SOT23R BCY58AUs BAT18-04Sie D SOT23dual BAT18RF pinAV DAN212K Roh C-80V100mA swAW BCW60HR ITT R SOT23R BCY58AX BCX70JR ITT R SOT23R BCY59-ixAY BCX70KR ITT R SOT23R BCY59-xAY MMBD1000Mot C SOT23Si sw diode30V0.2AB MRF957Mot N SOT323npn RF fT9GHzB BAS16-03W Sie I SOD323Varicap18pF1VB BB555Sie I SCD80Varicap18pF1VB0BZX399C4V3Phi I SOD3234.3V0.3W zenerB0HSMS-2810HP C SOT23HP2810schottkyB0HSMS-281B HP C SOT323HP2810schottkyB08SST6908Sil ZQ-2N6908prot n-ch jfetB09SST6909Sil ZQ-2N6909prot n-ch jfetB1BZX399C1V8Phi I SOD3231.8V0.3W zenerB1HSMS-2811HP K SOT23HP2811schottkyB1BAS40Mot C SOT23schottky sw diodeB10SST6910Sil ZQ-2N6910prot n-ch jfetB2BZX399C2V0Phi I SOD3232.0V0.3W zenerB2BSV52Phi N SOT23BSX2012V fT400MHz swB2HSMS-2812HP D SOT23dual HP2810schottkyB2HSMS-281C HP D SOT323dual HP2810schottky B26BF570Phi SOT23-B2p BSV52Phi N SOT23BSX2012V fT400MHz sw B2t BSV52Phi N SOT23BSX2012V fT400MHz swB3BZX399C2V2Phi I SOD3232.2V0.3W zenerB3HSMS-2813HP A SOT23dual ca HP2810schottky B3MMBD717L Mot A SOT323dual ca schottkyB4BZX399C2V4Phi I SOD3232.4V0.3W zenerB4BSV52R Phi R SOT23R BSX20B4HSMS-2814HP B SOT23dual cc HP2810schottky B5BZX399C2V7Phi I SOD3232.7V0.3W zenerB5HSMS-2815HP S SOT143dual HP2810schottky B6BZX399C3V0Phi I SOD3233.0V0.3W zenerB6BAT54A Mot A SOT23dual ca30V schottkyB7BZX399C3V3Phi I SOD3233.3V0.3W zenerB7HSMS-2817HP RQ SOT143HP2810ring quadB8BZX399C3V6Phi I SOD3233.6V0.3W zenerB8HSMS-2818HP BQ SOT143HP2810bridge quadB9BZX399C3V9Phi I SOD3233.9V0.3W zenerB92SC4617Mot N SC90npn gpBA BCX54Sie P SOT89npn AF45V comp BCX51BA BCW61A Phi N SOT23BCY78-viiBA DAN217Roh D-80V100mA dualBA BZX399C4V7Phi I SOD3234.7V0.3W zenerBAp BCW61A Phi N SOT23BCY78-viiBAt BCW61A Phi N SOT23BCY78-viiBB BCW61B Phi N SOT23BCY78-viiiBB BAR81Sie NQ SOT143Dual pin shunt switchBB BZX399C5V1Phi I SOD3235.1V0.3W zenerBBp BCW61B Phi N SOT23BCY78-viiiBBs BCW61B Sie N SOT23BCY78-viiiBBs BAR81W Sie NQ SOT343Dual pin shunt switch BBt BCW61B Phi N SOT23BCY78-viiiBC BCW61C Phi N SOT23BCY78-ixBC BCX54-10Sie Phi P SOT89npn hfe100BC BZX399C5V6Phi I SOD3235.6V0.3W zenerBCp BCW61C Phi N SOT23BCY78-ixBCs BCW61C Sie N SOT23BCY78-ixBCt BCW61C Phi N SOT23BCY78-ixBD BCW61D Phi N SOT23BCY78-xBD BCX54-16Sie P SOT89npn hfe160comp BCX51-16BD BZX399C6V2Phi I SOD3236.2V0.3W zener BD ZHCS400Zet E SOT2340V0.4A schottky diode BDp BCW61D Phi N SOT23BCY78-xBDs BCW61D Sie N SOT23BCY78-xBDt BCW61D Phi N SOT23BCY78-xBE BAS70Mot C SOT23schottky sw diodeBE BCX55Sie P SOT89npn AF60V comp BCX52 BE BZX399C6V8Phi I SOD3236.8V0.3W zener BF BCW61FF Sie N SOT23low noise BCW61BF BZX399C7V5Phi I SOD3237.5V0.3W zener BG BCX71G Phi N SOT23BCY79-viiBG BCX55-10Sie Phi P SOT89npn hfe100BG BZX399C8V2Phi I SOD3238.2V0.3W zener BGp BCX71G Phi N SOT23BCY79-viiBGs BCX71G Sie N SOT23BCY79-viiBGt BCX71G Phi N SOT23BCY79-viiBH BCP56Mot P SOT223npn amp80V150mABH BCX56Sie P SOT89npn AF80VBH BZX399C9V1Phi I SOD3239.1V0.3W zener i BH BCX71H Phi N SOT23BCY79-viiiBHp BCX71H Phi N SOT23BCY79-viiiBHs BCX71H Sie N SOT23BCY79-viiiBHt BCX71H Phi N SOT23BCY79-viiiBJ BCX71J Phi N SOT23BCY79-ixBJ BZX399C10Phi I SOD32310V0.3W zenerBJp BCX71J Phi N SOT23BCY79-ixBJs BCX71J Sie N SOT23BCY79-ixBJt BCX71J Phi N SOT23BCY79-ixBK BCP56-10Mot P SOT223npn amp80V150mABK BCX71K Phi N SOT23BCY79BK BCX56-10Sie P SOT89npn hfe100BK BZX399C11Phi I SOD32311V0.3W zenerBKp BCX71K Phi N SOT23BCY79BKs BCX71K Sie N SOT23BCY79BKt BCX71K Phi N SOT23BCY79BL MBD54DW Mot DL SOT3632x schottky detector diodes BL BCP56-16Mot P SOT223npn amp80V150mABL BCX56-16Sie P SOT89npn hfe160BL BZX399C12Phi I SOD32312V0.3W zenerBL BGA310Sie GQ SOT143MMIC amp9dB@1GHzBLs BGA420Sie HQ SOT343MMIC amp13dB@1.8GHz BM BSS63L Mot N SOT23100v pnp comp BSS64BM BCX55-16Sie P SOT89npn hfe160BM BGA312Sie GQ SOT143MMIC amp11dB@1GHz BM BZX399C13Phi I SOD32313V0.3W zenerBMp BSS63Phi N SOT23100v pnp comp BSS64BMs BG427Sie HQ SOT343MMIC amp18dB@1.8GHz BMt BSS63Phi N SOT23100v pnp comp BSS64BN BZX399C15Phi I SOD32315V0.3W zenerBN BGA318Sie GQ SOT143MMIC amp16dB@1GHzBNs BCW61FN Sie N SOT23low noise BCW61BO BCW61AR Phi N SOT23"BCX78,BCY78-vii"BP BCW61BR Phi N SOT23BCY78-viiiBP BZX399C16Phi I SOD32316V0.3W zenerBQ BZX399C18Phi I SOD32318V0.3W zener in SOD323 BQ2PB709AQ Phi N SC-59PNP45V0.1A hfe160-260 BR BCW61CR Phi N SOT23BCY78-ixBR2SC2412K Roh N-npn50V150mA min hfe180BR2SC4081Roh N UMT2SC2412K aboveBR2SC4617Roh N EM32SC2412K aboveBR MSB1218A Mot N SOT323gp pnp45VBR BZX399C20Phi I SOD32320V0.3W zenerBR2PB709AR Phi N SC-59pnp45V0.1A hfe210-340BR1BSR30Phi P SOT89pnp70V1A1.35W hfe40-120 BR2BSR31Phi P SOT89pnp70V1A1.35W hfe100-300 BR4BSR33Phi P SOT89pnp90V1A1.35W hfe100-300 BS BCW61DR Phi R SOT23BCY78-xBS BZX399C22Phi I SOD32322V0.3W zenerBS2PB709AS Phi N SC-59pnp45V0.1A hfe290-460BS1BST60Mot P SOT89pnp darlington0.5A60VBS2BST61Mot P SOT89pnp darlington0.5A80VBS3BST62Mot P SOT89pnp darlington0.5A90VBS3BSP62Mot P SOT89pnp darlington0.5A hfe2000 BT BZX399C24Phi I SOD32324V0.3W zenerBT2BSP16Mot P SOT223pnp–300V1ABT2BST16Phi P SOT89pnp–300V1ABU BCX71GR Phi N SOT23BCX79-viiBU BZX399C27Phi I SOD32327V0.3W zenerBV BZX399C30Phi I SOD32330V0.3W zenerBW BCW71HR Phi N SOT23R BCX79-viiiBW BZX399C33Phi I SOD32333V0.3W zenerBX BCW71JR Phi N SOT23R BCX79-ixBX BZX399C36Phi I SOD32336V0.3W zenerBY BCW71KR Phi N SOT23R BCX79-xBY BZX399C39Phi I SOD32339V0.3W zenerBZ BZX399C43Phi I SOD32343V0.3W zenerC BB565Sie I SCD80uhf varicap2-20pFC KV1832E Tok I URD uhf varicap4-17pfC white BAT165Sie I-40V750mA sw SchottkyC0HSMS-2820HP C SOT23HP2835schottkyC0HSMS-282B HP C SOT323HP2835schottkyC1HSMS-2821HP K SOT23HP2835schottkyC1BCW29Phi N SOT23BC178AC1BFQ51C Phi CX SOT173pnp BFR90A complement C11SST111Sil F SOT23J111n-ch fetC12SST112Sil F SOT23J112n-ch fetC13SST113Sil F SOT23J113n-ch fetC1p BCW29Phi N SOT23BC178AC1t BCW29Phi N SOT23BC178AC2BCW30Phi N SOT23BC178BC2BFQ32C Phi CX SOT173pnp4.5GHz15V100mAC2HSMS-2822HP D SOT23dual HP2835schottkyC2HSMS-282C HP D SOT323dual HP2835schottkyC2SST112Tem F SOT23J112analog sw n-ch jfetC2A ZDC833A Zet B SOT23dual cc28V varicap15pF@2V C2p BCW30Phi N SOT23BC178BC2t BCW30Phi N SOT23BC178BC3HSMS-2823HP A SOT23dual HP2835schottkyC3BFQ23C Phi CX SOT173pnp complement BFP91AC3SMBT4126Sie N-2N4126C3SST113Tem F SOT23J113analog sw jfetC38SST5638Sil F SOT232N5638C39SST5639Sil F SOT232N5639C4BCW29R Phi R SOT23R BC178AC4HSMS-2824HP B SOT23dual HP2835schottkyC40SST5640Sil F SOT232N5640C41SST4091Sil F SOT232N4091C42SST4092Sil F SOT232N4092C43SST4093Sil F SOT232N4093C5MMBA811C5Mot N-2N5086pnp hfe135-270C5BCW30R Phi R SOT23R BC178BC5HSMS-2825HP S SOT143dual HP2835schottkyC56SST4856Sil F SOT232N4856C57SST4857Sil F SOT232N4857C58SST4858Sil F SOT232N4858C59SST4859Sil F SOT232N4859C5A ZDC834A Zet B SOT23dual cc28V varicap47pF@2VC6MMBA811C6Mot N-2N5086pnp hfe200-400C60SST4860Sil F SOT232N4860C61SST4861Sil F SOT232N4861C7MMBA811C7Mot N-2N5086pnp hfe300-600C7HSMS-2827HP RQ SOT143HP2835ring quadC8HSMS-2828HP BQ SOT143HP2835bridge quadC8BCF30SGS N SOT23BC559BC8MMBA811C8Mot N-2N5086pnp hfe450-900C91SST4391Sil F SOT232N4391C92SST4392Sil F SOT232N4392C93SST4393Sil F SOT232N4393CA BCW61AR Phi R SOT23R BCY78-viiCA BCP68Mot P SOT22320V1A npnCA ZMV829B Zet I SOD323varicap hyperab28V8.2pF@2V CB BCX68-10Sie P SOT89npn AF20V2A hfe100CB BCW61BR Phi R SOT23R BCY78-viiiCB ZMV830B Zet I SOD323varicap hyperabrupt28V10pF@2V CC BCW61CR Phi R SOT23R BCY78-ixCC BCX68-16Sie P SOT89npn AF20V2A hfe160CC ZMV831B Zet I SOD323varicap hyperabrupt28V15pF@2V CC ZMDC831B Zet B SOT323dual cc ZMV831B(above)CD BCW61DR Phi R SOT23R BCY78-xCD BCX68-25Sie P SOT89npn AF20V2A hfe250。

常用三极管型号参数资料三极管（transistor）是一种常用的电子器件，其具有放大和开关功能，广泛应用于各种电路中。

不同的三极管型号具有不同的参数特性，下面将介绍几种常用的三极管型号及其参数资料。

1.NPN型三极管NPN型三极管是最常用的三极管类型，其特点是基极（B）、集电极（C）、发射极（E）之间的电流是由发射极流出，通过基极控制集电极的电流放大倍数。

以下是几种常用的NPN型三极管型号及其参数资料：1.12N2222：最常用的NPN型三极管之一，其参数如下：-最大集电极电流：600mA-最大功耗：625mW-最大电压：40V-最小直流当前是比较重要的参数：150mA1.2BC547：另一种常用的NPN型三极管，其参数如下：-最大集电极电流：100mA-最大功耗：500mW-最大电压：45V-最小直流当前：100mA1.32N3904：也是常用的NPN型三极管之一，其参数如下：-最大集电极电流：200mA-最大电压：40V-最小直流当前：10mA2.PNP型三极管PNP型三极管与NPN型三极管相比，其基、发射、集电极的电流流动方向相反。

以下是几种常用的PNP型三极管型号及其参数资料：2.12N2907：即为PNP型三极管的常用型号，其参数如下：-最大集电极电流：800mA-最大功耗：625mW-最大电压：40V-最小直流当前：50mA2.2BC557：另一种常用的PNP型三极管，其参数如下：-最大集电极电流：100mA-最大功耗：500mW-最大电压：45V-最小直流当前：100mA2.32N3906：也是常用的PNP型三极管之一，其参数如下：-最大集电极电流：200mA-最大功耗：625mW-最小直流当前：10mA需要注意的是，不同厂家生产的同一型号三极管在参数上可能会有细微的差异，因此在具体应用中应根据实际情况进行选用。

此外，三极管的参数还与工作温度、频率等因素有关，不同应用场景下的参数要求也可能有所不同。

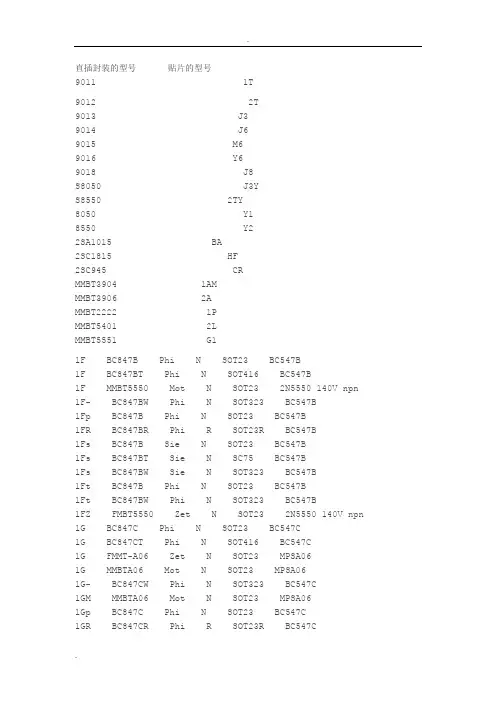

直插封装的型号贴片的型号9011 1T9012 2T9013 J39014 J69015 M69016 Y69018 J8S8050 J3YS8550 2TY8050 Y18550 Y22SA1015 BA2SC1815 HF2SC945 CRMMBT3904 1AMMMBT3906 2AMMBT2222 1PMMBT5401 2LMMBT5551 G11F BC847B Phi N SOT23 BC547B1F BC847BT Phi N SOT416 BC547B1F MMBT5550 Mot N SOT23 2N5550 140V npn 1F- BC847BW Phi N SOT323 BC547B1Fp BC847B Phi N SOT23 BC547B1FR BC847BR Phi R SOT23R BC547B1Fs BC847B Sie N SOT23 BC547B1Fs BC847BT Sie N SC75 BC547B1Fs BC847BW Sie N SOT323 BC547B1Ft BC847B Phi N SOT23 BC547B1Ft BC847BW Phi N SOT323 BC547B1FZ FMBT5550 Zet N SOT23 2N5550 140V npn 1G BC847C Phi N SOT23 BC547C1G BC847CT Phi N SOT416 BC547C1G FMMT-A06 Zet N SOT23 MPSA061G MMBTA06 Mot N SOT23 MPSA061G- BC847CW Phi N SOT323 BC547C1GM MMBTA06 Mot N SOT23 MPSA061Gp BC847C Phi N SOT23 BC547C1GR BC847CR Phi R SOT23R BC547C1Gs BC847C Sie N SOT23 BC547C1Gs BC847CW Sie N SOT323 BC547C1Gt BC847CW Phi N SOT323 BC547C1GT SOA06 SGS N SOT23 MPSA061H FMMT-A05 Zet N - MPSA051H MMBTA05 Mot N SOT23 MPSA051H- BC847W Phi N SOT323 BC5471Hp BC847 Phi N SOT23 BC5471Ht BC847 Phi N SOT23 BC5471Ht BC847W Phi N SOT323 BC5471HT SOA05 SGS N SOT23 MPSA051J BC848A Phi N SOT23 BC548A1J FMMT2369 Zet N SOT23 2N23691J MMBT2369 Mot N SOT23 MPS23691JA MMBT2369A Mot N SOT23 MPS2369A1Jp BCV61A Phi VQ SOT143 npn current mirror hFe 180 1JR BC848AR Phi R SOT23R BC548A1Js BC848A Sie N SOT23 BC548A1Js BC848AW Sie N SOT323 BC548A1Js BCV61A Sie VQ SOT143 npn current mirror hFe 180 1JZ BC848A Zet N SOT23 BC548A1K BC848B ITT N SOT23 BC548B1K MMBT6428 Mot N SOT23 MPSA18 50V1K FMMT4400 Zet N SOT23 2N44001KM MMBT6428L Mot N SOT23 MPSA18 50V1Kp BC848B Phi N SOT23 BC548B1Kp BCV61B Phi VQ SOT143B npn current mirror hFe 290 1KR BC848BR Phi R SOT23R BC548B1Ks BC848B Sie N SOT23 BC548B1Ks BC848BW Sie N SOT323 BC548B1Ks BCV61B Sie VQ SOT143B npn current mirror hFe 290 1KZ FMMT4400 Zet N SOT23 2N44001L BC848C ITT N SOT23 BC548C1L MMBT6429 Mot N - MPSA18 45V1L FMMT4401 Zet N - 2N44011L BCV61C Sie VQ SOT143B npn current mirror hFe 520 1Lp BC848C Phi N SOT23 BC548C1Lp BCV61C Phi VQ SOT143B npn current mirror hFe 520 1LR BC848CR Phi R SOT23R BC548C1Ls BC848C Sie N SOT23 BC548C1Ls BC848CW Sie N SOT323 BC548C1M MMBTA13 Mot N SOT23 MPSA13 darlington1M FMMT-A13 Zet N SOT23 MPSA131Mp BC848 Phi N SOT23 BC5481Mp BCV61 Phi VQ SOT143B npn current mirror1N FMMT-A14 Zet N SOT23 MPSA141N MMBTA14 Mot N SOT23 MPSA14 darlington1N5 ZTX11N15DF Zet N SOT23 npn 15V 3A low saturation V1P FMMT2222A Zet N - 2N2222A1P MMBT2222A Mot N SOT23 2N2222A1P BC847PN Sie DI - pnp/npn separate pair gp AF1Q MMBT5088 Mot N SOT23 MPSA18 Vce 30V1R MMBT5089 Mot N SOT23 MPSA18 Vce 25V1S MMBT2369A Nat N SOT23 2N2369A 500MHz sw npn1S MSC3130 Mot H SOT346 npn RF fT 1.4GHz 10V1T MMBT3960A Mot N - 2N3960A1U MMBT2484L Mot N SOT23 MPSA181V MMBT6427 Mot H SOT23 2N6426/7 darlington npn1V- BF820W Phi N SOT323 npn 300V 50mA BF4201Vp BF820 Phi N SOT23 npn 300V 50mA BF4201Vt BF820 Phi N SOT23 npn 300V 50mA BF4201Vt BF820W Phi N SOT323 npn 300V 50mA BF4201W FMMT3903 Zet N SOT23 2N39031W - BF822W Phi N SOT323 pnp 300V 50mA BF4211W t BF822W Phi N SOT323 pnp 300V 50mA BF4211Wp BF821 Phi N SOT23 pnp 300V 50mA BF4211Wt BF821 Phi N SOT23 pnp 300V 50mA BF4211X MMBT930L Mot N SOT23 MPS39041Xp BF822 Phi N SOT23 npn 250V 50mA BF4221Xt BF822 Phi N SOT23 npn 250V 50mA BF4221Y MMBT3903 Mot N SOT23 2N39031Yp BF823 Phi N SOT23 pnp 250V 50mA BF4231Yt BF823 Phi N SOT23 pnp 250V 50mA BF4231Z BAS70-06 Zet A SOT23 dual RF CA schottky diode 1Z MMBT6517 Mot N SOT23 2N6517 npn Vce 350V2 (blue) BAR64-03W Sie I SOD323 pin diode2 (white) BB439 Sie I SOD323 29-5 pF varicap20F TSDF1220 Tfk X SOT143 fT 12GHz npn 6V 20mA20V PZM20NB Phi C SOT346 20V 300mW zener20Y BZV49-C20 Phi O SOT89 20V 1W zener22V PZM22NB Phi C SOT346 22V 300mW zener22Y BZV49-C22 Phi O SOT89 22V 1W zener24V PZM24NB Phi C SOT346 24V 300mW Zener24Y BZV49-C24 Phi O SOT89 24V 1W zener27V PZM27NB Phi C SOT346 27V 300mW Zener27Y BZV49-C27 Phi O SOT89 27V 1W zener2A MMBT3906L Mot N SOT23 2N39062A MMBT3906W Mot N SOT323 2N39062A FMMT3906 Zet N SOT23 2N39062A4 PZM2.4NB2A Phi A SOT346 dual 2.4V cc Zener 2A7 PZM2.7NB2A Phi A SOT346 dual 2.7V cc Zener 2B BC849B ITT N SOT23 BC549B2B FMMT2907 Zet N SOT23 2N29072B MMBT2907 Mot N SOT23 MPS29072B- BC849BW Phi N SOT323 BC549B2Bp BC849B Phi N SOT23 BC549B2BR BC849BR Phi R SOT23R BC549B2Bs BC849B Sie N SOT23 BC549B2Bs BC849BW Sie N SOT323 BC549B2Bt BC849BW Phi N SOT323 BC549B2BZ FMMT2907 Zet N SOT23 2N29072C BC849C ITT N SOT23 BC549C2C MMBTA70 Mot N SOT23 MPSA702C- BC849CW Phi N SOT323 BC549C2Cp BC849C Phi N SOT23 BC549C2CR BC849CR Phi R SOT23R BC549C2Cs BC849C Sie N SOT23 BC549C2Cs BC849CW Sie N SOT323 BC549C2Ct BC849C Phi N SOT23 BC549C2Ct BC849CW Phi N SOT323 BC549C2CZ FMMTA70 Zet N SOT23 MPSA702D MMBTA92 Mot N SOT23 MPSA92 pnp Vce 300V2E MMBTA93 Mot N SOT23 MPSA93 pnp Vce 200V2E FMMT-A93 Zet N SOT23 MPSA932F BC850B ITT N SOT23 BC550B2F FMMT2907A Zet N SOT23 2N2907A2F MMBT2907A Mot N SOT23 MPS2907A2F MMBT2907AW Mot N SOT323 MPS2907A2F- BC850BW Phi N SOT323 BC550B2Fp BC850B Phi N SOT23 BC550B2FR BC850BR Phi R SOT23R BC550B2Fs BC850B Sie N SOT23 BC550B2Fs BC850BW Sie N SOT323 BC550B2Ft BC850B Phi N SOT23 BC550B2Ft BC850BW Phi N SOT323 BC550B2G BC850C ITT&, nbsp; N SOT23 BC550C2G FMMT-A56 Zet N SOT23 MPSA562G MMBTA56 Mot N SOT23 MPSA562G- BC850CW Phi N SOT323 BC550C2GM MMBTA56 Mot N SOT23 MPSA562Gp BC850C Phi N SOT23 BC550C2GR BC850CR Phi R SOT23R BC550C2Gs BC850C Sie N SOT23 BC550C2Gt BC850C Phi N SOT323 BC550C2Gt BC850CW Phi N SOT323 BC550C2GT SOA56 SGS N SOT23 MPSA562H FMMT-A55 Zet N SOT23 MPSA552H MMBTA55 Mot N SOT23 MPSA552HT SOA55 SGS N SOT23 MPSA552J MMBT3640 Mot N SOT23 MPS3640 pnp sw2K FMMT4402 Zet N SOT23 2N44022K MMBT8598 Mot N - 2N4125 pnp 60V2L MMBT5401 Mot N SOT23 2N5401 pnp 150V2L FMMT4403 Zet N SOT23 2N44032M FMMT5087 Zet N SOT23 2N50872M MMBT404 Mot N SOT23 pnp-chopper 24V 150mA2N MMBT404A Mot N SOT23 pnp-chopper 35V 150mA2N0 ZXT11N20DF Zet N SOT23 npn 20V 2.5A low sat switch2P FMMT2222R Zet R SOT23R 2N22222P MMBT5086 Mot N SOT23 2N50862Q MMBT5087 Mot N SOT23 2N50872R HSMS-8102 HP Z SOT23 10-14GHz schottky mixer pair 2T SO4403 SGS N SOT23 2N44032T MMBT4403 Mot N SOT23 2N44032T HT2 Zet N SOT23 pnp 80V 100mA2U MMBTA63 Mot N SOT23 MPSA63 darlington2V MMBTA64 Mot N SOT23 MPSA64 darlington2V4 PZM2.4NB Phi C SOT346 2.4V 300mW Zener2V7 PZM2.7NB Phi C SOT346 2.7V 300mW Zener2W FMMT3905 Zet N SOT23 2N39052W MMBT8599 Mot N - 2N4125 Vce 80V pnp2X SO4401 SGS N SOT23 2N44012X MMBT4401 Mot N SOT23 2N44012Y4 BZV49-C2V4 Phi O SOT89 2.4V 1W zener2Y7 BZV49-C2V7 Phi O SOT89 2.7V 1W zener2Z MMBT6520 Mot N SOT23 2N6520 pnp Vce 350V2Z BAS70-04 Zet D SOT23 dual series RF schottky 70V 15mA2Z5 BAS70-05 Zet B SOT23 dual cc RF Schottky 70V 15mA 30V PZM30NB1 Phi C SOT346 30V 300mW zener30Y BZV49-C30 Phi O SOT89 30V 1W zener33V PZM33NB1 Phi C SOT346 33 300mW zener33Y BZV49-C33 Phi O SOT89 33V 1W zener36V PZM36NB1 Phi C SOT346 36V 300mW Zener36Y BZV49-C36 Phi O SOT89 36V 1W zener39V PZM39NB1 Phi C SOT346 39V 300mW Zener39Y BZV49-C39 Phi O SOT89 39V 1W zener3A BC856A ITT N SOT23 BC556A3A BC856AT Phi N SOT416 BC556A3A MMBTH24 Mot N SOT23 VHF mixer npn fT 600MHz3A- BC856AW Phi N SOT323 BC556A3A0 PZM3.0NB2A Phi C SOT346 dual 3.0V Zener3A3 PZM3.3NB2A Phi C SOT346 dual 3.3V Zener3A6 PZM3.6NB2A Phi C SOT346 dual 3.6V Zener3A9 PZM3.9NB2A Phi C SOT346 dual 3.9V Zener3Ap BC856A Phi N SOT23 BC556A3AR BC856AR Phi R SOT23R BC556A3As BC856A Sie N SOT23 BC556A3At BC856A Phi N SOT23 BC556A3At BC856AW Phi N SOT323 BC556A3B BC856B ITT N SOT23 BC556B3B BC856BT Phi N SOT416 BC556B3B FMMT918 Zet N SOT23 2N9183B MMBT918 Mot N SOT23 2N9183B- BC856BW Phi N SOT323 BC556B3Bp BC856B Phi N SOT23 BC556B3BR BC856BR Phi R SOT23 BC556B3Bs BC856B Sie N SOT23 BC556B3Bt BC856B Phi N SOT23 BC556B3Bt BC856BW Phi N SOT323 BC556B3C FMMTA20R Zet R SOT23R MPSA203C BC857 Sie DO - pnp separate pair gp AF3D BC856 Phi N SOT23 BC556 hfe 75 min3D MMBTH81L Mot N SOT23 UHF pnp fT 600MHz3D BC856S Sie DO - pnp separate pair gp AF3D- BC856W Phi N SOT323 BC556 hfe 75 min3Dp BC856 Phi N SOT23 BC556 hfe 75 min3Dt BC856 Phi N SOT23 BC556 hfe 75 min3Dt BC856W Phi N SOT323 BC556 hfe 75 min3E BC857A Phi N SOT23 BC557A3E BC857AT Phi N SOT416 BC557A3E MMBTH10 Mot N SOT23 MPSH10 fT 650MHz3E FMMT-A42 Zet N SOT23 MPSA423E- BC857A Phi N SOT323 BC557A3EM MMBTH10L Mot N SOT23 VHF amp 650MHz fT3Ep BC857A Phi N SOT23 BC557A3ER BC857AR Phi R SOT23R BC557A3Et BC857A Phi N SOT23 BC557A3Et BC857A Phi N SOT323 BC557A3EZ FMMTH10 Zet N SOT23 npn fT 650MHz3F BC857B Phi N SOT23 BC557B3F BC857BT Phi N SOT416 BC557B3F- BC857BW Phi N SOT323 BC557B3Fp BC857B Phi N SOT23 BC557B3FR BC857BR Phi R SOT23R BC557B3Fs BC857B Sie N SOT23 BC557B3Ft BC857B Phi N SOT23 BC557B3Ft BC857BW Phi N SOT323 BC557B3Ft BC857BS Phi N SOT363 BC557B3G BC857C Phi N SOT23 BC557C3G BC857C Phi N SOT23 BC557C3G MMBTH11 NS N SOT23 -3G MGSF3454X Mot DK TSOP6 n-ch enh tmosfet 1.75A 3G- BC857CW Phi N SOT323 BC557C3Gp BC857C Phi N SOT23 BC557C3GR BC857CR Phi R SOT23R BC557CR3Gs BC857C Sie N SOT23 BC557C3Gt BC857C Phi N SOT23 BC557C3Gt BC857CW Phi N-28PDTA114WU Phi N SOT323 pnp dtr-24 PDTC114TU Phi N SOT323 npn dtr R1 10k-23 PDTA114TU Phi N SOT323 pnp dtr R1 10k-20 PDTC114WU Phi N SOT323 npn dtr-6 PMSS3906 Phi N SOT323 2N3906-4 PMSS3904 Phi N SOT323 2N39040 2SC3603 Nec CX SOT173 Npn RF fT 7GHz1 Gali-1 MC AZ SOT89 DC-8GHz MMIC amp 12dB gain1 2SC3587 Nec CX - npn RF fT10GHz1 BA277 Phi I SOD523 VHF Tuner band switch diode2 BST82 Phi M - n-ch mosfet 80V 175mA2 MRF5711L Mot X SOT143 npn RF MRF5712 DTCC114T Roh N - 50V 100mA npn sw + 10k base res 2 Gali-2 MC AZ SOT89 DC-8GHz MMIC amp 16dB gain2 BAT62-02W Sie I SCD80 BAT16 schottky diode2 2SC3604 Nec CX - npn RF fT8GHz 12dB@2GHz3 Gali-3 MC AZ SOT89 DC-3GHz MMIC amp 22dB gain3 DTC143TE Roh N EMT3 npn dtr R1 4k7 50V 100mA3 DTC143TUA Roh N SC70 npn dtr R1 4k7 50V 100mA3 DTC143TKA Roh N SC59 npn dtr R1 4k7 50V 100mA3 BAT60A Sie I SOD323 10V 3A sw schottky3 BAT62-02W Sie I SCD80 -4 DTC114TCA Roh N SOT23 npn dtr R1 10k 50V 100mA 4 DTC114TE Roh N EMT3 npn dtr R1 10k 50V 100mA 4 DTC114TUA Roh N SC70 npn dtr R1 10k 50V 100mA 4 DTC114TKA Roh N SC59 npn dtr R1 10k 50V 100mA 4 MRF5211L Mot X SOT143 pnp RF MRF5214 Gali-4 MC AZ SOT89 DC-4GHz MMIC amp 17.5 dBm4 BB664 Sie I SCD80 Varicap 42-2.5pF5 SSTPAD5 Sil J - PAD-5 5pA leakage diode5 Gali-4 MC AZ SOT89 DC-4GHz MMIC amp 18 dBm o/p5 DTC124TE Roh N EMT3 npn dtr R1 22k 50V 100mA 5 DTC124TUA Roh N SC70 npn dtr R1 22k 50V 100mA5 DTC124TKA Roh N SC59 npn dtr R1 22k 50V 100mA6 Gali-6 MC AZ SOT89 DC-4GHz MMIC amp 115 dBm o/p6 DTC144TE Roh N EMT3 npn dtr R1 47k 50V 100mA 6 DTC144TUA Roh N SC70 npn dtr R1 47k 50V 100mA 6 DTC144TKA Roh N SC59 npn dtr R1 47k 50V 100mA 9 DTC115TUA Roh N SC70 npn dtr R2 100k 50V 100mA 9 DTC115TKA Roh N SC59 npn dtr R2 100k 50V 100mA9 BC849 Mot N SOT23 BC 549B10 SSTPAD10 Sil J - PAD-10 10pA leakage diode10 MRF9411L Mot X SOT143 npn Rf 8GHz MRF94111 SO2369R SGS R SOT23R 2N236911 MRF9511L Mot X SOT143 npn RF 8GHz MRF95111 MUN5311DW1 Mot DP SOT363 npn/pnp dtr 10k+10k11 PDTA114EU Phi N SOT416 pnp dtr12 MUN5312DW1 Mot DP SOT363 npn/pnp dtr 22k+22k12 DTA123EUA Rho N SC70 pnp dtr 2k2+2k2 50V 100ma12 DTA123EKA Rho N SC59 pnp dtr 2k2+2k2 res 50V 100ma13 DTA143EUA Rho N SC70 pnp dtr 4k7+4k7 50V 100ma 13 DTA143EKA Rho N SC59 pnp dtr 4k7+4k7 50V 100ma 13 DTA143ECA Rho N SOT23 pnp dtr 4k7+4k7 50V 100ma 13 MA4CS103A M/A C SOT23 Schottky RF 20V 100mA13 MUN5313DW1 Mot DP SOT363 npn/pnp dtr 47k+47k14 BAT114-099R Sie DQ - Quad Schottky crossover ring 14 DTA114EUA Roh N SC70 pnp dtr 10k + 10k14 DTA114EKA Roh N SC59 pnp dtr 10k + 10k14 MUN5314DW1 Mot DP SOT363 npn/pnp dtr 10k R114 DTA114ECA Roh N SOT23 pnp dtr 10k + 10k15 DTA124EUA Roh N SC70 pnp dtr 30V 50mA 22k+22k15 DTA124EKA Roh N SC59 pnp dtr 30V 50mA 22k+22k15 DTA124ECA Roh N SOT23 pnp dtr 30V 50mA 22k+22k 15 MUN5315DW1 Mot DP SOT363 npn/pnp dtr 10k R115 MMBT3960 Mot N - 2N396016 MUN5316DW1 Mot DP SOT363 npn/pnp dtr 4k7 R116 DTA144EUA Roh N SC70 pnp dtr 30V 50mA 47k+47k16 DTA144EKA Roh N SC59 pnp dtr 30V 50mA 47k+47k18 BFP181T Tfk X - npn Rf fT 7.8GHz 10V 20mA18 PDTC143ZK Phi N SOT346 npn dtr 4k7+47k19 PDTA143ZK Phi N SOT346 pnp dtr 4k7+47k19 DTA115EUA Rho N SC70 pnp dtr 100k+100k 50V 100ma19 DTA115EKA Rho N SC59 pnp dtr 100k+100k 50V 100ma20 SSTPAD20 Sil J - PAD-20 20pA leakage diode20 MRF5811 Mot X SOT143 npn Rf fT 5GHz 0.2A21 Gali-21 MC AZ SOT89 DC-8GHz MMIC amp 14 dB gain22 MMBT4209 Nat N SOT23 pnp sw 850MHz 2N420922 DTC123EUA Rho N SC70 npn dtr 2k2+2k2 50V 100ma22 DTC123EKA Rho N SC59 npn dtr 2k2+2k2 50V 100ma23 MMBT3646 Nat N SOT23 npn sw 350MHz 2N364623 DTC143EUA Roh N SC70 pnp dtr 50V 100mA 4k7+ 4k723 DTC143EKA Roh N SC59 pnp dtr 50V 100mA 4k7+ 4k724 MMBD2101 Nat C SOT23 Si diode 100V 200mA24 DTC114ECA Roh N SOT23 npn dtr 50V 100mA 10k + 10k 24 DTC114EUA Roh N SC70 npn dtr 50V 100mA 10k + 10k24 DTC114EKA Roh N SC59 npn dtr 50V 100mA 10k + 10k24 2SC5006 Nec N - npn RF fT 4.5GHz @3V 7mA25 MMBD2102 Nat K SOT23 Si diode 100V 200mA25 DTC124ECA Roh N SOT23 npn dtr 50V 100mA 22k + 22k 25 DTC124EKA Roh N SC59 npn dtr 50V 100mA 22k + 22k25 DTC124EUA Roh N SC70 npn dtr 50V 100mA 22k + 22k26 MMBD2103 Nat D SOT23 dual MMBD120126 DTC144EKA Roh N SC59 npn dtr 50V 30mA 47k + 47k26 DTC144EUA Roh N SC70 npn dtr 50V 30mA 47k + 47k27 MMBD2104 Nat B SOT23 dual cc MMBD120128 BFP280T Tfk W - npn RF fT 7GHz 8V 10mA28 MMBD2105 Nat A SOT23 dual ca MMBD120129 MMBD1401 Nat C SOT23 Si diode 200V 100mA29 DTC115EE Roh N EMT3 npn dtr 100k +100k 50V 20mA 29 DTC115EUA Roh N SC70 npn dtr 100k +100k 50V 20mA29 DTC115EKA Roh N SC59 npn dtr 100k +100k 50V 20mA30 MUN5330DW1 Mot DP SOT363 npn/pnp dtr 1k0+1k031 MUN5331DW1 Mot DP SOT363 npn/pnp dtr 2k2+2k231 MMBD1402 Nat K SOT23 Si diode 200V 100mA32 MUN5332DW1 Mot DP SOT363 npn/pnp dtr 4k7+4k732 MMBD1403 Nat D SOT23 dual Si diode 200V 100mA32 BAT32 Sie CS - 18GHz zero-bias schottky33 MUN5333DW1 Mot DP SOT363 npn/pnp dtr 4k7+47k33 DTA143XE Roh N EMT3 pnp dtr 4k7+10k 50V 100mA33 DTA143XUA Roh N SC70 pnp sw 4k7+10k bias res 50V 100mA33 DTA143XKA Roh N SC59 pnp sw 4k7+10k bias res 50V 100mA33 MMBD1404 Nat B SOT23 dual cc Si diode 200V 100mA33 Gali-33 MC AZ SOT89 DC-4GHz MMIC amp 19dB gain34 MUN5334DW1 Mot DP SOT363 npn/pnp dtr 22k+47k34 MMBD1405 Nat A SOT23 dual ca Si diode 200V 100mA34 2SC5007 Nec N - npn RF fT 7GHz @3V 7mA35 MUN5335DW1 Mot DP SOT363 npn/pnp dtr 2k2+47k35 DTA124XE Roh N EMT3 pnp dtr 22k+47k 50V 50mA35 DTA124XUA Roh N SC70 pnp dtr 22k+47k 50V 50mA35 DTA124XKA Roh N SC59 pnp dtr 22k+47k 50V 50mA41 BAT14-115S Sie CS SOT173 40GHz schottky diode41 BAT14-115R Sie CZ SOT173 40GHz schottky ring quad42 BAT14-025S Sie CS SOT173 4GHz schottky diode42 BAT14-025R Sie CZ SOT173 4GHz schottky ring quad43 BAS40 Sie C SOT23 schottky diode 40V 100mA43 DTA143EE Mot N SOT416 pnp dtr 4k7 + 4k743 DTC143XE Roh N EMT3 npn dtr 4k7+10k 50V 100mA43 DTC143XUA Roh N SC70 npn dtr 4k7+10k 50V 100mA43 DTC143XKA Roh N SC59 npn dtr 4k7+10k 50V 100mA44 BAS40-04 Sie D SOT23 dual series BAS4044 BAS40-04W Sie D SOT323 dual series BAS4044 2SC5009 Nec N - npn RF fT 12GHz @3V 5mA45 BAS40-05 Sie A SOT23 dual ca BAS4045 BAS40-05W Sie A SOT323 dual ca BAS4045 BAT14-055S Sie CS SOT173 8GHz schottky diode45 BAT14-055R Sie CZ SOT173 8GHz schottky ring quad 45 DTC124XE Roh N EMT3 npn dtr 22k+47k 50V 50mA45 DTC124XUA Roh N SC70 npn dtr 22k+47k 50V 50mA45 DTC124XKA Roh N SC59 npn dtr 22k+47k 50V 50mA46 BAS40-06 Sie B SOT23 dual cc BAS4046 BAS40-06W Sie B SOT323 dual cc BAS4046 MBT3946DW Mot DP - 2N3904/2N3906 pair47 BAS40-07 Sie S SOT143 dual BAS4047 BAS40-07W Sie S SOT343 dual BAS4049 BAT14-095S Sie CS SOT173 18GHz shottky diode49 BAT14-095R Sie CZ SOT173 18GHz schottky ring quad50 SSTPAD50 Sil J - PAD-50 50pA leakage diode51 BAT15-115S Sie CS SOT173 40GHz schottky diode51 BAT15-115R Sie CZ SOT173 40GHz schottky ring quad52 BAT15-025S Sie CS SOT173 4GHz schottky diode52 BAT15-025R Sie CZ SOT173 4GHz schottky ring quad 52 Gali-52 MC AZ SOT89 DC-2GHz MMIC amp 23 dB gain 52 BAS52-02V Inf I SC79 Schottky diode 45V 750mA52 DTA123YE Roh N EMT3 pnp dtr 2k2 +10k 50V 100mA 52 DTA123YUA Roh N SC70 pnp dtr 2k2 +10k 50V 100mA 52 DTA123YKA Roh N SC59 pnp dtr 2k2 +10k 50V 100mA 54 DTA114YE Roh N EMT3 pnp dtr 10k + 47k 50V 100mA 54 DTA114YUA Roh N SC70 pnp dtr 10k + 47k 50V 100mA54 DTA114YKA Roh N SC59 pnp dtr 10k + 47k 50V 100mA55 BAT15-055S Sie CS SOT173 8GHz schottky diode55 BAT15-055R Sie CZ SOT173 8GHz schottky ring quad 55 Gali-55 MC AZ SOT89 DC-4GHz MMIC amp 21 dB gain57 BFQ57 Sie CX SOT173 npn 6.5GHz 16V/35mA58 BFQ58 Sie CX SOT173 npn 6.5GHz 16V/30mA59 BAT15-095S Sie CS SOT173 18GHz schottky diode59 BAT15-095R Sie CZ SOT173 18GHz schottky ring quad 62 DTC123YE Roh N EMT3 npn dtr 2k2 +10k 50V 100mA 62 DTC123YUA Roh N SC70 npn dtr 2k2 +10k 50V 100mA 62 DTC123YKA Roh N SC59 npn dtr 2k2 +10k 50V 100mA 64 DTC114YE Roh N EMT3 npn dtr 10k + 47k 50V 100mA 64 DTC114YUA Roh N SC70 npn dtr 10k + 47k 50V 100mA 64 DTC114YKA Roh N SC59 npn dtr 10k + 47k 50V 100mA 67 BFP67 Tfk X - npn Rf fT 7.5GHz 10V 50mA69 DTA114YE Mot N SOT416 pnp dtr 10k +47k69 DTC115EE Roh N EMT3 npn dtr 100k+100k 50V 20mA 69 DTC115EUA Roh N SC70 npn dtr 100k+100k 50V 20mA69 DTC115EKA Roh N SC59 npn dtr 100k+100k 50V 20mA70 BFQ70 Sie CX SOT173 npn fT 5.2GHz 15V 35mA71 BFQ71 Sie CX SOT173 npn fT 5.2GHz 15V 30mA72 BFQ72 Sie CX SOT173 npn fT 5.1GHz 15V 50mA72 2N7002 Sil M SOT23 n-ch mosfet 60V 170mA73 MA4CS101A M/A C SOT23 schottky diode 70V 50mA73 BFQ73 Sie CX SOT173 npn fT 4.9GHz 15V 75mA73 2SC5004 Nec N - npn RF 5GHz @5V 5mA74 BFQ74 Sie CX SOT173 npn fT 6GHz 16V 35mA74 MA4CS101B M/A D SOT23 dual series MA4CS101A (73) 74 DTA114WE Rho N EMT3 pnp dtr 10k + 4k7 50V 100mA 74 DTA114WUA Rho N SC70 pnp dtr 10k + 4k7 50V 100mA 74 DTA114WKA Rho N SC59 pnp dtr 10k + 4k7 50V 100mA74 2SC5005 Nec N - npn RF 5.5GHz @5V 5mA75 BFQ75 Sie CX SOT173 pnp fT 5GHz 12V 50mA76 BFQ76 Sie CX SOT173 pnp fT 5GHz 15V 30mA76 DTA144WE Rho N EMT3 pnp dtr 47k + 22k 50V 30mA 76 DTA144WUA Rho N SC70 pnp dtr 47k + 22k 50V 30mA76 DTA144WKA Rho N SC59 pnp dtr 47k + 22k 50V 30mA77 MA4CS101E M/A S SOT143 dual MA4CS101A (73)77 BFQ77 Sie CX SOT173 npn fT 7GHz 15V 20mA78 MMBT4258 Nat N SOT23 pnp sw fT 700MHz81 SO2369AR SGS R SOT23R 2N2369A81 ZMV831BV2 Zet I SOD523 28V hyperabrupt varicap 15pF @2V82 2SC5009 Nec N - npn RF fT 12GHz @ 3V 5mA82 ZMV832BV2 Zet I SOD523 28V hyperabrupt varicap 22pF @2V83 MMBT4400 Nat N - npn 2N440083 2SC5010 Nec N - npn RF fT 12GHz 3V 10mA83 MA4CS102A M/A C SOT23 schottky diode 8V 30mA84 MA4CS102B M/A D SOT23 dual ser schottky diode 8V 30mA84 DTC114WE Rho N EMT3 npn dtr 10k + 4k7 50V 100mA 84 DTC114WUA Rho N SC70 npn dtr 10k + 4k7 50V 100mA84 DTC114WKA Rho N SC59 npn dtr 10k + 4k7 50V 100mA85 MMBD1701 Nat C - Fast Si diode 30V 50mA85 MA4CS102A M/A B SOT23 dual cc schottky diode 8V 30mA86 MMBD1702 Nat K - Fast Si diode 30V 50mA86 DTC144WE Rho N EMT3 npn dtr 47k + 22k 50V 30mA 86 DTC144WUA Rho N SC70 npn dtr 47k + 22k 50V 30mA86 DTC144WKA Rho N SC59 npn dtr 47k + 22k 50V 30mA87 MMBD1703 Nat D - dual ser MMBD170187 MA4CS102A M/A S SOT143 dual schottky diode 8V30mA88 MMBD1704 Nat B - dual cc MMBD170189 MMBD1705 Nat A - dual ca MMBD170191 ZV931V2 Zet I SOD523 4-13.5pF hyperabruptvaricap91 DTA113TKA Roh N SC59 pnp dtr R11k0 50V 100mA92 ZV932V2 Zet I SOD523 5.5-17pF hyperabruptvaricap93 ZV933V2 Zet I SOD523 12-42pF hyperabrupt varicap 93 DTA143TE Roh N EMT3 pnp dtr R1 4k7 50V 100mA93 DTA143TUA Roh N SC70 pnp dtr R1 4k7 50V 100mA93 DTA143TKA Roh N SC59 pnp dtr R1 4k7 50V 100mA94 DTA114TE Roh N EMT3 pnp dtr R1 10k 50V 100mA94 DTA114TUA Roh N SC70 pnp dtr R1 10k 50V 100mA94 DTA114TKA Roh N SC59 pnp dtr R1 10k 50V 100mA95 DTA124TE Roh N EMT3 pnp dtr R1 22k 50V 100mA95 DTA124TCA Roh N SOT23 pnp dtr R1 22k 50V 100mA95 DTA124TKA Roh N SC59 pnp dtr R1 22k 50V 100mA96 DTA144TE Roh N EMT3 pnp dtr R1 47k 50V 100mA96 DTA144TUA Roh N SC70 pnp dtr R1 47k 50V 100mA96 DTA144TKA Roh N SC59 pnp dtr R1 47k 50V 100mA99 DTA115TE Roh N EMT3 pnp dtr R1 100k 50V 100mA99 DTA115TUA Roh N SC70 pnp dtr R1 100k 50V 100mA 99 DTA115TKA Roh N SC59 pnp dtr R1 100k 50V 100mA 100 SSTPAD100 Sil J SOT23 PAD-100 100pA leakage diode101 PZM10NB1 Phi C SOT346 10V 0.3W zener102 PZM10NB2 Phi C SOT346 10V 0.3W zener103 PZM10NB3 Phi C SOT346 10V 0.3W zener111 PZM11NB1 Phi C SOT346 11V 0.3W zener111 DTA113ZUA Roh N SC70 pnp dtr 1k+10k 50V 100mA 112 PZM11NB2 Phi C SOT346 11V 0.3W zener113 PZM11NB3 Phi C SOT346 11V 0.3W zener113 DTA143ZUA Roh N SC70 pnp dtr 4k7+47k 50V 100mA 121 PZM12NB1 Phi C SOT346 12V 0.3W zener121 DTC113ZUA Roh N SC70 npn dtr 1k+10k 50V 100mA 122 PZM12NB2 Phi C SOT346 12V 0.3W zener123 PZM12NB3 Phi C SOT346 12V 0.3W zener123 DTC143ZUA Roh N SC70 npn dtr 4k7+47k 50V 100mA 131 PZM13NB1 Phi C SOT346 13V 0.3W zener132 PZM13NB2 Phi C SOT346 13V 0.3W zener132 DTA123JUA Roh N SC70 pnp dtr 2k2+47k 50V 100mA 133 PZM13NB3 Phi C SOT346 13V 0.3W zener142 DTA123JUA Roh N SC70 npn dtr 2k2+47k 50V 100mA 151 PZM15NB1 Phi C SOT346 15V 0.3W zener152 PZM15NB2 Phi C SOT346 15V 0.3W zener153 PZM15NB3 Phi C SOT346 15V 0.3W zener156 DTA144VUA Roh N SC70 pnp dtr 47k+10k 50V 100mA 161 PZM16NB1 Phi C SOT346 16V 0.3W zener162 PZM16NB2 Phi C SOT346 16V 0.3W zener163 PZM16NB3 Phi C SOT346 16V 0.3W zener166 DTC144VUA Roh N SC70 npn dtr 47k+10k 50V 100mA 179 FMMT5179 Zet N - 2N5179181 PZM18NB1 Phi C SOT346 18V 0.3W zener182 PZM18NB2 Phi C SOT346 18V 0.3W zener183 PZM18NB3 Phi C SOT346 18V 0.3W zener200 SSTPAD200 Sil J - PAD-200 200pA leakage diode 201 PZM20NB1 Phi C SOT346 20V 300mW Zener202 PZM20NB2 Phi C SOT346 20V 300mW Zener203 PZM20NB3 Phi C SOT346 20V 300mW Zener221 PZM22NB1 Phi C SOT346 22V 300mW Zener222 PZM22NB2 Phi C SOT346 22V 300mW Zener223 PZM22NB3 Phi C SOT346 22V 300mW Zener241 PZM24NB Phi C SOT346 24V 300mW Zener242 PZM24NB Phi C SOT346 24V 300mW Zener243 PZM20NB Phi C SOT346 24V 300mW Zener271 PZM2.7NB1 Phi C SOT346 2.7V 300mW Zener272 PZM2.7NB2 Phi C SOT346 2.7V 300mW Zener301 FDV301N Fch M SOT23 n-ch 'digital' fet 25V 0.22A 302 FDV302P Fch M SOT23 p-ch 'digital' fet 25V 0.13A 303 FDV303N Fch M SOT23 n-ch 'digital' fet 25V 0.68A 304 FDV304P Fch M SOT23 p-ch 'digital' fet 25V 0.46A 331 NDS331N Fch M SOT23 n-ch mosfet 1.3A 20V331 PZM3.3NB1 Phi C SOT346 3.3V 300mW zener332 PZM3.3NB2 Phi C SOT346 3.3V 300mW zener332 NDS332N Fch M SOT23 "p-ch mosfet 0.4A, 1A pk, 20V"335 NDS335N Fch M SOT23 "n-ch mosfet 70 mA, 1.7A pk, 20V"336 NDS336N Fch M SOT23 "p-ch mosfet 0.27A, 1.2A pk, 20V"337 NDS337N Fch M SOT23 "n-ch mosfet 50 mA, 2.5A pk 20V"338 NDS338N Fch M SOT23 "p-ch mosfet 0.13A, 1.6Apk 20V"340 FDV340P Fch M SOT23 p-ch mosfet 20V 70 mA351 NDS351N Fch M SOT23 n-ch mosfet 1.1A 30V352 NDS352N Fch M SOT23 p-ch mosfet 0.5A 20V355 NDS355N Fch M SOT23 "n-ch mosfet 0.1A, 1.6A pk 30V"356 NDS356N Fch M SOT23 "p-ch mosfet 0.3A, 1.1A pk 20V"357 NDS357N Fch M SOT23 n-ch mosfet 2.5Apk 30V358 NDS358N Fch M SOT23 "p-ch mosfet 0.2A, 1.6A pk 30V"358 FDN358N Fch M SOT23 p-ch mosfet 0.2A 1.6A pk 30V 360 FDN360P Fch M SOT23 "p-ch mosfet 80mA, 2a PK, 30V"361 PZM3.6NB1 Phi C SOT346 3.6V 300mW Zener362 PZM3.3NB2 Phi C SOT346 3.6V 300mW Zener391 PZM3.9NB1 Phi C SOT346 3.9V 300mW Zener392 PZM3.9NB2 Phi C SOT346 3.9V 300mW Zener413 FMMT413 Zet N SOT23 npn avalanche 150v 0.1A415 FMMT415 Zet N SOT23 npn avalanche 260v 0.1A417 FMMT417 Zet N SOT23 npn avalanche 320v 0.1A431 PZM4.3NB1 Phi C SOT346 4.3V 0.3W zener432 PZM4.3NB2 Phi C SOT346 4.3V 0.3W zener433 PZM4.3NB3 Phi C SOT346 4.3V 0.3W zener449 FMMT449 Zet N SOT23 npn 50V 1A low Vce sat 451 FMMT451 Zet N SOT23 npn 60V 1A455 FMMT455 Zet N SOT23 NPN 140V 1A458 FMMT458 Zet N SOT23 npn 400V 0.4A471 PZM4.7NB1 Phi C SOT346 4.7V 0.3W zener472 PZM4.7NB2 Phi C SOT346 4.7V 0.3W zener473 PZM4.7NB3 Phi C SOT346 4.7V 0.3W zener491 FMMT491 Zet N SOT23 ZTX 450/451493 FMMT493 Zet N SOT23 ZTX 453494 FMMT494 Zet N SOT23 npn 120V 1A495 FMMT495 Zet N SOT23 npn 170V 1A497 FMMT497 Zet N SOT23 npn 300V 0.5A500 SSTPAD500 Sil J PAD-500 500pA leakage diode 511 PZM5.1NB1 Phi C SOT346 5.1V 0.3W zener512 PZM5.1NB2 Phi C SOT346 5.1V 0.3W zener513 PZM5.1NB3 Phi C SOT346 5.1V 0.3W zener558 FMMT558 Zet N SOT23 pnp 400V 0.15A561 PZM5.1NB1 Phi C SOT346 5.6V 0.3W zener562 PZM5.1NB2 Phi C SOT346 5.6V 0.3W zener563 PZM5.1NB3 Phi C SOT346 5.6V 0.3W zener589 FMMT589 Zet N SOT23 pnp 30V 1A593 FMMT593 Zet N SOT23 ZTX 553605 NDS0605 Fch M SOT23 P-ch mosfet 60V 180mA 605 NDS0605 Fch M - p-ch sw mosfet 60V610 NDS0610 Fch M - p-ch sw mosfet 60V614 FMMT614 Zet N SOT23 sw617 FMMT617 Zet N SOT23 npn sw 15V 3A618 FMMT618 Zet N SOT23 npn sw 20V 2.5A619 FMMT619 Zet N SOT23 npn sw 50V 2A621 PZM6.2NB1 Phi C SOT346 6.2V 0.3W zener622 PZM6.2NB2 Phi C SOT346 6.2V 0.3W zener623 PZM6.2NB3 Phi C SOT346 6.2V 0.3W zener624 FMMT624 Zet N SOT23 -625 FMMT625 Zet N SOT23 -634 FMMT634 Zet N SOT23 100V 0.9A darlington npn 651 PZT651 Mot N SOT223 npn 60V 1A681 PZM6.8NB1 Phi C SOT346 6.8V 0.3W zener682 PZM6.8NB2 Phi C SOT346 6.8V 0.3W zener683 PZM6.8NB1 Phi C SOT346 6.8V 0.3W zener701 2N7001 Mot M SOT23 n-ch mosfet702 2N7002 Mot M SOT23 n-ch mosfet 60V 0.11A703 2N7003 Mot M SOT23 n-ch mosfet712 NDS7002A Nat M SOT23 n-ch mosfet 60V 0.28A717 FMMT717 Zet N SOT23 pnp sw 0.625W 2.5A 12V718 FMMT718 Zet N SOT23 pnp sw 0.625W 1.5A 20V720 FMMT720 Zet N SOT23 pnp sw 0.625W 1.5A722 FMMT722 Zet N SOT23 pnp sw723 FMMT723 Zet N SOT23 pnp sw730 FMMT730 Zet N SOT23 ZTX550/551751 PZM7.5NB1 Phi C SOT346 7.5V 0.3W zener752 PZM7.5NB2 Phi C SOT346 7.5V 0.3W zener753 PZM7.5NB3 Phi C SOT346 7.5V 0.3W zener821 PZM8.2NB1 Phi C SOT23 8.2V 0.3W zener822 PZM8.2NB2 Phi C SOT23 8.2V 0.3W zener822 S822T Tfk X - npn RF fT 5.2GHz 6V 8mA823 PZM8.2NB3 Phi C SOT23 8.2V 0.3W zener852 S852T Tfk N SOT23 npn RF fT 5.2GHz 6V 8mA887 S887T Tfk W SOT143 n-ch dg uhf mosfet888 S888T Tfk W SOT142 n-ch dg uhf mosfet911 PZM9.1NB1 Phi C SOT346 9.1V 0.3W zener912 PZM9.1NB2 Phi C SOT346 9.1V 0.3W zener913 PZM9.1NB3 Phi C SOT346 9.1V 0.3W zener05F TSDF1205R Tfk WQ - fT12GHz npn 4V 5mA0A MUN5111DW1 Mot DO SOT363 dual pnp dtr10k+10k0A DTC125TUA Roh N SC70 npn dtr R2 100k 50V100mA0A DTC125TKA Roh N SC59 npn dtr R2 100k 50V100mA0B MUN5112DW1 Mot DO SOT363 dual pnp dtr22k+22k0C MUN5113DW1 Mot DO SOT363 dual pnp dtr47k+47k0D MUN5114DW1 Mot DO SOT363 dual pnp dtr10k+47k0E MUN5115DW1 Mot DO SOT363 dual pnp dtr R1 10k 0F MUN5116DW1 Mot DO SOT363 dual pnp dtr R1 4k7 0G MUN5130DW1 Mot DO SOT363 dual pnp dtr1k0+1k00H MUN5131DW1 Mot DO SOT363 dual pnp dtr2k2+2k20J MUN5132DW1 Mot DO SOT363 dual pnp dtr。

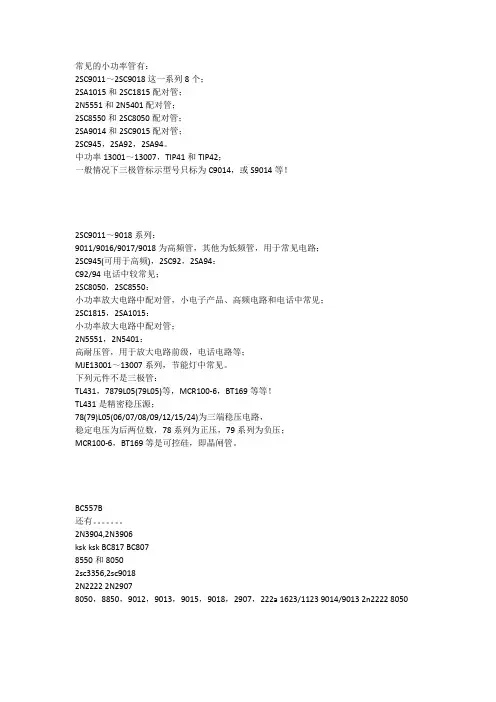

常见的小功率管有：2SC9011～2SC9018这一系列8个；2SA1015和2SC1815配对管；2N5551 和2N5401 配对管；2SC8550和2SC8050配对管；2SA9014和2SC9015配对管；2SC945，2SA92，2SA94。

中功率13001～13007，TIP41和TIP42；一般情况下三极管标示型号只标为C9014，或S9014等！2SC9011～9018系列：9011/9016/9017/9018为高频管，其他为低频管，用于常见电路；2SC945(可用于高频)，2SC92，2SA94：C92/94电话中较常见；2SC8050，2SC8550：小功率放大电路中配对管，小电子产品、高频电路和电话中常见；2SC1815，2SA1015：小功率放大电路中配对管；2N5551，2N5401：高耐压管，用于放大电路前级，电话电路等；MJE13001～13007系列，节能灯中常见。

下列元件不是三极管：TL431，7879L05(79L05)等，MCR100-6，BT169等等！TL431是精密稳压源；78(79)L05(06/07/08/09/12/15/24)为三端稳压电路，稳定电压为后两位数，78系列为正压，79系列为负压；MCR100-6，BT169等是可控硅，即晶闸管。

BC557B还有。

2N3904,2N3906ksk ksk BC817 BC8078550和80502sc3356,2sc90182N2222 2N29078050，8850，9012，9013，9015，9018，2907，222a 1623/1123 9014/9013 2n2222 8050B772,D882中功率管中的便宜货.TIP122,127达林顿功率管中的便宜货.怎么不见 2N5551和2N5401呢最早的当然就是3DG6了，然后是3AX31B,还用它做过推挽放大器，升压电源，然后是3DA87C,高频中功率管。

二极管、三极管符号二极管和三极管的符号通常用于电路图中，以表示这些电子元件。

以下是这些符号的一些基本形式：二极管符号：二极管在电路图中一般采用字母“D”或“VD”表示，或者在图形中用一个三角形表示，三角形的一个角指向表示正极的方向。

对于不同类型的二极管，还有一些特殊的符号或标注：发光二极管（LED）：在二极管符号的基础上，加上两个向外的箭头，表示它能发光。

光电二极管：在二极管符号的基础上，加上一个圆圈，表示它接收光信号。

稳压二极管（Zener Diode）：在二极管符号基础上，加一条横线，代表稳压值。

有时也用字母“ZD”表示。

变容二极管（Varactor Diode）：在二极管符号基础上，加上两条平行的斜线。

肖特基二极管（Schottky Diode）：在二极管符号基础上，加上一个“S”。

隧道二极管（Tunnel Diode）：在二极管符号基础上，加上一个“T”。

三极管符号：三极管在电路图中一般采用字母“Q”、“VT”或“V”表示。

它的图形符号通常包括三个电极：发射极（Emitter，用“E”表示）、基极（Base，用“B”表示）和集电极（Collector，用“C”表示）。

这三个电极在图形中通常表示为三个引脚，其中箭头指向的是发射极。

对于不同类型的三极管，还有一些特殊的标注：NPN型三极管：在三极管符号的基础上，没有特别的标注，或者标注为“NPN”。

PNP型三极管：在三极管符号的基础上，标注为“PNP”。

带阻尼二极管的三极管：在三极管符号的基础上，加上一个二极管的图形，表示它内部集成了阻尼二极管。

复合三极管：在三极管符号的基础上，加上一些其他的图形或标注，表示它具有特殊的功能或结构。

以上信息仅供参考，实际电路图中的符号可能会因不同的国家或地区、不同的设计习惯而有所差异。

因此，在阅读电路图时，最好参考相关的说明或标准。
