65" Series 9Q900R 8K QLED TV Depth and detail in 8K Resolution.* Native 8K content availability is very limited. Picture quality of upscaled content will vary depending on the quality and resolution of source content.^ Compared to Samsung QLED Q90R TV and lower.TopFeatures8K ResolutionA new generation in technology now let's youexperience our best expression of depth and clarity in big screen TV entertainment like never before.*8K AI UpscalingQLED 8K AI Upscaling uses the power of machine learning to analyse and upscale your favouritecontent to 8K resolution, so you get the most out of your big screen TV despite the limited availability of native 8K content.*Ultra Bright IIIOur best expression of brightness and contrast let's you discover deeper, more intense colours so you get an incredible viewing experience, even in sun filled rooms.^Product Product Category8K QLED TVModel Number QA65Q900RBWXXYDisplay Screen Size (rounded)Inch65Screen Size (rounded)cm163Display Technology QLED 8KResolution7680 x 4320 (8K UHD)Motion Refresh Rate Hz200Picture Quality Colour Quantum DotContrast Direct Full Array Elite IIIAnti Reflection Screen YesBacklight Full Array (Direct)Local Dimming YesHigh Dynamic Range Yes (Ultra Bright III)HLG(Hybrid Log Gamma)YesMicro Dimming Ultimate 8K DimmingSpecialised Game Mode Yes(4)Auto Game Mode Yes (14 ms input lag)Dynamic Black Equalizer YesVariable Refresh Rate YesPicture Modes Dynamic,Standard, Natural, MoviePicture Engine Quantum Processor 8KProcessor Quad-CoreStyle Bezel 4 Bezel-lessStand Type SimpleStand Colour BlackOne Connect Box YesCable Management YesSlim Fit Wall-Mount Compatible YesVESA Wall Mount Support mm400 x 400VESA Standard Screw Size M8VESA Standard Screw Depth19-21Optional Stand Compatible NoSmart Smart TV YesOperating System TizenFreeview+YesOne Remote Control YesSmartThings TV App YesSmartThings Mobile App Yes (Android 6.0↑ and iPhone 6 iOS 10.0↑)Web Browser YesBixby YesWorks WithYesGoogle Assistant/Amazon Alexa/AirPlay 2Connectivity HDMI inputs4USB3Component In (Y/Pb/Pr)1Composite In (AV) 1 (Common Use for Component Y)Ethernet (LAN)YesDigital Audio Out (Optical)1RF In(Terrestrial / Cable input / Satellite input)1/1(Common Use for Terrestrial)/0HDMI Audio Return Ch. (ARC) Support YesHDMI Quick Switch YesWireless LAN Built-in Yes (2.4GHz only –802.11n)Anynet+ (HDMI-CEC)YesAuto Device Detection YesConvergence TV to Mobile -Mirroring YesMobile to TV –Mirroring, DLNA Yes (Android 6.0↑ with Screen Cast capabilities)360 Video Player Yes360 Camera Support YesBluetooth Low Energy YesWi-Fi Direct YesTV Sound to Mobile YesTuner/Digital Broadcasting DVB-T (T2Ready)Broadcasting Analog Tuner YesData Broadcasting HbbTV1.5Power Power Consumption (Max)W370Power Consumption(Standby)W0.5Power Consumption (Typical)W308Eco Sensor YesAudio Dolby Digital Plus YesSound Output60WSpeaker Type 4.2 CHWoofer YesBluetooth Audio YesMulti Output Audio YesAdditional Features AI Technology YesIntelligent Mode YesAccessibility Voice guide & Learn menu screen (AU English)/ Enlarge/High contrast/ Learn TV Remote(AU English)/ Negativecolours/ Grayscale/ SeeColoursAuto Channel Search YesAuto Power Off YesSubtitles YesConnectShare™ (HDD)YesConnectShare™ (USB 2.0)YesElectronic Program Guide YesPersonal Video Recording YesTeletext (TTX)YesTime Shift YesAccessories Remote Control Yes (TM1990C)(Included)Batteries for Remote Control YesPower Cable m 1.5User Manual YesE-Manual YesDimensions TV with stand (W x H x D)mm1452.2 x 898.2 x 304.9TV without stand (W x H x D)mm1452.2 x 836.4 x 34.1Package (W x H x D)mm1621 x 980 x 195Weight TV with stand kg31.2TV without stand kg30.2Package kg43.1EAN8801643751296Warranty12 Months。

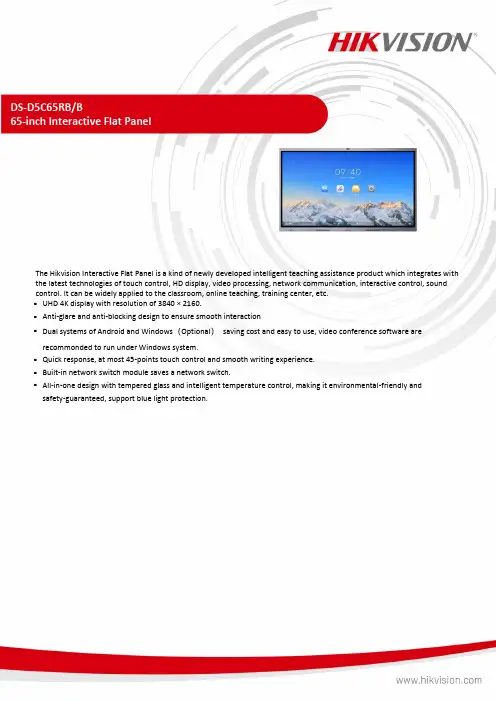

DS-D5C65RB/B65-inch Interactive Flat PanelThe Hikvision Interactive Flat Panel is a kind of newly developed intelligent teaching assistance product which integrates with the latest technologies of touch control, HD display, video processing, network communication, interactive control, sound control. It can be widely applied to the classroom, online teaching, training center, etc.⏹UHD 4K display with resolution of 3840 × 2160.⏹Anti-glare and anti-blocking design to ensure smooth interaction⏹Dual systems of Android and Windows（Optional）saving cost and easy to use, video conference software arerecommonded to run under Windows system.⏹Quick response, at most 45-points touch control and smooth writing experience.⏹Built-in network switch module saves a network switch.⏹All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly andsafety-guaranteed, support blue light protection.SpecificationModel DS-D5C65RB/BProduct Model ProductModelDS-D5C65RB/BPanel GlassThickness3.2 mmGlass BondingMethodZero LaminationDisplay Screen Size 65 inchBacklight DLEDPixel Pitch 0.124（H）× 0.372（V）mm Resolution 3840 × 2160 @60 Hz Brightness 400 cd/m² with Brightness sensor Color Depth 10bitContrast Ratio 4000:1ResponseTime8 msColor Gamut 72% NTSCRefresh Rate 60 HzViewing Angle 178°(H)/178°(V)Optical Aspect Ratio 16 : 9Built-in System OperationSystemAndroid 12.0Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）Memory 8 GBBuilt-inStorage128 GBPanel Type VAHDCP Version 2.0TouchResolution3840 × 2160Touch Type Infrared Touch Screen Touch Point 45 point multi-touchTouchResponseTime< 8 msTouchPrecision± 1 mm (≥ 90% touching area)ProcessingPerformanceDisplay Color 1.07GInternal Function Loudspeaker Built-in 2 ×15 W+25 W loudspeaker;Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1ImageProcessingSupport 3D digital noise reduction, face detection, automatic white balance, automatic purpleedge removal, automatic defogging；support shadow correction and distortion correction forTechnology lens.Audio Processing Technology Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.Interface Video ＆Audio InputHDMI In （HDMI 2.0）× 3, VGA In x 1, DP In （DP 1.2）× 1, Audio In × 1Video ＆audio outputHDMI Out （HDMI 2.0）× 1, Audio Out × 1, SPDIF Out × 1ControlinterfaceTOUCH-USB 3.0 × 3, RS232 × 1NetworkInterfaceLAN (1000 Mbps) × 2WIFI AP&Station，2.4G/5GIEEE 802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA,WPA2, PSK and 802.1X EAPDataTransmissionInterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions;side charging 15 W, front charging 65 W)Power Standby Consumption≤ 0.5 W Max.Consumption< 200WWorking Environment WorkingTemperature0 °C to 40 °C (32 °F to 104°F) WorkingHumidity10%~90% RHGeneral VESA 600 mm × 400 mm(4 × M8-25 mm)Power Supply 100 to 240 VAC, 50/60 HzProductdimensions1491.9 × 910.6 × 82.3AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable,3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control. PackageDimensions(W × H × D)1704 mm ×251 mm ×1073 mmNet Weight 41.13Gross Weight 53.27NFC Support screen mirroring by Android phones.Camera Pixel 8 MPCameraFunctionSupport intelligent switching between Android system, OPS, and PC. Field Angle 120°(diagonal), 110°(horizontal), 75°(vertical)Distortion ≤2.5%CameraResolutionRatioUp to 4KMicrophone Specification Omni-directional 8-array layoutMic Function Echo reduction and smart noise-cancellation VoiceDistance12 mSampling Rate 32 KMic SamplingRate16 bit⏹Physical InterfaceInterface Description Interface Description1.SPDIF SPDIF interface2.Line OUT Audio output interface3.Line IN Audio input interface4.VGA IN Video devices connectioninterface5.TYPE-C Type-C interface6.DP IN Display input interface7.TOUCH-USB 2Peripheral touch interface8.HDMI IN 2HDMI 2 input interface9.TOUCH-USB Peripheral touch interface10.HDMI IN 1HDMI 1 input interface B USB interface12.MULTI-USB 2Multi-functional USBinterface13.MULTI-USB 1Multi-functional USBinterface14.HDMI OUT HDMI output interface⏹InstallationAvailable Model DS-D5C65RB/BDimension。

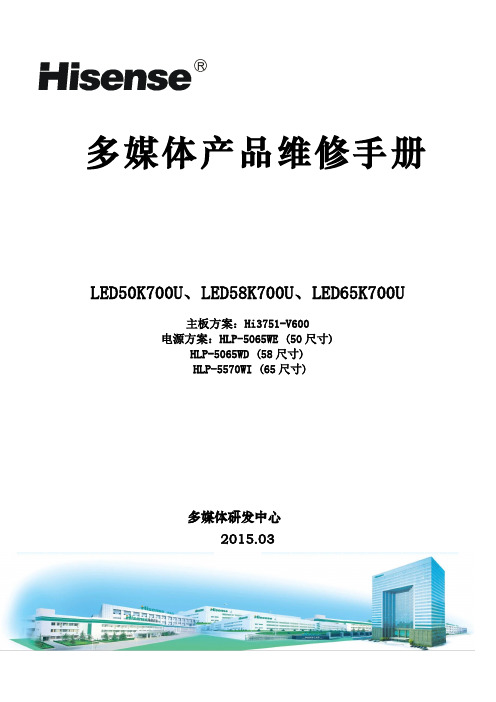

R多媒体产品维修手册LED50K700U、LED58K700U、LED65K700U主板方案：Hi3751-V600电源方案：HLP-5065WE (50尺寸)HLP-5065WD (58尺寸)HLP-5570WI (65尺寸)多媒体研发中心2015.03目录LED50K700U、LED58K700U、LED65K700U (3)一、产品介绍 (3)（一）、产品外观介绍 (3)外观图： (3)端子图： (5)（二）、产品功能规格、特点介绍 (6)技术参数： (6)视频支持格式： (7)HDMI、分量输入端口支持的信号格式： (7)（三）、产品差异介绍 (7)主板差异： (8)电源板差异： (8)二、产品方案概述 (8)整机内部图 (8)整机信号流程图 (11)电源分配图 (12)三、主板原理说明 (13)主板实物图 (13)主板电路原理图 (15)四、电源板原理说明 (34)LED50K700U、LED58K700U (34)A、产品介绍： (34)B、方案概述： (35)C、分部原理说明： (36)D、常见故障现象分析： (41)LED65K700U (42)A、产品介绍： (42)B、方案概述： (43)C、分部原理说明： (44)D、常见故障现象分析： (47)E、集成电路芯片的管脚电压、参考数值、功能简介： (48)五、产品爆炸图及明细 (49)LED50K700U (49)LED58K700U (50)LED65K700U (51)六、软件升级方法 (52)A、海思系列机型信息汇总：下文主要是针对当前基于MTK方案的内销智能电视。
(52)B、海思系列方案使用的调试工具以及相关软件工具介绍。
(53)C、如何使用U盘升级： (54)D、升级完成之后的维护工作: (54)E、如何获取有效的Log信息: (55)F、故障板的常规判断方法： (56)液晶电视服务手册LED50K700U、LED58K700U、LED65K700U一、产品介绍（一）、产品外观介绍外观图：（因拍摄技术有限，图片仅供参考）LED50K700ULED58K700ULED65K700U端子图：（二）、产品功能规格、特点介绍技术参数：视频支持格式：HDMI、分量输入端口支持的信号格式：（三）、产品差异介绍LED50K700U183176 主板组件\RSAG2.908.6334-01\ROH 1144318 LCD屏\V500DJ2-KS5\JK\ROH 179882 电源板组件\RSAG2.908.6207-02\ROHLED58K700U183176 主板组件\RSAG2.908.6334-01\ROH179578 电源板组件\RSAG2.908.6207\ROH 1144319 LCD屏\V580DJ2-KS5\JK\ROHLED65K700U182366 主板组件\RSAG2.908.6334\ROH 1144321 LCD屏\V650DJ4-KS5\JK\ROH 178428 电源板组件\RSAG2.908.6144\ROH主板差异：电源板差异：RSAG2.908.6144为首用型号，暂无差异。
静止静音123456789V+V-P+P-指南交替确定菜单上翻页下翻页退出电视广播点播喜好画中画画面交换频道－频道+信息声道幅宽比删除播放/暂停硬盘节目快进停止录制/停止快退HYDFSR-10501退出静音声道广播电视菜单待机硬盘节目播放/暂停快进停止123456789信号弱无电视节目搜索进度设置指南广播电视高级设置手动搜索网络搜索自动搜索在线升级出厂设置请输入正确参数开始搜索，请按“确定”键返回上一级“菜单”键调制方式符号率646.875 MS/s主频点搜索 否硬盘电视列表电视列表频道号 频道名喜好列表添加到喜好001 CCTV-1002 CCTV-2003 CCTV-3004 CCTV-4005 CCTV-5006 CCTV-6007 CCTV-7008 CCTV-8009 CCTV-9010 CCTV-10信号频率信号强度482MHz78设置指南广播电视硬盘当前节目 广告下个节目 幸运52信号弱广播列表频道号 频道名001 中央广播1套002 中央广播2套003 中央广播3套004 中央广播4套005 中央广播5套006 中央广播6套007 中央广播7套008 中央广播8套009 中央广播9套信号频率信号强度490MHz70动物世界已开始，现在收看?4个节目已开始现在收看?设置指南广播电视硬盘硬盘列表001 海豚爱上猫（2）002 节目15003 我爱世界杯004 海峡两岸005 曲苑杂坛006 高校录取进行时008 快乐驿站录制时间 2006/07/29 10:29:50节目时长 00：00：45文件大小 123M 剩余空间 20G 硬盘容量 80G频道号 频道号设置指南广播电视硬盘播放状态：播放中单频道指南预约列表多频道指南预约/取消预约预约列表星期五 2006/07/21 (1/11) 剩余时间：70分钟今天15:20-17:30 CCTV-2 下午剧场今天18:30-18:50 QTV-1 青岛剧场今天19:00-19:30 CCTV-1 新闻联播设置指南广播电视硬盘11基本设置高级设置基本设置（1）输出模式按上/下键选择输出模式后，按左/右键在复合视频、HDMI 、高清电视三种视频输出模式间切换。

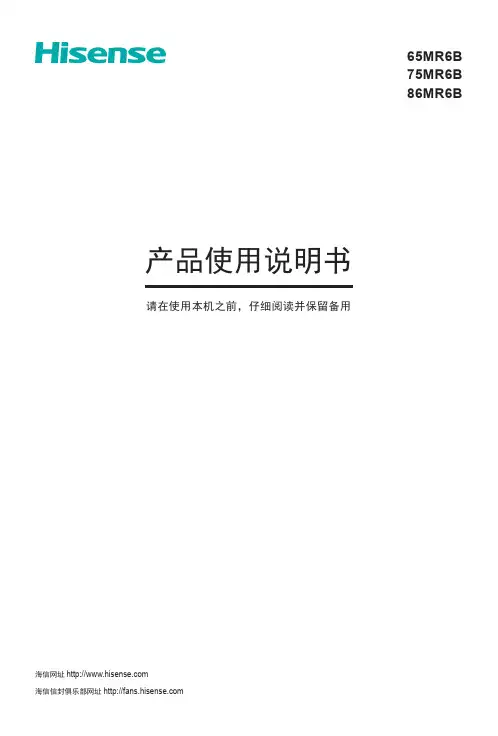

产品使用说明书请在使用本机之前，仔细阅读并保留备用65MR6B 75MR6B 86MR6B海信网址海信信封俱乐部网址温馨提示您好！在使用本产品前请您认真阅读产品使用说明书，并妥善保管。
因违反本手册中安全注意事项及使用说明事项而导致的事故，本公司不承担任何责任。
本产品内有高压，用户不得擅自打开机壳。
非维修人员，不得擅自修理和换件，以免发生触电和火灾事故。
节能提示：· 在不使用本机时请选择交流关机（通过拔掉电源线实现关机），以减少能耗。
· 在不影响观看质量的前提下，可降低显示屏的亮度以减少本机在使用过程中的能耗。
带闪电箭头的三角形图案为警告符号，提醒您注意产品内的电压有危险。
·注意事项。
带惊叹号的三角形图案为警告符号，提醒您注意与产品有关的重要说明。
→下一步。
符号说明海信集团全国统一服务热线：4006111111海信集团全国统一安装专线：4008011111产品为Ｉ 类设备，请确保将产品连接到带保护接地连接的电网电源输出插座上。
Ａ级产品声明：此为A 级产品，在生活环境中，该产品可能会造成无线电干扰。
在这种情况下，可能需要用户对其干扰采取切实可行的措施。
注意事项：静止图像可能会导致本机屏幕永久性损坏。
1.不要在液晶一体机屏幕上显示静止图像超过2小时，因为这样会导致出现屏幕图像残影，为避免此问题请您在显示静止图像时降低屏幕的亮度和对比度。
2.长时间观看4:3格式的节目时，在屏幕的左、右两侧和图像的边缘会留下不同的痕迹，所以请您不要长时间使用此模式。
3.显示电子游戏和电脑静止图像的时间过长，可能会导致局部余像，出现因荧光屏灼伤而造成的屏幕图像残影，所以请您在使用时适当降低亮度和对比度。
上述原因导致的一体机屏幕出现图像残影、局部余像、痕迹问题，显示屏不在保修范围之内。
使用本产品前请详细阅读下列事项：重要注意事项1安全警告遇到雷雨天气时，请将电源插头、网线插头拔出，以免造成本机损坏。
