800系列BRANSON超声波说明书

目录一概述 .............................................................................................................................................. - 3 - §1.1 引言 .................................................................................................................................... - 3 - §1.2 FC-80的特点 ....................................................................................................................... - 3 - §1.3 工作原理............................................................................................................................. - 3 - §1.6 可选备件............................................................................................................................. - 4 - §1.7产品型号编码规则 ............................................................................................................... - 4 - §1.8 外形图和接线图.................................................................................................................. - 5 - §1.9 性能指标............................................................................................................................. - 6 - 二开始安装测量................................................................................................................................ - 7 - §2.1 开箱检查............................................................................................................................. - 7 - §2.2 供电电源............................................................................................................................. - 7 - §2.2.1便携式 ....................................................................................................................... - 7 - §2.2.2固定式 ....................................................................................................................... - 7 - §2.2.3接线........................................................................................................................... - 7 - §2.3 通电 .................................................................................................................................... - 7 - §2.4 键盘 .................................................................................................................................... - 8 - §2.5 怎样操作............................................................................................................................. - 8 - §2.6 窗口简介............................................................................................................................. - 9 - §2.7 快速输入管道参数和步骤 ................................................................................................... - 9 - §2.8 选择测量点 ....................................................................................................................... - 10 - §2.9 探头接线........................................................................................................................... - 10 - §2.10 安装探头......................................................................................................................... - 10 - §2.10.1 探头安装距离........................................................................................................ - 11 - §2.10.2 探头安装方式........................................................................................................ - 11 - §2.10.3 V法 ....................................................................................................................... - 11 - §2.10.4 Z法........................................................................................................................ - 11 - §2.10.5 N法（不常用的方法） .......................................................................................... - 11 - §2.10.6 W法（极不常用的方法）...................................................................................... - 12 - §2.10.7 插入式传感器的安装............................................................................................. - 12 - §2.11 检查安装 ......................................................................................................................... - 15 - §2.11.1 信号强度 ............................................................................................................... - 15 - §2.11.2信号质量(Q值) ...................................................................................................... - 15 - §2.11.3 总传输时间、时差................................................................................................. - 16 - §2.11.4 传输时间比............................................................................................................ - 16 - §2.11.4 安装时注意的问题................................................................................................. - 16 - 三怎样使用..................................................................................................................................... - 17 -§3.1 怎样判断流量计是否工作正常 .......................................................................................... - 17 -§3.2 怎样选择流量单位制......................................................................................................... - 17 -§3.3 怎样选择瞬时流量单位..................................................................................................... - 17 -§3.4 怎样选择累积流量单位..................................................................................................... - 17 -§3.5 怎样选择累积器倍乘因子 ................................................................................................. - 17 -§3.6 怎样打开或关闭流量累积器.............................................................................................. - 17 -§3.7 怎样实现流量累积器清零 ................................................................................................. - 17 -§3.8 怎样恢复出厂设置 ............................................................................................................ - 17 -§3.9 怎样使用阻尼器稳定流量显示 .......................................................................................... - 17 -§3.10 怎样使用零点切除避免无效累积..................................................................................... - 18 -§3.11 设置零点提高测量精度 ................................................................................................... - 18 -§3.12 修改仪表系数（标尺因子）进行标定校正...................................................................... - 18 -§3.13 密码保护（加锁与开锁）................................................................................................ - 18 -§3.14 使用键盘锁定，避免无关人员操作................................................................................. - 18 -§3.15 怎样使用打印机.............................................................................................................. - 19 -§3.16 怎样使用4~20mA电流环输出........................................................................................ - 19 -§3.17 怎样输出模拟电压信号................................................................................................... - 19 -§3.18 怎样使用频率信号输出................................................................................................... - 19 -§3.19 怎样输出累积脉冲 .......................................................................................................... - 20 -§3.20 怎样产生输出报警信号................................................................................................... - 20 -§3.21 怎样使用蜂鸣器.............................................................................................................. - 20 -§3.22 怎样使用OCT输出 ........................................................................................................ - 21 -§3.23 怎样使用继电器输出....................................................................................................... - 21 -§3.24 怎样修改日期时间 .......................................................................................................... - 21 -§3.25 怎样调整LCD显示器..................................................................................................... - 21 -§3.26 怎样使用RS232/RS485串行口 ....................................................................................... - 21 -§3.27 怎样查看每日、每月、每年流量 .................................................................................... - 21 -§3.28 怎样连接压力信号和温度信号（模拟输入） .................................................................. - 21 -§3.29 怎样实现断电时间段内流量的自动补加 ......................................................................... - 22 -§3.30 怎样使用工作计时器....................................................................................................... - 22 -§3.31 怎样使用手动累积器....................................................................................................... - 22 -§3.32 怎样使用批量（定量）控制器........................................................................................ - 22 -§3.33 怎样对模拟输出进行校准 ............................................................................................... - 22 -§3.34 查看电子序列号和其他细节............................................................................................ - 22 -四命令/显示窗口详解..................................................................................................................... - 23 -§4.1 显示窗口一览表................................................................................................................ - 23 -§4.2 显示窗口顺序介绍............................................................................................................ - 24 -五问题处理..................................................................................................................................... - 41 -表1. 硬件上电自检信息及原因对策......................................................................................... - 41 -表2. 工作时错误代码原因及对策............................................................................................. - 42 -其他常见问题问答 .................................................................................................................... - 42 -六联网使用及通信协议 .................................................................................................................. - 44 -§6.1 概述.................................................................................................................................. - 44 -§6.2 流量计串行口定义............................................................................................................ - 44 -§6.3 同上位机的RS232直接联接............................................................................................. - 44 -§6.4 通信协议及其使用............................................................................................................ - 44 -§6.4.1 基本命令................................................................................................................. - 44 -§6.4.2 功能前缀和功能符号 .............................................................................................. - 46 -§6.4.3 兼容协议1.............................................................................................................. - 46 -§6.4.4 兼容协议2.............................................................................................................. - 47 -§6.5 键值编码........................................................................................................................... - 49 -§6.7 编程举例........................................................................................................................... - 49 -§7.1 功能介绍........................................................................................................................... - 50 -§7.2热量测量硬件接线............................................................................................................. - 50 -§7.3怎样进行热量测量............................................................................................................. - 50 -§7.4温度、压力等信号的量程范围设置 ................................................................................... - 51 -§7.5模拟输入的校准................................................................................................................. - 51 -§7.5联网时模拟输入量的读取.................................................................................................. - 51 -§8.1 质量保证........................................................................................................................... - 52 -§8.2 公司服务........................................................................................................................... - 52 -§8.3 产品升级........................................................................................................................... - 52 -§8.4 技术咨询........................................................................................................................... - 52 -九附录............................................................................................................................................ - 53 -§9.1常用液体声速和粘度 ......................................................................................................... - 53 -§9.2常用材料声速............................................................................................................................... - 53 -一概述§1.1 引言欢迎您选择使用性能更优异、功能更多、采用了专利技术制造的FC-80系列超声波流量计。

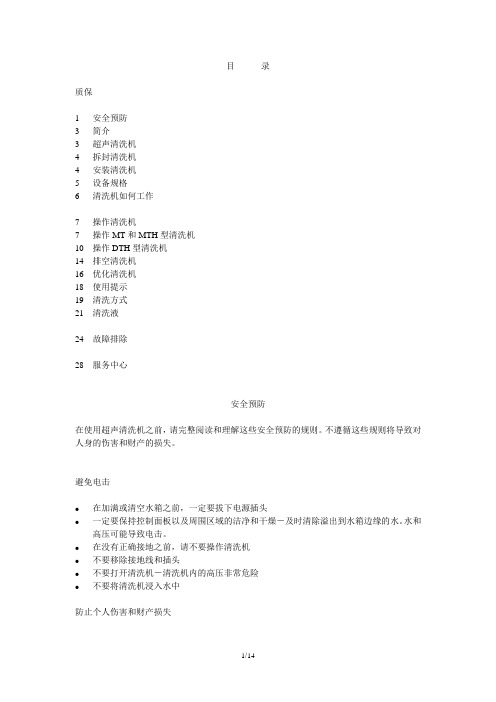

Branson+超声波手册-中文目录质保1安全预防3简介3 超声清洗机4 拆封清洗机4 安装清洗机5 设备规格6 清洗机如何工作7 操作清洗机7 操作MT和MTH型清洗机10 操作DTH型清洗机14 排空清洗机16 优化清洗机18 使用提示19 清洗方式21 清洗液24 故障排除28 服务中心安全预防在使用超声清洗机之前，请完整阅读和理解这些安全预防的规则。

不遵循这些规则将导致对人身的伤害和财产的损失。

避免电击一定要拔下电源插头●在加满或清空水箱之前，●一定要保持控制面板以及周围区域的洁净和干燥－及时清除溢出到水箱边缘的水。

水和高压可能导致电击。

●在没有正确接地之前，请不要操作清洗机●不要移除接地线和插头●不要打开清洗机－清洗机内的高压非常危险●不要将清洗机浸入水中防止个人伤害和财产损失●使用清洗机时要采用有排出口的护盖或者不使用护盖●使用以水为主的清洗液●一定不要使用酒精、汽油或者其它可燃性清洗液。

否则将导致火灾、爆炸，并且使保修失效。

一定使用以水为主的清洗液。

●不要使用可能损坏水箱的酸性物质。

●不要碰触不锈钢水箱－其温度可能很高 ●不要使液体温度超过70℃。

●当清洗机运转时，不要将手伸入水箱。

否则会导致不舒适或皮肤刺激。

避免接触并保持合适的通风。

●不要采用含有氯气漂白的清洗液防止清洗机的损坏●定期更换清洗液 ●不要覆盖盖子上的出口 ●不要在无水情况下操作清洗机●不要将部件或容器直接放在清洗水箱的底部，采用托盘或绳索悬置清洗物。

否则将损坏传感器并导致保修失效。

在加热或超声打开时，不要让溶液下降到操作线下3/8英寸以下。

否则将导致传感器或加热器损坏并导致保修失效。

介 绍超声清洗机该系列的超声清洗机包括5个型号，包括1/2加仑，3/4加仑，1-1/2加仑，2-1/2加仑和5-1/2加仑。

每个型号都装备有耐用的工业用40KHz 传感器。

强大的清洗能力加上内置的清洗频率能够提供有效的统一的清洗。

1/2和3/4加仑型号装有一个浇铸的有倾斜角度的边缘，使从水箱中清空溶液非常简便。

超声波使用说明书模块实物图如下图所示：123(12V+)(GND)(485通信口)一、接线说明模块采用DC12V供电；图中标号为1的红色箭头处接电源正，标号为2的红色箭头处接电源负。

标号为3的红色箭头处接485通信线。

二、通信协议说明模块采用485通信，波特率为9600；通信协议如下：协议头预留字节预留字节预留字节距离高字节距离低字节帧尾校验和0Xfe0X000X000X000Xxx0Xxx0Xef0Xxx校验和计算方法：从协议头到帧尾个各数据之和取最低两位距离返回值单位为：mm；例：0xfe0x000x000x000x040xb00xef0xa1当返回数据如上所示时，测距结果为1200mm。

三、模块测量方法由于模块是高精度设计用，所以对测量环境有严格的说明界定。

请参考如下测量安装方式，否则会产生较大的测量误差。

安装方式如下：滤波处理装置，可以用PCB板来固定代替移动平面是本模块的移动方向，反射平面是基础高度。

在移动平面方向前后运动将会测量到实际的反射平面与模块的实际距离。

测量条件：1：参考平面（模块固定的平面）一定要垂直于反射平面。

2：测量模块在反射面这个方向上的1米半径范围内不能有遮挡物。

3：在移动模块到了指定位置后（想测量的距离位置处），模块的前端一定要绝对垂直于反射面。

4：根据超声波的扇形反射面原理，最好在超声波的接收端安装反射能量限定装置，这样能更准确的获得实际的测量结果。

在实际应用场合，有更多的安装要求。

基本的测量测试，照目前条件能基本反应出来。

成都镓舒适科技有限公司2014-09-01。

目录质保1安全预防3简介3 超声清洗机4 拆封清洗机4 安装清洗机5 设备规格6 清洗机如何工作7 操作清洗机7 操作MT和MTH型清洗机10 操作DTH型清洗机14 排空清洗机16 优化清洗机18 使用提示19 清洗方式21 清洗液24 故障排除28 服务中心安全预防在使用超声清洗机之前，请完整阅读和理解这些安全预防的规则。

不遵循这些规则将导致对人身的伤害和财产的损失。

避免电击●在加满或清空水箱之前，一定要拔下电源插头●一定要保持控制面板以及周围区域的洁净和干燥－及时清除溢出到水箱边缘的水。

水和高压可能导致电击。

●在没有正确接地之前，请不要操作清洗机●不要移除接地线和插头●不要打开清洗机－清洗机内的高压非常危险●不要将清洗机浸入水中防止个人伤害和财产损失●使用清洗机时要采用有排出口的护盖或者不使用护盖●使用以水为主的清洗液●一定不要使用酒精、汽油或者其它可燃性清洗液。

否则将导致火灾、爆炸，并且使保修失效。

一定使用以水为主的清洗液。

●不要使用可能损坏水箱的酸性物质。

●不要碰触不锈钢水箱－其温度可能很高●不要使液体温度超过70℃。

●当清洗机运转时，不要将手伸入水箱。

否则会导致不舒适或皮肤刺激。

避免接触并保持合适的通风。

●不要采用含有氯气漂白的清洗液防止清洗机的损坏●定期更换清洗液●不要覆盖盖子上的出口●不要在无水情况下操作清洗机●不要将部件或容器直接放在清洗水箱的底部，采用托盘或绳索悬置清洗物。

否则将损坏传感器并导致保修失效。

●在加热或超声打开时，不要让溶液下降到操作线下3/8英寸以下。

否则将导致传感器或加热器损坏并导致保修失效。

介绍超声清洗机该系列的超声清洗机包括5个型号，包括1/2加仑，3/4加仑，1-1/2加仑，2-1/2加仑和5-1/2加仑。

每个型号都装备有耐用的工业用40KHz传感器。

强大的清洗能力加上内置的清洗频率能够提供有效的统一的清洗。

1/2和3/4加仑型号装有一个浇铸的有倾斜角度的边缘，使从水箱中清空溶液非常简便。

The Branson reputation for impeccable quality and reliable ultrasonics is unsurpassed. Our global network of distributors ensures that you will have the machinery, accessories, supplies, and support you need to meet your basic cleaning needs for the most demanding applications.Bransonic CPX Series•S leep mode provides energy savings automatically by shutting off unit if controlThe CPX SeriesThe value leader for quality and reliability.The Bransonic M Series includes two simple-to-use models: the M and MH Series. Both series are designed for basic yet effective cleaning, with set-it-and-forget-it mechanical timers, which can be set up to 60 minutes or run continuously. MH Series units also offer a heating option. And both series are excellent for use in a variety of applications:aboratories and dental offices ewelry and precious metalsBransonic M SeriesTo conserve energy, the unit goes into sleep mode if control keys are not touched for 15 minutes after cycle ends, and restarts after any key is touched.Temperature can be set for either Fahrenheit or Celsius CPX Series is completely programmable, so engineers can choose temperature, start, and stop times for “set-it-and-forget-it” operation.Degassing periods of up to 99 minutes also allow for various sample prep applications.Digital timer allows for continuous ultrasonic operation or can be set for up to 99 minutes.Ultrasonic power tracking maintains steady,consistent activity in the bath when conditions change.High/low power control provides safer cleaning of delicate components. 100% power for normal, or 70% for delicate applications.Precision Cleaning for All Types of ApplicationsAccessories and SolutionsLaboratoryThoroughly removes blood, protein, andcontaminants on tools such as glassware, lenses, instruments, and precision components.Medical and Dental LabsOffers a safer, more consistent way to clean dental and medical instruments in combination with sterilization.IndustryDeep cleans to remove dirt, grease, waves, and oils from industrial parts and components of all kinds, including steel, light and nonferrous metals, plastic, and glass.ElectronicsCompletely removes flux and contaminants from such precision components as PC boards, SMDs, quartz crystals, capacitors, and many others.JewelryThoroughly cleans and restores brilliance towatches, chains and charms, settings, coins, fine jewelry, and clockworks.OpticalEnsures precision cleaning of optics.Bransonic baths are in use worldwide, providing simple, effective results for the ultimate in ultrasonic cleaning.Beyond CleaningBranson ultrasonic cleaners also can be used for sample preparation; degassing liquids, mixing and homogenization, dissolving solids, lysing and dispersion of particles.AccessoriesBransonic ® ultrasonic baths also can be accessorized to best suit your specific cleaning or laboratoryneeds. Choose the appropriate suspension method for your applications, solid or perforated tray, basket, support rack, and beaker holder to customize each unit as needed.The Right Cleaning SolutionIt’s the most important decision you can make. A large variety of excellent formulations are available, designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to preclude undesirable reactivity with the items being cleaned.M Series MH Series CPX Series CPXH Series 60-minute 60-minute 99-minute 99-minute。

MechanicsAcousticsDebye-Sears EffectDETERMINE THE VELOCITY OF ULTRASONIC WAVES IN LIQUIDS.UE1070550 04/16 JSBASIC PRINCIPLESThe diffraction of light by ultrasonic waves in liquids was predicted by Brillouin in 1922, and the effect was con-firmed experimentally in 1932 by Debye and Sears and also by Lucas and Biquard . It is caused by the periodic variations in the refractive index of the liquid that are produced by ultrasonic waves. If a light beam is passed through the liquid perpendicular to the ultrasound direc-tion, the arrangement acts as a phase grating, which moves depending on the velocity of sound. Its grating constant corresponds to the wavelength of the ultra-sound, and thus depends on its frequency and the veloci-ty of sound in the medium. The movement of the phase grating can be neglected if the effect is observed on a screen at a large distance.In the experiment, a vertically orientated generator couples ultrasonic waves at frequencies between 1 MHz and 12 MHz into the test liquid. A monochromatic parallel light beam pass-es through the liquid in the horizontal direction and is diffract-ed by the phase grating (see fig. 1). The diffraction pattern contains several diffraction maxima spaced at regular dis-tances (see fig. 2).The k th-order maximum of the diffraction pattern is found at the diffraction angle αk , defined by(1) SLk tan λλ⋅=αk λL : ight wavelength, λS : ultrasound wavelength.Thus, the ultrasound wavelength λS can be determined from the separation between the diffraction maxima. Furthermore, according to the relationship(2) S λ⋅=f cit is possible to calculate the velocity of sound c in the liquid, since the frequency f of the ultrasonic waves is also known.Fig. 1: D iagram showing the diffraction of light by a phasegrating that is produced in a liquid by ultrasonic wavesFig. 2: D iffraction pattern caused by the diffraction of light at aphase grating produced in a liquid by ultrasonic wavesLIST OF APPARATUS1 Ultrasonic cw Generator with Probe 1002576 (U100061) 1 Test Vessel, Complete 1002578 (U10008)1 Laser Diode for D-S Effect, Red 1002577 (U10007)1 Laser Diode for D-S Effect, Green 1002579 (U10009)1 Pocket Measuring Tape,2 m 1002603 (U10073)1 Ultrasonic Coupling Gel 1008575 (XP999)SET-UP∙Fill the test vessel with distilled water and place it about3 m from the projection screen.∙Mount the multi-frequency probe vertically in the holder of the test vessel and connect it to the PROBE output of the ultrasonic generator (see Fig. 3).∙Mount the red laser diode in the laser holder of the test vessel and connect it to the LASER output of the ultra-sonic generator.Fig. 3: Experiment set-up for the diffraction of light at a phase grating produced in a liquid by ultrasonic waves EXPERIMENT PROCEDURE∙Measure the distance s between the multi-frequency probe and the screen.∙Switch on the ultrasonic cw generator.∙Switch on the laser and the multi-frequency probe.∙Set the frequency to 1 MHz.∙Adjust the amplitude of the transducer signal, and by means of the three adjusting screws of the transducer holder adjust the orientation of the multi-frequency probe so that standing waves are generated.∙On the screen measure the distance x2k between the –k th order and the +k th order diffraction maxima.∙Increase the frequency in steps of 1 MHz up to 12 MHz, and for each frequency measure the distance x2k and de-termine the diffraction order k.∙Replace the red laser diode with a green one and make a similar set of measurements. SAMPLE MEASUREMENTS AND EVALUA-TIONs =325 cmTable 1: Experiment data with light of wavelength λL = 652 nm (red laser)Table 2: Experiment data with light of wavelength λL = 532 nm (green laser)It is necessary to measure the distance s between the ultra-sound generator and the screen used to observe the diffrac-tion pattern, and the distance x2k between the -k th and the +k th diffraction maxima. From these two distances, it is possi-ble to calculate the diffraction angle αk for the k th-order maxi-mum, given by:sx⋅=α2tan2kk.This leads to the following equation for determining the ultra-sound wavelength λS:L2kS2λ⋅⋅⋅=λxsk.This is the equation by which the sound wavelengths in the right-hand column of both tables were calculated.3B Scientific GmbH, Rudorffweg 8, 21031 Hamburg, Germany, Figure 4 shows the calculated sound wavelength as a function of the frequency of the ultrasonic waves. The hyperbola curve was calculated according to Equation (2) as:fc =λS with s m 1482=cThe velocity of sound c determined by this curve-fitting proce-dure is in excellent agreement with the literature value.510f / M H zλ μ/ mFig. 4: S ound wavelength λS in water as a function of the fre-quency f。

电池用金属焊接机40MA-B焊接机架使用手册EDP代码：500.220.020版本号：R ev.0501生产商：必能信超声（上海）有限公司地址：上海市松江工业区荣乐东路528号邮编： 201613电话：(0086) – 21 – 57745558网址： 目录1电池用超声波金属焊接系统介绍1.1安全要求与警告················································································1-11.2系统概述····························································································1-21.2.1BWe/t超声波信号发生器······················································1-31.2.240MA-B焊接机架··································································1-41.2.340MA-B焊接机架的气动系统··············································1-51.2.440MA-B焊接机架的高限开关··············································1-51.2.540MA-B焊接机架的输入/输出接口·····································1-61.2.640MA-B焊接机架的底座······················································1-61.2.740MA-B焊接机架的换能器/变幅器/焊头夹具·····················1-61.2.8换能器/变幅器·······································································1-61.340MA-B焊接机架的基本功能简介···················································1-71.3.140MA-B焊接机架上部部件简介··········································1-71.3.240MA-B焊接机架侧/后部部件简介·····································1-81.4综述··································································································1-10 240MA-B焊接机架的安装2.1安装要求····························································································2-12.1.1安装空间················································································2-12.1.2环境要求················································································2-32.1.3电源输入范围········································································2-32.1.4工厂气源················································································2-32.1.5气源输入接口········································································2-42.2包装拆卸····························································································2-42.3常规安装步骤····················································································2-62.3.1系统连线················································································2-62.3.2换能器/变幅器/焊头组件······················································2-82.3.3换能器/变幅器/焊头组件的装入···········································2-92.3.4焊接用下模具的安装··························································2-10340MA-B焊接机架的操作3.1焊接模式····························································································3-13.1.1焊头下降模式········································································3-13.1.2超声测试模式········································································3-13.1.3循环焊接模式········································································3-23.2焊接操作的常规流程·········································································3-33.340MA-B机架上焊接参数的设置·······················································3-43.3.1气压的调节与设定································································3-43.3.2焊头上升/下降速度的调节···················································3-43.3.3焊头上限位置的调整····························································3-53.3.4焊头下限位置的调整····························································3-63.3.5高限开关位置的调整和设定·················································3-73.440MA-B机架上输入/输出接口·························································3-93.4.1启动接口················································································3-93.4.2发生器/机架控制接口···························································3-93.4.3运动控制接口·······································································3-10 440MA-B焊接机架的维护4.1定期常规维护····················································································4-14.1.1换能器/变幅器/焊头组件的维护···········································4-14.1.2空气过滤器的维护································································4-24.2备件清单····························································································4-44.340MA-B焊接机架连线图··································································4-5 5备注5.1附图索引····························································································5-15.2附表索引····························································································5-21. 电池用超声波金属焊接系统介绍1.1安全要求与警告本节解释了手册上各种“安全注意”符号和标志的意义，并提供了超声波金属焊接系统的常规安全预防措施。
