LTV354T-A中文资料

  • 格式：pdf
  • 大小：494.05 KB
  • 文档页数：9

LTV354T-A中⽂资料

FEATURES

* AC input response

* Current transfer ratio

( CTR : MIN. 20% at I F =±1mA, V CE =5V )

* Isolation voltage between input and output LTV-354T

( V iso =3,750Vrms )

* Employs double transfer mold technology

* Subminiature type

( The volume is smaller than that of conventional DIP type by as far as 30% ) * Mini-flat package :

2.0 profile : LTV-354T

* UL approved ( No. E113898 )

* CUL approved ( No. E113898 , 01SC19287 )

* CSA approved ( No. 1243207 )

* FIMKO approved ( No. FI-16420 )

* NEMKO approved ( No. P0******* )

* DEMKO approved ( No. 310475-01 )

* SEMKO approved ( No. 0109173 / 01-08 )

* VDE approved ( No. 094722 )

* RoHS compliance

APPLICATIONS

* Hybrid substrates that require high density mounting.

* Programmable controllers

OUTLINE DIMENSIONS

LTV-354T :

*1. 2-digit date code.

*2. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China).

*3. Rank shall be or shall not be marked.

ABSOLUTE MAXIMUM RATING

( Ta = 25°C ) PARAMETER SYMBOL RATING UNIT

Forward Current I F±50 mA INPUT

Power Dissipation P 70 mW

Collector - Emitter Voltage V CEO35 V

Emitter - Collector Voltage V ECO 6 V OUTPUT

Collector Current I C50 mACollector Power Dissipation P C150 mW Total Power Dissipation P tot170 mW

*1 Isolation Voltage V iso3,750 Vrms Operating Temperature T opr-55 ~ +100 °C

Storage Temperature T stg-55 ~ +150 °C

*2 Soldering Temperature T sol260 °C

*1. AC For 1 Minute, R.H. = 40 ~ 60%

Isolation voltage shall be measured using the following method.

(1) Short between anode and cathode on the primary side and between collector and

emitter on the secondary side.

(2) The isolation voltage tester with zero-cross circuit shall be used.

(3) The waveform of applied voltage shall be a sine wave.

*2. For 10 Seconds

RANK TABLE OF CURRENT TRANSFER RATIO CTR

MODEL NO. RANK MARK CTR ( % )

A 50 ~ 150

LTV-354T

A or No mark 20 ~ 400

CONDITIONS I F = ±1 mA V CE = 5 V Ta = 25 °C

TEMPERATURE PROFILE OF SOLDERING REFLOW

(1)One time soldering reflow is recommended within the condition of temperature and time

profile shown below.

合集下载

2SK3541中文资料

2SK3541中文资料

2SK3541中文资料

Transistor

Small switching (30V, 0.1A)

2SK3541

!Applications

Interfacing, switching (30V , 100mA)

!Features

1) Low on-resistance.2) Fast switching speed.

3) Low voltage drive (2.5V) makes this device ideal for

portable equipment.

4) Easily designed drive circuits.5) Easy to parallel.

!Structure

Silicon N-channel MOSFET

!External dimensions (Units : mm)

!Absolute maximum ratings (T a=25°C) Parameter Drain-source voltage Gate-source voltage Drain current Total

power dissipation (Tc =25°C)Channel temperature Storage

temperature

V DSS V GSS I DR P D

2Tch 30V V mA mA mW °C ±20100I D I DRP ?1mA I

DP ?1Continuous Pulsed Continuous Pulsed

mA 400100400150150Tstg

°C

55~+150

Symbol Limits Unit ?1 Pw ≤10μs, Duty cycle <1%

2 With each pin mounted on the recommended lands.

Reverse drain current

!Equivalent circuit

AT91SAM7A3-AJ中文资料

AT91SAM7A3-AJ中文资料

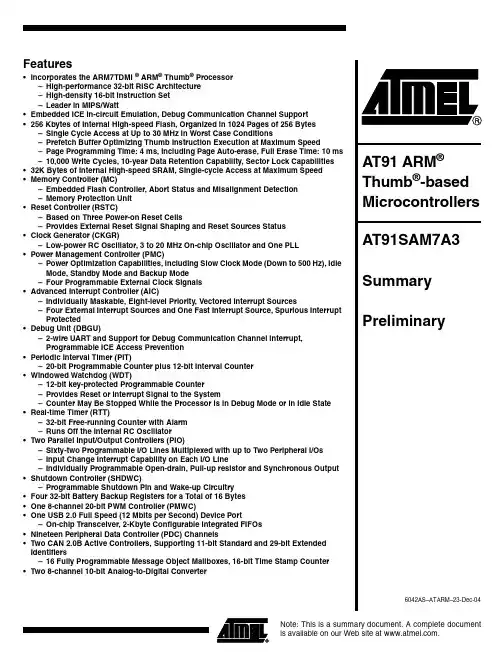

6042AS–ATARM–23-Dec-04Features•Incorporates the ARM7TDMI ® ARM® Thumb® Processor–High-performance 32-bit RISC Architecture–High-density 16-bit Instruction Set–Leader in MIPS/Watt•Embedded ICE In-circuit Emulation, Debug Communication Channel Support•256 Kbytes of Internal High-speed Flash, Organized in 1024 Pages of 256 Bytes–Single Cycle Access at Up to 30 MHz in Worst Case Conditions–Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed–Page Programming Time: 4 ms, Including Page Auto-erase, Full Erase Time: 10 ms–10,000 Write Cycles, 10-year Data Retention Capability, Sector Lock Capabilities •32K Bytes of Internal High-speed SRAM, Single-cycle Access at Maximum Speed•Memory Controller (MC)–Embedded Flash Controller, Abort Status and Misalignment Detection–Memory Protection Unit•Reset Controller (RSTC)–Based on Three Power-on Reset Cells–Provides External Reset Signal Shaping and Reset Sources Status•Clock Generator (CKGR) –Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL•Power Management Controller (PMC)–Power Optimization Capabilities, including Slow Clock Mode (Down to 500 Hz), Idle Mode, Standby Mode and Backup Mode–Four Programmable External Clock Signals•Advanced Interrupt Controller (AIC)–Individually Maskable, Eight-level Priority, Vectored Interrupt Sources–Four External Interrupt Sources and One Fast Interrupt Source, Spurious Interrupt Protected•Debug Unit (DBGU)–2-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention•Periodic Interval Timer (PIT)–20-bit Programmable Counter plus 12-bit Interval Counter•Windowed Watchdog (WDT)–12-bit key-protected Programmable Counter–Provides Reset or Interrupt Signal to the System–Counter May Be Stopped While the Processor is in Debug Mode or in Idle State•Real-time Timer (RTT)–32-bit Free-running Counter with Alarm–Runs Off the Internal RC Oscillator•Two Parallel Input/Output Controllers (PIO) –Sixty-two Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os –Input Change Interrupt Capability on Each I/O Line–Individually Programmable Open-drain, Pull-up resistor and Synchronous Output•Shutdown Controller (SHDWC)–Programmable Shutdown Pin and Wake-up Circuitry•Four 32-bit Battery Backup Registers for a Total of 16 Bytes•One 8-channel 20-bit PWM Controller (PMWC)•One USB 2.0 Full Speed (12 Mbits per Second) Device Port–On-chip Transceiver, 2-Kbyte Configurable Integrated FIFOs •Nineteen Peripheral Data Controller (PDC) Channels•Two CAN 2.0B Active Controllers, Supporting 11-bit Standard and 29-bit Extended Identifiers–16 Fully Programmable Message Object Mailboxes, 16-bit Time Stamp Counter•Two 8-channel 10-bit Analog-to-Digital ConverterAT91 ARM® Thumb®-based Microcontrollers
