华为交换机产品系列整理版

华为交换机型号参数详解华为中低端交换机一般为1U至2U的盒式并无需插端口板卡的设备。

由于属于中低端交换机，所以交换机支持的硬件版本和端口类型有很大的差异。

在组网中交换机设备选型的时候需要充分考虑到这点。

华为中低端交换机的命名都很有规律，交换机设备名称中的参数将可以提供给我们需要的东西。

91华为网收集整理了部分类型参数说明，希望对大家有所帮助。

1、表示硬件版本参数LI(Lite software Image)表示设备为弱特性版本。

SI (Standard software Image)表示设备为标准版本，包含基础特性。

EI(Enhanced software Image)表示设备为增强版本，包含某些高级特性。

HI(Hyper software Image)表示设备为高级版本，包含某些更高级特性。

对于三层交换机且是SI版本的可能不支持动态路由协议，例如：华为Quidway S3300-SI 系列交换机包括S3328-SI、S3352-SI并不支持动态路由协议OSPF，只支持静态路由和RIP，如果组网中需要用到OSPF，那么必须选用S3328-EI或是S3352-EI版本的。

2、表示上行端口参数Z，表示没有上行接口；（新产品不允许此位）G，表示上行光口，且是GBIC接口；P，表示上行光口，且是SFP接口；T，表示上行电口，为RJ45接口；TP，表示上行为光电Combo，上行接口为多种接口类型复合V，表示上行VDSL接口；W，表示上行可配置WAN接口；C，表示上行接口可选配；M，表示上行接口为多模光口；S，表示上行接口为单模光口；3、表示端口数量和其它属性参数F，表示下行接口为模板板，可插光接口板或电接口板。

主要为兼容3526F，3526EF，3552F 等老产品的命名；PWR，表示端口支持POE属性SXXYY，其中XX表示型号，YY表示端口数量；例如：S3328、S3352分别是24个下行口+4个上行口以及48个下行口+4个上行口。

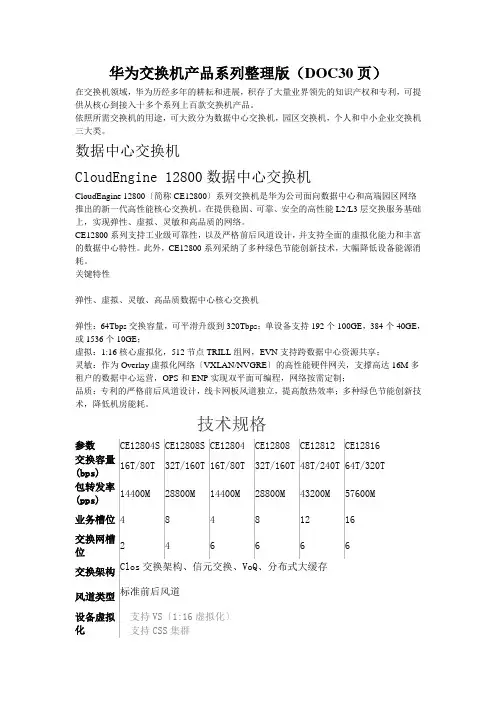

华为交换机产品系列整理版（DOC30页）在交换机领域，华为历经多年的耕耘和进展，积存了大量业界领先的知识产权和专利，可提供从核心到接入十多个系列上百款交换机产品。

依照所需交换机的用途，可大致分为数据中心交换机，园区交换机，个人和中小企业交换机三大类。

数据中心交换机CloudEngine 12800数据中心交换机CloudEngine 12800〔简称CE12800〕系列交换机是华为公司面向数据中心和高端园区网络推出的新一代高性能核心交换机。

在提供稳固、可靠、安全的高性能L2/L3层交换服务基础上，实现弹性、虚拟、灵敏和高品质的网络。

CE12800系列支持工业级可靠性，以及严格前后风道设计，并支持全面的虚拟化能力和丰富的数据中心特性。

此外，CE12800系列采纳了多种绿色节能创新技术，大幅降低设备能源消耗。

关键特性弹性、虚拟、灵敏、高品质数据中心核心交换机弹性：64Tbps交换容量，可平滑升级到320Tbps；单设备支持192个100GE，384个40GE，或1536个10GE；虚拟：1:16核心虚拟化，512节点TRILL组网，EVN支持跨数据中心资源共享；灵敏：作为Overlay虚拟化网络〔VXLAN/NVGRE〕的高性能硬件网关，支撑高达16M多租户的数据中心运营，OPS和ENP实现双平面可编程，网络按需定制；品质：专利的严格前后风道设计，线卡网板风道独立，提高散热效率；多种绿色节能创新技术，降低机房能耗。

技术规格CloudEngine 7800数据中心交换机CloudEngine 7800数据中心交换机关键特性40GE汇聚交换机全40GE交换机，1U高设备支持32个40GE接口，可灵活拆分为10GE接口；支持iStack堆叠技术，实现机架内、机架间以及跨区域超长距的高性能堆叠，构建可扩展、易治理的数据中心网络平台；支持IETF标准协议TRILL，构建512节点的大二层网络，实现虚拟机大范畴在线迁移。

S3526C以太网交换机主设备LS-S3526C-DC48Quidway S3526C 以太网交换机主机(48VDC),2×GE/FE SlotLS-FM1UA单端口百兆以太网多模光接口模块(1310nm,2km,SC) LS-FS1UA单端口百兆以太网单模光接口模块(1310nm,15km,SC) Subtotal主设备Subtotal S3526C以太网交换机S3500-EA以太网交换机主设备LS-3552P-EA Quidway S3552P-EA 以太网交换机主机,48个10/100兆电口,4个千兆SFP(AC/DC)LS-3528P-EA Quidway S3528P-EA 以太网交换机主机,24个10/100兆电口,4个千兆SFP(AC/DC)LS-3528F-EA Quidway S3528F-EA 以太网交换机主机,24个百兆SFP,2个千兆SFP,2个10/100/1000兆电口(AC/DC)LS-3552F-EA Quidway S3552F-EA L3以太网交换机主机(AC),6个百兆8端口模块插槽,4个千兆SFP光口和电口comboLS-3552F-EA-DC Quidway S3552F-EA L3以太网交换机主机(DC),6个百兆8端口模块插槽,4个千兆SFP光口和电口comboLSAMRFT8U8端口百兆电接口模块LS-FS8U8端口100Base-FX单模光口板(1310nm,15km,LC) LS-FM8U8端口100Base-FX多模光口板(1310nm,2km,LC)LSAMUFP8U 功能模块-8端口百兆SFP以太网转接板(不含百兆SFP 模块)Subtotal主设备光/电模块GE-SFP光/电模块SFP-1000BaseT电模块-SFP-GE-电接口模块(100m,RJ45)eSFP-GE-SX-MM850光模块-ESFP-GE-多模模块(850nm,0.5km,LC)SFP-GE-LX-SM1310光模块-SFP-GE-单模模块(1310nm,10km,LC)SFP-GE-LH40-SM1310光模块-SFP-GE-单模模块(1310nm,40km,LC)SFP-GE-LH40-SM1550光模块-SFP-GE-单模模块(1550nm,40km,LC)SFP-GE-LH70-SM1550光模块-SFP-GE-单模模块(1550nm,70km,LC) eSFP-GE-ZX100-SM1550光模块-ESFP-GE-单模模块(1550nm,100km,LC) Subtotal GE-SFP光/电模块FE-SFP光/电模块SFP-FE-SX-MM1310光模块-SFP-100M/155M-多模模块(1310nm,2km,LC)eSFP-FE-LX-SM1310光模块-ESFP-100M/155M-单模模块(1310nm,15km,LC)SFP-FE-LH40-SM1310光模块-SFP-100M/155M-单模模块(1310nm,40km,LC) SFP-FE-LH80-SM1550光模块-SFP-100M/155M-单模模块(1550nm,80km,LC)S2016-EI以太网交换机主设备LS-S2016-EI Quidway S2016-EI以太网交换机主机(220V),16×10/100M TX,1×FE SlotLS-2016C-FM1UA Quidway S2016C-1端口百兆以太网多模光接口模块(1310nm,2km,SC)LS-2016C-FS1UA Quidway S2016C-1端口百兆以太网单模光接口模块(1310nm,15km,SC)Subtotal主设备Subtotal S2016-EI以太网交换机S2403H-EI以太网交换机主设备LS-S2403H-EI Quidway S2403H-EI以太网交换机主机(220V),25×10/100M TX,1×FE SlotLS-S2403H-EI-DC48以太网交换机主机(48VDC)LS-2016C-FM1UA Quidway S2016C-1端口百兆以太网多模光接口模块(1310nm,2km,SC)LS-2016C-FS1UA Quidway S2016C-1端口百兆以太网单模光接口模块(1310nm,15km,SC)Subtotal主设备Subtotal S2403H-EI以太网交换机S2000-HI系列以太网交换机主设备LS-2403H-HI-AC以太网交换机主机(220V) LS-2403H-HI-DC以太网交换机主机(-48V) LS-2016-HI-AC以太网交换机主机(220V) LS-2016-HI-DC以太网交换机主机(-48V) LS-2008-HI-AC以太网交换机主机(220V) LS-2008-HI-DC以太网交换机主机(-48V)LS-2016C-FM1UA Quidway S2016C-1端口百兆以太网多模光接口模块(1310nm,2km,SC)LS-2016C-FS1UA Quidway S2016C-1端口百兆以太网单模光接口模块(1310nm,15km,SC)LS-GT1UA单端口千兆以太网电接口模块(RJ45)LS-GM1UA单端口千兆以太网多模光接口模块(850nm,500m,SC) LS-GS1UA单端口千兆以太网单模光接口模块(1310nm,10km,SC) LS-ST1UA以太网交换机千兆堆叠模块(1米,专用物理接口) Subtotal主设备Subtotal S2000-HI系列以太网交换机S2000TP-MI系列以太网交换机主设备LS-2008TP-MI Quidway S2008TP-MI以太网交换机主机,8个10/100Base-T,1个10/100/1000Base-T与1000Base-XSFP COMBO,交流供电LS-2016TP-MI Quidway S2016TP-MI以太网交换机主机,16个10/100Base-T,2个10/100/1000Base-T与1000Base-X SFP COMBO,交流供电LS-2403TP-MI Quidway S2403TP-MI以太网交换机主机,24个10/100Base-T,2个10/100/1000Base-T与1000Base-X SFP COMBO,交流供电SFP-FE-SX-MM1310光模块-SFP-100M/155M-多模模块(1310nm,2km,LC)eSFP-FE-LX-SM1310光模块-ESFP-100M/155M-单模模块(1310nm,15km,LC)Subtotal主设备Subtotal S2000TP-MI系列以太网交换机Quidway S2000TP-EA系列以太网交换机主设备LS-2008TP-EA-AC Quidway S2008TP-EA以太网交换机主机,8个10/100Base-TX,1个10/100/1000Base-T与100/1000Base-X SFP COMBO,交流供电LS-2008TP-EA-DC Quidway S2008TP-EA以太网交换机主机,8个10/100Base-TX,1个10/100/1000Base-T与100/1000Base-X SFP COMBO,直流供电LS-2016TP-EA-AC Quidway S2016TP-EA以太网交换机主机,16个10/100Base-TX,2个10/100/1000Base-T与100/1000Base-X SFP COMBO,交流供电LS-2016TP-EA-DC Quidway S2016TP-EA以太网交换机主机,16个10/100Base-TX,2个10/100/1000Base-T与100/1000Base-X SFP COMBO,直流供电LS-2403TP-EA-AC Quidway S2403TP-EA以太网交换机主机,24个10/100Base-TX,2个10/100/1000Base-T与100/1000Base-X SFP COMBO,交流供电LS-2403TP-EA-DC Quidway S2403TP-EA以太网交换机主机,24个10/100Base-TX,2个10/100/1000Base-T与100/1000Base-X SFP COMBO,直流供电Subtotal主设备光/电模块GE-SFP光/电模块eSFP-GE-SX-MM850光模块-ESFP-GE-多模模块(850nm,0.5km,LC)SFP-GE-LX-SM1310光模块-SFP-GE-单模模块(1310nm,10km,LC)SFP-STACK-Kit SFP堆叠电缆-（150cm，含堆叠模块）Subtotal GE-SFP光/电模块FE-SFP光/电模块SFP-FE-SX-MM1310光模块-SFP-100M/155M-多模模块(1310nm,2km,LC)eSFP-FE-LX-SM1310光模块-ESFP-100M/155M-单模模块(1310nm,15km,LC)Subtotal FE-SFP光/电模块BIDI-SFP光模块SFP-FE-LX-SM1310-BIDI 光模块-SFP-FE-BIDI单模模块(TX1310/RX1550,15km,LC)SFP-FE-LX-SM1550-BIDI 光模块-SFP-FE-BIDI单模模块(TX1550/RX1310,15km,LC)SFP-GE-LX-SM1310-BIDI 光模块-SFP-GE-BIDI单模模块(TX1310/RX1490,10km,LC)SFP-GE-LX-SM1490-BIDI 光模块-SFP-GE-BIDI单模模块(TX1490/RX1310,10km,LC)CW:6087000S2300 系列以太网交换机主设备LS-2309TP-EI-AC S2309TP-EI主机(8个10/100Base-T,1个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),交流供电)LS-2309TP-EI-DC S2309TP-EI主机(8个10/100Base-T,1个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),直流供电)LS-2318TP-EI-AC S2318TP-EI主机(16个10/100Base-T,2个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),交流供电)LS-2318TP-EI-DC S2318TP-EI主机(16个10/100Base-T,2个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),直流供电)LS-2326TP-EI-AC S2326TP-EI主机(24个10/100Base-T,2个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),交流供电)LS-2326TP-EI-DC S2326TP-EI主机(24个10/100Base-T,2个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),直流供电)LS-2352P-EI-AC S2352P-EI主机(48个10/100BASE-T,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),交流供电)LS-2352P-EI-DC S2352P-EI主机(48个10/100BASE-T,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),直流供电)LS-2309TP-SI-AC S2309TP-SI主机(8个10/100Base-T,1个百兆Combo 口(10/100 BASE-T+100 Base-X),交流供电)LS-2318TP-SI-AC S2318TP-SI主机(16个10/100Base-T,2个百兆Combo 口(10/100 BASE-T+100 Base-X),交流供电)LS-2326TP-SI-AC S2326TP-SI主机(24个10/100Base-T,2个百兆Combo 口(10/100 BASE-T+100 Base-X),交流供电)光模块GE-SFP光模块eSFP-850nm-1000Base-Sx/FC200 M 光收发一体模块(eSFP,850nm,2.125Gb/s,LC,多模,0.5Km)eSFP-1310nm-1000Base-Lx SM 光收发一体模块(eSFP,1310nm,1.25Gb/s,LC,单模,10Km)SFP-GE-LH40-SM1550光收发一体模块(eSFP,1550nm,1.25Gb/s,LC,单模,40Km)eSFP-1550nm-1000Base-Zx/FC100光收发一体模块(eSFP,1550nm,1.25Gb/s,LC,单模,80Km)eSFP-GE-ZX100-SM1550光收发一体模块(eSFP,1550nm,1.25Gb/s,LC,单模,100Km)FE/STM1-SFP光模块SFP-FE-SX-MM1310光收发一体模块(SFP,1310nm,STM1,LC,多模,2Km) eSFP-FE-LX-SM1310光收发一体模块(eSFP,1310nm,STM1,LC,单模,15Km) eSFP-FE-LH40-SM1310光收发一体模块(eSFP,1310nm,STM1,LC,单模,40Km) eSFP-FE-LH80-SM1550光收发一体模块(eSFP,1550nm,STM1,LC,单模,80Km)CW:6086900S3300 系列以太网交换机主设备LS-S3328TP-EI-AC S3328TP-EI主机(24个10/100Base-T,2个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),2个千兆SFP上行口(SFP Req.),交流供电)LS-S3328TP-EI-DC S3328TP-EI主机(24个10/100Base-T,2个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),2个千兆SFP上行口(SFP Req.),直流供电)LS-S3328TP-EI-24S-AC S3328TP-EI-24S主机(24个100BASE-X,2个千兆Combo口(10/100/1000 BASE-T+100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),交流供电)LS-S3328TP-EI-24S-DC S3328TP-EI-24S主机(24个100BASE-X,2个千兆Combo口(10/100/1000 BASE-T+100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),直流供电)LS-S3352P-EI-AC S3352P-EI主机(48个10/100BASE-T,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),交流供电)LS-S3352P-EI-DC S3352P-EI主机(48个10/100BASE-T,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),直流供电)LS-S3352P-EI-24S-AC S3352P-EI-24S主机(24个10/100BASE-T,24个100BASE-X,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),交流供电)LS-S3352P-EI-24S-DC S3352P-EI-24S主机(24个10/100BASE-T,24个100BASE-X,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),直流供电)LS-S3352P-EI-48S-AC S3352P-EI-48S主机(48个100BASE-X,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),交流供电)LS-S3352P-EI-48S-DC S3352P-EI-48S主机(48个100BASE-X,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),直流供电)LS-S3328TP-SI-AC S3328TP-SI主机(24个10/100Base-T,2个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),2个千兆SFP上行口(SFP Req.),交流供电)LS-S3328TP-SI-DC S3328TP-SI主机(24个10/100Base-T,2个千兆Combo 口(10/100/1000 BASE-T+100/1000 Base-X),2个千兆SFP上行口(SFP Req.),直流供电)LS-S3352P-SI-AC S3352P-SI主机(48个10/100BASE-T,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),交流供电)LS-S3352P-SI-DC S3352P-SI主机(48个10/100BASE-T,2个百兆/千兆SFP上行口(100/1000 BASE-X),2个千兆SFP上行口(SFP Req.),直流供电)光模块GE-SFP光模块eSFP-850nm-1000Base-Sx/FC200 M 光收发一体模块(eSFP,850nm,2.125Gb/s,LC,多模,0.5Km)eSFP-1310nm-1000Base-Lx SM 光收发一体模块(eSFP,1310nm,1.25Gb/s,LC,单模,10Km)SFP-GE-LH40-SM1550光收发一体模块(eSFP,1550nm,1.25Gb/s,LC,单模,40Km)eSFP-1550nm-1000Base-Zx/FC100光收发一体模块(eSFP,1550nm,1.25Gb/s,LC,单模,80Km)eSFP-GE-ZX100-SM1550光收发一体模块(eSFP,1550nm,1.25Gb/s,LC,单模,100Km)FE/STM1-SFP光模块SFP-FE-SX-MM1310光收发一体模块(SFP,1310nm,STM1,LC,多模,2Km) eSFP-FE-LX-SM1310光收发一体模块(eSFP,1310nm,STM1,LC,单模,15Km) eSFP-FE-LH40-SM1310光收发一体模块(eSFP,1310nm,STM1,LC,单模,40Km) eSFP-FE-LH80-SM1550光收发一体模块(eSFP,1550nm,STM1,LC,单模,80Km)。

华为CloudEngine S系列园区交换机产品介绍目录1园区网络展望2CloudEngine S交换机主打产品3CloudEngine S交换机亮点特性Wi-Fi 6新时代，需要全新的园区承载网视频监控AR/VR门禁资产管理Wi-Fi 6AP办公高清会议AP =10Gbps不同业务网络如何统筹部署？办公，安防，生产……用户并发流量洪峰如何应对？高突发➔丢包智简园区，打造Wi-Fi 6时代的高品质园区网络Wi-Fi 6改变企业Wi-Fi 6时代的自动驾驶管控析平台，iMaster NCE-Campus源自华为5G的AirEngine Wi-Fi 6，打造全无线园区开放的行业应用开发平台SDK | API管理、控制、分析TelemetryNETCONF/YANGCloudEngine S系列园区交换机AirEngine Wi-Fi 6客流分析电子书包健康管理智慧办公网络层管控层改变办公Wi-Fi 6时代的高品质承载网络一根光电混合缆接入全万兆，释放Wi-Fi 6的速度•Multi-GE交换机+ 高密25GE盒式交换机+ 100G核心，构建Wi-Fi 6超宽通道•全无线融合策略管理，高达10K AP，50K用户并发，满足Wi-Fi 6时代海量用户并发接入•万人无线园区，百G核心CloudEngine12700E，吞吐57.6Tbps，管理5万无线用户，6倍性能建网全自动，使能Wi-Fi 6的业务规划自动化· 建网自动化· 策略自动化运维全智能，保障Wi-Fi 6的体验用户体验可视· 故障定界· 网络调优自愈极速业界独家双频16天线10.75Gbps，是业界的2倍覆盖稳智能天线波随人动，覆盖远20%应用稳DynamicTurbo应用加速，<10ms时延漫游稳Lossless Roaming漫游“0”丢包改变生产改变公共服务未来园区网络典型架构，满足不同场景需求TO-BE ：极简组网48*Multi-GE 25/40GE 25/40GE48*10GE•两级架构，全链路无阻塞转发TO-BE ：经典组网48*Multi-GE 25GE100GE 100GE25GE48*10GE •逐层收敛+虚拟化，网络资源利用率高VxLAN48*GEN*10GEAS-IS•百兆/千兆接入，专网专用。

Huawei S5730-SI Series SwitchesProduct BrochureHuawei Enterprise Sx700 Series Switch ProductS5730-SI Series Switches 1Product Features and HighlightsPowerful service processing capability and multiple security control mechanisms•The S5730-SI supports many Layer 2/Layer 3 multicast protocols such as PIM SM, PIM DM, PIM SSM,MLD, and IGMP snooping, to support multi-terminal high-definition video surveillance and videoconferencing services.•The S5730-SI supports multiple Layer 3 features including OSPF, IS-IS, BGP, and VRRP, meetingenterprises' requirements on access and aggregation service bearing, and enabling a variety of voice,video, and data applications.•The S5730-SI supports MAC address authentication, 802.1x authentication, and Portal authentication, and implements dynamic delivery of policies (VLAN, QoS, and ACL) to users.•The S5730-SI provides a series of mechanisms to defend against DoS and user-targeted attacks. DoSattacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, andchange of the DHCP CHADDR value.•The S5730-SI sets up and maintains a DHCP snooping binding table, and discards the packets that donot match the table entries. You can specify DHCP snooping trusted and untrusted ports to ensure thatusers connect only to the authorized DHCP server.•The S5730-SI supports strict ARP learning, which protects a network against ARP spoofing attacks toensure normal network access.Easy O&M•The S5730-SI supports Super Virtual Fabric (SVF), which virtualizes the "Core/aggregation + Access switch +AP" structure into a logical device. The S5730-SI provides the simplest network management solutionin the industry to simplify device management. It allows plug-and-play access switches and APs.Inaddition, the S5730-SI supports service configuration templates. The templates are configured on coredevices and automatically delivered to access devices, enabling centralized control, simplified serviceconfiguration, and flexible configuration modification. The S5730-SI functions as a client in an SVFsystem.•The S5730-SI supports zero-touch deployment, replacement of faulty devices without additionalconfiguration, USB-based deployment, batch configuration, and batch remote upgrade. The capabilitiesfacilitate device deployment, upgrade, service provisioning, and other management and maintenanceoperations, and also greatly reduce O&M costs. The S5730-SI can be managed using SNMP v1/v2c/v3,CLI, web-based network management system, or SSH v2.0. Additionally, it supports RMON, multiple loghosts, port traffic statistics collection, and network quality analysis, which facilitate network optimizationand reconstruction.•The S5730-SI supports the Sampled Flow (sFlow) function. It uses a method defined in the sFlowstandard to sample traffic passing through it and sends sampled traffic to the collector in real time.The collected traffic statistics are used to generate statistical reports, helping enterprises maintain theirnetworks.Multiple reliability mechanisms•The S5730-SI supports iStack. This technology can virtualize up to nine physical switches intoone logical switch. Member switches in a stack implement redundancy backup to improve devicereliability and use inter-device link aggregation to improve link reliability. iStack provides high networkscalability. You can increase a stack's ports, bandwidth, and processing capacity by simply addingmember switches. iStack also simplifies device configuration and management. After a stack is set up,multiple physical switches are virtualized into one logical device.You can log in to any member switch inthe stack to manage all the member switches in the stack.•The S5730-SI is equipped with two removable power modules that can work in 1+1 redundancy backup mode. Mixed installation of AC and DC power modules is supported, allowing for flexible configurationof AC or DC power modules according to service requirements.•In addition to traditional STP, RSTP, and MSTP, the S5730-SI supports Huawei-developed Smart Ethernet Protection (SEP) technology and the latest Ethernet Ring Protection Switching (ERPS) standard. SEP is aring protection protocol specific to the Ethernet link layer, and applies to various ring networktopologies, such as open ring topology, closed ring topology, and cascading ring topology. This protocol Huawei Enterprise Sx700 Series Switch Product2Huawei Enterprise Sx700 Series Switch Product Product Specifications•The S5730-SI supports Smart Link. One S5730-SI switch can connect to multiple aggregation switchesthrough multiple links, implementing backup of uplinks and significantly improving reliability of accessdevices.•The S5730-SI supports Ethernet OAM (IEEE 802.3ah/802.1ag) to detect link faults quickly. Mature IPv6 technologies•The S5730-SI uses the mature, stable VRP platform and supports IPv4/IPv6 dual stack, IPv6 RIPng, and IPv6over IPv4 tunnels (including manual, 6-to-4, and ISATAP tunnels). With these IPv6 features, the S5730-SIcan be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network, helping achieve IPv4-to-IPv6 transition.3Open Programmability System (OPS)•Open Programmability System (OPS) is an open programmable system based on the Python language. ITadministrators can program the O&M functions of a switch through Python scripts to quickly innovatefunctions and implement intelligent O&M.is reliable, easy to maintain, and implements fast protection switching within 50 ms. ERPS is defined in ITU-T G.8032. It implements millisecond-level protection switching based on traditional Ethernet MAC andbridging functions.Perpetual Po E•When a PoE switch is rebooted by running the reboot command or the software version is upgraded, thepower supply to PDs is not interrupted. This capability ensures that PDs are not powered off during theswitch reboot.Fast PoE•S5730-48C/68C-PWR-SI switches can supply power to PDs within 10s after they are powered on. This isdifferent from common switches that generally take 1 to 3 minutes to start to supply power to PDs. When a PoE switch reboots due to a power failure, the PoE switch continues to supply power to the PDsimmediately after being powered on without waiting until it finishes reboot. This greatly shortens thepower failure time of PDs.Huawei Enterprise Sx700 Series Switch ProductService Features4Huawei Enterprise Sx700 Series Switch Product5Huawei Enterprise Sx700 Series Switch ProductThe S5730-SI provides various security features including ARP security, IP security, IP source guard, and user access control policies such as NAC and ACLs, to control access of user terminals.In addition, the switch supports the Link Aggregation Control Protocol (LACP) to provide multi-link access for servers, improving link bandwidth and reliability.In terms of device management, the S5730-SI provides EasyOperation and USB-based deployment, which facilitates device deployment and management.Large-sized enterprise Campus networksThe S5730-SI provides various terminal security management features, and supports functions such as PoE, voice VLAN, and QoS. The switch can be used for desktop access and provides gigabit access speed.Applications 6S5730Huawei Enterprise Sx700 Series Switch Product The S5730-SI switches can be located at the aggregation layer to build a high-performance, reliable enterprise campus network.On an enterprise network or campus network, the S5730-SI switches connect to access switches through gigabit or 10 gigabit interfaces, provide high performance and large switching capacity, and connect to core switches through 10 gigabit optical interfaces. The network provides 10 Gbit/s rate for the backbone layer and 100 Mbit/s access rate for terminals, meeting requirements for high bandwidth and multi-service.The S5730-SI provides SEP and RRPP to implement millisecond-level protection switchover. The switches form a stack system by using iStack technology to implement the distributed forwarding structure and fast fault recovery. The stack system increases the number of user interfaces and improves packet processing capability. The member switches can be managed in a uniform manner to facilitate network management and maintenance.Small- and Middle-Sized Enterprise Campus Network 7S5730Huawei Enterprise Sx700 Series Switch ProductOrdering InformationThe following table lists ordering information of the S5730-S I series switches.Other than that,the S5730-SI switches can be used as the core switches of a small-sized enterprise campus network, which have powerful aggregation and routing capabilities. The S5730-SI switches use iStack to ensure high reliability. The switches provide various access control policies to achieve centralized user management and simplify configuration.Small-Sized Enterprise Campus NetworkAccessSwitchFor more information, visit /en or contact your local Huawei sales office.8Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.Trademark Notice, HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.Other trademarks, product, service and company names mentioned are the property of their respective owners.General DisclaimerThe information in this document may contain predictive statements including,without limitation, statements regarding the future financial and operating results,future product portfolio, new technology, etc. There are a number of factors thatcould cause actual results and developments to differ materially from thoseexpressed or implied in the predictive statements. Therefore, such information isprovided for reference purpose only and constitutes neither an offer nor anacceptance. Huawei may change the information at any time without notice.。

Huawei S6720-LI Series SwitchesProduct BrochureHuawei Enterprise Sx700 Series Switch ProductS6720-LI Series SwitchesProduct Overview1Product Features and HighlightsHigh-Density 10GE Access and 40GE Uplink• To provide sufficient bandwidth for users, more and more servers use 10G network adapters. The S6720-LI has the highest density of 10GE ports and largest switching capacity among counterpart switches.Each S6720-LI provides up to 32 line-rate 10GE ports and two line-rate QSFP+ ports.• Ports of the S6720-LI support GE access and 10GE access and can identify optical module types,maximizing the return on investment and allowing users to flexibly deploy services.Comprehensive Security Control Policies• The S6720-LI provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or users. DoS attacks include SYN flood, Land, Smurf, and ICMP floodattacks. Attacks to networks refer to STP BPDU/root attacks. Attacks to users include bogus DHCP serverattacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoSattacks that change the CHADDR field in DHCP packets are also attacks against users.• The S6720-LI supports DHCP snooping, which generates user binding entries. DHCP snooping discards invalid packets that do not match any binding entries, such as ARP spoofing packets and IP spoofingpackets. This prevents hackers from using ARP packets to initiate attacks on campus networks. DHCPsnooping trusted ports can be specified to ensure that users connect only to the authorized DHCP server.• The S6720-LI supports strict ARP learning. This feature prevents ARP spoofing attackers from exhausting ARP entries so that users can connect to the Internet normally. The S6720-LI supports IP source check toprevent DoS attacks caused by MAC address spoofing, IP address spoofing, and MAC/IP spoofing.• The S6720-LI supports centralized MAC address authentication and 802.1X authentication. Itauthenticates users based on statically or dynamically bound user information such as the user name, IPaddress, MAC address, VLAN ID, port number, and flag indicating whether antivirus software is installed.VLANs, QoS policies, and ACLs can be applied to users dynamically.• The S6720-LI can limit the number of MAC addresses learned on a port to prevent attackers fromexhausting MAC address entries by using bogus source MAC addresses. This function minimizes packetflooding that occurs when MAC addresses of users cannot be found in the MAC address table.Comprehensive Reliability Mechanisms• The S6720-LI supports MSTP multi-process that enhances the existing STP, RSTP, and MSTPimplementation. This function increases the number of MSTIs supported on a network. It also supportsenhanced Ethernet reliability technologies such as Smart Link and RRPP, which implement millisecond-level protection switchover and ensure network reliability. Smart Link and RRPP both support multi-instance to implement load balancing among links, improving bandwidth use efficiency.• The S6720-LI supports enhanced trunk (E-trunk). A CE can be dual-homed to two PEs through Eth-Trunk links. This implements inter-device link aggregation and link load balancing, and greatly improvesreliability of access devices.• The S6720-LI supports the Smart Ethernet Protection (SEP) protocol, a ring network protocol applied to the link layer of an Ethernet network. SEP can be used on open ring networks and provides millisecond-level switchover to ensure nonstop services. SEP features simplicity, high reliability, fast switchover, easymaintenance, and flexible topology, facilitating network planning and management.• The S6720-LI supports G.8032, also called Ethernet Ring Protection Switching (ERPS). ERPS is based on traditional Ethernet MAC and bridging functions. It uses the mature Ethernet OAM and Ring AutomaticProtection Switching (Ring APS or R-APS) technologies to implement millisecond-level protectionswitchover on Ethernet. ERPS supports multiple services and provides flexible networking, reducing theOPEX and CAPEX.• The S6720-LI supports VRRP. Two S6720-LIs can form a VRRP group to ensure nonstop and reliablecommunication. Multiple equal-cost routes to an upstream device can be configured on the S6720-LI toprovide route redundancy. When an active route is unreachable, traffic is switched to a backup route.Various QoS Control Mechanisms• The S6720-LI implements complex traffic classification based on packet information such as the 5-tuple, IP preference, ToS, DSCP, IP protocol type, ICMP type, TCP source port, VLAN ID, Ethernet protocol type,and CoS. ACLs can be applied to inbound or outbound direction to filter packets. The S6720-LI supportsa flow-based two-rate three-color CAR. Each port supports eight priority queues and multiple queuescheduling algorithms such as WRR, DRR, PQ, WRR+PQ, and DRR+PQ. All of these ensure the quality ofvoice, video, and data services.Huawei Enterprise Sx700 Series Switch Product2Huawei Enterprise Sx700 Series Switch Product Product SpecificationsHigh Scalability• The S6720-LI supports intelligent stack (iStack) and virtualizes multiple switches into one logical switch.A port of the S6720-LI can be configured as a stack port using a command for flexible stack deployment. The distance between stacked switches is further increased when the switches are connected with optical fibers. Compared with a single device, iStack has advantages on scalability, reliability, performance, and overall architecture. A new switch can join a stack to increase the system capacity or replace a faultymember switch without interrupting services. Compared with stacking of modular switches, the iStackfunction can increase system capacity and port density with no restriction of the hardware architecture.Multiple devices in a stack can be considered as one logical device. These switches can be managedusing a single IP address, which greatly reduces system expansion and O&M costs.Convenient Management• The S6720-LI supports automatic configuration, plug-and-play, deployment using a USB flash drive, and batch remote upgrade. These capabilities simplify device management and maintenance, and greatly reduce maintenance costs.• The S6720-LI supports SNMPv1/v2/v3 and provides flexible methods for managing and maintainingdevices, such as CLI and Web NMS. The NQA function helps users with network planning and upgrades. In addition, the S6720-LI supports NTP , SSH v2, HWTACACS, RMON, log hosts, and port-based trafficstatistics.• The S6720-LI supports GVRP , which dynamically distributes, registers, and propagates VLAN attributes to reduce the manual configuration workloads of network administrators and ensure correct VLAN configuration.• The S6720-LI supports MUX VLAN that isolates Layer 2 traffic between ports in a VLAN. MUX VLANdefines principal VLANs and subordinate VLANs. Subordinate VLANs can communicate with the MUXVLAN but cannot communicate with each other. This function prevents communication betweennetwork devices connected to certain ports or port groups but allows the devices to communicate withthe default gateway. MUX VLAN is usually used on an enterprise intranet to isolate user ports from each other but allow them to communicate with server ports.• Complying with IEEE 802.3ah and 802.1ag, the S6720-LI supports point-to-point Ethernet faultmanagement and can detect faults in the last mile of an Ethernet link to users. Ethernet OAM improvesthe Ethernet network management and maintenance capabilities and ensures a stable network.Various IPv6 Features• The S6720-LI supports various IPv6 routing protocols including RIPng and OSPFv3. It uses the IPv6Neighbor Discovery Protocol (NDP) to manage packets exchanged between neighbors. It also providesthe Path MTU Discovery (PMTU) mechanism to select a proper MTU on the path from the source to the destination, optimizing network resources and obtaining the maximum throughput.3Huawei Enterprise Sx700 Series Switch Product 4Huawei Enterprise Sx700 Series Switch Product5Huawei Enterprise Sx700 Series Switch ProductNetworking and ApplicationsData Center NetworksAs shown in the following figure, the S12700 agile switches function as core switches in a data center and use firewall and load balancer cards to ensure security and perform load balancing. The S6720-LIs function as access switches and provide high-density 10GE ports to connect to 10G servers.Campus NetworksThe S6720-LI series switches can be used as access or aggregation switches on small- and medium-sized campus networks and provide high-density line-rate 10GE ports, rich service features, and comprehensivesecurity mechanism. All of those make the S6720-LI cost effective on campus networks.CarrierProductionArea Test Area Office Area ManagementArea InterconnectionArea S6720-LI6Ordering InformationProduct DescriptionS6720-16X-LI-16S-AC (16 10GE SFP+, AC power supply)S6720S-16X-LI-16S-AC (16 10GE SFP+, AC power supply)S6720-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, A C power supply) S6720S-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, A C power supply)Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.Trademark Notice, HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.Other trademarks, product, service and company names mentioned are the property of their respective owners.General DisclaimerThe information in this document may contain predictive statements including,without limitation, statements regarding the future financial and operating results,future product portfolio, new technology, etc. There are a number of factors thatcould cause actual results and developments to differ materially from thoseexpressed or implied in the predictive statements. Therefore, such information isprovided for reference purpose only and constitutes neither an offer nor anacceptance. Huawei may change the information at any time without notice.。

华为交换机对照表：
型号识别
L I(Lite software Image)表示设备为弱特性版本。

SI (Standard software Image)表示设备为标准版本，包含基础特。

EI(Enhanced software Image)表示设备为增强版本，包含某些高级特性。

HI(Hyper software Image)表示设备为高级版本，包含某些更高级特性
Z，表示没有上行接口；（新产品不允许此位）
G，表示上行GBIC接口；
P，表示上行SFP接口；
T，表示上行RJ45接口
V，表示上行VDSL接口；
W，表示上行可配置WAN接口；
C，表示上行接口可选配；
M，表示上行接口为多模光口；
S，表示上行接口为单模光口；
F，表示下行接口为模板板，可插光接口板或电接口板。

主要为兼容3526F，3526EF，3552F 等老产品的命名。

当同时存在时，表示上行接口为多种接口类型复合
注：Combo端口不在命名中显示。

(TP 代表COMBO口）。

Huawei S5720I-SI SwitchesProduct BrochureHuawei S5720I-SI Series SwitchesModels and AppearancesThe following models are available in the S5720I-SI series.•Operating temperature: -40°C to +75°C1Huawei S5720I-SI Series SwitchesProduct Features and HighlightsSuitable for outdoor extreme environment•S5720I-SI supports broad operating temperature range. So the switch can be working in the outdoorcabinet in the very cold and very hot environments. The typical scenario is the access of the camera for outdoor video surveillance and ETTx.•Service ports support ±6kV lightning protection, suitable for outdoor extreme environment POE++ large power supply•S5720I-SI has PoE++ model, which supports multiple GE POE++ Ethernet electrical ports. The POE++model provides up to 60 W power supply per port.•S5720I-SI PoE++ model supports long-distance PoE++，works with Huawei M2220-I/M2221-FL/M2221-VL/M2260-I/M2220-I (8-32mm) series cameras to provide 200 m long-distance power supply through 100Mbps links, 250m through 10Mbps linksMaintenance-free through lifecycle•S5720I-28X-SI-AC and S5720I-28X-PWH-SI-AC provide built-in dual power supplies and redundancybackup of fans, maintenance-free through lifecyclePowerful service processing capability and multiple security control mechanisms•The S5720I-SI supports many Layer 2/Layer 3 multicast protocols such as PIM SM, PIM DM, PIM SSM,MLD, and IGMP snooping, to support multi-terminal high-definition video surveillance and videoconferencing services.•The S5720I-SI supports multiple Layer 3 features including OSPF, IS-IS, BGP , and VRRP , meetingenterprises' requirements on access and aggregation service bearing, and enabling a variety of voice,video, and data applications.•The S5720I-SI supports MAC address authentication, 802.1x authentication, and Portal authentication,and implements dynamic delivery of policies (VLAN, QoS, and ACL) to users.•Switching capacity: 336 Gbit/s•Operating temperature: -40°C to +65°C 2•The S5720I-SI provides a series of mechanisms to defend against DoS and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and change of the DHCP CHADDR value.•The S5720I-SI sets up and maintains a DHCP snooping binding table, and discards the packets that do not match the table entries. You can specify DHCP snooping trusted and untrusted ports to ensure that users connect only to the authorized DHCP server.•The S5720I-SI supports strict ARP learning, which protects a network against ARP spoofing attacks to ensure normal network access.Cloud management•The Huawei cloud management platform allows users to configure, monitor, and inspect switches on the cloud, reducing on-site deployment and O&M manpower costs and decreasing network OPEX. Huawei switches support both cloud management and on-premise management modes. These twomanagement modes can be flexibly switched as required to achieve smooth evolution while maximizing return on investment (ROI).Easy O&M•The S5720I-SI supports Super Virtual Fabric (SVF), which virtualizes the "Core/aggregation + Access switch + AP" structure into a logical device. The S5720I-SI provides the simplest network management solution in the industry to simplify device management. It allows plug-and-play access switches and APs.In addition, the S5720I-SI supports service configuration templates. The templates are configured oncore devices and automatically delivered to access devices, enabling centralized control, simplified service configuration, and flexible configuration modification. The S5720I-SI functions as a client in an SVFsystem.•The S5720I-SI supports zero-touch deployment, replacement of faulty devices without additional configuration, USB-based deployment, batch configuration, and batch remote upgrade. The capabilities facilitate device deployment, upgrade, service provisioning, and other management and maintenance operations, and also greatly reduce O&M costs. The S5720I-SI can be managed using SNMP v1/v2c/v3, CLI, web-based network management system, or SSH v2.0. Additionally, it supports RMON, multiple log hosts, port traffic statistics collection, and network quality analysis, which facilitate network optimization and reconstruction.•The S5720I-SI supports the Sampled Flow (sFlow) function. It uses a method defined in the sFlow standard to sample traffic passing through it and sends sampled traffic to the collector in real time.The collected traffic statistics are used to generate statistical reports, helping enterprises maintain their networks.Multiple reliability mechanisms•The S5720I-SI supports iStack. This technology can virtualize up to nine physical switches into one logical switch. Downlink electrical ports support iStack. Member switches in a stack implement redundancybackup to improve device reliability and use inter-device link aggregation to improve link reliability. iStack provides high network scalability. You can increase a stack's ports, bandwidth, and processing capacity by simply adding member switches. iStack also simplifies device configuration and management. Aftera stack is set up, multiple physical switches are virtualized into one logical device. You can log in to anymember switch in the stack to manage all the member switches in the stack.•In addition to traditional STP, RSTP, and MSTP, the S5720I-SI supports Huawei-developed Smart Ethernet Protection (SEP) technology and the latest Ethernet Ring Protection Switching (ERPS) standard. SEP is a ring protection protocol specific to the Ethernet link layer, and applies to various ring network topologies, such as open ring topology, closed ring topology, and cascading ring topology. This protocol is reliable, easy to maintain, and implements fast protection switching within 50 ms. ERPS is defined in ITU-T G.8032.It implements millisecond-level protection switching based on traditional Ethernet MAC and bridgingfunctions.Huawei S5720I-SI Series Switches3Huawei S5720I-SI Series Switches•The S5720I-SI supports Smart Link. One S5720I-SI switch can connect to multiple aggregation switchesthrough multiple links, implementing backup of uplinks and significantly improving reliability of access devices.•The S5720I-SI supports Ethernet OAM (IEEE 802.3ah/802.1ag) to detect link faults quickly.Mature IPv6 technologies•The S5720I-SI uses the mature, stable VRP platform and supports IPv4/IPv6 dual stack, IPv6 RIPng, andIPv6 over IPv4 tunnels (including manual, 6-to-4, and ISATAP tunnels). With these IPv6 features, the S5720I-SI can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network,helping achieve IPv4-to-IPv6 transition.Product Specifications4Huawei S5720I-SI Series Switches Service Features5Huawei S5720I-SI Series Switches 6ApplicationsVideo surveillance application in safe city scenarioS5720I-SI supports extended operating temperature range, with professional lightning protection capabilities, suitable for outdoor cabinet environment. S5720I-SI can be used for safe city scenario to provide remote PoE access for the camera.ETTx scenarioThe S5720I-SI supports extended operating temperature and provides full gigabit access and multi-gigabit uplinks for ETTx access scenarios.Huawei S5720I-SI Series Switches7Huawei S5720I-SI Series SwitchesOrdering InformationFor more information, visit /enor contact your local Huawei sales office.8Huawei S5720I-SI Series Switches9Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.Trademark Notice, HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.Other trademarks, product, service and company names mentioned are the property of their respective owners.General DisclaimerThe information in this document may contain predictive statements including,without limitation, statements regarding the future financial and operating results,future product portfolio, new technology, etc. There are a number of factors thatcould cause actual results and developments to differ materially from thoseexpressed or implied in the predictive statements. Therefore, such information isprovided for reference purpose only and constitutes neither an offer nor anacceptance. Huawei may change the information at any time without notice.。
