热敏电阻R25=30K B值25-50=3990NTC阻值温度曲线RT表

  • 格式：doc
  • 大小：462.50 KB
  • 文档页数：9

深圳市富温传感技术有限公司

人性科技 感知温度

TEMPERATURE VS RESISTANCE TABLE

Resistance 30k Ohms at 25deg. C

Resistance Tolerance + / - 3%

B Value 3900K at 25/50deg. C

B Value Tolerance + / - 1%

Temp.

(deg. C) Rmax

(k Ohms) Rnor

(k Ohms) Rmin

(k Ohms)

-30 547.2750 516.4277 486.8805

-29 514.2179 485.5333 458.0361

-28 483.3748 456.6903 431.0905

-27 454.5836 429.7497 405.9069

-26 427.6951 404.5743 382.3589

-25 402.5716 381.0373 360.3303

-24 379.0865 359.0220 339.7135

-23 357.1228 338.4207 320.4095

-22 336.5725 319.1339 302.3265

-21 317.3363 301.0697 285.3799

-20 299.3220 284.1432 269.4913

-19 282.4445 268.2757 254.5883

-18 266.6255 253.3948 240.6039

-17 251.7919 239.4330 227.4757

-16 237.8766 226.3281 215.1463

-15 224.8174 214.0224 203.5624

-14 212.5563 202.4625 192.6744

-13 201.0399 191.5986 182.4363

-12 190.2186 181.3849 172.8057

-11 180.0464 171.7785 163.7427

-10 170.4805 162.7398 155.2107

-9 161.4813 154.2319 147.1755

-8 153.0118 146.2207 139.6052

-7 145.0379 138.6741 132.4703

-6 137.5277 131.5627 125.7431

-5 130.4515 124.8587 119.3982

-4 123.7818 118.5366 113.4114

-3 117.4930 112.5723 107.7607

-2 111.5611 106.9437 102.4252 -1 105.9639 101.6299 97.3855

0 100.6805 96.6115 92.6236

1 95.6916 91.8705 88.1226

2 90.9792 87.3900 83.8668

3 86.5264 83.1541 79.8414

4 82.3174 79.1483 76.0326

5 78.3376 75.3587 72.4277

6 74.5732 71.7724 69.0146

7 71.0114 68.3775 65.7820

8 67.6401 65.1626 62.7193

9 64.4482 62.1173 59.8168

10 61.4250 59.2317 57.0652

11 58.5609 56.4965 54.4558

12 55.8465 53.9031 51.9805

13 53.2732 51.4434 49.6317

14 50.8329 49.1097 47.4022

15 48.5181 46.8950 45.2854

16 46.3216 44.7925 43.2749

17 44.2367 42.7960 41.3649

18 42.2573 40.8995 39.5498

19 40.3773 39.0976 37.8243

20 38.5913 37.3849 36.1837

21 36.8941 35.7567 34.6232

22 35.2808 34.2083 33.1385

23 33.7469 32.7354 31.7256

24 32.2880 31.3339 30.3807

25 30.9000 30.0000 29.1000

26 29.6048 28.7301 27.8561

27 28.3708 27.5207 26.6721

28 27.1949 26.3688 25.5447

29 26.0740 25.2712 24.4710

30 25.0053 24.2251 23.4482

31 23.9860 23.2279 22.4735

32 23.0137 22.2770 21.5445

33 22.0860 21.3701 20.6588

34 21.2005 20.5048 19.8141

35 20.3552 19.6791 19.0084

36 19.5479 18.8910 18.2397

37 18.7769 18.1385 17.5061

38 18.0403 17.4199 16.8057

39 17.3364 16.7335 16.1370

40 16.6636 16.0777 15.4984

41 16.0204 15.4509 14.8883 42 15.4053 14.8518 14.3053

43 14.8169 14.2790 13.7482

44 14.2541 13.7312 13.2155

45 13.7154 13.2071 12.7062

46 13.1999 12.7058 12.2192

47 12.7063 12.2259 11.7532

48 12.2336 11.7667 11.3073

49 11.7809 11.3269 10.8806

50 11.3472 10.9058 10.4721

51 10.9317 10.5025 10.0810

52 10.5334 10.1160 9.7065

53 10.1516 9.7457 9.3477

54 9.7855 9.3908 9.0039

55 9.4345 9.0506 8.6745

56 9.0977 8.7243 8.3587

57 8.7746 8.4114 8.0560

58 8.4646 8.1113 7.7657

59 8.1670 7.8233 7.4873

60 7.8814 7.5469 7.2202

61 7.6071 7.2817 6.9639

62 7.3436 7.0270 6.7180

63 7.0906 6.7825 6.4819

64 6.8475 6.5476 6.2552

65 6.6139 6.3220 6.0376

66 6.3893 6.1053 5.8286

67 6.1735 5.8970 5.6278

68 5.9660 5.6968 5.4348

69 5.7664 5.5043 5.2494

70 5.5744 5.3193 5.0712

71 5.3898 5.1413 4.8999

72 5.2121 4.9701 4.7351

73 5.0411 4.8054 4.5767

74 4.8765 4.6470 4.4243

75 4.7180 4.4945 4.2777

76 4.5655 4.3477 4.1366

77 4.4185 4.2064 4.0008

78 4.2770 4.0703 3.8701

79 4.1407 3.9393 3.7443

80 4.0093 3.8131 3.6231

81 3.8827 3.6914 3.5065

82 3.7607 3.5743 3.3941

83 3.6430 3.4614 3.2858

84 3.5296 3.3525 3.1814 85 3.4202 3.2476 3.0809

86 3.3147 3.1464 2.9840

87 3.2129 3.0488 2.8905

88 3.1147 2.9547 2.8004

89 3.0200 2.8640 2.7135

90 2.9285 2.7764 2.6297

91 2.8403 2.6919 2.5489

92 2.7551 2.6103 2.4709

93 2.6728 2.5315 2.3956

94 2.5933 2.4555 2.3230

95 2.5165 2.3821 2.2529

96 2.4424 2.3113 2.1852

97 2.3708 2.2428 2.1198

98 2.3015 2.1767 2.0567

99 2.2346 2.1128 1.9957

100 2.1700 2.0510 1.9368

101 2.1075 1.9913 1.8799

102 2.0470 1.9337 1.8249

103 1.9886 1.8779 1.7718

104 1.9321 1.8240 1.7204

105 1.8774 1.7719 1.6708

106 1.8245 1.7214 1.6227

107 1.7733 1.6727 1.5763

108 1.7238 1.6255 1.5314

109 1.6758 1.5798 1.4880

110 1.6295 1.5357 1.4460

111 1.5845 1.4929 1.4053

112 1.5410 1.4515 1.3660

113 1.4989 1.4115 1.3279

114 1.4582 1.3727 1.2911

115 1.4187 1.3351 1.2554

116 1.3804 1.2988 1.2209

117 1.3433 1.2635 1.1874

118 1.3074 1.2294 1.1550

119 1.2726 1.1963 1.1236

120 1.2388 1.1643 1.0933

121 1.2061 1.1332 1.0638

122 1.1744 1.1031 1.0353

123 1.1437 1.0740 1.0076

124 1.1138 1.0457 0.9808

125 1.0849 1.0183 0.9549

126 1.0569 0.9917 0.9297

127 1.0297 0.9659 0.9053

合集下载

热敏电阻温度-阻值表

热敏电阻温度-阻值表

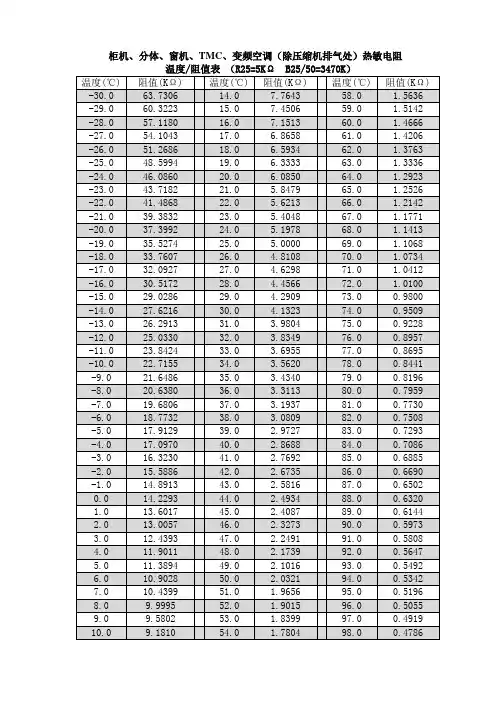

柜机、分体、窗机、TMC、变频空调（除压缩机排气处）热敏电阻

温度/阻值表 （R25=5KΩ B25/50=3470K）

温度(℃) 阻值(KΩ) 温度(℃) 阻值(KΩ) 温度(℃) 阻值(KΩ)

-30.0 63.7306 14.0 7.7643 58.0 1.5636

-29.0 60.3223 15.0 7.4506 59.0 1.5142

-28.0 57.1180 16.0 7.1513 60.0 1.4666

-27.0 54.1043 17.0 6.8658 61.0 1.4206

-26.0 51.2686 18.0 6.5934 62.0 1.3763

-25.0 48.5994 19.0 6.3333 63.0 1.3336

-24.0 46.0860 20.0 6.0850 64.0 1.2923

-23.0 43.7182 21.0 5.8479 65.0 1.2526

-22.0 41.4868 22.0 5.6213 66.0 1.2142

-21.0 39.3832 23.0 5.4048 67.0 1.1771

-20.0 37.3992 24.0 5.1978 68.0 1.1413

-19.0 35.5274 25.0 5.0000 69.0 1.1068

-18.0 33.7607 26.0 4.8108 70.0 1.0734

-17.0 32.0927 27.0 4.6298 71.0 1.0412

-16.0 30.5172 28.0 4.4566 72.0 1.0100

-15.0 29.0286 29.0 4.2909 73.0 0.9800

-14.0 27.6216 30.0 4.1323 74.0 0.9509

-13.0 26.2913 31.0 3.9804 75.0 0.9228

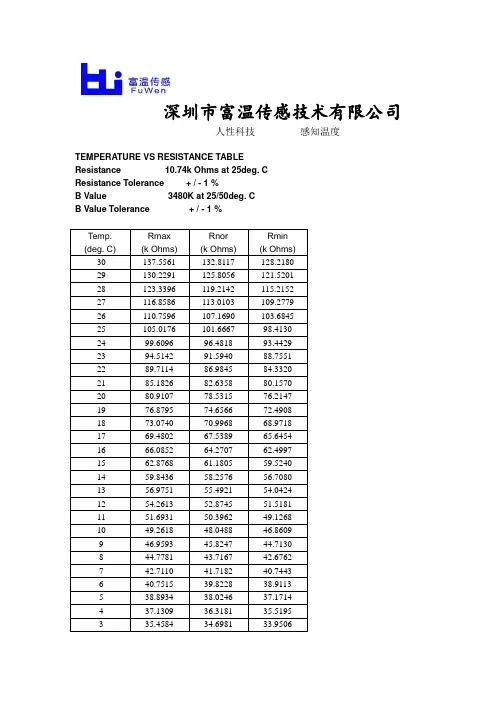

R25=10.74K B25-50=3480 NTC热敏电阻RT关系特性表

R25=10.74K B25-50=3480 NTC热敏电阻RT关系特性表

深圳市富温传感技术有限公司

人性科技 感知温度

TEMPERATURE VS RESISTANCE TABLE

Resistance 10.74k Ohms at 25deg. C

Resistance Tolerance + / - 1 %

B Value 3480K at 25/50deg. C

B Value Tolerance + / - 1 %

Temp.

(deg. C) Rmax

(k Ohms) Rnor

(k Ohms) Rmin

(k Ohms)

-30 137.5561 132.8117 128.2180

-29 130.2291 125.8056 121.5201

-28 123.3396 119.2142 115.2152

-27 116.8586 113.0103 109.2779

-26 110.7596 107.1690 103.6845

-25 105.0176 101.6667 98.4130

-24 99.6096 96.4818 93.4429

-23 94.5142 91.5940 88.7551

-22 89.7114 86.9845 84.3320

-21 85.1826 82.6358 80.1570

-20 80.9107 78.5315 76.2147

-19 76.8795 74.6566 72.4908

-18 73.0740 70.9968 68.9718

-17 69.4802 67.5389 65.6454

-16 66.0852 64.2707 62.4997

-15 62.8768 61.1805 59.5240

-14 59.8436 58.2576 56.7080

-13 56.9751 55.4921 54.0424

ntcr25=10k±1%b25-85=3435热敏电阻阻值温度rt对应表

ntcr25=10k±1%b25-85=3435热敏电阻阻值温度rt对应表

NTC R25=10k±1% B25-85=3435热敏电阻阻值温度RT对应表(总10页)

-CAL-FENGHAI.-(YICAI)-Company One1

-CAL-本页仅作为文档封面，使用请直接删除 深圳市富温传感技术有限公司

人性科技 感知温度

TEMPERATURE VS RESISTANCE TABLE

Resistance 10k Ohms at 25deg. C

Resistance Tolerance + / -1%

B Value 3435K at 25/85 deg. C

B Value Tolerance + / - 1%

-50 383.6636 366.4286 349.9328

-49 360.5607 344.5753 329.2657

-48 339.0119 324.1796 309.9653

-47 318.9022 305.1344 291.9319

-46 300.1258 287.3413 275.0738

-45 282.5857 270.7097 259.3068

-44 266.1922 255.1561 244.5530

-43 250.8629 240.6035 230.7407

-42 236.5216 226.9810 217.8035

-41 223.0983 214.2231 205.6803

-40 210.5283 202.2693 194.3148

-39 198.7519 191.0637 183.6545

-38 187.7137 180.5546 173.6511

-37 177.3629 170.6944 164.2601

-36 167.6522 161.4387 155.4400

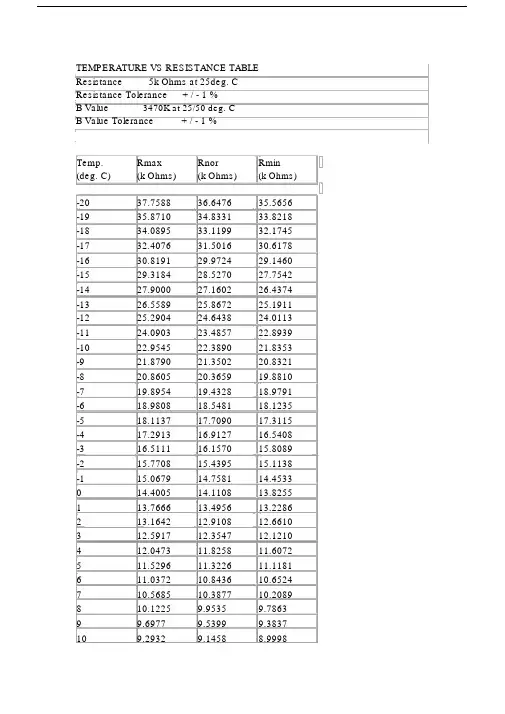

(完整word版)NTC热敏电阻5K,10K,50K,100K阻值与温度对应RT表.doc
