这是8个系列教程的第一部分，这系列示范如何使用Silverlight 2的Beta1版本建造一个简单的Digg客户端应用。

这些教程旨在按顺序阅读，帮着解释Silverlight的一些核心编程概念。

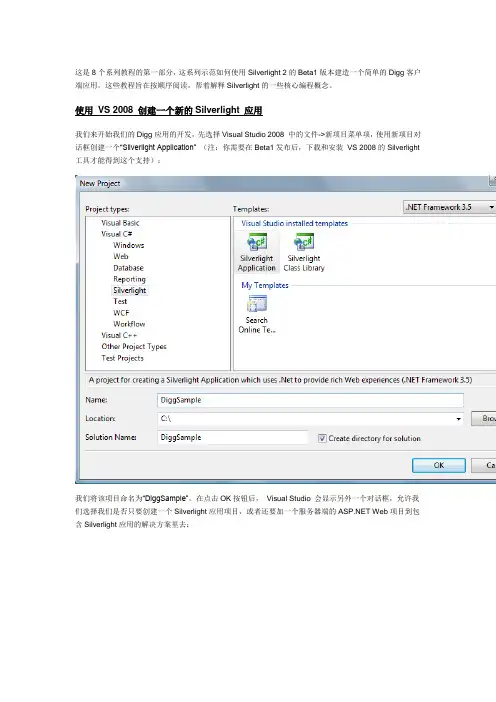

使用VS 2008 创建一个新的Silverlight 应用我们来开始我们的Digg应用的开发，先选择Visual Studio 2008 中的文件->新项目菜单项，使用新项目对话框创建一个“Silverlight Application” （注：你需要在Beta1发布后，下载和安装VS 2008的Silverlight 工具才能得到这个支持）：我们将该项目命名为“DiggSample”。

在点击OK按钮后，Visual Studio 会显示另外一个对话框，允许我们选择我们是否只要创建一个Silverlight应用项目，或者还要加一个服务器端的 Web项目到包含Silverlight应用的解决方案里去：在这个例程里，我们将选择还要添加一个 Web Application 项目到解决方案里去，并将它命名为“DiggSample_WebServer”。

在点击OK之后，Visual Studio 会为我们创建一个解决方案，里面包含一个Silverlight 客户端应用和一个 web 服务器端应用：如果我们做一次编译的话，Visual Studio 会自动把编译好的Silverlight 应用拷贝到我们的web服务器项目中去，不需要手工的步骤或配置。

VS为我们创建的默认的web服务器项目包含一个网页和一个静态的HTML网页，我们可以用来运行和测试其中的Silverlight应用。

注：Silverlight应用可用于任何web服务器（包括Linux上的Apache），宿主于静态HTML文件或者任何服务器端生成的网页（包括PHP, Java, Python, Ruby等等）中。

在这个Digg样例中，我们不会写任何服务器端的代码，而是将使用Silverlight的跨域networking功能，来直接访问Digg服务的API。

我选择创建一个 web服务器项目，主要是想获得自动的部署，并且使用它内置的web服务器来做测试。

理解Silverlight应用里都有些什么在默认情形下，一个新建的Silverlight应用项目包含一个Page.xaml和一个App.xaml文件，以及与它们相关的后台（code behind ）类文件（可以用VB, C#, Ruby 或Python来编写）：XAML文件是XML文本文件，可以用来用声明的方式指定Silverlight 或WPF应用的用户界面。

XAML 还可更广泛地用来用声明的方式代表.NET对象。

App.xaml 文件一般用来声明譬如象画刷和样式对象这样可在整个应用中共享的资源。

App.xaml的后台Application类可用来处理应用级的事件，象Application_Startup, Application_Exit 和Application_UnhandledException。

Page.xaml 文件，在默认情形下，是在应用激活时装载的起始的UI控件。

在其中，我们可以使用UI控件来定义我们的用户界面，然后在Page的后台代码类里处理它们的事件（详见后文）。

在我们编译DiggSample项目时，在默认情形下，Visual Studio 会把代码和XAML标识编译进一个标准的 .NET 程序集文件中，然后把它和任何静态的资源（象图片或我们想要包含的静态文件）包装进硬盘上一个叫做“DiggSample.xap”的文件中去：“.xap”文件（其音发作“zap”）使用标准的 .zip压缩算法来减小客户端下载的大小。

一个“hello world”.NET Silverlight 应用（用VB或C#编写的）其大小大概为4KB。

注：Beta1版本中的一些控件是在程序集中实现的，如果使用这些控件的话，这些程序集会重新发布于应用的 .xap 文件中（会增加应用的大小，超出4KB的基底大小）。

在Digg应用中使用的所有控件将会在Beta2版和最终版的核心Silverlight下载包中，这意味着完成的应用的总下载大小大概只在6-8KB范围内（所以是非常小，下载起来非常快）。

要宿主和运行一个Silverlight 2 应用，你可以把<object>标签加到任何标准的HTML页面中（不需要JavaScript ）并将其指向 .xap 文件。

Silverlight然后就会自动下载这个.xap 文件，生成实例，将其宿主于浏览器中的HTML网页中。

这是跨浏览器（Safari, FireFox, IE等），跨平台（Windows, Mac, and Linux）工作的。

HTML和测试网页（内含<object>标签，其引用指向我们的Silverlight 应用）是在我们创建项目时为我们自动添加的，这意味着我们只要点击F5编译，运行和测试就可以了。

学习如何添加控件和处理事件现在我们的Digg应用什么都不做，在运行它时，只会调出一个空白的网页。

我们可以打开项目中的Page.xaml文件来改变它，往里面加些内容：我们将开始改变网格的背景颜色，在其中声明一个Button控件。

我们将给按钮一个"x:Name"属性，设置其值为“MyButton“，这会允许我们在后台代码类中用编程的方法引用它。

我们还将设置它的Content, Width 和Height 属性：当我们运行应用时，我们的按钮将会在网页的中间出现，内含”Push Me“内容文字，象下面这样：要给我们的按钮加行为的话，我们可以给它加一个"Click"事件处理函数。

我们可以在源码视图中通过输入事件的名称来做：然后就会提示我们在我们的后台代码类中该使用的事件处理函数：然后我们可以输入一个要用的新事件处理方法的名称，或者只要点击回车键，使用默认的命名约定来命名事件处理方法：然后VS就会自动地在我们的后台代码类文件中创建一个占位的事件处理函数实现。

我们可以使用这个事件处理函数在按钮被点击时，用新的消息更新它的内容：在做完上面的改动后，我们可以重新运行应用，再次点击按钮，现在它的内容就会被更新为“Pushed!”的消息：以下的步骤在完成我们的应用之前，我们还有不少工作要做... :-)下一步，是配置我们的应用的总的UI布局结构，在其中安排更多的控件。

要做那个，就让我们跳到下一个教程《使用布局管理》。

Silverlight Tutorial Part 2: Using Layout ManagementThis is part two of eight tutorials that walk through how to build a simple Digg client application using Silverlight 2. These tutorials are intended to be read in-order, and help explain some of the core programming concepts of Silverlight. Bookmark my Silverlight 2 Reference page for more of Silverlight posts and content.<Download Code>Click here to download a completed version of this Digg client sample. </Download Code>Understanding Layout ManagementSilverlight and WPF support a flexible layout management system that enables developers and designers to easily coordinate how controls are positioned within a UI surface. This layout system supports both a fixed position model where controls are positioned using explicitcoordinates, as well as a more dynamic position model where layout and controls can be automatically sized and flowed as the browser resizes.Developers using Silverlight and WPF use layout panels to coordinate the position and resizing of controls contained within them. The built-in layout panels in Silverlight 2 include three of the most commonly used ones in WPF:∙Canvas∙StackPanel∙GridCanvas PanelThe Canvas panel is a pretty basic layout panel that supports positioning controls contained within it using explicit coordinates.You position elements in a Canvas using a XAML feature called "Attached Properties" - which allow you to specify a control's position relative to its immediate parent Canvas control's Left, Top, Right or Bottom coordinates. Attached properties are useful as they allow a parent panel to extend the property set of a control contained within it. Canvas, by defining an attached property for “Top” and ”Left” basically adds the ability to define left and top atta chment on Button (or any other UI element that is added to the Canvas), without any need to actually add a property to the Button class, or modify the Button class in any way.We could add two buttons to a Canvas container, and position them both 50 pixels from the left of the Canvas, and 50 and 150 pixels from the top using XAML like below (the Canvas.Left and Canvas.Top attributes are examples of the attached property syntax):This would then render our buttons like below:While the Canvas is useful for scenarios where the UI elements contained within it never move, it tends not to be very flexible as you add more controls into it or handle scenarios where the UI needs to resize or move. In cases like these you end up having to manually write code yourself to move things around inside the Canvas (which is a pain). A better solution for these dynamic scenarios is typically to use an alternative layout panel that has built-in semanticsto-do this for you - like the StackPanel and Grid.StackPanelThe StackPanel control is a simple layout panel that supports positioning its contained controls in either a row or column layout. StackPanels are typically used in scenarios where you want to arrange a small subsection of the UI on your page.For example, we could use the StackPanel to vertically arrange three buttons on our page using XAML markup like below:At runtime the StackPanel would then automatically arrange the Button controls in a vertical stack for us like below:We could alternatively set the "Orientation" property of the StackPanel to be "Horizontal" instead of Vertical (which is the default):This will then cause the StackPanel to automatically arrange the Button controls in a horizontal row like below:Grid PanelThe Grid control is the most flexible layout panel, and supports arranging controls in multi-row and multi-column layouts. It is conceptually similar to an HTML Table element.Unlike an HTML Table, you don't embed controls within column and row elements. Instead you specify a Grid's Row and Column definitions using <Grid.RowDefinitions> and<Grid.ColumnDefinitions> properties that are declared immediately under the <Grid> control. You can then use the XAML "Attached Property" syntax on controls contained within the grid to indicate which Grid row and column they should be populated within.For example, we could declare a Grid layout has three rows and three columns, and then position 4 buttons within it using XAML like below:The Grid layout panel would then position the Button elements for us like so:In addition to supporting absolute sizing (for example: Height="60") the Grid's RowDefinition and ColumnDefinition controls also support an AutoSizing mode (Height="Auto"), which automatically sizes the Grid or Row based on the size of the content contained within it (youcan also optionally specify maximum and minimum size constraints - which can be very useful).The Grid's Row and ColumnDefinitions also support a feature called "Proportional Sizing" - which enables the size of a Grid's Rows and Columns to be spaced proportionally relative to each other (for example: you could have the second row grow at 2x the rate of the first one).You'll find that the Grid provides a ton of power and flexibility - and it will probably be the most common layout panel control you'll end up using.Using Layout Panels to Arrange our Digg PageRemember that the goal when building our Digg sample is to create a page that looks like the one below:To create this layout we'll begin by adding a root Grid panel that has two RowDefinitions within it. The first Row will be 40 pixels high, and the second will fill the remaining space(Height="*"):Tip: Notice above how I've set the Grid's "ShowGridLines" property to "True". This will enable us to easily visualize the Row and Column boundaries within the Grid when we test it at runtime:We'll then embed a second Grid panel control as a child control within the first row of the root Grid panel container, and use it to arrange the top row (the header). We'll create three columns within it - one for the Title, one for the Search TextBox, and one for the Search Button:Once this is done we have the basic layout arrangement of our Digg search page in place:Note: As an alternative to nesting Grids, we could have alternatively had one Grid with 3 columns and 2 rows and used the ColSpan/RowSpan feature of the Grid to merge content across multiple columns (similar to how you can do this with HTML tables). I chose to use the nested Grid approach instead because I thought it would be simpler to follow along.Now that we have the layout setup all we need to-do is add controls to it.For the header row we'll use the built-in <Border> control (with a CornerRadius of 10 to get a nice rounded edge) and add some text inside it to create the Title. We'll use the <TextBox> control in the second column for the search textbox. And we'll put a search <Button> in the third column. We'll then put some placeholder text in the second row where we are later going to display the search results.Note: Below I'm embedding style information (FontSize, Colors, Margins, etc) directly on the controls. Later in this tutorial series I'll show how to use Styles to extract and encapsulate these settings in a separate file (ala CSS) which can then be re-used across the application.And now when we run our application it looks like below:Dynamically Resizing our ApplicationOne thing you might have noticed in the XAML above is that our top-level control is currently set to be a fixed width and height:When set this way our Silverlight Application will always remain that fixed size. Expand the browser and this becomes apparent:While constraining an embedded application to be a fixed size within a region of an HTML page is useful in some scenarios, for our Digg search application we really want the application experience to automatically flow and resize with the browser - just like an HTML page would.The good news is that this is easy to implement. Just remove the Width and Height attributes on the root control:Our Silverlight application will then automatically expand (or shrink) to fill the HTML container it is embedded within. Because the SilverlightTestPage.html file that we are testing our Silverlight application within hosts our Silverlight control in a HTML <div> element with a 100% width and height CSS setting on it, our Digg application will now fill the entire browser:Notice how the content within the header of the application automatically resizes and flows based on the width of the browser:When we shrink the browser, the watermark textbox and search button stay the same size because their Grid container columns are a fixed width. The <Border> control containing our "Digg Search" title automatically resizes when we shrink the browser because the Grid column it is in is configured to be Width="*".We did not need to write a single line of code to enable this layout behavior - the Grid container and the layout system took care of dynamically resizing and flowing everything for us.Next StepsWe now have the basic layout structure of our Digg application created, and have our header row defined.Our next step will be to implement the searching behavior of the application - and have it actually retrieve story content from when an end-user using the application searches on a topic.To-do that let's jump to our next tutorial: Using Networking to Retrieve Data and Populate a DataGrid.Silverlight Tutorial Part 3: Using Networking to Retrieve Data and Populate a DataGridThis is part three of eight tutorials that walk through how to build a simple Digg client application using Silverlight 2. These tutorials are intended to be read in-order, and help explain some of the core programming concepts of Silverlight. Bookmark my Silverlight 2 Reference page for more of Silverlight posts and content.<Download Code>Click here to download a completed version of this Digg client sample. </Download Code>Using Networking to Retrieve Digg StoriesSilverlight 2 has built-in networking APIs that enable Silverlight clients to call remote REST, SOAP/WS*, RSS, JSON and XML HTTP services. Silverlight 2 also includes a built-in sockets API (.Sockets) that enables Silverlight clients to communicate overnon-HTTP protocols (ideal for scenarios like chat servers, etc).Cross Domain Network AccessSilverlight 2 applications can always call back to their "origin" server when making network calls (meaning they can call URLs on the same domain that the application was downloaded from). Silverlight 2 applications can also optionally make cross-domain network calls (meaning they can call URLs on different domains from where the application was downloaded from) when the remote web server has an XML policy file in place that indicates that clients are allowed to make these cross-domain calls.Silverlight 2 defines an XML policy file format that allows server administrators to precisely control what access a client should have. Silverlight 2 also honors the default Flash crossdomain policy file format - which means that you can use Silverlight 2 to call any existing remote REST, SOAP/WS*, RSS, JSON or XML end-point on the web that already enables cross-domain access for Flash clients. has a pretty cool set of Digg APIs that they publish over HTTP. Because they have a Flash cross-domain policy file in place on their server, we can call them directly from our Silverlight Digg client application (and not require us to tunnel back through our web-server to reach their APIs). Topic Feed APIWe want to enable end-users using our application to type in a search topic (for example: "Programming") and then click the "Search" button to pull back the top stories from that match it:We can use the List Stories REST API feed API to-do this. It takes a topic parameter in its URL (for example: GET /stories/topic/programming), and then returns back an XML payload of Digg stories that match that topic. Click here to see an example of what this XML looks like.Using .WebClient to Asynchronously Call the Digg REST FeedWhen the SearchButton is clicked above, we'll handle its "Click" event, retrieve the topic string to search for from the TextBox control, and then initiate a network call to Digg to retrieve the XML listing for that topic.Silverlight includes the WebClient helper class within the namespace (this is also in the full .NET Framework). We can use this class to asynchronously download content from a URL. The benefit of downloading our Digg stories asynchronously is that our UI will not block or become unresponsive while waiting on the remote server (allowing us to have a very fluid user experience).All we need to-do to perform an async download with the WebClient class is to register a "DownloadStringCompleted" event handler method that will be invoked once the requested content has been downloaded, and then call the WebClient.DownloadStringAsync(url) helper method to initiate the download:And with the code above we can now asynchronously retrieve a string of XML data that contains the Digg stores about any topic a user wants.Using LINQ to XML to Parse Digg XML Stories into Story ClassesNow that we can retrieve an XML snippet back of Digg story data, our next step will be to parse and convert it into "DiggStory" objects that we can manipulate and databind our controls against.We'll do this by first defining a "DiggStory" class that has properties that map to the XML content from Digg (we'll take advantage of the new C# "automatic properties" feature to-do this):We can then use LINQ (which is built-into Silverlight 2) and LINQ to XML (which is an extra library we can include with our Silverlight application) to easily parse and filter the XML document that was returned from Digg, and translate it into a sequence of "DiggStory" objects using the code below:Notice above how we now have strongly typed DiggStory objects from our XML that we can work against.Displaying our Digg Stories in a DataGrid ControlWe'll use the Silverlight DataGrid control to display the Digg stories in our application. To enable this we'll reference the Silverlight Data controls assembly, and then replace our previous "Todo" text on the page with a DataGrid control declaration (note: you can double click on the "datagrid" control in the toolbox to automatically add one to the page):The DataGrid allows you to explicitly configure column declarations and display types (for maximum control). Alternatively if you do not specify these, the DataGrid control will usereflection on its datasource to create default columns for you based on the schema of your objects.We'll then update our code-behind class to programmatically bind the "ItemSource" property of the DataGrid to the sequence of stories we receive back from Digg when the search button is clicked:And now when we run our Silverlight application and do a search, we'll see a listing oflive topic story data pulled from Digg:Silverlight Tutorial Part 4: Using Style Elements to Better Encapsulate Look and FeelThis is part four of eight tutorials that walk through how to build a simple Digg client application using Silverlight 2. These tutorials are intended to be read in-order, and help explain some of the core programming concepts of Silverlight. Bookmark my Silverlight 2 Reference page for more of Silverlight posts and content.<Download Code>Click here to download a completed version of this Digg client sample. </Download Code>Using Style Elements to Better Encapsulate Look and FeelWPF and Silverlight support a Style mechanism that allows us to encapsulate control property values as a reusable resource. We can store these style declarations in separate files from our pages, and re-use them across multiple controls and pages in an application (as well as re-use them across multiple applications). This is conceptually similar to using CSS with HTML when doing basic customization scenarios.Note: In addition to defining basic property settings (Color, Font, Size, Margins, etc), styles in WPF and Silverlight can also be used to define and re-use Control Templates - which enable super rich skinning and adaptation of control structure (and support customization scenarios not possible with CSS in HTML today). I discuss Control Templates in Part 7 of this series.For our Digg sample application we'll define our Style declarations within the App.xaml file of our project. This will enable them to be reused across all pages and controls in the application:Let's start by encapsulating styles for the <Border> control (and the <TextBlock> title contained within it) of our Digg page:We can create two Style elements within our App.xaml file that encapsulate the <Border> and <TextBlock> settings we were previously declaring inline using the markup below:Note how we are giving each Style a unique "Key" value above. We can then update our<Border> and <TextBlock> controls to reference the Styles using these keys. We'll be using a XAML feature called "markup extensions" to do this. Markup extensions are used when there are non-literal values that we want to set (another example of where we'll use this feature is with databinding expressions).When we update the other controls within our Page.xaml file to use styles as well, we are left with a file that looks like below:Encapsulating the style settings this way allows developers to better focus on the behavior semantics of the application, and also enables us to re-use styles across other controls/pages we build.Next StepsNow that we've cleaned up the markup of our Page.xaml file using Style references, let's go one step further and customize the appearance of our Story data more.To-do that let's jump to our next tutorial: Using the ListBox and Databinding to Display List Data.The Silverlight Datagrid supports all the standard features you expect with a client-side grid control: two way in-place editing, selection, scrolling, column resizing, column re-ordering, etc. It also supports auto-flow layout, which means it can dynamically expand or shrink to fill the content container it is in. The DataGrid also has a rich templating model that allows you to customize both the display and editing of column data.Next StepsWe can now retrieve Digg story data from and display the story data within our application.Our next step will be to go back to our Page.xaml markup and remove the in-line style declarations we are currently using there.To-do that let's jump to our next tutorial: Using Style Elements to Better Encapsulate Look and Feel.Silverlight Tutorial Part 5: Using the ListBox and DataBinding to Display List DataThis is part five of eight tutorials that walk through how to build a simple Digg client application using Silverlight 2. These tutorials are intended to be read in-order, and help explain some of the core programming concepts of Silverlight. Bookmark my Silverlight 2 Reference page for more of Silverlight posts and content.<Download Code>Click here to download a completed version of this Digg client sample. </Download Code>Displaying our Digg Stories using the ListBox and DataBindingPreviously we've been using the DataGrid control to display our Digg stories. This works great when we want to display the content in a column format. For our Digg application, though, we probably want to tweak the appearance a little more and have it look less like a DataGrid of stories and more like a List of them. The good news is that this easy - and it doesn't require us to change any of our application code to accomplish this.We'll start by replacing our DataGrid control with a <ListBox> control. We'll keep the control name the same as before ("StoriesList"):When we run our application again and search for stories, the ListBox will display the following results:You might be wondering - why is each item "DiggSample.DiggStory"? The reason for this is because we are binding DiggStory objects to the ListBox (and the default behavior is to call ToString() on them). If we want to display the "Title" property of the DiggStory object instead, we can set the "DisplayMemberPath" property on the ListBox:When we do this the Title will be what is displayed in the ListBox:If we want to show more than one value at a time, or customize the layout of each item more, we can override the ListBox control's ItemTemplate and supply a custom DataTemplate. Within this DataTemplate we can customize how each DiggStory object is displayed.For example, we could display both the DiggStory Title and NumDiggs value using a DataTemplate like below.We can databind any public properties we want from our DiggStory object within the DataTemplate. Notice above how we are using the {Binding Path=PropertyName} syntax to accomplish this with the two TextBlock controls.With the above DataTemplate in place, our ListBox will now display its items like below:Let's then go one step further and change our DataTemplate to the one below. This DataTemplate uses two StackPanels - one to stack row items horizontally, and one to stack some textblocks together vertically:The above DataTemplate causes our ListBox to display items like the screen-shot below:when we define the following Style rules in our App.xaml (note how we are using a LinearGradientBrush to get the nice yellow gradient background on the DiggPanel):One important thing to notice about our ListBox - even though we have customized what the items in it look like, it still automatically provides support for hover and item selection semantics. This is true both when using the mouse and when using the keyboard (up/down arrow keys, home/end, etc):The ListBox also supports full flow resizing - and will provide automatic scrolling of our custom content when necessary (notice how the horizontal scroll bar appears as the window gets smaller):Next StepsWe've now switched our data visualization to be List based, and cleaned up the content listing of it.Let's now complete the last bits of the functionality behavior in the application - and implement a master/details workflow which allows end-users to drill into the specifics of a story when they select an article from the list. To-do that let's jump to our next tutorial: Using User Controls to Implement Master/Detail Scenarios.Silverlight Tutorial Part 6: Using User Controls to Implement Master/Detail ScenariosThis is part six of eight tutorials that walk through how to build a simple Digg client application using Silverlight 2. These tutorials are intended to be read in-order, and help explain some of the core programming concepts of Silverlight. Bookmark my Silverlight 2 Reference page for more of Silverlight posts and content.<Download Code>Click here to download a completed version of this Digg client sample. </Download Code>Understanding User ControlsA fundamental design goal of Silverlight and WPF is to enable developers to be able to easily encapsulate UI functionality into re-usable controls. Developers can implement new custom controls by deriving a class from one of the existing Control classes (either a Control base class or from a control like TextBox, Button, etc). Alternatively they can create re-usable User Controls - which make it easy to use a XAML markup file to compose a control's UI, and which are easy to implement.For our Digg application, we want to implement a master/details scenario where the application allows an end-user to search on a topic, populate a list of stories related to that topic, and then enable them to select a story to bring up details about it. For example, selecting the below story in the list:would bring up this detailed view about the story:We are going to implement this details view by building a "StoryDetailsView" UserControl that we'll display when a story is selected from our ListBox.Creating a StoryDetailsView User ControlWe'll start by right-clicking on our DiggSample project node in Visual Studio and by selecting "Add New Item". This will bring up a new item dialog. We'll select the UserControl item template and name the new control we want to build "StoryDetailsView":This will add a new UserControl with this name to our DiggSample project:Building a Basic Modal Dialog Using a User ControlWe are going to use our StoryDetailsView control to effectively display a dialog containing story details. When our story details user control displays we are going to want to have it appear on top of the other content on the page, and ensure that an end-user can't do other things with the page until they close the details view.。
