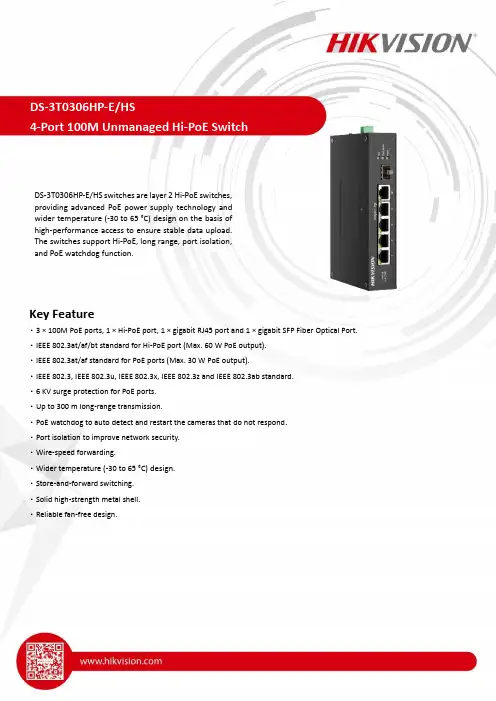

DS-3T0306HP-E/HS switches are layer 2 Hi-PoE switches,providing advanced PoE power supply technology andwider temperature (-30 to 65 °C) design on the basis ofhigh-performance access to ensure stable data upload.The switches support Hi-PoE, long range, port isolation,and PoE watchdog function.Key Feature•3 × 100M PoE ports, 1 × Hi-PoE port, 1 × gigabit RJ45 port and 1 × gigabit SFP Fiber Optical Port.•IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).•IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).•IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.•6 KV surge protection for PoE ports.•Up to 300 m long-range transmission.•PoE watchdog to auto detect and restart the cameras that do not respond.•Port isolation to improve network security.•Wire-speed forwarding.•Wider temperature (-30 to 65 °C) design.•Store-and-forward switching.•Solid high-strength metal shell.•Reliable fan-free design.SpecificationModel DS-3T0306HP-E/HSNetwork parameters Port number3 × 100M PoE ports, 1 × Hi-PoE port, 1 × gigabit RJ45 port and 1 ×gigabit SFP Fiber Optical PortPort type RJ45 port, full duplex, MDI/MDI-X adaptiveStandard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab Forwarding mode Store-and-forward switchingWorking modeStandard mode (default), Extend mode, Isolation mode, PoEwatchdog modePorts for long-distancetransmissionPorts 3 and 4MAC address table 2 KSwitching capacity 4.8 GbpsPacket forwarding rate 3.5712 MppsInternal cache 1.0 MbitsPoE power supply PoE standardPort 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 2 to 4: IEEE 802.3af, IEEE 802.3atPoE power pinPorts 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide powersupply simultaneously.PoE port Ports 2 to 4Hi-PoE port Port 1Max. port powerPort 1: 60 WPorts 2 to 4: 30 WPoE power budget 60 WDialing function Long range Ports 3 and 4: up to 300 m.Port isolation Ports 1 to 4: port isolation mode to improve network security.PoE watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond.General Shell Metal material, fan-free designGross weight0.915 kg (2.02 lb)Net weight0.35 kg (0.77 lb)Dimension (L × H × D)158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”) Operating temperature-30 °C to 65 °C (-22 °F to 149°F)Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating humidity5% to 95% (no condensation)Storage humidity5% to 95% (no condensation)Power supply48 to 57 VDC, 1.35 A Max.Power consumption in idle< 5 WMax. power consumption 65 WPower source65 WApproval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)No 1907/2006)Physical Interface Front panel:Back panel:Available Model DS-3T0306HP-EDimension (unit: mm)Typical Application。
方案批准:目录1.验证小组签名―――――――――――――――――――――――――32. 缩写和定义―――――――――――――――――――――――――― 33. 参考文件――――――――――――――――――――――――――― 34. 设备介绍――――――――――――――――――――――――――――35. 目的――――――――――――――――――――――――――――――46. 范围――――――――――――――――――――――――――――――47. 验证小组职责和验证计划―――――――――――――――――――――48. 验证偏差和变更―――――――――――――――――――――――――59. 文件检查――――――――――――――――――――――――――――610. 综合药品稳定性试验箱SHH-SDT的3Q确认――――――――――――611. 校准――――――――――――――――――――――――――――――1112. 验证报告――――――――――――――――――――――――――――11附录1―――――――――――――――――――――――――――――12附录2―――――――――――――――――――――――――――――12附录3―――――――――――――――――――――――――――――13附录4―――――――――――――――――――――――――――――15附录5―――――――――――――――――――――――――――――23附录6―――――――――――――――――――――――――――――261.验证小组签名2.缩写和定义3. 参考文件本方案依据下面列出规范的有关条款,结合我公司需求制定。
以下规范为有效的最新文本,设备所提供的性能及参数应能满足以下规范的有关要求。
A. GB/T10586-1989《湿热试验箱技术条件》 B. 2005版《化学药物稳定性研究技术指导原则》 C.《综合药品稳定性试验箱 SHH-SSD 的使用说明书》 4.设备介绍 4.1设备确认4.2设备用途购买的综合药品稳定性试验箱用于考察公司产品在长期条件、加速条件以及光照条件下的稳定性。
Lens not includedPanasonic WV-S1131 captures the highest quality images automatically even in very challenging and fast-changingsurveillance environments. Intelligent Auto (iA) allows the camera to automatically adjust the key settings in real-time depending on the scenery and movement, reducing distortion such as motion blur and moving objects. New industry-leading 144dB dynamic range delivers balanced scene exposure in dynamic and extreme-backlit lighting environments. In addition, color night vision provides outstanding low-light performance with accurate color rendition and saturation from i-Pro's 1/3" sensor, rivaling the performance of costlier 1/2" sensor cameras in the market. The adopted H.265 Smart Coding technology, intelligently reduces bandwidth efficiency of up to 95%* more than H.264 for longer recording and less storage. Cameras out-of-the-box, support full data encryption streaming and is compliant to FIPS 140-2 Level 1 standards to keep your video secured.*Value in Advanced mode with Smart Facial Coding. It depends on the scene.Extreme image quality allows evidence to be captured even under challenging conditions-Auto Shutter speed control for fast moving vehicles -Sharp and clear images of a walking person day & night-Outstanding low light performance in true color with low noise for night time applications-Super Dynamic 144dB for backlit situations involving headlights and shadows on night streetsExtreme H.265 compression with new Smart Coding-Longer recording and less storage compared to any H.264 based compression techniques-New self-learning ROI* encoding (Auto VIQS) detects movement within the image and compresses the areas with little motion in order to reduce transmitted data while maintaining the quality of the image.-New “Smart Facial Coding” adds more bandwidth reduction for ID camera applications mainly capturing faces*Region of InterestExtreme Data Security-Full encryption SD card edge recording to keep your data safe -FIPS 140-2 Level 1 compliant-Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alterationiA (intelligent Auto) H.265 Network Camera•Full HD 1080p 60fps •iA (intelligent Auto)•Extreme Super Dynamic 144dB •Color night vision (0.0007 to 0.01 lx)•H.265 Smart Coding•FIPS 140-2 Level 1 compliantKey Features•Public safety (City / Road / Highway / Port)•Transportation (Airport / Train / Subway)•Retail / Bank / Education / Hospital / BuildingApplicationsWV-S1131PJ(Made in JAPAN)DISTRIBUTED BY :https:///PanasonicNetworkCamera(2A-170DA)Trademarks and registered trademarks– iPad and iPhone are registered trademarks of Apple Inc.– Android is a trademark of Google Inc.– ONVIF and the ONVIF logo are trademarks or registered trademarks of ONVIF Inc.– All other trademarks identified herein are the property of their respective owners.• Masses and dimensions are approximate. • Specifications are subject to change without notice.Important– Safety Precaution : Carefully read the Important Information, Installation Guide and operating instructions before using this product.– Panasonic cannot be responsible for the performance of the network and/or other manufacturers' products used on the network.Specifications*2 Super Dynamic function is automatically set off on 60 fps mode.*3 Stabilizer, Smart Facial Coding, i-VMD can not be used at the same time.*4 When “3 mega pixel [4 : 3](30fps mode)” is selected for “Image capture mode”, “90 °” and “270 °” cannot be selected.*5 Used by super resolution techniques*6 Transmission for 4 streams can be individually set.*7 Only use AAC-LC (Advanced Audio Coding - Low Complexity) when recording audio on an SD memory card.*8 Including alarms from Plug-in SoftwareAppearanceOptional AccessoryUnit : mm (inches)Notification sent to the monitoring screen。

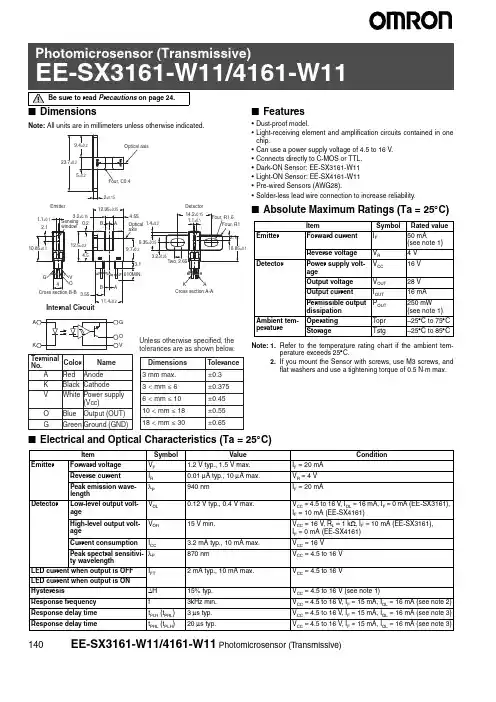

140EE-SX3161-W11/4161-W11 Photomicrosensor (Transmissive)■DimensionsNote:All units are in millimeters unless otherwise indicated.■Features•Dust-proof model.•Light-receiving element and amplification circuits contained in one chip.•Can use a power supply voltage of 4.5 to 16 V.•Connects directly to C-MOS or TTL.•Dark-ON Sensor: EE-SX3161-W11•Light-ON Sensor: EE-SX4161-W11•Pre-wired Sensors (AWG28).•Solder-less lead wire connection to increase reliability.■Absolute Maximum Ratings (Ta =25︒C)Note:1.Refer to the temperature rating chart if the ambient tem-perature exceeds 25︒C.2.If you mount the Sensor with screws, use M3 screws, and flat washers and use a tightening torque of 0.5 N·m max.■Electrical and Optical Characteristics (Ta = 25︒C)ItemSymbol Rated value EmitterForward current I F 50 mA(see note 1)Reverse voltageV R 4 V DetectorPower supply volt-ageV CC 16 V Output voltage V OUT 28 V Output currentI OUT16 mA Permissible output dissipationP OUT 250 mW (see note 1)Ambient tem-peratureOperating T opr –25︒C to 75︒C StorageTstg–25︒C to 85︒CItemSymbol ValueConditionEmitterForward voltage V F1.2 V typ., 1.5 V max.I F = 20 mA Reverse current I R 0.01 μA typ., 10 μA max.V R = 4 V Peak emission wave-lengthλP 940 nmI F = 20 mADetectorLow-level output volt-ageV OL 0.12 V typ., 0.4 V max.V CC = 4.5 to 16 V , I OL = 16 mA, I F = 0 mA (EE-SX3161), I F = 10 mA (EE-SX4161)High-level output volt-ageV OH 15 V min.V CC = 16 V , R L = 1 k Ω, I F = 10 mA (EE-SX3161), I F = 0 mA (EE-SX4161)Current consumptionI CC3.2 mA typ., 10 mA max.V CC = 16 V Peak spectral sensitivi-ty wavelengthλP 870 nmV CC = 4.5 to 16 V LED current when output is OFF I FT2 mA typ., 10 mA max.V CC = 4.5 to 16 VLED current when output is ON Hysteresis∆H 15% typ.V CC = 4.5 to 16 V (see note 1)Response frequency f 3kHz min.V CC = 4.5 to 16 V , I F = 15 mA, I OL = 16 mA (see note 2)Response delay time t PLH (t PHL ) 3 μs typ.V CC = 4.5 to 16 V , I F = 15 mA, I OL = 16 mA (see note 3)Response delay timet PHL (t PLH )20 μs typ.V CC = 4.5 to 16 V , I F = 15 mA, I OL = 16 mA (see note 3)Be sure to read Precautions on page 24.EE-SX3161-W11/4161-W11 Photomicrosensor (Transmissive) 141ineerin g Data2.1 mm0.5 mm0.5 mmDiskInp u t O u tp u tInp u t O u tp u tEE-SX3161EE-SX416140Dissipation Temperature RatingVoltage Characteristics (Typical)Low-level Output Voltage vs. Output Current (Typical)Response Delay Time vs. Forward Current (Typical)Repeat Sensing Position Characteristics (Typical)L o w l e v e l o u t p u t v o l t a g e V O L (V )C u r r e n t c o n s u m p t i o n I c c (m A )S u pply v oltage V CC (V )V CC = 5 VI F = 0 mA (15 mA)I OL = 16 mAI OL = 5 mAT a = 25°CI F = 0 mA (15 mA)Am b ient temperat u re Ta (°C)For w ard v oltage V F (V )F o r w a r d c u r r e n t I F (m A )F o r w a r d c u r r e n t I F (m A ))I F = 0 mA (15 mA)V CC = 5 VT a = 25°C T a = −30°C T a = 25°C T a = 70°CO u tp u t c u rrent I C (mA)Am b ient temperat u re Ta (°C)LED Current vs. Ambient Tempera-ture Characteristics (Typical)。

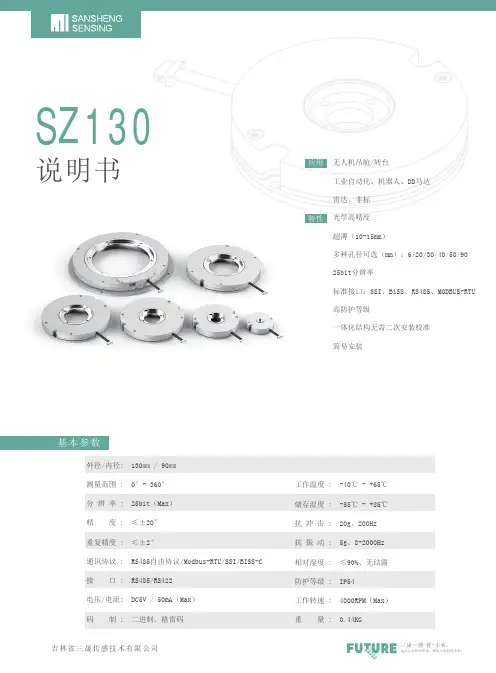

基本参数 特性雷达、非标光学高精度超薄(10-15mm)多种孔径可选(mm):6/20/30/40/50/9025bit分辨率标准接口:SSI、BiSS、RS485、MODBUS-RTU 高防护等级一体化结构无需二次安装校准简易安装外径/内径: 130mm / 90mm测量范围 : 0°- 360°分 辨 率 : 25bit(Max)精 度 : ≤±20″重复精度 : ≤±2″通讯协议 : RS485自由协议/Modbus-RTU/SSI/BISS-C 接 口 : RS485/RS422电压/电流: DC5V / 50mA(Max)码 制 : 二进制、格雷码工作温度 : -40℃ - +65℃储存温度 : -55℃ - +85℃抗 冲 击 : 20g、200Hz抗 振 动 : 5g、8-2000Hz 相对湿度 : ≤90%、无结露防护等级 : IP54工作转速 : 4000RPM(Max)重 量 : 0.44KGT型 产品装配图Y型 产品装配图通讯形式:定时发送波特率:2MB/s、921.6KB/s、115.2KB/s、57.6KB/s、9.6KB/s 更新率:10KHz、 4KHz、 1KHz、 0.5KHz、 0.1KHz 数据格式:起始位1bit、 数据位8bit 、停止位1bit 、无校验位数据帧说明:自由协议(RS485接口):数据说明:主站角度数据读取(站号01):主站设置编码器波特率(站号01,波特率设定为115200):设置成功从站响应数据:从站响应位置数据:2134角度数据高八位。
角度数据中八位。
角度数据低八位。
帧头和角度数据的校验和,取低八位。
注:角度换算:以16位及以下数据为例,角度=(Byte3*256+Byte4)/2n �,n为编码器位数,为提高数据可靠性,需对帧头和校验位判断通讯形式:总线命令波特率: 115.2KB/s、57.6KB/s、19.2KB/s、9.6KB/s(默认19.2KB/s)数据帧格式:起始位1bit、 数据位8bit 、停止位1bit 、无校验位注: 波特率 115.2KB/s、57.6KB/s、19.2KB/s、9.6KB/s时序图:时序图:P OSITION:编码器位数。

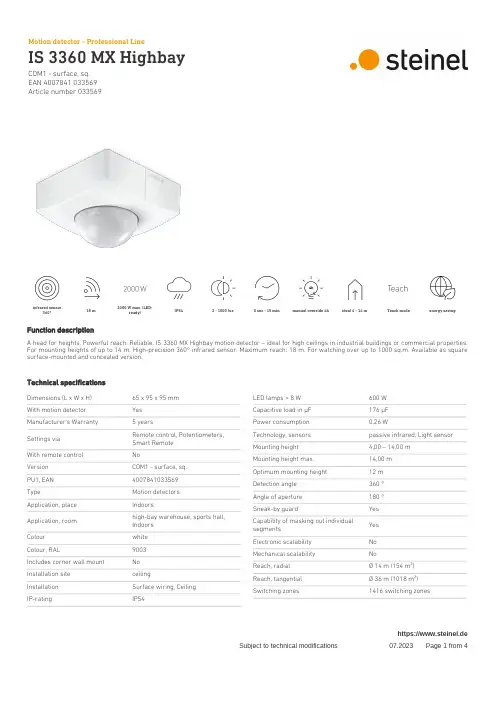

EAN 4007841 033569Article number 033569infrared sensor360°18 m2000 W max. (LED-ready)IP54 2 - 1000 lux 5 sec - 15 min manual override 4h ideal 4 - 14 m Teach mode energy savingFunction descriptionA head for heights. Powerful reach. Reliable. IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m. Available as square surface-mounted and concealed version.Technical specificationsDimensions (L x W x H)65 x 95 x 95 mm With motion detector Yes Manufacturer's Warranty 5 yearsSettings via Remote control, Potentiometers, Smart Remote With remote control NoVersion COM1 - surface, sq.PU1, EAN 4007841033569TypeMotion detectors Application, place IndoorsApplication, room high-bay warehouse, sports hall, Indoors Colour white Colour, RAL9003Includes corner wall mount No Installation site ceilingInstallation Surface wiring, Ceiling IP-ratingIP54LED lamps > 8 W 600 W Capacitive load in μF 176 µF Power consumption 0,26 WTechnology, sensors passive infrared, Light sensor Mounting height 4,00 – 14,00 m Mounting height max.14,00 m Optimum mounting height 12 m Detection angle 360 °Angle of aperture 180 °Sneak-by guardYes Capability of masking out individual segmentsYes Electronic scalability No Mechanical scalability NoReach, radial Ø 14 m (154 m²)Reach, tangential Ø 36 m (1018 m²)Switching zones1416 switching zoneshttps://www.steinel.deEAN 4007841 033569Article number 033569 Technical specificationsAmbient temperature-20 – 50 °CMaterial PlasticMains power supply220 – 240 V / 50 – 60 Hz Switching output 1, resistive2000 WSwitching output 1, number ofLEDs / fluorescent lamps8 pcs.Fluorescent lamps, electronic ballast1500 WFluorescent lamps, uncorrected1000 VAFluorescent lamps, series-corrected400 VAFluorescent lamps, parallel-corrected400 VASwitching output 1, low-voltagehalogen lamps2000 VALED lamps < 2 W100 WLED lamps > 2 W < 8 W300 W Abdeckmaterial Lieferumfang shroudsFunctionsNormal / test mode, Manual ON /ON-OFFTwilight setting 2 – 1000 lxTime setting 5 s – 15 Min.Basic light level function NoMain light adjustable NoTwilight setting TEACH YesConstant-lighting control NoInterconnection YesType of interconnection Master/master Interconnection via CableInterconnection, number max. 10 sensorsAccessoriesEAN 4007841 009151Remote control Smart RemoteEAN 4007841 559410Service remote control RC8EAN 4007841 056711Black cover for IR-sensorshttps://www.steinel.deEAN 4007841 033569Article number 033569Detection Zone Dimension DrawingMaster circuit diagramhttps://www.steinel.deEAN 4007841 033569Article number 033569Master/slave interconnection circuit diagramConnection of 4-fold push-button coupler to DALI2 APC Connection using two-circuit switch for manual and automaticoperationhttps://www.steinel.de。

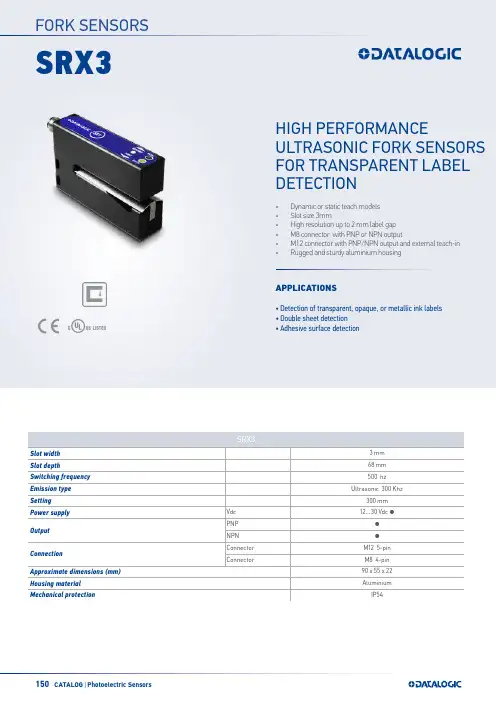

150CATALOG | Photoelectric SensorsAPPLICATIONS• Detection of transparent, opaque, or metallic ink labels • Double sheet detection • Adhesive surface detectionHIGH PERFORMANCEULTRASONIC FORK SENSORS FOR TRANSPARENT LABEL DETECTIONSRX3• Dynamic or static teach models • Slot size 3mm• High resolution up to 2 mm label gap • M8 connector with PNP or NPN output• M12 connector with PNP/NPN output and external teach-in •Rugged and sturdy aluminium housingSRX3Slot width 3 mm Slot depth68 mm Switching frequency 500 hz Emission type Ultrasonic 300 KhzSetting 300 mm Power supply Vdc 12…30 Vdc ●Output PNP ●NPN ●ConnectionConnector M12 5-pin ConnectorM8 4-pin Approximate dimensions (mm)90 x 55 x 22 Housing material Aluminium Mechanical protectionIP54FORK SENSORS14231423TECHNICAL DATA DIMENSIONSM12 CONNECTOR1 - TEACH-IN PUSH BUTTON2 - MODE LED3 - STATUS LED4 – SENSING POINT REFERENCE M8 CONNECTORSPECIFICATIONMinimum pulse time 1msDetectable size > 2mmMax. tape speed 60m/minTape size > 16mmUltrasonic frequency 300 KhzELECTRICAL DATAPower supply 12…30 VdcCurrent consumption< 55mARipple10%Output current250 mA max.Output saturation voltage< 1,5V @ 100mARising time 0,8 us maxFalling time 1,6 us maxPower On delay 325 msResponse time1msSwitching frequency500 hzOutput PNP / NPNMECHANICAL DATAConnection M12 5 pinOperating temperature0 °C … +50 °CStorage temperature-25 °C … +75 °CHumidity35…85% rH non condensingVibration0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)Shock resistance11 ms (30 G) 6 shock for every axis (EN60068-2-27)Housing material AluminiumProtection class IP54Weight300g151CATALOG | Photoelectric Sensors2323BLUE GREY― 0 V TEACH-INQ-PNPQ-NPN +10...30 Vdc 53BLUE― 0 VQ-PNP REMOTE +10...30 Vdc 3BLUE― 0 VQ-PNP Q-NPN +10...30 Vdc 3ADJUSTMENTOUTPUTCONNECTIONMODELORDER No.Dynamic Teach-in PNP/NPN +EXT M12 5 pin SRX3-5-US-M12-PNH 953171000Static Teach-in PNP/NPN +EXT Dynamic Teach-in PNP+EXT Static Teach-in PNP+EXT Dynamic Teach-in PNP/NPN Static Teach-inPNP/NPNINDICATORS AND SETTINGSMODEL SELECTION AND ORDER INFORMATIONRev. 03, 04/2019CABLESTYPENo. Of POLESSHEATLENGTHDESCRIPTIONORDER No.Female M12 Connector(Axial)5-polesGrey, P.V.C.3 m CS-A1-03-G-0395ACC21105 m CS-A1-03-G-0595ACC212010 m CS-A1-03-G-1095ACC2140Black, P.V.C.UL3CS-A1-03-U-0395ASE11705CS-A1-03-U-0595ASE118010CS-A1-03-U-1095ASE1190M8 Connector(Axial)4-polesGrey, P.V.C.3 m CS-B-1-02-G-0395A2514205 m CS-B-1-02-G-0595A2514307 m CS-B-1-02-G-0795A25144010 m CS-B-1-02-G-1095A251480P.U.R.2 m CS-B-1-02-R-0295A2515005 m CS-B-1-02-R-0595A251520M8 Connector (radial 90°)4-polesGrey, P.V.C. 3 m CS-B2-02-G-0395A2514505 m CS-B2-02-G-0595A2514807 m CS-B2-02-G-0795A251470P.U.R.5 mCS-B2-02-R-0595ACC2110The company endeavours to continuously improve and renew its products; for this reason the technical data and contents of this catalogue may undergo variations without prior notice. For correct installation and use, the company can guarantee only the data indicated in the instruction manual supplied with the products. Product and Company names and logos referenced may be either trademarks or registered trademarks of their respective companies. We reserve the right to make modifications and improvements.。
LGA-14L(2.5 x 3.0 x 0.83 mm) 典型值特征•具有可选满量程的3D 加速度计:±2/±4/±8/±16 g•具有扩展的可选满量程的3D 陀螺仪:±125/±250/±500/±1000/±2000/±4000 dps •更宽的温度范围:-40°C 至 +105 °C•内嵌补偿机制,确保在不同温度条件下的高度稳定性•SPI/I²C 串行接口•辅助SPI 串行接口,用于陀螺仪和加速度计的数据输出(OIS 和其他稳定应用)•六通道同步输出•通过Sensor Hub 功能可有效地从其他外部传感器收集数据•高达9 KB 的嵌入式智能FIFO•可编程有限状态机,处理来自加速度计、陀螺仪和一个外部传感器的数据•机器学习内核•智能嵌入式功能和中断:倾斜检测、自由落体、唤醒、6D/4D 方向检测、单击和双击•嵌入式计步器、测步器和计数器,用于医疗保健应用•模拟供电电压:1.71 V 到3.6 V •嵌入式温度传感器•陀螺仪和加速度计的嵌入式自检•高抗震性•符合ECOPACK 、RoHS 和“绿色”要求应用•工业物联网和互联设备•天线、平台和光学图像和镜头防抖•机器人、无人机和工业自动化•导航系统和远程信息处理•振动监测和补偿说明ISM330DHCX 是一种系统级封装器件,它具有专为工业4.0应用而量身定制的高性能3D 数字加速度计和3D 数字陀螺仪。
意法半导体的MEMS 传感器模块系列具有稳健成熟的制造工艺,已经用于微型机械加速度计和陀螺仪产品。
多种传感元件采用专门的微型机械加工工艺制造,而IC 接口采用CMOS 技术开发,可以设计出专用电路,对该电路进行修调可以更好地匹配传感元件的特性。
在ISM330DHCX 中,加速度计和陀螺仪的传感元件在同一晶圆上实现,从而保证了出色稳定性和稳健性。
Measurement conditionAmbient temperature: 25 °CInput power level: 0 dBmTerminating impedance: *Input: 343 Ω || -13,3 pFOutput: 314 Ω || -14,3 pFCharacteristicsRemark:The reference level for the relative attenuation a rel of the TFS 153D is the minimum of the pass band attenuation a min. The minimum of the pass band attenuation a min is defined as the insertion loss a e. The centre frequency f c is the arithmetic mean value of the upper and lower frequencies at the 3 dB filter attenuation level relative to the insertion loss a e. The temperature coefficient of frequency Tc f is valid for both the reference frequency f c and the frequency response of the filter in the operating temperature range. The frequency shift of the filter in the operating temperature range is not included in the production tolerance scheme.D a t a typ. value tolerance / limit Insertion loss a e21,3 dB max. 25 dB (reference level)Nominal frequency f N - 153,5 MHzCentre frequency f C 153,5 MHz ± 0,1 MHzPassband PB - f C ±2,5015 MHzPass band ripple (p-p) 0,3 dB max. 0,7 dBBandwidth BW0,7 dB 5,30 MHz min. 5,03 MHz3 dB 5,65 MHz min. 5,60 MHz 15 dB 6,21 MHz max. 6,30 MHz 45 dB 6,68 MHz max. 9,70 MHz Relative attenuation a relf C …f C ± 2,5015 MHz 0,3 dB max. 0,7 dBf C ± 2,5015 MHz …f C ± 2,800 MHz 2,5 dB max. 3,0 dBf C - 144,500 MHz …f C - 4,825 MHz 70 dB min. 45 dBf C ± 3,150 MHz …f C ± 3,350 MHz 17 dB min. 15 dBf C ± 3,350 MHz …f C ± 3,750 MHz 30 dB min. 25 dBf C ± 3,750 MHz …f C ± 4,825 MHz 50 dB min. 40 dBf C + 4,825 MHz …f C + 428,500 MHz 65 dB min. 45 dB Absolute group delay within PB 2,5 µs max. 2,7 µsGroup delay ripple within PB (p-p) 65 ns max. 120 nsOperating temperature range OTR - - 25 °C ... + 80°CStorage temperature range - - 40 °C ... + 85°C Frequency inversion temperature 20 °C - Temperature coefficient of frequency TC f ** -0,036 ppm/K2 -*) The terminating impedances depend on parasitics and q-values of matching elements and the board used, and are to be understood as reference values only. Should there be additional questions do not hesitate to ask for an application note or contact our design team.**) f c(Hz) = Tc f(ppm/K2) x (T - T A)2 x f CAT (MHz)Generated:Checked / Approved:Microchip Frequency Technology GmbHPotsdamer Straße 18D 14 513 TELTOW / GermanyMicrochip Frequency Technology GmbH Potsdamer Straße 18 D 14 513 TELTOW / GermanyConstruction and pin connection(All dimensions in mm)1Date code50 Test circuit1, 2, 7, 91 Input RF Return2 Ground7 Output RF Return 8 Output 9 Ground 14 InputDate code: Year + week T 2005 U 2006 V 2007 ...Stability characteristicsAfter the following tests the filter shall meet the whole specification:1. Shock: 500g, 1 ms, half sine wave, 3 shocks each plane;DIN IEC 68 T2 - 272. Vibration: 10 Hz to 500 Hz, 0,35 mm or 5g respectively, 1 octave per min, 10 cycles per plan,3 plans; DIN IEC 68 T2 - 63. Change oftemperature: -55 °C to 125°C / 30 min. each / 10 cyclesDIN IEC 68 part 2 – 14 Test N4. Resistance tosolder heat (reflow): reflow possible: twice max.;for temperature conditions, please refer to the attached "Air reflow temperature conditions" on page 4; Microchip Frequency Technology GmbHPotsdamer Straße 18D 14 513 TELTOW / GermanyAir reflow temperature conditionsMicrochip Frequency Technology GmbH Potsdamer Straße 18D 14 513 TELTOW / GermanyHistoryVersion Reason of changes Name Date1.0 - development specification Pfeiffer 12.05.2005 1.1 - terminating impedance, typical values and filter characteristic added Pfeiffer 17.05.2005Microchip Frequency Technology GmbHPotsdamer Straße 18D 14 513 TELTOW / Germany。
Protect It! 6-Outlet Surge Protector, 6 ft. (1.83 m)Cord, 990 Joules, 2 x USB Charging ports (2.1A),Gray HousingMODEL NUMBER:TLP606USBDescriptionTripp Lite's TLP606USB offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. USB charging ports offer fast charging for smartphones, tablets, MP3 players and other portable devices. TLP606USB offers 6 total outlets, 6-ft. (1.83 m) cord, 2 USB charging ports and diagnostic LED to warn of suppressor damage. AC suppression rated at 990 joules shields equipment from surges and line noise. Attractive cool grey suppressor housing with keyhole mounting tabs offer convenient protection of desktop computerequipment and accessories. $20,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).PLUG/OUTLETS: Input: NEMA5-15P/Output: 6 NEMA5-15R/6-ft. (1.83 m) AC line cord ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA5-15R wall receptacle)FORMAT: Corded multi-outlet strip with 1 transformer spaced outletSUPPRESSION: AC: 150V RMS Clamping/990 joules/400V UL1449 3rd EditionFeatures6 outletsq 6-ft. (1.83 m) cordq 2 USB charging ports - 2.1 amp total q Surge suppression rating: 990 joules q EMI/RFI noise filteringq 15 amp resettable circuit breaker q Green protection LEDq Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppressionq Can accommodate 1 large transformer plug without covering remaining outlets, 3 total transformers q Keyhole support for wall mounting q Lighted power switchq $20,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)q Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is requiredqHighlights6 outlet / 6-ft. cord q 990 joule ratingq 2.1 amp dual port USB chargerqPackage IncludesTLP606USB surge suppressor q Instruction manual with warranty informationqSpecifications© 2023 Eaton. All Rights Reserved. Eaton is a registered trademark. All other trademarks are the property of their respective owners.。
超级高清晰宽动态枪型摄像机 VCC-600P产品简介为了满足广大客户逐步增长的安防监控需求,霍尼韦尔隆重推出威视达VCC-600枪型摄像机。
VCC-600 采用了1/3” Sony HAD CCD ,在彩色模式中,可以实现超过540线高清晰的分辨率。
优越的电子降噪功能和日夜转换功能使该系列摄像机可以在多种复杂的环境中满足客户更高级的安防监控需求。
同时该款摄像机还拥有强大的宽动态、强光抑制、动态侦测、隐私区遮挡和数字放大等功能,成为支持客户进行更加灵活和有效的安防监控不可或缺的系列产品。
采用霍尼韦尔独有的BMB强光抑制技术, VCC-600P可以自动监测和抑制环境中的强光,这项功能特别适用夜间监视停车场和快速通道。
搭配应用于不同环境的护罩,VCC-600系列摄像机可以广泛地应用在室内和室外等各种监控场所。
该设备的安装和调试方便快捷,并配有多种语言的控制菜单。
特点∙1/3" Sony Super HAD CCD∙大于540TV 线的水平分辨率∙日夜转换∙强光抑制(BMB), 背光补偿(BLC), 宽动态(WDR), 超级电子降噪(DNR)∙隐私区遮挡、动态侦测、数字放大技术参数红外柱型外调焦摄像机 VBC-800P产品简介霍尼韦尔威视达系列VBC-800PI红外柱型外调焦摄像机专为商业和居住环境设计,是室外监控的理想选择。
它具有540线超强分辨率和良好的图像效果。
红外可视距离可达25米,采用防眩光反光双玻璃镜片和红外智能技术。
VBC-800PI摄像机采用红外技术,即使在完全漆黑的环境,依然能达到很好的可视效果。
VBC-800PI出厂时已完成组装,用户只需将摄像机通过摄像机自带的墙壁安装支架固定在墙壁,安装方便快捷。
VBC-800PI为您提供良好的监控服务,能全面捕获监控范围内的所有活动,保护您的财产安全,值得信赖。
此外,VBC-800PI集摄像机、防护罩、镜头、红外灯于一体,自动感应红外功能,真正的24小时全天候监控,室内外通用。
