英文图纸中缩写注释说明书

工程图纸英文缩写汉语对照ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED. 未注焊缝均为连续焊ALL WELDS 3mm FILLET UNLESS OTHERWISE STATED 未注焊角高3mm.ALL UNSPECIFIED RADI - R3 未注圆角R3REMOVE ALL BURRS AND SHARP EDGES 所有尖角/棱角倒角并去毛11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUND ONLY,END COILS SQUARE TO TOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明) CHANNEL 槽钢RSA 708 角钢70X70X8M30X1.5 pitch M30X1.5的锥螺纹Tackweld 点焊OD 1/4" outside dimension 1/4"的缩写外径直1/4"75 CRS尺寸为75 材质为冷轧钢板410 OPENING REF 410 开口参考尺寸40 REF尺寸为40,参考值2.5" BSP 2.5” 圆锥管螺纹2.5" BSPT HEXAGON2.5” 六角圆锥管螺纹(即对丝)30x2.5 FLAT BAR 30X2.5 扁钢TYP 2 POSNS 2处FEMALE: 内扣(母扣)MALE: 外扣(公扣)偏心轴eccentric shaft销轴PIN开口销COTTER PIN螺杆screw轴承axletree挡圈closing ring弹性挡圈circlip弹簧SPRING紧定螺钉SET SCREW圆螺母ROUND NUT平键FLAT KEY圆螺母ROUND NUT六角螺栓HEX HD BOLT无扣长non-buckle longth平垫圈FLAT WASHER螺母FULL NYLOCK NUT吊环螺钉LIFTING EYE BOLT内六角螺钉SOCKET HEAD CAP SCREW六角螺钉HEX HD SETSCREW轴承隔套distance sleeve of axletree深沟球轴承DEEP GROOVE BALL BEARING 开槽盘头螺钉SLOTTED PAN HEAD SCREW 圆锥滚子轴承TAPERED ROLLER BEARING 推力球轴承THRUST BALL BEARING弹簧垫圈SINGLE COIL SPRING WASHER缩写全称翻译ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate 大约ASME Amer Society of Mech Engrs ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension,External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译NTS Not to ScaleOA Over All 所有OBS ObsotetcOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece,Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package,Packing 包装PL Parting Line,Places,PlatePNEU PncumaticPNL Panel 面板POL Polish 磨光POS Position,Postive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product,Production 产品，产量PSI Pounds per Square InchPT Part,Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden,A-ScaleRB Rockwell Harden,B-ScaleRC Rockwell Harden,C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release,Relief 释放，缓解REM Remove 移除REQD Requird 有需要REE Retainer,ReturnREV Reverse,Revision,RevolutionRFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive EngrsSCH Schedule 进度表缩写全称翻译CFS Cold-Finished SteelCH Case HardenCHAM Chamfer 斜面CHAN Channel 渠道CHG Change 改变CHK Check 核查CI Cast Iron 铸铁CIR Circle, Circular 圆周CIRC Circumference 圆周CL Centerline 中心线CLP Clamp 夹子CNC Computer Numerical Control 电脑数值控制COMB Combination 联合COML Commercial 商业的CONC Concentric 同中心的CONN Connect,Connector 连接器COV Cover 盖子CPLG Coupling 联结CQ Commercial Quality 商业等级钢CRS Cold Stds Association CRT Cathode Ray Tube 阴级射线管CS Cast Steel 铸铁CSA Canadian Stds Association CSK Countersink 埋头孔CSTG Casting 铸件CTR Center 中心CU Cubic 立方米CW Clockwise 顺时针CYL Cylinder,Cylindrical 柱面DBL Double 双倍DEC Decimal 小数DEG Degree 摄氏度DET Detail 详情DEV Develop 发展DFT Draft 草稿DIA Diameter 直径DIM Dimension 尺寸DIST Distance 距离DN Down 向下DP Deep,Diametral Pitch 深度,径节DR Drill,Drill Rod 钻孔DSGN Design 设计DVTL Dovetail 吻合DWG Drawing 图纸DWL Dowel 木钉DWN Drawn 拔出EA Each 每个ECC Eccentric 古怪缩写全称翻译HVY Heavy 重量HYD Hydraulic 水压ID Inside Diameter 内部直径IDENT Identification 鉴定ILLUS Illustration 说明IN Inch 英寸INCL Include,Including 包括INCR Increase 增加INFO Information 信息INSP Inspect 检查INSTL Install 安装INST Instruct,Instrument 指示,工具INT Interior,Internal,Intersect 内部的,内在的,交叉IR Inside Radius 内部半径ISO Internal Stds Organization 国际标准化组织JCT Junction 连结JNT Journal 杂志JT Joint 连接K Key 关键KNRL Knurl 硬节KST KeyseatKWY Keyway 键沟LB Pound 英镑LBL Label 标签LG Length,Long 长度LH Left Hand 左手LMC Least Material ConditionLOC Locate 位于LT Light 光LTR Letter 信LUB Lubricate 润滑MACH Machine 机器MAINT Maintenance 维护MATL Material 材料MAX Maximum 最大MECH Mechanical,Mechanism 机械MED Medium 媒介MFG Manufacturing 制造业MI Malleable Iron 可锻造的铁MIN Minimum, Minute 最小，秒MISC Miscellaneous 混杂的MM Millimeter 毫米MMC Max Material ConditionMS Machine SteelMTG Mouting 装备MULT Multiple 倍数MWG Music Wire GagugNA Not Applicable 不可应用的NATL National 国内的NC Numerical Control 数字电脑控制NEG Negative 忽略的NO. Number 号码NOM Nominal 名义上的NPSM Natl Pipe Straight MechNPT Natl Pipe Tapered缩写全称翻译SCR Screw 螺丝SEC Second 秒SECT Section 部分SEP Separate 独立SEQ Sequence 顺序SER Serial,Series 系列SERR Serrate 锯齿状SF SpotfaceSFT Shaft 轴SGL Single 单个SH Sheet 纸SI Intl System of UnitsSL Slide 使滑动SLV Sleeve 袖子SOC Socket 插座SP Space,Spaced,Spare 空间SPL Special 特别SPEC Specification 规格SPG Spring 跳SPHER Spherical 球体SPRKT Sprocket 链轮齿SQ Square 平方SST Stainless Steel 纯铁STD Standard 标准STK Stock 存货STL Steel 铁STR Straight,Strip 直的SUB Substitute 替代物SUP Supply,Support 供应SURF Surface 表面SYM Symmetrical 对称的SYS System 系统T Teeth,T ooth 牙齿TECH Technical 技术TEMP Template,Temporary模板，暂时的THD Thread 线THK Thick 厚的TOL Tolerance 公差TOT Total 总计TPF Taper per FootTPI Taper per In,Threads per Inch TPR Taper 锥形TS Tool SteelTYP Typical 典型UNC Unified Natl CoarseUNEF Unified Natl Extra FineUNF Unified Natl FineUNIV Universal 普遍VAR Variable 变量VERT Vertical 垂直的VOL Volume 音量VS Versus 与．．相对W Wide,Width 宽度WASH Washer 洗衣机WDF Woodruff 车叶草WI Wrought Iron 熟铁WT Weight 重量SAE Extra fine 美国汽车工程师协会的超细牙螺纹例：1/2-28 SAE Extra fineSAE Reg 美国汽车工程师协会的标准系列螺纹例：1/2-20 SAE RegSAE-LT 美国汽车工程师协会的圆锥外螺纹例：1/2-28 SAE-LT。

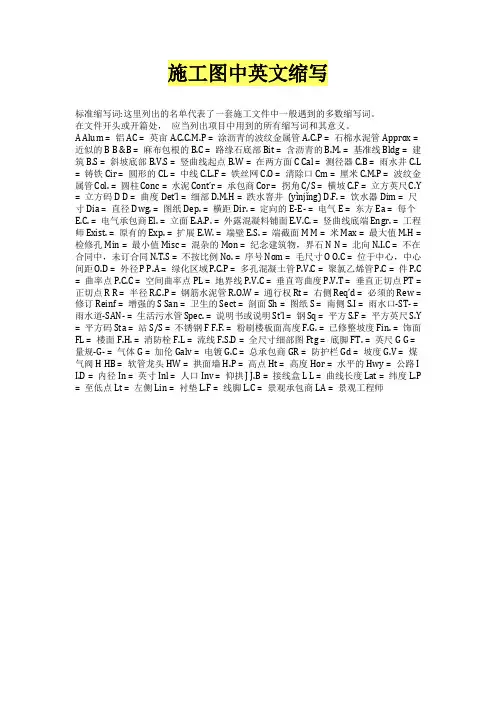

施工图中英文缩写标准缩写词:这里列出的名单代表了一套施工文件中一般遇到的多数缩写词。

在文件开头或开篇处，应当列出项目中用到的所有缩写词和其意义。

A Alum = 铝AC = 英亩A.C.C.M.P = 涂沥青的波纹金属管A.C.P = 石棉水泥管Approx = 近似的B B &B = 麻布包根的B.C = 路缘石底部Bit = 含沥青的B.M. = 基准线Bldg = 建筑B.S = 斜坡底部B.V.S = 竖曲线起点B.W = 在两方面C Cal = 测径器C.B = 雨水井C.L = 铸铁Cir = 圆形的CL = 中线C.L.F = 铁丝网C.O = 清除口Cm = 厘米C.M.P = 波纹金属管Col. = 圆柱Conc = 水泥Cont’r = 承包商Cor = 拐角C/S = 横坡C.F = 立方英尺C.Y = 立方码D D = 曲度Det’l = 细部D.M.H = 跌水窨井(yìnjǐng) D.F. = 饮水器Dim = 尺寸Dia = 直径Dwg. = 图纸Dep. = 横距Dir. = 定向的E-E- = 电气E = 东方Ea = 每个E.C. = 电气承包商El. = 立面E.A.P. = 外露混凝料铺面E.V.C. = 竖曲线底端Engr. = 工程师Exist. = 原有的Exp. = 扩展E.W. = 端壁E.S. = 端截面M M = 米Max = 最大值M.H = 检修孔Min = 最小值Misc = 混杂的Mon = 纪念建筑物，界石N N = 北向N.I.C = 不在合同中，未订合同N.T.S = 不按比例No. = 序号Nom = 毛尺寸O O.C = 位于中心，中心间距O.D = 外径P P.A = 绿化区域P.C.P = 多孔混凝土管P.V.C = 聚氯乙烯管P.C = 件P.C = 曲率点P.C.C = 空间曲率点PL = 地界线P.V.C = 垂直弯曲度P.V.T = 垂直正切点PT = 正切点R R = 半径R.C.P = 钢筋水泥管R.O.W = 通行权Rt = 右侧Req’d = 必须的Rew = 修订Reinf = 增强的S San = 卫生的Sect = 剖面Sh = 图纸S = 南侧S.I = 雨水口-ST- = 雨水道-SAN- = 生活污水管Spec. = 说明书或说明St’l = 钢Sq = 平方S.F = 平方英尺S.Y = 平方码Sta = 站S/S = 不锈钢F F.F. = 粉刷楼板面高度F.G. = 已修整坡度Fin. = 饰面FL = 楼面F.H. = 消防栓F.L = 流线F.S.D = 全尺寸细部图Ftg = 底脚FT. = 英尺G G = 量规-G- = 气体G = 加伦Galv = 电镀G.C = 总承包商GR = 防护栏Gd = 坡度G.V = 煤气阀H HB = 软管龙头HW = 拱面墙H.P = 高点Ht = 高度Hor = 水平的Hwy = 公路I I.D = 内径In = 英寸Inl = 人口Inv = 仰拱J J.B = 接线盒L L = 曲线长度Lat = 纬度L.P = 至低点Lt = 左侧Lin = 衬垫L.F = 线脚L.C = 景观承包商LA = 景观工程师。

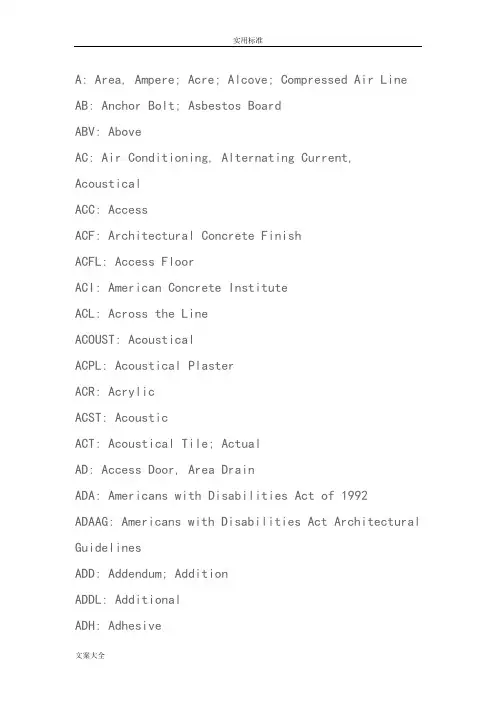

A: Area, Ampere; Acre; Alcove; Compressed Air Line AB: Anchor Bolt; Asbestos BoardABV: AboveAC: Air Conditioning, Alternating Current, Acoustical ACC: AccessACF: Architectural Concrete FinishACFL: Access FloorACI: American Concrete InstituteACL: Across the LineACOUST: AcousticalACPL: Acoustical PlasterACR: AcrylicACST: AcousticACT: Acoustical Tile; ActualAD: Access Door, Area DrainADA: Americans with Disabilities Act of 1992 ADAAG: Americans with Disabilities Act Architectural GuidelinesADD: Addendum; AdditionADDL: AdditionalADH: AdhesiveADJ: Adjust, Adjustable, AdjacentAF: Above the FloorAFF: Above Finished FloorAGA: American Gas AssociationAGG: AggregateAGGR: AggregateAIA: American Institute of Architects, American Insurance AssociationAIC: Amperes Interrupting CircuitAIEE: American Institute of Electrical Engineers AISC: American Institute of Steel Construction AL: AluminumALM: AlarmALT: Alternate, Alteration; AltitudeALUM: AluminumALS: Acrylic Latex SealantAMB: AmbientAMP: Ampere, AmpacityAMPY: AmpereAMT: AmountAN: AnodeANCH: Anchor, AnchorageANN: AnnunciatorANOD: AnodizedANT: AntennaAP: Access PanelAPPD: ApprovedAPPROX: ApproximateAPRVD: ApprovedAPT: ApartmentAPX: ApproximateAR: Acid ResistingARCH: Architect, ArchitecturalARS: Asbestos Roof ShinglesAS: Acoustic SealantASB: AsbestosASC: Above Suspended CeilingASCE: American Society of Civil Engineers ASME: American Society of Mechanical Engineers ASPH: AsphaltASSEM: AssembleASSOC: Association; AssociateASSY: AssemblyASTM: American Society for Testing and Materials AT: Acoustical Tile; Asphalt TileATC: Acoustical Tile CeilingATTEN: AttenuationATM: Automatic Teller Machine; Atmospheric AUTH: AuthorizedAUTO: AutomaticAVG: AverageAW: Acid WasteAWG: American Wire GaugeAWM: Automatic Washing MachineAWS: American Welding SocietyAWWA: American Water Works AssociationAX: AxisB: Boiler, Bathroom, BidetB TO B: Back to BackB & B: Balled and Burlapped, Bell and BellB & F: Bell and FlangeB & S: Bell and Spigot, Brown & SharpB/: Bottom (of)BBD: Bulletin BoardBA: Bulb AngleBAL: Balance, BallastBAF: BaffleBB: Buffalo Box, Ball Bearing,, Bulletin Board BBL: BarrelBC: Broom ClosetBD: Board, Blow Down (pipe)BDL: BundleBDY: BoundaryBDRM: BedroomBEL: BelowBET: BetweenBETW: BetweenBEV: BevelBF: Board Foot, Back Face, Bottom Face, Both Faces, Boiler FeedBG: Bag (e.g., of cement)BHP: Brake HorsepowerBHD: BulkheadBIT: BituminousBJF: Bituminous Joint FillerBKR: BreakerBL: Base Line, Building Line, BlockBLDG: BuildingBLK: BlockBLKG: BlockingBLO: BlowerBLR: BoilerBLT: Borrowed Lite, Bullet Tips (Hinges)BLT-IN: Built -InBM: Beam, Bench MarkBMT: Butyl Mastic Tape SealantBN: BullnoseBNDG: Bending (re-bars)BNT: BentBO: Blow OffBOT: BottomBP: Base Plate, Blueprint, BypassBPL: Bearing PlateBR: Bedroom, Brick, Brass, Boiler Room BranchBRDG: Bridge, BridgingBRG: BearingBRK: BrickBRKR: BreakerBRKT: BracketBRS: Butyl Rubber Sealant, Brass BRZ: BronzeBRZG: BrazingBS: Both Sides, Backset, Bluestone BSMT: BasementBT: Bathtub, BoltBTR: BetterBTU: British Thermal UnitsBTUH: British Thermal Units per Hour BUR: Built-up RoofBUZ: BuzzerBV: Butterfly ValveBVL: BevelledBW: Both WaysBWV: Back Water ValveBYP: By PassC: Courses, Curb, Channel, Degrees Celsius, Clock Outlet, CalcimineC/C: Center to CenterC TO C: Center to CenterCA: Compressed AirCAB: CabinetCAD: Cadmium, Computer-Aided DraftingCAIS: CaissonCAP: CapacityCAR: CarpetCARP: CarpenterCAT: CatalogCAV: CavityCB: Catch Basin, Concrete Block,Cast Brass, Coal BinCBL: Concrete BlockCBX: Cast Box StrikeCC: Cubic CentimeterCCT: CircuitCCW: Counter ClockwiseCCTV: Closed Circuit TVCD: Cold Drawn, Cadmium CDS: Cold Drawn SteelCEL: CellarCEM: CementCEM AB: Cement Asbestos Board Cem P: Cement Water Paint CER: CeramicCF: Cubic FeetCFL: CounterflashingCFM: Cubic Feet per Minute CFS: Cubic Feet per Second CFT: Cubic FootCG: Corner GuardCH: Coat HookCHB: Chalk BoardCHR: Chilled Water Return CHAM: ChamferCHAN: ChannelCHBD: ChalkboardCHS: Chilled Water Supply C」.：Cast IronCI: Cast IronCIN BL: Cinder BlockCIP: Cast Iron Pipe, Cast-in-PlaceCIR: Circle, Circular, CircuitCIRC: CircumferenceCISP: Cast Iron Soil/sewer PipeCITG: Clear Insulating Tempered GlassCJ: Control JointCJF: Cork Joint FillerCK: CaulkingCKT: CircuitCL: Centerline, Clearance, Closing, Closure, Class, ClosetCLG: CeilingCLKG: CaulkingCLH: Clothes Line HookCLL: Contract Limit LineCLO: ClosetCLP: ClampCLR: ClearCLR OPG: Clear OpeningCLS: ClosureCM: Circular Mil (1/1000 inch),Center MatchedCMP: Corrugated Metal PipeCMT: Ceramic Mosaic TileCMU: Concrete Masonry UnitCMUP: Concrete Masonry Unit PaintedCND: Condition, ConduitCNDS: CondensateCNTR: Center, CounterCNVR: ConveyorCOAX: CoaxialC.O.: Cased OpeningCO: Company, Cleanout, Cased Opening, Cut Out COD: Cleanout DoorCO & DP: Cleanout & Deck PlateCOEF: CoefficientC.O.F.:CENTER OF FOOTING 基础中心COL: ColumnCOM: CommonCOMB: Combination, CombustionCOML: CommercialCOMM ED: Commonwealth EdisonCOMP: Composition, CompressedCOMPO: CompositionCOMPT: CompartmentCON: ConstructionCONC: ConcreteCONCP: Concrete PaintedCOND: Condenser, ConduitCONN: ConnectionCONST: ConstructionCONSTR: ConstructionCONT: Continuous, Continue, ControlCONTR: ContractorCONV: Convector, ConvenienceCOP: CopperCOR: Corner, CorridorCORR: Corridor, CorrugateCOV: CoverCP: Cathodic Protection, Clothes Pole, Cesspool CPE: Chlorinated PolyethyleneCPL: Cement PlasterCPP: Cement Plaster PaintedCPR: CopperCPT: CarpetCR: Chromium (plated), Curtain RodCRPT: CarpetCRS: Course, Cold Rolled SteelCS: Countersink, Cast Steel, Cast Stone, Commercial StandardCSG: CasingCSK: CountersinkCSMT: CasementCSN: CaissonCSS: Countersunk ScrewCSTG: CastingCT: Ceramic Tile, Cork Tile,Cone Tip (hinges)CTD: CoatedCTR: Center, CounterCTSC: Communications Systems Terminal Cabinet CTSK: CountersunkCTWT: CounterweightCU: Copper, Cubic, Coefficient of Utilization CU. FT.: Cubic FeetCU. YD.: Cubic YardCUR: CurrentCV: Check ValveCW: Clockwise, Cold WaterCWP: Circulating Water PumpCWR: Condensate Waste ReturnCWS: Condensate Waste SupplyCY: Cubic Yard, CycleCYL: CylinderCYL L: Cylinder LockD: Deep, Depth, Drop, DrainD & M: Dressed & MatchedDA: Double ActingDB: DecibelDBL: DoubleDBT: Drybulb TemperatureDC: Direct CurrentDCV: Detector Check ValveDD: Driveway Drain, Deck Drain, DESIGN DEVELOPMENT:深化设计DEG: DegreeDEGC: Degree CelciusDEGF: Degree FarenheitDEM: DemolishDEMO: DemolitionDEP: DpressedDEPT: DepartmentDET: DetailDF: Drinking FountainDH: Double HungDIAG: DiagonalDIA: DiameterDIAM: DiameterDIFF: DiffuserDIM: DimensionDISL: DisposalDISP: DispenserDIV: DivisionDL: Dead LoadDMH: Drop ManholeDMT: DemountableDN: DownDO: Ditto, or Door OpeningDP: Dampproofing, Dew Point, Distribution Panel DPDT: Double Pole Double ThrowDPST: Double Pole Single ThrowDPR: DamperDR: Door, Drain, Dining RoomDRBD: DrainboardDS: Downspout, Disconnect Switch, Door Switch DSP: Dry StandpipeDT: Drain TileDTL: DetailDVTL: DovetailDW: Dumbwaiter, Distilled WaterDWG: DrawingDWGS: DrawingsDWL: DowelDWP: Drywall, PaintedDWR: DrawerDS: DownspoutDSP: Dry StandpipeDX: Direct Expansion, DuplexE: East, Enamel, ExhaustE TO E: End to EndEA: EachEB: Expansion BoltEC: Exposed ConstructionECC: EccentricECP: Exposed Construction PaintedEDR: Equivalent Direct RadiationEE: Each End , Electrical Engineering 电气工程EF: Each FaceEFTS: Expanding Foam Tape SealantEG: Edge GrainEIFS: Exterior Insulation and Finish System EJ: Expansion JointEJECT: EjectorEL: Elevation, ElevatorELB: ElbowELEC: ElectricalELECT: ElectricalELEV: Elevator, ElevationELP: Emergency Lighting PanelEM: EmergencyEMER: EmergencyENAM: EnamelENCL: EnclosureENG: EngineerENGR: EngineerENJF: Expanded Neoprene Joint FillerENT: EntranceENTR: EntranceEP: Electrical Panelboard, Explosion Proof EPDM: Ethylene Propylene Diene Monomer EPJF: Expanded Polyethelene Joint Filler EQ: EqualEQP: EquipmentEQPT: EquipmentEQUIP: EquipmentERP: Emergency Receptacle PanelESC: EscalatorEST: EstimateEVAP: EvaporatorEW: Each WayEWC: Electric Water CoolerEW & C: Electric Wiring and Communication EWH: Electric Water HeaterEX: Exposed Construction, ExitEXC: ExcavateEXCAV: ExcavateEXEC: ExecutiveEXG: ExistingEXH: ExhaustEXH AIR: Exhaust AirEXIST: ExistingEXP: Expansion, ExposedEXPN: ExpansionEXPP: Existing Patched and Painted EXS: Extra StrongEXT: Exterior, ExtinguishEXTR: ExtrudeF: Degrees Fahrenheit, FuseF TO F: Face to FaceFA: Fire Alarm, Fresh AirFAB: FabricateFABR: FabricateFACP: Fire Alarm Control Panel FAG: Fire Alarm GongFAO: Finish All OverFAR: Floor Area RatioFAST: Fastener, FastenFB: Flat Bar, Face Brick, Floor Box FBD: FiberboardFBM: Foot Board MeasureFBP: Fabric PanelFBRK: Fire BrickFC: File Cabinet, Foot Candle, Fault Current FD: Floor drainFDC: Fire Department ConnectionFDN: FoundationFDTN: FoundationFE: Fire ExtinguisherFEC: Fire Extinguisher CabinetFF: Far Face, Finished Floor, Factory Finish FFE: Finished Floor ElevationFF&E: Fixtures, Furnishings & Equipment FFL: Finished Floor LineFGL: FiberglassFGR: Fiberglass reinforcedFH: Flat Head, Fire HoseFHC: Fire Hose CabinetFHMS: Flat head machine screwFHR: Fire Hose RackFHS: Fire Hose StationFHWS: Flat Head Wood ScrewFHY: Fire HydrantFIL: FilletFIN: Finish, finishedFITG: FittingFIX: FixtureFIXT: FixtureFL: Floor, Fire LineFLASH: FlashingFLG: FlooringFLEX: FlexibleFLG: Flange, Flashing, FlooringFLR: FloorFLUOR: FluorescentFLX: FlexibleFM: Fire Main, Factory Mutual Company FND: Feminine Napkin Dispenser, Foundation FO: Finished OpeningFOB: Free On BoardFOC: Face of ConcreteFOF: Face of FinishFOS: Face of StudsFP: FireproofFPL: FireplaceFPM: Feet per minuteFPRF: FireproofFPS: Feet per SecondFR: Frame, Front, Fire RiserFRG: ForgedFRM: FrameFRPF: FireproofFRT: Fire RetardantFS: Full Size, Far Side, Federal Standards, Fused Switch, Floor SinkFSCW: Flush Solid Core WoodFT: Foot, Feet, Fully TemperedFTG: Footing, FittingFUR: FurredFURN: Furnish, FurnitureFURR: FurringFUT: FutureFVC: Fire Valve CabinetG: Gas, Girder, Gutter, GramGA: Gauge, GageGAGE: GaugeGAL: GallonGALV: GalvanizedGB: Grab Bar, Glass Block, Gypsum Board, GRADE BEAM基础梁GC: General Contractor 总包GCMU: Glazed Concrete Masonry UnitGD: Guard, Grade, Gutter DrainGEN: General, GeneratorGENL: GeneralGF: Ground FaceGFCI: Ground Fault Circuit InterruptedGFI: Ground Fault InterruptedGFRC: Glass Fiber Reinforced ConcreteGI: Galvanized IronGKT: GasketGL: GlassGL BLK: Glass BlockGLB: Glass BlockGLVA: Globe ValveGLZ: GlazeGMU: Glazed Masonry Unit GND: GroundGOVT: GovernmentGP: Galvanized Pipe GPDW: Gypsum Drywall GPH: Gallons Per Hour GPL: Gypsum LathGPM: Gallons Per Minute GPP: Gypsum Plaster Painted GPPL: Gypsum PlasterGPS: Gallons Per Second GR: Grade, Grille, Granite GRAN: Granular, Granite GRND: GroundGRTG: GratingGSS: Galvanized Sheet Steel GSU: Glazed Structural Unit GT: GroutGV: GalvanizedGVA: Gate ValveGVL: GravelGYP: GypsumGYP BD: Gypsum BoardH: HighHA: HectareHB: Hose BibHBD: HardboardHC: Hollow Core, Handicapped (better called Accessible")HCT: Hollow Clay TileHD: Head, Heavy DutyHDCP: Handicapped (better called "Accessible") HDN: HardenHDR: HeaderHDW: HardwareHDWD: HardwoodHDWE: HardwareHEX: HexagonalHGR: HangerHGT: HeightHH: HandholeHHMB: Hex Head Machine BoltHID: High Intensity DischargeHK: Hook or HooksHKD: Hooked (re-bars)HL: Hydrant LineHM: Hollow MetalHMP: Hollow Metal, PaintedHNCG: Hollow Neoprene Compression GasketHOR: HorizontalHORIZ: HorizontalHOSP: HospitalHP: High Point, High Pressure, Horse PowerHPS: High Pressure Sodium, High Pressure Steam HR: HourHRS: Hot Rolled Steel, HoursHS: Heat StrengthenedHSS : Hollow Structural Section 空心结构断面HSG: HousingHT: Height, Heat, High Tension DuctHTG: HeatingHTR: HeaterHTW: High Temperature WaterHV: High VoltageHVAC: Heating, Ventilating & Air Conditioning HVY: HeavyHW: Hot Water, Heavy WallHWC: Hot Water Circulating, Heavy Wall Conduit HWD: HardwoodHWH: Hot Water HeaterHWR: Hot Water Recirculating ReturnHWS: Hot Water SupplyHWY: HighwayHYD: HydraulicHYDRO: HydrostaticHZ: Hertz (Cycles Per SecondI: Iron, Current (electrical)IBV: Indicating Butterfly ValveIC: Interrupting CapacityID: Inside DiameterIE: Invert ElevationILK: InterlockIMH: Inlet ManholeIN:InchINC: Incandescent INCAND: Incandescent INCIN: Incinerator INCL: Incline, Include INCR: IncreaseINFO: InformationINS: Insulate, Insulation INSP: InspectINSTL: InstallINSUL: InsulationINT: Interior, Internal INTERM: Intermediate INTM: IntermediateINV: InvertIP: Iron PipeIPS: Iron Pipe SizeIW: Indirect WasteJ: JoistJ-BOX: Junction BoxJAN: JanitorJB: Junction BoxJC: Janitor's ClosetJCT: JunctionJF: Joint FillerJST: JoistJT: JointK: Kilopound (1000 pounds), Kelvin (temperature) KAL: KalameinKCP: Keene's Cement PlasterKG: KilogramKIP: Kilopound (1000 pounds)KIT: KitchenKM: KilometerKO: KnockoutKP: KickplateKPL: KickplateKS: Kitchen SinkKSF: Kilopound Per Square Foot 千磅每平方英尺KVA: Kilovolt-AmpereKW: KilowattKWH: Kilowatt HourKWHR: Kilowatt HourL: Angle, Left, Length, Lighting Panel, Long, Line LA: Landscape Architect, Lightning ArresterLAB: Laboratory, LaborLAD: LadderLAM: Laminate, LaminatedLAT: LateralLAV: LavatoryLB: Pound (weight), Lag BoltLBL: LabelLBR: LumberLC: Light Control, Lead CoveredLCD: Liquid Crystal DiodeLCL: Linen ClosetLCM: Lead Coated MetalLD: Leader DrainLH: Left HandLIB: LibraryLIBR: LibraryLIN: LinearLINO: LinoleumLIQ: LiquidLKR: LockerLL: Live LoadLMS: LimestoneLN: LengthLNDG: LandingLNTL: LintelLOC: LocateLOCS: LocationsLP: Low Point, Low Pressure, Lighting Panel, Light ProofLPS: Low Pressure Sodium, Low Pressure SteamLR: Living RoomLS: Limestone, Loud SpeakerLT: Light, Low Tension Duct, Laundry TrayLTG: LightingLTL: LintelLT WT: LightweightLV: Low VoltageLVR: LouverLW: Light WeightLWC: Light Weight ConcreteLWDP: Louvered Wood Door, PaintedM: Meter, Motor, Thousand (brick), Bending Moment MACH: MachineMAINT: MaintenanceMAN; ManualMAR: MarbleMARB: MarbleMAS: MasonryMAT: MaterialMATL: MaterialMAX: MaximumMB: Mail Box, Machine Bolt, Mop BasinMC: Medicine Cabinet, Mineral CoreMCC: Motor Control CenterMCM: Thousand Circular Mils (electrical wire size) ME: Mechanical EngineerMECH: MechanicalMED: MediumMED CAB: Medicine CabinetMEMB: MembraneMERC: Mercury VaporMET: MetalMEZZ: MezzanineMFD: Manufactured, Metal Floor Deck MFG: Manufacturer, Manufacturing MFR: Manufacture, Manufacturer MH: ManholeMI: Malleable Iron, MilesMIKE: MicrophoneMIN: MinimumMIR: MirrorMISC: MiscellaneousMK: MarkML&P: Metal Lath & PlasterMLD: MoldingMLDG: MoldingMM: MillimeterMMB: MembraneMO: Masonry OpeningMOD: ModuleMONO: MonolithicMOV: MovableMP: Metal Acoustal PanelMPS: Medium Pressure SteamMR: Mop ReceptorMRD: Metal Roof DeckMT: Mount, MountedMTD: MountedMTL: Material, MetalMTR: MotorMUL: MullionMULL: MullionMV: Mercury VaporMWP: Maximum Working PressureMWK: MillworkN: North, NitrogenNAP: NapkinNAT: NaturalNATL: NaturalNB: "Nota Bene" Latin phrase for "Take Special Note"NC: Normally Closed, Noise Criteria NEC: National Electrical Code NEUT: NeutralNF: Near FaceNFWH: Non-freeze Wall HydrantNI: NickelNIC: Not In ContractNK: NeckNMT: Non-MetallicNO: Number, Normally OpenNOM: NominalNR: Noise ReductionNRC: Noise Reduction Coefficient NRP: Non-Removable PinNRS: Non Rising Steam ValveNS: Near SideNTS: Not To ScaleO: OxygenO TO O: Out to OutOA: Outside Air, OverallOB: ObscureOBS: ObscureOC: On CenterOD: Outside DiameterOF: Outside FaceOFF: OfficeOH: OverheadOHD: Overhead DoorOHMS: Oval Head Machine Screw OHWS: Oval Head Wood ScrewOI: Ornamental IronOP: OpaqueOPG: OpeningOPNG: OpeningOPP: OppositeOPP H: Opposite HandOR: Outside RadiusORN: OrnamentalOSD Open Sight DrainOS&Y: Outside Screw & Yoke (valve) OUT: OutletOVFL: OverflowOW: Open WasteOZ: OunceP: Pitch, Power Panel, PaintP. LAM: Plastic LaminateP SL: Pipe SleevePA: Public AddressPAF: Powder Actuated FastenersPAR: ParallelPARTN: PartitionPASS: Passage, PassengerPB: Pull Box, Push Button, Panic BarPBD: Particle BoardPBMT: Preshimmed Butyl Mastic Sealant Tape PB STA: Push Button StationPC: Pull Chain, Piece, Precast Concrete PCF: Pounds per cubic footPCPL: Portland Cement PlasterPD: Pump Discharge, Plaza DrainPDP: Paneled Door, PaintedPE: Porcelain Enamel, Professional Engineer PED: Pedestal, PedestrianPERF: Perforate, PerformancePERIM: PerimeterPERP: PerpendicularPFN: PrefinishedPG: Pressure GaugePH: Phase, Preheat, PhonePIV: Pivoted, Post Indicator ValvePJF: Preformed Joint FillerPKG: ParkingPKWY: ParkwayPL: Plate, Plan, Property Line, Plastic Laminate, Plastic PLAS: Plaster, PlasticPLAS LAM: Plastic LaminatePLBG: PlumbingPLF: Pounds Per Lineal FootPLG: PlumbingPLMBG: PlumbingPLTF: PlatformPLWD: PlywoodPLYWD: PlywoodPLUMB: PlumbingPNEU: PneumaticPNL: PanelPNT: PaintPOL: Polish, PolishedPORC: PorcelainPORT: PortablePOT W: Potable WaterPP: Plaster, Painted, Power Panel, Precast Panel PR: PairPRC: PrecastPRCST: PrecastPRE: PrefinishedPREFAB: PrefabricatedPRES: PressurePRESS: PressurePRF: PreformedPRFMD: PreformedPRI: PrimaryPRMLD: PremoldedPROT: Protection, ProtectivePRSTR: PrestressedPRTN: PartitionPRV: Pressure Reducing ValvePS: Plumbing StackPSC: Prestressed ConcretePSF: Pounds per square footPSI: Pounds per square inch 磅每平方英寸PSIG: Pounds per square inch gagePT: Paint, Point, Part, Potential Transformer PTC: Post-Tensioned ConcretePTD: Painted, Paper Towel DispenserPTD/R: Combination Paper TowelDispenser/ReceptaclePTN: PartitionPTR: Paper Towel ReceptaclePV: PavingPVC: Polyvinyl ChloridePVF: Polyvinylidene FinishPVG: PavingPVMT: PavementPVT: PrivatePW: Pass WindowPWR: PowerQUAL: QualityQUANT: QuantityQT: Quarry Tile, QuartQTR: QuarterQTY: QuantityR: Riser, Radius, Resistance, Relay PanelR & S: Rod and ShelfRA: Return Air, Registered ArchitectRAD: Radius, RadiatorRADN: RadianRB: Rubber, Rubber Base, Resilient BaseRBC: Rubber Base (Coved),Rubberized Bituminous CompoundRBS: Rubber Base (Straight)RBT: RabbetRCF: Raised Computer FloorRCP: Reflected Ceiling Plan, Reinforced Concrete Pipe RD: Roof Drain, Round, Receptacle Distribution Panel REBAR: Reinforcing BarREC: ReceiverRECEP: ReceptacleRECP: ReceptacleRED: ReducerREF: Refer, Reference, Refrigerator REFL: Reflected, ReflectorREFR: Refrigerate, Refrigerator REG: Register, RegularREINF: Reinforcement, or Reinforce REM: Remove, RemovableREQ: Require, RequiredREQD: RequiredRES: ResilientRESIL: ResilientREST: ResistanceRET: Return, RetainingRETG: RetainingREV: Reverse, Revise, RevisionREV DR: Revolving DoorRF: RoofRFG: RoofingRGTR: RegisterRGH: RoughRGH OPNG:Rough OpeningRH: Right Hand, Reheat, Relative Humidity RHC: Reheat CoilRHMS: Round Head Machine ScrewRHR: Right Hand Reverse, Reheater RHWS: Round Head Wood ScrewRM: RoomRMS: Root Mean SquaredRMV: RemoveRN: Riser NippleRO: Rough OpeningROB: Rod Out BasinROW: Right of WayRPM: Revolutions Per MinuteRPT: Repeat (like "Ditto")RR: RailroadRT: Rubber Tile, RightRTR/RR Rubber Tread/Rubber RiserRVS: Reverse SideRVT: RivetRW: RedwoodRWC: Rain Water ConductorRWD: RedwoodRWL: Rain Water LeaderS: South, Sealant, Supply, SinkS4S: Surfaced 4 SidesS&M: Surfaced & MatchedS&S: Stained & SealedS&V: Stain & VarnishSACT: Suspended Acoustical TileSALV: SalvageSAN: SanitarySB: Setting Basin, Splash BlockSC: Solid Core, Short Circuit, Self Closing, Sill Cock SCD: Seat Cover DispenserSCFT: Structural Clay Facing TileSCH: ScheduleSCHED: ScheduleSCR: ScreenSCUP: ScupperSCWD: Solid Core WoodSD: Soap DispenserSDL:面荷载SE: Structural EngineerSEAL: SealantSEC: Second, Section, Secondary, Security System SECT: SectionSECY: SecretarySED: Sewage Ejector DischargeSEL: SelectSERV: ServiceSEV: Sewage Ejector VentSF: Square FootSFGL: Safety GlassSGG: Structural Glazing GasketSGS: Silicone Glazing SealantSH: Shelf, Sheet, ShowerSHR: ShowerSHT: SheetSHTH: SheathingSHTHG: SheathingSHWR: ShowerSIG: SignalSIM: SimilarSJS: Silicone Joint SealantSK: SinkSKL: SkylightSL: Siamese LineSLOT: SlottedSLV: SleeveSND: Sanitary Napkin DispenserSNGG: Sponge Neoprene Glazing GasketSNR: Sanitary Napkin ReceptacleSNT: SealantSOG: Slab On Grade 斜坡混凝土板SP: Soil Pipe, Standpipe, Soundproof, Single Pole SPC: SpacerSPD: Sump Pump DischargeSPDT: Single Pole Double ThrowSPEC: Specification, SpecificationsSPECS: SpecificationsSPK: SpeakerSPL: SpecialSPLR: SprinklerSPM: Sprinkler MainSPP: Skim Coat Plaster PaintedSPST: Single Pole Single ThrowSQ: SquareSS: Stainless Steel, Set Screw, Soil Stack, Service Sink, Slop SinkSSD: Sub-soil DrainSSGS: Silicone Structural Glazing SealantSSK: Service SinkSSS: Silicone Sanitary SealantSST: Stainless SteelST: Straight, Storm WaterSTA: StationSTC: Sound Transmission ClassSTD: StandardSTG: Storage, SeatingSTGG: Structural Glazing GasketSTGR: StaggerSTIFF: StiffenerSTK: StackSTL: SteelSTM: SteamSTO: StorageSTOR: StorageSTP: Standard Temperature & Pressure, StandpipeSTR: Straight (re-bars), Strainer, Structural, Starter STRL: StructuralSTRT: StraightSTRUC: StructuralSTRUCT: StructuralST W: Storm WaterSTWY: StairwaySUCT: SuctionSUPP: Supplementary, SupplementSUPT: SuperintendentSUR: SurfaceSUSP: Suspended, SuspendSV: Safety Relief ValveSW: SwitchSWBD: SwitchboardSWGR: SwitchgearSY: Square YardSYM: SymmetricalSYN: SyntheticSYS: SystemT: Tread, Thermostat, TeeT/: TopT&B: Top and BottomT&G: Tongue & GrooveT&P: Temperature & Pressure Relief Valve TAN: TangentTB: Towel Bar , Typical Beam 标准层梁TC: Top of Curb, TerracottaTCLO: Telephone ClosetTCS: Terne Coated Stainless SteelTD: Trench DrainTEL: TelephoneTEL CL: Telephone ClosetTEMP: Temporary, Tempered, Temperature TEN: Tenant。

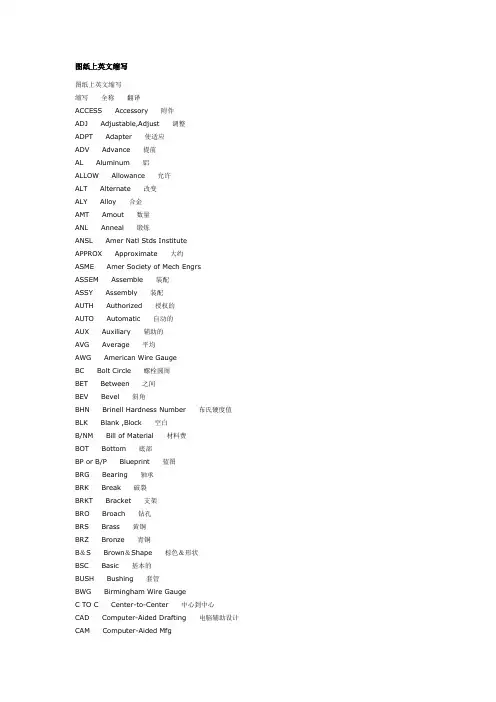

图纸上英文缩写图纸上英文缩写缩写全称翻译ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds Institute APPROX Approximate 大约ASME Amer Society of Mech Engrs ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension,External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension,External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译NTS Not to ScaleOA Over All 所有OBS ObsotetcOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece,Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package,Packing 包装PL Parting Line,Places,Plate PNEU PncumaticPNL Panel 面板POL Polish 磨光POS Position,Postive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product,Production 产品，产量PSI Pounds per Square InchPT Part,Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden,A-ScaleRB Rockwell Harden,B-ScaleRC Rockwell Harden,C-Scale RECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release,Relief 释放，缓解REM Remove 移除REQD Requird 有需要REE Retainer,ReturnREV Reverse,Revision,Revolution RFS Regardless of Feature Size RGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection Weld SAE Society of Automotive Engrs SCH Schedule 进度表。

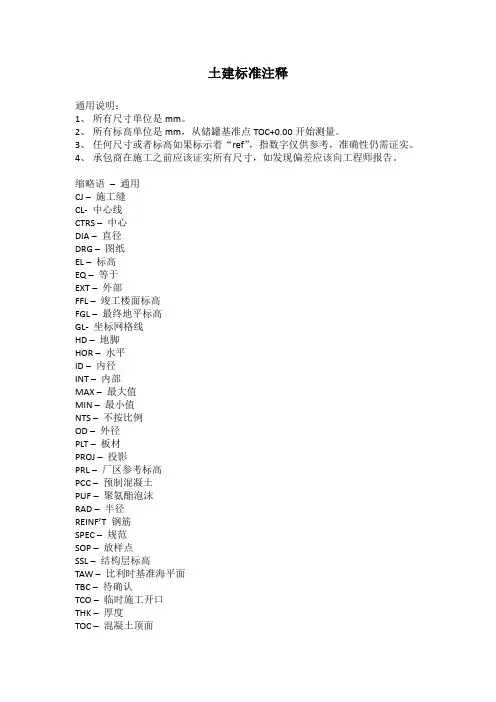

土建标准注释通用说明：1、所有尺寸单位是mm。

2、所有标高单位是mm，从储罐基准点TOC+0.00开始测量。

3、任何尺寸或者标高如果标示着“ref”，指数字仅供参考，准确性仍需证实。

4、承包商在施工之前应该证实所有尺寸，如发现偏差应该向工程师报告。

缩略语–通用CJ –施工缝CL- 中心线CTRS –中心DIA –直径DRG –图纸EL –标高EQ –等于EXT –外部FFL –竣工楼面标高FGL –最终地平标高GL- 坐标网格线HD –地脚HOR –水平ID –内径INT –内部MAX –最大值MIN –最小值NTS –不按比例OD –外径PLT –板材PROJ –投影PRL –厂区参考标高PCC –预制混凝土PUF –聚氨酯泡沫RAD –半径REINF’T 钢筋SPEC –规范SOP –放样点SSL –结构层标高TAW –比利时基准海平面TBC –待确认TCO –临时施工开口THK –厚度TOC –混凝土顶面TOG –灰浆顶面TOS –钢材顶面TPS –热保护系统TYP –相同类型UNO –除非特别注明UOC –混凝土底平面UOS - 钢材底平面U/S –底平面VER –垂直WP –工作点缩略语–钢筋位置ABR –等长相错翻转ABS - 等长相错交替排列AP - 长短交替排列B1 –底面–外层B2 –底面- 第2层B3 –底面–第3层EF –每侧ES- 同样间距EW –每个方向F1 –远面–外层F2 –远面–第2层F3 –远面–第3层LL –长钢筋N1 –近面–外层N2 –近面–第2层N3 –近面–第3层T1 –顶面–外层T2 –顶面–第2层T3 –顶面–第3层钢筋标注：。

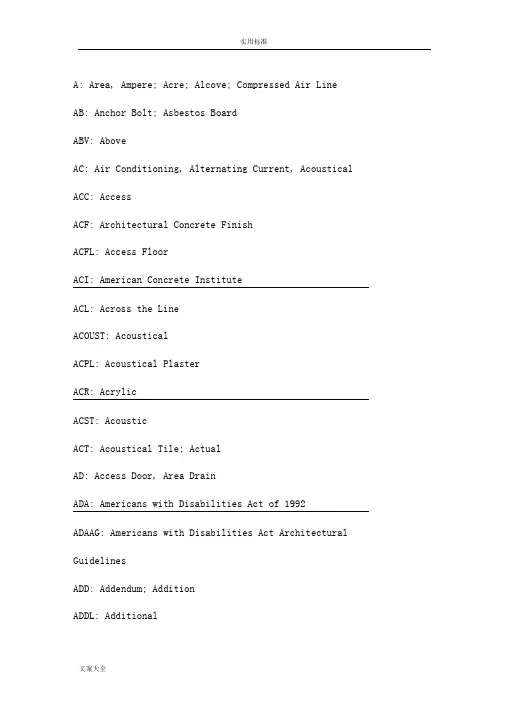

A: Area, Ampere; Acre; Alcove; Compressed Air Line AB: Anchor Bolt; Asbestos BoardABV: AboveAC: Air Conditioning, Alternating Current, AcousticalACC: AccessACF: Architectural Concrete FinishACFL: Access FloorACI: American Concrete InstituteACL: Across the LineACOUST: AcousticalACPL: Acoustical PlasterACR: AcrylicACST: AcousticACT: Acoustical Tile; ActualAD: Access Door, Area DrainADA: Americans with Disabilities Act of 1992 ADAAG: Americans with Disabilities Act Architectural GuidelinesADD: Addendum; AdditionADDL: AdditionalADH: AdhesiveADJ: Adjust, Adjustable, AdjacentAF: Above the FloorAFF: Above Finished FloorAGA: American Gas AssociationAGG: AggregateAGGR: AggregateAIA: American Institute of Architects, American Insurance AssociationAIC: Amperes Interrupting CircuitAIEE: American Institute of Electrical Engineers AISC: American Institute of Steel Construction AL: AluminumALM: AlarmALT: Alternate, Alteration; AltitudeALUM: AluminumALS: Acrylic Latex SealantAMB: AmbientAMP: Ampere, AmpacityAMPY: AmpereAMT: AmountAN: AnodeANCH: Anchor, AnchorageANN: AnnunciatorANOD: AnodizedANT: AntennaAP: Access PanelAPPD: ApprovedAPPROX: ApproximateAPRVD: ApprovedAPT: ApartmentAPX: ApproximateAR: Acid ResistingARCH: Architect, ArchitecturalARS: Asbestos Roof ShinglesAS: Acoustic SealantASB: AsbestosASC: Above Suspended CeilingASCE: American Society of Civil Engineers ASME: American Society of Mechanical Engineers ASPH: AsphaltASSEM: AssembleASSOC: Association; AssociateASSY: AssemblyASTM: American Society for Testing and MaterialsAT: Acoustical Tile; Asphalt TileATC: Acoustical Tile CeilingATTEN: AttenuationATM: Automatic Teller Machine; Atmospheric AUTH: AuthorizedAUTO: AutomaticAVG: AverageAW: Acid WasteAWG: American Wire GaugeAWM: Automatic Washing MachineAWS: American Welding SocietyAWWA: American Water Works Association AX: AxisB: Boiler, Bathroom, BidetB TO B: Back to BackB & B: Balled and Burlapped, Bell and Bell B & F: Bell and FlangeB & S: Bell and Spigot, Brown & SharpB/: Bottom (of)BBD: Bulletin BoardBA: Bulb AngleBAL: Balance, BallastBB: Buffalo Box, Ball Bearing,, Bulletin Board BBL: BarrelBC: Broom ClosetBD: Board, Blow Down (pipe)BDL: BundleBDY: BoundaryBDRM: BedroomBEL: BelowBET: BetweenBETW: BetweenBEV: BevelBF: Board Foot, Back Face, Bottom Face, Both Faces, Boiler FeedBG: Bag (e.g., of cement)BHP: Brake HorsepowerBHD: BulkheadBIT: BituminousBJF: Bituminous Joint FillerBKR: BreakerBL: Base Line, Building Line, BlockBLDG: BuildingBLKG: BlockingBLO: BlowerBLR: BoilerBLT: Borrowed Lite, Bullet Tips (Hinges)BLT-IN: Built-InBM: Beam, Bench MarkBMT: Butyl Mastic Tape SealantBN: BullnoseBNDG: Bending (re-bars)BNT: BentBO: Blow OffBOT: BottomBP: Base Plate, Blueprint, BypassBPL: Bearing PlateBR: Bedroom, Brick, Brass, Boiler Room Branch BRDG: Bridge, BridgingBRG: BearingBRK: BrickBRKR: BreakerBRKT: BracketBRS: Butyl Rubber Sealant, BrassBRZG: BrazingBS: Both Sides, Backset, BluestoneBSMT: BasementBT: Bathtub, BoltBTR: BetterBTU: British Thermal UnitsBTUH: British Thermal Units per HourBUR: Built-up RoofBUZ: BuzzerBV: Butterfly ValveBVL: BevelledBW: Both WaysBWV: Back Water ValveBYP: By PassC: Courses, Curb, Channel, Degrees Celsius, Clock Outlet, CalcimineC/C: Center to CenterC TO C: Center to CenterCA: Compressed AirCAB: CabinetCAD: Cadmium, Computer-Aided DraftingCAIS: CaissonCAP: CapacityCAR: CarpetCARP: CarpenterCAT: CatalogCAV: CavityCB: Catch Basin, Concrete Block, Cast Brass, Coal BinCBL: Concrete BlockCBX: Cast Box StrikeCC: Cubic CentimeterCCT: CircuitCCW: Counter ClockwiseCCTV: Closed Circuit TVCD: Cold Drawn, CadmiumCDS: Cold Drawn SteelCEL: CellarCEM: CementCEM AB: Cement Asbestos Board Cem P: Cement Water PaintCER: CeramicCF: Cubic FeetCFL: CounterflashingCFM: Cubic Feet per MinuteCFS: Cubic Feet per SecondCFT: Cubic FootCG: Corner GuardCH: Coat HookCHB: Chalk BoardCHR: Chilled Water ReturnCHAM: ChamferCHAN: ChannelCHBD: ChalkboardCHS: Chilled Water SupplyC.I.: Cast IronCI: Cast IronCIN BL: Cinder BlockCIP: Cast Iron Pipe, Cast-in-Place CIR: Circle, Circular, Circuit CIRC: CircumferenceCISP: Cast Iron Soil/sewer Pipe CITG: Clear Insulating Tempered Glass CJ: Control JointCJF: Cork Joint FillerCK: CaulkingCKT: CircuitCL: Centerline, Clearance, Closing, Closure, Class, ClosetCLG: CeilingCLKG: CaulkingCLH: Clothes Line HookCLL: Contract Limit LineCLO: ClosetCLP: ClampCLR: ClearCLR OPG: Clear OpeningCLS: ClosureCM: Circular Mil (1/1000 inch),Center MatchedCMP: Corrugated Metal PipeCMT: Ceramic Mosaic TileCMU: Concrete Masonry UnitCMUP: Concrete Masonry Unit PaintedCND: Condition, ConduitCNDS: CondensateCNTR: Center, CounterCNVR: ConveyorCOAX: CoaxialC.O.: Cased OpeningCO: Company, Cleanout, Cased Opening, Cut Out COD: Cleanout DoorCO & DP: Cleanout & Deck PlateCOEF: CoefficientC.O.F.:CENTER OF FOOTING基础中心COL: ColumnCOM: CommonCOMB: Combination, CombustionCOML: CommercialCOMM ED: Commonwealth EdisonCOMP: Composition, CompressedCOMPO: CompositionCOMPT: CompartmentCON: ConstructionCONC: ConcreteCONCP: Concrete PaintedCOND: Condenser, ConduitCONN: ConnectionCONST: ConstructionCONSTR: ConstructionCONT: Continuous, Continue, ControlCONTR: ContractorCONV: Convector, ConvenienceCOP: CopperCOR: Corner, CorridorCORR: Corridor, CorrugateCOV: CoverCP: Cathodic Protection, Clothes Pole, Cesspool CPE: Chlorinated PolyethyleneCPL: Cement PlasterCPP: Cement Plaster PaintedCPR: CopperCPT: CarpetCR: Chromium (plated), Curtain RodCRPT: CarpetCRS: Course, Cold Rolled SteelCS: Countersink, Cast Steel, Cast Stone, Commercial StandardCSG: CasingCSK: CountersinkCSMT: CasementCSN: CaissonCSS: Countersunk ScrewCSTG: CastingCT: Ceramic Tile, Cork Tile,Cone Tip (hinges)CTD: CoatedCTR: Center, CounterCTSC: Communications Systems Terminal Cabinet CTSK: CountersunkCTWT: CounterweightCU: Copper, Cubic, Coefficient of Utilization CU. FT.: Cubic FeetCU. YD.: Cubic YardCUR: CurrentCV: Check ValveCW: Clockwise, Cold WaterCWP: Circulating Water PumpCWR: Condensate Waste ReturnCWS: Condensate Waste SupplyCY: Cubic Yard, CycleCYL: CylinderCYL L: Cylinder LockD: Deep, Depth, Drop, DrainD & M: Dressed & MatchedDA: Double ActingDB: DecibelDBL: DoubleDBT: Drybulb TemperatureDC: Direct CurrentDCV: Detector Check ValveDD: Driveway Drain, Deck Drain, DESIGN DEVELOPMENT:深化设计DEG: DegreeDEGC: Degree CelciusDEGF: Degree FarenheitDEM: DemolishDEMO: DemolitionDEP: DpressedDEPT: DepartmentDET: DetailDF: Drinking FountainDH: Double HungDIAG: DiagonalDIA: DiameterDIAM: DiameterDIFF: DiffuserDIM: DimensionDISL: DisposalDISP: DispenserDIV: DivisionDL: Dead LoadDMH: Drop ManholeDMT: DemountableDN: DownDO: Ditto, or Door OpeningDP: Dampproofing, Dew Point, Distribution Panel DPDT: Double Pole Double ThrowDPST: Double Pole Single ThrowDPR: DamperDR: Door, Drain, Dining RoomDRBD: DrainboardDS: Downspout, Disconnect Switch, Door Switch DSP: Dry StandpipeDT: Drain TileDTL: DetailDVTL: DovetailDW: Dumbwaiter, Distilled WaterDWG: DrawingDWGS: DrawingsDWL: DowelDWP: Drywall, PaintedDWR: DrawerDS: DownspoutDSP: Dry StandpipeDX: Direct Expansion, DuplexE: East, Enamel, ExhaustE TO E: End to EndEA: EachEB: Expansion BoltEC: Exposed ConstructionECC: EccentricECP: Exposed Construction PaintedEDR: Equivalent Direct RadiationEE: Each End，Electrical Engineering电气工程EF: Each FaceEFTS: Expanding Foam Tape SealantEG: Edge GrainEIFS: Exterior Insulation and Finish System EJ: Expansion JointEJECT: EjectorEL: Elevation, ElevatorELB: ElbowELEC: ElectricalELECT: ElectricalELEV: Elevator, ElevationELP: Emergency Lighting PanelEM: EmergencyEMER: EmergencyENAM: EnamelENCL: EnclosureENG: EngineerENGR: EngineerENJF: Expanded Neoprene Joint FillerENT: EntranceENTR: EntranceEP: Electrical Panelboard, Explosion Proof EPDM: Ethylene Propylene Diene Monomer EPJF: Expanded Polyethelene Joint Filler EQ: EqualEQP: EquipmentEQPT: EquipmentEQUIP: EquipmentERP: Emergency Receptacle PanelESC: EscalatorEST: EstimateEVAP: EvaporatorEW: Each WayEWC: Electric Water CoolerEW & C: Electric Wiring and Communication EWH: Electric Water HeaterEX: Exposed Construction, ExitEXC: ExcavateEXCAV: ExcavateEXEC: ExecutiveEXG: ExistingEXH: ExhaustEXH AIR: Exhaust AirEXIST: ExistingEXP: Expansion, ExposedEXPN: ExpansionEXPP: Existing Patched and PaintedEXS: Extra StrongEXT: Exterior, ExtinguishEXTR: ExtrudeF: Degrees Fahrenheit, FuseF TO F: Face to FaceFA: Fire Alarm, Fresh AirFAB: FabricateFABR: FabricateFACP: Fire Alarm Control PanelFAG: Fire Alarm GongFAO: Finish All OverFAR: Floor Area RatioFAST: Fastener, FastenFB: Flat Bar, Face Brick, Floor BoxFBD: FiberboardFBM: Foot Board MeasureFBP: Fabric PanelFBRK: Fire BrickFC: File Cabinet, Foot Candle, Fault Current FD: Floor drainFDC: Fire Department ConnectionFDN: FoundationFDTN: FoundationFE: Fire ExtinguisherFEC: Fire Extinguisher CabinetFF: Far Face, Finished Floor, Factory Finish FFE: Finished Floor ElevationFF&E: Fixtures, Furnishings & Equipment FFL: Finished Floor LineFGL: FiberglassFGR: Fiberglass reinforcedFH: Flat Head, Fire HoseFHC: Fire Hose CabinetFHMS: Flat head machine screwFHR: Fire Hose RackFHS: Fire Hose StationFHWS: Flat Head Wood ScrewFHY: Fire HydrantFIL: FilletFIN: Finish, finishedFITG: FittingFIX: FixtureFIXT: FixtureFL: Floor, Fire LineFLASH: FlashingFLG: FlooringFLEX: FlexibleFLG: Flange, Flashing, FlooringFLR: FloorFLUOR: FluorescentFLX: FlexibleFM: Fire Main, Factory Mutual Company FND: Feminine Napkin Dispenser, Foundation FO: Finished OpeningFOB: Free On BoardFOC: Face of ConcreteFOF: Face of FinishFOS: Face of StudsFP: FireproofFPL: FireplaceFPM: Feet per minuteFPRF: FireproofFPS: Feet per SecondFR: Frame, Front, Fire RiserFRG: ForgedFRM: FrameFRPF: FireproofFRT: Fire RetardantFS: Full Size, Far Side, Federal Standards, Fused Switch, Floor SinkFSCW: Flush Solid Core WoodFT: Foot, Feet, Fully TemperedFTG: Footing, FittingFUR: FurredFURN: Furnish, FurnitureFURR: FurringFUT: FutureFVC: Fire Valve CabinetG: Gas, Girder, Gutter, GramGA: Gauge, GageGAGE: GaugeGAL: GallonGALV: GalvanizedGB: Grab Bar, Glass Block, Gypsum Board, GRADE BEAM 基础梁GC: General Contractor 总包GCMU: Glazed Concrete Masonry UnitGD: Guard, Grade, Gutter DrainGEN: General, GeneratorGENL: GeneralGF: Ground FaceGFCI: Ground Fault Circuit Interrupted GFI: Ground Fault InterruptedGFRC: Glass Fiber Reinforced Concrete GI: Galvanized IronGKT: GasketGL: GlassGL BLK: Glass BlockGLB: Glass BlockGLVA: Globe ValveGLZ: GlazeGMU: Glazed Masonry UnitGND: GroundGOVT: GovernmentGP: Galvanized PipeGPDW: Gypsum DrywallGPH: Gallons Per HourGPL: Gypsum LathGPM: Gallons Per MinuteGPP: Gypsum Plaster PaintedGPPL: Gypsum PlasterGPS: Gallons Per SecondGR: Grade, Grille, GraniteGRAN: Granular, GraniteGRND: GroundGRTG: GratingGSS: Galvanized Sheet SteelGSU: Glazed Structural UnitGT: GroutGV: GalvanizedGVA: Gate ValveGVL: GravelGYP: GypsumGYP BD: Gypsum BoardH: HighHA: HectareHB: Hose BibHBD: HardboardHC: Hollow Core, Handicapped (better called Accessible")HCT: Hollow Clay TileHD: Head, Heavy DutyHDCP: Handicapped (better called "Accessible") HDN: HardenHDR: HeaderHDW: HardwareHDWD: HardwoodHDWE: HardwareHEX: HexagonalHGR: HangerHGT: HeightHH: HandholeHHMB: Hex Head Machine BoltHID: High Intensity DischargeHK: Hook or HooksHKD: Hooked (re-bars)HL: Hydrant LineHM: Hollow MetalHMP: Hollow Metal, PaintedHNCG: Hollow Neoprene Compression Gasket HOR: HorizontalHORIZ: HorizontalHOSP: HospitalHP: High Point, High Pressure, Horse Power HPS: High Pressure Sodium, High Pressure Steam HR: HourHRS: Hot Rolled Steel, HoursHS: Heat StrengthenedHSS：Hollow Structural Section空心结构断面HSG: HousingHT: Height, Heat, High Tension DuctHTG: HeatingHTR: HeaterHTW: High Temperature WaterHV: High VoltageHVAC: Heating, Ventilating & Air Conditioning HVY: HeavyHW: Hot Water, Heavy WallHWC: Hot Water Circulating, Heavy Wall Conduit HWD: HardwoodHWH: Hot Water HeaterHWR: Hot Water Recirculating ReturnHWS: Hot Water SupplyHWY: HighwayHYD: HydraulicHYDRO: HydrostaticHZ: Hertz (Cycles Per SecondI: Iron, Current (electrical) IBV: Indicating Butterfly Valve IC: Interrupting CapacityID: Inside DiameterIE: Invert ElevationILK: InterlockIMH: Inlet ManholeIN: InchINC: IncandescentINCAND: IncandescentINCIN: IncineratorINCL: Incline, IncludeINCR: IncreaseINFO: InformationINS: Insulate, Insulation INSP: InspectINSTL: InstallINSUL: InsulationINT: Interior, Internal INTERM: IntermediateINTM: IntermediateINV: InvertIP: Iron PipeIPS: Iron Pipe SizeIW: Indirect WasteJ: JoistJ-BOX: Junction BoxJAN: JanitorJB: Junction BoxJC: Janitor's ClosetJCT: JunctionJF: Joint FillerJST: JoistJT: JointK: Kilopound (1000 pounds), Kelvin (temperature) KAL: KalameinKCP: Keene's Cement PlasterKG: KilogramKIP: Kilopound (1000 pounds)KIT: KitchenKM: KilometerKO: KnockoutKP: KickplateKPL: KickplateKS: Kitchen SinkKSF: Kilopound Per Square Foot千磅每平方英尺KVA: Kilovolt-AmpereKW: KilowattKWH: Kilowatt HourKWHR: Kilowatt HourL: Angle, Left, Length, Lighting Panel, Long, Line LA: Landscape Architect, Lightning ArresterLAB: Laboratory, LaborLAD: LadderLAM: Laminate, LaminatedLAT: LateralLAV: LavatoryLB: Pound (weight), Lag BoltLBL: LabelLBR: LumberLC: Light Control, Lead CoveredLCD: Liquid Crystal DiodeLCL: Linen ClosetLCM: Lead Coated MetalLD: Leader DrainLH: Left HandLIB: LibraryLIBR: LibraryLIN: LinearLINO: LinoleumLIQ: LiquidLKR: LockerLL: Live LoadLMS: LimestoneLN: LengthLNDG: LandingLNTL: LintelLOC: LocateLOCS: LocationsLP: Low Point, Low Pressure, Lighting Panel, Light ProofLPS: Low Pressure Sodium, Low Pressure SteamLR: Living RoomLS: Limestone, Loud SpeakerLT: Light, Low Tension Duct, Laundry TrayLTG: LightingLTL: LintelLT WT: LightweightLV: Low VoltageLVR: LouverLW: Light WeightLWC: Light Weight ConcreteLWDP: Louvered Wood Door, PaintedM: Meter, Motor, Thousand (brick), Bending Moment MACH: MachineMAINT: MaintenanceMAN; ManualMAR: MarbleMARB: MarbleMAS: MasonryMAT: MaterialMATL: MaterialMAX: MaximumMB: Mail Box, Machine Bolt, Mop BasinMC: Medicine Cabinet, Mineral CoreMCC: Motor Control CenterMCM: Thousand Circular Mils (electrical wire size)ME: Mechanical EngineerMECH: MechanicalMED: MediumMED CAB: Medicine CabinetMEMB: MembraneMERC: Mercury VaporMET: MetalMEZZ: MezzanineMFD: Manufactured, Metal Floor Deck MFG: Manufacturer, Manufacturing MFR: Manufacture, Manufacturer MH: ManholeMI: Malleable Iron, MilesMIKE: MicrophoneMIN: MinimumMIR: MirrorMISC: MiscellaneousMK: MarkML&P: Metal Lath & PlasterMLD: MoldingMLDG: MoldingMM: MillimeterMMB: MembraneMO: Masonry OpeningMOD: ModuleMONO: MonolithicMOV: MovableMP: Metal Acoustal Panel MPS: Medium Pressure Steam MR: Mop ReceptorMRD: Metal Roof DeckMT: Mount, MountedMTD: MountedMTL: Material, MetalMTR: MotorMUL: MullionMULL: MullionMV: Mercury VaporMWP: Maximum Working Pressure MWK: MillworkN: North, NitrogenNAP: NapkinNAT: NaturalNATL: NaturalNB: "Nota Bene" Latin phrase for "Take Special Note" NC: Normally Closed, Noise CriteriaNEC: National Electrical CodeNEUT: NeutralNF: Near FaceNFWH: Non-freeze Wall HydrantNI: NickelNIC: Not In ContractNK: NeckNMT: Non-MetallicNO: Number, Normally OpenNOM: NominalNR: Noise ReductionNRC: Noise Reduction CoefficientNRP: Non-Removable PinNRS: Non Rising Steam ValveNS: Near SideNTS: Not To ScaleO: OxygenO TO O: Out to OutOA: Outside Air, OverallOB: ObscureOBS: ObscureOC: On CenterOD: Outside DiameterOF: Outside FaceOFF: OfficeOH: OverheadOHD: Overhead DoorOHMS: Oval Head Machine Screw OHWS: Oval Head Wood ScrewOI: Ornamental IronOP: OpaqueOPG: OpeningOPNG: OpeningOPP: OppositeOPP H: Opposite HandOR: Outside RadiusORN: OrnamentalOSD Open Sight DrainOS&Y: Outside Screw & Yoke (valve) OUT: OutletOVFL: OverflowOW: Open WasteOZ: OunceP: Pitch, Power Panel, PaintP. LAM: Plastic LaminateP SL: Pipe SleevePA: Public AddressPAF: Powder Actuated FastenersPAR: ParallelPARTN: PartitionPASS: Passage, PassengerPB: Pull Box, Push Button, Panic BarPBD: Particle BoardPBMT: Preshimmed Butyl Mastic Sealant Tape PB STA: Push Button StationPC: Pull Chain, Piece, Precast Concrete PCF: Pounds per cubic footPCPL: Portland Cement PlasterPD: Pump Discharge, Plaza DrainPDP: Paneled Door, PaintedPE: Porcelain Enamel, Professional Engineer PED: Pedestal, PedestrianPERF: Perforate, PerformancePERIM: PerimeterPERP: PerpendicularPFN: PrefinishedPG: Pressure GaugePH: Phase, Preheat, PhonePIV: Pivoted, Post Indicator ValvePJF: Preformed Joint FillerPKG: ParkingPKWY: ParkwayPL: Plate, Plan, Property Line, Plastic Laminate, PlasticPLAS: Plaster, PlasticPLAS LAM: Plastic LaminatePLBG: PlumbingPLF: Pounds Per Lineal FootPLG: PlumbingPLMBG: PlumbingPLTF: PlatformPLWD: PlywoodPLYWD: PlywoodPLUMB: PlumbingPNEU: PneumaticPNL: PanelPNT: PaintPOL: Polish, PolishedPORC: PorcelainPORT: PortablePOT W: Potable WaterPP: Plaster, Painted, Power Panel, Precast Panel PR: PairPRC: PrecastPRCST: PrecastPRE: PrefinishedPREFAB: PrefabricatedPRES: PressurePRESS: PressurePRF: PreformedPRFMD: PreformedPRI: PrimaryPRMLD: PremoldedPROT: Protection, ProtectivePRSTR: PrestressedPRTN: PartitionPRV: Pressure Reducing ValvePS: Plumbing StackPSC: Prestressed ConcretePSF: Pounds per square footPSI: Pounds per square inch 磅每平方英寸PSIG: Pounds per square inch gagePT: Paint, Point, Part, Potential Transformer PTC: Post-Tensioned ConcretePTD: Painted, Paper Towel DispenserPTD/R: Combination Paper Towel Dispenser/Receptacle PTN: PartitionPTR: Paper Towel ReceptaclePV: PavingPVC: Polyvinyl ChloridePVF: Polyvinylidene FinishPVG: PavingPVMT: PavementPVT: PrivatePW: Pass WindowPWR: PowerQUAL: QualityQUANT: QuantityQT: Quarry Tile, QuartQTR: QuarterQTY: QuantityR: Riser, Radius, Resistance, Relay PanelR & S: Rod and ShelfRA: Return Air, Registered ArchitectRAD: Radius, RadiatorRADN: RadianRB: Rubber, Rubber Base, Resilient BaseRBC: Rubber Base (Coved),Rubberized Bituminous CompoundRBS: Rubber Base (Straight)RBT: RabbetRCF: Raised Computer FloorRCP: Reflected Ceiling Plan, Reinforced Concrete PipeRD: Roof Drain, Round, Receptacle Distribution Panel REBAR: Reinforcing BarREC: ReceiverRECEP: ReceptacleRECP: ReceptacleRED: ReducerREF: Refer, Reference, RefrigeratorREFL: Reflected, ReflectorREFR: Refrigerate, RefrigeratorREG: Register, RegularREINF: Reinforcement, or Reinforce REM: Remove, RemovableREQ: Require, RequiredREQD: RequiredRES: ResilientRESIL: ResilientREST: ResistanceRET: Return, RetainingRETG: RetainingREV: Reverse, Revise, RevisionREV DR: Revolving DoorRF: RoofRFG: RoofingRGTR: RegisterRGH: RoughRGH OPNG:Rough OpeningRH: Right Hand, Reheat, Relative Humidity RHC: Reheat CoilRHMS: Round Head Machine ScrewRHR: Right Hand Reverse, Reheater RHWS: Round Head Wood ScrewRM: RoomRMS: Root Mean SquaredRMV: RemoveRN: Riser NippleRO: Rough OpeningROB: Rod Out BasinROW: Right of WayRPM: Revolutions Per Minute RPT: Repeat (like "Ditto")RR: RailroadRT: Rubber Tile, RightRTR/RR Rubber Tread/Rubber Riser RVS: Reverse SideRVT: RivetRW: RedwoodRWC: Rain Water ConductorRWD: RedwoodRWL: Rain Water LeaderS: South, Sealant, Supply, Sink S4S: Surfaced 4 SidesS&M: Surfaced & MatchedS&S: Stained & SealedS&V: Stain & VarnishSACT: Suspended Acoustical TileSALV: SalvageSAN: SanitarySB: Setting Basin, Splash BlockSC: Solid Core, Short Circuit, Self Closing, Sill CockSCD: Seat Cover DispenserSCFT: Structural Clay Facing TileSCH: ScheduleSCHED: ScheduleSCR: ScreenSCUP: ScupperSCWD: Solid Core WoodSD: Soap DispenserSDL: 面荷载SE: Structural EngineerSEAL: SealantSEC: Second, Section, Secondary, Security System SECT: SectionSECY: SecretarySED: Sewage Ejector Discharge SEL: SelectSERV: ServiceSEV: Sewage Ejector VentSF: Square FootSFGL: Safety GlassSGG: Structural Glazing Gasket SGS: Silicone Glazing Sealant SH: Shelf, Sheet, Shower SHR: ShowerSHT: SheetSHTH: SheathingSHTHG: SheathingSHWR: ShowerSIG: SignalSIM: SimilarSJS: Silicone Joint Sealant SK: SinkSKL: SkylightSL: Siamese LineSLOT: SlottedSLV: SleeveSND: Sanitary Napkin DispenserSNGG: Sponge Neoprene Glazing GasketSNR: Sanitary Napkin ReceptacleSNT: SealantSOG: Slab On Grade斜坡混凝土板SP: Soil Pipe, Standpipe, Soundproof, Single Pole SPC: SpacerSPD: Sump Pump DischargeSPDT: Single Pole Double ThrowSPEC: Specification, SpecificationsSPECS: SpecificationsSPK: SpeakerSPL: SpecialSPLR: SprinklerSPM: Sprinkler MainSPP: Skim Coat Plaster PaintedSPST: Single Pole Single ThrowSQ: SquareSS: Stainless Steel, Set Screw, Soil Stack, Service Sink, Slop SinkSSD: Sub-soil DrainSSGS: Silicone Structural Glazing Sealant SSK: Service SinkSSS: Silicone Sanitary SealantSST: Stainless SteelST: Straight, Storm WaterSTA: StationSTC: Sound Transmission ClassSTD: StandardSTG: Storage, SeatingSTGG: Structural Glazing GasketSTGR: StaggerSTIFF: StiffenerSTK: StackSTL: SteelSTM: SteamSTO: StorageSTOR: StorageSTP: Standard Temperature & Pressure, Standpipe STR: Straight (re-bars), Strainer, Structural, StarterSTRL: StructuralSTRT: StraightSTRUC: StructuralSTRUCT: StructuralST W: Storm WaterSTWY: StairwaySUCT: SuctionSUPP: Supplementary, Supplement SUPT: SuperintendentSUR: SurfaceSUSP: Suspended, SuspendSV: Safety Relief ValveSW: SwitchSWBD: SwitchboardSWGR: SwitchgearSY: Square YardSYM: SymmetricalSYN: SyntheticSYS: SystemT: Tread, Thermostat, TeeT/: TopT&B: Top and BottomT&G: Tongue & GrooveT&P: Temperature & Pressure Relief Valve TAN: TangentTB: Towel Bar ，Typical Beam 标准层梁TC: Top of Curb, TerracottaTCLO: Telephone ClosetTCS: Terne Coated Stainless SteelTD: Trench DrainTEL: TelephoneTEL CL: Telephone ClosetTEMP: Temporary, Tempered, Temperature TEN: TenantTER: TerrazzoTERR: TerrazzoTERM: TerminalTGL: ToggleTH: ThermostatTHK: Thick, ThicknessTHKNS: ThicknessTHR: ThresholdTHRESH: ThresholdTHRM: ThermalTHRMST: ThermostatTHRU: ThroughTKBD: TackboardTL: Twist Lock (receptacle)TLT: ToiletTOL: ToleranceTP: Top of PavementTPD: Toilet paper DispenserTPH: Toilet Paper HolderTPTN: Toilet PartitionTR: Tread, TransomTRANS: Transformer, TranslucentTRAV: TravertineTRD: TreadTS: Time SwitchTSL: Top of SlabTST: Top of SteelTSTAT: ThermostatTT: Terrazzo Tile, Traffic ToppingTTC: Telephone Terminal ClosetTV: TelevisionTW: Top of Wall, Thin Wall (conduit), Tempered Water TYP: TypicalTZ: TerrazzoUC: UndercutUH: Unit HeaterUL: Underwriters' LaboratoriesUNEX: UnexcavatedUNEXC: UnexcavatedUNF: UnfinishedUNFIN: UnfinishedUNO: Unless Noted Otherwise 除非另有注明UON: Unless Otherwise NotedUP: UnpaintedUR: UrinalUSG: United States Gauge, United States Gypsum CompanyUSS: United States StandardUT: UtilityV: Volt, Valve, Vinyl, Vent, VentilatorVA: Volt AmpereVAC: VacuumVACBR: Vacuum BreakerVAR: Varnish, VariesVAT: Vinyl Asbestos Tile。

图纸上英文缩写图纸上英文缩写缩写全称翻译ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds Institute APPROX Approximate 大约ASME Amer Society of Mech Engrs ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension,External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension,External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译NTS Not to ScaleOA Over All 所有OBS ObsotetcOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece,Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package,Packing 包装PL Parting Line,Places,Plate PNEU PncumaticPNL Panel 面板POL Polish 磨光POS Position,Postive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product,Production 产品，产量PSI Pounds per Square InchPT Part,Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden,A-ScaleRB Rockwell Harden,B-ScaleRC Rockwell Harden,C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release,Relief 释放，缓解REM Remove 移除REQD Requird 有需要REE Retainer,ReturnREV Reverse,Revision,RevolutionRFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive EngrsSCH Schedule 进度表图纸英文缩写对照（请用Ctrl+F搜索）缩写全称翻译ACCESS Accessory 附件ADJ Adjustable, Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amount 数量ANL Anneal 锻炼ANSL American National Standard Label APPROX Approximate 大约ASME American Society of Mechanical Engineers ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counter bore 扩孔CCW Counter Clockwise 逆时针CDRILL Counter drillCDS Cold-Drawn SteelEFF Effective 有效的ENCL Enclose, Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Extension, External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet, fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor. Fluid, Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame, Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage, Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat TreatNTS Not to ScaleOA Over All 所有OBS ObsoleteOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece, Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package, Packing 包装PL Parting Line, Places, PlatePNEU PneumaticPNL Panel 面板POL Polish 磨光POS Position, Positive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product, Production 产品，产量PSI Pounds per Square InchPT Part, Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden, A-ScaleRB Rockwell Harden, B-ScaleRC Rockwell Harden, C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release, Relief 释放，缓解REM Remove 移除REQD Required 有需要REE Retainer, ReturnREV Reverse, Revision, Revolution RFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive EngineersSCH Schedule 进度表A/F——Across Flats——对边C`SINK——Counter Sink——沉头锥孔C`BORE——Counter Bore——沉头平底孔C——Chamfer——倒角EXT——External——外（外在的）INT——Internal——内（内在的）MATL——Material——材料LH——Left Hand——左旋（螺纹）RH——Right Hand——右旋（螺纹）REV——Revision——版本U`CUT——Under Cut——空刀槽S.FACE——Spot Face——刮平S.R——Spherical radius——球面半径R——Radius——半径P.F——Press Fit——紧配S.F——Slide Fit——滑配PCD——Pitch Circle Diameter——节圆直径DP——Deep——深度CL——Center Line——中心线FF——Force Fit——压配HRC——Hardened——热处理（淬火）BSF——British standard fine thread——英国细牙螺纹处理BSP——British standard pipe thread——英国管螺纹标准BSW——British standard worth thread——英国惠氏螺纹标准BSD——British standard dimension——英国度量标准尺寸BSG——British standard gauge——英国标准线规BSS——British standard specification——英国标准技术规格G——美国标准管牙M——Metric——公制螺纹NPT——国家管用螺纹（美制斜牙齿）UNC——United coarse thread——统一标准粗牙螺纹UNEF——United extreme fine thread——公称制细牙UNF——United fine thread——公称细牙CYL——Cylinder or cylindrical——圆柱DIA——Diameter——直径DWG NO——Drawing NO——图纸编号ANGLE 角度NATURE R 自然RALL ROUND 周边，全周NG 粗牙BOT (BOTT) 底部NF 细牙CB 沉头孔PART NO 料号CL 中心线PUNCH 冲头C+0.02 单边放大0.02间隙PIERCE PUNCH 落料冲头chamfer(C) 倒角PCS 个，块，件CA(NCA) 清角（不清角）Q'TY 数量CENTER(CEN) 中心，园心REF 参考DWG NO 图号REV 版次DEEP(DEP) 深度RIGHT 右EDGE 刀口SYM 中心对齐ECN NO 设变号码SMALL 小端EWL (newl) 清线头（不清线头）S落料斜度FINISH 硬度SCALE 比例GAP 单边间隙SECTION A-A 剖视A-AHEIGHT 高度SHEET 表单，页次HATCHING 阴影线SURFACE 表面HEAT TREATMENT 热处理TAP 攻牙INSERT 入块TYP 相同，尺寸一致LARGE 大端THRU(THR) 贯穿LEFT 左TOP 顶部MM 螺纹的规格THICK 厚度MARK 记号标记TAPPER 锥度斜度MATEL 材料材质TAN 切点MAX 最大值TAP1/2NPT 1/2英制管牙MIN 最小值UNIT 单位NAME 名称VIWE A 视图ANEF 特别攻牙SECA-A A-A剖视NRT 新制管牙机械图纸英语翻译以下是我在工作中常用的ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED. 未注焊缝均为连续焊ALL WELDS 3mm FILLET UNLESS OTHERWISE STATED 未注焊角高3mm.ALL UNSPECIFIED RADI - R3 未注圆角R3REMOVE ALL BURRS AND SHARP EDGES 棱角倒钝CHANNEL 槽钢RSA 708 角钢70X70X8M30X1.5 pitch M30X1.5的锥螺纹Tackweld 点焊OD 1/4" outside dimension 1/4"的缩写外径直1/4"75 CRS 尺寸为75 材质为冷轧钢板410 OPENING REF 410 开口参考尺寸40 REF 尺寸为40,参考值2.5" BSP 2.5” 圆锥管螺纹2.5" BSPT HEXAGON 2.5” 六角圆锥管螺纹(即对丝)30x2.5 FLAT BAR 30X2.5 扁钢TYP 2 POSNS 2处11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUND ONLY,END COILS SQUARE TO TOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明)FEMALE: 内扣(母扣)MALE: 外扣(公扣)偏心轴eccentric shaft销轴PIN开口销COTTER PIN螺杆screw紧定螺钉SET SCREW圆螺母ROUND NUT内六角螺钉SOCKET HEAD CAP SCREW六角螺钉HEX HD SETSCREW六角螺栓HEX HD BOLT挡圈closing ring弹性挡圈circlip轴承隔套distance sleeve of axletree轴承axletree深沟球轴承DEEP GROOVE BALL BEARING无扣长non-buckle longth弹簧SPRING吊环螺钉LIFTING EYE BOLT开槽盘头螺钉SLOTTED PAN HEAD SCREW圆锥滚子轴承TAPERED ROLLER BEARING推力球轴承THRUST BALL BEARING平键FLAT KEY弹簧垫圈SINGLE COIL SPRING WASHER平垫圈FLAT WASHER螺母FULL NYLOCK NUT圆螺母ROUND NUTREMOVE ALL BURRS AND SHARP EDGES 所有尖角/棱角倒角并去毛刺40 REF 为测量的参考尺寸OD 1/4’ outside dimension 1/4"的缩写外径直1/4’------->应该为：外径值1/4"75 CRS 尺75 材质为冷轧钢板------->应该为：尺寸75 材质为冷轧钢板我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate 大约ASME Amer Society of Mech EngrsASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的A VG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension,External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate 大约ASME Amer Society of Mech EngrsASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的A VG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension,External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译NTS Not to ScaleOA Over All 所有OBS ObsotetcOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece,Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package,Packing 包装PL Parting Line,Places,PlatePNEU PncumaticPNL Panel 面板POL Polish 磨光POS Position,Postive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product,Production 产品，产量PSI Pounds per Square InchPT Part,Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden,A-ScaleRB Rockwell Harden,B-ScaleRC Rockwell Harden,C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release,Relief 释放，缓解REM Remove 移除REQD Requird 有需要REE Retainer,ReturnREV Reverse,Revision,RevolutionRFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive EngrsSCH Schedule 进度表CFS Cold-Finished SteelCH Case HardenCHAM Chamfer 斜面CHAN Channel 渠道CHG Change 改变CHK Check 核查CI Cast Iron 铸铁CIR Circle, Circular 圆周CIRC Circumference 圆周CL Centerline 中心线CLP Clamp 夹子CNC Computer Numerical Control 电脑数值控制COMB Combination 联合COML Commercial 商业的CONC Concentric 同中心的CONN Connect,Connector 连接器COV Cover 盖子CPLG Coupling 联结CQ Commercial Quality 商业等级钢CRS Cold Stds AssociationCRT Cathode Ray Tube 阴级射线管CS Cast Steel 铸铁CSA Canadian Stds AssociationCSK Countersink 埋头孔CSTG Casting 铸件CTR Center 中心CU Cubic 立方米CW Clockwise 顺时针CYL Cylinder,Cylindrical 柱面DBL Double 双倍DEC Decimal 小数DEG Degree 摄氏度DET Detail 详情DEV Develop 发展DFT Draft 草稿DIA Diameter 直径DIM Dimension 尺寸DIST Distance 距离DN Down 向下DP Deep,Diametral Pitch 深度,径节DR Drill,Drill Rod 钻孔DSGN Design 设计DVTL Dovetail 吻合DWG Drawing 图纸DWL Dowel 木钉DWN Drawn 拔出EA Each 每个ECC Eccentric 古怪缩写全称翻译HVY Heavy 重量HYD Hydraulic 水压ID Inside Diameter 内部直径IDENT Identification 鉴定ILLUS Illustration 说明IN Inch 英寸INCL Include,Including 包括INCR Increase 增加INFO Information 信息INSP Inspect 检查INSTL Install 安装INST Instruct,Instrument 指示,工具INT Interior,Internal,Intersect 内部的,内在的,交叉IR Inside Radius 内部半径ISO Internal Stds Organization 国际标准化组织JCT Junction 连结JNT Journal 杂志JT Joint 连接K Key 关键KNRL Knurl 硬节KST KeyseatKWY Keyway 键沟LB Pound 英镑LBL Label 标签LG Length,Long 长度LH Left Hand 左手LMC Least Material ConditionLOC Locate 位于LT Light 光LTR Letter 信LUB Lubricate 润滑MACH Machine 机器MAINT Maintenance 维护MATL Material 材料MAX Maximum 最大MECH Mechanical,Mechanism 机械MED Medium 媒介MFG Manufacturing 制造业MI Malleable Iron 可锻造的铁MIN Minimum, Minute 最小，秒MISC Miscellaneous 混杂的MM Millimeter 毫米MMC Max Material ConditionMS Machine SteelMTG Mouting 装备MULT Multiple 倍数MWG Music Wire GagugNA Not Applicable 不可应用的NATL National 国内的NC Numerical Control 数字电脑控制NEG Negative 忽略的NO. Number 号码NOM Nominal 名义上的NPSM Natl Pipe Straight MechNPT Natl Pipe Tapered缩写全称翻译SCR Screw 螺丝SEC Second 秒SECT Section 部分SEP Separate 独立SEQ Sequence 顺序SER Serial,Series 系列SERR Serrate 锯齿状SF SpotfaceSFT Shaft 轴SGL Single 单个SH Sheet 纸SI Intl System of UnitsSL Slide 使滑动SLV Sleeve 袖子SOC Socket 插座SP Space,Spaced,Spare 空间SPL Special 特别SPEC Specification 规格SPG Spring 跳SPHER Spherical 球体SPRKT Sprocket 链轮齿SQ Square 平方SST Stainless Steel 纯铁STD Standard 标准STK Stock 存货STL Steel 铁STR Straight,Strip 直的SUB Substitute 替代物SUP Supply,Support 供应SURF Surface 表面SYM Symmetrical 对称的SYS System 系统T Teeth,Tooth 牙齿TECH Technical 技术TEMP Template,Temporary 模板，暂时的THD Thread 线THK Thick 厚的TOL Tolerance 公差TOT Total 总计TPF Taper per FootTPI Taper per In,Threads per InchTPR Taper 锥形TS Tool SteelTYP Typical 典型UNC Unified Natl CoarseUNEF Unified Natl Extra FineUNF Unified Natl FineUNIV Universal 普遍VAR Variable 变量VERT Vertical 垂直的VOL V olume 音量VS Versus 与．．相对W Wide,Width 宽度WASH Washer 洗衣机WDF Woodruff 车叶草WI Wrought Iron 熟铁WT Weight 重量齿轮及齿轮加工中英文对照-A部分A.1. abrasive tooth wear 齿面研磨磨损2. absolute tangential velocity 绝对切向速度3. accelerometer 加速表4. addendum 齿顶高5. addendum angle 齿顶角6. addendum circle 齿顶圆7. addendum surface 上齿面8. adhesive wear 粘着磨损9. adjustability 可调性10. adjustability coefficients 可调系数11. adjusting wedge 圆盘端铣刀的可调型楔块12. allowable stress 允许应力13. alternate blade cutter 双面刀盘14. angular backlash 角侧隙15. angular bevel gears 斜交锥齿轮16. angular displacement 角移位17. angular pitch 齿端距18. angular testing machine 可调角度试验机19. approach action 啮入20. arbor 心轴21. arbor distance 心轴距22. arc of approach 啮入弧23. arc of recess 啮出弧24. attraction 收紧25. average cutter diameter 平均刀尖直径26. axial displacement 轴向位移27. axial factor 轴向系数28. axial locating surface 轴向定位面29. axial pitch 轴向齿距30. axial plane 轴向平面31. axial rakeangle 轴向前角32. axial thrust 轴向推力33. axle testing machine 传动桥试验机07484473lhx0812发表于：07-03-13 17:21 [只看该作者] 第4楼Piping work: 铺管工程Steam trace: 加热蒸汽管道Cutting: 切割socket weld 承插焊接fillet weld 角焊,填角焊branch connection 分支接续fabrication tolerance .制造容差local heat treatment 局部热处理threaded pipe 螺纹管seal welding 密封焊接flange joint 凸缘接头undercut 底切feeder 馈电线conduit outlet 电线引出口seal fitting 密封接头, 密封配件Screw thread lubricant 螺纹润滑剂Seal 绝缘层weld reinforcement 焊缝补强lock washer 锁紧[止动, 防松]垫圈electrical panel 配电板,配电盘nipple 螺纹接头zinc plated 镀锌的ring joint 环接, 围缘接合bolt 螺栓control 控制器National Electrical Code 全国电气规程master schedule 主要图表, 综合图表, 设计任务书, 主要作业表torque wrench 转矩扳手job site 施工现场flange connection 凸缘联接Hard hat 安全帽Goggles 护目镜Stockpile 贮存packing list 装箱单crate 柳条箱purchased material list 原材料进货单back-feed 反馈wire coil 线盘线卷NPT thread 美国标准锥管螺纹cable gland 电缆衬垫terminal block 线弧, 接头排接线盒, 接线板, 线夹power drill 机械钻connector 接线器insulated sleeve 绝缘套管wire connector 接线器wire terminal 电线接头control wiring 控制线路motor lead 电动机引出线power wiring 电力布线tender document 提供证件orifice plate 挡板nut 螺母flange gasket 法兰垫片dimensional inspection 尺寸检验burn through 烧蚀piping system 管道系统reinforcement of weld 加强焊缝械专业词汇表"机械(常用)""abrasion, abrasive wear","磨料磨损""active force, applied force","作用力""actual size","实际尺寸""addendum angle","齿顶角""addendum","齿顶高""addendum modification","径向变位""addendum modification (for external gears)","径向变位量" "addendum modification coefficient","径向变位系数""additive ","添加剂""adhesion wear","黏着磨损""adjusted rating life","修正额定寿命""aerodynamic bearing","气体静压滑动轴承""air spring","空气弹簧""angle drive","角度传动""angle of contact","包角""angle of transmission","作用角""angular bevel gear ","斜交锥齿轮""angular contact bearing","角接触推力轴承""angular contact bearing","角接触轴承""anti-friction bearing material","减磨轴承材料""approach, engaging-in","啮入""archimedes spiral","阿基米德螺线""attitude angle","偏位角""auto-controlled clutch","自控离合器""axial load factor","轴向载荷系数""axial modification","齿向修形""axial module","轴向模数""axial pitch","轴向齿距""axial plane","轴平面""axial plane of wormwheel","蜗轮轴平面""axial profile","轴向齿廓""back cone","背锥面""back cone angle","背锥角""back cone distance","中点锥距""back cone tooth profile","背锥齿廓""back to back arrangement (rolling bearing)","背对背配置(滚动轴承)" "balancing mass","平衡质量""ball oscillating teeth","滚珠活齿""ball screw","滚珠丝杠""ball screw","滚珠丝杠""ball bearing","球轴承""band brake","带式制动器""base circle","基圆""base helix","基圆螺旋线""base tangent length","公法线长度""basic profile","基本牙型""basic rack","基本齿条""basic rack tooth profile","基本齿廓""basic rating life","基本额定寿命""basic size","基本尺寸""bath lubrication","油浴润滑""bathtub curve","浴盆曲线""bearing","轴承""bearing axial load","轴承轴向载荷""bearing bore diameter","轴承内径""bearing bush","轴套""Bearing characteristic number","轴承特性系数""bearing liner","轴承衬""bearing load carrying capacity","轴承承载能力""bearing mean specific load","轴承压强""bearing outside diameter","轴承外径""bearing radial load","轴承径向载荷""bearing ring","轴承套圈""bearing series (rolling bearing)","轴承系列(滚动轴承)""bearing width","轴承宽度""bearing with solid lubricant","固体润滑滑动轴承""belleville spring","碟形弹簧""belt drive","带传动""belt length","带长""bending vibration","弯曲振动""bevel gear","锥齿轮""bevel gear with axes at right angles","正交锥齿轮""bevel gear with circular arc tooth profile","双重锥度齿锥齿轮" "bevel gear with circular arc tooth profile","圆弧齿廓锥齿轮" "bevel gear with standard taoered tooth profile","正常锥度齿锥齿轮" "bevel gear with straight tooth profile","直线齿廓锥齿轮""bevel gear wuth 90° face angle","平顶齿轮""block brake","块式制动器""block chain","块链""bobed bearing","多油叶滑动轴承""bolt","螺栓""bottom clearance","顶隙""bottom land","齿槽底面""boundary dimension (rolling bearing)","外形尺寸(滚动轴承)" "boundary lubrication ","边界摩擦""brake","制动器""brake drum","制动鼓""brake lining","制动衬片""brake piece","制动块""brake shoe","制动蹄""brake-band clutch","闸带离合器""bush chain","套筒链""cage","保持架""cam","凸轮""cam contour, cam profile","凸轮工作轮廓""cam follower","凸轮从动件""cam pitch curve","凸轮理论轮廓""Cavitation wear","气蚀磨损""center distance","中心距""center distance modification coefficient","中心距变动系数""center gear","中心轮""centric slider-crank mechanism","对心曲柄滑块机构""centrifugal clutch","离心离合器""centrifugal tension","离心拉力""centrifugal force","离心力""centrode mechanism","瞬心线机构""Ceramic friction material ","金属陶瓷""chain","链条""chain coupling","链条联轴器""chain transmission","链传动""chainwheel, sprocket","链轮""chordal height","弦齿高""circular arc profile","圆弧齿廓""circular helix","圆柱螺旋线""circular-arc gear","圆弧圆柱齿轮""Circulating lubrication","循环润滑""circumferential backlash","圆周侧隙""classical V-belt","普通V带""clearance fit","间隙配合""clevis pin with head","销轴""clutch ","离合器""coefficient of travel speed variation, advance- to-return time ratio","行程速度变化系数" "combined spring","组合弹簧""common apex ","公共锥顶""compensator (hydrostatic bearing)","补偿器(静压轴承〕""compost bearing material","复合轴承材料""compound planetary gear train","组合行星齿轮系""compound hinges, multiple hinges","复合铰链""concave side","凹面""cone pulley","锥轮""conical pin , taper pin","圆锥销""conical spiral","圆锥螺旋线""conical spring","截锥螺旋弹簧""conjugate flank","共轭齿面""conjugate profile","共轭齿廓""connecting link","联接链节"。

ANGLE ：角度ALL ROUND ：周边，全周BOT (BOTT) ：底部CB ：沉头孔CL ：中心线C+0.02 ：单边放大0.02间隙chamfer(C) ：倒角CA(NCA) ：清角（不清角）CENTER(CEN)：中心，园心DEEP(DEP) ：深度DWG NO：图号DATUM：基准EDGE ：刀口ECN NO ：设变号码EWL (newl) ：清线头（不清线头）FINISH：硬度GAP ：单边间隙HEIGHT ：高度HATCHING ：阴影线HEAT TREATMENT：热处理INSERT ：入块LEFT：左LARGE ：大端M ：螺纹的规格MARK ：记号标记MATEL：材料材质MAX：最大值MIN ：最小值NF ：细牙NATURE R：自然RNG ：粗牙NAME ：名称NEF：特别攻牙NRT ：新制管牙NPT：是美制锥管螺纹，牙型角度是60度PART NO ：料号PUNCH ：冲头PIERCE PUNCH：落料冲头PCS ：个，块，件PT：英制螺纹它是一种牙形角为55度的密封管螺纹QTY ：数量REF ：参考REV：版次RIGHT：右RC：是英制圆锥管螺纹内螺纹它是牙型角为55度的密封管螺纹R2：英制圆锥外管螺纹代号它是牙型角为55度SYM：中心对齐SMALL ：小端S：落料斜度SCALE：比例SHEET：表单，页次SURFACE ：表面SEC（section cut 部分切）A-A ：A-A剖视TAP ：攻牙TYP ：相同，尺寸一致THRU(THR) ：贯穿TOP：顶部THICK ：厚度TAPPER：锥度斜度TAN ：切点UNIT ：单位VIWE A ：视图A。

香港建筑图纸通用英文缩写及含义(实用版)1. A/C Air Conditioning（空调）指示图纸中空调系统的位置和布局。

2. C/H Chilled Water（冷冻水）表示冷冻水管道或相关系统。

3. D/P Domestic Pipe（生活给水管）指图纸中的生活给水管道。

4. E/L Electrical（电气）通常用来标注电气系统、线路或设备。

5. F/F False Floor（架空地板）指办公室或数据中心常见的架空地板系统。

6. F/C Fire Command（消防指挥）指示消防指挥中心或相关设施的位置。

7. F/H Fire Hydrant（消防栓）标注消防栓的位置和消防水系统的布局。

8. HVAC Heating, Ventilation, and Air Conditioning（供暖、通风和空调）涵盖建筑内的供暖、通风和空调系统。

9. M/E Mechanical and Electrical（机械与电气）指机械和电气系统的综合部分。

10. P/F Partition（隔断）表示内部隔断墙或隔断系统。

11. R/C Reinforced Concrete（钢筋混凝土）用于标注使用钢筋混凝土结构的部分。

12. S/C Sanitary Closet（卫生间）指示卫生间或厕所的位置。

13. S/F Structural Frame（结构框架）标注建筑的结构框架部分。

14. V/D Ventilation Duct（通风管道）表示通风系统的管道布局。

15. W/C Water Closet（马桶）特指马桶的位置。

了解这些缩写有助于快速解读建筑图纸，提高工作效率。

在设计、施工和项目管理过程中，确保各方对图纸的理解一致是至关重要的。

香港建筑图纸通用英文缩写及含义(实用版)16. B/F Basement Floor（地下室楼层）指图纸中的地下室或地下楼层的相关信息。

17. C/C Column Center（柱心）用于标注柱子的中心线位置，对于结构布局至关重要。

图纸上英文缩写图纸上英文缩写缩写全称翻译ACCESS Accessory 附件ADJ Adjustable，Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate 大约ASME Amer Society of Mech Engrs ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center—to—Center 中心到中心CAD Computer—Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose，Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension，External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet，fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor。
