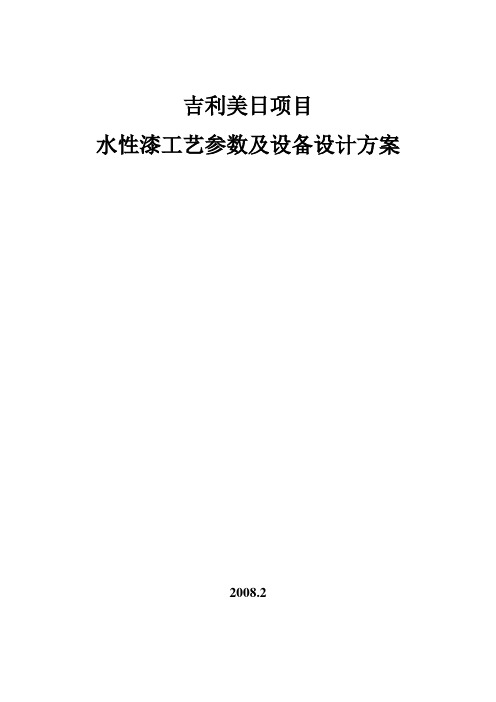

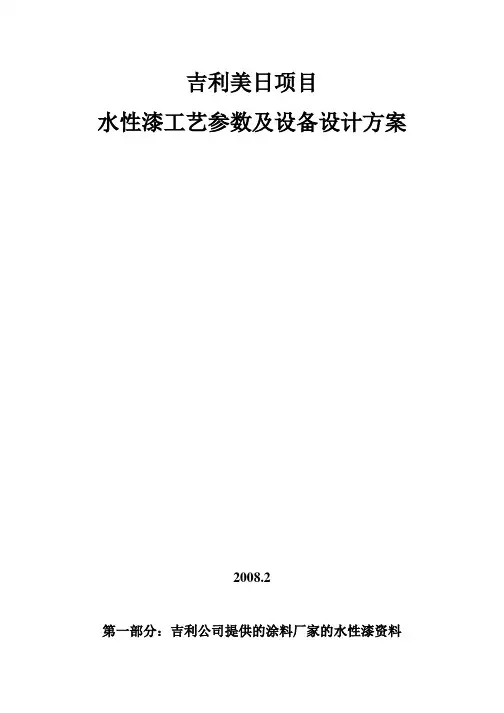

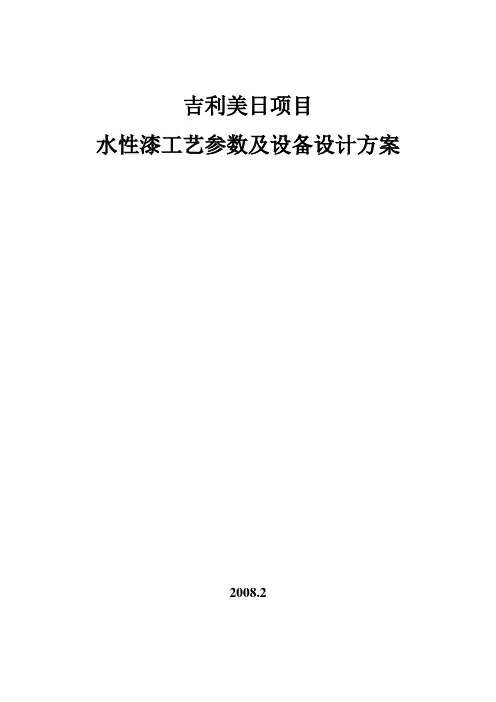

吉利美日项目
水性漆工艺参数及设备设计方案
第一部分:吉利公司提供的涂料厂家的水性漆资料一、公司(上海)
二、公司
?“”
?
?
?.
–<35C
?
–o±o, ±?
–o
?
–o
?
–70C ()?
–μ,μ±μ
?–
?–
?–
?
–
–
?:?????
,
?: ?
?:
?; ; ; ;;
?:
?:
OPP 3
Light grey WB PRIMER
浅灰水性中涂
Paint Properties
Package Viscosity(包装粘度) Din 4 @ 23℃ 45-48s
Weight Per Gallon(密度)SG cup@25℃ 1.25 – 1.3 g/ml
Solids: Weight%(固体份) 1hour@110℃46 – 49 %
Dry Hiding (遮盖力)Black @White ≤ 20 μm Popping limit > 45 μm
Sagging limit > 45 μm
PH value 8.0 – 8. 8
Application Properties (施工参数)
Appl. Viscosity (施工粘度)Din 4 @ 23℃ 39-42s
Application(施工条件) Apply 1 or 2 coats of Primer to 30-35 micron at 50/50 split。
通过一次或两次喷涂达到30-35微米厚的中涂漆。
Flash(闪干): 5-6 minutes flash after application
喷完中涂闪干5-6分钟
Prebake 5-6minutes@80℃ at hot air
Bake(烘烤条件)30 min 160°C
30分钟160℃
Film Properties(P/S+B/C+C/C)漆膜性能(包括中涂漆,底色漆和清漆)
Gloss (光泽)60°60 - 90
Adhesion(附着力)X-cut /tape 100/100
Film Thickness(膜厚)Permascope(micron) 30-35
三、关西涂料(湖南湘江)
有效版本
号:2007-8-15
产品说明书
?
水性中涂
湘江关西涂料有限公司
.
2007-08-15
拟稿校对审批
孙喆
●中涂技术标准
