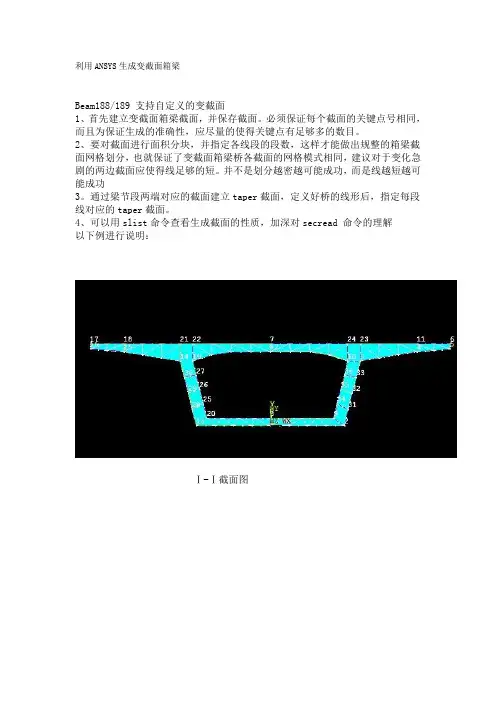

利用ANSYS生成变截面箱梁
Beam188/189 支持自定义的变截面
1、首先建立变截面箱梁截面，并保存截面。必须保证每个截面的关键点号相同，而且为保证生成的准确性，应尽量的使得关键点有足够多的数目。
2、要对截面进行面积分块，并指定各线段的段数，这样才能做出规整的箱梁截面网格划分，也就保证了变截面箱梁桥各截面的网格模式相同，建议对于变化急剧的两边截面应使得线足够的短。并不是划分越密越可能成功，而是线越短越可能成功
3。通过梁节段两端对应的截面建立taper截面，定义好桥的线形后，指定每段线对应的taper截面。
4、可以用slist命令查看生成截面的性质，加深对secread 命令的理解
以下例进行说明：
Ⅰ-Ⅰ截面图
全梁1/2图示Ⅰ-Ⅰ截面命令流
finish
/clear
/prep7
k,1
k,2,2750
k,3,3350,2400
k,4,5450,2750
k,5,6700,2850
k,6,6700,3050
k,8,0,280
k,9,2359,280 k,10,2886,2400 k,11,1836,2750 k,12,0,2750 l,1,2
l,2,3
l,3,4
l,4,5
l,5,6
l,6,7
l,8,9
l,9,10
l,10,11
l,11,12
l,1,8
l,7,12
al,all arsym,x,all aadd,1,2 nummrg,all
adele,1
l,2,9
l,13,20
l,14,19
l,10,3
l,1,8
al,22,17,25,19 al,25,1,21,7 lcomb,15,20 wpoffs,-5450,2750 wprota,,,90 lsbw,18 wpcsys,-1 wpoffs,-3350,2400 wprota,,,90 lsbw,20 wpcsys,-1 wpoffs,-2886,2400 wprota,,,90 lsbw,18 wpcsys,-1
l,14,21
l,19,22
l,7,12
al,14,13,18,26 al,18,12,29,27 al,29,23,30,28 al,30,15,31,20 lcomb,9,10 wpoffs,5450,2750 wprota,,,90 lsbw,6 wpcsys,-1 wpoffs,3350,2400 wprota,,,90 lsbw,32 wpcsys,-1 wpoffs,2886,2400 wprota,,,90 lsbw,6 wpcsys,-1
l,4,11
l,10,24
al,5,4,6,10 al,3,6,33,35 al,24,35,34,36 al,9,36,32,31 ldiv,16,,,4 ldiv,11,,,4 ldiv,2,,,4 ldiv,8,,,4
l,30,27
l,29,26
l,28,25
l,36,33
l,35,32
l,34,31
al,23,42,49,39 al,49,41,50,38 al,50,40,51,37 al,51,11,22,16 al,24,48,52,45 al,52,47,53,44
al,53,46,54,43 al,54,8,21,2 nummrg,all numcmp,all et,1,82 lesize,1,,,4 lesize,17,,,4 lesize,19,,,4 lesize,7,,,4 lesize,22,,,1 lesize,21,,,1 lesize,25,,,1 mshape,1,2d mshkey,2 amesh,1 amesh,2 lesize,23,,,1 lesize,42,,,1 lesize,39,,,1 lesize,49,,,1 lesize,41,,,1 lesize,50,,,1
lesize,38,,,1 lesize,40,,,1 lesize,37,,,1 lesize,51,,,1 lesize,11,,,1 lesize,16,,,1 lesize,22,,,1 lesize,24,,,1 lesize,45,,,1 lesize,48,,,1 lesize,52,,,1 lesize,44,,,1 lesize,47,,,1 lesize,53,,,1 lesize,43,,,1 lesize,46,,,1 lesize,54,,,1 lesize,2,,,1 lesize,8,,,1 lesize,21,,,1 mshape,0,2d mshkey,1
