STM32高级定时器TIM1输出六路带死区互补PWM波形

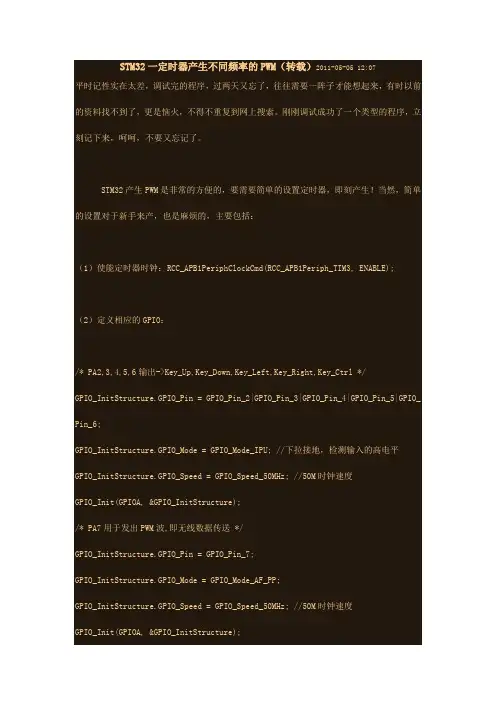

STM32一定时器产生不同频率的PWM（转载）2011-05-05 12:07平时记性实在太差，调试完的程序，过两天又忘了，往往需要一阵子才能想起来，有时以前的资料找不到了，更是恼火，不得不重复到网上搜索。

刚刚调试成功了一个类型的程序，立刻记下来，呵呵，不要又忘记了。

STM32产生PWM是非常的方便的，要需要简单的设置定时器，即刻产生！当然，简单的设置对于新手来产，也是麻烦的，主要包括：（1）使能定时器时钟：RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM3, ENABLE);（2）定义相应的GPIO：/* PA2,3,4,5,6输出->Key_Up,Key_Down,Key_Left,Key_Right,Key_Ctrl */GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_4|GPIO_Pin_5|GPIO_ Pin_6;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPU; //下拉接地，检测输入的高电平GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz; //50M时钟速度GPIO_Init(GPIOA, &GPIO_InitStructure);/* PA7用于发出PWM波,即无线数据传送 */GPIO_InitStructure.GPIO_Pin = GPIO_Pin_7;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz; //50M时钟速度GPIO_Init(GPIOA, &GPIO_InitStructure);（3）如果是产生PWM（频率不变，占空比可变），记得打开PWM控制，在TIM_Configurat ion()中。

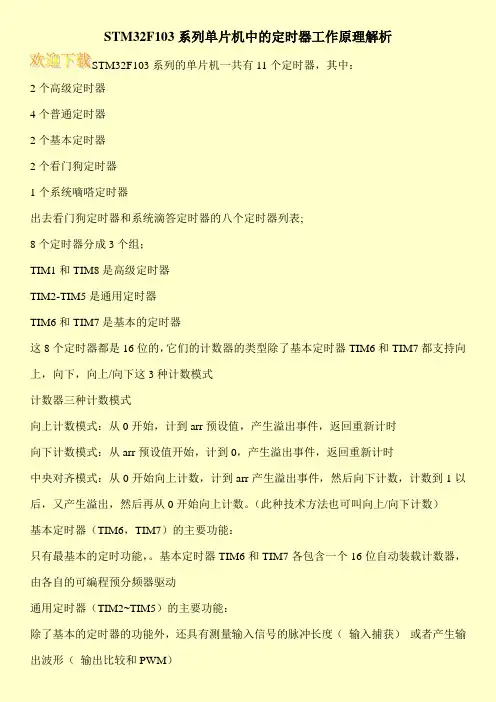

STM32F103系列单片机中的定时器工作原理解析
STM32F103系列的单片机一共有11个定时器，其中：
2个高级定时器
4个普通定时器
2个基本定时器
2个看门狗定时器
1个系统嘀嗒定时器
出去看门狗定时器和系统滴答定时器的八个定时器列表;
8个定时器分成3个组；
TIM1和TIM8是高级定时器
TIM2-TIM5是通用定时器
TIM6和TIM7是基本的定时器
这8个定时器都是16位的，它们的计数器的类型除了基本定时器TIM6和TIM7都支持向上，向下，向上/向下这3种计数模式
计数器三种计数模式
向上计数模式：从0开始，计到arr预设值，产生溢出事件，返回重新计时
向下计数模式：从arr预设值开始，计到0，产生溢出事件，返回重新计时
中央对齐模式：从0开始向上计数，计到arr产生溢出事件，然后向下计数，计数到1以后，又产生溢出，然后再从0开始向上计数。

（此种技术方法也可叫向上/向下计数）
基本定时器（TIM6，TIM7）的主要功能：
只有最基本的定时功能，。

基本定时器TIM6和TIM7各包含一个16位自动装载计数器，由各自的可编程预分频器驱动
通用定时器（TIM2~TIM5）的主要功能：
除了基本的定时器的功能外，还具有测量输入信号的脉冲长度（输入捕获）或者产生输出波形（输出比较和PWM）。

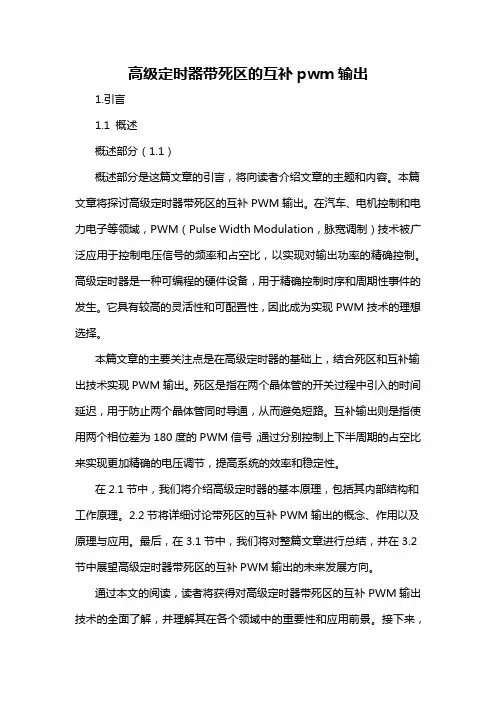

高级定时器带死区的互补pwm输出1.引言1.1 概述概述部分（1.1）概述部分是这篇文章的引言，将向读者介绍文章的主题和内容。

本篇文章将探讨高级定时器带死区的互补PWM输出。

在汽车、电机控制和电力电子等领域，PWM（Pulse Width Modulation，脉宽调制）技术被广泛应用于控制电压信号的频率和占空比，以实现对输出功率的精确控制。

高级定时器是一种可编程的硬件设备，用于精确控制时序和周期性事件的发生。

它具有较高的灵活性和可配置性，因此成为实现PWM技术的理想选择。

本篇文章的主要关注点是在高级定时器的基础上，结合死区和互补输出技术实现PWM输出。

死区是指在两个晶体管的开关过程中引入的时间延迟，用于防止两个晶体管同时导通，从而避免短路。

互补输出则是指使用两个相位差为180度的PWM信号，通过分别控制上下半周期的占空比来实现更加精确的电压调节，提高系统的效率和稳定性。

在2.1节中，我们将介绍高级定时器的基本原理，包括其内部结构和工作原理。

2.2节将详细讨论带死区的互补PWM输出的概念、作用以及原理与应用。

最后，在3.1节中，我们将对整篇文章进行总结，并在3.2节中展望高级定时器带死区的互补PWM输出的未来发展方向。

通过本文的阅读，读者将获得对高级定时器带死区的互补PWM输出技术的全面了解，并理解其在各个领域中的重要性和应用前景。

接下来，我们将深入探讨2.1节的高级定时器的基本原理。

1.2 文章结构:本文主要包括两个主题，分别是高级定时器和带死区的互补PWM输出。

文章的结构如下：第一部分是引言部分，包括概述、文章结构和目的。

在概述部分，我们将介绍高级定时器带死区的互补PWM输出的背景和重要性。

在文章结构部分，我们将说明本文的整体组织结构，明确各个章节的内容。

在目的部分，我们将明确本文的写作目的和意义。

第二部分是正文部分，主要包括两个主题的讨论。

首先是高级定时器的介绍，我们将详细讲解定时器的基本原理以及高级定时器的特点。

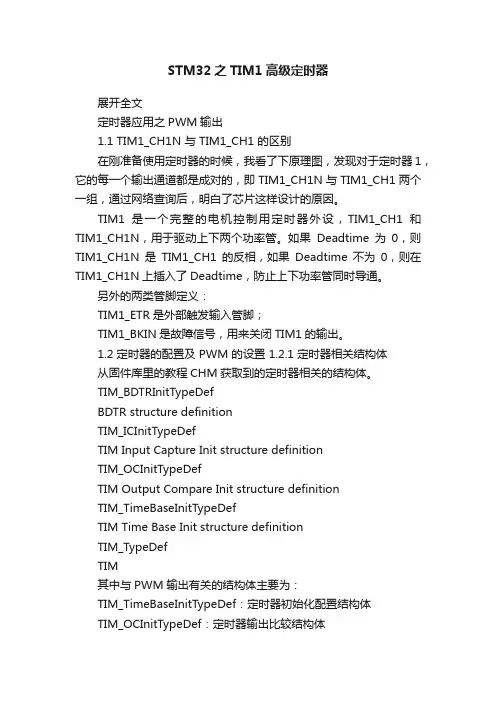

STM32之TIM1高级定时器展开全文定时器应用之PWM输出1.1 TIM1_CH1N 与 TIM1_CH1 的区别在刚准备使用定时器的时候，我看了下原理图，发现对于定时器1，它的每一个输出通道都是成对的，即TIM1_CH1N与TIM1_CH1两个一组，通过网络查询后，明白了芯片这样设计的原因。

TIM1是一个完整的电机控制用定时器外设，TIM1_CH1和TIM1_CH1N，用于驱动上下两个功率管。

如果Deadtime为0，则TIM1_CH1N是TIM1_CH1的反相，如果Deadtime不为0，则在TIM1_CH1N上插入了Deadtime，防止上下功率管同时导通。

另外的两类管脚定义：TIM1_ETR是外部触发输入管脚；TIM1_BKIN是故障信号，用来关闭TIM1的输出。

1.2 定时器的配置及 PWM 的设置 1.2.1 定时器相关结构体从固件库里的教程CHM获取到的定时器相关的结构体。

TIM_BDTRInitTypeDefBDTR structure definitionTIM_ICInitTypeDefTIM Input Capture Init structure definitionTIM_OCInitTypeDefTIM Output Compare Init structure definitionTIM_TimeBaseInitTypeDefTIM Time Base Init structure definitionTIM_TypeDefTIM其中与PWM输出有关的结构体主要为：TIM_TimeBaseInitTypeDef：定时器初始化配置结构体TIM_OCInitTypeDef：定时器输出比较结构体1.2.2 定时器的三个速度在刚开始学习定时器的时候，我对定时器的速度、技术速度都很迷糊，通过前面对STM32时钟系统的学习，以及RCC库里面几个函数的学习，总算明白了，定时器的这三个速度。

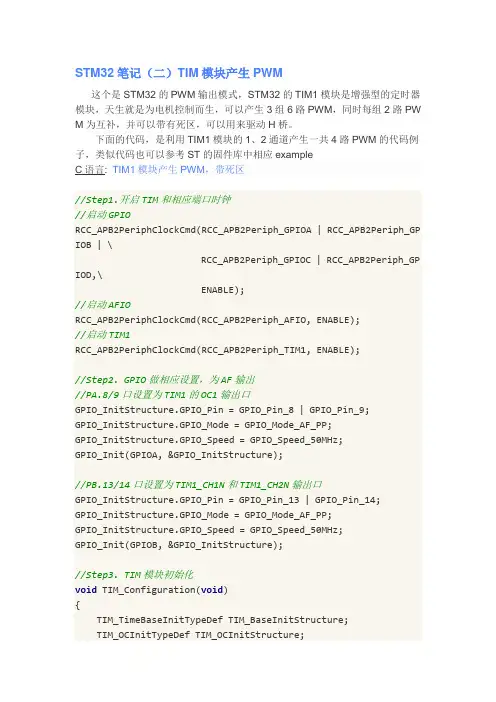

STM32笔记（二）TIM模块产生PWM这个是STM32的PWM输出模式，STM32的TIM1模块是增强型的定时器模块，天生就是为电机控制而生，可以产生3组6路PWM，同时每组2路PW M为互补，并可以带有死区，可以用来驱动H桥。

下面的代码，是利用TIM1模块的1、2通道产生一共4路PWM的代码例子，类似代码也可以参考ST的固件库中相应exampleC语言: TIM1模块产生PWM，带死区//Step1.开启TIM和相应端口时钟//启动GPIORCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA | RCC_APB2Periph_GP IOB | \RCC_APB2Periph_GPIOC | RCC_APB2Periph_GP IOD,\ENABLE);//启动AFIORCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO, ENABLE);//启动TIM1RCC_APB2PeriphClockCmd(RCC_APB2Periph_TIM1, ENABLE);//Step2. GPIO做相应设置，为AF输出//PA.8/9口设置为TIM1的OC1输出口GPIO_InitStructure.GPIO_Pin = GPIO_Pin_8 | GPIO_Pin_9;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;GPIO_Init(GPIOA, &GPIO_InitStructure);//PB.13/14口设置为TIM1_CH1N和TIM1_CH2N输出口GPIO_InitStructure.GPIO_Pin = GPIO_Pin_13 | GPIO_Pin_14;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;GPIO_Init(GPIOB, &GPIO_InitStructure);//Step3. TIM模块初始化void TIM_Configuration(void){TIM_TimeBaseInitTypeDef TIM_BaseInitStructure;TIM_OCInitTypeDef TIM_OCInitStructure;TIM_BDTRInitTypeDef TIM_BDTRInitStructure;//TIM1基本计数器设置（设置PWM频率）//频率=TIM1_CLK/(ARR+1)TIM_BaseInitStructure.TIM_Period = 1000-1;TIM_BaseInitStructure.TIM_Prescaler = 72-1;TIM_BaseInitStructure.TIM_ClockDivision = 0;TIM_BaseInitStructure.TIM_CounterMode = TIM_CounterMode_Up; TIM_BaseInitStructure.TIM_RepetitionCounter = 0;TIM_TimeBaseInit(TIM1, &TIM_BaseInitStructure);//启用ARR的影子寄存器（直到产生更新事件才更改设置）TIM_ARRPreloadConfig(TIM1, ENABLE);//TIM1_OC1模块设置（设置1通道占空比）TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM1;TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enabl e;TIM_OCInitStructure.TIM_OutputNState = TIM_OutputNState_Ena ble;TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_High; TIM_OCInitStructure.TIM_OCNPolarity = TIM_OCNPolarity_High; TIM_OCInitStructure.TIM_Pulse = 120;TIM_OC1Init(TIM1, &TIM_OCInitStructure);//启用CCR1寄存器的影子寄存器（直到产生更新事件才更改设置）TIM_OC1PreloadConfig(TIM1, TIM_OCPreload_Enable);//TIM2_OC2模块设置（设置2通道占空比）TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enabl e;TIM_OCInitStructure.TIM_OutputNState = TIM_OutputNState_Ena ble;TIM_OCInitStructure.TIM_Pulse = 680;TIM_OC2Init(TIM1, &TIM_OCInitStructure);//启用CCR2寄存器的影子寄存器（直到产生更新事件才更改设置）TIM_OC2PreloadConfig(TIM1, TIM_OCPreload_Enable);//死区设置TIM_BDTRInitStructure.TIM_OSSRState = TIM_OSSRState_Enable; TIM_BDTRInitStructure.TIM_OSSIState = TIM_OSSIState_Enable; TIM_BDTRInitStructure.TIM_LOCKLevel = TIM_LOCKLevel_OFF;TIM_BDTRInitStructure.TIM_DeadTime = 0x90; //这里调整死区大小0-0xffTIM_BDTRInitStructure.TIM_Break = TIM_Break_Disable;TIM_BDTRInitStructure.TIM_BreakPolarity = TIM_BreakPolarity _High;TIM_BDTRInitStructure.TIM_AutomaticOutput = TIM_AutomaticOu tput_Enable;TIM_BDTRConfig(TIM1, &TIM_BDTRInitStructure);//TIM1开启TIM_Cmd(TIM1, ENABLE);//TIM1_OC通道输出PWM（一定要加）TIM_CtrlPWMOutputs(TIM1, ENABLE);}其实，PWM模块还可以有很多花样可以玩，比方在异常时（如CPU时钟有问题），可以紧急关闭输出，以免发生电路烧毁等严重事故。

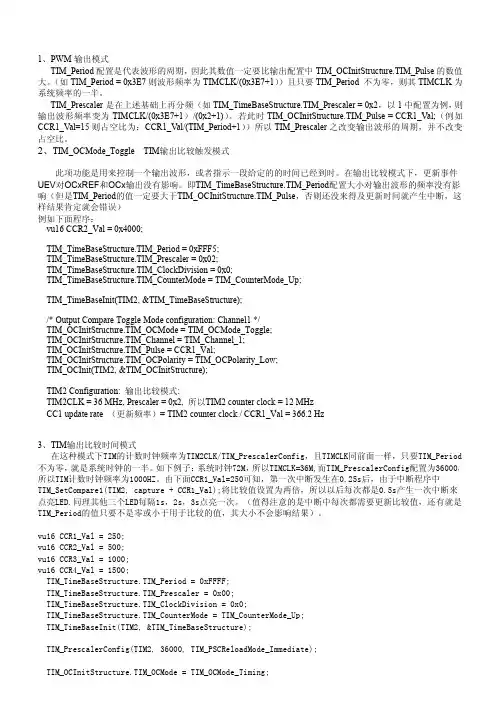

1、PWM 输出模式 TIM_Period 配置是代表波形的周期， 因此其数值一定要比输出配置中 TIM_OCInitStructure.TIM_Pulse 的数值 大。 （如 TIM_Period = 0x3E7 则波形频率为 TIMCLK/(0x3E7+1） ）且只要 TIM_Period 不为零，则其 TIMCLK 为 系统频率的一半。 TIM_Prescaler 是在上述基础上再分频（如 TIM_TimeBaseStructure.TIM_Prescaler = 0x2，以 1 中配置为例， 则 输出波形频率变为 TIMCLK/(0x3E7+1 ） /(0x2+1) ） 。若此时 TIM_OCInitStructure.TIM_Pulse = CCR1_Val; （例如 CCR1_Val=15 则占空比为：CCR1_Val/(TIM_Period+1） ）所以 TIM_Prescaler 之改变输出波形的周期，并不改变 占空比。 2、TIM_OCMode_Toggle TIM输出比较触发模式 此项功能是用来控制一个输出波形，或者指示一段给定的的时间已经到时。在输出比较模式下，更新事件 UEV对OCxREF和OCx输出没有影响。即TIM_TimeBaseStructure.TIM_Period配置大小对输出波形的频率没有影 响（但是TIM_Period的值一定要大于TIM_OCInitStructure.TIM_Pulse，否则还没来得及更新时间就产生中断，这 样结果肯定就会错误） 例如下面程序： vu16 CCR2_Val = 0x4000; TIM_TimeBaseStructure.TIM_Period = 0xFFF5; TIM_TimeBaseStructure.TIM_Prescaler = 0x02; TIM_TimeBaseStructure.TIM_ClockDivision = 0x0; TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up; TIM_TimeBaseInit(TIM2, &TIM_TimeBaseStructure); /* Output Compare Toggle Mode configuration: Channel1 */ TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_Toggle; TIM_OCInitStructure.TIM_Channel = TIM_Channel_1; TIM_OCInitStructure.TIM_Pulse = CCR1_Val; TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_Low; TIM_OCInit(TIM2, &TIM_OCInitStructure); TIM2 Configuration: 输出比较模式: TIM2CLK = 36 MHz, Prescaler = 0x2, 所以TIM2 counter clock = 12 MHz CC1 update rate （更新频率）= TIM2 counter clock / CCR1_Val = 366.2 Hz
