MSP430F5XX_中文翻译第三章_UCS

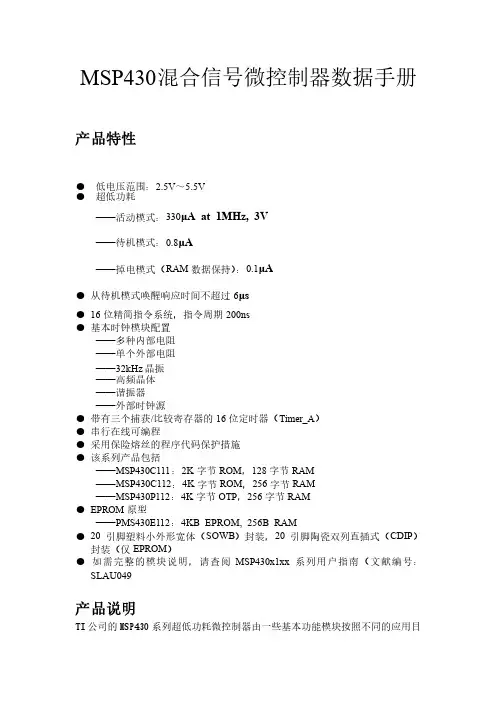

MSP430混合信号微控制器数据手册产品特性●低电压范围：2.5V～5.5V 超低功耗●超低功耗——活动模式：330μA at 1MHz, 3V——待机模式：0.8μA——掉电模式（RAM数据保持）：0.1μA ●从待机模式唤醒响应时间不超过6μs ●16位精简指令系统，指令周期200ns ●基本时钟模块配置基本时钟模块配置——多种内部电阻——多种内部电阻——单个外部电阻——单个外部电阻——32kHz晶振晶振——高频晶体——高频晶体——谐振器——谐振器——外部时钟源——外部时钟源●带有三个捕获/比较寄存器的16位定时器（Timer_A）串行在线可编程●串行在线可编程●采用保险熔丝的程序代码保护措施采用保险熔丝的程序代码保护措施该系列产品包括●该系列产品包括——MSP430C111：2K字节ROM，128字节RAM ——MSP430C112：4K字节ROM，256字节RAM ——MSP430P112：4K字节OTP，256字节RAM 原型●EPROM原型——PMS430E112：4KB EPROM, 256B RAM ●20引脚塑料小外形宽体（SOWB）封装，20引脚陶瓷双列直插式（CDIP）封装（仅EPROM）●如需完整的模块说明，请查阅MSP430x1xx系列用户指南（文献编号：SLAU049 产品说明TI公司的MSP43O系列超低功耗微控制器由一些基本功能模块按照不同的应用目标组合而成。

在便携式测量应用中，这种优化的体系结构结合五种低功耗模式可以达到延长电池寿命的目的。

以达到延长电池寿命的目的。

MSP430MSP430系列的CPU 采用16位精简指令系统，集成有16位寄存器和常数发生器，发挥了最高的代码效率。

它采用数字控制振荡器（DCO DCO）），使得从低功耗模式到唤醒模式的转换时间小于6μs.MSP430x11x 系列是一种超低功耗的混合信号微控制器，系列是一种超低功耗的混合信号微控制器，它拥有一个内置的它拥有一个内置的16位计数器和14个I/0引脚。

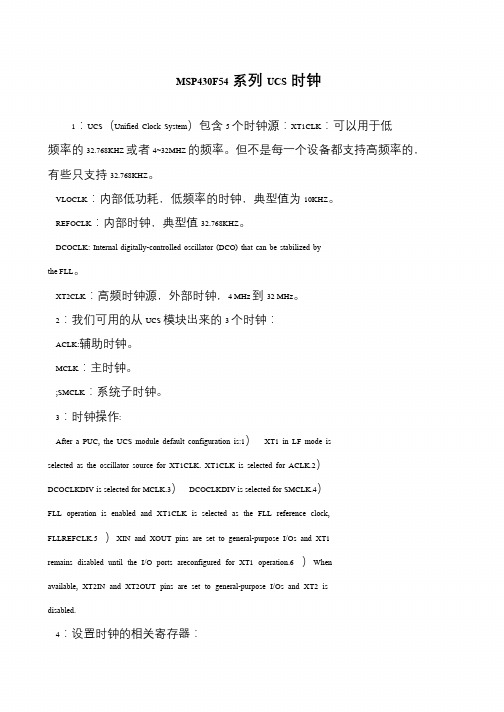

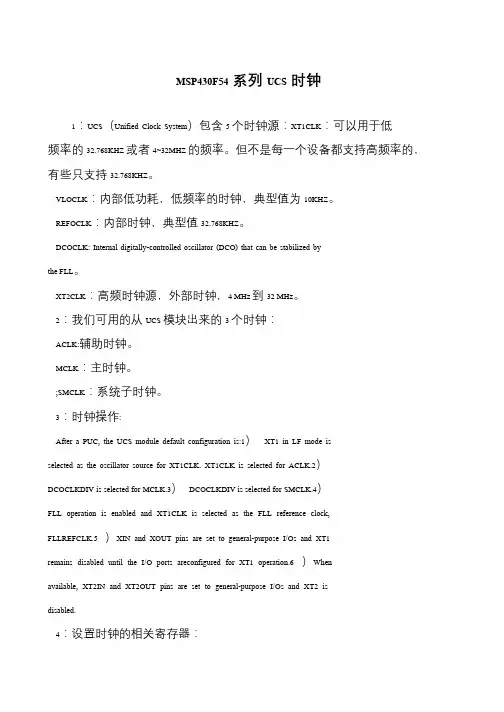

MSP430F54系列UCS时钟1：UCS（Unified Clock System）包含5 个时钟源：XT1CLK：可以用于低频率的32.768KHZ 或者4~32MHZ 的频率。

但不是每一个设备都支持高频率的，有些只支持32.768KHZ。

VLOCLK：内部低功耗，低频率的时钟，典型值为10KHZ。

REFOCLK：内部时钟，典型值32.768KHZ。

DCOCLK: Internal digitally-controlled oscillator (DCO) that can be stabilized by the FLL。

XT2CLK：高频时钟源，外部时钟，4 MHz 到32 MHz。

2：我们可用的从UCS 模块出来的3 个时钟：ACLK:辅助时钟。

MCLK：主时钟。

;SMCLK：系统子时钟。

3：时钟操作:After a PUC, the UCS module default configuration is:1）XT1 in LF mode is selected as the oscillator source for XT1CLK. XT1CLK is selected for ACLK.2）DCOCLKDIV is selected for MCLK.3）DCOCLKDIV is selected for SMCLK.4）FLL operation is enabled and XT1CLK is selected as the FLL reference clock, FLLREFCLK.5 ）XIN and XOUT pins are set to general-purpose I/Os and XT1 remains disabled until the I/O ports areconfigured for XT1 operation.6 ）When available, XT2IN and XT2OUT pins are set to general-purpose I/Os and XT2 is disabled.4：设置时钟的相关寄存器：。

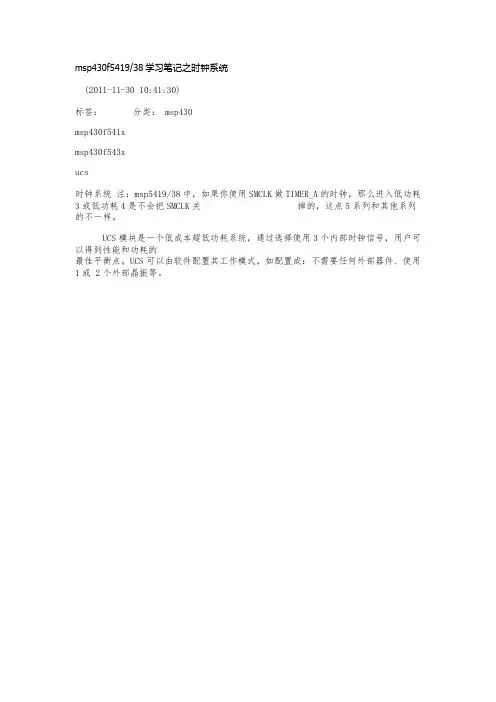

msp430f5419/38学习笔记之时钟系统(2011-11-30 10:41:30)分类： msp430标签：msp430f541xmsp430f543xucs时钟系统注：msp5419/38中，如果你使用SMCLK做TIMER_A的时钟，那么进入低功耗3或低功耗4是不会把SMCLK关掉的，这点5系列和其他系列的不一样。

UCS模块是一个低成本超低功耗系统，通过选择使用3个内部时钟信号，用户可以得到性能和功耗的最佳平衡点。

UCS可以由软件配置其工作模式，如配置成：不需要任何外部器件、使用1或 2个外部晶振等。

一、时钟系统UCS模块具有5个时钟源：XT1CLK：低频/高频振荡器，既可以与低频 32768HZ钟振、标准晶振、外部振荡器，又可以与外部4M-32MHZ时钟源一起使用，XT1CLK可以作为FLL模块内部的参考时钟。

有些芯片XT1CLK只允许使用外部的低频晶振，具体可参考数据手册；XT2CLK：可选高频振荡器，可与标准晶振，振荡器或者 4MHZ~32MHZ外部时钟源一起使用；VLOCLK：内部低功耗、低频振荡器，频率典型值为10KHZ；REFOCLK：内部低频振荡器，典型值为 32768HZ，可作为 FLL基准时钟源；DCOCLK：可以通过 FLL来稳定的内部数字控制振荡器（DCO）；DCOCLK经过 FLL分频后可得DCOCLKDIV。

UCS模块可以提供3种时钟信号：ACLK：辅时钟；MCLK：系统主时钟；SMCLK：子系统主时钟。

二、UCS操作PUC之后，UCS的默认配置模式如下：XT1CLK 选择LF模式下的XT1作为时钟源，ACLK 选择 XT1CLK 作为时钟源；MCLK 选择DCOCLKDIV作为时钟源；SMCLK 选择DCOCLKDIV作为时钟源；FLL操作使能，FLL基准时钟（FLLREFCLK）选择XT1CLK；XIN 和 XOUT作普通IO 口使用，禁止了 XT1 功能，直到 I/O 口重新配置为 XT1 模式；如果有 XT2IN 和XT2OUT，则一并配置为普通 IO 口，禁止 XT2 功能。

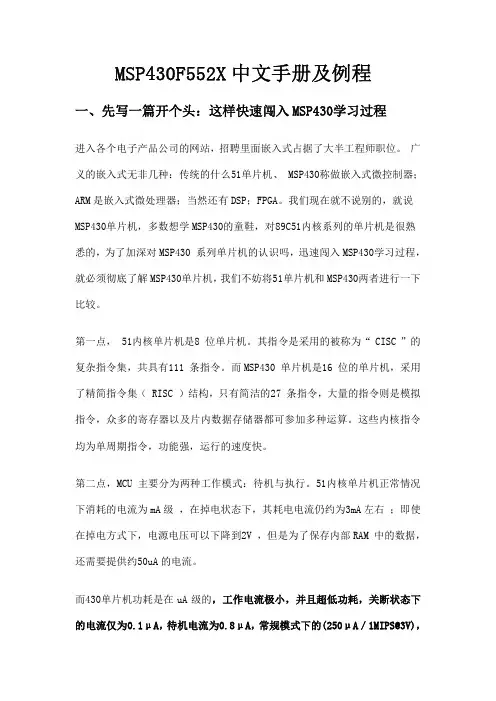

MSP430F552X中文手册及例程一、先写一篇开个头：这样快速闯入MSP430学习过程进入各个电子产品公司的网站，招聘里面嵌入式占据了大半工程师职位。

广义的嵌入式无非几种：传统的什么51单片机、 MSP430称做嵌入式微控制器；ARM是嵌入式微处理器；当然还有DSP；FPGA。

我们现在就不说别的，就说MSP430单片机，多数想学MSP430的童鞋，对89C51内核系列的单片机是很熟悉的，为了加深对MSP430 系列单片机的认识吗，迅速闯入MSP430学习过程，就必须彻底了解MSP430单片机，我们不妨将51单片机和MSP430两者进行一下比较。

第一点， 51内核单片机是8 位单片机。

其指令是采用的被称为“ CISC ”的复杂指令集，共具有111 条指令。

而MSP430 单片机是16 位的单片机，采用了精简指令集（ RISC ）结构，只有简洁的27 条指令，大量的指令则是模拟指令，众多的寄存器以及片内数据存储器都可参加多种运算。

这些内核指令均为单周期指令，功能强，运行的速度快。

第二点，MCU主要分为两种工作模式：待机与执行。

51内核单片机正常情况下消耗的电流为mA级 ，在掉电状态下，其耗电电流仍约为3mA左右 ；即使在掉电方式下，电源电压可以下降到2V ，但是为了保存内部RAM 中的数据，还需要提供约50uA的电流。

而430单片机功耗是在uA级的，工作电流极小，并且超低功耗，关断状态下的电流仅为0.1μA，待机电流为0.8μA，常规模式下的(250μA／1MIPS@3V)，端口漏电流不足50 nA，并可零功耗掉电复位(BOR)。

另外，该芯片属低电器件，仅需1.8～3.6V电压供电，因而可有效降低系统功耗。

MSP430将低功耗模式扩展为7种，分别对应不同应用场合及任务的低功耗方式。

以睡眠模式为例，包括深度睡眠模式RTC：只有时钟在跑而其他都不动，目前，TI宣布其MSP430在RTC模式下最低功耗仅为360nA。
