48V1500W正弦波逆变器说明书-全功能版

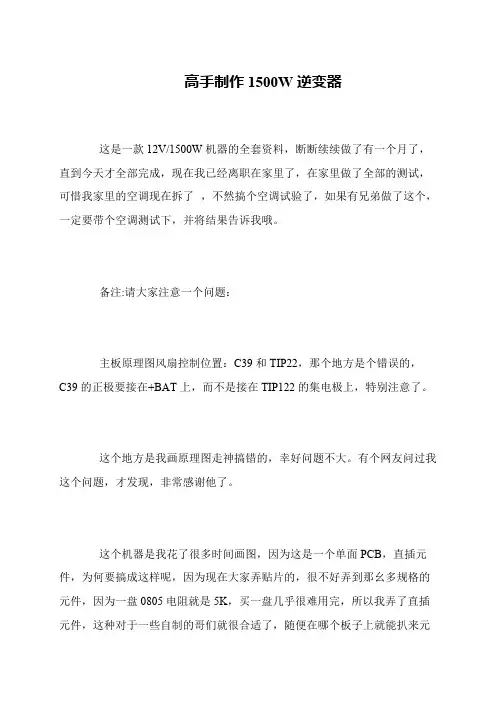

高手制作1500W逆变器
这是一款12V/1500W机器的全套资料，断断续续做了有一个月了，直到今天才全部完成，现在我已经离职在家里了，在家里做了全部的测试，可惜我家里的空调现在拆了，不然搞个空调试验了，如果有兄弟做了这个，一定要带个空调测试下，并将结果告诉我哦。

备注:请大家注意一个问题：
主板原理图风扇控制位置：C39和TIP22，那个地方是个错误的，
C39的正极要接在+BAT上，而不是接在TIP122的集电极上，特别注意了。

 
这个地方是我画原理图走神搞错的，幸好问题不大。

有个网友问过我这个问题，才发现，非常感谢他了。

这个机器是我花了很多时间画图，因为这是一个单面PCB，直插元件，为何要搞成这样呢，因为现在大家弄贴片的，很不好弄到那幺多规格的元件，因为一盘0805电阻就是5K，买一盘几乎很难用完，所以我弄了直插元件，这种对于一些自制的哥们就很合适了，随便在哪个板子上就能扒来元。

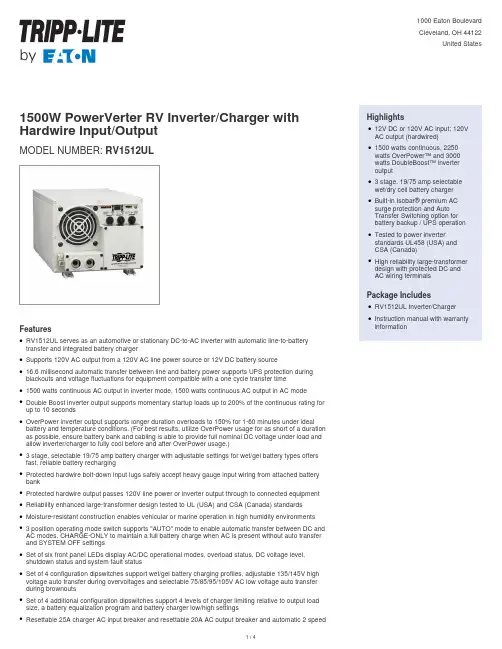

1500W PowerVerter RV Inverter/Charger with Hardwire Input/OutputMODEL NUMBER:RV1512ULFeaturesRV1512UL serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery chargerqSupports 120V AC output from a 120V AC line power source or 12V DC battery sourceq16.6 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer timeq1500 watts continuous AC output in inverter mode, 1500 watts continuous AC output in AC modeqDouble Boost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 secondsqOverPower inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions. (For best results, utilize OverPower usage for as short of a duration as possible, ensure battery bank and cabling is able to provide full nominal DC voltage under load and allow inverter/charger to fully cool before and after OverPower usage.)q3 stage, selectable 19/75 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery rechargingqProtected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bankqProtected hardwire output passes 120V line power or inverter output through to connected equipment qReliability enhanced large-transformer design tested to UL (USA) and CSA (Canada) standardsqMoisture-resistant construction enables vehicular or marine operation in high humidity environmentsq3 position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settingsqSet of six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault statusqSet of 4 configuration dipswitches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownoutsqSet of 4 additional configuration dipswitches support 4 levels of charger limiting relative to output load size, a battery equalization program and battery charger low/high settingsqResettable 25A charger AC input breaker and resettable 20A AC output breaker and automatic 2 speed q Highlights12V DC or 120V AC input; 120V AC output (hardwired)q1500 watts continuous, 2250watts OverPower™ and 3000watts DoubleBoost™ inverteroutputq3 stage, 19/75 amp selectablewet/dry cell battery chargerqBuilt-in Isobar® premium ACsurge protection and AutoTransfer Switching option forbattery backup / UPS operation qTested to power inverterstandards UL458 (USA) andCSA (Canada)qHigh reliability large-transformer design with protected DC andAC wiring terminalsqPackage IncludesRV1512UL Inverter/ChargerqInstruction manual with warranty informationqSpecificationscooling fan protect the inverter from load and temperature related failuresGrounding lug properly connects the inverter/charger system to earth ground or vehicle grounding systemqAutomatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions developqFront panel remote control connector enables remote off/on switching (requires APSRM4 switch accessory). Optional APSRM4 accessory also includes user configurable jacks to support inverter shutoff or startup as a vehicle ignition is engagedqLoad sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load conditions changeqIncludes battery temperature sensor with 20-ft. (6.09 m) cable to prolong battery life by adjusting the charge level based on battery temperatureqAutomatic Generator Starter jack enables user configuration of automatic generator startup as inverter batteries drop to 11.5VDC and generator shutoff as inverter batteries are recharged to 14.1VDCq© 2023 Eaton. All Rights Reserved. Eaton is a registered trademark. All other trademarks are the property of their respective owners.。

POWER INVERTERRoHSPromote green energyModified Sine Wave Pure Sine WaveUSERUSER MANUALStatement: there are some differences between the image and the real object, please subject to real objects; Products are being updated constantly,if you need to learn more,Do not open inverter without permission!Universal Australia France&Germany I talySmall Europe Type South Africa UK USAAustralia Europe&USA&Japan France Germany60006000W12000W12/24/48VPure sine wave or Modified sine waveThank you for purchasing our Power Inverter.lt is a compact and highly portable power inverter Which has an excellent track record in the field of high frequency inverter. From the 12V/24V/48V DC outlet in your vehicle or boat, or directly from a dedicated 12V/24V/48V DC battery,this inverter can efficiently and reliably power a wide variety of house hold AC products,such as TV, Computers,Air-conditioner etc. Please read this guide before installing or using the Due to our continuous work to upgrade and improve our products, we may change or revise the contents of this manual instructions or any part of it without giving any further notice.Pure sine wave or Modified sine wave600W 1200W800800W 1600W12/24/48V 12/24/48VType:TypeA,TypeB,TypeC,TypeD,TypeE,TypeF,TypeG;75W,100W,150W,200W,300W,500W,600W,800W,1000W,1200W,1500W,2000W,2500W,3000W,4000W,5000W,6000W,8000W,10000W,1205,2405,1210,2410,1215,2415,1220,2420,1230,2430,1250,2450,M:Modified sine wave inverterSY:Movable solar power system;Pure sine wave or Modified sine wave25002500W 5000W30003000W 6000W12/24/48V 12/24/48V………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………12-3456677-889-1011-151617-2122-24SOLUTIONShorten the wire or use widercable. Charge the battery.Make the inverter get cooler.Improve ventilation around the inverter. Place the inverter at a cool place.Feed the load according to e bigger power Check the connection and ower a s a n ormal h ousehold f an o r v ent o penings. 1-4. Do not under any circumstance, connect the inverter to AC power.1-5. The inverter housing may become uncomfortably warm, reaching 140F(60℃)under extended high power opeartion. Ensure at least 2 inches (5cm) of air space is maintained on all sides of the inverter.During operation, keep away from materials that 1-6. Do not use the inverter in the presence of flammable fumes or gases, such as in the bilge of a gasoline powered boat,or near a propane tanks. Do not use the inverter inSOLUTIONmodified sine wave real effective value to get the accurate Charge the battery or change batteryan enclosure containing automotive-type, lead-acid batteries.These batteries, unlike sealed batteries,emit explosive hy-drogenation which can be ignited by sparks from electrical tlets.T h e in verter w ill be 1-8. Do not expose the inverter to temperatures exceeding 104F(40℃).CAUTION! Do not use the inverter with the following equipment;1-9. Small battery operated products such as rechargeable falshlights,some rechargeabl shavers, and nightlights that are plugged directly into an AC receptacle to recharge.1-10. Certain battery chargers for battery packs used in hand powered tools. These chargers will have warning labels stating that dangerous voltages are present at the 1-11. Note DC voltage of battery should be similar to input DC voltage of power inverter (for example DC12V of battery should be connected with input voltage 12V of the inverter).SOLUTIONUse appliances havingpower below the inverter ′s Since the peak power of the electric appliances exceeds the peak power of the inverter, use an appliance with a peak power consistant with the inverterThe electric appliances does not work,and the red FAULT indicator of the inverter lights.The inverter come in two types; pure sine wave power type and modified sine wave type. In the pure sine wave power inverter, the 240V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. As a result, the pure sine wave output would be A Graphic Comparison of Modified Sine Wave and Pure Sine Wave is shown belew:Pure Sine WaveOverload protection / Over voltage protection / Short Circuit protection / Over、Sand bl a st M achine、Scanning Machine etc.Lamp or LED、SewingFreezer、 Coffemaker、For safe and optimum performance,install the inverter in a location that is：3-1-2. Cool - Operate only in ambient temperatures between 32F (0℃) and 104F ). Keep away from heating vents or other heat producing equipment.3-1-3. Safe - Do not install inverter in a compartment with batteries or flammable 3-1-4. Well ventilated - Allow at least 2 inches(5cm)clearance above and on all sides 3-1-5. Clean and free of dust and dirt- This is especially important if the inverterSOLUTIONReplace the battery or usebattery charger to charge yourSwitch off the inverter and let itget cooled for 15 minutes. Clearobjectes around the fan and theinverter. Place the inverter at acool place.Reduce loadaccording to requirements.Check the working state of thecharging system. Make sure theoutput voltage of the battery iswithin the proper voltageAC appliances do not work, and the green power indicator does not light.SOLUTIONCheck the battery, replace it ifcorrect the connection to battery,the inverter may be damaged.Replace the fuse inside inverter(outside warranty cover)Check the cables and theconnection, screw tight thewiring terminal-14-The Sketch of InverterModified sine wave800W-2000W,Pure sine wave800W-2000WOutputs connectionTips ：48V a nd 2 4V i n verters a re c onnected i n s imilar w ays,b ut t h e b atteries i n s eries.AC OutletsGround Connection nutUSB DC 5VBattery Connection Red+Battery Connection Black-Battery connecting cablesFanThe inverter works in two stages. During the first stage, the DC to DC converter increases the DC input voltage from the power source (eg.A 12V battery) to 300V DC In the second stage, the high voltage DC is converted to the watts you need (AC) using advanced power MOSFET tran-sistors or IGBT technology in a full bridge configuration The result is excellent overload capability and the capacity to operate difficult reactive loads 3-3-1.Attach the ring type connector marked with redto the positive (+) DC terminal on the inverter and attach the ring connector marked with black to the negative (-) DC A reverse polarity connection (positive to negative) may damage the inverter (Fuse)Damage caused by a reverse polarity connection would probably invalidate your warrantyWARNING: Sparking may occur when connecting the unit to the battery, makesure no flammable fumes are present before making any connections.3-5-1. When a 12V/24V/48V DC outlet or battery properly connected to the inverter,turn on the ON/OFF, the green Power indicator will light, and it deliver AC power to the 3-5-2. Plug the AC appliances you wish to operated into the AC outlet (s) and switch NOTICE: When connect to the appliances,remember to turn on the inverter 3-5-3. If the audible alarm be ignored the inverter may be automatically shut down when the battery voltage drops to 9.8-10.2V / 19.6-20.4V / 39.2-40.8V. in order to 3-5-4. If the AC appliances rated power is higher than inverters rating(or the appliance draws excessive surge power),the inverter will shut down. The red FAULT indicator will light. 3-5.5. If the inverter exceeds a safe operating temperature, due to insufficient.ventilation or a high surrounding temperature , it will automatically shut down. The red FAULT indicator will light and the audio warning alarm will sound.3-3-2. Tighten the nut on each DC terminal by hand until it is snug. If the power more 3-3-3. When the inverter is not in use , unplug it from the 12V/ 24V /48V DC 3-5-6. If a defective battery charge system has caused the battery voltage to rise to a dangerously high level, the inverter will automatically shut down.3-5-7. The cooling fan is designed to operate only when the temperature goes up or CAUTION: Before using the inverter,please provide a ground connection wire. On the rear panel of the inverter is at erminal fitted with a nut for connecting to the inverter and to the earth terminal of the AC output socket. Please choose heavy duty, insulated green/yellow wire. Drive into the ground to a depth of 1-2m or more. In a vehicle,connect the inverter to the chassis of the vehicle. In a boat, connect to the boat ˋs We advise that please use deep cycle battery. If you hear the low voltage alarm, please stop the inverter immediately. When the battery is fully charged, the inverter can be used again. If you use the inverter in a car, then it would be necessary to run the engine of your car after each time you use the inverter. You can run the engine for 10 minutes or so to recharge the -13-Modified sine wave3000W-6000W,Pure sine wave3000W-6000WLight Indicators Power (Green) and Fault (Red)Ground Connection nutFanBattery Connectiong LinesUSB DC 5VON/OFF SwitchAC OutletsBattery Connection,Red+, Black-CAUTION: Although the inverter incorporates the protection function against over-voltage, there would be still the possibility of getting the unit damaged Modified sine wave150W-600W,Pure sine wave150W-600WCrocodile Clip linesUSB DC 5VON/OFFSwitchAC OutletsCigarette Lighter FanBattery Connection,Red+, Black-。

Pure Sine Wave InverterUser ManualTP10K/TP10KBContentsImportant Safety Instructions (1)1. Product Overview (5)1.1 Information & Features (5)1.2 Structure (6)1.3 Name definition (9)1.4 Connection schematic diagram (9)1.5 Electrical schematic diagram (10)2. Installation (11)2.1 Warning (11)2.2 Wire & breaker selection (11)2.3 Instructions (12)2.4 Output voltage/frequency grade switch (17)3. Interface (18)3.1 Indicator (18)3.2 Buzzer (19)3.3 Buttons (19)3.3 LCD Display (19)3.4 Icon (20)3.5 Operation (20)4. Protection (22)5. Troubleshooting (25)6. Maintenance (27)7. Specifications (28)AnnexⅠ Disclaimer (32)AnnexⅡ Mechanical Dimension Diagram (33)Important Safety InstructionsPlease reserve this manual for future review.This manual contains all the instructions about safety, installation, and operation for TPower series pure sine wave inverter (hereinafter referred to as the inverter).Explanation of symbolsTo enable the user to use the product efficiently, as well as to ensure personal and property safety, this manual provides related information and emphasize the following symbols.Please read the related words carefully when you encounter the following symbols in the manual.TIP:Indicates any practical advice for reference.IMPORTANT:Indicates a critical tip during the operation, if ignored, may cause the device to run in error.CAUTION:Indicates potential hazards, if not avoided, may cause the device damaged.WARNING:Indicates the danger of electric shock, if not avoided, would cause casualties.WARNING HOT SURFACE:Indicates the risk of high temperature, if not avoided, would cause scalds.Read the user manual carefully before any operation.Symbols of inverterWARNING: The entire system should be installed by professional and technical personnel.2. Requirements for professional and technical personnel:•Professionally trained;•Familiar with related safety specification for the electrical system;•Read this manual carefully, and master related safety cautions.3. Professional and technical personnel is allowed to do:•Install the inverter to the specified location;•Conduct trial operations for the inverter;•Operate and maintain the inverter.4. Safety cautions before installation:IMPORTANT: When receiving the inverter, please firstly check if there is any damage occurred in transportation, if find any problem, please contact the transportation company or our company in time.CAUTION: When place or move the inverter, must follow the instructions in the manual.CAUTION: When install the inverter, must evaluate whether the operation area exists any arc danger.WARNING: Do not place the inverter in places where children can touch.WARNING: The inverter is off-grid type, and it is strictly prohibited to be connected to the grid; otherwise the inverter would be damaged.WARNING: The inverter is only allowed for stand-alone operation, and it is prohibited to connect multiple units’ output in p arallel or in series; otherwise the inverter would be damaged.5. Safety cautions for mechanical installation:WARNING: Before installation, must make sure the inverter has no electrical connection.WARNING: Ensure the heat dissipation space for the inverter installation, and do not install the inverter in humid, greasy, flammable, explosive, dust accumulative or other severe environments.6. Safety cautions for electrical connection:CAUTION: Check if all the wiring connections are tight, to avoid the danger of heat accumulation due to a loose connection.WARNING: Both utility input and AC output are of high voltage, do not touch the wiring connection to avoid electric shock.7. Safety cautions for inverter operation:WARNING HOT SURFACE: When the inverter is working, its heat sink and casing will generate a lot of heat, the temperature would be very high, please do not touch it.CAUTION: When the inverter is working, please do not open the inverter cabinet to operate.8. The dangerous operations which would cause electric arc, fire or explosion: •Hot plug the high voltage fuse on the inverter DC side.•Touch the wire end which hasn’t been insulation treated and maybe electriferous.•Touch the wiring copper row, terminals or internal devices which may be electriferous.•Power cable connection is loose.•Screw or other spare parts inadvertently falls into the inverter.•Incorrect operation by untrained non-professional or technical personnel.WARNING: Once an accident occurs, must be handled by professional and technical personnel. Any incorrect operation would cause a more severe accident.9. Safety cautions for stopping the inverter:•Firstly turn off the breakers on the utility input side and AC output side, then turn off the DC switch;•After the inverter stop working for five minutes, the internal conductive devices could be touched;•The inverter can be restarted after removing the faults which may affect its safety performance;•No maintenance parts in the inverter, if any maintenance service is required, please contact our after-sales service personnel.10. Safety cautions for inverter maintenance:•Testing equipment is recommended to check the inverter, to make sure there is no voltage or current;•When conducting electrical connection and maintenance work, must post temporary warning sign or put up barriers, to prevent unrelated personnel from entering the electrical connection or maintenance area;•Improper maintenance operation to the inverter may cause personal injury or equipment damage;•To prevent electrostatic damage, recommend to ware antistatic wrist strap or avoid unnecessary contact with the circuit board.CAUTION: The safety mark, warning label and nameplate on the inverter should be clearly visible, not removed or covered.1.Product Overview1.1Information & FeaturesTPower series is designed aspure sine wave power frequency inverter, whichconverts 110/220VDC to220/230VAC.Thisdevice consists of a DC-AC inverting module and AC-AC bypass module in parallel, also featuredwithhigh reliability, high efficiency, concise appearance, full protection, easy installation and operationfunctions.DC-AC inverting module is anintelligent and full digital designed component with advanced SPWM technology. The module is designed with the pure sine wave output toconvert 110/220VDC to220/230VAC for multiple types of AC loads, such as home appliances, electric tools, industrial devices, audio equipment and solar photovoltaic system.AC-AC bypass module used advanced control algorithm to ensure the stability of output voltage and achieve the fast switching feature. Also the high reliability and high-performance semiconductor inside the module reduce the size and prolong the service life.The 4.2 inches segment type of LCD displays the system operation data and statesin real time.The case in sheet-metal design is featured with high intensity and shielding electromagnetic interference. Also, the universal rotary caster is optional for the system, which contains lifting support feet to fix or move the inverter at anytime and improve product mobility and flexibility.Features：•Advanced SPWM technology and pure sine wave output•Fully digitalized voltage and current double closed-loop control•Low output harmonic distortion(THD≤3%)•Mode selection of bypass priority and inverter priority•Output voltage 220/230VAC and frequency 50/60Hz selectable•Real-time power queryand output power statistics function•Automatic protection featuresof the short circuit, overheating and overload.• 4.2 inches LCD display the system operation data and state dynamically with friendly AI interface•Multiple LED indicators show the operating status of the system in real-time •Designed with soft boot control to avoid the battery be damaged by high current impact when turning on the system•AC OUT button controls the AC output individually•Smart fan control reduces energy consumption and noise•Use popular semiconductor modules with high reliability and low power consumption•Designed with remote switch & RS485 communication interface to achieve the features of remote monitoring and hardware Stop&Start, also the Wi-Fi and Bluetooth communication modules are selectable•Universal rotary caster is optional for free movement and fixation.•Modular design, easy maintenance and repair1.2 Structure(1) FOOT MASTER caster(Optional accessory)Rotate clockwise to raise the supporting feet, then tomove the inverter.Rotate counterclockwise to lower the supporting feet,then to fix the inverter.⑵Terminals and breakers★Interface connection method :(3)DC fan and AC fanDC fan 2 pieces:When the radiator temperature rises to 45℃ above, the DC fans will start; when the radiator temperature declines to 35℃ below, the DC fans will stop .IMPORTANT: DC fans have the self-checking function when the inverter is powered on, the DC fans would run for three seconds automatically.AC fan 3 pieces:Inverter priority:When the internal temperature rises to 35℃ above, and with inverter output, the AC fans will start.When internal temperature declines to 30℃ below, or with no inverter output, the AC fans will stop.1.3Name definition1.4Connection schematic diagramWARNING: The AC equipment must be determined according to the output power of the inverter. Do not connect the load in excess of the inverter’s maximum input power, otherwise, the inverter may be damaged.2. Installation2.1 Warning•Please read the manual carefully to get familiar with the installation steps before installation.•Be very careful when installing the batteries, especially flooded lead-acid battery.Please wear eye protection, and have fresh water available to rinse if any contact with battery acid.•Keep the battery away from any metal objects, which may cause a short circuit of the battery.•Loose connections and corroded wires may result in high heat that can melt wire insulation, burn surrounding materials, or even cause a fire. Ensure tight connections and use cable clamps to secure cables and prevent them from swaying in motion.•Select the system connection cables according to the current density no higher than 5A/mm2.(In accordance with the National Electrical Code Article 690, NFPA70).•For outdoor installation, keep out of the direct sunshine and rain infiltration.•High voltage still exists inside the inverter after turning off the switch, do not open or touch the internal devices, wait five minutes before conducting related operations.•Please do not install the inverter in humid, greasy, flammable, explosive, dust accumulative or other severe environments.•Prohibit reverse connection at the battery input end; otherwise it will easily damage the equipment or cause unpredictable danger.•Both utility input and AC output are of high voltage;please do not touch the wiring connection.• When the fan is working, please do not touch it to avoid injury.2.2 Wire& breaker selectionWiring and installation mode should comply with national and local electrical code requirements.••TP30KBIMPORTANT: The wire size is for reference only, use thicker wires to lower the voltage drop and improve the system performance when the distance between utility and inverter or between inverter and batter is far.IMPORTANT: The above wire size and circuit breaker size are for recommendation only, please choose suitable wire and circuit breaker according to the practical situation.2.3InstructionsInstallation steps：Step1：Professional personnel read this manual carefully.Step2：Determine the installation location and heat dissipation space.Move the equipment: as the equipment is relatively large, it is recommended to use forklift or crane; if the ground is flat, it can be moved by wheels.Place to the location: As the equipment is heavy, it is recommended to be placed on flat ground, with 300mm space reserved all around, to ensure heat dissipation.Fix the equipment: If choose the optional caster, rotate counterclockwise to fix and rotate clockwise to move.WARNING: Risk of explosion!Never install the inverter with flooded batteries in a sealed enclosure! Do not install the device in a confined area where battery gas can accumulate.Step3：Take down the junction box cover plate with special tools.Step4：WiringWiring order:❶Ground——❷Battery——❸Utility——❹AC loadsWARNING: Never connect the utility to the inverter output; otherwise the inverter may be damaged.•GroundingThe voltage of the whole system exceeds the safety voltage level. Thus reliable grounding is needed. The grounding wire shall be the thicker wire(no less than 35mm2), and shall be as short as possible. The grounding point shall be as close as possible to the inverter.CAUTION: When wiring, follow the order ❶❷❸❹ to connect the cables to the equipment, then follow the order ❶❷❸❹ to connect ground, battery, utility and load.WARNING: Make sure all the wiring connections are reliable, otherwise massive heat would accumulate at the connection points to damage the terminals, or even cause a fire.WARNING: Danger, high voltage! Utility input, AC output and DC input will produce high voltage, do not close the breakers during wiring, and make sure the correct polarity of each component.Step5：Connect accessories•Mobile APP(For Android only)Download software：—EPEVER(TP)Communication cable: M12-6-male pin + crystal head-1000mm-v1.0Modules: eBox-WIFI-01 and eBox-BLE-01•PC SoftwareDownload software：—Inverter Monitor(TP)Communication cable: 1.M12-6-male pin + crystal head-1000mm-v1.02.RJ45 Coupler3. CC-USB-RS485-0.3mm2-3m-V1.1Step6：Double check the reliability of wiring connections.Step7：Put on the cover plate.Indicator：Inverter indicator on solidLCD：Step8：Close the bypass circuit breakerThe indicator：utility indicator on solidLCD：Step9：Close the load circuit breakerLCD：Step10：Inverter outputMethod 1: Press the “AC output” button for 3 seconds, the inverter would start the output.Method 2: Connect the remote switch, short-circuit the cable 1(red) and cable 2(white) of the remote switch and RS485 communication interface, the inverter would start the output.Indicator：Inverter indicator slowly flashing and load indicator on solid.LCD：Step11：Turn on the loadLED indicators: Inverter and load indicators are slowly flashing.CAUTION: In case the power is supplied to the different AC loads, it is suggested to turn on the loads with larger surge current first, till the load working well, then turn on the loads with smaller surge current. Especially for inductive loads, should be turned on one by one. Do not turn on the loads at the same time, so as not to cause excessive impact to the inverter, to shorten its life span.CAUTION: In case the inverter is not in regular operation, or LCD or indicator displays abnormal, refer to Section 5 to clear the fault or contact the after-sale service personnel of our company.Step12：Power off the equipmentOpen the AC load circuit breaker—long press “AC output” button to turn off the inverter output—open the bypass circuit breaker—open the battery circuit breaker.WARNING: As electricity exists in the capacitance, the LCD screen would be off after 30 seconds; wait 5 minutes before opening the equipment to repair.WARNING: After the inverter is disconnected from utility and battery bank, need to wait 5 minutes before touching the internal conductive devices.WARNING: As the inverter has soft stat design and only takes effect when the first time it starts, do not frequently switch the input circuit breaker when the inverter is incompletely powered off, otherwise the input battery would undergo high current impact. That is, the input circuit breaker can be closed again after the LCD screen is off.2.4Output voltage/frequency grade switchWhen the dial switch 1 is placed to the ON side, the outputfrequency is 60Hz, otherwise it is 50Hz,When the dial switch 2 is placed to the ON side, the outputvoltage is 230VAC, otherwise it is 220VAC.Operating steps:Open the cover plate on the inverter right side, find the dial switches on the control board which is located on the top left corner, see above picture. Set the outputvoltage/frequency according to demand, then restart the inverter to take effect.IMPORTANT: The factory default output voltage is 220VAC, the output frequency is 50Hz.IMPORTANT: The accessories can refer to the Packing list.3. Interface3.1Indicator3.2 Buzzer3.3 Buttons3.3LCDDisplay3.4 IconIcon Icon3.5 Operation1) Turn on the load:Operation:P ress the “AC output” button for 3seconds, load indicator changes from off to solid on.•Switch from inverter mode to bypass modeOperation:P ress “inverter/bypass” button for 3seconds, bypass indicator changes from off to solid on, inverter indicator changes from on solid to off.3)Clear electricity modeOperation:P ress“inverter/bypass” and “browse” button for 3seconds together to clear the accumulated consumed electricity.•Clear faultOperation:Under failure state, short press any button, the buzzer would stop sounding, but the failure code would still be displayed.IMPORTANT: In case of a non-recoverable failure state, if confirmed the fault is cleared, long press “browser” and “AC output” buttons together to clear the fault, the inverter would recover the output.Press the “Browse + AC output” buttons to clear the faults, the inverter recover output.6.MaintenanceThe following inspections and maintenance tasks are recommended at least two times per year for the best performance.•Make sure no block on air-flow around the inverter. Clear up any dirt and fragments on the radiator.•Check all the naked wires to make sure insulation is not damaged for serious solarization. Frictional wear, dryness, insects or rats, etc. Repair or replacesome wires if necessary.•Check and confirm that indicator and display is consistent with required. Pay attention to any troubleshooting or error indication .Take corrective action ifnecessary.•Confirm that all the terminals have no corrosion, insulation damaged, high temperature or burnt/discolored sign, tighten terminal screws to the suggested torque.•Check for dirt, nesting insects and corrosion. If so, clear up in time.•Check and confirm that lightning arrester is in good condition. Replace a new one in time to avoid damaging the inverter/charger and even other equipment.WARNING：Risk of electric shock!Risk of electric shock! Before the above operations, make sure that all the power is turned off, and the electricity in the capacitances is completely discharged, then follow the corresponding inspections and operations.★Instruction for inverter derating1. Temperature derating:When the temperature is over 45℃(113℉), the output power shouldbe reduced by 1KW (Kilowatts) for each 1℃ (Celsius) increase•TP10K,TP10KB•TP20K,TP20KB•TP30K,TP30KB302.Altitude derating:When the altitude is over 1500m, the output power should be reduced by 1KW (Kilowatts) for each 500m (Meter) increase•TP10K,TP10KB•TP20K,TP20KB•TP30K,TP30KB31Mechanical ParametersAnnexⅠDisclaimerThis warranty does not apply under the following conditions:•Damage from improper use or use in an unsuitable environment.•Load or utility current, voltage or power exceeds the rated value of the inverter. •Damage caused by the ambient temperature exceeds the limit working environment temperature.•The accident caused by disobeying the marks or manuals of the inverter, such as electric arc, fire and explosion.•User disassembly or attempted to repair the inverter without permission. •Damage caused by force majeure.•Damage caused during transportation orloading/unloading.32AnnexⅡ Mechanical Dimension Diagram 1.TP10K,TP10KB332.TP20K/TP20KB343.TP30K/TP30KBAny changes without prior notice! Version number: V1.135HUIZHOU EPEVER TECHNOLOGY CO., LTD. Beijing Tel: +86-10-82894896/82894112 Huizhou Tel: +86-752-3889706E-mail:******************Website: 。

●本公司纯正弦波系列逆变器设有完善的保护电路，提供高温保护，过压保护，低压保护，短 路保护、过载保护等功能，防止损坏您的逆变器； ●先进的电路设计、转换效率高、接口丰富、输出电压稳定；●逆变器采用金属外壳，设计合理，具有良好的散热特性；●逆变器具有先进的抗干扰技术，功能齐全的保护电路和软启动电路，方便的操作模式。

●软启动电路具有在启动时逐步提升输出电压，以消除冷启动失败，同时具有输出电压瞬间 下降和快速恢复功能，减少负载开机瞬间超载。

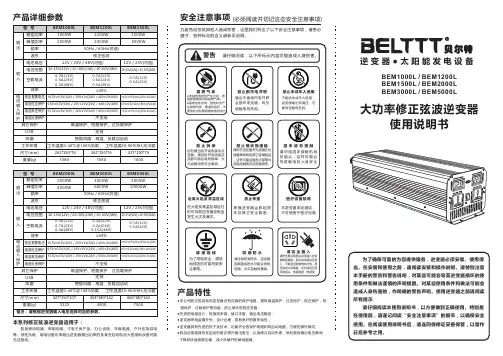

产品特性BEM1000L / BEM1200L BEM1500L / BEM2000L BEM3000L / BEM5000L产品详细参数逆变器●太阳能发电设备 为了确保可靠的为您提供服务，逆变器必须安装、使用得当。

在安装和使用之前，请阅读安装和操作说明。

请特别注意本手册的警告和警告说明，对某些可能会导至逆变器损坏的使用条件和做法谨慎的声明提醒。

对某些使用条件和做法可能会造成人身伤害的，作明确的警告声明。

使用逆变器之前请阅读所有提示 请仔细阅读本使用说明书，以方便做到正确使用。

特别是在使用前，请谨记阅读“安全注意事项”的细节，以确保安全使用。

在阅读使用说明书后，请连同保修证妥善保管，以留作日后参考之用。

大功率修正弦波逆变器使用说明书为避免给您及其他人造成伤害，这里我们列出了以下安全注意事项，请务必遵守，各种标志的含义请参见说明。

安全注意事项(必须阅读并切记这些安全注意事项) 各类家用电器、照明用电、IT 电子类产品、办公设备、车载电器、户外应急供电等。

感性负载、用电设备功率超出逆变器输出功率的及某些启动电流大的用电设备可能无法驱动。

本系列修正弦波逆变器适用于：安装使用方法注意注意１、接线图只作基本参考，请联系专业的技术人员进行实际的安装。

逆变器可以使用一个或多个电池。

最好使用100AH 或者容量更大的电池。

２、由于进行这些操作时可能需要连接电池，连接之前确认周围没有易燃气体 用逆变器配带的电缆（不包括大功率模式电缆），把逆变器和电池连接好，红色电缆连接到逆变器输入端的红色接线柱和电池的正极，黑色电缆连接到逆变器输入端的黑色接线柱和电池的负极。

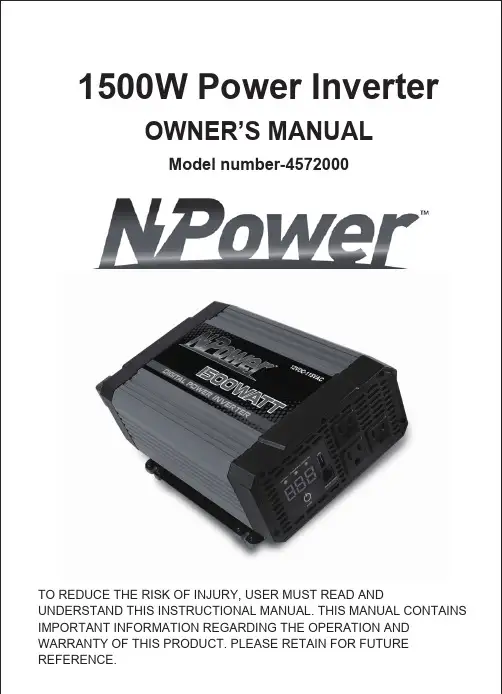

TO REDUCE THE RISK OF INJURY, USER MUST READ ANDUNDERSTAND THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING THE OPERATION AND WARRANTY OF THIS PRODUCT. PLEASE RETAIN FOR FUTURE 1500W Power InverterOWNER’S MANUALModel number-4572000CONTENTS1. Introduction..............................................................................................2. Important Safety Information...................................................................3. Protective Features................................................................................4. Features..................................................................................................5. Installation...............................................................................................6. Operating Instructions.............................................................................7. Troubleshooting......................................................................................8. Specifications..........................................................................................9. Warranty. (2)24568111314increase of surrounding air temperature, the inverter will automatically shut down, and the digital display showing “LCP”.When the internal temperature drops below the surrounding air temperature, the inverter will automatically return to normal operation.Overload Shut OffWhen the starting power exceeds the rated power, the inverter will automatically shut down, and the digital display showing “OLP”.When being in over current protection state, the inverter can’t automatically restore normal operation, but return to normal operation by using manual switch.Short Circuit ProtectionThis inverter is equipped with multiple internal fuses. When it is in short circuit state, the unit will switch to protective mode, and the digital display showing “OPP”.4. FeaturesFigure 11. Digital Readout—it indicates the power and DC voltages. The allowed power tolerance is 15% (with loads of over 200W), and the allowed voltage tolerance is +/-0.2V (no load).2. Button Power Switch— Connect the inverter to the DC power and press down the button power switch, the AC power is available.3. Port for Remote Control— Connect the remote control switch and press down the switch, the remote control function acts.(remote control switch is not included.)4. USB Port— Offer 5V power to USB equipment.5. AC Outlets— They allow you to plug in 110V AC products with a total continuous of 1500W or less.6. Green LED Indicator— Indicates the digital display is showing DC input voltage.7. Yellow LED Indicator — When the power exceeds 1000W, the yellow LED indicator lights, and the digigal display showing output power loads in kilowatts.8. Red LED Indicator— Indicates that the consumption of the loads is under 1000 W, and the digigal display showing output power loads in watts.9. Positive DC terminal— Connect the red end of the DC power cord to it.10. Negative DC terminal— Connect the black end of the DC power cord to it.11. Cooling Fan and Ventilation Openings— The high speed cooling fan protects the inverter from over-heating. And the ventilation openings should be kept clear!5. InstallationThe unit must be operated in an area that meets the following requirements in order to operate safely and provide optimum performance:DescriptionDry Don’t allow water or other liquids to drop or splash on the unit.7. Troubleshootingruns small loadsbut not large ones.The voltage input is too low (alarm is sounding).charge the battery Inverter is overheated due to poor ventilation and has shut down.Unplug inverter from DC socket and allow to be cooled for 15 minutes.Remove objects covering unit. Move the inverter to a cooler place. Reduce load if continuous operation isrequired. Restart.Low voltage batteryCharge the batteryPROBLEMCAUSESOLUTIONNo power, no indicator.Battery is defectiveReplace battery Blown fuseCheck and replace fuse Lose cable connections Check the connection to the battery. Tighten as required.AC products connected arerated at more than 1500W; overload shutdown has occurredAC products are rated less than 1500W, but high starting surge has caused overload shutdown.Reduce load, use a product with power rating less than e a product with starting surge power within the inverter’s capability (≤3000W).Unit is shutdown with display showing ”OLP”shutdown with display showing “LUP”Unit is shutdown with display showing “OCP”shutdown with display showing “OPP”Inverter is short circuit and has shut down.Reset to normal operation by using manual switchAlarm is soundingWater enteredLow voltage shutdown orthermal shutdown has occurred.Shorten cables or use heavier cables. Rechargebattery. Allow unit to cool. Improve air circulation around unit. Locate unit to a cooler environment. Reduce load if continuous operation is required.Water entered the unitDisconnect the inverter and wipe immediatelywith a dry cloth, or permanent damage can occur with liquid ingress.Standard “average-reading” AC voltmeter used to measure output voltage, resulting in an apparent reading 5 to 15V too low.Inverter’s “modified sinewave” output requires “true RMS” voltmeter for accurate measurements.Measured inverter output is too lowBattery voltage is too low.Battery run time is less than expectedRecharge battery.AC product power consumption is higher than rated.Battery is old or properlydefective.Battery is not being properly e a larger battery to make up for increased power requirement.Replace battery.Some chargers are notable to fully recharge a battery. Make sure youuse a powerful charger.Power dissipation in DC cables.Use shorter/heavier DC cables.8.SpecificationsSpecifications are subject to change without notice.AC Power Output AC output voltage105V~125V AC Maximum AC output power 1500W Maximum AC output surge power 3000W Ambient operating temperature range32°F - 104°F (0°C - 40°C)Dimensions (L×W×H)10.4×7.29×3.95 in (264×185×100mm)Weight6.71 lb(3050g)AC output frequency(nominal) 58~62HzAC output waveform Modified sine waveAC output frequency(nominal) 5 V DC DC input voltage range 12.8~13.2V DC 0. 8A (at a 12V input)Low battery alarm trigger point 11±0.3VDC Low battery shutdown resume point (nominal)12.0±0.3VDC Low battery shutdown point (nominal) 10.5±0.3VDC High battery shutdown point (nominal) 15.5±0.5VDC Efficiency(maximum)85%Fuse25A fuse×7USB Power OutputDC Power Specifications Physical specificationsBattery drain with no AC load9. WarrantyOne Year Limited Warranty ProgramNPower warrants this product for one year limited against any defects in materials or workmanship. The defective products will be replaced and repaired at no charge in either of one year.This warranty lasts for 12 months from the date of purchase at the point of sale to you. This warranty does not apply where the product has been misused, improperly installed, physically damaged or altered, either internally or externally, or damaged from improper use.NPower will repair or replace the defective product free of charge. Proof of purchase may be required. Warranty term is not extended if NPower repairs or replaces a product. NPower owns all parts removed from repaired products. To qualify for the warranty, make sure the product has not been disassembled or modified without the prior authorization. If you require warranty service with your product, please return it to the place of purchase along with a copy of your dated proof of purchase or call customer service at 800-222-5381 for details.。

逆变器用户手册正弦波系列目录一、操作说明 (2)二、产品功能特点 (2)三、适用范围 (3)四、安装指导 (3)五、状态说明 (3)六、技术规格表 (4)*在使用本机前,请仔细阅读本手册所要求的操作方法以及注意事项，否则会造成逆变器的损坏。

请妥善保管好本手册！一．操作说明*本产品在设计和生产时已充分考虑到操作者的安全以及产品的安全使用,避免造成伤害或事故,请严格依照以下说明使用或安装。

（1）安装逆变器时要由专业人士操作，或由当地经销商协助完成。

（2）确认供应直流电源电压范围是否附合要求即+15%，电压极性是否正确。

确认负载电压输入范围是否符合要求即单相220VAC，负载不大于额定功率。

（3）勿将液体流入逆变器内部，或用湿布擦除机器外壳。

机器运行时人体不能直接触及逆变器端子，尤其湿手，否则会造成触电伤害。

（4）正常运行的逆变器如需变动其工作环境，不可自行改变其连线，应由专业人士或经销商确认、操作。

（5）逆变器运行环境应在通风良好、温度范围0至45度环境使用，应远离火源以及日光直射的位置。

不能在结露，灰尘环境下运行。

（6）未成年人不得使用本产品。

（7）确认逆变器地线可靠连接，线径应符合安全使用条件，连接线尽可能缩短。

二．产品功能特点（1）该逆变器使用CPU控制，低成本高品质，智能化正弦波输出，属本产品特有的特点。

（2）本产品逆变输出可负载各类型单相设备，比如马达、空调、电钻、日光灯、气体灯等等家电设备，通信设备，工业设备。

（3）单键智能开关机设计方便操作。

（4）优异的输出短路保护设计，可以抗拒大电流启动负载冲击。

（5）完善的过载保护设计可有效的保护逆变器的安全运行，当负载大于100%~120%时逆变器将于30秒左右自动关机，当负载大于150%逆变器会立即自动关机。

（6）直流供电电路下限保护设计，当直流电源小于标称值的15%，逆变器将自动关闭。

注意:a．未经许可本产品不可以用于维持生命的设备。

b．本逆变器不适宜用于高精密电子设备，需经专业技术人员确认方可投入运行。

BP纯正弦波逆变器注意：a.安装本机器需由专业人员操作安装，机器内部有高压，非专业人员不得打开机器。

b.安装本机器需干燥通风机器环境，进风口避免堵塞，进风口离墙距离保持20cm以上。

c.机器远离高温、潮湿、易燃、易爆、腐蚀的环境。

机器清洁用干布擦拭，避免进水。

步骤一:连接电源。

连接导线前请先将逆变器开关处于OFF状态。

必须使用蓄电池、太阳能发电系统、直流稳压电源等，连接电源前确认机器的输入标称直流电压是否与电源直流电压相符合，避免过高电压输入机器。

红接线柱连接蓄电池正极，黑接线柱连接蓄电池负极(参照8.9.10接线示意图)。

请正确连接到蓄电池，避免正负接反，否则有损坏逆变器的风险。

连接导线避免过小过长，请使用厂家分配的标准导线，否则有电流过大热量聚集造成燃烧的危险。

步骤二:连接负载。

接好电源后，打开开关，检查逆变器的工作状态，有条件的使用万用表检测交流输出端电压。

检测正常后关机，再连接负载。

必须保证负载不存在超过逆变器额定功率和短路的问题，连接非线性负载时（感性/容性，比如电机、电磁炉等）要计算好峰值功率不得超过逆变器的峰值输出功率，否则有启动负载失败和损坏逆变器的危险。

步骤三：开机运行。

再次确认连接无误后，开机运行。

以上请仔细阅读正确安装，如有不明白之处请致电本公司售后服务热线咨询。

不按照本说明书方法操作安装，可能会造成人身伤害或者机器及设备损坏工作原理说明：一、常规逆变器。

内部带逆变模块，是把直流电(比如：蓄电池DC12V)转换成纯正弦波交流电(比如：AC220V50HZ)，供电给设备负载(比如：白炽灯、电脑等)使用。

常规逆变器面板指示图a. 小功率输出输入说明1.红+正极输入；2.黑-负极输入；3.风扇；4.AC输出,负载插座；5.故障指示灯；6.工作指示灯；7.开关；B；9.接地端；b.大功率输出输入说明1.AC输出，负载插座；2.故障指示灯；3.工作指示灯；4.开关；B；6.250A接线排；7.红+正极输入；8.风扇； 9.黑-负极输入；二、带旁路功能逆变器。

500W48V纯正弦波逆变器使用说明书一，前言：本逆变器使用本公司智能IC控制，其线路已申请专利，具有非常完善的保护功能（包括过载保护，过流保护，高温保护，短路保护，反接保护，电池高.低压保护，设有内置式保险丝等等），指示功能。

采用优质的双面线路板及零器件，保证产品高质量，高性能。

本机的输出波形为纯正弦波，可以适用于任何负载，过载保护，过流保护，短路保护，保护后自动延时10秒启动。

本机的体积非常小巧，便于携带。

二：使用方法将足够功率的输入电源接上逆变器，注意电源电压要在规定范围内，连接的电源线要有足够的承载电流能力，并且尽量短，打开逆变器的电源开关，输出负载在开机前或开机后接入均可(我公司产品配有符合标准的电源线)。

三，输入电源要求：z输入电源电压必须在逆变器规定的电压范围内。

z输入电源必须能够提供足够的电流，其具体算法约为输出功率/输入电压/0.8=输出电流，例如：带一个500W的负载，输入48V，则输入电流=500/48/0.8=13（A）。

z输入电源线必须要与逆变器连接牢固，并且要有足够的承载能力。

如果电流为13A，电源线的截面面积应尽量大于6.5平方毫米。

四，技术参数：型号PNI-S50048A5额定功率500W峰值功率 1000W输入电压40VDC-61VDC输出电压220VAC±5%输出频率50Hz输出波形纯正弦波工作效率>84%五，保护：输入反接保护 自动恢复输入保险丝 20A输入电压保护<40V 和 >62V低输入电压报警44V±1V输出过载且<700W保护时间30秒输出短路保护时间2~3秒温度保护 >70℃六，状态指示：正常输出 两个绿灯亮电池低压报警 输入绿灯闪电池低压关机输入红灯亮输出过载 输出绿灯闪，30秒后，关机。

重载保护 输出红灯亮，2~3秒后，关机，10秒钟后重启温度保护 输入黄灯亮七，工作环境：温度 -20~40摄氏度八，物理特征：尺寸 240 x 166 x 62mm重量 2kg九，注意事项：z本逆变器只能接小于其所规定最大功率的负载。

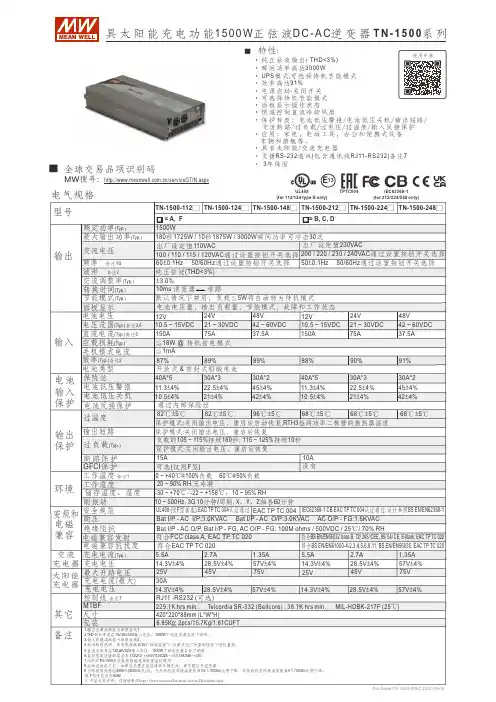

■ 特性:T N -1500系列具太阳能充电功能1500W 正弦波D C -A C 逆变器‧纯正弦波输出(THD<3%)‧瞬间功率高达3000W‧ UPS 模式,可选择待机节能模式‧效率高达91%‧电源启动-关闭开关‧可选择待机节能模式‧面板显示操作状态‧恒温控制直流冷却风扇‧保护种类：电池低压警报/电池低压关机/输出短路/ 交流断路/过负载/过电压/过温度/输入反接保护‧应用：家电，电动工具，办公和便携式设备 车辆和游艇等。

‧具有太阳能/交流充电器‧支援RS-232通讯(包含通讯线RJ11-RS232)备注7‧ 3年保固E 13TPTC004IEC62368-1UL458搜寻 ■ 全球交易品项识别码图 21. 设置：调整输出电压，充电电压，频率和操作方式的调整,详情请参照图3。

2. 统计：计算每个工作模式于工作期间的百分比，详情请参照图4。

3. 遥控关机：可远程遥控电源开关机。

4. 暂停：停止刷新监控软件页面。

Setting Solar Charge123456INVERTERAC Charge10010000Battery Voltage O/P Voltage Internal Temperature By passTN-1500-143Utility Voltage Start Date Reset Date O/P Frequency Power on Remote off Battery low Battery used upStand by saving mode Abnormal ShutdownBatteryLoading54.111010.00.02007/12/07 03:13:33 PM 2007/12/21 01:40:56 PM60.0 VV ℃VHzAC InStatistics R.C. Power off Pause ExitTN-1500系列具太阳能充电功能1500W 正弦波DC-AC 逆变器。

车载逆变器用户手册1、简介感谢您购买HUASYN系列的逆变器。

为了您能舒适、安全的使用本产品，请仔细阅读本说明书，说明书中包含关于本产品的重要信息，请保留此说明书以供以后参考。

HUASYN系列逆变器拥有您所期待的的卓越品质，无论你接在汽车点烟器插孔，还是接在电瓶上，都能直接转换为交流电。

它可广泛用于各类家用电器上，让您在商务工作、驾车旅游、停电应急的时候，给您源源不断的动力。

2、产品特性采用专用智能IC控制逆变器产品，具有非常完善的保护功能和指示功能。

采用优质的双面线路板及电子元件，保证产品的高质量，高性能。

转换效率高、小巧轻便、适用范围广的特点。

产品示意图：75W100W150W200W300W500W3、使用说明a：使用环境基于安全和性能的考虑，HUASYN系列产品应该在以下环境下使用：干燥：不能浸水或淋雨阴凉：环境温度应该在0℃到40℃之间通风：保持壳体上方5CM内无异物，其它端面通风良好，确认风扇不会在工作过程中不会发生阻塞或障碍(适用于有带风扇的产品)，以便防止出现通风不良的情况。

b：操作方法1、确定所使用的电器功率应小于所使用的逆变器的额定输出功率。

2、当使用设备输出功率小于200W时，将逆变器开关置于关闭位置，然后雪茄头紧密地插入车内点烟器插口，确保雪茄头良好接触。

3、当使用设备输出功率大于200W时，必须通过鳄鱼夹线使用，引线的太阳端子接至逆变器接线柱，颜色应该匹配，引线端为红色的接逆变器上的红色接线柱，引线端为黑色的接逆变器的黑色接线柱；另外一端的鳄鱼夹连接所使用过的电瓶，红色鳄鱼夹接“+”级,黑色鳄鱼夹接“﹣”级)。

4、输入端接好后，打开开关，逆变器指示灯将发亮，表示已经有交流电输出，逆变器便可以开始正常工作。

5、将需要使用的电器插入的逆变器的输出端AC插座或USB接口充电，根据你所使用的设备选择。

6、开启你的电器开关，HUASYN逆变器便可以给你带来源源不断的交流电能。

4、产品规格HUASYN系列逆变器型号电气特性输入电压12V 24V 输出电压220V 110V 输出频率50Hz 60Hz 额定功率峰值功率使用温度输出波形改良型正弦波转换效率保护功能物理特征尺寸(mm)重量(g)(产品参数标准如有变动，以本公司为准，怒不另行通知)5、保护功能本系列逆变器具有多重保护功能，能够给你带来更多保障。

目录1本手册相关说明 (1)1.1适用范围 (1)1.2适用人员 (1)1.3本手册中使用的符号 (2)2安全 (3)2.1目标用途 (3)2.2安全标准 (3)2.3重要安全信息 (4)2.4标签上的符号 (6)2.5基本保护措施 (7)3拆箱和检查 (8)3.1交付清单 (8)3.2检查 (8)4逆变器的安装 (9)4.1安装环境条件 (9)4.2选择安装位置 (11)4.3安装逆变器 (12)5电气接线 (14)5.1安全说明 (14)5.2无集成直流开关的系统设计 (15)5.3连接区域概述 (15)5.4交流电连接 (16)5.4.1交流电连接条件 (16)5.4.2电网连接 (17)安装使用手册V00 I5.4.3辅助保护性接地连线 (19)5.4.4漏电流保护 (20)5.4.5过压类别 (20)5.4.6电网断路器 (21)5.5直流电连接 (22)5.5.1直流连接条件 (22)5.5.2组装直流电连接器 (23)5.5.3拆卸直流电连接器 (25)5.5.4连接光伏阵列 (26)6通信 (27)6.1通过RS485监测系统 (27)6.2通过以太网实现系统监视 (31)6.3通过WIFI进行系统监视 (32)6.4 使用第三方通信设备 (32)7 试运行 (33)7.1电气检查 (33)7.2机械检查 (34)7.3启动 (34)8操作 (35)8.1控制面板概述 (35)8.1.1显示屏 (36)8.1.2控制按钮 (37)8.1.3 LED指示灯 (37)8.2显示信息 (38)8.3 语言与并网安规设置 (40)8.3.1语言设置 (40)8.3.2并网安规设置 (40)9从电源上切断逆变器 (42)10技术数据 (43)10.1直流输入数据 (43)10.2 交流输出数据 (44)10.3一般参数 (45)10.4安全规范 (46)10.5效率 (47)10.5.1 Zeverlution 1000S 效率曲线 (47)10.5.2 Zeverlution 1500S效率曲线 (48)10.5.3 Zeverlution 2000S效率曲线 (49)10.5.4 Zeverlution 3000S效率曲线 (50)10.6降载曲线 (51)10.7工具和扭矩 (53)11故障排除 (54)12维护 (56)12.1清理直流开关触点 (56)12.2清理散热器 (56)13循环利用和废弃处置 (57)14保修 (57)15联系我们 (57)1本手册相关说明一般注意事项Zeverlution是一款无变压器型光伏逆变器，并自带一路MPP跟踪器。

Product ManualDC TO ACPower InverterCONTENTSSafety First1.Introduction2.Installation Guidelinesing the inverter4.Troubleshooting5.SpecificationsSafety FirstIncorrect installation or misuse of the inverter may result in danger to the user or hazardous conditions. We urge y0u to pay special attention to all CAUTION and W ARNING statements. CAUTION statements identify conditions or practices that may result in damage to other equipment. WARNING statements identify conditions that may result in personal injury or loss of life.WARNING! Shock hazard. Keep away from children.●The inverter generates the same potentially lethal AC power as a normal household walloutlet. Treat it with the same respect that you would and AC outlet.●Do not insert foreign objects into the inverter’s AC outlet, fan or vent openings.●Do not expose the inverter to water, rain, snow or spray.●Do not under any circumstances, connect the inverter to utility power AC distribution wiring. WARNING! Heated surface.●The inverter’s housing may become uncomfortably warm, reaching 140℉(60℃)underextended high power operation. Ensure at least 2 inches (5cm) of air space is maintained on all sides of the inverter. During operation, keep away from materials that may be affected by high temperatures.WARNING! Explosion hazard.●Do not use the inverter in the presence of flammable fumes or gases, such as in the bilge of agasoline powered boat, or near propane tanks. Do not use the inverter in an enclosure containing automotive-type, lead-acid batteries. These batteries, unlike sealed batteries, vent explosive hydrogen gas, which can be ignited by sparks from electrical connections.●When working on electrical equipment always ensure someone is nearby to help you in anemergency.CAUTION!●Do not connect live AC power to the inverter’s AC outlets. The inverter will be damagedeven if it is switched OFF.●Do no connect any AC load, which has its neutral conductor connected to ground, to theinverter.●Do not expose the inverter to temperatures exceeding 104℉(40℃).CAUTION! Do not use inverter with the following equipment.●Small battery operated product such as rechargeable flashlights, some rechargeable shavers,and night-lights that are plugged directly into and ac receptacle to recharge.●Certain battery chargers for battery packs used in hand powered tools. These chargers willhave warning labels stating that dangerous voltages are present at the charger’s battery terminals.●Connect inverter only to batteries with a 12/24V/48V DC nominal output. A battery with6V/12/24V nominal output will not supply enough voltage and a battery with 24V/24V/96V nominal output will DAMAGE THE INVERTER.1.IntroductionThank you for purchasing the power inverter. The inverter is a compact and highly portable power inverter, the leader in the field of high frequency inverter design. From the 12V/24V/48V DC outlet in you vehicle or boat, or directly from a dedicated 12V/24V/48V DC battery, the inverter will efficiently and reliably power a wide variety of household AC products ,such as TVs, computers, VCRs, and includes automatic safety monitoring circuitry to protect the inverter, and your battery, from inadvertent overload conditions.Read this guide before installing or using the inverter and save it for future reference.Safety FeaturesThese advanced safety features are built into the inverter:●Electronic overload protection with automatic shutdown.●Built-in internal backup DC fuse provides added safety.●Low battery voltage protection with automatic shutdown.●Over temperature protection with automatic shutdown.●Output short circuit protection.2.Installation GuidelinesSelecting a Suitable LocationFor safe and optimum performance, install the inverter in a location that is …..●Dry. Do not expose to water drip or spray.●Cool. Operate only in ambient temperatures between 32℉(0℃)and 104℉(40℃). Keepaway from furnace heating vents or other heat producing equipment.●Well ventilated. Allow at least 2 inches (5cm) clearance above and on all sides of the unit forproper cooling.●Safe. Do not install inverter in a compartment with batteries or flammable liquids, such asgasoline, or explosive vapors.●Clean and free of dust and dirt. This is especially important if the inverter is used in a workenvironment.Using the DC Cable-PlugDue to limitations in the common 12V/24V/48V DC outlet in a vehicle or boat, the inverter should only be used to supply AC power to products that require the rated continuous power or less. If you8r application requires more than the rated continuous power (but less than the rated continuous power) or has a high start-up surge, see Using the DC Cable-Clips.1.Attach the ring type connector marked with red to the positive (+) DC terminal on the inverterand attach the ring connector marked with black to the negative (-) DC terminal.CAUTION! A reverse polarity connection (positive to negative) may damage the inverter. Damage caused by a reverse polarity connection is not covered under warranty.2.Tighten the nut on each DC terminal by hand until it is snug. Do not over tighten.3.Insert the plug of this cable into the 12V/24V/48V DC outlet and switch the unit ON. SeeSection 4 if the inverter does not operate properly after being connect.4.When the inverter is not in use, unplug it from the 12V/24V/48V DC outlet to prevent slightdischarge of the Battery.Instruction of structureInstruction of operationUsing the Dc cable-ClipsBy directly connecting the inverter to a 12V/24V/48V DC battery with DC Cable-Clips, you can operate products with power requirements up to rated continuous output power. If you want to permanently connect the inverter to a battery, contact the customer service.1.Follow steps 1 and 2 above (Using the DC Cable-Plug) to attach the ring type connectors.2.Attach the black negative clip to negative (-) battery terminal.3.Attach the red positive clip to the positive (+) battery terminal. Make sure both clips aresecurely connected to the battery terminals, as a loose connection will cause excessive voltage drop and may cause the cables to overheat resulting in equipment damage or fire.4.Switch the inverter ON. See section 4 if the inverter does not operate properly after beingconnected.5.When the inverter is no in use, disconnect the DC Cable-Clips from the battery.ing the inverterThe inverter is capable of continuously powering most 110V/230V AC products that use the rated continuous output power or less. Its AC output waveform, called”modified sine wave/pure sine wave “is designed to function as wave shape of utility power or more beautiful than city electricity.The power, or “wattage”, rating of ac products is the average power they use. When many AC products are first switched on, they initially consume more power than their power rating. TVs, monitors, and electric motors are examples of products that have high “surge”requirements at start up. Although the inverter can supply momentary surge power as high as surge power, occasionally some products rated less than the rated continuous output power may exceed its surge capabilities and trigger its safety overload shutdown feature. If this problem occurs when attempting to operate several AC products at the same time ,try first switching on inverter with all AC products switched off ,then one by one switch each on, starting with the high surge product first.Indicators and Controls (See Figure 1)●The AC outlets are provided on one end of the inverter. Any combination of 110V/230V ACproduct with a total continuous power consumption of the continuous power or less may be plugged in.●The ON/OFF switch enables output AC power at the AC outlets when switched ON.●The green POWER light indicates AC power is present at the AC outlets and the inverter isoperating normally.●The red FAULT light indicates inverter shutdown caused by low or high voltage, overload orexcessive temperature.Inverter operation1.When properly connected to a 12V/24V/48V DC outlet or battery, turning the ON/OFF switchON, will illuminate the green POWER light, and AC power to the outlets.2.Plug the AC product(s) you wish to operate onto the AC outlet(s) and switch them on, one at atime.3.As the battery charge is used up, battery voltage begins to fall. When the inverter senses thatthe voltage at its DC input has dropped to 10~10.5V/20-21V/40~42V,and audible alarm sounds. This allows time for computers or other sensitive devices to be shut down.4.If the audible alarm is ignored the inverter will automatically shut down when the batteryvoltage drops to 9.8~10.2V/19.6~20.4V/39.2~40.8V. This prevents battery damage from excessive discharge. After auto shut down, the red FAULT light illuminates.IMPORTANT: Vehicle batteries are designed to provide brief periods of very high current needed for engine starting. They are not intended for constant deep discharge. Regularly operating the inverter shortens the life of the battery. Consider connecting the inverter to aseparate deep discharge type battery if you will be frequently running electrical products for extended periods of time.5.If an AC product rated higher than the rated continuous power (or which draws excessivesurge power) is connected, the inverter will shut down .The red FAULT light will turn on.6.If the inverter exceeds a safe operating temperature, due to insufficient ventilation or a hightemperature environment, it will automatically shut down. The red FAULT light will turn on and the audio warning will sound.7.Should a defective battery charging system cause the battery voltage to rise to dangerouslyhigh levels, the inverter automatically shuts down.CAUTION! Although the inverter incorporates protection against over-voltage, it may still be damaged if the input voltage exceeds 16 volts/32 volts/64volts8.The cooling fan is designed to operate only when the temperature is higher than 40℃.9.In the event of an overload, low battery voltage or overheating, the inverter will automaticallyshut down (See Section 4).Battery Operating TimeOperating time will vary depending on the charge level of the battery, its capacity and the power level drawn by the particular AC load.When using a battery as a power source, its is strongly recommended to start the vehicle every hour or two to recharge the battery before its capacity drops too low. The inverter can operate while the engine is running, but the normal voltage drop that occurs during starting may trigger the inverter’s low voltage shut down feature.Because the inverter draws less than the no load current draw with the ON/OFF switch in ON position and with no AC products connected, it has minimal impact on battery operating times.Interference with Electronic EquipmentGenerally, most AC product operate with the inverter just as they would with household AC power. Below is information concerning two possible exceptions.Buzzing Sound in Audio Systems and RadiosSome inexpensive stereo systems, “boom boxes”, and AM-FM radios have inadequate internal power supply filtering and “buzz”slightly when powered by the inverter. Generally, the only solution is an audio product with a higher quality filter.Television InterferenceThe inverter is shielded to minimize its interference with TV signal. However, with weak TV signals interference may be visible in the form of lines scrolling across the screen. The following should minimize or eliminate the problem:●Use an extension cord to increase the distance between the inverter and the TV, antenna andcables.●Adjust the orientation of the inverter, television, antenna and cables.●Maximize TV signal strength by using a better antenna and use shielded antenna cable wherepossible.●Try a different TV. Different models of televisions vary considerably in their susceptibility toinverter.4.Troubleshooting5.SpecificationsAC output voltage (nominal):110V/230V ACDC input voltage range:Nominal 12V:10V-15VNominal 24V:20V-30VNominal 48V:40V-60VAC output frequency:50Hz±2Hz/60Hz±2HzAC output waveform: modified sine wave/pure sine wave Ambient operating temperature range:12℉-130℉/-20℃-65℃Low battery alarm trigger range:Nominal 12V:10V-10.4VNominal 24V:20V-21VNominal 48V:40V-42VLow battery shut down range:Nominal 12V:9.7V-10VNominal 24V:19.4V-20VNominal 48V:40V-42VHigh battery shut down range (nominal):15V/30V/60VCP: Continuous PowerSP: Surge PowerTHD: Total Harmonic DistortionNL: No load Current DrawSpecification subject to change without notice。

DC TO AC PURE SINE POWER INVERTER PWRI150024S / PWRI150048SINSTRUCTION MANUALA. INTRODUCTIONThe AIMS Power pure sine inverter product line is used for back-up power. The pure sine product line is ideal for sensitive equipment and provides clean power, which is more efficient for back-up power applications. The power inverter transforms DC (direct current) electricity into AC (alternating current) power that can be used for running a wide variety of tools and appliances. This inverter is perfect for providing mobile power in cars, boats and work trucks. The inverter can also be utilized as a back-up source of electricity in the event of an electrical failure or for several off-grid applications such as camping or in your RV.Please read this instruction manual carefully and make sure your inverter is installed properly before using.B. WARNING AND SAFETY1. Read the manual before connecting this inverter and keep it for future reference.2. Do not put the inverter under direct sun light or near a heating source.3. The case of inverter will get hot when used. Do not allow flammable materials tocontact the inverter, such as clothing, sleeping bags, carpet or any otherflammable materials. The heat from the inverter can damage these items.4. The power inverter is designed to be used with a negative ground electricalsystem! Don't use with positive ground electrical systems (the majority of modern automobiles, RVs, trucks and boats are negative ground).5. Do not disassemble the unit: it may cause fire or electric shock.6. This device should only be serviced by a qualified technician. This item does nothave any serviceable parts.7. Prevent body contact with grounded surfaces such as pipes, radiators, ranges,and refrigerator enclosures during installation.8. Do not operate the inverter if under the influence of alcohol or drugs. Readwarning labels on prescriptions to determine if your judgement or reflexes are impaired while taking drugs. If there is any doubt, do not operate the inverter. 9. People with pacemakers should consult their physician(s) before using thisproduct. Electromagnetic fields in close proximity to a pacemaker could cause interference to or failure of the pacemaker.10. Keep the inverter well-ventilated. Do not place any objects on top of or next tothe inverter or allow anything to cover the cooling fans; doing so can cause the inverter to overheat, causing a potential fire hazard and/or damage to theinverter. Leave adequate ventilation space underneath the inverter as well; thick carpets or rugs can obstruct air flow, causing the inverter to overheat.11. Avoid unintentional starting. Be sure the switch is in the OFF position when not inuse and before plugging in any appliance.12. Keep inverter away from children. Don't install the inverter where it is accessibleto children.13. The power inverter will output the same AC power as utility power, please treat the AC outlets as carefully as you would your home AC outlets. Do not putanything other than an electrical appliance into the output terminal. It may cause shock or fire.14. Disconnect the battery and inverter when not in use.Note: Performance of this unit may vary depending on the available battery power or appliance wattage.Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by operator. Guard against electric shock. Do not open the metal case; risk of electric shock.C. INVERTER FEATURES• Dual outlets • USB Port• LED protect indicator • LED power indicator • Easy push on/off switch• Remote port for on/off remote switch (optional) • Thermally controlled cooling fan• Low battery voltage warning/shutdown• High input voltage protection with automatic shutdown • Over load indicator • Short circuit protection•AC output short circuit protectionD. INSTALLATIONEnsure there is enough space for the installation, and the location should be meet the following requirements:1. Water should not access the inverter.2. The ambient temperature should be 32~104°F, and the preferred temperature is 50-77°F. The lower the better in this range of ambient temperature.3. Allow for 12 inches around the inverter for adequate air flow.4.Do not mount the inverter upside down.5. We recommend mounting the inverter on something stable to prevent it frombouncing. Impact shock could result in damage to your unit. Be sure to use all four mounting screws for optimal stability. Mount in a location that can support the weight of the inverter.6. Allow 12 inches of space around the inverter to prevent objects from blocking thevents and to provide enough air to circulate.7. Do not install the inverter in an environment with high dust, saw dust residue orother particles that may get sucked into the inverter increasing internaltemperature.8. There will be some electrical arcing or spark when the inverter connects with thebattery. Combustible materials such as gasoline, alcohol, etc. should not bearound the inverter.E. BATTERY1. The battery is designed to supply the inverter with DC input voltage and the ratedvoltage should be in accordance with the rated input voltage of the inverter. Any voltage exceeding the range of the input voltage of the inverter will cause the inverter to go into overload and could possibly damage the inverter. The battery should supply enough current for the load. The load is the amp or watt rating of the equipment being powered by the inverter. A small capacity battery cannot provide enough power for a large electrical equipment. In this case, the battery will cause the inverter to go into under voltage protection because of the load put on the battery. A simple way to calculate the load or amps required from your battery is to divide watts of equipment by battery voltage. Due to the consumption of the inverter itself, the actual current will be about 10%. For example, thevoltage of lead acid battery is 12VDC, and load of the equipment is 1000W,therefore, the actual current needed from the battery is about 1000W / 12V = 83.3 amps per hour. Add 10% for efficiency loss and you get 83.3 * 1.10% = 91.6 amp per hour needed. If you don’t know the wattage of your equipment, you can figure the wattage by multiplying AC amps by AC voltage. For example, a refrigerator is8 AC amps * 120 Volts AC = 960 watts. Remember, all equipment has a start-uprequirement 3-5x its running wattage. In this example, 960 watts * 3 = 2880 watts needed from the inver ter so don’t size your inverter too small.2. Battery operating time depends on battery capacity and load. The formula foroperating time is: battery capacity divided by the value of the load divided bybattery voltage times 1.10%. For example, using the numbers from above, the battery specification is 12V, 200Ah capacity and the load is 1000W. Take battery capacity 200Ah / 91.6 amps = 2.18 hours of run time if you fully deplete thebattery. This is NOT recommended. Deep cycle batteries last longer when they are only depleted to 50% of capacity.F. CONNECTION1. GroundingThe power inverter has a terminal on the rear panel marked " Grounding "or "≡".This is used to connect the chassis of the power inverter to ground. The ground terminal has already been connected to the ground wire of the AC outputreceptacle through the inverter.The ground terminal must be connected to the ground wire, which will varydepending on where the power inverter is installed. In a vehicle, connect theground terminal to the chassis of the vehicle. In a boat, connect it to the boat’s ground system. In a fixed location, connect the ground terminal to earth.2. Battery terminalsBefore you connect the battery cables, make sure the power switch is in the off position. Connect Red (+) battery cable to Red (+) inverter terminal. Connect Black (-) battery cable to Black (-) inverter terminal. Connect Red (+) batterycable to Red (+) battery terminal. Connect Black (-) battery cable to Black (-) battery terminal. Alligator clamp cables may be used but only to connect to the battery. Do not use clamps on inverter terminals. Alligator clamps are not apermanent solution. You may see a spark during connection. Do not reverse the polarity. This may damage the inverter and void warranty.USING THE POWER INVERTER1. Check the output voltage and capacity of the battery. The battery (s) shouldmatch the voltage of the inverter and have enough capacity for the load. See Section E for more information.2. Connect your inverter to your battery bank and do not to reverse the polarities ofthe connection. See Section F.3. Press the power switch button on your inverter for .5 seconds and a green LEDwill light up indicating that the inverter is on.4. Before plugging anything into your inverter, make sure the appliance you aretrying to power is shut OFF, then plug it into the AC outlet of your inverter and power on your appliance.3. Once finished using the inverter, turn off your electrical appliance and theinverter. The indicator lights should be off.4. The cooling fans inside the inverter do not work until the case temperaturereaches approximately 104°F.5. If you do not plan to use the inverter for a long period of time, disconnect it fromyour battery bank. Leaving the inverter on and connected for long periods of time may harm the equipment and over discharge the battery.6. The USB port on this unit can provide a stable line of 5V DC current. Themaximum current is 1000 mA. Be sure to double check your device to make sure it doesn't exceed these requirements.SOFT START TECHNOLOGYThe soft start technology built into this inverter protects the unit from delivering too much AC power at once by gradually increasing the AC voltage pushed out.To make sure that you are utilizing this feature, turn on the appliance being usedbefore turning on the inverter. This is especially necessary for equipment that has an inductive load or electrical motor.OUTPUT VOLTAGE & WAVEFORMThe electrical waveform output of this inverter is a pure sine wave, which has the same quality as utility and/or domestic power. This type of waveform is suitable for most electrical devices, appliances and tools. This pure sine wave unit provides more capabilities than modified sine wave inverters because it is a cleaner form of power. The pure sine wave also effectively reduces the noise produced while using appliances.PROTECTIONS IN THE INVERTER1. Input under-voltage alarm: When the input DC voltage is lower than 9.8V(19.6V/39.2V), the buzzer will whistle intermittently to remind that the inverterwill go into the under voltage protection.2. Under voltage protection: The inverter will automatically shut down when theinput DC voltage is lower than 9.5V(19V/38V). The buzzer will whistlecontinuously and the green light is off, red light is on. Please turn off theinverter and use it after recharging the battery.3. Over voltage protection: The inverter will automatically shut down when theinput DC voltage is higher than 16V(32V/62V). The buzzer will whistlecontinuously and the green light is off, red light is on. Please turn off theinverter and adjust the input voltage to the admissible range.4. Overload protection: The inverter will automatically shut down when the load ishigher than the rated power. The buzzer will whistle continuously. Turn off theinverter and resume to normal operation after taking away the excessive load.5. Short-circuit protection: The AC output will automatically shut down when shortcircuited. It will automatically reset after the problem is solved.6. Thermal protection: The unit will get hot during operation. If the temperature ishigher than 149°F, the inverter will automatically shut down. Then the buzzerwill whistle continuously and the green light is off, red light is on. Please turnoff the inverter, and continue using it after the temperature goes back tonormal naturally. Meanwhile find out the factors causing the fault, such asventilation, ambient temperature, vent, load power etc. It can avoid similarthings from happening again.**NOTE** The numbers in the parenthesis are for 24V and 48V models. In the case of over voltage, under voltage and thermal protection, the inverter will shut down. When the inverter is in the OFF position, the inverter doesn't consume battery current.HI-POT TESTING OF DC to AC InverterMost of our AC inverters are Hi-Pot test and can pass a High Voltage Dielectric Withstand Test. The voltage applied to the control is usually equal to 1,000 volts, plus two times the line voltage rating of the inverter. Therefore, the standard hi-pot voltage for 115 VAC inverter is 1,250 VAC. For 230 VAC or dual voltage inverters, the hi-pot voltage is 1,500 VAC. This Aims power inverter is hi-pot tested before it leaves the factory. Hi-Pot testing is used to detect any electrical leakage between live metal components and the frame of the machine that is connected to earth ground. This helps prevent electrical shock to the user of the equipment should a live component touch the frame and the user touch the frame and ground at the same time.TROUBLESHOOTING TIPSSPECIFICATIONSWARRANTYThis product is designed using the most modern digital technology and under very strict qualitycontrol and testing guidelines. If, however, you feel this product is not performing as it should, please contactus:************************ or (775)359-6703.We will do our best to resolve your concerns. If the product needs repair or replacement, make sureto keep your receipt/invoice, as that will need to be sent back along with the package and RMA# prepaid to AIMS. You have a full 1 year warranty from date of purchase.This warranty is valid worldwide with the exception that freight and duty charges incurred outside the contiguous 48 United States will be prepaid by customer.Except as noted above, AIMS makes no warranty of any kind, express or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose. In no eventshall AIMS be liable for indirect, special or consequential damages. This warranty only applies toAIMS Power branded products. All other name brand products are warranted by and according totheir respective manufacturer. Please do not attempt to return non-AIMS Power branded products to AIMS Power.The following situations will void warranty:1. The box is distorted, damaged or changed, and interior parts damaged because of anexterior hit or drop not reported at time of delivery.2. Connect the DC power incorrectly reversing the polarity.3. Dismantled or repaired the unit by an unauthorized person.4. The unit was damaged by incorrect installation or operating method.For additional products, please visit our web site: -Modified sine wave inverters-Pure sine wave inverters-Low Frequency Inverters-Solar Charge Controllers-Micro Grid Tied Inverters-Inverter Chargers and Automatic transfer switches-Converters DC-DC-Custom cut cables-Batteries-Solar Panels & RacksTofindoutwheretobuyanyofourproducts,youmayalsoe-mail:************************(775)359-6703.。

超声波信号发生器ULTRASONIC GENERATOR使用说明书一.技术参数:1.输出功率:0---1500W可选2.输入电压:180---265V AC或者85---135V AC. 50/60Hz3.工作温度:-20---+65℃4.输出谐波参数：97%（Min）5.启动峰值电流（1500W负载）：小于等于20A6.工作频率：20K---40KHz7.MOS/IGBT最高温度：50度（1500W负载，环境温度为25度时测试）。

二.功能说明：1.功率调节：调节功率电位器，功率可以从零到额定功率可调。

2.电源开关：ON为开启，OFF为关断。

3.显示窗：可显示机器输出功率。

4.电源及保护指示：绿色指示灯点亮，表示电源开启。

机器工作正常。

指示灯熄灭，表示电源关断。

若指示灯闪烁，则表示由于负载引起过流，短路或者电源电压异常，以及机器内局部温度过高导致电路自我保护所致。

5.电源线：连接机器与市电的连接器件。

注意接地要良好！6.输出接线口：超声清洗机与发生器的连接处。

注意正负极性不可接反。

7.散热风扇：为主功率器件散热。

三.机器接口图示1.面板图功率显示功率调节钮电源/保护指示电源开关注：面板上的9功率电位器工作时必需旋到最大工作，切不可旋至一半工作！2.尾部图输出接线端+ -散热风扇3.内部图散热风扇谐振电感隔离变压器电源开关电源变压器储能电容整流桥信号板显示板频率调节电位器显示数值效正四.机器调试方法:1.调试关键点见下图端口1 端口2 端口3 功率抽头线2,调试步骤:(1)将功率抽头线端子接入变压器端口2位置.(2)接通电源,打开电源开关.(3)将电位器调至最大位置,待软启动完成后,将谐振电感垫高或者拉低,同时观察钳型电流表上电流,当发现电感的气隙高度在某一位置时,输出电流最大,则说明已调到最佳谐振点，固定好电感。

(4)看电流与振子功率是否达到规范，如功率不够则将功率抽头线端子接入变压器端口3或者4。

逆变器使用说明书第一章介绍1.1 产品概述逆变器是一种将直流电能转换为交流电能的装置，广泛应用于太阳能、风能等可再生能源系统中。

本使用说明书旨在向用户提供逆变器的正确使用方法和注意事项，以确保产品的安全运行和有效性。

1.2 产品特点我们的逆变器具有以下特点：（1）高效能转换：采用先进的电子技术，将直流电能高效地转换为交流电能；（2）稳定性强：具备过载保护、短路保护、过温保护等功能，保障设备的稳定运行；（3）便捷安装：逆变器体积小巧，重量轻，安装简便；（4）用户友好：操作简单，具备直观的界面显示和功能按钮；（5）可靠性高：采用优质的元器件和严格的生产工艺，确保产品的可靠性和耐用性。

第二章使用前的准备2.1 确认产品完整性在使用逆变器之前，请检查包装内是否包含逆变器本体、电源线、使用说明书等配套物品，并确保产品外观完好无损。

2.2 安装环境准备（1）选择安装位置：逆变器需要在通风良好、干燥、无尘、无腐蚀性气体的环境中安装，避免阳光直射；（2）安装固定：逆变器需要固定在平稳的支架上，确保其稳定性和安全性；（3）电源连接：将逆变器与电源连接，确保电源线接线正确、牢固可靠。

第三章使用方法3.1 启动操作（1）将逆变器的直流输入端与太阳能电池连接，确保连接牢固；（2）将逆变器的交流输出端与负载设备连接，确保连接牢固；（3）按下逆变器的开机按钮，待指示灯亮起表示逆变器已启动。

3.2 参数设置逆变器具备一些可调节的参数，用户可以根据实际需求进行设置。

具体设置方法请参考使用说明书中的“参数设置”章节。

3.3 监测与故障排除逆变器配备了监测功能，可以实时显示逆变器的工作状态和输出功率等信息。

若逆变器出现故障，请参考使用说明书中的“故障排除”章节进行处理。

第四章注意事项4.1 安全使用（1）请勿将逆变器暴露在高温、高湿等恶劣环境中，以免影响逆变器的性能和寿命；（2）请勿将逆变器放置在易燃或易爆物品附近，避免发生火灾或爆炸事故；（3）请勿将逆变器与大功率电器连接，以免损坏逆变器；（4）请勿擅自拆卸逆变器，以免发生意外。

目录一、前言 (1)二、BND系列产品简介 (3)三、BND系列产品型号说明 (4)四、BND系列产品技术原理及性能指标 (6)五、BND系列产品使用方法 (7)六、售后服务 (11)附件 (12)一、前言1.1概述逆变电源就是将直流电能转换成交流电能的装置，供交流负载用电。

传统的逆变电源是采用直流电动机—交流发电机组来实现这种电能转换的，而现代的逆变电源多是通过功率半导体器件来实现电能转换的，又被称为静止变流器。

其在体积、重量、变换效率、可靠性、电性能等方面的优越性都大大超过了传统的逆变装置。

正弦波逆变电源作为新一代直流/交流逆变电源已广泛用于电力、通信、金融、铁路、工业控制、医疗、军事等各个重要领域，输出稳定可靠，可由直流系统保证能源并长期连续供电，消除了直接使用市电带来的供电中断、电压不稳，杂音干扰和雷电侵入等不利因素。

同时克服了小型UPS供电时间短的致命缺陷，确保用电设备安全可靠。

本公司生产的正弦波逆变电源包括电力专用逆变电源、通信专用逆变电源、车载专用逆变电源、机车专用逆变电源、光伏专用逆变电源等，均采用进口高速开关功率器件，使用CPU集成控制技术，数字化电路，可靠性强，在线长年运行，不受时间限制，将直流电源转换、稳压、隔离、输出单相AC220V或三相AC380V、50Hz正弦波纯净交流电，对负载不间断供电，使负载不受电网各种干扰，保持正常运行。

BND系列电力专用正弦波逆变电源系经过严密的生产控制及品质管制与精确之测试和校证，能够为用户提供高品质的服务。

正确安装和使用本产品能更好发挥其作用，因此在安装和使用前应认真阅读用户手册。

对本手册和产品上的说明事宜及注意事项应特别注意。

1.2 使用须知本产品在保修期间一年内，任何正常使用状况下之自然损坏，由本公司免费负责修护，但若有下列任一情况者，则不在保修之列：(1)非经本公司允许，擅自进行维修而损坏。

(2)用简单调压器加整流桥测试本电源。

（因低压或超高压窜入，易使电源不稳或烧坏器件。
