可编辑修改精选全文完整版电力系统电力系统介绍随着电力工业的增加，与用于生成和处置现今大规模电能消费的电力生产、传输、分派系统相关的经济、工程问题也随之增多。

这些系统组成了一个完整的电力系统。

应该着重提到的是生成电能的工业，它不同凡响的地方在于其产品应按顾客要求即需即用。

生成电的能源以煤、石油，或水库和湖泊中水的形式贮存起来，以备以后所有需。

但这并非会降低用户对发电机容量的需求。

显然，对电力系统而言服务的持续性相当重要。

没有哪一种服务能完全幸免可能显现的失误，而系统的本钱明显依托于其稳固性。

因此，必需在稳固性与本钱之间找到平稳点，而最终的选择应是负载大小、特点、可能显现中断的缘故、用户要求等的综合表现。

但是，网络靠得住性的增加是通过应用必然数量的生成单元和在发电站港湾各分区间和在国内、国际电网传输线路中利用自动断路器得以实现的。

事实上大型系统包括众多的发电站和由高容量传输线路连接的负载。

如此，在不中断整体服务的前提下能够停止单个发电单元或一套输电线路的运作。

现此生成和传输电力最普遍的系统是三相系统。

相关于其他交流系统而言，它具有简便、节能的优势。

尤其是在特定导体间电压、传输功率、传输距离和线耗的情形下，三相系统所需铜或铝仅为单相系统的75%。

三相系统另一个重要优势是三相电机比单相电机效率更高。

大规模电力生产的能源有：1.从常规燃料（煤、石油或天然气）、城市废料燃烧或核燃料应用中取得的蒸汽；2.水；3.石油中的柴油动力。

其他可能的能源有太阳能、风能、潮汐能等，但没有一种超越了试点发电站时期。

在大型蒸汽发电站中，蒸汽中的热能通过涡轮轮转换为功。

涡轮必需包括安装在轴承上并封锁于汽缸中的轴或转子。

转子由汽缸周围喷嘴喷射出的蒸汽流带动而平稳地转动。

蒸汽流撞击轴上的叶片。

中央电站采纳冷凝涡轮，即蒸汽在离开涡轮后会通过一冷凝器。

冷凝器通过其导管中大量冷水的循环来达到冷凝的成效，从而提高蒸汽的膨胀率、后继效率及涡轮的输出功率。

February 25,2021(CNN)A solar panel in space is collecting energy that could one day be beamed to anywhere on Earth太空中的一块太阳能电池板正在收集能量，这些能量有一天可能会被发射到地球上的任何地方Scientists working in the US have successfully tested a solar panel the size of a pizza box in space, designed as a prototype for a future system to send electricity from space back to any point on Earth.美国的科学家们成功地在太空中测试了一块披萨盒大小的太阳能电池板，该电池板被设计为未来系统的原型，可以将太空中的电力发送回地球上的任何地方。

The panel -- known as a Photovoltaic Radiofrequency Antenna Module (PRAM) -- was first launched in May 2020, attached to the Pentagon's X-37B unmanned drone, to harness light from the sun to convert to electricity. The drone is looping Earth every 90 minutes.该电池板被称为光伏射频天线模块(PRAM)，于2020年5月首次发射，连接在五角大楼的X-37B无人机上，利用来自太阳的光转化为电能。

无人机每90分钟在地球上空盘旋一次。

The panel is designed to make best use of the light in space, which doesn't pass through the atmosphere, and so retains the energy of blue waves, making it more powerful than the sunlight that reaches Earth. Blue light diffuses on entry into the atmosphere, which is why the sky appears blue.这种电池板的设计是为了充分利用太空中的光线，因为太空光线不会穿过大气层，所以它保留了蓝波的能量，使其比到达地球的阳光更有能量。

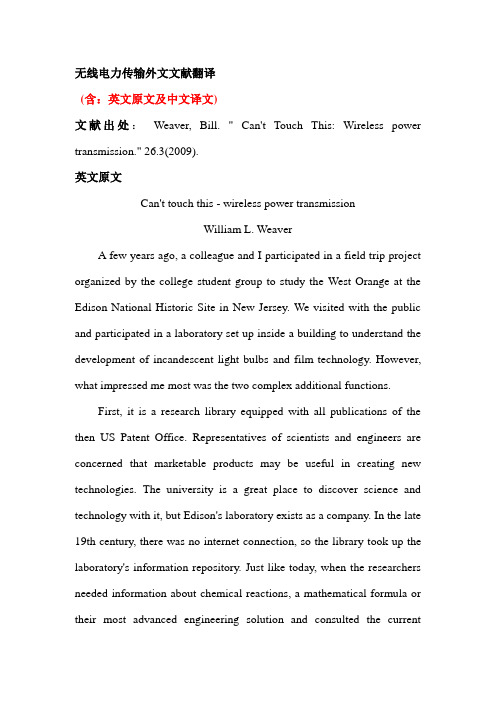

无线电力传输外文文献翻译(含：英文原文及中文译文)文献出处：Weaver, Bill. " Can't Touch This: Wireless power transmission." 26.3(2009).英文原文Can't touch this - wireless power transmissionWilliam L. WeaverA few years ago, a colleague and I participated in a field trip project organized by the college student group to study the West Orange at the Edison National Historic Site in New Jersey. We visited with the public and participated in a laboratory set up inside a building to understand the development of incandescent light bulbs and film technology. However, what impressed me most was the two complex additional functions.First, it is a research library equipped with all publications of the then US Patent Office. Representatives of scientists and engineers are concerned that marketable products may be useful in creating new technologies. The university is a great place to discover science and technology with it, but Edison's laboratory exists as a company. In the late 19th century, there was no internet connection, so the library took up the laboratory's information repository. Just like today, when the researchers needed information about chemical reactions, a mathematical formula or their most advanced engineering solution and consulted the currentliterature, it was only through paper at the time.By simplifying the adoption of standards, this process is further simplified by the rapid adoption of standards. Since most of the tools and equipment can be developed locally, they can deploy their own standards and create the facility on a multi-acre campus.One of these criteria is the method of distribution of power. The final known power supply for grid development is the famous Edison bulb. The tools used in the early Edison lab were a long axis of rotation like a rear-wheel drive automobile driveshaft made up of a universal cable shaft or a marine vessel. The propeller shaft disperses the potential energy of the entire plant in the form of mechanical energy generated by the boiler.A belt and a simple clutch system are connected to the line shaft and the strength of the lever is enhanced by using a surrounding shaft belt. Over time, the belt was worn out due to excessive friction. However, this technology provides a less complex power distribution method than earlier high-pressure steam and hydraulic systems.Over time, as well as the development of electrical and electronic equipment, high-voltage power supplies and more distribution standards must be used in our production plants, offices and homes in the near future. In the United States, the electricity generated is 60 Hz and is eventually produced at a nominal voltage between 120, 240 and 480 volts.A typical power outlet is specified to accommodate 15 amps of currentand is equipped with three familiar prongs, a vertical and U-shaped ground pin consisting of two paddles. Forward-looking retailers make pins of different shapes and orientations to prevent other incompatible devices from connecting. Unless there are not enough power outlets, plugs or extension cords, the standard three-hole power cord is a ubiquitous device to "plug in" the power distribution system.With the continuous development of technology, mobile and handheld devices we currently have are booming, so battery companies will follow. Physically connecting these small devices to the grid will seriously affect their functionality. It is for this reason that they should exhaust their own power supplies or produce rechargeable batteries. Battery manufacturers quickly develop their own industry standards, including "AA" and "C" units, to reduce the confusion that consumers may have when replacing batteries.Although transistor radios and toy sensors were popular at the beginning of the year, single-use chemical batteries could not provide enough current for devices such as laptops, smart phones and personal entertainment games that have complicated computational requirements. Their rechargeable batteries are incorporated into the equipment and rarely need to be replaced by the user. These device manufacturers can choose how the battery is manufactured, such as size, battery life, and internal configuration capabilities of the device components. This featureof the battery has given manufacturers' industrial designers more rights to differentiate their products in style, look and feel.However, the disadvantage of rechargeable batteries is that they eventually still need to be charged. We can easily connect to the power supply via an AC/DC power adapter. However, it is more difficult to connect the battery to the adapter or "charger" because each battery manufacturer is free to design the battery's shape and interface. what? In the lovely 100-year-old innovation after this, it did not change with the mode it should have.A conspiracy theory may indicate that portable device manufacturers admit that battery chargers are a lucrative source of income. Similar bubble jet printer manufacturers rely on the consumption of ink in the device as a sales channel to make up for the difference between the selling price and the cost. Users pay $25 to $100 to replace the damaged or missing power adapter, which cancels out a service. The "real cost of freedom" in a planned or low-cost laptop phone. An innocent non-conspiratorial theory may be related to the 2000 (Y2K) problem. Programmers wou ldn’t expect much trouble for this device made in a two-digit year to create for the future, and few portable device designers may expect to consume laptops, mobile phones, MP3 players, and digital cameras today. The number of people. These functions may eventually be provided by an independent "super smartphone", but at present,individual charger users are still inconvenient. Chargers also have similar, incompatible problems between devices, and users may cause exchanges to rise or lose devices. If you are using your fifth mobile phone, it is very likely that there will be four outdated chargers on your garage's work bench.In February this year, the European Union Telecommunications Authority (CEPT) and the subsequent European Union (EU) jointly authorized the establishment of the Publicis Group Special Mobile Association (GSMA), which was developed in 2012 as a standard for use by mobile phones. Micro USB interface charger specification. In addition to making the user more convenient, this specification has also been applied to the recycling of discarded adapters. Although it is not aimed at the standardization of adapters between different mobile devices, it seems to be a good start.However, imagine that if the AC/DC adapter is completely eliminated. This is the future of wireless energy transfer. Nikola Tesla first published his utility in 1893. Inductively coupled transformers use wireless technology to replace an ordinary power adapter, correcting the drawbacks of the DC voltage required to charge the two inductive coils of an inductively coupled transformer supplied by an AC outlet. Unfortunately, as the distance between the transmitter and receiver increases, the inductance effect quickly diminishes and is often affectedby interference. In other recent developments, Professor Malinsoor and his colleagues at the Massachusetts Institute of Technology recently developed inductive coupling coils that can be tuned to specific resonant frequencies to overcome these limitations. This improves the understanding of the coupling efficiency of the power supply and reduces the interference around other devices or between coils in other indifferent locations. It is called eCoupled technology.While taking advantage of the high efficiency of the Witricity Resonance Sensing, the eCoupled system, including the sender and receiver, does not include the switching of a metal device or device of the RFID chip into sleep mode. The additional data services are robust and canonical communications, and will automatically power off when the battery is full. If widely adopted, wireless power transmission will be listed as a public service facility. Imagine eCoupled transmitters are simple when it comes to using new standards that are used to spur their own, usually using two main methods. To the new standard, there are usually two main methods used to promote its development. The first is a strong regulatory code. Second, inventing a technology that allows manufacturers to imitate and make it widely popular is powerful, but I prefer the latter's non-intervention method.中文译文不能触碰这个—无线电力传输William L. Weaver几年前, 一个同事和我参加在校大学生团体的组织的一个实地考察项目, 考察地位于新泽西州的爱迪生国家历史遗址的西橙。

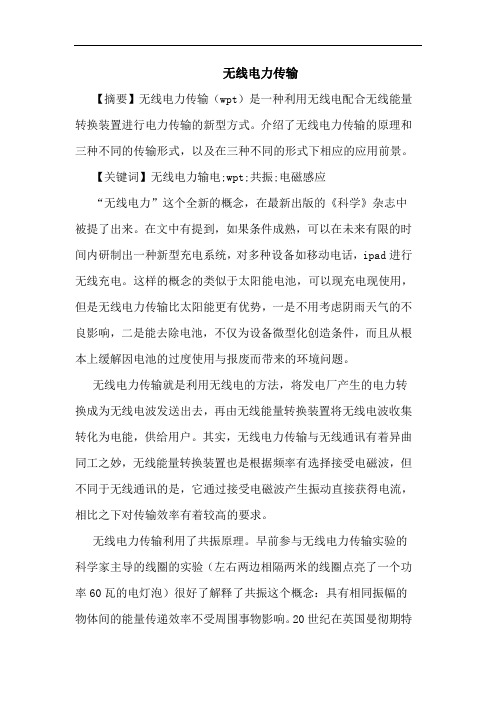

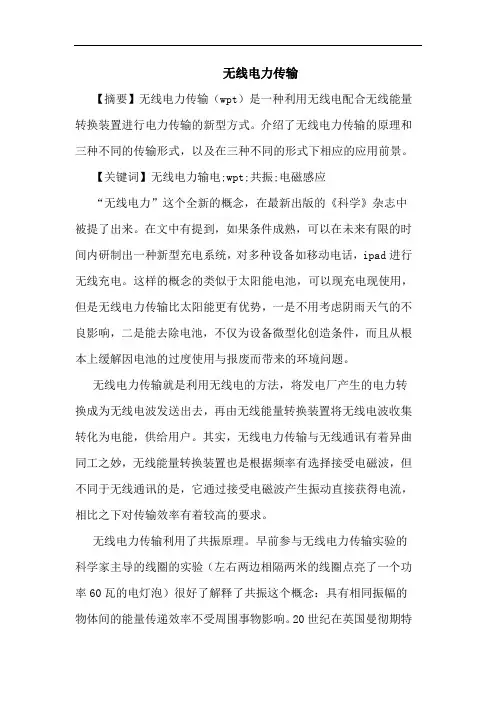

无线电力传输【摘要】无线电力传输（wpt）是一种利用无线电配合无线能量转换装置进行电力传输的新型方式。

介绍了无线电力传输的原理和三种不同的传输形式，以及在三种不同的形式下相应的应用前景。

【关键词】无线电力输电;wpt;共振;电磁感应“无线电力”这个全新的概念，在最新出版的《科学》杂志中被提了出来。

在文中有提到，如果条件成熟，可以在未来有限的时间内研制出一种新型充电系统，对多种设备如移动电话，ipad进行无线充电。

这样的概念的类似于太阳能电池，可以现充电现使用，但是无线电力传输比太阳能更有优势，一是不用考虑阴雨天气的不良影响，二是能去除电池，不仅为设备微型化创造条件，而且从根本上缓解因电池的过度使用与报废而带来的环境问题。

无线电力传输就是利用无线电的方法，将发电厂产生的电力转换成为无线电波发送出去，再由无线能量转换装置将无线电波收集转化为电能，供给用户。

其实，无线电力传输与无线通讯有着异曲同工之妙，无线能量转换装置也是根据频率有选择接受电磁波，但不同于无线通讯的是，它通过接受电磁波产生振动直接获得电流，相比之下对传输效率有着较高的要求。

无线电力传输利用了共振原理。

早前参与无线电力传输实验的科学家主导的线圈的实验（左右两边相隔两米的线圈点亮了一个功率60瓦的电灯泡）很好了解释了共振这个概念：具有相同振幅的物体间的能量传递效率不受周围事物影响。

20世纪在英国曼彻期特发生的因军队过桥步伐整齐造成桥倒塌的事故就是共振的证明。

无线电力传输利用的是低频电磁波共振。

在实验中，两个感应接受装置都以50hz的频率震动，形成共振，才得以进行装置间能量的传送。

从形成共振到完成能量的传输不是瞬时的，需要一定的时间用于积累。

每一次发生共振，感应接受器中便会积累更多的电压，多次共振就会聚集足够的能量使灯泡发亮。

其实早在19世纪就有科学家提出了无线能量转换这个概念。

因为从17世纪开始人类发明了发电机并利用有线的方式传输电能，并随着电能的普及至今日，供电网、高压线已遍布世界。

Electric Power SystemElectrical power system refers to remove power and electric parts of the part,It includes substation, power station and distribution. The role of the power grid is connected power plants and users and with the minimum transmission and distribution network disturbance through transport power, with the highest efficiency and possibility will voltage and frequency of the power transmission to the user fixed .Grid can be divided into several levels based on the operating voltage transmission system, substructure, transmission system and distribution system, the highest level of voltage transmission system is ZhuWangJia or considered the high power grids. From the two aspects of function and operation, power can be roughly divided into two parts, the transmission system and substation. The farthest from the maximum output power and the power of the highest voltage grade usually through line to load. Secondary transmission usually refers to the transmission and distribution system is that part of the middle. If a plant is located in or near the load, it might have no power. It will be direct access to secondary transmission and distribution system. Secondary transmission system voltage grade transmission and distribution system between voltage level. Some systems only single second transmission voltage, but usually more than one. Distribution system is part of the power system and its retail service to users, commercial users and residents of some small industrial users. It is to maintain and in the correct voltage power to users responsible. In most of the system, Distribution system accounts for 35% of the total investment system President to 45%, and total loss of system of the half .More than 220kv voltage are usually referred to as Ultra high pressure, over 800kv called high pressure, ultra high voltage and high pressure have important advantages, For example, each route high capacity, reduce the power needed for the number of transmission. In as high voltage to transmission in order to save a conductor material seem desirable, however, must be aware that high voltage transmission can lead to transformer, switch equipment and other instruments of spending increases, so, for the voltage transmission to have certain restriction, allows it to specific circumstances in economic use. Although at present, power transmission most is through the exchange of HVDC transmission, and the growing interest in, mercury arc rectifier and brake flow pipe into the ac power generation and distribution that change for the high voltage dc transmission possible.Compared with the high-voltage dc high-voltage ac transmission has the following some advantages: (1) the communication with high energy; (2) substation of simple maintenance and communication cost is low; (3) ac voltage can easily and effectively raise or lower, it makes the power transmission and high pressure With safety voltage distributionHVDC transmission and high-voltage ac transmission has the following advantages: (1) it only need two phase conductors and ac transmission to three-phase conductors; (2) in the dc transmission impedance, no RongKang, phase shift and impact overvoltage; (3) due to the same load impedance, no dc voltage, and transfer of the transmission line voltage drop less communication lines, and for this reason dc transmission line voltage regulator has better properties; (4) in dc system without skin effect. Therefore, the entire section of route conductors are using; (5) for the same work, dc voltage potential stress than insulation. Therefore dc Wire need less insulation; (6) dc transmission line loss, corona to little interference lines of communication; (7) HVDC transmission without loss of dielectric, especially in cable transmission; (8) in dc system without stability and synchronization of trouble.A transmission and the second transmission lines terminated in substation or distribution substations, the substation and distribution substations, the equipment including power and instrument transformer and lightning arrester, with circuit breaker, isolating switch, capacitor set, bus and a substation control equipment, with relays for the control room of the equipment. Some of the equipment may include more transformer substations and some less, depending on their role in the operation. Some of the substation is manual and other is automatic. Power distribution system through the distribution substations. Some of them by many large capacity transformer feeders, large area to other minor power transformer capacity, only a near load control, sometimes only a doubly-fed wire feeders (single single variable substation)Now for economic concerns, three-phase three-wire type communication network is widely used, however, the power distribution, four lines using three-phase ac networks.Coal-fired power means of main power generating drive generators, if coal energy is used to produce is pushing the impeller, then generate steam force is called the fire. Use coal produces steam to promote the rotating impeller machine plant called coal-fired power plants. In the combustion process, the energy stored in the coal to heat released,then the energy can be transformed into the form within vapor. Steam into the impeller machine work transformed into electrical energy.Coal-fired power plants could fuel coal, oil and natural gas is. In coal-fired power plant, coal and coal into small pieces first through the break fast, and then put out. The coal conveyer from coal unloader point to crush, then break from coal, coal room to pile and thence to power. In most installations, according to the needs of coal is, Smash the coal storage place, no coal is through the adjustable coal to supply coal, the broken pieces of coal is according to the load changes to control needs. Through the broken into the chamber, the coal dust was in the second wind need enough air to ensure coal burning.In function, impeller machine is used to high temperature and high pressure steam energy into kinetic energy through the rotation, spin and convert electricity generator. Steam through and through a series of impeller machine parts, each of which consists of a set of stable blade, called the pipe mouth parts, even in the rotor blades of mobile Li called. In the mouth parts (channel by tube nozzle, the steam is accelerating formation) to high speed, and the fight in Li kinetic energy is transformed into the shaft. In fact, most of the steam generator is used for air is, there is spread into depression, steam turbine of low-pressure steam from the coagulation turbine, steam into the condenses into water, and finally the condensate water is to implement and circulation.In order to continuous cycle, these must be uninterrupted supply: (1) fuel; (2) the air (oxygen) to the fuel gas burning in the configuration is a must; (3) and condenser, condensed from the condensed water supply, sea and river to lake. Common cooling tower; (4) since water vapour in some places in circulation, will damage process of plenty Clean the supply.The steam power plant auxiliary system is running. For a thermal power plant, the main auxiliary system including water system, burning gas and exhaust systems, condensation system and fuel system. The main auxiliary system running in the water pump, condensation and booster pump, coal-fired power plants in the mill equipment. Other power plant auxiliary equipment including air compressors, water and cooling water system, lighting and heating systems, coal processing system. Auxiliary equipment operation is driven by motor, use some big output by mechanical drive pump and some of the impeller blades, machine drive out from the main use of water vaporimpeller machine. In coal-fired power plant auxiliary equipment, water supply pump and induced draft fan is the biggest need horsepower.Most of the auxiliary power generating unit volume increased significantly in recent years, the reason is required to reduce environment pollution equipment. Air quality control equipment, such as electrostatic precipitator, dust collection of flue gas desulfurization, often used in dust in the new coal-fired power plants, and in many already built in power plant, the natural drive or mechanical drive, fountain, cooling tower in a lake or cooling canal has been applied in coal-fired power plants and plants, where the heat release need to assist cooling system.In coal-fired power stations, some device is used to increase the thermal energy, they are (1) economizer and air preheater, they can reduce the heat loss; (2) water heater, he can increase the temperature of water into boiling water heaters; (3) they can increase and filter the thermal impeller.Coal-fired power plants usually requires a lot of coal and coal reservoirs, however the fuel system in power plant fuel handling equipment is very simple, and almost no fuel oil plants.The gas turbine power plants use gas turbine, where work is burning gas fluid. Although the gas turbine must burn more expensive oil or gas, but their low cost and time is short, and can quickly start, they are very applicable load power plant. The gas turbine burn gas can achieve 538 degrees Celsius in the condensing turbine, however, the temperature is lower, if gas turbine and condenser machine, can produce high thermal efficiency. In gas turbine turbine a combined cycle power plant. The gas through a gas turbine, steam generator heat recovery in there were used to generate vapor heat consumption. Water vapor and then through a heated turbine. Usually a steam turbine, and one to four gas turbine power plant, it must be rated output power.。

无线通信电机及电子学工程师联合会2005年国际研讨会上关于微波，天线，传播和无线通信的电磁兼容技术在技术发展上的最新动态竹内清一地区10主任东京电机大学摘要本文介绍无线通信技术的最新发展趋势以及组成无线通信技术的四个部分。

第一个也是最重要的发展是全球互联网流量的增长。

在全球互联网流量增长的重要趋势总结在全球地理区域和他们的互联网渗透方面。

第二个部分是实现无线通信所必备的骨干网络中的硬件配套技术的发展。

第三部分是无线通信的中心问题，特别是本地个人用户，第四和最后一个部分是总结发言。

1简介许多技术的发展显然是需要通过无线通信的实现，以满足环保要求的社会背景需要这的种技术发展。

例如，互联网流量每年约增加一倍，而这种快速增长的互联网流量和WWW（全球资讯网）需要为骨干网络配置无线并不一定需要，但对本地无线通信的实现至关重要的巨大带宽。

骨干网主要靠光纤电缆的技术发展以及相关的配套技术配套支持运行的。

这样的等配套技术包括信息处理和WDM（波分复用）和他们使取得的高效无线通信成为了可能。

无线通信，特别是无线互联网特别是无线互联网对于集中，甚至不断移动的短距离范围内的本地个人用户非常重要。

在IEEE 802.11是无线局域网用于与合作媒介访问控制协议的一般原则，也可以扩展到其他类型的无线网络，如无线个人区域网络（WPAN的）。

该服务区的范围变得越来越小，以便让当地个人用户的充分利用无线通讯媒介用于无线互联网流量。

无线通信是无线互联网最便捷的传输介质，这种无线传输介质的有效使用是至关重要的。

可靠的访问几十兆赫可以跨相当大的在其中无线互联网将需要十倍多的细胞的语音系统的地理区域，每个这样的monocles将测量面积小，几十平方米的大约是百分之常规细胞的大小。

它比传统电池可以容纳更多给定的数据速率的有源器件。

为了使这成为可能的，有效的射频频谱空间复用是必要的，从而能够让个人用户访问更贴近低功率的传输点。

对于快速增长的互联网流量的整体通信系统可以由的三个关键的重要领域的技术发展来支持，1）硬件技术需要个人用户的高密度无线传输的实现，2）配套硬件技术的光纤电缆，3）整体通信系统的运作和维护方面的软件技术，我们主要回顾了前两部分的硬件方面2互联网的发展表1显示了最高的互联网普及率最高的24个国家。

The Load Estimation and Power Tracking Integrated Control Strategy for Dual-Sides Controlled LCC Compensated WirelessCharging SystemABSTRACT In this paper, the wireless power transfer (WPT) system with dynamic loads such as batteries is studied comprehensively. An integrated control technology of load estimation and power tracking of LCC compensated is proposed, which realizes load estimation, mode judgment and charging control at the transmitter, and standard load setting and decoupling control at the receiver. Based on the inflfluence of reflflection impedance on the output current of the inverter, a method of identifying coupling coeffificient and equivalent load is proposed and a mathematical model is established. Receiver controller provides standard reference load for load estimation. Transmitter controller judges battery status according to the estimation of equivalent load and adopts double closed-loop control to regulate power and current. Receiver decouples control when battery charging voltage reaches the threshold, and providing mode conversion sign for transmitter controller to realize constant current (CC) and constant voltage (CV) charging of battery.The Dual-sides integrated control scheme has no data communication between transmitter and receiver, so it can control independently, which reduces the complexity of the system and is suitable for different charging modes. The proposed controller is more effificient as it maintains a track current, and dynamically alters the pick-up characteristics to suit the load demand. Finally, the simulation and experimental results validate the feasibility of proposed control method, which realizes the estimation of the load and CC/CV charging of the battery. The proposed WPT system achieved the effificiency at 91.16% while delivering 2 kW to the load with a vertical air gap of 150 mm.INDEX TERMS Wireless power transfer, integrated control, load estimation, constant current/voltage charging, LCC compensation, phase shift control.Wireless Power Transmission (WPT) or Contactless Power Transmission (CPT) achieves the power transmission without physical connection, which makes up for the shortcomings of traditional power transmission methods . Wireless charging will promote the development of electric vehicles (EVs), because it provides more convenient, reliable and safer charging options than conductive charging . There are many research fields in WPT for EVs, especially the WPT system is sensitive to coupling coefficient, air gap, resonant frequency, and load change, which makes it hard for There are many research fields in WPT for EVs, especially the WPT system issensitive to coupling coefficient, air gap,resonant frequency, and load change, which makes it hard for robust control, and most scholars focus on the steady state of the WPT systems .When the resonant frequency, position, parameters and load of the wireless charging system change, which result in a higher volt-ampere rating and lower power transfer efficiency. Therefore, resonant compensation is an important part at the transmitter and receiver of the system. Different compensation topologies have been proposed and implemented to tune the two coils working at a resonant frequency in a wide range of applications. there are four basic compensation topologies, namely Series-Series (SS), SeriesParallel (SP), Parallel-Series (PS) and Parallel-Parallel (PP),are widely adopted for EV applications.Many other novel compensation topologies are also used to improve the power transfer efficiency and to simplify the control of WPT systems. Literatures show that LCL topology and series LC topology are the commonly used primary compensation networks for WPT. Compared with series LC, LCL performs better in power conversion efficiency over the full range of coupling and loading imposed, and its constant current source characteristic make its closed-loop control implementation easier. More advantageous compensation topologies are put forward in . The double-sided LCC compensation topology is outstanding since not only is its resonant frequency independent of coupling coefficient and load condition, but also its advantages of facilitating zero voltage switch (ZVS) or zero current switch (ZCS) of the inverter, realize CC charging at zero phase angle (ZPA) condition, increasing lateral misalignment tolerance, and improving WPT efficiency have been demonstrated.The other problem with WPT charger systems is implementing a charge process for EV batteries.Since batteries are considered to be varying loads during charging, the charge converter needs to regulate its output precisely to implement the constant current (CC) charge and constant voltage (CV) mode charge. Thus, meticulous control and tuning of the inverter is necessary since the load varies violently as the receive coil moves with the online EV.This adds to the control complexity and may reduce systematic reliability. In order to improve battery life and charging efficiency, it is necessary for a charger to provide accurate charge current and voltage through stable operations. In recent years, various control strategies have been studied to provide the required output currentorvoltagefortime-varyingloadsatdifferentcharging stages.The traditional control method is to use wireless communication to send the load state information to the transmitter controller to adjust the output power of the inverter to achieve CC/CV charging in . In order to simplify the control of an WPT charger system and avoid the above drawbacks of conventional control methods under wide variations of the load in implementing the CC/CV charge, some researchers have started to utilize the load-independent characteristics of the compensation topologies at their resonant frequencies proposes a design method which makes it possible to implement the CC/CV mode charge with minimum frequency variation during the entire charge process by using the load-independent characteristics of an WPT system under the ZPA condition without any additional switches. But, frequency variation may result in a bifurcation phenomenon,where the control ability and stability of the system are lost.In order to realize ZPA condition in the whole charging process, a switchablehybrid topology is proposed in [19], and [20]. CC and CV charging are realized in different compensation topologies. However, the addition of switches complicates the system, and changes in system parameters can also lead to instability.In[21], a new control technique was proposed, which only employs the controller at transmitting and and load identification approach to adjust charging voltage/current for SS and SP compensated WPT systems. The advantages are that dual-side wireless communication for real-time charging current/voltage adjustment is avoided as well as it is suitable for different charging modes. However, switching between two kinds of topologies is still needed. For the CC/CV charging control at constant frequency, some approaches employ a DC/DC converter to control the output current or voltage while the front-end converter operates at the resonant frequency to achieve the ZPA condition in [22] and [23]. However, this increases the component counts, losses and complexity. In [24], DC/DC converters are used for decoupling control rather than CC or CV charging.In [25]and [26], a single primary-side controller based on phase shift H-bridge inverter are proposed to adjust the charging current or charging voltage against various load, may make it hard for the High frequency inverter to achieve ZVS in full load range, especially with light load condition. Then, the primary-side control method that realizes CC/CV charging for battery is analyzed, which is the main contribution of this paper.The objective of this research is to study and develop a new integrated control strategy for load and power tracking that realizes CC/CV charging for LCC compensation through the double-loop controlled phase shift H-bridge inverter and load identification approach. The system adopts dual-side controller to avoid wireless communication, and the mathematical models of load estimation and mode judgment are derived by using the topological compensation characteristics of double-sided LCC. The working state of the battery is fed back to the transmitter controller by reflecting the impedance of the receiver, and the coupling coefficient of coils and load value are estimated.The transmitter judges the charging mode according to the estimated load, adjusts the output power of the inverter, and maintains CC/CV charging by phase-shifting control. In CC mode, the transmitter can transfer more power and prevents overloading. In CV mode, the output power can be adjusted according to the charging curve. The receiver control circuit adopts Buck-Boost structure. Different from the traditional impedance matching or CC/CV charging control mode, the receiver controller sets the standard reference value of load estimation control by impedance matching. Buck-Boost converter operates in switching mode during charging. When the charging voltage reaches the reference value, the switching action changes the reflection impedance and provides the mode conversion mark for the transmitter. Based on the feedback signal and the amount of transferred power, the controlling module continuously adjusts the transmitting coil current during the charging.The rest of the sections are organized as follows:Section II gives the system structure and basic theoretical analysis. Section III proposes the integrated control method of load estimation and power tracking, and then the double closed-loop PIcontroller of transmitter and receiver is designed. Section IV validates the proposed method with simulations and experiments.Finally,last section summarizes the conclusions drawn from the investigation.II. SYSTEM STRUCTURE AND THEORETICAL ANALYSISIn this section, the system structure and methodology for analyzing the WPT system are discussed. Then, basic output characteristics for LCC compensation are analyzed to propose the Integrated control method on the transmitting side and the receiving side.A.WIRELESS POWER TRANSMISSION SYSTEM TRUCTURE In this paper, the most widely used variable impedance load battery is taken as the research object.Charging characteristic curve of the battery is shown in Figure 1. Charging process includes CC/CV charging. In CC stage, the output power of the power supply increases with the increase of the battery terminal voltage, while the equivalent impedance of the battery increases with little change. In the CV stage, the charge current and power decrease,and the equivalent impedance of the battery increases rapidly.B. LOAD ESTIMATE AND MODEL RECOGNITION The transmitter controller measures Iinv to estimate the load and mutual inductance changes, and judges the working state of the receiver. The inverter operates at ZPA resonant frequency and the controller adjusts fro m 180◦ phase shift, which means that the minimum input voltage is applied to the transmitting coil. According to the requirement of the receiver, the power control unit uses phase shift control to adjust the It and VC to keep the CC and CV working modes at the receiver.The transmitter can control the power output according to the working mode of the receiver and the load demand. In order to achieve this function, the designed controller should be able to estimate mutual inductance and equivalent load, and then judge the charging mode of the receiving end. The control block diagram of load estimation and mode judgment strategy is shown in Figure 5. Where, Rx is the standard reference load of the receiver.CONCLUSION An integrated control method of load estimation and power tracking is proposed in this paper to achieve CC/CV charging.of LCC compensation WPT system. Firstly, through theoretical analysis, the LCC compensation topology can realize the charge of CC mode under ZPA condition, and get the relationship between the equivalent load and the current of the inverters. Then, a standard reference load is set at the receiver so that the transmitter can estimate the equivalent load by calculating the refection impedance and detecting the output current of the inverter. Finally, according to the estimated load value and the conversion mark given by the decoupling control of the receiver, the CC/CV charging for LCC compensation are realized by PI controlled phase shift full-bridge inverter. The simulation and experimental results validate the feasibility of the proposed control method for whole load changes. The proposed WPT system can achieve a high effenciency at 91.16% with a 20-cm air gap when delivering 0.2−2kW to the load in different charging stages.双边控制的LCC补偿型无线充电系统的负载估计与功率跟踪集成控制策略摘要本文对电池等动态负载下的无线电能传输（WPT）系统进行了全面的研究。

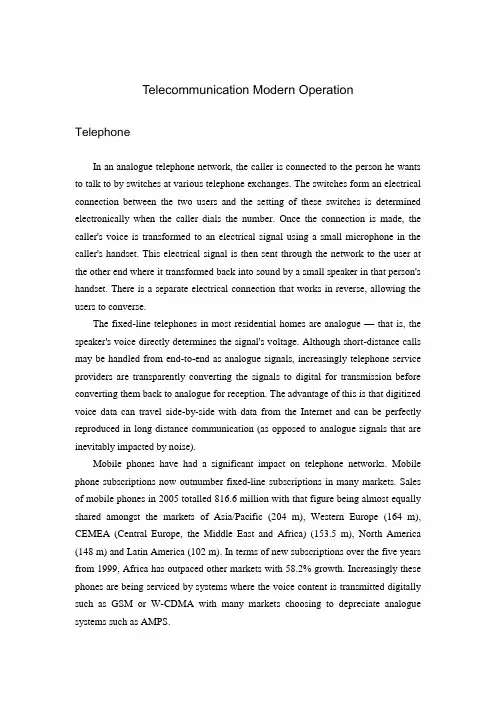

Telecommunication Modern OperationTelephoneIn an analogue telephone network, the caller is connected to the person he wants to talk to by switches at various telephone exchanges. The switches form an electrical connection between the two users and the setting of these switches is determined electronically when the caller dials the number. Once the connection is made, the caller's voice is transformed to an electrical signal using a small microphone in the caller's handset. This electrical signal is then sent through the network to the user at the other end where it transformed back into sound by a small speaker in that person's handset. There is a separate electrical connection that works in reverse, allowing the users to converse.The fixed-line telephones in most residential homes are analogue — that is, the speaker's voice directly determines the signal's voltage. Although short-distance calls may be handled from end-to-end as analogue signals, increasingly telephone service providers are transparently converting the signals to digital for transmission before converting them back to analogue for reception. The advantage of this is that digitized voice data can travel side-by-side with data from the Internet and can be perfectly reproduced in long distance communication (as opposed to analogue signals that are inevitably impacted by noise).Mobile phones have had a significant impact on telephone networks. Mobile phone subscriptions now outnumber fixed-line subscriptions in many markets. Sales of mobile phones in 2005 totalled 816.6 million with that figure being almost equally shared amongst the markets of Asia/Pacific (204 m), Western Europe (164 m), CEMEA (Central Europe, the Middle East and Africa) (153.5 m), North America (148 m) and Latin America (102 m). In terms of new subscriptions over the five years from 1999, Africa has outpaced other markets with 58.2% growth. Increasingly these phones are being serviced by systems where the voice content is transmitted digitally such as GSM or W-CDMA with many markets choosing to depreciate analogue systems such as AMPS.There have also been dramatic changes in telephone communication behind the scenes. Starting with the operation of TAT-8 in 1988, the 1990s saw the widespread adoption of systems based on optic fibres. The benefit of communicating with optic fibres is that they offer a drastic increase in data capacity. TAT-8 itself was able to carry 10 times as many telephone calls as the last copper cable laid at that time and today's optic fibre cables are able to carry 25 times as many telephone calls as TAT-8. This increase in data capacity is due to several factors: First, optic fibres are physically much smaller than competing technologies. Second, they do not suffer from crosstalk which means several hundred of them can be easily bundled together in a single cable. Lastly, improvements in multiplexing have led to an exponential growth in the data capacity of a single fibre.Assisting communication across many modern optic fibre networks is a protocol known as Asynchronous Transfer Mode (ATM). The ATM protocol allows for the side-by-side data transmission mentioned in the second paragraph. It is suitable for public telephone networks because it establishes a pathway for data through the network and associates a traffic contract with that pathway. The traffic contract is essentially an agreement between the client and the network about how the network is to handle the data; if the network cannot meet the conditions of the traffic contract it does not accept the connection. This is important because telephone calls can negotiate a contract so as to guarantee themselves a constant bit rate, something that will ensure a caller's voice is not delayed in parts or cut-off completely. There are competitors to ATM, such as Multiprotocol Label Switching (MPLS), that perform a similar task and are expected to supplant ATM in the future.Radio and televisionIn a broadcast system, a central high-powered broadcast tower transmits a high-frequency electromagnetic wave to numerous low-powered receivers. The high-frequency wave sent by the tower is modulated with a signal containing visual or audio information. The antenna of the receiver is then tuned so as to pick up the high-frequency wave and a demodulator is used to retrieve the signal containing the visual or audio information. The broadcast signal can be either analogue (signal isvaried continuously with respect to the information) or digital (information is encoded as a set of discrete values).The broadcast media industry is at a critical turning point in its development, with many countries moving from analogue to digital broadcasts. This move is made possible by the production of cheaper, faster and more capable integrated circuits. The chief advantage of digital broadcasts is that they prevent a number of complaints with traditional analogue broadcasts. For television, this includes the elimination of problems such as snowy pictures, ghosting and other distortion. These occur because of the nature of analogue transmission, which means that perturbations due to noise will be evident in the final output. Digital transmission overcomes this problem because digital signals are reduced to discrete values upon reception and hence small perturbations do not affect the final output. In a simplified example, if a binary message 1011 was transmitted with signal amplitudes [1.0 0.0 1.0 1.0] and received with signal amplitudes [0.9 0.2 1.1 0.9] it would still decode to the binary message 1011 — a perfect reproduction of what was sent. From this example, a problem with digital transmissions can also be seen in that if the noise is great enough it can significantly alter the decoded message. Using forward error correction a receiver can correct a handful of bit errors in the resulting message but too much noise will lead to incomprehensible output and hence a breakdown of the transmission.In digital television broadcasting, there are three competing standards that are likely to be adopted worldwide. These are the ATSC, DVB and ISDB standards; the adoption of these standards thus far is presented in the captioned map. All three standards use MPEG-2 for video compression. ATSC uses Dolby Digital AC-3 for audio compression, ISDB uses Advanced Audio Coding (MPEG-2 Part 7) and DVB has no standard for audio compression but typically uses MPEG-1 Part 3 Layer 2. The choice of modulation also varies between the schemes. In digital audio broadcasting, standards are much more unified with practically all countries choosing to adopt the Digital Audio Broadcasting standard (also known as the Eureka 147 standard). The exception being the United States which has chosen to adopt HD Radio. HD Radio, unlike Eureka 147, is based upon a transmission method known as in-band on-channel transmission that allows digital information to "piggyback" on normal AM or FM analogue transmissions.However, despite the pending switch to digital, analogue receivers still remain widespread. Analogue television is still transmitted in practically all countries. The United States had hoped to end analogue broadcasts on December 31, 2006; however, this was recently pushed back to February 17, 2009. For analogue television, there are three standards in use. These are known as PAL, NTSC and SECAM. For analogue radio, the switch to digital is made more difficult by the fact that analogue receivers are a fraction of the cost of digital receivers. The choice of modulation for analogue radio is typically between amplitude modulation (AM) or frequency modulation (FM). To achieve stereo playback, an amplitude modulated subcarrier is used for stereo FM.The InternetThe Internet is a worldwide network of computers and computer networks that can communicate with each other using the Internet Protocol. Any computer on the Internet has a unique IP address that can be used by other computers to route information to it. Hence, any computer on the Internet can send a message to any other computer using its IP address. These messages carry with them the originating computer's IP address allowing for two-way communication. In this way, the Internet can be seen as an exchange of messages between computers.An estimated 16.9% of the world population has access to the Internet with the highest access rates (measured as a percentage of the population) in North America (69.7%), Oceania/Australia (53.5%) and Europe (38.9%).In terms of broadband access, Iceland (26.7%), South Korea (25.4%) and the Netherlands (25.3%) lead the world.The Internet works in part because of protocols that govern how the computers and routers communicate with each other. The nature of computer network communication lends itself to a layered approach where individual protocols in the protocol stack run more-or-less independently of other protocols. This allows lower-level protocols to be customized for the network situation while not changing the way higher-level protocols operate. A practical example of why this is important is because it allows an Internet browser to run the same code regardless of whether the computer it is running on is connected to the Internet through an Ethernet or Wi-Fi connection. Protocols are often talked about in terms of their place in the OSIreference model, which emerged in 1983 as the first step in an unsuccessful attempt to build a universally adopted networking protocol suite.For the Internet, the physical medium and data link protocol can vary several times as packets traverse the globe. This is because the Internet places no constraints on what physical medium or data link protocol is used. This leads to the adoption of media and protocols that best suit the local network situation. In practice, most intercontinental communication will use the Asynchronous Transfer Mode (ATM) protocol (or a modern equivalent) on top of optic fibre. This is because for most intercontinental communication the Internet shares the same infrastructure as the public switched telephone network.At the network layer, things become standardized with the Internet Protocol (IP) being adopted for logical addressing. For the world wide web, these “IP addresses” are derived from the human readable form using the Domain Name System (e.g.72.14.207.99 is derived from ). At the moment, the most widely used version of the Internet Protocol is version four but a move to version six is imminent.At the transport layer, most communication adopts either the Transmission Control Protocol (TCP) or the User Datagram Protocol (UDP). TCP is used when it is essential every message sent is received by the other computer where as UDP is used when it is merely desirable. With TCP, packets are retransmitted if they are lost and placed in order before they are presented to higher layers. With UDP, packets are not ordered or retransmitted if lost. Both TCP and UDP packets carry port numbers with them to specify what application or process the packet should be handled by. Because certain application-level protocols use certain ports, network administrators can restrict Internet access by blocking the traffic destined for a particular port.Above the transport layer, there are certain protocols that are sometimes used and loosely fit in the session and presentation layers, most notably the Secure Sockets Layer (SSL) and Transport Layer Security (TLS) protocols. These protocols ensure that the data transferred between two parties remains completely confidential and one or the other is in use when a padlock appears at the bottom of your web browser. Finally, at the application layer, are many of the protocols Internet users would be familiar with such as HTTP (web browsing), POP3 (e-mail), FTP (file transfer), IRC (Internet chat), BitTorrent (file sharing) and OSCAR (instant messaging).Local area networksDespite the growth of the Internet, the characteristics of local area networks (computer networks that run at most a few kilometres) remain distinct. This is because networks on this scale do not require all the features associated with larger networks and are often more cost-effective and efficient without them.In the mid-1980s, several protocol suites emerged to fill the gap between the data link and applications layer of the OSI reference model. These were Appletalk, IPX and NetBIOS with the dominant protocol suite during the early 1990s being IPX due to its popularity with MS-DOS users. TCP/IP existed at this point but was typically only used by large government and research facilities. As the Internet grew in popularity and a larger percentage of traffic became Internet-related, local area networks gradually moved towards TCP/IP and today networks mostly dedicated to TCP/IP traffic are common. The move to TCP/IP was helped by technologies such as DHCP that allowed TCP/IP clients to discover their own network address —a functionality that came standard with the AppleTalk/IPX/NetBIOS protocol suites.It is at the data link layer though that most modern local area networks diverge from the Internet. Whereas Asynchronous Transfer Mode (ATM) or Multiprotocol Label Switching (MPLS) are typical data link protocols for larger networks, Ethernet and Token Ring are typical data link protocols for local area networks. These protocols differ from the former protocols in that they are simpler (e.g. they omit features such as Quality of Service guarantees) and offer collision prevention. Both of these differences allow for more economic set-ups.Despite the modest popularity of Token Ring in the 80's and 90's, virtually all local area networks now use wired or wireless Ethernet. At the physical layer, most wired Ethernet implementations use copper twisted-pair cables (including the common 10BASE-T networks). However, some early implementations used coaxial cables and some recent implementations (especially high-speed ones) use optic fibres. Optic fibres are also likely to feature prominently in the forthcoming 10-gigabit Ethernet implementations. Where optic fibre is used, the distinction must be made between multi-mode fibre and single-mode fibre. Multi-mode fibre can be thought of as thicker optical fibre that is cheaper to manufacture but that suffers from less usable bandwidth and greater attenuation (i.e. poor long-distance performance).。
