NAS Express软件安装及召唤故障录波1.NAS Express软件的安装⑴ 解压，里面有个，点击安装，建议安装在默认位置，装完会提示重启，也可稍后重启。

⑵解压，将里面的所有文件复制到前面安装的文件夹里。

如果是按默认安装，则是C:\NAS Express。

覆盖过后文件夹显示有这些文件：安装结束，前面没重启的可以重启了。

2.召唤故障录波NAS Express软件可选择串口通或者网络通装置。

若串口通NAS 920系列的装置，则用这个打开，其他则用打开。

⑴串口通召唤故障录波（用串口卡和波士与装置连接）以TDR 940装置为例，先打开，显示选择“系统\选择规约及项目”，操作显示如下：显示“规约及项目选择”，通讯规约选择“保护94拓展”，调试项目选择“TDR 940系列”，点击确认。

操作显示如下：选择：“系统\选择装置”，显示如下：通讯端口：就是PCI串口卡的端口号；装置型号：选择TDR 940；装置地址：所通装置的串口地址；波特率：装置的波特率设置完成后，点击确认，系统提示初始化完成，显示如下：这是可以查看装置有没有通上，可点击“系统\显示报文”，选择显示报文，可查看报文。

如下：选择“显示\故障录波\故障录波远程版”（注：故障录波本地版是打开保存在电脑上的录波文件，貌似容易导致软件卡死，建议不用），显示如下：点击“录波事件选择”，选择“获取录波事件列表”，，再选择“读取录波数据”，显示如下：当录波数据读取完毕后，选择好电压通道、电流通道、开关量即可。

显示如下：选择录波分析，可很细致的显示采样点的各谐波分量，如下：也可以在主界面上的快捷方式选择“故障录波”，调出录波分析软件，再选择录波文件，操作大致前面一样，显示如下：注：TDR 930和TDR 940系列装置操作方法都是一样的，只是有些选择不同，在此就不赘述了。

而若通NAS 920装置，前面已经说过，一开始选择的打开文件不一样，而后续的操作则是相似的，在此也不说了（NAS 928系列有些装置不能召唤故障录波）。

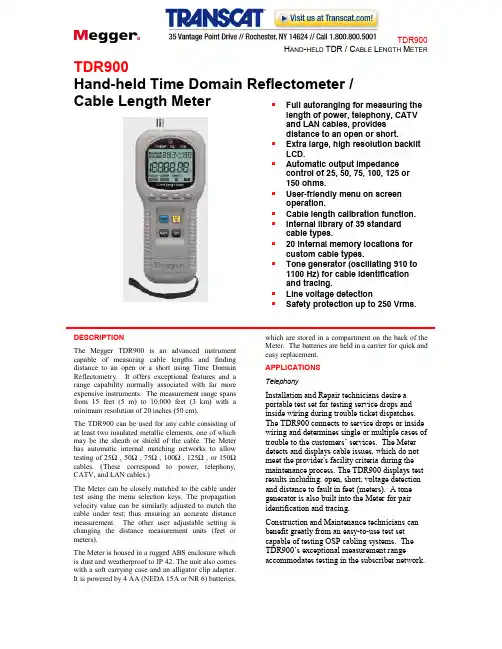

TDR900H AND -HELD TDR / C ABLE L ENGTH M ETERTDR900Hand-held Time Domain Reflectometer / Cable Length Meter DESCRIPTIONThe Megger TDR900 is an advanced instrumentcapable of measuring cable lengths and finding distance to an open or a short using Time Domain Reflectometry. It offers exceptional features and a range capability normally associated with far more expensive instruments. The measurement range spans from 15 feet (5 m) to 10,000 feet (3 km) with a minimum resolution of 20 inches (50 cm).The TDR900 can be used for any cable consisting of at least two insulated metallic elements, one of which may be the sheath or shield of the cable. The Meter has automatic internal matching networks to allow testing of 25Ω , 50Ω , 75Ω , 100Ω , 125Ω , or 150Ω cables. (These correspond to power, telephony, CATV, and LAN cables.)The Meter can be closely matched to the cable under test using the menu selection keys. The propagation velocity value can be similarly adjusted to match the cable under test; thus ensuring an accurate distance measurement. The other user adjustable setting is changing the distance measurement units (feet or meters).The Meter is housed in a rugged ABS enclosure which is dust and weatherproof to IP 42. The unit also comes with a soft carrying case and an alligator clip adapter. It is powered by 4 AA (NEDA 15A or NR 6) batteries,which are stored in a compartment on the back of the Meter. The batteries are held in a carrier for quick and easy replacement. APPLICATIONS TelephonyInstallation and Repair technicians desire a portable test set for testing service drops and inside wiring during trouble ticket dispatches. The TDR900 connects to service drops or inside wiring and determines single or multiple cases of trouble to the customers’ services. The Meter detects and displays cable issues, which do not meet the provider's facility criteria during the maintenance process. The TDR900 displays test results including: open, short, voltage detection and distance to fault in feet (meters). A tone generator is also built into the Meter for pair identification and tracing.Construction and Maintenance technicians can benefit greatly from an easy-to-use test set capable of testing OSP cabling systems. The TDR900’s exceptional measurement rangeaccommodates testing in the subscriber network.Full autoranging for measuring thelength of power, telephony, CATV and LAN cables, provides distance to an open or short.Extra large, high resolution backlit LCD.Automatic output impedance control of 25, 50, 75, 100, 125 or 150 ohms.User-friendly menu on screen operation.Cable length calibration function. Internal library of 39 standard cable types.20 internal memory locations for custom cable types.Tone generator (oscillating 910 to 1100 Hz) for cable identification and tracing.Line voltage detectionSafety protection up to 250 Vrms.TDR900H AND -HELD TDR / C ABLE L ENGTH M ETER Contractors/InstallersThe TDR900 fills various applications ranging from cable verification and fault location, panel mapping to cable stock control. The Meter supports either electrical contractors or telecom/datacom contractors.Contractors can verify cable lengths on buried service drops before billing service providers.Electric PowerStreet Lighting: To install street lighting, short lengths of cable run from lamppost to lamppost. It is important that joints are accessible as the cable runs underground. The TDR900 is used initially to ensure there is enough cable on the drum to give a continuous run and then utilized to check the installation is correct.MiningDue to Ex 'd' (Explosion proof) regulations most countries do not allow TDRs down mines, however, as the mine deepens, shafts are dug from the surface and umbilical cables aredropped down. These carry power for the tools and telecommunication needs. Due to the distances involved, these cables especially the telecom, become stretched and are likely to fail. The TDR900 can easily be justified as a maintenance tool to check cable integrity.BroadcastingOutside broadcasting: Outside broadcast vehicles carry an enormous amount of cables depending on the situation, e.g. sporting events can use ten or more different camera locations. Due to the temporary nature of the installation, cables get damaged and a low cost, simple to read TDR can easily be justified to quickly locate failures. Studio Broadcasting: Cameras in a studio have a trailing group of cables, which are draggedaround the floor, as the cameras move. This puts a strain both on the cable and in the joints, as quality of the signal is very important. Aerials: The signals from broadcastingcompanies are transmitted through aerials and large drops of cable are used due to the height of these aerials. The cables become stretchedespecially around the joints, giving poor service.StocktakingA simple application is stocktaking. Anycompany that purchases reasonable amounts of cable or any company that produces cable needs to know how much they are buying or have onthe shelf. Traditional graphic TDRs have had limited success in this area due to cost and waveform interpretations. The TDR900 provides both simplicity and accuracy.FEATURES• CE-Certificated• Accurate to 20 inches (50 cm) throughout the entire range• Extra-large backlit (ICON type 7 segment) LCD•Automatic output impedance control, auto-range, auto-zero, and auto-sensitivity allows for closely matching to a wide range of cables under test. Only V.O.P (velocity of propagation) settings required.•Displays cable length if the cable’s V.O.P (velocity of propagation) is known ordisplays V.O.P (velocity of propagation) if a cable’s length is known.• 20 internal memory locations store up to 20 custom cable V.O.P settings.•Internal library of 39 standard cables allow for quick and easy measurements for industry standard cable types.•Tone Generator (oscillating 910 to 1100 Hz; 5 V peak to peak) for cable identification and tracing.•Line Voltage Detection: Displays “OUCH” message and stops operation if line voltage exceeds 6.5 V.•Safety Protection (up to 250 V RMS)SPECIFICATIONSExcept where otherwise stated, this specification applies at an ambient temper of 68°F (20°C).GeneralCABLE LENGTH MEASUREMENTS Range: Depends upon the V.O.P of the cablesunder test.12,000 ft (3.7 km)@ V. O. P 99.9 9,800 ft (3.0 km)@ V. O. P 80.0 8,000 ft (2.4 km)@ V. O. P 66.0 6,200 ft (1.9 km)@ V. O. P 50.0Accuracy*:± 2 % of reading + 20 inch (50 < 300 ft (100 m)± 2 % of reading > 300 ft (100TDR900H AND -HELD TDR / C ABLE L ENGTH M ETER*This accuracy is effective for Coaxial Cables up to 8,000 feet, Telephony Cables up to 6,000 feet, and Structured Wiring up to 3,000 ft.Resolution: 20 inches (50 cm)V.O.P (Velocity of Propagation): Adjustable from1.0 % to 99.9 (in 0.1 % step)CABLE LENGTH CALIBRATION FUNCTIONAllows you to measure the V.O.P, given as a percentage of the speed of light, of a known cable length.Required minimum length of sample cable: 30 ft (10 m)NONVOLATILE MEMORY Cable library:39 standard cable typesCustom cable:20 custom cable typesAuto-Power-Off:The Meter is completely turned offed after 30 minutes of no activities. Press the POW E R button to turn the Meter on again. This feature can be disabled.Display:ICON type 7 segment LCD. Backlight stays on for 1 minute when activated.Connector type: BNC Power supply:4 LR6 (AA) type batteriesBattery life: Approx. 5,000 tests Safety:Complies with IEC 61010-1EMC: BS/EN 61326-1 PRODUCT INCLUDES:Megger TDR900 Cable Length Meter Alligator Clip adapter User ManualSoft Carrying CaseWARRANTY:3 years from date of purchase.MechanicalThe meter is designed for use indoors or outdoors. (IP 42) Dimensions:9.25 H x 3.94 W x 1.73 D in. (235 H x 100 W x 44 D mm) Weight:Approx. 16 oz (450 g)EnvironmentalOperating temperature: 0°F to 140°F (-18°C to 60°C) Storage temperature: -4°F to 158°F (-20°C to 70°C) Relative humidity: 85% at 95°F (35°C)ItemOrder No.Hand-held Time Domain Reflectometer / Cable Length Meter TDR900Complete with Alligator Clip adapter User ManualSoft Carrying CaseRegistered to ISO 14001 Reg no. EMS 61597Megger is a re g i s t e red trademark。

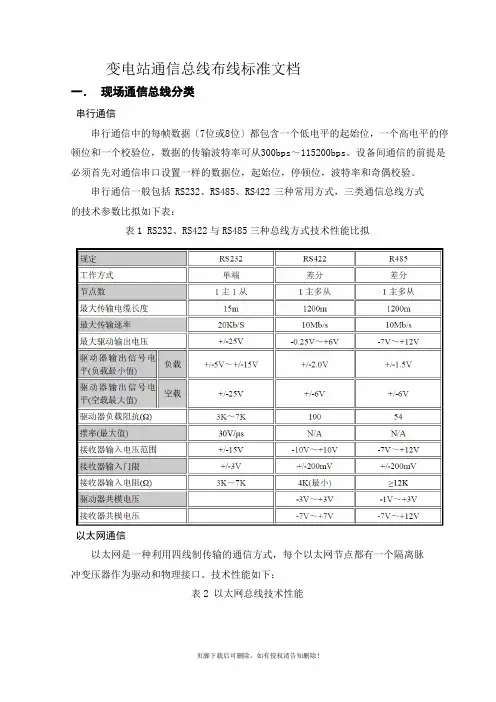

变电站通信总线布线规范文档一．现场通信总线分类1.1 串行通信串行通信中的每帧数据（7位或8位）都包含一个低电平的起始位，一个高电平的停止位和一个校验位，数据的传输波特率可从300bps～115200bps。
