【US20190331157A1】SCREWMETHODOFMANUFACTURINGTHESAME

专利名称：SCREWING METHOD OF MACHINE SCREW 发明人：WATANABE JUN申请号：JP27643887申请日：19871031公开号：JPH01120409A公开日：19890512专利内容由知识产权出版社提供摘要：PURPOSE: To prevent fall over of a small screw by inserting the top part of the small screw into a guide hole, standing the small screw upright and then driving it in. CONSTITUTION: A top screwing part 1a of a small screw 1 is inserted into a guide hole 4b. As the diameter D3 of the guide hole 4b is bigger than or equal to the outer diameter D2 of the screwing part 1a of the small screw 1, it is completely to be inserted into the hole, so the small screw 1 can reliably stand upright on the screwing hole 4a. Therefore, while driving in the small screw by hand or by a mechanism, the small screw 1 does not fall over, and the hole 4 is also not damaged. Furthermore, a plate 5 can reliably be fixed on the case 2 by the small screw 1.申请人：YAMAGATA KASHIO KK,CASIO COMPUT CO LTD更多信息请下载全文后查看。

专利名称：METHOD OF MANUFACTURING SCREW 发明人：KAMEDA Michihiro,INOUE Masaaki申请号：EP16887927.8申请日：20160128公开号：EP3257603B1公开日：20200115专利内容由知识产权出版社提供摘要：A method of machining a screw is provided that is capable of preventing formation of a protruding section at a thread tip section even when rolling is performed.A thread (2A) is formed by cutting on a cylindrical body inner circumferential surface (1a), and a surface of the thread (2A) is plastically deformed by rolling. Because of the cutting, a width (Lt) between both side surfaces (2ATs) of a thread tip section (2AT) is in a narrowed state as compared to a normal width (Lts) and is gradually narrowed toward a tip of the thread (2A) while a thread body section (2AM) has a width (Lm) between both side surfaces (2AMs) expanded as compared to a normal width (Lms) so that each of the side surfaces (2AMs) of the thread body section (2AM) is formed to bulge by an excess thickness portion (4) as compared to normal side surfaces (2AMss). The rolling plastically deforms the both side surfaces (2AMs) of the thread body section (2AM) to cause the excess thickness portion (4) to plastically flow toward each of the side surfaces (2ATs) of the thread tip section (2AT).代理机构：dompatent von Kreisler Selting Werner - Partnerschaft von Patent- und Rechtsanwälten mbB更多信息请下载全文后查看。

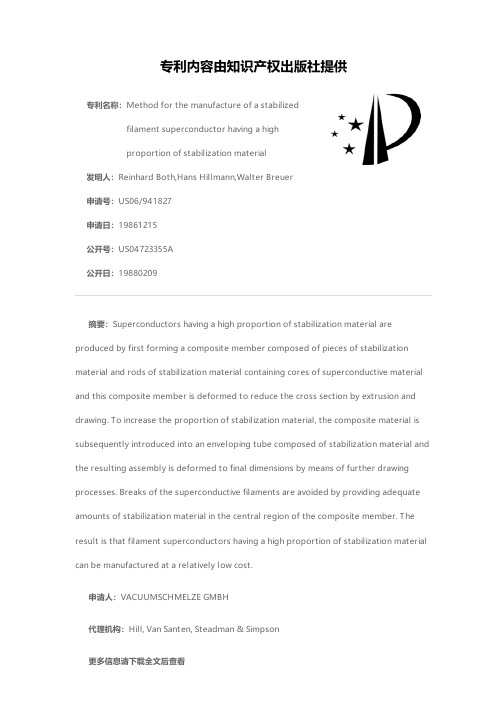

专利名称：Method for the manufacture of a stabilized filament superconductor having a highproportion of stabilization material发明人：Reinhard Both,Hans Hillmann,Walter Breuer 申请号：US06/941827申请日：19861215公开号：US04723355A公开日：19880209专利内容由知识产权出版社提供摘要：Superconductors having a high proportion of stabilization material are produced by first forming a composite member composed of pieces of stabilization material and rods of stabilization material containing cores of superconductive material and this composite member is deformed to reduce the cross section by extrusion and drawing. To increase the proportion of stabilization material, the composite material is subsequently introduced into an enveloping tube composed of stabilization material and the resulting assembly is deformed to final dimensions by means of further drawing processes. Breaks of the superconductive filaments are avoided by providing adequate amounts of stabilization material in the central region of the composite member. The result is that filament superconductors having a high proportion of stabilization material can be manufactured at a relatively low cost.申请人：VACUUMSCHMELZE GMBH代理机构：Hill, Van Santen, Steadman & Simpson更多信息请下载全文后查看。

专利名称：METHOD FOR MANUFACTURING A SCREW CAP发明人：AXRUP, Lars申请号：EP14869017.5申请日：20141205公开号：EP3080003B1公开日：20190109专利内容由知识产权出版社提供摘要：The present invention relates to a method for manufacturing a screw cap(12), wherein the screw cap having a blind hole with inner threads. The method comprising the steps of placing a piece pre-preg MFC (11), of a suitable size for forming the screw cap, between a first tool (1) comprising a protruded part (2) with outer threads (4) for forming the inner threads (17) of the blind hole (14),and a second tool comprising a section (22) with an inner lateral surface (25) for forming an outer lateral surface(18) of the screw cap, moving the protruded part of the first tool into the section of the second tool, such that,the first and the second tool forms the screw cap,drying the piece of pre-preg MFC, such that it is shrinks onto the first tool and thereby forms the screw cap, and unscrewing the formed screw cap from the threads of the protruded part of the first tool.申请人：Stora Enso Oyj代理机构：Steinrud, Henrik更多信息请下载全文后查看。

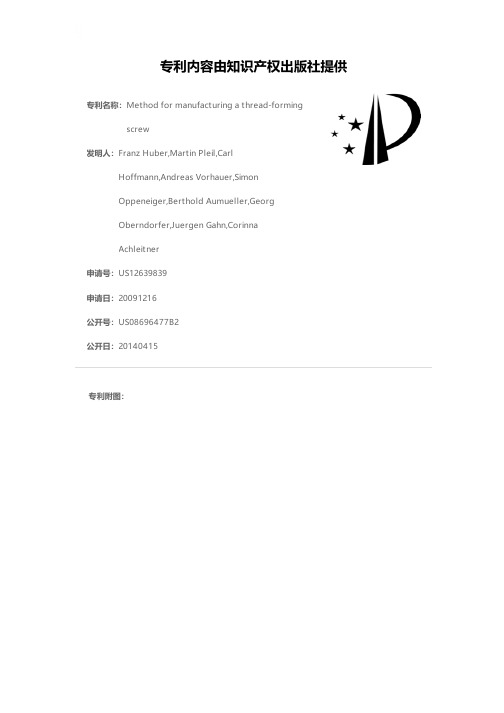

专利名称：Method for manufacturing a thread-forming screw发明人：Franz Huber,Martin Pleil,CarlHoffmann,Andreas Vorhauer,SimonOppeneiger,Berthold Aumueller,GeorgOberndorfer,Juergen Gahn,CorinnaAchleitner申请号：US12639839申请日：20091216公开号：US08696477B2公开日：20140415专利内容由知识产权出版社提供专利附图：摘要：A method for manufacturing a thread-forming screw having a shank and a thread formed in one piece with the shank and region-wise circumferentially arranged on the shank, is disclosed. After the formation of the thread on the shank, a plurality of recesses is subsequently stamped into the thread. Then, a plurality of compact cutting elements is welded into the recesses in the thread, where the cutting elements are made of a hard material and have a hardness greater than the hardness of the thread. Additionally, a stamping device for carrying out the method is also disclosed.申请人：Franz Huber,Martin Pleil,Carl Hoffmann,Andreas Vorhauer,Simon Oppeneiger,Berthold Aumueller,Georg Oberndorfer,Juergen Gahn,Corinna Achleitner 地址：Markt Wald DE,Feldkirch AT,Bodolz DE,Sulz AT,Hoechst AT,GrafenwoehrDE,Feldkirch AT,Altstaetten CH,Bludenz AT国籍：DE,AT,DE,AT,AT,DE,AT,CH,AT代理机构：Crowell & Moring LLP更多信息请下载全文后查看。

专利名称：MANUFACTURING METHOD OF MINIATUREFLUID ACTUATOR发明人：Hao-Jan Mou,Hsien-Chung Tai,Lin-HueiFang,Yung-Lung Han,Chi-Feng Huang,Chang-Yen Tsai,Wei-Ming Lee申请号：US17072863申请日：20201016公开号：US20210147221A1公开日：20210520专利内容由知识产权出版社提供专利附图：摘要：A manufacturing method of miniature fluid actuator is disclosed and includesthe following steps. A flow-channel main body manufactured by a CMOS process is provided, and an actuating unit is formed by a deposition process, a photolithography process and an etching process. Then, at least one flow channel is formed by etching, and a vibration layer and a central through hole are formed by a photolithography process and an etching process. After that, an orifice layer is provided to form at least one outflow opening by an etching process, and then a chamber is formed by rolling a dry film material on the orifice layer. Finally, the orifice layer and the flow-channel main body are flip-chip aligned and hot-pressed, and then the miniature fluid actuator is obtained by a flip-chip alignment process and a hot pressing process.申请人：Microjet Technology Co., Ltd.地址：Hsinchu TW国籍：TW更多信息请下载全文后查看。

专利名称：METHOD OF SCREW HOLE RECOGNITION 发明人：TAKANO, MISUZU,ITSUZAKI,YOSHIHIRO,HORIKAMI, KINJI,OKUMURA,KAZUMASA申请号：EP96909348申请日：19960411公开号：EP0822029A4公开日：19981007专利内容由知识产权出版社提供摘要：In plural screw holes, by detecting screw hole positions by making use of circular form of the objects, screws are tightened efficiently and at high speed. Circular screw hole objects are taken by image pickup means 1 to obtain a contrast image, the contrast image is scanned by scanning means 3 by a contour scanning window comprising a contour scanning circle equal to the circular contour on the contrast image and plural concentration correlation lines orthogonal to the contour scanning circle for measuring the image concentration inside and outside the contour scanning circle, the absolute value of the difference of the measured concentration value of the inside concentration correlation line composed of a specific number of inside concentration measuring points and the measured concentration value of the outside concentration correlation line composed of a specific number of outside concentration measuring points in each concentration correlation line by means of position calculating means 4, the position of the contour scanning window where the number of concentration correlation lines of which absolute value is greater than the threshold is maximum is detected as the position of the object, the deviation of upper and lower holes is calculated by the deviationcalculating means 5, and the screws are tightened sequentially from the one of the smallest deviation of upper and lower holes, thereby correcting the deviation of other holes. Moreover, by detecting the position as the above method by paying attention to two points of the plural holes, the rotation angle of the object of tightening is determined by the rotation angle calculating means 6, and from this rotation angle, the deviation of other holes is calculated by the hole position correction calculating means 7.申请人：MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD.更多信息请下载全文后查看。

专利名称：BONE SCREW AND METHOD FORPRODUCING THE THREADS THEREOF 发明人：Hansson, Henrik申请号：EP02712585.5申请日：20020220公开号：EP1367951B1公开日：20071114专利内容由知识产权出版社提供摘要：The present invention relates to a bone screw, a method for producing the threads of the bone screw and a drill for drilling holes therefor. The bone screw is adapted for implants for fixation of bone fragments at fractures and it comprises a threaded or tapped part (16) which is adapted to be screwed into a bone fragment at the fracture. The threaded part (16) extends backwards from a front end portion (17) of the bone screw (6) to an untapped part (18) thereof and has threads (19) with the same outer diameter (YD). The threads (19) have the same pitch of thread (P) and extend from a core (21). At least front parts of the core (21) closest to the front end portion (17) of the bone screw (6) are conical and have their least diameter (MD) situated at the front end portion (17). The threads (19) have truncated crests (23) and the width (b1-b7) of the crests (23) of the threads (19) increases in backwards direction from the front end portion (17). The width (B1-B6) of grooves (20) between the threads (19) decreases in dependence of the increase in width (b1-b7) of the crests (23).申请人：HANSSON HENRIK地址：SE国籍：SE代理机构：Wagner, Karl Heinz 更多信息请下载全文后查看。

专利名称：Screw-on acetabular prosthesis and methodof manufacturing the same发明人：HOERMANSDOERFER, GERD申请号：EP91250274.7申请日：19911008公开号：EP0480551A1公开日：19920415专利内容由知识产权出版社提供专利附图：摘要：The invention relates to a screw-in acetabular prosthesis (1) of sphericalgeometry with a special thread for cementless implantation, and to a method for itsmanufacture. The special thread follows in its pattern the spherical circumference formedby the nominal diameter of the cup (1) and is almost completely adapted in its base to this spherical circumference by virtue of the fact that the layout of the thread base is adapted to a very great extent to the spherical outer contour of the acetabular prosthesis (1) by means of strip-shaped part surfaces which are divided into steps in terms of angle and which extend parallel to one another and obliquely relative to the layout of the thread base. The special thread is cut according to the invention by machining with a number of tools, with different cutting edge angles in relation to the thread base (6, 7, 8), and on different paths. Compared to conventional spherical screw-in cups, the thread configuration according to the invention, by means of the freely available thread tooth depth, affords a substantially better primary fixation upon implantation and at the same time considerably reduces the risk of loosening by virtue of the fact that, as a result of the complete contact between the surface of the cup and the bone over a large area, only low specific forces act on the bone bed.申请人：HOERMANSDOERFER, GERD地址：KASTANIENECK 6 A; W-3167 BURGDORF-BEINHORN,Aspelohe 27a D-22848 Norderstedt DE国籍：DE代理机构：UEXKÜLL & STOLBERG更多信息请下载全文后查看。

专利名称：SCREW MACHINING METHOD发明人：KAMEDA Michihiro,INOUE Masaaki申请号：EP16887927.8申请日：20160128公开号：EP3257603A1公开日：20171220专利内容由知识产权出版社提供专利附图：摘要：A method of machining a screw is provided that is capable of preventingformation of a protruding section at a thread tip section even when rolling is performed.A thread (2A) is formed by cutting on a cylindrical body inner circumferential surface (1a),and a surface of the thread (2A) is plastically deformed by rolling. Because of the cutting,a width (Lt) between both side surfaces (2ATs) of a thread tip section (2AT) is in a narrowed state as compared to a normal width (Lts) and is gradually narrowed toward a tip of the thread (2A) while a thread body section (2AM) has a width (Lm) between both side surfaces (2AMs) expanded as compared to a normal width (Lms) so that each of the side surfaces (2AMs) of the thread body section (2AM) is formed to bulge by an excess thickness portion (4) as compared to normal side surfaces (2AMss). The rolling plastically deforms the both side surfaces (2AMs) of the thread body section (2AM) to cause the excess thickness portion (4) to plastically flow toward each of the side surfaces (2ATs) of the thread tip section (2AT).申请人：Nittan Valve Co., Ltd.地址：518 Soya Hadano-shi, Kanagawa 257-0031 JP国籍：JP代理机构：dompatent von Kreisler Selting Werner - Partnerschaft von Patent- und Rechtsanwälten mbB更多信息请下载全文后查看。
