AVR系列单片机的选型指南

AVR单片机选型指南引言：AVR（Advanced Virtual RISC）是由意法半导体（STMicroelectronics）公司开发的一种基于RISC（精简指令集计算机）原理的8位单片机系列，具有高性能、低功耗和强大的功能。

AVR单片机广泛应用于各种嵌入式系统中，如智能家居、工业控制、汽车电子、医疗电子等。

在选择AVR单片机时，需要考虑多个因素，包括性能要求、接口需求、存储容量、功耗、成本等。

本文将介绍AVR单片机的选型指南。

一、性能需求在选型AVR单片机时，首先需要考虑的是性能需求。

性能需求包括处理器速度、存储容量和外设接口等。

处理器速度决定了单片机的处理能力，通常以时钟频率来衡量，常见的频率有8MHz、16MHz等。

存储容量包括Flash（程序存储器）和RAM（数据存储器），一般以字节为单位来衡量。

外设接口包括模拟输入输出（ADC/DAC）、数字输入输出（GPIO）、串口（UART/I2C/SPI）等，根据具体应用需求选择相应的外设接口。

二、功耗需求另一个重要的考虑因素是功耗需求。

AVR单片机以其低功耗的特点而闻名，不论是在待机模式还是在运行模式下，都能有效降低功耗。

对于一些对电池寿命要求较高的应用，如便携式设备，选择低功耗的AVR单片机是一个不错的选择。

三、成本需求成本也是选型时需要考虑的一个因素。

AVR单片机有多个系列，每个系列中有不同的型号，价格也有所不同。

根据项目的预算，可以选择不同价格段的单片机。

一般来说，较低端的单片机价格较低，功能相对较少；而较高端的单片机则价格较高，功能更丰富。

四、开发环境和支持在选择AVR单片机时，还需要考虑开发环境和技术支持。

开发环境包括编译器、调试器和开发板等。

意法半导体公司提供了多种开发工具和支持资源，如Atmel Studio集成开发环境和Atmel START软件框架，可以提高开发效率。

此外，还可以参考开发社区、技术文档和视频教程等，获取更多的技术支持。

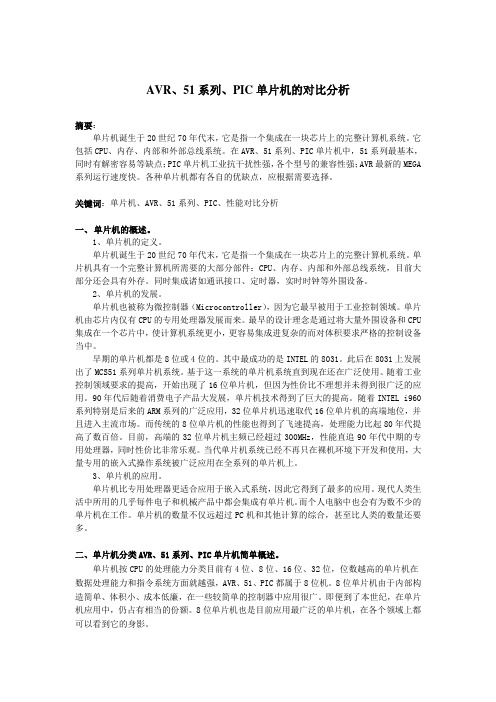

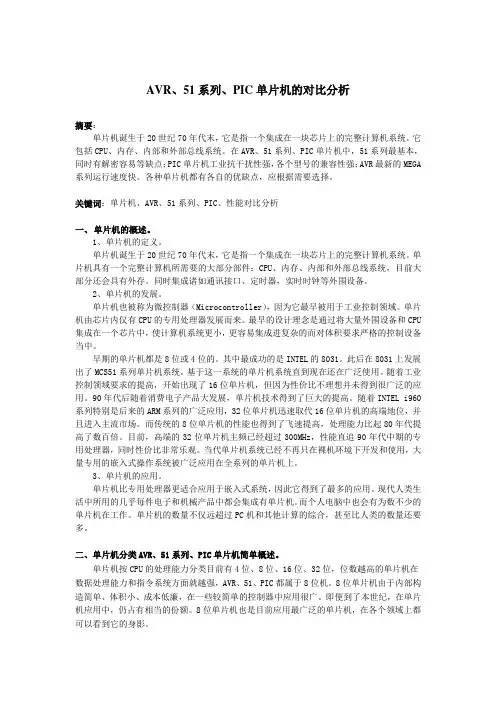

AVR、51系列、PIC单片机的对比分析摘要：单片机诞生于20世纪70年代末，它是指一个集成在一块芯片上的完整计算机系统。

它包括CPU、内存、内部和外部总线系统。

在AVR、51系列、PIC单片机中，51系列最基本，同时有解密容易等缺点；PIC单片机工业抗干扰性强，各个型号的兼容性强；AVR最新的MEGA 系列运行速度快。

各种单片机都有各自的优缺点，应根据需要选择。

关键词：单片机、AVR、51系列、PIC、性能对比分析一、单片机的概述。

1、单片机的定义。

单片机诞生于20世纪70年代末，它是指一个集成在一块芯片上的完整计算机系统。

单片机具有一个完整计算机所需要的大部分部件：CPU、内存、内部和外部总线系统，目前大部分还会具有外存。

同时集成诸如通讯接口、定时器，实时时钟等外围设备。

2、单片机的发展。

单片机也被称为微控制器（Microcontroller），因为它最早被用于工业控制领域。

单片机由芯片内仅有CPU的专用处理器发展而来。

最早的设计理念是通过将大量外围设备和CPU 集成在一个芯片中，使计算机系统更小，更容易集成进复杂的而对体积要求严格的控制设备当中。

早期的单片机都是8位或4位的。

其中最成功的是INTEL的8031。

此后在8031上发展出了MCS51系列单片机系统。

基于这一系统的单片机系统直到现在还在广泛使用。

随着工业控制领域要求的提高，开始出现了16位单片机，但因为性价比不理想并未得到很广泛的应用。

90年代后随着消费电子产品大发展，单片机技术得到了巨大的提高。

随着INTEL i960系列特别是后来的ARM系列的广泛应用，32位单片机迅速取代16位单片机的高端地位，并且进入主流市场。

而传统的8位单片机的性能也得到了飞速提高，处理能力比起80年代提高了数百倍。

目前，高端的32位单片机主频已经超过300MHz，性能直追90年代中期的专用处理器，同时性价比非常乐观。

当代单片机系统已经不再只在裸机环境下开发和使用，大量专用的嵌入式操作系统被广泛应用在全系列的单片机上。

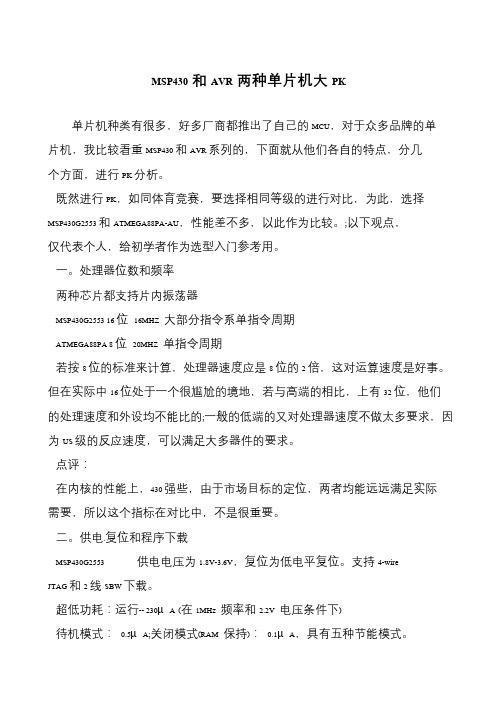

MSP430和AVR两种单片机大PK
单片机种类有很多，好多厂商都推出了自己的MCU，对于众多品牌的单
片机，我比较看重MSP430 和AVR 系列的，下面就从他们各自的特点，分几
个方面，进行PK 分析。

既然进行PK，如同体育竞赛，要选择相同等级的进行对比，为此，选择
MSP430G2553 和ATMEGA88PA-AU，性能差不多，以此作为比较。

;以下观点，仅代表个人，给初学者作为选型入门参考用。

一。

处理器位数和频率
两种芯片都支持片内振荡器
MSP430G2553 16 位16MHZ 大部分指令系单指令周期
ATMEGA88PA 8 位20MHZ 单指令周期
若按8 位的标准来计算，处理器速度应是8 位的2 倍，这对运算速度是好事。

但在实际中16 位处于一个很尴尬的境地，若与高端的相比，上有32 位，他们
的处理速度和外设均不能比的;一般的低端的又对处理器速度不做太多要求，因
为US 级的反应速度，可以满足大多器件的要求。

点评：
在内核的性能上，430 强些，由于市场目标的定位，两者均能远远满足实际
需要，所以这个指标在对比中，不是很重要。

二。

供电.复位和程序下载
MSP430G2553 供电电压为1.8V-3.6V，复位为低电平复位。

支持4-wire JTAG 和2 线SBW 下载。

超低功耗：运行-- 230μA(在1MHz 频率和2.2V 电压条件下)
待机模式：0.5μA;关闭模式(RAM 保持)：0.1μA，具有五种节能模式。

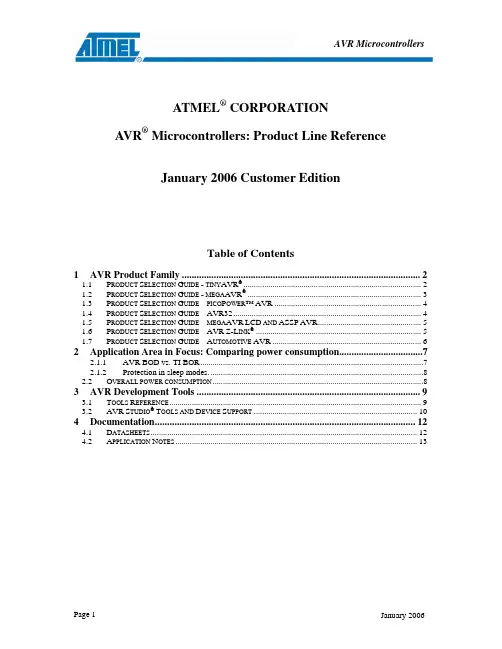

AVR MicrocontrollersATMEL® CORPORATIONA VR® Microcontrollers: Product Line ReferenceJanuary 2006 Customer EditionTable of Contents1AVR Product Family (2)1.1P RODUCT S ELECTION G UIDE - TINY AVR® (2)1.2P RODUCT S ELECTION G UIDE - MEGA AVR® (3)1.3P RODUCT S ELECTION G UIDE – PICO P OWER™AVR (4)1.4P RODUCT S ELECTION G UIDE –AVR32 (4)1.5P RODUCT S ELECTION G UIDE – MEGA AVR LCD AND ASSP AVR (5)1.6P RODUCT S ELECTION G UIDE –AVR Z-L INK® (5)1.7P RODUCT S ELECTION G UIDE –A UTOMOTIVE AVR (6)2Application Area in Focus: Comparing power consumption (7)2.1.1AVR BOD vs. TI BOR (7)2.1.2Protection in sleep modes (8)2.2O VERALL POWER CONSUMPTION (8)3AVR Development Tools (9)3.1T OOLS R EFERENCE (9)3.2AVR S TUDIO®T OOLS AND D EVICE S UPPORT (10)4Documentation (12)4.1D ATASHEETS (12)4.2A PPLICATION N OTES (13)2 Application Area in Focus: Comparing power consumptionWritten by: Andreas Eieland, Applications Engineer, System Solutions GroupFigure 1 Atmel picoPower technologyIt is a known fact that there are two main competitors in the ultra low power MCU market. Atmel with the picoPower megaAVRs and Texas Instruments (TI) with the MSP430F2xx series.Lately there has been debate among development engineers, which MCU is the lowest power consumer. In most cases these discussions are based on readouts from datasheets and not real world applications. When using the datasheets to compare parts it is paramount to compare apples to apples to get the numbers right.We will address this and other issues that are important when comparing AVRs to MSP430s in this article. 2.1.1 AVR BOD vs. TI BORMany compare the TI Brown-out reset (BOR) to the AVR Brown-out detect (BOD), based on this they claim that TI have lower power consumption. This is not correct. The TI BOR circuitry is comparable in functionality, power consumption, and protection level to the AVR Power-on-Reset circuitry. The TI BOR and the AVR POR are both considered being “Zero-Power”.To achieve the same level of protection as the AVR BOD, which is present on all picoPower megaAVRs, you have to use the TI Supply Voltage Supervisor (SVS). The SVS is not present on any parts in the ultra low power MSP430F2xx series. It is only available onlarger, more expensive MSP430s. Figure 2: the Atmel picoPower BOD response timeWhen enabled the TI SVS is active in all operating modes. The additional current consumed by the SVS is maximum 15 µA. Though the AVR sleeping BOD has a slightly higher maximum consumption of 20 µA in active mode, power is saved compared to the SVS and other traditional BODs byautomatically disabling the BOD during sleep mode. The BOD is automatically re-enabled when the controller wakes up from sleep mode and is active before the AVR executes any instructions. This approach provides superior protection with substantially less power drain as the majority of the time is normally spent in sleep mode in low power applications – not in active mode.2.1.2Protection in sleep modes.The accuracy of BODs is directly proportional to the current they consume. Low- or zero-power BODs tend to be both slow and inaccurate, while more accurate, faster BODs consume more power. Since BODs usually remain on in sleep mode, they represent a substantial drag on battery life. As a result, most vendors of ultra low power MCUs, sacrifice accuracy and speed to reduce current consumption.In some comparisons it is claimed that the sleeping BOD does not provide sufficient protection in sleep modes since the Brown out detector is turned off. This claim is based on the belief that one cannot predict when a brown out condition occurs. This is not true! In any battery powered system the voltage drops when the current consumption is high. The current consumption is high when the device is in active mode. If the battery voltage drops to below the BOD threshold while the part is in sleep mode, there will be no Flash or EEPROM corruption. The POR is active in all operating modes and will prevent the MCU from performing illegal or undefined operations inside the MCU and on the I/O pins. When the part wakes up, the BOD will trigger immediately if the voltage is to low. This ensures that no code is executed when the system behavior is undefined. With the sleeping BOD the picoPower controllers get the best of both worlds, very good protection while in active mode, and no power consumption penalty in sleep.2.2Overall power consumptionThere is no family of microcontrollers today that will have the lowest power consumption in all possible applications. Power consumption will always be dependent on the suitability of the MCU to the application. We do however claim that the AVR picoPower devices are the market leader in ultra low power technology, as it will give the lowest power consumption in the majority of applications.Comparing total power consumption for an application implemented with different controllers is a complex task. Things one has to take into consideration are energy consumed per instruction, amount of instructions needed to perform the operation, and how long time the application can stay in sleep. Depending on the level of system integration on the MCU, it might be necessary to add extra components to the design. The additional power consumption from these parts must also be added. The MSP430 BOR is an example of this. The BOR has a very slow response time and does not give sufficient protection in many high-speed systems. An external BOD is needed to ensure reliable operation, this adds to the total current consumption. The rule of thumb to reduce power consumption for all MCUs, when not considering external circuitry, is to stay in active mode for the shortest possible time, go to the deepest possible sleep-mode, and stay in the sleep mode for the longest possible time before waking up again. The time spent in active mode is very short for most low-power applications. Hence it is the power consumption in sleep that will make or break the power budget.Figure 3 Average power consumption exampleThe computational performances of the AVR and MSP430 cores are in the same range. For some applications the AVR is better, for other the MSP430 is better. As with power consumption there is no single part, or family of parts, that give the best performance for all applications. The MSP430 is a 16 bit MCU and will be better than the AVR in many applications that use 16 bit arithmetic’s, but the AVR uses fewer cycles in most other applications.AVR MCUs can run up to 25% faster than the MSP430F2xx series. In addition to this the picoPower megaAVRs has lower power consumption than TI in sleep modes and does not require an external BOD. Shorter time in active mode combined with lower power consumption in sleep gives the AVR picoPower devices lower overall power consumption than the MSP430F2xx in most ultra low power applications.Figure 4 Atmel AVR picoPower devicesFor more information about AVR picoPower see: /products/AVR/picopower/3A VR Development ToolsAtmel provides a complete range of development tools for the AVR products.3.1Tools ReferencePart Number DescriptionSoftwareAVR Studio 4.12 Front end software for AVR development toolsStarter KitsSTK500 AVR Starter Kit with AVR Studio InterfaceSTK501 Expansion of STK500 to support 64-pin megaAVR devicesSTK502 Expansion of STK500 for 64-pin LCD AVR devicesSTK503 Expansion of STK500 for 100-pin megaAVR devicesSTK504 Expansion of STK500 for 100-pin LCD AVR devicesSTK505 Expansion of STK500 for 14-pin SOIC and 20-pin PDIP AVR devicesSTK520 Expansion of STK500 for 90PWM devicesSTK525 Starter Kit for AT90USB devicesSTK1000 Starter Kit for AVR32AP7xxx devicesEvaluation Kits90EIT1 AVR Embedded Internet Tool KitAVRBFLY ATmega169 Demo Board with LCD and SpeakerAVRMC100 BLDC Motor Control with AT90PWM3AVRMC200 AC Induction Motor KitAVRMC201 Induction Motor for ATAVRMC200AVRFBKIT DALI Dimmable Fluorescent Ballast KitAVRRTOS AVR Real Time Operating System development kitPart Number Description90USBKEY AVR USB Key Demonstration KitAVRRZ200 Z-Link Demonstration KitAKSTK512-3 RemoteAccessControl – Unidirectional Kit 315 MHzAKSTK512-4 RemoteAccessControl – Unidirectional Kit 434 MHzDevelopment KitsDVK90CAN1 DVK90CAN1 Development Kit for AT90CAN devicesAVRSB100 Smart Battery Development Kit for Atmega406AVRISP2 ISP programmer for all AVR ISP devicesAVRRZ502 Z-Link RF Accessory KitAVRDRAGON Starterkit supporting On-Chip Debugging and programming for AVR. (AVR Dragon will support OCD for all AVRs with 32 kB or less Flash memory and programming for all AVRs. Sesection “AVR Studio Tools and Device Support” for current device support. More devicesupport will be available soon )EmulatorsICE50 AVR In-Circuit Emulator for all megaAVR and new tinyAVR devices.JTAGICE2 JTAGICE mkII On-Chip Debugger supporting all AVR and AVR32 with debugWIRE or JTAG interfaceJTAGPROBE JTAGICE mkII Probe including Flex CablesADAPTEST ICE50 Test AdapterADAPMEGA8 ICE50 Mega8 PDIP personality adapterADAPMEGA32 ICE50Mega8535/16/32PDIP personality adapterADAP128_TOP ICE50 Mega64/128 TQFP personality adapter (top module); requires one AT64PSKT_BOT as the bottom moduleADAP169_TOP ICE50 Mega169 TQFP personality adapter (top module); requires one AT64PSKT_BOT as the bottom moduleADAPMEGA162 ICE50 Mega8515/162 PDIP personality adapterADAPTINY26 ICE50 Tiny26 PDIP personality adapterADAPTINY13 ICE50 Tiny13 PDIP personality adapterADAPT2313 ICE50 Tiny2313 PDIP personality adapterATADAPCAN01 STK500/501 90CAN128 CAN adapterICE50MEM ICE50 memory extension card for mega2560/2561ICE50PROBE ICE40/50 Probe including Flex CablesICE50POD ICE40 and ICE50 POD replacement kit3.2AVR Studio® Tools and Device SupportAVR Studio 4.12 with the latest Service Pack supports all new Atmel debug platforms and devices. Some of the old devices are not supported. See below for a table of currently supported tools and devices in AVR Studio. This support is in progress, and the table below is not guaranteed to be complete when this is read. This information can also be found in the AVR Studio online help and on /avrThe latest AVR Studio SW can be found on: /dyn/products/tools_card.asp?tool_id=2725Device Simulator/AssemblerJTAGICEmkII Starter kitAVRDragonAVR ISPmkIIATtiny11 • STK500ATtiny12 • STK500 •ATtiny13 ••STK500 ••ATtiny15 • STK500 •ATtiny24 ••STK500 + STK505 •ATtiny25 ••STK500 ••ATtiny26 •STK500 (+ STK505) •Device Assembler mkII Starter kit Dragon mkII ATtiny261 ••STK500 (+ STK505) •ATtiny28 • STK500ATtiny44 ••STK500 + STK505 •ATtiny45 ••STK500 ••ATtiny461 ••STK500 (+ STK505) •ATtiny84 ••STK500 + STK505 •ATtiny85 ••STK500 ••ATtiny861 ••STK500 (+ STK505) •ATtiny2313 ••STK500 ••ATmega48 ••STK500 ••ATmega8 • STK500 •(Programmingonly)•ATmega88 ••STK500 ••ATmega8515 • STK500 •ATmega8535 • STK500 •ATmega16 ••STK500 ••ATmega162 ••STK500 •ATmega164P ••STK500 •ATmega165 ••STK500 + STK502 •ATmega165P ••STK500 + STK502 •ATmega168 ••STK500 ••ATmega169 ••STK500 + STK502 •ATmega169P ••STK500 + STK502 •ATmega32 ••STK500 ••ATmega324P ••STK500 •ATmega325 ••STK500 + STK502 •ATmega325P ••STK500 + STK502 ••ATmega3250 ••STK500 + STK504 •ATmega3250P ••STK500 + STK504 ••ATmega329 ••STK500 + STK502 •ATmega329P ••STK500 + STK502 ••ATmega3290 ••STK500 + STK504 •ATmega3290P ••STK500 + STK504 ••ATmega64 ••STK500 +STK501 •ATmega640 ••STK500 + STK503 •ATmega644 ••STK500 •ATmega644P ••STK500 •ATmega645 ••STK500 + STK502 •ATmega6450 ••STK500 + STK504 •ATmega649 ••STK500 + STK502 •ATmega6490 ••STK500 + STK504 •ATmega128 ••STK500 + STK501•(Programmingonly)•ATmega1280 ••STK500 + STK503 •ATmega1281 ••STK500 + STK501 •ATmega2560 ••STK500 + STK503 •ATmega2561 ••STK500 + STK501 •ATmega406 ••AT90CAN32 ••STK500 + STK501 +ATADAPCAN1•AT90CAN64 ••STK500 + STK501 +ATADAPCAN1•Device Assembler mkII Starter kit Dragon mkIIAT90CAN128 ••STK500 + STK501 +ATADAPCAN1•AT90PWM2 ••STK500 + STK520 •AT90PWM3 ••STK500 + STK520 •AT90USB646 ••STK500 + STK525 •AT90USB647 ••STK500 + STK525 •AT90USB1286 ••STK500 + STK525 •AT90USB1287 ••STK500 + STK525 •AT32AP7000 •STK1000AT32AP7001 •STK1000AT32AP7002 •STK10004DocumentationAll documents listed can be downloaded from Atmel Corporation’s web site: underthe product section. For other documentation, please send your request to avr@.4.1DatasheetsThe datasheets of all AVR devices can be downloaded.AVR: /dyn/products/datasheets.asp?family_id=607.AVR32: /dyn/products/datasheets.asp?family_id=682Family Devices LanguagePreliminary Summary Complete LastUpdate Auto AVR ATtiny25/45/85 Automotive English X X 09/2006 Auto AVR ATmega48/88/168 Automotive English X 09/2006 Auto AVR ATmega88 Automotive - 150°CSpecification - Appendix AEnglish X 09/2006 Auto AVR AT90CAN128 Automotive English X X 09/2006 CAN AVR AT90CAN32/64/128 English X X X 11/2006 CAN AVR AT90CAN128 English X X 05/2006 LCD AVR ATmega169(V English X X 07/2006 LCD AVR ATmega169(V) Chinese X X 9/04 LCD AVR ATmega329/3290/649/6490 English X X X 11/2006 USB AVR AT90USB1287/1286/646/647 English X X 02/06 Lighting AVR AT90PWM2, AT90PWM3 English X X 12/2006AVR Z-Link AT86RF230 ZigBee™/IEEE802.15.4-Transceiver English X X06/2006megaAVR ATmega48/88/168 EnglishXXX12/2006 megaAVR ATmega48/88/168 ChineseX X02/05 megaAVR ATmega8(L) English X X10/2006 megaAVR ATmega8(L) Chinese X7/04 megaAVR ATmega8515(L) English X X10/2006 megaAVR ATmega8515(L) Chinese X9/04 megaAVR ATmega8535(L) EnglishX X X10/2006 megaAVR ATmega8535(L) ChineseX X9/04 megaAVR ATmega16(L) English X X10/2006 megaAVR ATmega16(L) Chinese X10/04 megaAVR ATmega162(V) English X X 04/06 megaAVR Atmega164P/324P/644P EnglishX X X10/2006 megaAVR ATmega165(V) English X X X08/2006 megaAVR ATmega32(L) English X X10/2006 megaAVR ATmega32(L) ChineseX X09/04 megaAVR ATmega325/3250/645/6450 English X X X 11/2006Family Devices LanguagePreliminary Summary Complete LastUpdate megaAVR ATmega64(L) English X X10/2006 megaAVR ATmega64(L) ChineseX X09/04megaAVR ATmega640/1280/1281/2560/2561 English X X X09/2006megaAVR ATmega644 EnglishX X X09/2006 megaAVR ATmega128(L) English X X10/2006 megaAVR ATmega128(L) Chinese X05/04 picoPower megaAVR ATmega164P/324P/644P English X X X09/2006 picoPower megaAVR ATmega165P(V) EnglishXXX11/2006 picoPower megaAVR ATmega325P/3250P English X X X 12/2006picoPower LCD megaAVR ATmega169P(V) EnglishXXX11/2006picoPower LCD megaAVR ATmega329P/3290P EnglishXXX12/2006Smart Battery AVR ATmega406 English X X X 07/2006 tinyAVR ATtiny11/12 English XX07/2006 tinyAVR ATtiny13 EnglishXXX10/04 tinyAVR ATtiny13 ChineseX X04/04 tinyAVR ATtiny15L English XX06/05 tinyAVR ATtiny2313 EnglishXXX04/2006 tinyAVR ATtiny2313 ChineseX X07/04 tinyAVR ATtiny24/44/84 EnglishXXX09/2006 tinyAVR ATtiny25/45/85 EnglishXXX12/2006 tinyAVR ATtiny26(L) English XX10/2006 tinyAVR ATtiny26(L) ChineseX X12/03 tinyAVR ATtiny261/461/861 EnglishXXX11/2006 tinyAVR ATtiny28(L)(V) English XX07/2006USB AVR AT90USB1286, AT90USB1287,AT90USB646, AT90USB647 English X X07/2006USB AVR USB DFU Bootloader Datasheet English 04/06 AVR32 AT32AP7000 EnglishXXX10/2006 AVR32 AVR32 Architecture Manual English X X 02/06AVR32 AVR32 Technical ReferenceManual English X X06/2006AVR32 AVR32 Java Technical ReferenceManual English X X10/20064.2Application NotesThe application notes for all AVR devices can be downloaded.AVR: /dyn/products/app_notes.asp?family_id=607AVR32: /dyn/products/app_notes.asp?family_id=682Note Number Description Last Update AVR000 Register and Bit-Name Definitions for the AVR Microcontroller 4/98 AVR001 Conditional Assembly and Portability Macros 3/05 AVR030 Getting Started with IAR Embedded Workbench for Atmel AVR 10/04 AVR031 Getting Started with ImageCraft C for AVR 5/02 AVR032 Linker Command Files for the IAR ICCA90 Compiler 5/02 AVR033 Getting Started with the CodeVision AVR C Compiler 5/02 AVR034 Mixing C and Assembly Code with AVR Embedded Workbench for AVR 4/03 AVR035 Efficient C Coding for AVR 1/04 AVR040 EMC Design Considerations 06/2006 AVR042 AVR Hardware Design Considerations 06/2006 AVR053 Calibration of the Internal RC Oscillator 05/2006Note Number Description Last Update AVR054 Run-time calibration of the internal RC oscillator 02/2006 AVR055 Using a 32kHz XTAL for run-time calibration of the internal RC 02/2006 AVR060 JTAGICE 01/04 Protocol 4/03 AVR061 STK500AVR063 LCD Driver for the STK®504 04/2006 AVR064 STK502 – A Temperature Monitoring System with LCD Output 02/2006 AVR065 LCD Driver for the STK502 02/2006 AVR067 JTAGICE mkII Communication Protocol 04/2006 AVR068 STK500 Communication Protocol 06/2006 AVR069 AVRISP mkII Communication Protocol 02/2006 AVR070 Modifying AT90ICEPRO to Support Emulation of AT90 5/02 AVR072 Accessing 16-bit I/O Registers 5/02 AVR073 Accessing 10- and 16-bit registers in ATtiny261/461/86112/2006 AVR074 Upgrading AT90ICEPRO to ICE10 5/02 AVR080 ATmega103 Replaced by ATmega128 01/04 AVR081 ReplacingAT90S4433 by ATmega8 7/03ATmega161 by ATmega162 01/04 AVR082 ReplacingATmega163 by ATmega16 09/05 AVR083 ReplacingAVR084 ReplacingATmega323 by ATmega32 7/03AT90S8515 by ATmega8515 1/04 AVR085 ReplacingAVR086 ReplacingAT90S8535 by ATmega8535 7/03 AVR087 Migrating between ATmega8515 and ATmega162 7/03 AVR088 Migrating between ATmega8535 and ATmega16 1/04 AVR089 Migrating between ATmega16 and ATmega32 6/03 AVR090 Migrating between ATmega64 and ATmega128 6/03 AVR091 Replacing AT90S2313 by ATtiny2313 10/03 AVR092 Replacing ATtiny11/12 by ATtiny13 10/03 AVR093 Replacing AT90S1200 by ATtiny2313 10/03 ATmega8 by ATmega88 4/05 AVR094 ReplacingAVR095 Migrating between ATmega48, ATmega88 and ATmega168 2/04 AVR096 Migrating from ATmega128 to AT90CAN128 3/04 AVR097 Migration between Atmega128 and ATmega2561 07/2006 AVR098 Migration between ATmega169, ATmega329 and ATmega649 04/2006 AT90S4433 by ATmega48 07/04 AVR099 ReplacingEEPROM 09/05 AVR100 AccessingtheAVR101 High Endurance EEPROM Storage 9/02 AVR102 BlockRoutines 5/02 AVR103 Using the EEPROM Programming Modes 3/05 AVR104 Buffered Interrupt Controlled EEPROM Writes 7/03 AVR105 Power Efficient High Endurance Parameter Storage in Flash Memory 9/03 AVR106 C functions for reading and writing to Flash memory 08/2006 AVR107 Interfacing AVR serial memories 3/05 AVR108 Setup and Use of the LPM Instructions 5/02 AVR109 Self-programming 6/04 AVR120 Characterization and Calibration of the ADC on an AVR 02/2006 AVR121 Enhancing ADC resolution by oversampling 09/05 AVR128 Setup and Use the Analog Comparator 5/02 AVR130 Setup and use the AVR Timers 2/02 AVR131 Using the AVR’s High-speed PWM 9/03 AVR132 Using the Enhanced Watchdog Timer 11/03 AVR133 Long Delay Generation Using the AVR Microcontroller 2/04 AVR134 Real-Time Clock using the Asynchronous Timer 08/2006 AVR135 Using Timer Capture to Measure PWM Duty Cycle 10/2005 AVR136 Low-jitter Multi-channel Software PWM05/06 AVR137 Writing Software Compatible for AT90PWM2/3 and AT90PWM2B/3B12/2006family run-time calibration of the Internal RC oscillator09/2006 AVR140 ATmega48/88/168Note Number Description Last Update AVR151 Setup and use of the SPI 09/05 AVR155 Accessing I2C LCD Display Using the AVR 2-Wire Serial Interface 09/05 AVR180 External Brown-Out Protection 5/02 AVR182 Zero Cross Detector 1/04 AVR191 Anti-Pinch Algorithm for AVR Adaptation Procedure11/2006 AVR200 Multiply and Divide Routines 05/2006 AVR201 Using the AVR Hardware Multiplier 6/02 Arithmetic 5/02 AVR202 16-BitArithmetic 1/03 AVR204 BCDAVR220 BubbleSort 5/02 AVR221 Discrete PID controller 05/2006 AVR222 8-Point Moving Average Filter 5/02 AVR223 Digital Filters with AVR 9/02 Bootloader 4/05 AVR230 DESBootloader 08/2006 AVR231 AESAVR236 CRC Check of Program Memory 5/02 AVR240 4x4 Keypad-Wake Up on Keypress 06/2006 AVR241 Direct driving of LCD display using general I/O 5/04 AVR242 8-bit Microcontroller Multiplexing LED Drive & a 4x4 Keypad 5/02 AVR243 Matrix Keyboard Decoder 1/03 AVR244 UART as ANSI Terminal Interface 11/03 AVR245 Code Lock with 4x4 Keypad and I2C™ LCD 10/2005 AVR270 USB Mouse Demonstration 02/2006Demonstration 02/2006 KeyboardAVR271 USBAVR272 USB CDC Demonstration UART to USB Bridge 04/2006 AVR273 USB Mass Storage Implementation 04/2006 AVR301 C Code for Interfacing AVR® to AT17CXX FPGA Configuration Memory 1/04Gateway 3/05 AVR303 SPI-UARTAVR304 Half Duplex Interrupt Driven Software UART 8/97 AVR305 Half Duplex Compact Software UART 09/05 AVR306 Using the AVR UART in C 7/02 AVR307 Half Duplex UART Using the USI Module 10/03 AVR308 Software LIN Slave 5/02 AVR309 Software Universal Serial Bus (USB) 02/2006 AVR310 Using the USI Module as a I2C Master 9/04 AVR311 Using the TWI Module as a I2C Slave 10/04 AVR312 Using the USI Module as a I2C Slave 09/05 AVR313 Interfacing the PCAT Keyboard 09/05 AVR314 DTMFGenerator 5/02 AVR315 Using the TWI Module as a I2C Master 10/04 AVR316 SMBus Slave Using the TWI Module 10/2005 AVR317 Using the USART on the ATmega48/88/168 as a SPI master 11/04 AVR318 Dallas 1-Wire® Master 10/04 AVR319 Using the USI module for SPI communication 11/04 AVR320 Software SPI Master 09/05 AVR322 LIN v1.3 Protocol Implementation on Atmel AVR Microcontrollers 12/05 AVR323 Interfacing GSM modems02/2006 AVR325 High-Speed Interface to Host EPP Parallel Port 2/02 AVR328 USB Generic HID Implementation 1/06 AVR329 USB Firmware Architecture 02/2006 AVR335 Digital Sound Recorder with AVR and Serial Data Flash 4/05 AVR336 ADPCMDecoder 1/05Utility for AVR 09/05ReceiveAVR350 XmodemCRCAVR360 Step Motor Controller 4/03 AVR400 Low Cost A/D Converter 5/02 AVR401 8-Bit Precision A/D Converter 2/03Note Number Description Last Update AVR410 RC5 IR Remote Control Receiver 5/02 AVR411 Secure Rolling Code Algorithm for Wireless Link04/06 AVR414 User Guide - ATAVRRZ502 - Accessory Kit12/2006 AVR415 RC5 IR Remote Control Transmitter 5/03 AVR433 Power Factor Corrector (PFC) with AT90PWM2 Re-triggable High Speed PSC 03/2006 AVR434 PSC Cookbook 10/2006 AVR435 BLDC/BLAC Motor Control Using a Sinus Modulated PWM Algorithm 09/2006 AVR440 Sensorless Control of Two-Phase Brushless DC Motor 09/05 AVR441 Intelligent BLDC Fan Controller with Temperature Sensor and Serial Interface 9/05 AVR442 PC Fan Control using ATtiny13 9/05 AVR443 Sensor-based control of three phase Brushless DC motor 02/2006 AVR444 Sensorless control of 3-phase brushless DC motors 10/2005 AVR446 Linear speed control of stepper motor06/200606/2006 AVR447 Sinusoidal driving of three-phase permanent magnet motor usingATmega48/88/168AVR448 Control of High Voltage 3-Phase BLDC Motro 05/2006 AVR449 Sinusoidal driving of 3-phase permanent magnet motor using ATtiny261/461/86110/2006 AVR450 Battery Charger for SLA, NiCd, NiMH and Li-ion Batteries 09/2006 AVR452 Sensor-based Control of Three Phase Brushless DC Motors Using CAN128 64 3203/2006 or mega128 64 usiAVR453 Smart Battery Reference Design 02/2006 AVR454 Users Guide – ATAVRSB100 – Smart Battery Development Board 06/2006Server 5/02 WebAVR460 EmbeddedAVR461 Quick Start Guide for the Embedded Internet Toolkit 5/02 AVR462 Reducing the Power Consumption of ATEIT1 3/02 meter 7/04 AVR465 EnergyAVR480 Anti-Pinch System for Electrical Window 12/2006 AVR492 Brushless DC Motor Control using AT90PWM3 7/0507/2006 AVR493 Sensorless Commutation of Brushless DC Motor (BLDC) using AT90PWM3 andATAVRMC10012/05 AVR494 AC Induction Motor Control Using the constant V/f Principle and a Natural PWMAlgorithm02/2006 AVR495 AC Induction Motor Control Using the Constant V/f Principle and a Space-vectorPWM AlgorithmAVR500 Migration between Atmega64 and Atmega645 9/04 AVR501 Replacing ATtiny15 with ATtiny25 3/05 AVR502 Migration between Atmega165 and ATmega325 11/04 AVR503 Replacing AT90S/LS2323 or AT90S/LS2343 with ATtiny25 09/05 AVR504 Migrating from ATtiny26 to ATtiny261/461/861 10/2006 AVR505 Migration between Atmega16/32 and ATmega164/324/644 06/2006Atmega169 to ATmega169P 06/2006 AVR506 MigrationfromAVR507 Migration from ATmega329 to ATmega329P 11/2006ATmega644 to ATmega644P 07/2006 AVR508 MigrationfromAVR509 Migration between ATmega169P and ATmega329P 11/2006 AVR510 Migration between ATmega329/649 and ATmega3290/649007/2006 AVR511 Migration from ATmega3290 to ATmega3290P11/2006 AVR910 In-SystemProgramming 11/00 AVR911 AVR Open-source Programmer 7/0405/2006 AVR914 CAN & UART based Bootloader for AT90CAN32, AT90CAN64, &AT90CAN128AVR32000Introduction to AVR32 header files05/2006 AVR32100 Using the AVR32 USART 4/06 AVR32101 Configuring the AVR32 Interrupt Controller 4/06 AVR32102Using the AVR32 SDRAM Controller05/2006 AVR32105Master and Slave SPI Driver05/2006 AVR32107 Using TWI as a master on the AVR32 4/06Note Number Description Last Update AVR32108Peripheral Direct Memory Access Driver05/2006 AVR32110Using the AVR32 Timer/Counter05/2006 AVR32111Using the AVR32 PIO Controller05/2006 AVR32113Configuration and Use of the Memory Management Unit09/2006© 2007 Atmel Corporation. All Rights Reserved. Atmel®, logo and combinations thereof, Everywhere You Are®,AVR® , Z-Link® and others,are registered trademarks, picoPower™ and others are trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.。

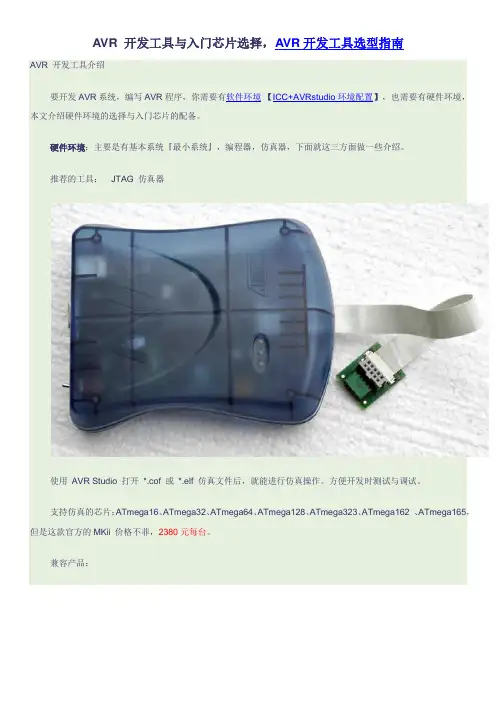

AVR 开发工具与入门芯片选择，AVR开发工具选型指南AVR 开发工具介绍要开发AVR系统，编写AVR程序，你需要有软件环境【ICC+AVRstudio环境配置】，也需要有硬件环境，本文介绍硬件环境的选择与入门芯片的配备。

硬件环境：主要是有基本系统『最小系统』，编程器，仿真器，下面就这三方面做一些介绍。

推荐的工具：JTAG 仿真器使用AVR Studio 打开*.cof 或*.elf 仿真文件后，就能进行仿真操作。

方便开发时测试与调试。

支持仿真的芯片：ATmega16、ATmega32、ATmega64、ATmega128、ATmega323、ATmega162 、ATmega165，但是这款官方的MKii 价格不菲，2380元每台。

兼容产品：推荐原因：1.这是本网站最新开发的功能小板，考虑到了实际中的不同应用场合的需要。

2.本网站的新手入门系列范例，及即将公布的系列应用范例，均以这块小板作为开发板。

3.这块小板集成了以下的功能：(1).采用3v3/5V 电压，两种电压可随意切换。

供电输入电压7.5V-9V，可使用本网站推荐的9V开关电源。

(2).外晶振7.3728M(3).复位电路与按钮(4).集成串行接口，串行口在各种各样的工程中被广泛使用。

(5).ISP接口(6).JTAG接口(7).小板的输出为标准的M16直插封装，小板可以直接插在普通的IC座上，方便实验。

(8).标准的排针孔，我们提供排针（未焊接）。

你也可以做他用，方便可靠。

4.由于上面的M16功能小板已经集成了许多必须的功能，故真正应用时，大家只需要关心应用线路, 故应用PCB板可以做得很简单。

请点击此处查看本网站提供的详细技术资料(包括电路图等)推荐的开发板：增强版AVR开发板，支持Mega16，Mega32，AT90S8535/AVR_ATmega16_ATmega32_AT90S8535.html增强版AVR mega16/32开发板是AVR与虚拟仪器全新开发的一款AVR开发板，适应芯片AT90S8535，ATmega16，ATmega32。

简易AVR单片机教程简介AVR单片机是一种低功耗、高性能的微控制器，由Atmel公司开发并广泛应用于嵌入式系统的开发中。

本教程将介绍AVR单片机的基本知识以及编程技巧，帮助初学者快速入门。

目录1.AVR单片机概述2.硬件基础– 2.1 芯片选型– 2.2 电路设计– 2.3 连接方式3.编程环境搭建– 3.1 AVR Studio– 3.2 AVR编程语言– 3.3 编译与烧录4.基本功知识– 4.1 GPIO控制– 4.2 定时器与计数器– 4.3 中断处理5.进阶内容– 5.1 PWM控制– 5.2 串口通信– 5.3 ADC模数转换6.实例项目– 6.1 LED灯控制– 6.2 电机控制– 6.3 温湿度监测1. AVR单片机概述AVR（Alf-Egil Bogen, Vegard Wollan, Ragnar Melland）单片机是Atmel公司推出的一款低功耗高性能的微控制器。

它采用RISC架构，具有较高的运算速度和较低的功耗。

由于其易于学习和使用的特点，AVR单片机被广泛应用于嵌入式系统的开发中。

2. 硬件基础2.1 芯片选型在开始使用AVR单片机之前，我们首先需要选择合适的芯片。

Atmel公司生产了多种型号的AVR单片机，各具特色。

在选择芯片时，我们需要考虑以下几个因素：•项目需求：根据项目的具体需求（如GPIO数量、模拟输入输出等），选择适合的芯片型号。

•价格：芯片的价格也是选择的一个重要因素，需要根据项目的预算进行合理选择。

•开发工具支持：确保选择的芯片在目标开发工具中有良好的支持，以便后期开发和调试。

2.2 电路设计在使用AVR单片机之前，我们还需要进行电路设计。

简单的AVR 单片机电路设计包含以下几个关键组成部分：•电源电路：AVR单片机需要稳定的电源来正常工作。

一般使用电源滤波电容、稳压电路等来提供稳定的电压。

•复位电路：AVR单片机上电时需要复位，复位电路可通过连接一个复位电阻和电容实现。

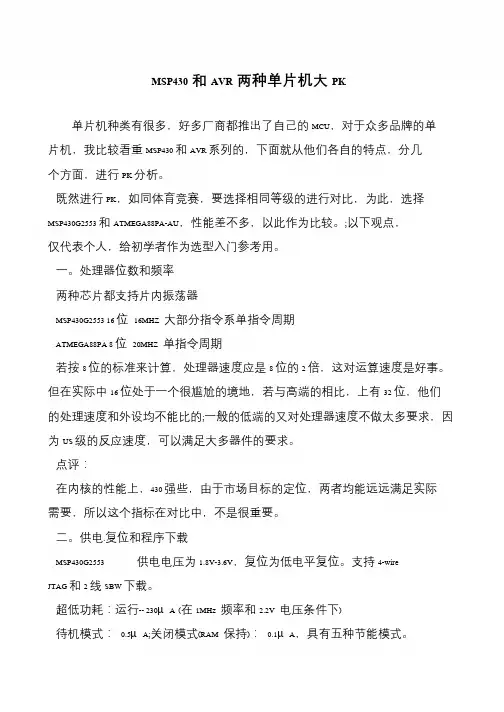

MSP430 和AVR 两种单片机大PK
单片机种类有很多，好多厂商都推出了自己的MCU，对于众多品牌的单片机，我比较看重MSP430 和AVR 系列的，下面就从他们各自的特点，分几个方面，进行PK 分析。

既然进行PK，如同体育竞赛，要选择相同等级的进行对比，为此，选择MSP430G2553 和ATMEGA88PA-AU，性能差不多，以此作为比较。

;以下观点，仅代表个人，给初学者作为选型入门参考用。

一。

处理器位数和频率
两种芯片都支持片内振荡器
MSP430G2553 16 位16MHZ 大部分指令系单指令周期
ATMEGA88PA 8 位20MHZ 单指令周期
若按8 位的标准来计算，处理器速度应是8 位的2 倍，这对运算速度是好事。

但在实际中16 位处于一个很尴尬的境地，若与高端的相比，上有32 位，他们的处理速度和外设均不能比的;一般的低端的又对处理器速度不做太多要求，因为US 级的反应速度，可以满足大多器件的要求。

点评：。

51、AVR、PIC、MSP430、ARM五大单片机全解析8051单片微型计算机简称为单片机，又称为微型控制器，是微型计算机的一个重要分支。

单片机是70年代中期发展起来的一种大规模集成电路芯片，是CPU、RAM、ROM、I/O接口和中断系统于同一硅片的器件。

80年代以来，单片机发展迅速，各类新产品不断涌现，出现了许多高性能新型机种，现已逐渐成为工厂自动化和各控制领域的支柱产业之一。

AVR和PIC都是跟8051结构不同的8位单片机，因为结构不同，所以汇编指令也有所不同，而且区别于使用CISC指令集的8051，他们都是RISC指令集的，只有几十条指令，大部分指令都是单指令周期的指令，所以在同样晶振频率下，较8051速度要快。

另PIC的8位单片机前几年是世界上出货量最大的单片机，飞思卡尔的单片机紧随其后。

ARM实际上就是32位的单片机，它的内部资源（寄存器和外设功能）较8051和PIC、AVR都要多得多，跟计算机的CPU芯片很接近了。

常用于手机、路由器等等。

DSP其实也是一种特殊的单片机，它从8位到32位的都有。

它是专门用来计算数字信号的。

在某些公式运算上，它比现行家用计算机的最快的CPU还要快。

比如说一般32位的DSP能在一个指令周期内运算完一个32位数乘32位数积再加一个32位数。

应用于某些对实时处理要求较高的场合。

AVR高可靠性、功能强、高速度、低功耗和低价位指标，也是单片机占领市场、赖以生存的必要条件。

早期单片机主要由于工艺及设计水平不高，一直是衡量单片机性能的重要、功耗高和抗干扰性能差等原因，所以采取稳妥方案：即采用较高的分频系数对时钟分频，使得指令周期长，执行速度慢以后的CMOS单片机虽然采用提高时钟频率和缩小分频系数等措施，但这种状态并未被彻底改观（51以及51兼容）。

此间虽有某些精简指令集单片机（RISC）问世，但依然沿袭对时钟分频的作法。

AVR单片机的推出，彻底打破这种旧设计格局，废除了机器周期，抛弃复杂指令计算机（CISC）追求指令完备的做法；采用精简指令集，以字作为指令长度单位内容丰富的操作数与操作码安排在一字之中（指令集中占大多数的单周期指令都是如此），取指周期短，又可预取指令，实现流水作业，故可高速执行指令。
