2011北京现代雅尊AZERA(TG)G3.8维修手册(英文版)

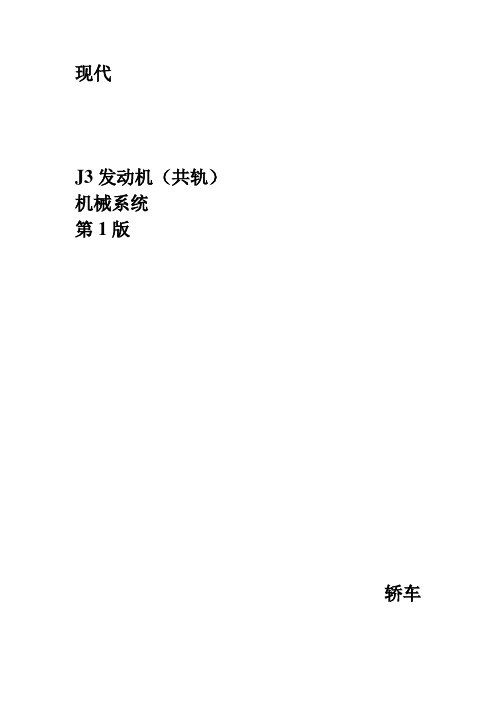

现代J3发动机（共轨）机械系统第1版轿车前言本维修服务培训手册专为授权的现代汽车公司经销商的维修技师熟悉现代发动机而编制。

我们的目的是增进维修服务人员的技能和知识水平，以便有效和高效地进行故障诊断和修理。

Chonan技术维修服务培训中心的目标是提供有成效的技术维修服务培训以期实现一个具有竞争力的维修服务质量标准。

最终因售后服务和支持素质的提高而获得最大的用户满意度。

关于详细的修理和装配程序，请参阅相关的车间手册。

©现代汽车公司版权所有保留所有权利。

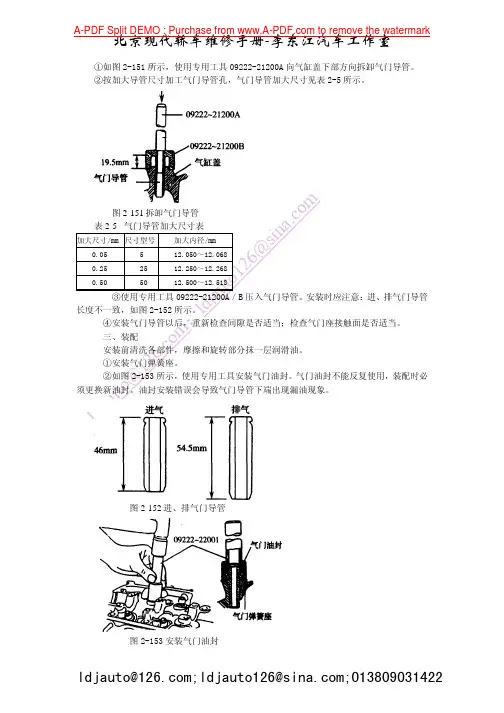

Chonan技术维修服务培训中心http://training.co.krtraining@hmc.co.kr现代发动机机械系统发动机（KJ2.9 TCI DOHC柴油共轨系统）·································· EM-2 润滑系统····················································································EM-52 冷却系统·····················································································E M59 进气和排气系统 ·········································································EM-65EM-2 发动机（KJ2.9TC DOHC柴油共轨系统）专用维修工具发动机专用维修工具0K130 990 007发动机工作台用于拆装发动机。

维修保养2008-06-02 21:06北京现代汽车华德特约销售服务店,是经北京现代汽车有限公司授权,珠海地区唯一的北京现代汽车4S特约销售服务店。

是集韩国现代汽车销售、维修、配件销售和汽车技术培训四位一体的专业化企业。

公司地处珠海市香洲区，占地7489.33平米。

公司交通便利，拥有现代化厂房，环境优雅。

本公司的核心经营理念为：“顾客满意为我们的最高宗旨”。

以一流的质量，合理的价格，周到的服务，完善的管理体系服务于现代汽车用户。

使代表最高设计理念及制造水平的现代汽车品牌在本企业得到与其品牌相符合的全面服务。

保修规定1．整车保修1）保修期普通顾客自用车为：自购车之日起24个月或6万公里。

用于出租公司运营的车辆为：自购车之日起12个月或10万公里。

以上两项指标以先到者为准。

2）保修规定的适用范围由北京现代汽车有限公司生产或供应的用于汽车上的零部件，被发现有材料或制造上的缺陷。

2．零件保修在保修期内的车辆，其零件的保修期与整车保修期相同。

超过保修期的车辆，更换零件的保修期为自更换之日起12个月内。

在零件保修期内因零件本身存在质量缺陷造成不能正常使用的给予免费更换。

保修更换下的零件归北京现代汽车有限公司所有。

3．本保修规定只与车辆有关，不因车辆易主而终止。

4．本条例解释权归北京现代汽车有限公司所有。

二、强制保养有关强制保养的规定1、行驶里程及时间要求：5000公里/6个月2、强制保养的项目：北京现代汽车有限公司5000公里首次保养检查项目区分检查项目检查事项1 检查各种油机油更换机油（SH级）与机油滤芯制动液检查，必要时添加.变速箱油检查，必要时添加.动力转向油检查，必要时添加.2 检查发动机各种传感器等检查是否正常工作，必要时更换皮带检查，必要时调整火花塞检查3 检查冷却系统软管及连接部位检查是否漏水，必要时拧紧或更换冷却液箱检查冷却液液面，必要时添加4 检查制动系统制动管路及软管包括ABS系统检查是否漏油，有无磨损制动分泵检查是否正常工作，有无磨损制动钳及制动衬片检查厚度和差异驻车制动器检查是否正常工作，必要时调整5 检查LPG系统仅限LPG车辆 LPG钢瓶检查液化气加气状态，计量器是否正常各种阀，连接部位检查液化气是否泄露，必要时采取措施6 转向/悬挂装置相关配件检查有无磨损及有无异常噪音7 轮胎轮胎（包括备胎）检查轮胎有无磨损以及轮胎气压8 其他电子装置（包括各种灯具、仪表）是否正常工作，有效附加装置（操作开关、空调等）是否正常工作，有效电瓶是否正常工作，有效三、保修范围由北京现代生产、供应的车辆和零部件，在正常使用、保养条件下发现有材料或制造工艺缺陷的。

3－3 二级腔部分◆拧紧力矩——13 Nm ◆分别拧下连接钢带和钢瓶支架连接件的螺栓上的螺母，取下螺栓，松开钢带，即可取出钢瓶。

◆检查钢瓶与钢瓶支架间、与连接件间、与钢带间的柔性胶垫，必要时更换。

注意：拆卸钢瓶前必须先关闭钢瓶上的手动截止阀门，燃尽高压管路内剩余的气体燃料（见减压器拆卸部分），然后拆卸与气瓶阀门相连的高压钢管。

拆卸地点及周是否合格？是是否合格？是是否合格？是是否合格？是是否顺利启动？是是否顺利启动？是否转换成功？转换瞬间减压器电磁阀是否电磁阀线圈是否通电？开启？高频电磁阀组是否工作？燃气怠速是否平稳？★运转不平稳、动力不足、发吐热车时间是否足够？是喷油嘴是否关闭不严？否火花塞是否已累计行驶3万公里？空气滤清器是否已累计使用3万公里？检查节气门或怠速控制机构是否过脏？否故障是否排除？否故障是否排除？否4气缸缸压是否达标(参见发动机维修标准)？否是否发出啸叫声？）高压柱塞是否有擦痕？有无怠速通道是否畅通？否用细砂纸小心打磨有擦痕的高压柱塞或更换高压柱塞和高压柱塞座(上图件14)，用少许润滑油润滑高压柱塞和高压柱塞座更换辅助调压阀芯、辅助调压弹簧和辅助调节压帽，用少许润滑油润滑辅助调压阀芯、辅助调压弹簧和辅助调节压帽检查阀体（3）分配气接头（10）、温度传感器是（4）、压力传感器（7）、以及除Ｏ形圈（8）之外的其它Ｏ形圈是否有影响安装和更换损伤的零件参见本手册（减压器维护）相应。

进 化由内而外的全面革新不可逆转的进步本能以科技与美学之名超越雷同、庸常与不可能向未来深处全速前进全新雅尊，睿智启程新.骑士风范全新雅尊，从骑士甲胄中汲取设计灵感，以富有力量感与肌肉感的强健线条，勾勒出高贵、睿智、专注进取的革新者形象。

长轴距及短悬垂的设计，形成了更加优美侧面曲线，彰显一往无前的运动天赋。

新.奋进之心对于革新者而言，超越是一门已然熟稔的技艺。

沉稳气度下，一颗始终澎湃的“芯”始终蓄势待发，启动，加速，领先已成胜势。

第二代高性能引擎与6速手自一体变速器相得益彰，为全新雅尊提供卓越的操控及动力性能。

6速手自一体变速箱6速手自一体变速箱提供更稳定的变速感和优秀的燃油经济性能。

使用节能技术的半永久性变速器油无须频繁更换及补充，使其使用起来更为方便，大幅提升了经济性。

智能钥匙&一键启动接近汽车时，智能钥匙会自动打开侧灯，展开车外后视镜。

车主轻触门把手打开车门时，车内灯、车内氛围心情灯及脚灯也将自动点亮。

进入车内，驾驶者只需触摸启动按键即可启动发动机。

第二代Theta(θ) 2.4 MPI 发动机类型：双顶置凸轮轴D-CVVT 发动机排量：2,359cc 最大功率(KW/rpm )：132(180ps)/6,000最大扭矩(N.M/rpm)：231(23.6kg .m)/4,000可变阻尼减震器(ASD)通过自动变换减震器阻尼力，适应不同的平滑及崎岖不平的路面情况，在确保驾驶稳定性的同时也增强了驾乘舒适性。

前麦弗逊式悬架麦弗逊式前悬架能够增强轮胎的抓地力，保障车辆行驶的平稳。

后多连杆式悬架后轮使用的多连杆式悬架，能够有效提高车辆在行进及刹车时的稳定性，将车辆的不稳定性降到最低。

245/45 R18合金轮毂大尺寸车轮增强了车辆的运动力，并保证更优秀的刹车表现。

225/55 R17钻石切割合金轮毂提供卓越的摩擦力，在不同路况下始终保证驾驶的稳定性。

225/55 R17合金轮毂高性能轮胎，提供强劲的运动力与刹车的稳定性。
